The document discusses the potential for killer apps on the Semantic Web. It outlines key Semantic Web standards like RDF, SPARQL, and OWL that add meaning to data on the web. Examples are given of semantic data from sites like BestBuy, Facebook, LinkedIn, and IMDB. Current Semantic Web applications are presented in areas like finance, mapping, email, and data visualization. The document argues that as more data becomes linked and understandable by machines, new and useful applications can be imagined in domains like social media, transportation, and entertainment. The vision is that as the Semantic Web continues to grow, it will unlock new possibilities limited only by our imaginations.

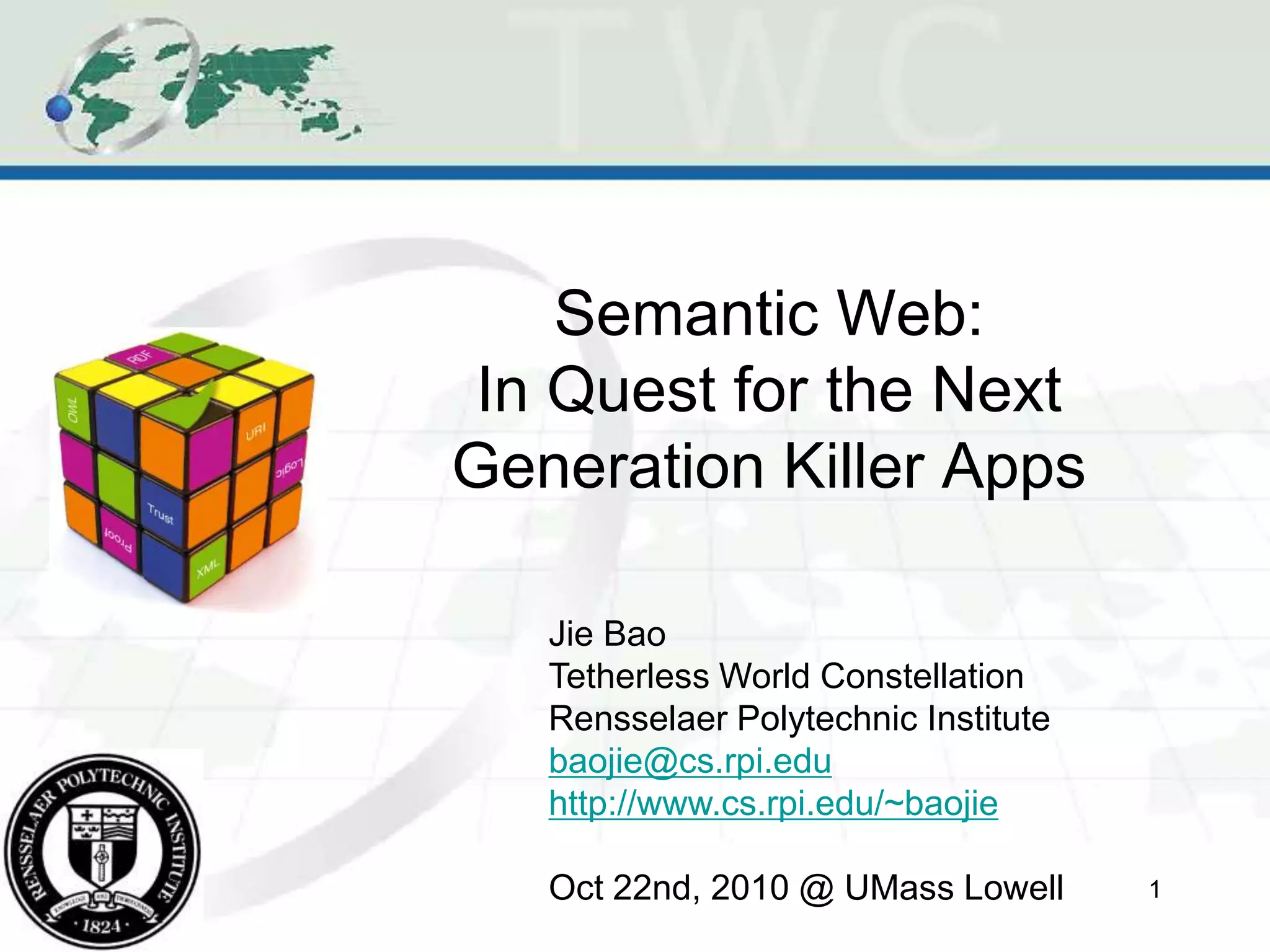

1. Semantic Web:
In Quest for the Next
Generation Killer Apps
Jie Bao
Tetherless World Constellation
Rensselaer Polytechnic Institute
baojie@cs.rpi.edu
http://www.cs.rpi.edu/~baojie
Oct 22nd, 2010 @ UMass Lowell 1

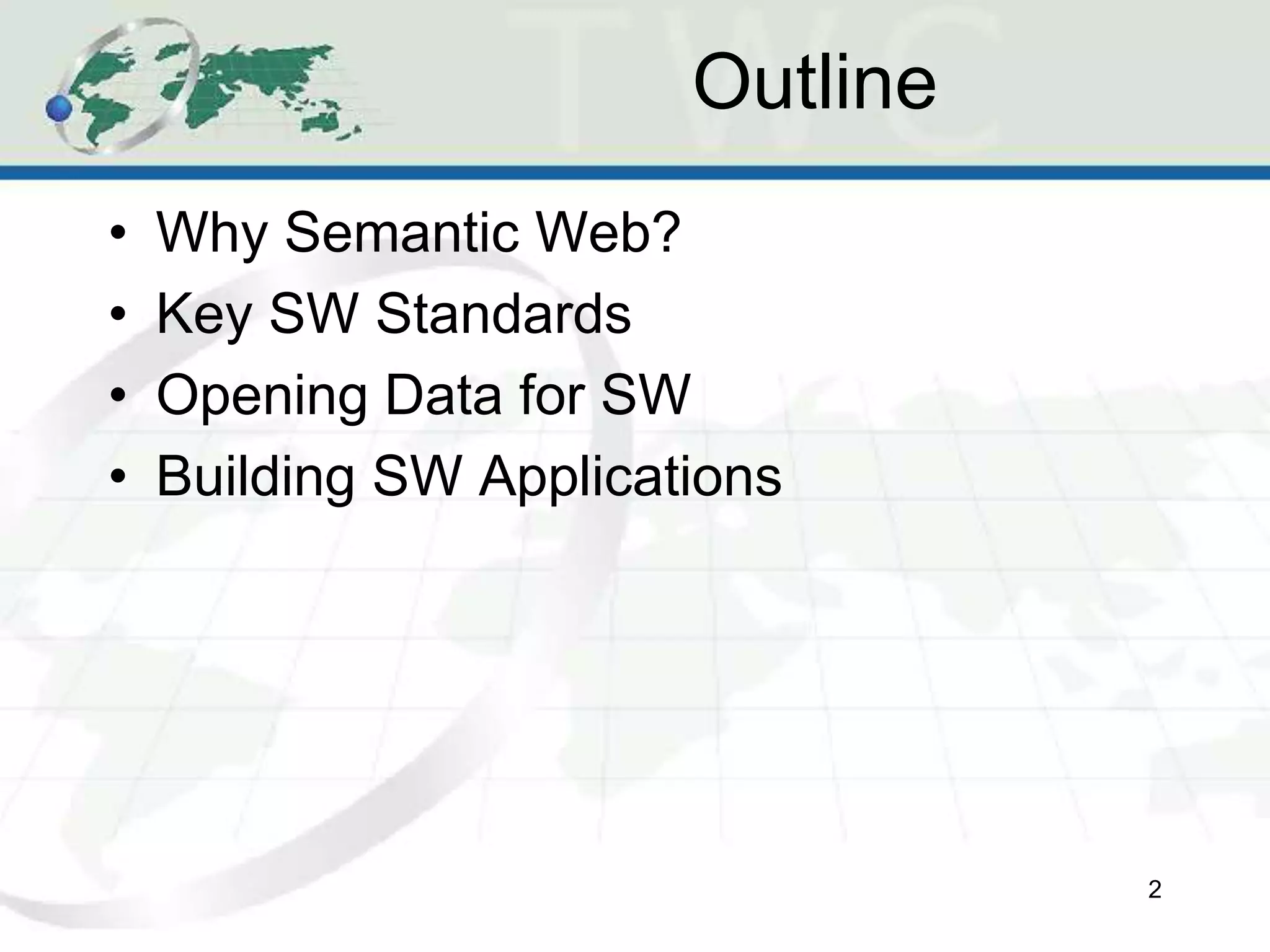

2. Outline
• Why Semantic Web?
• Key SW Standards
• Opening Data for SW
• Building SW Applications
2

3. What is a Killer App ?
3

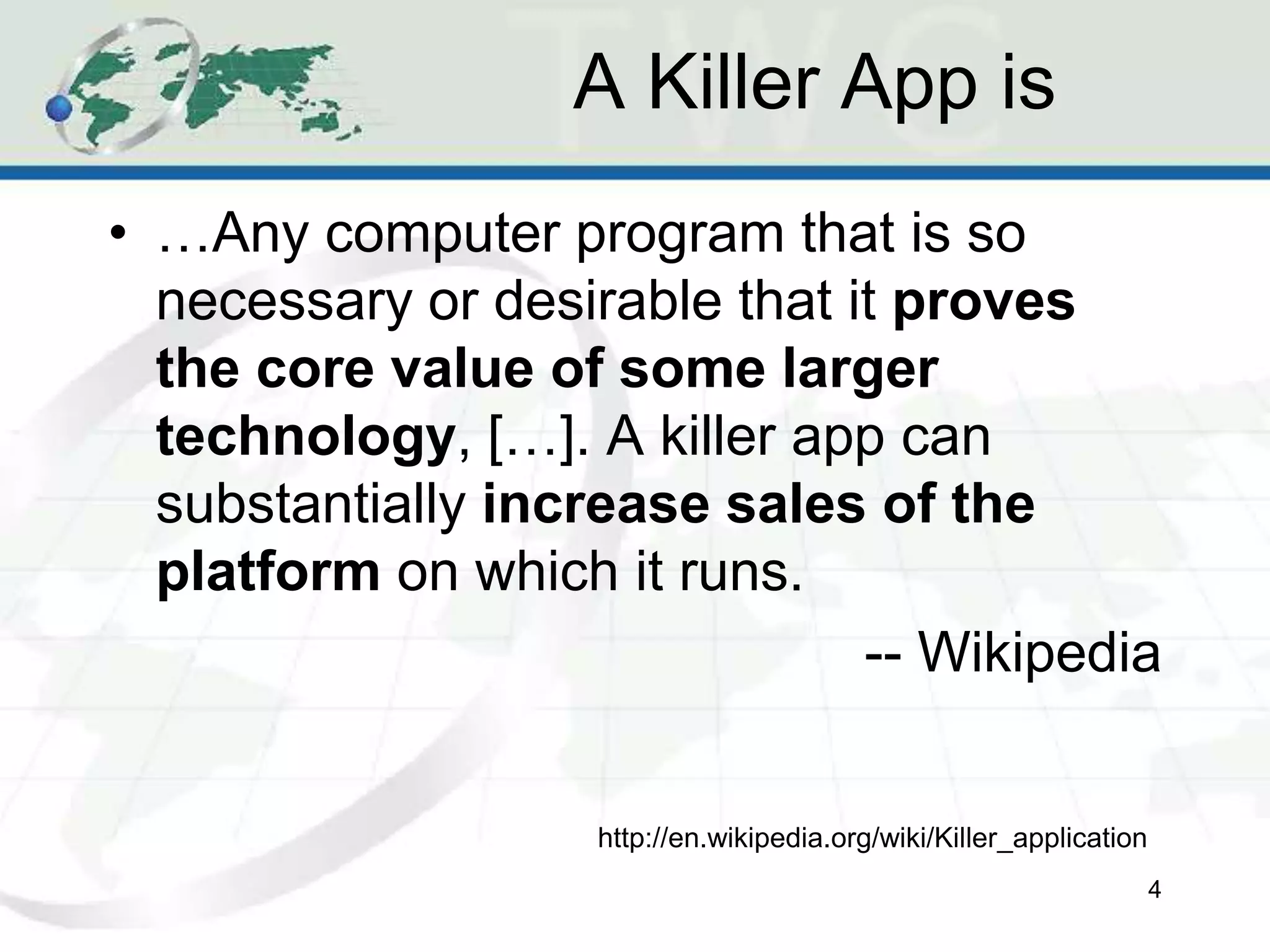

4. A Killer App is
• …Any computer program that is so
necessary or desirable that it proves
the core value of some larger
technology, […]. A killer app can
substantially increase sales of the
platform on which it runs.
-- Wikipedia
4
http://en.wikipedia.org/wiki/Killer_application

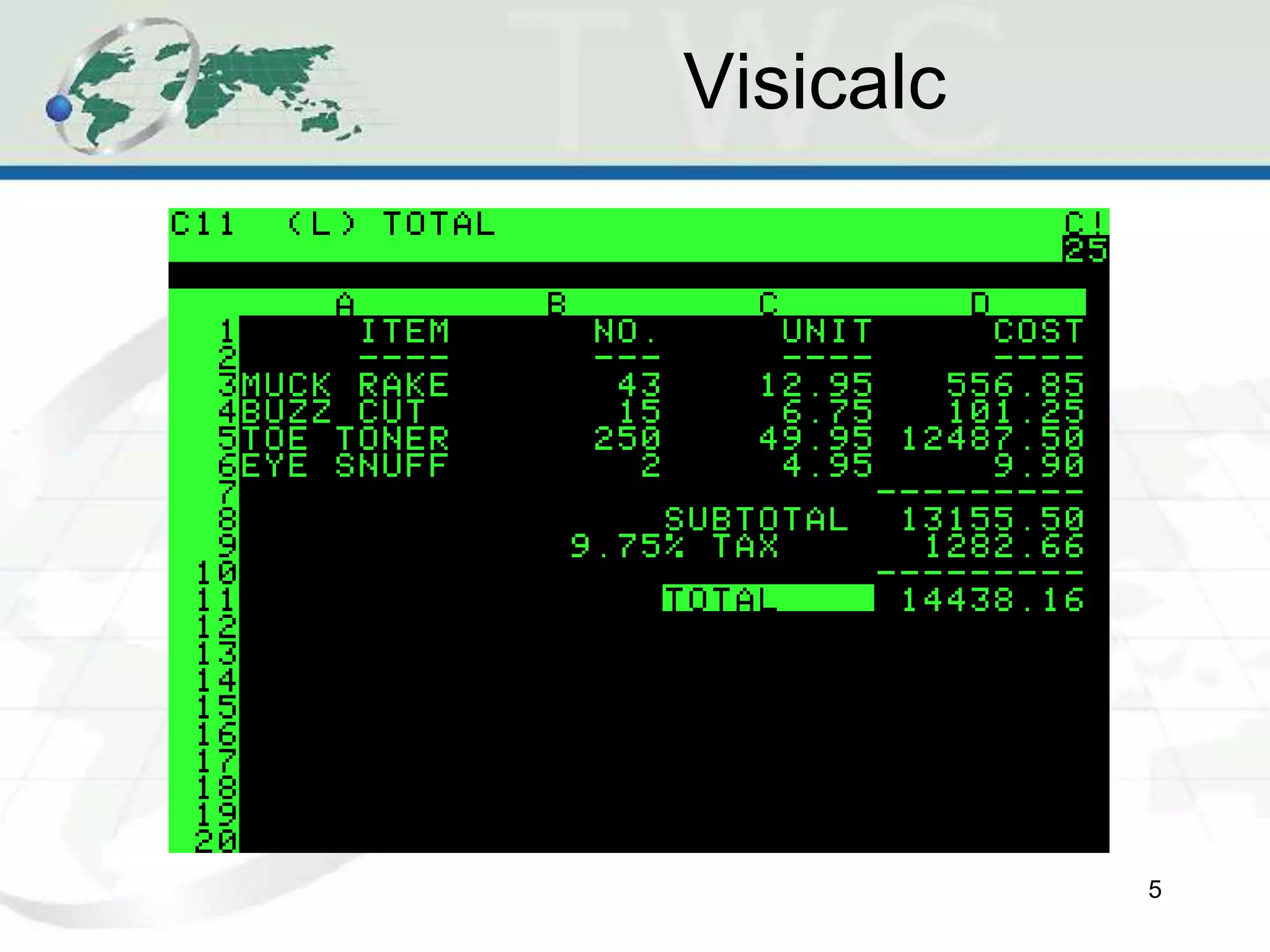

5. Visicalc
5

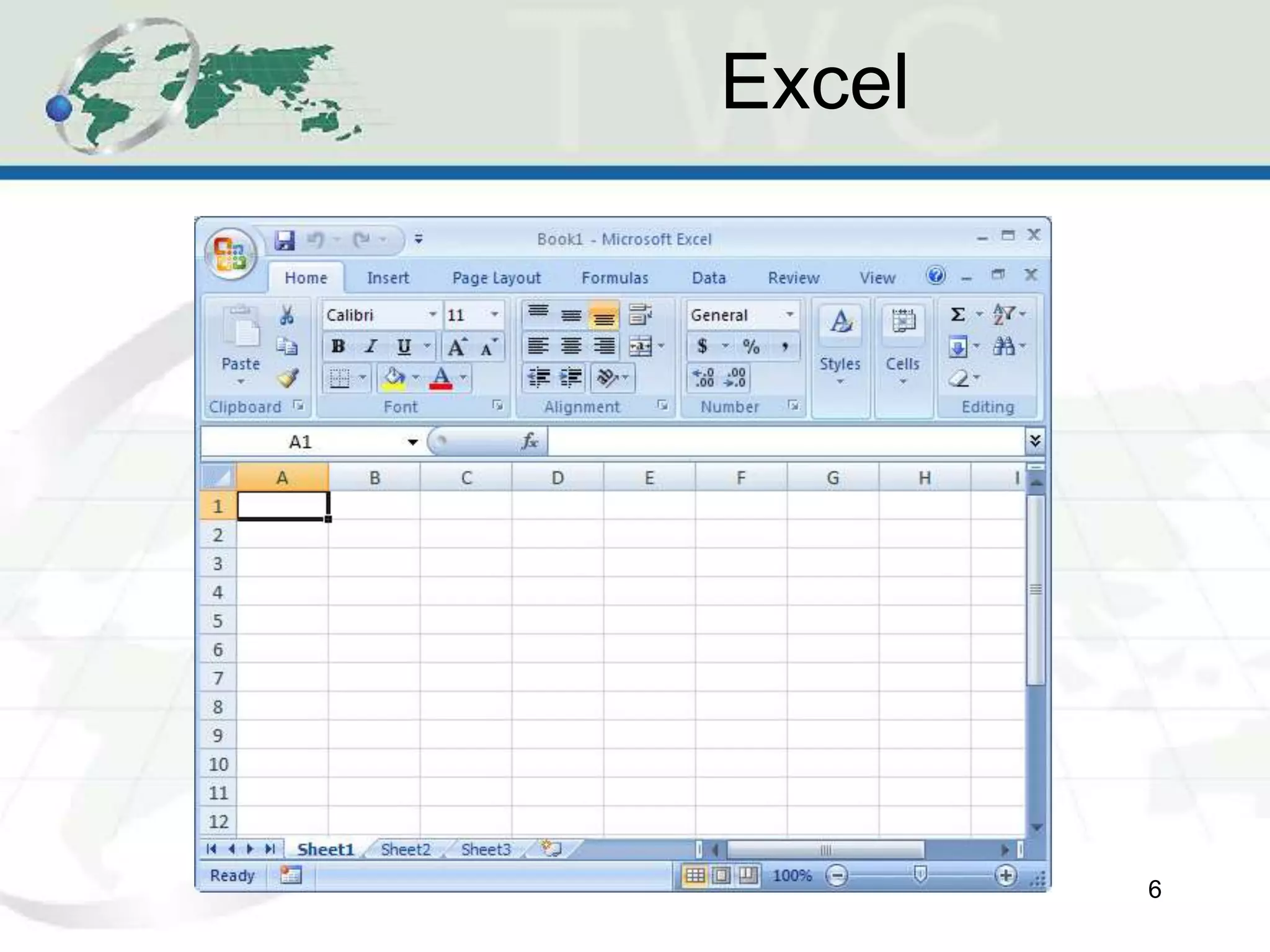

6. Excel
6

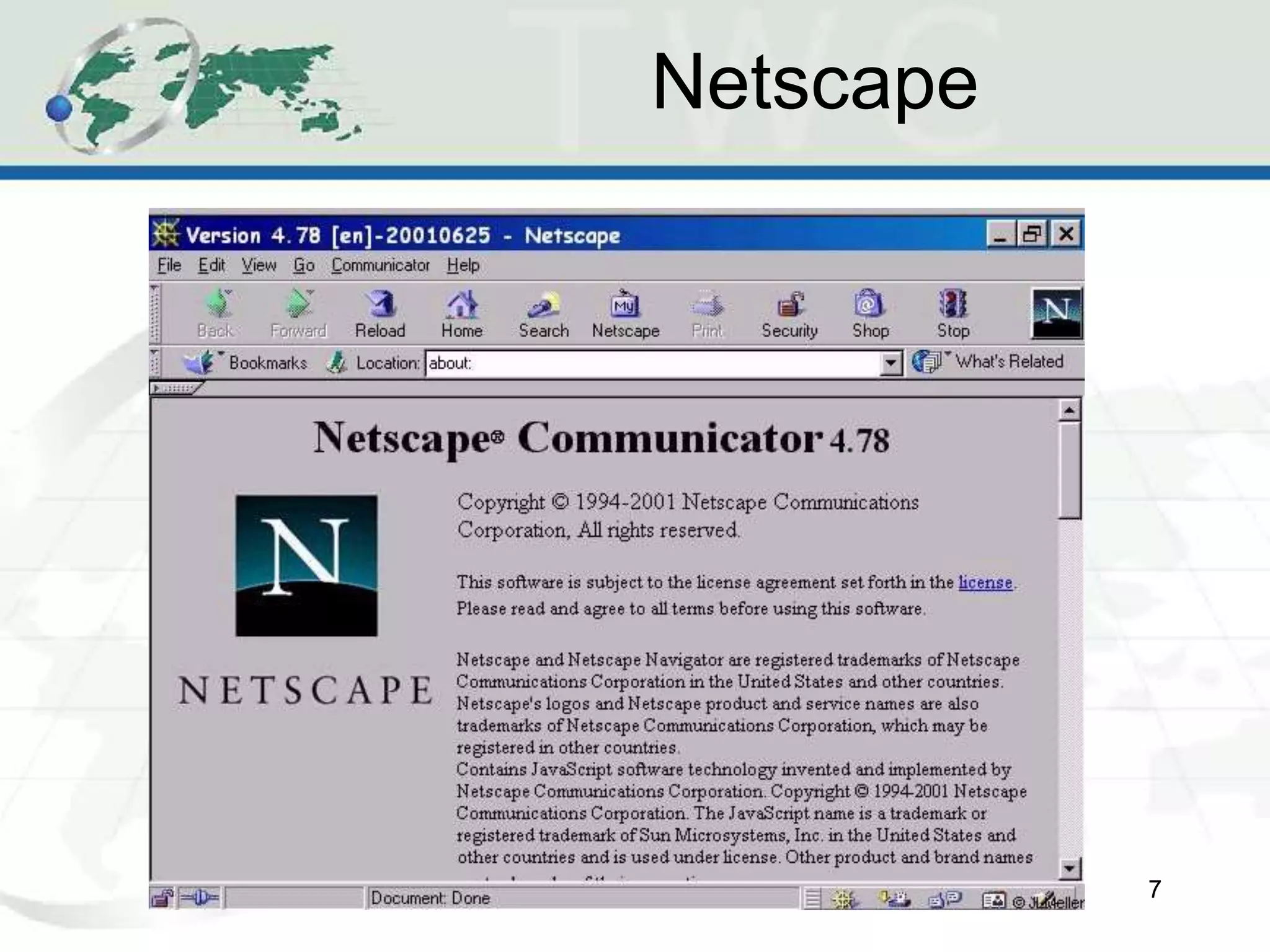

7. Netscape
7

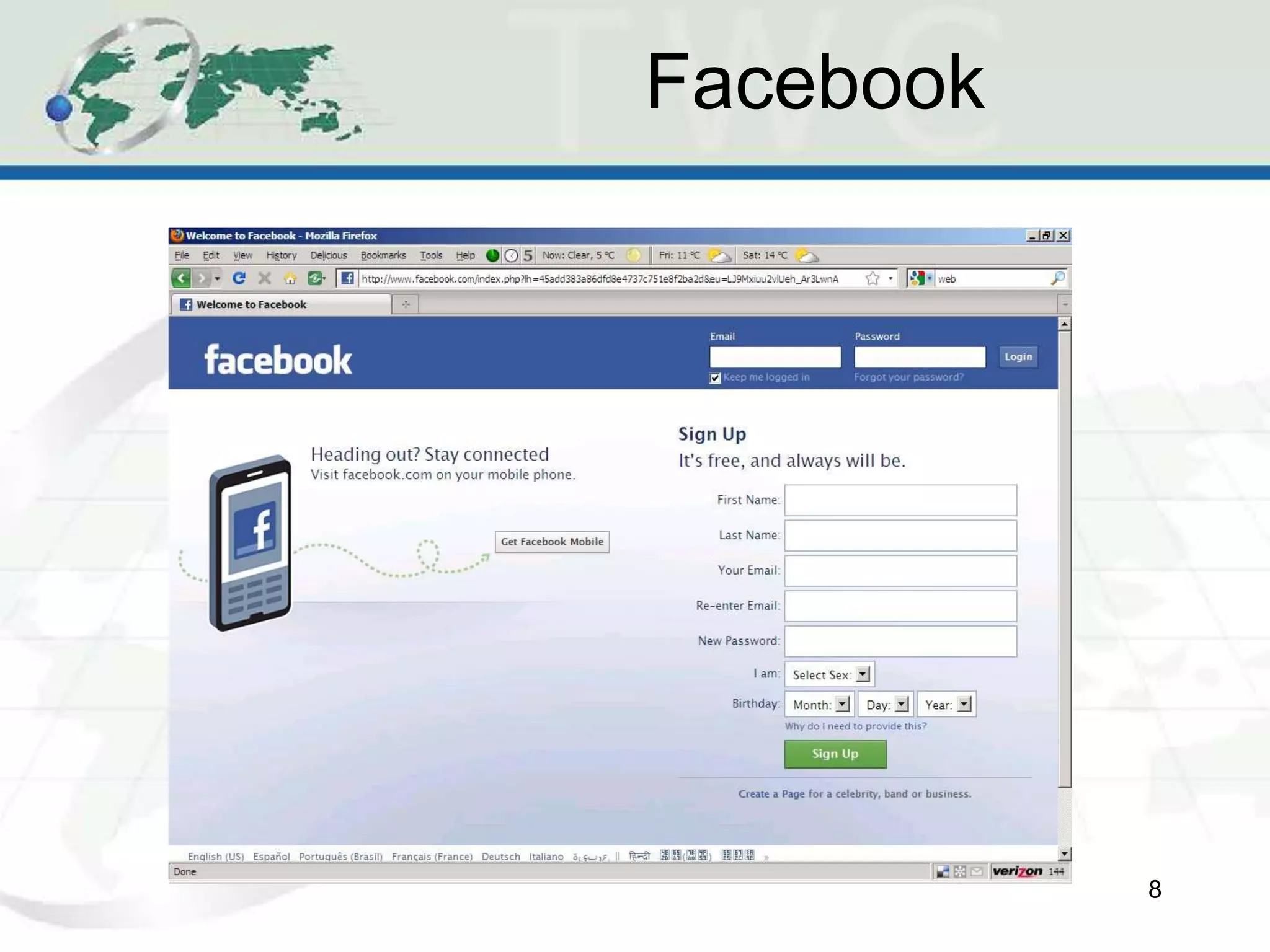

8. Facebook
8

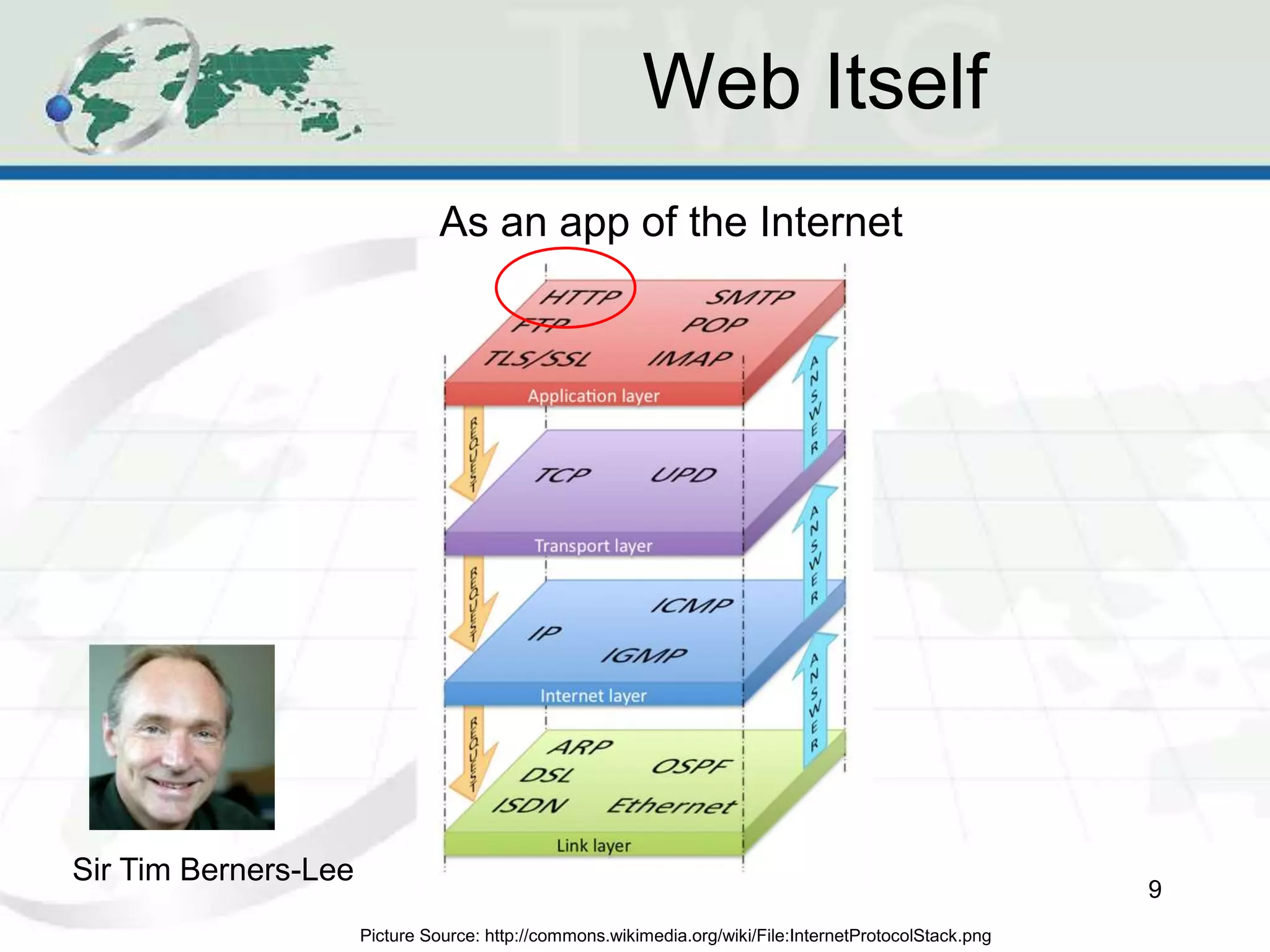

9. Web Itself
9
Sir Tim Berners-Lee
As an app of the Internet
Picture Source: http://commons.wikimedia.org/wiki/File:InternetProtocolStack.png

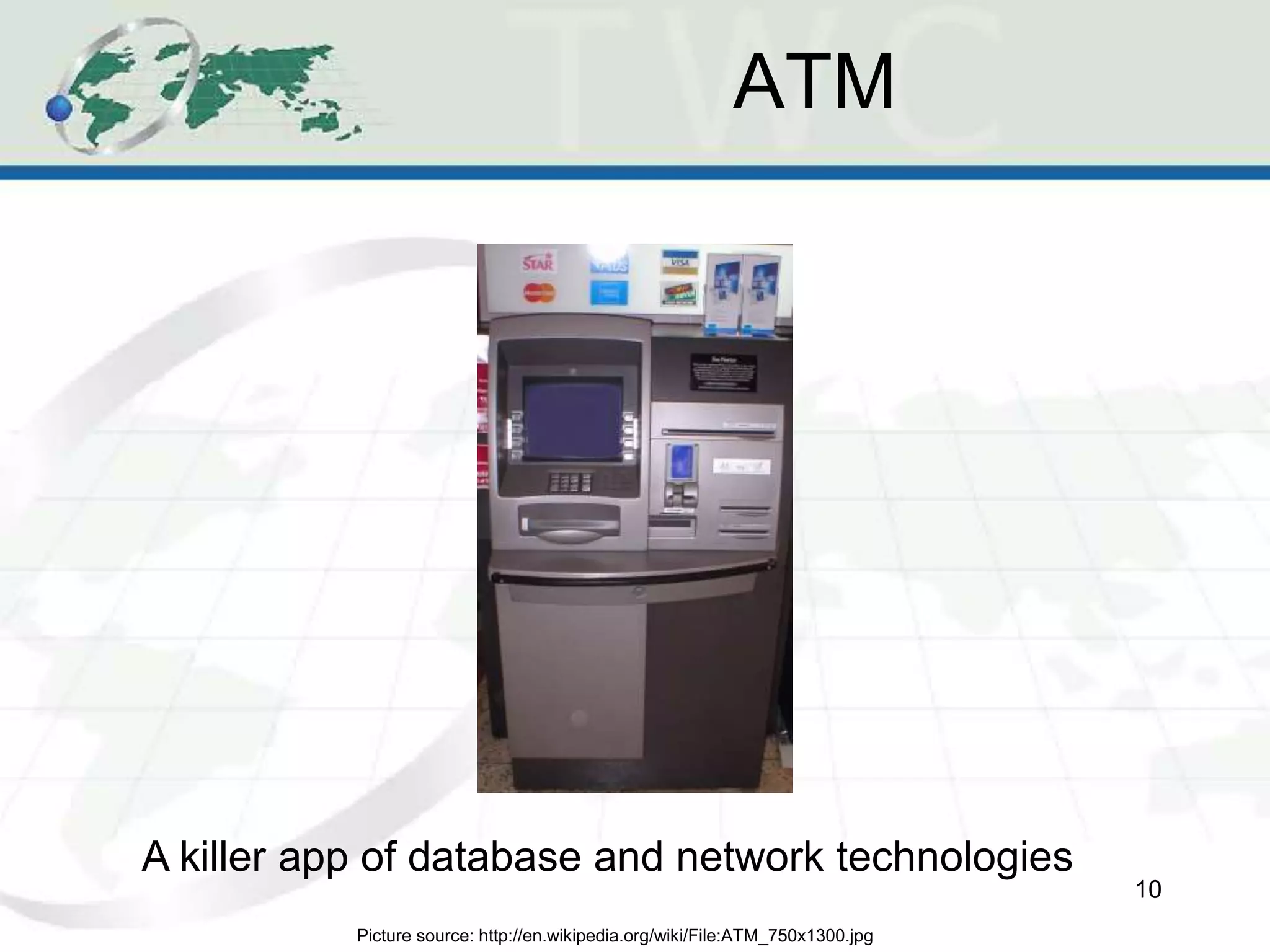

10. ATM
10
A killer app of database and network technologies
Picture source: http://en.wikipedia.org/wiki/File:ATM_750x1300.jpg

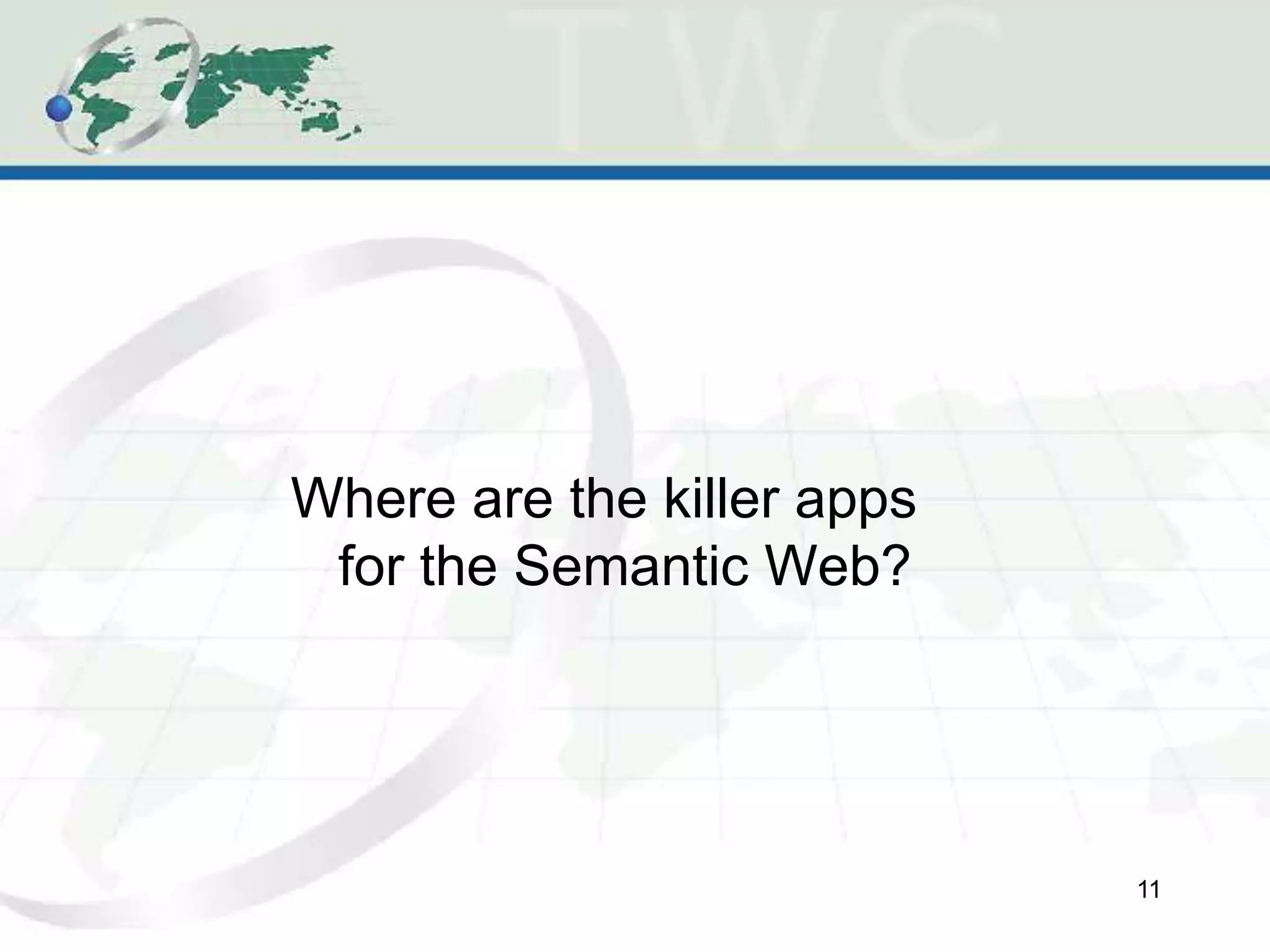

11. Where are the killer apps
for the Semantic Web?
11

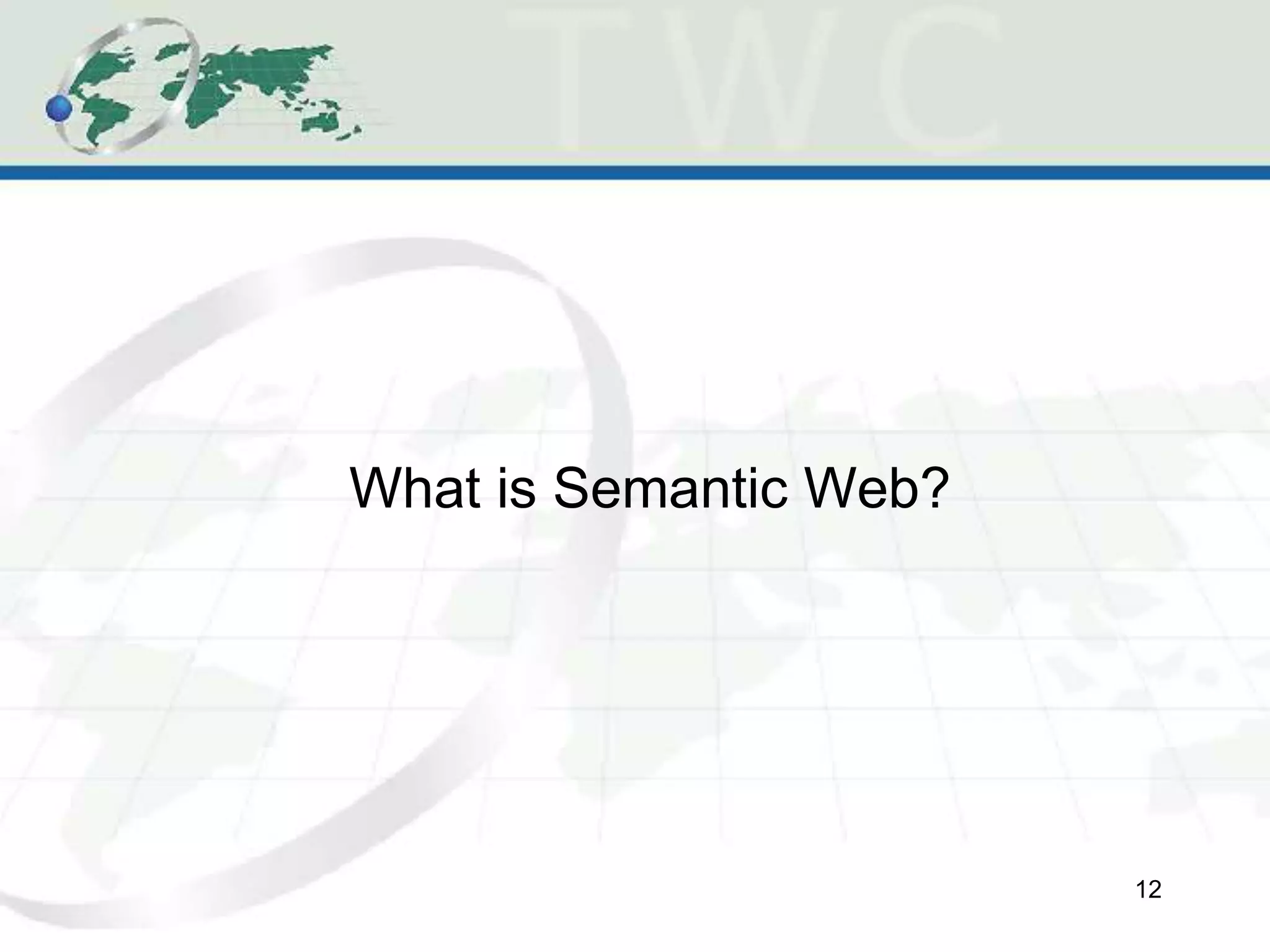

12. What is Semantic Web?
12

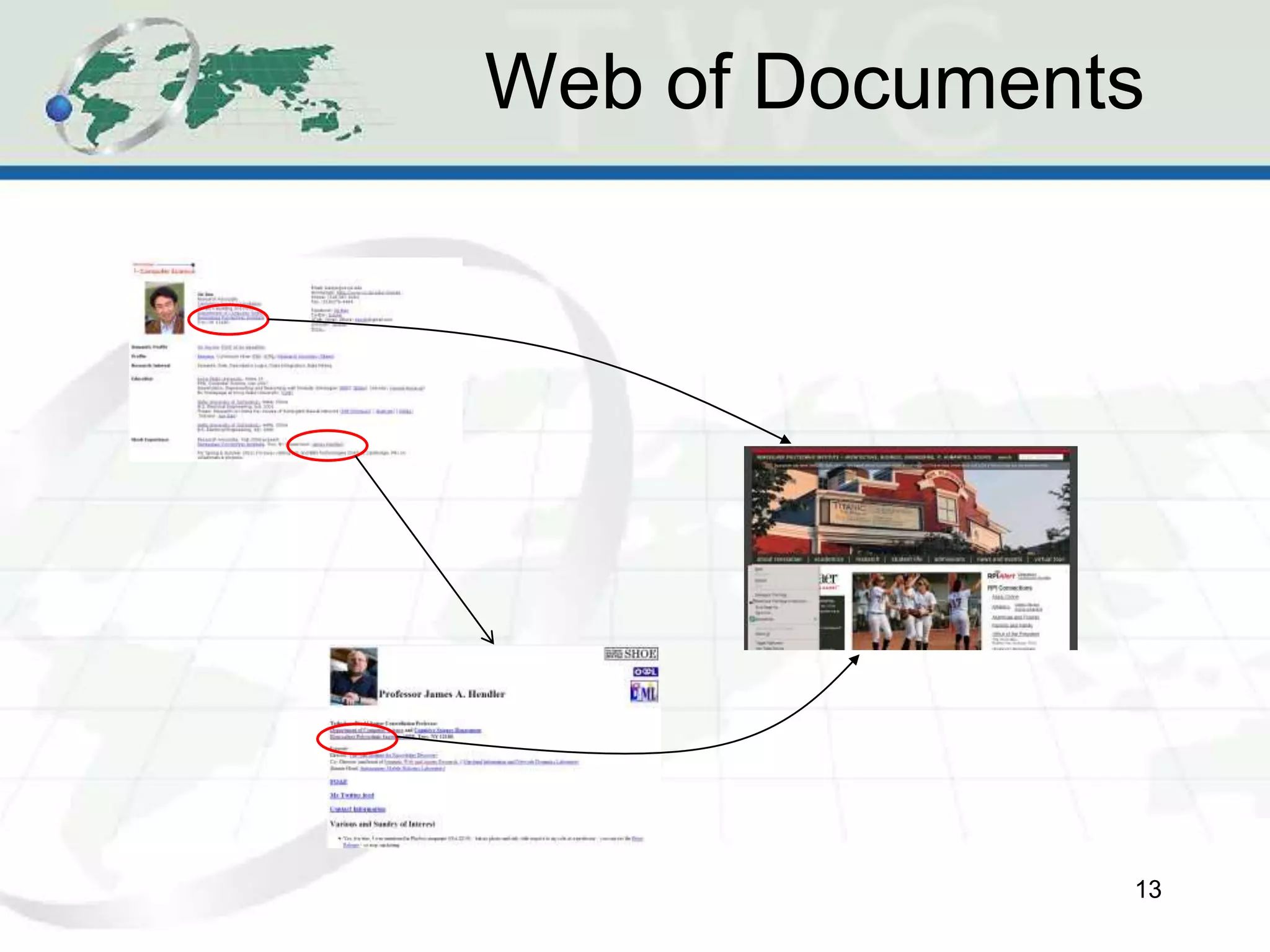

13. Web of Documents
13

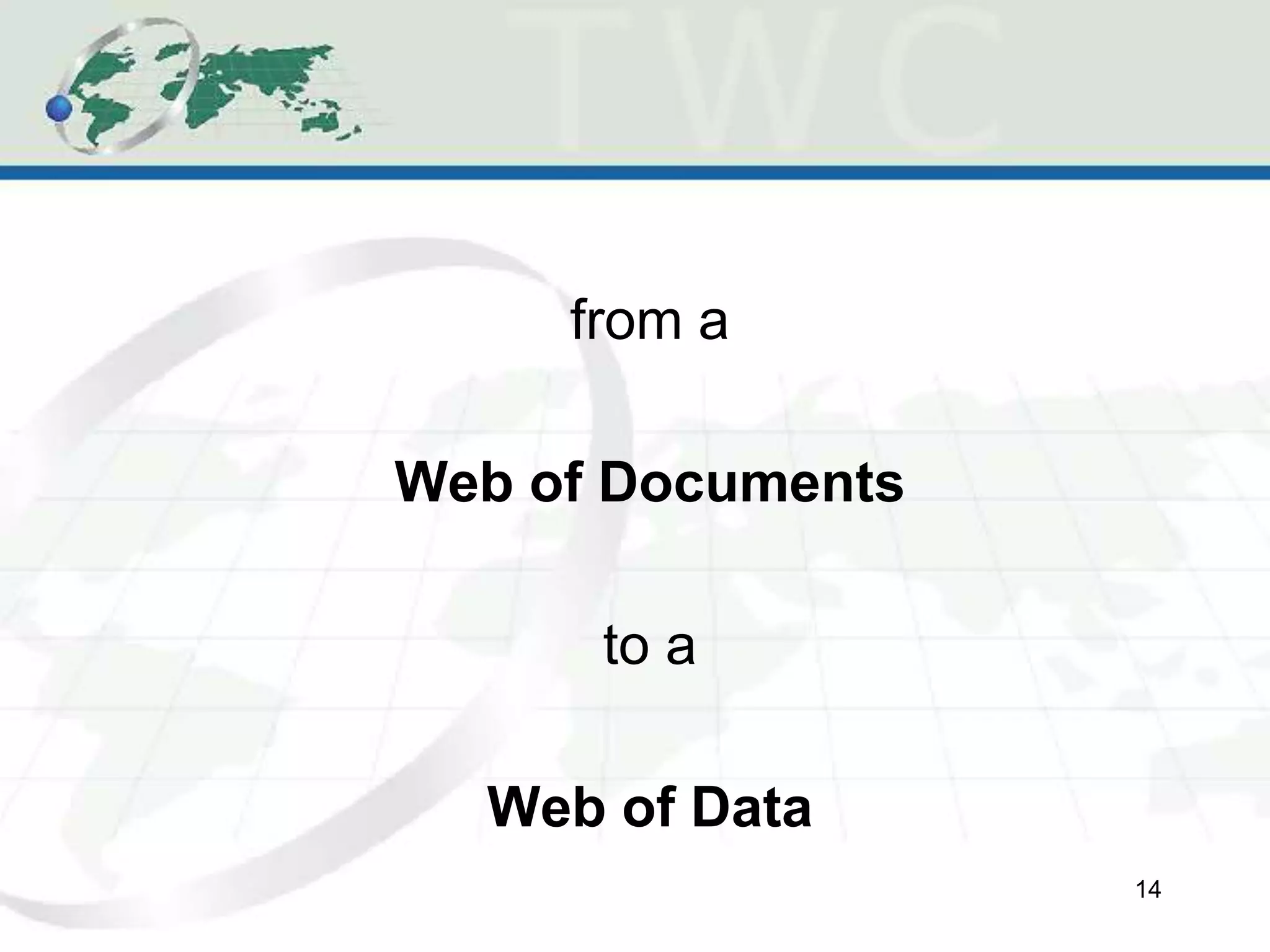

14. from a
Web of Documents
to a
Web of Data
14

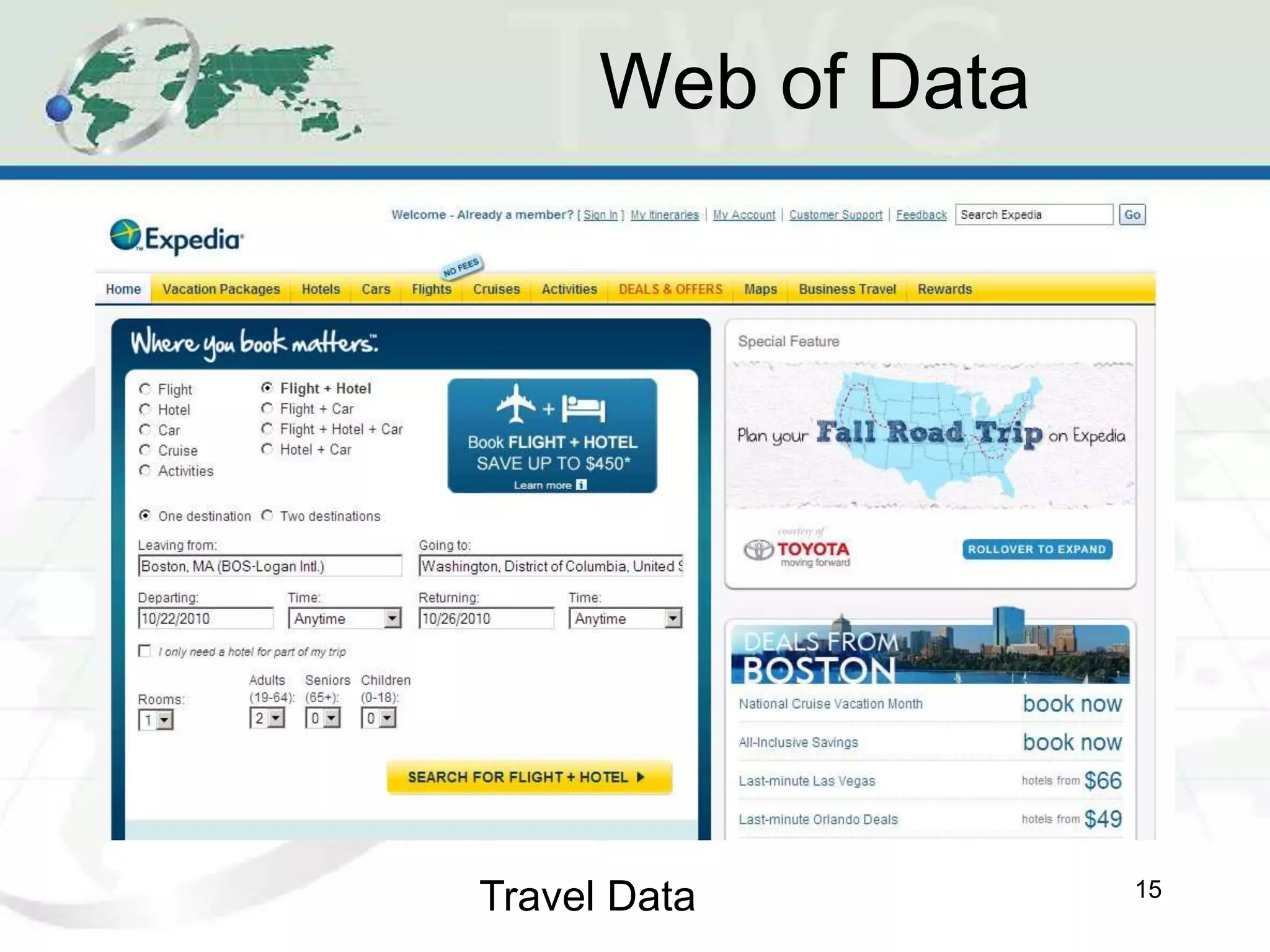

15. Web of Data
15
Travel Data

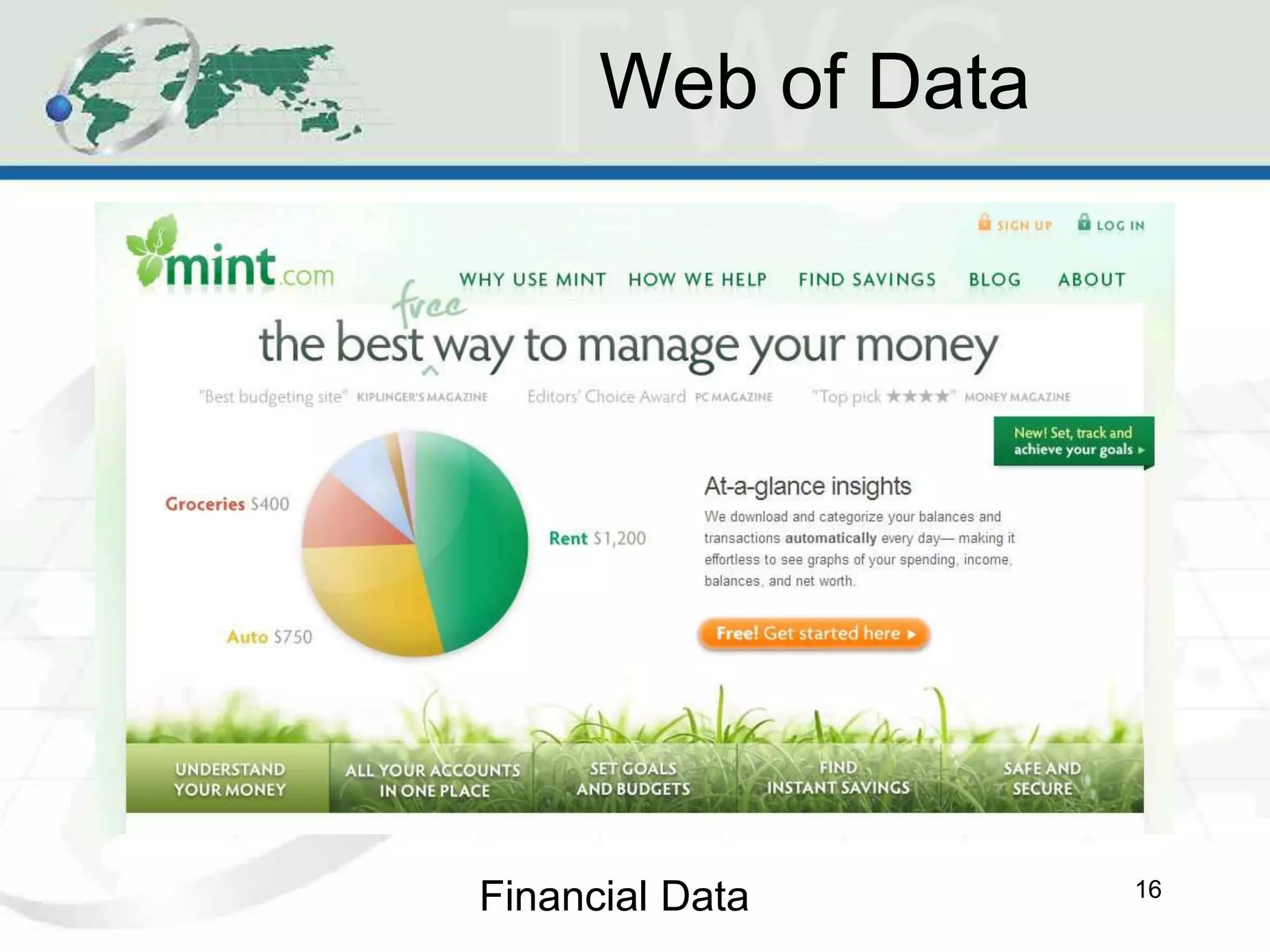

16. Web of Data
16
Financial Data

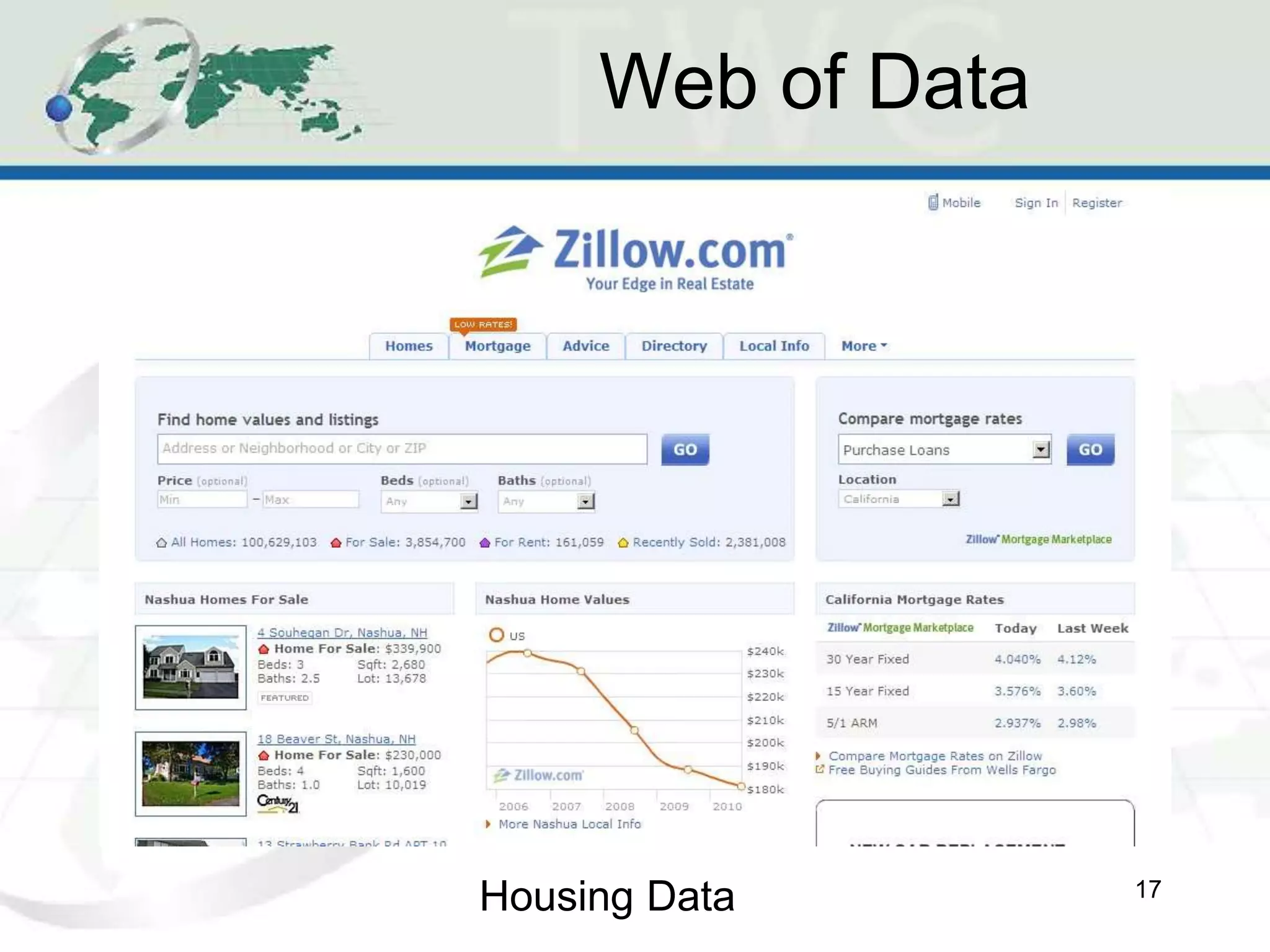

17. Web of Data
17
Housing Data

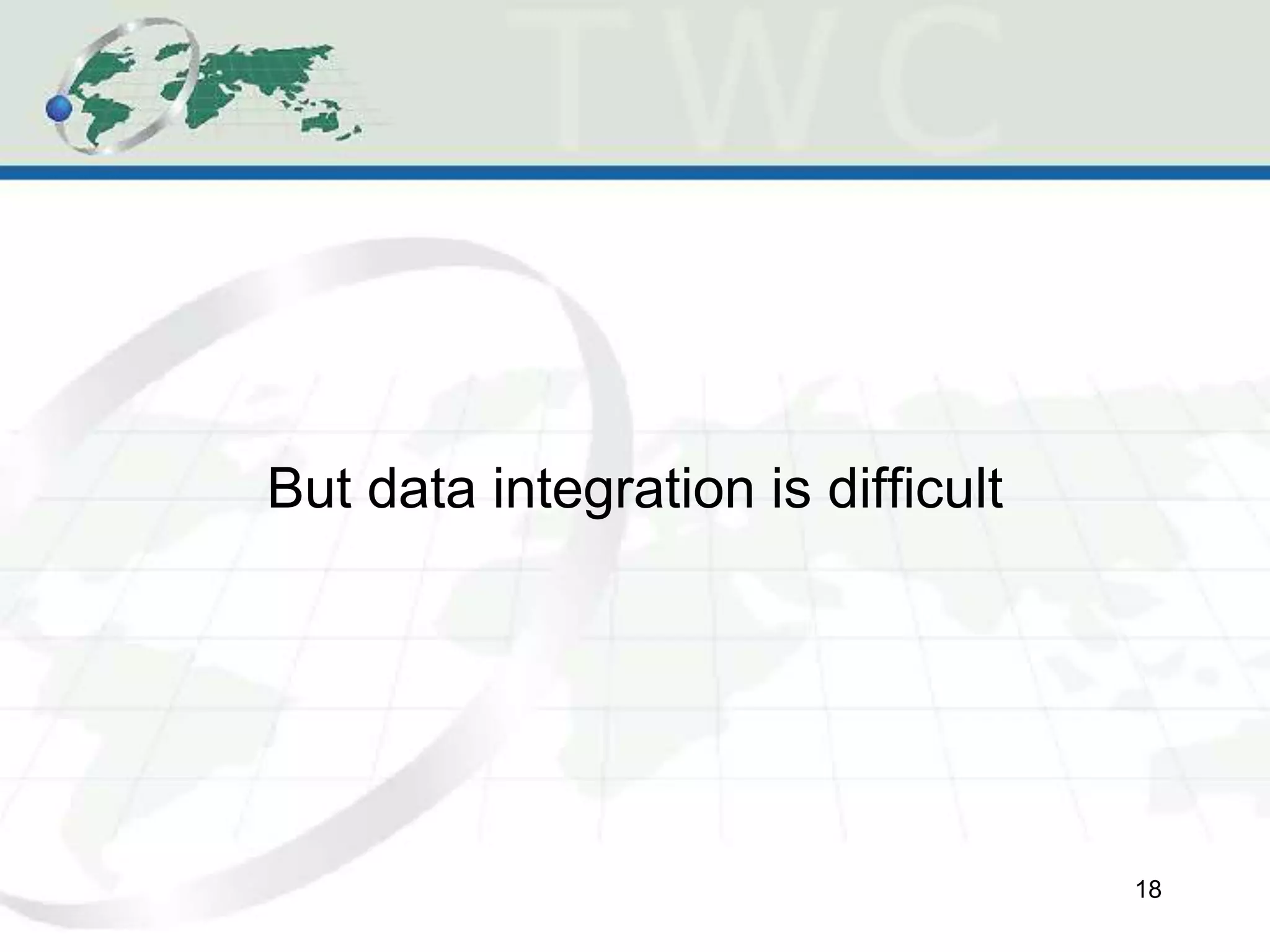

18. But data integration is difficult
18

19. and is often ad-hoc
19

20. and there are other issues
20

21. Inconsistency
21

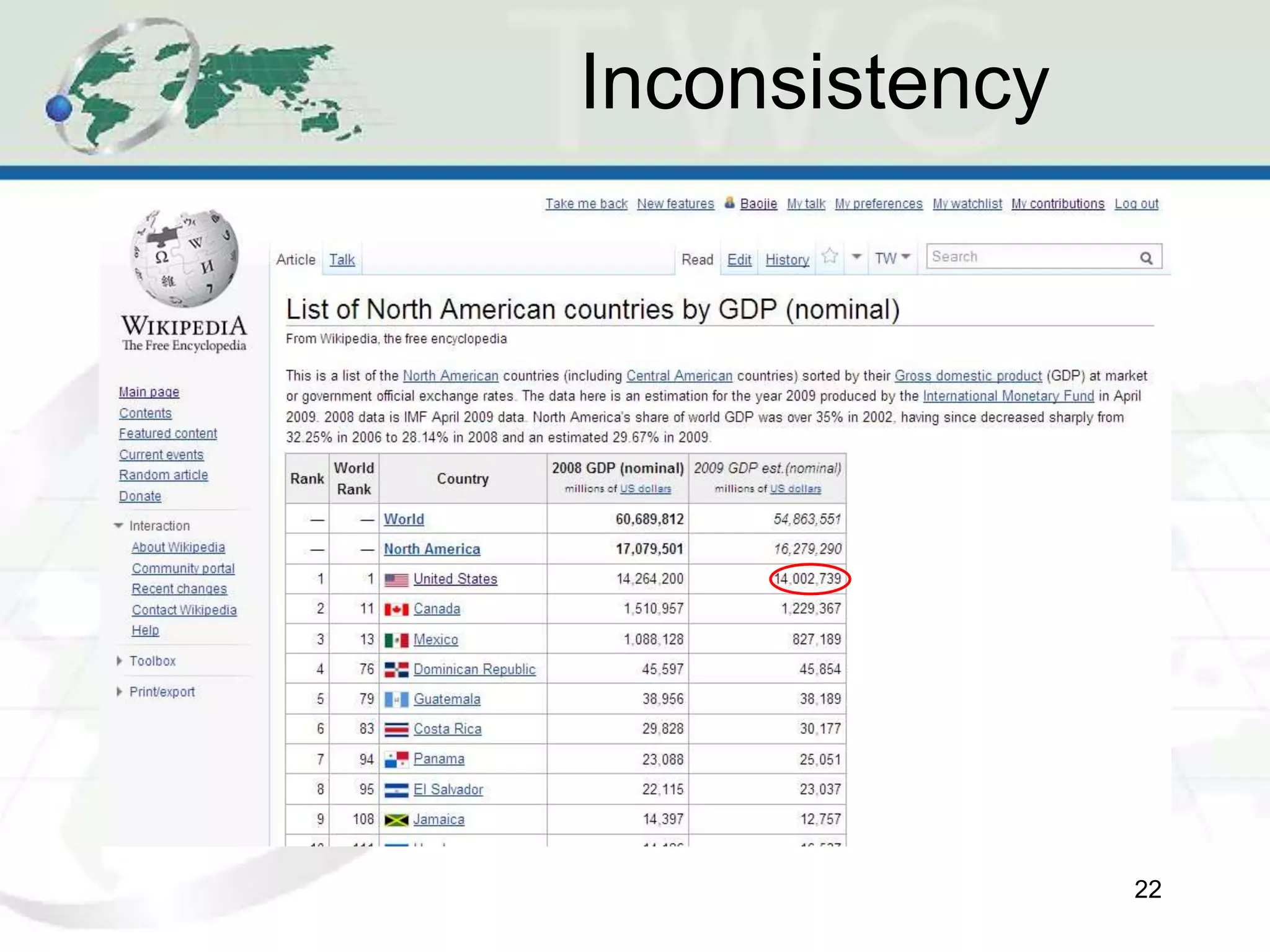

22. Inconsistency
22

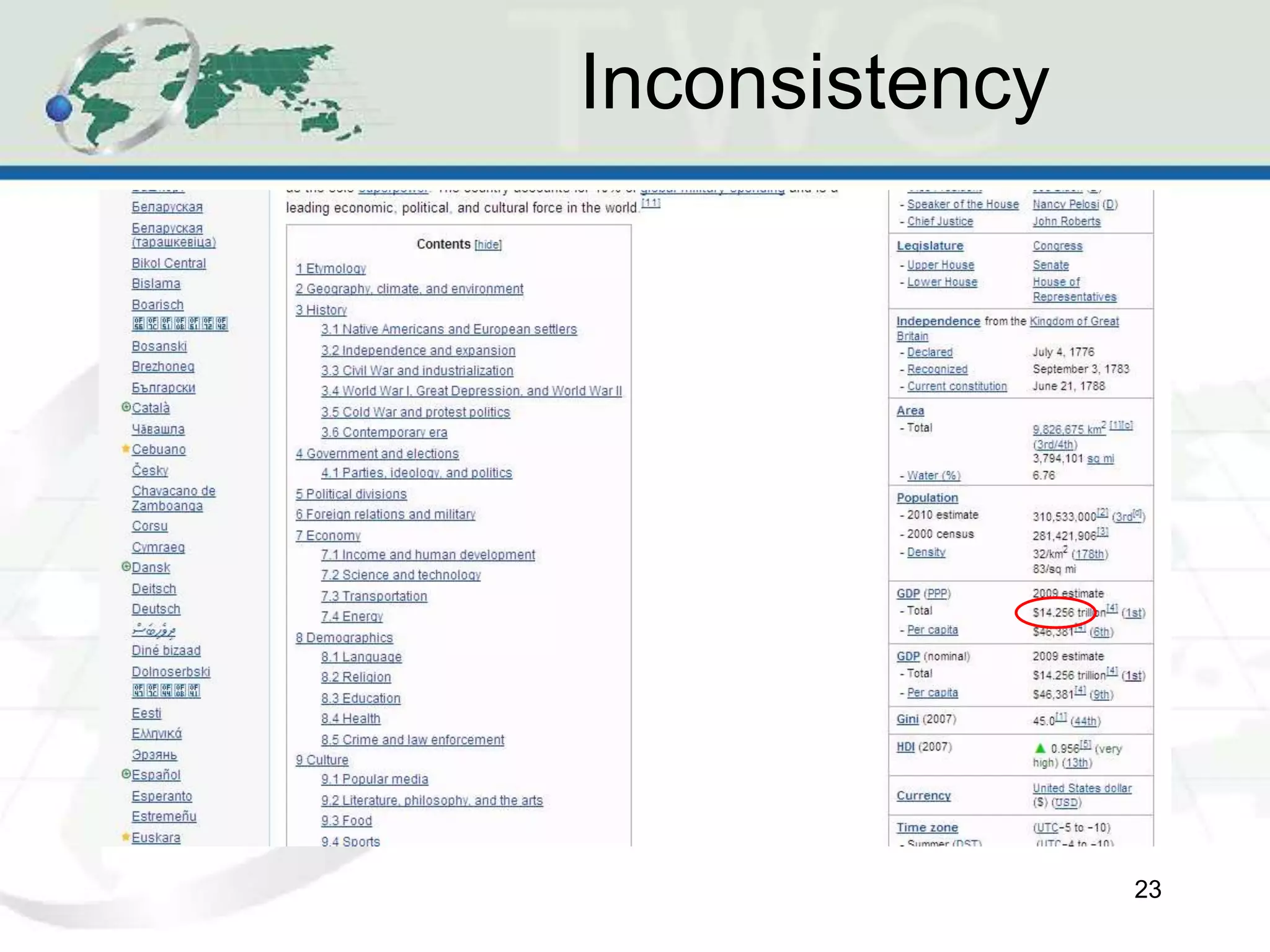

23. Inconsistency
23

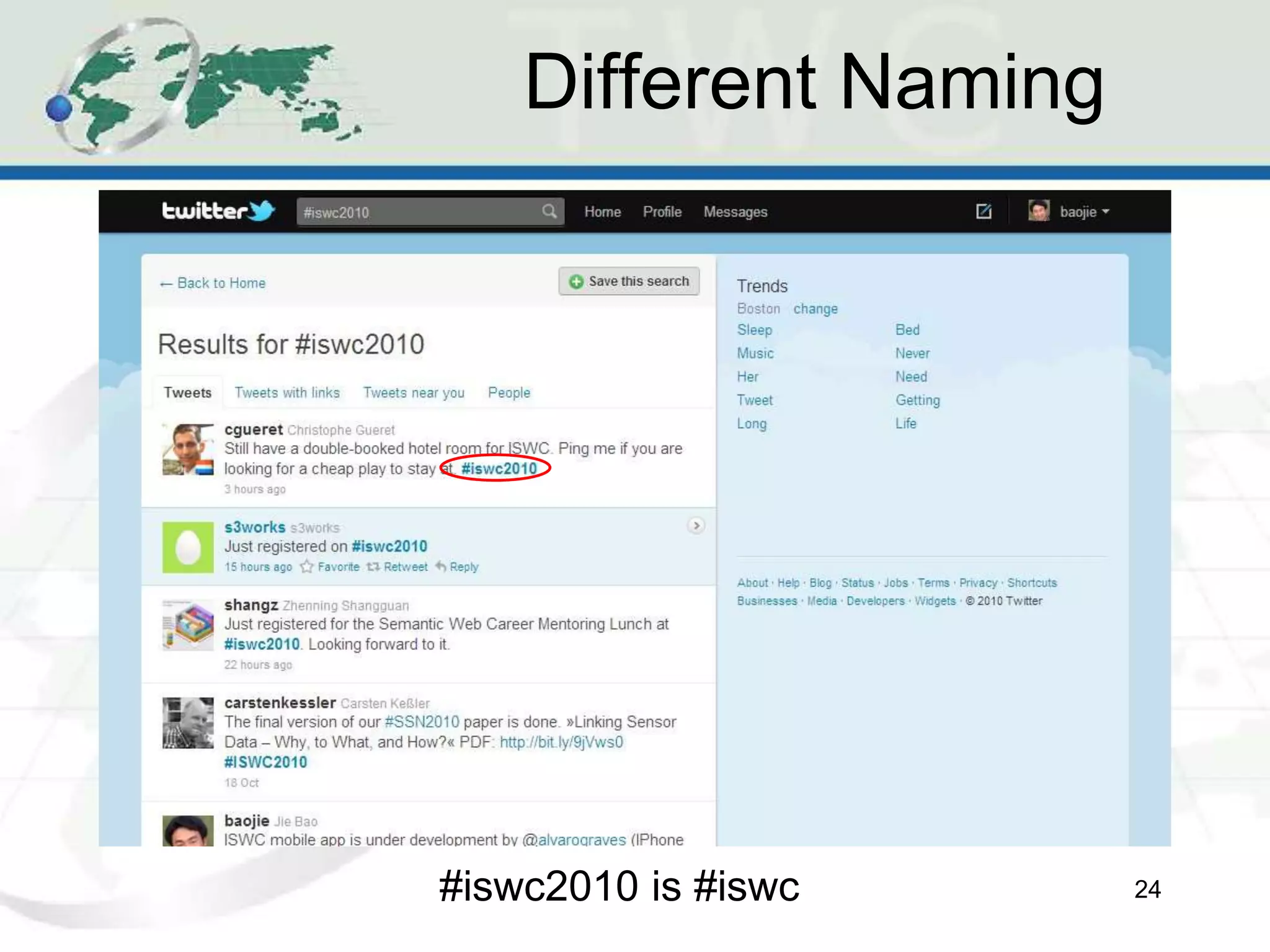

24. Different Naming
24
#iswc2010 is #iswc

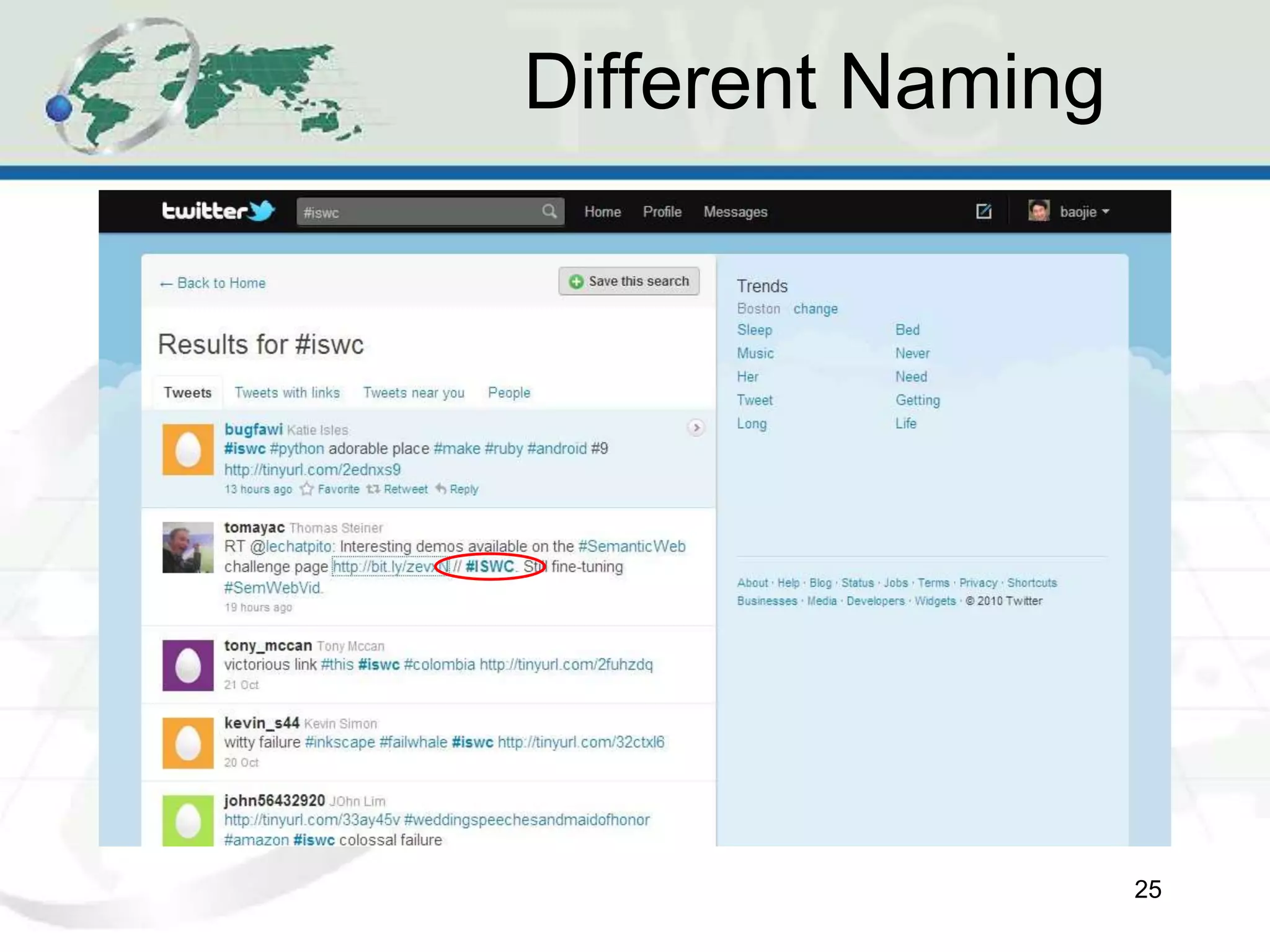

25. Different Naming
25

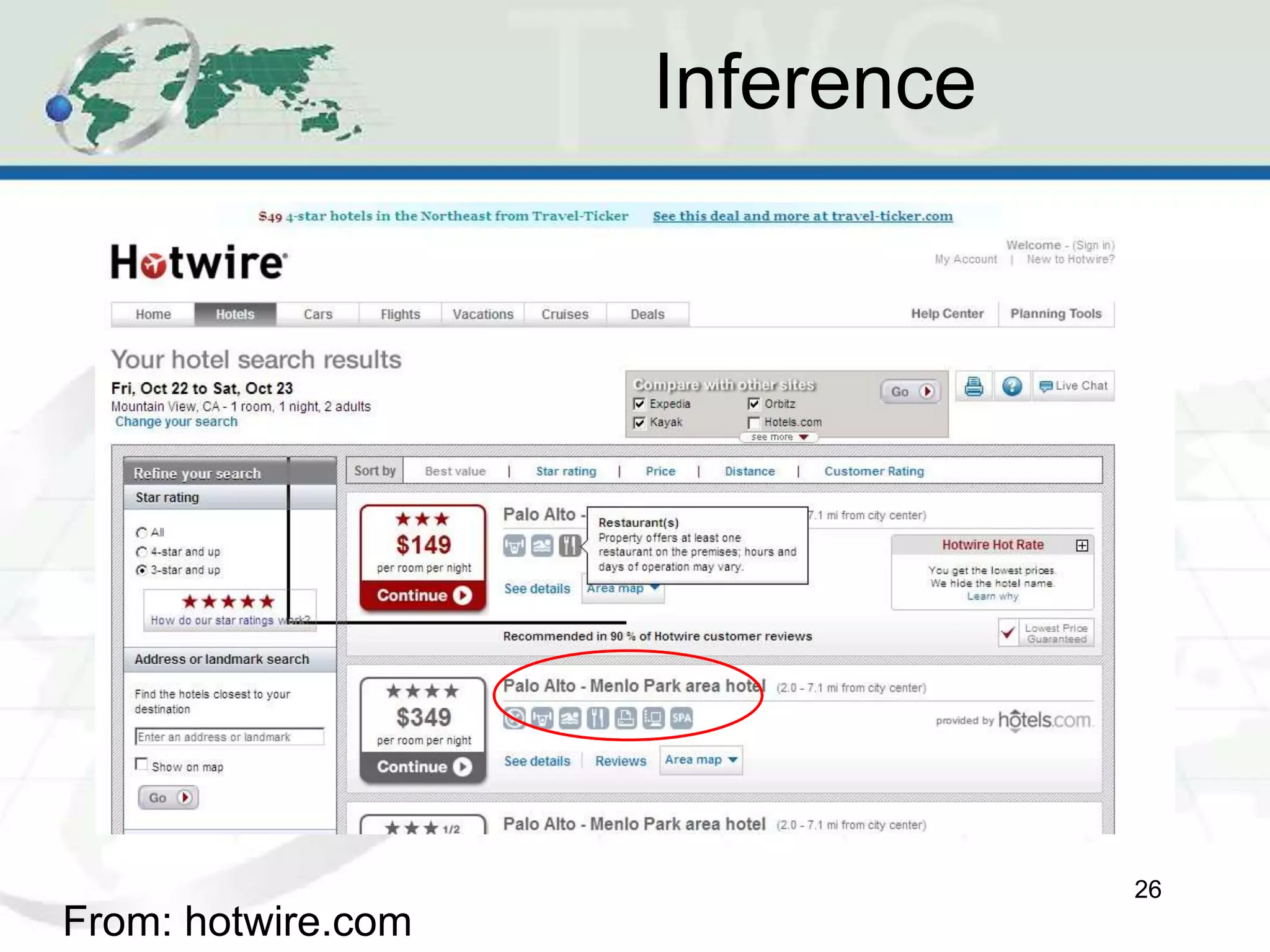

26. Inference
26
From: hotwire.com

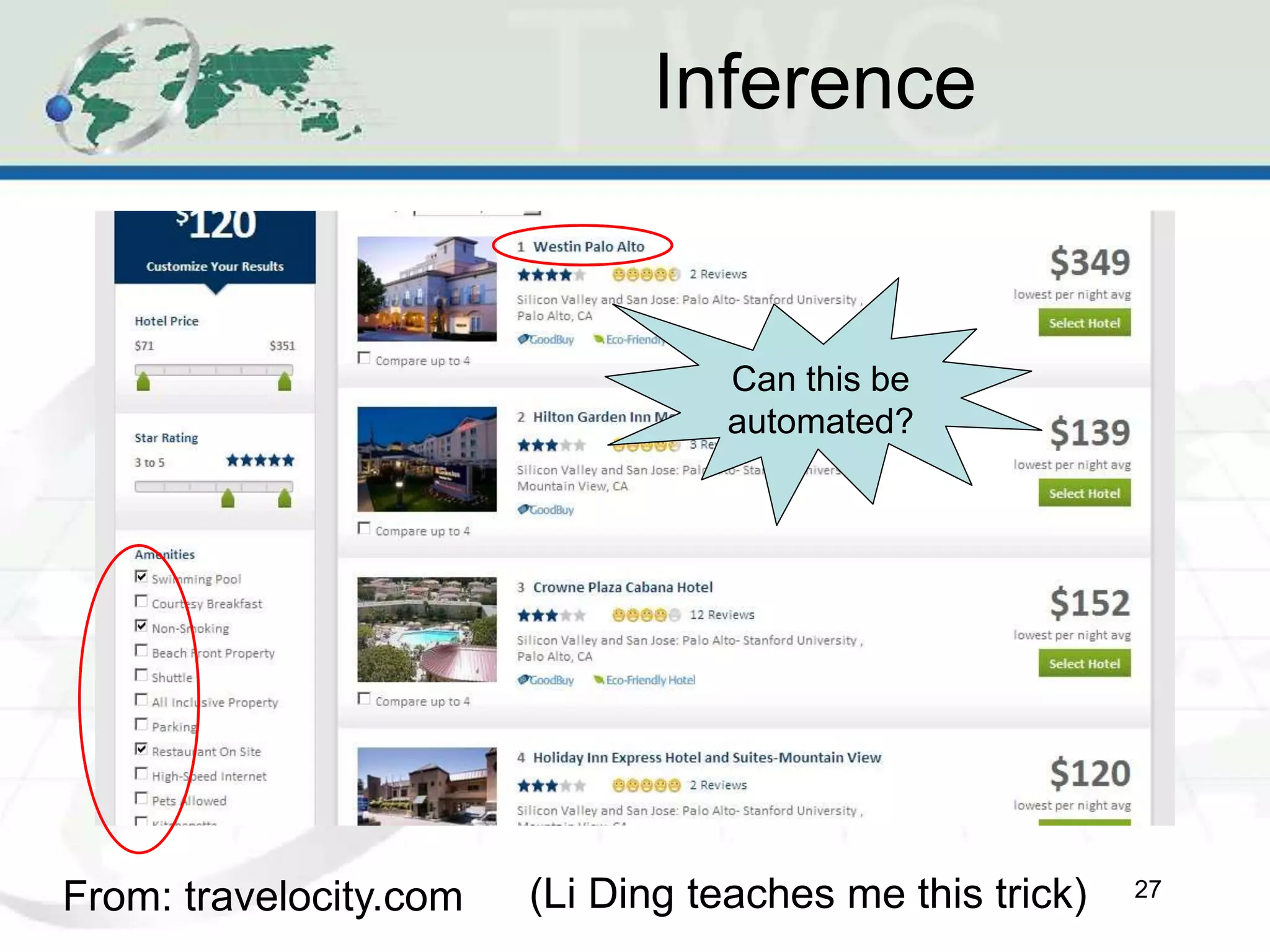

27. Inference
27
From: travelocity.com
Can this be
automated?
(Li Ding teaches me this trick)

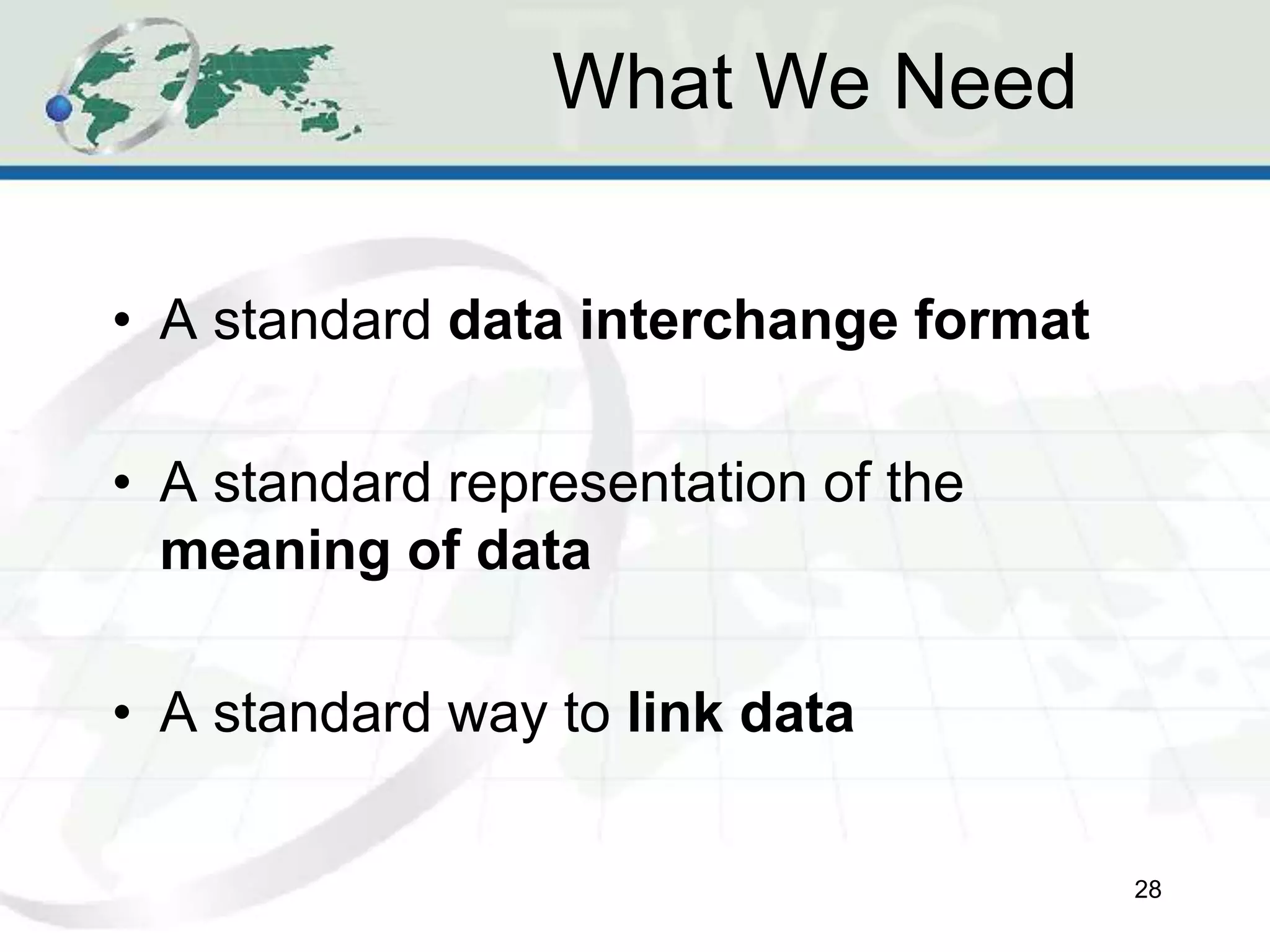

28. What We Need
• A standard data interchange format
• A standard representation of the
meaning of data
• A standard way to link data
28

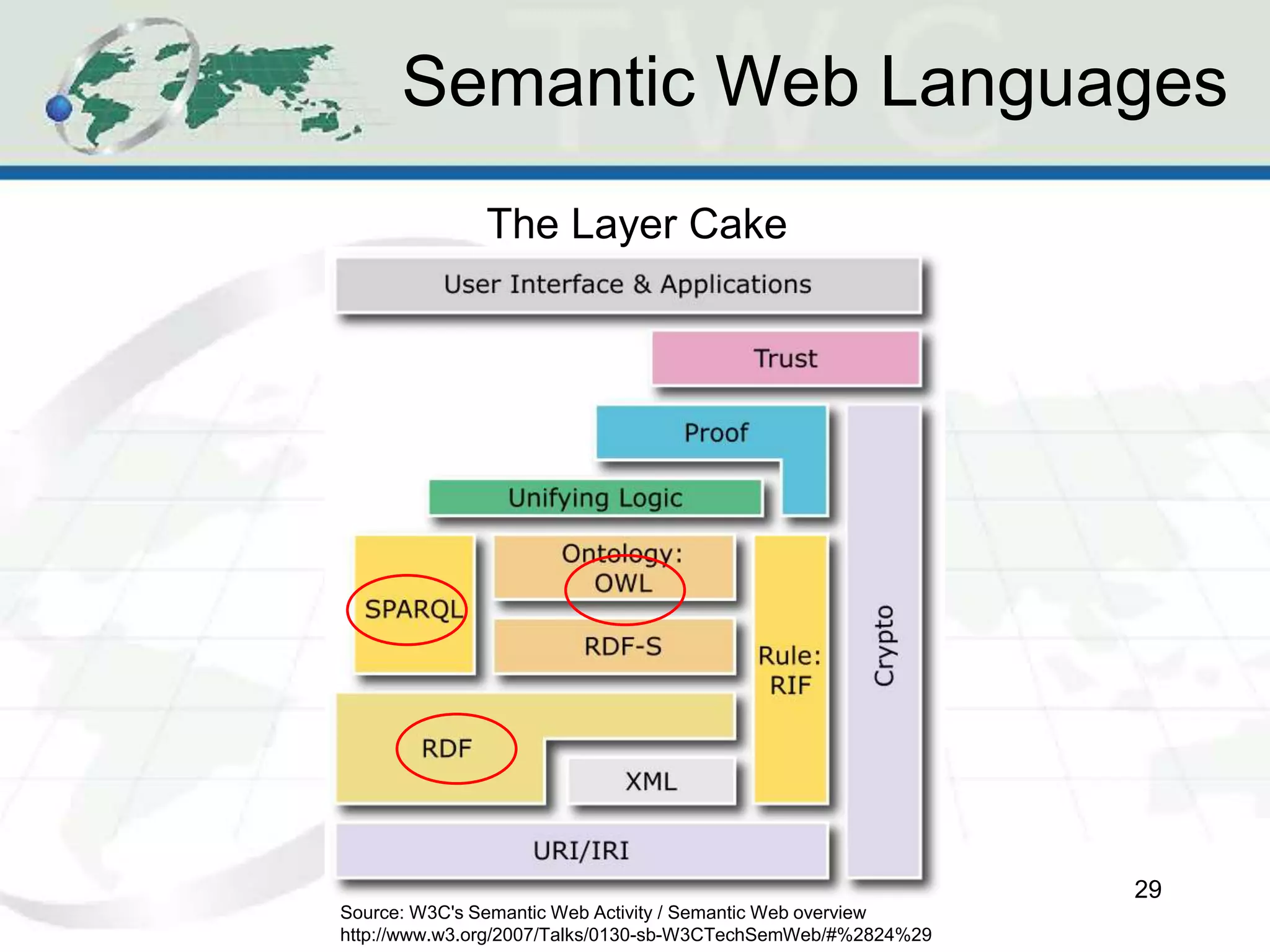

29. Semantic Web Languages
29
Source: W3C's Semantic Web Activity / Semantic Web overview
http://www.w3.org/2007/Talks/0130-sb-W3CTechSemWeb/#%2824%29
The Layer Cake

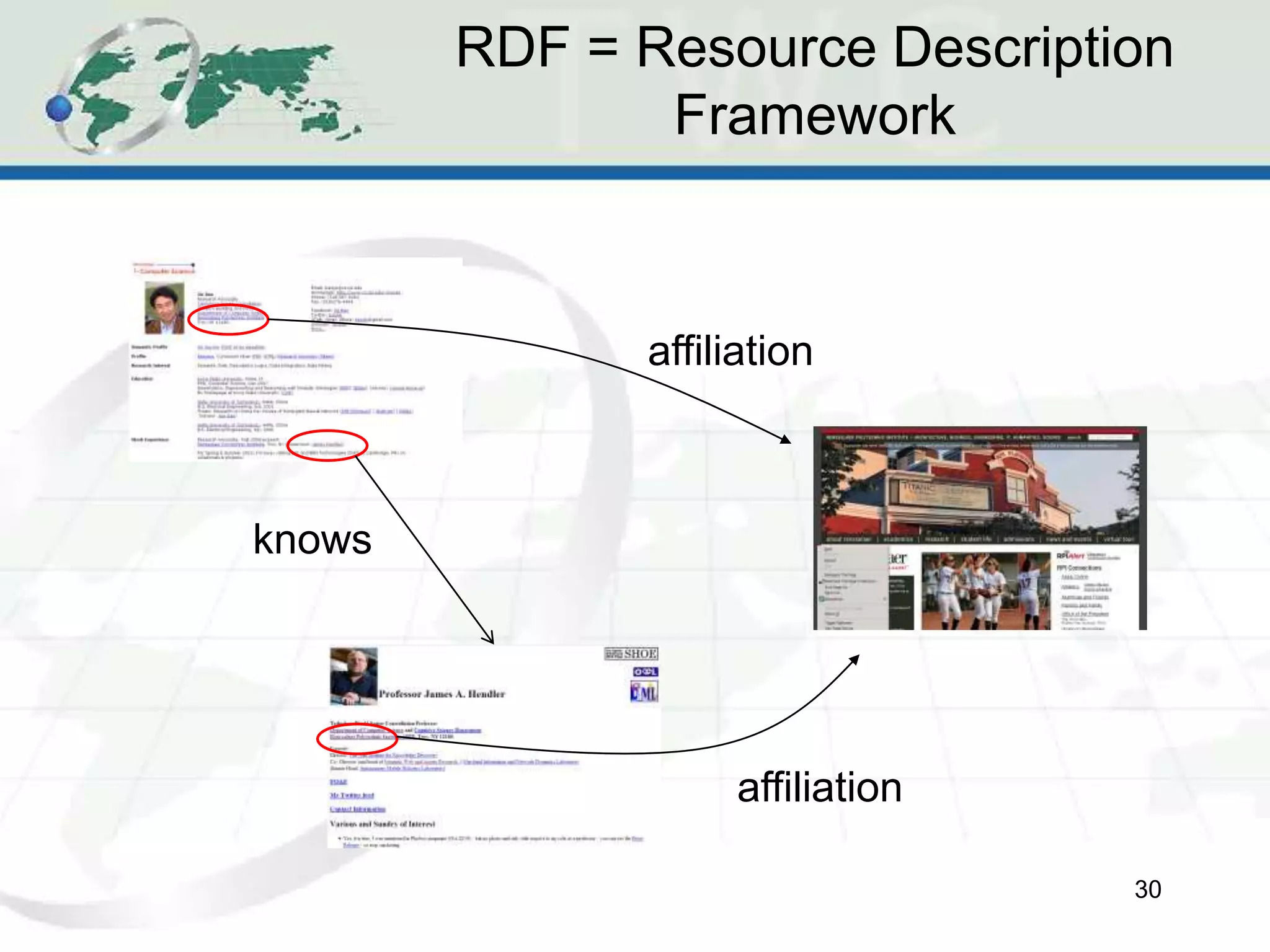

30. RDF = Resource Description
Framework
30
affiliation
affiliation
knows

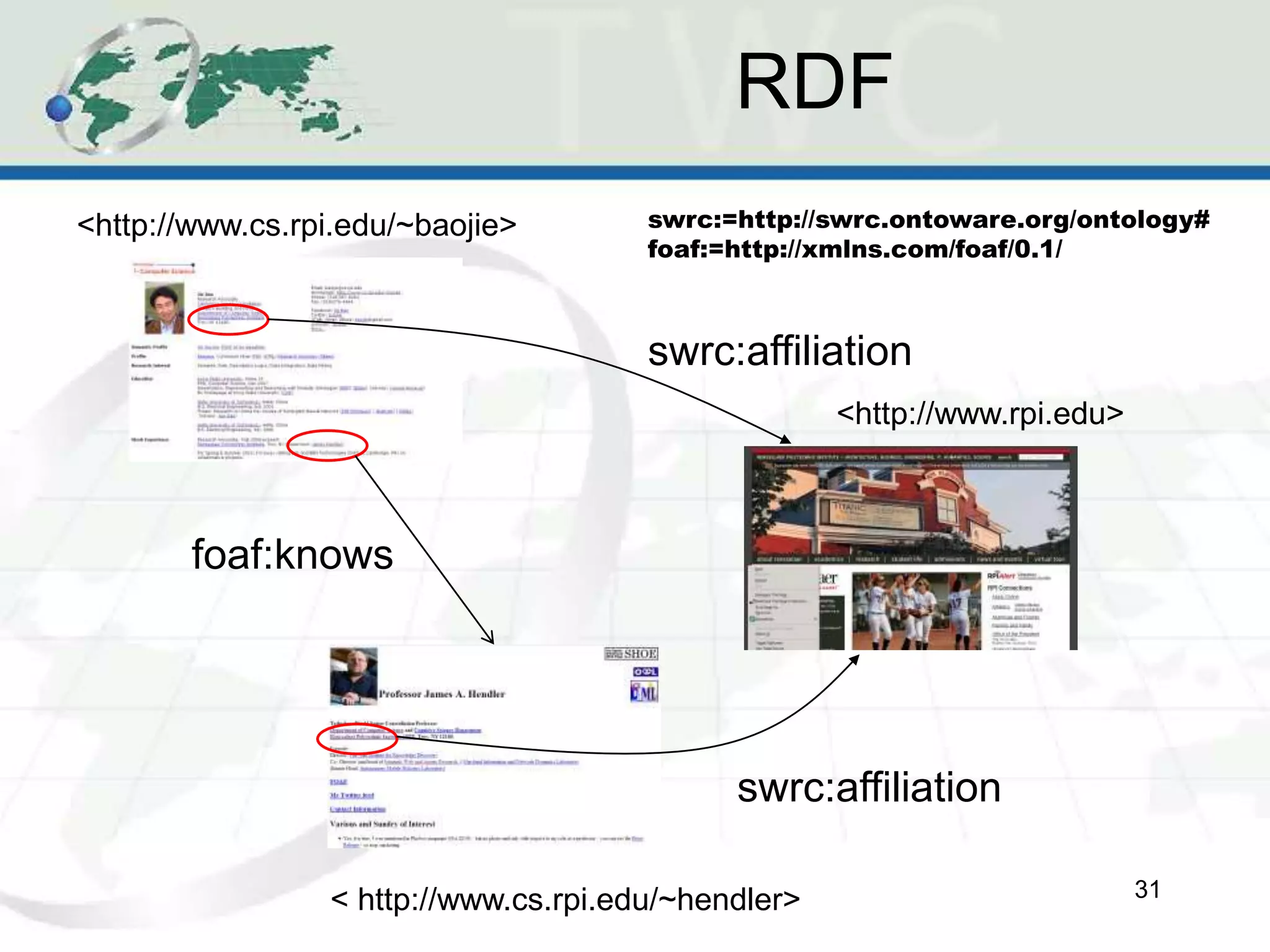

31. RDF
31
swrc:affiliation
swrc:affiliation
foaf:knows
<http://www.cs.rpi.edu/~baojie>
<http://www.rpi.edu>
< http://www.cs.rpi.edu/~hendler>
swrc:=http://swrc.ontoware.org/ontology#
foaf:=http://xmlns.com/foaf/0.1/

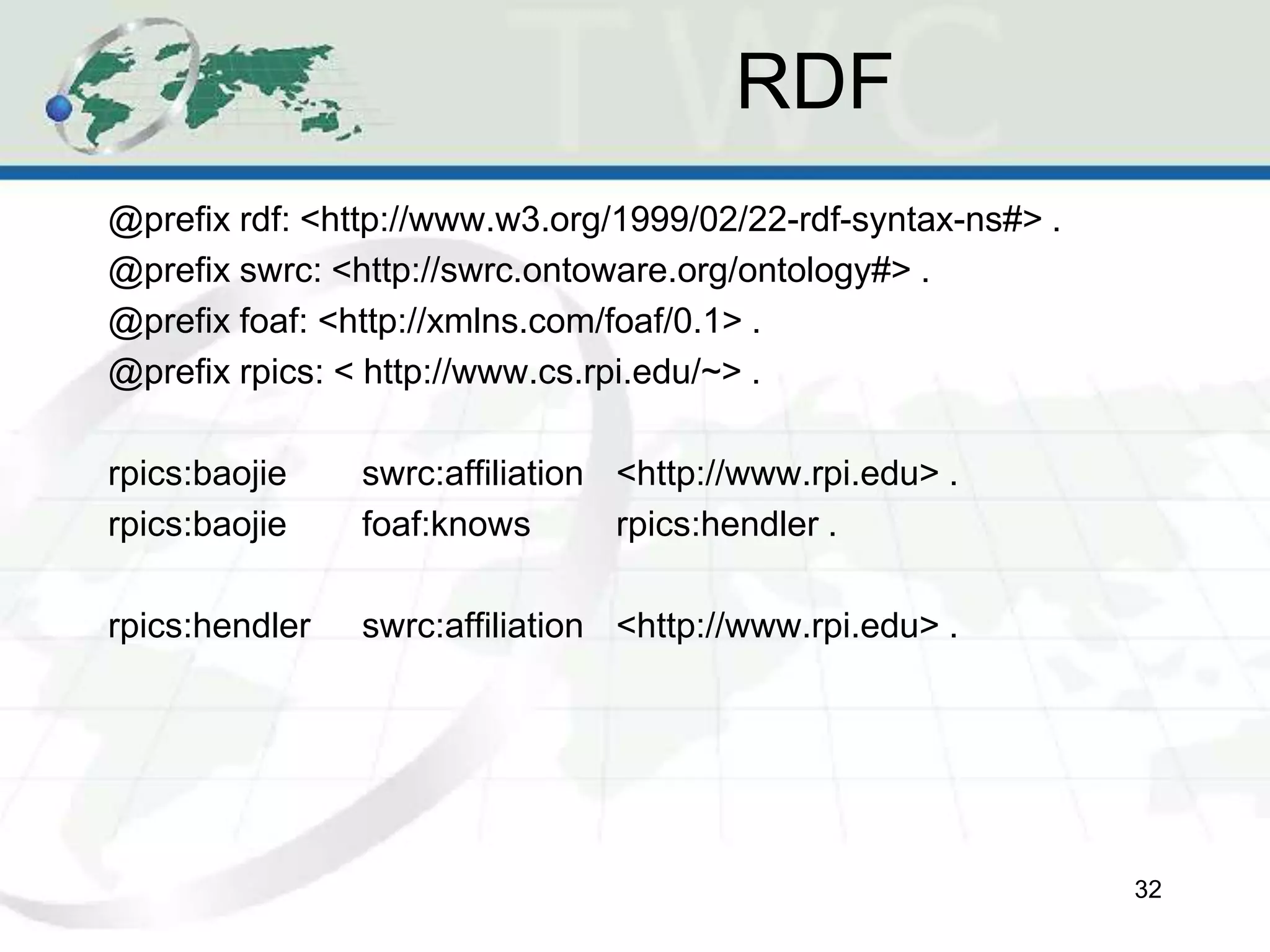

32. RDF
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix swrc: <http://swrc.ontoware.org/ontology#> .
@prefix foaf: <http://xmlns.com/foaf/0.1> .
@prefix rpics: < http://www.cs.rpi.edu/~> .
rpics:baojie swrc:affiliation <http://www.rpi.edu> .
rpics:baojie foaf:knows rpics:hendler .
rpics:hendler swrc:affiliation <http://www.rpi.edu> .
32

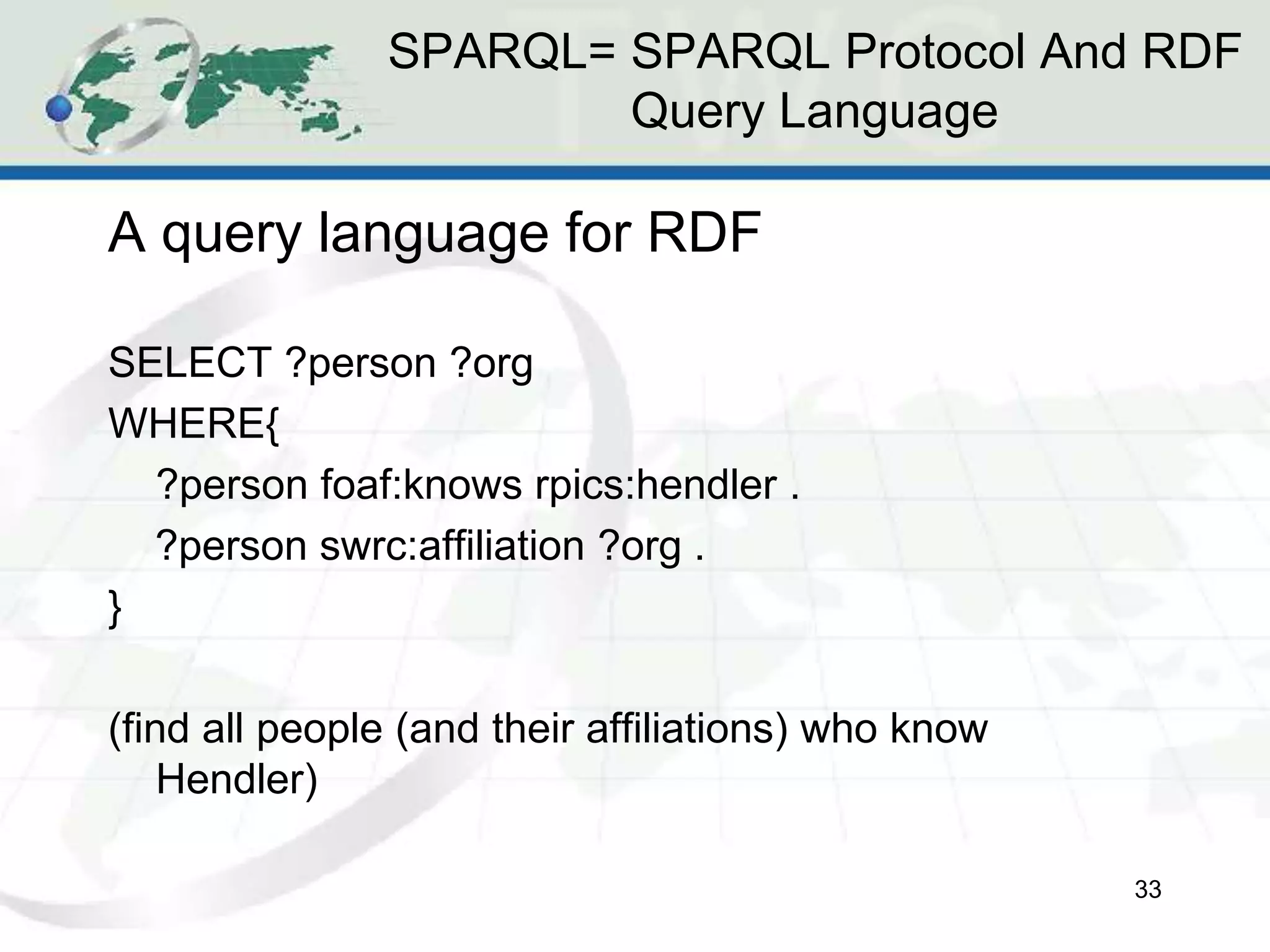

33. SPARQL= SPARQL Protocol And RDF
Query Language
A query language for RDF
SELECT ?person ?org
WHERE{
?person foaf:knows rpics:hendler .
?person swrc:affiliation ?org .
}
(find all people (and their affiliations) who know
Hendler)
33

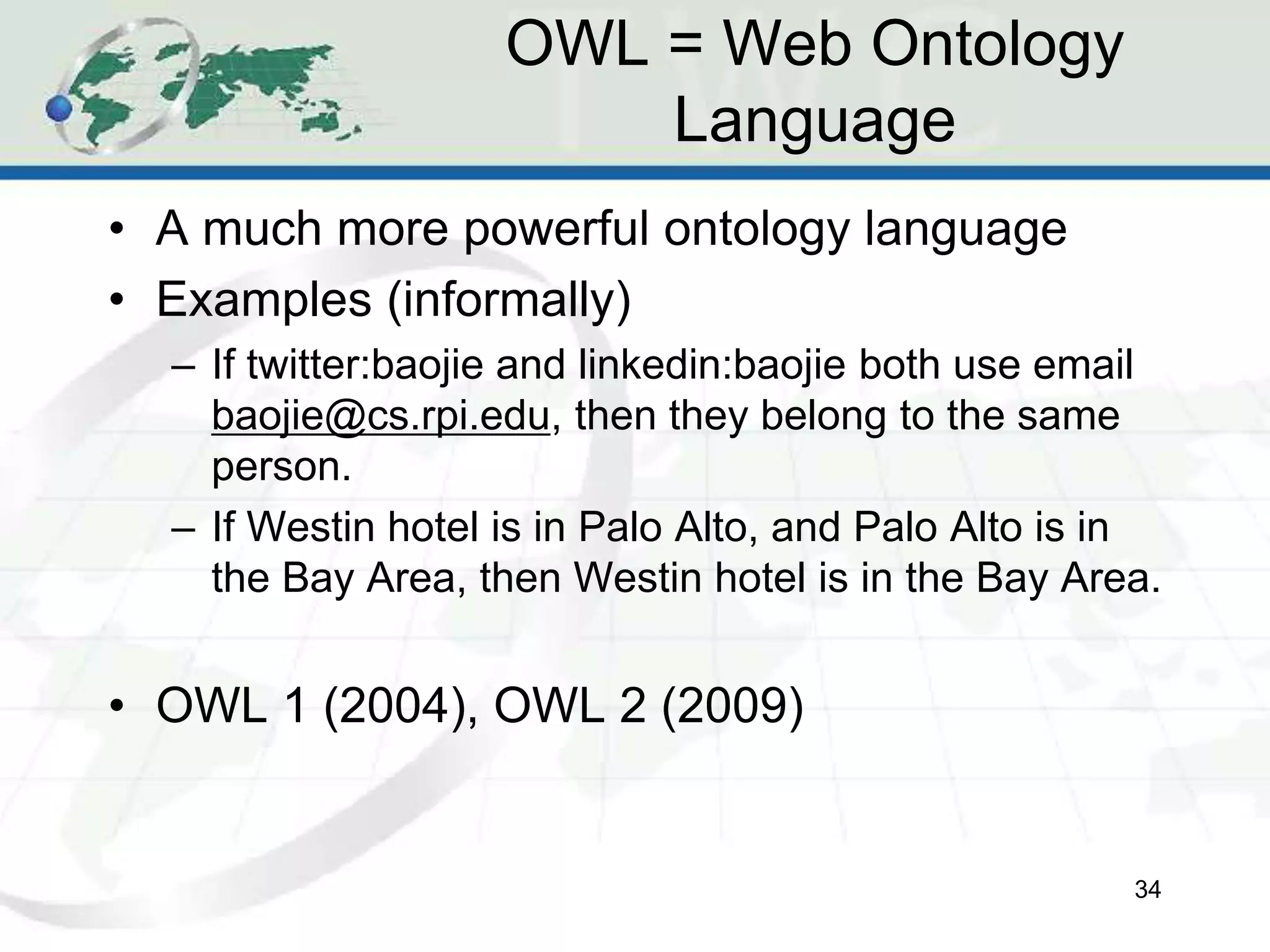

34. OWL = Web Ontology
Language
• A much more powerful ontology language
• Examples (informally)
– If twitter:baojie and linkedin:baojie both use email
baojie@cs.rpi.edu, then they belong to the same
person.
– If Westin hotel is in Palo Alto, and Palo Alto is in
the Bay Area, then Westin hotel is in the Bay Area.
• OWL 1 (2004), OWL 2 (2009)
34

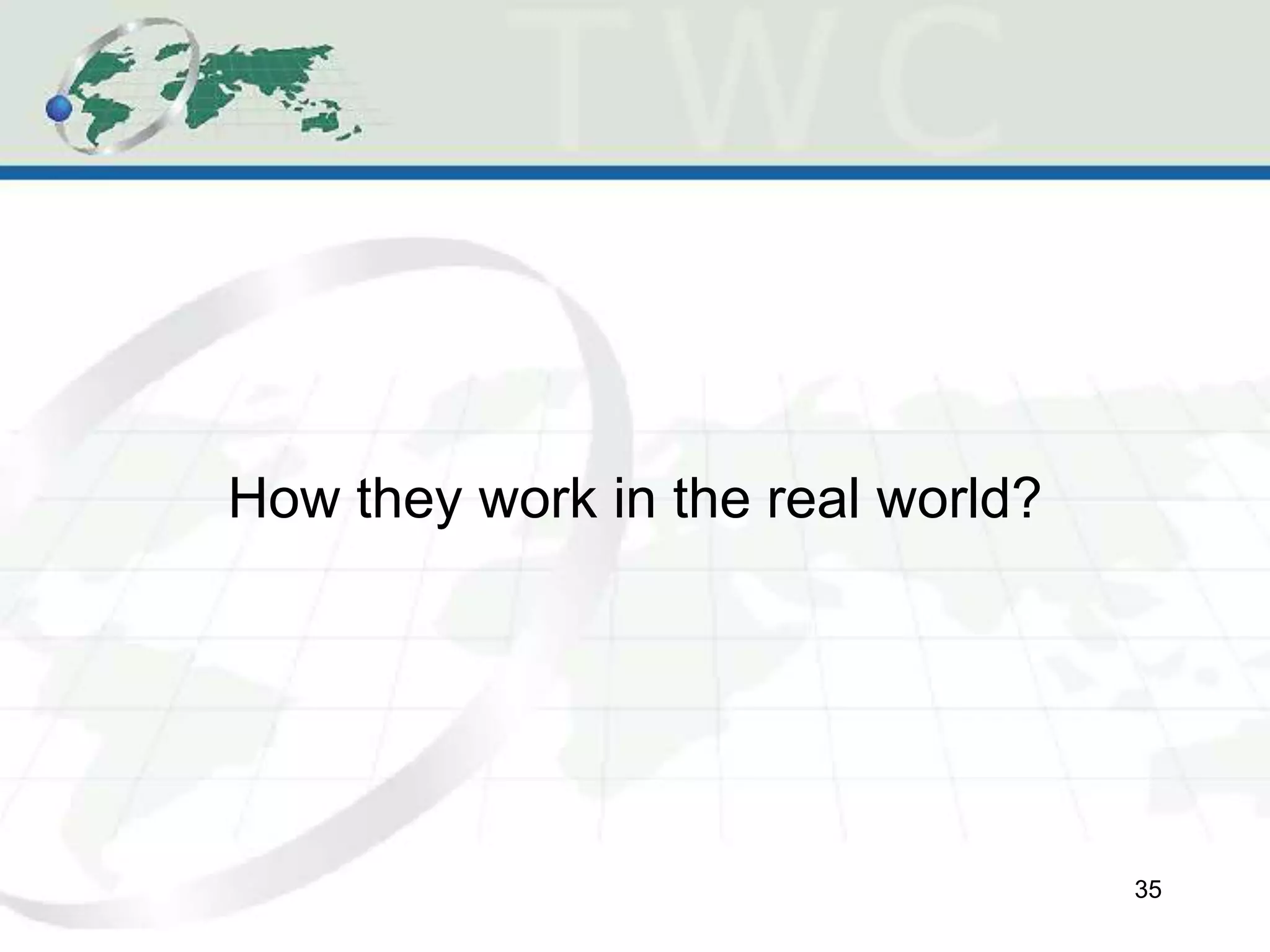

35. How they work in the real world?
35

36. You may not be aware that there are
already plenty of semantic data around.
36

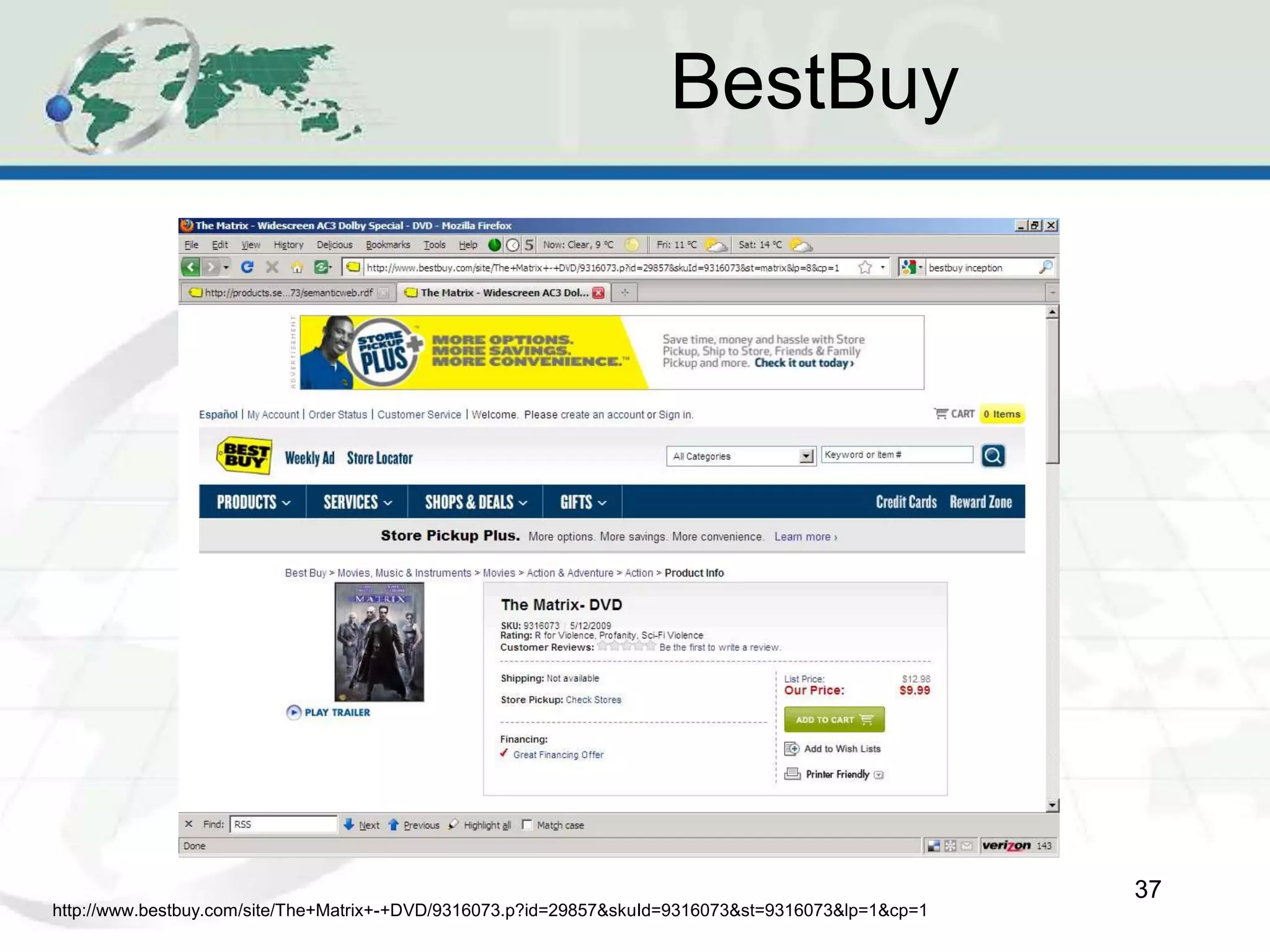

37. BestBuy
37
http://www.bestbuy.com/site/The+Matrix+-+DVD/9316073.p?id=29857&skuId=9316073&st=9316073&lp=1&cp=1

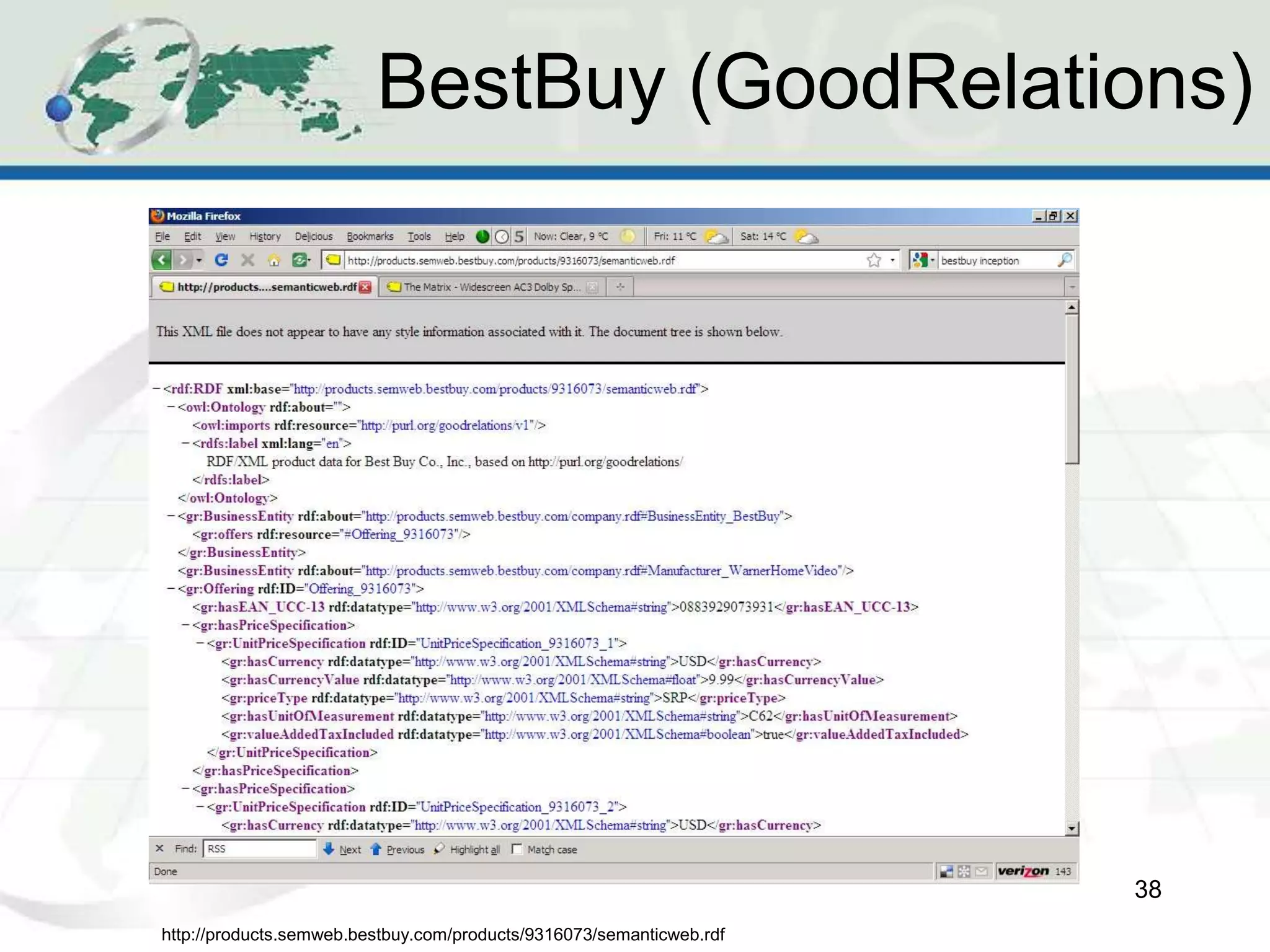

38. BestBuy (GoodRelations)
38
http://products.semweb.bestbuy.com/products/9316073/semanticweb.rdf

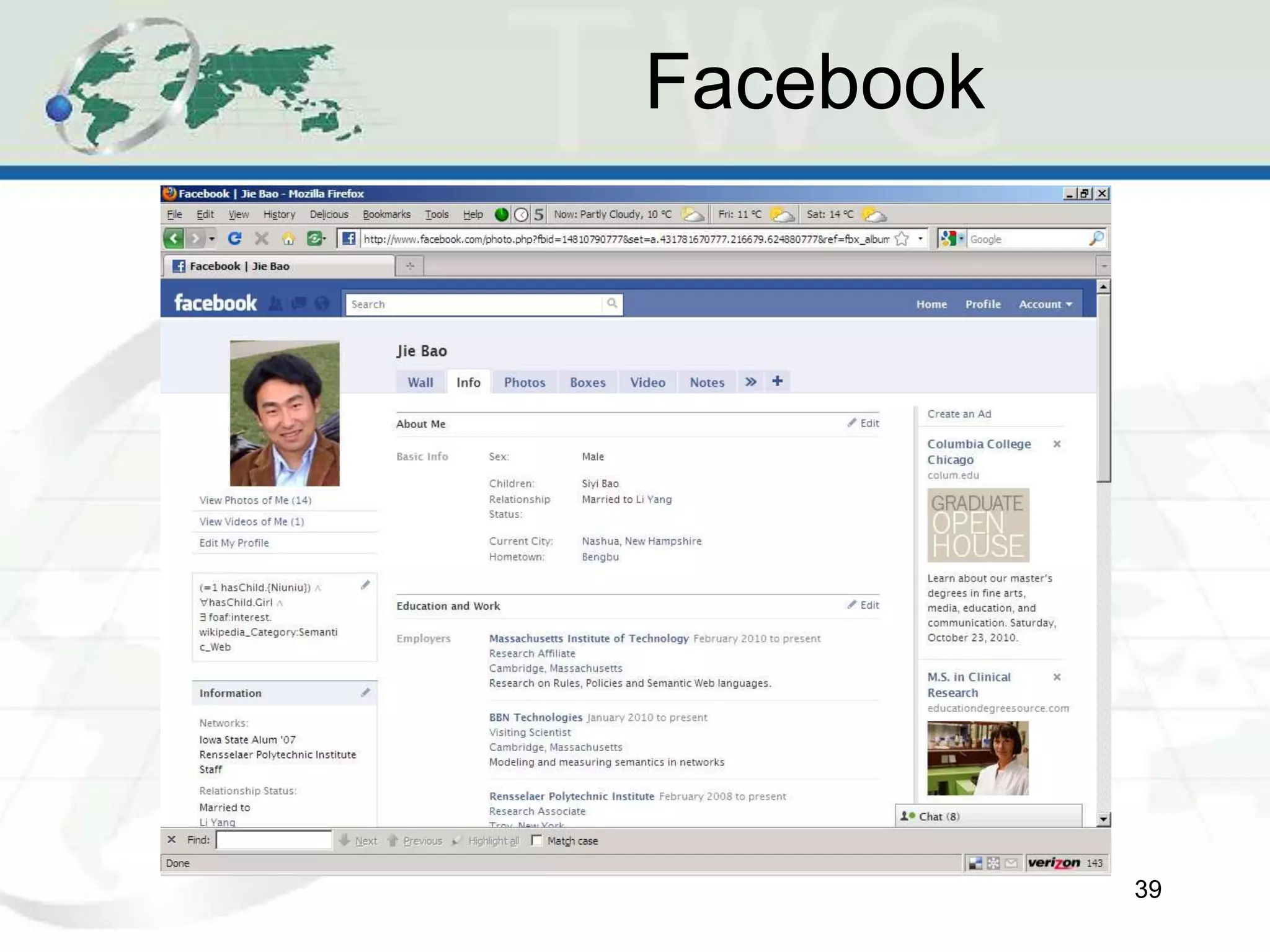

39. Facebook
39

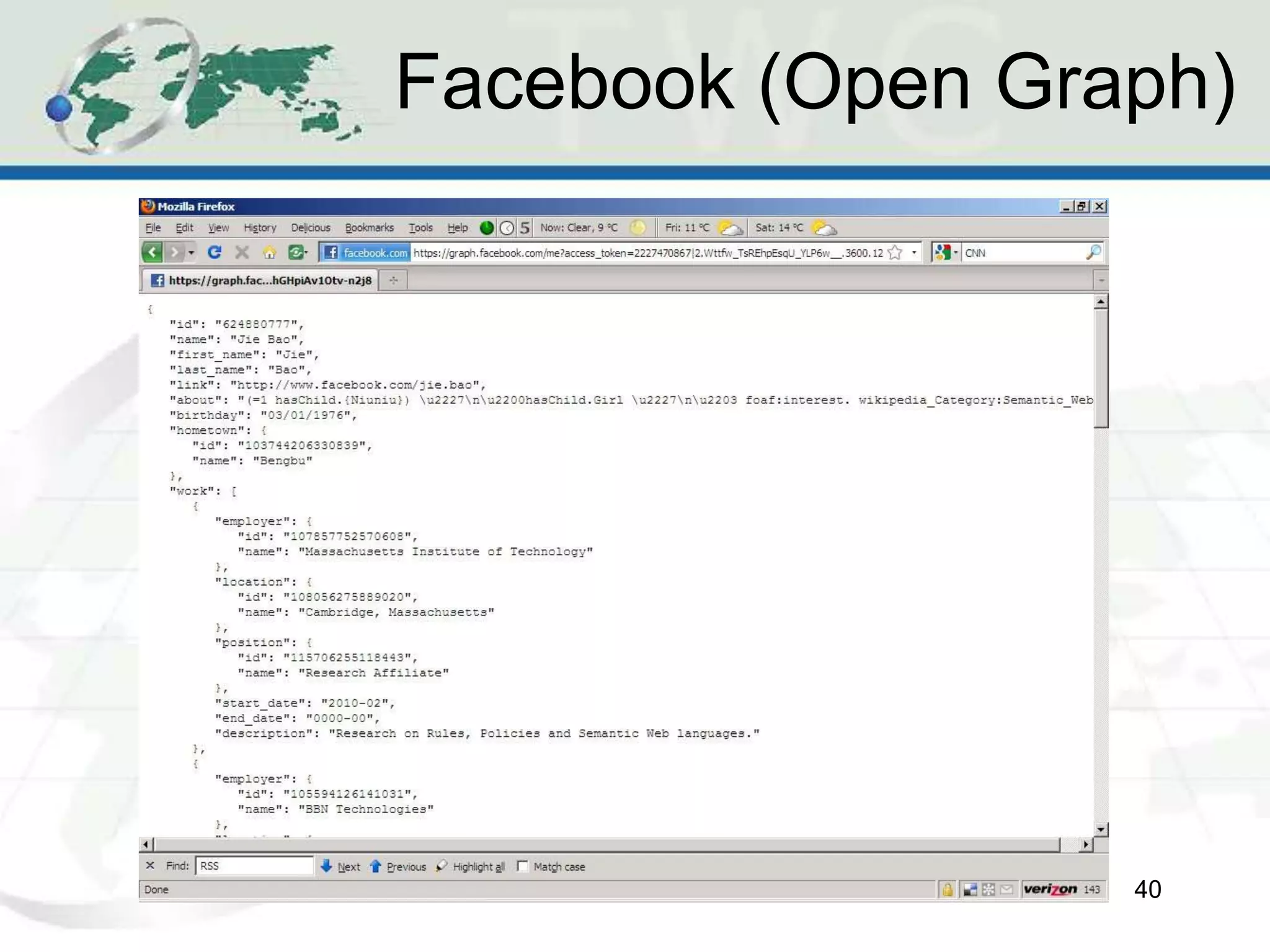

40. Facebook (Open Graph)
40

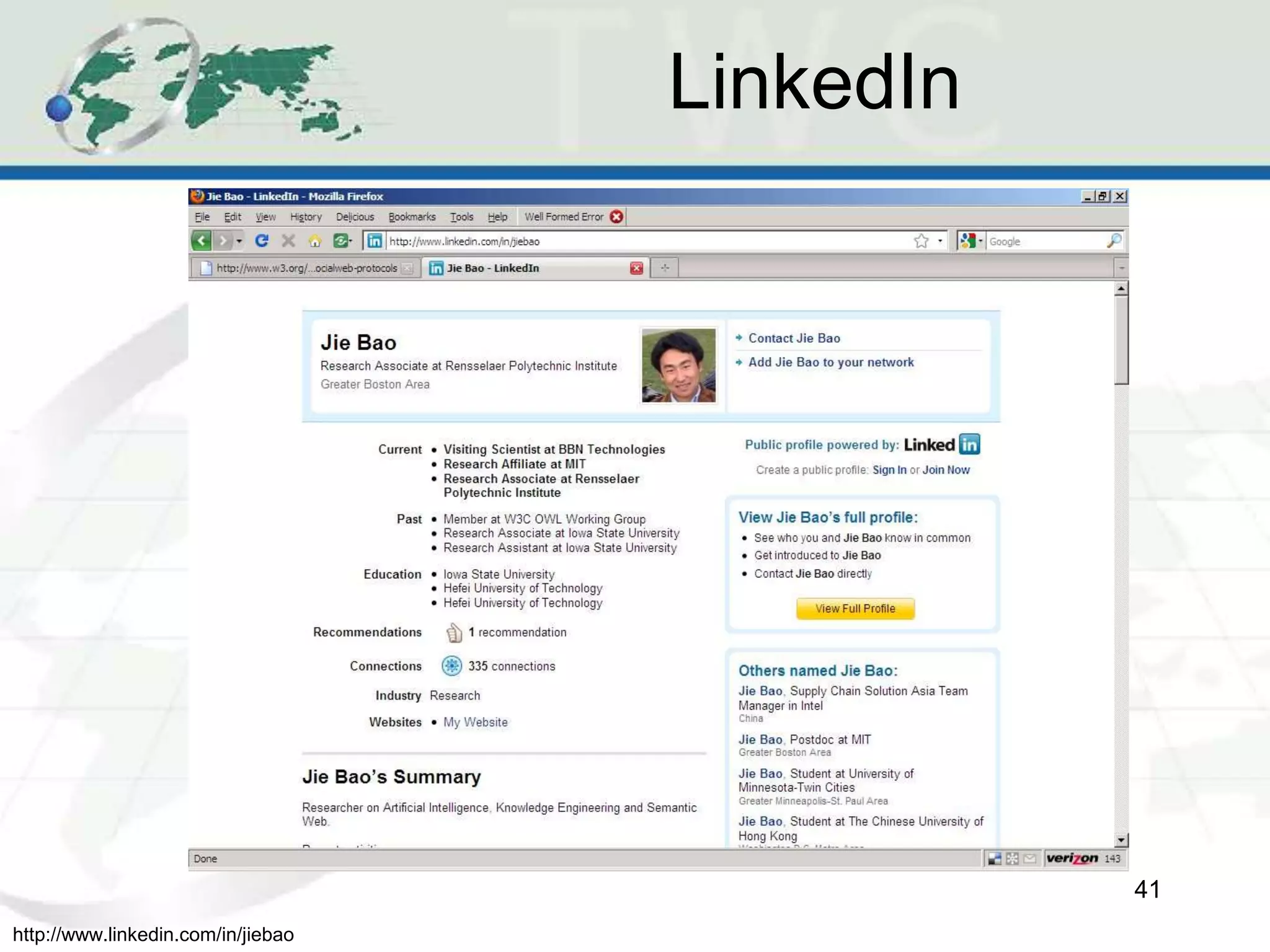

41. LinkedIn
41
http://www.linkedin.com/in/jiebao

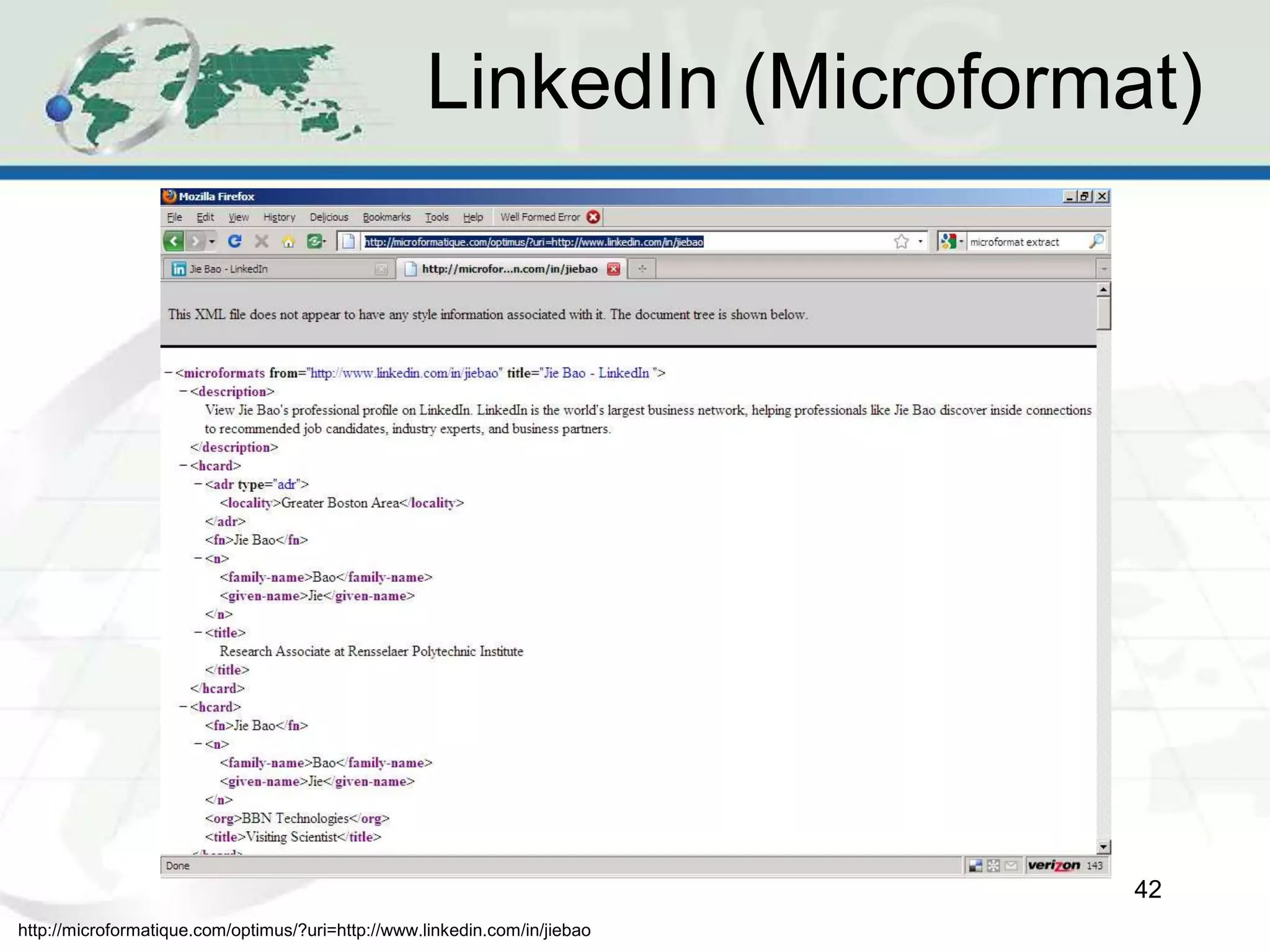

42. LinkedIn (Microformat)
42
http://microformatique.com/optimus/?uri=http://www.linkedin.com/in/jiebao

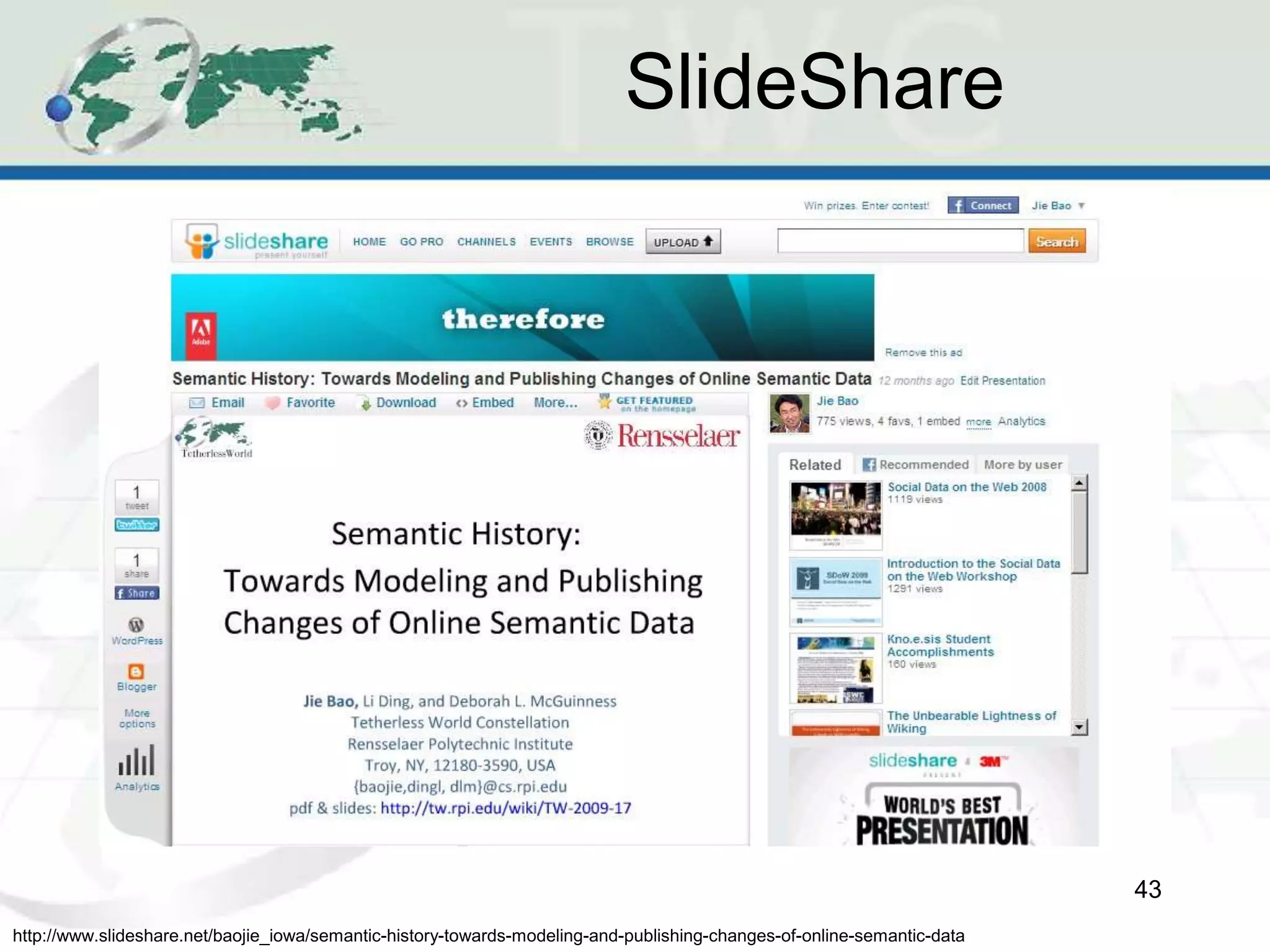

43. SlideShare
43
http://www.slideshare.net/baojie_iowa/semantic-history-towards-modeling-and-publishing-changes-of-online-semantic-data

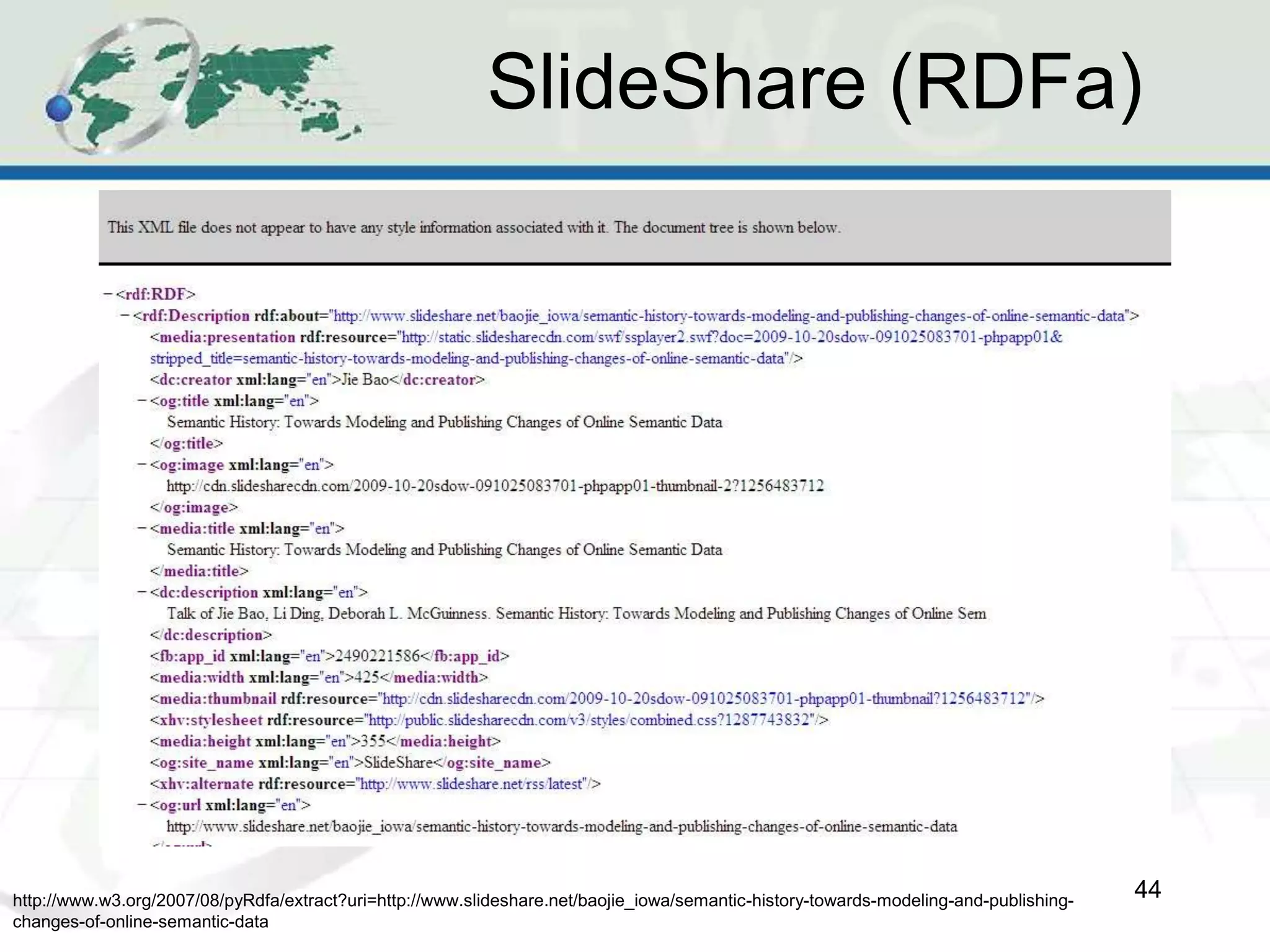

44. SlideShare (RDFa)
44
http://www.w3.org/2007/08/pyRdfa/extract?uri=http://www.slideshare.net/baojie_iowa/semantic-history-towards-modeling-and-publishing-
changes-of-online-semantic-data

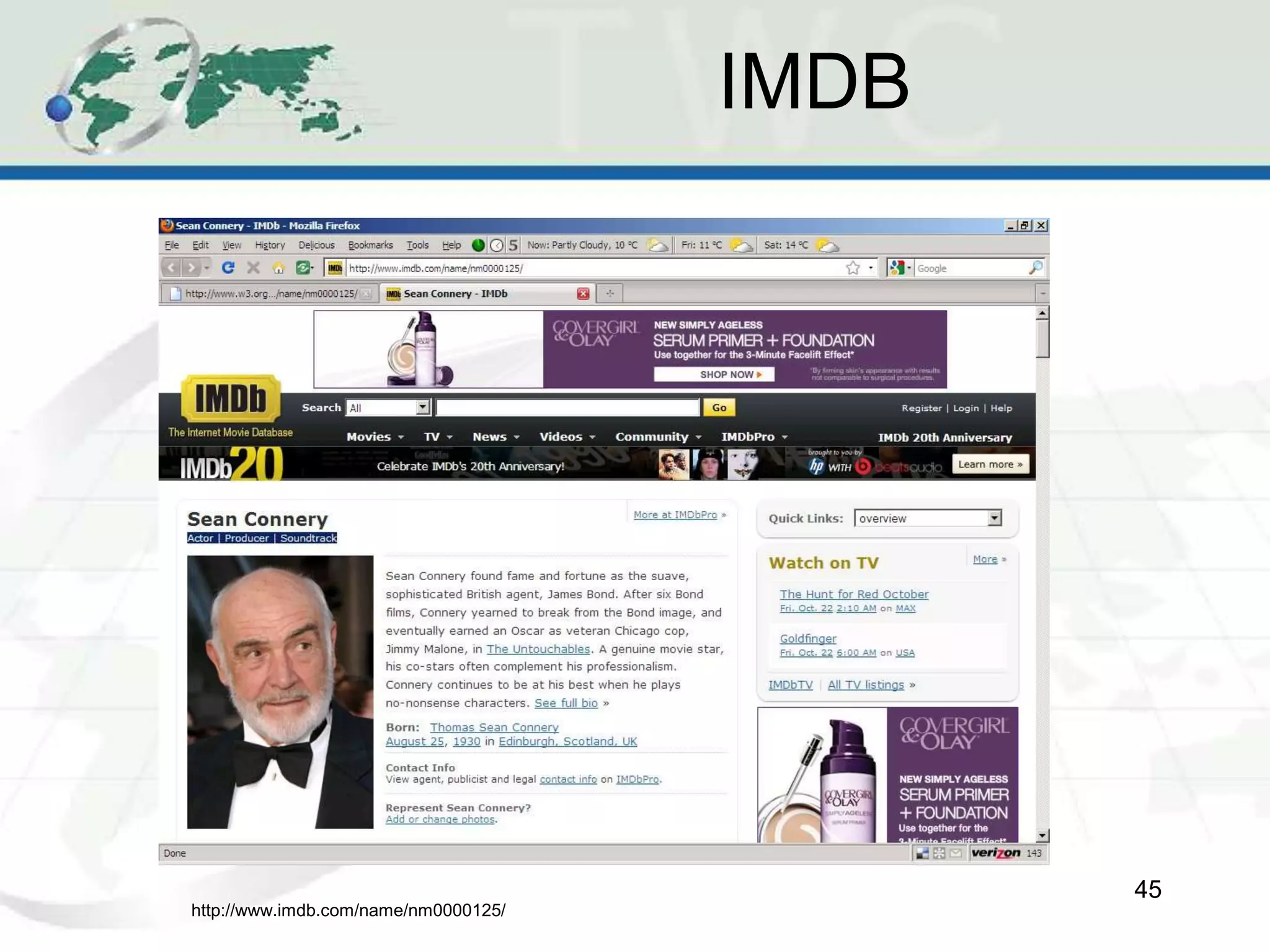

45. IMDB
45
http://www.imdb.com/name/nm0000125/

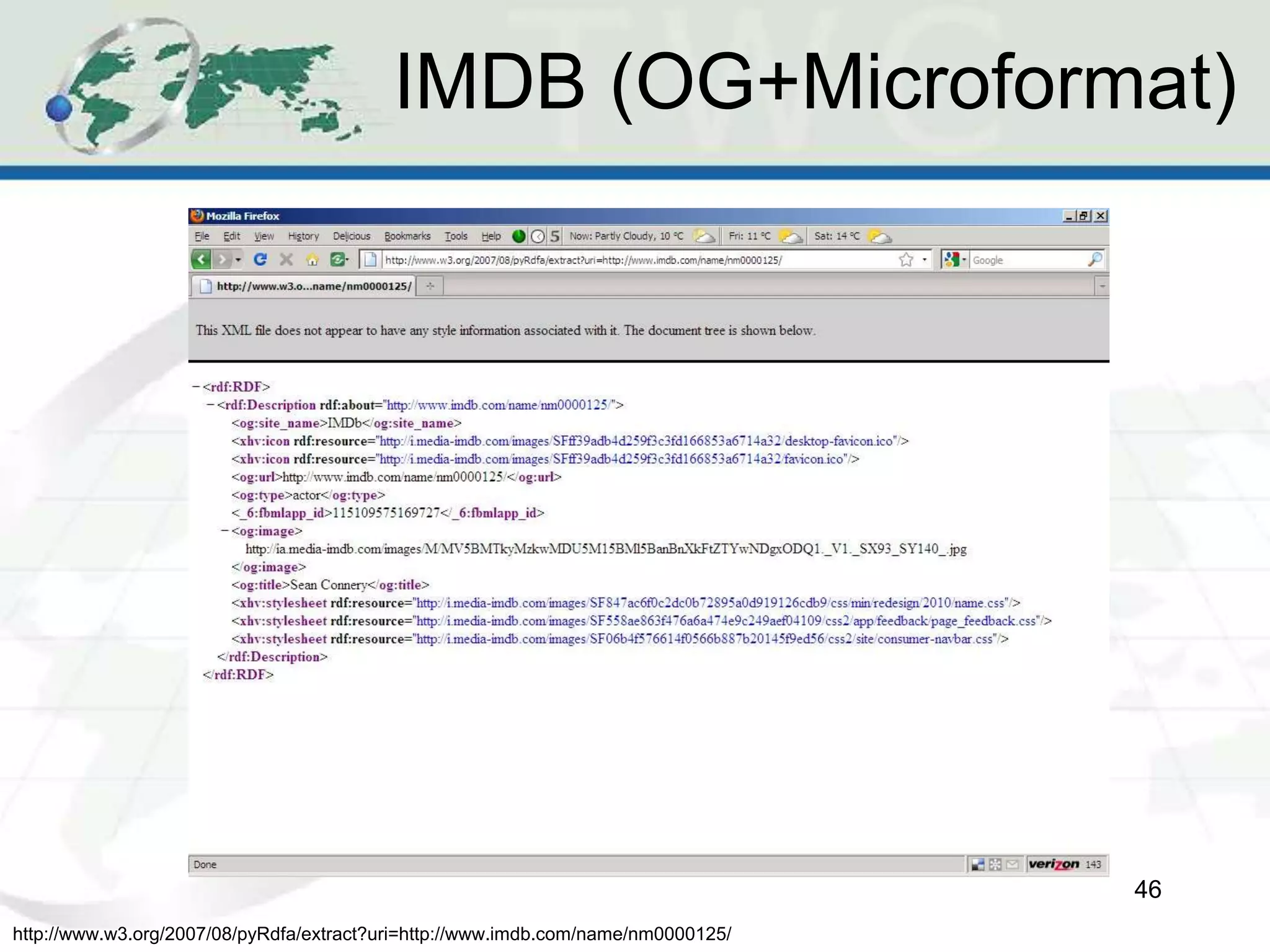

46. IMDB (OG+Microformat)
46
http://www.w3.org/2007/08/pyRdfa/extract?uri=http://www.imdb.com/name/nm0000125/

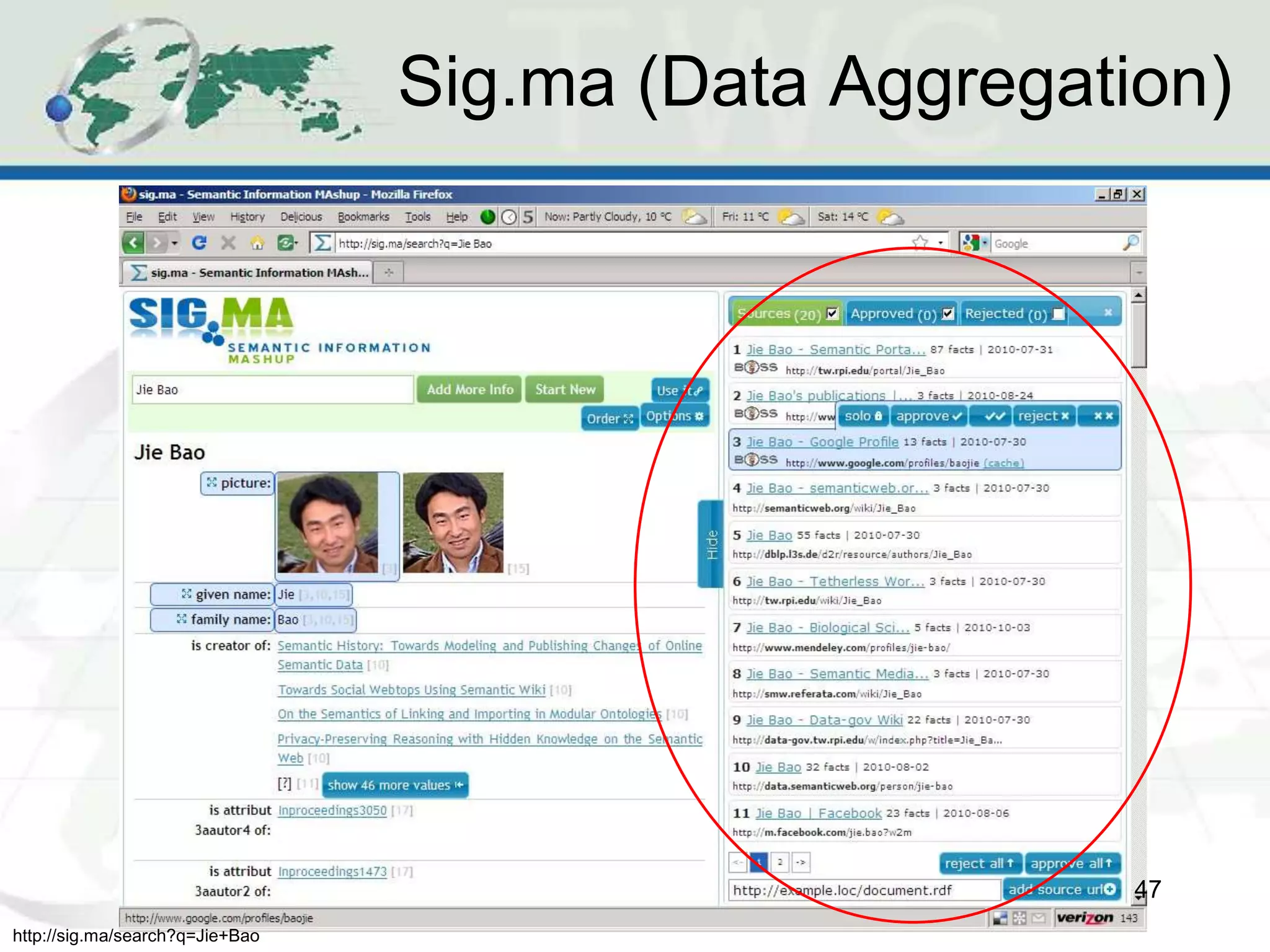

47. Sig.ma (Data Aggregation)
47
http://sig.ma/search?q=Jie+Bao

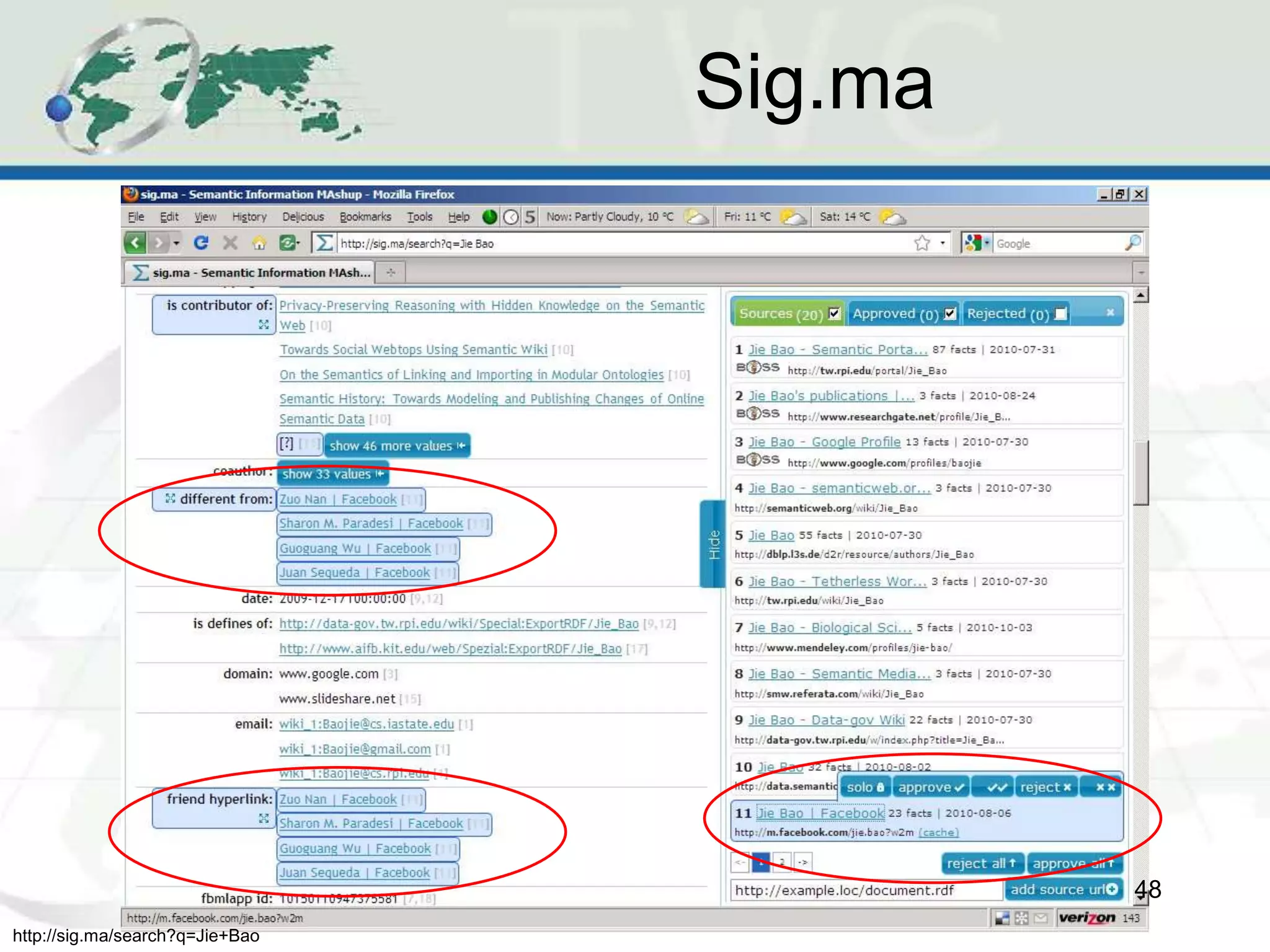

48. Sig.ma
48
http://sig.ma/search?q=Jie+Bao

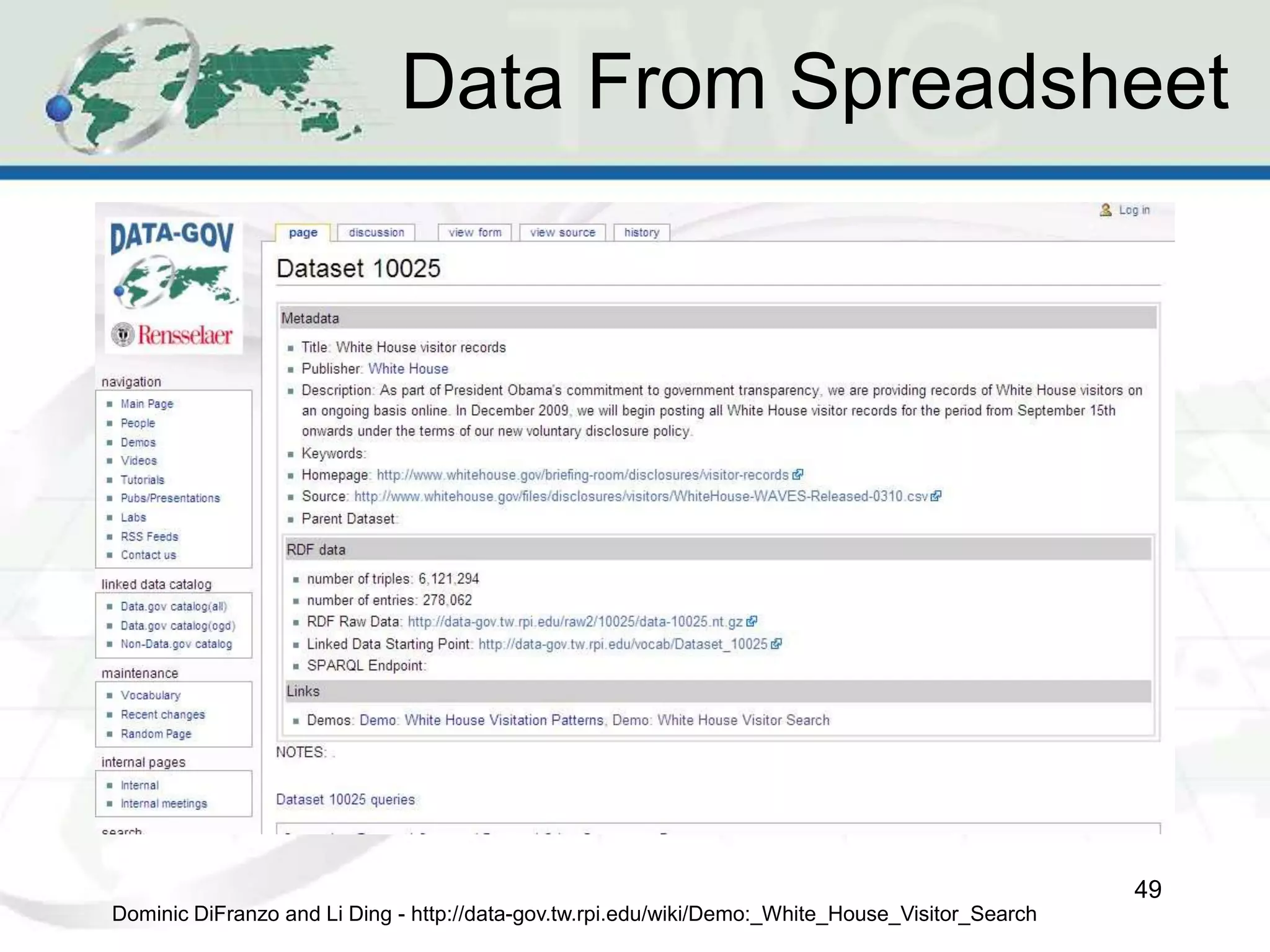

49. Data From Spreadsheet
49
Dominic DiFranzo and Li Ding - http://data-gov.tw.rpi.edu/wiki/Demo:_White_House_Visitor_Search

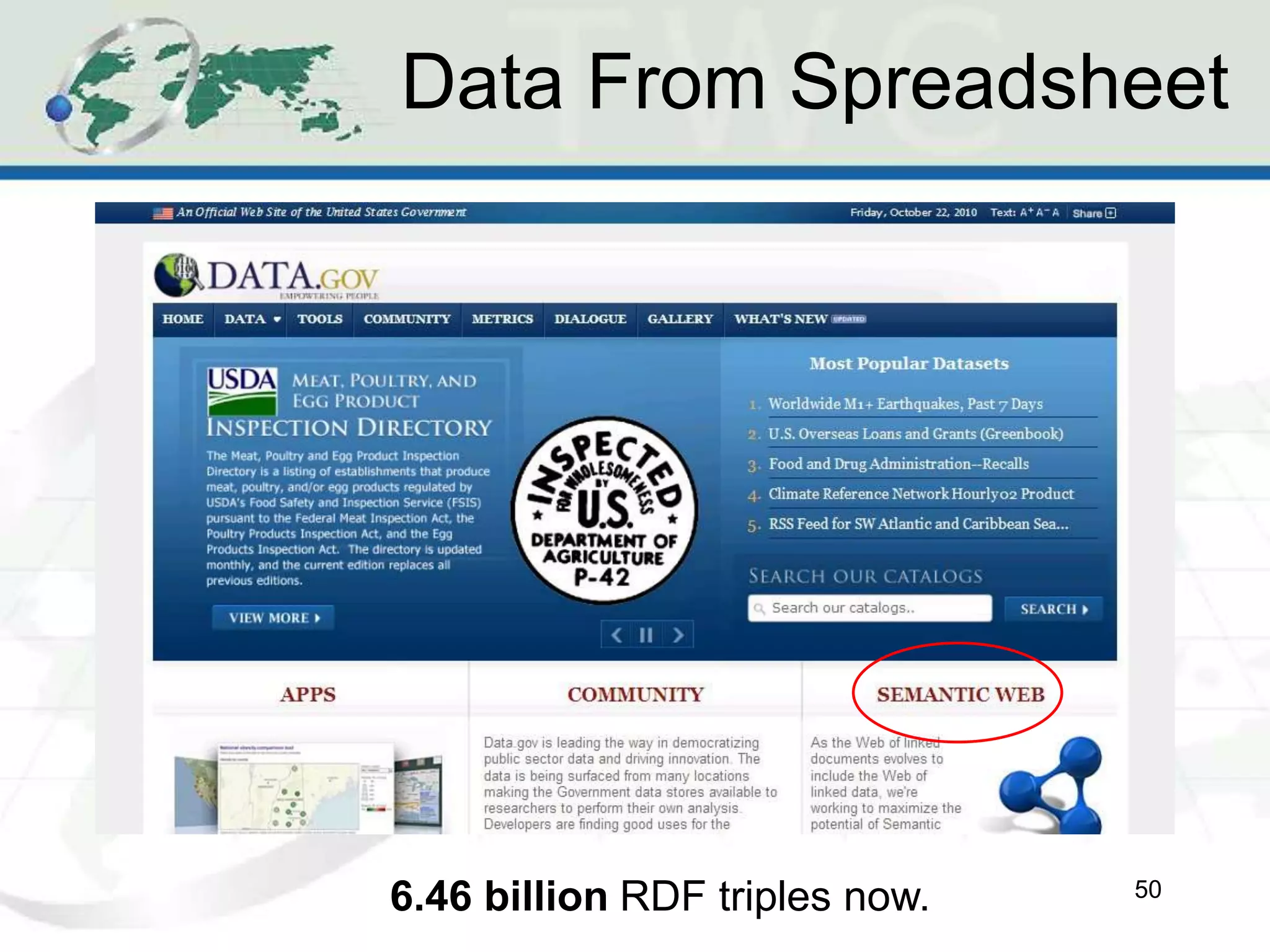

50. Data From Spreadsheet
50
6.46 billion RDF triples now.

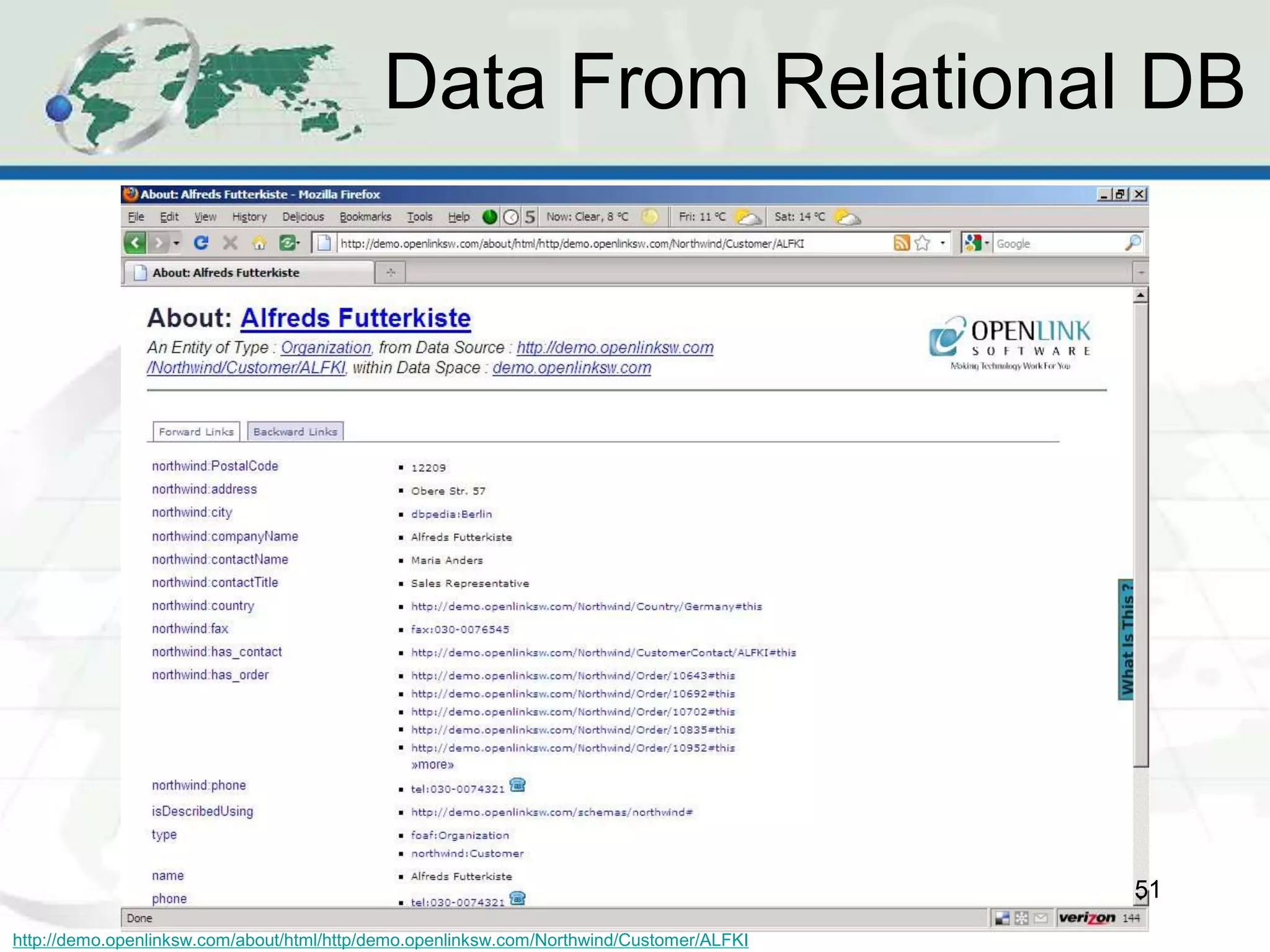

51. Data From Relational DB
51
http://demo.openlinksw.com/about/html/http/demo.openlinksw.com/Northwind/Customer/ALFKI

52. 52
Many Many More

53. Then, how semantic data help us to build
(killer) apps?
53

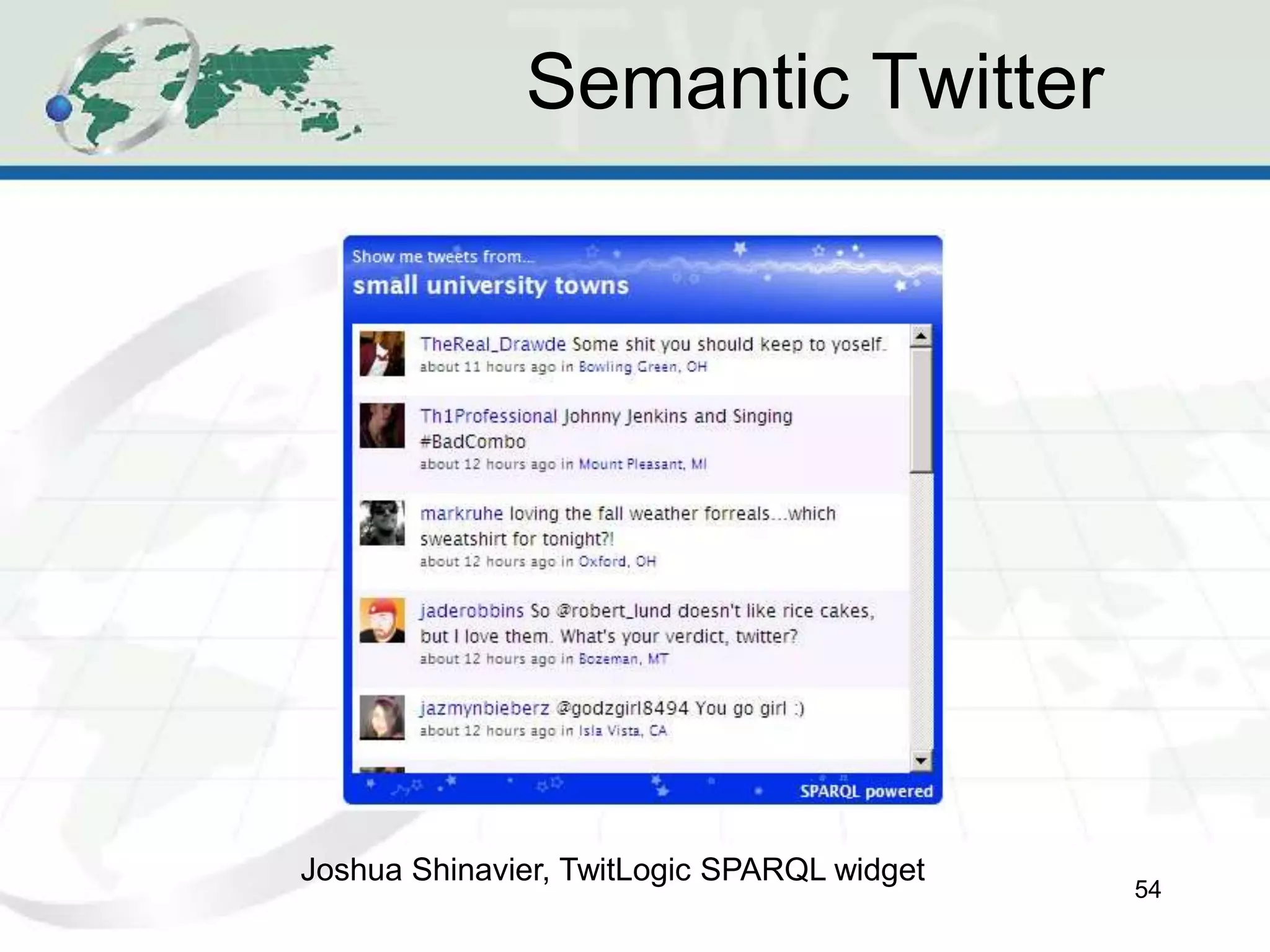

54. Semantic Twitter
54
Joshua Shinavier, TwitLogic SPARQL widget

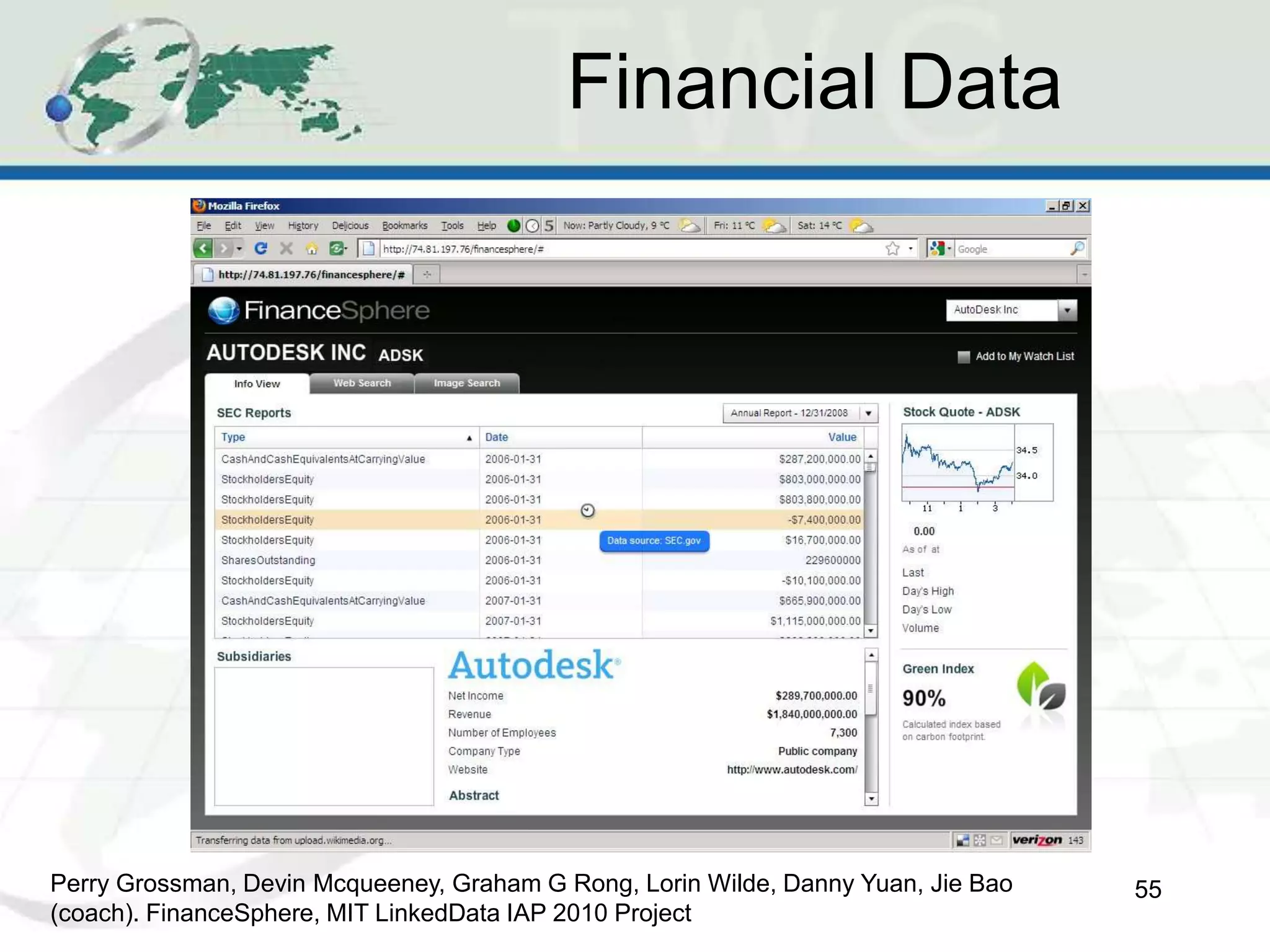

55. Financial Data
55
Perry Grossman, Devin Mcqueeney, Graham G Rong, Lorin Wilde, Danny Yuan, Jie Bao
(coach). FinanceSphere, MIT LinkedData IAP 2010 Project

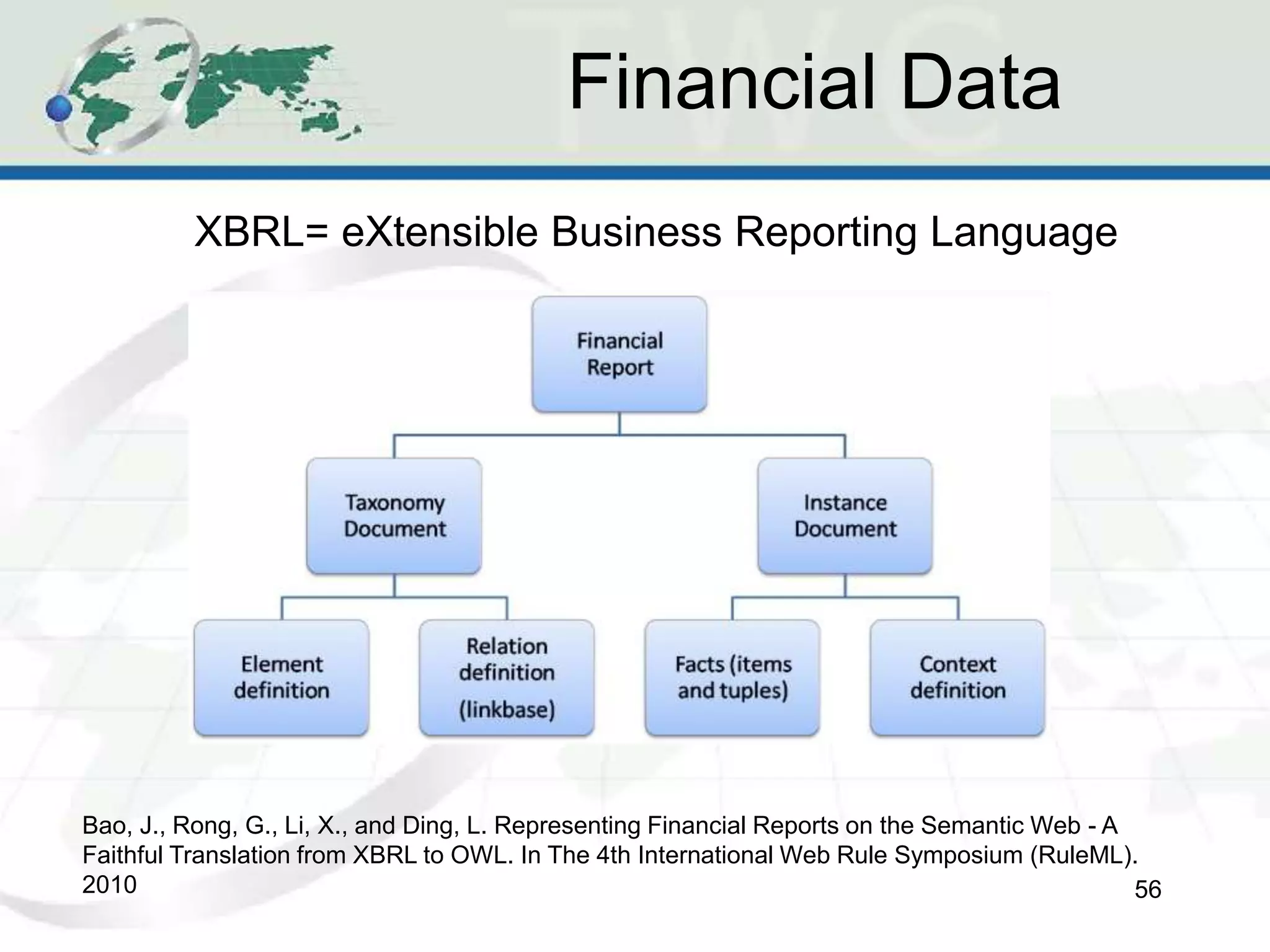

56. Financial Data
56
Bao, J., Rong, G., Li, X., and Ding, L. Representing Financial Reports on the Semantic Web - A
Faithful Translation from XBRL to OWL. In The 4th International Web Rule Symposium (RuleML).
2010
XBRL= eXtensible Business Reporting Language

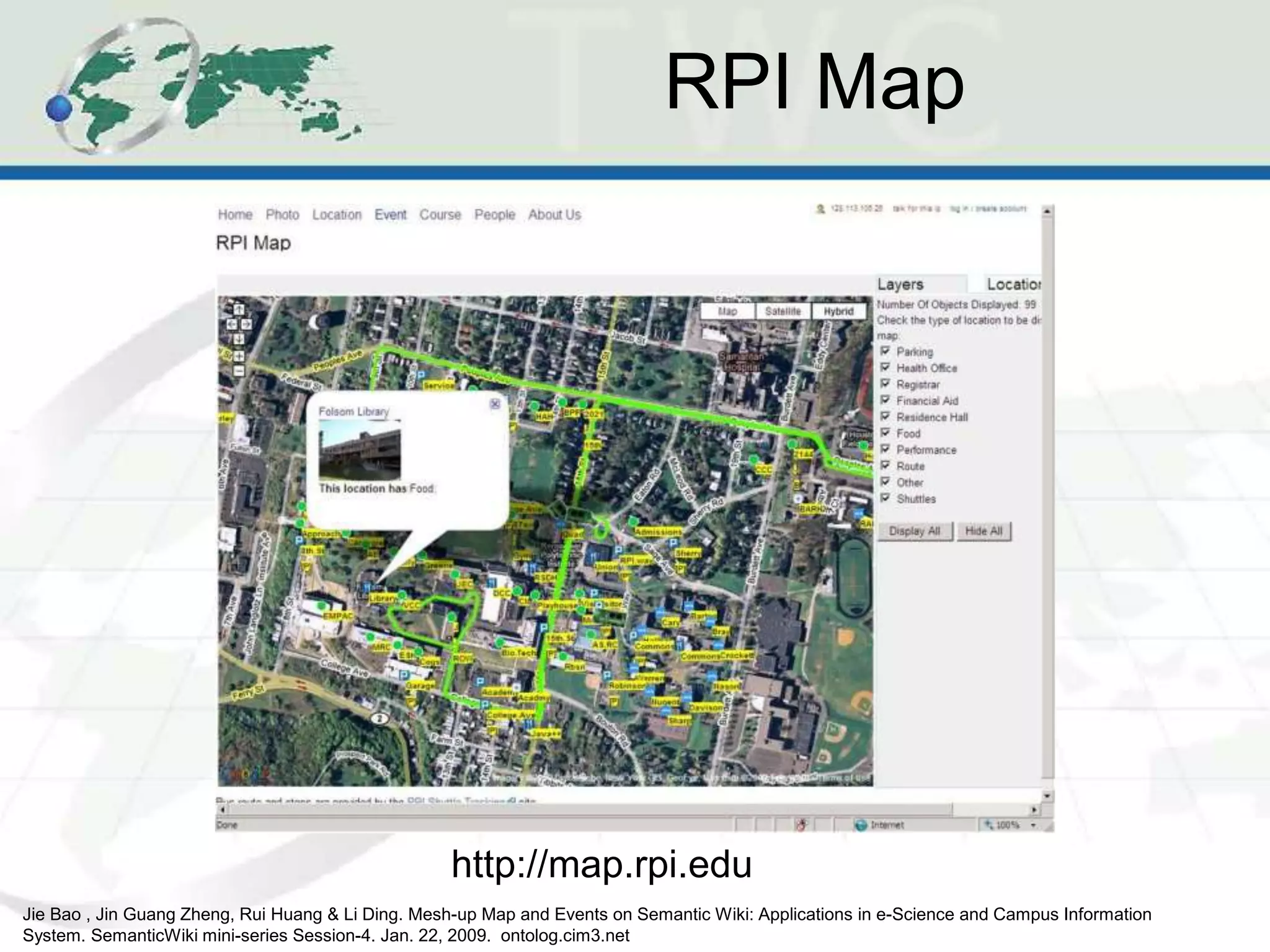

57. RPI Map
http://map.rpi.edu
Jie Bao , Jin Guang Zheng, Rui Huang & Li Ding. Mesh-up Map and Events on Semantic Wiki: Applications in e-Science and Campus Information
System. SemanticWiki mini-series Session-4. Jan. 22, 2009. ontolog.cim3.net

58. Semantic Email

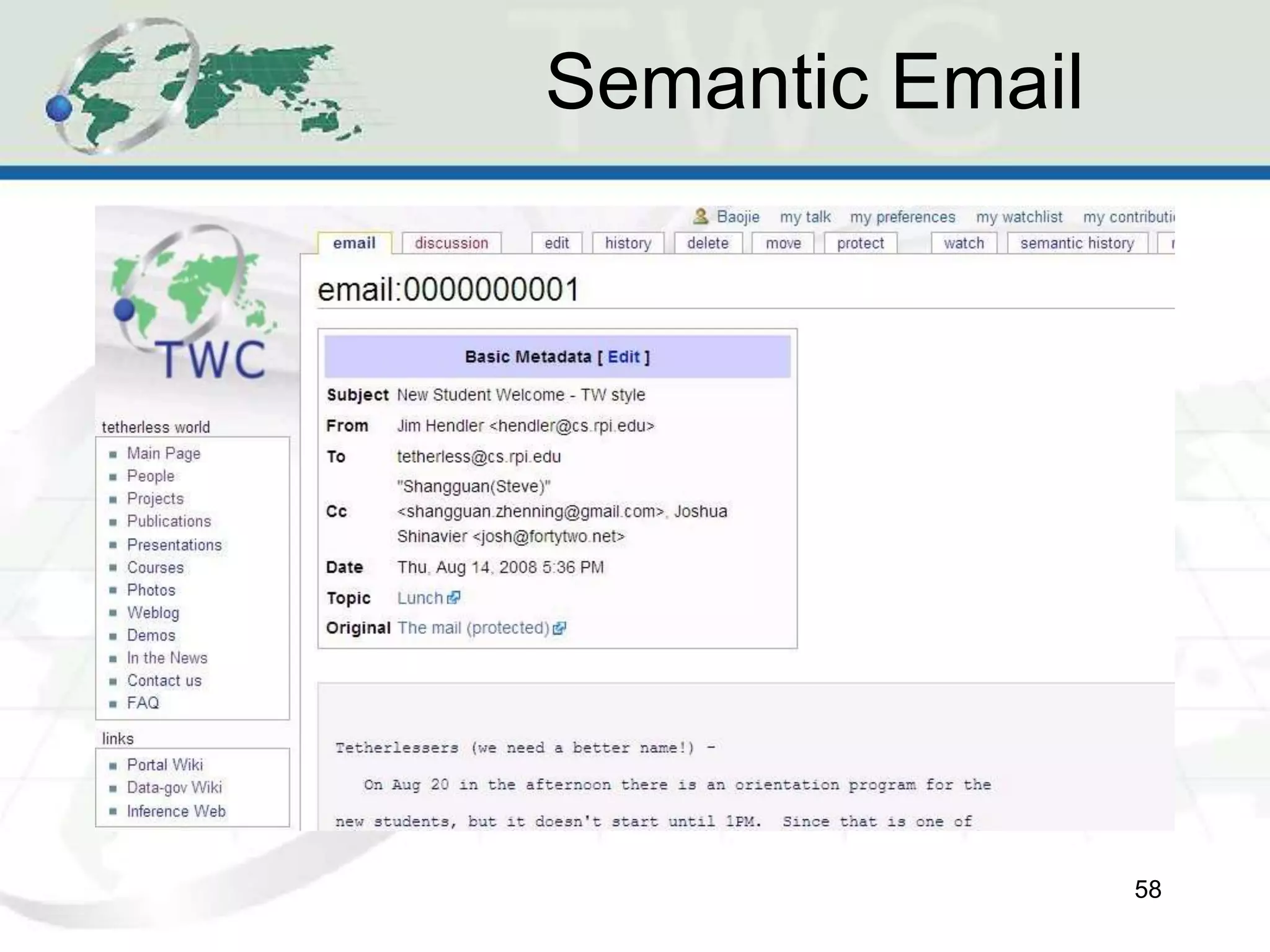

58

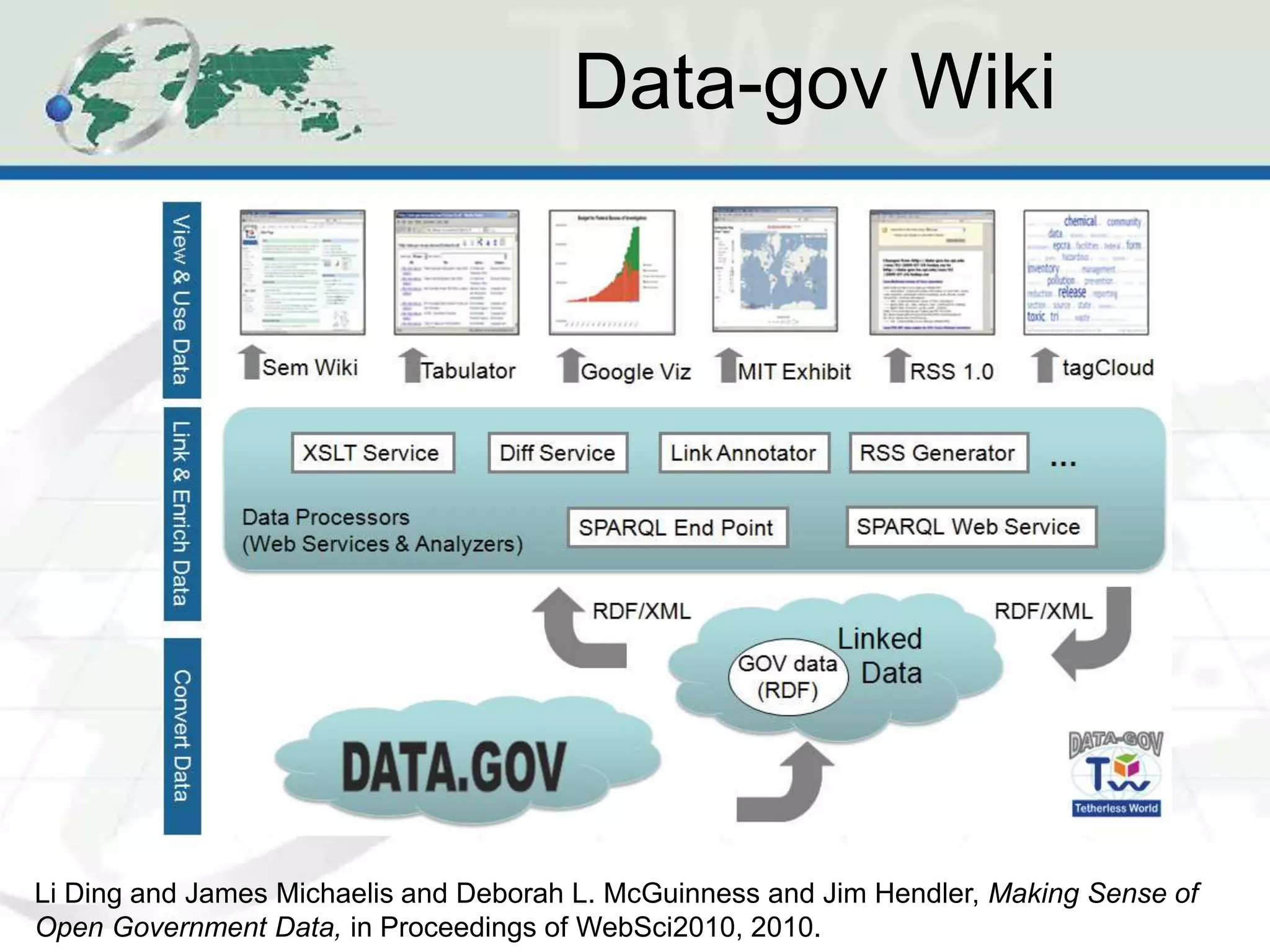

59. Data-gov Wiki
Li Ding and James Michaelis and Deborah L. McGuinness and Jim Hendler, Making Sense of
Open Government Data, in Proceedings of WebSci2010, 2010.

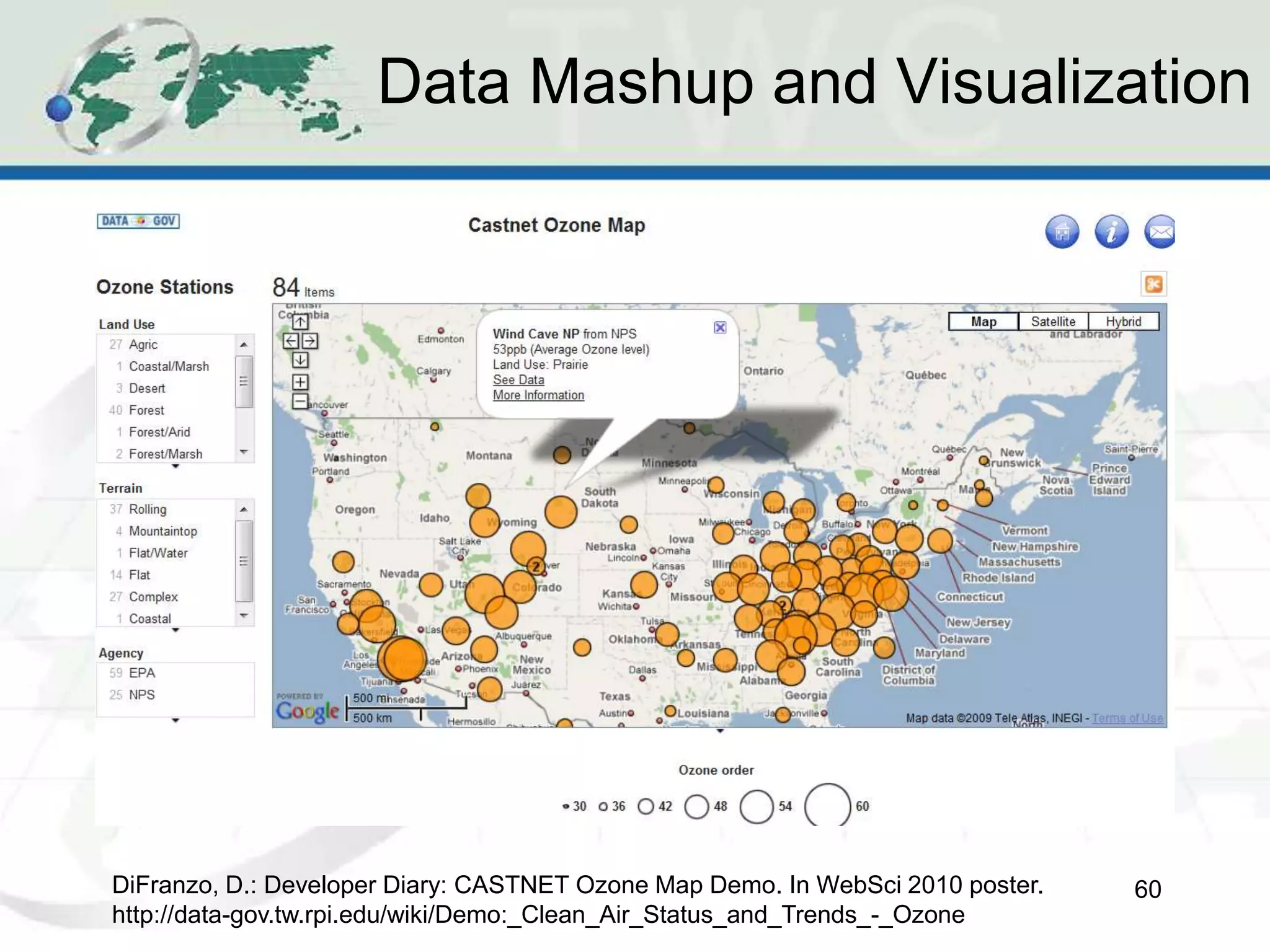

60. Data Mashup and Visualization
60
DiFranzo, D.: Developer Diary: CASTNET Ozone Map Demo. In WebSci 2010 poster.
http://data-gov.tw.rpi.edu/wiki/Demo:_Clean_Air_Status_and_Trends_-_Ozone

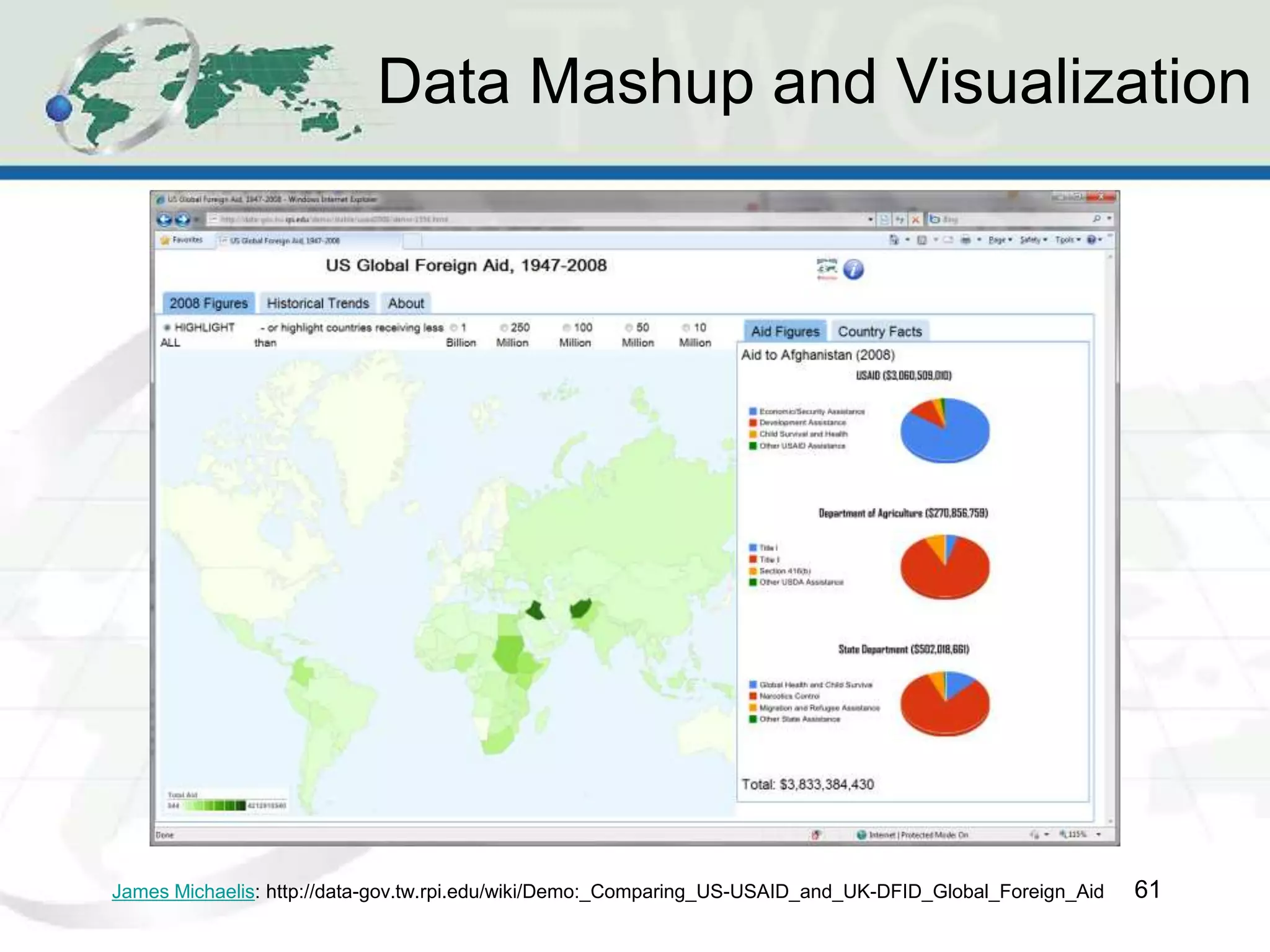

61. Data Mashup and Visualization
61
James Michaelis: http://data-gov.tw.rpi.edu/wiki/Demo:_Comparing_US-USAID_and_UK-DFID_Global_Foreign_Aid

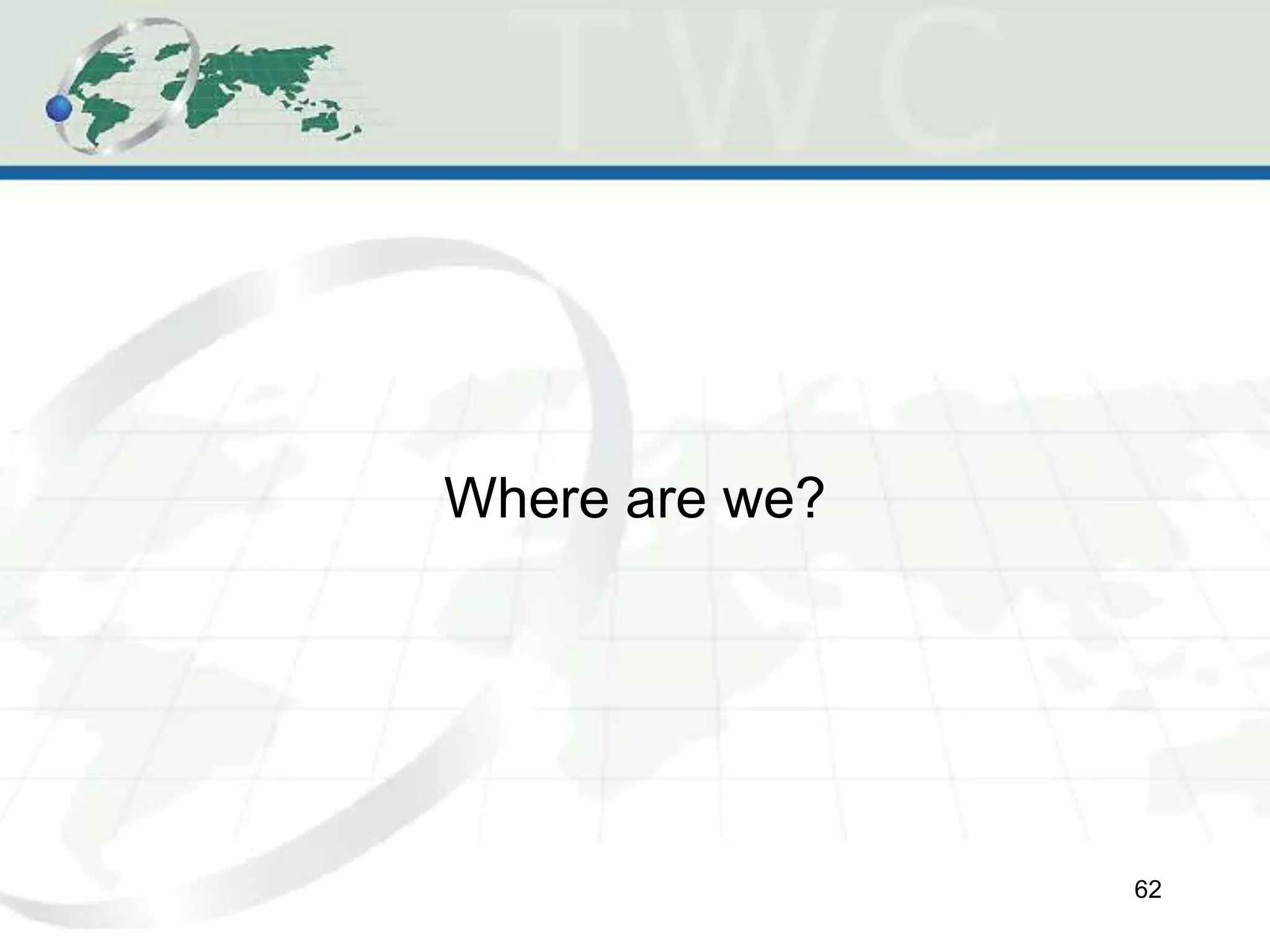

62. Where are we?
62

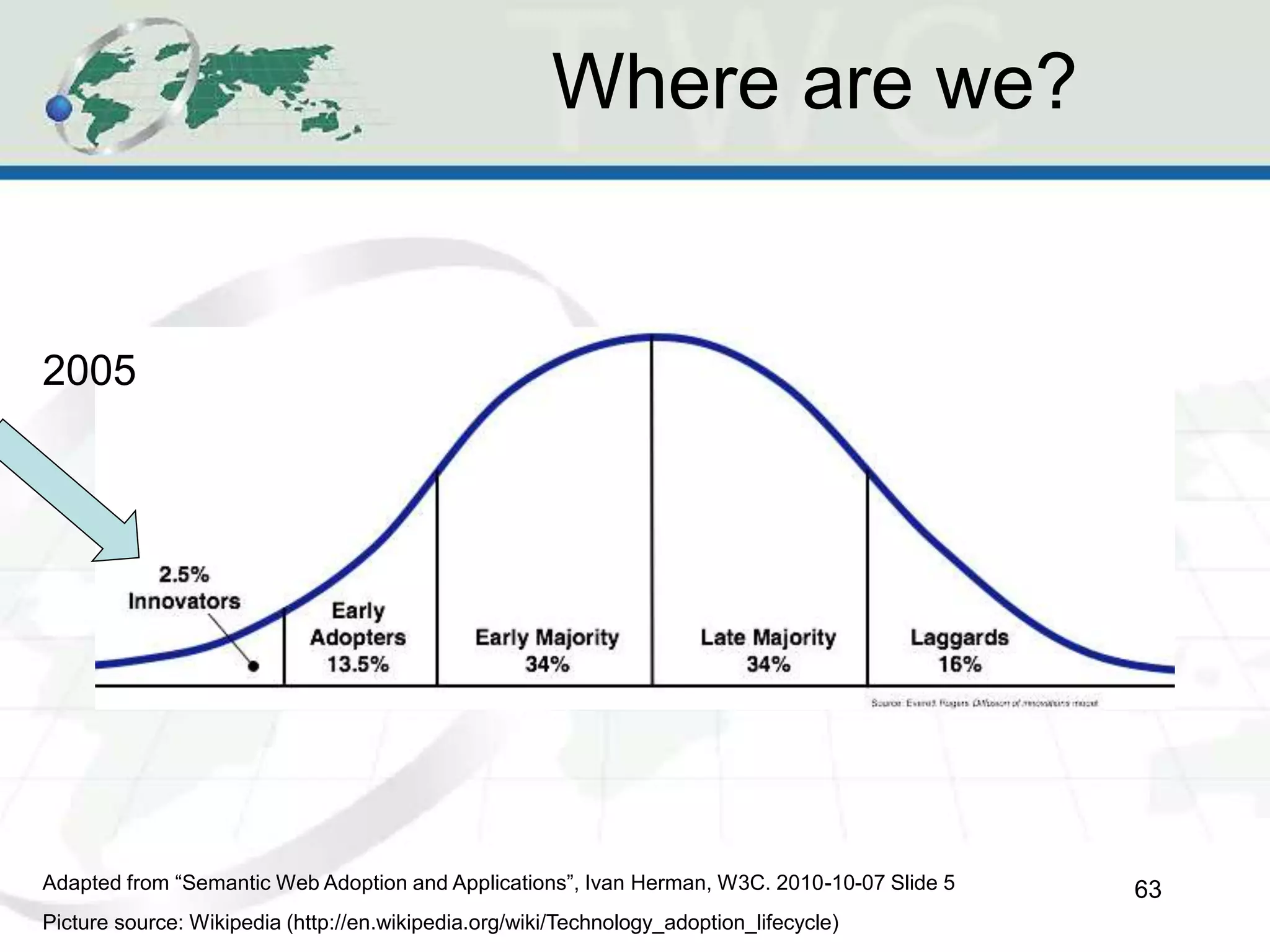

63. Where are we?
63
Picture source: Wikipedia (http://en.wikipedia.org/wiki/Technology_adoption_lifecycle)
Adapted from “Semantic Web Adoption and Applications”, Ivan Herman, W3C. 2010-10-07 Slide 5
2005

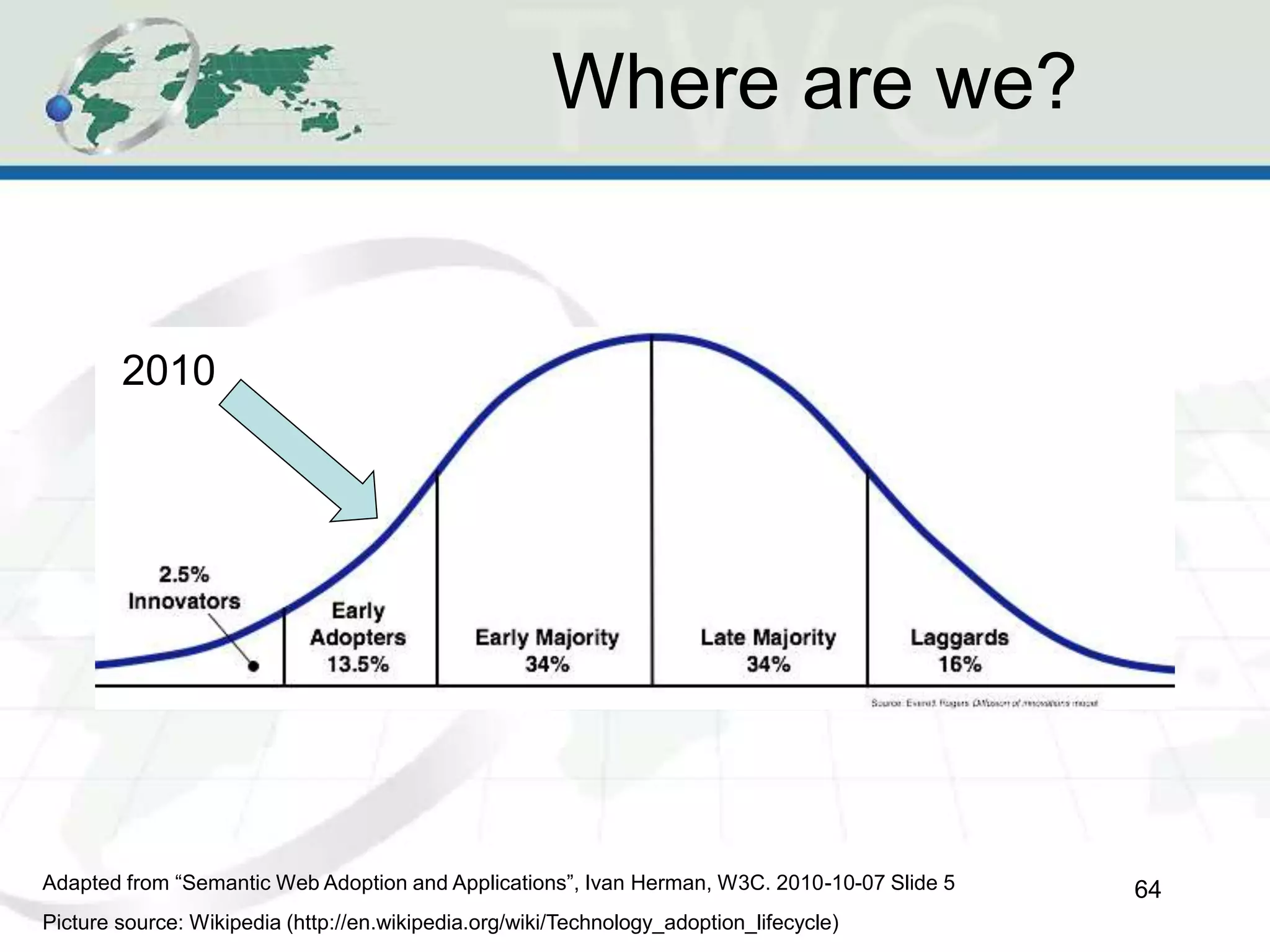

64. Where are we?
64
Picture source: Wikipedia (http://en.wikipedia.org/wiki/Technology_adoption_lifecycle)
Adapted from “Semantic Web Adoption and Applications”, Ivan Herman, W3C. 2010-10-07 Slide 5
2010

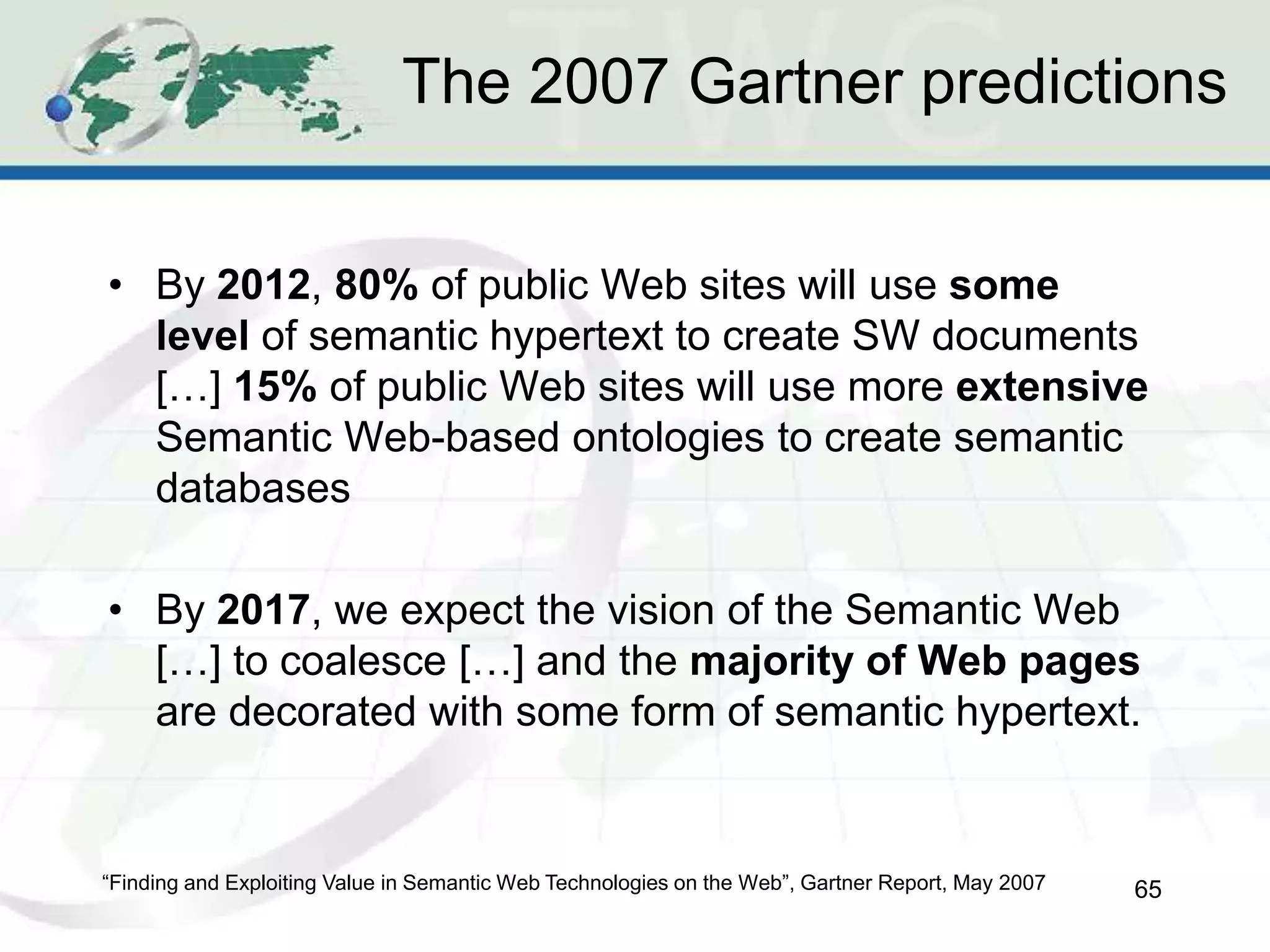

65. The 2007 Gartner predictions
• By 2012, 80% of public Web sites will use some
level of semantic hypertext to create SW documents
[…] 15% of public Web sites will use more extensive
Semantic Web-based ontologies to create semantic
databases
• By 2017, we expect the vision of the Semantic Web
[…] to coalesce […] and the majority of Web pages
are decorated with some form of semantic hypertext.
65
“Finding and Exploiting Value in Semantic Web Technologies on the Web”, Gartner Report, May 2007

66. Imagine a world where data are linked
and make sense
66

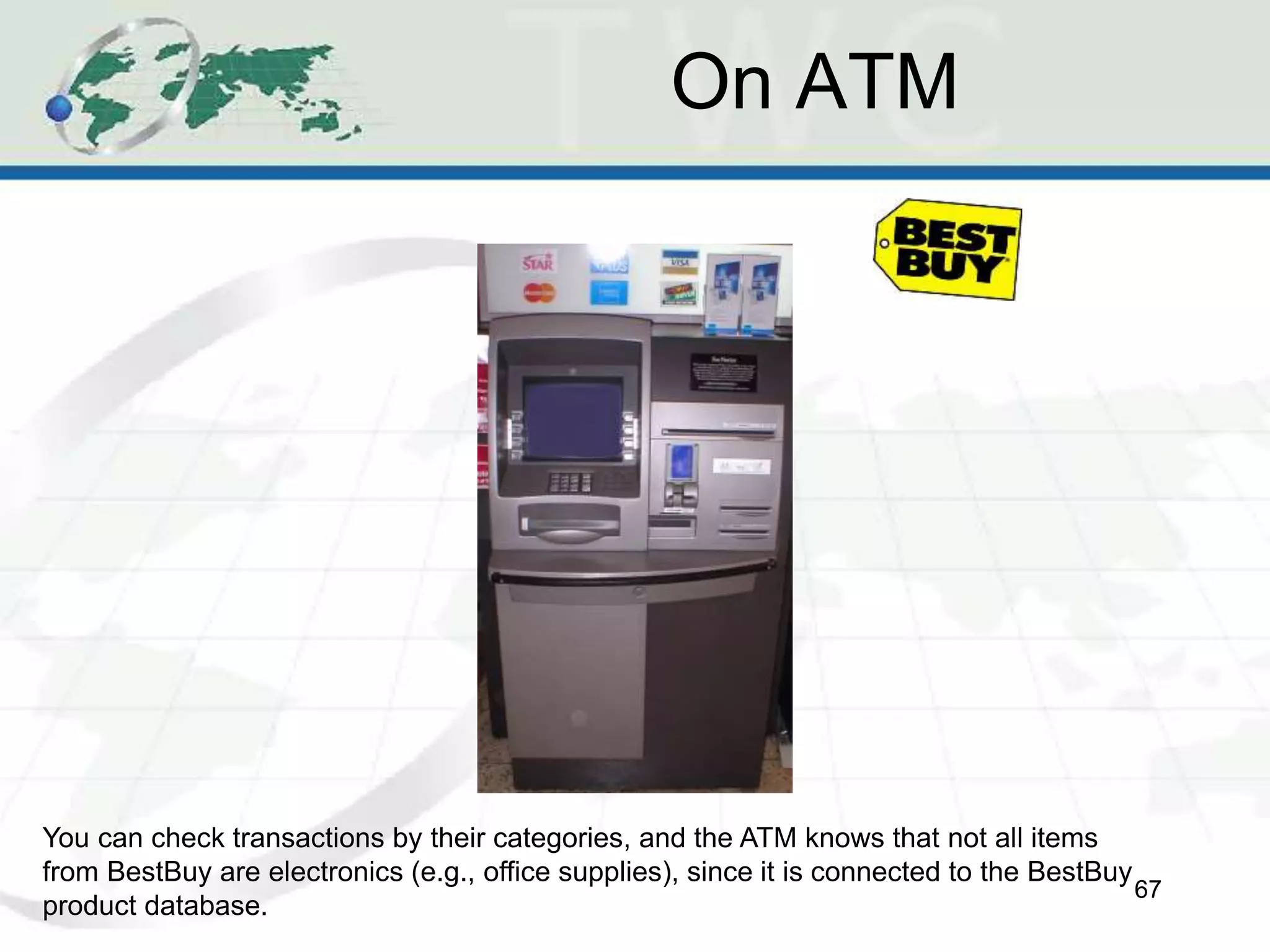

67. On ATM
67
You can check transactions by their categories, and the ATM knows that not all items
from BestBuy are electronics (e.g., office supplies), since it is connected to the BestBuy
product database.

68. On TV
68
It can generate a personalized program list of movies starred by Sean Connery,
since it is connected to IMDB

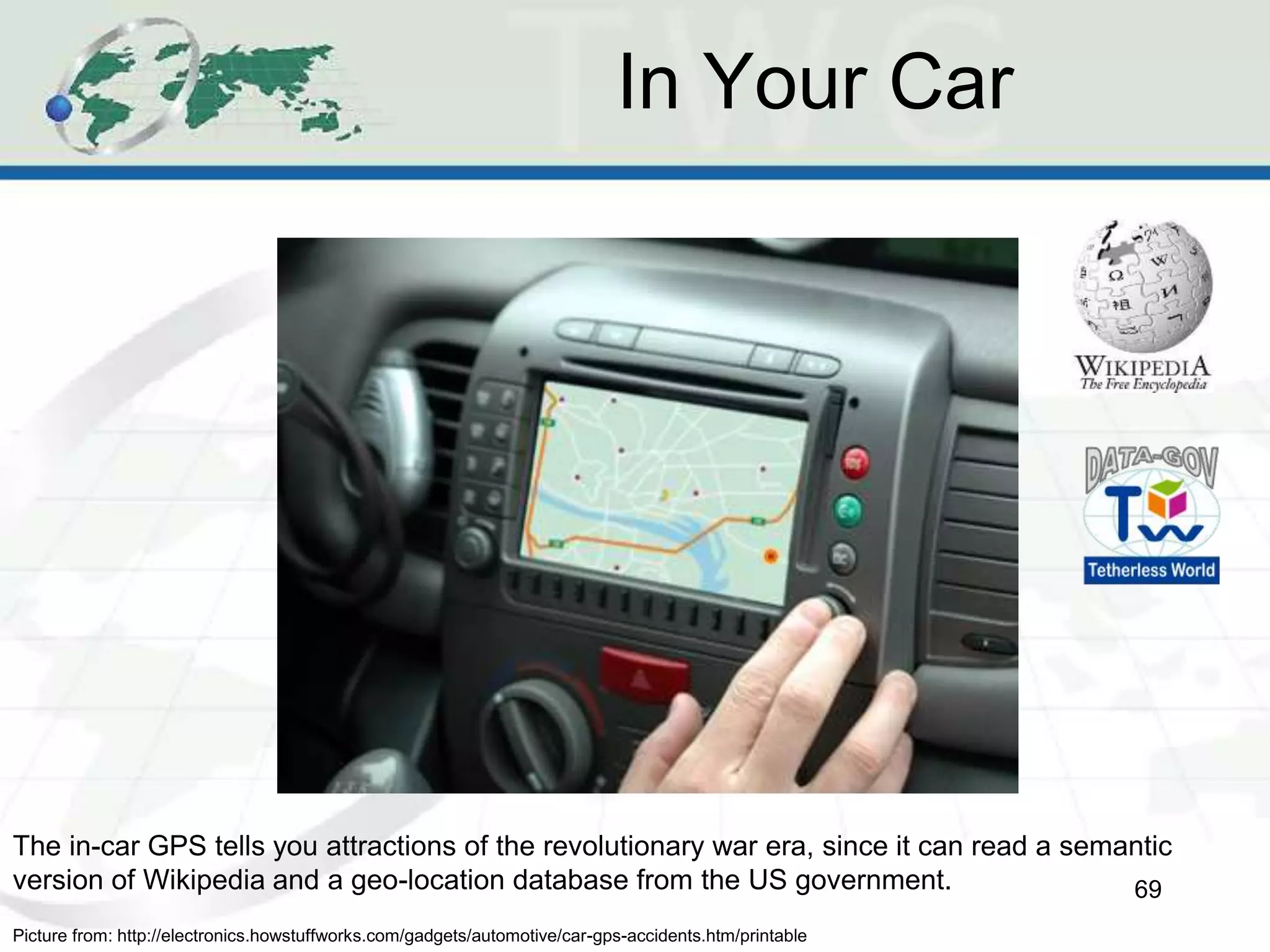

69. In Your Car
69
Picture from: http://electronics.howstuffworks.com/gadgets/automotive/car-gps-accidents.htm/printable
The in-car GPS tells you attractions of the revolutionary war era, since it can read a semantic
version of Wikipedia and a geo-location database from the US government.

70. We are only limited by our imaginations
70

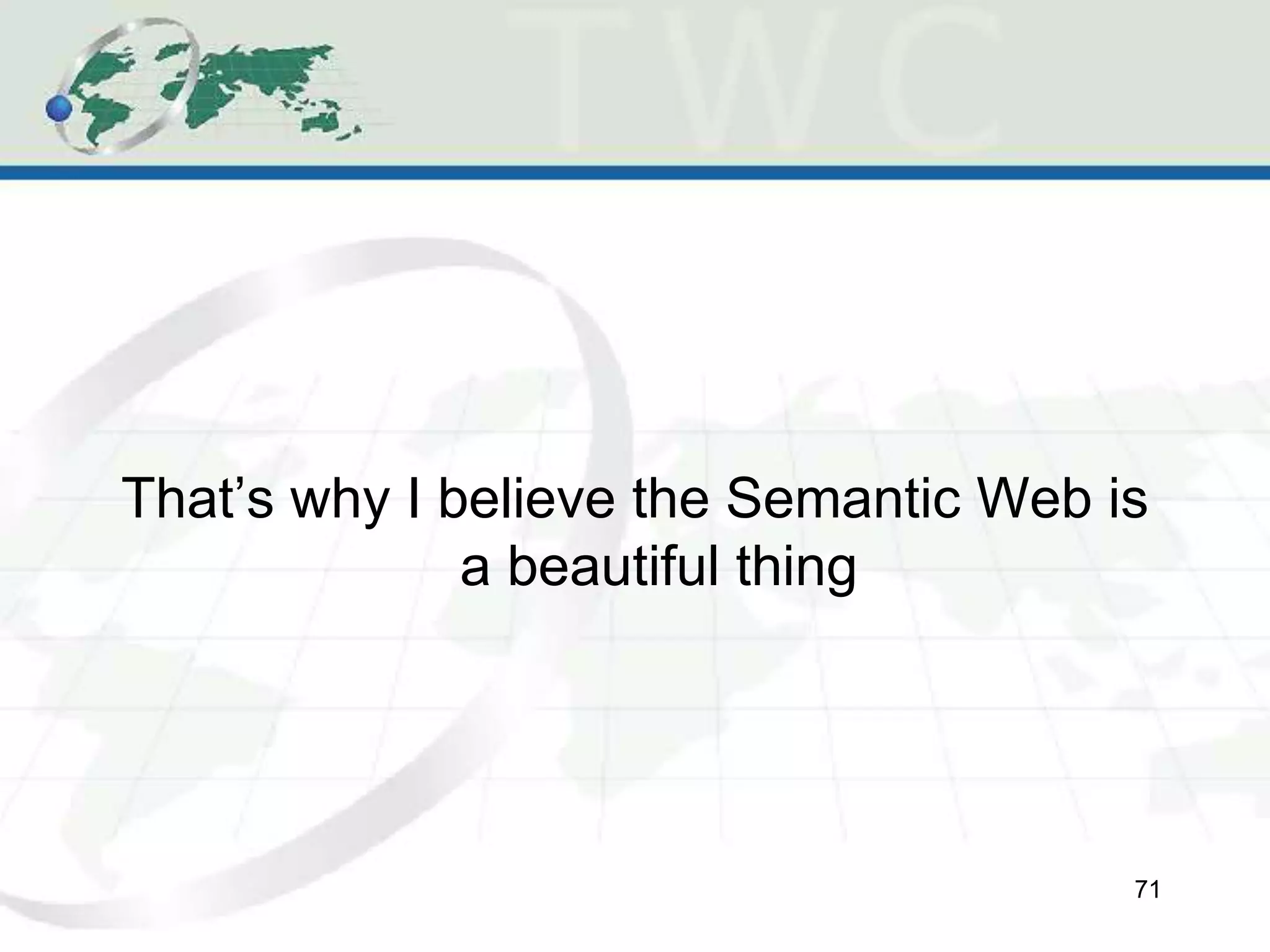

71. That’s why I believe the Semantic Web is
a beautiful thing
71

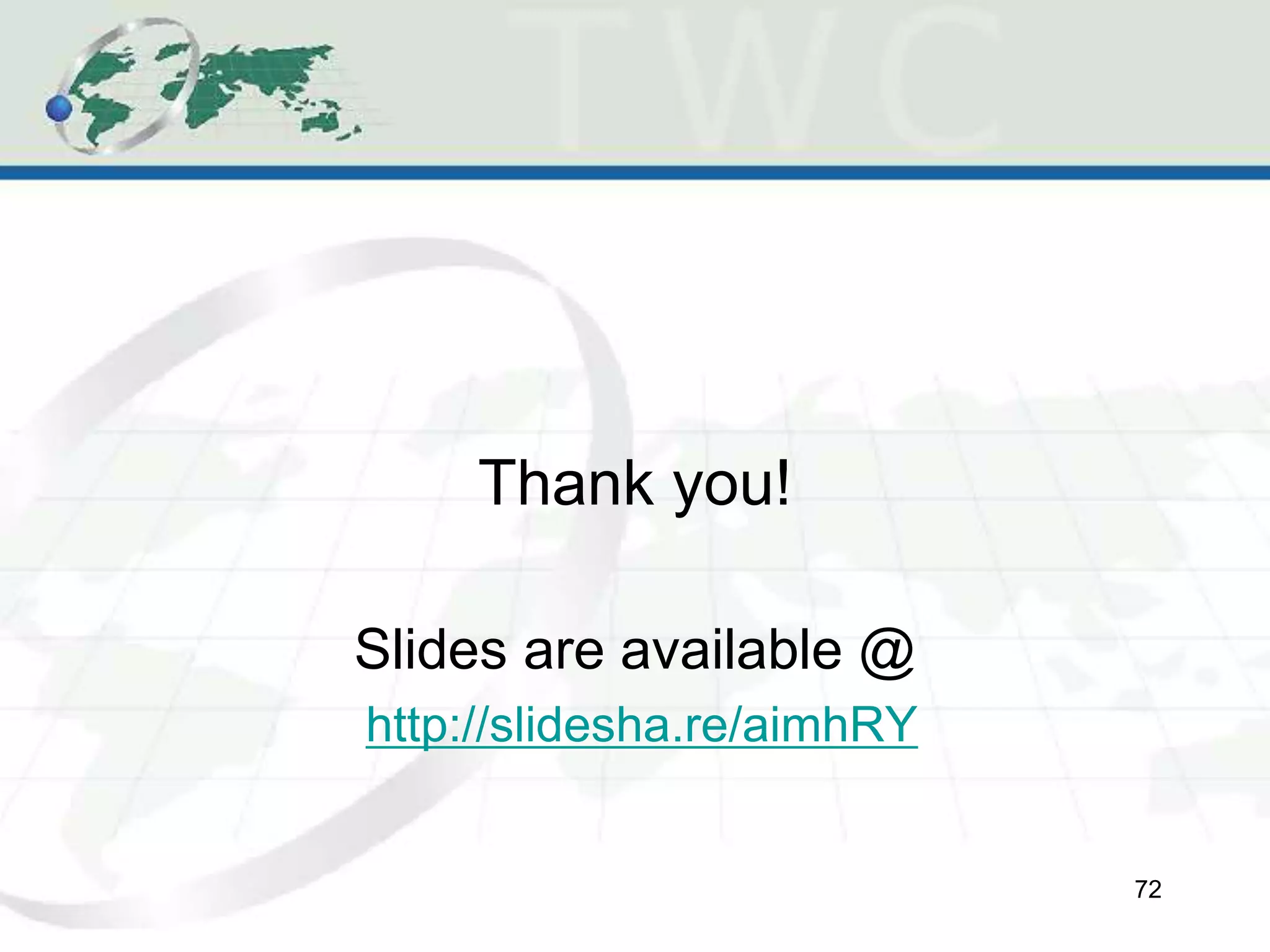

72. Thank you!
Slides are available @
http://slidesha.re/aimhRY
72
