1. 11g Data Guard New Features
-- Fan Xiangrong

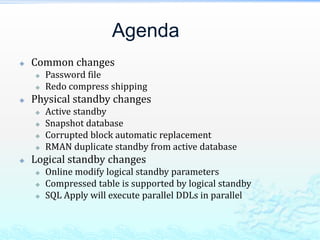

2. Agenda
 Common changes
 Password file
 Redo compress shipping
 Physical standby changes
 Active standby
 Snapshot database
 Corrupted block automatic replacement
 RMAN duplicate standby from active database
 Logical standby changes
 Online modify logical standby parameters
 Compressed table is supported by logical standby
 SQL Apply will execute parallel DDLs in parallel

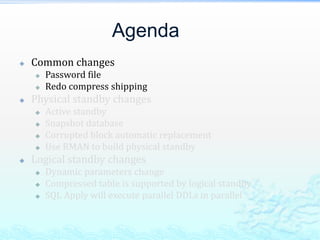

3. Agenda
 Common changes
 Password file
 Redo compress shipping
 Physical standby changes
 Active standby
 Snapshot database
 Corrupted block automatic replacement
 Use RMAN to build physical standby
 Logical standby changes
 Dynamic parameters change
 Compressed table is supported by logical standby
 SQL Apply will execute parallel DDLs in parallel

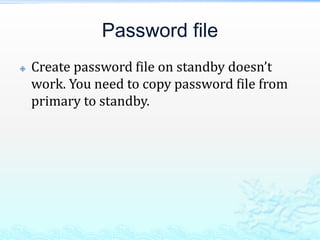

4. Password file
 Create password file on standby doesn’t
work. You need to copy password file from
primary to standby.

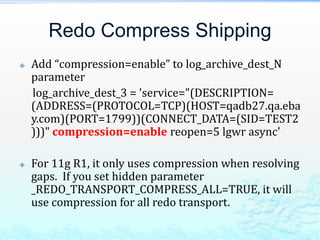

5. Redo Compress Shipping
 Add “compression=enable” to log_archive_dest_N
parameter
log_archive_dest_3 = 'service="(DESCRIPTION=
(ADDRESS=(PROTOCOL=TCP)(HOST=qadb27.qa.eba
y.com)(PORT=1799))(CONNECT_DATA=(SID=TEST2
)))" compression=enable reopen=5 lgwr async'
 For 11g R1, it only uses compression when resolving
gaps. If you set hidden parameter
_REDO_TRANSPORT_COMPRESS_ALL=TRUE, it will
use compression for all redo transport.

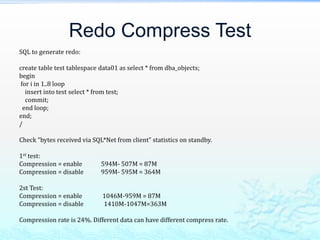

6. Redo Compress Test
SQL to generate redo:
create table test tablespace data01 as select * from dba_objects;
begin
for i in 1..8 loop
insert into test select * from test;
commit;
end loop;
end;
/
Check “bytes received via SQL*Net from client” statistics on standby.
1st test:
Compression = enable 594M- 507M = 87M
Compression = disable 959M- 595M = 364M
2st Test:
Compression = enable 1046M-959M = 87M
Compression = disable 1410M-1047M=363M
Compression rate is 24%. Different data can have different compress rate.

7. It needs License
 Redo transport compression is a feature of
the Oracle Advanced Compression option.
You must purchase a license for this option
before using the redo transport
compression feature.

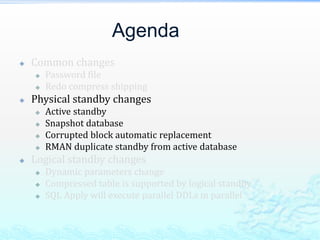

8. Agenda
 Common changes
 Password file
 Redo compress shipping
 Physical standby changes
 Active standby
 Snapshot database
 Corrupted block automatic replacement
 RMAN duplicate standby from active database
 Logical standby changes
 Dynamic parameters change
 Compressed table is supported by logical standby
 SQL Apply will execute parallel DDLs in parallel

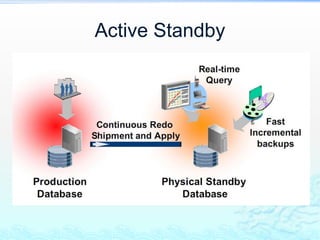

9. Active Standby

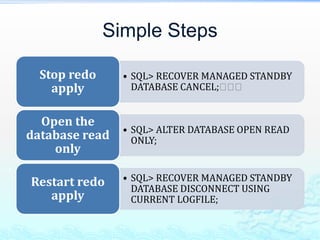

10. Simple Steps
• SQL> RECOVER MANAGED STANDBY
DATABASE CANCEL;􀁡􀁡􀁡
Stop redo
apply
• SQL> ALTER DATABASE OPEN READ
ONLY;
Open the
database read
only
• SQL> RECOVER MANAGED STANDBY
DATABASE DISCONNECT USING
CURRENT LOGFILE;
Restart redo
apply

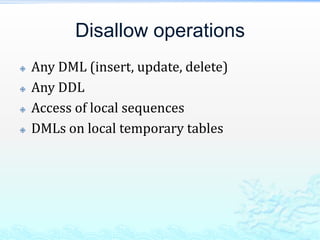

11. Disallow operations
 Any DML (insert, update, delete)
 Any DDL
 Access of local sequences
 DMLs on local temporary tables

12. Check Standby Apply Status
 V$database.current_scn records the current apply SCN.
SQL> select scn_to_timestamp(current_scn) from v$database;
SCN_TO_TIMESTAMP(CURRENT_SCN)
---------------------------------------------------------------------------
21-NOV-09 08.42.43.000000000 AM
 Session level parameter STANDBY_MAX_DATA_DELAY(11g R2)
The new STANDBY_MAX_DATA_DELAY session parameter can be used to
specify a session-specific apply lag tolerance, measured in seconds, for queries
issued by non-administrative users to a physical standby database that is in
real-time query mode.
Alter session set STANDBY_MAX_DATA_DELAY = { integer | NONE }

13. Snapshot database
 A snapshot standby database is a fully update-able
standby database that is created by converting a physical
standby database into a snapshot standby database.
 Snapshot standby database receives and archives, but
does not apply the redo data.
 Redo data received from the primary database is applied
automatically once it is converted back into a physical
standby database.
 All local updates will be discarded when snapshot
database is converted back to physical standby
database.
 In 10g version, we can do it manually.

14. 10g Manual Steps
 http://dbmonitor.vip.qa.ebay.com/dbblog/
main.php?name=Sub%20doc/2009.11.22%
2010g%20put%20standby%20in%20read-
write%20using%20flashback.htm

15. Convert to Snapshot database
Steps
 If not already configured , configure flash recovery area as given below
 Set the size for recovery area.
Alter system set db_recovery_file_dest_size=<size>
 Set Flash recovery area. (unset db_recovery_file_dest and set db_recovery_file_dest_1)
Alter system set db_recovery_file_dest=<path>
 Bring the physical standby database to mount stage.
 Stop managed recovery if it is active.
 Convert to snapshot standby database.
ALTER DATABASE CONVERT TO SNAPSHOT STANDBY;
 Shutdown and startup

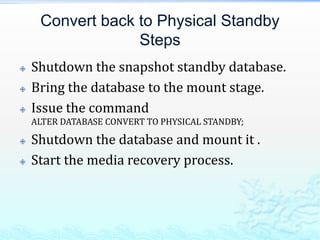

16. Convert back to Physical Standby
Steps
 Shutdown the snapshot standby database.
 Bring the database to the mount stage.
 Issue the command
ALTER DATABASE CONVERT TO PHYSICAL STANDBY;
 Shutdown the database and mount it .
 Start the media recovery process.

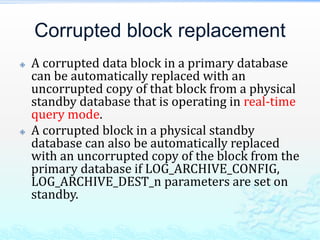

17. Corrupted block replacement
 A corrupted data block in a primary database
can be automatically replaced with an
uncorrupted copy of that block from a physical
standby database that is operating in real-time
query mode.
 A corrupted block in a physical standby
database can also be automatically replaced
with an uncorrupted copy of the block from the
primary database if LOG_ARCHIVE_CONFIG,
LOG_ARCHIVE_DEST_n parameters are set on
standby.

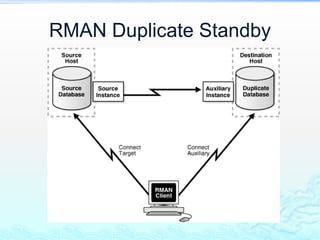

18. RMAN Duplicate Standby

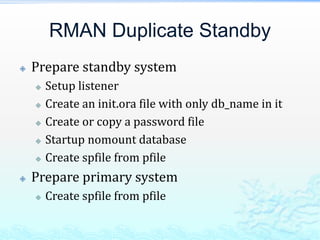

19. RMAN Duplicate Standby
 Prepare standby system
 Setup listener
 Create an init.ora file with only db_name in it
 Create or copy a password file
 Startup nomount database
 Create spfile from pfile
 Prepare primary system
 Create spfile from pfile

20. RMAN build script
rman target sys/sys@test_pri AUXILIARY sys/sys@test_target
run {
allocate channel prmy1 type disk;
allocate auxiliary channel stby1 type disk;
duplicate target database for standby from active database
spfile
parameter_value_convert 'GBPGW','DDS'
set db_unique_name='TEST'
set control_files='/oracle/DDS/archive/TEST/control.ctl'
set log_archive_dest_1='location=/oracle/DDS/archive/TEST/archive'
set db_file_name_convert='/oracle/GBPGW/data01/TEST','/oracle/DDS/archive/TEST'
set
log_file_name_convert='/oracle/GBPGW/data01/TEST/redo','/oracle/DDS/archive/TEST/re
do‘
set log_archive_dest_3=‘’
nofilenamecheck;
}

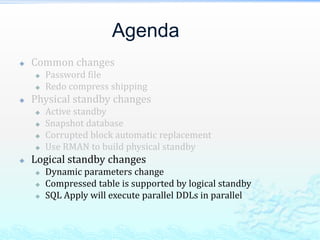

21. Agenda
 Common changes
 Password file
 Redo compress shipping
 Physical standby changes
 Active standby
 Snapshot database
 Corrupted block automatic replacement
 Use RMAN to build physical standby
 Logical standby changes
 Dynamic parameters change
 Compressed table is supported by logical standby
 SQL Apply will execute parallel DDLs in parallel

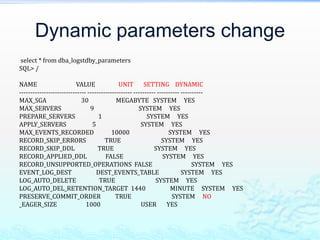

22. Dynamic parameters change
select * from dba_logstdby_parameters
SQL> /
NAME VALUE UNIT SETTING DYNAMIC
------------------------------ -------------------- ---------- ---------- ----------
MAX_SGA 30 MEGABYTE SYSTEM YES
MAX_SERVERS 9 SYSTEM YES
PREPARE_SERVERS 1 SYSTEM YES
APPLY_SERVERS 5 SYSTEM YES
MAX_EVENTS_RECORDED 10000 SYSTEM YES
RECORD_SKIP_ERRORS TRUE SYSTEM YES
RECORD_SKIP_DDL TRUE SYSTEM YES
RECORD_APPLIED_DDL FALSE SYSTEM YES
RECORD_UNSUPPORTED_OPERATIONS FALSE SYSTEM YES
EVENT_LOG_DEST DEST_EVENTS_TABLE SYSTEM YES
LOG_AUTO_DELETE TRUE SYSTEM YES
LOG_AUTO_DEL_RETENTION_TARGET 1440 MINUTE SYSTEM YES
PRESERVE_COMMIT_ORDER TRUE SYSTEM NO
_EAGER_SIZE 1000 USER YES

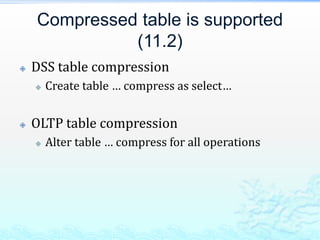

23. Compressed table is supported
(11.2)
 DSS table compression
 Create table … compress as select…
 OLTP table compression
 Alter table … compress for all operations

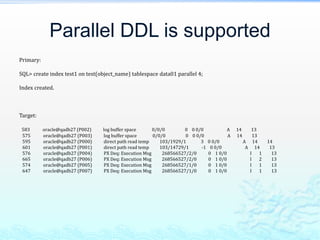

24. Parallel DDL is supported
Primary:
SQL> create index test1 on test(object_name) tablespace data01 parallel 4;
Index created.
Target:
583 oracle@qadb27 (P002) log buffer space 0/0/0 0 0 0/0 A 14 13
575 oracle@qadb27 (P003) log buffer space 0/0/0 0 0 0/0 A 14 13
595 oracle@qadb27 (P000) direct path read temp 103/1929/1 3 0 0/0 A 14 14
601 oracle@qadb27 (P001) direct path read temp 103/14729/1 -1 0 0/0 A 14 13
576 oracle@qadb27 (P004) PX Deq: Execution Msg 268566527/2/0 0 1 0/0 I 1 13
665 oracle@qadb27 (P006) PX Deq: Execution Msg 268566527/2/0 0 1 0/0 I 2 13
574 oracle@qadb27 (P005) PX Deq: Execution Msg 268566527/1/0 0 1 0/0 I 1 13
647 oracle@qadb27 (P007) PX Deq: Execution Msg 268566527/1/0 0 1 0/0 I 1 13

25. Others
 Statspack on standby (454848.1)
 Support different platforms (413484.1)
 Big performance boost in Oracle 11G Up to
100% increase in redo apply performance

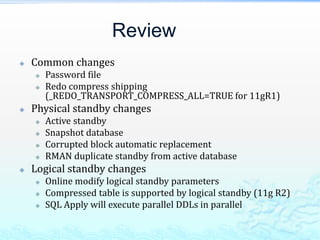

26. Review
 Common changes
 Password file
 Redo compress shipping
(_REDO_TRANSPORT_COMPRESS_ALL=TRUE for 11gR1)
 Physical standby changes
 Active standby
 Snapshot database
 Corrupted block automatic replacement
 RMAN duplicate standby from active database
 Logical standby changes
 Online modify logical standby parameters
 Compressed table is supported by logical standby (11g R2)
 SQL Apply will execute parallel DDLs in parallel
