© Fraunhofer ISST
DATA GOVERNANCE
Prof. Dr.-Ing. Boris Otto  28 September 2018  Dortmund
public
Bildquelle: guinnessworldrecords.com (2017).
· 1
© Fraunhofer ISST

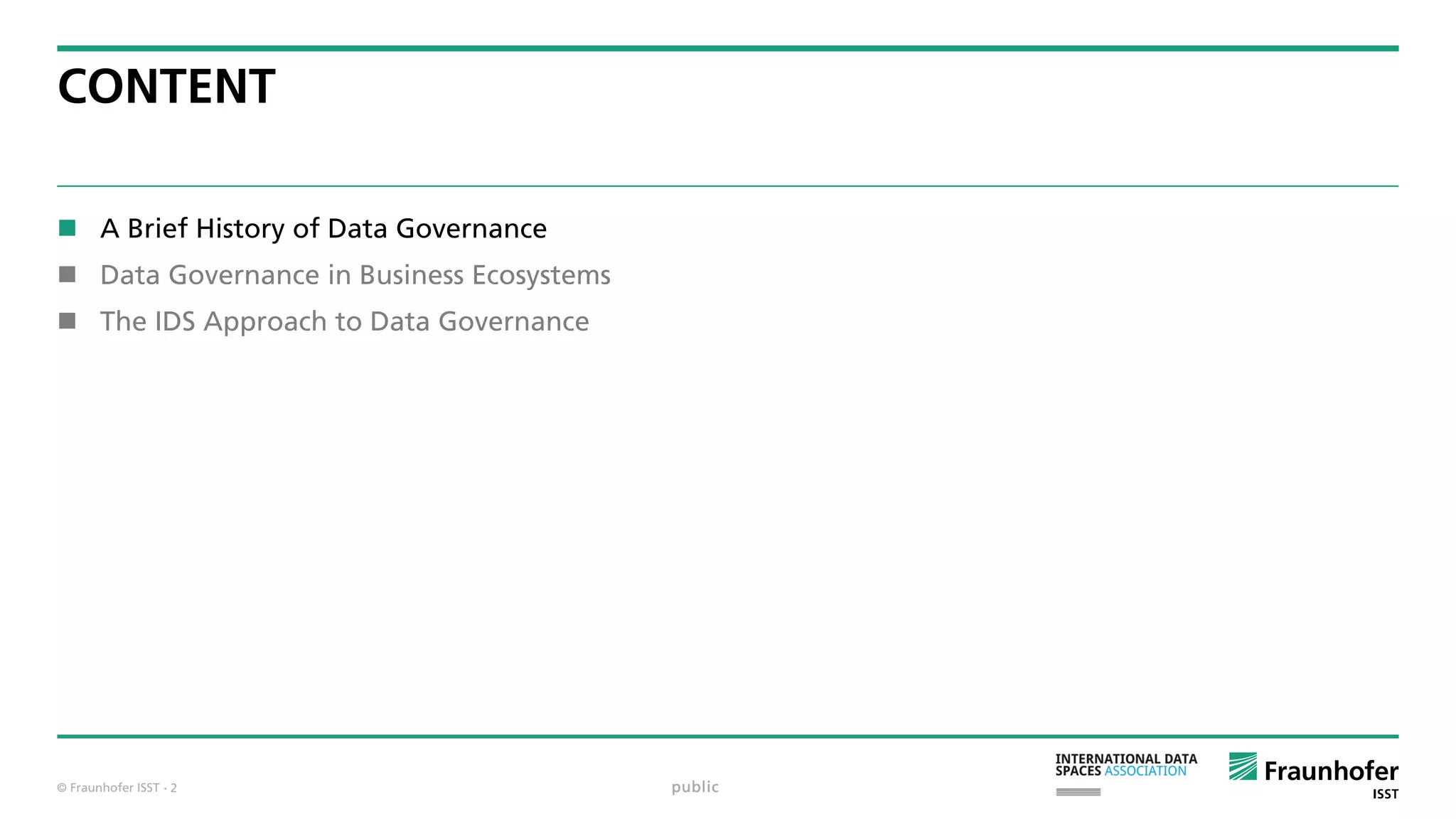

CONTENT
 A Brief History of Data Governance
 Data Governance in Business Ecosystems
 The IDS Approach to Data Governance
public· 2
© Fraunhofer ISST

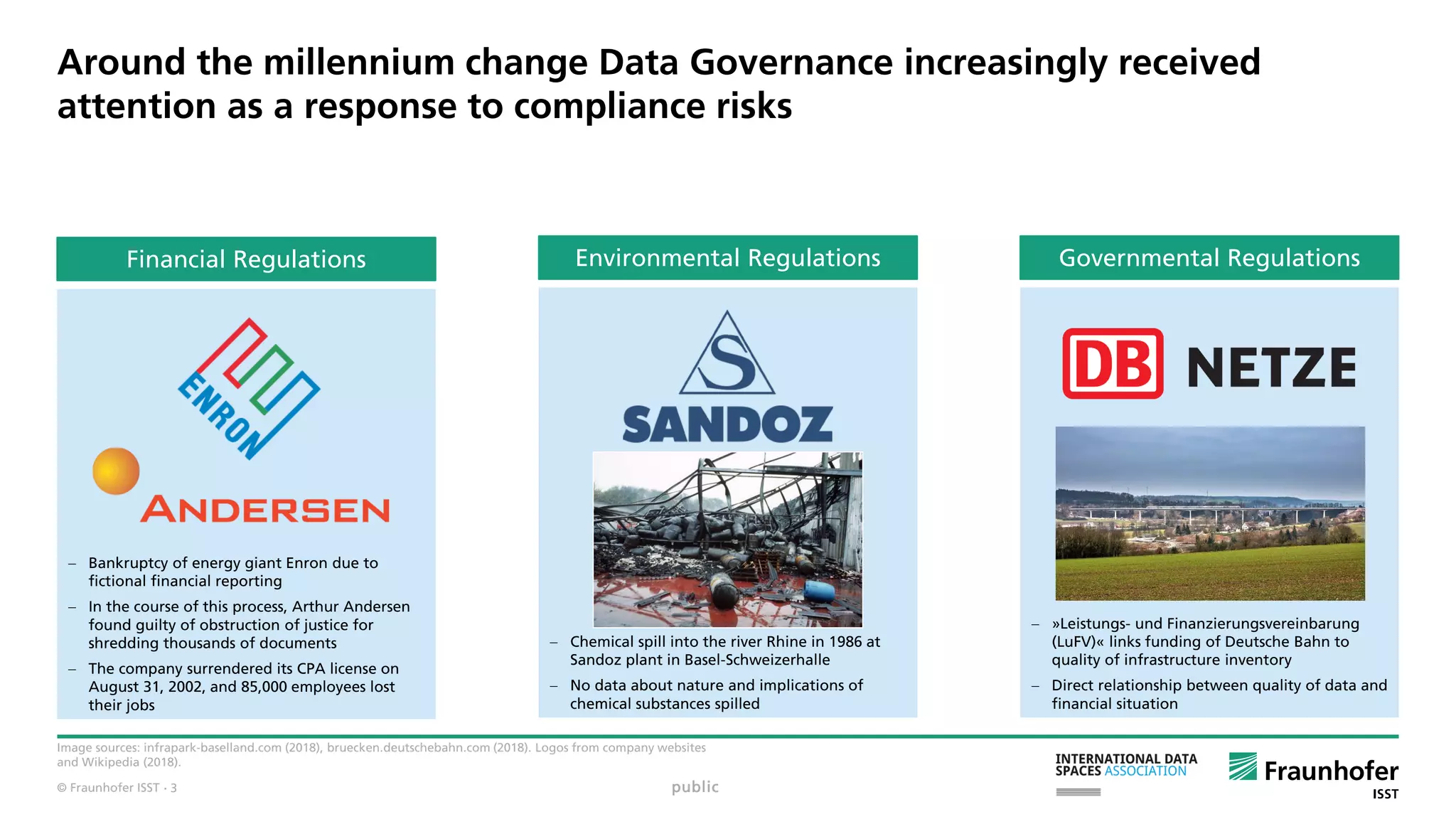

Around the millennium change Data Governance increasingly received
attention as a response to compliance risks
Image sources: infrapark-baselland.com (2018), bruecken.deutschebahn.com (2018). Logos from company websites
and Wikipedia (2018).
public
Financial Regulations
 Bankruptcy of energy giant Enron due to
fictional financial reporting
 In the course of this process, Arthur Andersen
found guilty of obstruction of justice for
shredding thousands of documents
 The company surrendered its CPA license on
August 31, 2002, and 85,000 employees lost
their jobs
Governmental Regulations
 »Leistungs- und Finanzierungsvereinbarung
(LuFV)« links funding of Deutsche Bahn to
quality of infrastructure inventory
 Direct relationship between quality of data and
financial situation
Environmental Regulations
 Chemical spill into the river Rhine in 1986 at
Sandoz plant in Basel-Schweizerhalle
 No data about nature and implications of
chemical substances spilled
· 3
© Fraunhofer ISST

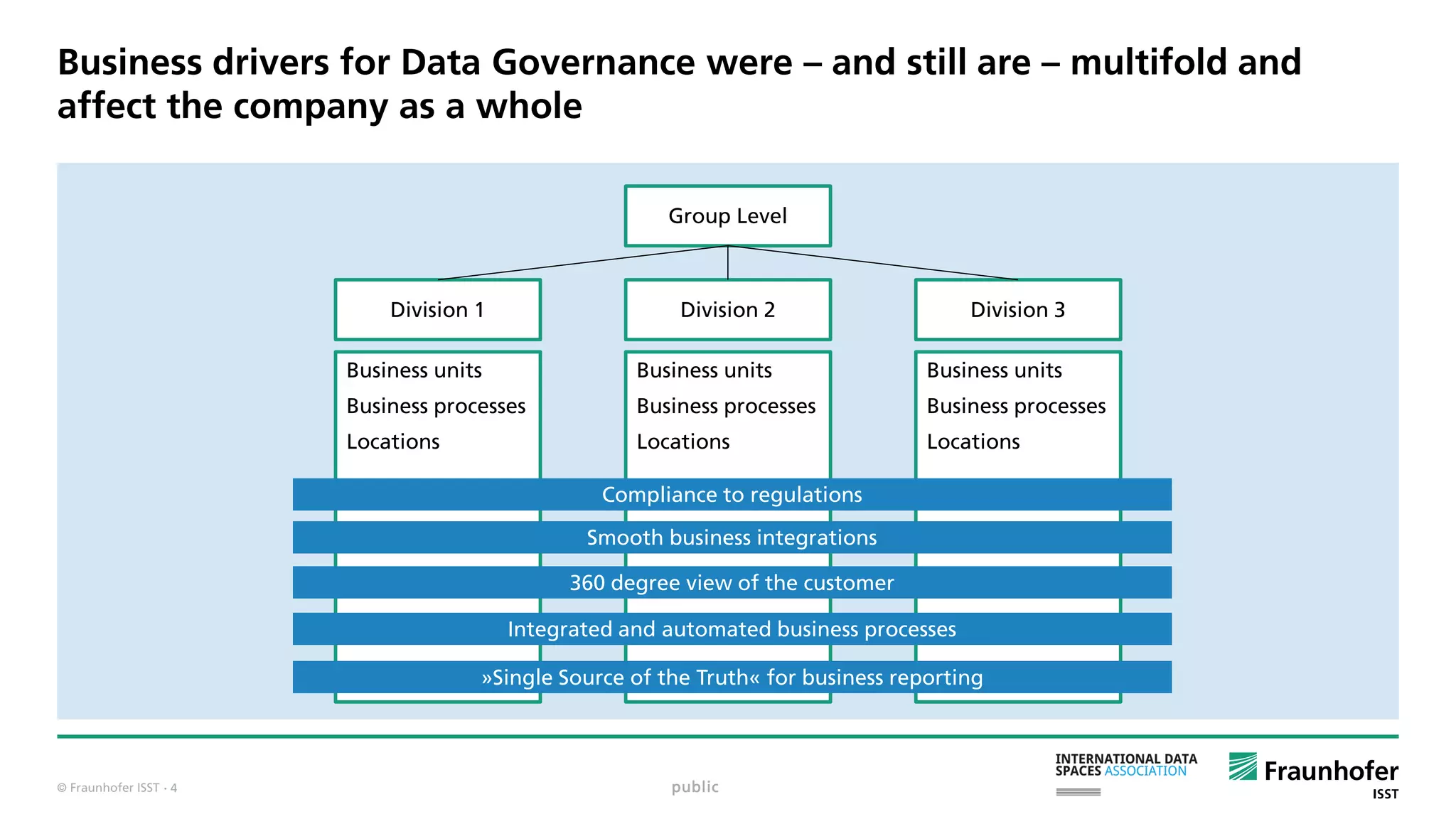

Business drivers for Data Governance were – and still are – multifold and
affect the company as a whole
public
Group Level
Division 2Division 1 Division 3
Business units
Business processes
Locations
Business units
Business processes
Locations
Business units
Business processes
Locations
Compliance to regulations
360 degree view of the customer
Integrated and automated business processes
»Single Source of the Truth« for business reporting
Smooth business integrations
· 4
© Fraunhofer ISST

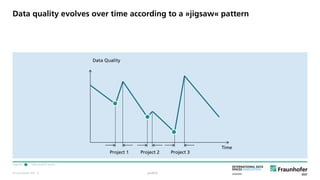

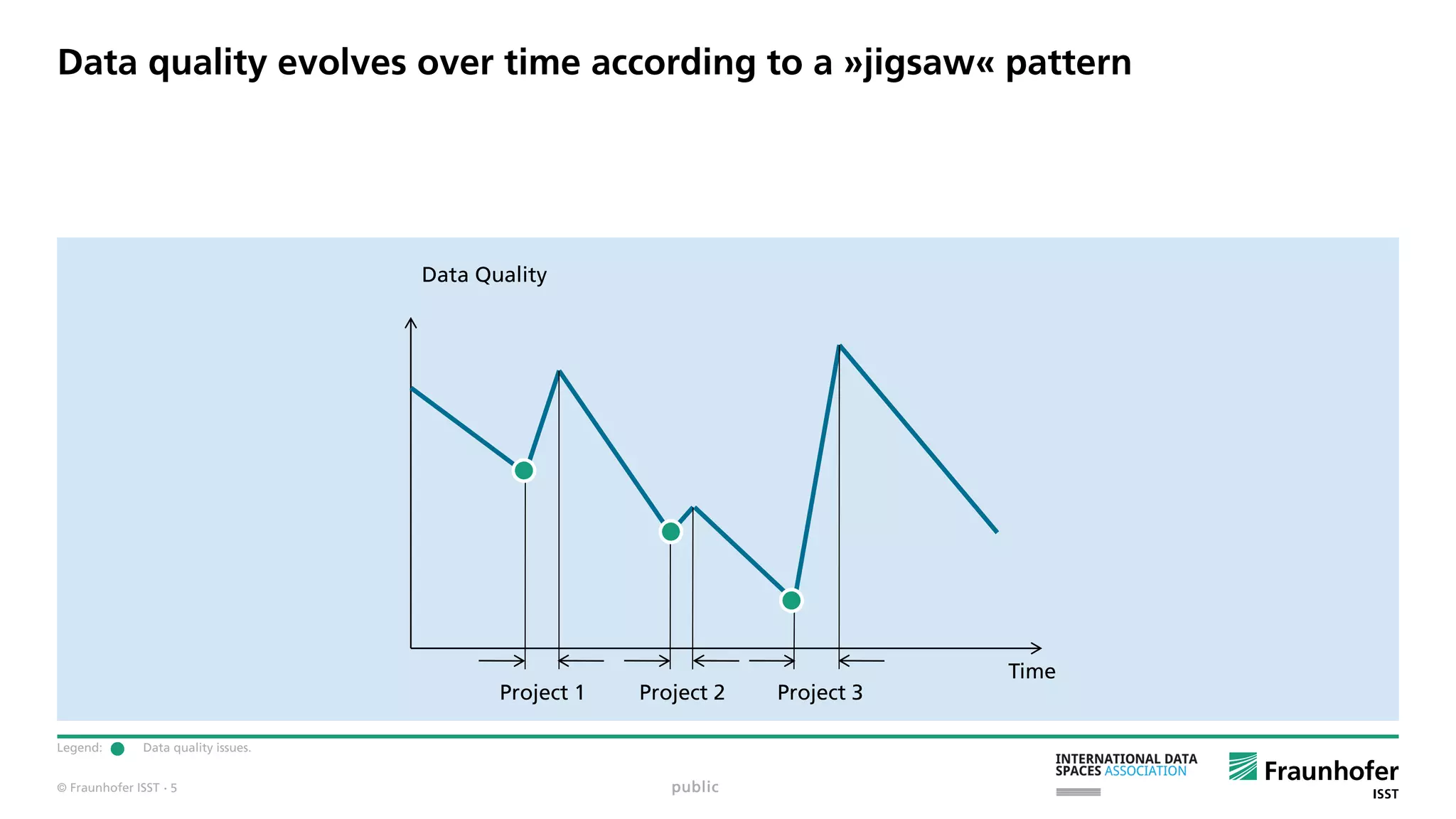

Data quality evolves over time according to a »jigsaw« pattern
Legend: Data quality issues.
Data Quality
Time
Project 1 Project 2 Project 3
public· 5
© Fraunhofer ISST

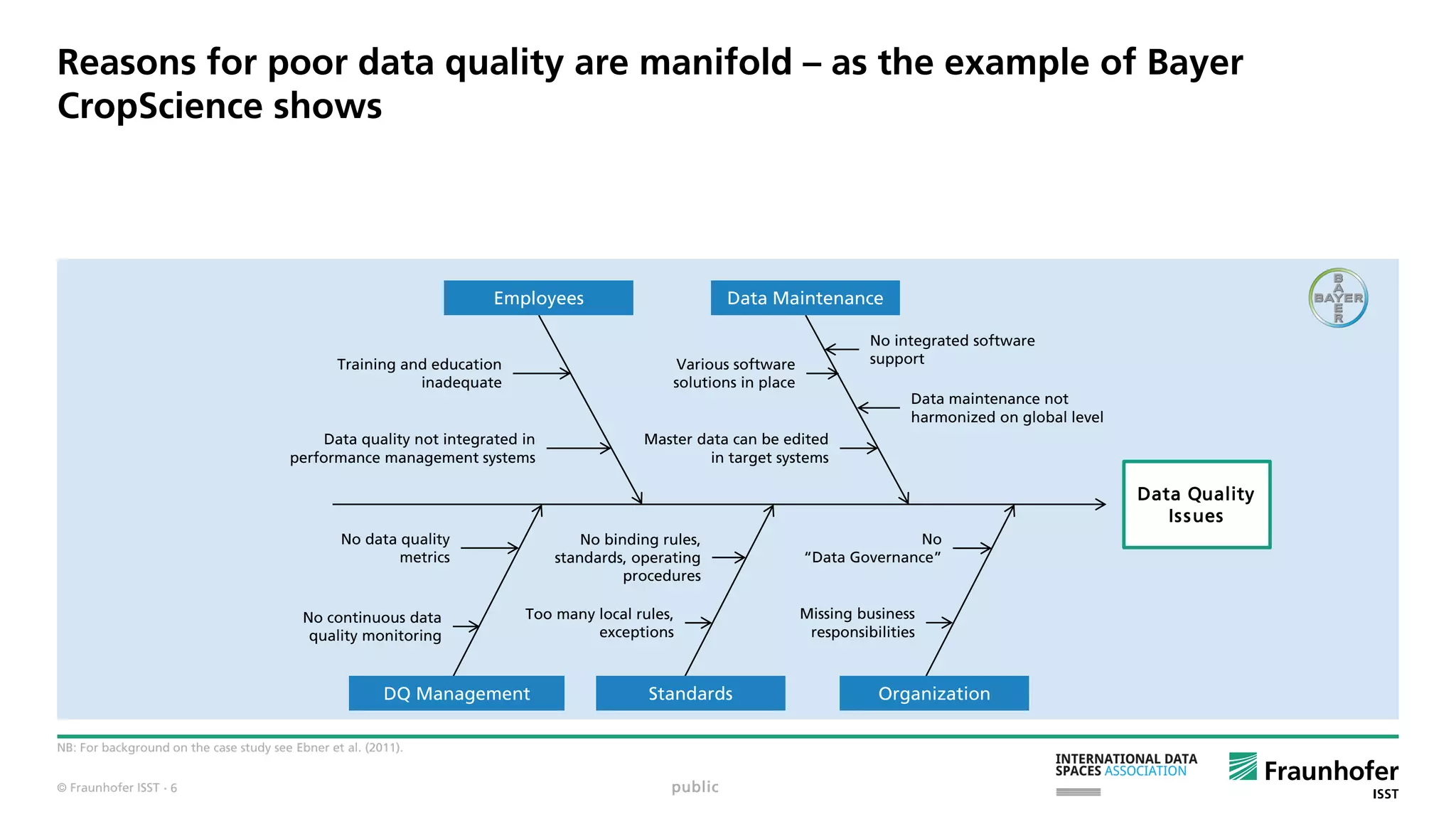

Reasons for poor data quality are manifold – as the example of Bayer
CropScience shows
NB: For background on the case study see Ebner et al. (2011).
public
Data Quality
Issues
Employees Data Maintenance
DQ Management Standards Organization
Training and education
inadequate
Data quality not integrated in
performance management systems
Various software
solutions in place
Master data can be edited
in target systems
No integrated software
support
Data maintenance not
harmonized on global level
No data quality
metrics
No continuous data
quality monitoring
No binding rules,
standards, operating
procedures
Too many local rules,
exceptions
No
“Data Governance”
Missing business
responsibilities
· 6
© Fraunhofer ISST
Corporate life is hard without Data Governance
Image source: Strassmann (1995).
public· 7
© Fraunhofer ISST

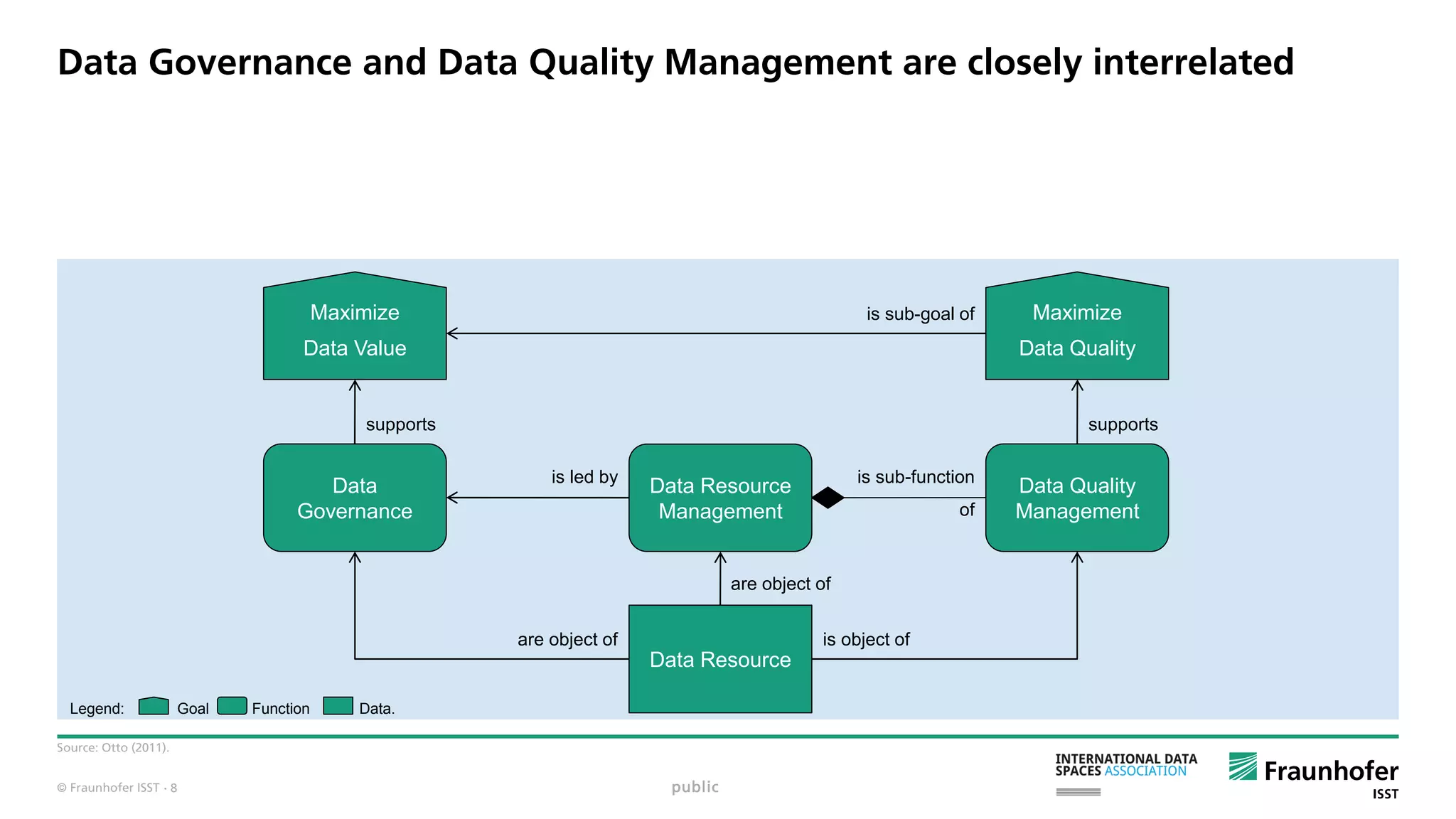

Data Governance and Data Quality Management are closely interrelated
Source: Otto (2011).
public
Legend: Goal Function Data.
Data
Governance
Data Quality
Management
Maximize
Data Quality
Maximize
Data Value
Data Resource
Data Resource
Management
is sub-goal of
supports supports
is led by is sub-function
of
are object of is object of
are object of
· 8
© Fraunhofer ISST

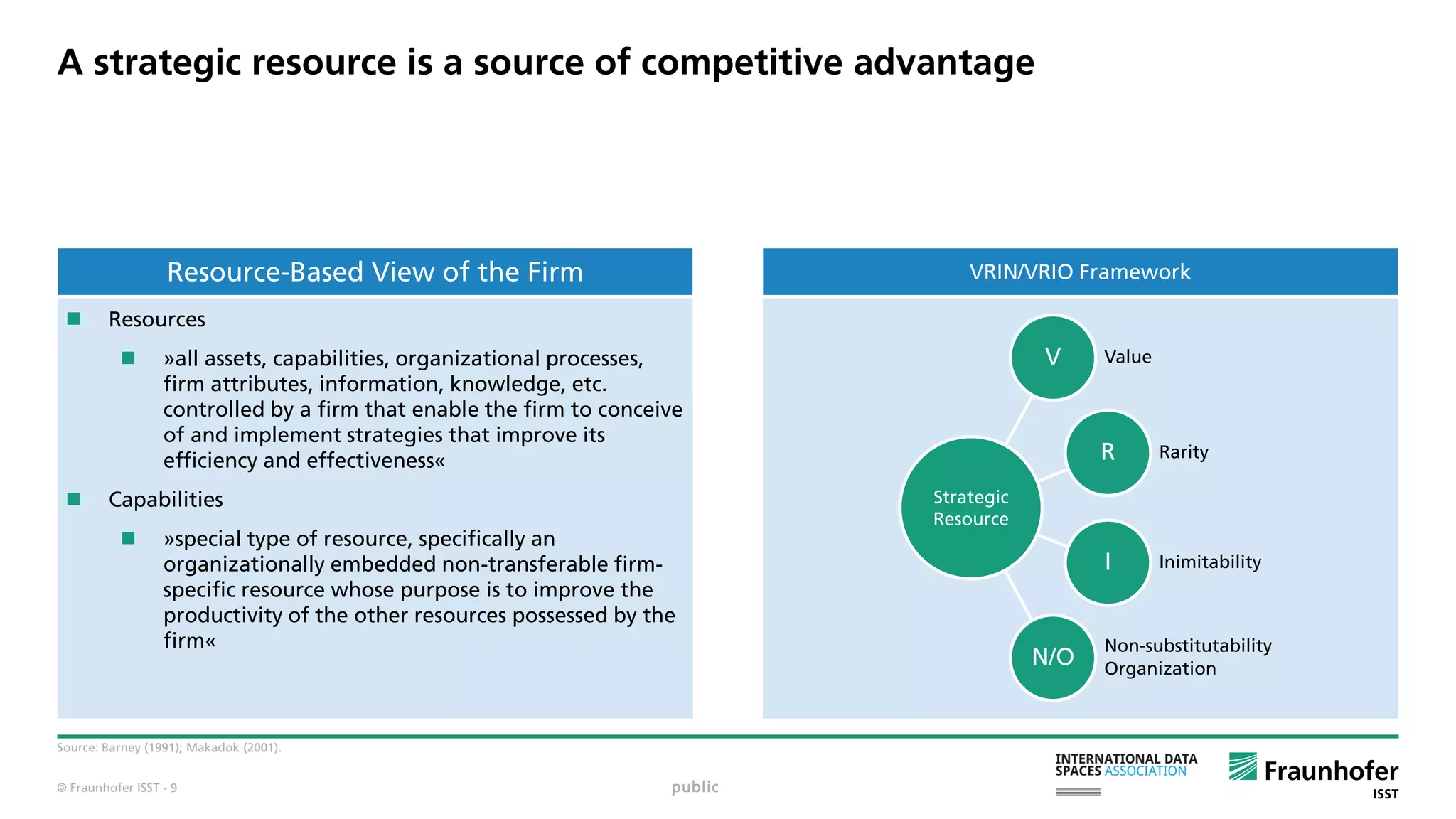

A strategic resource is a source of competitive advantage
Strategic
Resource
V Value
R Rarity
I Inimitability
N/O
Non-substitutability
Organization
Source: Barney (1991); Makadok (2001).
public
VRIN/VRIO Framework
 Resources
 »all assets, capabilities, organizational processes,
firm attributes, information, knowledge, etc.
controlled by a firm that enable the firm to conceive
of and implement strategies that improve its
efficiency and effectiveness«
 Capabilities
 »special type of resource, specifically an
organizationally embedded non-transferable firm-
specific resource whose purpose is to improve the
productivity of the other resources possessed by the
firm«
Resource-Based View of the Firm
· 9
© Fraunhofer ISST

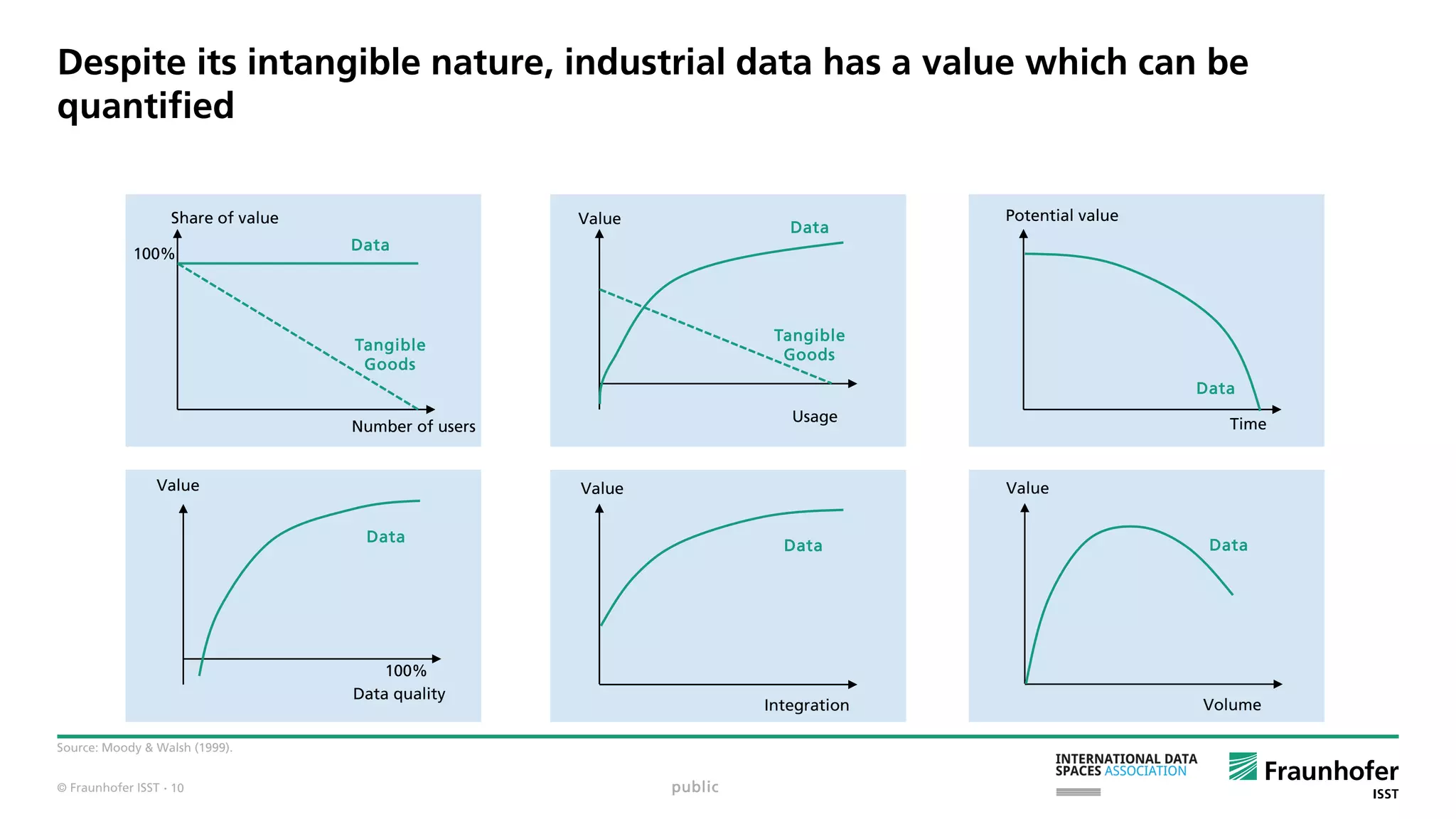

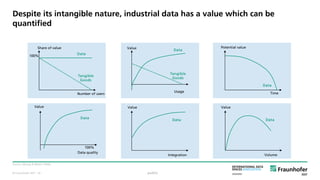

Despite its intangible nature, industrial data has a value which can be
quantified
Source: Moody & Walsh (1999).
public
Number of users
Share of value
100%
Data
Tangible
Goods
Tangible
Goods
Value
Data
Usage Time
Potential value
Data
Data quality
Value
100%
Data
Integration
Value
Data
Volume
Value
Data
· 10
© Fraunhofer ISST

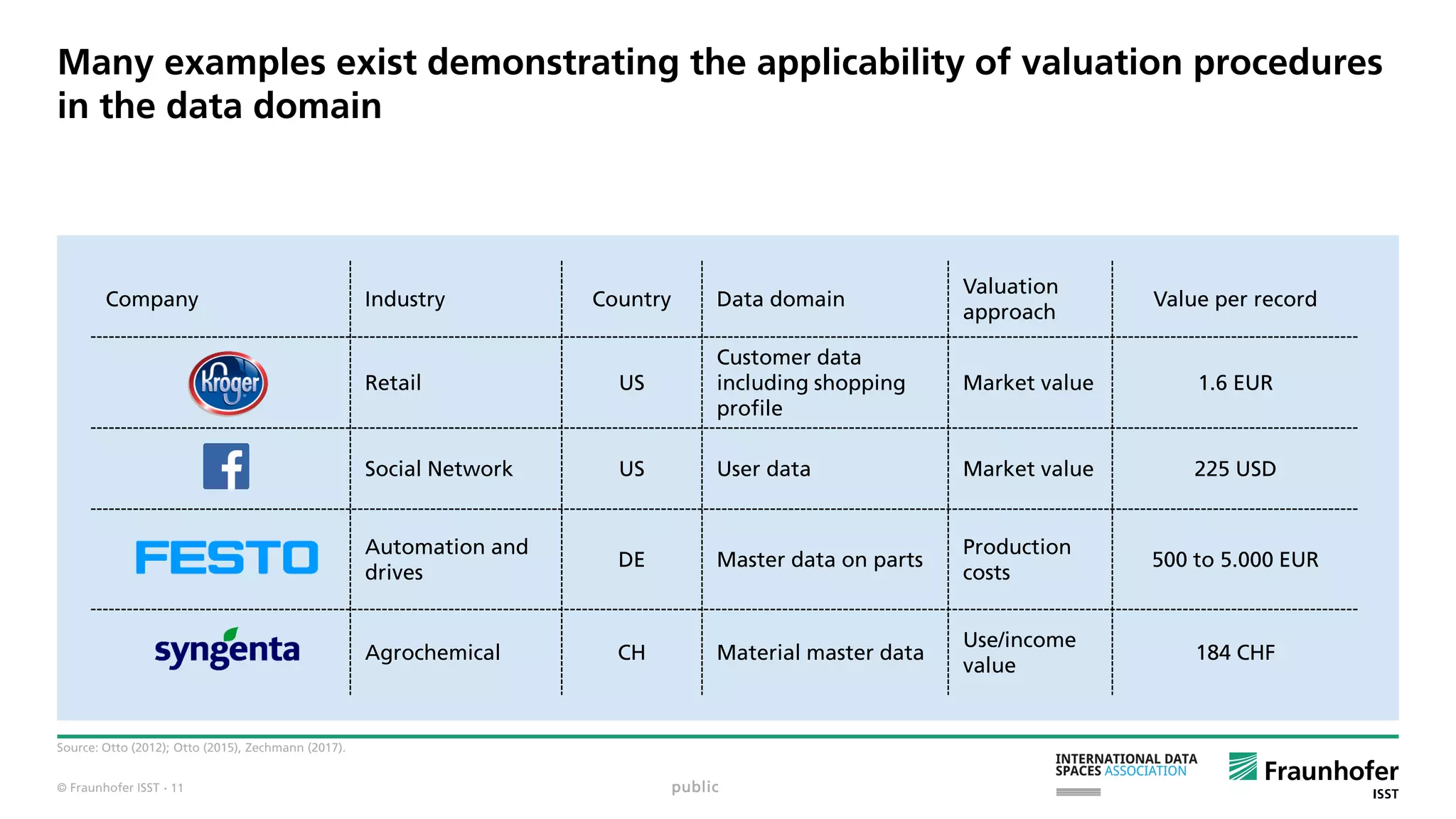

Many examples exist demonstrating the applicability of valuation procedures
in the data domain
Source: Otto (2012); Otto (2015), Zechmann (2017).
Company Industry Country Data domain
Valuation
approach
Value per record
Retail US
Customer data
including shopping
profile
Market value 1.6 EUR
Social Network US User data Market value 225 USD
Automation and
drives
DE Master data on parts
Production
costs
500 to 5.000 EUR
Agrochemical CH Material master data
Use/income
value
184 CHF
public· 11
© Fraunhofer ISST

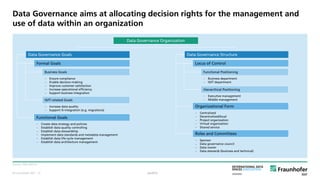

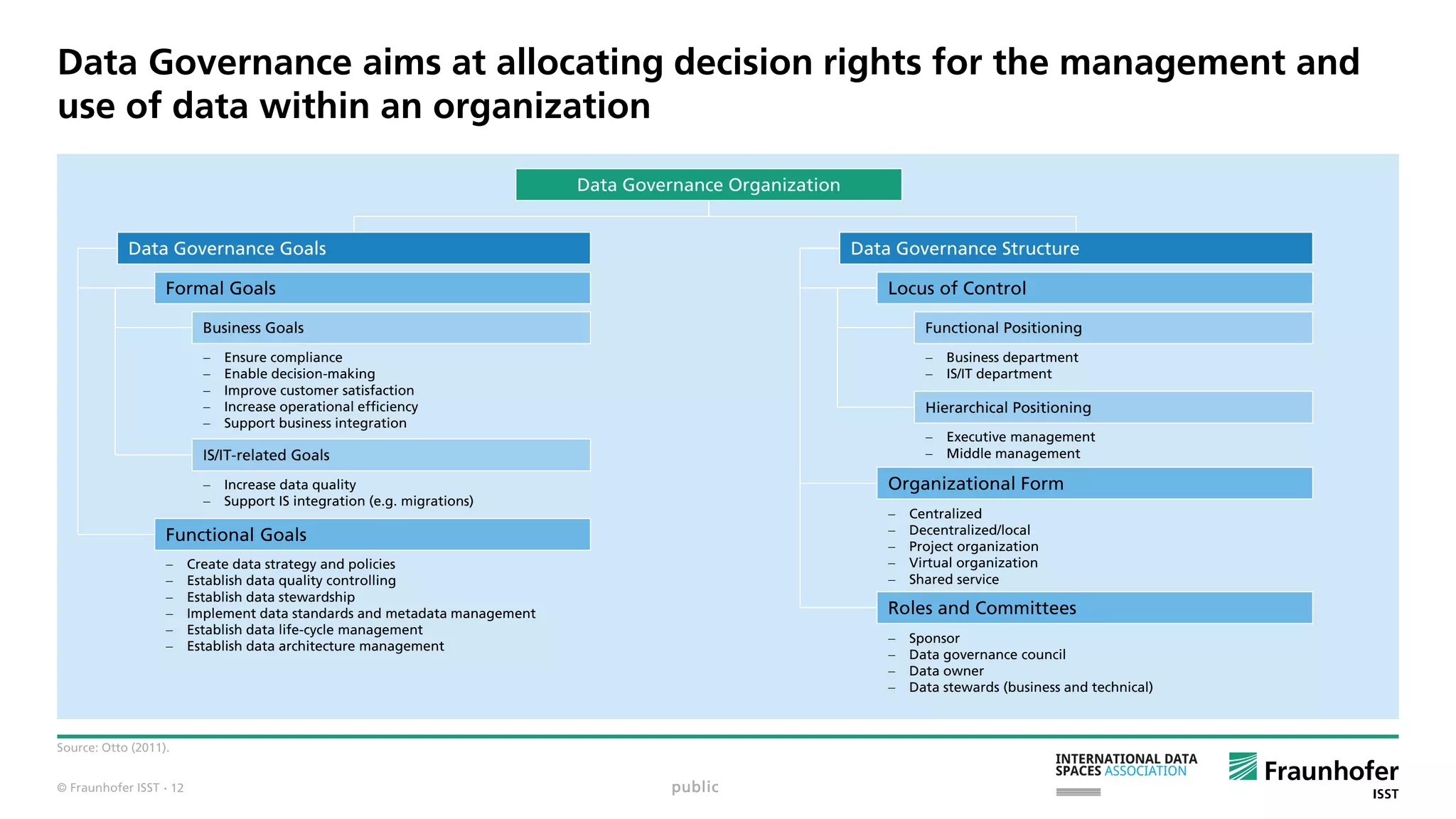

Data Governance aims at allocating decision rights for the management and
use of data within an organization
Source: Otto (2011).
Data Governance Organization
Data Governance Goals Data Governance Structure
Formal Goals
Business Goals
 Ensure compliance
 Enable decision-making
 Improve customer satisfaction
 Increase operational efficiency
 Support business integration
IS/IT-related Goals
 Increase data quality
 Support IS integration (e.g. migrations)
Functional Goals
 Create data strategy and policies
 Establish data quality controlling
 Establish data stewardship
 Implement data standards and metadata management
 Establish data life-cycle management
 Establish data architecture management
Locus of Control
Functional Positioning
 Business department
 IS/IT department
 Executive management
 Middle management
Hierarchical Positioning
Organizational Form
 Centralized
 Decentralized/local
 Project organization
 Virtual organization
 Shared service
Roles and Committees
 Sponsor
 Data governance council
 Data owner
 Data stewards (business and technical)
public· 12
© Fraunhofer ISST

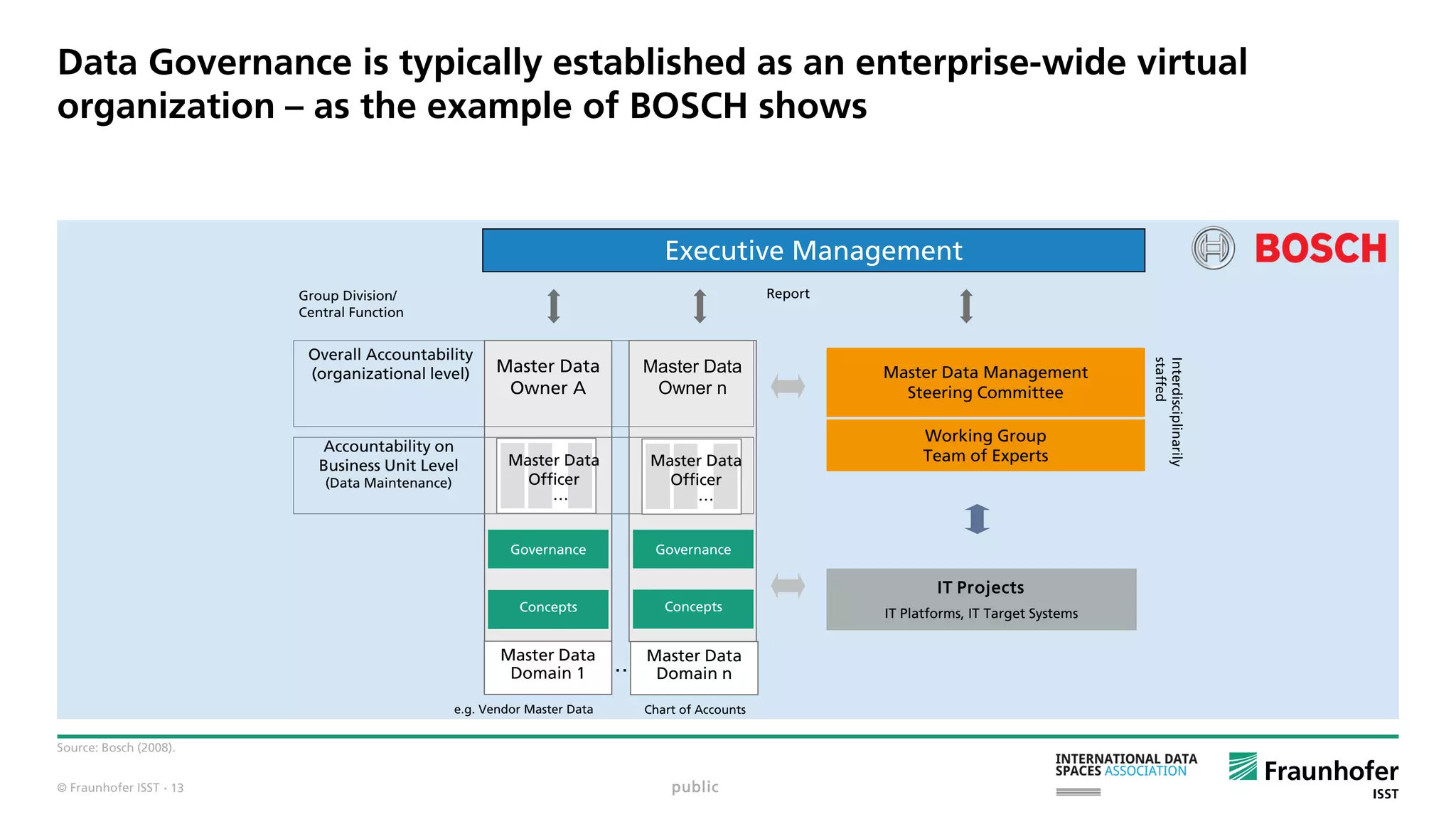

Data Governance is typically established as an enterprise-wide virtual
organization – as the example of BOSCH shows
Source: Bosch (2008).
public
Master Data
Owner n
Executive Management
Master Data Management
Steering Committee
…
Group Division/
Central Function
Accountability on
Business Unit Level
(Data Maintenance)
IT Projects
IT Platforms, IT Target Systems
Overall Accountability
(organizational level) Master Data
Owner A
Master Data
Domain 1
Master Data
Domain n
Report
Governance
Working Group
Team of Experts
ConceptsConcepts
Governance
… …
e.g. Vendor Master Data Chart of Accounts
Interdisciplinarily
staffed
Master Data
Officer
Master Data
Officer
· 13
© Fraunhofer ISST

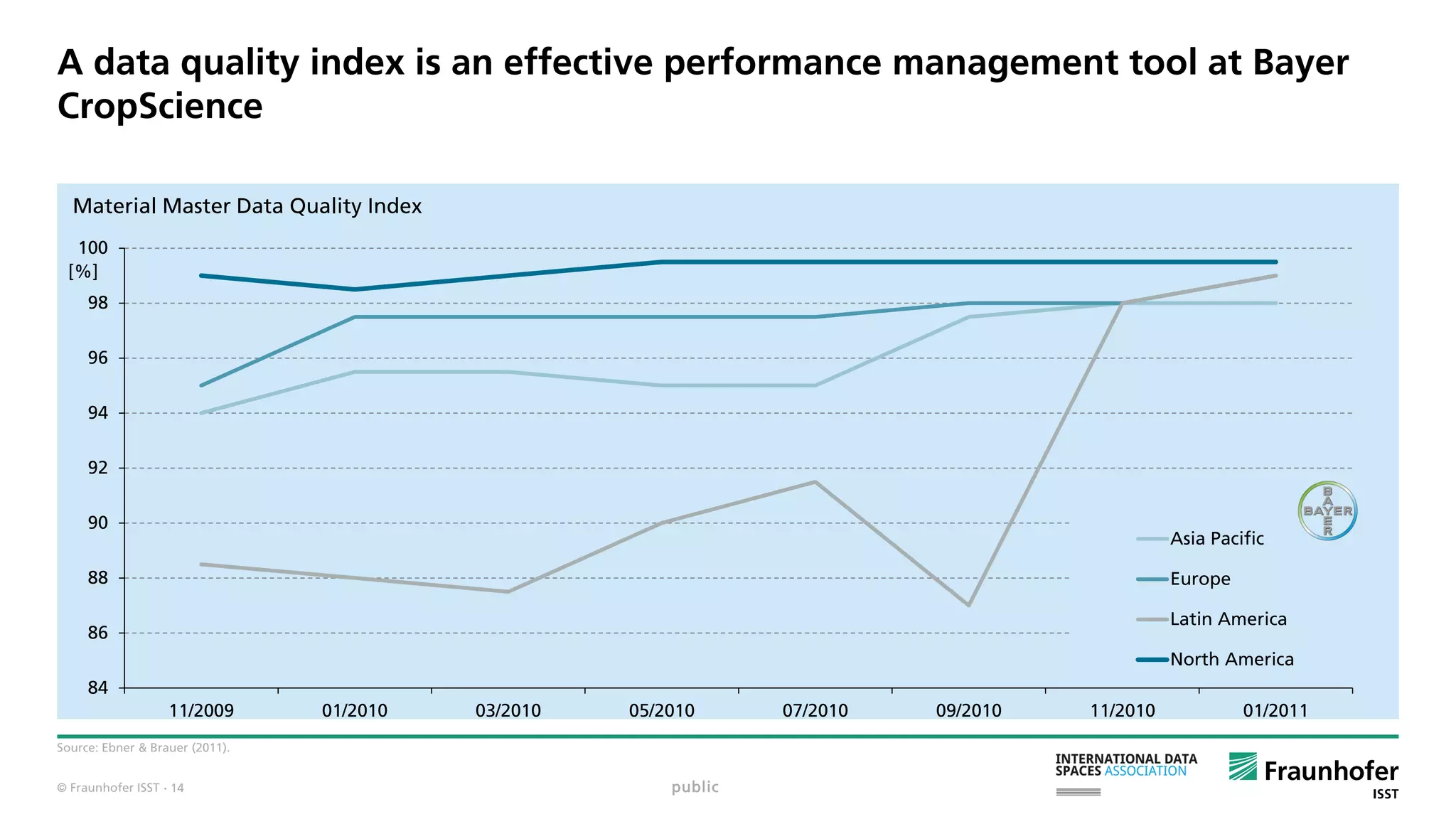

A data quality index is an effective performance management tool at Bayer
CropScience
Source: Ebner & Brauer (2011).
84
86
88
90
92
94
96
98
100
11/2009 01/2010 03/2010 05/2010 07/2010 09/2010 11/2010 01/2011
Material Master Data Quality Index
Asia Pacific
Europe
Latin America
North America
[%]
public· 14
© Fraunhofer ISST

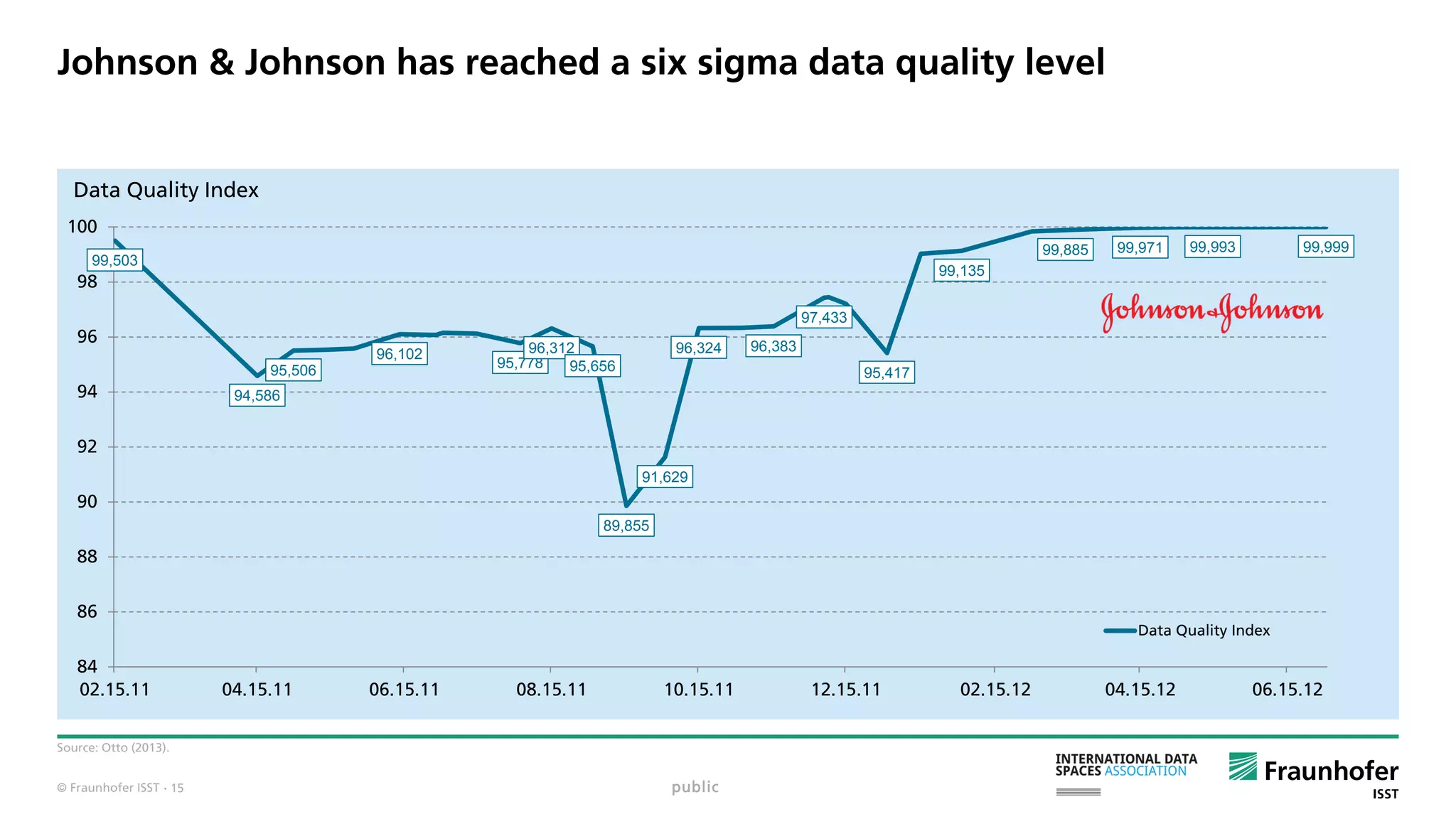

Johnson & Johnson has reached a six sigma data quality level
Source: Otto (2013).
99,503
94,586
95,506
96,102
95,778
96,312
95,656
89,855
91,629
96,324 96,383
97,433
95,417
99,135
99,885 99,971 99,993 99,999
84
86
88
90
92
94
96
98
100
02.15.11 04.15.11 06.15.11 08.15.11 10.15.11 12.15.11 02.15.12 04.15.12 06.15.12
Data Quality Index
Data Quality Index
public· 15
© Fraunhofer ISST

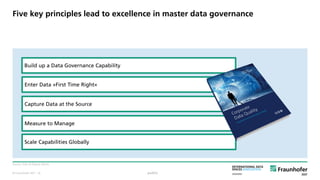

Five key principles lead to excellence in master data governance
Source: Otto & Österle (2015).
Capture Data at the Source
Enter Data »First Time Right«
Measure to Manage
Build up a Data Governance Capability
Scale Capabilities Globally
public· 16
© Fraunhofer ISST
Life’s good with Data Governance
Image source: Strassmann (1995).
public· 17
© Fraunhofer ISST

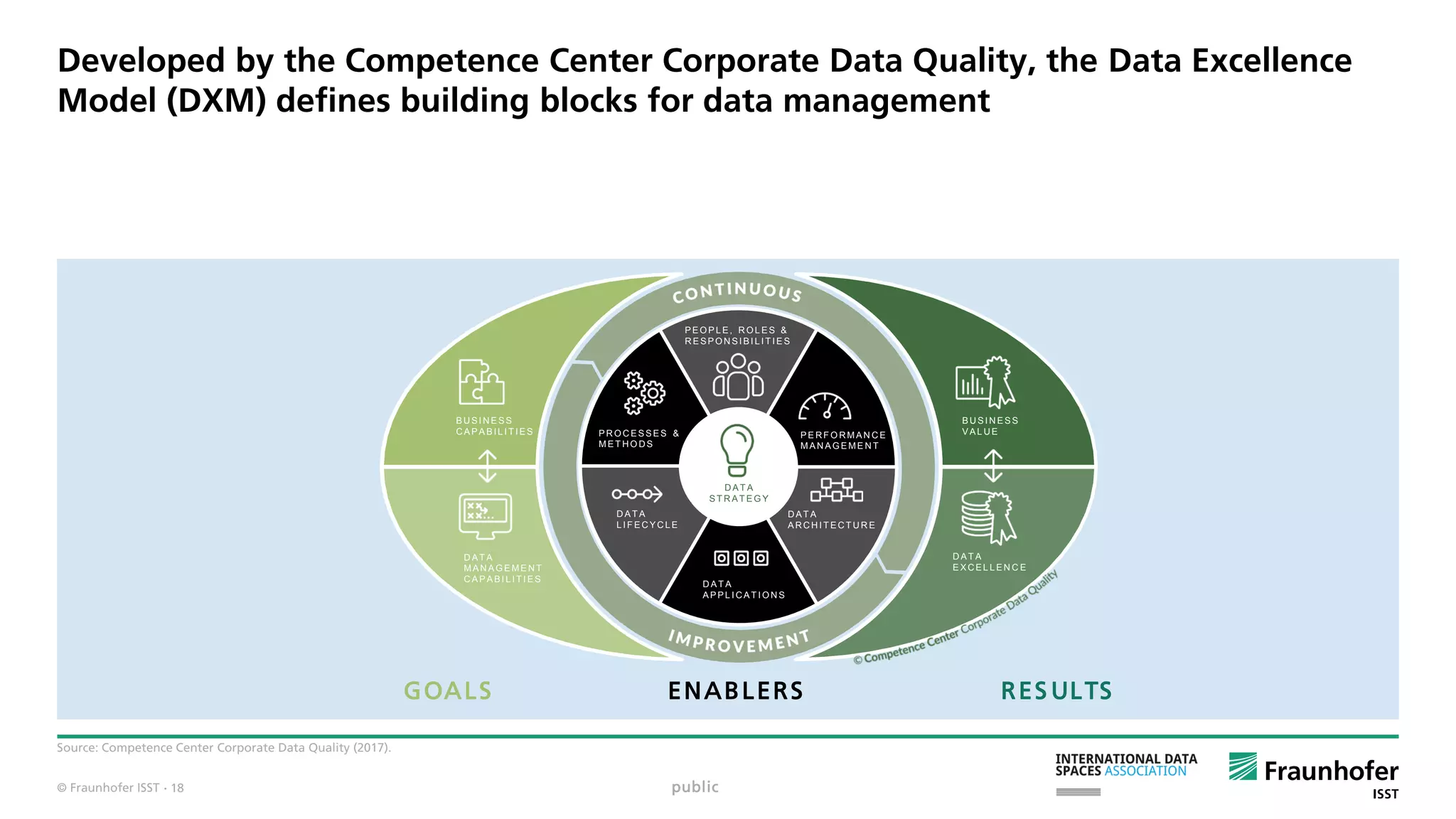

Developed by the Competence Center Corporate Data Quality, the Data Excellence
Model (DXM) defines building blocks for data management
Source: Competence Center Corporate Data Quality (2017).
public
GOALS ENABLERS RES ULTS
D A T A
S T R A T E G Y
P E O P L E , R O L E S &
R E S P O N S I B I L I T I E S
P R O C E S S E S &
ME T H O D S
D A T A
L I F E C Y C L E
D A T A
A P P L I C A T I O N S
D A T A
A R C H I T E C T U R E
P E R F O R MA N C E
MA N A G E ME N T
B U S I N E S S
C A P A B I L I T I E S
D A T A
MA N A G E ME N T
C A P A B I L I T I E S
B U S I N E S S
V A L U E
D A T A
E X C E L L E N C E
· 18
© Fraunhofer ISST

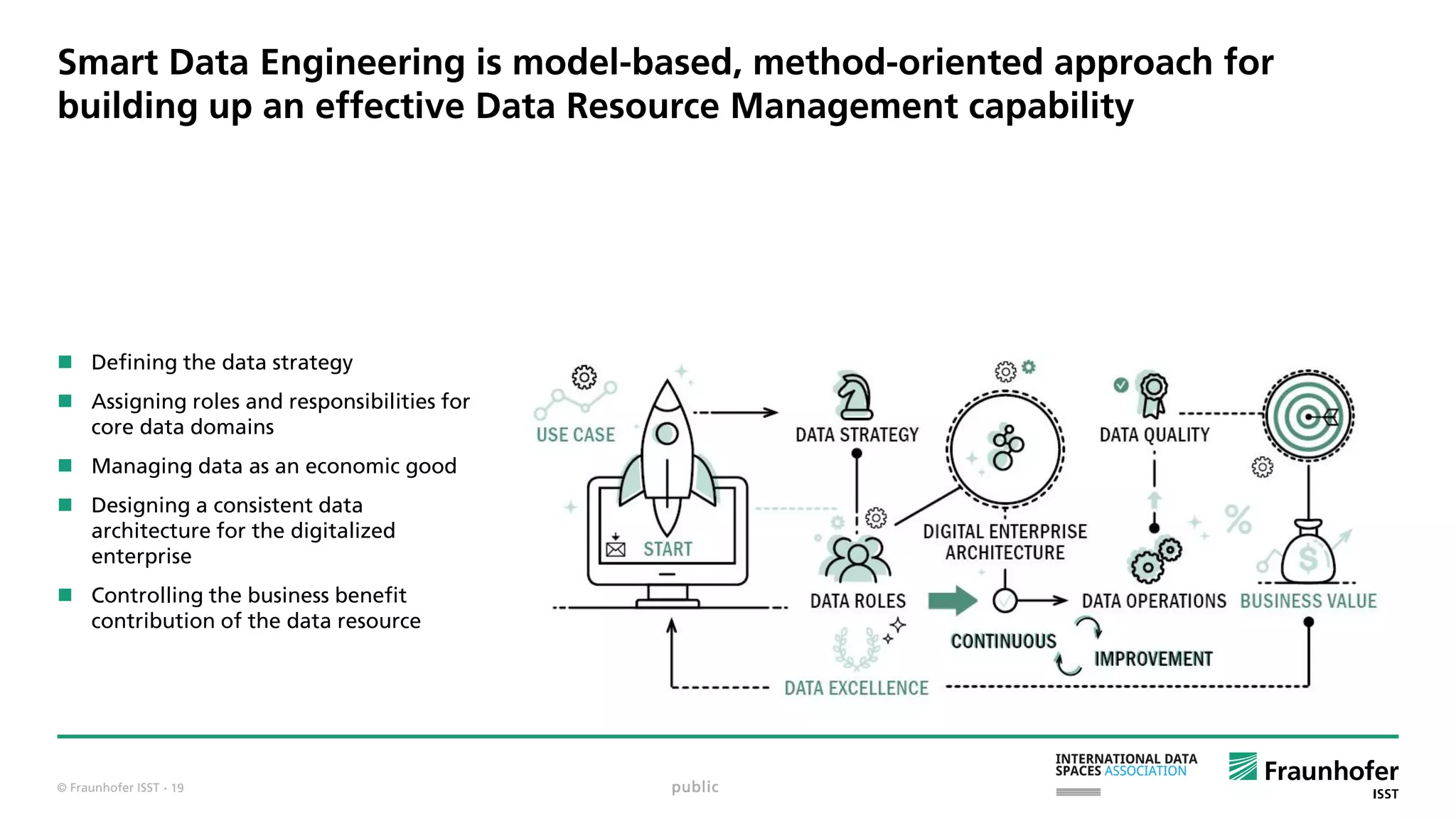

Smart Data Engineering is model-based, method-oriented approach for
building up an effective Data Resource Management capability
 Defining the data strategy
 Assigning roles and responsibilities for
core data domains
 Managing data as an economic good
 Designing a consistent data
architecture for the digitalized
enterprise
 Controlling the business benefit
contribution of the data resource
public· 19
© Fraunhofer ISST

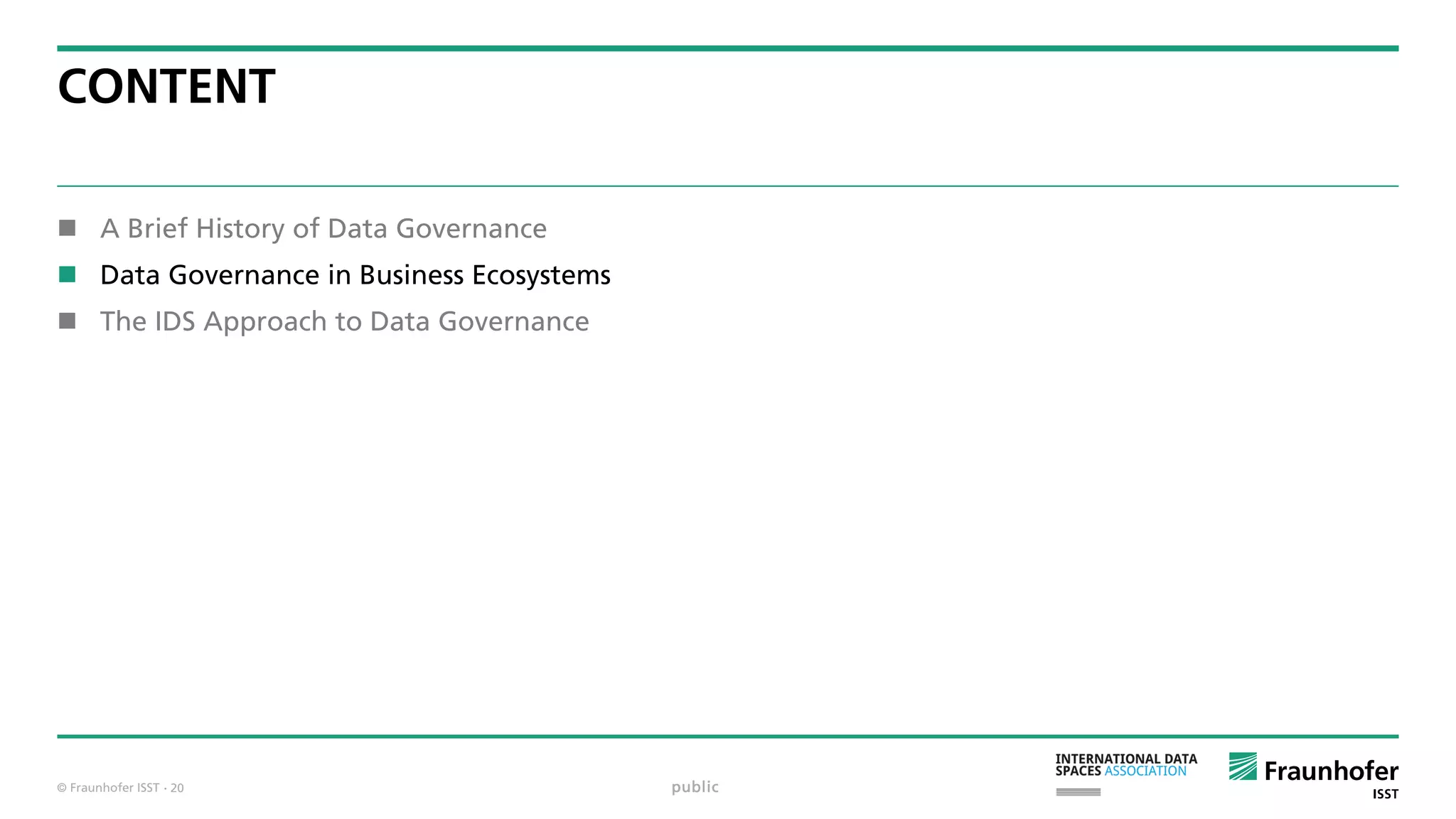

CONTENT
 A Brief History of Data Governance
 Data Governance in Business Ecosystems
 The IDS Approach to Data Governance
public· 20
© Fraunhofer ISST

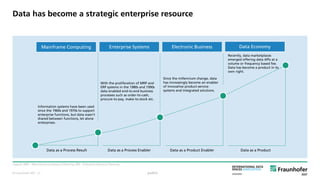

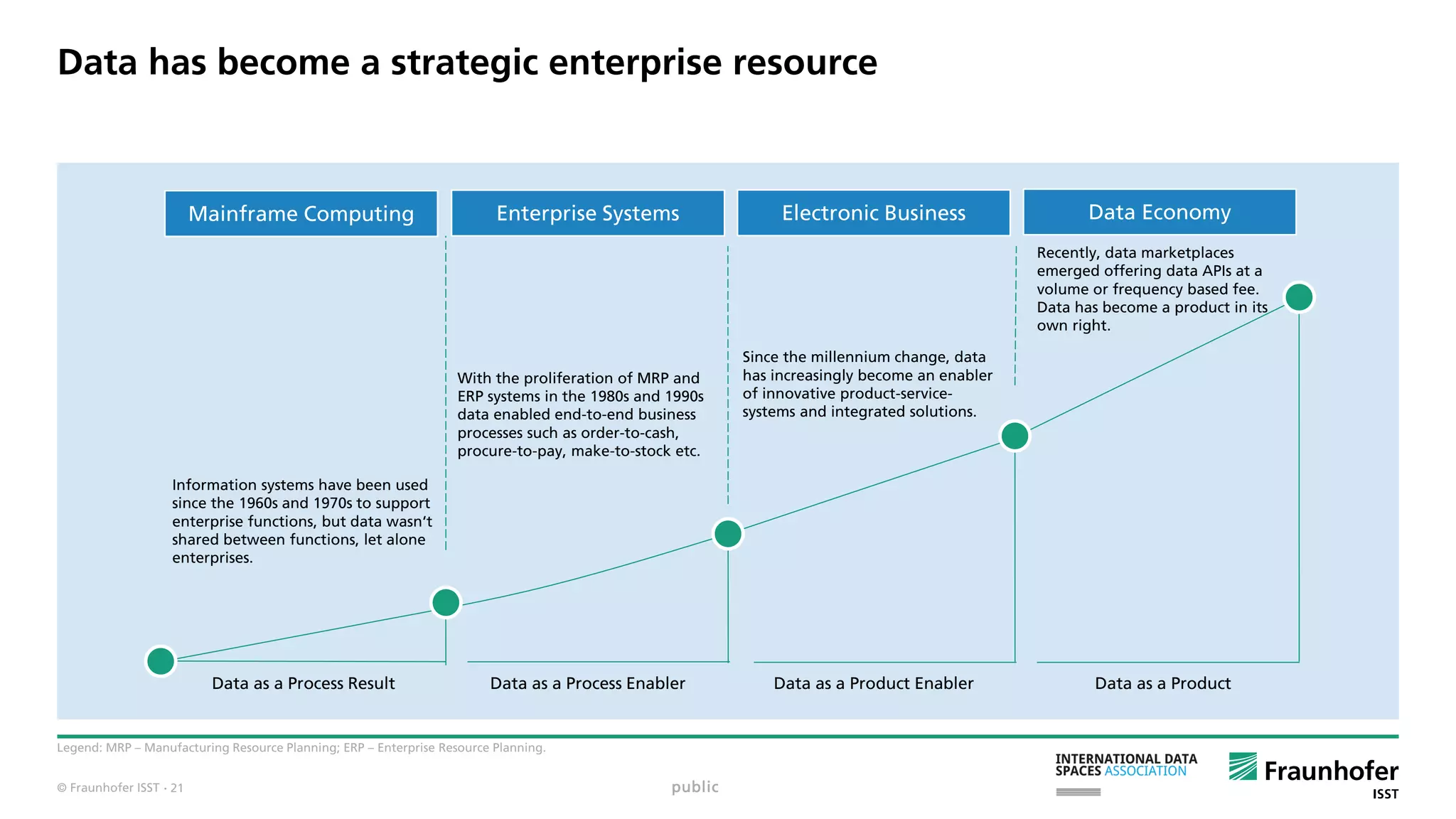

Data has become a strategic enterprise resource
Legend: MRP – Manufacturing Resource Planning; ERP – Enterprise Resource Planning.
public
Data as a Process Result Data as a Process Enabler Data as a Product Enabler Data as a Product
Information systems have been used
since the 1960s and 1970s to support
enterprise functions, but data wasn‘t
shared between functions, let alone
enterprises.
With the proliferation of MRP and
ERP systems in the 1980s and 1990s
data enabled end-to-end business
processes such as order-to-cash,
procure-to-pay, make-to-stock etc.
Since the millennium change, data
has increasingly become an enabler
of innovative product-service-
systems and integrated solutions.
Recently, data marketplaces
emerged offering data APIs at a
volume or frequency based fee.
Data has become a product in its
own right.
Mainframe Computing Enterprise Systems Electronic Business Data Economy
· 21
© Fraunhofer ISST

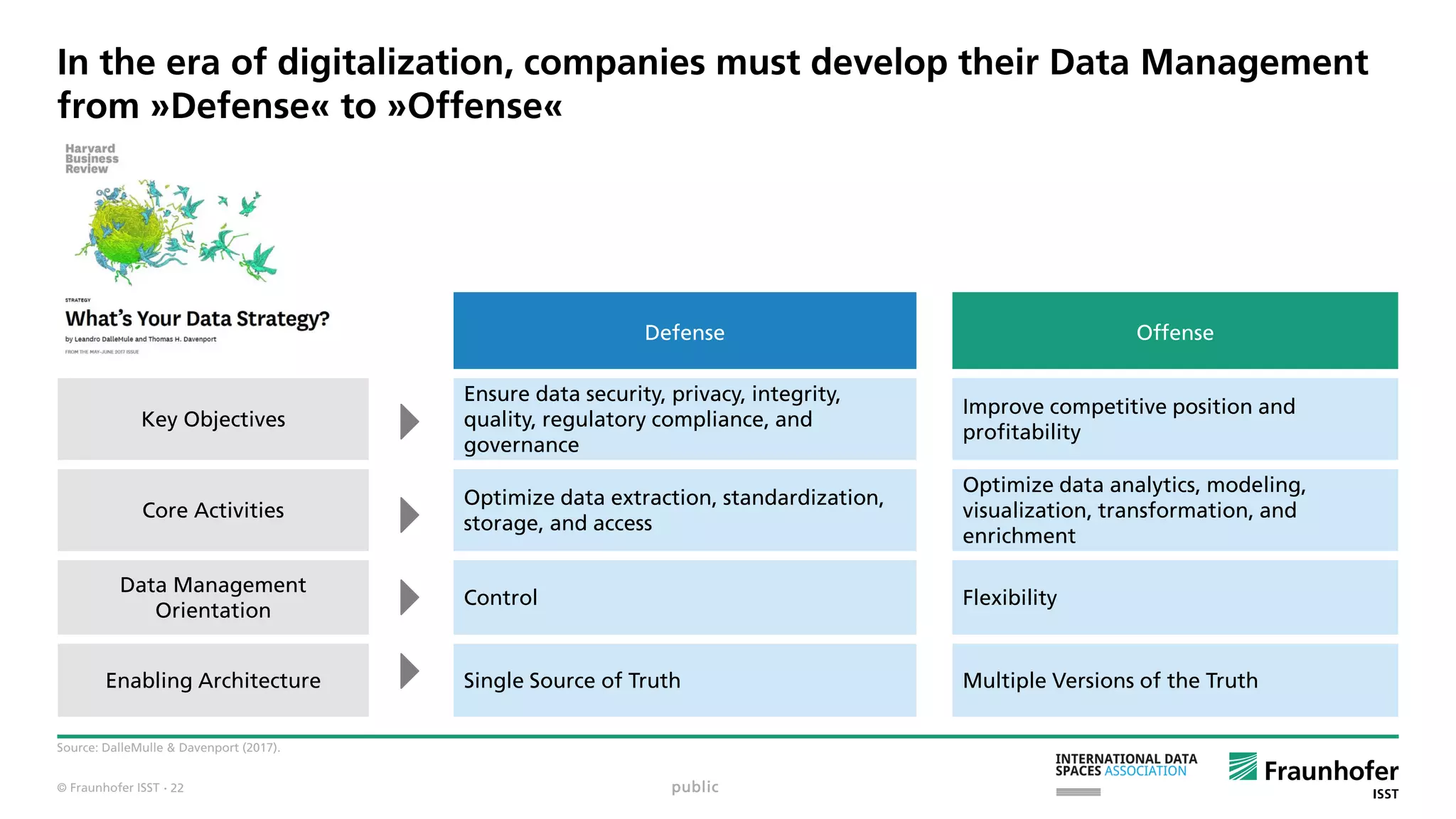

In the era of digitalization, companies must develop their Data Management
from »Defense« to »Offense«
Source: DalleMulle & Davenport (2017).
public
Defense Offense
Key Objectives
Ensure data security, privacy, integrity,
quality, regulatory compliance, and
governance
Improve competitive position and
profitability
Core Activities
Optimize data extraction, standardization,
storage, and access
Optimize data analytics, modeling,
visualization, transformation, and
enrichment
Data Management
Orientation
Control Flexibility
Enabling Architecture Single Source of Truth Multiple Versions of the Truth
· 22
© Fraunhofer ISST

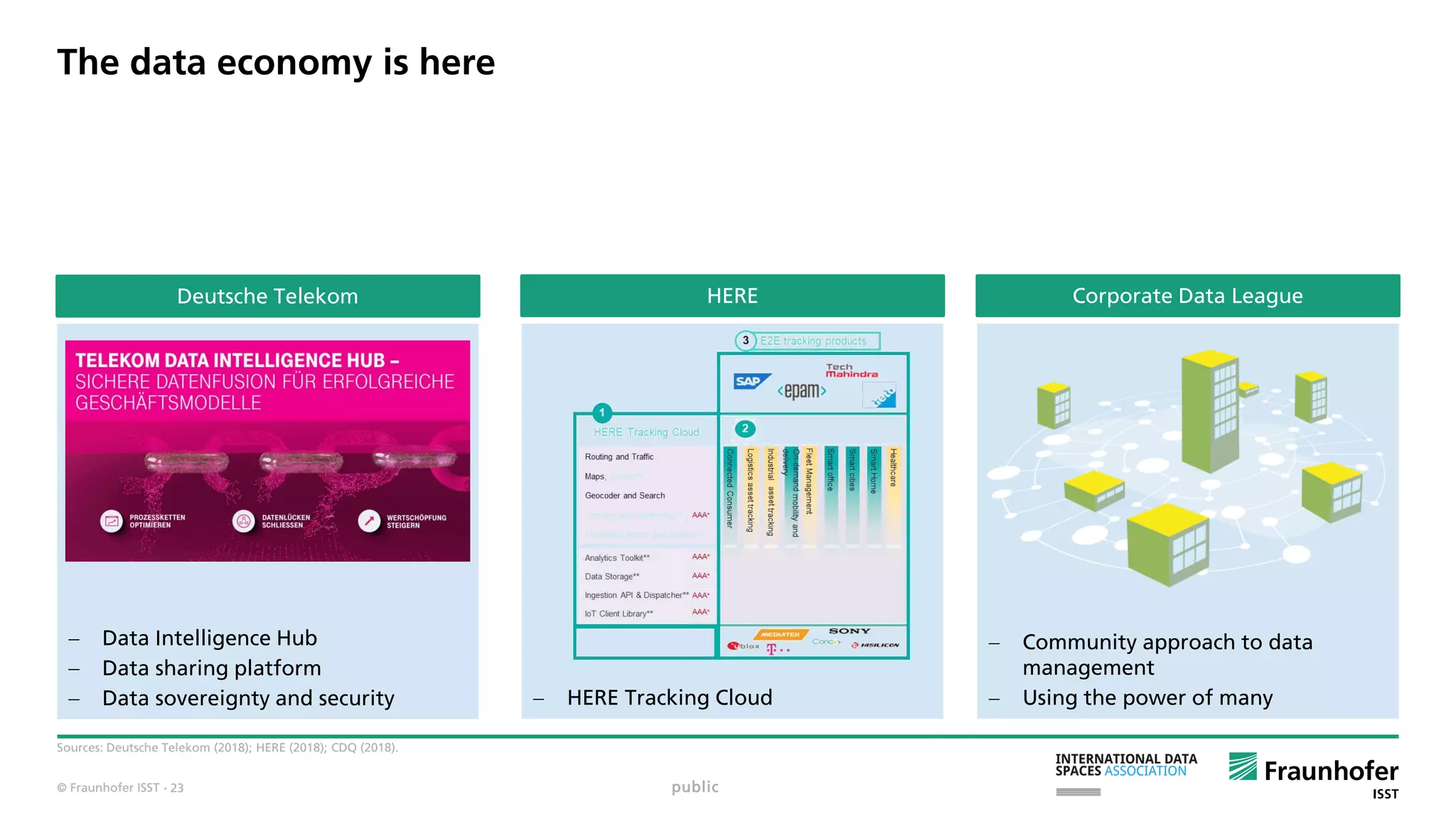

 Data Intelligence Hub
 Data sharing platform
 Data sovereignty and security
The data economy is here
Sources: Deutsche Telekom (2018); HERE (2018); CDQ (2018).
public
 HERE Tracking Cloud
 Community approach to data
management
 Using the power of many
Deutsche Telekom HERE Corporate Data League
· 23
© Fraunhofer ISST

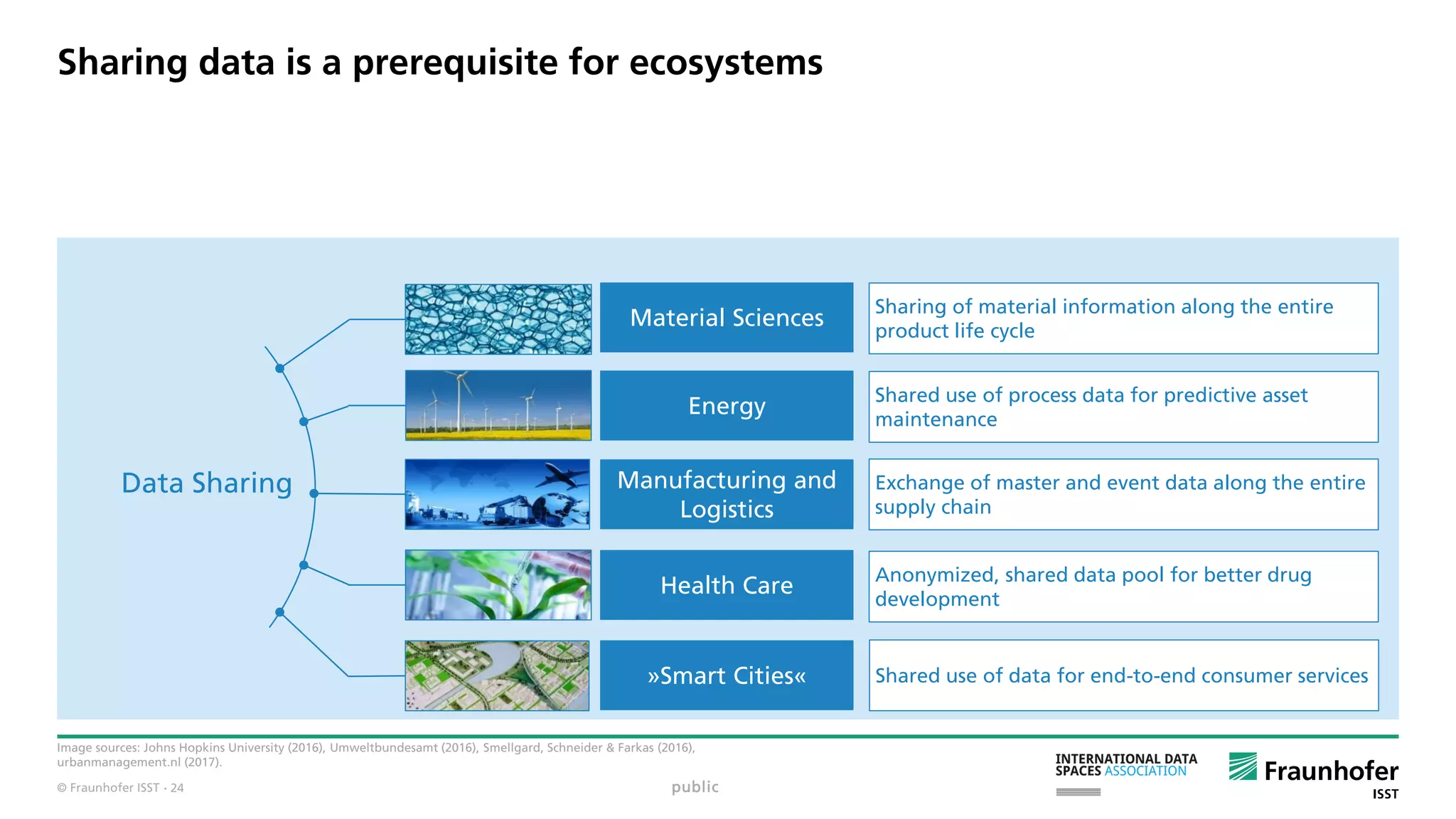

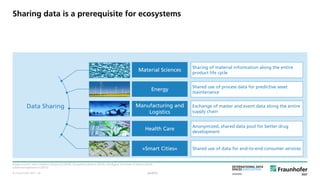

Sharing data is a prerequisite for ecosystems
Image sources: Johns Hopkins University (2016), Umweltbundesamt (2016), Smellgard, Schneider & Farkas (2016),
urbanmanagement.nl (2017).
Data Sharing
Energy
Health Care
Material Sciences
Manufacturing and
Logistics
»Smart Cities«
Sharing of material information along the entire
product life cycle
Shared use of process data for predictive asset
maintenance
Exchange of master and event data along the entire
supply chain
Anonymized, shared data pool for better drug
development
Shared use of data for end-to-end consumer services
public· 24
© Fraunhofer ISST

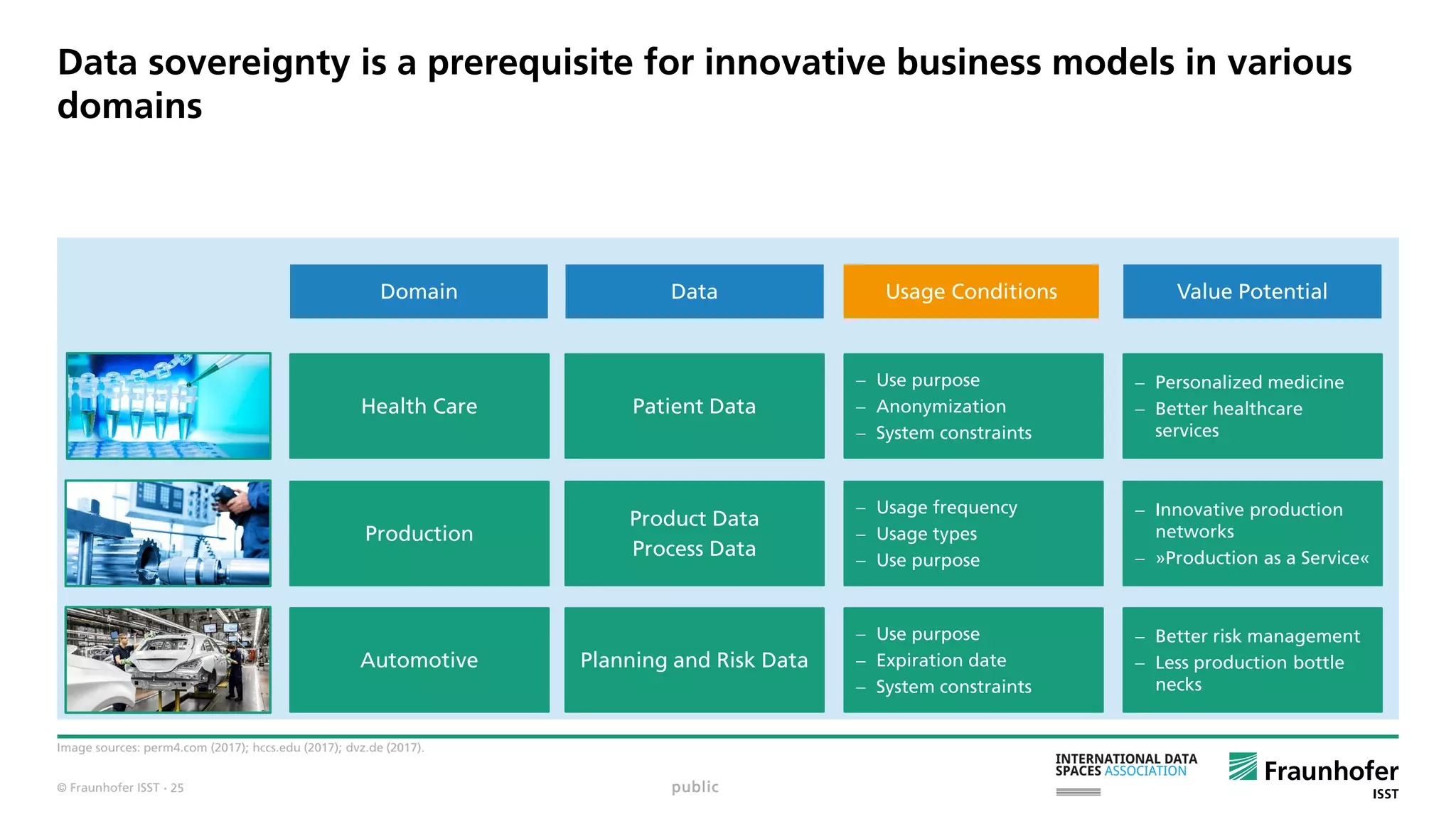

Data sovereignty is a prerequisite for innovative business models in various
domains
Image sources: perm4.com (2017); hccs.edu (2017); dvz.de (2017).
Health Care Patient Data
 Use purpose
 Anonymization
 System constraints
 Personalized medicine
 Better healthcare
services
Domain Data Usage Conditions Value Potential
Production
Product Data
Process Data
 Usage frequency
 Usage types
 Use purpose
 Innovative production
networks
 »Production as a Service«
Automotive Planning and Risk Data
 Use purpose
 Expiration date
 System constraints
 Better risk management
 Less production bottle
necks
public· 25
© Fraunhofer ISST

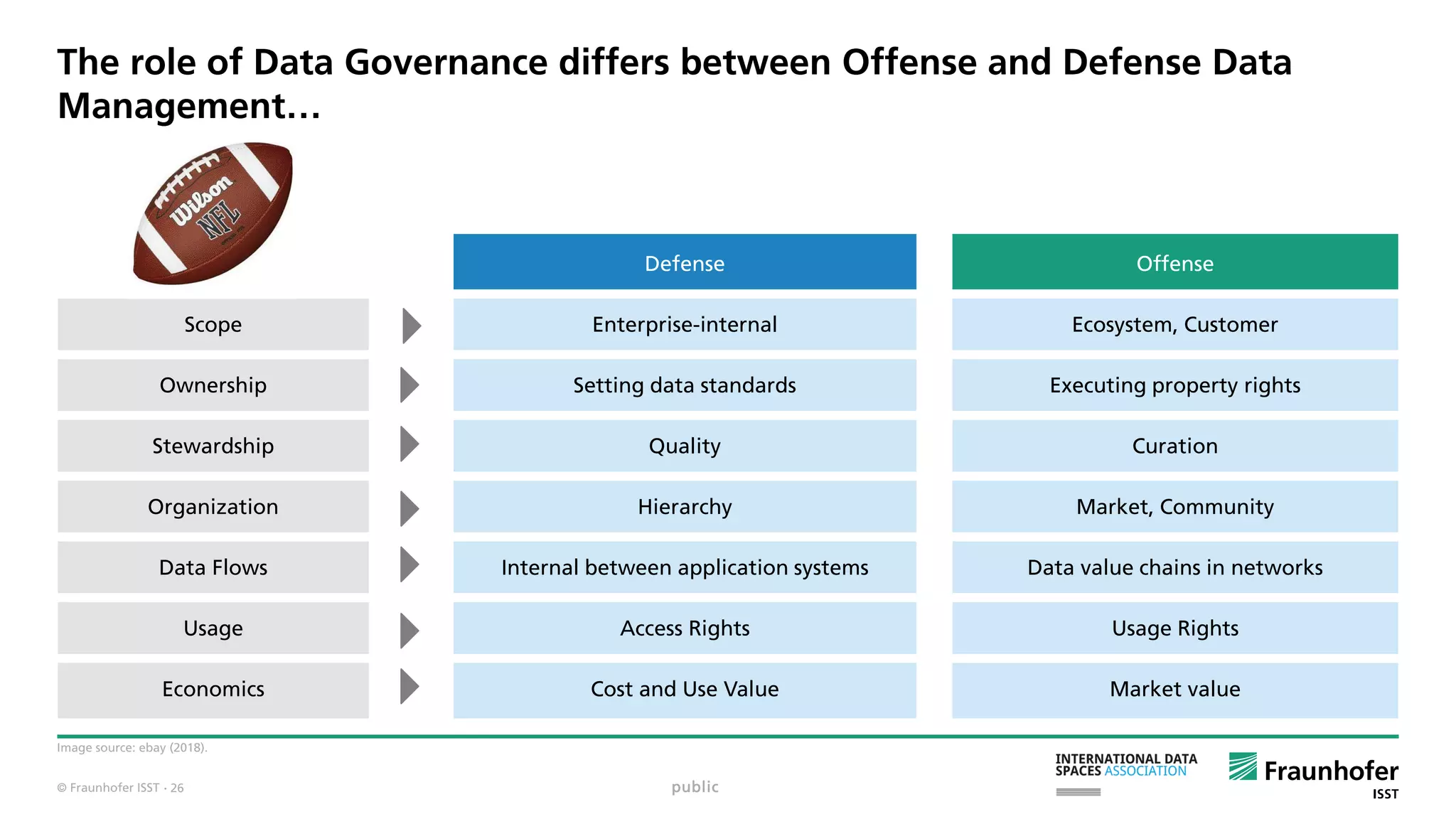

The role of Data Governance differs between Offense and Defense Data
Management…
Image source: ebay (2018).
public
Defense Offense
Scope Enterprise-internal Ecosystem, Customer
Ownership Setting data standards Executing property rights
Stewardship Quality Curation
Organization Hierarchy Market, Community
Data Flows Internal between application systems Data value chains in networks
Usage Access Rights Usage Rights
Economics Cost and Use Value Market value
· 26
© Fraunhofer ISST
CONTENT
 A Brief History of Data Governance
 Data Governance in Business Ecosystems
 The IDS Approach to Data Governance
public· 27
© Fraunhofer ISST

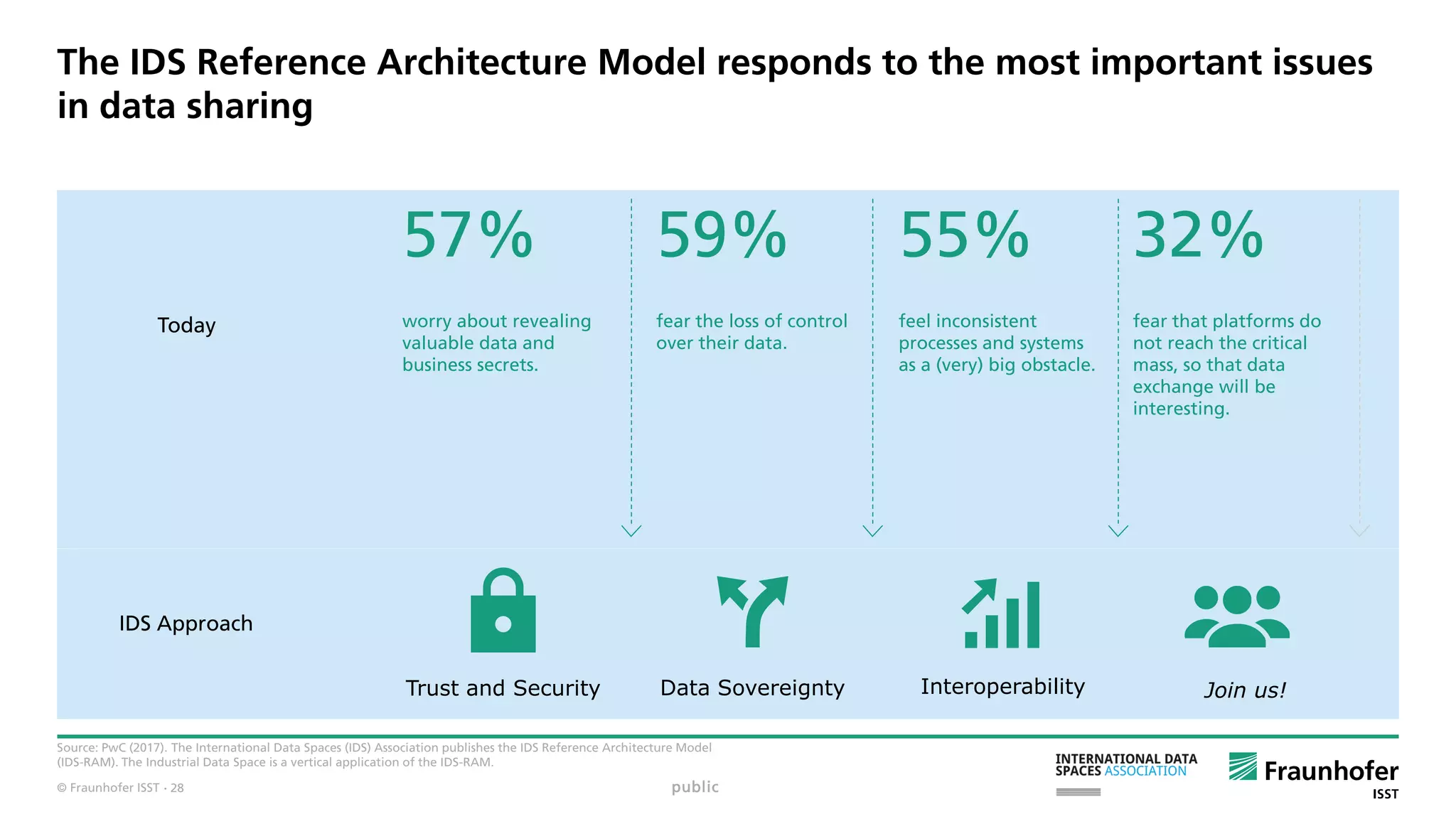

The IDS Reference Architecture Model responds to the most important issues
in data sharing
Source: PwC (2017). The International Data Spaces (IDS) Association publishes the IDS Reference Architecture Model
(IDS-RAM). The Industrial Data Space is a vertical application of the IDS-RAM.
57%
worry about revealing
valuable data and
business secrets.
59%
fear the loss of control
over their data.
55%
feel inconsistent
processes and systems
as a (very) big obstacle.
32%
fear that platforms do
not reach the critical
mass, so that data
exchange will be
interesting.
InteroperabilityData SovereigntyTrust and Security Join us!
Today
IDS Approach
public· 28
© Fraunhofer ISST

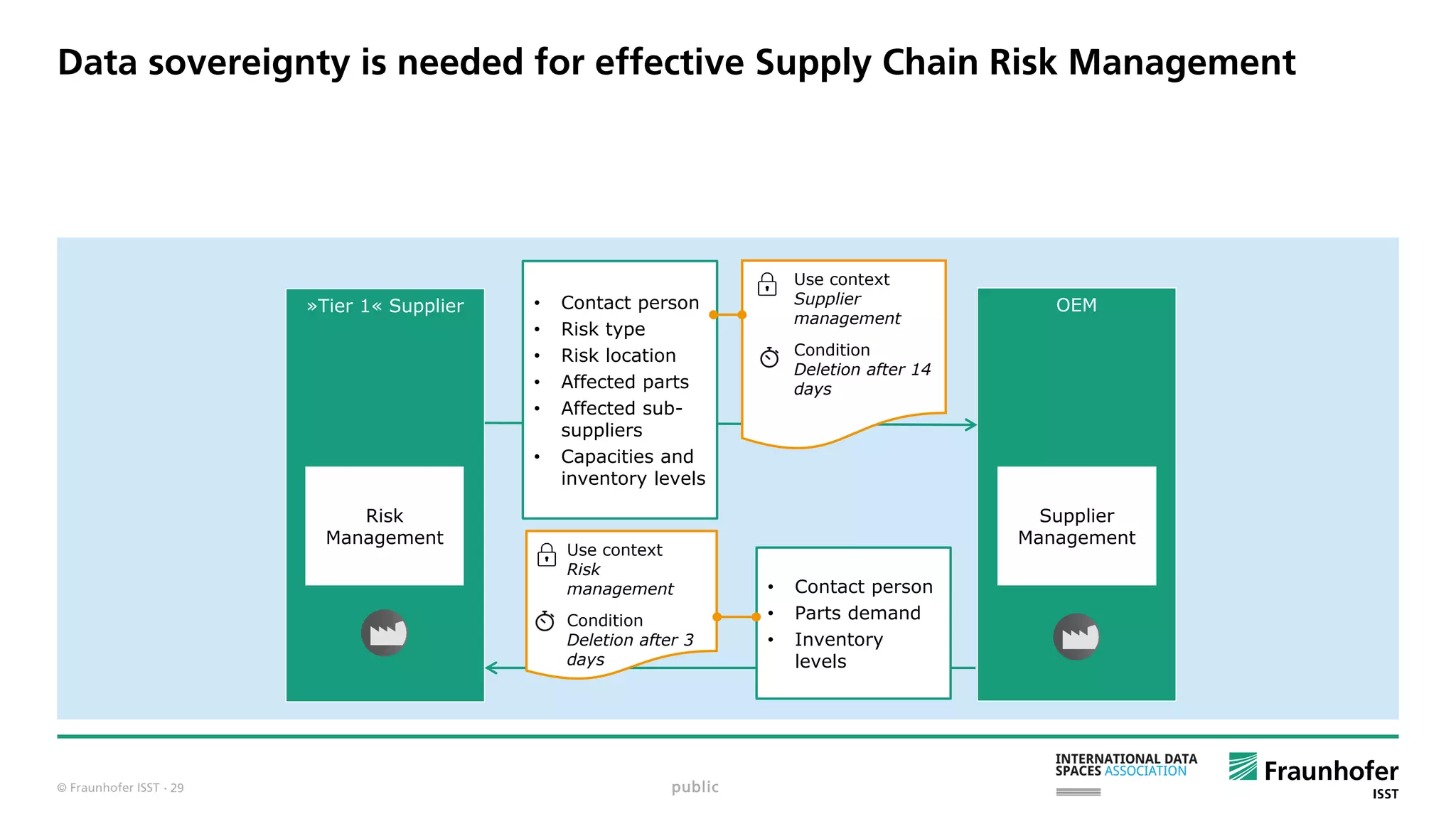

Data sovereignty is needed for effective Supply Chain Risk Management
OEM»Tier 1« Supplier
Risk
Management
Supplier
Management
• Contact person
• Risk type
• Risk location
• Affected parts
• Affected sub-
suppliers
• Capacities and
inventory levels
• Contact person
• Parts demand
• Inventory
levels
Use context
Risk
management
Condition
Deletion after 3
days
Use context
Supplier
management
Condition
Deletion after 14
days
public· 29
© Fraunhofer ISST

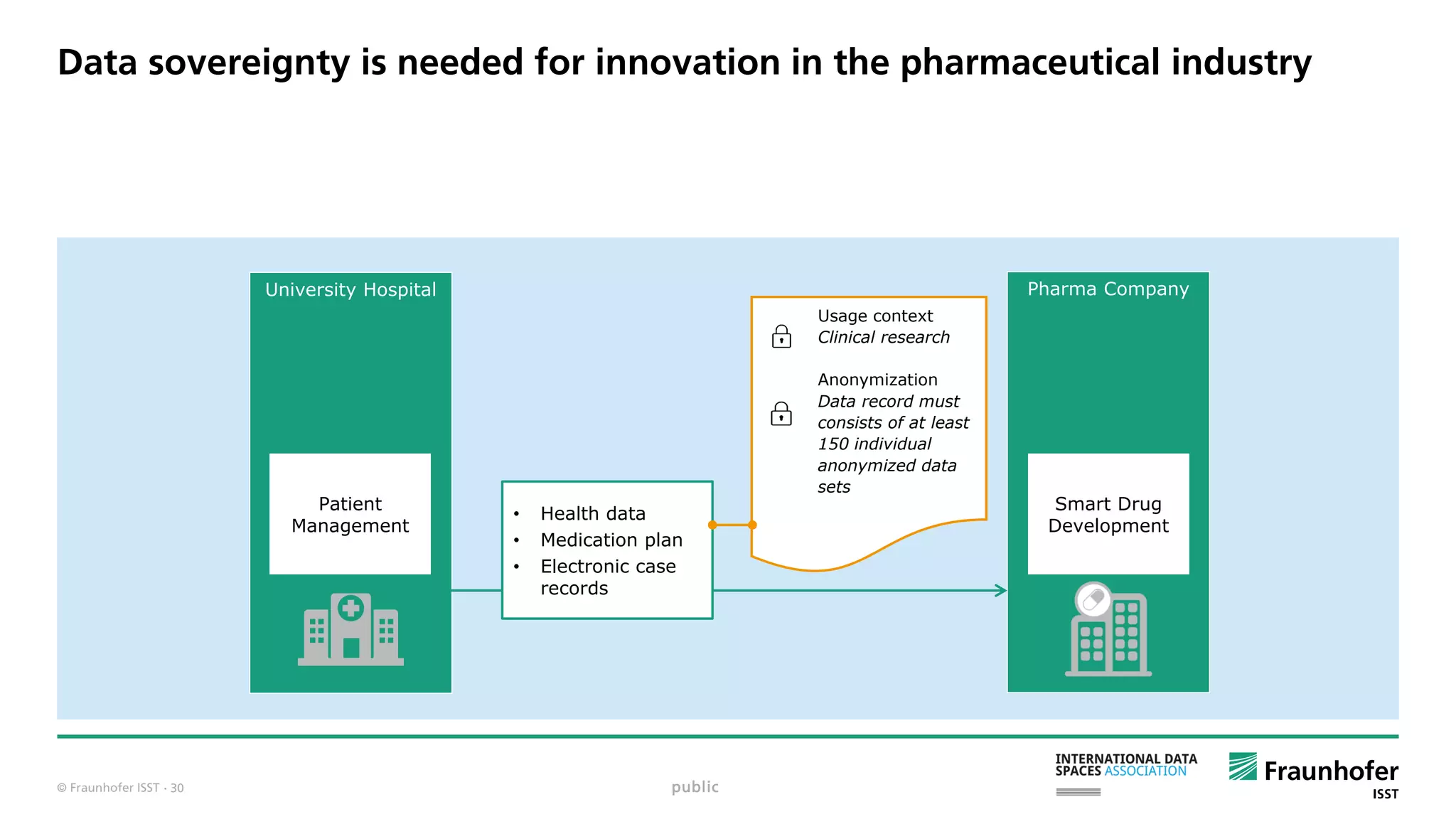

Data sovereignty is needed for innovation in the pharmaceutical industry
Pharma Company
Usage context
Clinical research
Anonymization
Data record must
consists of at least
150 individual
anonymized data
sets
University Hospital
Patient
Management
Smart Drug
Development
• Health data
• Medication plan
• Electronic case
records
public· 30
© Fraunhofer ISST

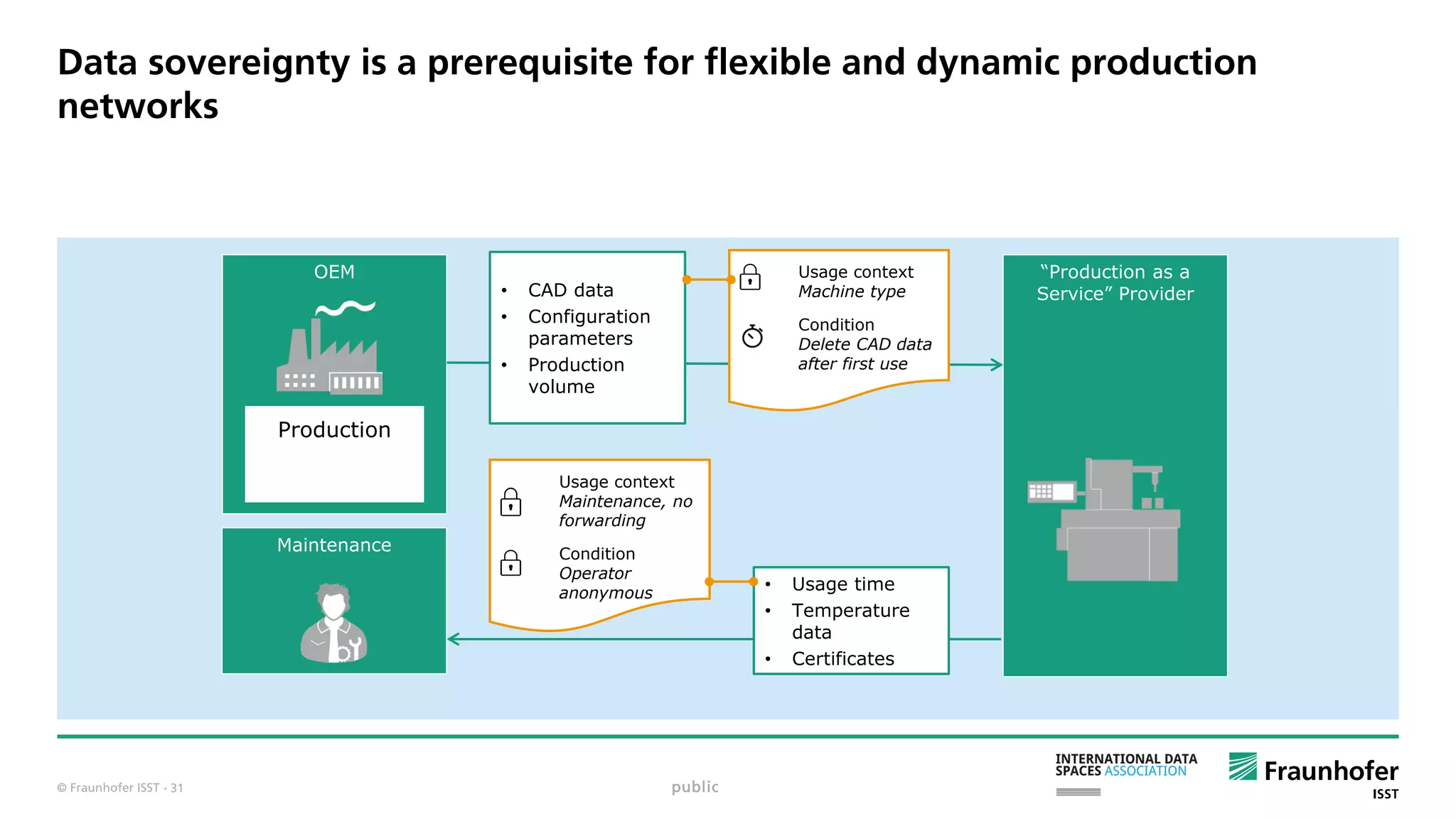

Data sovereignty is a prerequisite for flexible and dynamic production
networks
“Production as a
Service” Provider
OEM
Production
Planning and
Control
• CAD data
• Configuration
parameters
• Production
volume
• Usage time
• Temperature
data
• Certificates
Usage context
Maintenance, no
forwarding
Condition
Operator
anonymous
Maintenance
Usage context
Machine type
Condition
Delete CAD data
after first use
public· 31
© Fraunhofer ISST
Usage conditions for data are multifold
Dimension Specification Example
Geo-information
Coordinates 51.493773, 7.407025, radius 1km
Geo polygon
ZIP code 44227
Country code DE
Expiration date Absolute date December 24, 2017
Anonymization
Role, function
Usage purpose
Positive list Use for machine configuration
Negative list Not for marketing use
Propagation
Allow, deny
Allow on a fee Yes, with 20 percent surplus charge
Number of uses Absolute figure Once
Deletion
System constraints
public· 32
© Fraunhofer ISST

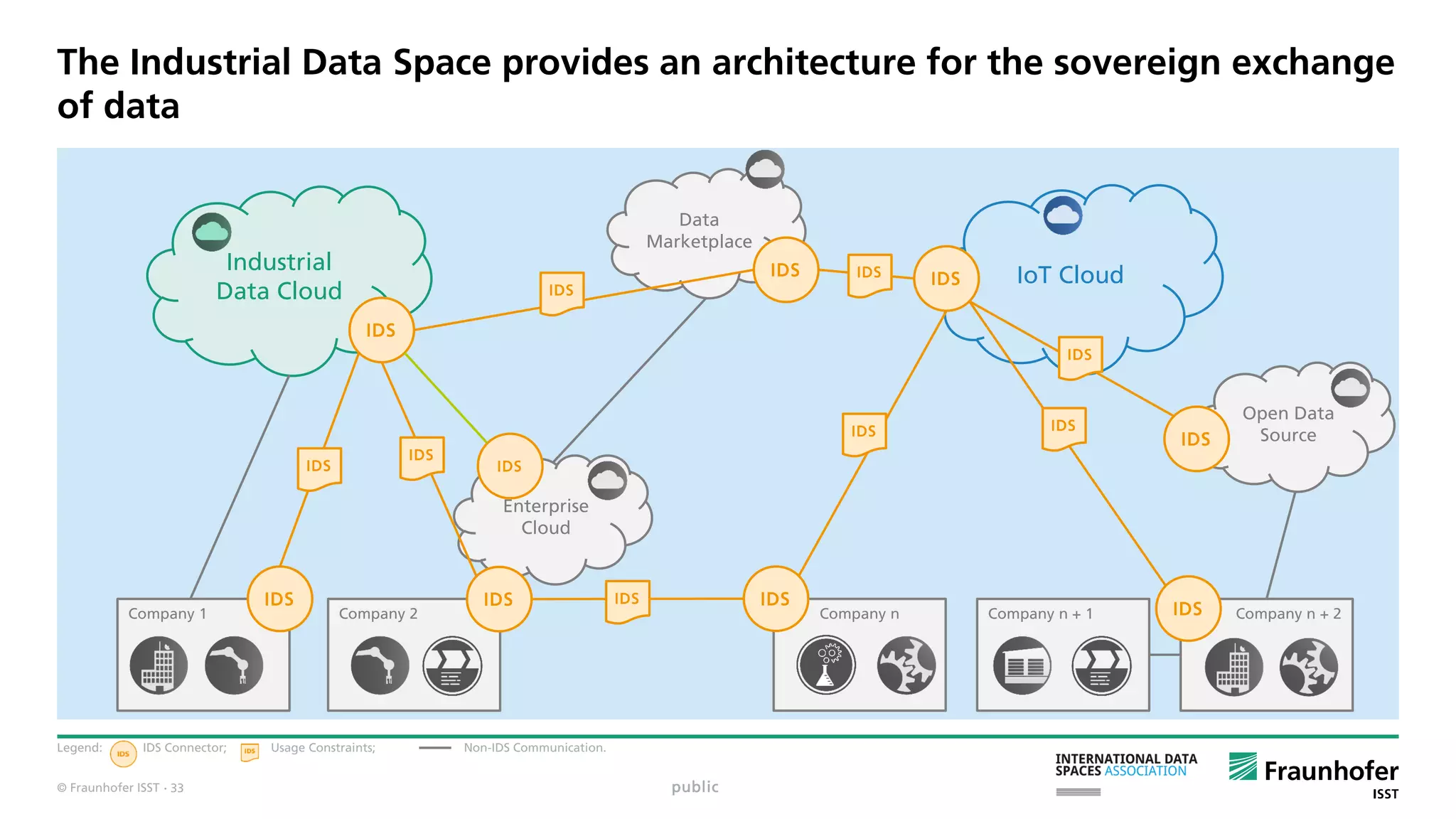

The Industrial Data Space provides an architecture for the sovereign exchange
of data
Legend: IDS Connector; Usage Constraints; Non-IDS Communication.
public
Industrial
Data Cloud
IoT Cloud
Enterprise
Cloud
Data
Marketplace
Company 1 Company 2 Company n + 2Company n + 1Company n
Open Data
Source
IDS
IDS IDS
IDS
IDS IDS
IDS
IDS
IDS
IDS
IDS
IDS
IDS
IDS
IDS
IDS
IDS
· 33
© Fraunhofer ISST

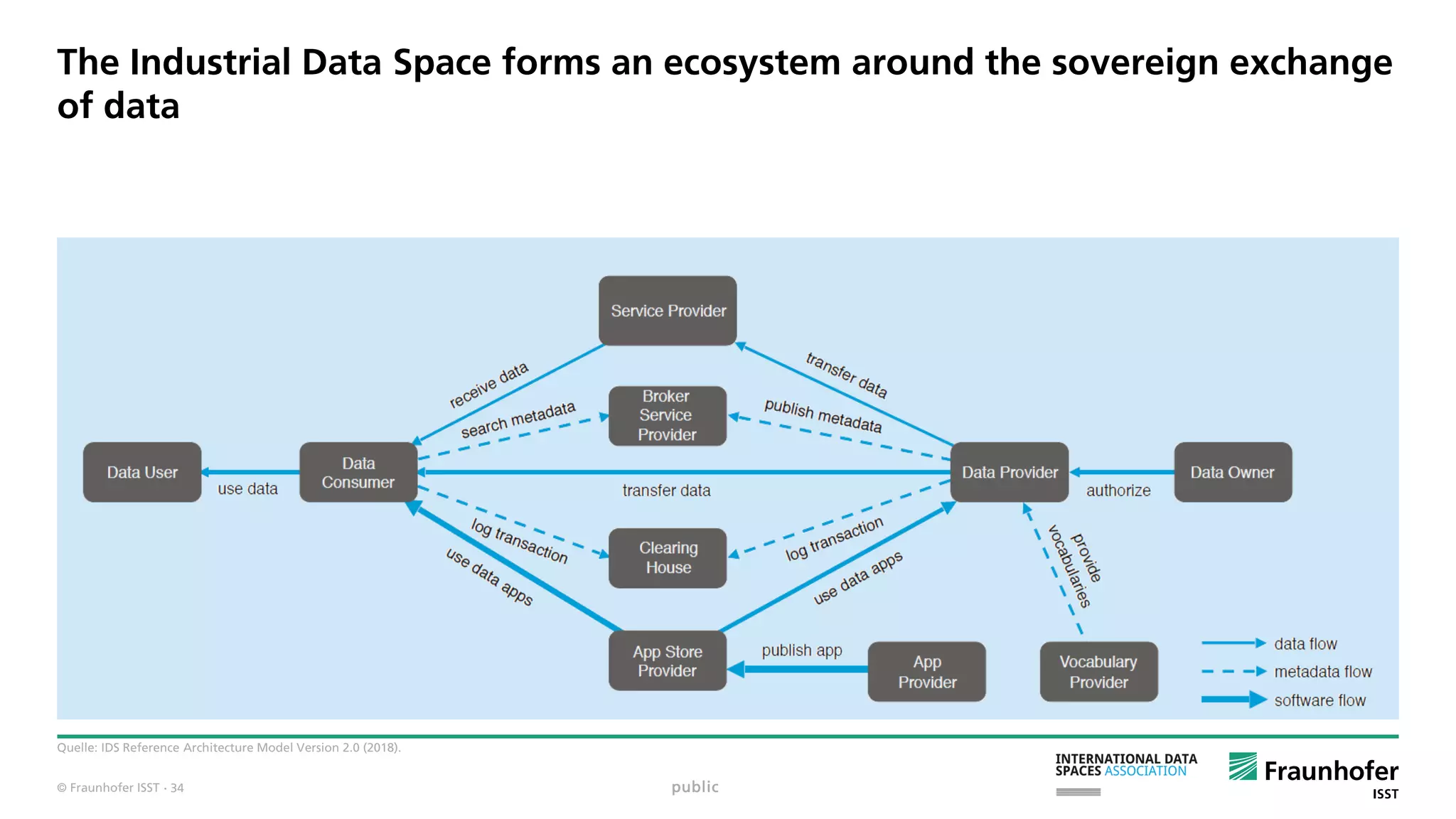

The Industrial Data Space forms an ecosystem around the sovereign exchange
of data
Quelle: IDS Reference Architecture Model Version 2.0 (2018).
public· 34
© Fraunhofer ISST

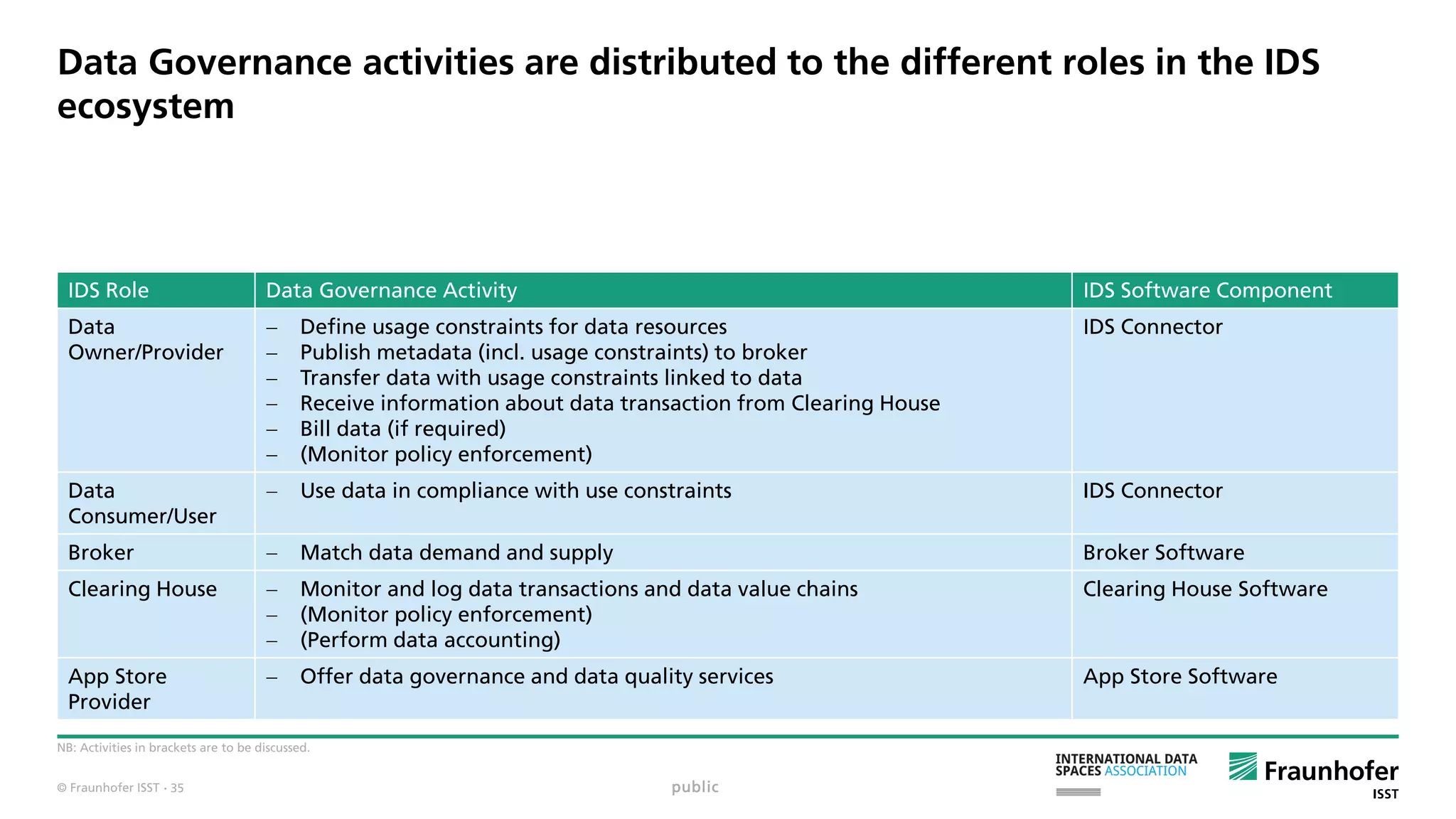

Data Governance activities are distributed to the different roles in the IDS
ecosystem
NB: Activities in brackets are to be discussed.
public
IDS Role Data Governance Activity IDS Software Component
Data
Owner/Provider
 Define usage constraints for data resources
 Publish metadata (incl. usage constraints) to broker
 Transfer data with usage constraints linked to data
 Receive information about data transaction from Clearing House
 Bill data (if required)
 (Monitor policy enforcement)
IDS Connector
Data
Consumer/User
 Use data in compliance with use constraints IDS Connector
Broker  Match data demand and supply Broker Software
Clearing House  Monitor and log data transactions and data value chains
 (Monitor policy enforcement)
 (Perform data accounting)
Clearing House Software
App Store
Provider
 Offer data governance and data quality services App Store Software
· 35
© Fraunhofer ISST
Prof. Dr.-Ing. Boris Otto
Fraunhofer ISST · Executive Director
TU Dortmund · Faculty of Mechanical Engineering
Boris.Otto@isst.fraunhofer.de · Boris.Otto@tu-dortmund.de
https://de.linkedin.com/pub/boris-otto/1/1b5/570
https://twitter.com/drborisotto
https://www.xing.com/profile/Boris_Otto
http://www.researchgate.net/profile/Boris_Otto
http://de.slideshare.net/borisotto
Please get in touch!
public· 36
© Fraunhofer ISST
DATA GOVERNANCE
Prof. Dr.-Ing. Boris Otto  28 September 2018  Dortmund
public
Bildquelle: guinnessworldrecords.com (2017).
· 37

More Related Content

What's hot

Data Governance Best Practices
Data Governance Best PracticesData Governance Best Practices
Data Governance Best Practices
DATAVERSITY

Data Architecture Strategies: Data Architecture for Digital Transformation
Data Architecture Strategies: Data Architecture for Digital TransformationData Architecture Strategies: Data Architecture for Digital Transformation
Data Architecture Strategies: Data Architecture for Digital Transformation
DATAVERSITY

DAS Slides: Building a Data Strategy - Practical Steps for Aligning with Busi...
DAS Slides: Building a Data Strategy - Practical Steps for Aligning with Busi...DAS Slides: Building a Data Strategy - Practical Steps for Aligning with Busi...
DAS Slides: Building a Data Strategy - Practical Steps for Aligning with Busi...
DATAVERSITY

Building a Data Governance Strategy
Building a Data Governance StrategyBuilding a Data Governance Strategy
Building a Data Governance Strategy
Analytics8

Data Modeling, Data Governance, & Data Quality
Data Modeling, Data Governance, & Data QualityData Modeling, Data Governance, & Data Quality
Data Modeling, Data Governance, & Data Quality
DATAVERSITY

Data Quality Best Practices
Data Quality Best PracticesData Quality Best Practices
Data Quality Best Practices
DATAVERSITY

The Role of Data Governance in a Data Strategy
The Role of Data Governance in a Data StrategyThe Role of Data Governance in a Data Strategy
The Role of Data Governance in a Data Strategy
DATAVERSITY

Introduction to Data Governance
Introduction to Data GovernanceIntroduction to Data Governance
Introduction to Data Governance
John Bao Vuu

Data Governance Workshop
Data Governance WorkshopData Governance Workshop
Data Governance Workshop
CCG

Data Governance Best Practices, Assessments, and Roadmaps
Data Governance Best Practices, Assessments, and RoadmapsData Governance Best Practices, Assessments, and Roadmaps
Data Governance Best Practices, Assessments, and Roadmaps
DATAVERSITY

Business Intelligence & Data Analytics– An Architected Approach
Business Intelligence & Data Analytics– An Architected ApproachBusiness Intelligence & Data Analytics– An Architected Approach
Business Intelligence & Data Analytics– An Architected Approach
DATAVERSITY

Activate Data Governance Using the Data Catalog
Activate Data Governance Using the Data CatalogActivate Data Governance Using the Data Catalog
Activate Data Governance Using the Data Catalog
DATAVERSITY

Building an Effective Data & Analytics Operating Model A Data Modernization G...
Building an Effective Data & Analytics Operating Model A Data Modernization G...Building an Effective Data & Analytics Operating Model A Data Modernization G...
Building an Effective Data & Analytics Operating Model A Data Modernization G...
Mark Hewitt

Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
Data Architecture, Solution Architecture, Platform Architecture — What’s the ...Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
DATAVERSITY

Who Should Own Data Governance – IT or Business?
Who Should Own Data Governance – IT or Business?Who Should Own Data Governance – IT or Business?
Who Should Own Data Governance – IT or Business?
DATAVERSITY

Data at the Speed of Business with Data Mastering and Governance
Data at the Speed of Business with Data Mastering and GovernanceData at the Speed of Business with Data Mastering and Governance
Data at the Speed of Business with Data Mastering and Governance
DATAVERSITY

Data modelling 101
Data modelling 101Data modelling 101
Data modelling 101
Christopher Bradley

Data Quality & Data Governance
Data Quality & Data GovernanceData Quality & Data Governance
Data Quality & Data Governance
Tuba Yaman Him

Data Architecture for Data Governance
Data Architecture for Data GovernanceData Architecture for Data Governance
Data Architecture for Data Governance
DATAVERSITY

You Need a Data Catalog. Do You Know Why?
You Need a Data Catalog. Do You Know Why?You Need a Data Catalog. Do You Know Why?
You Need a Data Catalog. Do You Know Why?
Precisely


What's hot (20)

Data Governance Best Practices
Data Governance Best PracticesData Governance Best Practices
Data Governance Best Practices

Data Architecture Strategies: Data Architecture for Digital Transformation
Data Architecture Strategies: Data Architecture for Digital TransformationData Architecture Strategies: Data Architecture for Digital Transformation
Data Architecture Strategies: Data Architecture for Digital Transformation

DAS Slides: Building a Data Strategy - Practical Steps for Aligning with Busi...
DAS Slides: Building a Data Strategy - Practical Steps for Aligning with Busi...DAS Slides: Building a Data Strategy - Practical Steps for Aligning with Busi...
DAS Slides: Building a Data Strategy - Practical Steps for Aligning with Busi...

Building a Data Governance Strategy
Building a Data Governance StrategyBuilding a Data Governance Strategy
Building a Data Governance Strategy

Data Modeling, Data Governance, & Data Quality
Data Modeling, Data Governance, & Data QualityData Modeling, Data Governance, & Data Quality
Data Modeling, Data Governance, & Data Quality

Data Quality Best Practices
Data Quality Best PracticesData Quality Best Practices
Data Quality Best Practices

The Role of Data Governance in a Data Strategy
The Role of Data Governance in a Data StrategyThe Role of Data Governance in a Data Strategy
The Role of Data Governance in a Data Strategy

Introduction to Data Governance
Introduction to Data GovernanceIntroduction to Data Governance
Introduction to Data Governance

Data Governance Workshop
Data Governance WorkshopData Governance Workshop
Data Governance Workshop

Data Governance Best Practices, Assessments, and Roadmaps
Data Governance Best Practices, Assessments, and RoadmapsData Governance Best Practices, Assessments, and Roadmaps
Data Governance Best Practices, Assessments, and Roadmaps

Business Intelligence & Data Analytics– An Architected Approach
Business Intelligence & Data Analytics– An Architected ApproachBusiness Intelligence & Data Analytics– An Architected Approach
Business Intelligence & Data Analytics– An Architected Approach

Activate Data Governance Using the Data Catalog
Activate Data Governance Using the Data CatalogActivate Data Governance Using the Data Catalog
Activate Data Governance Using the Data Catalog

Building an Effective Data & Analytics Operating Model A Data Modernization G...
Building an Effective Data & Analytics Operating Model A Data Modernization G...Building an Effective Data & Analytics Operating Model A Data Modernization G...
Building an Effective Data & Analytics Operating Model A Data Modernization G...

Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
Data Architecture, Solution Architecture, Platform Architecture — What’s the ...Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
Data Architecture, Solution Architecture, Platform Architecture — What’s the ...

Who Should Own Data Governance – IT or Business?
Who Should Own Data Governance – IT or Business?Who Should Own Data Governance – IT or Business?
Who Should Own Data Governance – IT or Business?

Data at the Speed of Business with Data Mastering and Governance
Data at the Speed of Business with Data Mastering and GovernanceData at the Speed of Business with Data Mastering and Governance
Data at the Speed of Business with Data Mastering and Governance

Data modelling 101
Data modelling 101Data modelling 101
Data modelling 101

Data Quality & Data Governance
Data Quality & Data GovernanceData Quality & Data Governance
Data Quality & Data Governance

Data Architecture for Data Governance
Data Architecture for Data GovernanceData Architecture for Data Governance
Data Architecture for Data Governance

You Need a Data Catalog. Do You Know Why?
You Need a Data Catalog. Do You Know Why?You Need a Data Catalog. Do You Know Why?
You Need a Data Catalog. Do You Know Why?


Similar to Data Governance

Data Resource Management: Good Practices to Make the Most out of a Hidden Tre...
Data Resource Management: Good Practices to Make the Most out of a Hidden Tre...Data Resource Management: Good Practices to Make the Most out of a Hidden Tre...
Data Resource Management: Good Practices to Make the Most out of a Hidden Tre...
Boris Otto

Data Integration The Essential Steps for People Analytics.pptx
Data Integration The Essential Steps for People Analytics.pptxData Integration The Essential Steps for People Analytics.pptx
Data Integration The Essential Steps for People Analytics.pptx
Natasha Ramdial - Roopnarine

Big Data analytics per le IT Operations
Big Data analytics per le IT OperationsBig Data analytics per le IT Operations
Big Data analytics per le IT Operations
HP Enterprise Italia

EDF2014: Stefan Wrobel, Institute Director, Fraunhofer IAIS / Member of the b...
EDF2014: Stefan Wrobel, Institute Director, Fraunhofer IAIS / Member of the b...EDF2014: Stefan Wrobel, Institute Director, Fraunhofer IAIS / Member of the b...
EDF2014: Stefan Wrobel, Institute Director, Fraunhofer IAIS / Member of the b...
European Data Forum

International Data Spaces: Data Sovereignty and Interoperability for Business...
International Data Spaces: Data Sovereignty and Interoperability for Business...International Data Spaces: Data Sovereignty and Interoperability for Business...
International Data Spaces: Data Sovereignty and Interoperability for Business...
Boris Otto

A Taxonomy of the Data Resource in the Networked Industry
A Taxonomy of the Data Resource in the Networked IndustryA Taxonomy of the Data Resource in the Networked Industry
A Taxonomy of the Data Resource in the Networked Industry
Boris Otto

Hd Supply Case Study
Hd Supply Case StudyHd Supply Case Study
Hd Supply Case Study
Robert Johnson

SIM - Mc leod ch02
SIM - Mc leod ch02SIM - Mc leod ch02
SIM - Mc leod ch02
Welly Tjoe

Be Digital or Die - Predictive Analytics for Digital Transformation
Be Digital or Die - Predictive Analytics for Digital TransformationBe Digital or Die - Predictive Analytics for Digital Transformation
Be Digital or Die - Predictive Analytics for Digital Transformation
Fintricity

Extended Data Warehouse - A New Data Architecture for Modern BI with Claudia ...
Extended Data Warehouse - A New Data Architecture for Modern BI with Claudia ...Extended Data Warehouse - A New Data Architecture for Modern BI with Claudia ...
Extended Data Warehouse - A New Data Architecture for Modern BI with Claudia ...
Denodo

Smarter Management for Your Data Growth
Smarter Management for Your Data GrowthSmarter Management for Your Data Growth
Smarter Management for Your Data Growth
RainStor

Capturing big value in big data
Capturing big value in big data Capturing big value in big data
Capturing big value in big data
BSP Media Group

Implementar una estrategia eficiente de gobierno y seguridad del dato con la ...
Implementar una estrategia eficiente de gobierno y seguridad del dato con la ...Implementar una estrategia eficiente de gobierno y seguridad del dato con la ...
Implementar una estrategia eficiente de gobierno y seguridad del dato con la ...
Denodo

2011 sap inside_track_eim_overview
2011 sap inside_track_eim_overview2011 sap inside_track_eim_overview
2011 sap inside_track_eim_overview
Michelle Crapo

Oracle big data publix sector 1
Oracle big data publix sector 1Oracle big data publix sector 1
Oracle big data publix sector 1
Redazione InnovaPuglia

Gde presentation introduction 3.6
Gde presentation introduction 3.6Gde presentation introduction 3.6
Gde presentation introduction 3.6
Global Data Excellence

CWIN17 India / Bigdata architecture yashowardhan sowale
CWIN17 India / Bigdata architecture  yashowardhan sowaleCWIN17 India / Bigdata architecture  yashowardhan sowale
CWIN17 India / Bigdata architecture yashowardhan sowale
Capgemini

Financial Services - New Approach to Data Management in the Digital Era
Financial Services - New Approach to Data Management in the Digital EraFinancial Services - New Approach to Data Management in the Digital Era
Financial Services - New Approach to Data Management in the Digital Era
accenture

What is Supply Chain Management System?
What is Supply Chain Management System? What is Supply Chain Management System?
What is Supply Chain Management System?
Adeel Younas

How Analytics Has Changed in the Last 10 Years (and How It’s Staye.docx
How Analytics Has Changed in the Last 10 Years (and How It’s Staye.docxHow Analytics Has Changed in the Last 10 Years (and How It’s Staye.docx
How Analytics Has Changed in the Last 10 Years (and How It’s Staye.docx
pooleavelina


Similar to Data Governance (20)

Data Resource Management: Good Practices to Make the Most out of a Hidden Tre...
Data Resource Management: Good Practices to Make the Most out of a Hidden Tre...Data Resource Management: Good Practices to Make the Most out of a Hidden Tre...
Data Resource Management: Good Practices to Make the Most out of a Hidden Tre...

Data Integration The Essential Steps for People Analytics.pptx
Data Integration The Essential Steps for People Analytics.pptxData Integration The Essential Steps for People Analytics.pptx
Data Integration The Essential Steps for People Analytics.pptx

Big Data analytics per le IT Operations
Big Data analytics per le IT OperationsBig Data analytics per le IT Operations
Big Data analytics per le IT Operations

EDF2014: Stefan Wrobel, Institute Director, Fraunhofer IAIS / Member of the b...
EDF2014: Stefan Wrobel, Institute Director, Fraunhofer IAIS / Member of the b...EDF2014: Stefan Wrobel, Institute Director, Fraunhofer IAIS / Member of the b...
EDF2014: Stefan Wrobel, Institute Director, Fraunhofer IAIS / Member of the b...

International Data Spaces: Data Sovereignty and Interoperability for Business...
International Data Spaces: Data Sovereignty and Interoperability for Business...International Data Spaces: Data Sovereignty and Interoperability for Business...
International Data Spaces: Data Sovereignty and Interoperability for Business...

A Taxonomy of the Data Resource in the Networked Industry
A Taxonomy of the Data Resource in the Networked IndustryA Taxonomy of the Data Resource in the Networked Industry
A Taxonomy of the Data Resource in the Networked Industry

Hd Supply Case Study
Hd Supply Case StudyHd Supply Case Study
Hd Supply Case Study

SIM - Mc leod ch02
SIM - Mc leod ch02SIM - Mc leod ch02
SIM - Mc leod ch02

Be Digital or Die - Predictive Analytics for Digital Transformation
Be Digital or Die - Predictive Analytics for Digital TransformationBe Digital or Die - Predictive Analytics for Digital Transformation
Be Digital or Die - Predictive Analytics for Digital Transformation

Extended Data Warehouse - A New Data Architecture for Modern BI with Claudia ...
Extended Data Warehouse - A New Data Architecture for Modern BI with Claudia ...Extended Data Warehouse - A New Data Architecture for Modern BI with Claudia ...
Extended Data Warehouse - A New Data Architecture for Modern BI with Claudia ...

Smarter Management for Your Data Growth
Smarter Management for Your Data GrowthSmarter Management for Your Data Growth
Smarter Management for Your Data Growth

Capturing big value in big data
Capturing big value in big data Capturing big value in big data
Capturing big value in big data

Implementar una estrategia eficiente de gobierno y seguridad del dato con la ...
Implementar una estrategia eficiente de gobierno y seguridad del dato con la ...Implementar una estrategia eficiente de gobierno y seguridad del dato con la ...
Implementar una estrategia eficiente de gobierno y seguridad del dato con la ...

2011 sap inside_track_eim_overview
2011 sap inside_track_eim_overview2011 sap inside_track_eim_overview
2011 sap inside_track_eim_overview

Oracle big data publix sector 1
Oracle big data publix sector 1Oracle big data publix sector 1
Oracle big data publix sector 1

Gde presentation introduction 3.6
Gde presentation introduction 3.6Gde presentation introduction 3.6
Gde presentation introduction 3.6

CWIN17 India / Bigdata architecture yashowardhan sowale
CWIN17 India / Bigdata architecture  yashowardhan sowaleCWIN17 India / Bigdata architecture  yashowardhan sowale
CWIN17 India / Bigdata architecture yashowardhan sowale

Financial Services - New Approach to Data Management in the Digital Era
Financial Services - New Approach to Data Management in the Digital EraFinancial Services - New Approach to Data Management in the Digital Era
Financial Services - New Approach to Data Management in the Digital Era

What is Supply Chain Management System?
What is Supply Chain Management System? What is Supply Chain Management System?
What is Supply Chain Management System?

How Analytics Has Changed in the Last 10 Years (and How It’s Staye.docx
How Analytics Has Changed in the Last 10 Years (and How It’s Staye.docxHow Analytics Has Changed in the Last 10 Years (and How It’s Staye.docx
How Analytics Has Changed in the Last 10 Years (and How It’s Staye.docx


More from Boris Otto

Evolution of Data Spaces
Evolution of Data SpacesEvolution of Data Spaces
Evolution of Data Spaces
Boris Otto

Shared Digital Twins: Collaboration in Ecosystems
Shared Digital Twins: Collaboration in EcosystemsShared Digital Twins: Collaboration in Ecosystems
Shared Digital Twins: Collaboration in Ecosystems
Boris Otto

Deutschland auf dem Weg in die Datenökonomie
Deutschland auf dem Weg in die DatenökonomieDeutschland auf dem Weg in die Datenökonomie
Deutschland auf dem Weg in die Datenökonomie
Boris Otto

International Data Spaces: Data Sovereignty for Business Model Innovation
International Data Spaces: Data Sovereignty for Business Model InnovationInternational Data Spaces: Data Sovereignty for Business Model Innovation
International Data Spaces: Data Sovereignty for Business Model Innovation
Boris Otto

Business mit Daten? Deutschland auf dem Weg in die smarte Datenwirtschaft
Business mit Daten? Deutschland auf dem Weg in die smarte DatenwirtschaftBusiness mit Daten? Deutschland auf dem Weg in die smarte Datenwirtschaft
Business mit Daten? Deutschland auf dem Weg in die smarte Datenwirtschaft
Boris Otto

Smart Data Engineering: Erfolgsfaktor für die digitale Transformation
Smart Data Engineering: Erfolgsfaktor für die digitale TransformationSmart Data Engineering: Erfolgsfaktor für die digitale Transformation
Smart Data Engineering: Erfolgsfaktor für die digitale Transformation
Boris Otto

IDS: Update on Reference Architecture and Ecosystem Design
IDS: Update on Reference Architecture and Ecosystem DesignIDS: Update on Reference Architecture and Ecosystem Design
IDS: Update on Reference Architecture and Ecosystem Design
Boris Otto

Datensouveränität in Produktions- und Logistiknetzwerken
Datensouveränität in Produktions- und LogistiknetzwerkenDatensouveränität in Produktions- und Logistiknetzwerken
Datensouveränität in Produktions- und Logistiknetzwerken
Boris Otto

Digital Business Engineering am Fraunhofer ISST
Digital Business Engineering am Fraunhofer ISSTDigital Business Engineering am Fraunhofer ISST
Digital Business Engineering am Fraunhofer ISST
Boris Otto

Digitalisierung der Industrie
Digitalisierung der IndustrieDigitalisierung der Industrie
Digitalisierung der Industrie
Boris Otto

Data Sovereignty - Call for an International Effort
Data Sovereignty - Call for an International EffortData Sovereignty - Call for an International Effort
Data Sovereignty - Call for an International Effort
Boris Otto

Turning Industrial Data into Value
Turning Industrial Data into ValueTurning Industrial Data into Value
Turning Industrial Data into Value
Boris Otto

Industrial Data Space: Referenzarchitekturmodell für die Digitalisierung
Industrial Data Space: Referenzarchitekturmodell für die DigitalisierungIndustrial Data Space: Referenzarchitekturmodell für die Digitalisierung
Industrial Data Space: Referenzarchitekturmodell für die Digitalisierung
Boris Otto

Industrial Data Space: Digitale Souveränität über Daten
Industrial Data Space: Digitale Souveränität über DatenIndustrial Data Space: Digitale Souveränität über Daten
Industrial Data Space: Digitale Souveränität über Daten
Boris Otto

Industrial Data Space
Industrial Data SpaceIndustrial Data Space
Industrial Data Space
Boris Otto

Industrial Data Space: Digital Sovereignty for Industry 4.0 and Smart Services
Industrial Data Space: Digital Sovereignty for Industry 4.0 and Smart ServicesIndustrial Data Space: Digital Sovereignty for Industry 4.0 and Smart Services
Industrial Data Space: Digital Sovereignty for Industry 4.0 and Smart Services
Boris Otto

Industrial Data Space: Referenzarchitektur für Data Supply Chains
Industrial Data Space: Referenzarchitektur für Data Supply ChainsIndustrial Data Space: Referenzarchitektur für Data Supply Chains
Industrial Data Space: Referenzarchitektur für Data Supply Chains
Boris Otto

Überblick zum Industrial Data Space
Überblick zum Industrial Data SpaceÜberblick zum Industrial Data Space
Überblick zum Industrial Data Space
Boris Otto

Industrial Data Space Key Facts
Industrial Data Space Key FactsIndustrial Data Space Key Facts
Industrial Data Space Key Facts
Boris Otto

Enabling the Industry 4.0 vision: Hype? Real Opportunity!
Enabling the Industry 4.0 vision: Hype? Real Opportunity!Enabling the Industry 4.0 vision: Hype? Real Opportunity!
Enabling the Industry 4.0 vision: Hype? Real Opportunity!
Boris Otto


More from Boris Otto (20)

Evolution of Data Spaces
Evolution of Data SpacesEvolution of Data Spaces
Evolution of Data Spaces

Shared Digital Twins: Collaboration in Ecosystems
Shared Digital Twins: Collaboration in EcosystemsShared Digital Twins: Collaboration in Ecosystems
Shared Digital Twins: Collaboration in Ecosystems

Deutschland auf dem Weg in die Datenökonomie
Deutschland auf dem Weg in die DatenökonomieDeutschland auf dem Weg in die Datenökonomie
Deutschland auf dem Weg in die Datenökonomie

International Data Spaces: Data Sovereignty for Business Model Innovation
International Data Spaces: Data Sovereignty for Business Model InnovationInternational Data Spaces: Data Sovereignty for Business Model Innovation
International Data Spaces: Data Sovereignty for Business Model Innovation

Business mit Daten? Deutschland auf dem Weg in die smarte Datenwirtschaft
Business mit Daten? Deutschland auf dem Weg in die smarte DatenwirtschaftBusiness mit Daten? Deutschland auf dem Weg in die smarte Datenwirtschaft
Business mit Daten? Deutschland auf dem Weg in die smarte Datenwirtschaft

Smart Data Engineering: Erfolgsfaktor für die digitale Transformation
Smart Data Engineering: Erfolgsfaktor für die digitale TransformationSmart Data Engineering: Erfolgsfaktor für die digitale Transformation
Smart Data Engineering: Erfolgsfaktor für die digitale Transformation

IDS: Update on Reference Architecture and Ecosystem Design
IDS: Update on Reference Architecture and Ecosystem DesignIDS: Update on Reference Architecture and Ecosystem Design
IDS: Update on Reference Architecture and Ecosystem Design

Datensouveränität in Produktions- und Logistiknetzwerken
Datensouveränität in Produktions- und LogistiknetzwerkenDatensouveränität in Produktions- und Logistiknetzwerken
Datensouveränität in Produktions- und Logistiknetzwerken

Digital Business Engineering am Fraunhofer ISST
Digital Business Engineering am Fraunhofer ISSTDigital Business Engineering am Fraunhofer ISST
Digital Business Engineering am Fraunhofer ISST

Digitalisierung der Industrie
Digitalisierung der IndustrieDigitalisierung der Industrie
Digitalisierung der Industrie

Data Sovereignty - Call for an International Effort
Data Sovereignty - Call for an International EffortData Sovereignty - Call for an International Effort
Data Sovereignty - Call for an International Effort

Turning Industrial Data into Value
Turning Industrial Data into ValueTurning Industrial Data into Value
Turning Industrial Data into Value

Industrial Data Space: Referenzarchitekturmodell für die Digitalisierung
Industrial Data Space: Referenzarchitekturmodell für die DigitalisierungIndustrial Data Space: Referenzarchitekturmodell für die Digitalisierung
Industrial Data Space: Referenzarchitekturmodell für die Digitalisierung

Industrial Data Space: Digitale Souveränität über Daten
Industrial Data Space: Digitale Souveränität über DatenIndustrial Data Space: Digitale Souveränität über Daten
Industrial Data Space: Digitale Souveränität über Daten

Industrial Data Space
Industrial Data SpaceIndustrial Data Space
Industrial Data Space

Industrial Data Space: Digital Sovereignty for Industry 4.0 and Smart Services
Industrial Data Space: Digital Sovereignty for Industry 4.0 and Smart ServicesIndustrial Data Space: Digital Sovereignty for Industry 4.0 and Smart Services
Industrial Data Space: Digital Sovereignty for Industry 4.0 and Smart Services

Industrial Data Space: Referenzarchitektur für Data Supply Chains
Industrial Data Space: Referenzarchitektur für Data Supply ChainsIndustrial Data Space: Referenzarchitektur für Data Supply Chains
Industrial Data Space: Referenzarchitektur für Data Supply Chains

Überblick zum Industrial Data Space
Überblick zum Industrial Data SpaceÜberblick zum Industrial Data Space
Überblick zum Industrial Data Space

Industrial Data Space Key Facts
Industrial Data Space Key FactsIndustrial Data Space Key Facts
Industrial Data Space Key Facts

Enabling the Industry 4.0 vision: Hype? Real Opportunity!
Enabling the Industry 4.0 vision: Hype? Real Opportunity!Enabling the Industry 4.0 vision: Hype? Real Opportunity!
Enabling the Industry 4.0 vision: Hype? Real Opportunity!


Recently uploaded

Zodiac Signs and Food Preferences_ What Your Sign Says About Your Taste
Zodiac Signs and Food Preferences_ What Your Sign Says About Your TasteZodiac Signs and Food Preferences_ What Your Sign Says About Your Taste
Zodiac Signs and Food Preferences_ What Your Sign Says About Your Taste
my Pandit

NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
BBPMedia1

Part 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 SlowdownPart 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 Slowdown
jeffkluth1

Industrial Tech SW: Category Renewal and Creation
Industrial Tech SW:  Category Renewal and CreationIndustrial Tech SW:  Category Renewal and Creation
Industrial Tech SW: Category Renewal and Creation
Christian Dahlen

Ellen Burstyn: From Detroit Dreamer to Hollywood Legend | CIO Women Magazine
Ellen Burstyn: From Detroit Dreamer to Hollywood Legend | CIO Women MagazineEllen Burstyn: From Detroit Dreamer to Hollywood Legend | CIO Women Magazine
Ellen Burstyn: From Detroit Dreamer to Hollywood Legend | CIO Women Magazine
CIOWomenMagazine

The Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb PlatformThe Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb Platform
SabaaSudozai

AI Transformation Playbook: Thinking AI-First for Your Business
AI Transformation Playbook: Thinking AI-First for Your BusinessAI Transformation Playbook: Thinking AI-First for Your Business
AI Transformation Playbook: Thinking AI-First for Your Business
Arijit Dutta

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

Profiles of Iconic Fashion Personalities.pdf
Profiles of Iconic Fashion Personalities.pdfProfiles of Iconic Fashion Personalities.pdf
Profiles of Iconic Fashion Personalities.pdf
TTop Threads

How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
Lacey Max

Business storytelling: key ingredients to a story
Business storytelling: key ingredients to a storyBusiness storytelling: key ingredients to a story
Business storytelling: key ingredients to a story
Alexandra Fulford

一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
taqyea

Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta MatkaDpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
➒➌➎➏➑➐➋➑➐➐Dpboss Matka Guessing Satta Matka Kalyan Chart Indian Matka

Sustainable Logistics for Cost Reduction_ IPLTech Electric's Eco-Friendly Tra...
Sustainable Logistics for Cost Reduction_ IPLTech Electric's Eco-Friendly Tra...Sustainable Logistics for Cost Reduction_ IPLTech Electric's Eco-Friendly Tra...
Sustainable Logistics for Cost Reduction_ IPLTech Electric's Eco-Friendly Tra...
IPLTech Electric

Registered-Establishment-List-in-Uttarakhand-pdf.pdf
Registered-Establishment-List-in-Uttarakhand-pdf.pdfRegistered-Establishment-List-in-Uttarakhand-pdf.pdf
Registered-Establishment-List-in-Uttarakhand-pdf.pdf
dazzjoker

The Most Inspiring Entrepreneurs to Follow in 2024.pdf
The Most Inspiring Entrepreneurs to Follow in 2024.pdfThe Most Inspiring Entrepreneurs to Follow in 2024.pdf
The Most Inspiring Entrepreneurs to Follow in 2024.pdf
thesiliconleaders

Prescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPTPrescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPT
Freelance

The latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from NewentideThe latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from Newentide
JoeYangGreatMachiner

Kirill Klip GEM Royalty TNR Gold Lithium Presentation
Kirill Klip GEM Royalty TNR Gold Lithium PresentationKirill Klip GEM Royalty TNR Gold Lithium Presentation
Kirill Klip GEM Royalty TNR Gold Lithium Presentation
Kirill Klip

Digital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital ExcellenceDigital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital Excellence
Operational Excellence Consulting


Recently uploaded (20)

Zodiac Signs and Food Preferences_ What Your Sign Says About Your Taste
Zodiac Signs and Food Preferences_ What Your Sign Says About Your TasteZodiac Signs and Food Preferences_ What Your Sign Says About Your Taste
Zodiac Signs and Food Preferences_ What Your Sign Says About Your Taste

NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...

Part 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 SlowdownPart 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 Slowdown

Industrial Tech SW: Category Renewal and Creation
Industrial Tech SW:  Category Renewal and CreationIndustrial Tech SW:  Category Renewal and Creation
Industrial Tech SW: Category Renewal and Creation

Ellen Burstyn: From Detroit Dreamer to Hollywood Legend | CIO Women Magazine
Ellen Burstyn: From Detroit Dreamer to Hollywood Legend | CIO Women MagazineEllen Burstyn: From Detroit Dreamer to Hollywood Legend | CIO Women Magazine
Ellen Burstyn: From Detroit Dreamer to Hollywood Legend | CIO Women Magazine

The Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb PlatformThe Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb Platform

AI Transformation Playbook: Thinking AI-First for Your Business
AI Transformation Playbook: Thinking AI-First for Your BusinessAI Transformation Playbook: Thinking AI-First for Your Business
AI Transformation Playbook: Thinking AI-First for Your Business

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

Profiles of Iconic Fashion Personalities.pdf
Profiles of Iconic Fashion Personalities.pdfProfiles of Iconic Fashion Personalities.pdf
Profiles of Iconic Fashion Personalities.pdf

How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....

Business storytelling: key ingredients to a story
Business storytelling: key ingredients to a storyBusiness storytelling: key ingredients to a story
Business storytelling: key ingredients to a story

一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理

Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta MatkaDpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka

Sustainable Logistics for Cost Reduction_ IPLTech Electric's Eco-Friendly Tra...
Sustainable Logistics for Cost Reduction_ IPLTech Electric's Eco-Friendly Tra...Sustainable Logistics for Cost Reduction_ IPLTech Electric's Eco-Friendly Tra...
Sustainable Logistics for Cost Reduction_ IPLTech Electric's Eco-Friendly Tra...

Registered-Establishment-List-in-Uttarakhand-pdf.pdf
Registered-Establishment-List-in-Uttarakhand-pdf.pdfRegistered-Establishment-List-in-Uttarakhand-pdf.pdf
Registered-Establishment-List-in-Uttarakhand-pdf.pdf

The Most Inspiring Entrepreneurs to Follow in 2024.pdf
The Most Inspiring Entrepreneurs to Follow in 2024.pdfThe Most Inspiring Entrepreneurs to Follow in 2024.pdf
The Most Inspiring Entrepreneurs to Follow in 2024.pdf

Prescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPTPrescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPT

The latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from NewentideThe latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from Newentide

Kirill Klip GEM Royalty TNR Gold Lithium Presentation
Kirill Klip GEM Royalty TNR Gold Lithium PresentationKirill Klip GEM Royalty TNR Gold Lithium Presentation
Kirill Klip GEM Royalty TNR Gold Lithium Presentation

Digital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital ExcellenceDigital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital Excellence


Data Governance

  • 1. © Fraunhofer ISST DATA GOVERNANCE Prof. Dr.-Ing. Boris Otto  28 September 2018  Dortmund public Bildquelle: guinnessworldrecords.com (2017). · 1
  • 2. © Fraunhofer ISST CONTENT  A Brief History of Data Governance  Data Governance in Business Ecosystems  The IDS Approach to Data Governance public· 2
  • 3. © Fraunhofer ISST Around the millennium change Data Governance increasingly received attention as a response to compliance risks Image sources: infrapark-baselland.com (2018), bruecken.deutschebahn.com (2018). Logos from company websites and Wikipedia (2018). public Financial Regulations  Bankruptcy of energy giant Enron due to fictional financial reporting  In the course of this process, Arthur Andersen found guilty of obstruction of justice for shredding thousands of documents  The company surrendered its CPA license on August 31, 2002, and 85,000 employees lost their jobs Governmental Regulations  »Leistungs- und Finanzierungsvereinbarung (LuFV)« links funding of Deutsche Bahn to quality of infrastructure inventory  Direct relationship between quality of data and financial situation Environmental Regulations  Chemical spill into the river Rhine in 1986 at Sandoz plant in Basel-Schweizerhalle  No data about nature and implications of chemical substances spilled · 3
  • 4. © Fraunhofer ISST Business drivers for Data Governance were – and still are – multifold and affect the company as a whole public Group Level Division 2Division 1 Division 3 Business units Business processes Locations Business units Business processes Locations Business units Business processes Locations Compliance to regulations 360 degree view of the customer Integrated and automated business processes »Single Source of the Truth« for business reporting Smooth business integrations · 4
  • 5. © Fraunhofer ISST Data quality evolves over time according to a »jigsaw« pattern Legend: Data quality issues. Data Quality Time Project 1 Project 2 Project 3 public· 5
  • 6. © Fraunhofer ISST Reasons for poor data quality are manifold – as the example of Bayer CropScience shows NB: For background on the case study see Ebner et al. (2011). public Data Quality Issues Employees Data Maintenance DQ Management Standards Organization Training and education inadequate Data quality not integrated in performance management systems Various software solutions in place Master data can be edited in target systems No integrated software support Data maintenance not harmonized on global level No data quality metrics No continuous data quality monitoring No binding rules, standards, operating procedures Too many local rules, exceptions No “Data Governance” Missing business responsibilities · 6
  • 7. © Fraunhofer ISST Corporate life is hard without Data Governance Image source: Strassmann (1995). public· 7
  • 8. © Fraunhofer ISST Data Governance and Data Quality Management are closely interrelated Source: Otto (2011). public Legend: Goal Function Data. Data Governance Data Quality Management Maximize Data Quality Maximize Data Value Data Resource Data Resource Management is sub-goal of supports supports is led by is sub-function of are object of is object of are object of · 8
  • 9. © Fraunhofer ISST A strategic resource is a source of competitive advantage Strategic Resource V Value R Rarity I Inimitability N/O Non-substitutability Organization Source: Barney (1991); Makadok (2001). public VRIN/VRIO Framework  Resources  »all assets, capabilities, organizational processes, firm attributes, information, knowledge, etc. controlled by a firm that enable the firm to conceive of and implement strategies that improve its efficiency and effectiveness«  Capabilities  »special type of resource, specifically an organizationally embedded non-transferable firm- specific resource whose purpose is to improve the productivity of the other resources possessed by the firm« Resource-Based View of the Firm · 9
  • 10. © Fraunhofer ISST Despite its intangible nature, industrial data has a value which can be quantified Source: Moody & Walsh (1999). public Number of users Share of value 100% Data Tangible Goods Tangible Goods Value Data Usage Time Potential value Data Data quality Value 100% Data Integration Value Data Volume Value Data · 10
  • 11. © Fraunhofer ISST Many examples exist demonstrating the applicability of valuation procedures in the data domain Source: Otto (2012); Otto (2015), Zechmann (2017). Company Industry Country Data domain Valuation approach Value per record Retail US Customer data including shopping profile Market value 1.6 EUR Social Network US User data Market value 225 USD Automation and drives DE Master data on parts Production costs 500 to 5.000 EUR Agrochemical CH Material master data Use/income value 184 CHF public· 11
  • 12. © Fraunhofer ISST Data Governance aims at allocating decision rights for the management and use of data within an organization Source: Otto (2011). Data Governance Organization Data Governance Goals Data Governance Structure Formal Goals Business Goals  Ensure compliance  Enable decision-making  Improve customer satisfaction  Increase operational efficiency  Support business integration IS/IT-related Goals  Increase data quality  Support IS integration (e.g. migrations) Functional Goals  Create data strategy and policies  Establish data quality controlling  Establish data stewardship  Implement data standards and metadata management  Establish data life-cycle management  Establish data architecture management Locus of Control Functional Positioning  Business department  IS/IT department  Executive management  Middle management Hierarchical Positioning Organizational Form  Centralized  Decentralized/local  Project organization  Virtual organization  Shared service Roles and Committees  Sponsor  Data governance council  Data owner  Data stewards (business and technical) public· 12
  • 13. © Fraunhofer ISST Data Governance is typically established as an enterprise-wide virtual organization – as the example of BOSCH shows Source: Bosch (2008). public Master Data Owner n Executive Management Master Data Management Steering Committee … Group Division/ Central Function Accountability on Business Unit Level (Data Maintenance) IT Projects IT Platforms, IT Target Systems Overall Accountability (organizational level) Master Data Owner A Master Data Domain 1 Master Data Domain n Report Governance Working Group Team of Experts ConceptsConcepts Governance … … e.g. Vendor Master Data Chart of Accounts Interdisciplinarily staffed Master Data Officer Master Data Officer · 13
  • 14. © Fraunhofer ISST A data quality index is an effective performance management tool at Bayer CropScience Source: Ebner & Brauer (2011). 84 86 88 90 92 94 96 98 100 11/2009 01/2010 03/2010 05/2010 07/2010 09/2010 11/2010 01/2011 Material Master Data Quality Index Asia Pacific Europe Latin America North America [%] public· 14
  • 15. © Fraunhofer ISST Johnson & Johnson has reached a six sigma data quality level Source: Otto (2013). 99,503 94,586 95,506 96,102 95,778 96,312 95,656 89,855 91,629 96,324 96,383 97,433 95,417 99,135 99,885 99,971 99,993 99,999 84 86 88 90 92 94 96 98 100 02.15.11 04.15.11 06.15.11 08.15.11 10.15.11 12.15.11 02.15.12 04.15.12 06.15.12 Data Quality Index Data Quality Index public· 15
  • 16. © Fraunhofer ISST Five key principles lead to excellence in master data governance Source: Otto & Österle (2015). Capture Data at the Source Enter Data »First Time Right« Measure to Manage Build up a Data Governance Capability Scale Capabilities Globally public· 16
  • 17. © Fraunhofer ISST Life’s good with Data Governance Image source: Strassmann (1995). public· 17
  • 18. © Fraunhofer ISST Developed by the Competence Center Corporate Data Quality, the Data Excellence Model (DXM) defines building blocks for data management Source: Competence Center Corporate Data Quality (2017). public GOALS ENABLERS RES ULTS D A T A S T R A T E G Y P E O P L E , R O L E S & R E S P O N S I B I L I T I E S P R O C E S S E S & ME T H O D S D A T A L I F E C Y C L E D A T A A P P L I C A T I O N S D A T A A R C H I T E C T U R E P E R F O R MA N C E MA N A G E ME N T B U S I N E S S C A P A B I L I T I E S D A T A MA N A G E ME N T C A P A B I L I T I E S B U S I N E S S V A L U E D A T A E X C E L L E N C E · 18
  • 19. © Fraunhofer ISST Smart Data Engineering is model-based, method-oriented approach for building up an effective Data Resource Management capability  Defining the data strategy  Assigning roles and responsibilities for core data domains  Managing data as an economic good  Designing a consistent data architecture for the digitalized enterprise  Controlling the business benefit contribution of the data resource public· 19
  • 20. © Fraunhofer ISST CONTENT  A Brief History of Data Governance  Data Governance in Business Ecosystems  The IDS Approach to Data Governance public· 20
  • 21. © Fraunhofer ISST Data has become a strategic enterprise resource Legend: MRP – Manufacturing Resource Planning; ERP – Enterprise Resource Planning. public Data as a Process Result Data as a Process Enabler Data as a Product Enabler Data as a Product Information systems have been used since the 1960s and 1970s to support enterprise functions, but data wasn‘t shared between functions, let alone enterprises. With the proliferation of MRP and ERP systems in the 1980s and 1990s data enabled end-to-end business processes such as order-to-cash, procure-to-pay, make-to-stock etc. Since the millennium change, data has increasingly become an enabler of innovative product-service- systems and integrated solutions. Recently, data marketplaces emerged offering data APIs at a volume or frequency based fee. Data has become a product in its own right. Mainframe Computing Enterprise Systems Electronic Business Data Economy · 21
  • 22. © Fraunhofer ISST In the era of digitalization, companies must develop their Data Management from »Defense« to »Offense« Source: DalleMulle & Davenport (2017). public Defense Offense Key Objectives Ensure data security, privacy, integrity, quality, regulatory compliance, and governance Improve competitive position and profitability Core Activities Optimize data extraction, standardization, storage, and access Optimize data analytics, modeling, visualization, transformation, and enrichment Data Management Orientation Control Flexibility Enabling Architecture Single Source of Truth Multiple Versions of the Truth · 22
  • 23. © Fraunhofer ISST  Data Intelligence Hub  Data sharing platform  Data sovereignty and security The data economy is here Sources: Deutsche Telekom (2018); HERE (2018); CDQ (2018). public  HERE Tracking Cloud  Community approach to data management  Using the power of many Deutsche Telekom HERE Corporate Data League · 23
  • 24. © Fraunhofer ISST Sharing data is a prerequisite for ecosystems Image sources: Johns Hopkins University (2016), Umweltbundesamt (2016), Smellgard, Schneider & Farkas (2016), urbanmanagement.nl (2017). Data Sharing Energy Health Care Material Sciences Manufacturing and Logistics »Smart Cities« Sharing of material information along the entire product life cycle Shared use of process data for predictive asset maintenance Exchange of master and event data along the entire supply chain Anonymized, shared data pool for better drug development Shared use of data for end-to-end consumer services public· 24
  • 25. © Fraunhofer ISST Data sovereignty is a prerequisite for innovative business models in various domains Image sources: perm4.com (2017); hccs.edu (2017); dvz.de (2017). Health Care Patient Data  Use purpose  Anonymization  System constraints  Personalized medicine  Better healthcare services Domain Data Usage Conditions Value Potential Production Product Data Process Data  Usage frequency  Usage types  Use purpose  Innovative production networks  »Production as a Service« Automotive Planning and Risk Data  Use purpose  Expiration date  System constraints  Better risk management  Less production bottle necks public· 25
  • 26. © Fraunhofer ISST The role of Data Governance differs between Offense and Defense Data Management… Image source: ebay (2018). public Defense Offense Scope Enterprise-internal Ecosystem, Customer Ownership Setting data standards Executing property rights Stewardship Quality Curation Organization Hierarchy Market, Community Data Flows Internal between application systems Data value chains in networks Usage Access Rights Usage Rights Economics Cost and Use Value Market value · 26
  • 27. © Fraunhofer ISST CONTENT  A Brief History of Data Governance  Data Governance in Business Ecosystems  The IDS Approach to Data Governance public· 27
  • 28. © Fraunhofer ISST The IDS Reference Architecture Model responds to the most important issues in data sharing Source: PwC (2017). The International Data Spaces (IDS) Association publishes the IDS Reference Architecture Model (IDS-RAM). The Industrial Data Space is a vertical application of the IDS-RAM. 57% worry about revealing valuable data and business secrets. 59% fear the loss of control over their data. 55% feel inconsistent processes and systems as a (very) big obstacle. 32% fear that platforms do not reach the critical mass, so that data exchange will be interesting. InteroperabilityData SovereigntyTrust and Security Join us! Today IDS Approach public· 28
  • 29. © Fraunhofer ISST Data sovereignty is needed for effective Supply Chain Risk Management OEM»Tier 1« Supplier Risk Management Supplier Management • Contact person • Risk type • Risk location • Affected parts • Affected sub- suppliers • Capacities and inventory levels • Contact person • Parts demand • Inventory levels Use context Risk management Condition Deletion after 3 days Use context Supplier management Condition Deletion after 14 days public· 29
  • 30. © Fraunhofer ISST Data sovereignty is needed for innovation in the pharmaceutical industry Pharma Company Usage context Clinical research Anonymization Data record must consists of at least 150 individual anonymized data sets University Hospital Patient Management Smart Drug Development • Health data • Medication plan • Electronic case records public· 30
  • 31. © Fraunhofer ISST Data sovereignty is a prerequisite for flexible and dynamic production networks “Production as a Service” Provider OEM Production Planning and Control • CAD data • Configuration parameters • Production volume • Usage time • Temperature data • Certificates Usage context Maintenance, no forwarding Condition Operator anonymous Maintenance Usage context Machine type Condition Delete CAD data after first use public· 31
  • 32. © Fraunhofer ISST Usage conditions for data are multifold Dimension Specification Example Geo-information Coordinates 51.493773, 7.407025, radius 1km Geo polygon ZIP code 44227 Country code DE Expiration date Absolute date December 24, 2017 Anonymization Role, function Usage purpose Positive list Use for machine configuration Negative list Not for marketing use Propagation Allow, deny Allow on a fee Yes, with 20 percent surplus charge Number of uses Absolute figure Once Deletion System constraints public· 32
  • 33. © Fraunhofer ISST The Industrial Data Space provides an architecture for the sovereign exchange of data Legend: IDS Connector; Usage Constraints; Non-IDS Communication. public Industrial Data Cloud IoT Cloud Enterprise Cloud Data Marketplace Company 1 Company 2 Company n + 2Company n + 1Company n Open Data Source IDS IDS IDS IDS IDS IDS IDS IDS IDS IDS IDS IDS IDS IDS IDS IDS IDS · 33
  • 34. © Fraunhofer ISST The Industrial Data Space forms an ecosystem around the sovereign exchange of data Quelle: IDS Reference Architecture Model Version 2.0 (2018). public· 34
  • 35. © Fraunhofer ISST Data Governance activities are distributed to the different roles in the IDS ecosystem NB: Activities in brackets are to be discussed. public IDS Role Data Governance Activity IDS Software Component Data Owner/Provider  Define usage constraints for data resources  Publish metadata (incl. usage constraints) to broker  Transfer data with usage constraints linked to data  Receive information about data transaction from Clearing House  Bill data (if required)  (Monitor policy enforcement) IDS Connector Data Consumer/User  Use data in compliance with use constraints IDS Connector Broker  Match data demand and supply Broker Software Clearing House  Monitor and log data transactions and data value chains  (Monitor policy enforcement)  (Perform data accounting) Clearing House Software App Store Provider  Offer data governance and data quality services App Store Software · 35
  • 36. © Fraunhofer ISST Prof. Dr.-Ing. Boris Otto Fraunhofer ISST · Executive Director TU Dortmund · Faculty of Mechanical Engineering Boris.Otto@isst.fraunhofer.de · Boris.Otto@tu-dortmund.de https://de.linkedin.com/pub/boris-otto/1/1b5/570 https://twitter.com/drborisotto https://www.xing.com/profile/Boris_Otto http://www.researchgate.net/profile/Boris_Otto http://de.slideshare.net/borisotto Please get in touch! public· 36
  • 37. © Fraunhofer ISST DATA GOVERNANCE Prof. Dr.-Ing. Boris Otto  28 September 2018  Dortmund public Bildquelle: guinnessworldrecords.com (2017). · 37
