The document discusses various types of pumping stations including Archimedean screws, axial pumps, centrifugal pumps, and submerged pumps. It notes key components of centrifugal pumps like impellers, volutes, and casings. It also covers pump installation methods, switching levels, frequency drives, impeller types for different uses, and hydraulic concepts like duty point and head.

1. Pumping Stations
Gemalen
Q-H curve
1

2. Archimedian Screw
Archimedes
1

3. Axial Pump
Weeds screen Axial
pump
1

4. Centrifugal pump
Weeds screen
volute
reservoir
1

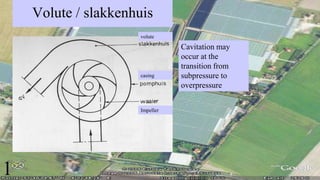

5. Volute / slakkenhuis
Cavitation may
occur at the
transition from
subpressure to
overpressure
volute
casing
Impeller
1

6. Know Abouts
• Pressure pump
• Drinder/cutter pump
• Dry installation
• Wet installation (under water pump)
• Switch on level and switch of level
• Not to often switching on/off
• Modern : frequency driven
2

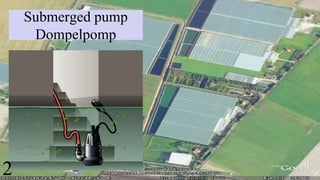

7. Submerged pump
Dompelpomp
2

8. Impellers / waaiers
• Many types
• Clean water
• Waste water
• Sludge
• High Q, low Discharge Head
• Low Q, high Discharge Head
2

9. Hdynamic
Hstatic
duty point
Q-H curve
Characteristic curve of pipe
2
