The document outlines the Divconq Common Transfer Protocol (CTP), which enables file and message transfers independent of any specific network layer, supporting multiple languages and platforms. It emphasizes scalability and efficiency challenges, with features such as session management, full-duplex communications, and security integration. Additionally, the CTP allows for various transport protocols, including HTTP/HTTPS and WebSocket, while illustrating a flexible messaging structure suitable for different programming environments.

1. DivConq Framework’s CTP

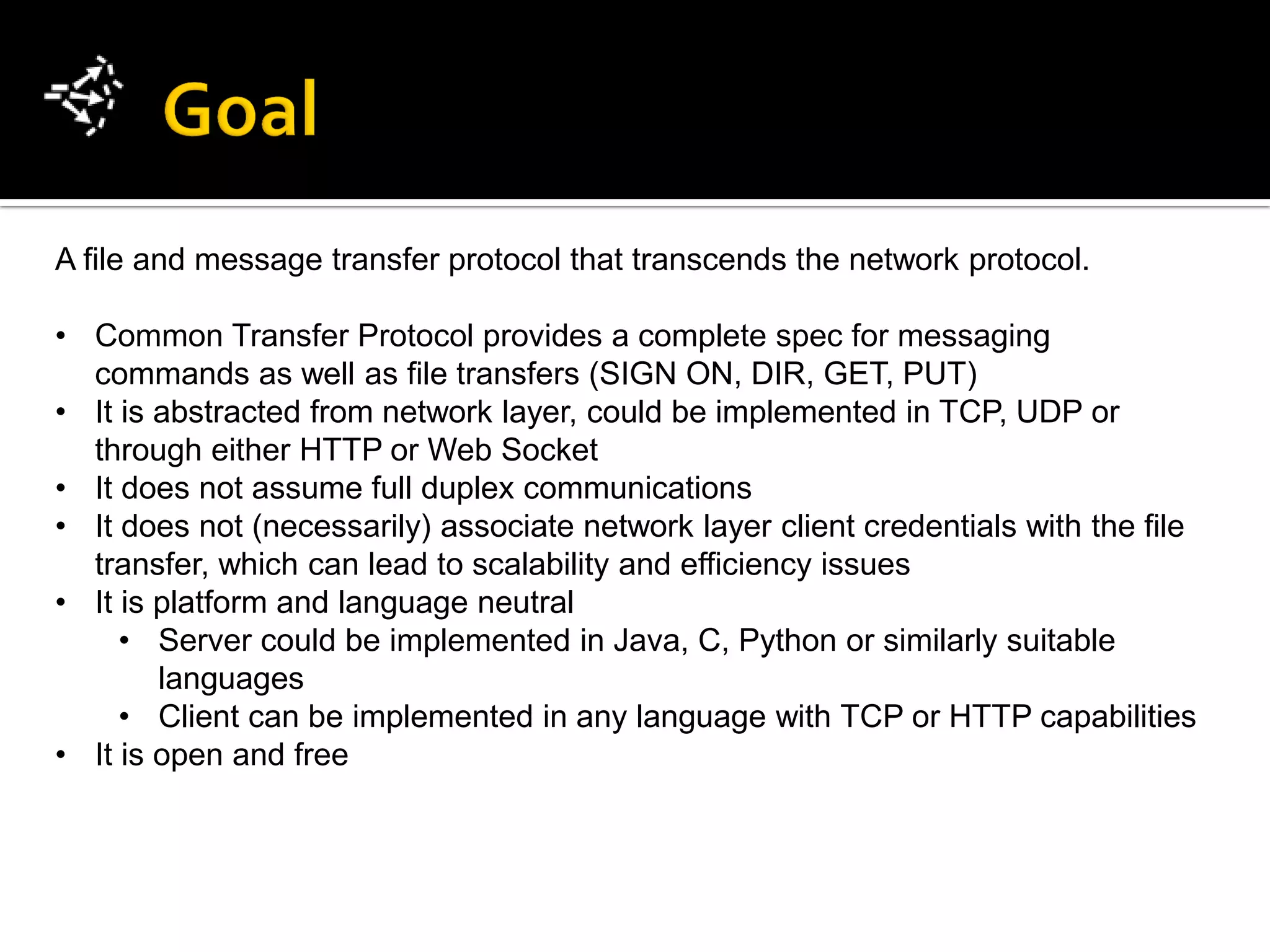

2. A file and message transfer protocol that transcends the network protocol.
• Common Transfer Protocol provides a complete spec for messaging
commands as well as file transfers (SIGN ON, DIR, GET, PUT)
• It is abstracted from network layer, could be implemented in TCP, UDP or
through either HTTP or Web Socket
• It does not assume full duplex communications
• It does not (necessarily) associate network layer client credentials with the file
transfer, which can lead to scalability and efficiency issues
• It is platform and language neutral
• Server could be implemented in Java, C, Python or similarly suitable
languages
• Client can be implemented in any language with TCP or HTTP capabilities
• It is open and free

3. Client Server
CTP
App Service
CTP
CTP
Session Network
Session
Connector Layer
CTP Session provides the desired abstraction by living just outside of the network
protocol. A CTP Session represents one authenticated user, it can accept duplex
or half-duplex interactions and otherwise doesn’t care about the network layer.
The CTP Service processes the commands sent to the session and provides
support for the file systems the server exposes.

4. Client Server
CTP
App Service
CTP
CTP
Session Network
Session
Connector Layer

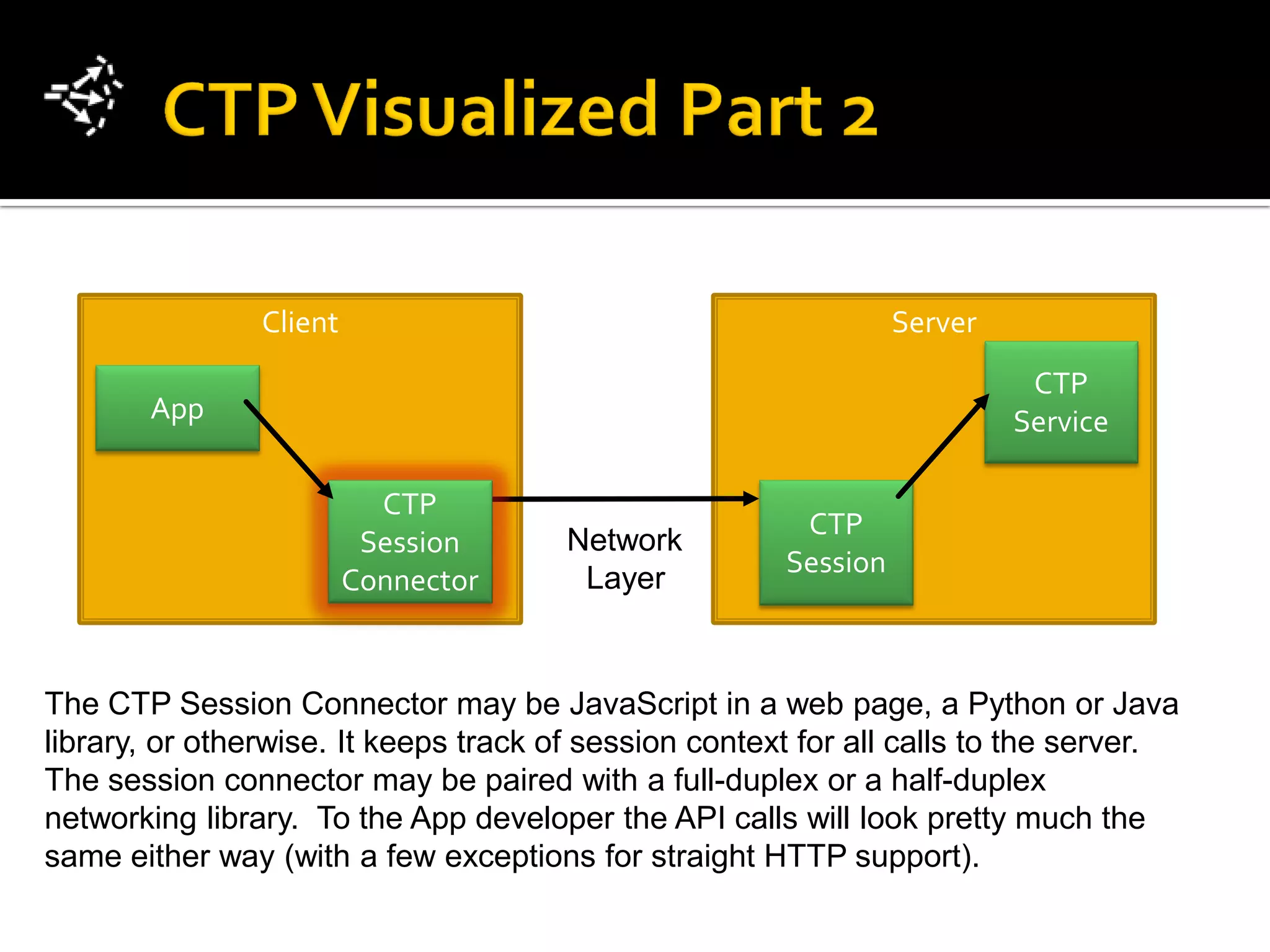

The CTP Session Connector may be JavaScript in a web page, a Python or Java
library, or otherwise. It keeps track of session context for all calls to the server.
The session connector may be paired with a full-duplex or a half-duplex
networking library. To the App developer the API calls will look pretty much the
same either way (with a few exceptions for straight HTTP support).

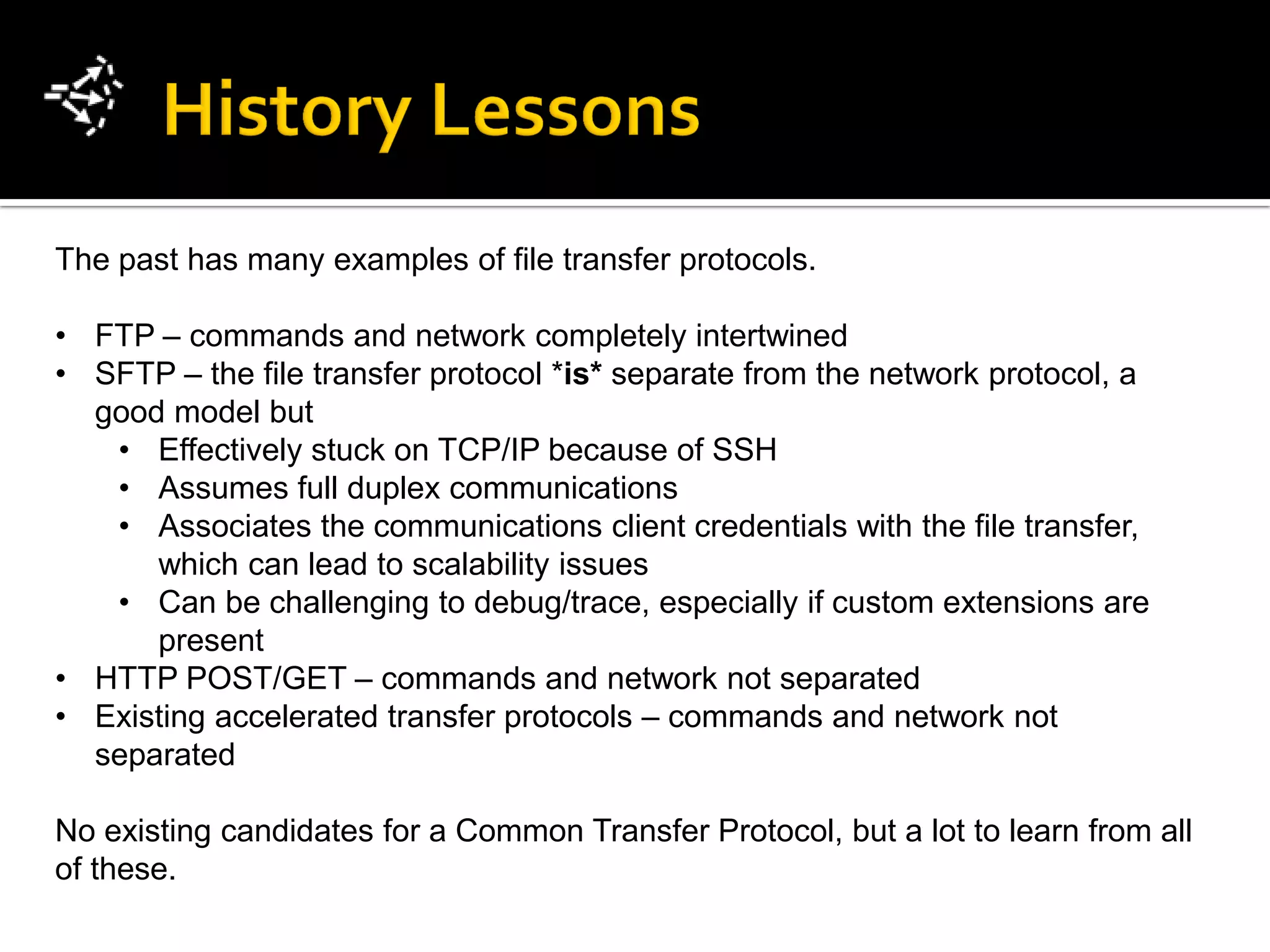

5. The past has many examples of file transfer protocols.
• FTP – commands and network completely intertwined
• SFTP – the file transfer protocol *is* separate from the network protocol, a
good model but
• Effectively stuck on TCP/IP because of SSH
• Assumes full duplex communications
• Associates the communications client credentials with the file transfer,
which can lead to scalability issues
• Can be challenging to debug/trace, especially if custom extensions are
present
• HTTP POST/GET – commands and network not separated
• Existing accelerated transfer protocols – commands and network not
separated
No existing candidates for a Common Transfer Protocol, but a lot to learn from all
of these.

6. DivConq CTP

7. Client 1 Server
HTTPS
App
HTTP
CTP Port 443 CTP
HTTP
CTP
Session Session Service
Connector
UDP
CTP CTP
Session Session
Client 2
WSS
App CTP UDP
UDP
Session Port 2020 Web Socket
Connector Port 2022
Client 3

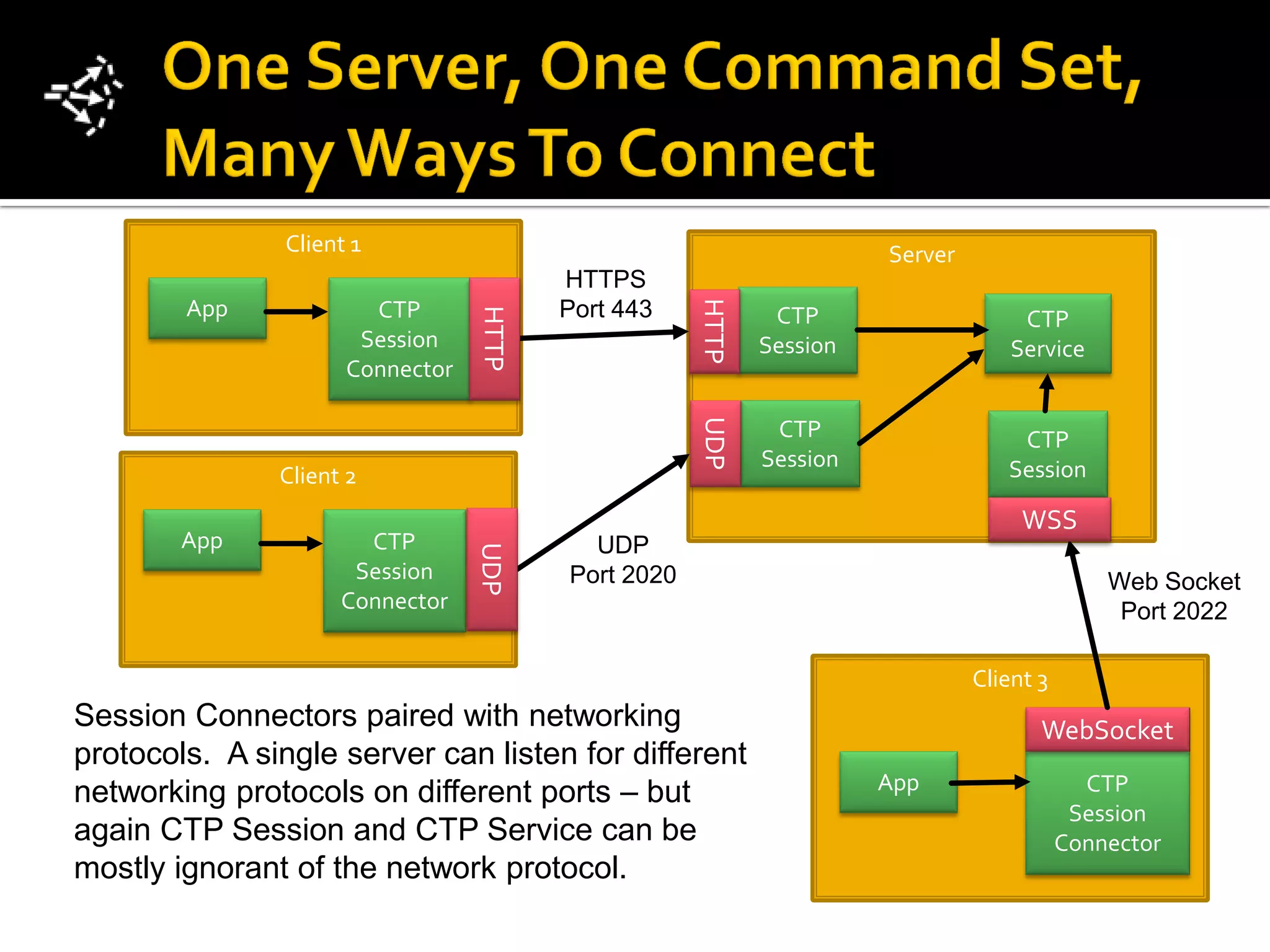

Session Connectors paired with networking WebSocket
protocols. A single server can listen for different
networking protocols on different ports – but App CTP
Session
again CTP Session and CTP Service can be Connector
mostly ignorant of the network protocol.

8. Client 2 Server
CTP
TCP Service
15 App 15 CTP Port 2021
TCP
Threads Session
TCP
Connectors 15 CTP
Sessions
3 Connections

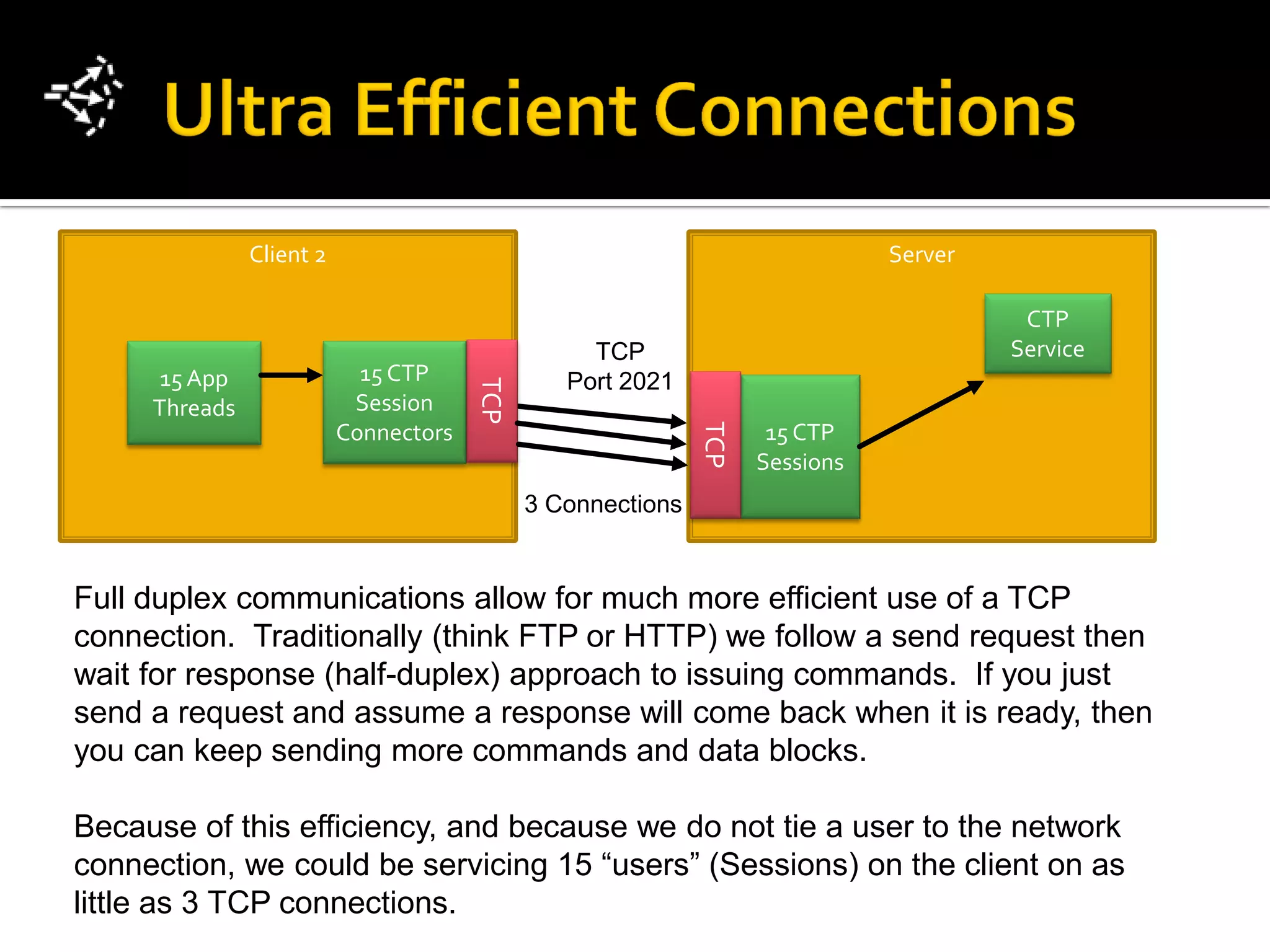

Full duplex communications allow for much more efficient use of a TCP
connection. Traditionally (think FTP or HTTP) we follow a send request then
wait for response (half-duplex) approach to issuing commands. If you just
send a request and assume a response will come back when it is ready, then
you can keep sending more commands and data blocks.
Because of this efficiency, and because we do not tie a user to the network
connection, we could be servicing 15 “users” (Sessions) on the client on as
little as 3 TCP connections.

9. Server
CTP
Service

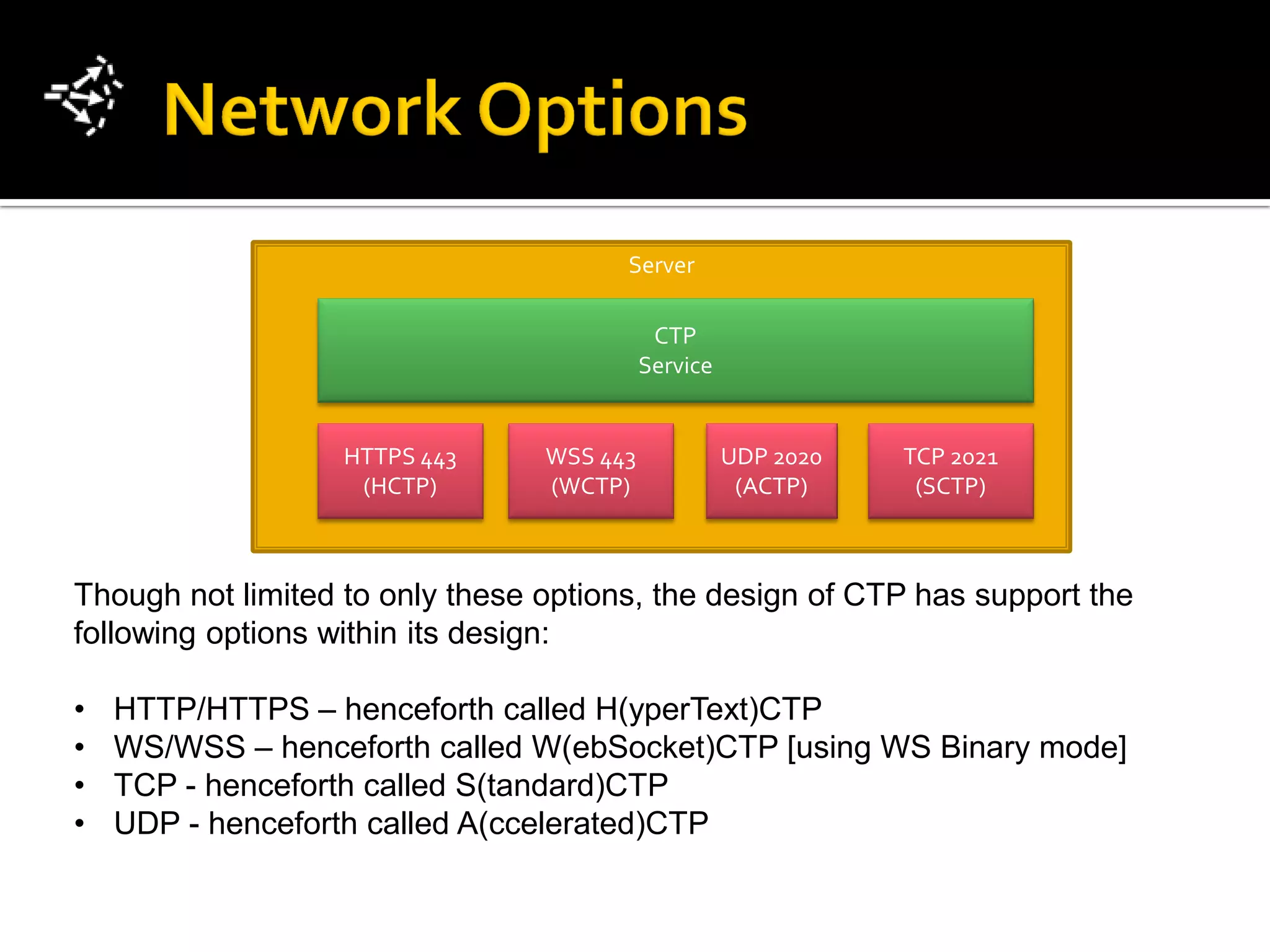

HTTPS 443 WSS 443 UDP 2020 TCP 2021
(HCTP) (WCTP) (ACTP) (SCTP)
Though not limited to only these options, the design of CTP has support the
following options within its design:
• HTTP/HTTPS – henceforth called H(yperText)CTP
• WS/WSS – henceforth called W(ebSocket)CTP [using WS Binary mode]
• TCP - henceforth called S(tandard)CTP
• UDP - henceforth called A(ccelerated)CTP

10. DivConq CTP

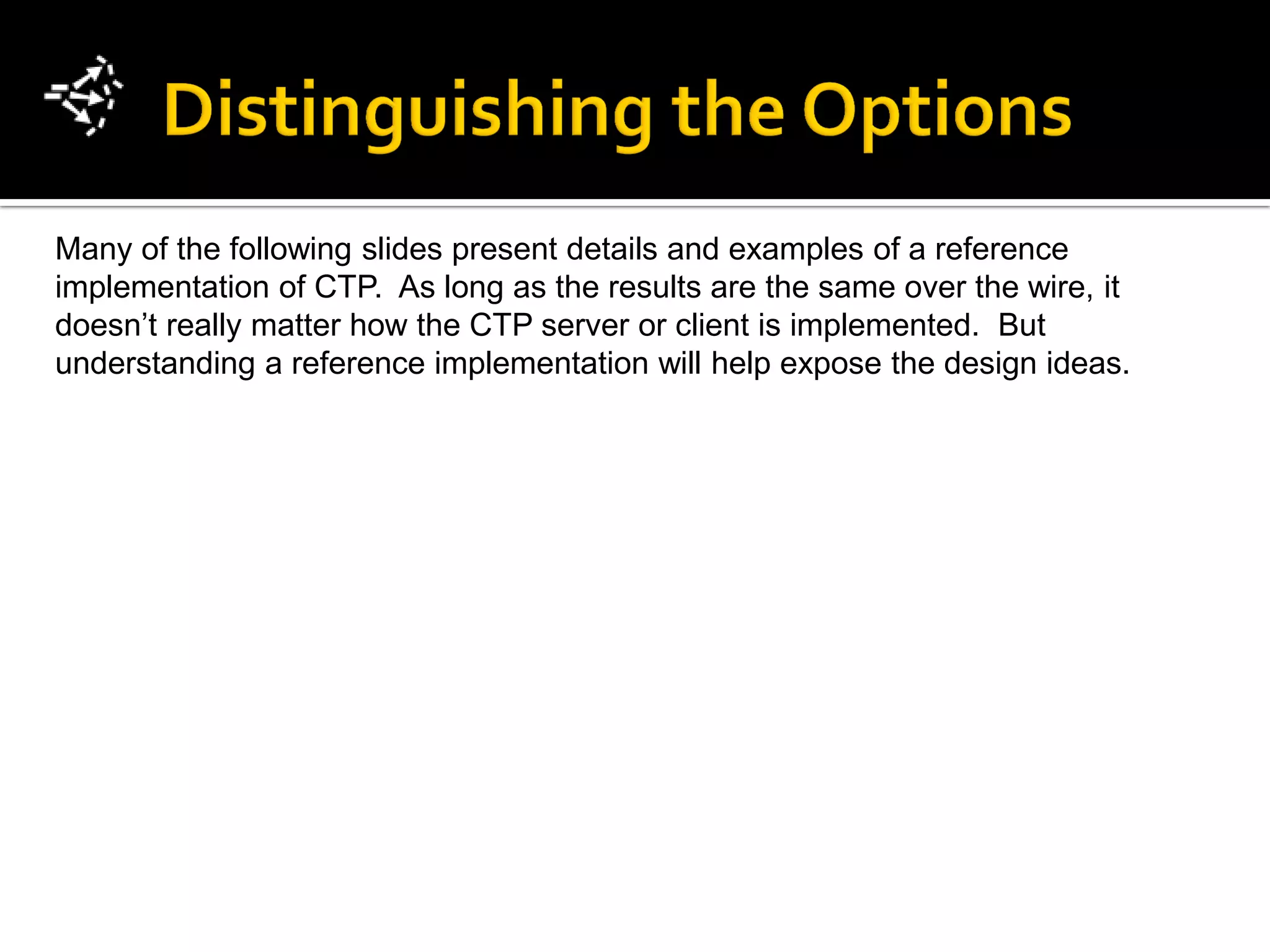

11. Many of the following slides present details and examples of a reference
implementation of CTP. As long as the results are the same over the wire, it
doesn’t really matter how the CTP server or client is implemented. But
understanding a reference implementation will help expose the design ideas.

12. CTP Server
Connectors
UDP
(ACTP)
Common
Security
TCP Common
(SCTP) Handler
Session
Handler
WS
(WCTP)
Web
Security
HTTP HTTP
(HCTP) Handler

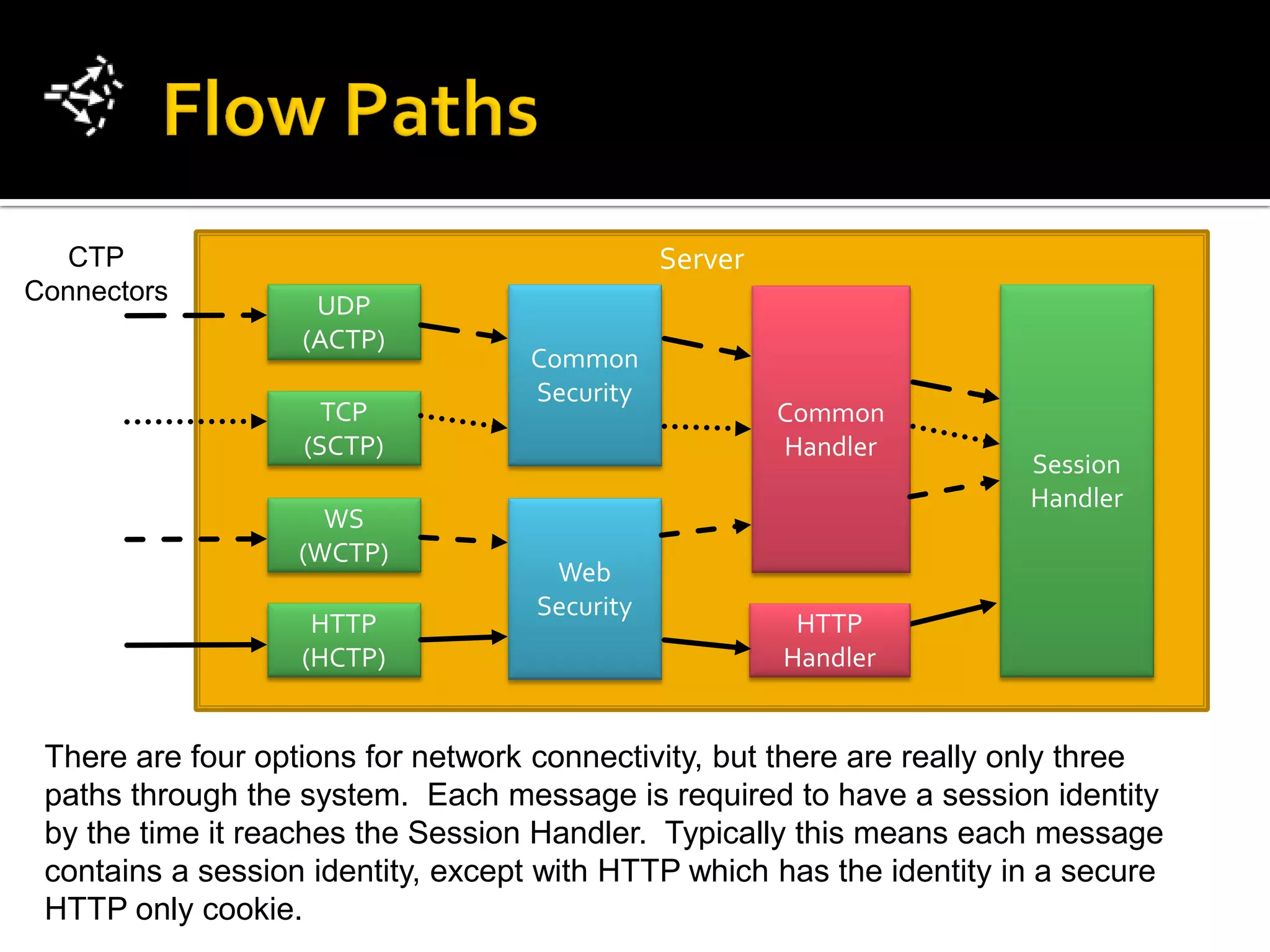

There are four options for network connectivity, but there are really only three
paths through the system. Each message is required to have a session identity
by the time it reaches the Session Handler. Typically this means each message
contains a session identity, except with HTTP which has the identity in a secure
HTTP only cookie.

13. CTP Server
Connectors
UDP
Common
Security
Common
TCP
Handler Session
Handler
Web
Socket
Web
Security
HTTP HTTP
Server Handler
With Common Security the host name provided on initial network connection
becomes the default host name, but individual messages may override that name
when authenticating a user. Although encryption of these connections resembles
SSH, the client key given at connection is not a user key – it is just a way to confirm
that the client app is allowed. User keys are provided during user authentication. A
single network connection may support multiple users/sessions.

14. CTP Server
Connectors
UDP
Common
Security
Common
TCP
Handler Session
Handler
Web
Socket
Web
Security
HTTP HTTP
Server Handler

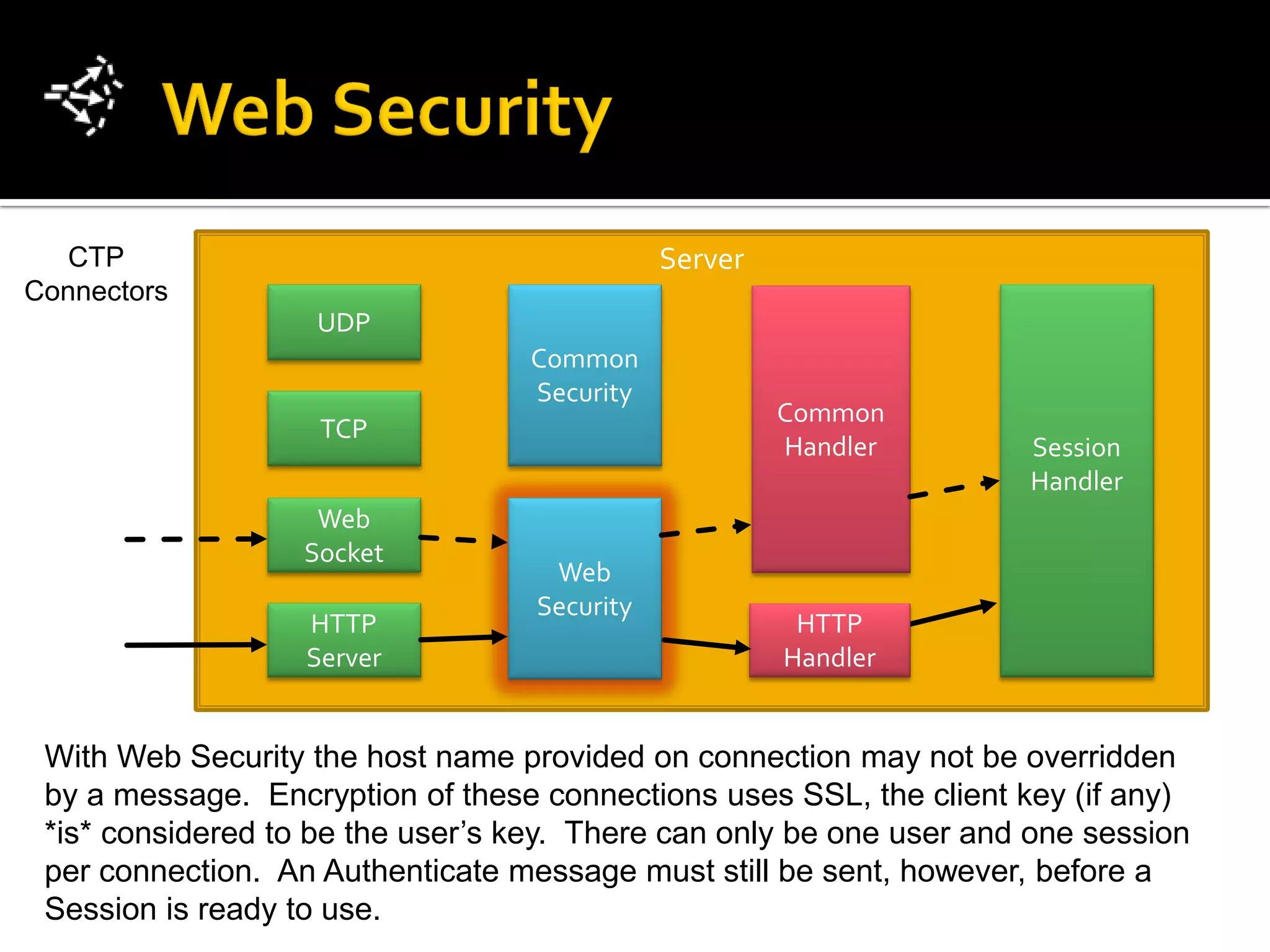

With Web Security the host name provided on connection may not be overridden
by a message. Encryption of these connections uses SSL, the client key (if any)
*is* considered to be the user’s key. There can only be one user and one session
per connection. An Authenticate message must still be sent, however, before a
Session is ready to use.

15. CTP Server
Connectors
UDP
Common
Security
Common
TCP
Handler Session
Handler
Web
Socket
Web
Security
HTTP HTTP
Server Handler

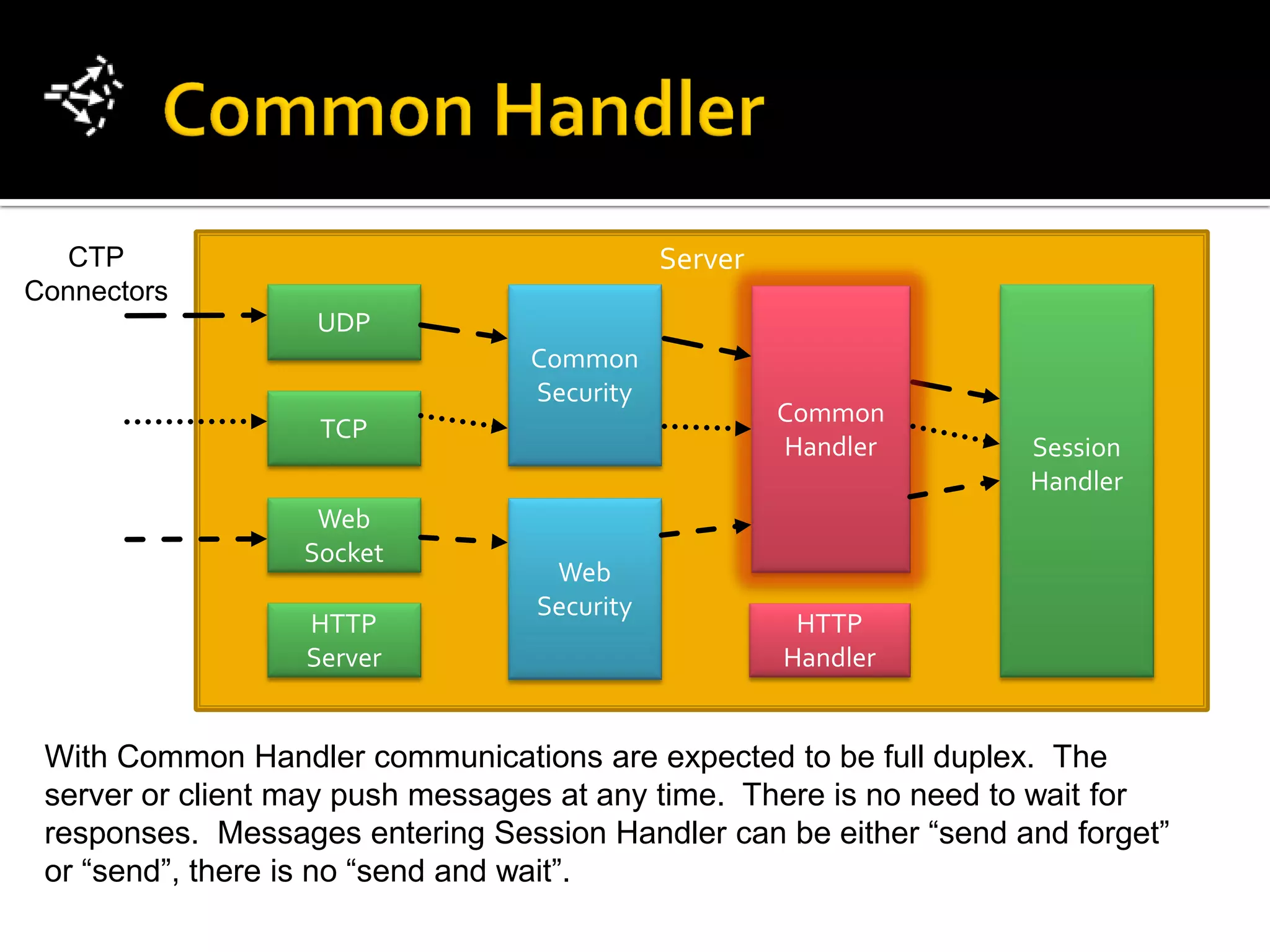

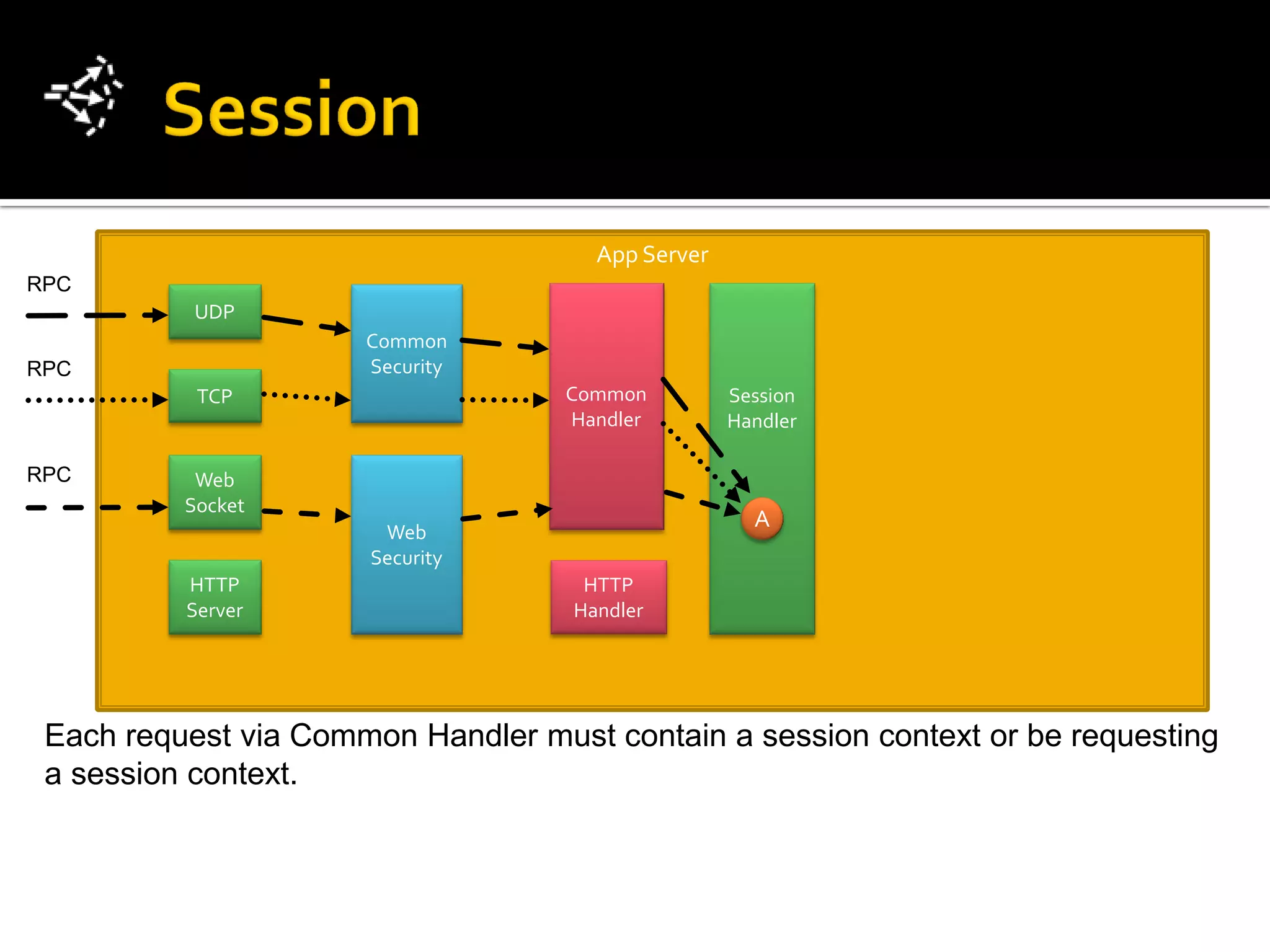

With Common Handler communications are expected to be full duplex. The
server or client may push messages at any time. There is no need to wait for
responses. Messages entering Session Handler can be either “send and forget”
or “send”, there is no “send and wait”.

16. CTP Server
Connectors
UDP
Common
Security
Common
TCP
Handler Session
Handler
Web
Socket
Web
Security
HTTP HTTP
Server Handler

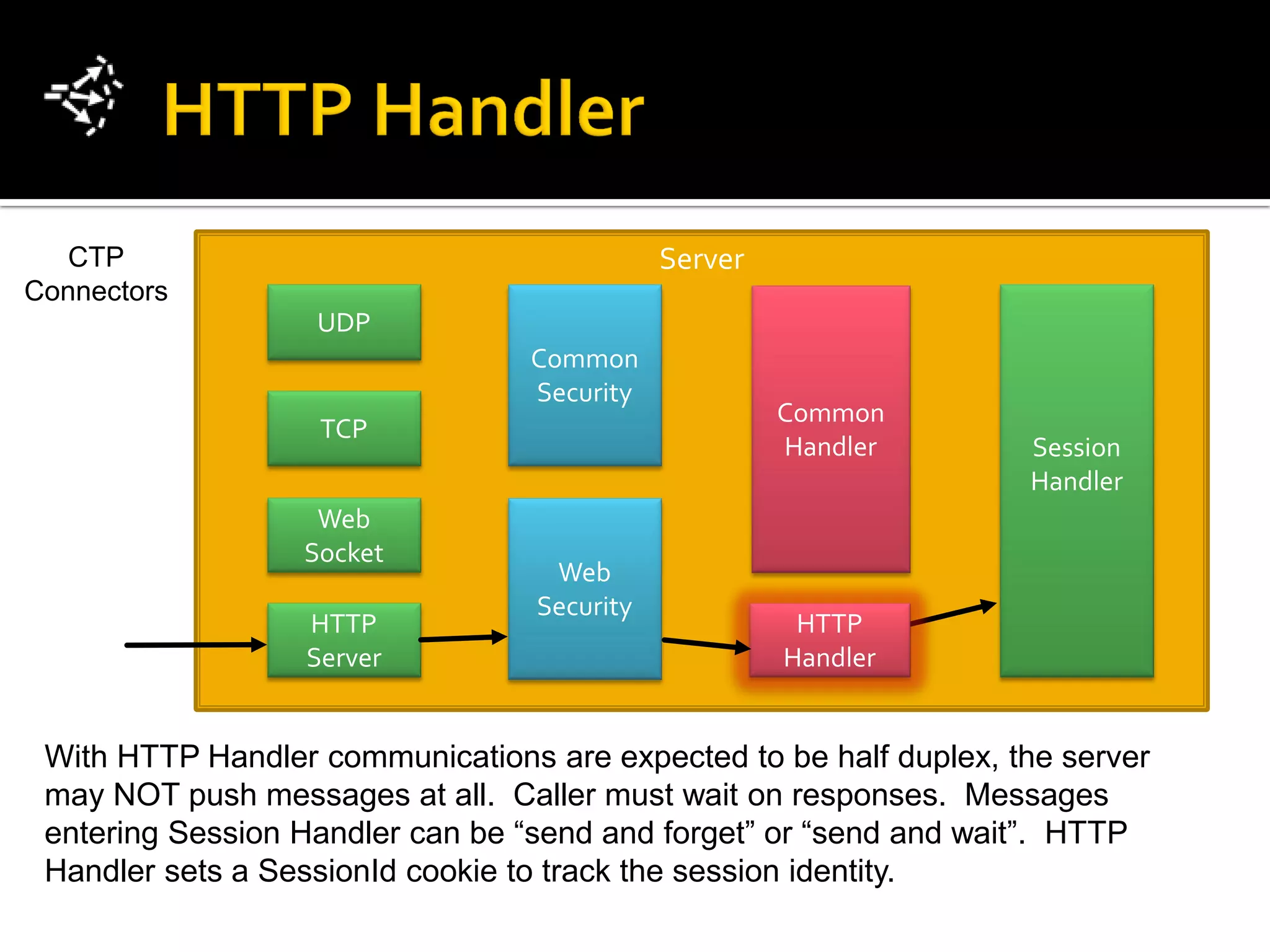

With HTTP Handler communications are expected to be half duplex, the server
may NOT push messages at all. Caller must wait on responses. Messages
entering Session Handler can be “send and forget” or “send and wait”. HTTP
Handler sets a SessionId cookie to track the session identity.

17. DivConq CTP

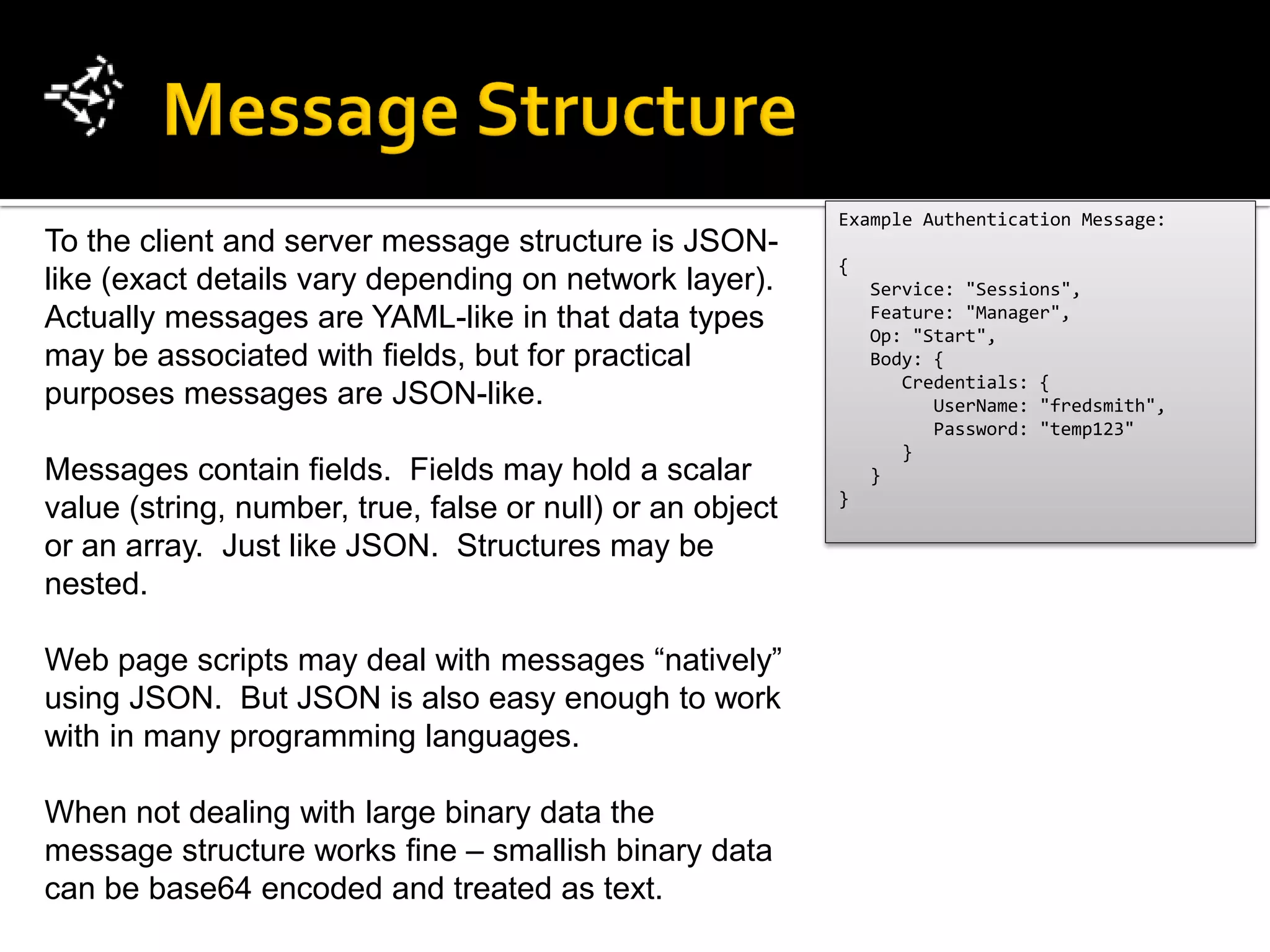

18. Example Authentication Message:
To the client and server message structure is JSON-
{
like (exact details vary depending on network layer). Service: "Sessions",
Actually messages are YAML-like in that data types Feature: "Manager",
Op: "Start",
may be associated with fields, but for practical Body: {
Credentials: {
purposes messages are JSON-like. UserName: "fredsmith",
Password: "temp123"
}
Messages contain fields. Fields may hold a scalar }
}
value (string, number, true, false or null) or an object
or an array. Just like JSON. Structures may be
nested.
Web page scripts may deal with messages “natively”
using JSON. But JSON is also easy enough to work
with in many programming languages.
When not dealing with large binary data the
message structure works fine – smallish binary data
can be base64 encoded and treated as text.

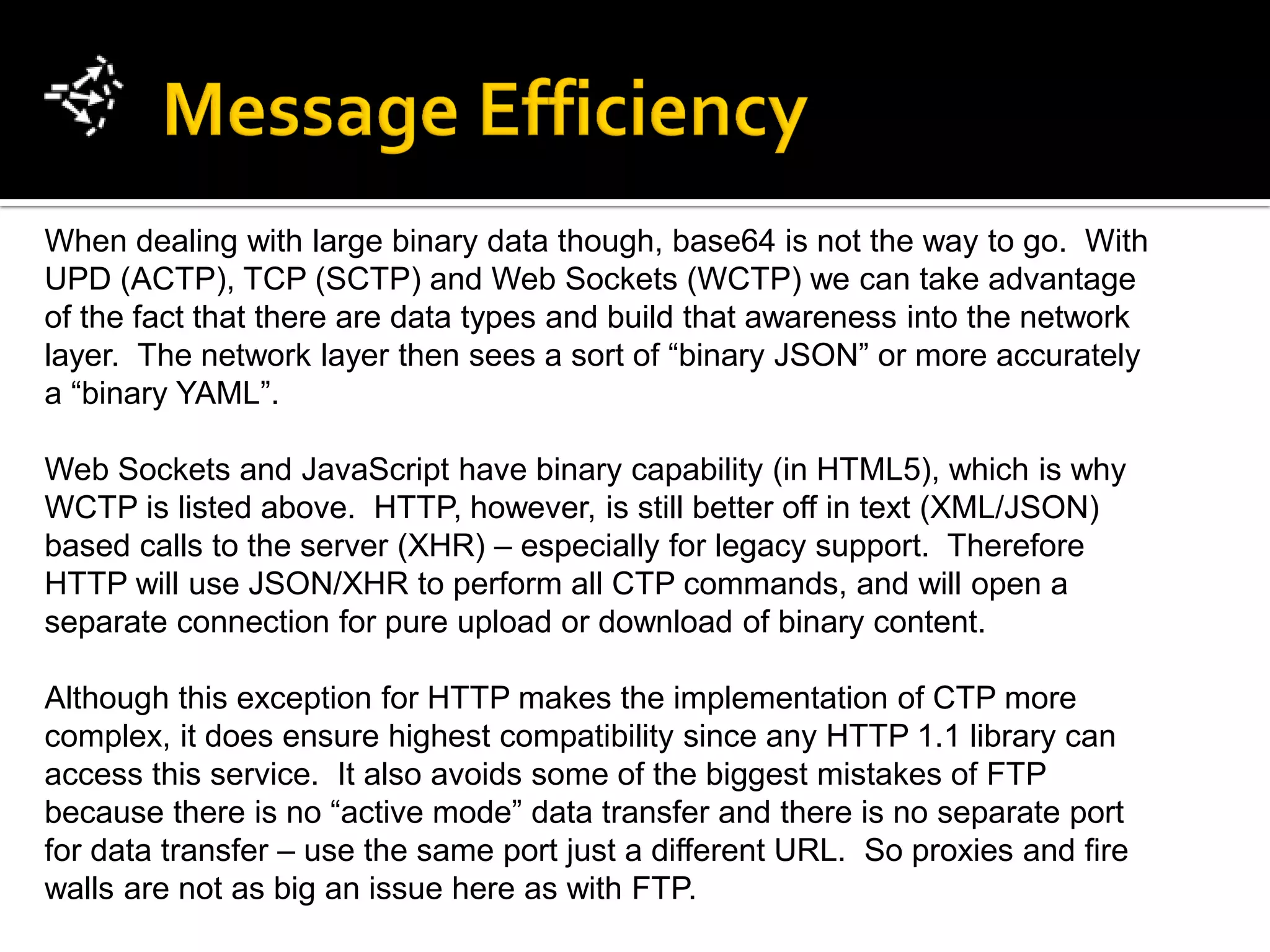

19. When dealing with large binary data though, base64 is not the way to go. With
UPD (ACTP), TCP (SCTP) and Web Sockets (WCTP) we can take advantage
of the fact that there are data types and build that awareness into the network
layer. The network layer then sees a sort of “binary JSON” or more accurately
a “binary YAML”.
Web Sockets and JavaScript have binary capability (in HTML5), which is why
WCTP is listed above. HTTP, however, is still better off in text (XML/JSON)
based calls to the server (XHR) – especially for legacy support. Therefore
HTTP will use JSON/XHR to perform all CTP commands, and will open a
separate connection for pure upload or download of binary content.
Although this exception for HTTP makes the implementation of CTP more
complex, it does ensure highest compatibility since any HTTP 1.1 library can
access this service. It also avoids some of the biggest mistakes of FTP
because there is no “active mode” data transfer and there is no separate port
for data transfer – use the same port just a different URL. So proxies and fire
walls are not as big an issue here as with FTP.

20. Typical Fields:

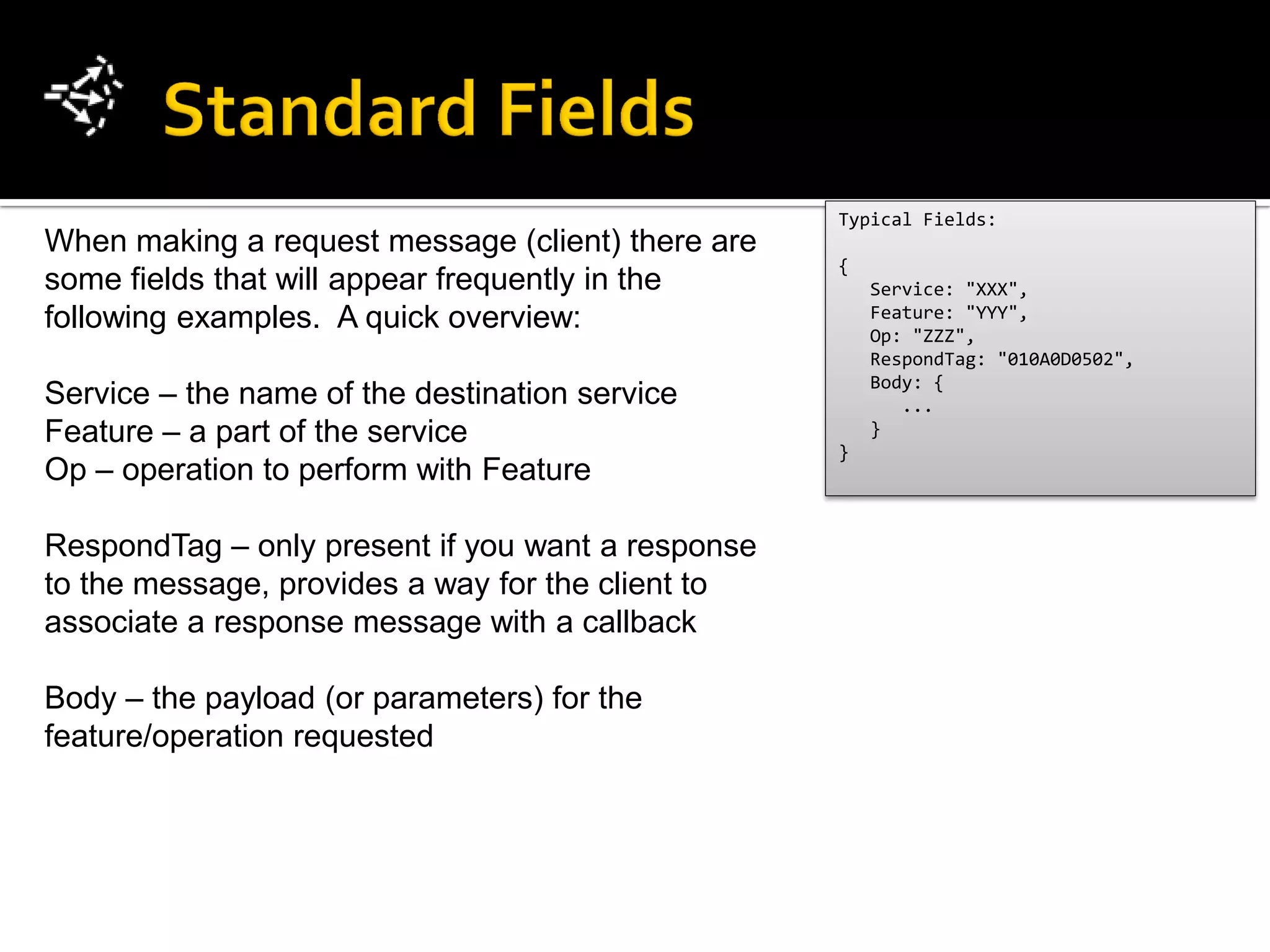

When making a request message (client) there are
{
some fields that will appear frequently in the Service: "XXX",
following examples. A quick overview: Feature: "YYY",
Op: "ZZZ",
RespondTag: "010A0D0502",
Body: {
Service – the name of the destination service ...
Feature – a part of the service }
}
Op – operation to perform with Feature
RespondTag – only present if you want a response
to the message, provides a way for the client to
associate a response message with a callback
Body – the payload (or parameters) for the
feature/operation requested

21. DivConq CTP

22. Example Message as seen by Session
Handler:
Server
RPC {
UDP Service: "Sessions",
Common Feature: "Manager",
Security Op: "Start",
RPC
RespondTag: "010A0D0502",
TCP Common
Body: {
Handler Domain: "divconq.com",
Origin: "rpc:[ipaddress]",
Session
Web Credentials: {
Handler
Socket UserName: "nnnn",
Password: "nnnn"
Web
}
Security }
HTTP HTTP }
Server Handler

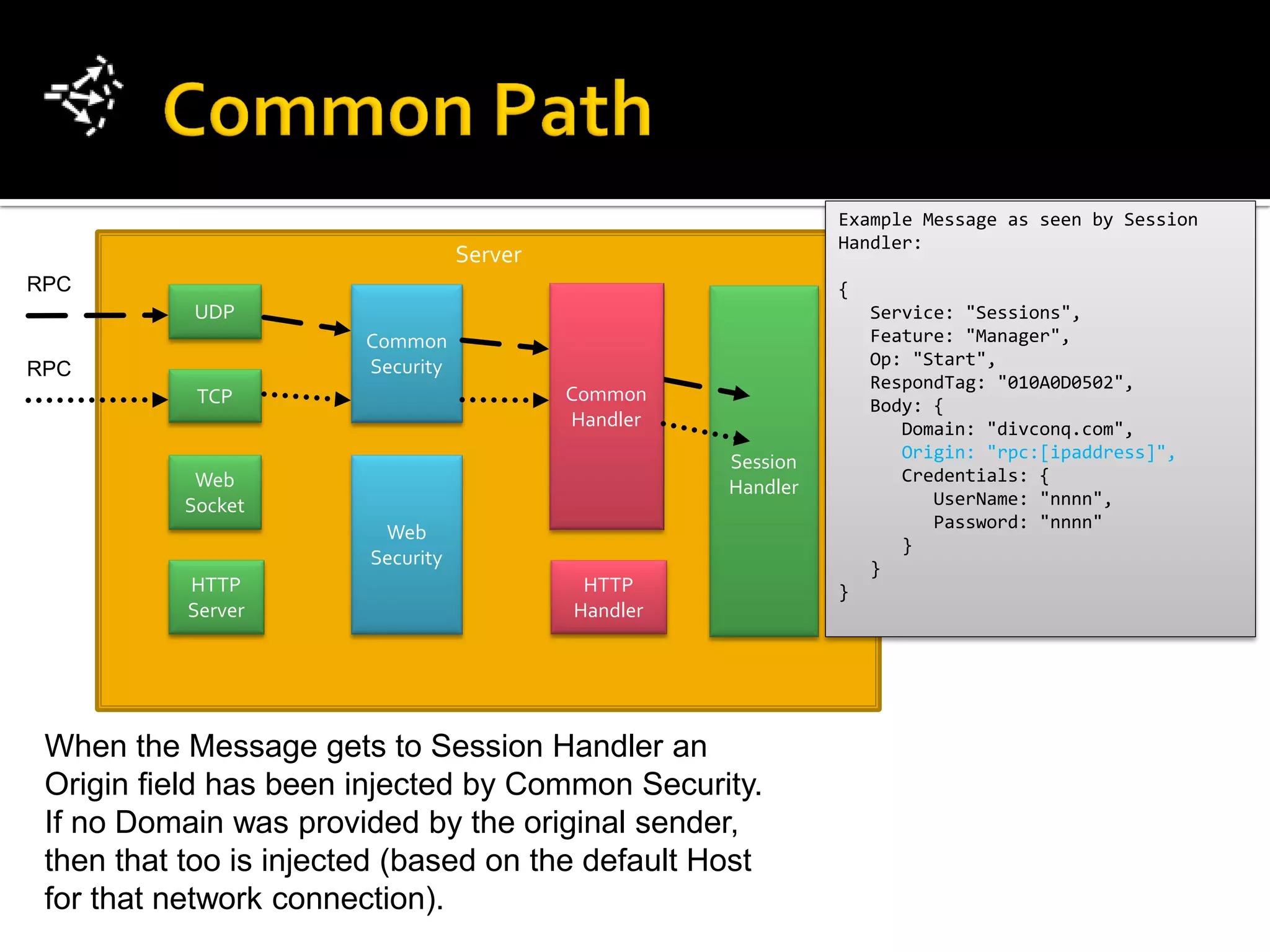

When the Message gets to Session Handler an
Origin field has been injected by Common Security.
If no Domain was provided by the original sender,
then that too is injected (based on the default Host
for that network connection).

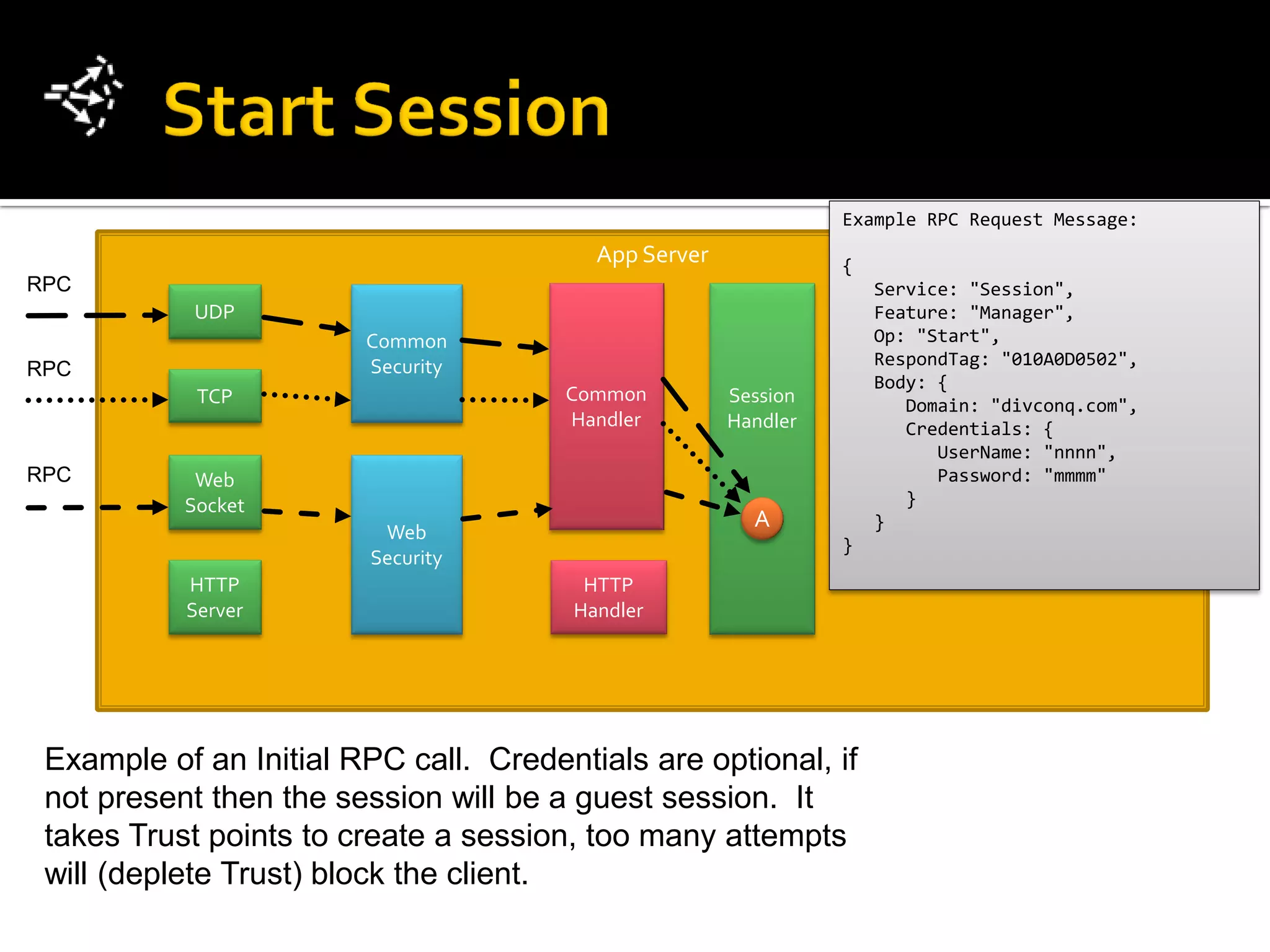

23. Example Message:
Server {
Service: "Session",
UDP Feature: "Manager",
Common Op: "Start",
Security RespondTag: "010A0D0502",
Body: {
TCP Common
Domain: "divconq.com",
Handler Origin: "rpc:[ipaddress]",
Session
Handler Credentials: {
RPC Web UserName: "nnnn",
Socket Password: "nnnn",
SslThumb: "010A0D0502"
Web
}
Security }
HTTP HTTP }
Server Handler

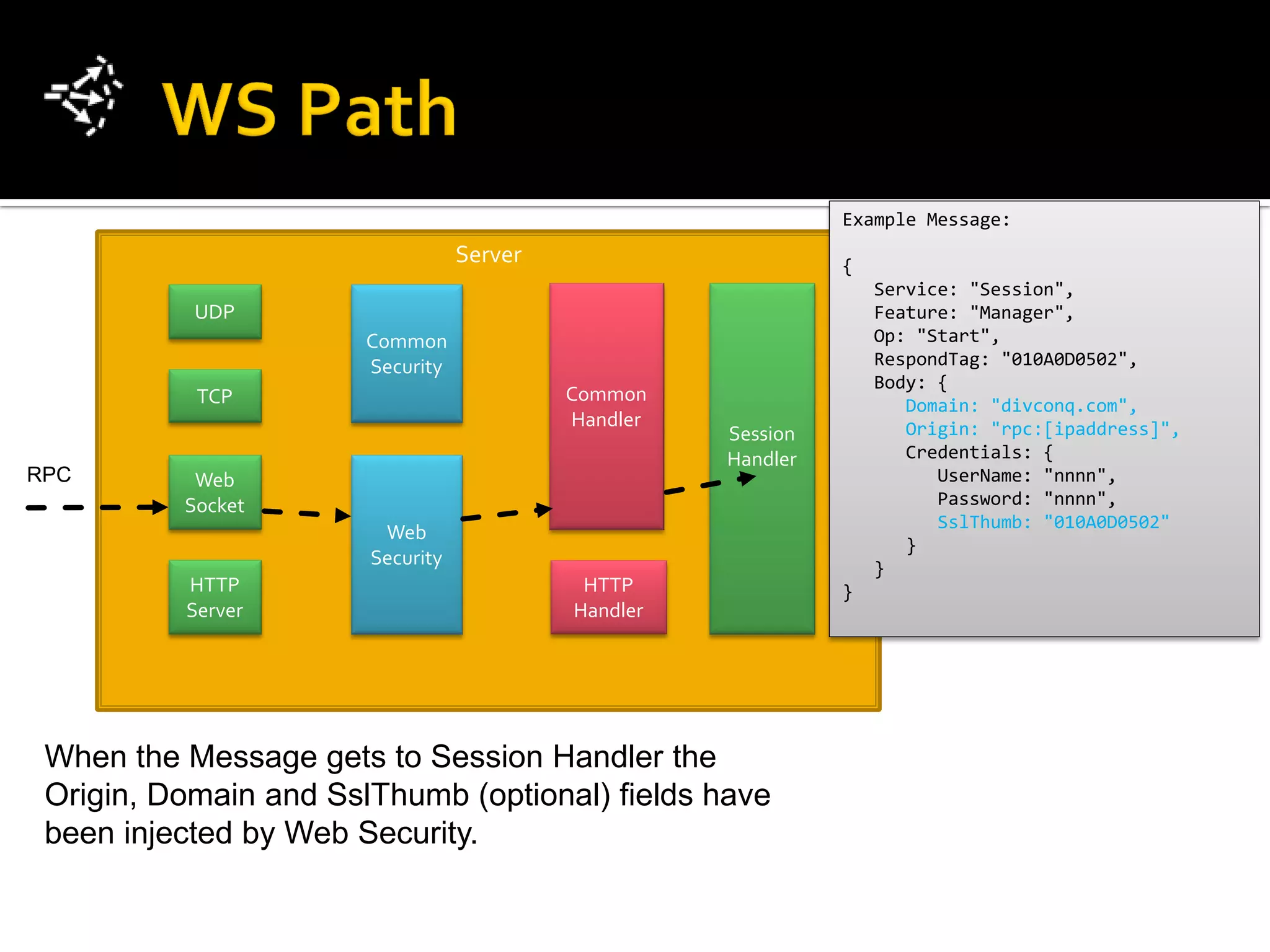

When the Message gets to Session Handler the
Origin, Domain and SslThumb (optional) fields have
been injected by Web Security.

24. Example Message:
Server {
Service: "Session",
UDP Feature: "Manager",
Common Op: "Start",
Security RespondTag: "SendWait",
Body: {
TCP Common
Domain: "divconq.com",
Handler Origin: "rpc:[ipaddress]",
Session Credentials: {
Web Handler UserName: "nnnn",
Socket Password: "nnnn",
SslThumb: "010A0D0502"
Web
}
Security }
RPC HTTP HTTP }
Server Handler
When the Message gets to Session Handler the
Origin, Domain and SslThumb (optional) fields have
been injected by Web Security. [more next slide]

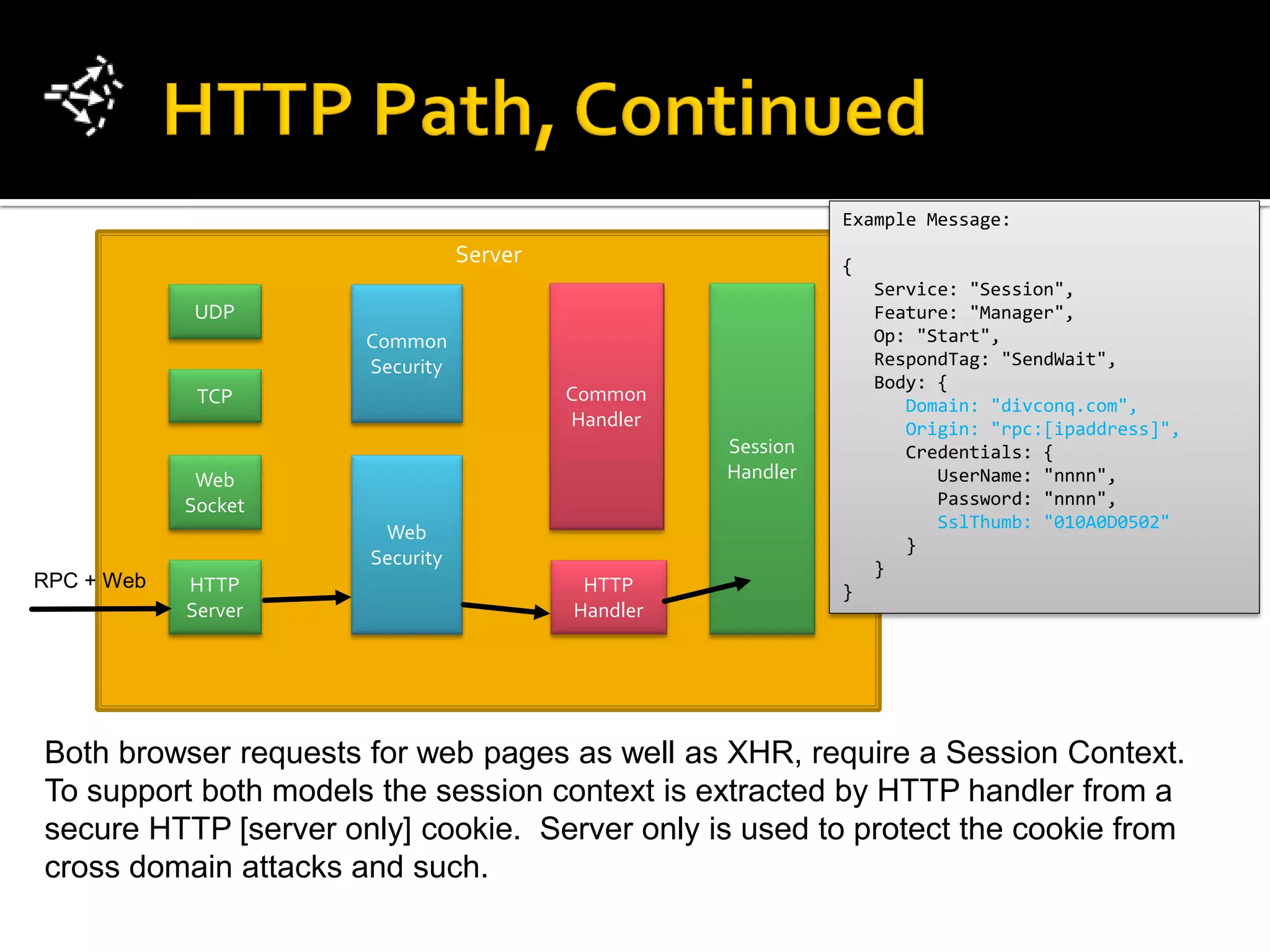

25. Example Message:
Server {
Service: "Session",
UDP Feature: "Manager",
Common Op: "Start",
Security RespondTag: "SendWait",
Body: {
TCP Common
Domain: "divconq.com",
Handler Origin: "rpc:[ipaddress]",
Session Credentials: {
Web Handler UserName: "nnnn",
Socket Password: "nnnn",
SslThumb: "010A0D0502"
Web
}
Security }
RPC + Web HTTP HTTP }
Server Handler
Both browser requests for web pages as well as XHR, require a Session Context.
To support both models the session context is extracted by HTTP handler from a
secure HTTP [server only] cookie. Server only is used to protect the cookie from
cross domain attacks and such.

26. DivConq Collab

27. App Server
UDP
Common
Security
TCP Common
Handler
Session
Web Handler
Socket
Web
Security A
RPC HTTP HTTP
Server Handler

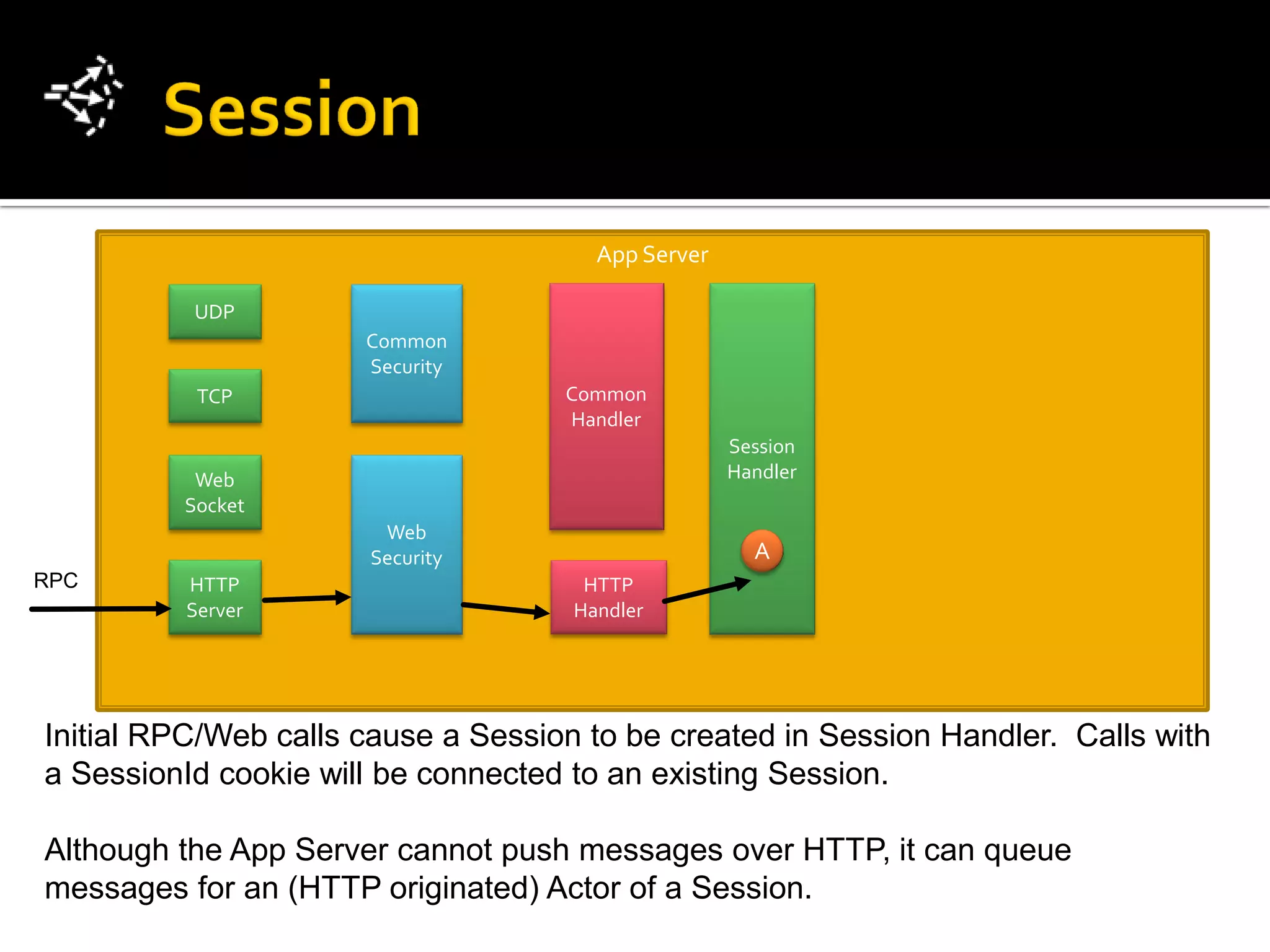

Initial RPC/Web calls cause a Session to be created in Session Handler. Calls with
a SessionId cookie will be connected to an existing Session.
Although the App Server cannot push messages over HTTP, it can queue
messages for an (HTTP originated) Actor of a Session.

28. Example RPC Request Message:
App Server {
Service: "Session",
UDP Feature: "Manager",
Common Op: "Start",
Security RespondTag: "SendWait",
Body: {
TCP Common
Credentials: {
Handler UserName: "nnnn",
Session Password: "mmmm"
Web Handler }
Socket }
}
Web
Security A
RPC HTTP HTTP
Server Handler

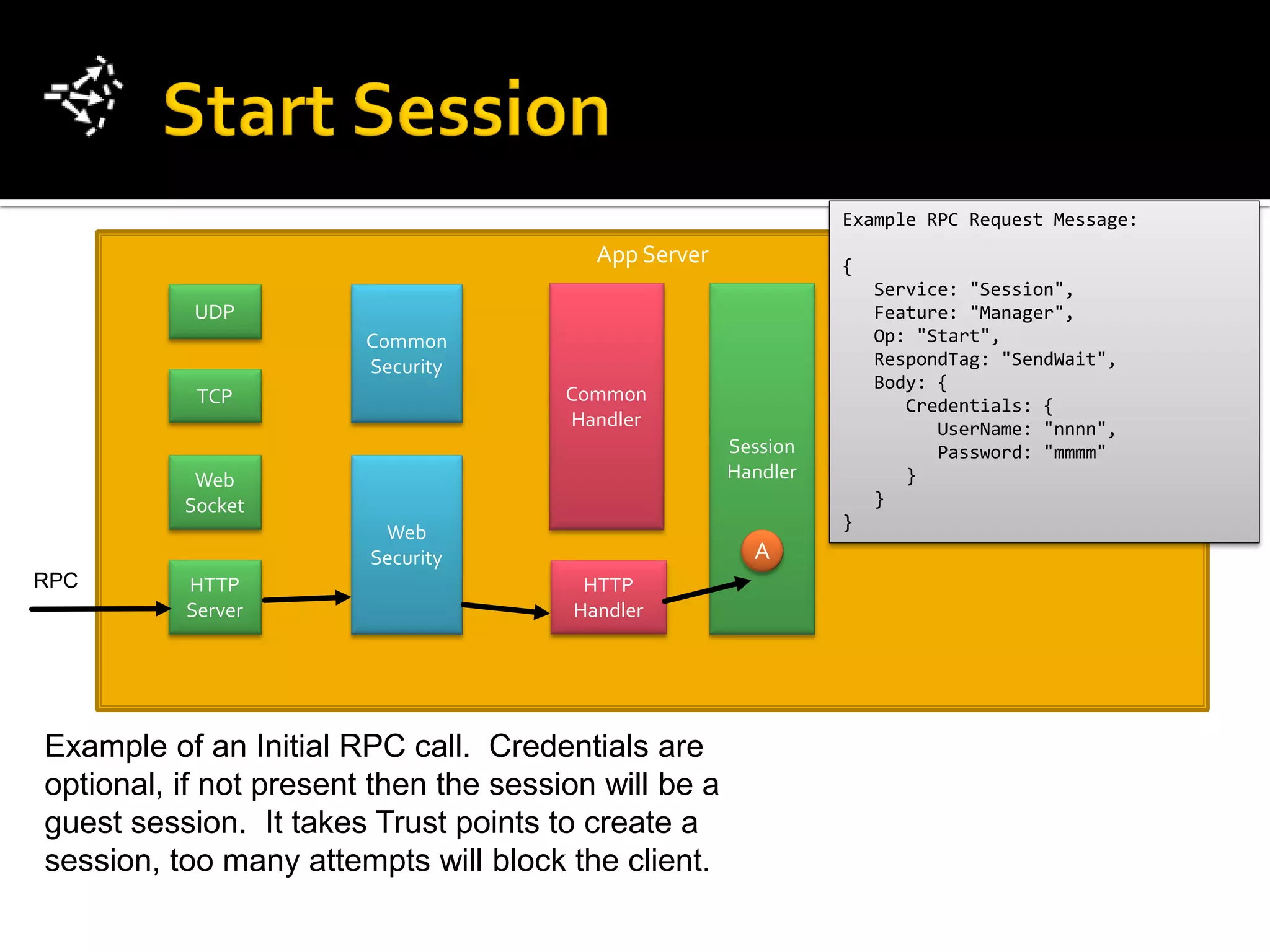

Example of an Initial RPC call. Credentials are
optional, if not present then the session will be a
guest session. It takes Trust points to create a
session, too many attempts will block the client.

29. Example Response Message: Stored in Session:
App Server
Context: {
{ Domain: "divconq.com",
UDP Result: 0, // success Origin: "http:[ipaddress]",
Body: { UserId: "119",
Common
UserId: "119", UserName: "awhite",
Security
UserName: "awhite", FirstName: "Andy",
LastName: "White",
TCP FirstName: "Andy", Common Email: "andy.white@divconq.com",
LastName: "White", Handler AuthToken: "010A0D0502",
Email: "andy.white@divconq.com", Session Chronology: "/America/Chicago",
Chronology: "/America/Chicago", Locale: "en-US",
Web Handler Credentials: {
Locale: "en-US", UserName: "nnnn",
Socket Session: { Password: "mmmm"
Web
Id: "nnnn", }
Security
Key: "010A0D0502" A }
RPC HTTP } HTTP
Server } Handler
}
Response Session Cookie:
Session: "nnnn_mmmm_010A0D0502"

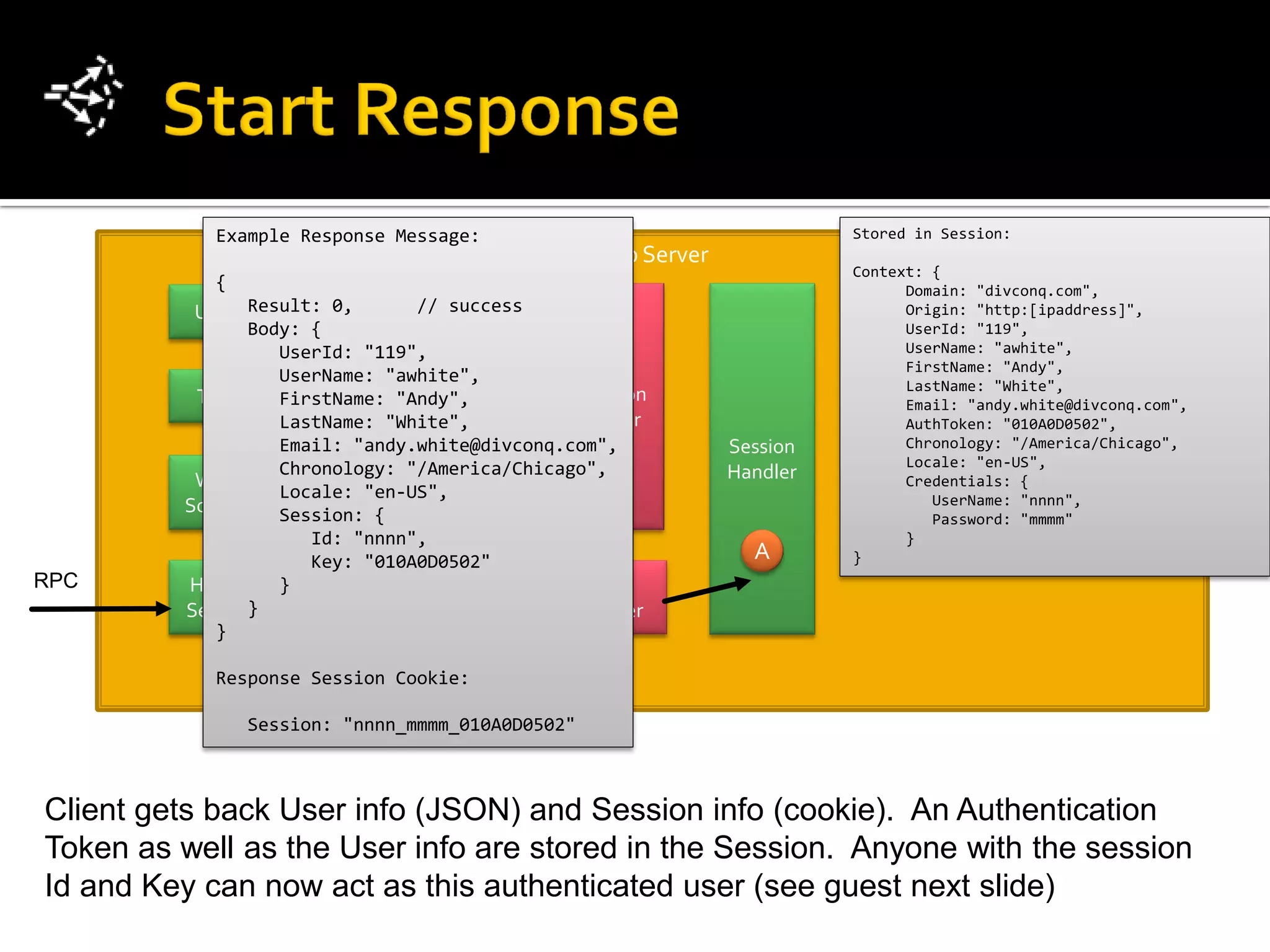

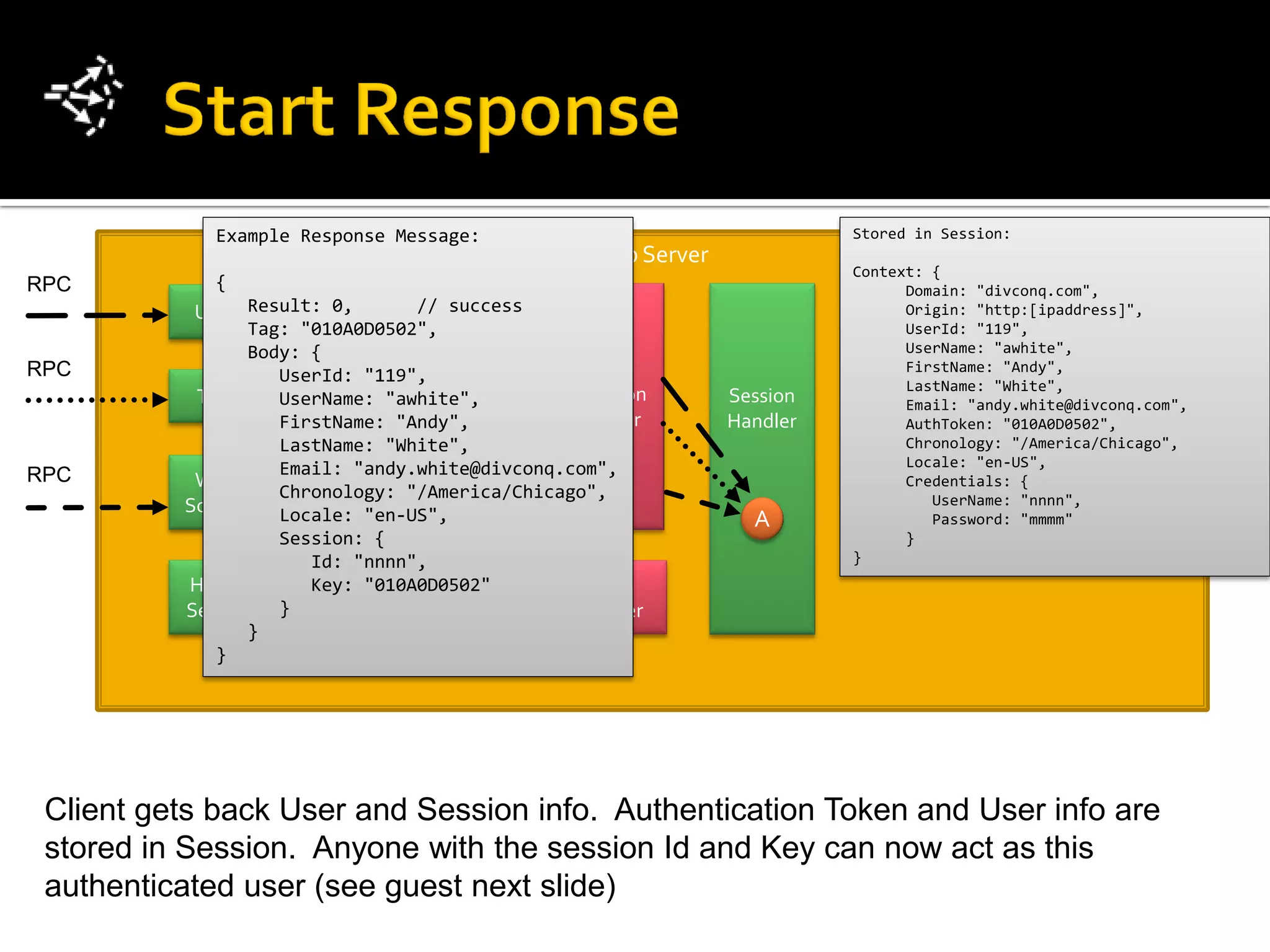

Client gets back User info (JSON) and Session info (cookie). An Authentication
Token as well as the User info are stored in the Session. Anyone with the session
Id and Key can now act as this authenticated user (see guest next slide)

30. Example Response Message:
App Server
{
UDP Result: 0, // success
Body: {
Common Chronology: "/America/Chicago",
Security Locale: "en-US",
TCP Common Session: {
Handler Id: "nnnn",
Session Actor: "mmmm",
Handler Key: "010A0D0502"
Web
}
Socket }
Web }
Security A
RPC HTTP HTTP Response Session Cookie:
Server Handler
Session: "nnnn_mmmm_010A0D0502“
Stored in Session:
Context: {
Domain: "divconq.com",

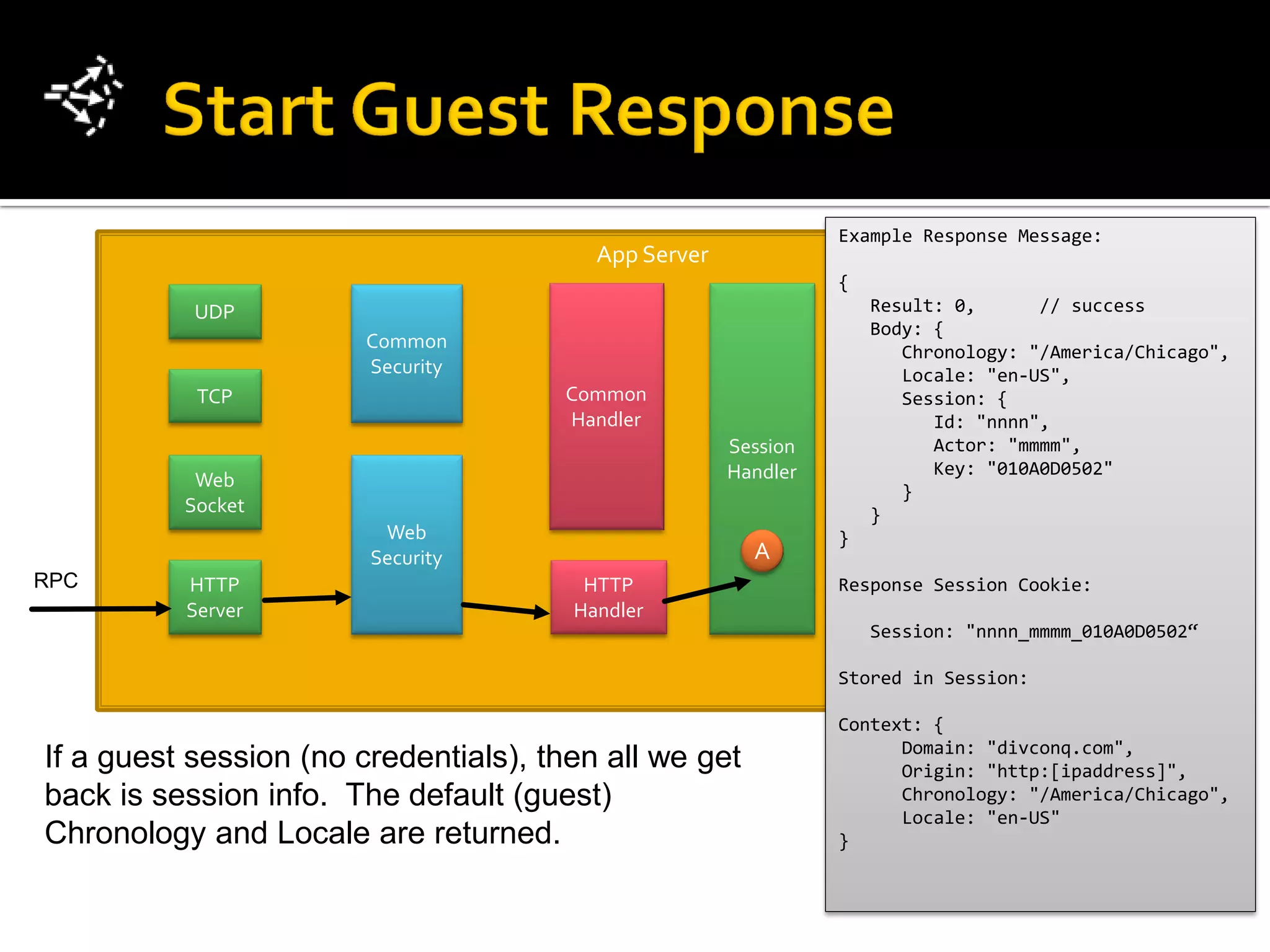

If a guest session (no credentials), then all we get Origin: "http:[ipaddress]",
back is session info. The default (guest) Chronology: "/America/Chicago",
Locale: "en-US"
Chronology and Locale are returned. }

31. Example RPC Request Message:
App Server {
Service: "X",
UDP Feature: "Y",
Common Op: "Z",
Security RespondTag: "SendWait",
Body: {
TCP Common
...
Handler }
Session }
Web Handler
Socket Session Cookie:
Web
A Session: "nnnn_mmmm_010A0D0502"
Security
RPC HTTP HTTP
X
Server Handler
Message requesting service X is processed through the session. The session
becomes the proxy for the client. User Context is restored from session cookie by a
visit to the session state before passing the message on to service X. Service X
has context and a destination for response, thanks to the session. When the
session gets the response it then sends it back to the client (with HTTP the client is
blocking until the response comes).

32. Example RPC Response Message:
App Server
{
UDP Result: 0, // success
Tag: "SendWait",
Common Body: {
Security ...
TCP Common }
Handler }
Session
Web Handler
Socket
Web
Security A
RPC HTTP HTTP
X
Server Handler

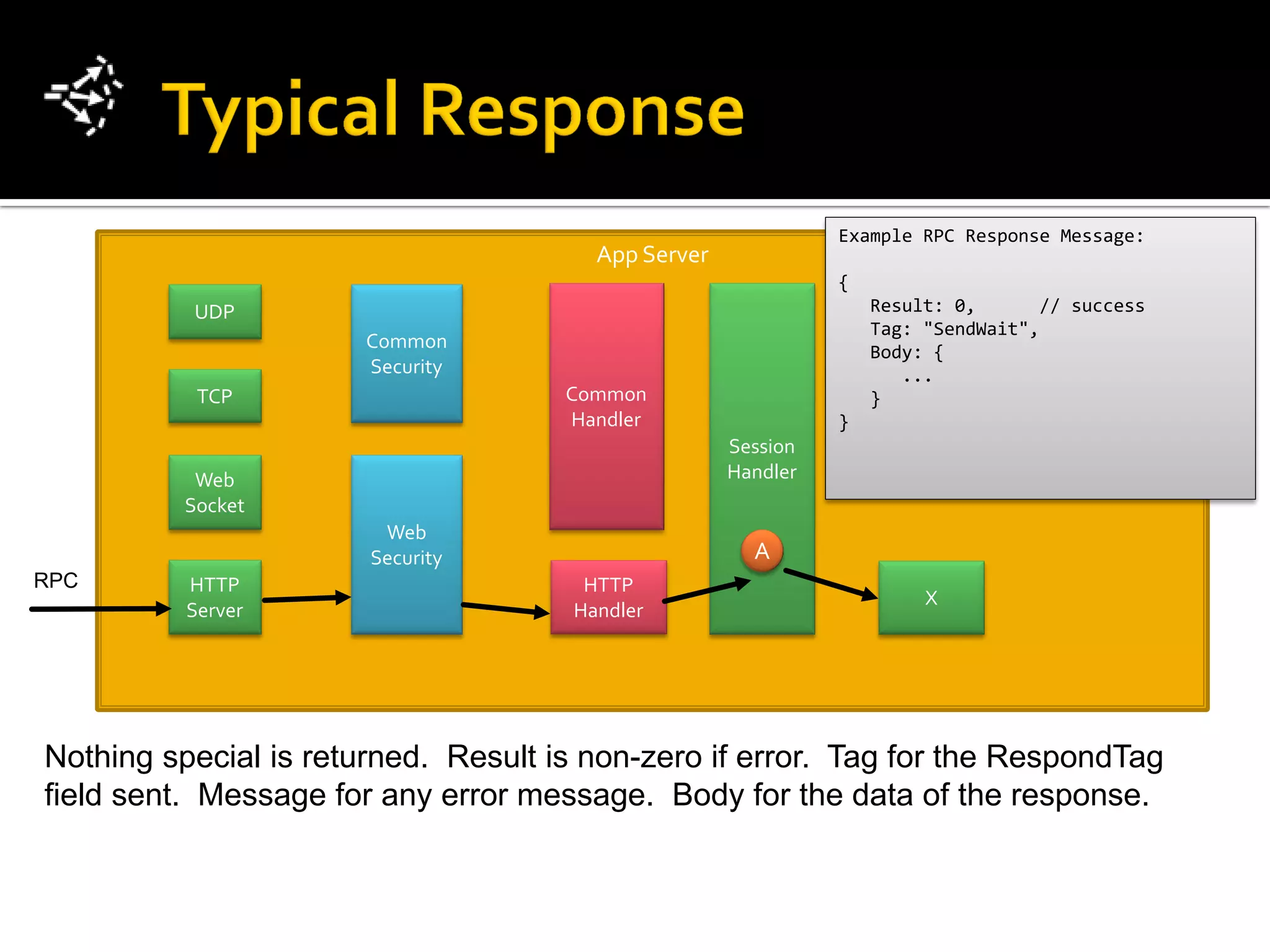

Nothing special is returned. Result is non-zero if error. Tag for the RespondTag
field sent. Message for any error message. Body for the data of the response.

33. App Server
UDP
Common
Security
TCP Common
Handler
Session
Web Handler
Socket
Web
Security A
HTTP HTTP
ABC
Server Handler

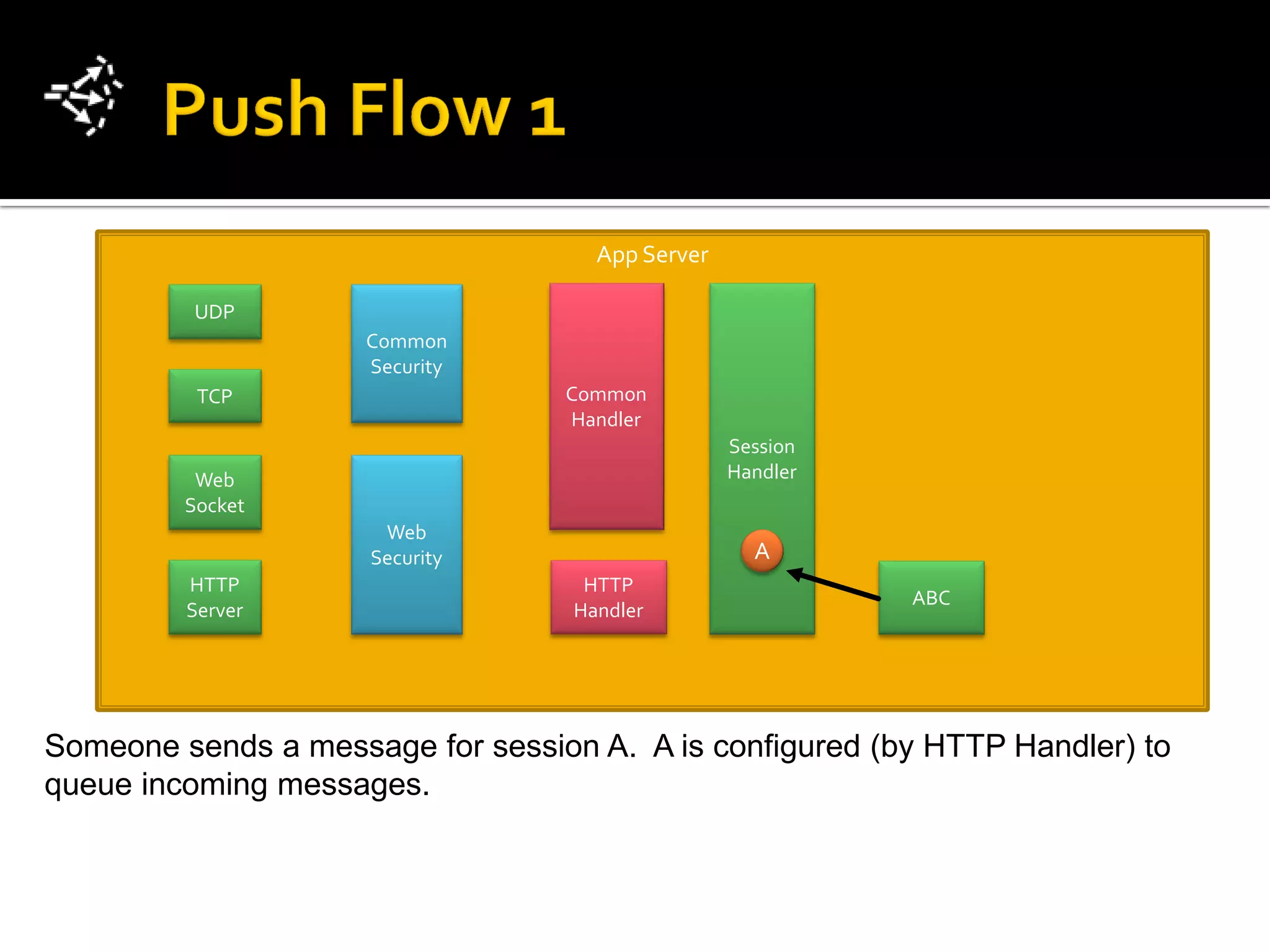

Someone sends a message for session A. A is configured (by HTTP Handler) to
queue incoming messages.

34. Example Request Message:
App Server {
Service: "Session",
UDP Feature: "Mail",
Common Op: "Check",
Security RespondTag: "SendWait",
Body: {
TCP Common
...
Handler }
Session }
Web Handler
Socket Session Cookie:
Web
A Session: "nnnn_mmmm_010A0D0502"
Security
RPC HTTP HTTP
ABC
Server Handler

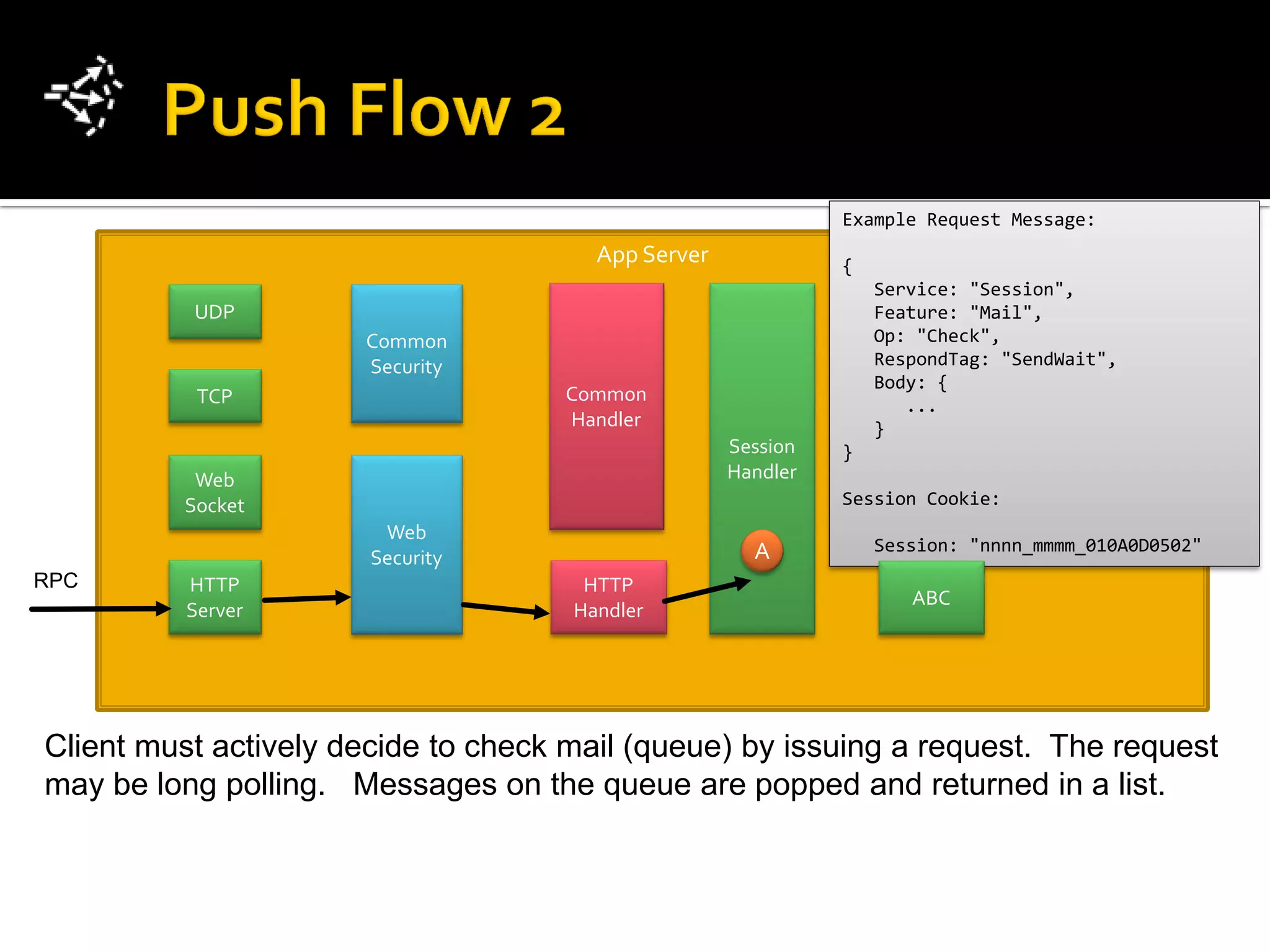

Client must actively decide to check mail (queue) by issuing a request. The request
may be long polling. Messages on the queue are popped and returned in a list.

35. Example Response Message:
App Server {
Body: [
UDP {
Common Service: "Desktop",
Security Feature: "App",
Op: "Open",
TCP Common
Body: ...
Handler }
Session ]
Web Handler }
Socket
Web
Security A
RPC HTTP HTTP
ABC
Server Handler
Each response has a target Service, Feature, Op, Body. FromHub, RespondTo and
RespondTag are allowed. ToHub and Tag are removed as those where values
associated with the Session.

36. DivConq CTP

37. App Server
RPC
UDP
Common
RPC Security
TCP Common Session
Handler Handler
RPC Web
Socket
Web
A
Security
HTTP HTTP
Server Handler
Each request via Common Handler must contain a session context or be requesting
a session context.

38. Example RPC Request Message:
App Server {
RPC Service: "Session",
UDP Feature: "Manager",
Common Op: "Start",
Security RespondTag: "010A0D0502",
RPC
Body: {
TCP Common Session Domain: "divconq.com",
Handler Handler Credentials: {
UserName: "nnnn",
RPC Web Password: "mmmm"
Socket }
Web
A }
}
Security
HTTP HTTP
Server Handler
Example of an Initial RPC call. Credentials are optional, if
not present then the session will be a guest session. It
takes Trust points to create a session, too many attempts
will (deplete Trust) block the client.

39. Example Response Message: Stored in Session:
App Server
Context: {
RPC { Domain: "divconq.com",
UDP Result: 0, // success Origin: "http:[ipaddress]",
Tag: "010A0D0502", UserId: "119",
Body: {
Common UserName: "awhite",
RPC Security
UserId: "119", FirstName: "Andy",
LastName: "White",
TCP UserName: "awhite", Common Session Email: "andy.white@divconq.com",
FirstName: "Andy", Handler Handler AuthToken: "010A0D0502",
LastName: "White", Chronology: "/America/Chicago",
Email: "andy.white@divconq.com", Locale: "en-US",
RPC Web Credentials: {
Chronology: "/America/Chicago", UserName: "nnnn",
Socket Locale: "en-US", A Password: "mmmm"
Session: { Web }
Security
Id: "nnnn", }
HTTP Key: "010A0D0502" HTTP
Server } Handler
}
}
Client gets back User and Session info. Authentication Token and User info are
stored in Session. Anyone with the session Id and Key can now act as this
authenticated user (see guest next slide)

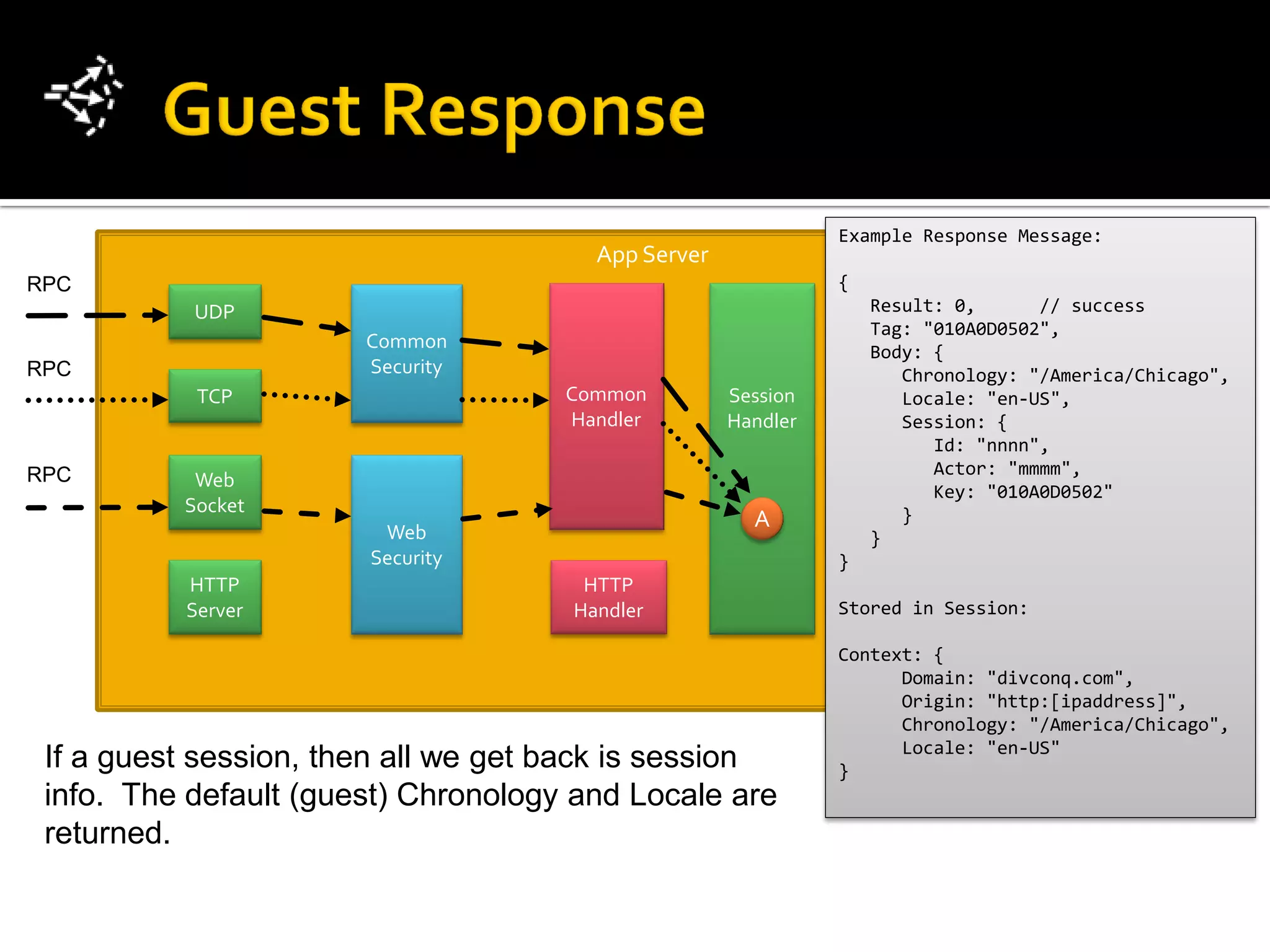

40. Example Response Message:
App Server
RPC {
UDP Result: 0, // success
Tag: "010A0D0502",
Common Body: {
RPC Security Chronology: "/America/Chicago",
TCP Common Session Locale: "en-US",
Handler Handler Session: {
Id: "nnnn",
RPC Actor: "mmmm",
Web
Key: "010A0D0502"
Socket }
Web
A
}
Security }
HTTP HTTP
Server Handler Stored in Session:
Context: {
Domain: "divconq.com",
Origin: "http:[ipaddress]",
Chronology: "/America/Chicago",
Locale: "en-US"
If a guest session, then all we get back is session }
info. The default (guest) Chronology and Locale are
returned.

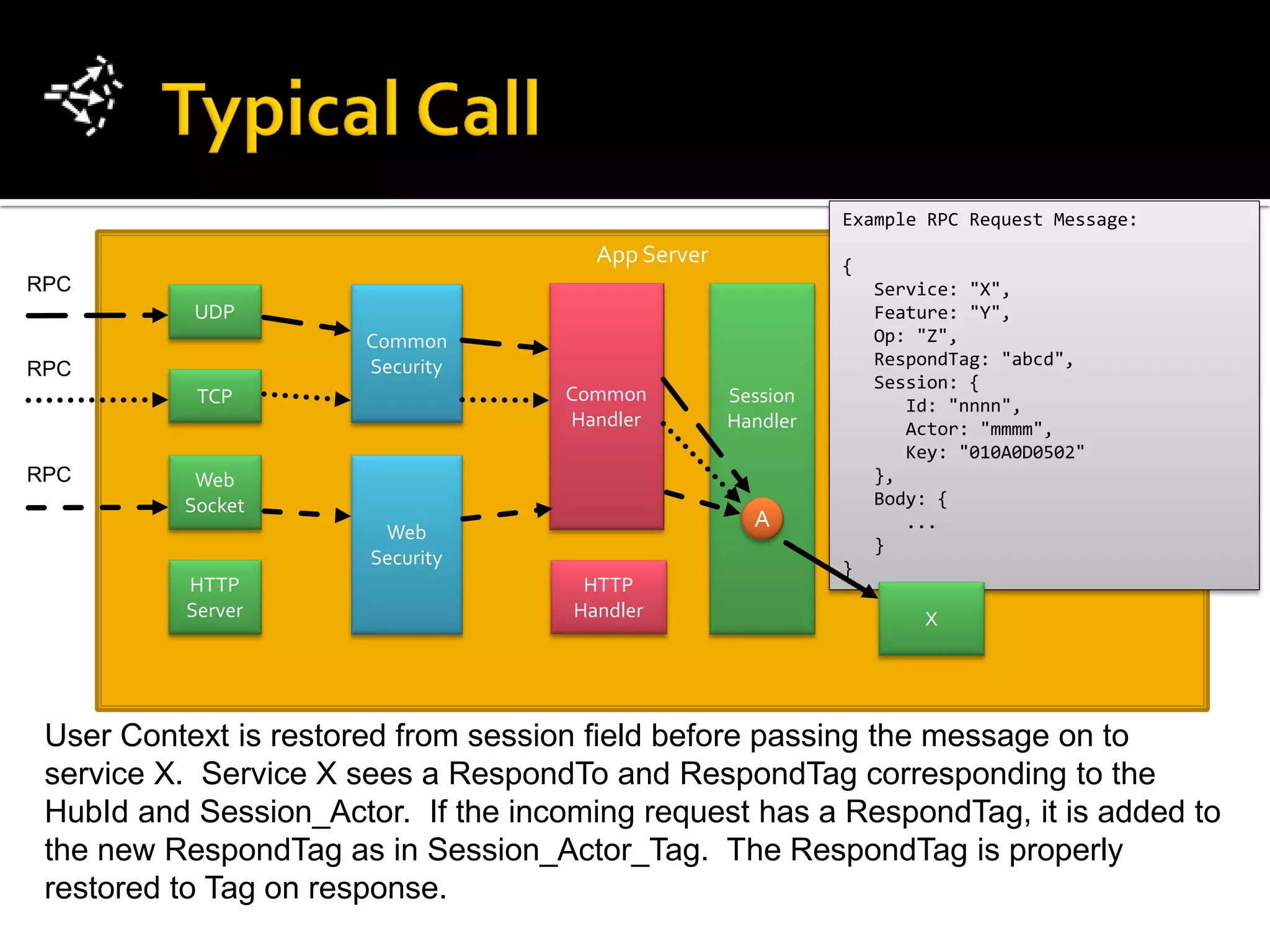

41. Example RPC Request Message:
App Server {
RPC Service: "X",
UDP Feature: "Y",
Common Op: "Z",
Security RespondTag: "abcd",
RPC
Session: {
TCP Common Session Id: "nnnn",
Handler Handler Actor: "mmmm",
Key: "010A0D0502"
RPC Web },
Socket Body: {
Web
A ...
}
Security }
HTTP HTTP
Server Handler X
User Context is restored from session field before passing the message on to
service X. Service X sees a RespondTo and RespondTag corresponding to the
HubId and Session_Actor. If the incoming request has a RespondTag, it is added to
the new RespondTag as in Session_Actor_Tag. The RespondTag is properly
restored to Tag on response.

42. Example RPC Response Message:
App Server
RPC {
UDP Result: 0, // success
Tag: "abcd",
Common Body: {
RPC Security ...
TCP Common Session }
Handler Handler }
RPC Web
Socket
Web
A
Security
HTTP HTTP
X
Server Handler

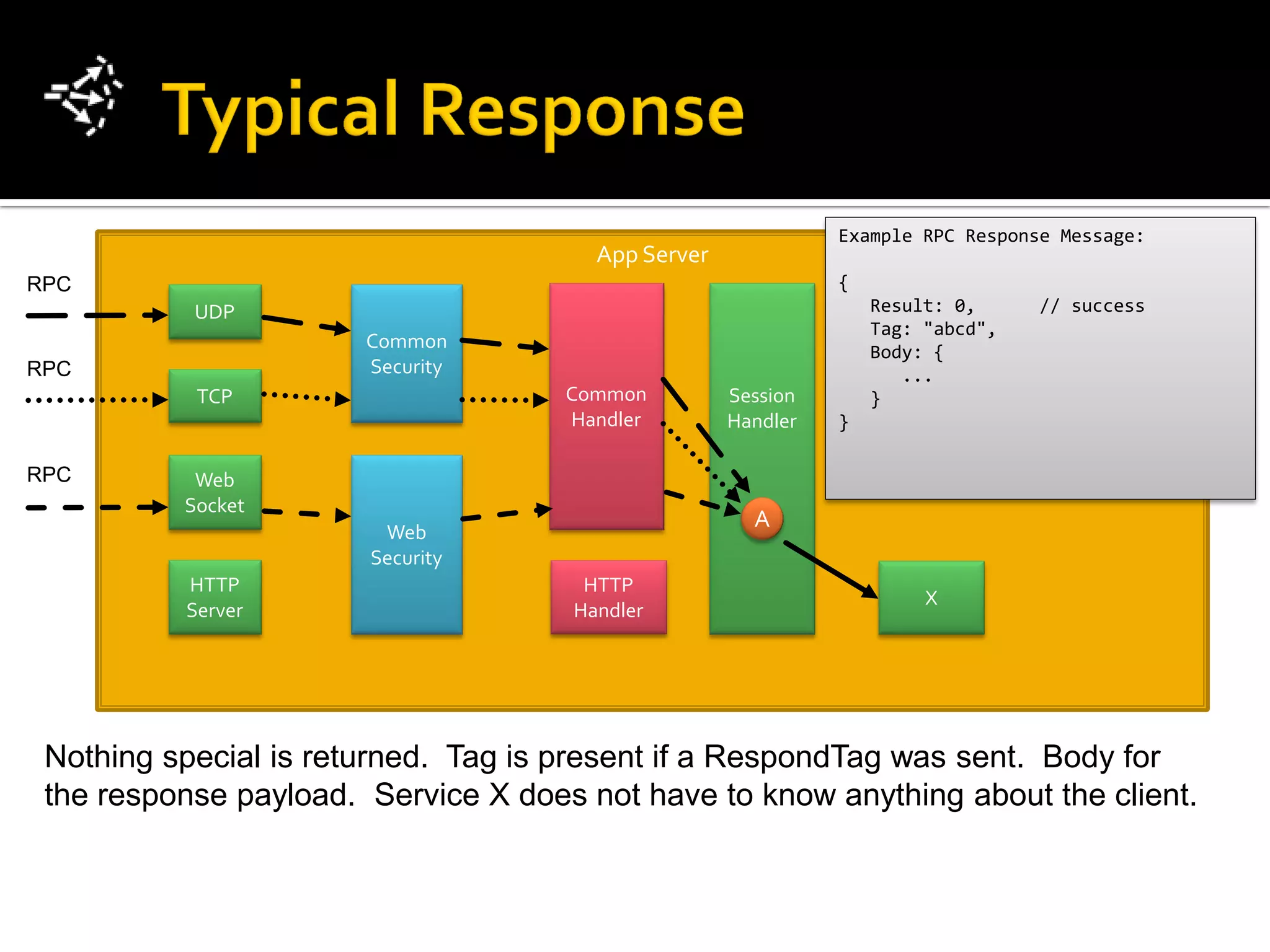

Nothing special is returned. Tag is present if a RespondTag was sent. Body for
the response payload. Service X does not have to know anything about the client.

43. App Server
RPC
UDP
Common
RPC Security
TCP Common Session
Handler Handler
RPC Web
Socket
Web
A
Security
HTTP HTTP
ABC
Server Handler

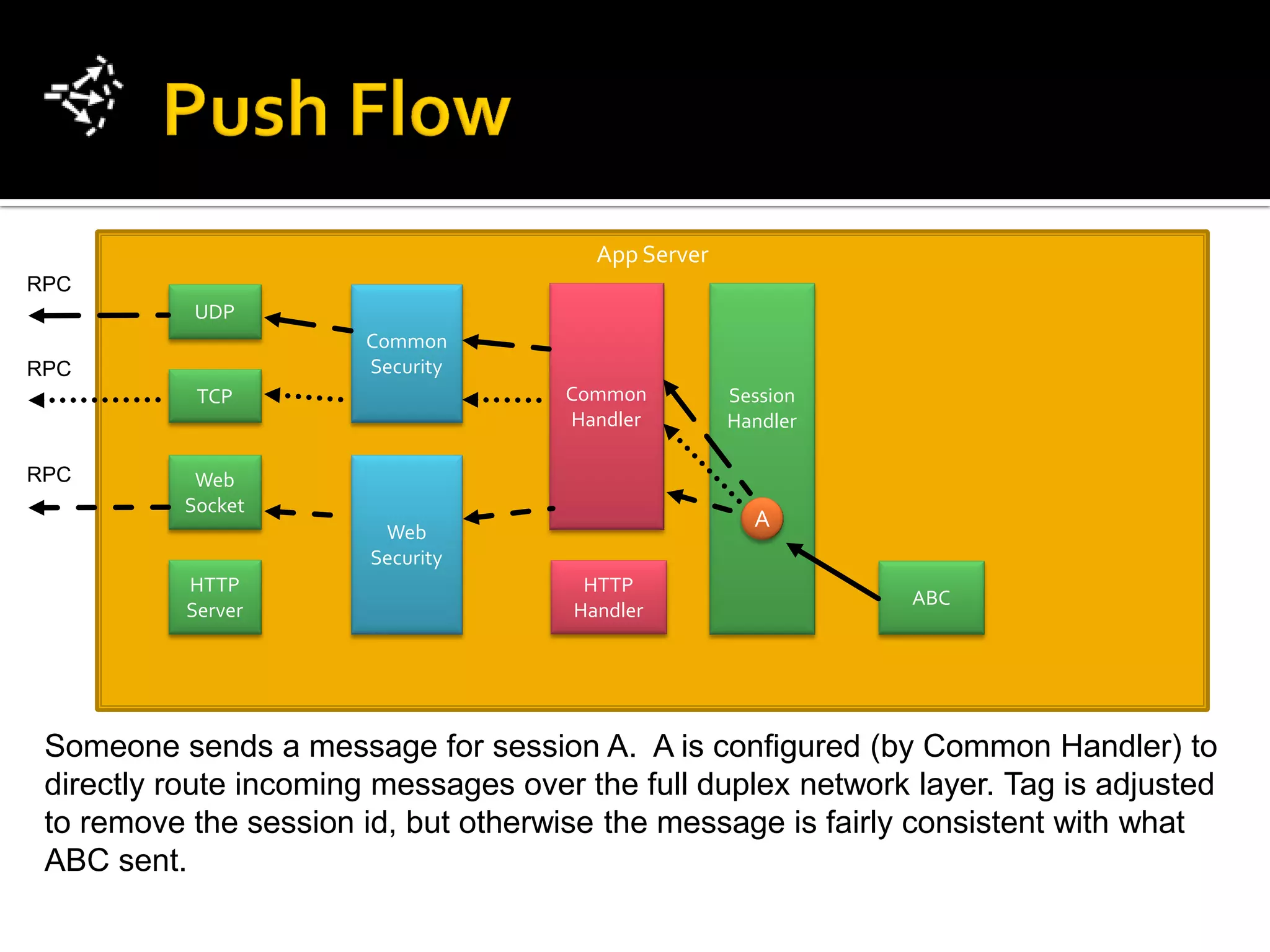

Someone sends a message for session A. A is configured (by Common Handler) to
directly route incoming messages over the full duplex network layer. Tag is adjusted
to remove the session id, but otherwise the message is fairly consistent with what
ABC sent.

44. DivConq CTP

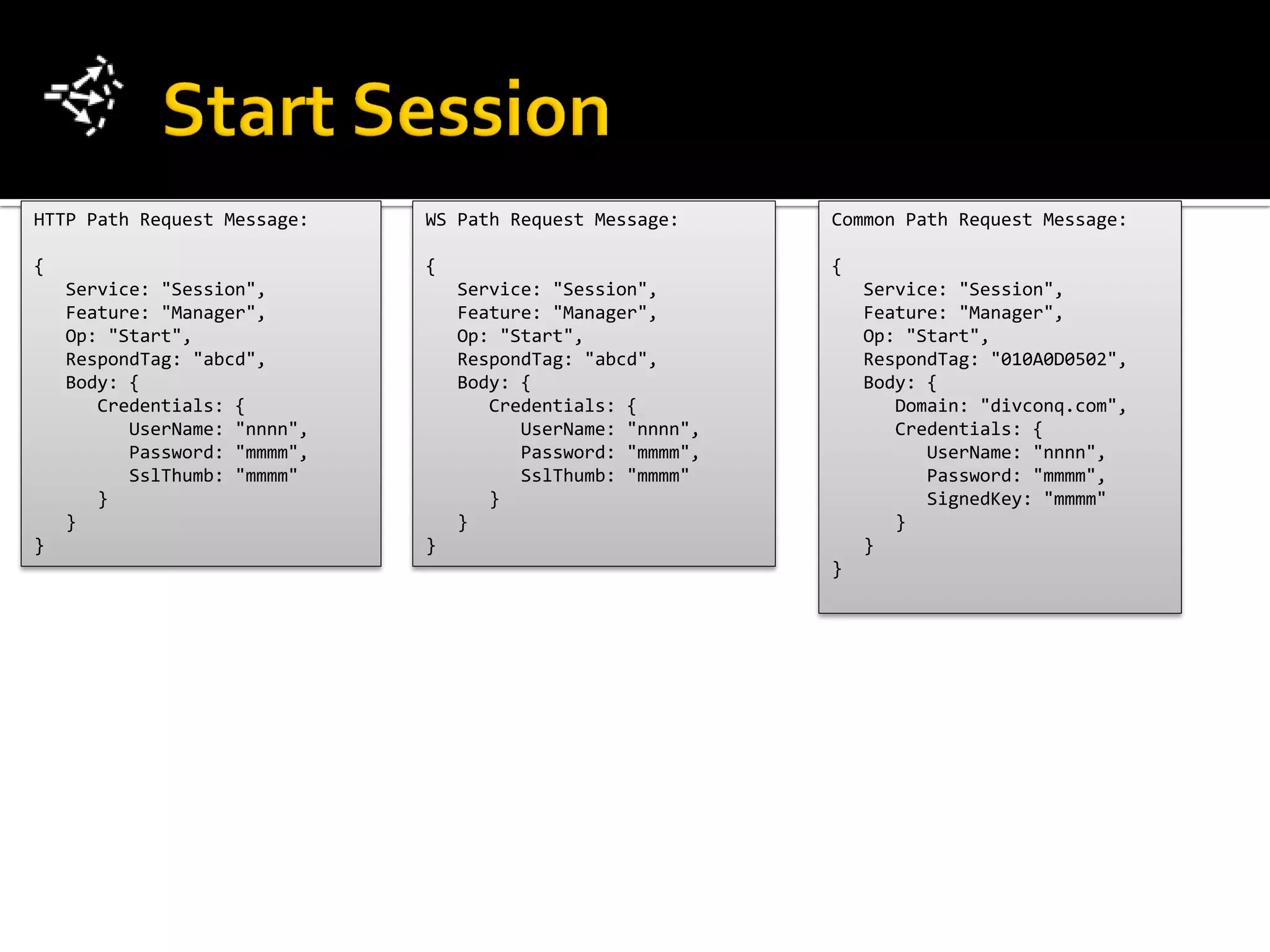

45. HTTP Path Request Message: WS Path Request Message: Common Path Request Message:
{ { {
Service: "Session", Service: "Session", Service: "Session",
Feature: "Manager", Feature: "Manager", Feature: "Manager",
Op: "Start", Op: "Start", Op: "Start",
RespondTag: "abcd", RespondTag: "abcd", RespondTag: "010A0D0502",
Body: { Body: { Body: {
Credentials: { Credentials: { Domain: "divconq.com",
UserName: "nnnn", UserName: "nnnn", Credentials: {
Password: "mmmm", Password: "mmmm", UserName: "nnnn",
SslThumb: "mmmm" SslThumb: "mmmm" Password: "mmmm",
} } SignedKey: "mmmm"
} } }
} } }
}

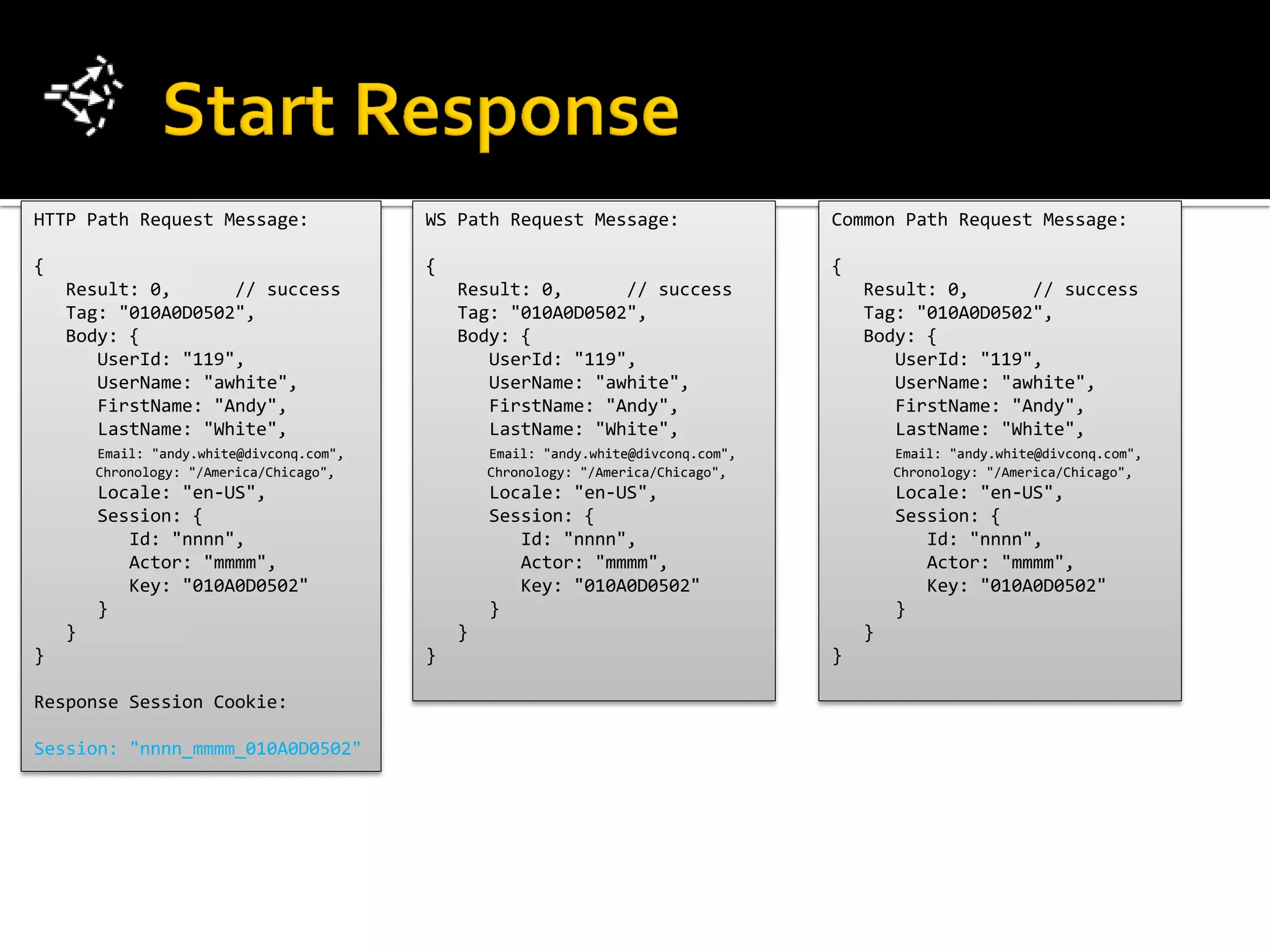

46. HTTP Path Request Message: WS Path Request Message: Common Path Request Message:
{ { {
Result: 0, // success Result: 0, // success Result: 0, // success
Tag: "010A0D0502", Tag: "010A0D0502", Tag: "010A0D0502",
Body: { Body: { Body: {
UserId: "119", UserId: "119", UserId: "119",
UserName: "awhite", UserName: "awhite", UserName: "awhite",
FirstName: "Andy", FirstName: "Andy", FirstName: "Andy",
LastName: "White", LastName: "White", LastName: "White",
Email: "andy.white@divconq.com", Email: "andy.white@divconq.com", Email: "andy.white@divconq.com",
Chronology: "/America/Chicago", Chronology: "/America/Chicago", Chronology: "/America/Chicago",
Locale: "en-US", Locale: "en-US", Locale: "en-US",
Session: { Session: { Session: {
Id: "nnnn", Id: "nnnn", Id: "nnnn",
Actor: "mmmm", Actor: "mmmm", Actor: "mmmm",
Key: "010A0D0502" Key: "010A0D0502" Key: "010A0D0502"
} } }
} } }
} } }
Response Session Cookie:
Session: "nnnn_mmmm_010A0D0502"

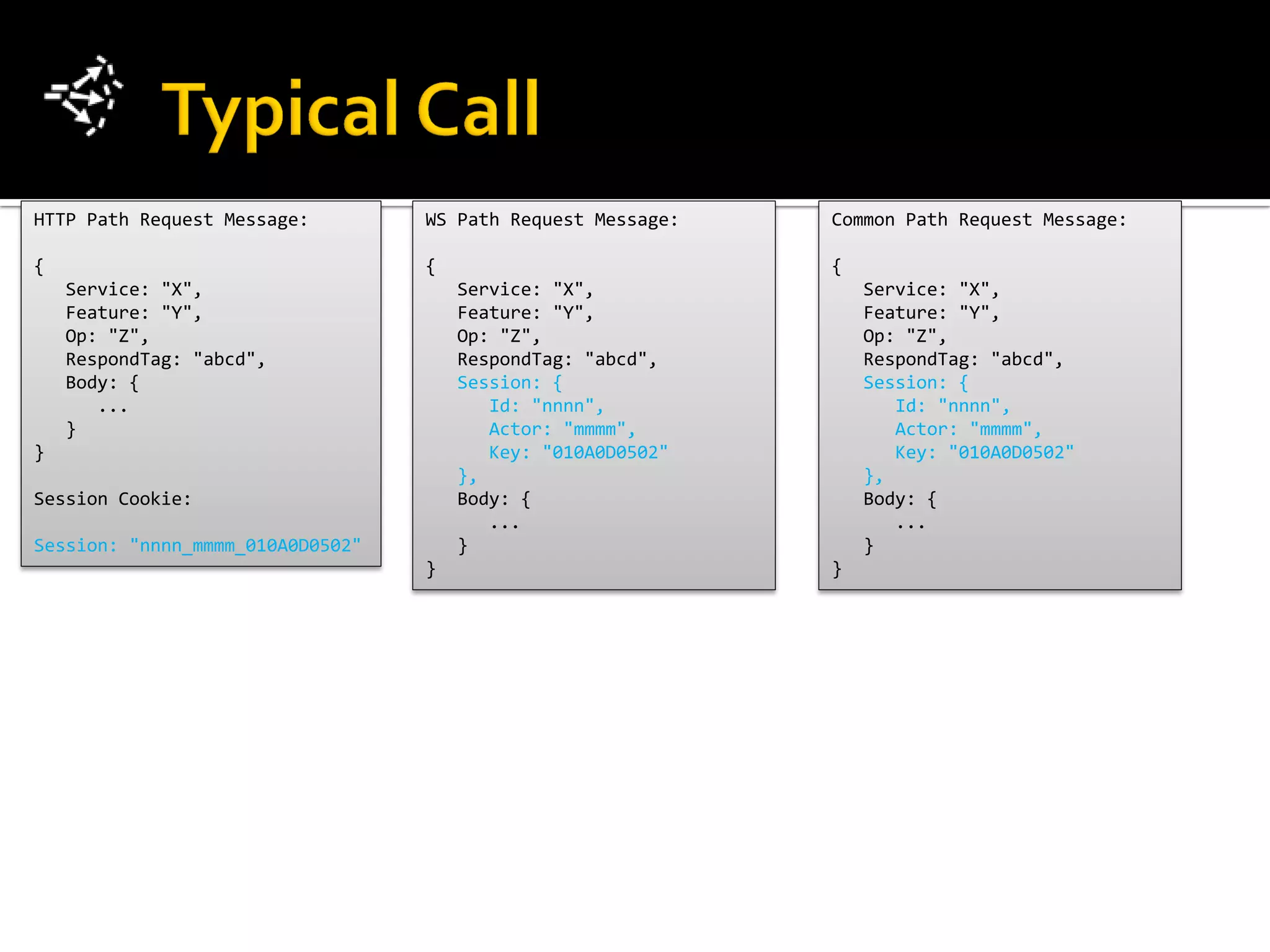

47. HTTP Path Request Message: WS Path Request Message: Common Path Request Message:
{ { {
Service: "X", Service: "X", Service: "X",
Feature: "Y", Feature: "Y", Feature: "Y",
Op: "Z", Op: "Z", Op: "Z",
RespondTag: "abcd", RespondTag: "abcd", RespondTag: "abcd",
Body: { Session: { Session: {
... Id: "nnnn", Id: "nnnn",
} Actor: "mmmm", Actor: "mmmm",
} Key: "010A0D0502" Key: "010A0D0502"
}, },
Session Cookie: Body: { Body: {
... ...
Session: "nnnn_mmmm_010A0D0502" } }
} }

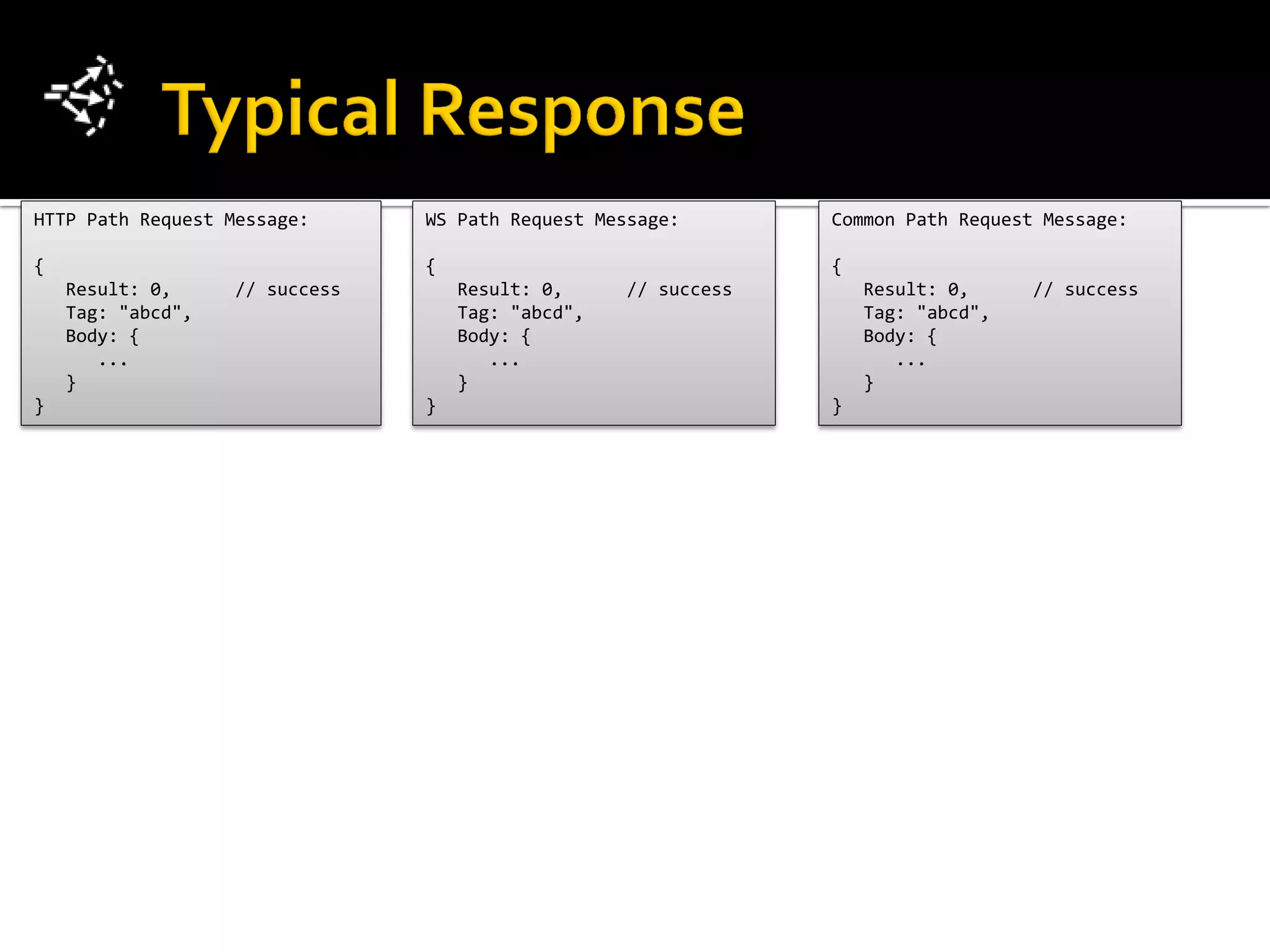

48. HTTP Path Request Message: WS Path Request Message: Common Path Request Message:
{ { {
Result: 0, // success Result: 0, // success Result: 0, // success
Tag: "abcd", Tag: "abcd", Tag: "abcd",
Body: { Body: { Body: {
... ... ...
} } }
} } }

49. DivConq RPC

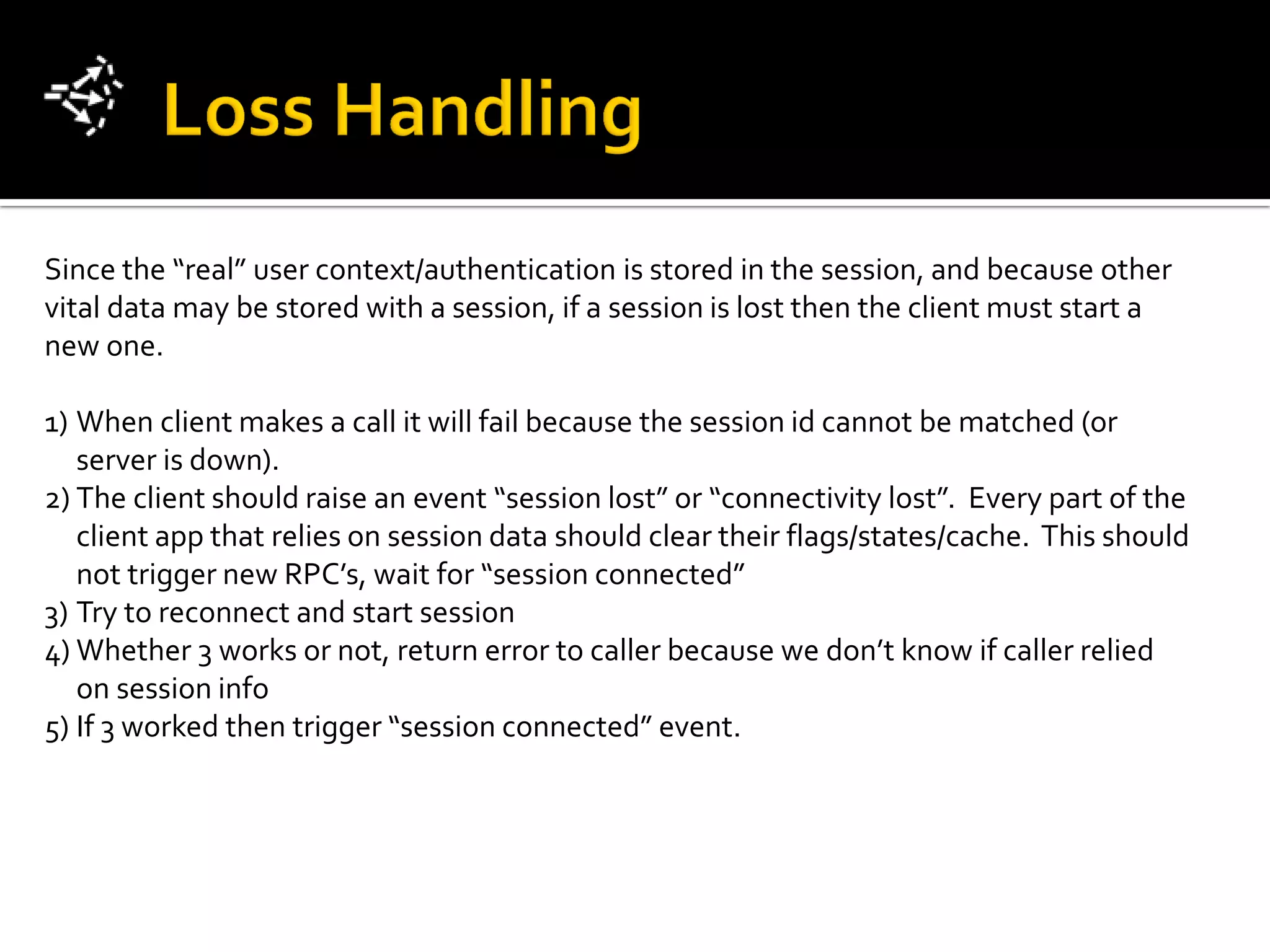

50. Since the “real” user context/authentication is stored in the session, and because other
vital data may be stored with a session, if a session is lost then the client must start a
new one.
1) When client makes a call it will fail because the session id cannot be matched (or
server is down).
2) The client should raise an event “session lost” or “connectivity lost”. Every part of the
client app that relies on session data should clear their flags/states/cache. This should
not trigger new RPC’s, wait for “session connected”
3) Try to reconnect and start session
4) Whether 3 works or not, return error to caller because we don’t know if caller relied
on session info
5) If 3 worked then trigger “session connected” event.

51. DivConq CTP

52. Client App using API App Server
App
Service
Web App
RPC A
Upload
Connector Session
Download

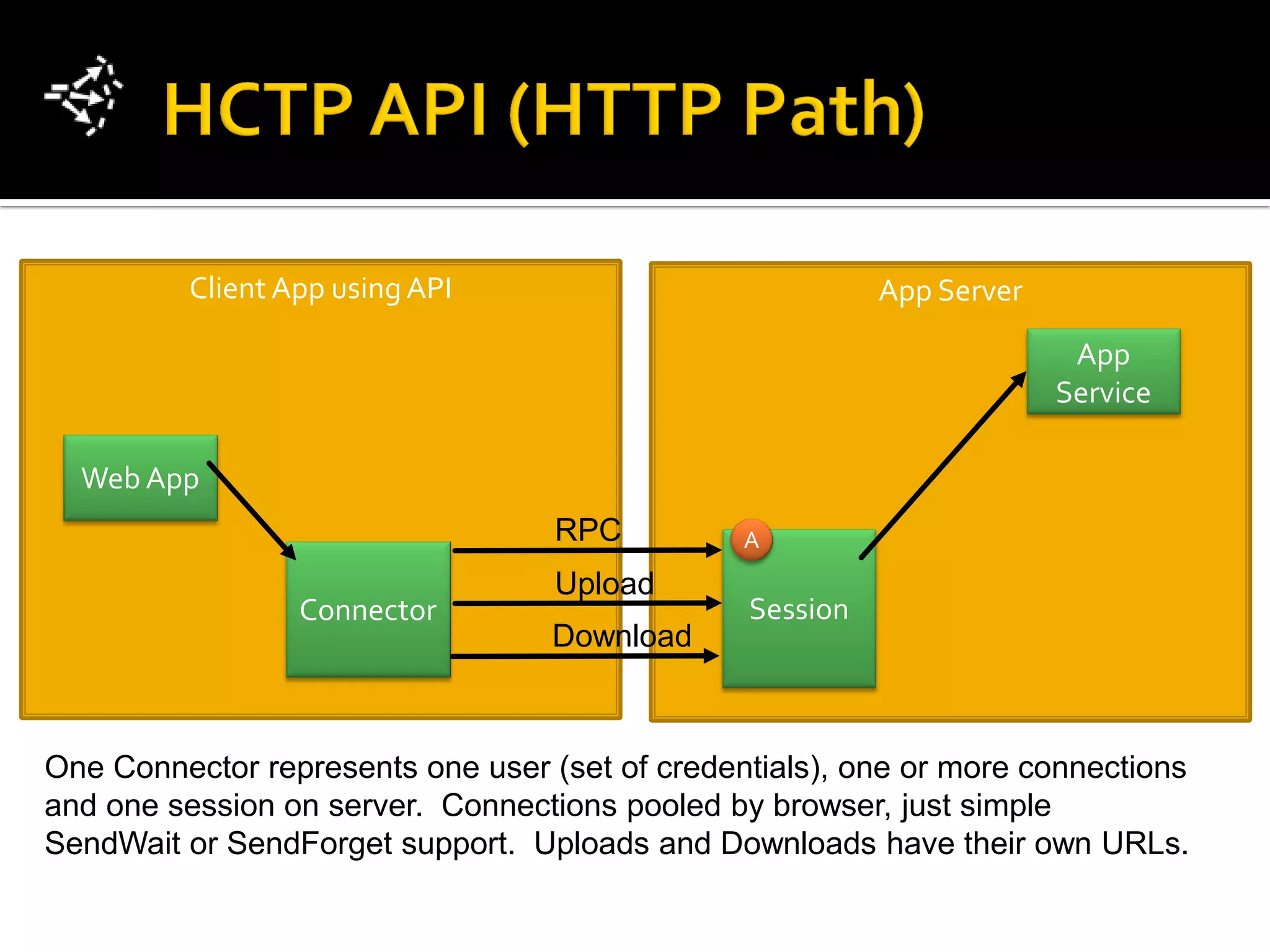

One Connector represents one user (set of credentials), one or more connections
and one session on server. Connections pooled by browser, just simple
SendWait or SendForget support. Uploads and Downloads have their own URLs.

53. Client App using API App Server
App
Service
App
RPC A
Connector
Session

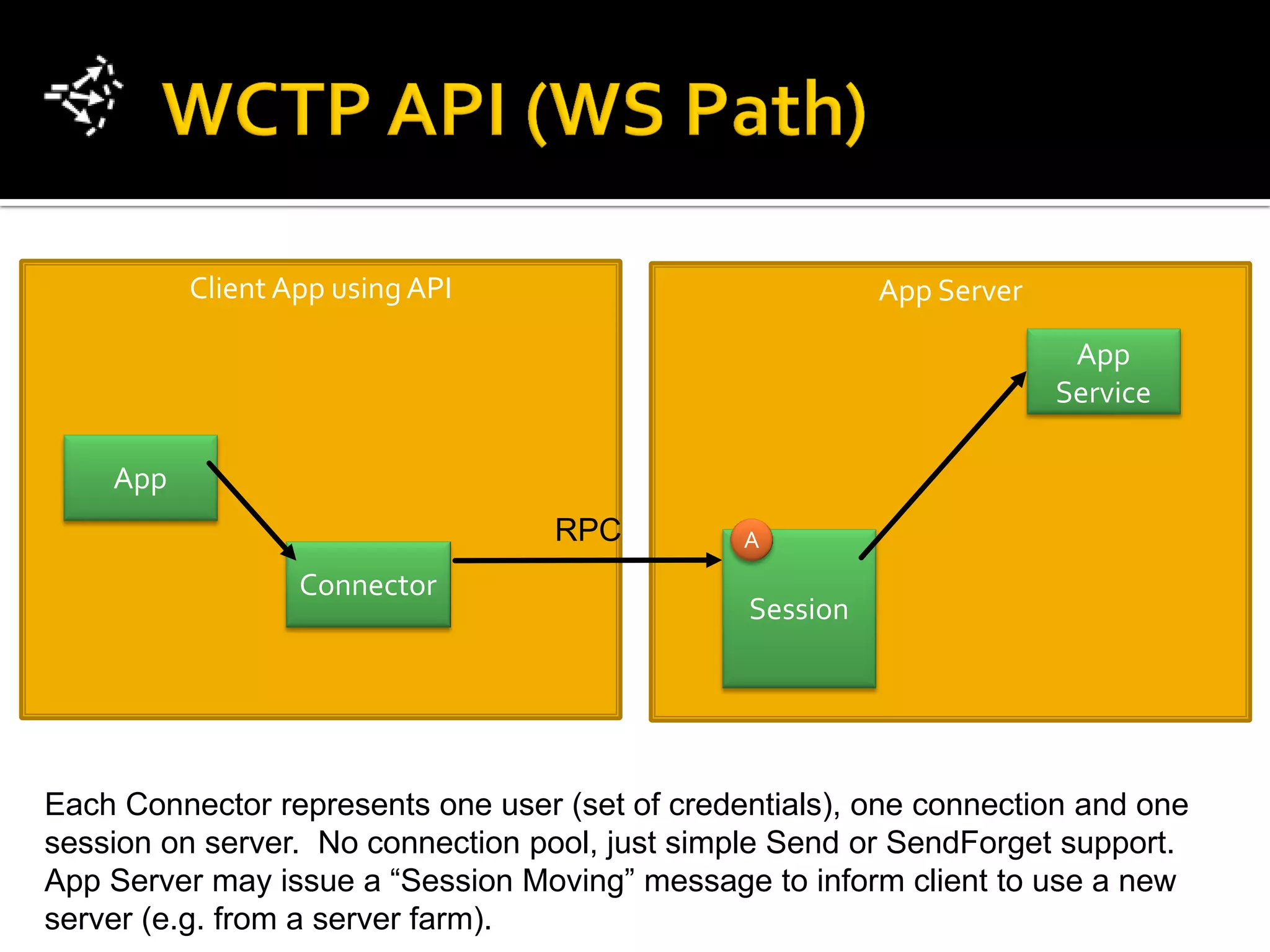

Each Connector represents one user (set of credentials), one connection and one
session on server. No connection pool, just simple Send or SendForget support.
App Server may issue a “Session Moving” message to inform client to use a new
server (e.g. from a server farm).

54. Client App using API App Server
A B C
App
Sessions App Services
RPC
Sessions Pool
App Server
M N O
Sessions App Services
Each client Session represents one user

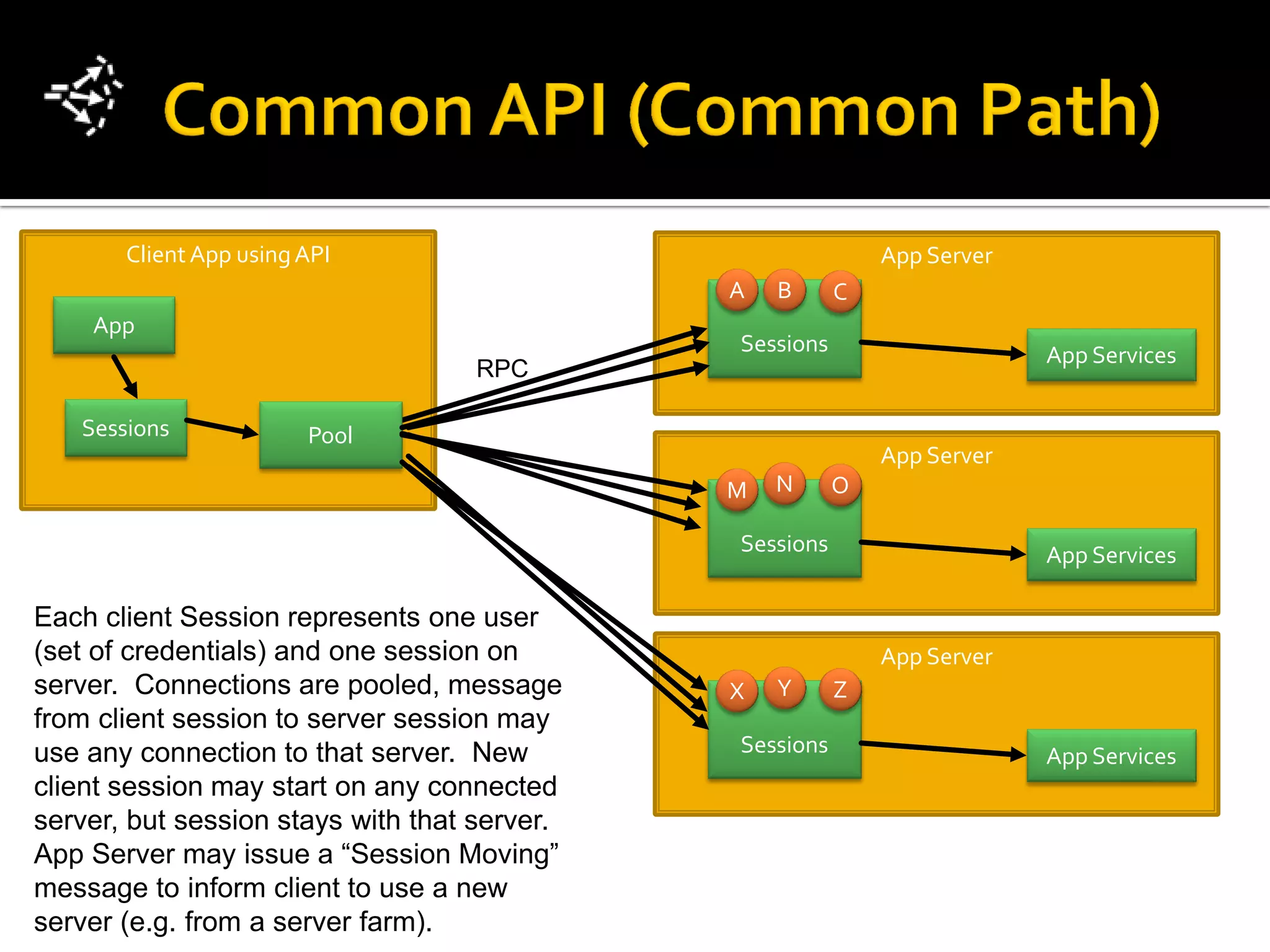

(set of credentials) and one session on App Server
server. Connections are pooled, message X Y Z
from client session to server session may
use any connection to that server. New Sessions App Services
client session may start on any connected
server, but session stays with that server.
App Server may issue a “Session Moving”
message to inform client to use a new
server (e.g. from a server farm).

55. DivConq CTP

56. This first example (just one server) may appear overly complex until we review the
second example (three servers). CTP is designed to work well within a distributed
application environment where some parts may be running on separate servers. But
in this first example all parts are running on one server.

57. App Server
RPC A Service
Session Z

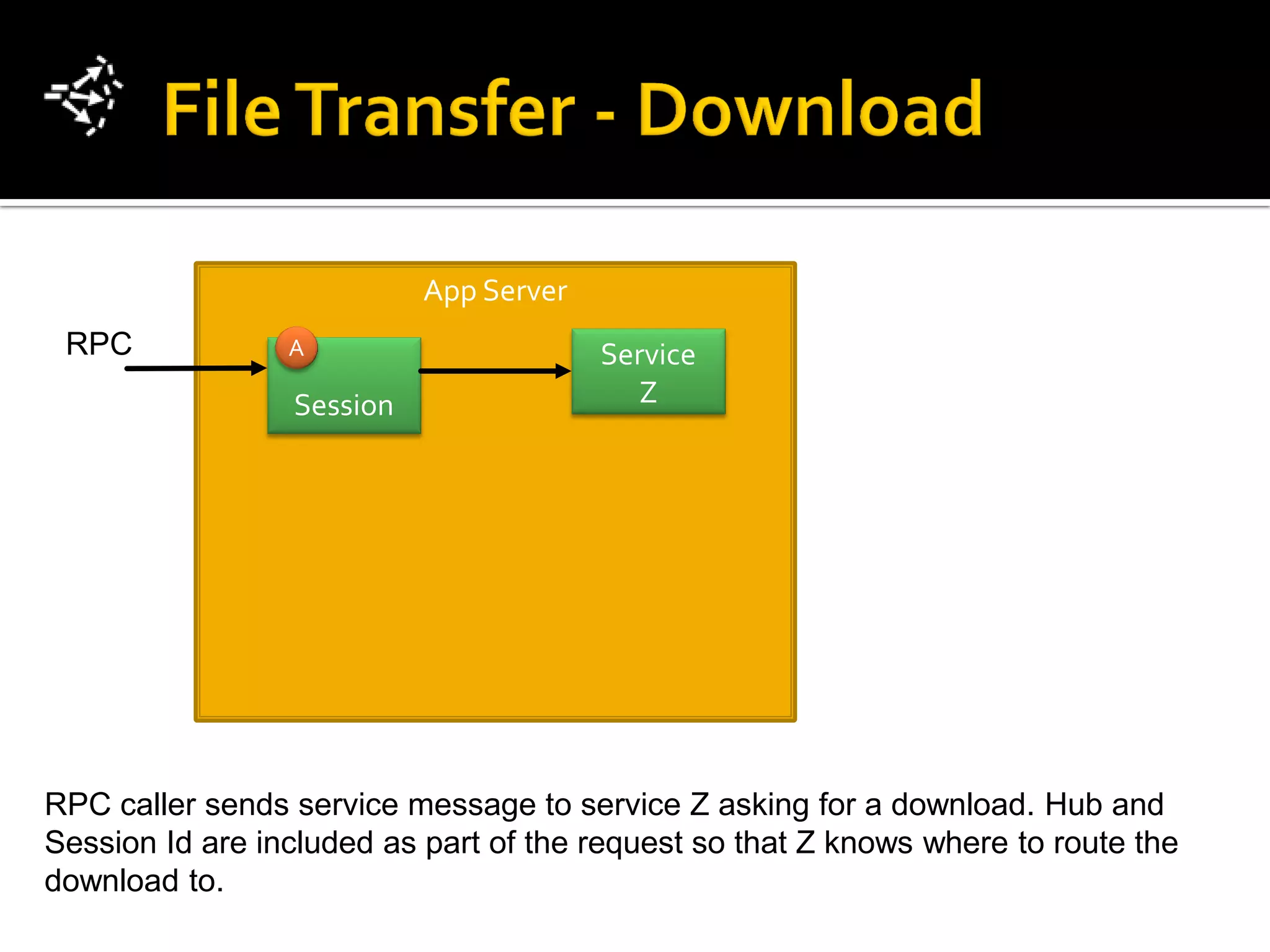

RPC caller sends service message to service Z asking for a download. Hub and
Session Id are included as part of the request so that Z knows where to route the
download to.

58. App Server
RPC A Service
Session Z
Plan

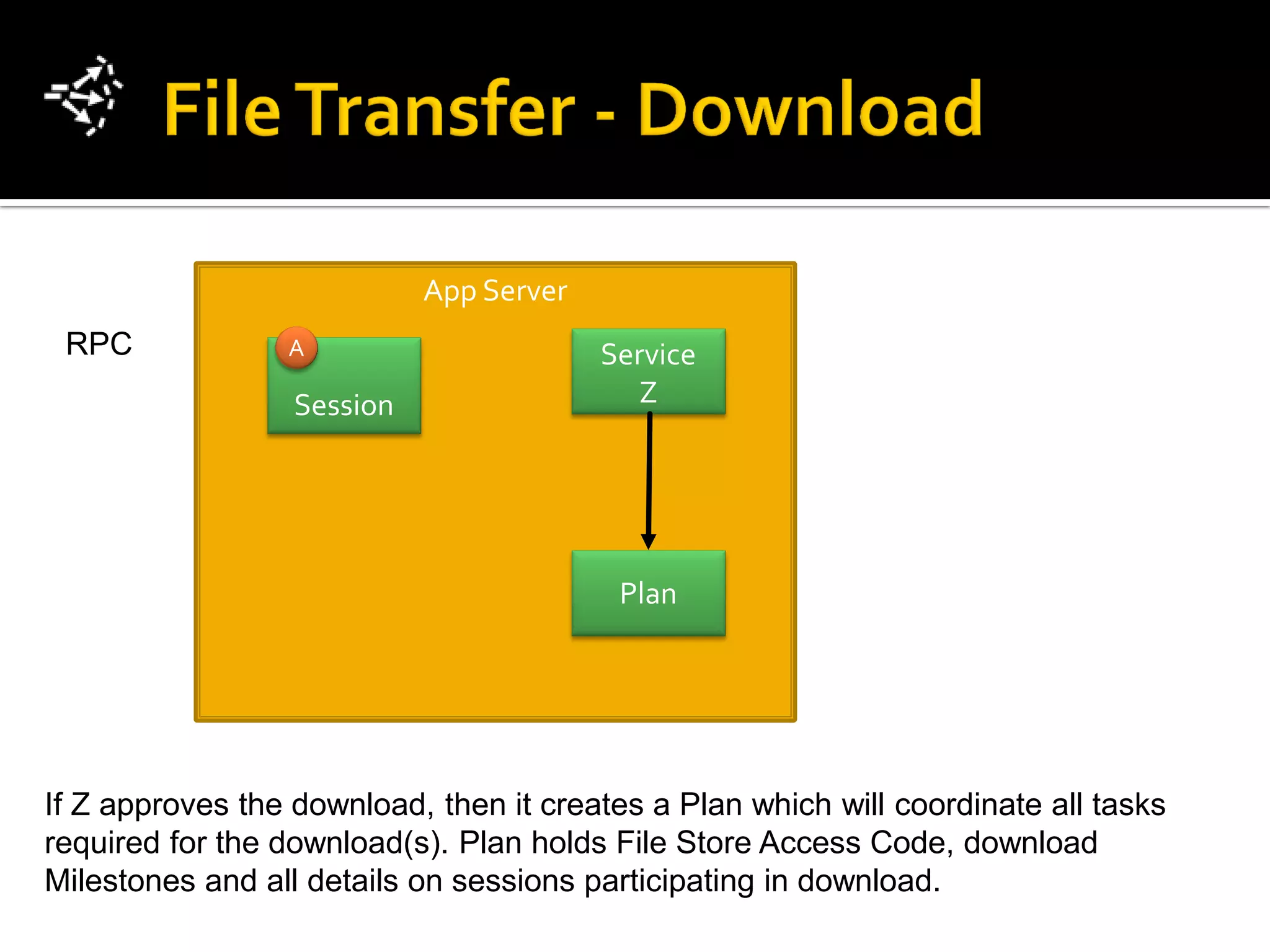

If Z approves the download, then it creates a Plan which will coordinate all tasks
required for the download(s). Plan holds File Store Access Code, download
Milestones and all details on sessions participating in download.

59. App Server
RPC A Service
Session Z
Session
Plan
B

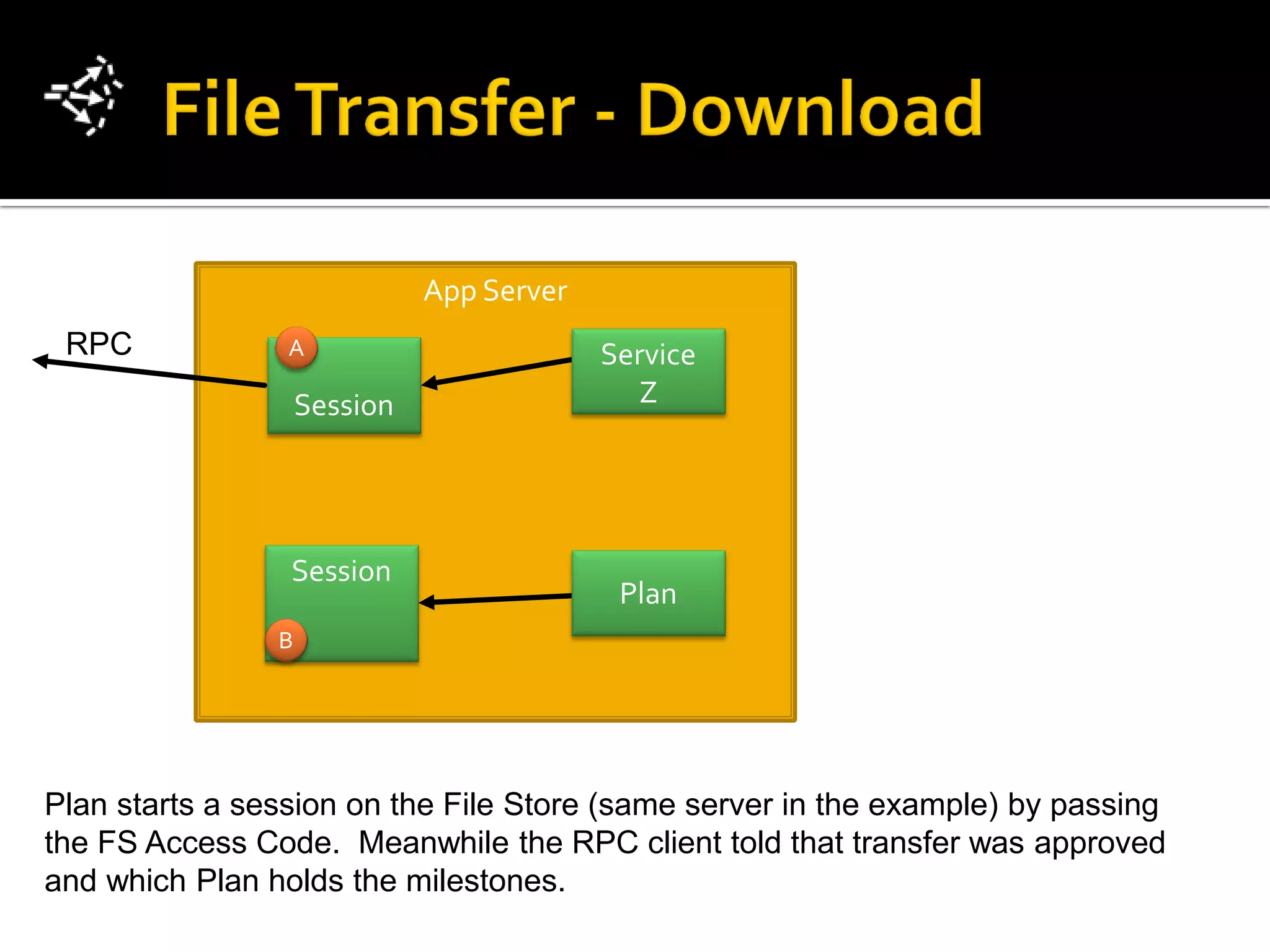

Plan starts a session on the File Store (same server in the example) by passing
the FS Access Code. Meanwhile the RPC client told that transfer was approved
and which Plan holds the milestones.

60. App Server
RPC A Service
Session Z
Session
Plan
B

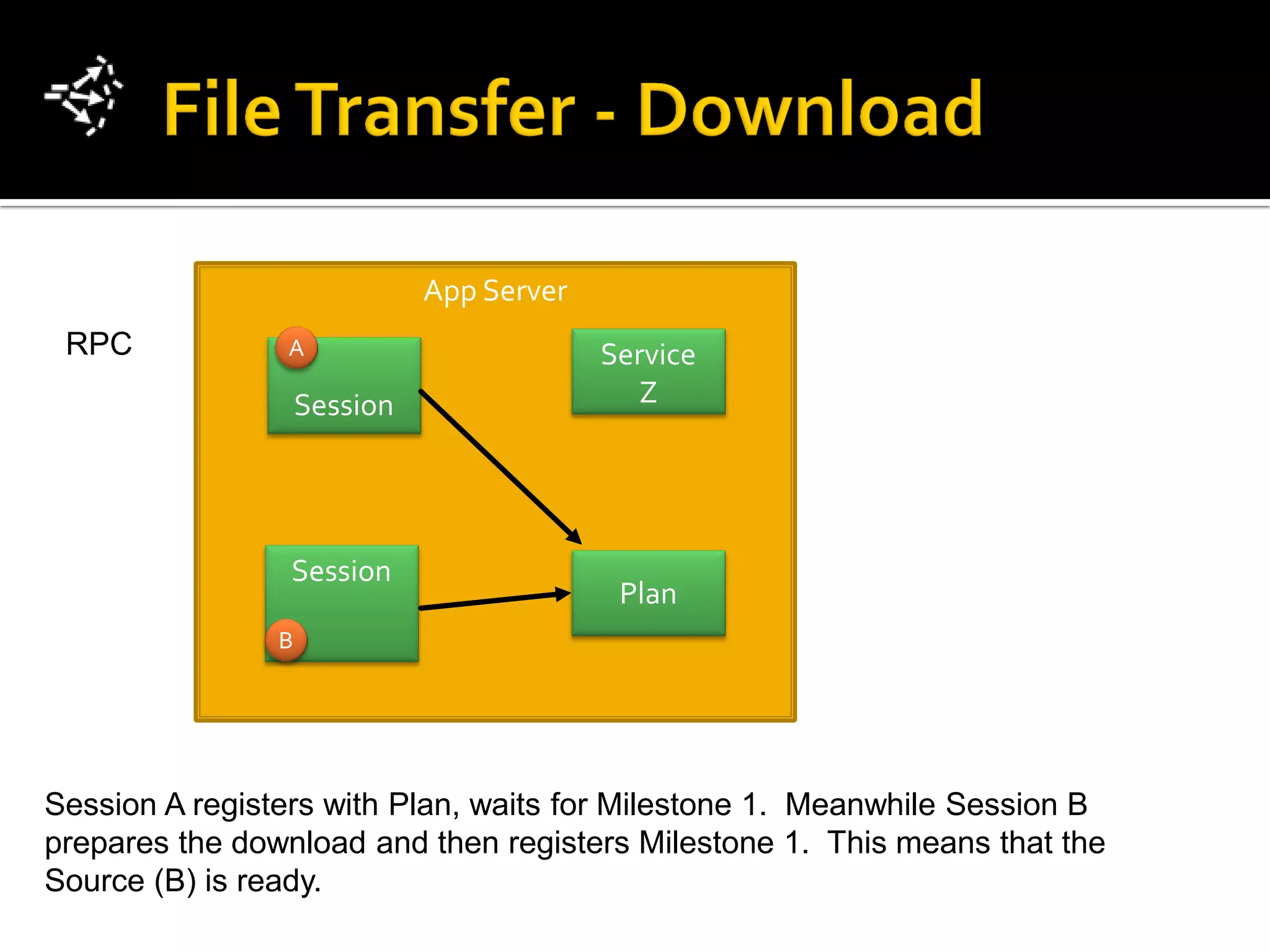

Session A registers with Plan, waits for Milestone 1. Meanwhile Session B
prepares the download and then registers Milestone 1. This means that the
Source (B) is ready.

61. App Server
RPC A Service
Session Z
Session
Plan
B

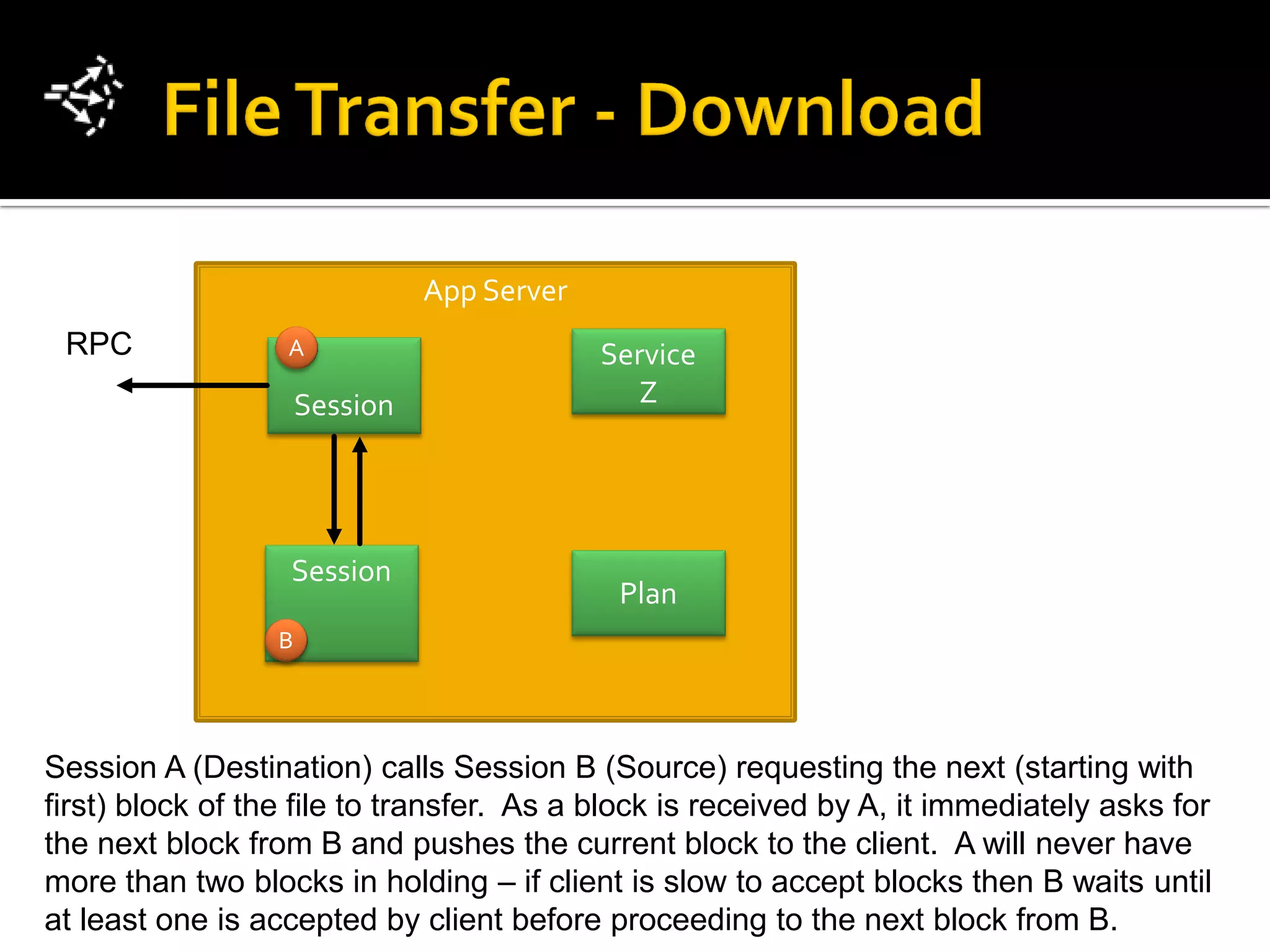

Session A (Destination) calls Session B (Source) requesting the next (starting with
first) block of the file to transfer. As a block is received by A, it immediately asks for
the next block from B and pushes the current block to the client. A will never have
more than two blocks in holding – if client is slow to accept blocks then B waits until
at least one is accepted by client before proceeding to the next block from B.

62. App Server
RPC A Service
Session Z
Session
Plan
B

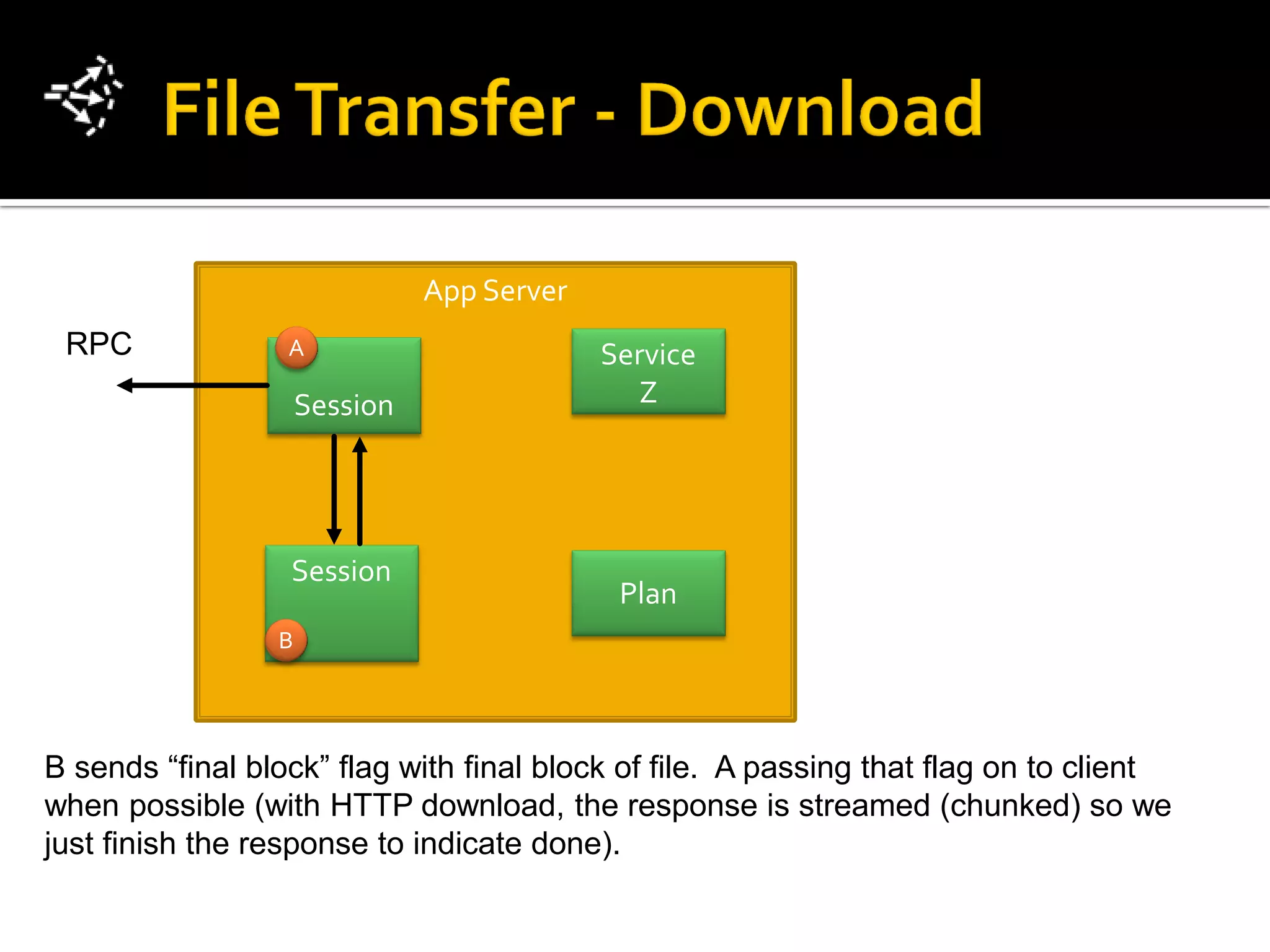

B sends “final block” flag with final block of file. A passing that flag on to client
when possible (with HTTP download, the response is streamed (chunked) so we
just finish the response to indicate done).

63. App Server
A Service
Session Z
Session
Plan
B

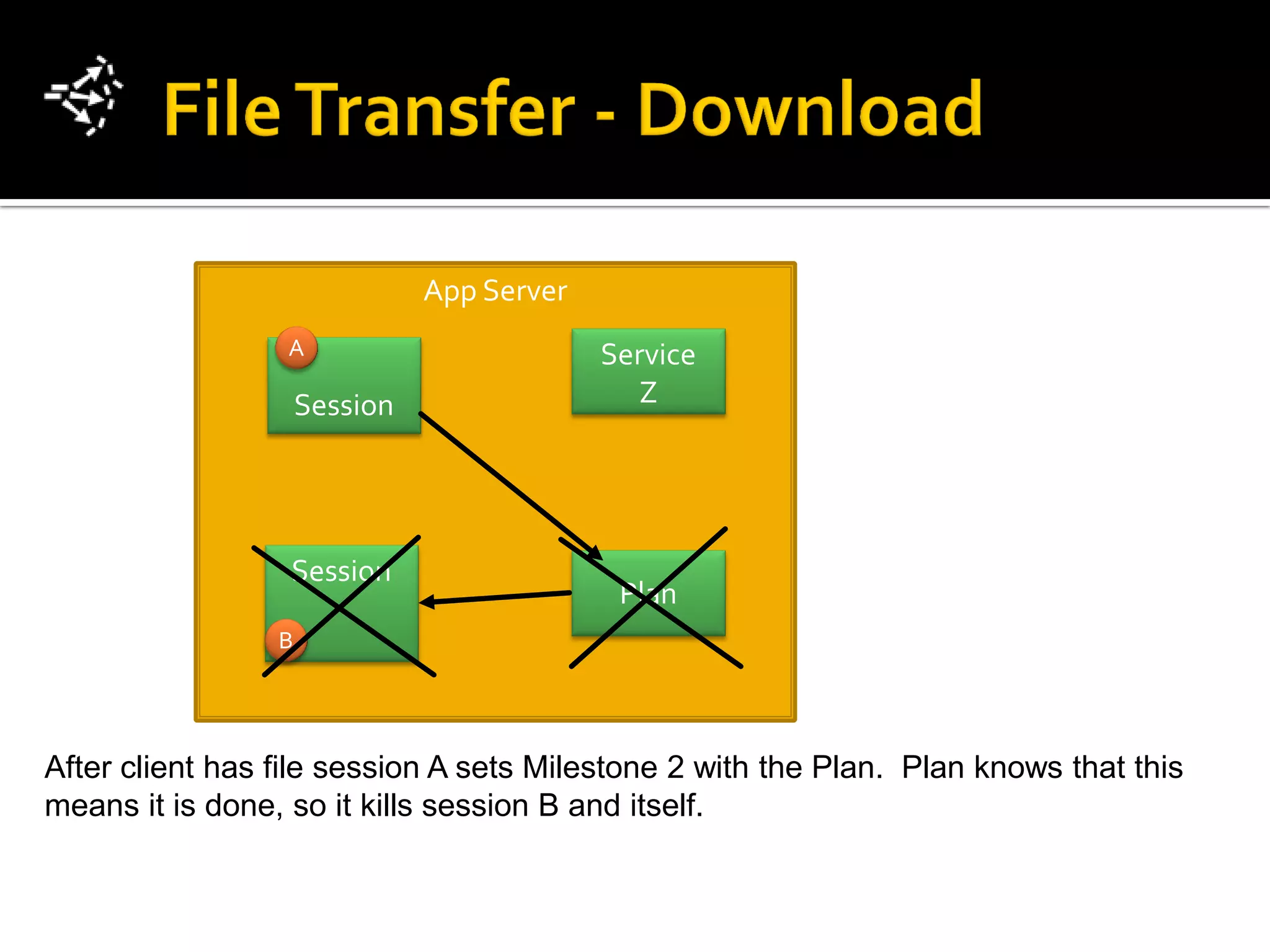

After client has file session A sets Milestone 2 with the Plan. Plan knows that this
means it is done, so it kills session B and itself.

64. DivConq Database

65. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
RPC caller sends service message to service Z asking for a download. Hub and
Session Id are included as part of the request so that Z knows where to route the
download to.

66. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan

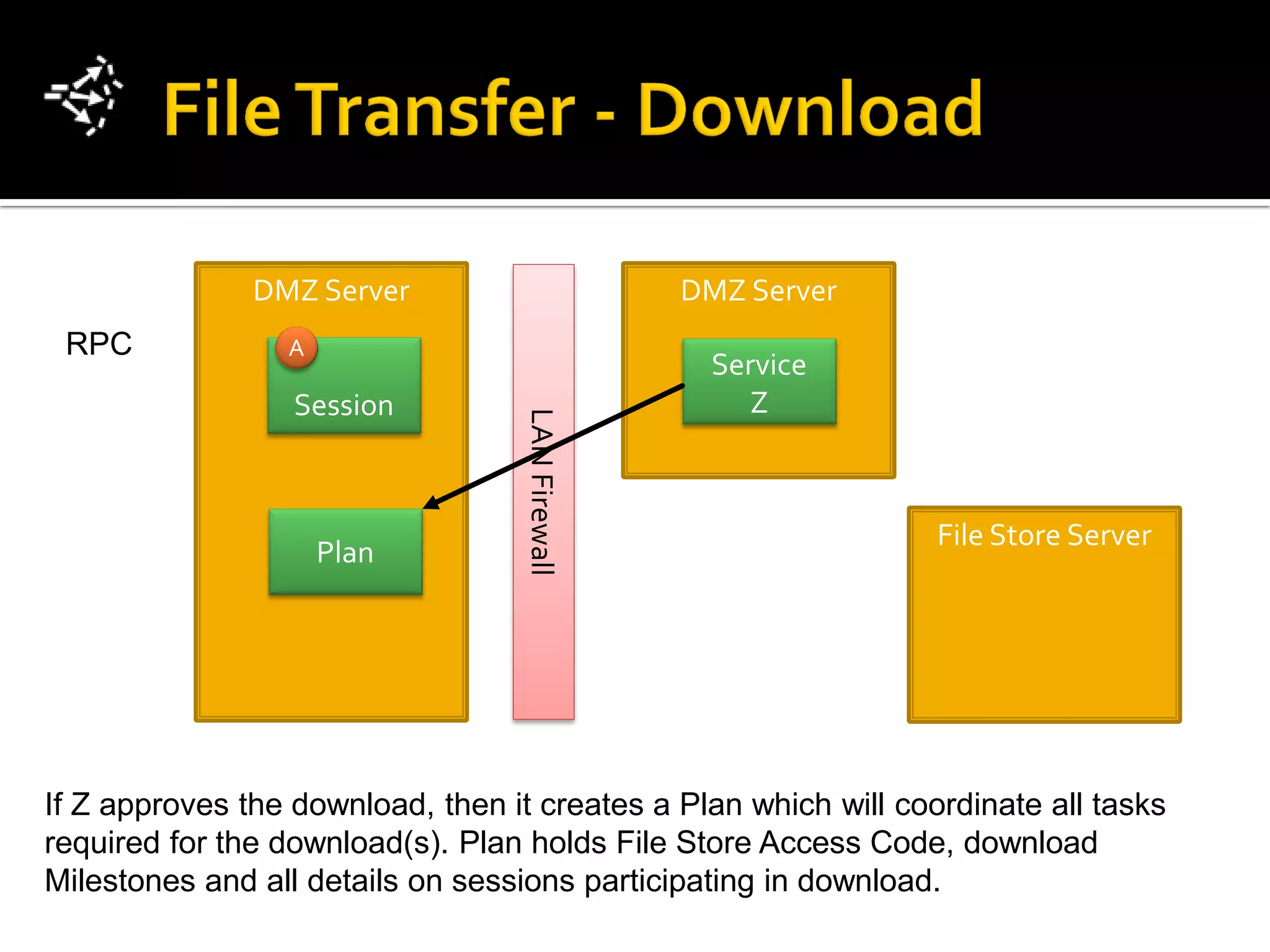

If Z approves the download, then it creates a Plan which will coordinate all tasks
required for the download(s). Plan holds File Store Access Code, download
Milestones and all details on sessions participating in download.

67. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

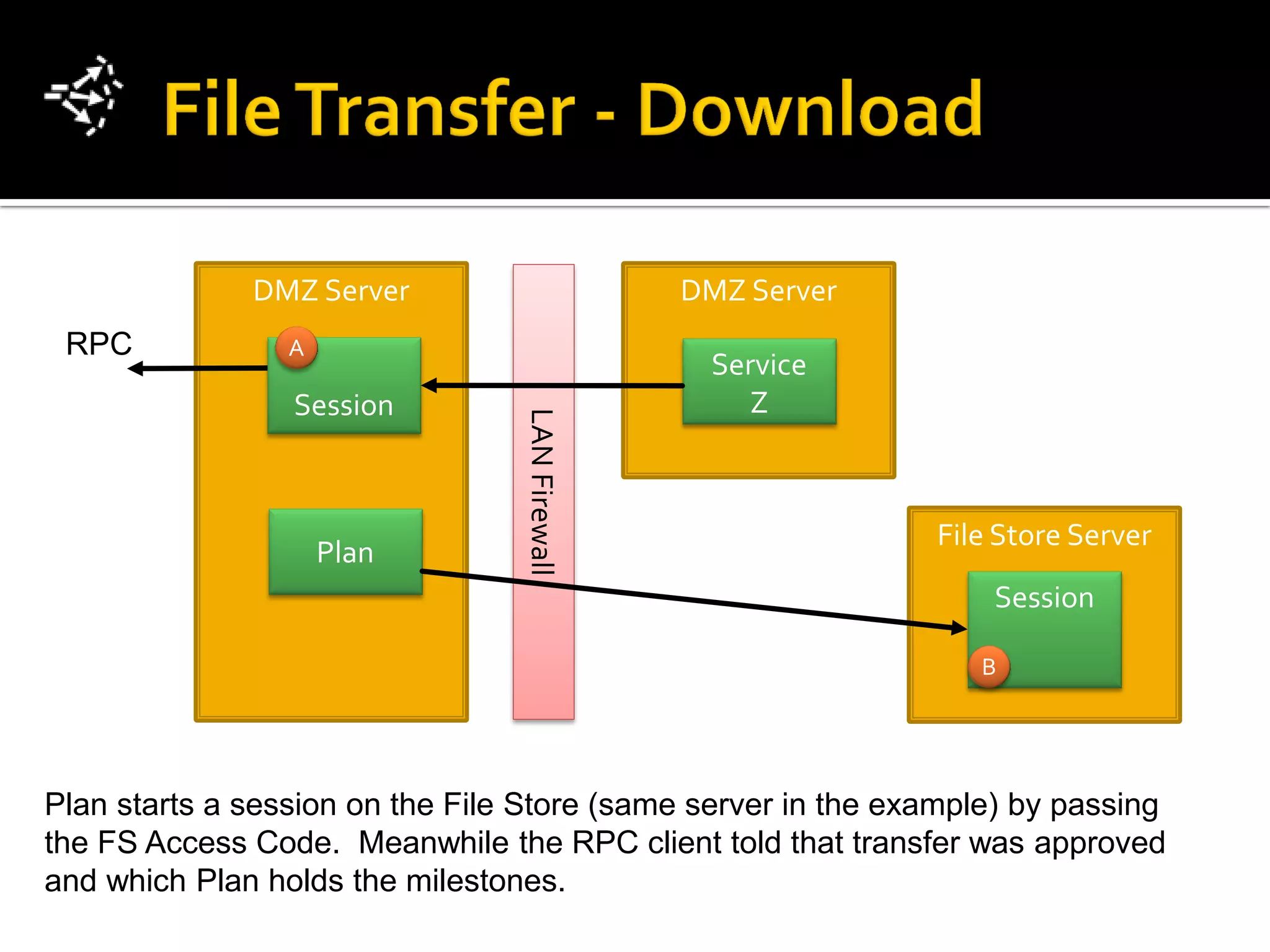

Plan starts a session on the File Store (same server in the example) by passing
the FS Access Code. Meanwhile the RPC client told that transfer was approved
and which Plan holds the milestones.

68. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

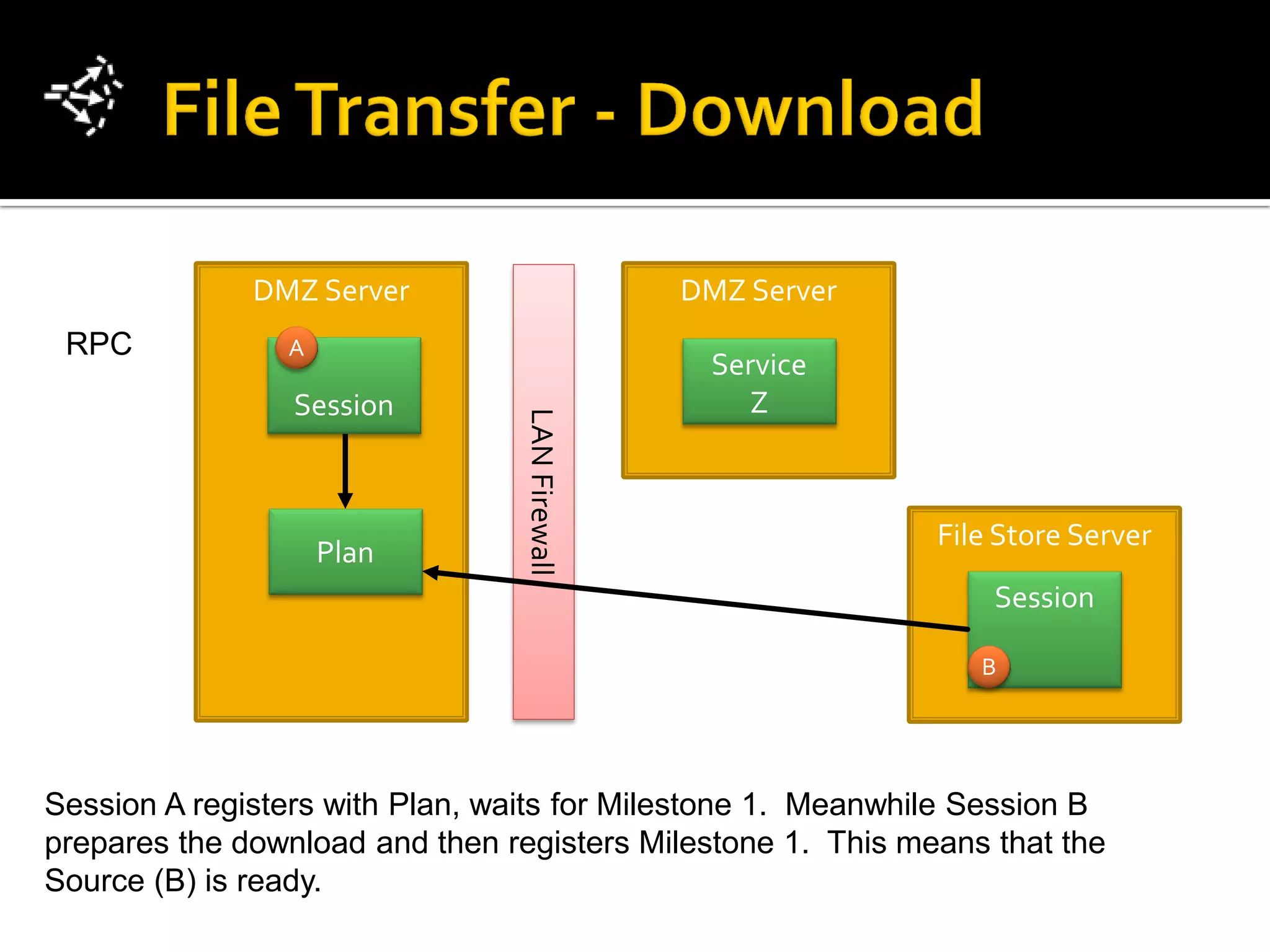

Session A registers with Plan, waits for Milestone 1. Meanwhile Session B
prepares the download and then registers Milestone 1. This means that the
Source (B) is ready.

69. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

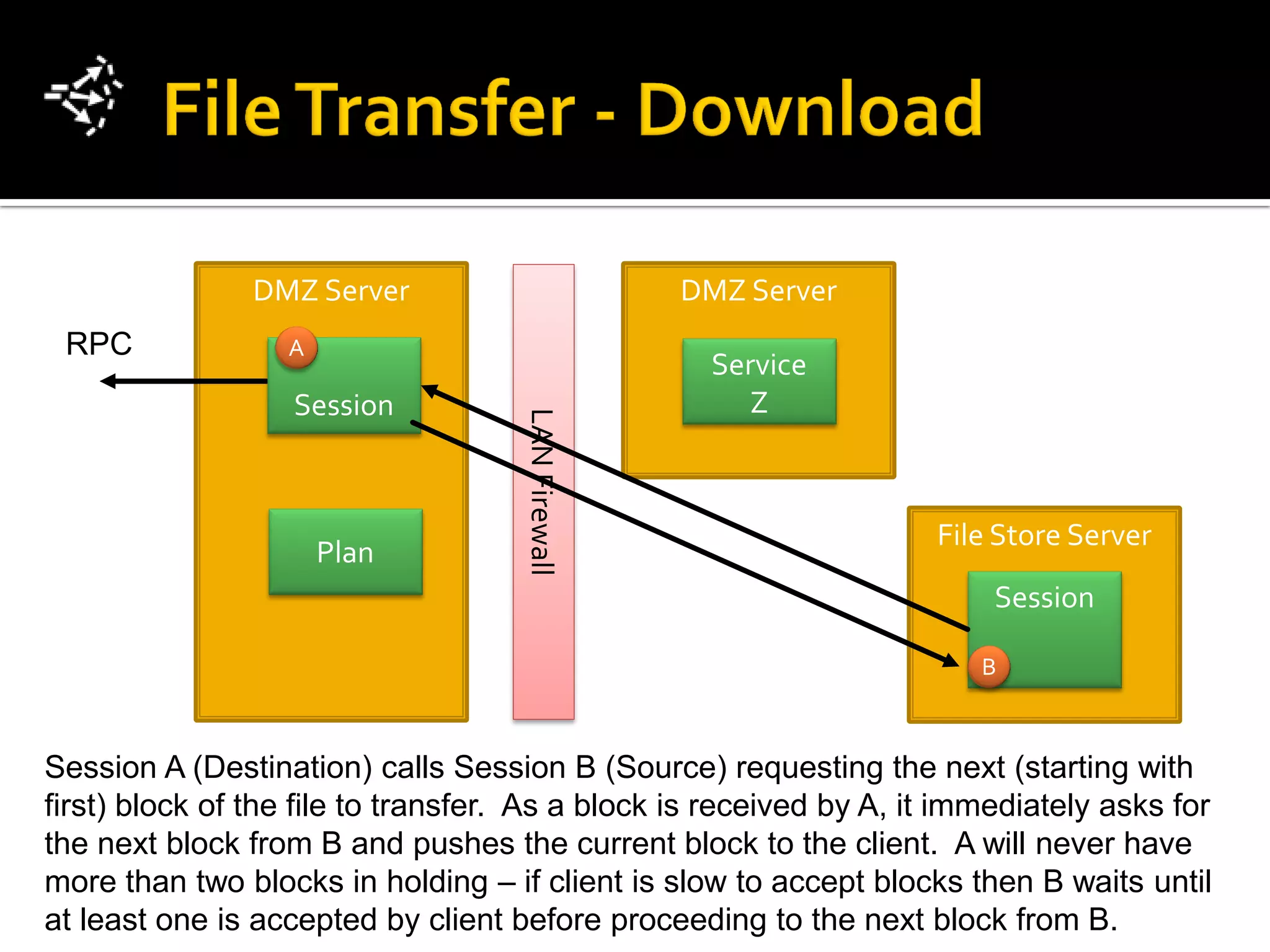

Session A (Destination) calls Session B (Source) requesting the next (starting with
first) block of the file to transfer. As a block is received by A, it immediately asks for
the next block from B and pushes the current block to the client. A will never have
more than two blocks in holding – if client is slow to accept blocks then B waits until
at least one is accepted by client before proceeding to the next block from B.

70. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

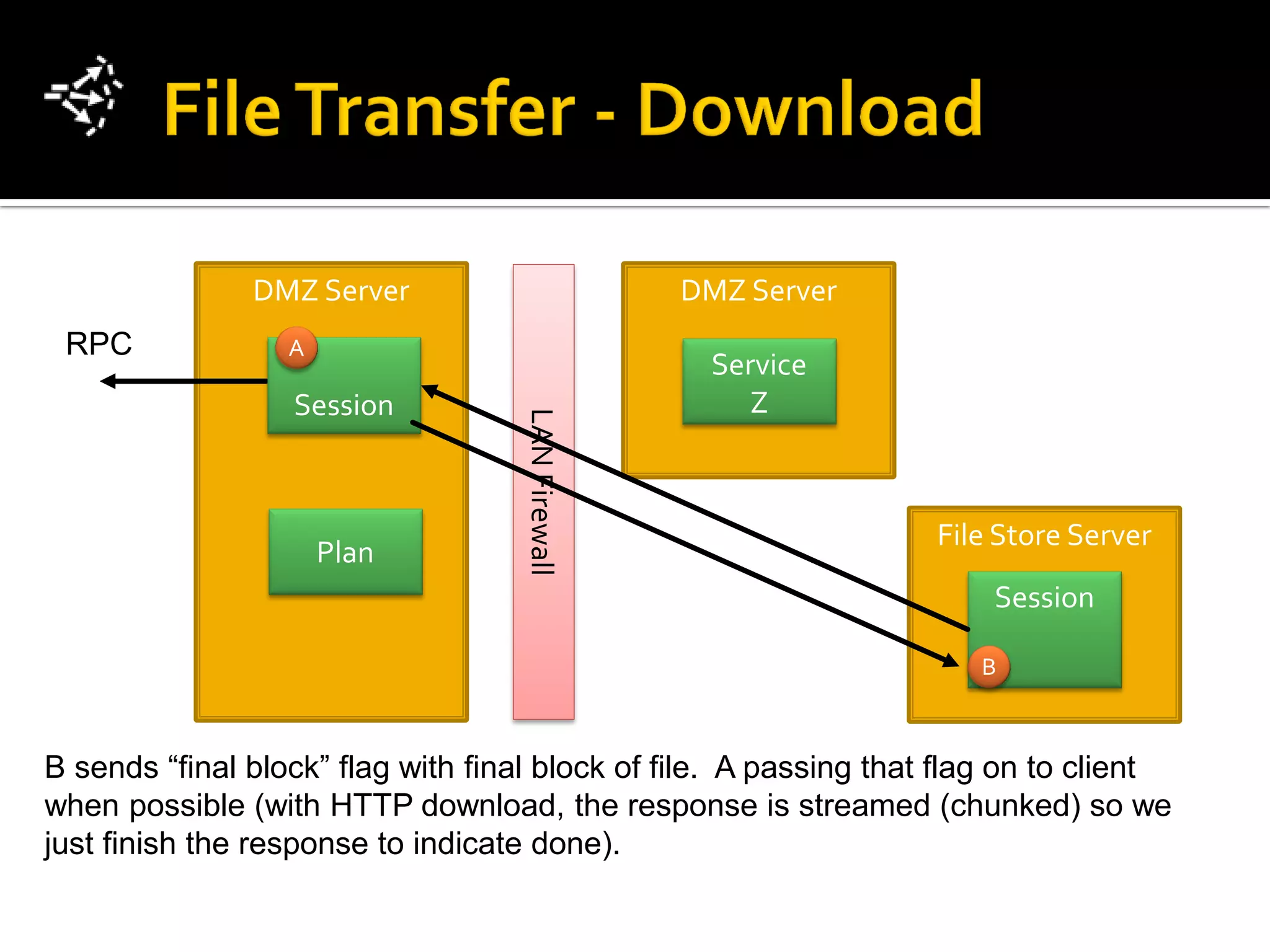

B sends “final block” flag with final block of file. A passing that flag on to client
when possible (with HTTP download, the response is streamed (chunked) so we
just finish the response to indicate done).

71. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

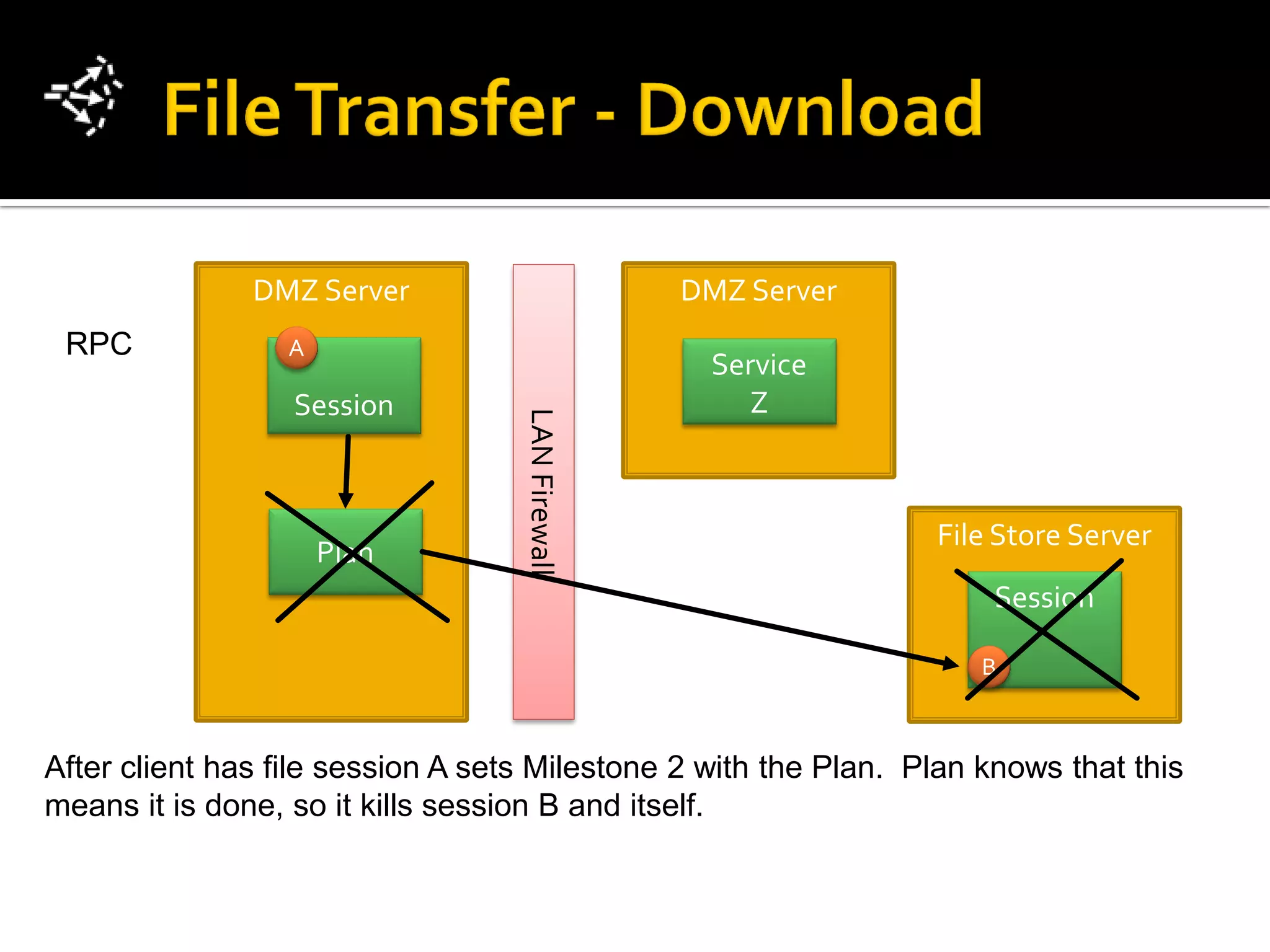

After client has file session A sets Milestone 2 with the Plan. Plan knows that this
means it is done, so it kills session B and itself.

72. DivConq Database

73. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server

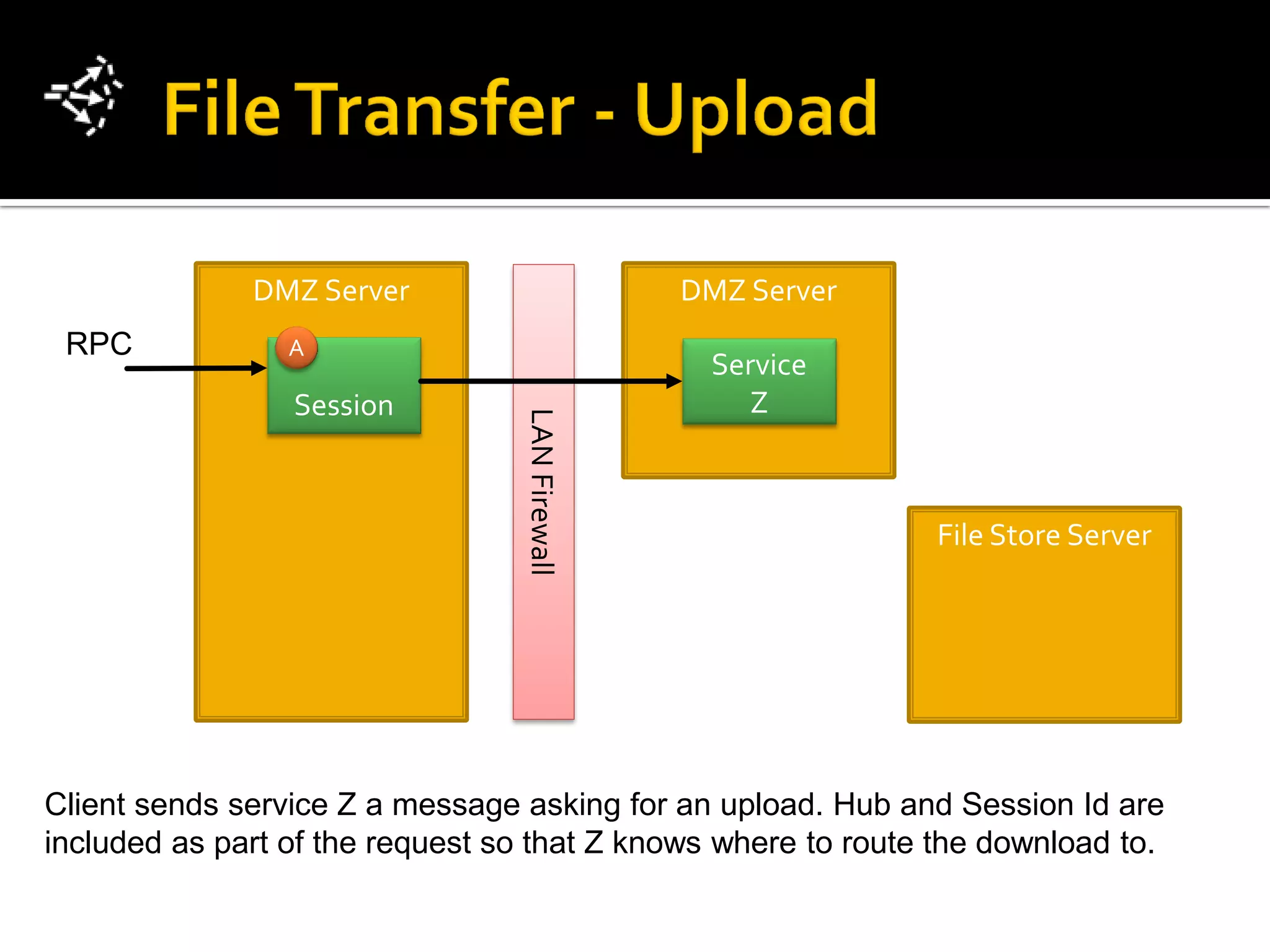

Client sends service Z a message asking for an upload. Hub and Session Id are
included as part of the request so that Z knows where to route the download to.

74. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan

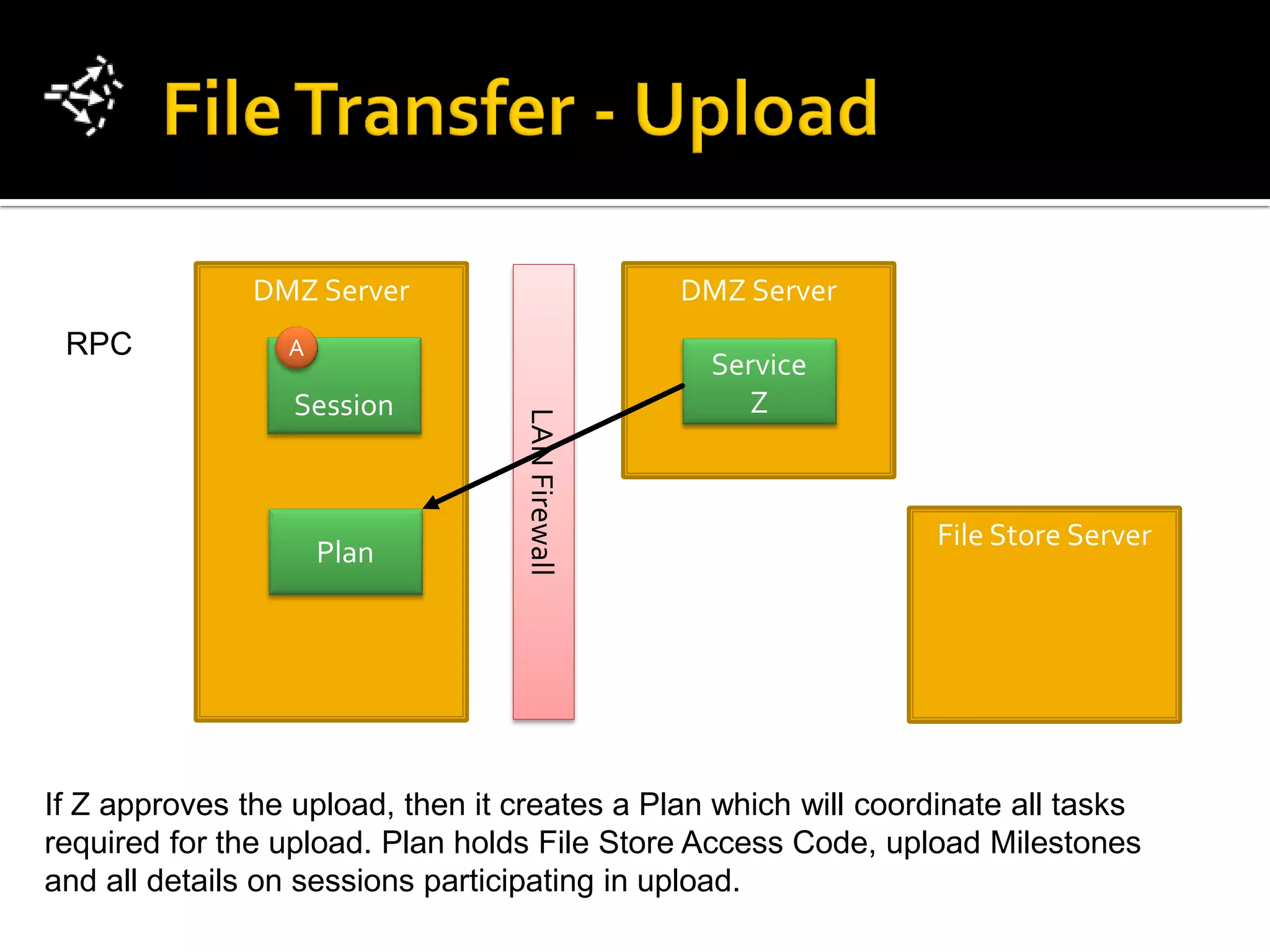

If Z approves the upload, then it creates a Plan which will coordinate all tasks
required for the upload. Plan holds File Store Access Code, upload Milestones
and all details on sessions participating in upload.

75. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

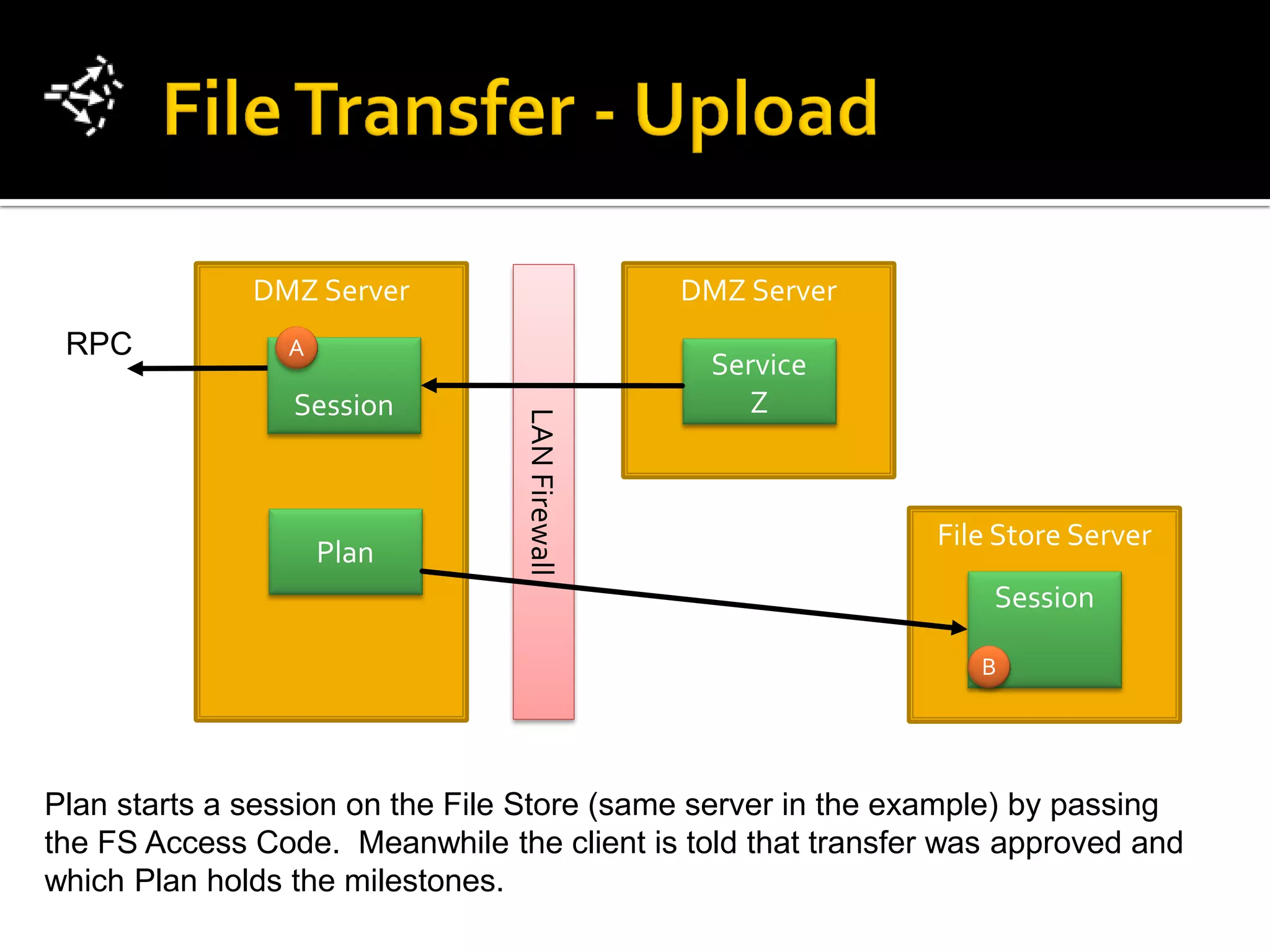

Plan starts a session on the File Store (same server in the example) by passing
the FS Access Code. Meanwhile the client is told that transfer was approved and
which Plan holds the milestones.

76. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

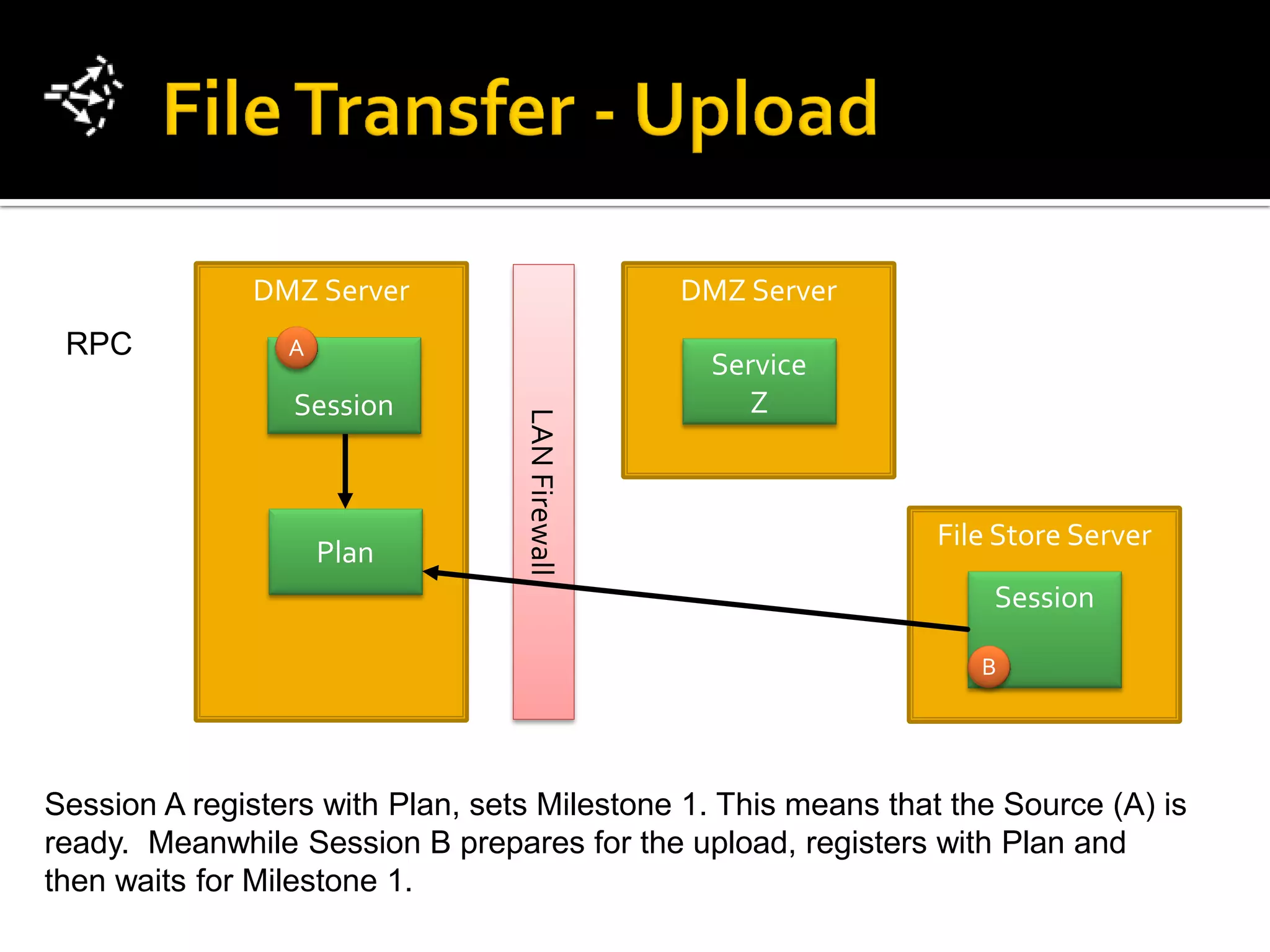

Session A registers with Plan, sets Milestone 1. This means that the Source (A) is
ready. Meanwhile Session B prepares for the upload, registers with Plan and
then waits for Milestone 1.

77. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

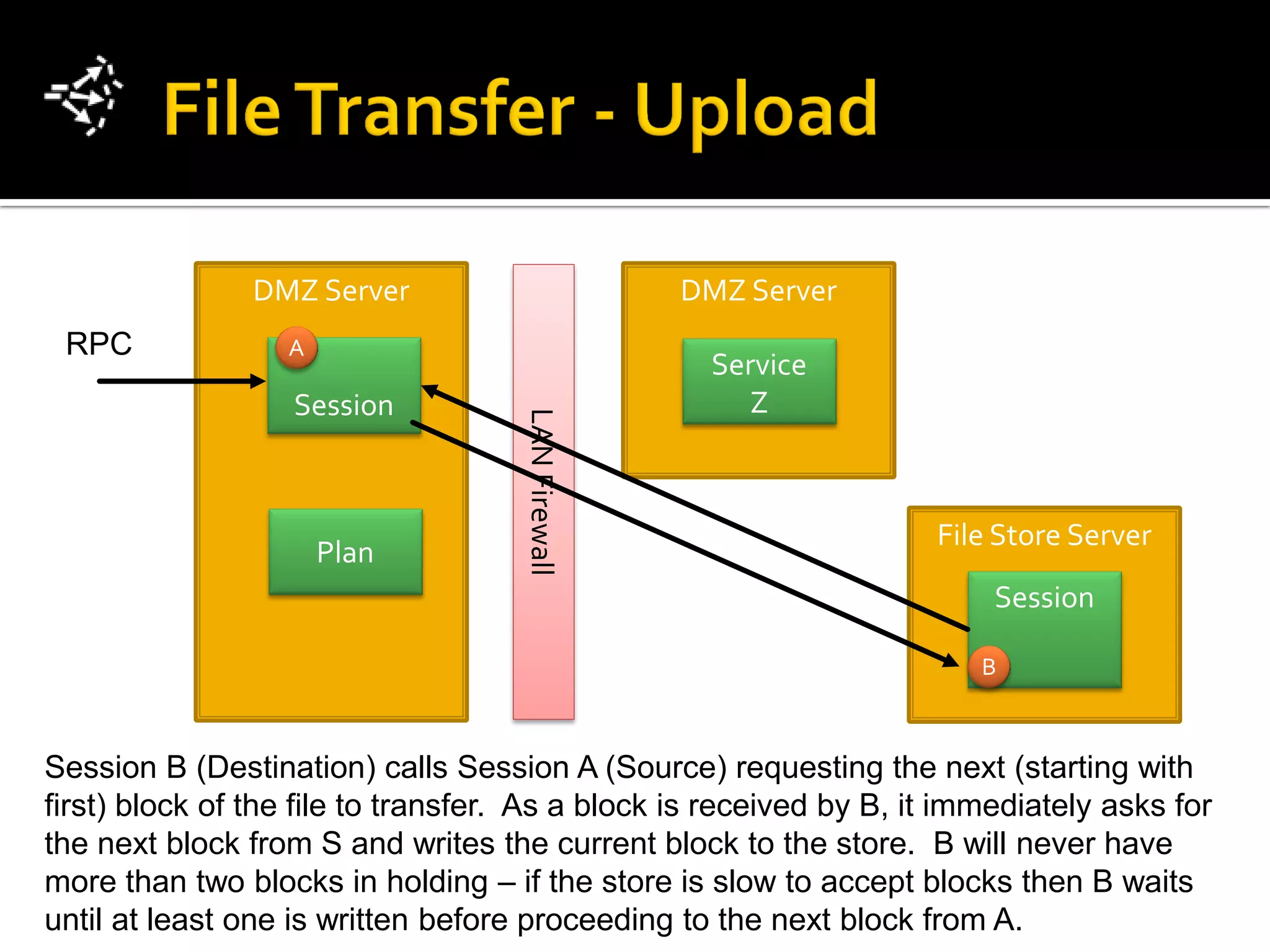

Session B (Destination) calls Session A (Source) requesting the next (starting with
first) block of the file to transfer. As a block is received by B, it immediately asks for
the next block from S and writes the current block to the store. B will never have
more than two blocks in holding – if the store is slow to accept blocks then B waits
until at least one is written before proceeding to the next block from A.

78. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

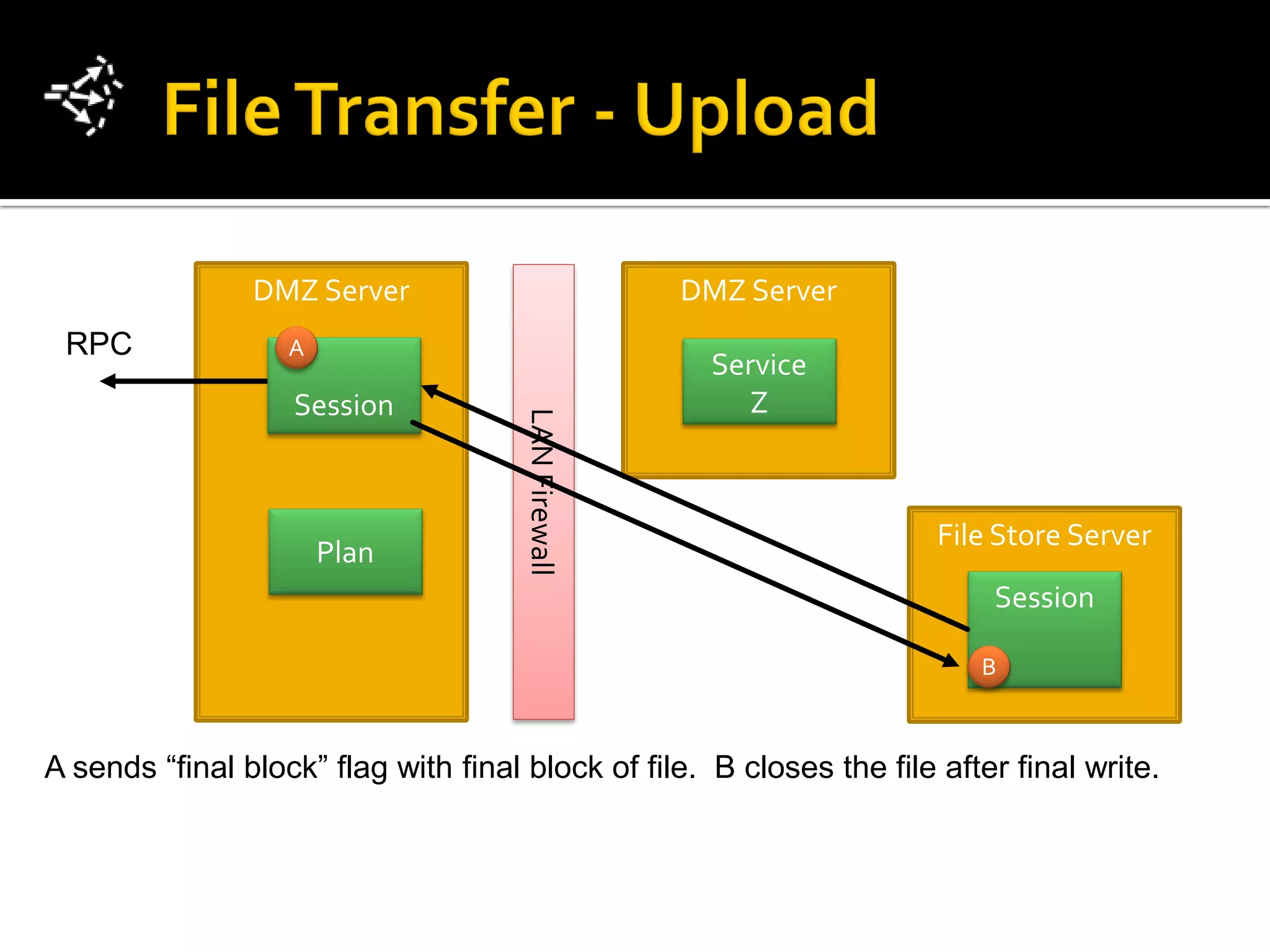

A sends “final block” flag with final block of file. B closes the file after final write.

79. DMZ Server DMZ Server
RPC A
Service
Session Z
LAN Firewall File Store Server
Plan
Session
B

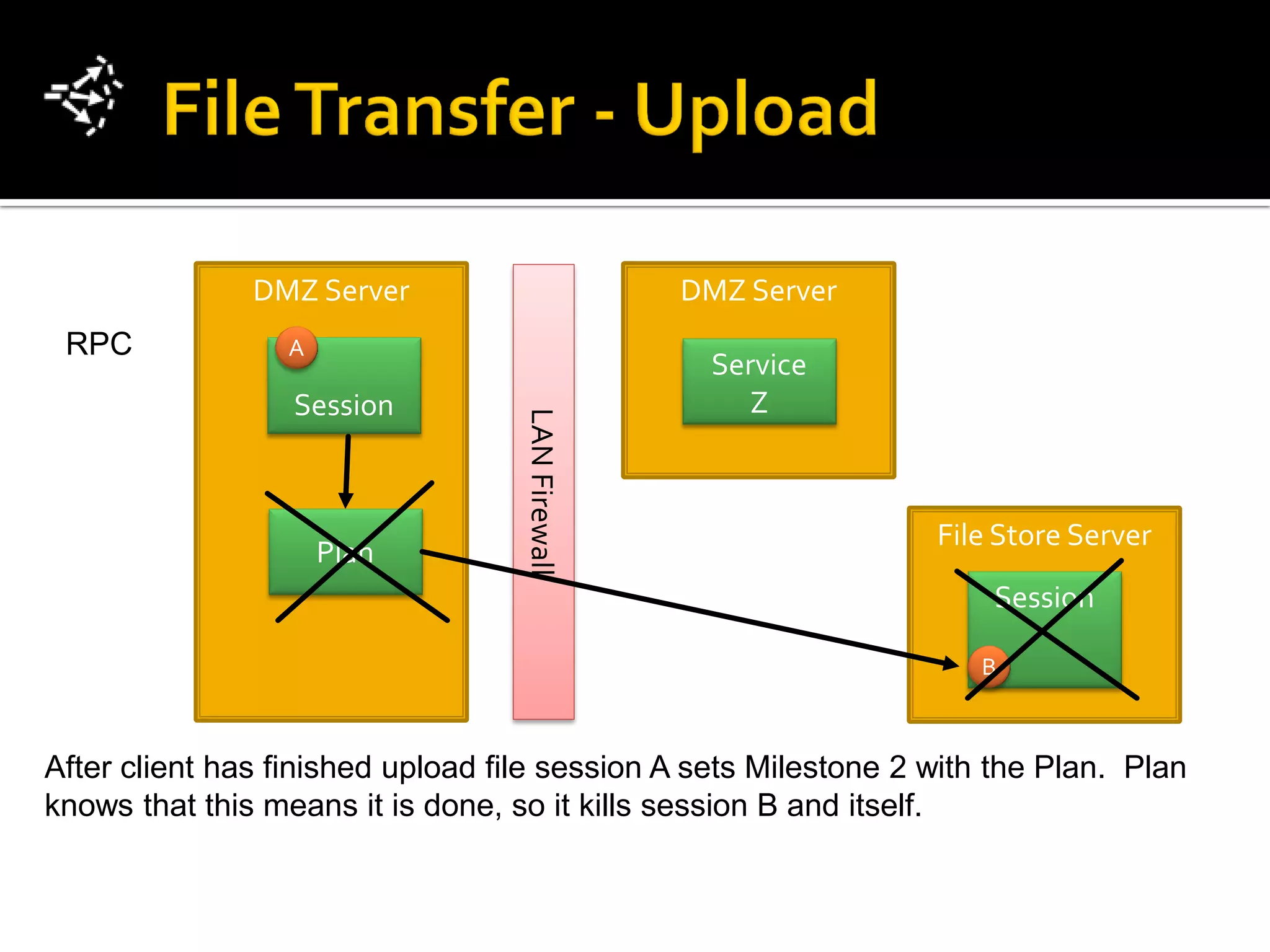

After client has finished upload file session A sets Milestone 2 with the Plan. Plan
knows that this means it is done, so it kills session B and itself.

80. DivConq CTP

81. Client App App Server
A M X
FT App Collab
Session File Store
RPC
A M X
Sessions Pool
To speed up a large file upload, use “Parts”. In this case we’ll transfer three parts at the
same time.
To transfer parts the requests go to the same server (or same squad/farm) for each
session. Only one file name is given for upload, each session transfers a different set of
blocks for the file.

82. DivConq CTP

83. Client App App Server
A
FT App Collab
Session File Store
RPC
A M X
Sessions Pool
App Server
M
Collab
Session File Store

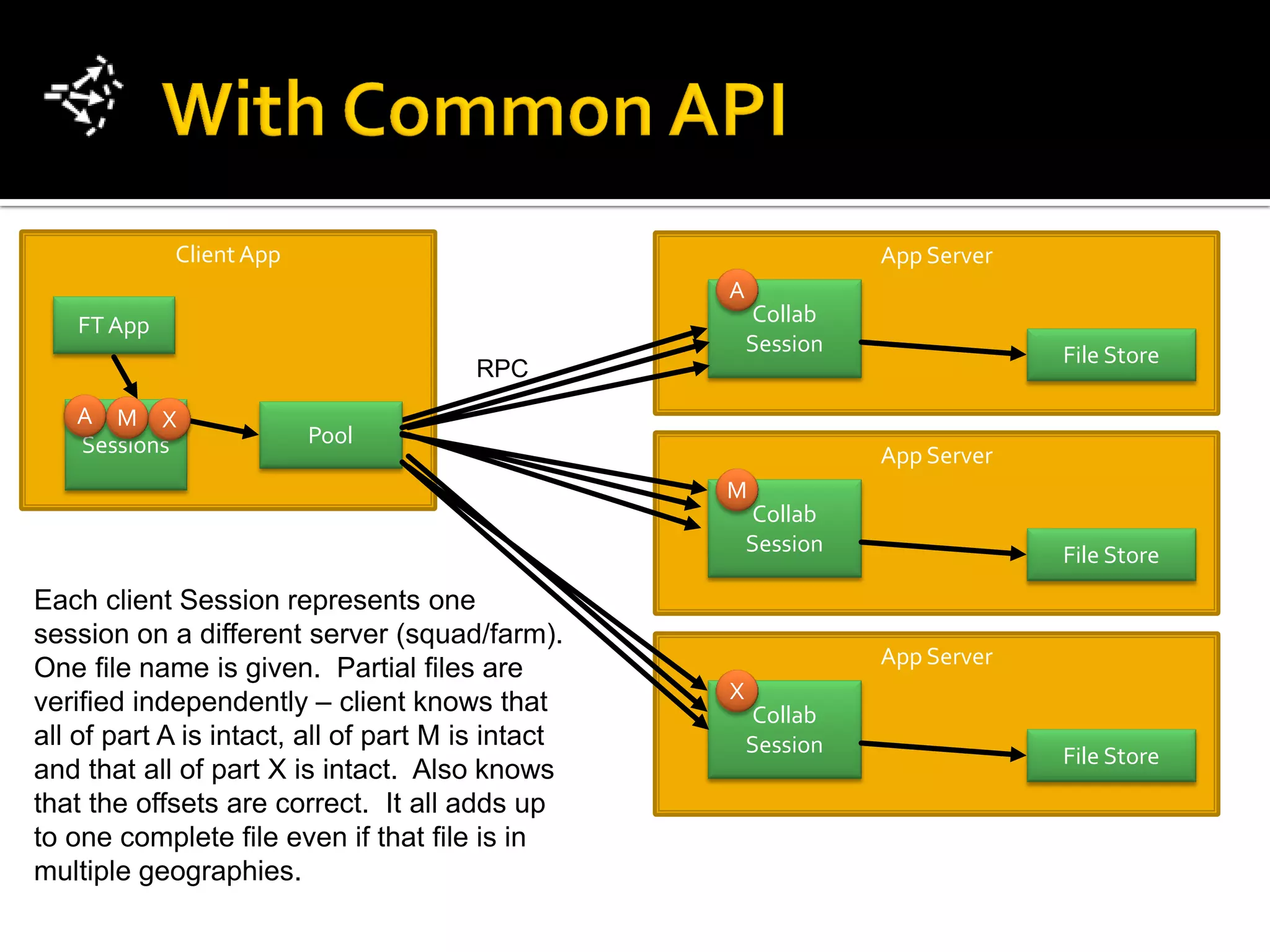

Each client Session represents one
session on a different server (squad/farm).
App Server
One file name is given. Partial files are
verified independently – client knows that X
Collab
all of part A is intact, all of part M is intact Session File Store
and that all of part X is intact. Also knows
that the offsets are correct. It all adds up
to one complete file even if that file is in
multiple geographies.

84. Common Transfer Protocol can meet its goals.
• A complete spec for messaging commands as well as file transfers (SIGN ON,
DIR, GET, PUT)
• It is abstracted from network layer, could be implemented in TCP, UDP or
through either HTTP or Web Socket
• It does not assume full duplex communications
• It does not (necessarily) associate network layer client credentials with the file
transfer, which can lead to scalability and efficiency issues
• It is platform and language neutral
• Server could be implemented in Java, C, Python or similarly suitable
languages
• Client can be implemented in any language with TCP or HTTP capabilities
• It is open and free
