Networking
 by Example!
        Noury Bouraqadi
http://car.mines-douai.fr/noury

  "Deep Into Smalltalk" Spring School
     8 march 2011 - Lille, France
2


                   Agenda
•  Networking Basics
  –  Sockets and protocols
  –  Client vs. Server
  –  Hands-on with SocketStream

•  Serving
  –  Connection vs. communication
  –  Hands-on Concurrency!

•  Complex interactions
  –  Exchanging objects over a network
  –  Remote messaging Hands-on
3




 Software                          Software
                 Nework

Process                              Process
            Soc
                ke        oc ket
                     t   S

    Bi-directional communication
4




   Device A                          Device B

 Software                              Software
                   Nework

Process                                  Process
              Soc
                  ke        oc ket
                       t   S

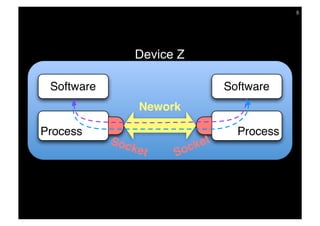

5




                Device Z

 Software                          Software
                 Nework

Process                              Process
            Soc
                ke        oc ket
                     t   S
6

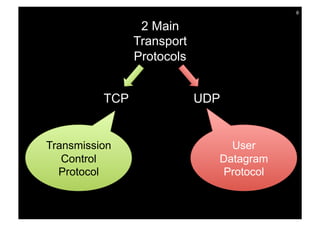

                 2 Main
                Transport
                Protocols


          TCP               UDP


Transmission                    User
   Control                    Datagram
  Protocol                    Protocol
7


                  2 Main
                 Transport
                 Protocols


          TCP                UDP


•  Connected                 •  Connection free
   •  Reliable                   •  Unreliable
  •  Streams                    •  Limited size
8

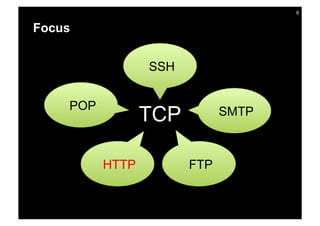

Focus


                 SSH


    POP
                 TCP         SMTP



          HTTP         FTP
9

    Connection
     Handling
     Process




Server



                 Client A
                 Communication
                   Process
10

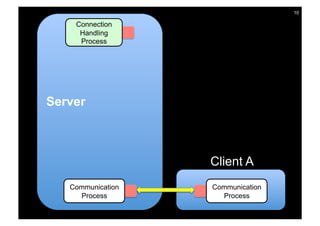

    Connection
     Handling
     Process




Server



                   Client A
   Communication   Communication
     Process         Process
11

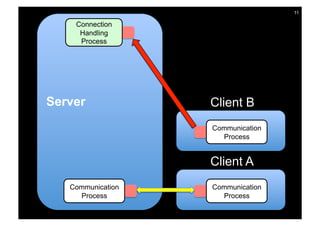

    Connection
     Handling
     Process




Server             Client B
                   Communication
                     Process


                   Client A
   Communication   Communication
     Process         Process
12

    Connection
     Handling
     Process




Server             Client B
   Communication   Communication
     Process         Process


                   Client A
   Communication   Communication
     Process         Process

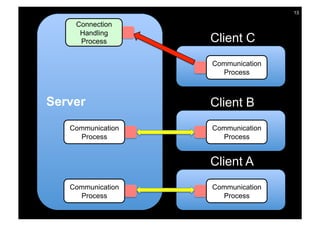

13

    Connection
     Handling
     Process       Client C
                   Communication
                     Process



Server             Client B
   Communication   Communication
     Process         Process


                   Client A
   Communication   Communication
     Process         Process
14

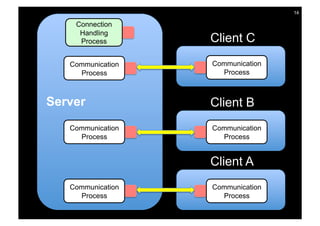

    Connection
     Handling
     Process       Client C
   Communication   Communication
     Process         Process



Server             Client B
   Communication   Communication
     Process         Process


                   Client A
   Communication   Communication
     Process         Process
15




  Client Socket
 So cketS tream!
1.  Connect to a server
2.  Send a String
3.  Receive a String
4.  Close
16

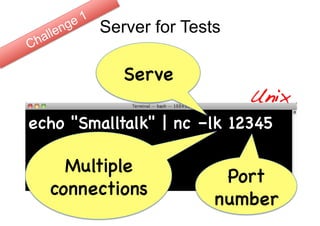

         Server for Tests

            Serve
                            Unix!
echo "Smalltalk" | nc –lk 12345

    Multiple
                         Port
  connections
                        number
17

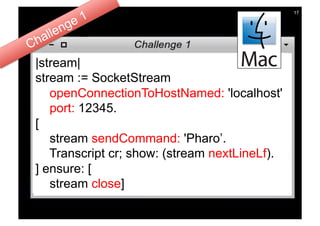

|stream|
stream := SocketStream
   openConnectionToHostNamed: 'localhost'
   port: 12345.
[
   stream sendCommand: 'Pharo’.
   Transcript cr; show: (stream nextLineLf).
] ensure: [
   stream close]
18




Simplest Possible Server
1.  Listen on some port
2.  Accept 1 single client connection
3.  Send a String
4.  Receive a String
5.  Close
19

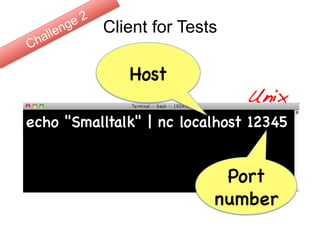

          Client for Tests

              Host
                               Unix!
echo "Smalltalk" | nc localhost 12345


                           Port
                          number
20

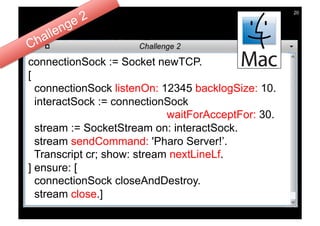

connectionSock := Socket newTCP.
[
  connectionSock listenOn: 12345 backlogSize: 10.
  interactSock := connectionSock
                             waitForAcceptFor: 30.
  stream := SocketStream on: interactSock.
  stream sendCommand: 'Pharo Server!’.
  Transcript cr; show: stream nextLineLf.
] ensure: [
  connectionSock closeAndDestroy.
  stream close.]
21

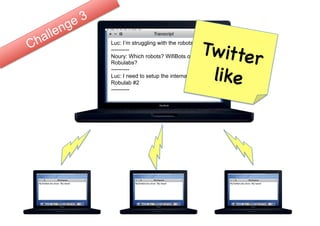

                                      Tw itter
Luc: I’m struggling with the robots
----------
Noury: Which robots? WifiBots or
Robulabs?
----------
                                       like
Luc: I need to setup the internal board of
Robulab #2
----------
22

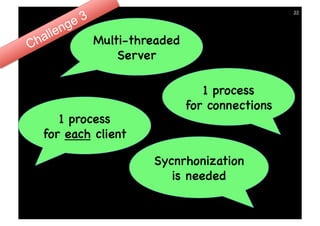

         Multi-threaded
             Server

                             1 process
                          for connections
   1 process
for each client

                  Sycnrhonization
                     is needed
23




         Multi-threaded
                              fork
             Server

                             1 process
                          for connections
   1 process
for each client   Mutex
                  Sycnrhonization
                     is needed
   critical:
24

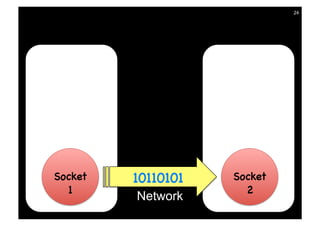

Socket   10110101   Socket
  1                   2
         Network
25

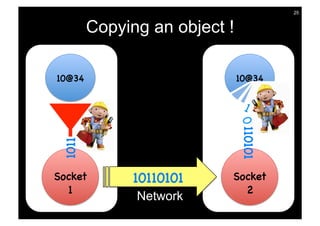

        Copying an object !

10@34                         10@34




                              110101
 1011




Socket        10110101    Socket
  1                         2
              Network
26

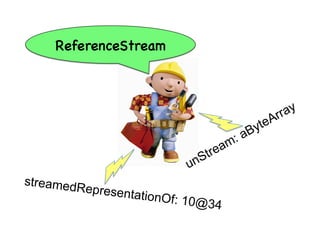

    ReferenceStream




streamed
           Represen
                      tationOf: 1
                                 0@34
27




Classes should be
  on both sides
28

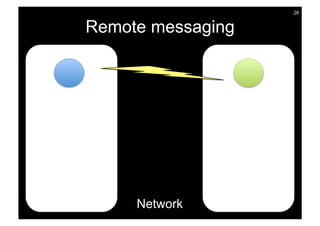

Remote messaging




     Network
29

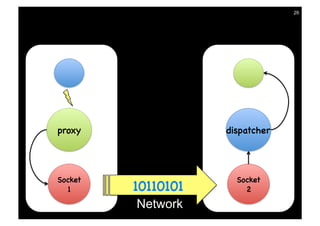

proxy               dispatcher




Socket                Socket
  1      10110101       2

         Network
30

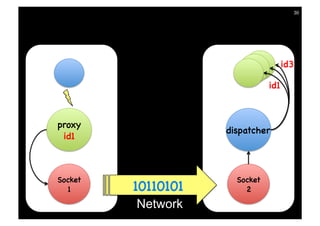

                                     id3

                               id1



proxy
                    dispatcher
 id1



Socket                Socket
  1      10110101       2

         Network
31




 Remote
Transcript
32

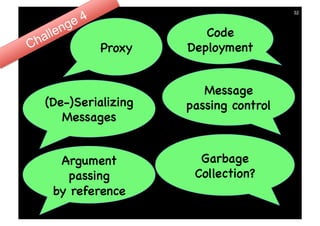

                      Code
          Proxy    Deployment


                      Message
(De-)Serializing   passing control
   Messages


  Argument           Garbage
    passing         Collection?
 by reference
33

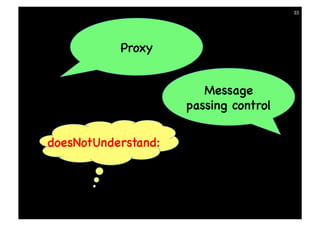

           Proxy


                        Message
                     passing control

doesNotUnderstand:
34




               ReferenceStream



                   unStream: aString
(De-)Serializing
   Messages


streamedRepresentationOf: anObject
35




What           OCEAN
Next?          New Socket
                 Library
Distributed-
  Objects
    (rST)
a Clean, Portable
Networking Library

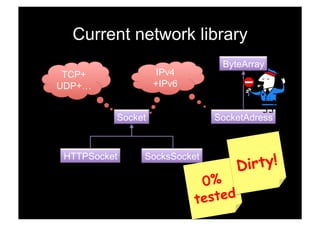

Current network library
                               ByteArray
 TCP+              IPv4
UDP+…              +IPv6


          Socket              SocketAdress




                                      irty!
 HTTPSocket    SocksSocket
                                     D
                             0%
                           t ested

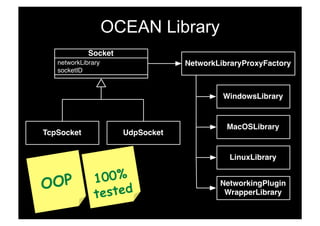

OCEAN Library
             Socket
   networkLibrary                 NetworkLibraryProxyFactory
   socketID



                                           WindowsLibrary


                                            MacOSLibrary
TcpSocket             UdpSocket


                                            LinuxLibrary


OOP            100%
               tested
                                          NetworkingPlugin
                                           WrapperLibrary

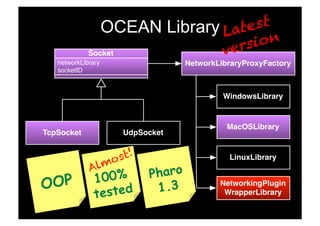

OCEAN Library Lates t
                               ers io n
             Socket           v
   networkLibrary                NetworkLibraryProxyFactory
   socketID



                                          WindowsLibrary


                                           MacOSLibrary
TcpSocket           UdpSocket


                                           LinuxLibrary


               100%      Pharo
OOP                       1.3
               tested
                                         NetworkingPlugin
                                          WrapperLibrary

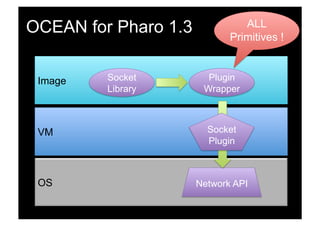

OCEAN for Pharo 1.3             ALL
                             Primitives !


 Image   Socket         Plugin
         Library       Wrapper



 VM                     Socket
                        Plugin



 OS                   Network API

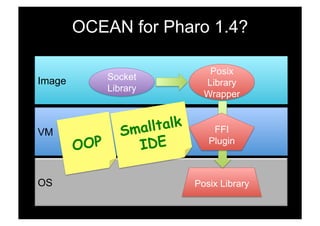

OCEAN for Pharo 1.4?

                                Posix
Image         Socket
                               Library
              Library
                               Wrapper



VM               Smalltalk       FFI
        OOP        IDE          Plugin



OS                           Posix Library

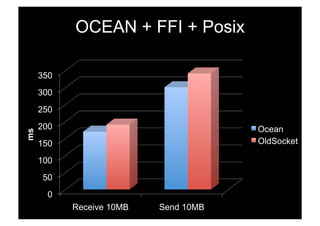

OCEAN + FFI + Posix

     350
     300
     250
     200                              Ocean
ms




     150                              OldSocket

     100
      50
       0
           Receive 10MB   Send 10MB

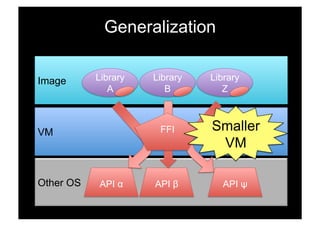

Generalization

Image      Library   Library   Library
              A         B         Z



VM                    FFI      Smaller
                                VM

Other OS   API α     API β        API ψ
44
