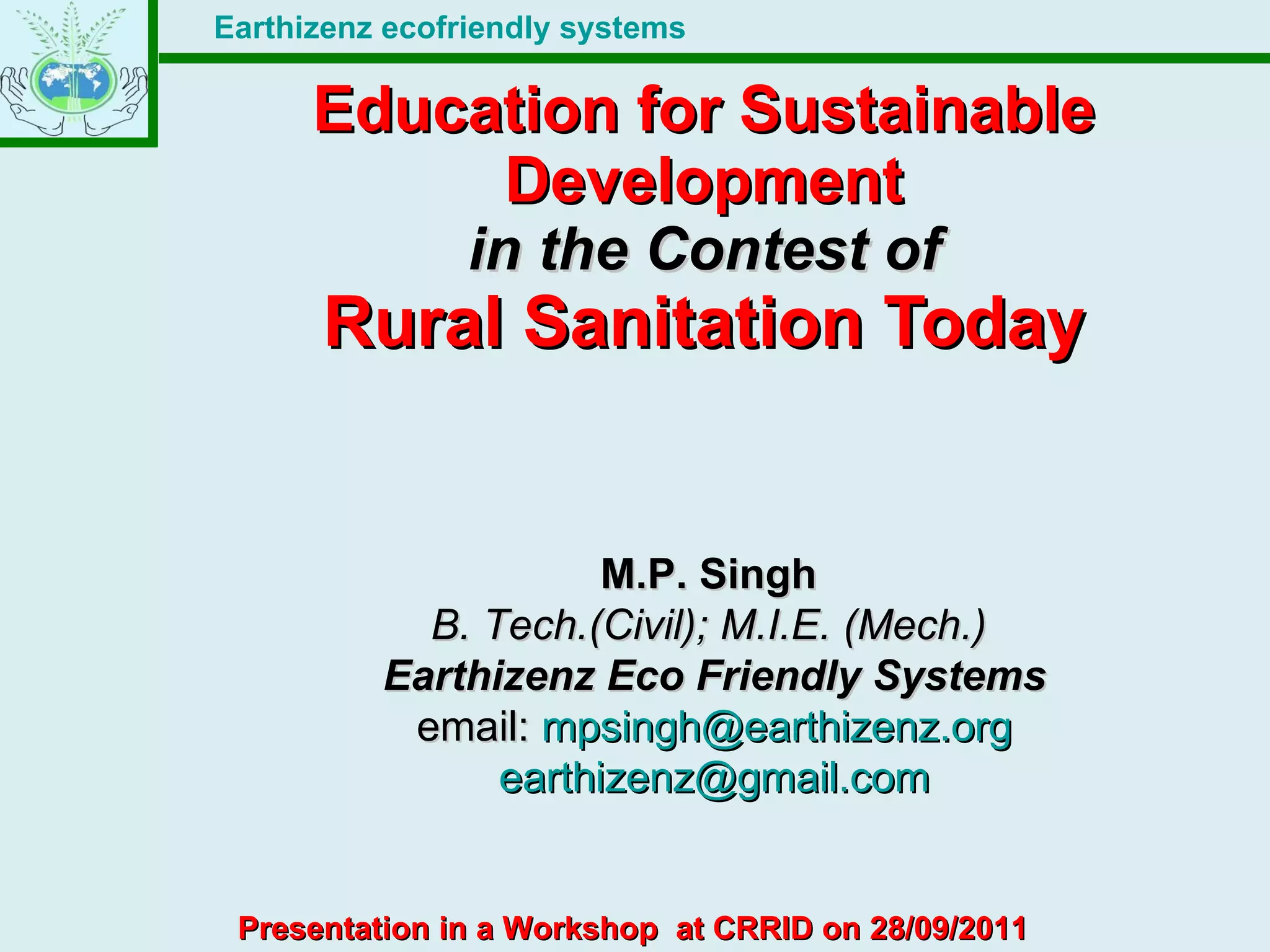

1. Education for Sustainable Development in the Contest of Rural Sanitation Today M.P. Singh B. Tech.(Civil); M.I.E. (Mech.) Earthizenz Eco Friendly Systems email: [email_address] [email_address] Presentation in a Workshop at CRRID on 28/09/2011

7. A Chinese Proverb “ Tell me and I will forget, Show me and I may Remember, Involve me and I will under stand.”

10. India Report to the World Conference on ESD, Bonn, Germany, 2009

11. Rural Sanitation In India Total Sanitation Campaign in Today’s Context

18. Types of Household Toilets Lid Cover Toilet Simple pit

19. Types of Household Toilets Ventilated improved pit Toilet (VIP)

20. Types of Household Toilets Pour Flush toilet

21. Types of Household Toilets Two Pit Pour Flush toilet

22. Types of Household Toilets Single offset pit water seal pour flush toilet

23. Types of Household Toilets Ecosan Toilet

24. School Toilets

29. Decision Tree Sewerage System Is Simp. Sew. Cheaper than Onsite Sanitation? YES Is minm. 40LPD per Cap water available? YES Do most houses have Safe Septic tanks? NO Simplified Sewerage Can balance houses have septic tanks? Keeping safe distances from specified Structures? YES YES Settled (Small Bore) Sewerage NO NO Is Water Supply Augmentation Feasable? YES NO Go For onsite San.

30. Our Dream Treatment of Rural Waste Energy Neutral System No Random Methane Emission Carbon Neutral System Maximum wastewater Reuse/Recharge Rainwater Filtration & HARVEST Recovery of Energy via Biomethanation of Solids and Liquids Fertilizer & Energy from Sludge Self Sustaining Process No Nitrous Oxide Emission

31. Current Scenario fertilizer production from finite resources food Mixing of flow streams, misuse of drinking water for transport 90% untreated waste disposal in water bodies sewage sludge Overexploitation of groundwater Courtesy gtz GHG Emissions N2O CH4 CO2

32. Dream Scenario Restoring Soil Fertility Treatment / Hygienization / Energy Recovery Water Reuse NO Waste Disposal in Water Bodies Rainwater Harvesting food Organic Waste Faeces Urine Greywater Energy and Fertilizer Recovery through Biomethanation Agricultural Use Courtesy gtz Emission Reduction GHG Emissions N2O CH4 CO2

33. The System Hitherto @ NGOs

37. Current System (Under Discussion) @ NGOs

38. Decentralised Wastewater Management

44. The Systems Now in Use @ VLIF Anaeroobic Filter Planted Filter Primary/ Secondary treatment Anaerobic Filter (Attachable to BR. Anaerobic Baffled Reactor Horizontal Planted Filter/ Root Zone/ Wetland

45. Combined into One Unit The Settling tank, Baffled upflow reactor and Anaerobic Filter can be plugged together, The whole system is underground and has a total Hydraulic Residence time of 8 t0 14 hrs. like the UASB reactor

46. The whole System can fit in any place and is always underground Small surfaces become available for treatment (sidewalks, private yards, parking lots, alleys, parks, etc.) In a Street

47. The right combination and dimension of Modules is important.

49. Planted Gravel Filter

50. Vetiver Floats in Ponds

51. Case Histories

52. Locations for Final treatment next to existing ponds Location for Storage of Filtered Rainwater Runoff, to form a lake

53. Original Site for centralized treatment with pump house etc Nullah Water Course Four Decentralized sites chosen for Primary Treatment, 2 along Nullah & 2 along water course

54. Baffled Reactor 1, along Nullah Baffled Reactor 2, along Nullah Baffled Reactor 3 Baffled Reactor 4 Natural Wetland to be modified with Vetiver for sec.& Ter trtmnt. Vetiver plantation for final Nutrient uptake, in water course Narur Contd.

55. Effluent is currently discharging here into the Bein It is proposed to pump the raw Sewage across the Bein for treatment here

56. Section of the Bein Treatment along the acquired area long the Bein

59. Village Kakkar Planted Filter being inaugurated

60. Village Kakkar Planted Filter as Tertiary Treatment

61. Village Kakkar Water from Baffled Septic tank to planted Filter

62. Village Kakkar Treated Water after Planted Filter

63. Decentralized Wastewater System in the Author’s House

64. Four Chamber Baffled Reactor in my House

74. Planted Filter

75. Water collected in an underground water tank and pumped up in an overhead tank as per need.
