1. UF Student InfoSec Team
September 8, 2015
#ufsit on Freenode
XSS | Andrew Kerr 1

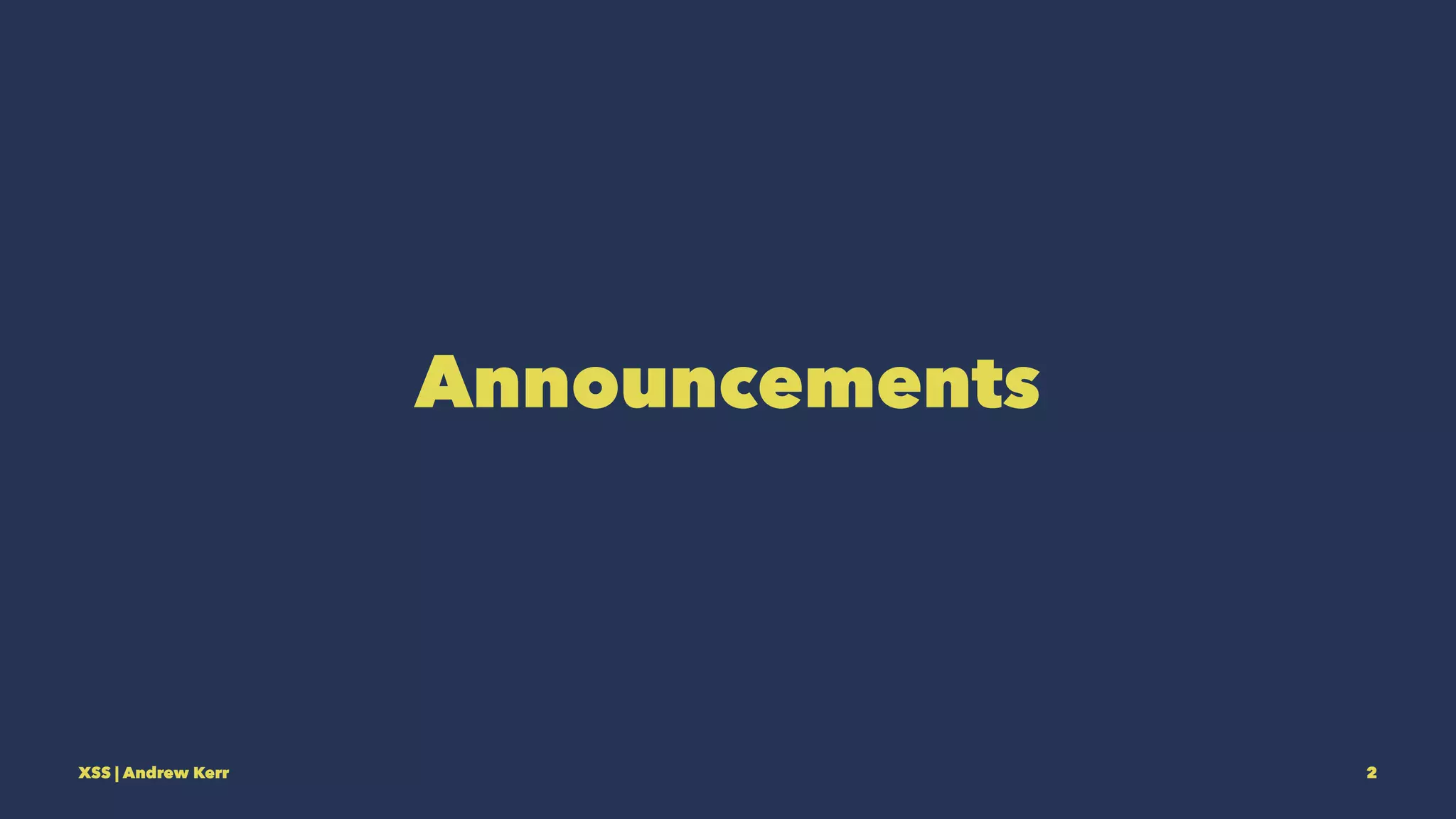

2. Announcements
XSS | Andrew Kerr 2

3. Upcoming CTF: CSAW
XSS | Andrew Kerr 3

4. CSAW CTF (Qualifiers)
• September 18 @ 6pm - September 20 @ 6pm
XSS | Andrew Kerr 4

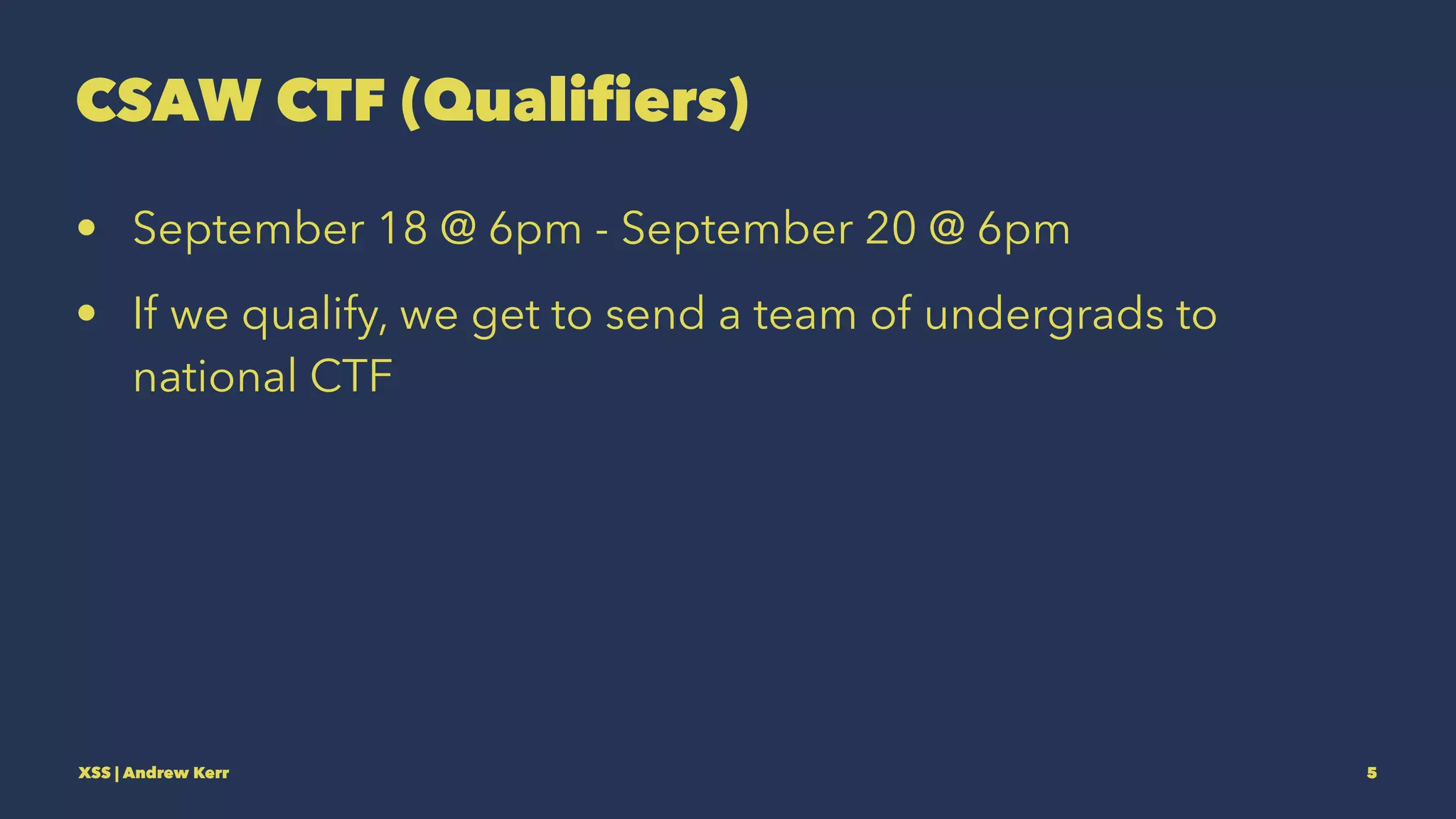

5. CSAW CTF (Qualifiers)
• September 18 @ 6pm - September 20 @ 6pm
• If we qualify, we get to send a team of undergrads to
national CTF
XSS | Andrew Kerr 5

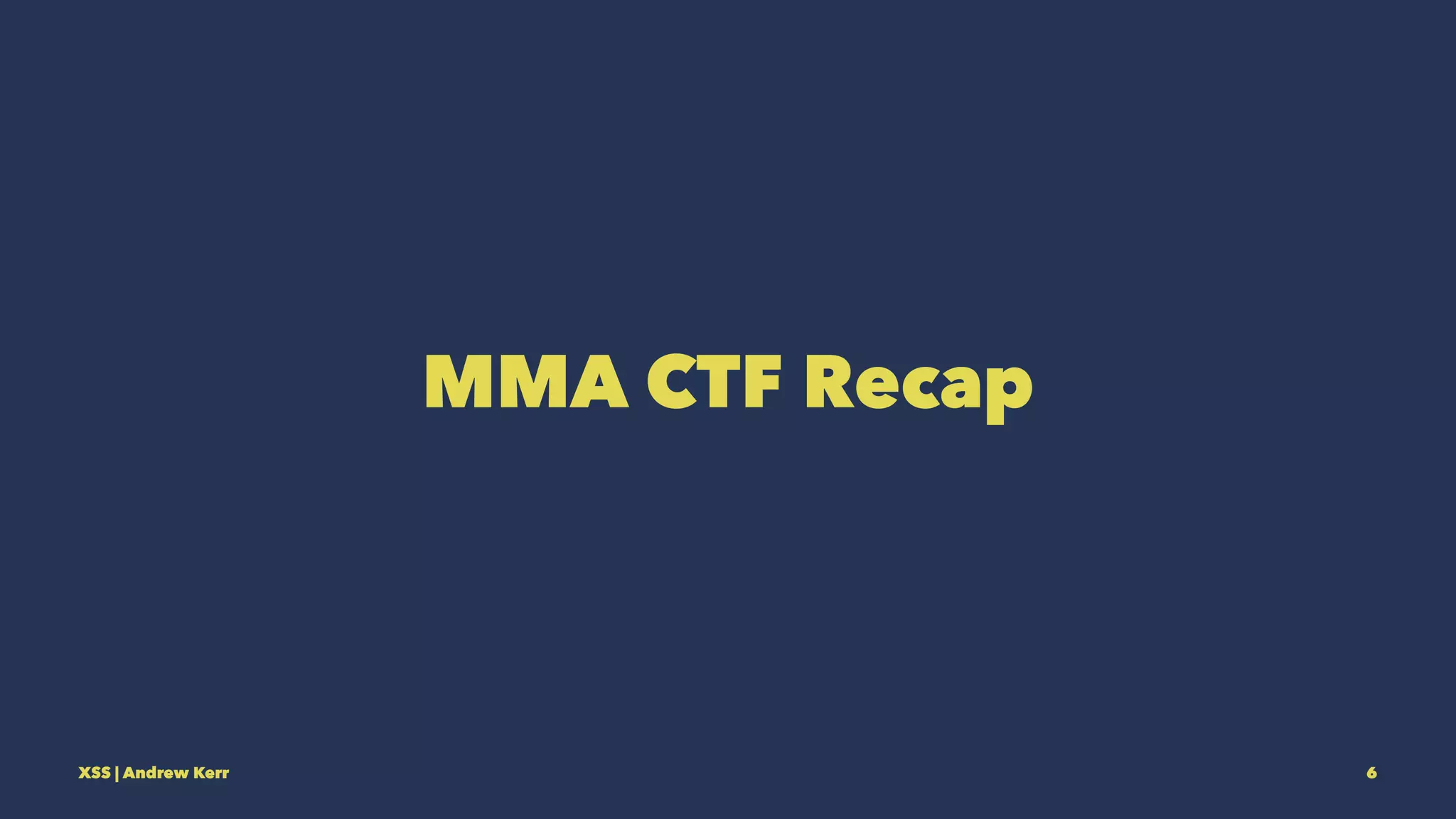

6. MMA CTF Recap
XSS | Andrew Kerr 6

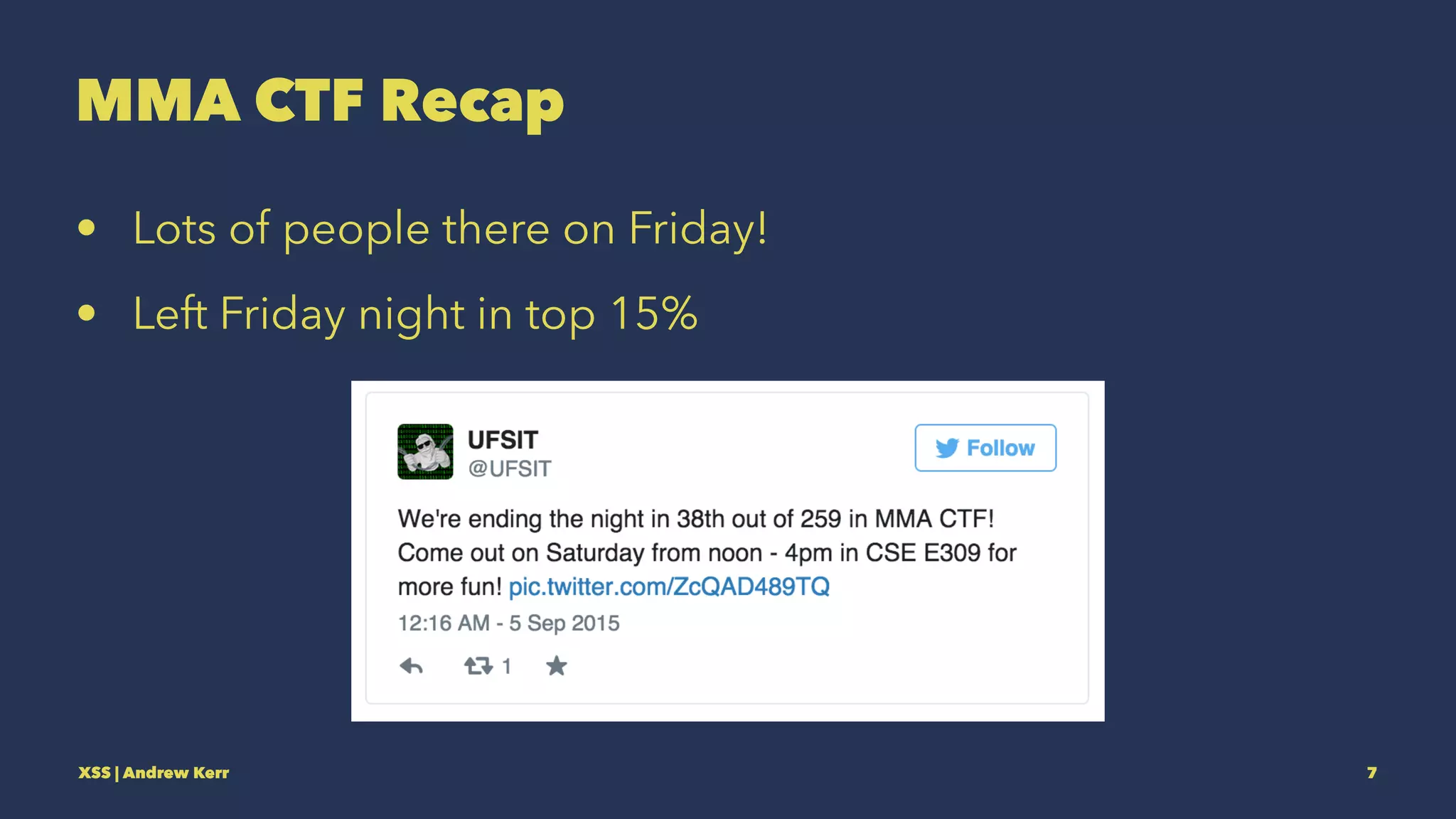

7. MMA CTF Recap
• Lots of people there on Friday!
• Left Friday night in top 15%
XSS | Andrew Kerr 7

8. We want your writeups!
XSS | Andrew Kerr 8

9. Cross-site Scripting
(Also known as XSS)
Andrew Kerr | Sept 8, 2015
me@andrewjkerr.com
XSS | Andrew Kerr 9

10. whoami
XSS | Andrew Kerr 10

11. whoami
• Fifth year Software Engineering @ UF
XSS | Andrew Kerr 11

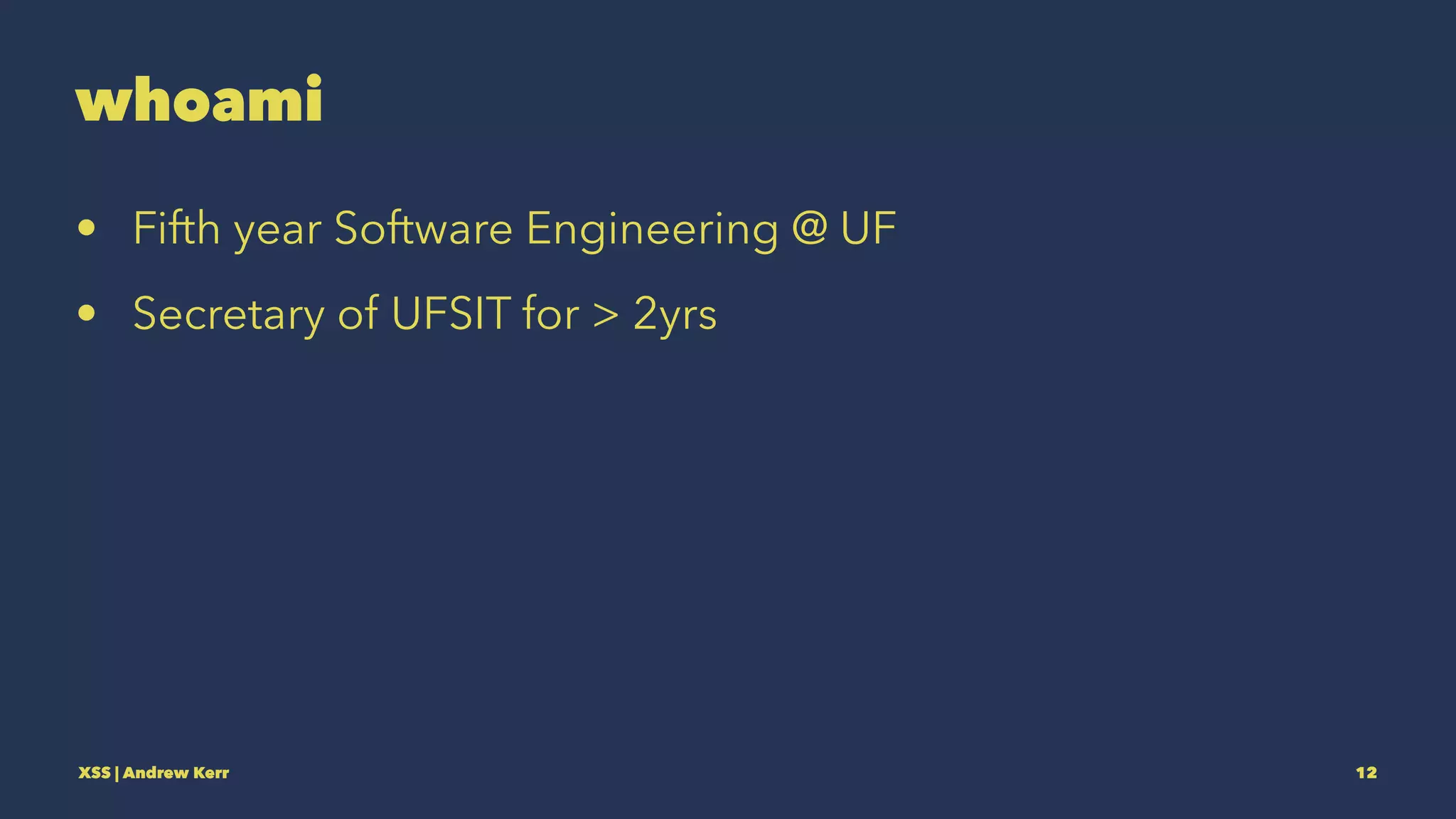

12. whoami
• Fifth year Software Engineering @ UF
• Secretary of UFSIT for > 2yrs
XSS | Andrew Kerr 12

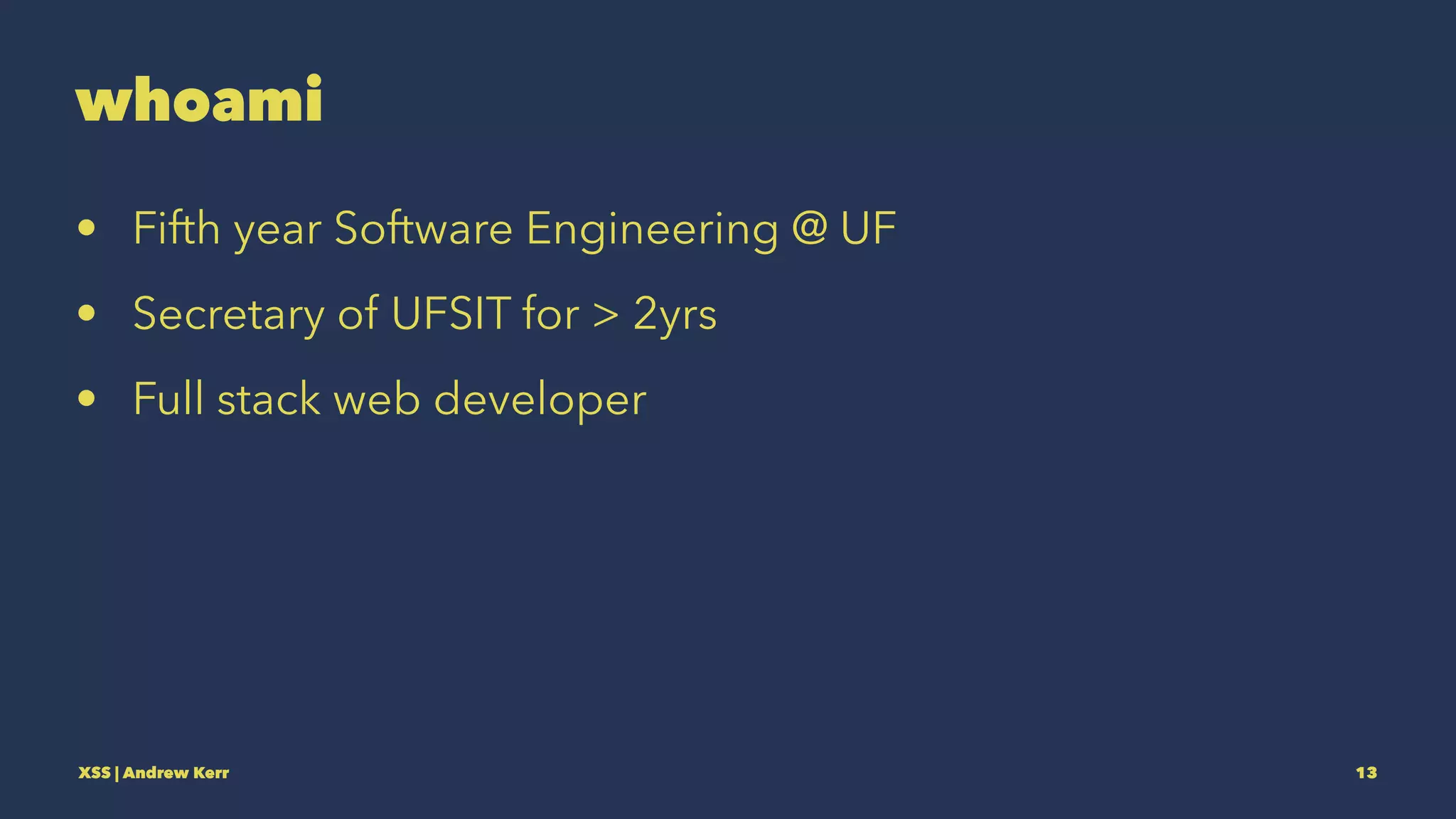

13. whoami
• Fifth year Software Engineering @ UF
• Secretary of UFSIT for > 2yrs
• Full stack web developer
XSS | Andrew Kerr 13

14. whoami
• Fifth year Software Engineering @
UF
• Secretary of UFSIT for > 2yrs
• Full stack web developer
• Former security intern at Tumblr
XSS | Andrew Kerr 14

15. whoami
• Fifth year Software Engineering @
UF
• Secretary of UFSIT for > 2yrs
• Full stack web developer
• Former security intern at Tumblr
• Former intern at BlockScore
XSS | Andrew Kerr 15

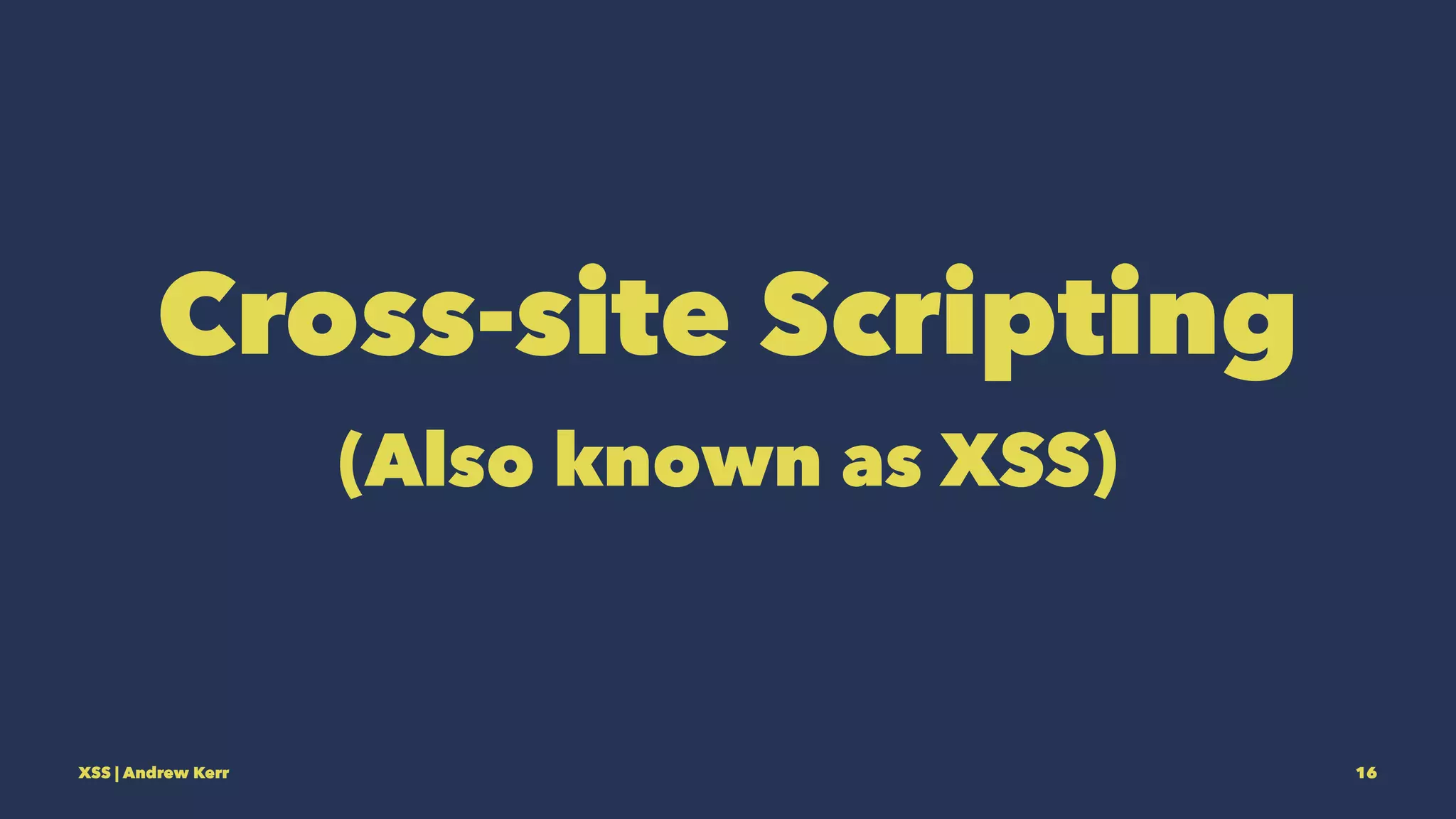

16. Cross-site Scripting
(Also known as XSS)
XSS | Andrew Kerr 16

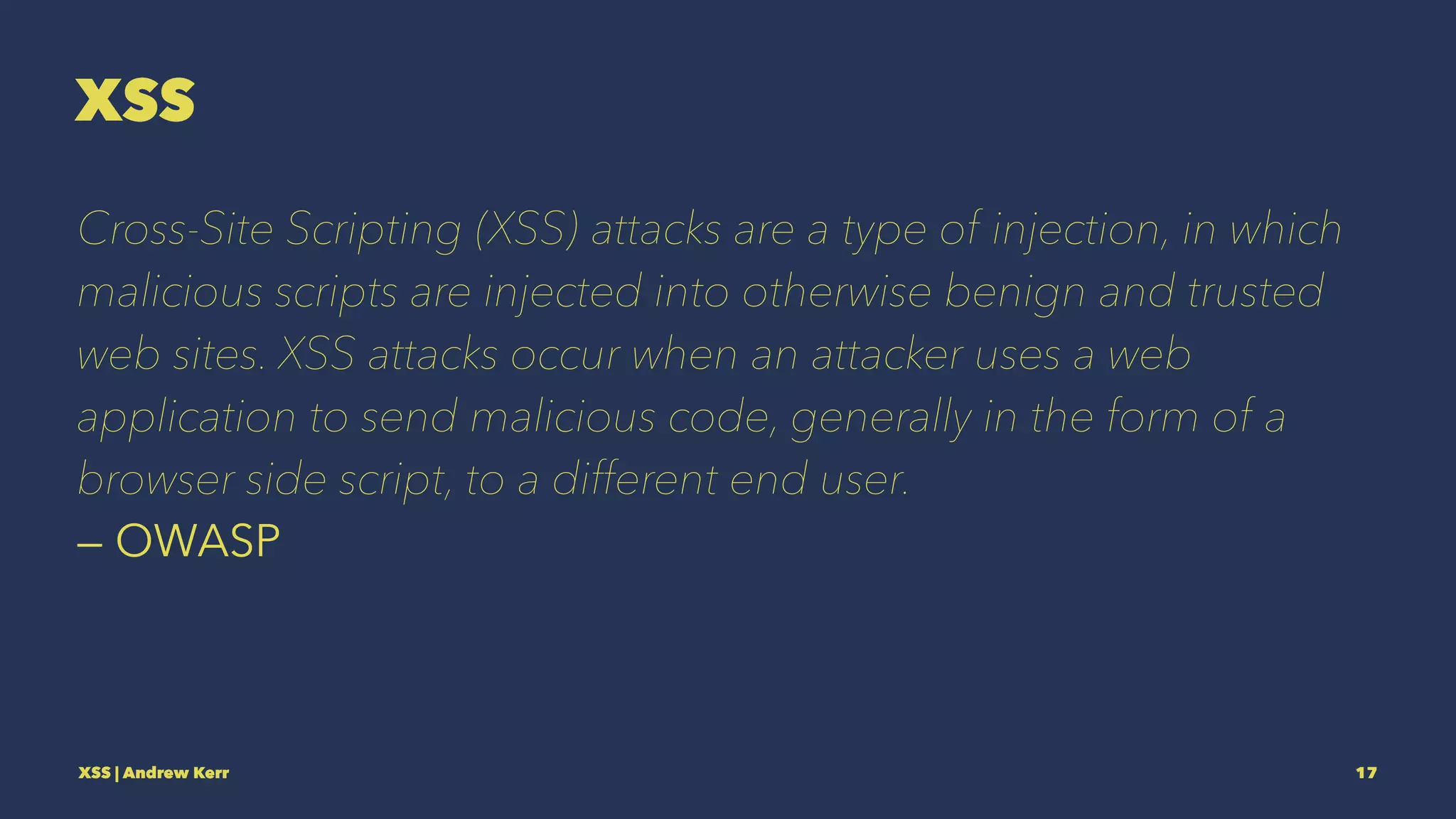

17. XSS
Cross-Site Scripting (XSS) attacks are a type of injection, in which
malicious scripts are injected into otherwise benign and trusted
web sites. XSS attacks occur when an attacker uses a web
application to send malicious code, generally in the form of a
browser side script, to a different end user.
— OWASP
XSS | Andrew Kerr 17

18. Ok... what does that mean?
XSS | Andrew Kerr 18

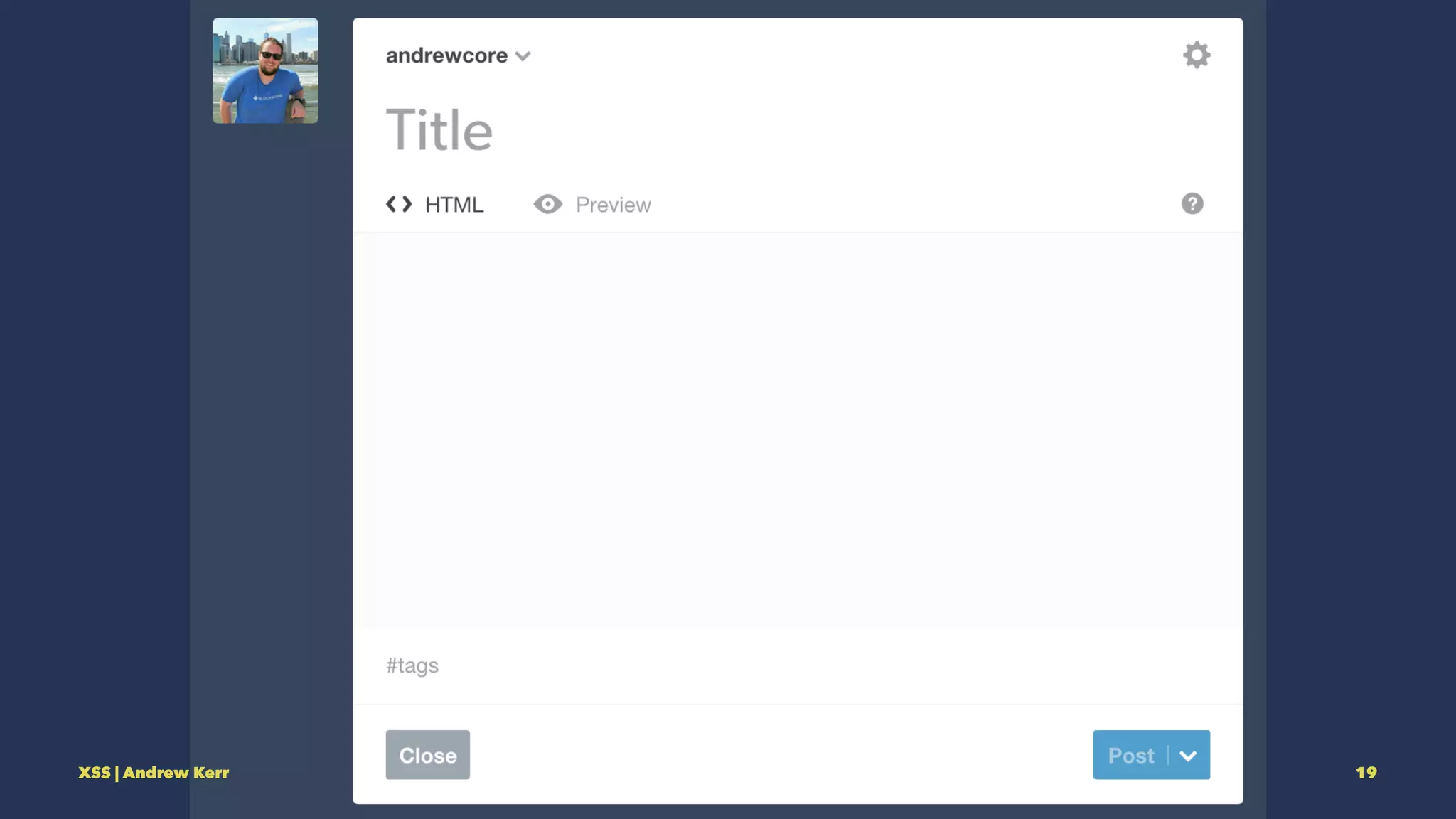

19. XSS | Andrew Kerr 19

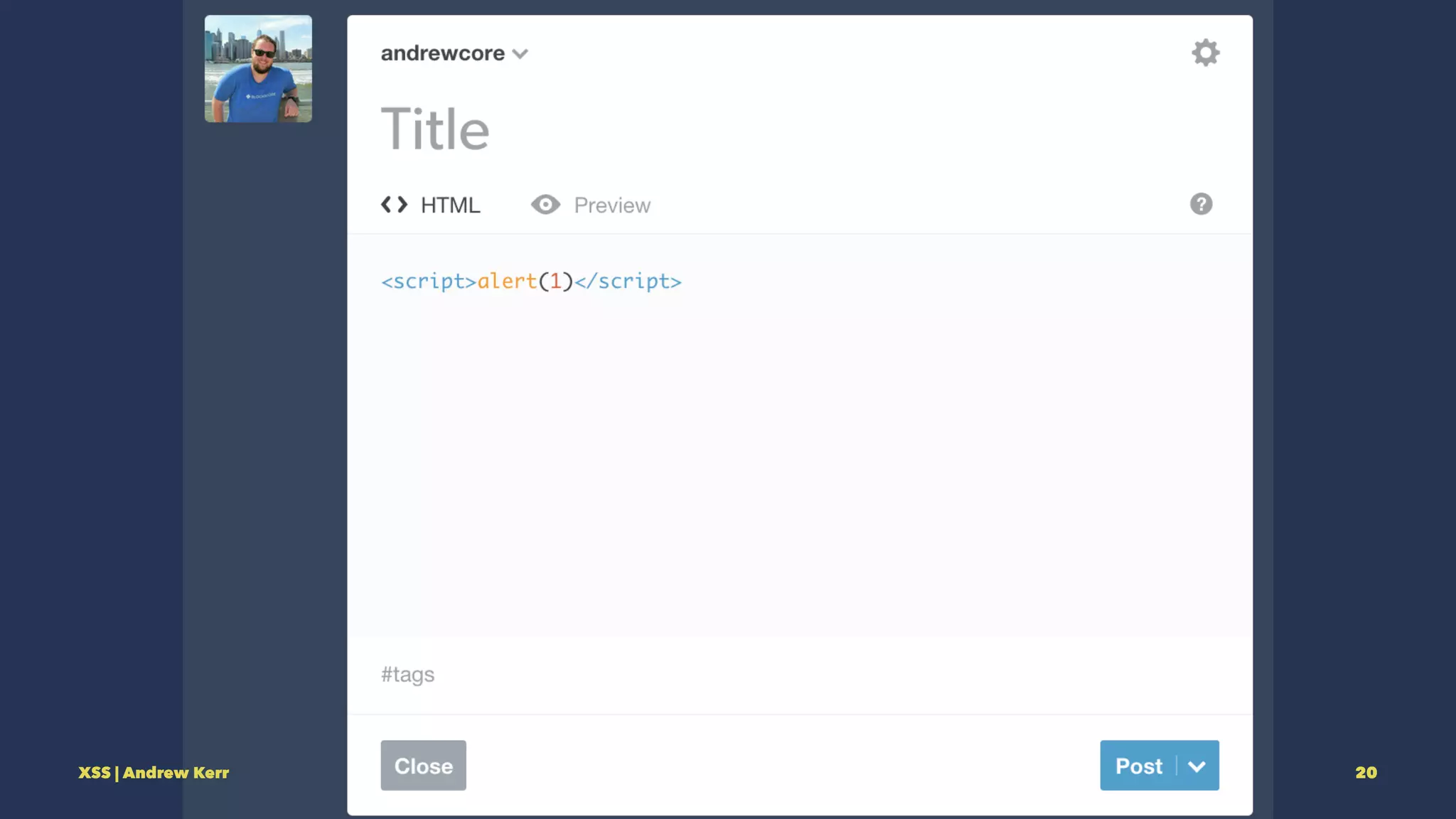

20. XSS | Andrew Kerr 20

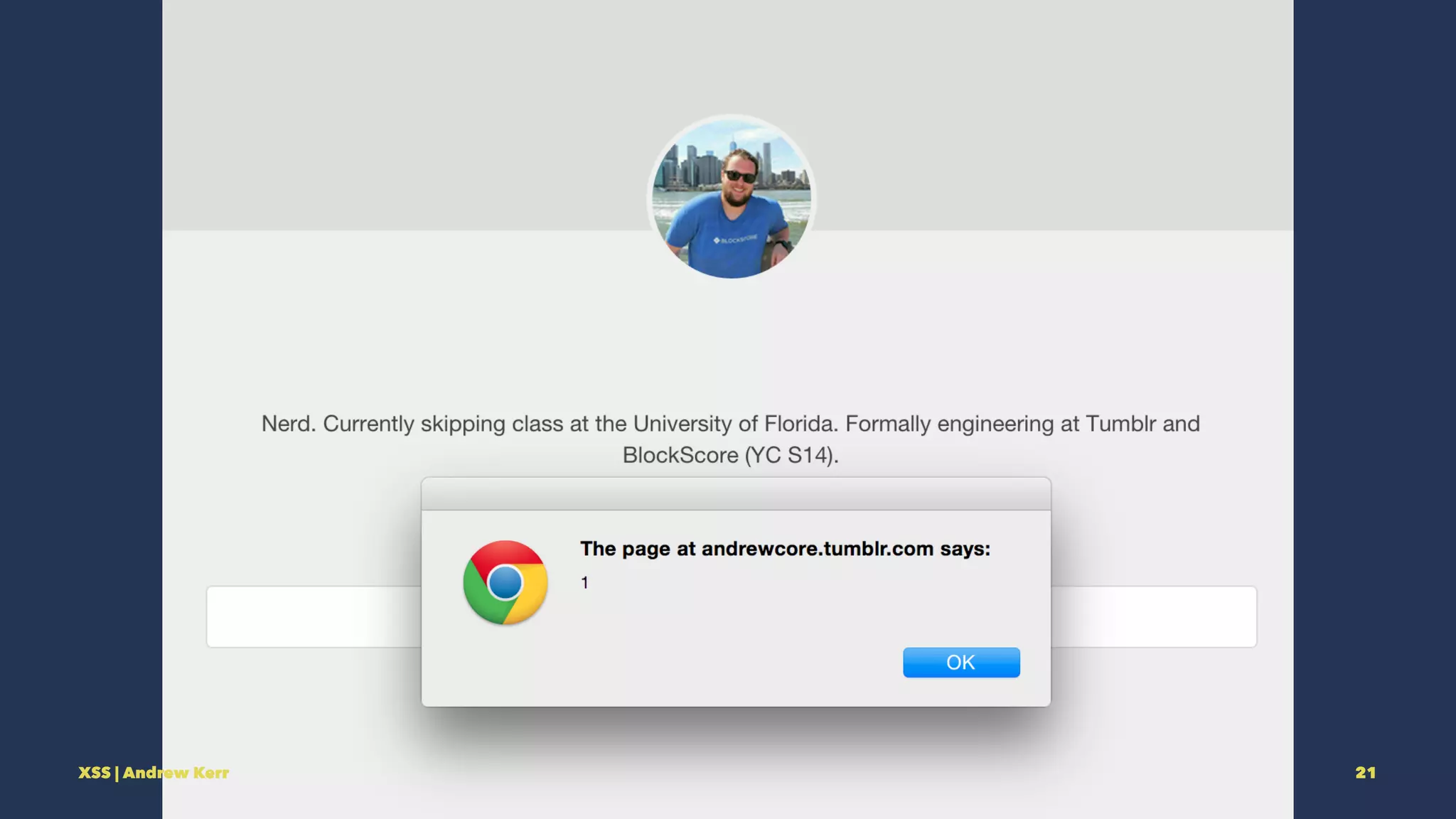

21. XSS | Andrew Kerr 21

22. Why does this work?
XSS | Andrew Kerr 22

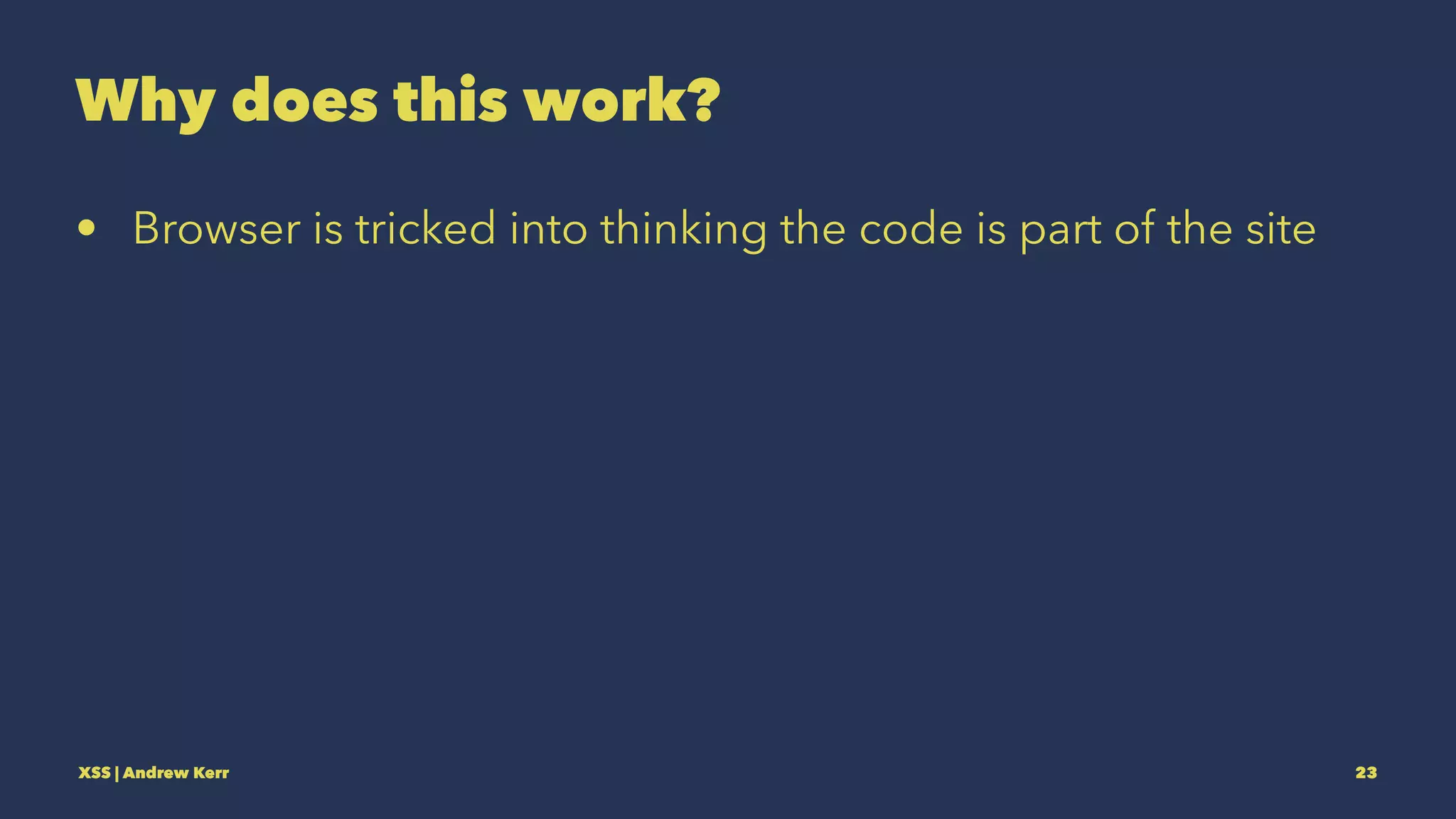

23. Why does this work?
• Browser is tricked into thinking the code is part of the site
XSS | Andrew Kerr 23

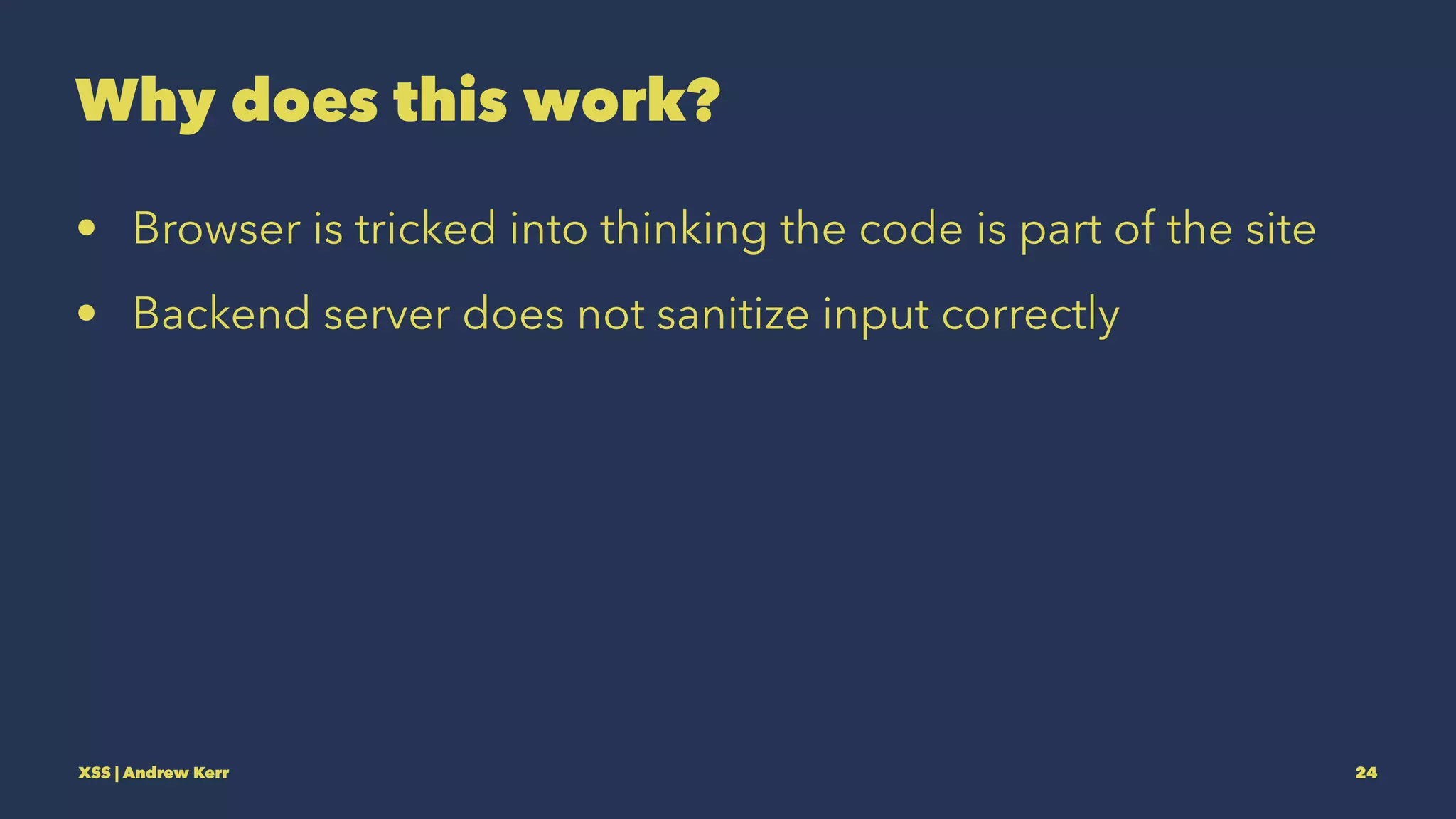

24. Why does this work?
• Browser is tricked into thinking the code is part of the site
• Backend server does not sanitize input correctly
XSS | Andrew Kerr 24

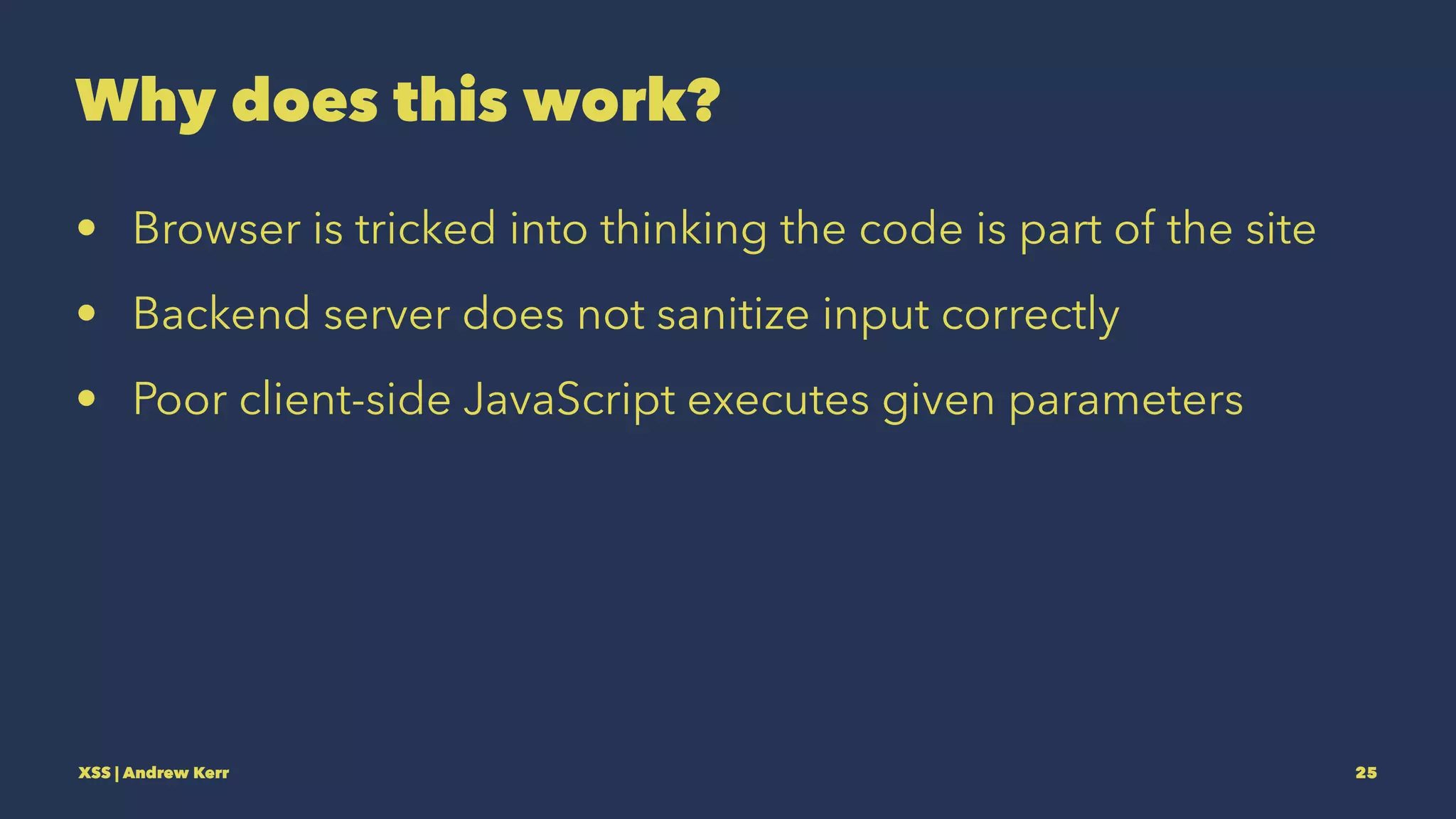

25. Why does this work?
• Browser is tricked into thinking the code is part of the site
• Backend server does not sanitize input correctly
• Poor client-side JavaScript executes given parameters
XSS | Andrew Kerr 25

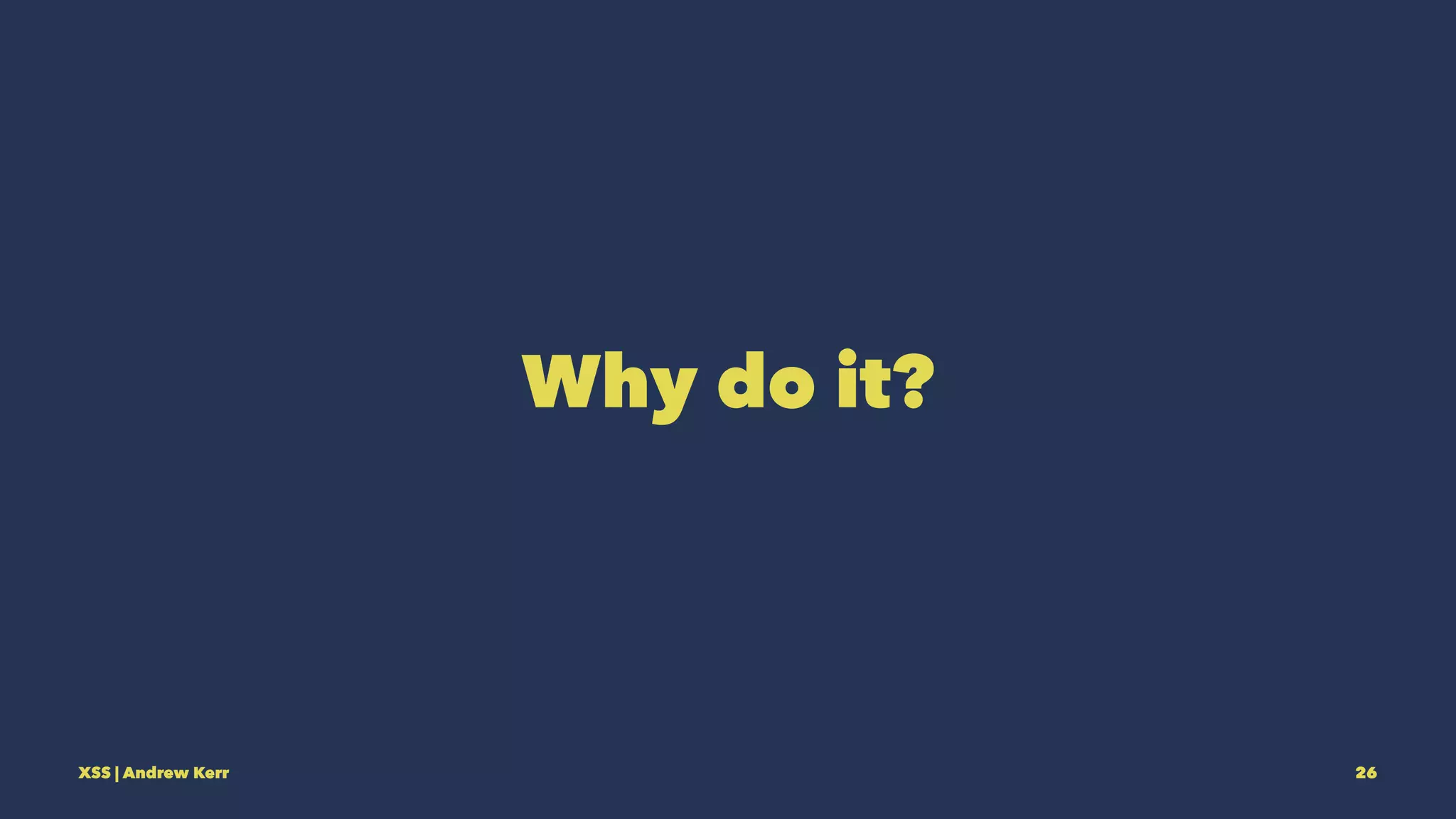

26. Why do it?
XSS | Andrew Kerr 26

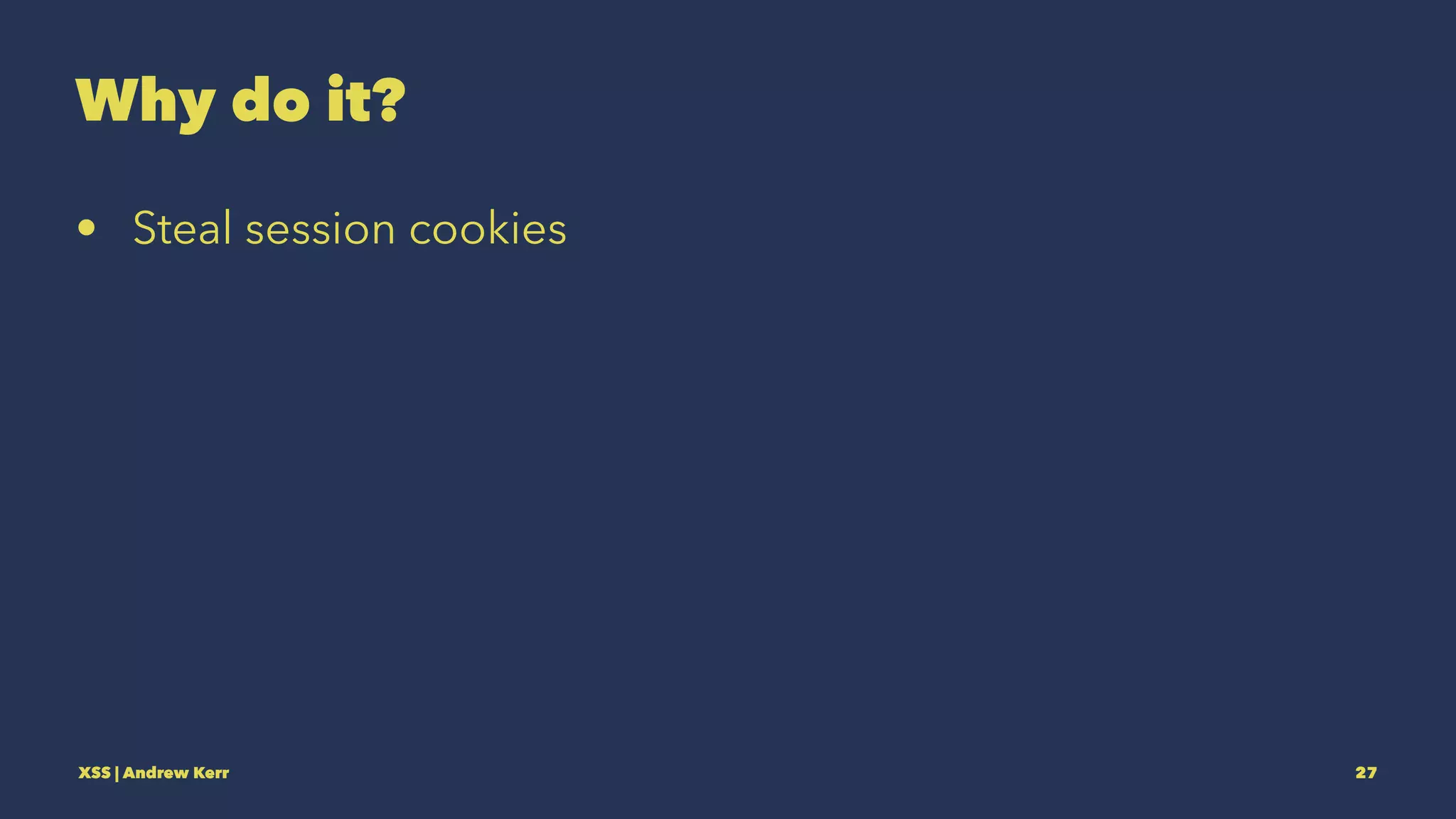

27. Why do it?
• Steal session cookies
XSS | Andrew Kerr 27

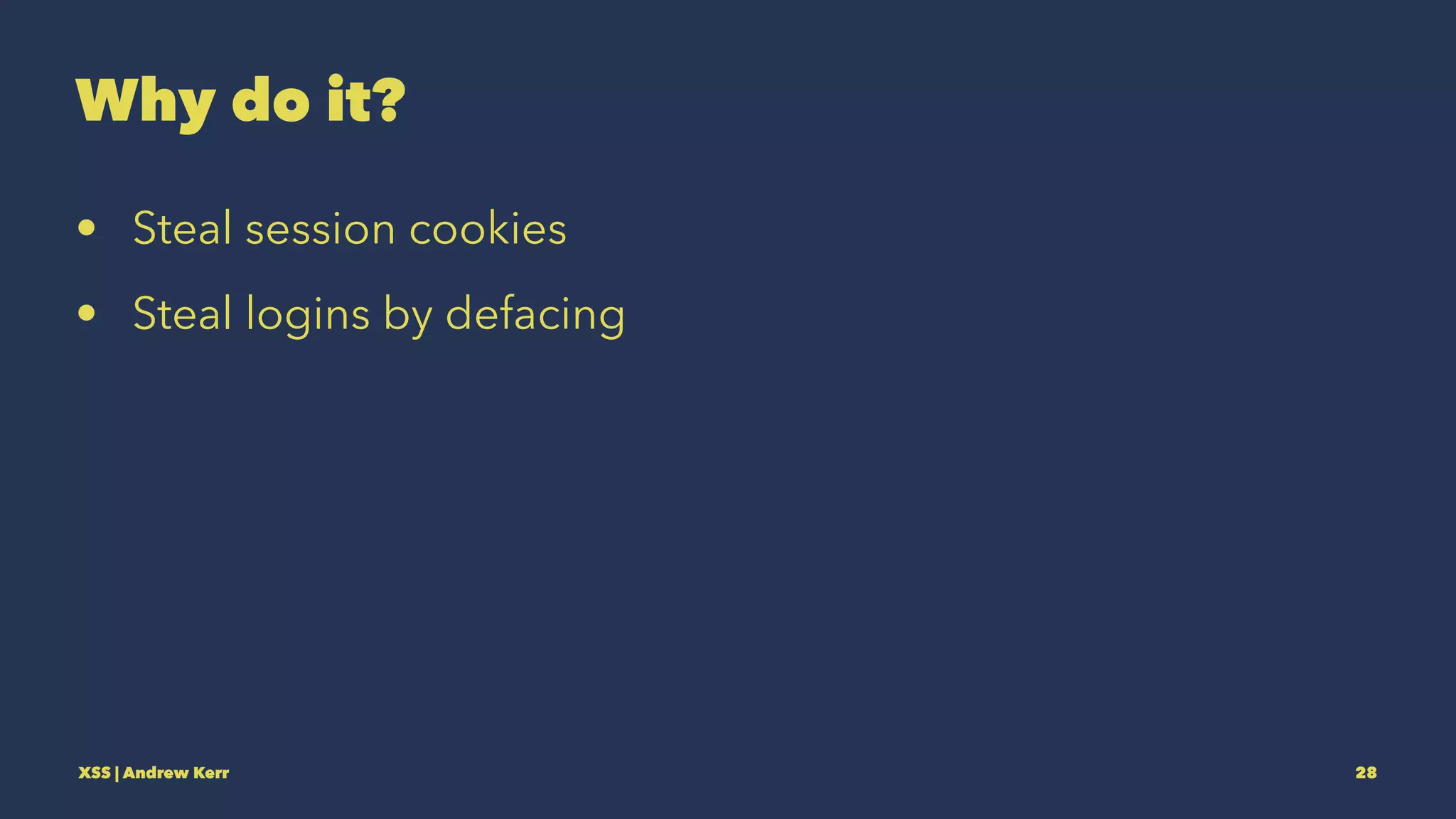

28. Why do it?
• Steal session cookies
• Steal logins by defacing
XSS | Andrew Kerr 28

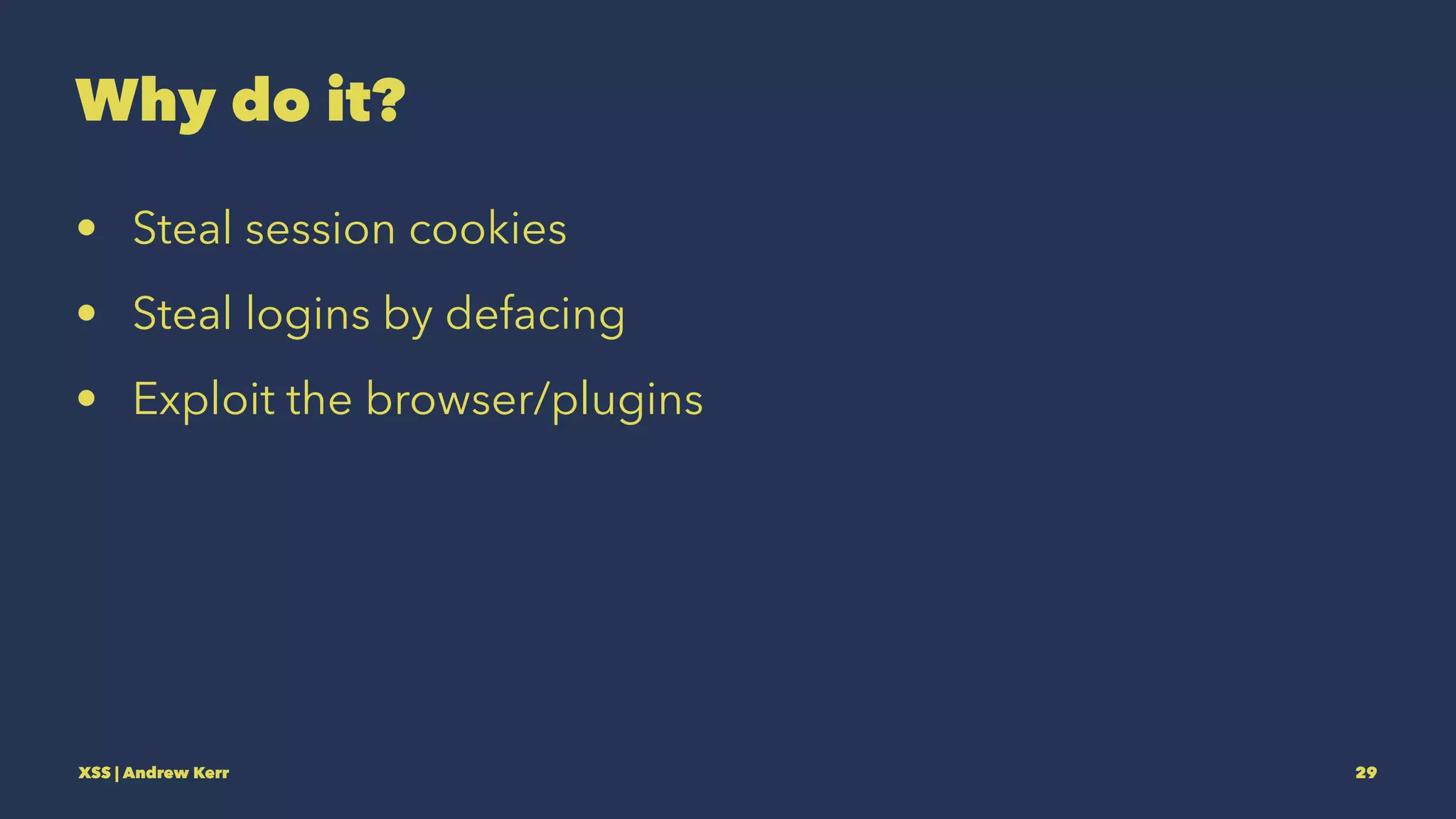

29. Why do it?
• Steal session cookies
• Steal logins by defacing
• Exploit the browser/plugins
XSS | Andrew Kerr 29

30. Why do it?
• Steal session cookies
• Steal logins by defacing
• Exploit the browser/plugins
• For the lulz
XSS | Andrew Kerr 30

31. XSS | Andrew Kerr 31

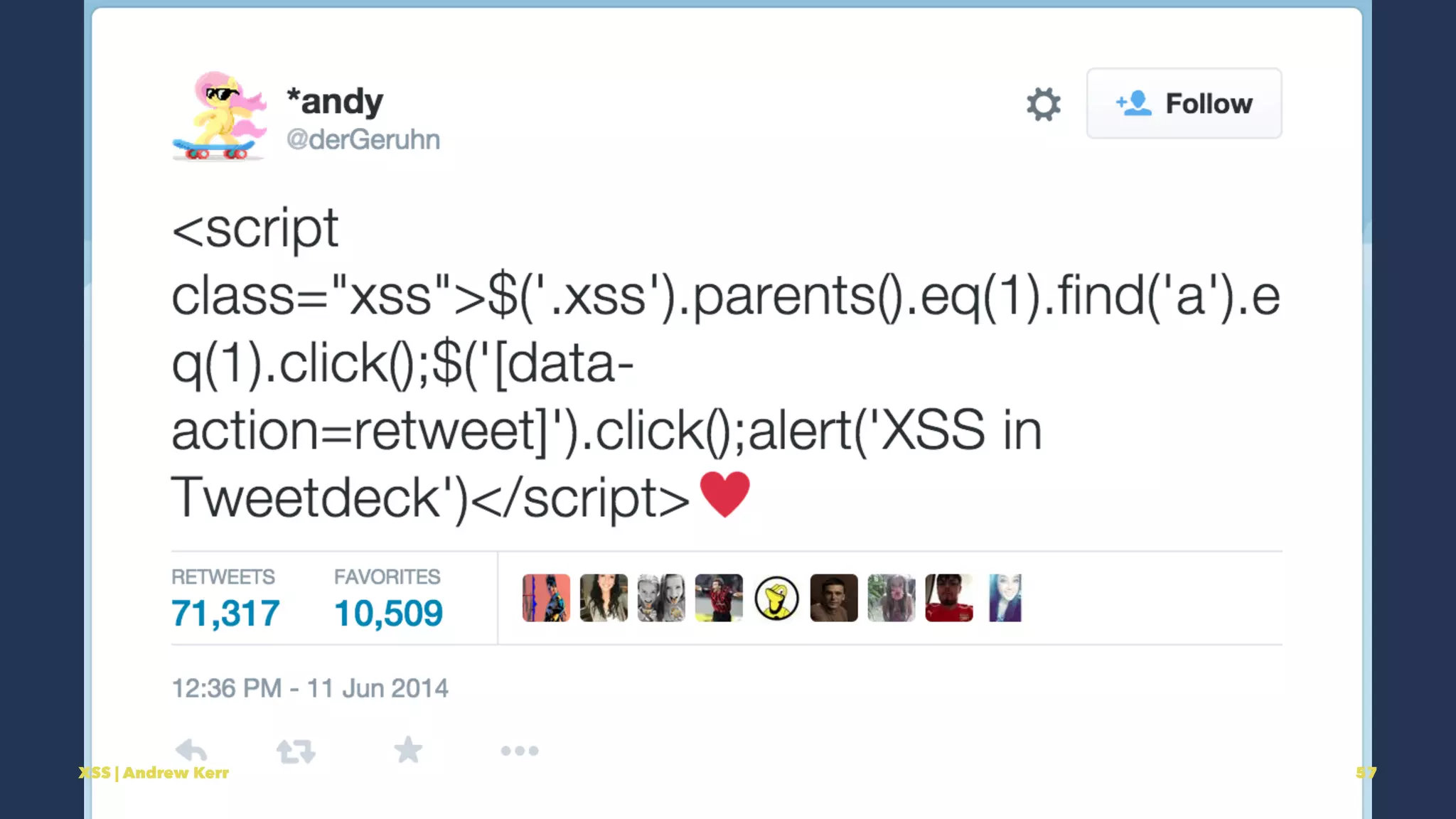

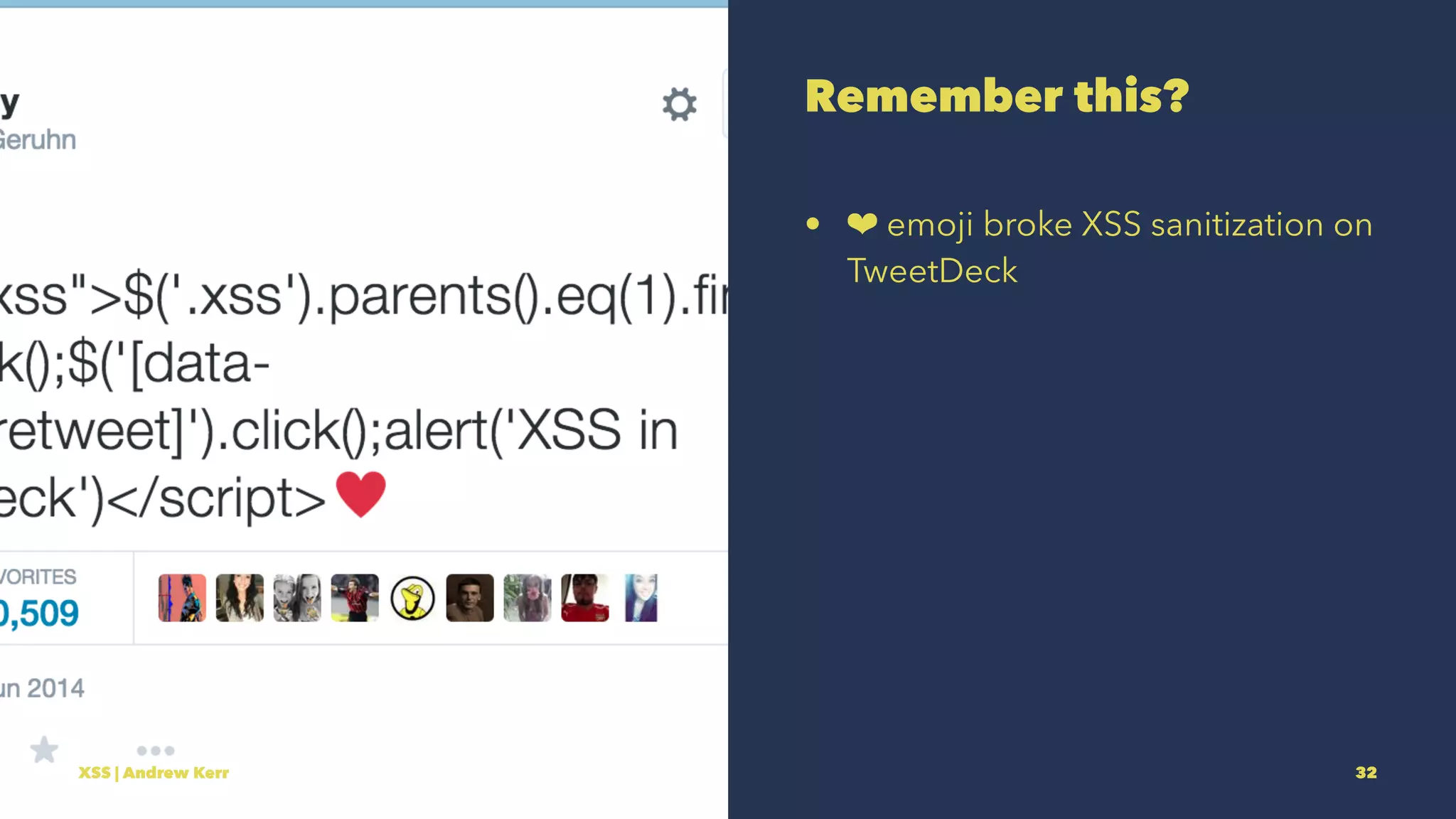

32. Remember this?
• ❤ emoji broke XSS sanitization on
TweetDeck
XSS | Andrew Kerr 32

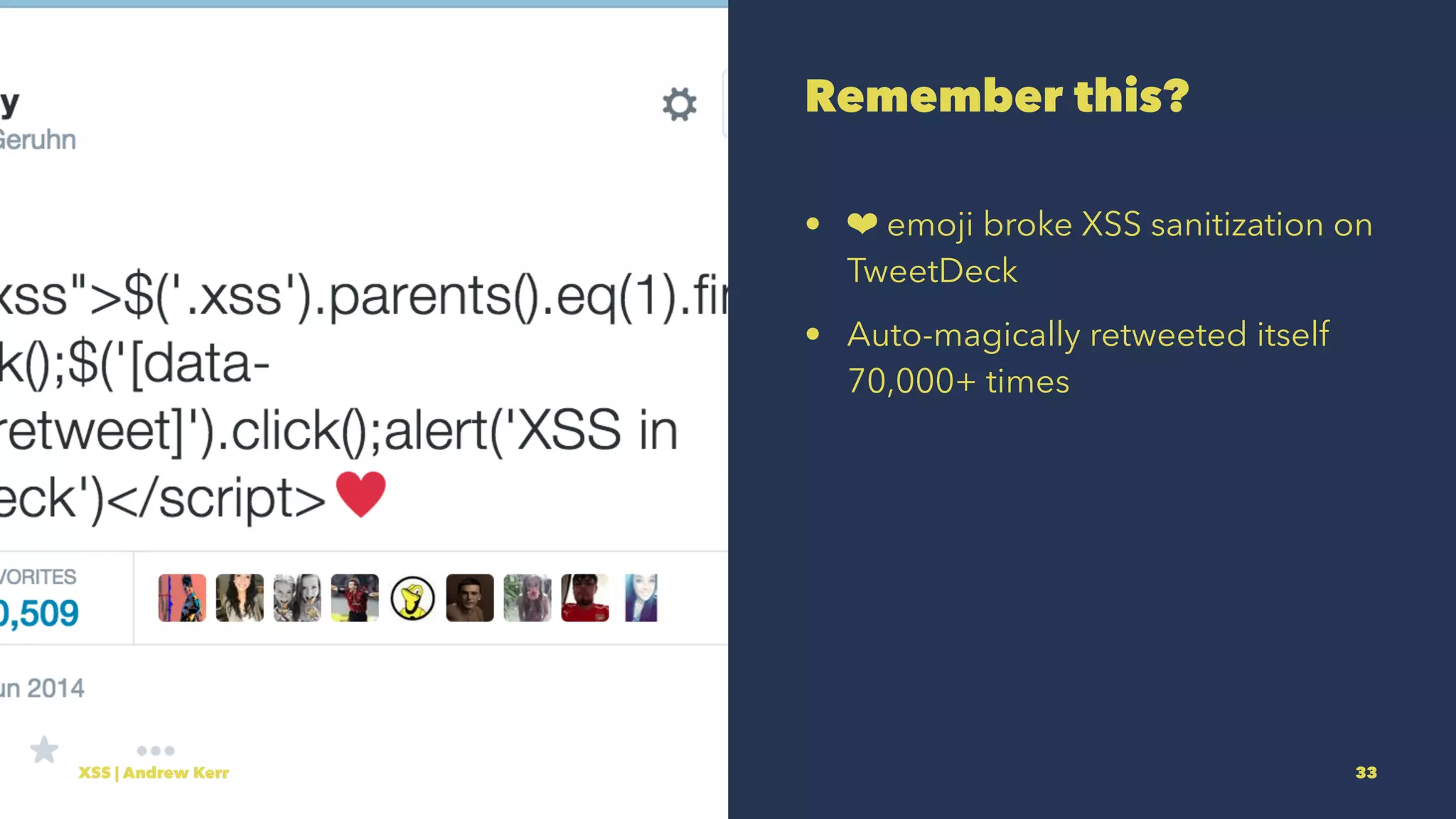

33. Remember this?
• ❤ emoji broke XSS sanitization on
TweetDeck
• Auto-magically retweeted itself
70,000+ times
XSS | Andrew Kerr 33

34. Remember this?
• ❤ emoji broke XSS sanitization on
TweetDeck
• Auto-magically retweeted itself
70,000+ times
• Good thing it wasn't malicious!
XSS | Andrew Kerr 34

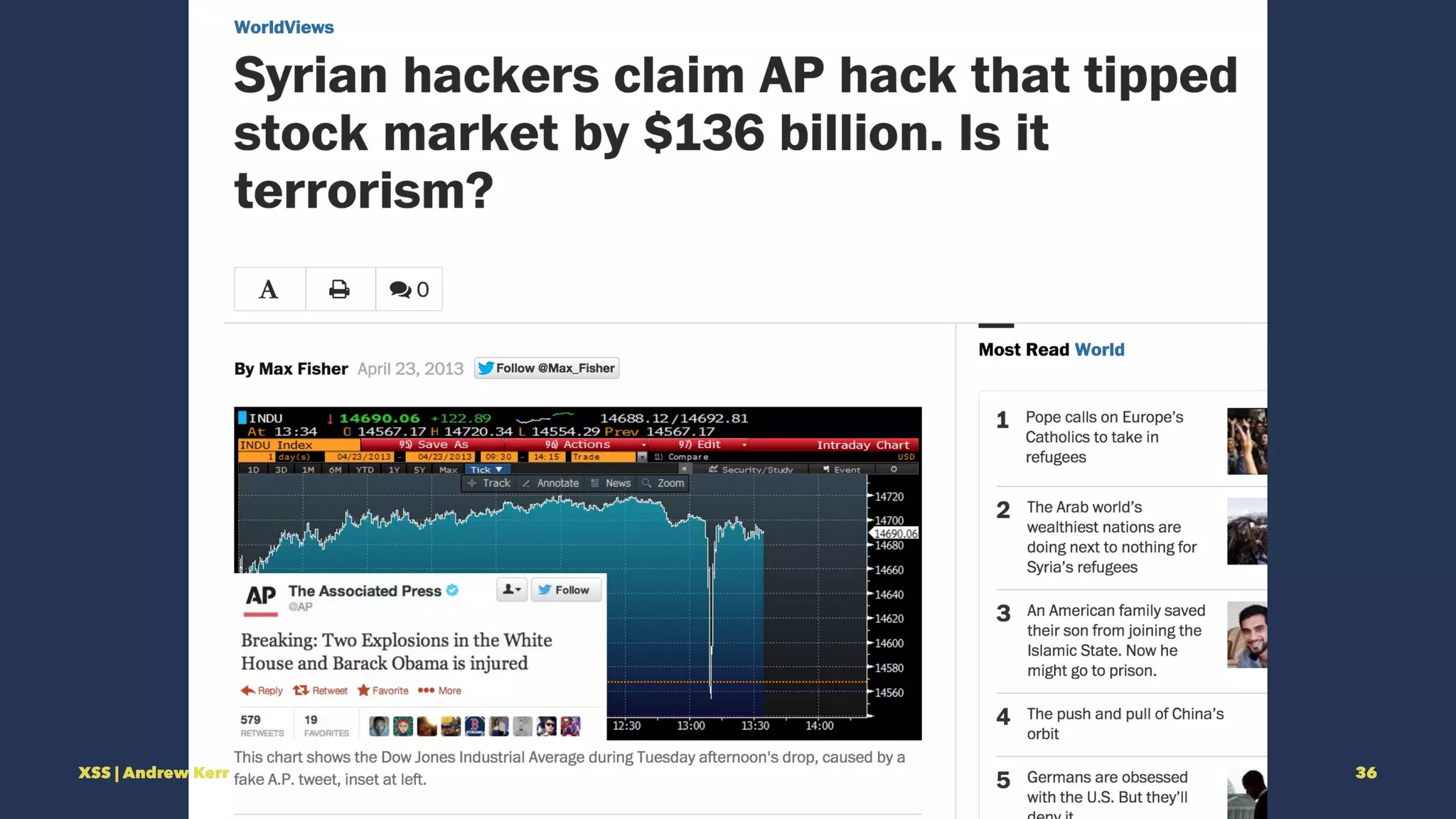

35. Ok, but it's Twitter... why does it
matter?
XSS | Andrew Kerr 35

36. XSS | Andrew Kerr 36

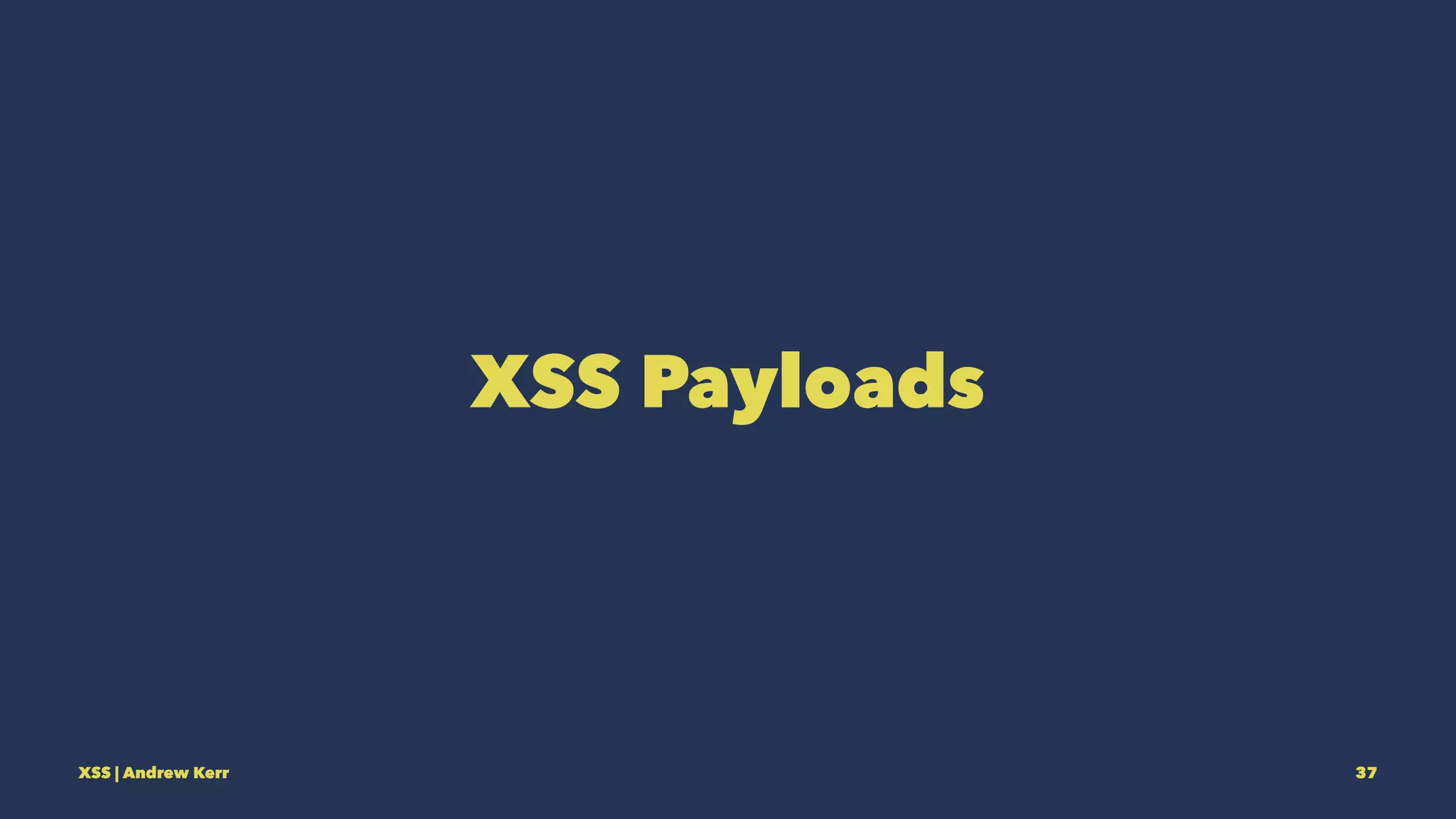

37. XSS Payloads
XSS | Andrew Kerr 37

38. XSS Payloads
• A TON of possible XSS payloads
XSS | Andrew Kerr 38

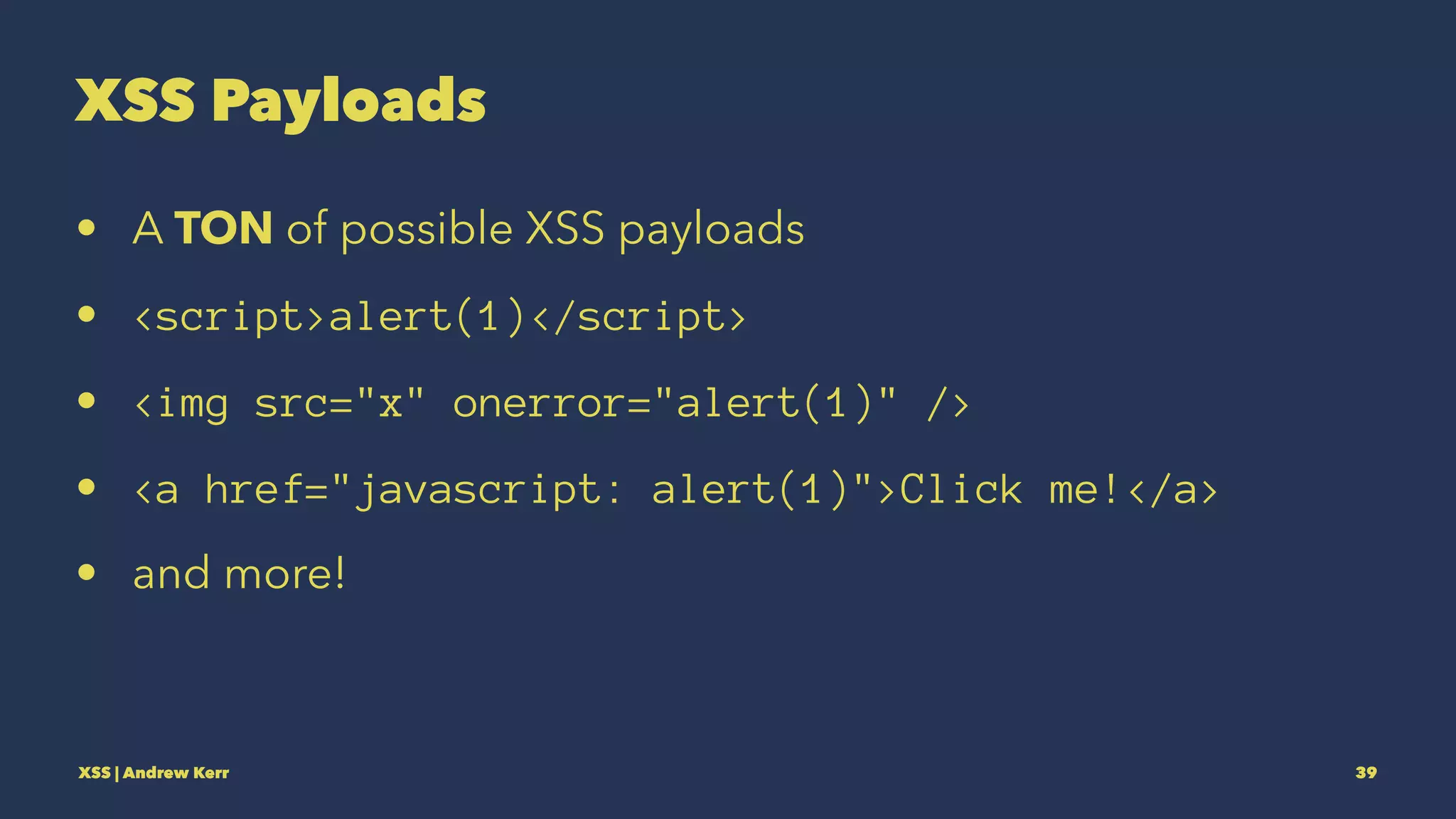

39. XSS Payloads
• A TON of possible XSS payloads
• <script>alert(1)</script>
• <img src="x" onerror="alert(1)" />
• <a href="javascript: alert(1)">Click me!</a>
• and more!
XSS | Andrew Kerr 39

40. Types of XSS
XSS | Andrew Kerr 40

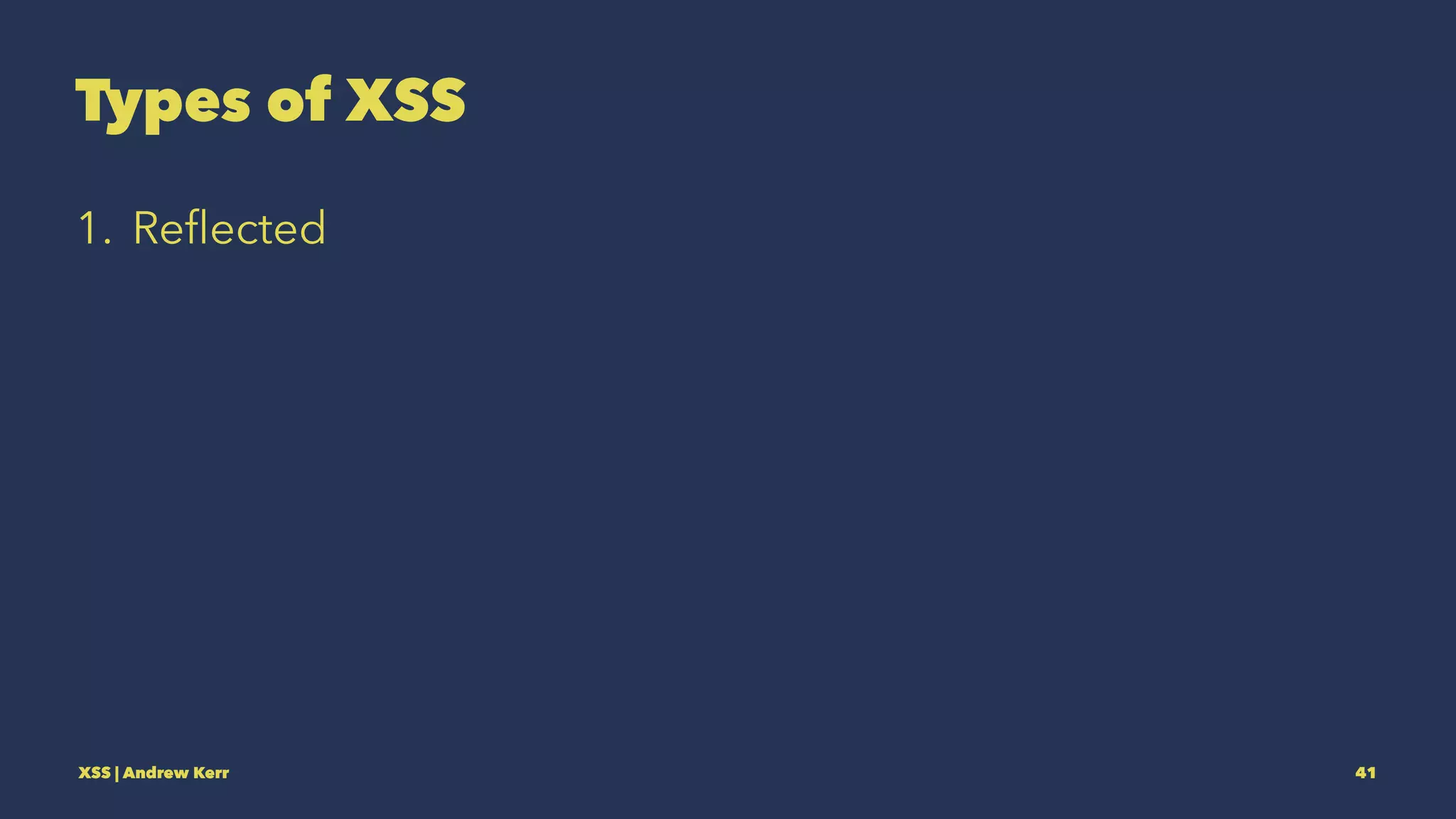

41. Types of XSS
1. Reflected
XSS | Andrew Kerr 41

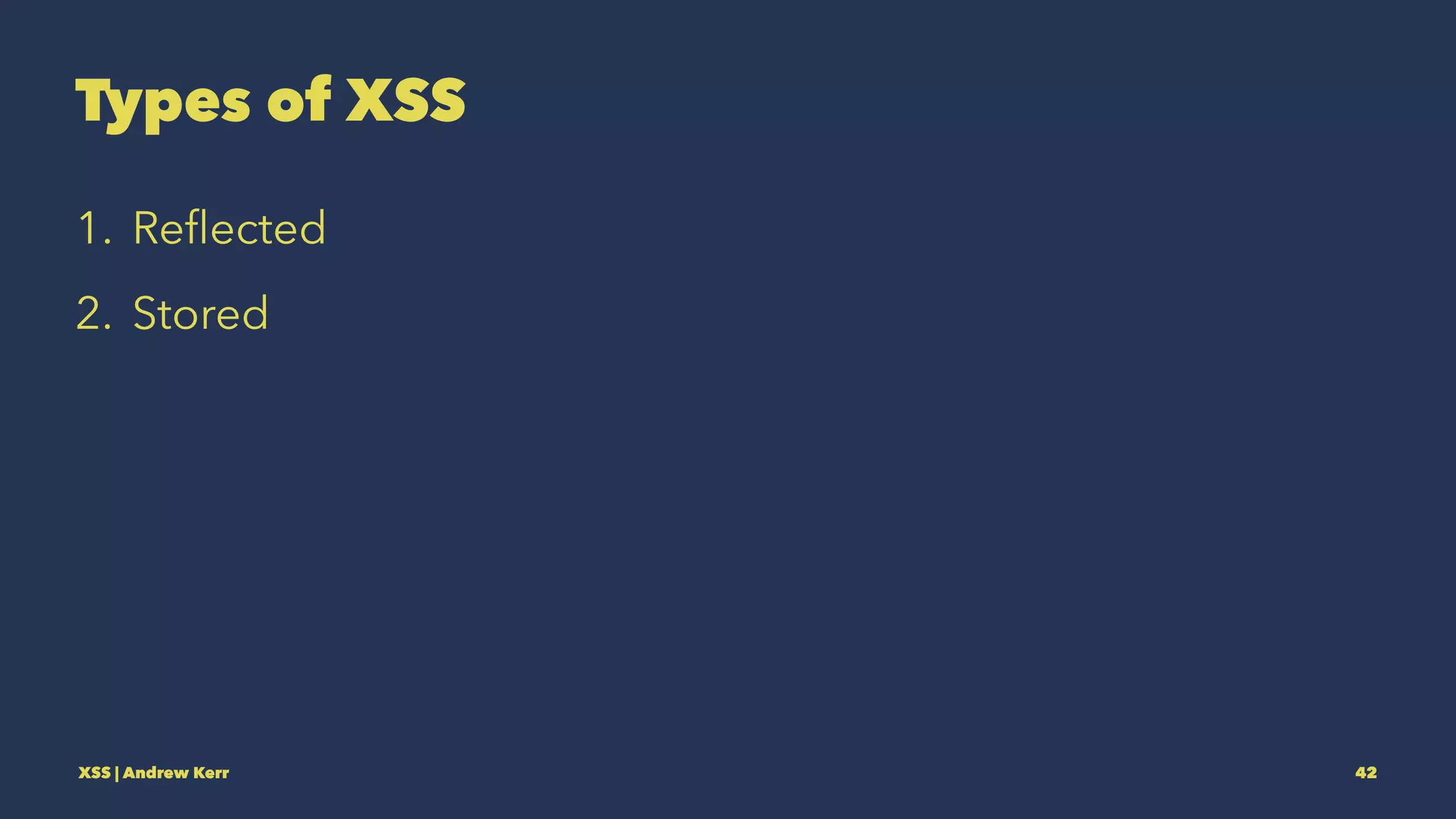

42. Types of XSS
1. Reflected
2. Stored
XSS | Andrew Kerr 42

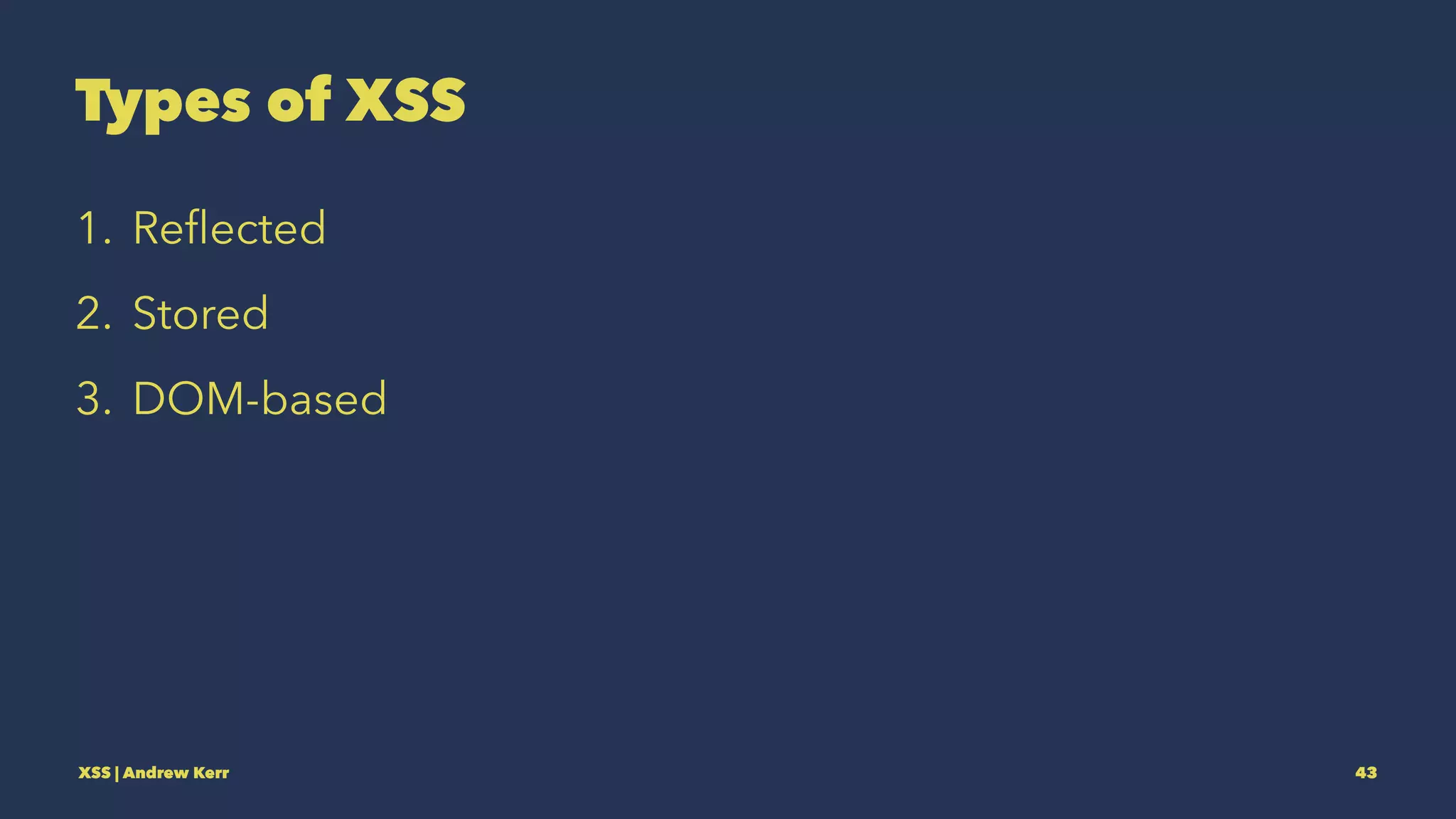

43. Types of XSS
1. Reflected
2. Stored
3. DOM-based
XSS | Andrew Kerr 43

44. Reflected XSS
XSS | Andrew Kerr 44

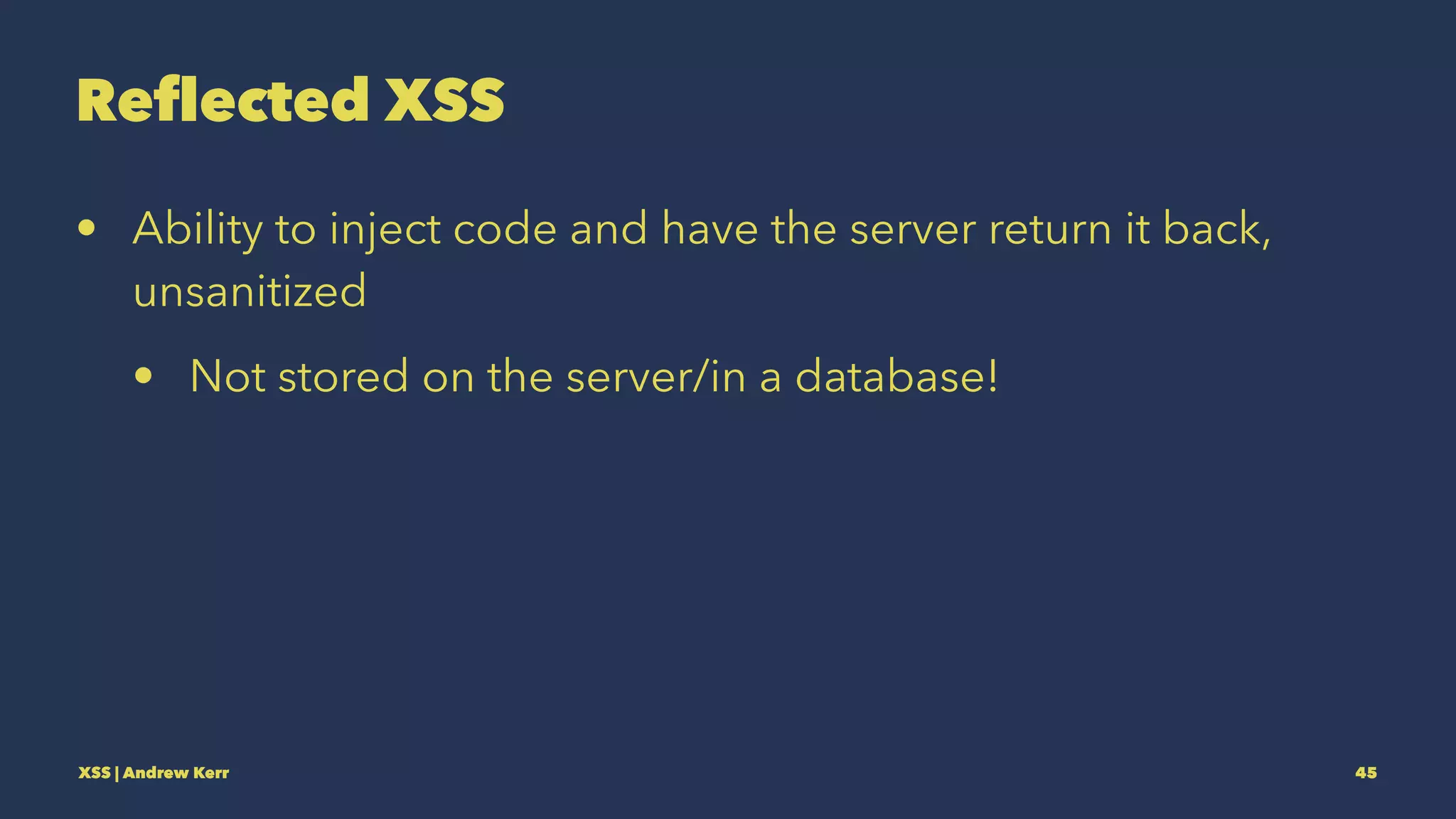

45. Reflected XSS
• Ability to inject code and have the server return it back,
unsanitized
• Not stored on the server/in a database!
XSS | Andrew Kerr 45

46. Reflected XSS
• Ability to inject code and have the server return it back,
unsanitized
• Not stored on the server/in a database!
• Normally hidden in the URL
• Don't click on random links!
XSS | Andrew Kerr 46

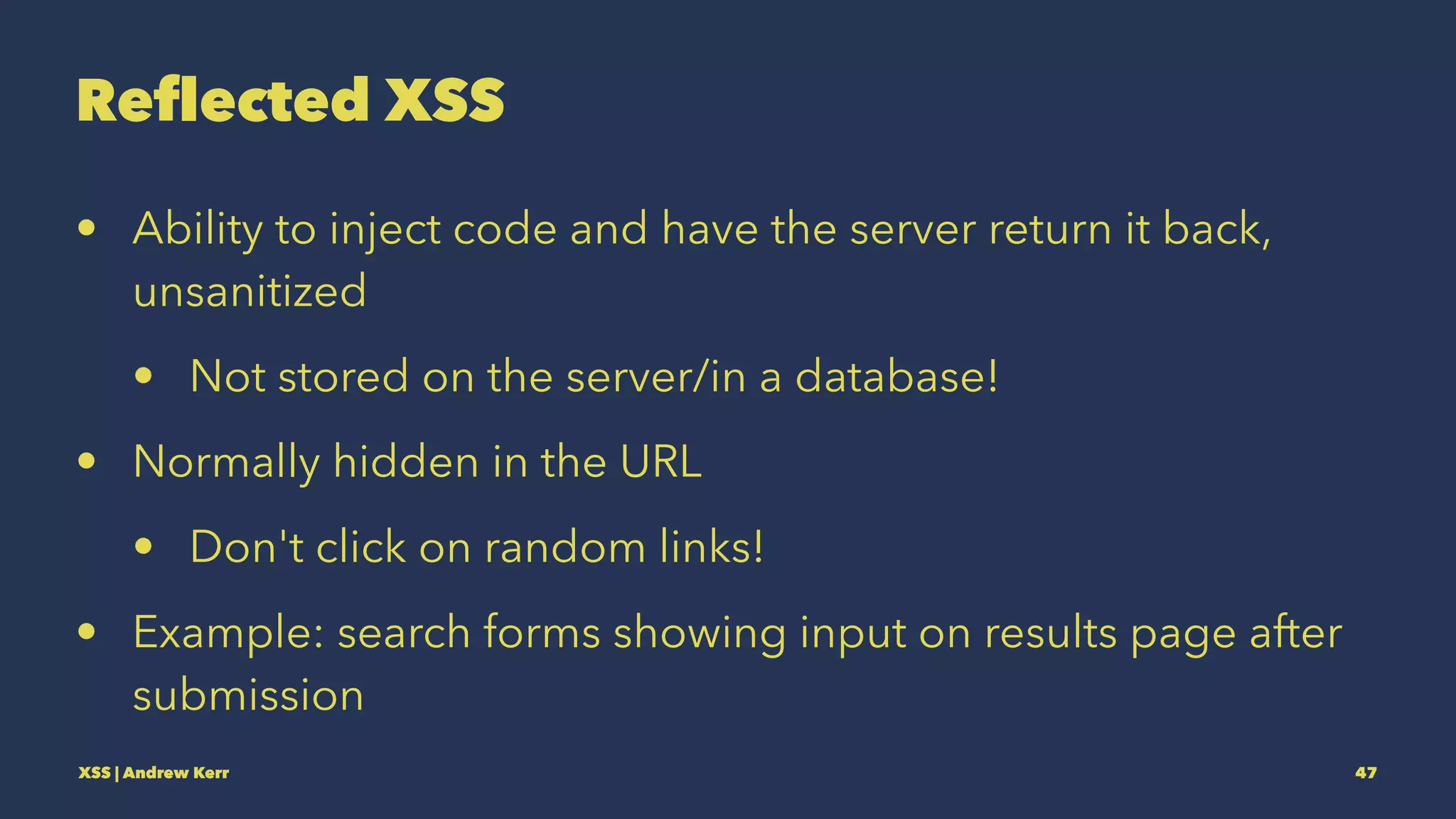

47. Reflected XSS
• Ability to inject code and have the server return it back,
unsanitized
• Not stored on the server/in a database!
• Normally hidden in the URL
• Don't click on random links!
• Example: search forms showing input on results page after
submission
XSS | Andrew Kerr 47

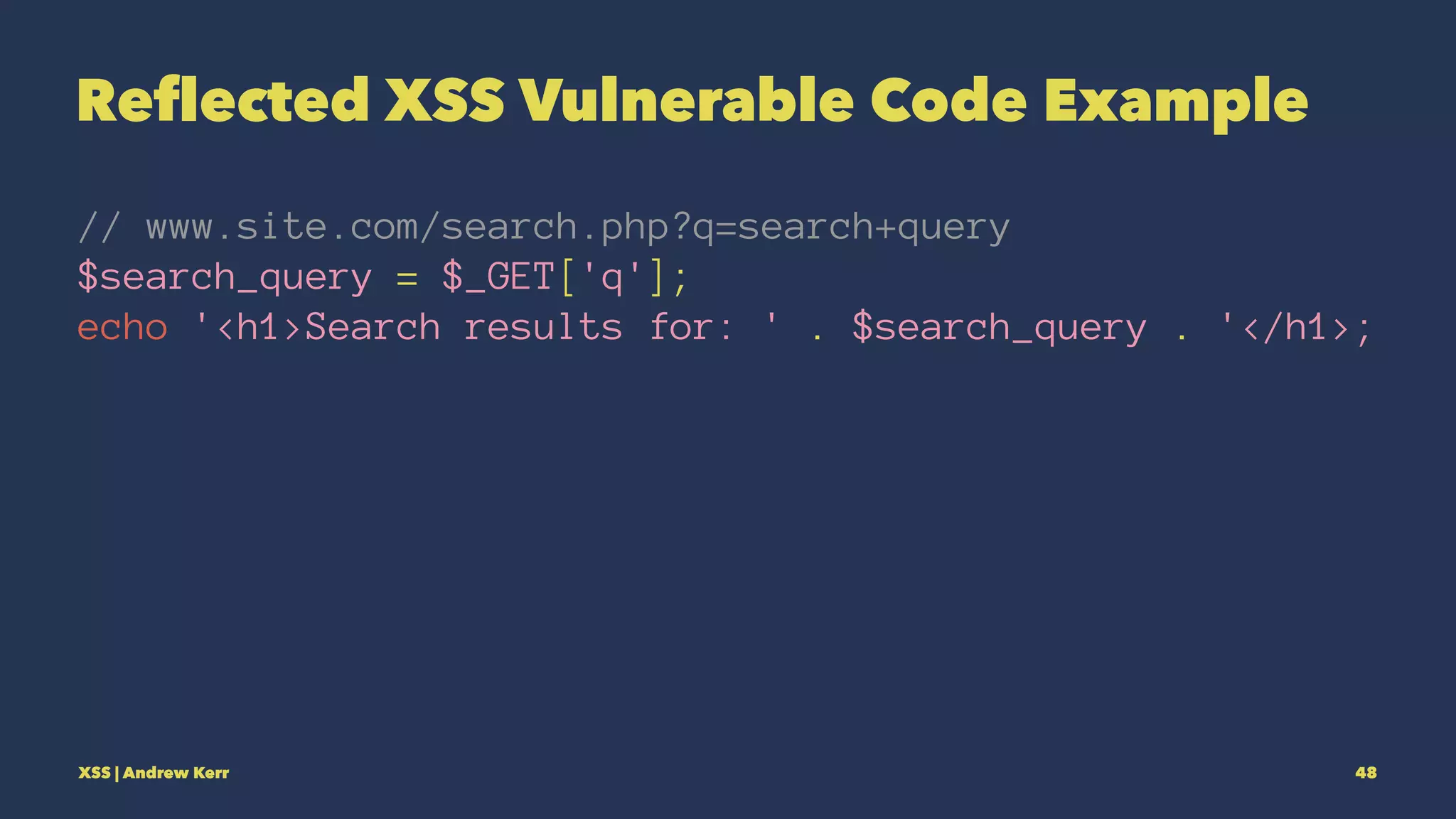

48. Reflected XSS Vulnerable Code Example
// www.site.com/search.php?q=search+query
$search_query = $_GET['q'];
echo '<h1>Search results for: ' . $search_query . '</h1>;
XSS | Andrew Kerr 48

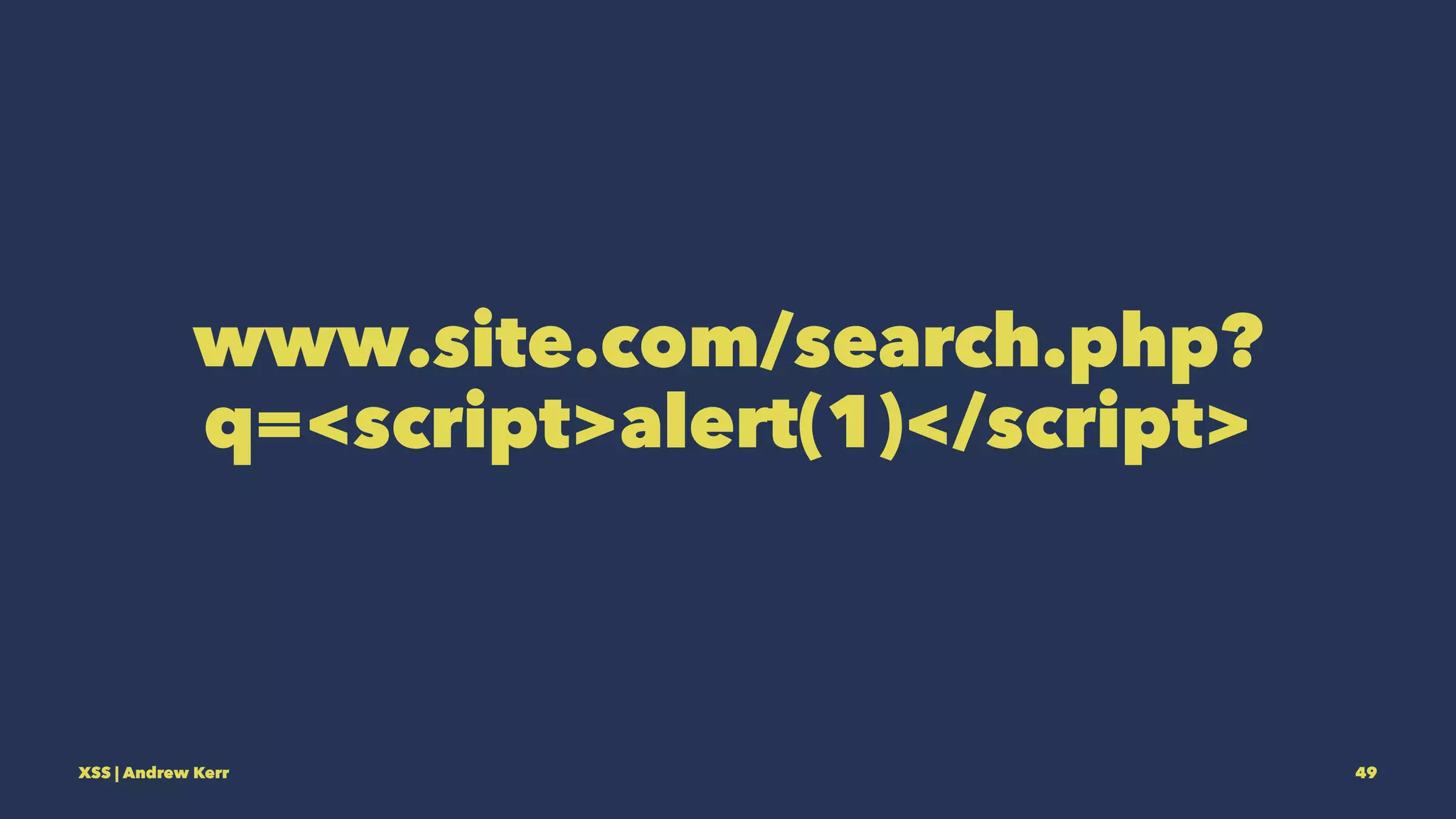

49. www.site.com/search.php?
q=<script>alert(1)</script>
XSS | Andrew Kerr 49

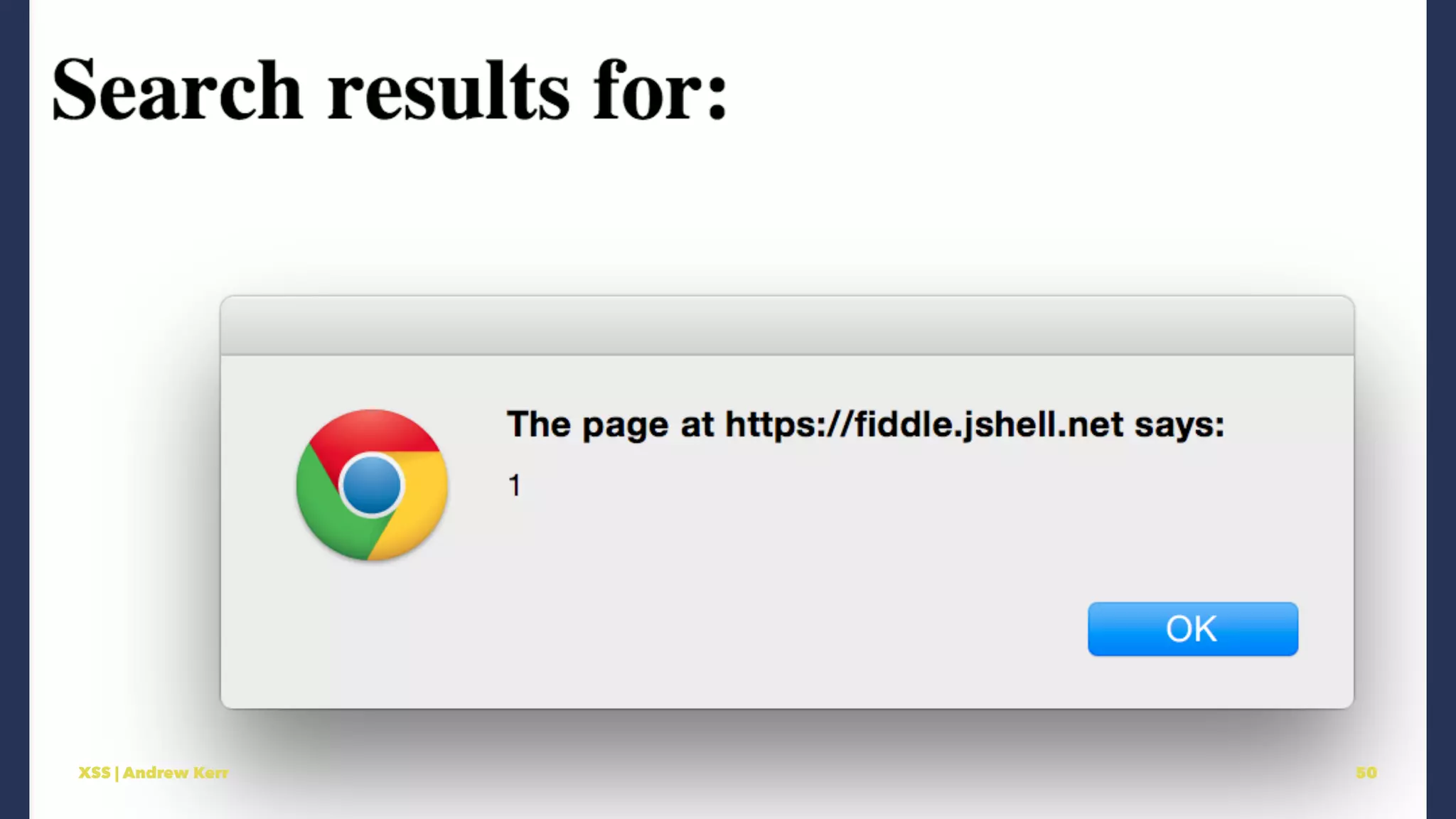

50. XSS | Andrew Kerr 50

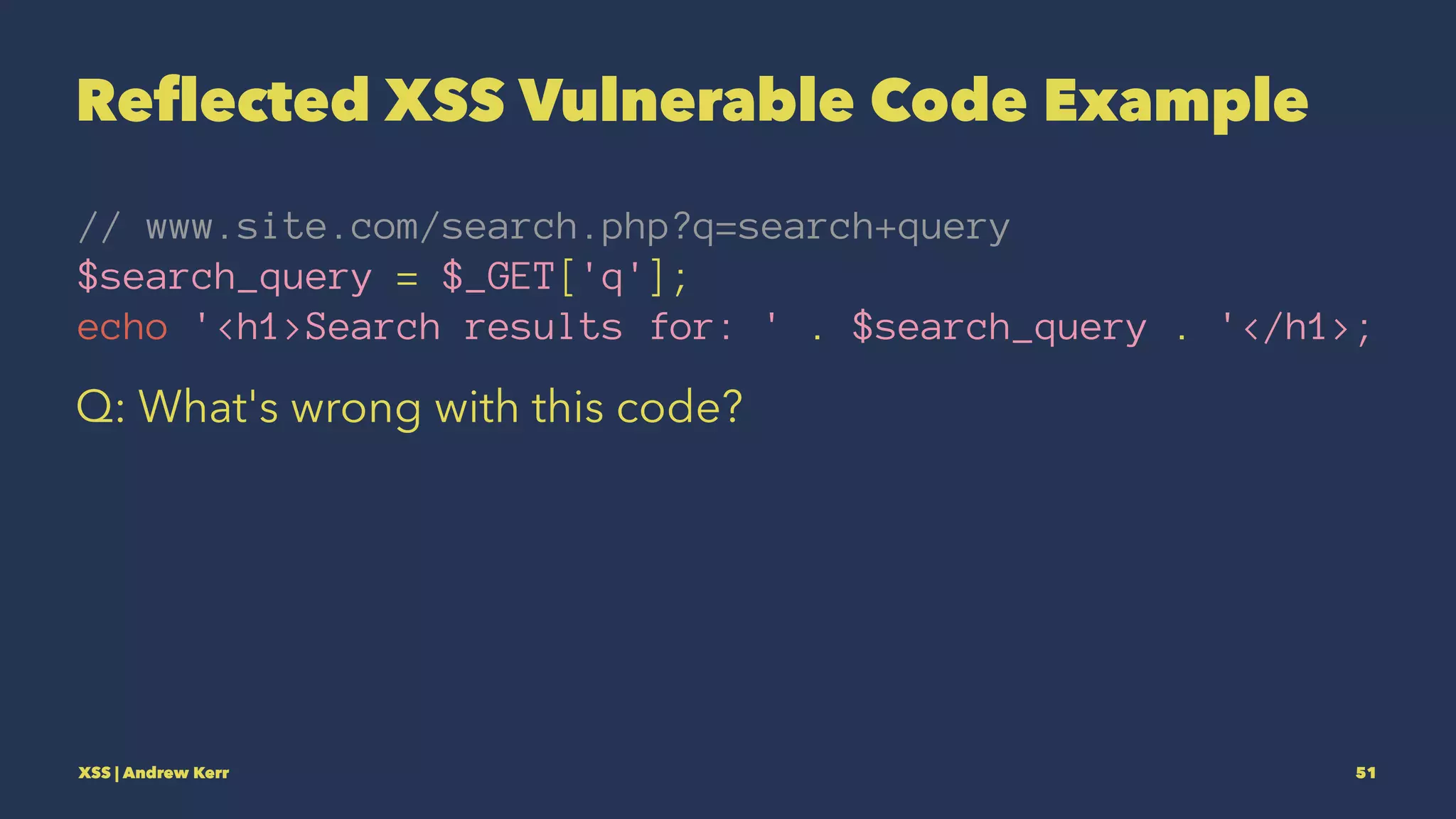

51. Reflected XSS Vulnerable Code Example
// www.site.com/search.php?q=search+query
$search_query = $_GET['q'];
echo '<h1>Search results for: ' . $search_query . '</h1>;
Q: What's wrong with this code?
XSS | Andrew Kerr 51

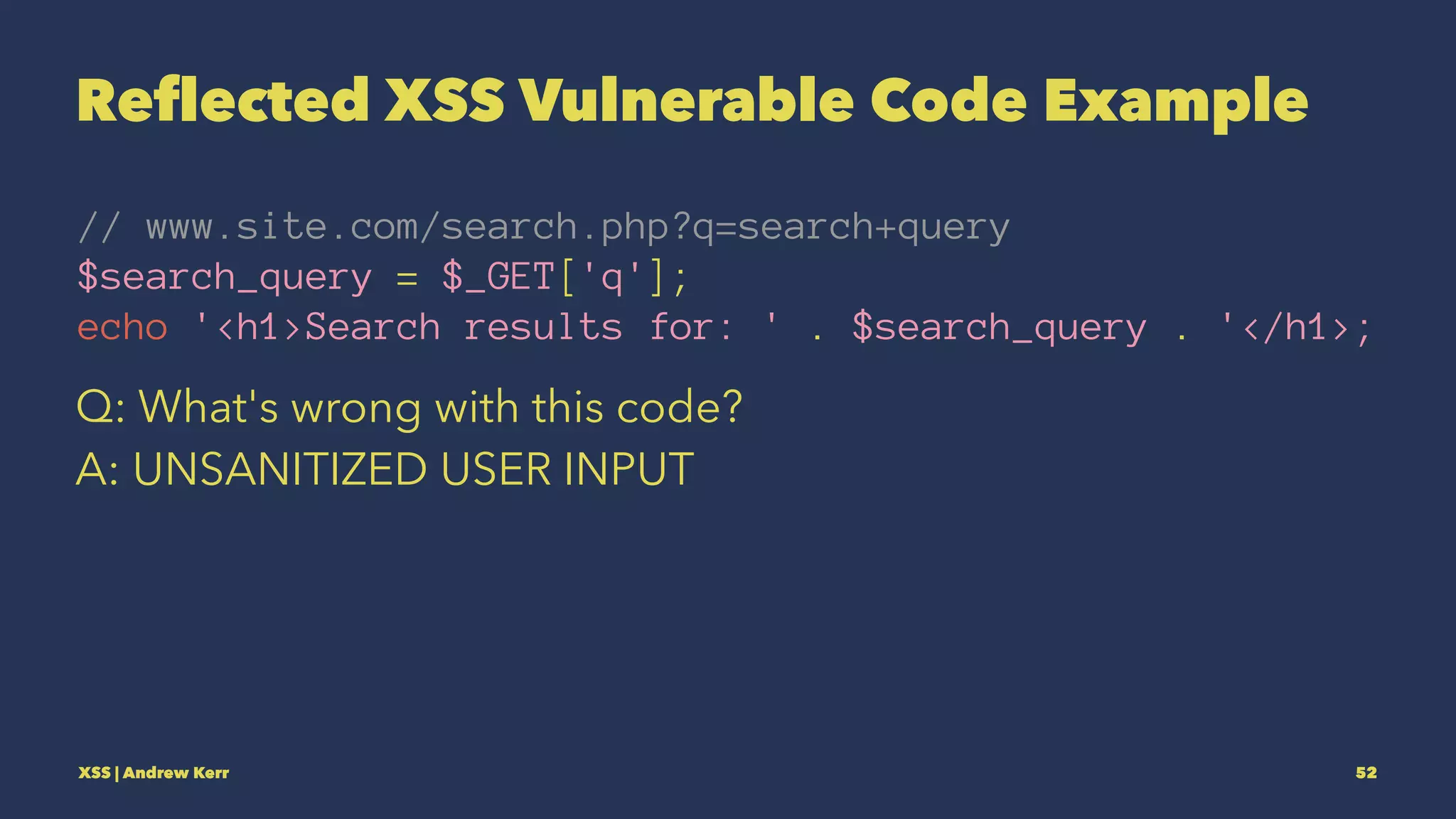

52. Reflected XSS Vulnerable Code Example
// www.site.com/search.php?q=search+query
$search_query = $_GET['q'];
echo '<h1>Search results for: ' . $search_query . '</h1>;
Q: What's wrong with this code?
A: UNSANITIZED USER INPUT
XSS | Andrew Kerr 52

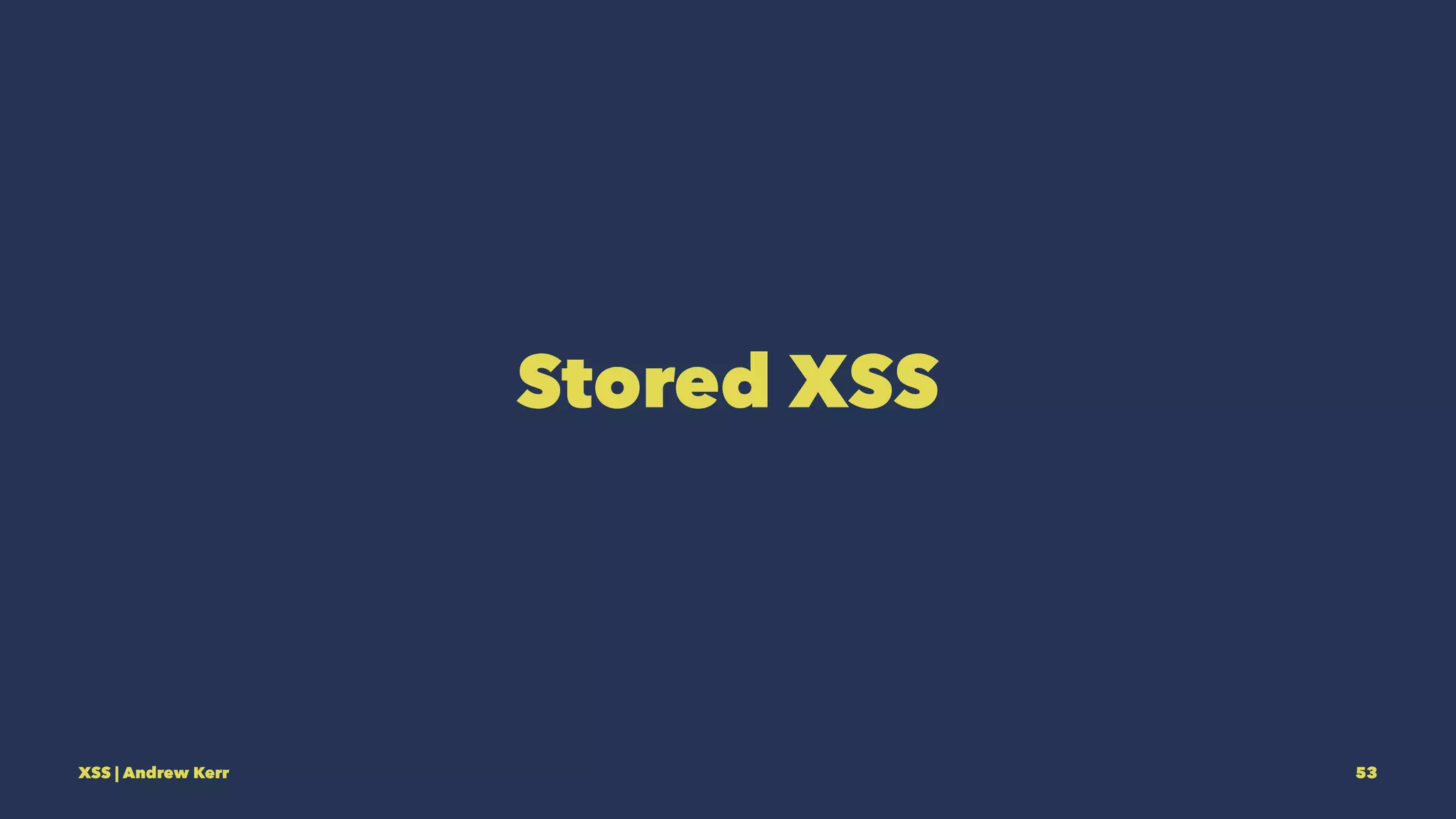

53. Stored XSS
XSS | Andrew Kerr 53

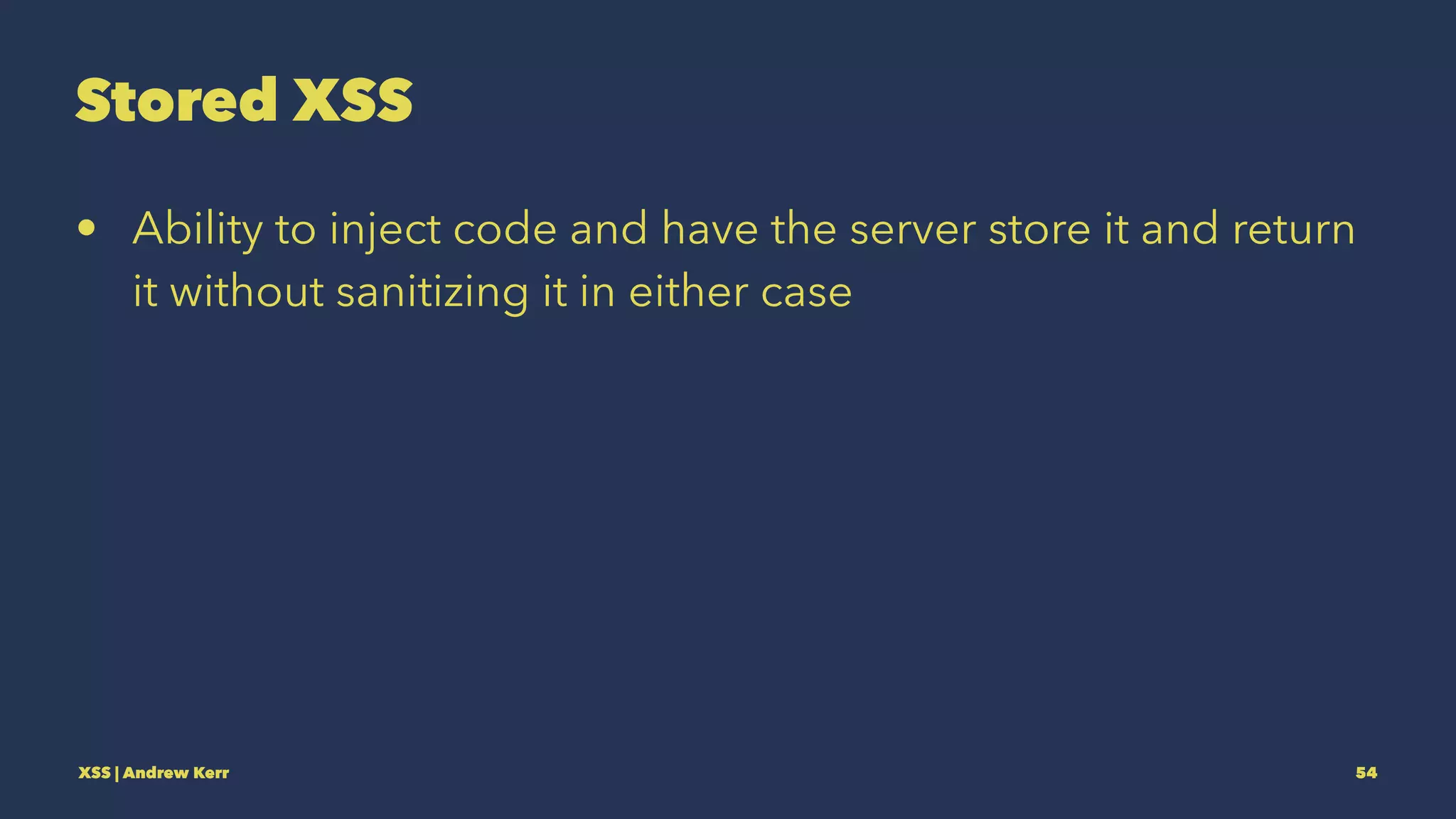

54. Stored XSS
• Ability to inject code and have the server store it and return
it without sanitizing it in either case
XSS | Andrew Kerr 54

55. Stored XSS
• Ability to inject code and have the server store it and return
it without sanitizing it in either case
• HOLY CRAP THIS IS HORRIBLE
• Only way for end user to protect themselves is to disable
JS
XSS | Andrew Kerr 55

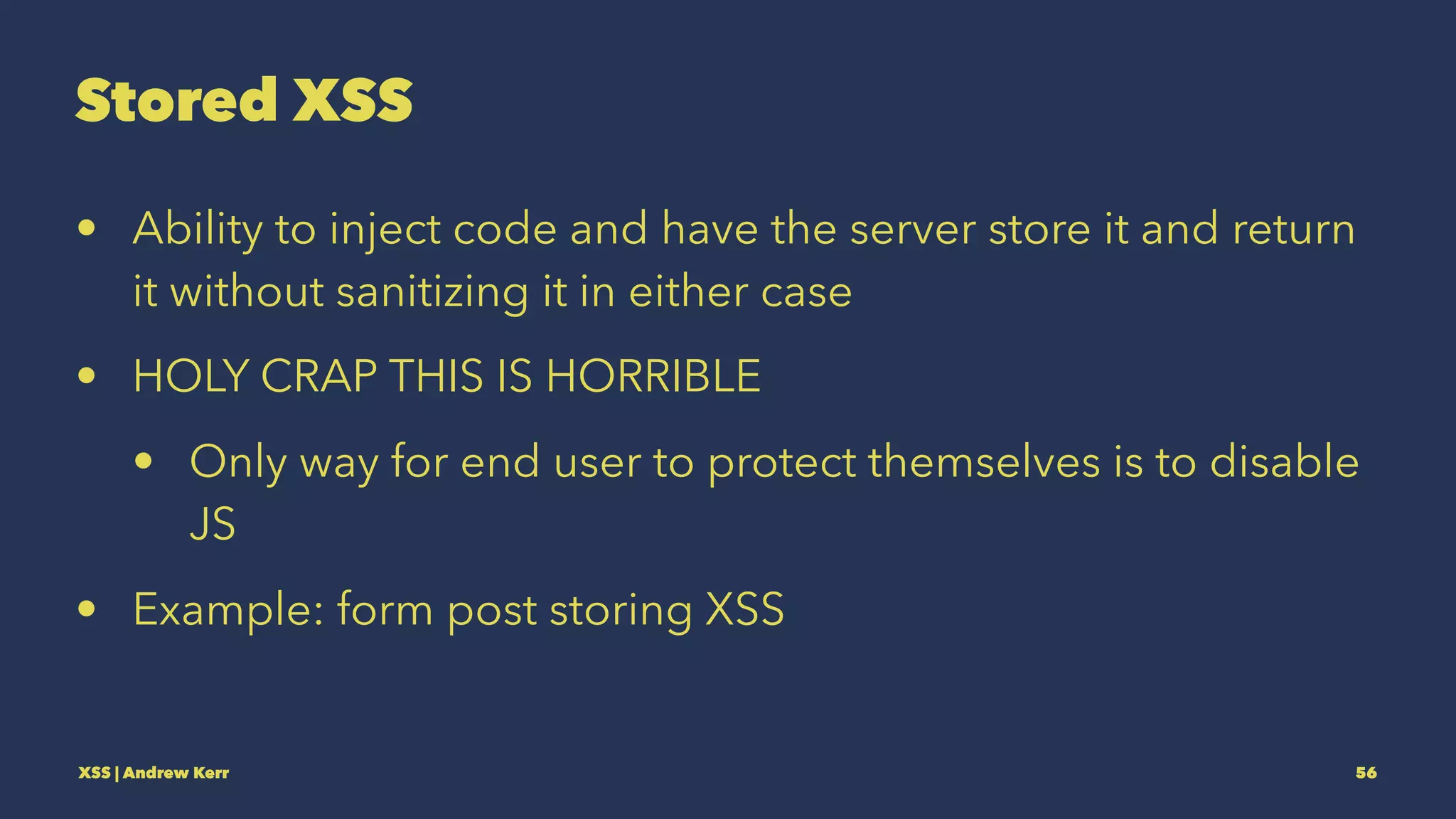

56. Stored XSS
• Ability to inject code and have the server store it and return
it without sanitizing it in either case
• HOLY CRAP THIS IS HORRIBLE
• Only way for end user to protect themselves is to disable
JS
• Example: form post storing XSS
XSS | Andrew Kerr 56

57. XSS | Andrew Kerr 57

58. Samy MySpace worm
XSS | Andrew Kerr 58

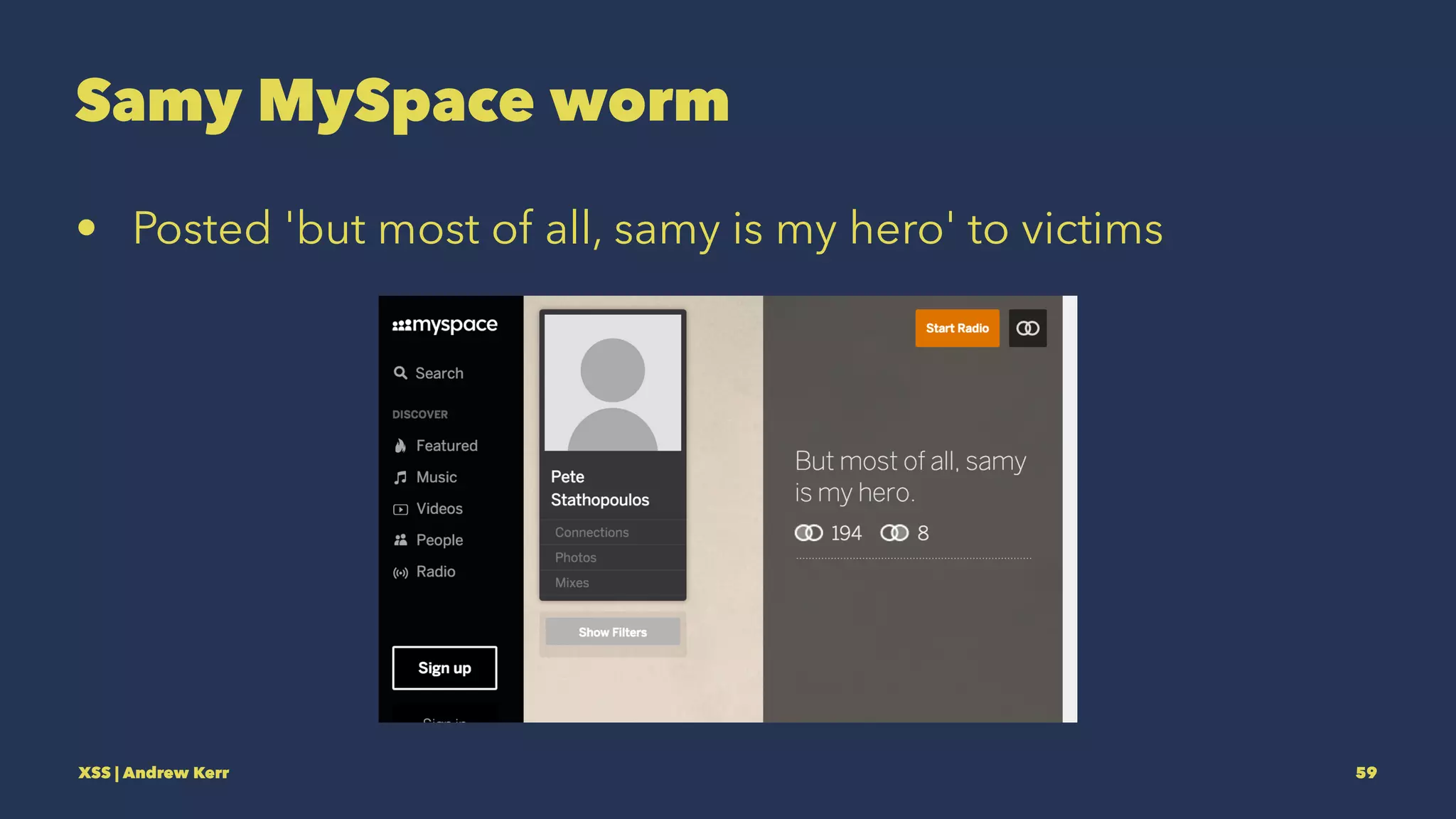

59. Samy MySpace worm
• Posted 'but most of all, samy is my hero' to victims
XSS | Andrew Kerr 59

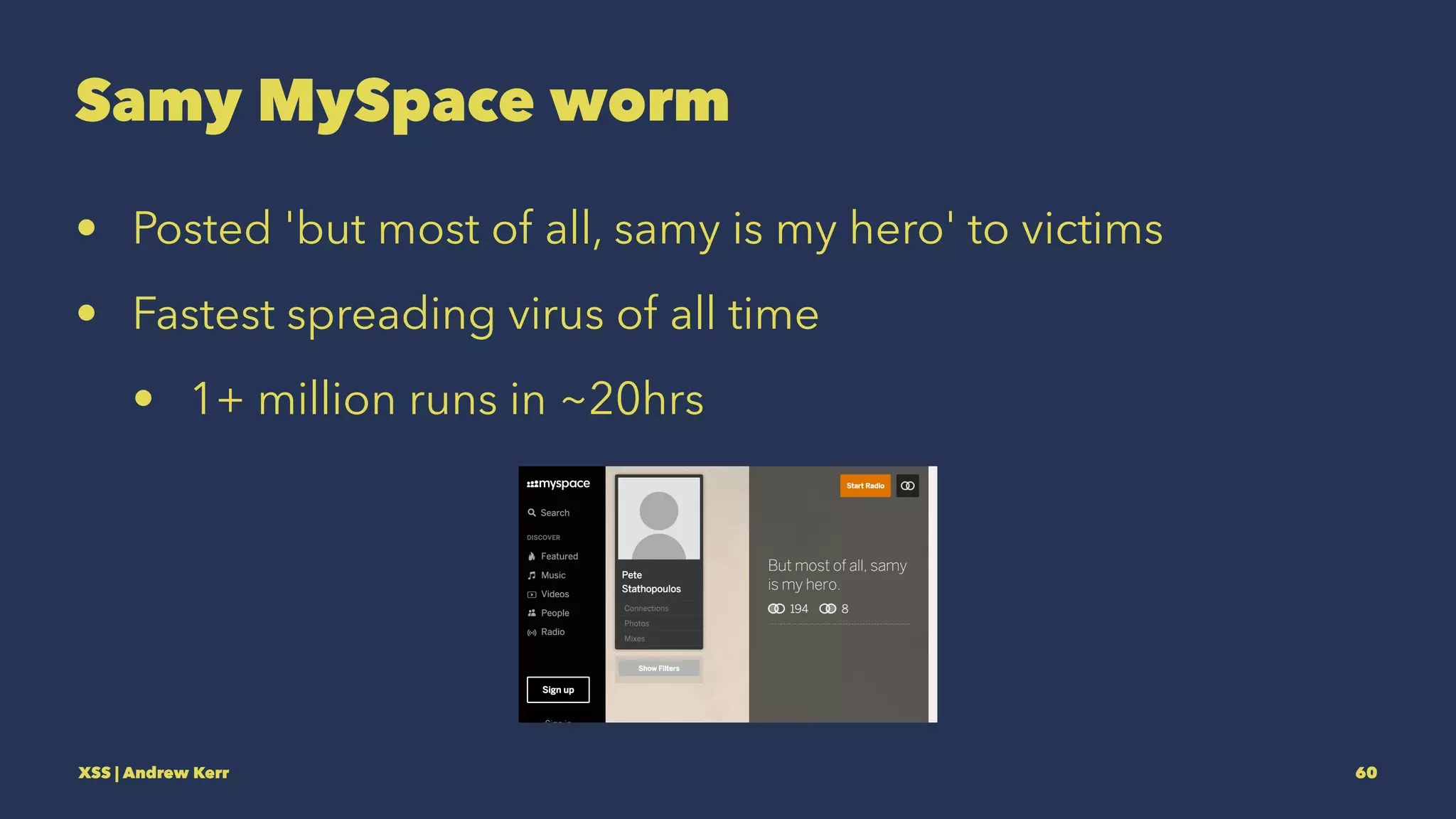

60. Samy MySpace worm
• Posted 'but most of all, samy is my hero' to victims
• Fastest spreading virus of all time
• 1+ million runs in ~20hrs
XSS | Andrew Kerr 60

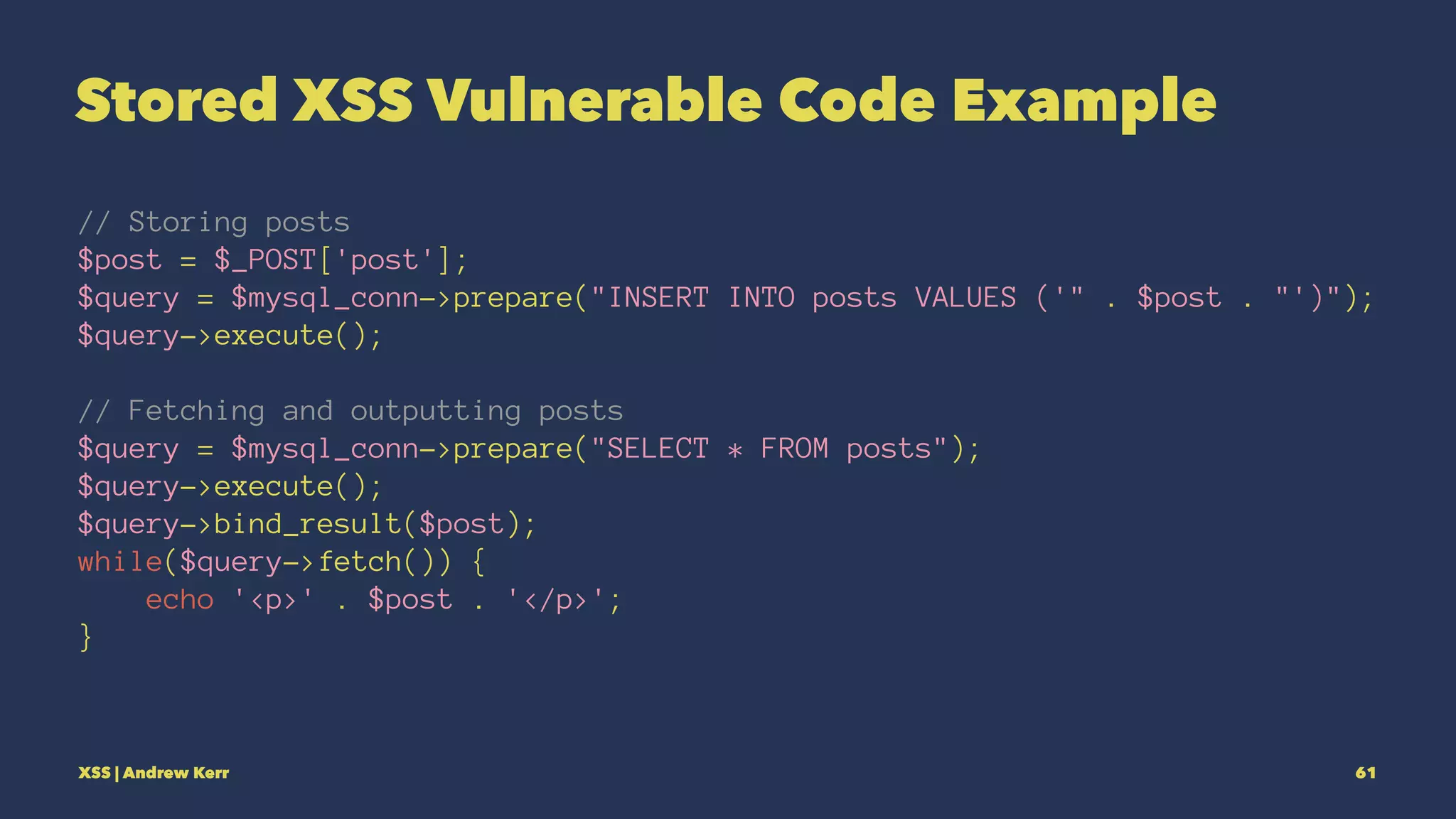

61. Stored XSS Vulnerable Code Example
// Storing posts
$post = $_POST['post'];
$query = $mysql_conn->prepare("INSERT INTO posts VALUES ('" . $post . "')");
$query->execute();
// Fetching and outputting posts
$query = $mysql_conn->prepare("SELECT * FROM posts");
$query->execute();
$query->bind_result($post);
while($query->fetch()) {
echo '<p>' . $post . '</p>';
}
XSS | Andrew Kerr 61

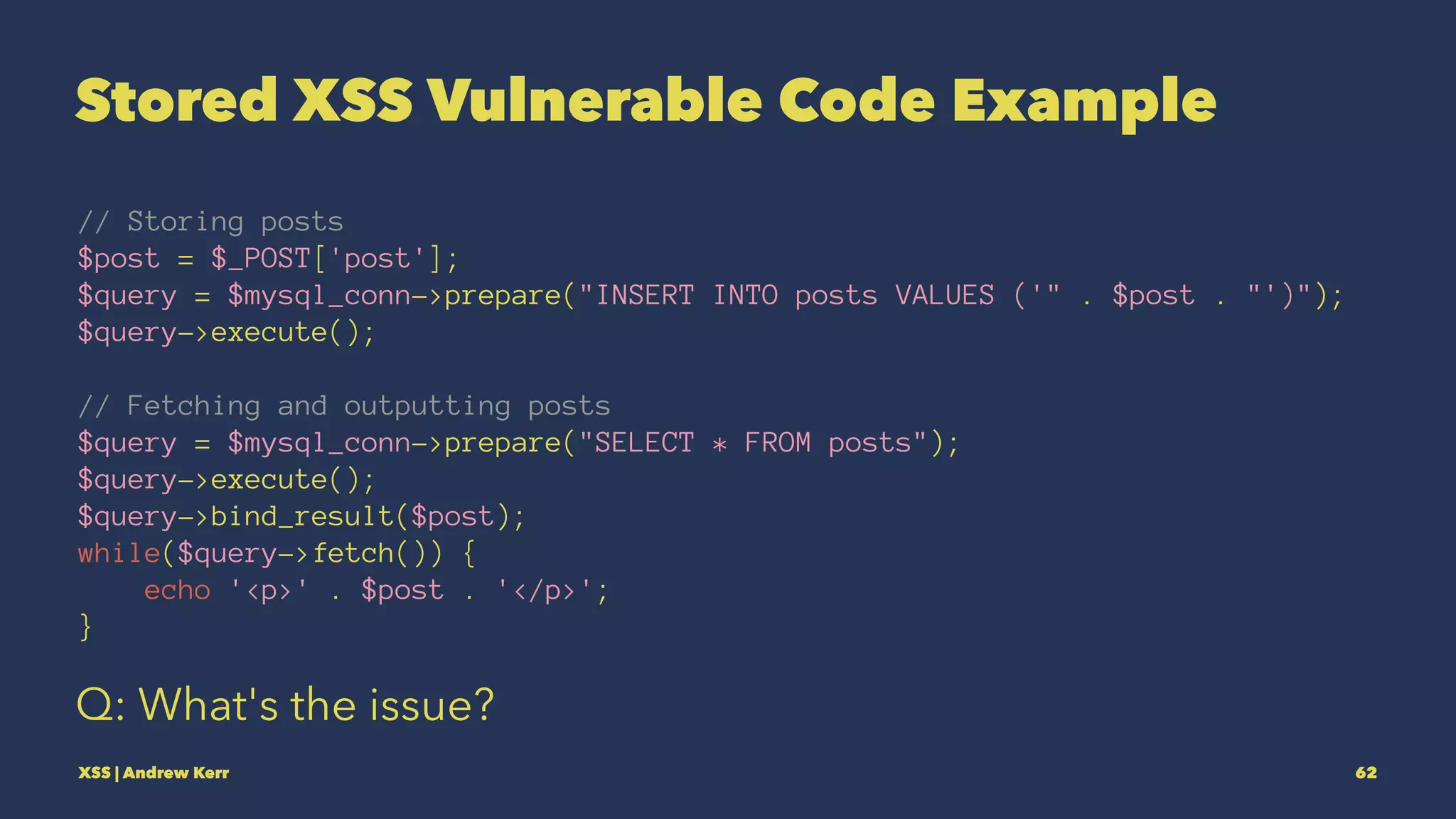

62. Stored XSS Vulnerable Code Example
// Storing posts
$post = $_POST['post'];
$query = $mysql_conn->prepare("INSERT INTO posts VALUES ('" . $post . "')");
$query->execute();
// Fetching and outputting posts
$query = $mysql_conn->prepare("SELECT * FROM posts");
$query->execute();
$query->bind_result($post);
while($query->fetch()) {
echo '<p>' . $post . '</p>';
}
Q: What's the issue?
XSS | Andrew Kerr 62

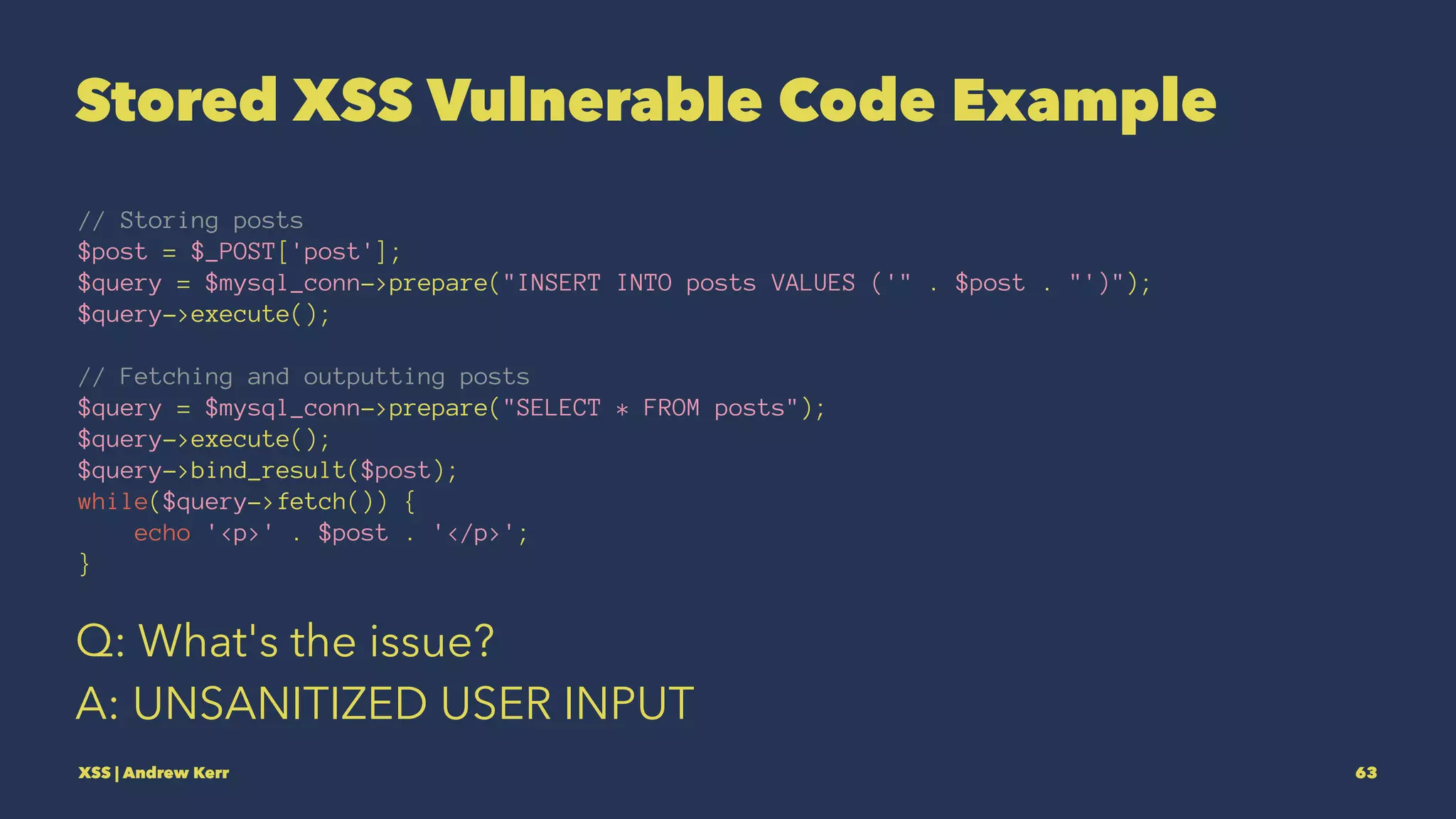

63. Stored XSS Vulnerable Code Example
// Storing posts
$post = $_POST['post'];
$query = $mysql_conn->prepare("INSERT INTO posts VALUES ('" . $post . "')");
$query->execute();
// Fetching and outputting posts
$query = $mysql_conn->prepare("SELECT * FROM posts");
$query->execute();
$query->bind_result($post);
while($query->fetch()) {
echo '<p>' . $post . '</p>';
}
Q: What's the issue?
A: UNSANITIZED USER INPUT
XSS | Andrew Kerr 63

64. DOM-based XSS
XSS | Andrew Kerr 64

65. DOM-based XSS
• Similar to Reflected, but is not rendered from the server.
XSS | Andrew Kerr 65

66. DOM-based XSS
• Similar to Reflected, but is not rendered from the server.
• Normally due to bad JavaScript code
XSS | Andrew Kerr 66

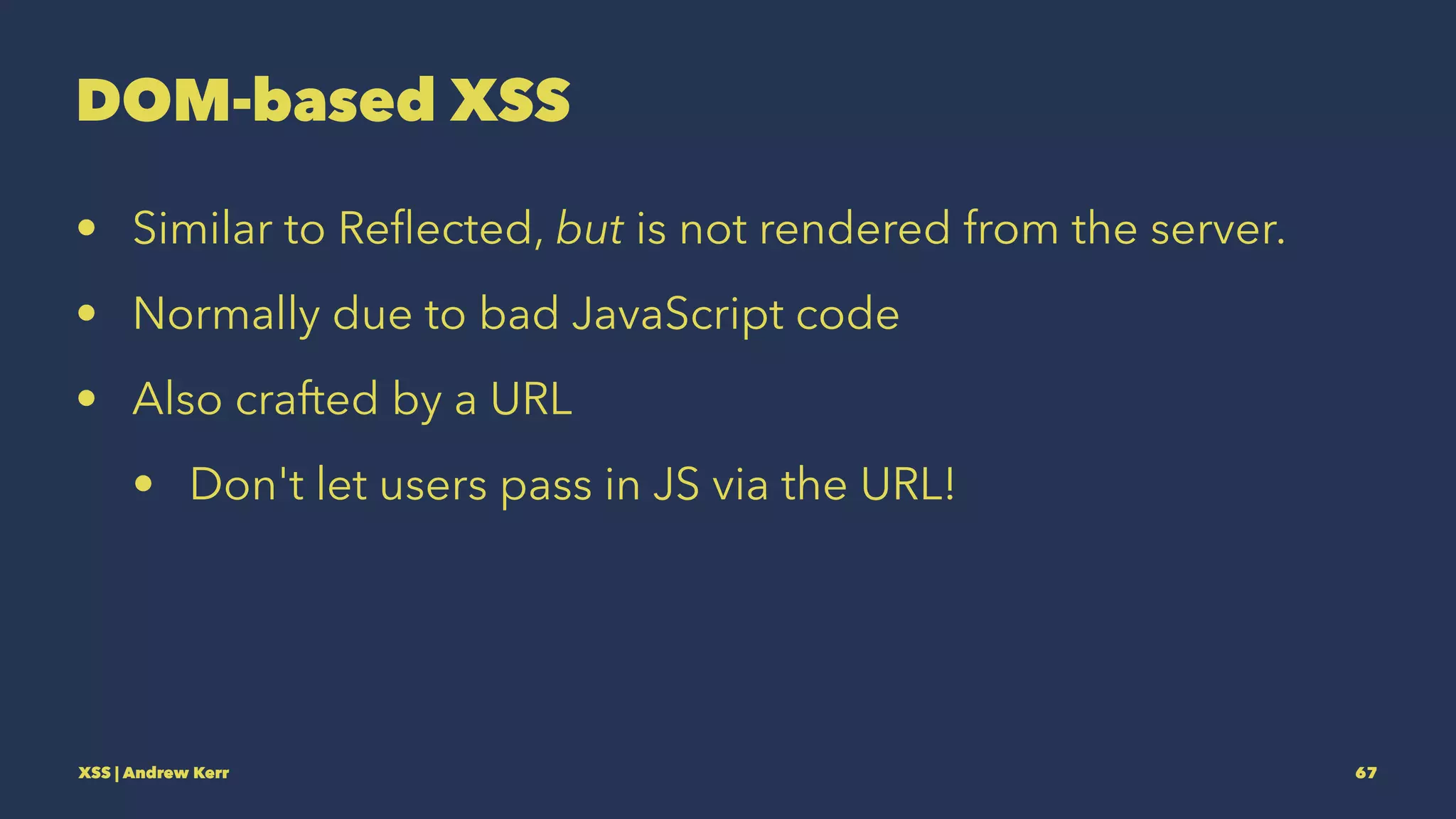

67. DOM-based XSS
• Similar to Reflected, but is not rendered from the server.
• Normally due to bad JavaScript code
• Also crafted by a URL
• Don't let users pass in JS via the URL!
XSS | Andrew Kerr 67

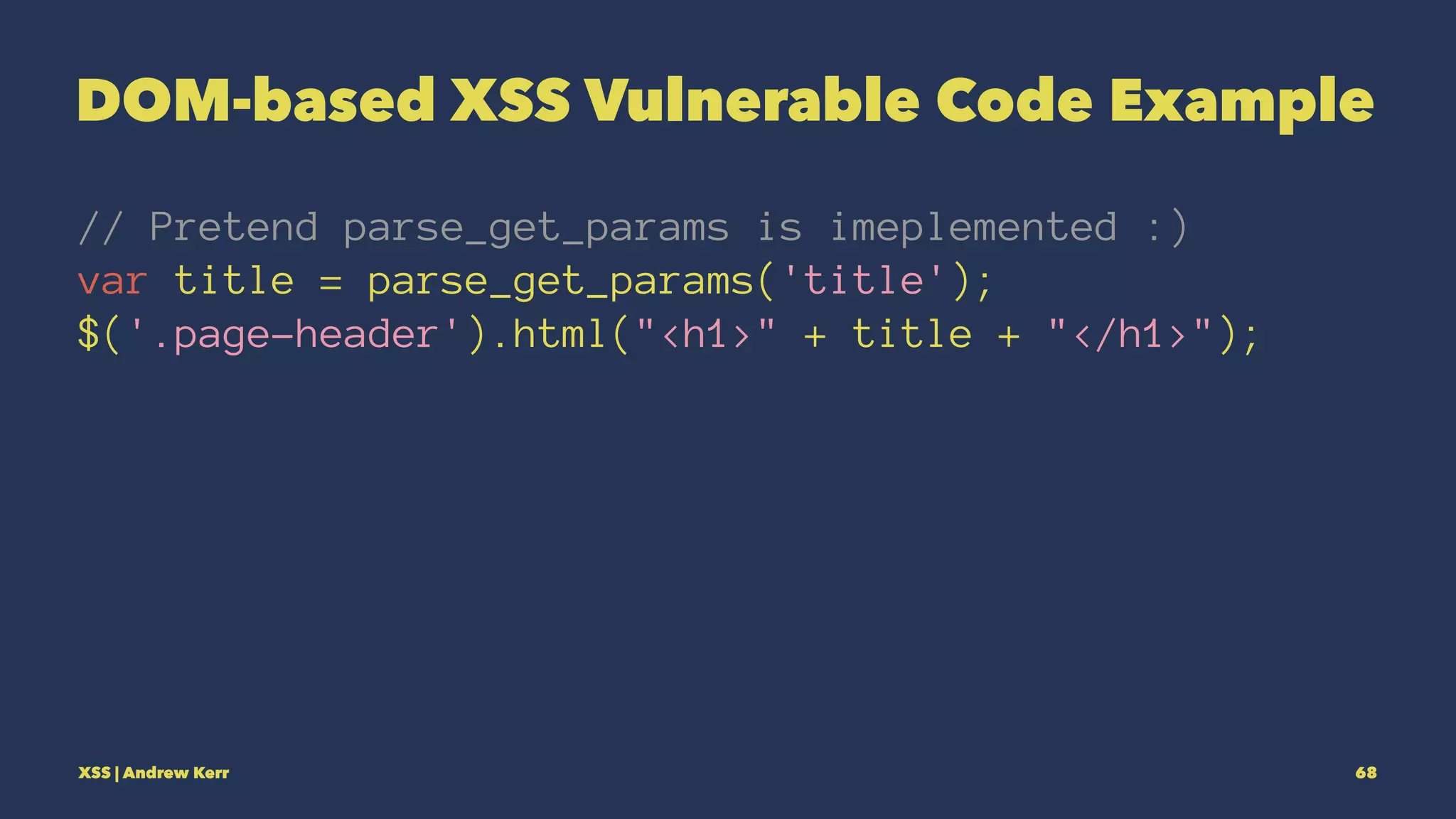

68. DOM-based XSS Vulnerable Code Example
// Pretend parse_get_params is imeplemented :)
var title = parse_get_params('title');
$('.page-header').html("<h1>" + title + "</h1>");
XSS | Andrew Kerr 68

69. DOM-based XSS Vulnerable Code Example
// Pretend parse_get_params is imeplemented :)
var title = parse_get_params('title');
$('.page-header').html("<h1>" + title + "</h1>");
Q: And, what's the issue here?
XSS | Andrew Kerr 69

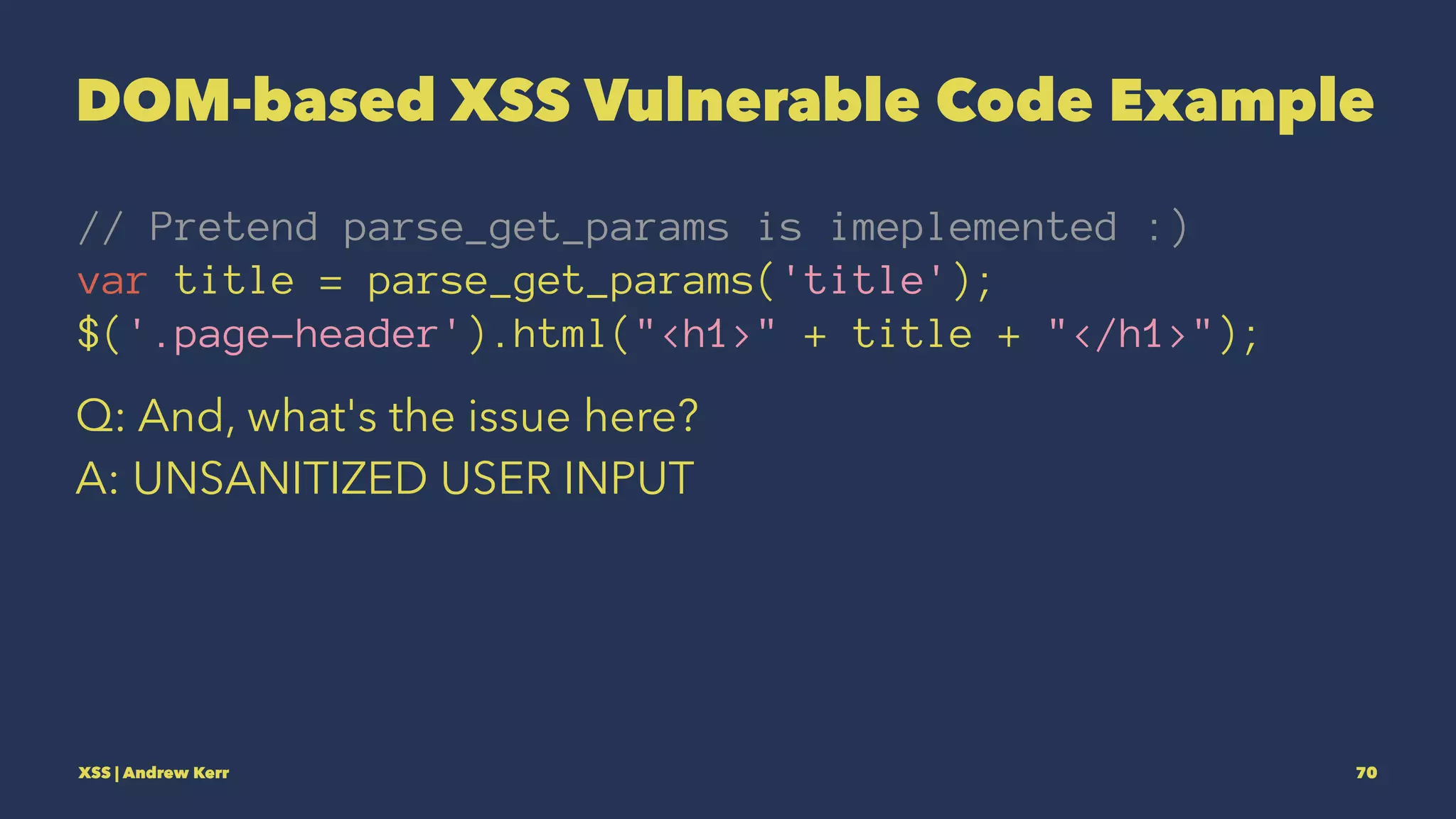

70. DOM-based XSS Vulnerable Code Example
// Pretend parse_get_params is imeplemented :)
var title = parse_get_params('title');
$('.page-header').html("<h1>" + title + "</h1>");
Q: And, what's the issue here?
A: UNSANITIZED USER INPUT
XSS | Andrew Kerr 70

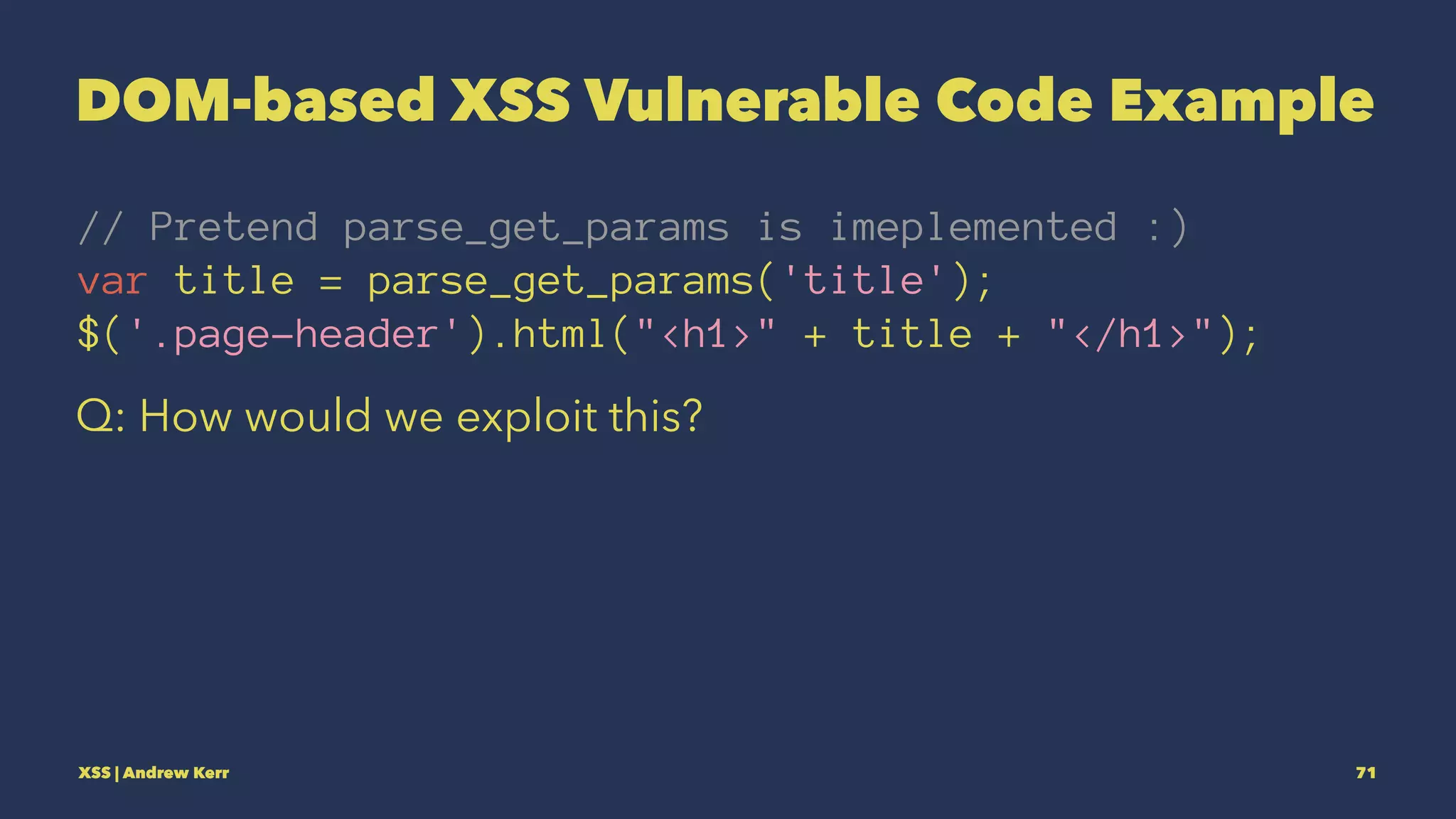

71. DOM-based XSS Vulnerable Code Example
// Pretend parse_get_params is imeplemented :)
var title = parse_get_params('title');
$('.page-header').html("<h1>" + title + "</h1>");
Q: How would we exploit this?
XSS | Andrew Kerr 71

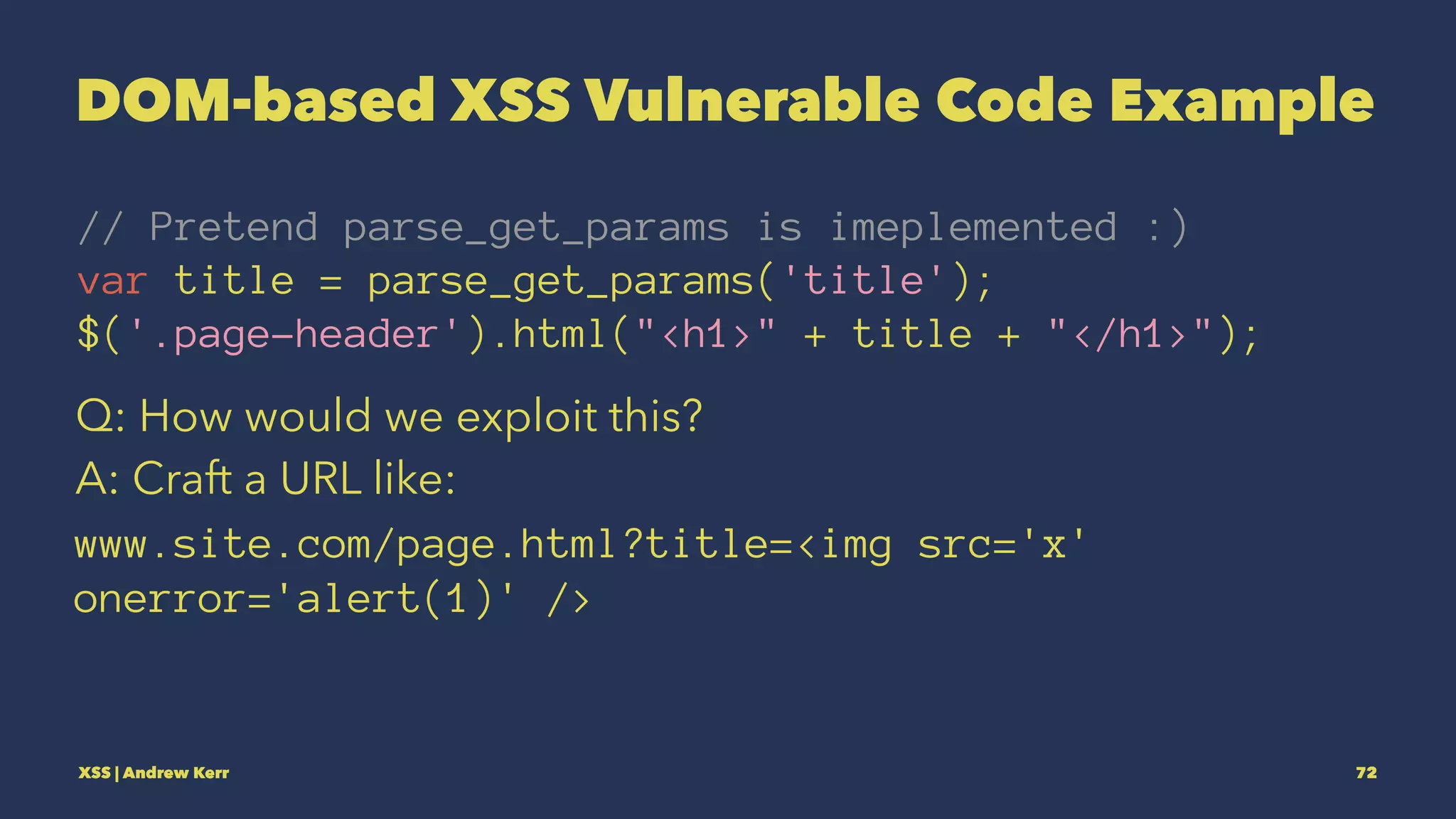

72. DOM-based XSS Vulnerable Code Example
// Pretend parse_get_params is imeplemented :)
var title = parse_get_params('title');
$('.page-header').html("<h1>" + title + "</h1>");
Q: How would we exploit this?
A: Craft a URL like:
www.site.com/page.html?title=<img src='x'
onerror='alert(1)' />
XSS | Andrew Kerr 72

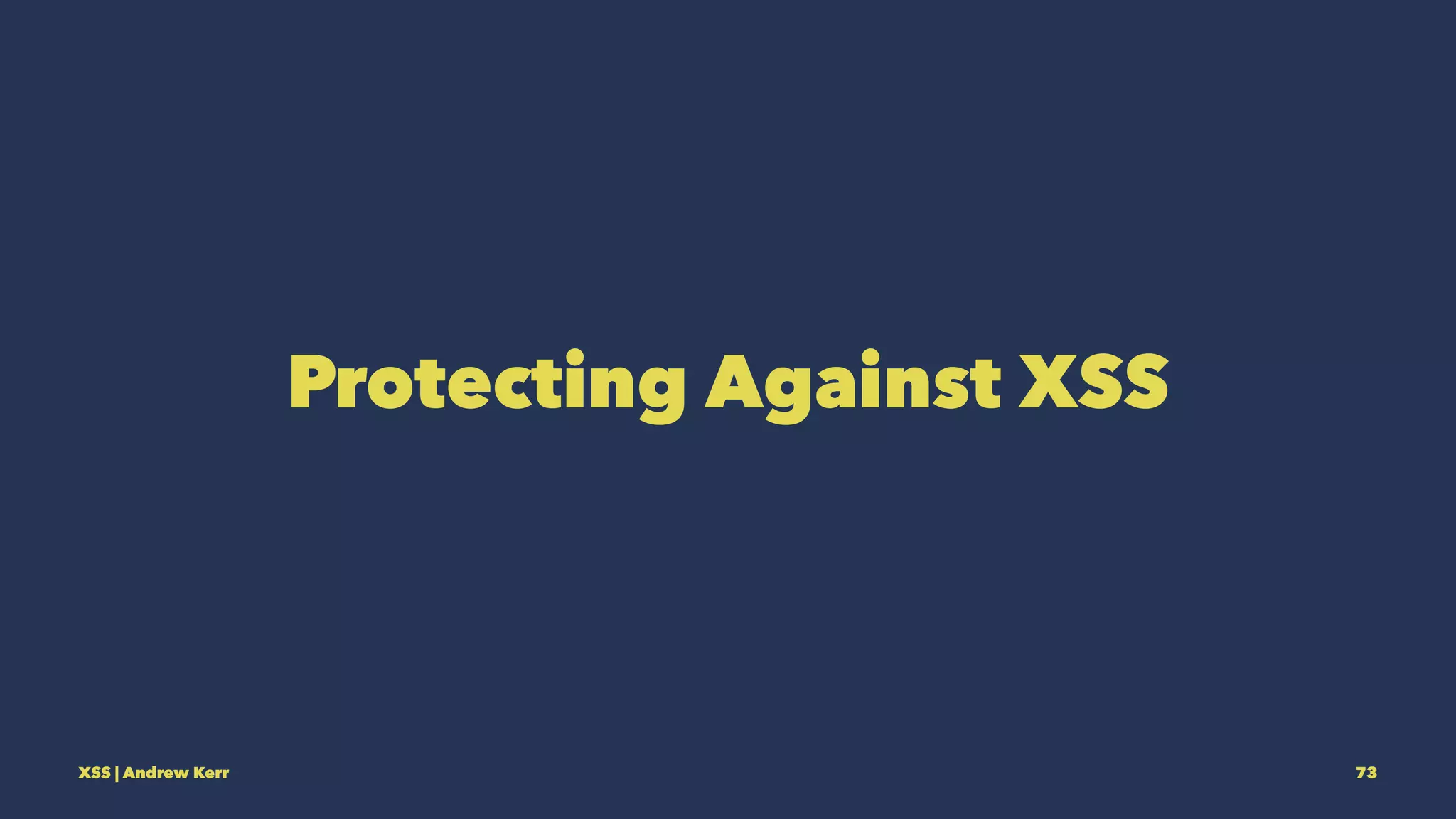

73. Protecting Against XSS
XSS | Andrew Kerr 73

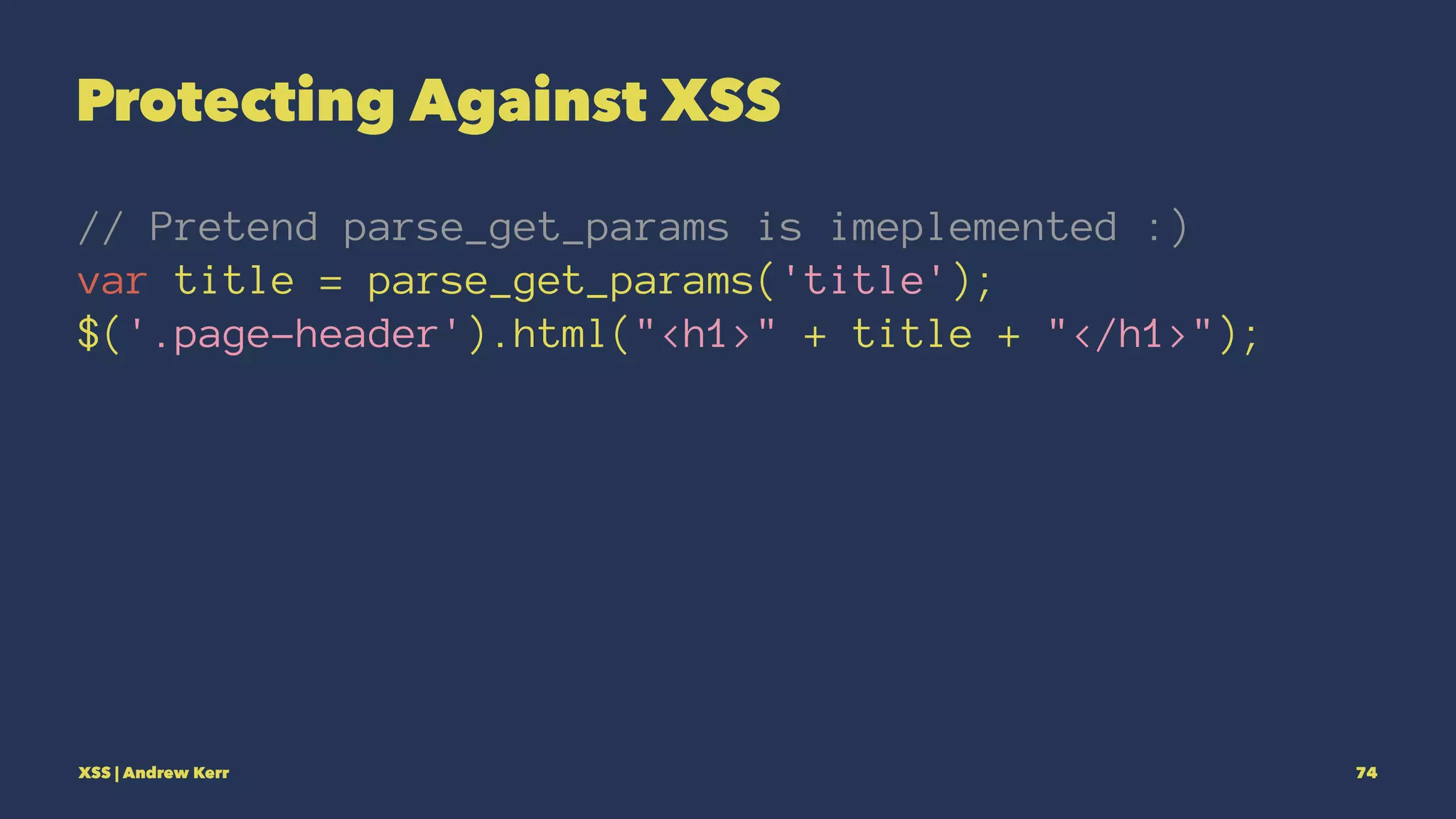

74. Protecting Against XSS
// Pretend parse_get_params is imeplemented :)
var title = parse_get_params('title');
$('.page-header').html("<h1>" + title + "</h1>");
XSS | Andrew Kerr 74

75. Protecting Against XSS
// Pretend parse_get_params is imeplemented :)
var title = parse_get_params('title');
$('.page-header').html("<h1>" + title + "</h1>");
• jQuery provides a .html AND .text.
XSS | Andrew Kerr 75

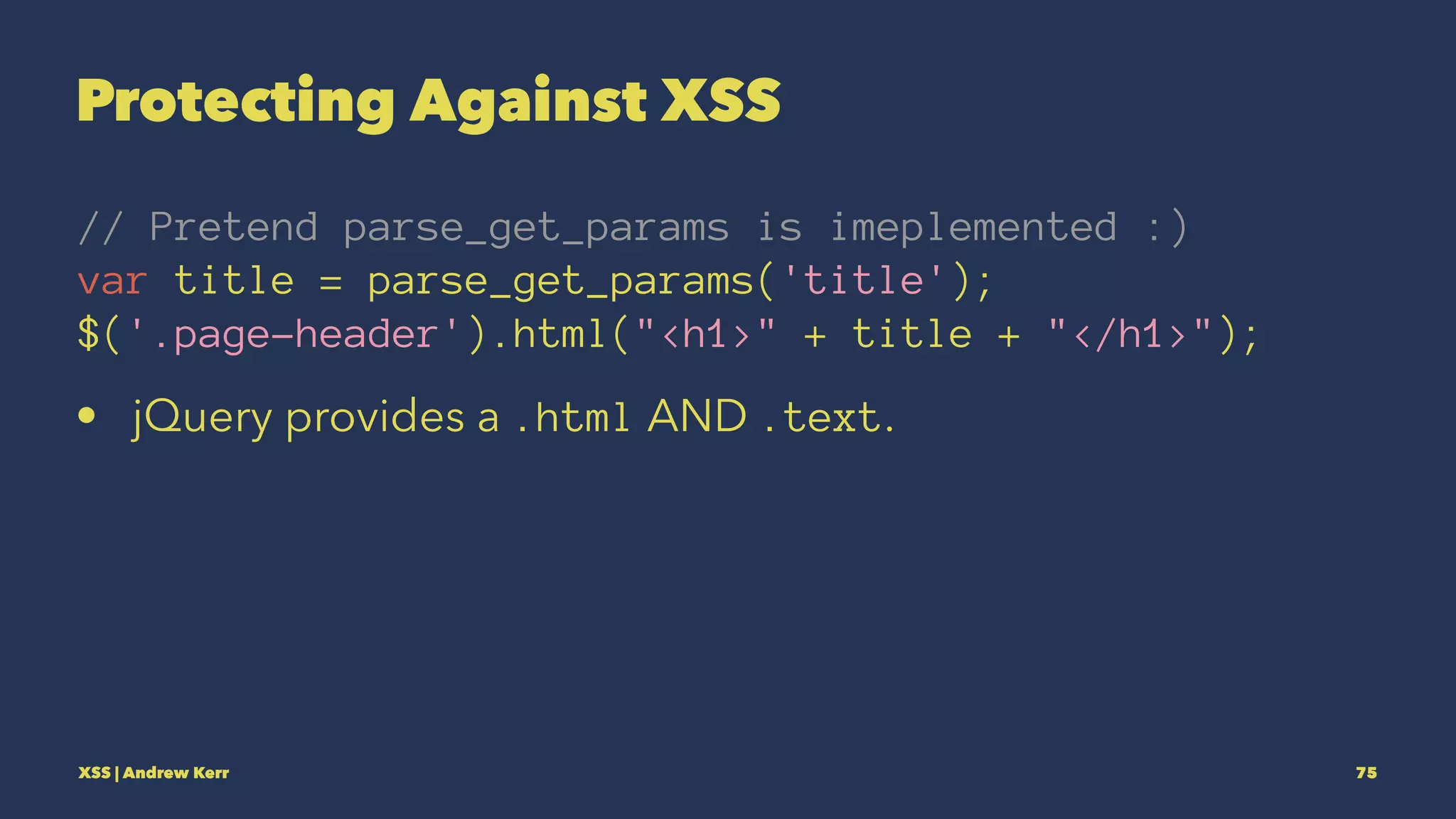

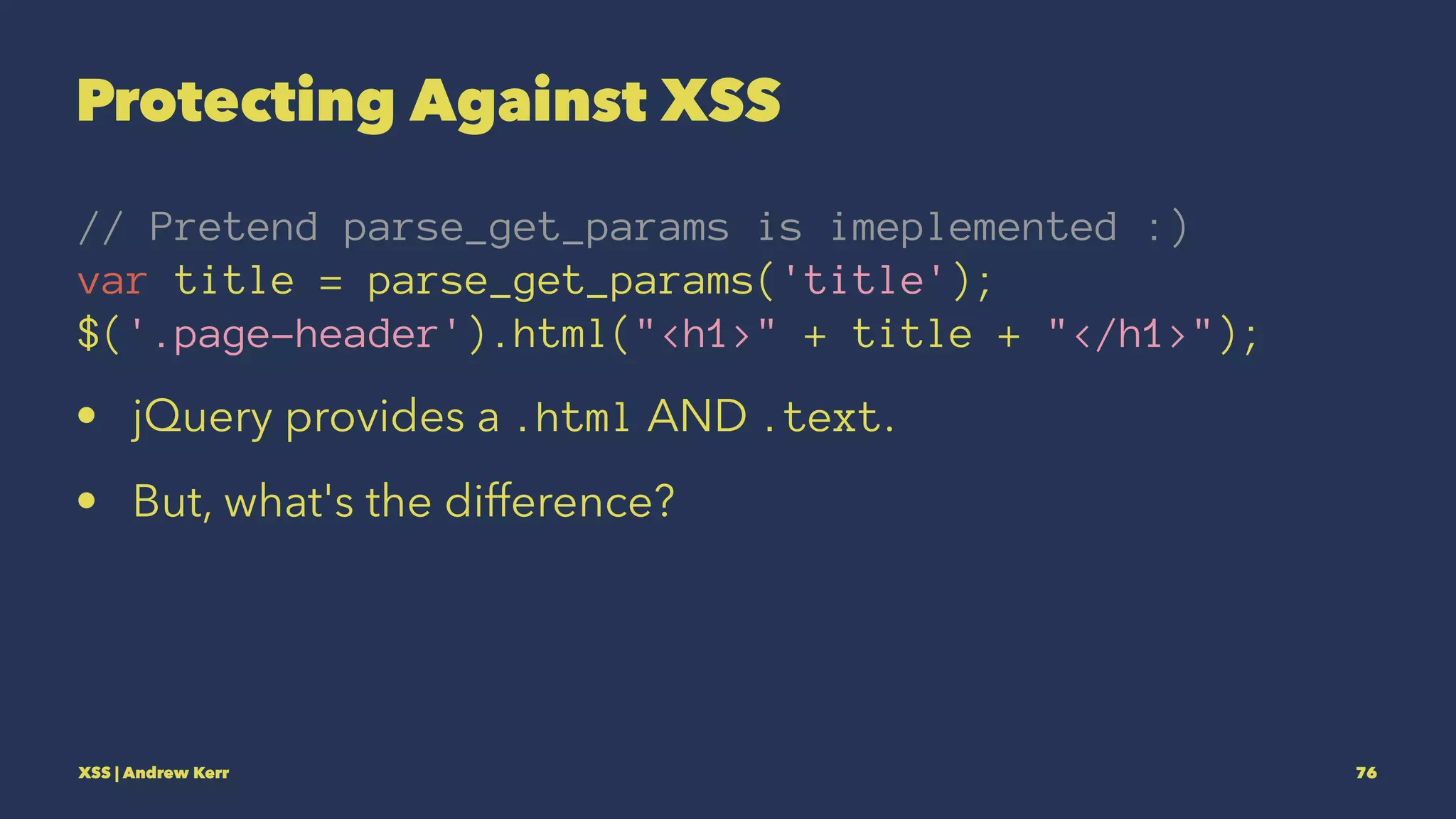

76. Protecting Against XSS
// Pretend parse_get_params is imeplemented :)
var title = parse_get_params('title');
$('.page-header').html("<h1>" + title + "</h1>");
• jQuery provides a .html AND .text.
• But, what's the difference?
XSS | Andrew Kerr 76

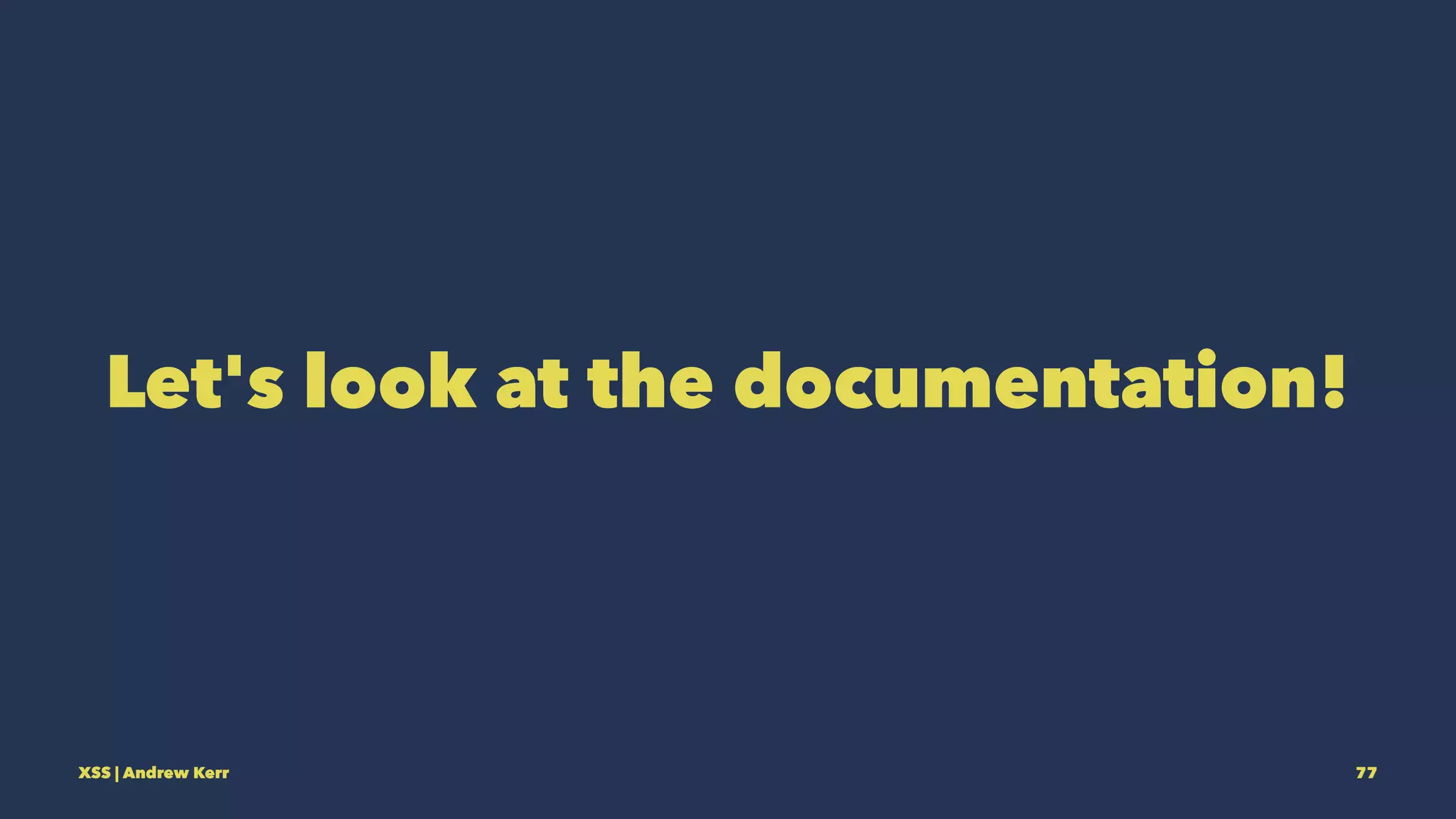

77. Let's look at the documentation!
XSS | Andrew Kerr 77

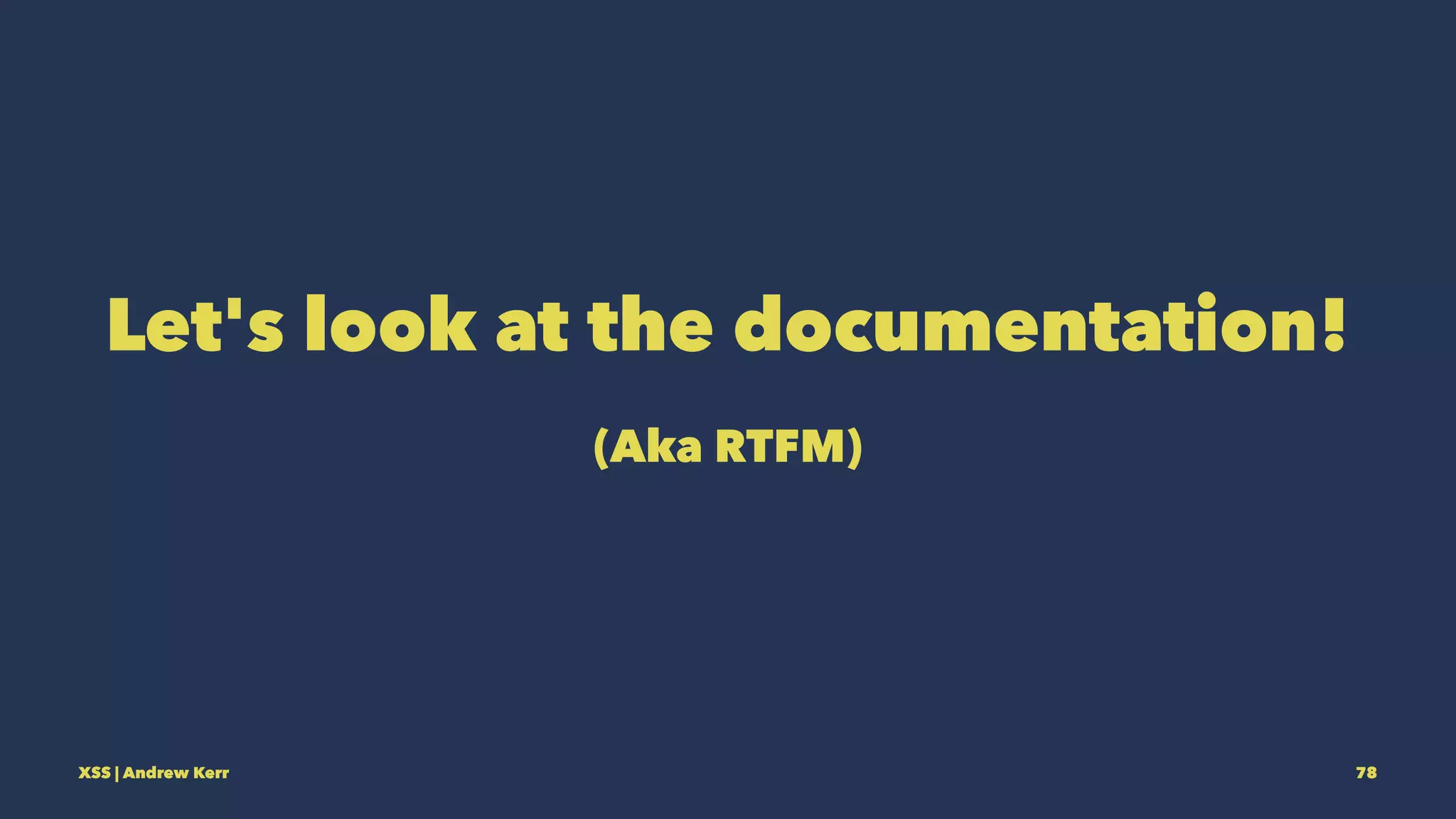

78. Let's look at the documentation!
(Aka RTFM)
XSS | Andrew Kerr 78

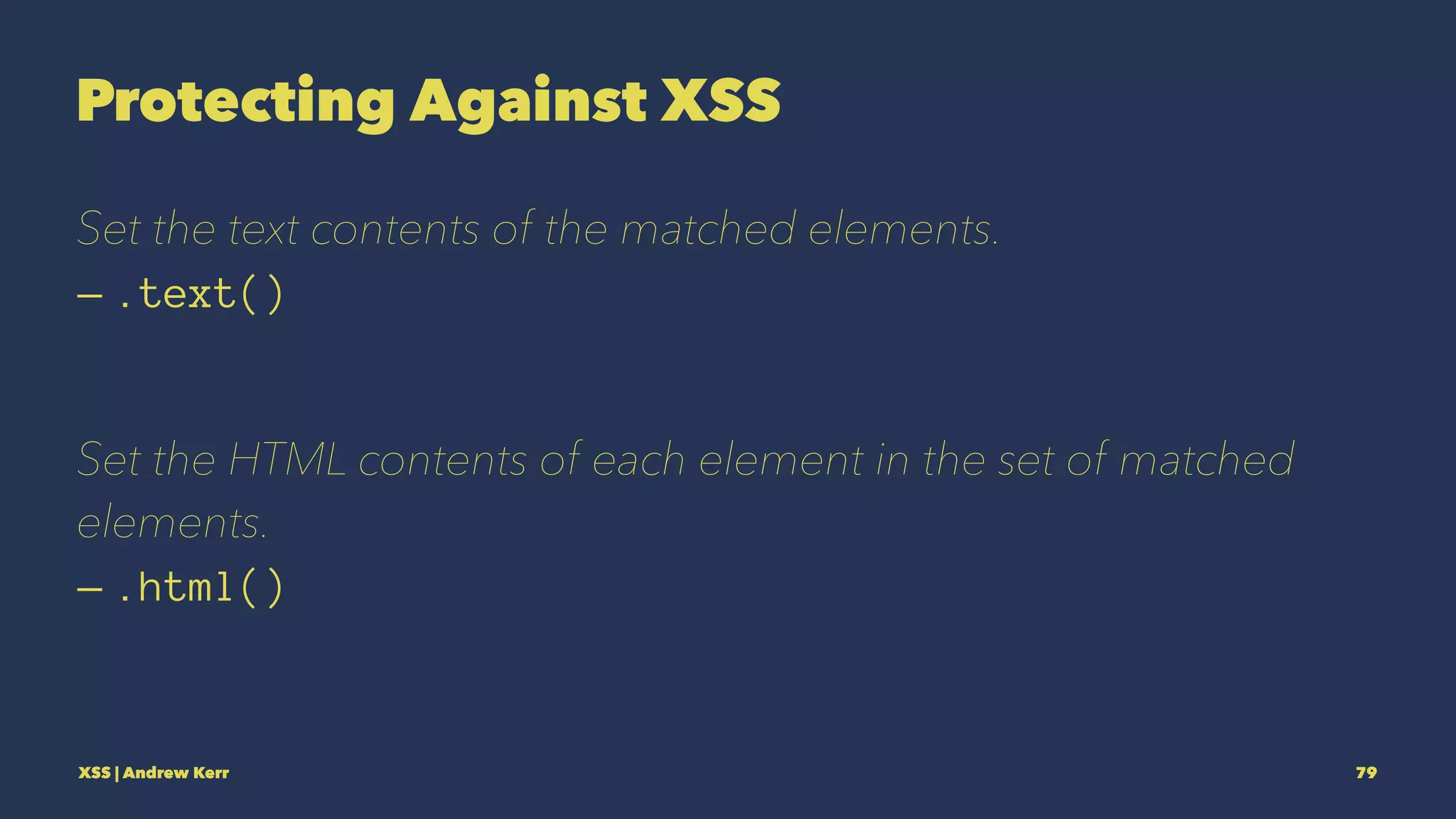

79. Protecting Against XSS
Set the text contents of the matched elements.
— .text()
Set the HTML contents of each element in the set of matched
elements.
— .html()
XSS | Andrew Kerr 79

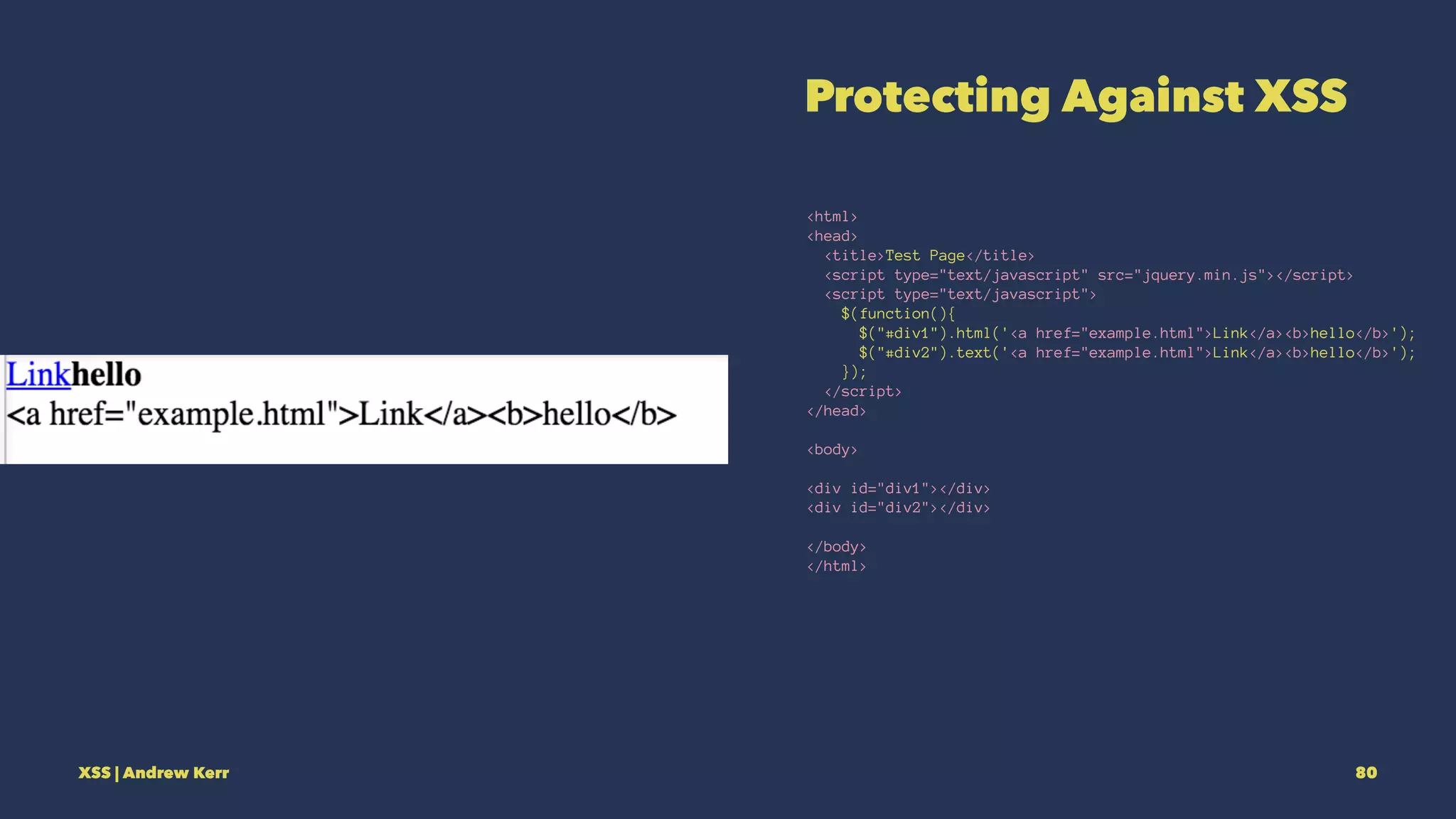

80. Protecting Against XSS
<html>
<head>
<title>Test Page</title>
<script type="text/javascript" src="jquery.min.js"></script>
<script type="text/javascript">
$(function(){
$("#div1").html('<a href="example.html">Link</a><b>hello</b>');
$("#div2").text('<a href="example.html">Link</a><b>hello</b>');
});
</script>
</head>
<body>
<div id="div1"></div>
<div id="div2"></div>
</body>
</html>
XSS | Andrew Kerr 80

81. Protecting Against XSS
1. Know your framework/library/language!
XSS | Andrew Kerr 81

82. Protecting Against XSS
1. Know your framework/library/language!
2. SANITIZE!
XSS | Andrew Kerr 82

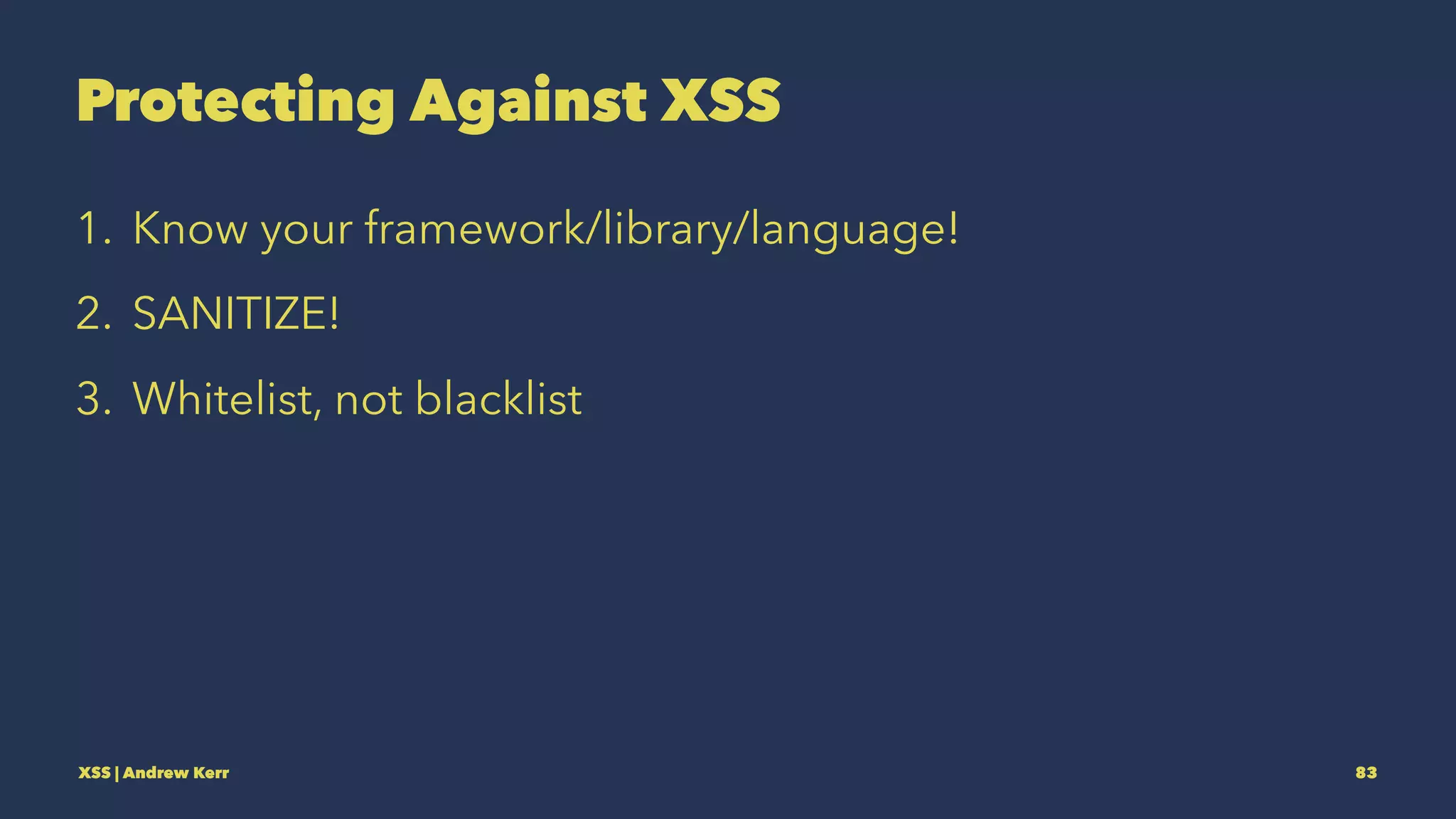

83. Protecting Against XSS
1. Know your framework/library/language!
2. SANITIZE!
3. Whitelist, not blacklist
XSS | Andrew Kerr 83

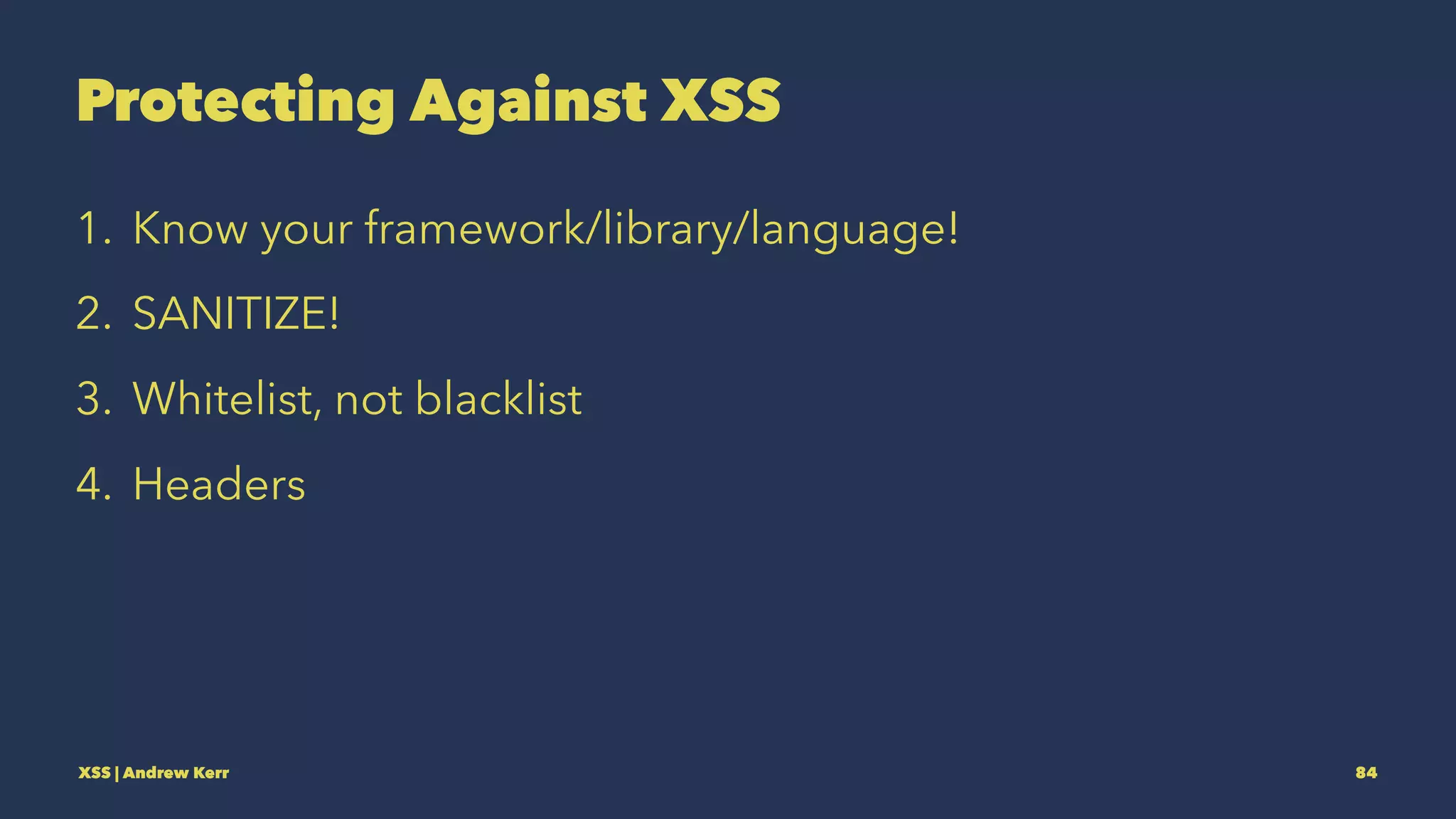

84. Protecting Against XSS
1. Know your framework/library/language!
2. SANITIZE!
3. Whitelist, not blacklist
4. Headers
XSS | Andrew Kerr 84

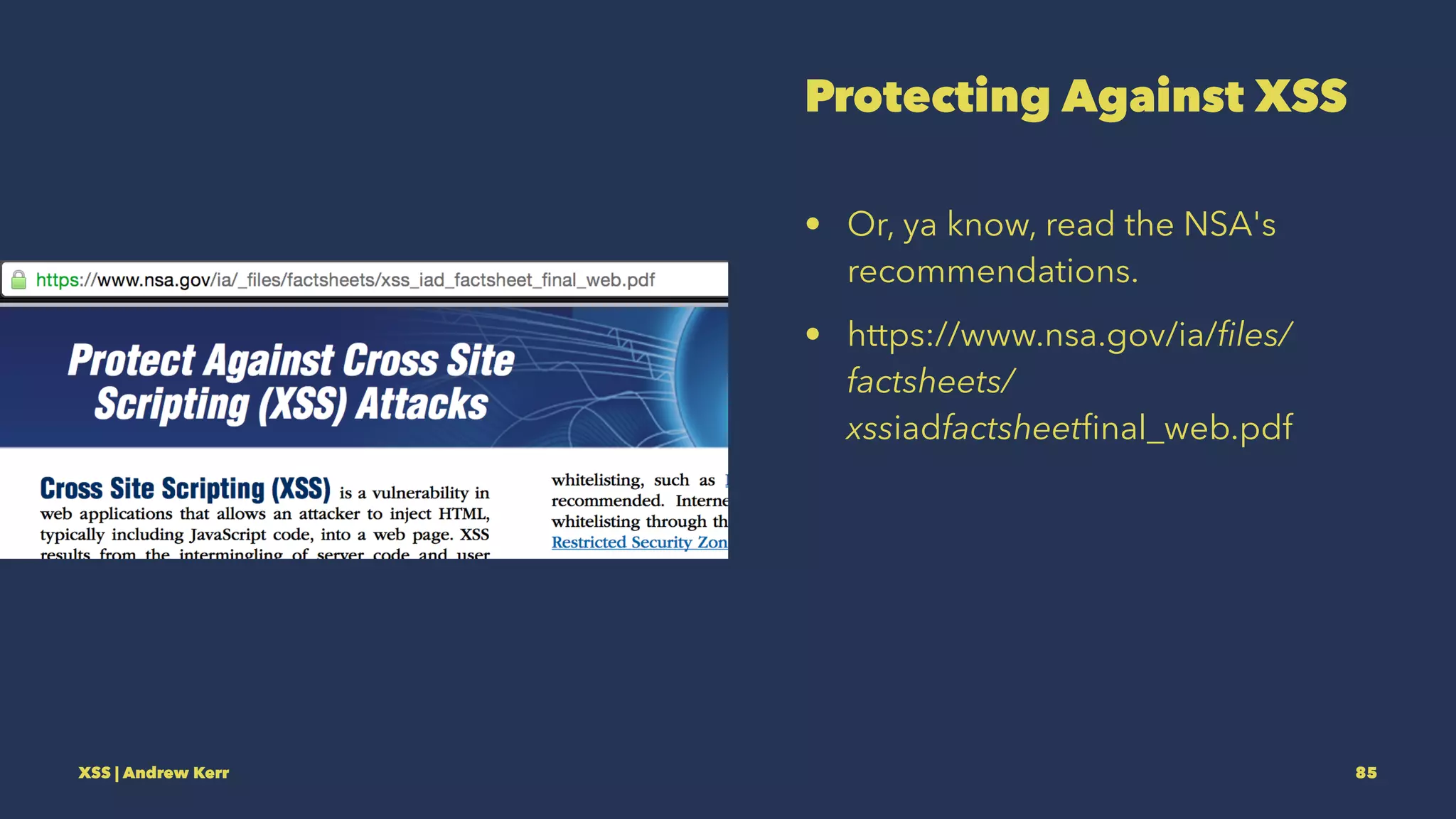

85. Protecting Against XSS
• Or, ya know, read the NSA's
recommendations.
• https://www.nsa.gov/ia/files/
factsheets/
xssiadfactsheetfinal_web.pdf
XSS | Andrew Kerr 85

86. But most importantly...
XSS | Andrew Kerr 86

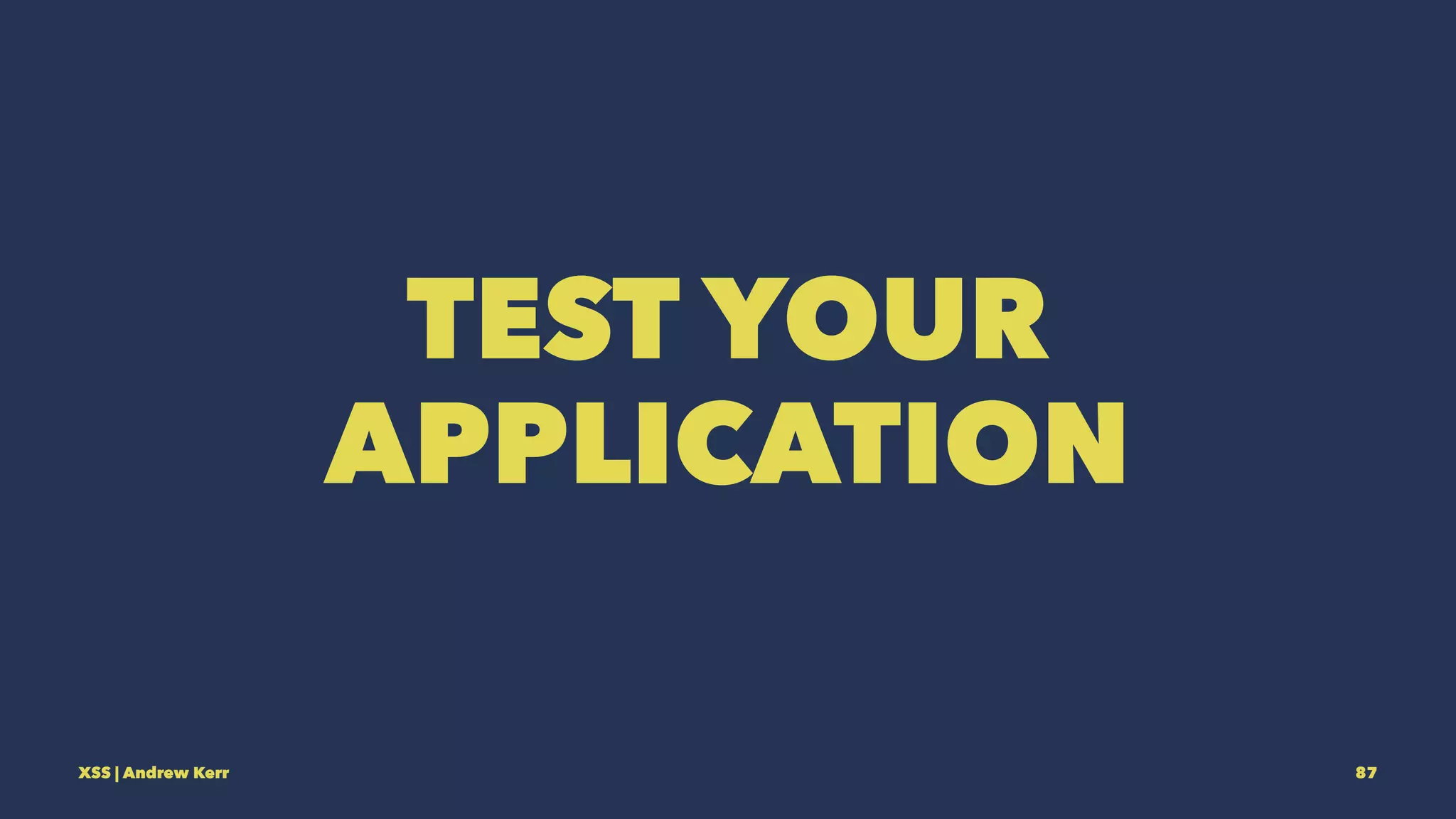

87. TEST YOUR
APPLICATION
XSS | Andrew Kerr 87

88. XSS | Andrew Kerr 88

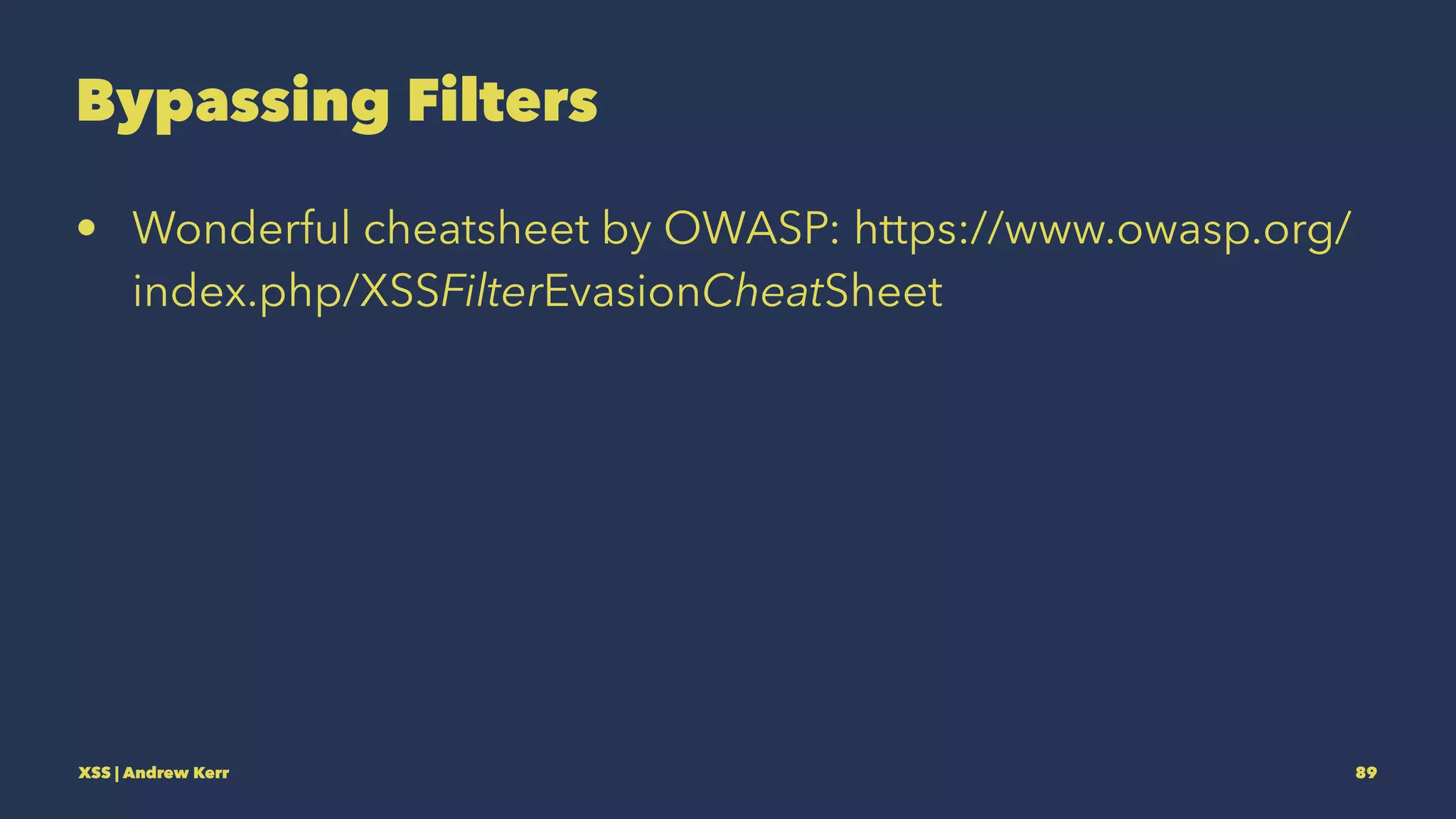

89. Bypassing Filters
• Wonderful cheatsheet by OWASP: https://www.owasp.org/
index.php/XSSFilterEvasionCheatSheet
XSS | Andrew Kerr 89

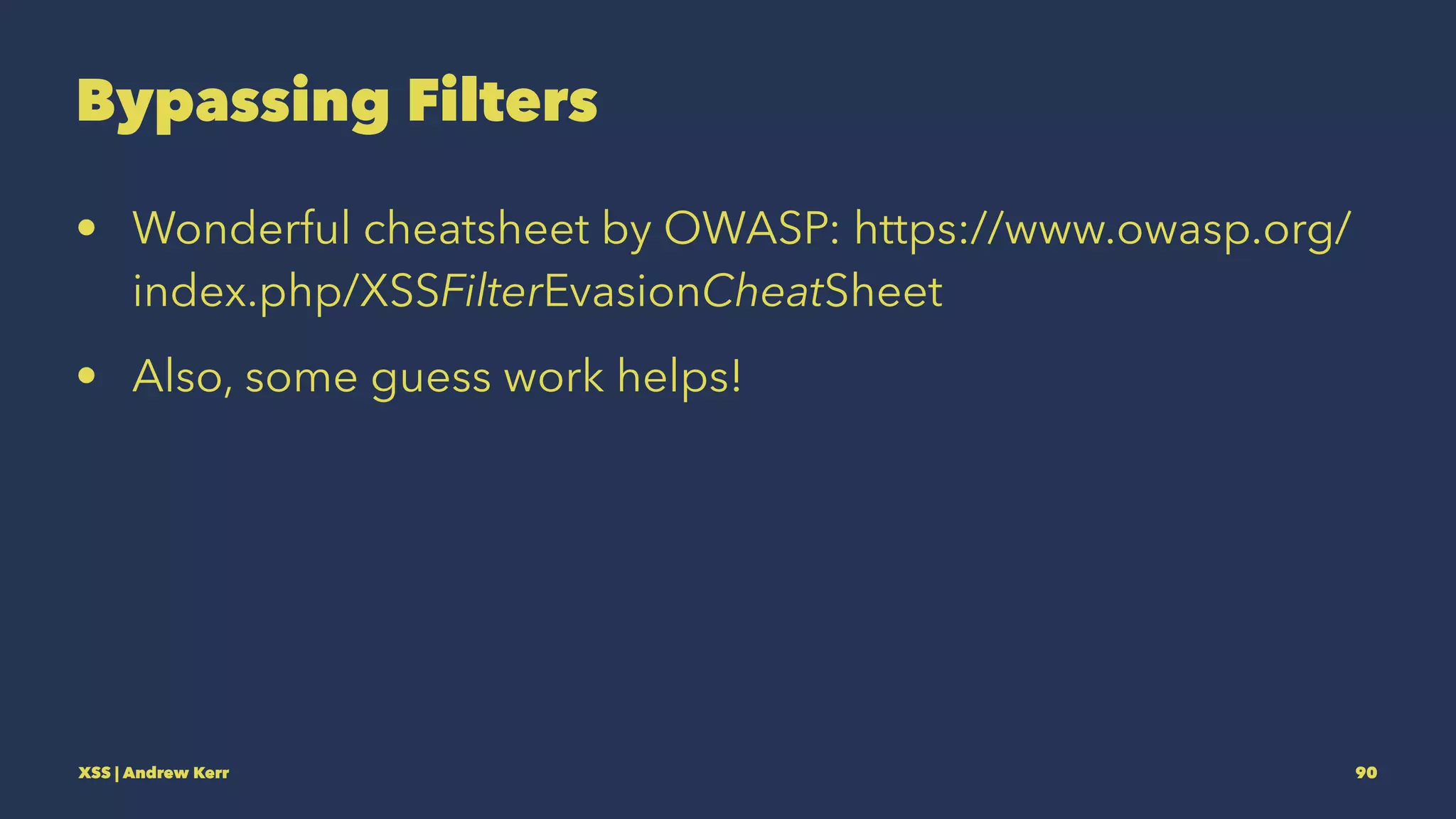

90. Bypassing Filters
• Wonderful cheatsheet by OWASP: https://www.owasp.org/
index.php/XSSFilterEvasionCheatSheet
• Also, some guess work helps!
XSS | Andrew Kerr 90

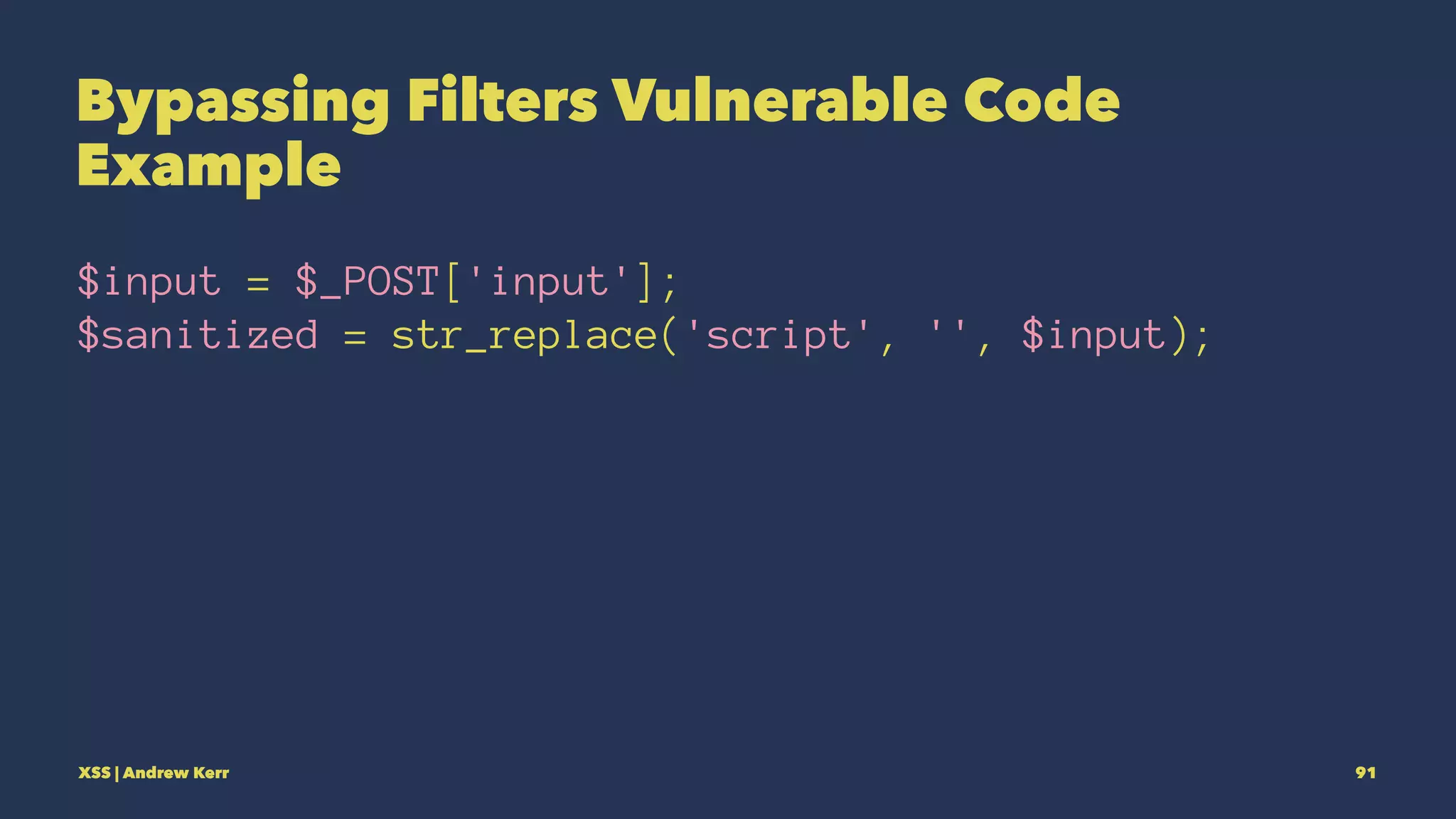

91. Bypassing Filters Vulnerable Code
Example
$input = $_POST['input'];
$sanitized = str_replace('script', '', $input);
XSS | Andrew Kerr 91

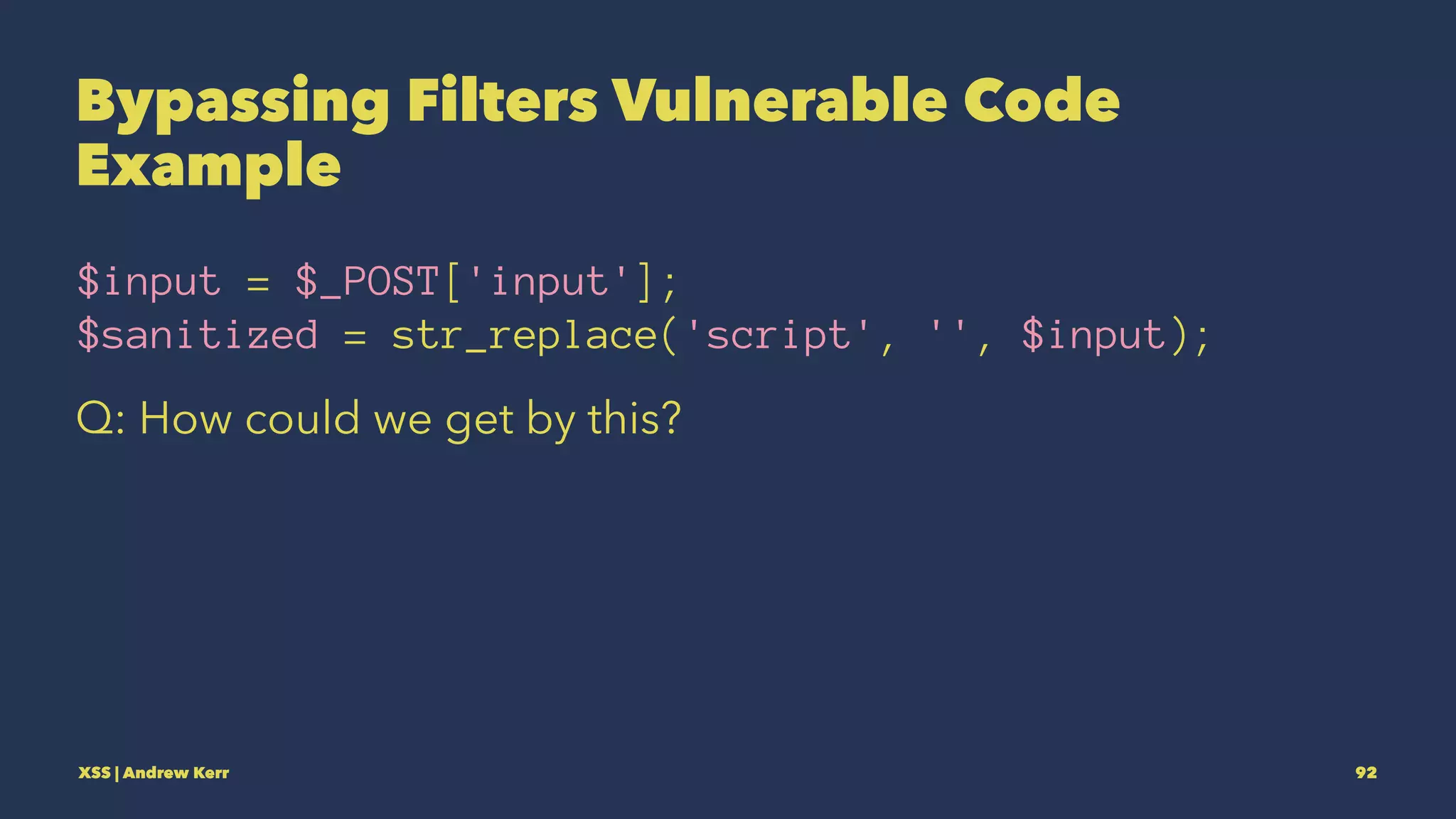

92. Bypassing Filters Vulnerable Code
Example
$input = $_POST['input'];
$sanitized = str_replace('script', '', $input);
Q: How could we get by this?
XSS | Andrew Kerr 92

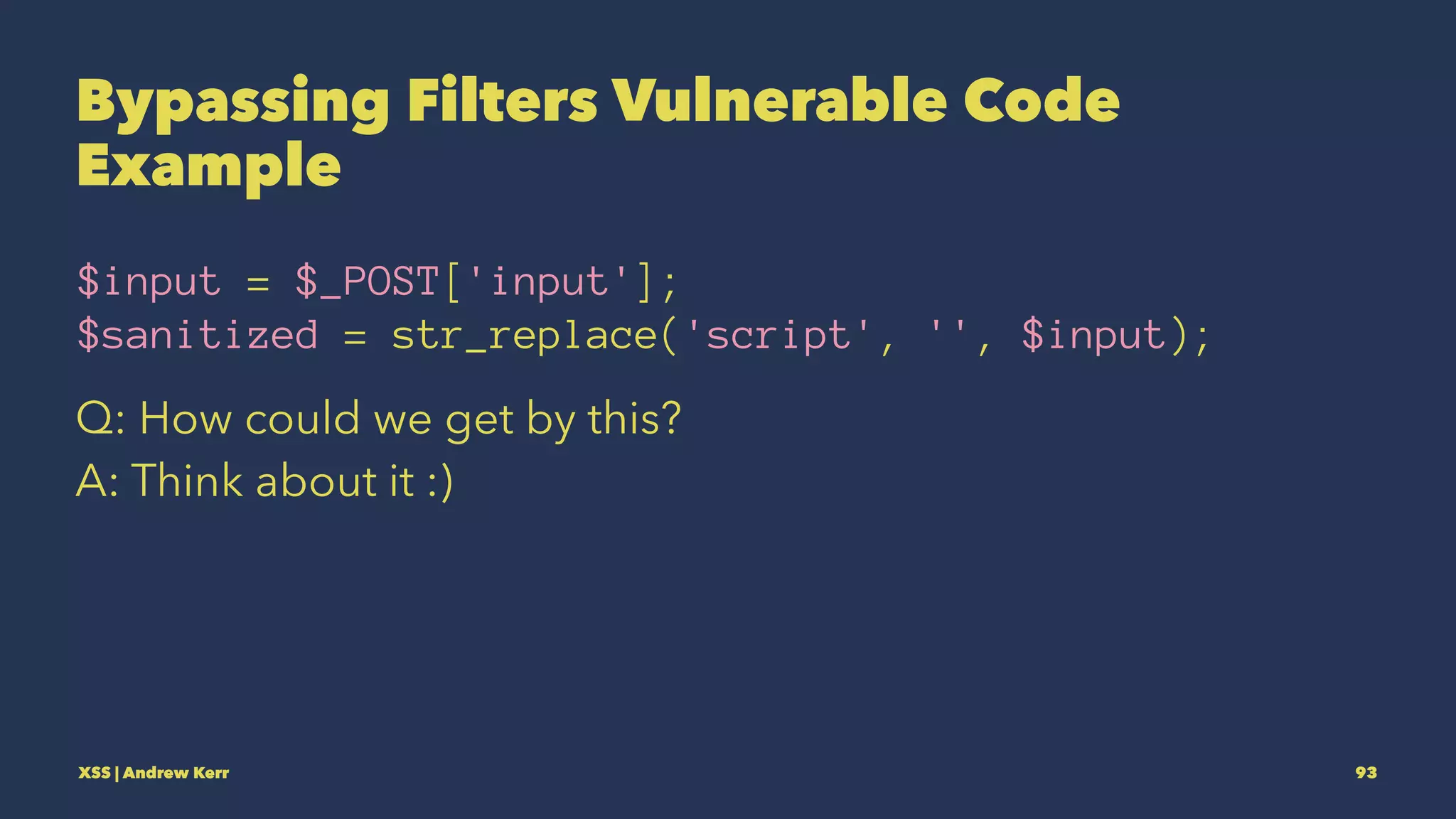

93. Bypassing Filters Vulnerable Code
Example
$input = $_POST['input'];
$sanitized = str_replace('script', '', $input);
Q: How could we get by this?
A: Think about it :)
XSS | Andrew Kerr 93

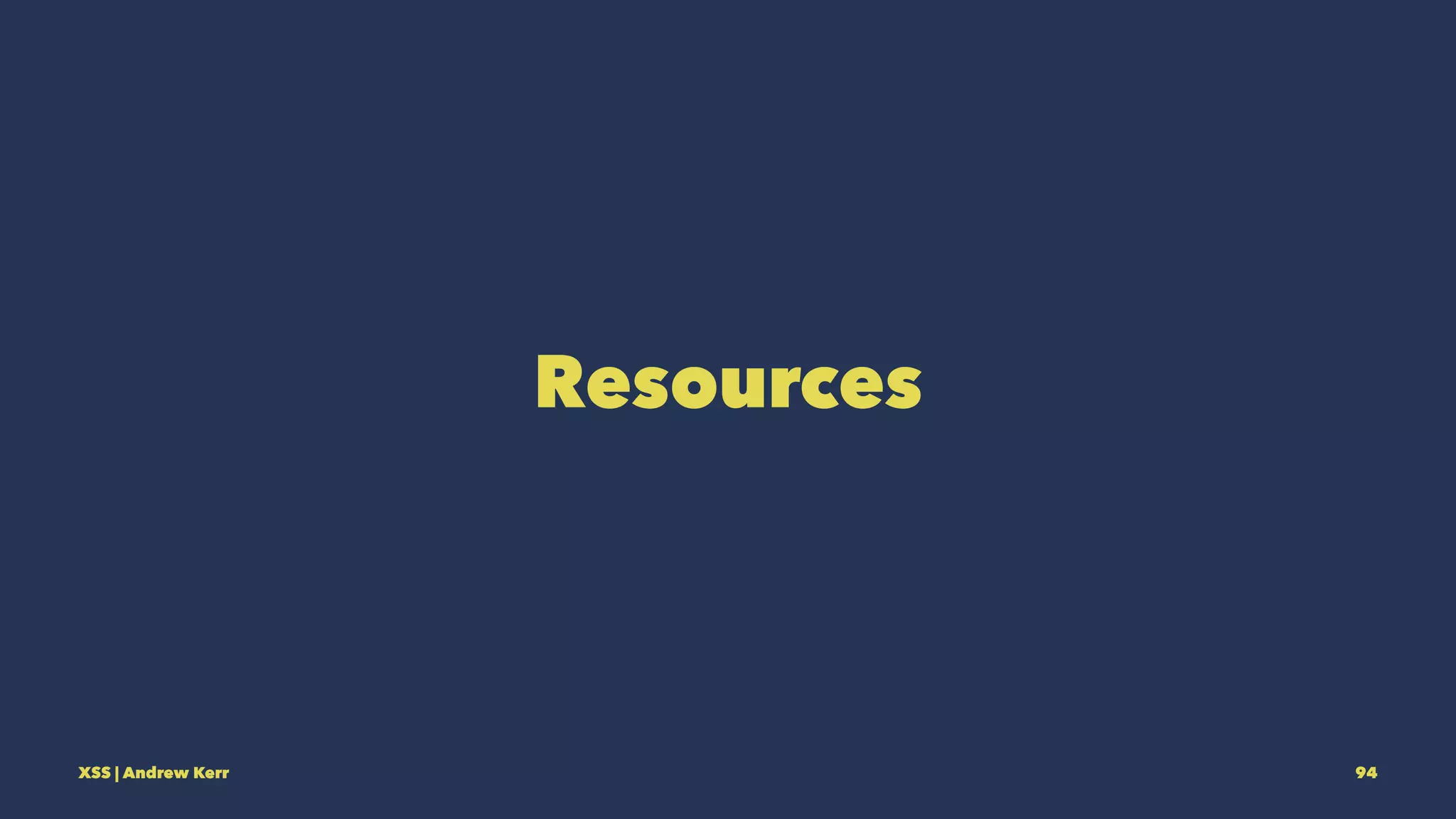

94. Resources
XSS | Andrew Kerr 94

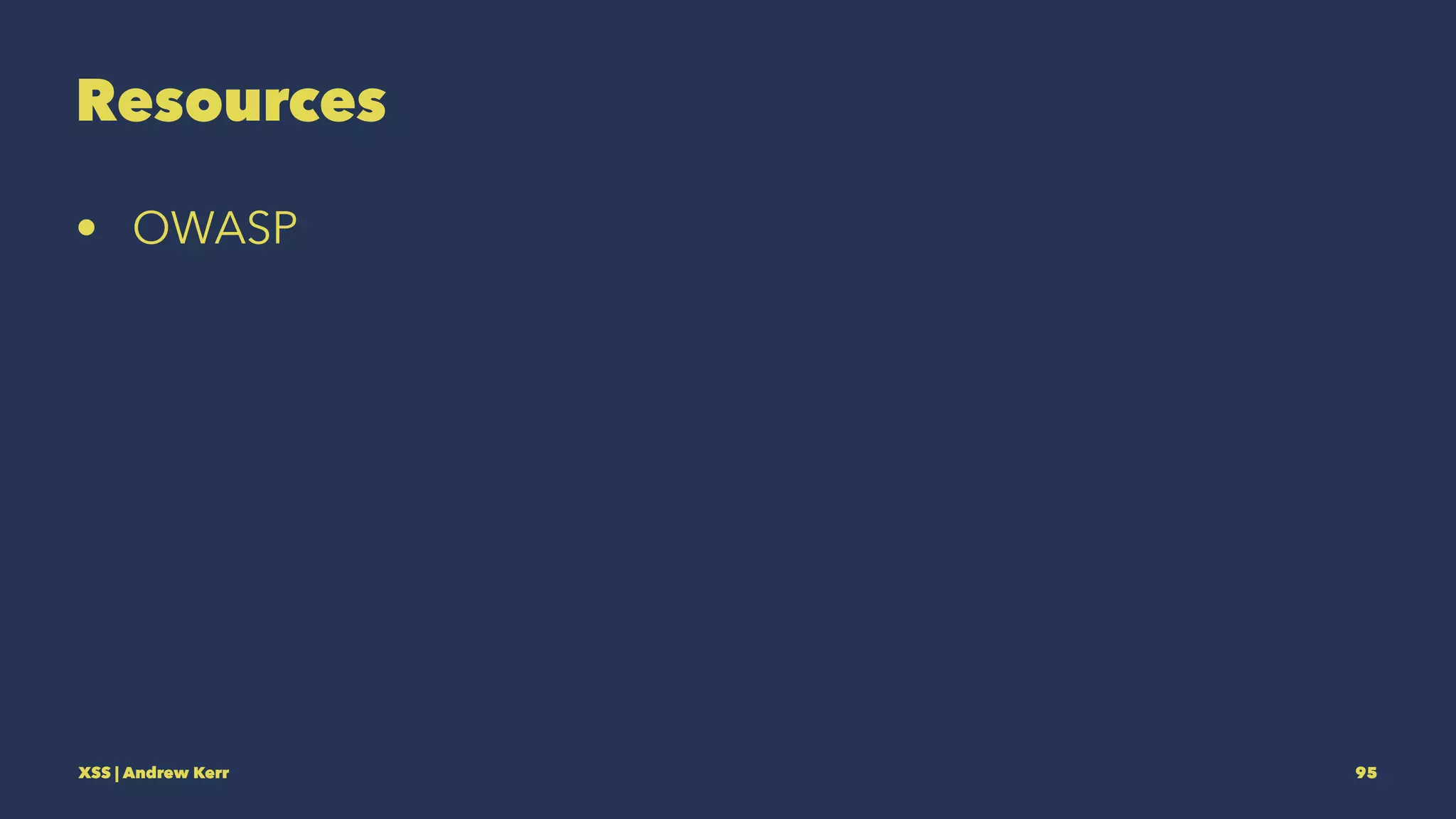

95. Resources
• OWASP
XSS | Andrew Kerr 95

96. Resources
• OWASP
• The Web Application Hackers Handbook
XSS | Andrew Kerr 96

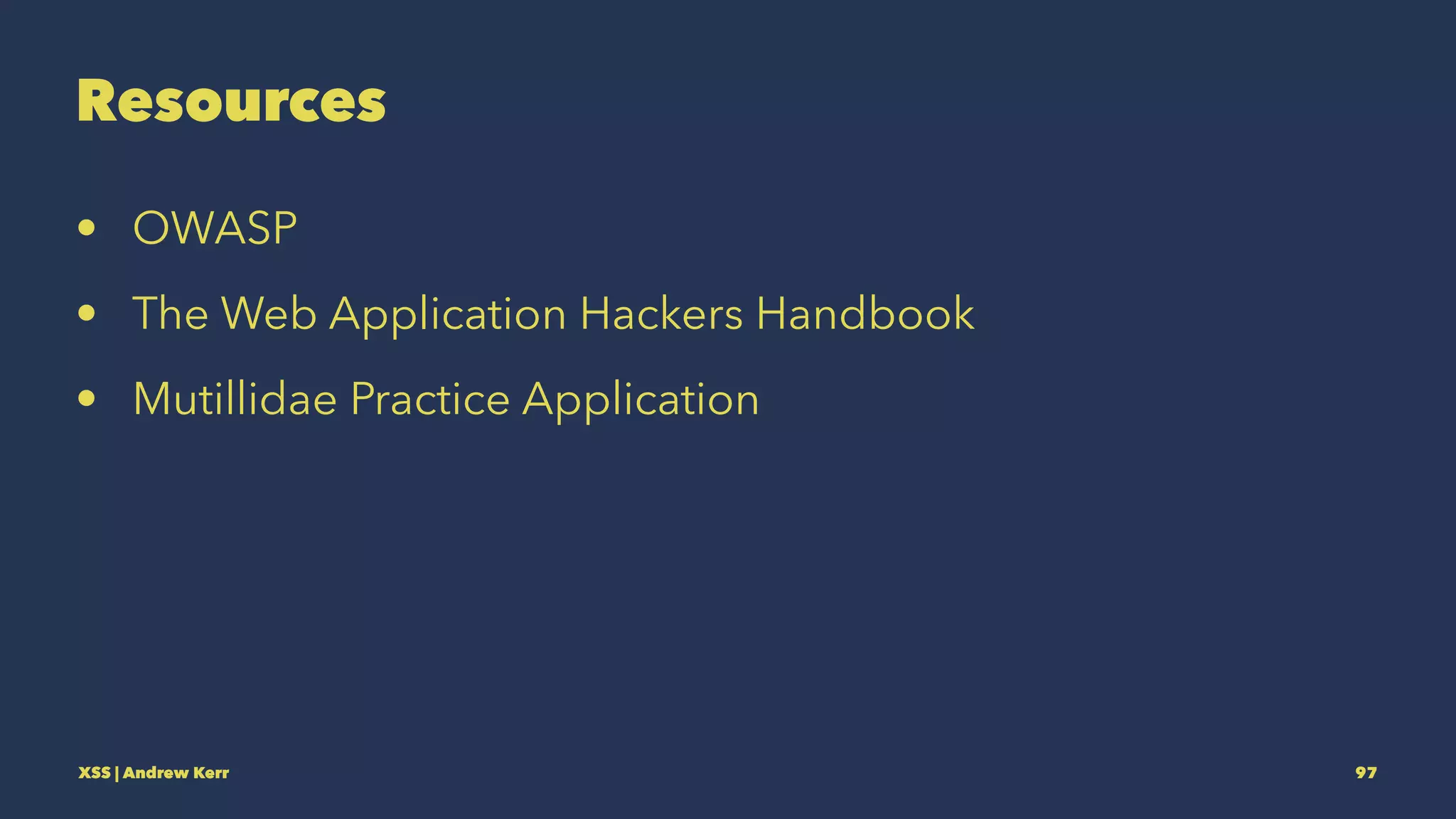

97. Resources
• OWASP
• The Web Application Hackers Handbook
• Mutillidae Practice Application
XSS | Andrew Kerr 97

98. Ok, cool, onto challenges!
XSS | Andrew Kerr 98

99. 104.236.76.214
Go here
XSS | Andrew Kerr 99

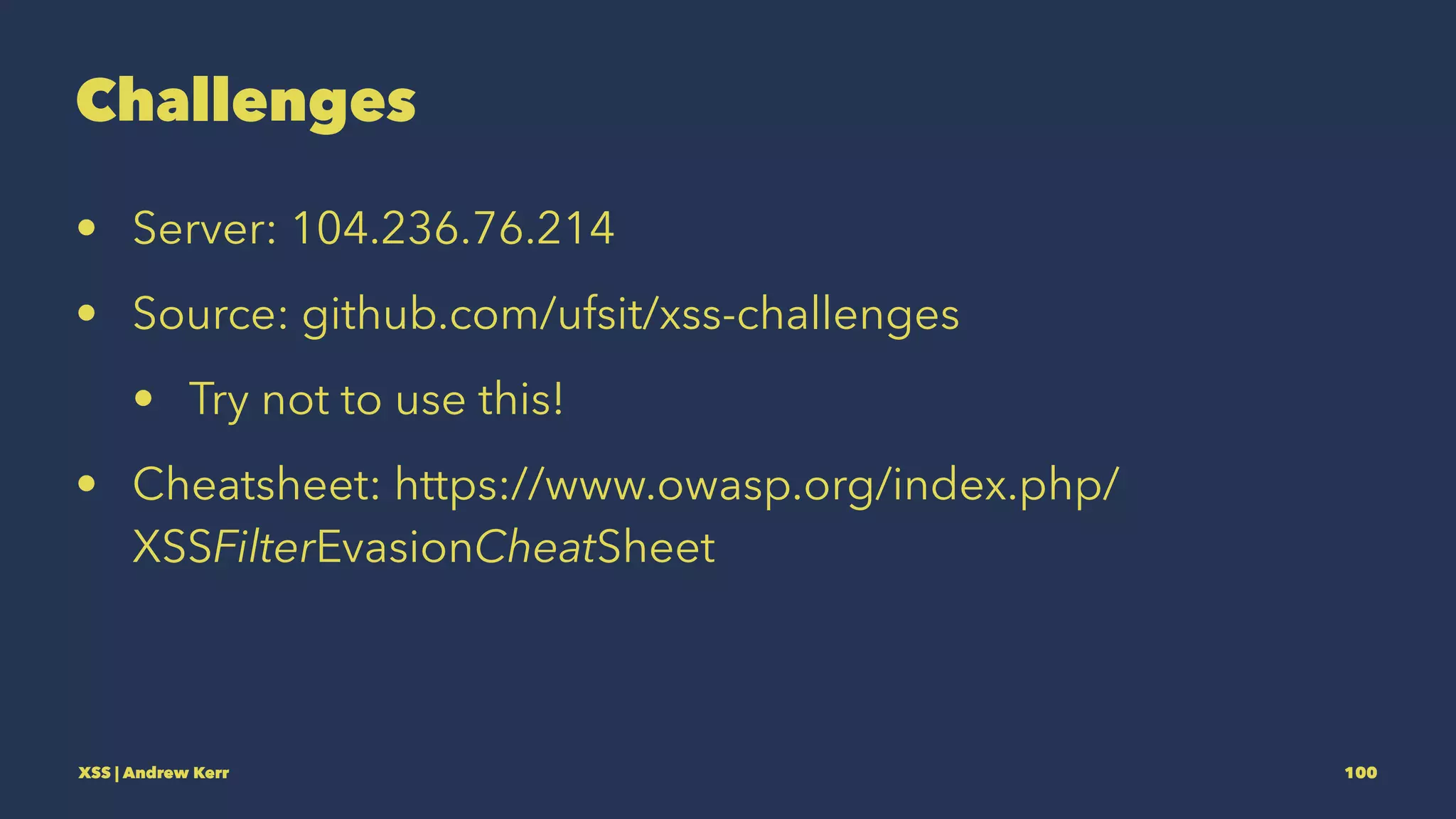

100. Challenges
• Server: 104.236.76.214
• Source: github.com/ufsit/xss-challenges
• Try not to use this!
• Cheatsheet: https://www.owasp.org/index.php/
XSSFilterEvasionCheatSheet
XSS | Andrew Kerr 100
