The document discusses optimizing computer vision applications for cross-platform use. It describes conflicting requirements around being cross-platform versus utilizing specific device capabilities. Possible solutions discussed include optimizing for ARM NEON, a single platform, or all platforms. The document then introduces FastCV, a cross-platform computer vision library from Qualcomm that provides optimized implementations for different processors like Snapdragon to gain performance benefits while supporting multiple platforms.

1. Cross Platform
Computer Vision
Optimization
Yossi Cohen
Lecture at
Google Technology User Group Tel-Aviv
1

2. And You Should do it!
2

3. Computer Vision Application Types
Augmented
Gestures
Reality
Text
Recognition
CV with
Depth
active IR
Mapping
camera
3

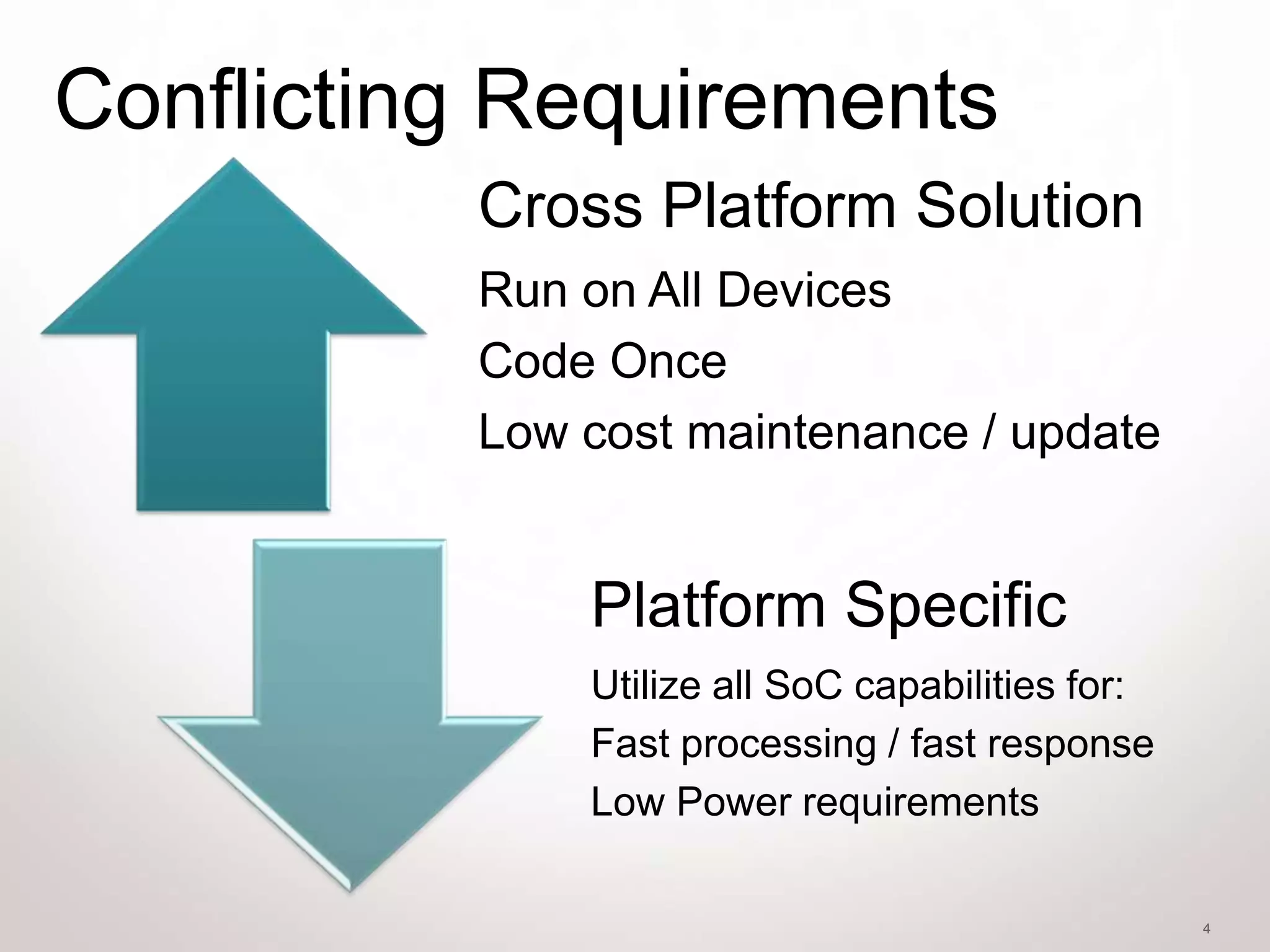

4. Conflicting Requirements
Cross Platform Solution
Run on All Devices
Code Once
Low cost maintenance / update
Platform Specific
Utilize all SoC capabilities for:
Fast processing / fast response
Low Power requirements
4

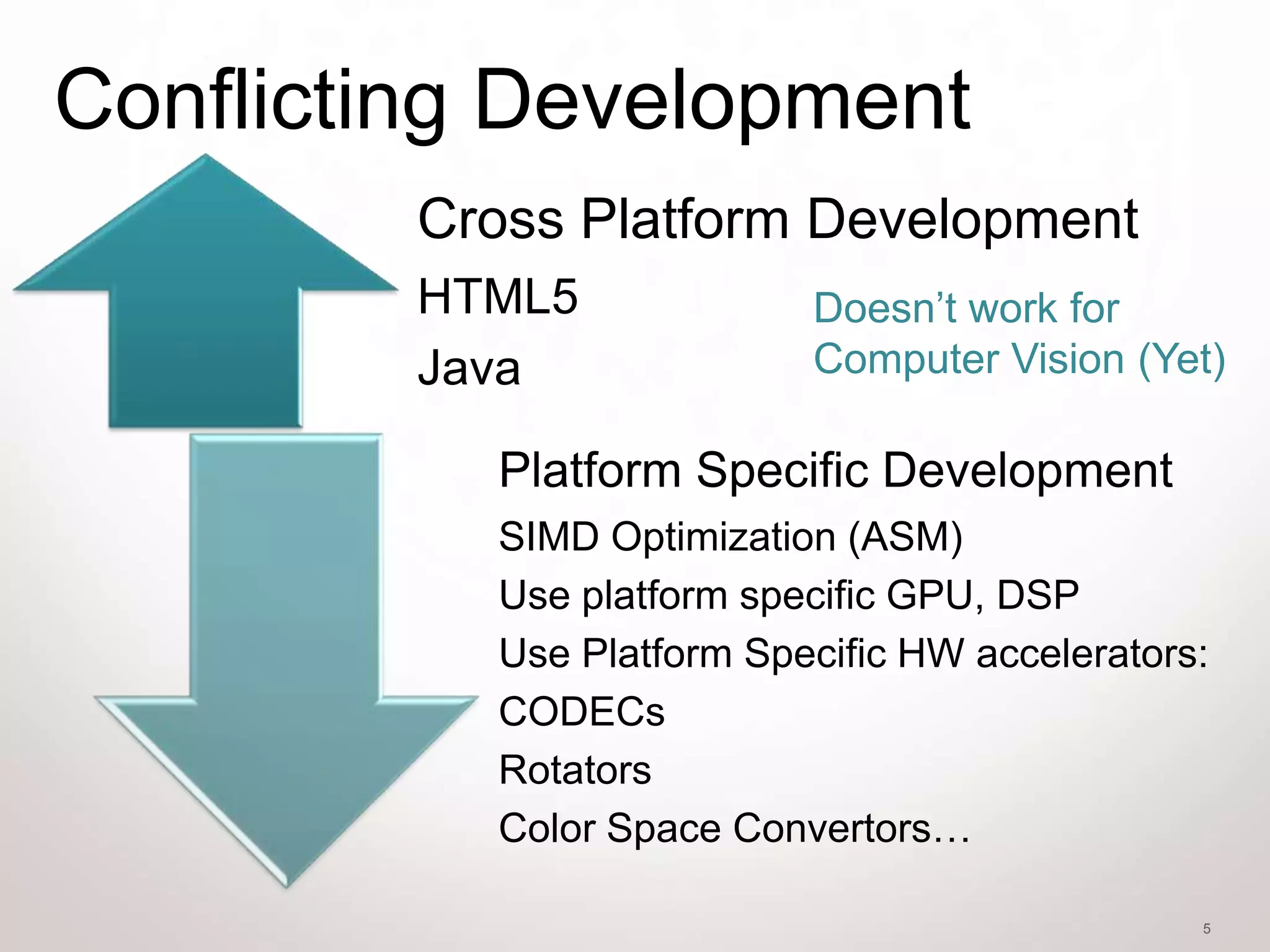

5. Conflicting Development
Cross Platform Development
HTML5 Doesn’t work for
Java Computer Vision (Yet)
Platform Specific Development
SIMD Optimization (ASM)
Use platform specific GPU, DSP
Use Platform Specific HW accelerators:
CODECs
Rotators
Color Space Convertors…
5

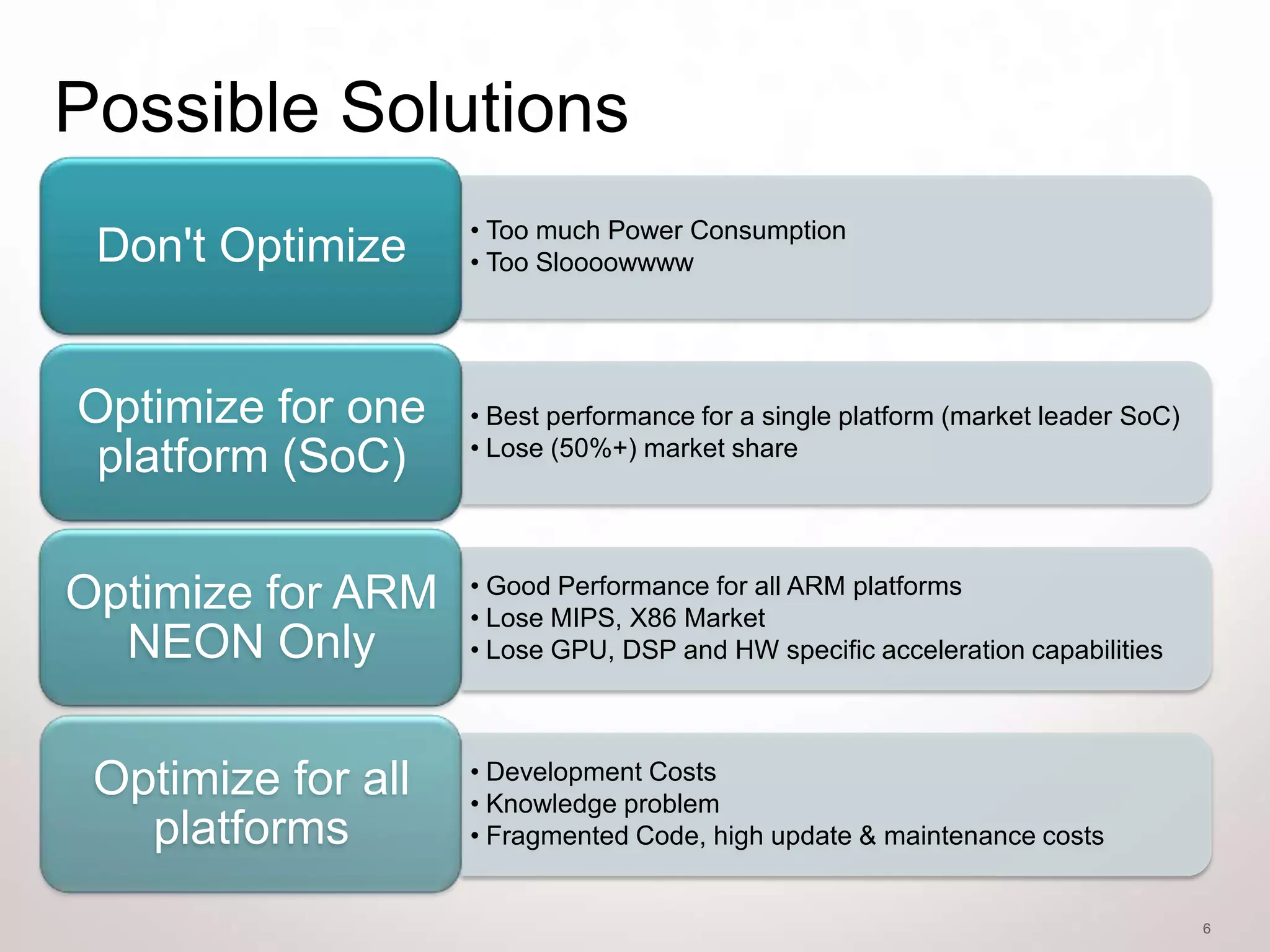

6. Possible Solutions
• Too much Power Consumption
Don't Optimize • Too Sloooowwww
Optimize for one • Best performance for a single platform (market leader SoC)
• Lose (50%+) market share
platform (SoC)
• Good Performance for all ARM platforms
Optimize for ARM • Lose MIPS, X86 Market
NEON Only • Lose GPU, DSP and HW specific acceleration capabilities
• Development Costs
Optimize for all • Knowledge problem
platforms • Fragmented Code, high update & maintenance costs
6

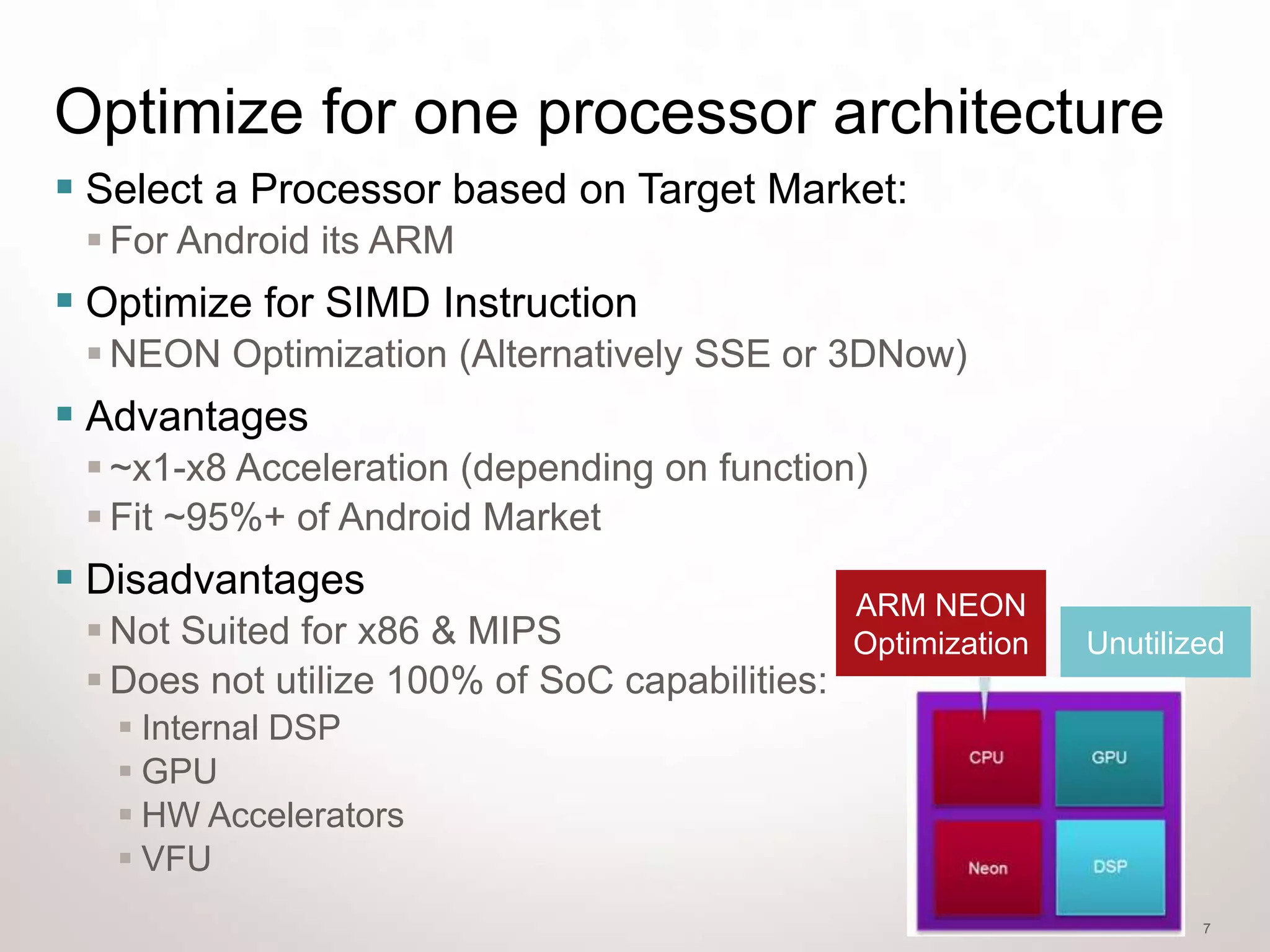

7. Optimize for one processor architecture
 Select a Processor based on Target Market:
 For Android its ARM
 Optimize for SIMD Instruction
 NEON Optimization (Alternatively SSE or 3DNow)
 Advantages
 ~x1-x8 Acceleration (depending on function)
 Fit ~95%+ of Android Market
 Disadvantages ARM NEON
 Not Suited for x86 & MIPS Optimization Unutilized
 Does not utilize 100% of SoC capabilities:
 Internal DSP
 GPU
 HW Accelerators
 VFU
7

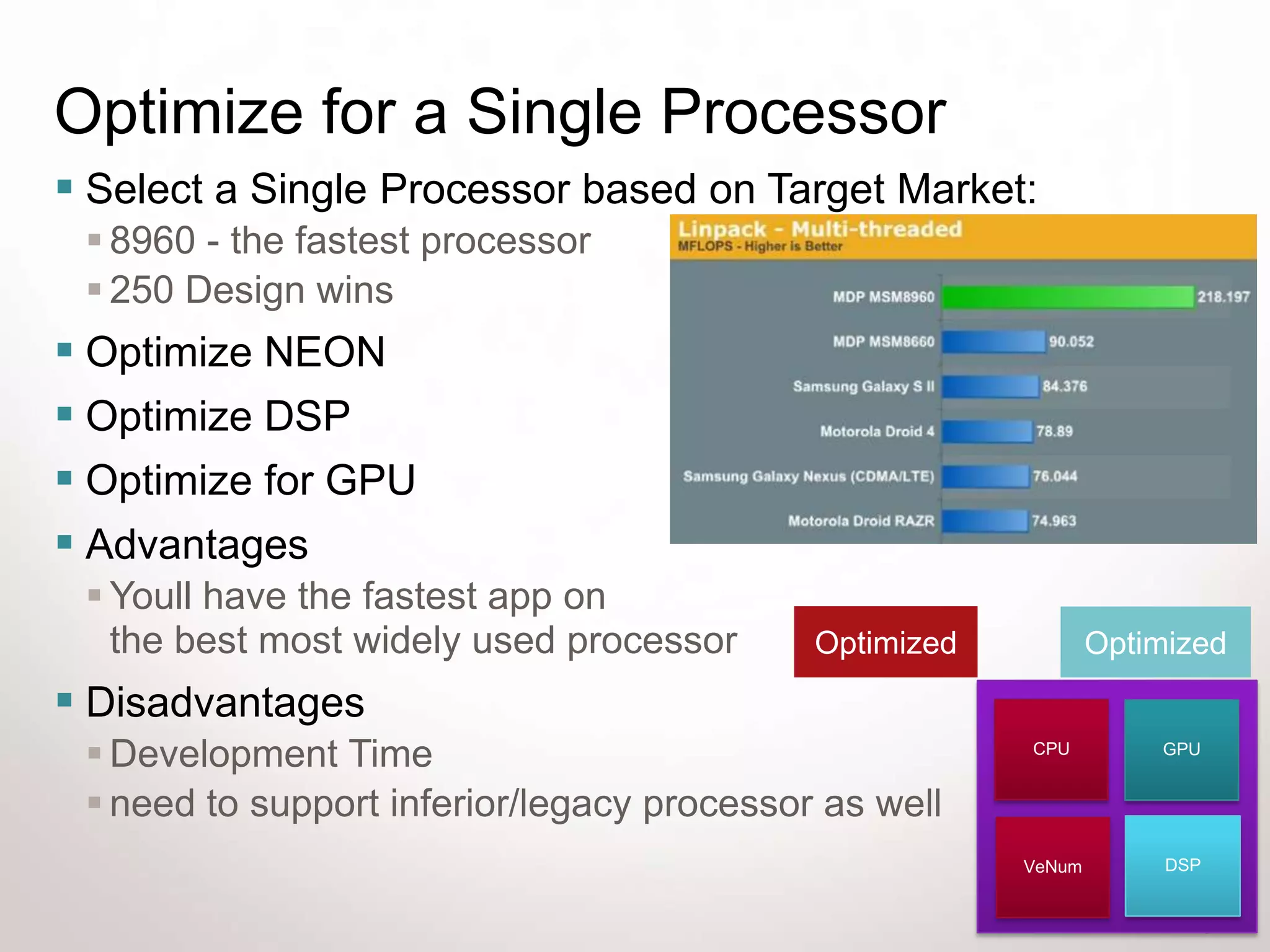

8. Optimize for a Single Processor
 Select a Single Processor based on Target Market:
 8960 - the fastest processor
 250 Design wins
 Optimize NEON
 Optimize DSP
 Optimize for GPU
 Advantages
 Youll have the fastest app on
the best most widely used processor Optimized Optimized
 Disadvantages
 Development Time CPU GPU
 need to support inferior/legacy processor as well
VeNum DSP
8

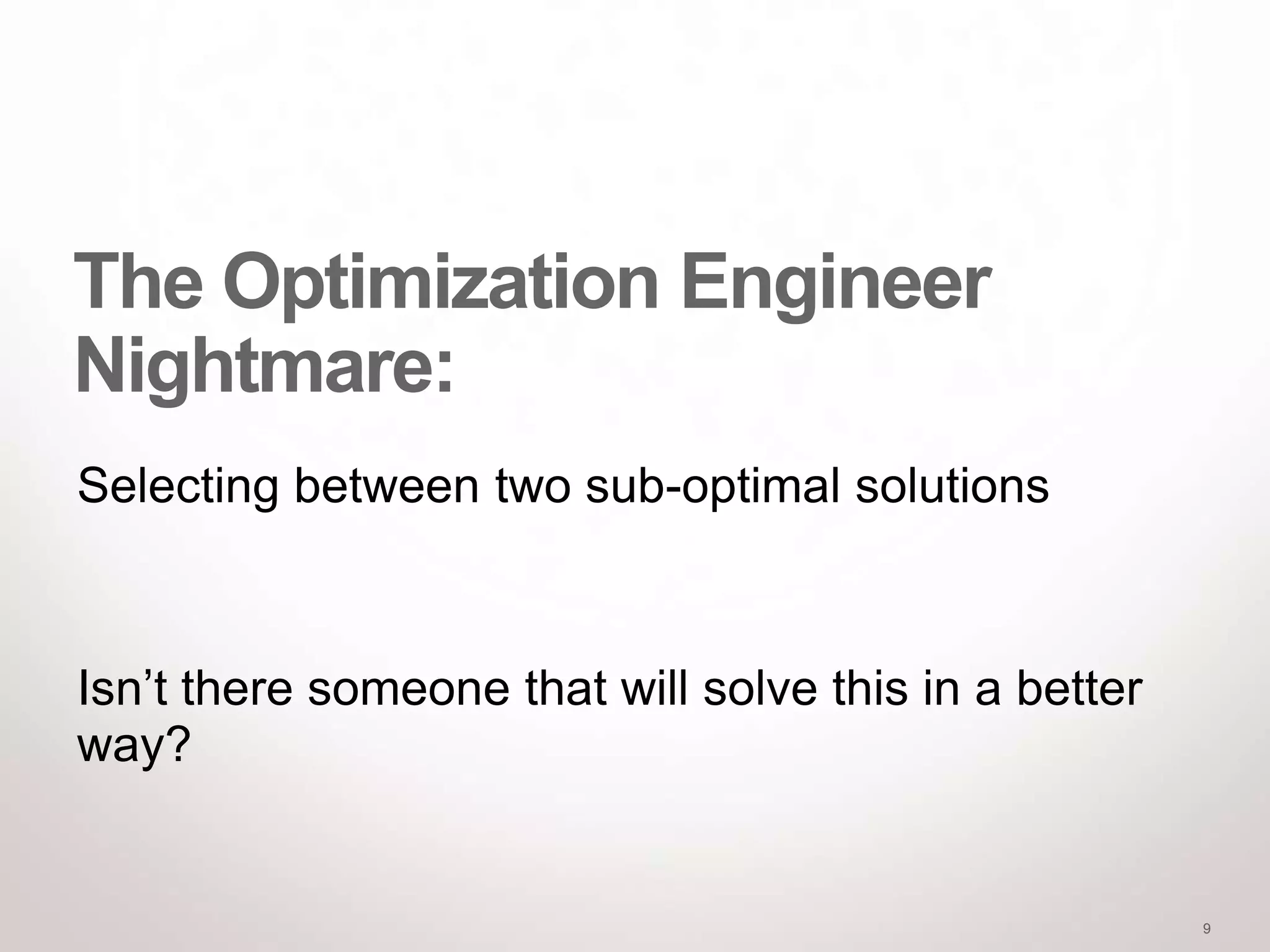

9. Selecting between two sub-optimal solutions
Isn’t there someone that will solve this in a better
way?
9

10. 10

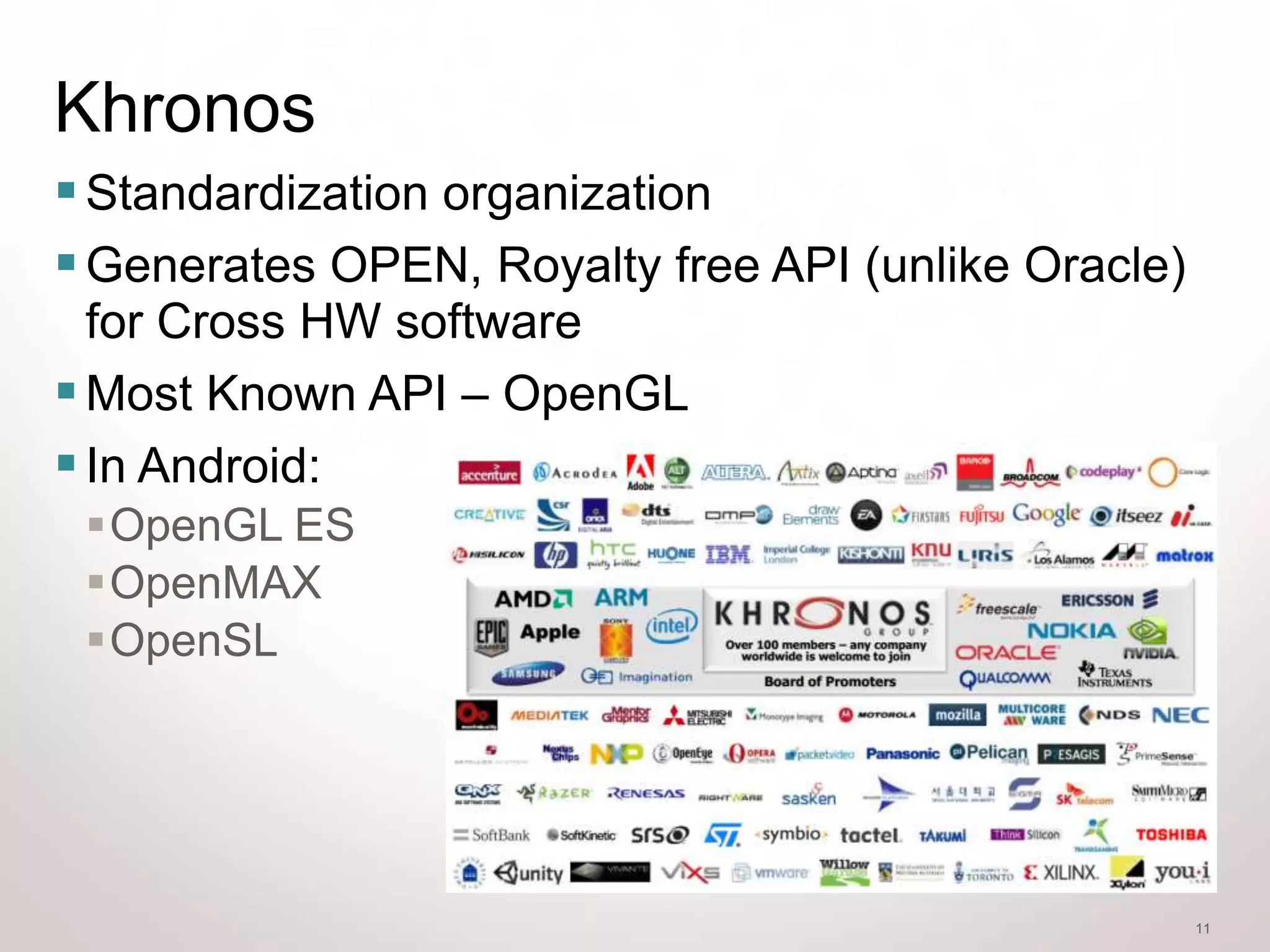

11. Khronos
 Standardization organization
 Generates OPEN, Royalty free API (unlike Oracle)
for Cross HW software
 Most Known API – OpenGL
 In Android:
OpenGL ES
OpenMAX
OpenSL
11

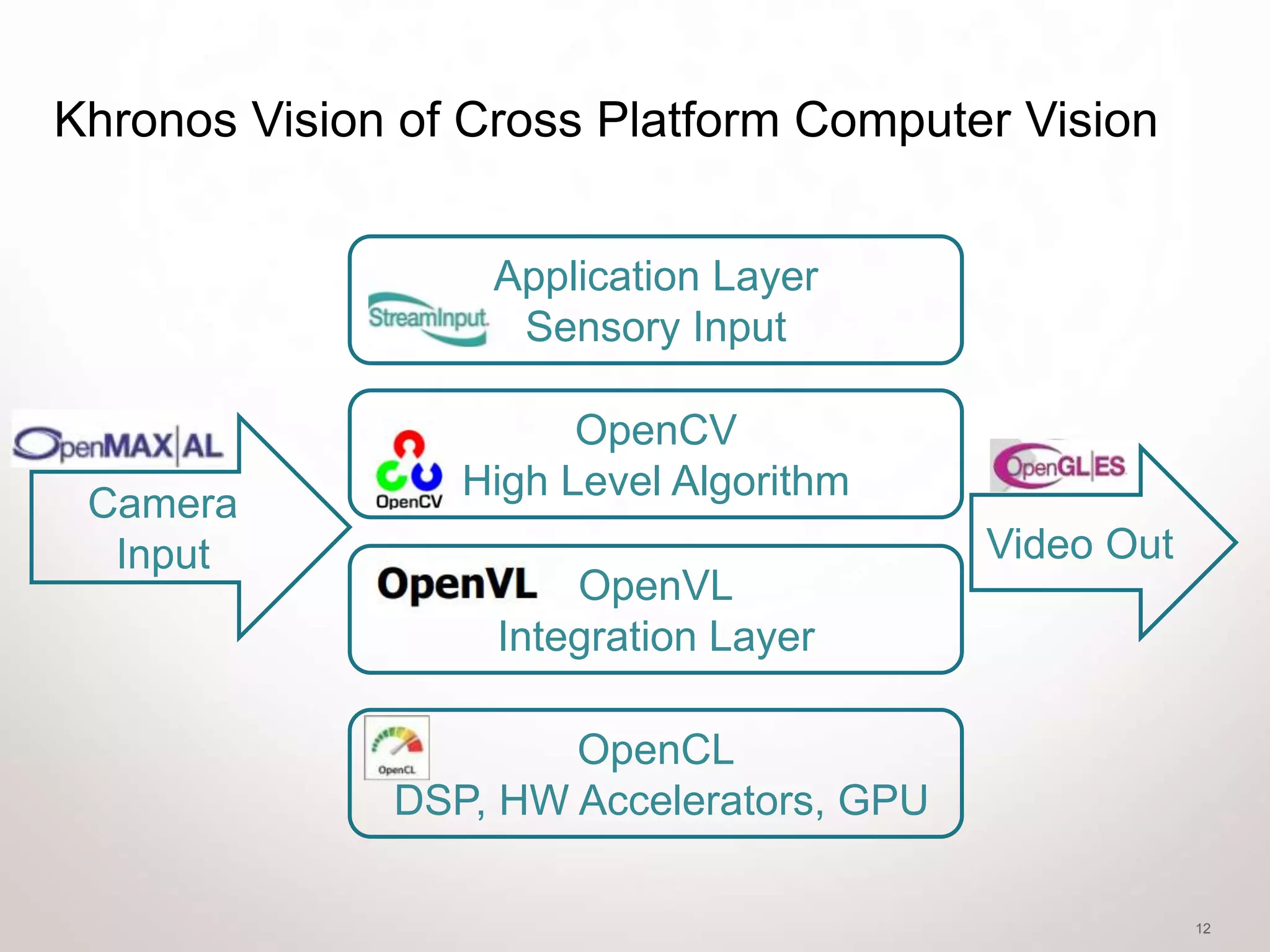

12. Khronos Vision of Cross Platform Computer Vision
Application Layer
Sensory Input
OpenCV
High Level Algorithm
Camera
Input Video Out
OpenVL
Integration Layer
OpenCL
DSP, HW Accelerators, GPU
12

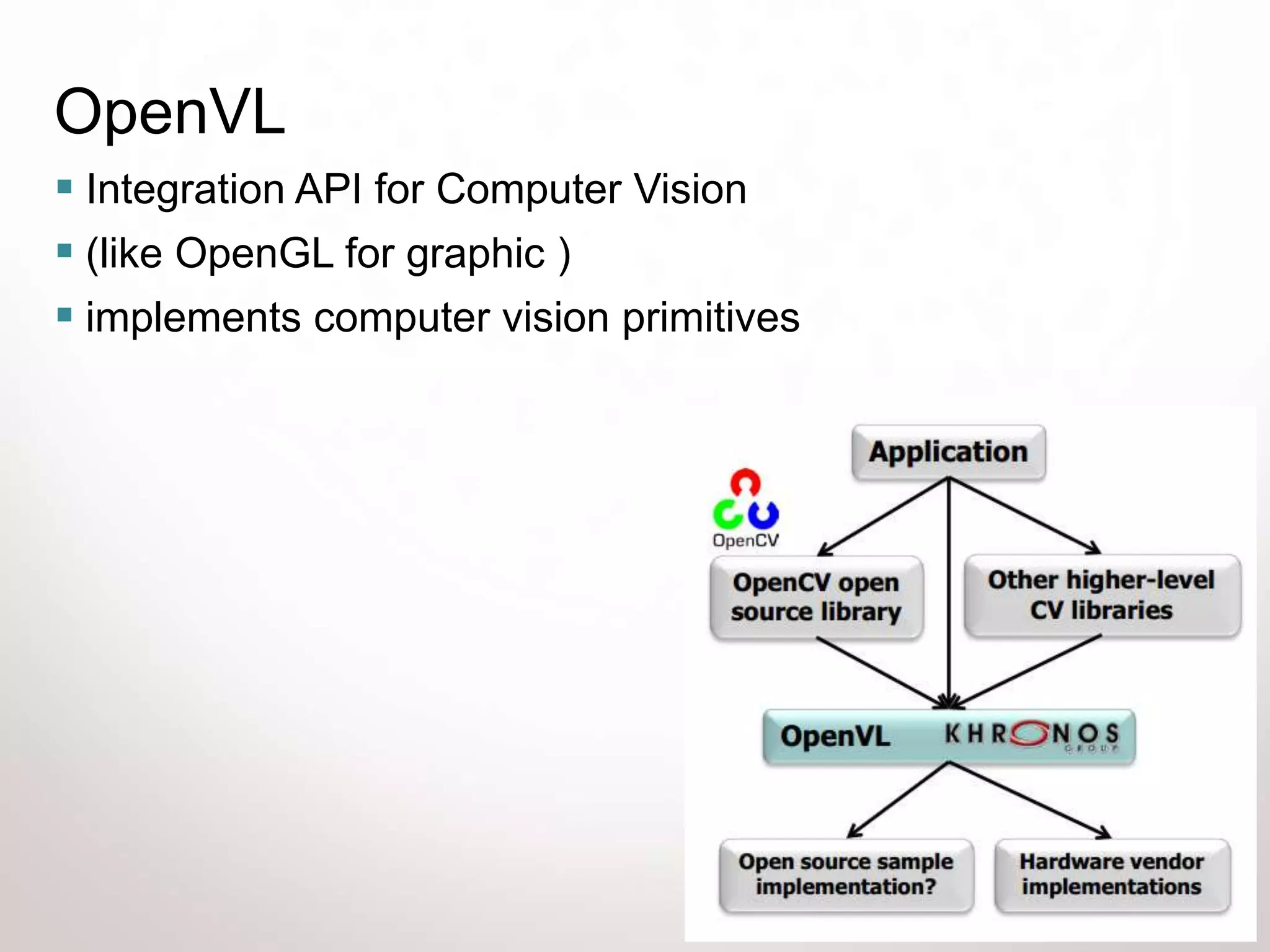

13. OpenVL
 Integration API for Computer Vision
 (like OpenGL for graphic )
 implements computer vision primitives
13

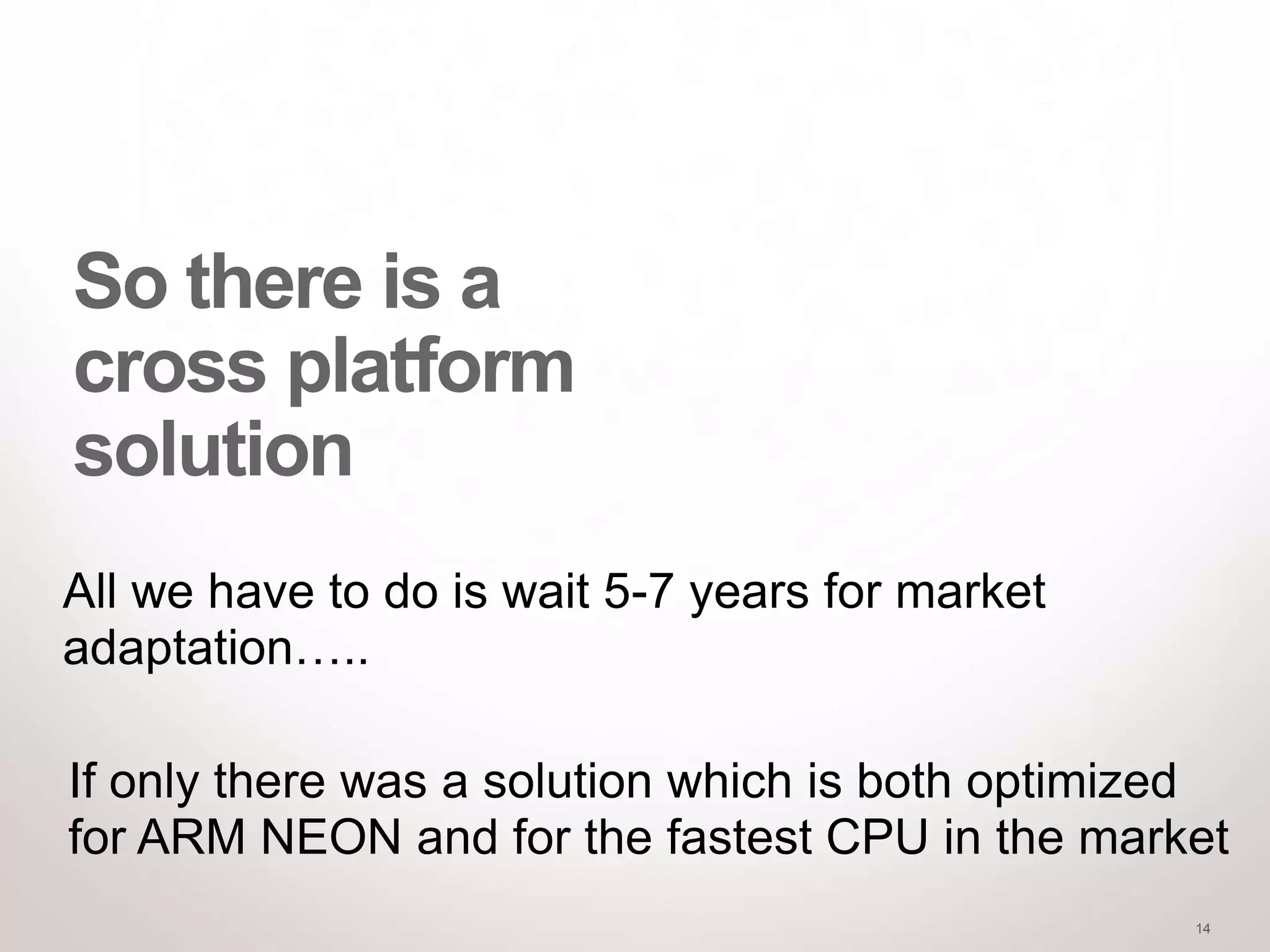

14. All we have to do is wait 5-7 years for market
adaptation…..
If only there was a solution which is both optimized
for ARM NEON and for the fastest CPU in the market
14

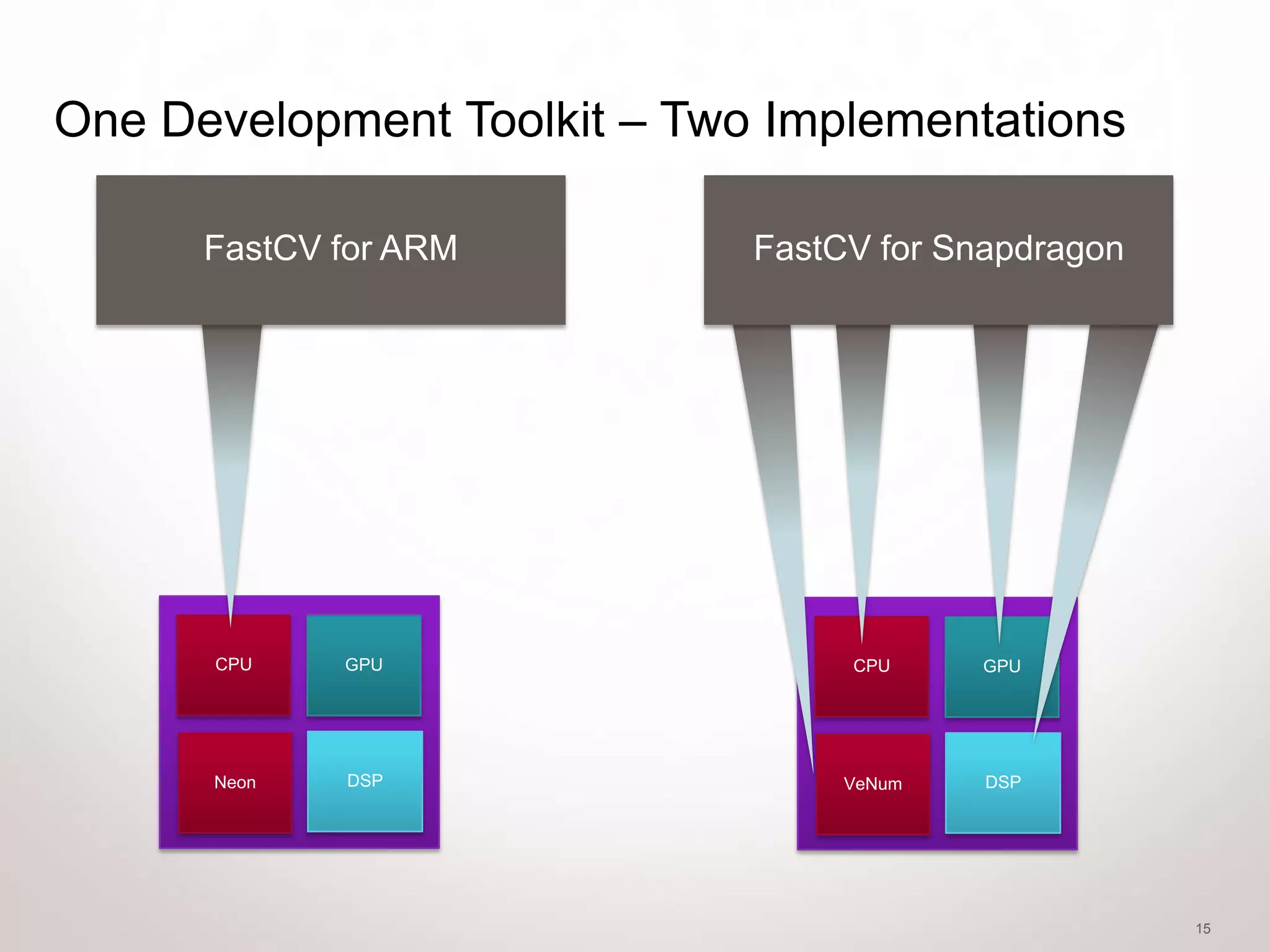

15. One Development Toolkit – Two Implementations
FastCV for ARM FastCV for Snapdragon
CPU GPU CPU GPU
Neon DSP VeNum DSP
15

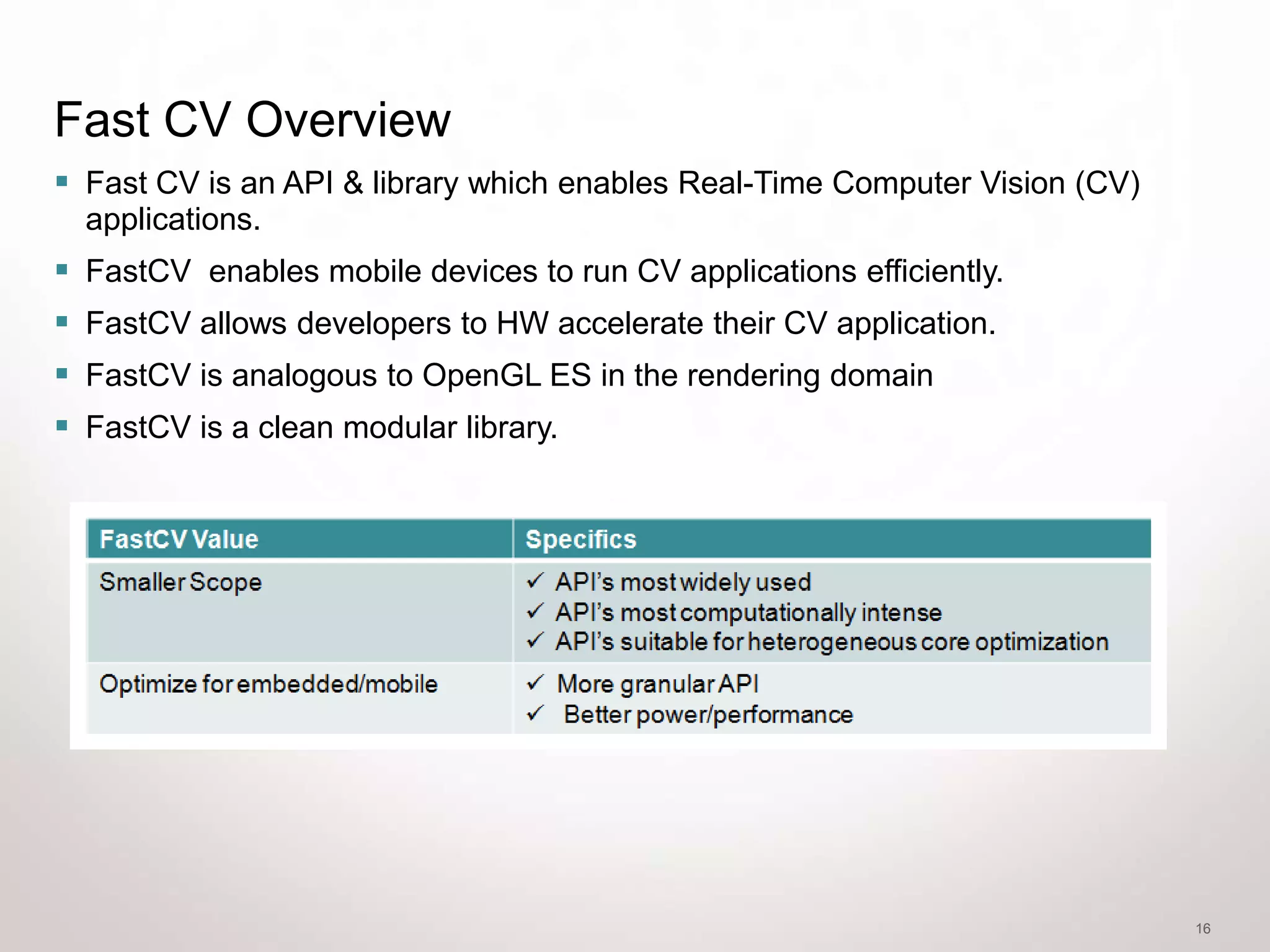

16. Fast CV Overview
 Fast CV is an API & library which enables Real-Time Computer Vision (CV)
applications.
 FastCV enables mobile devices to run CV applications efficiently.
 FastCV allows developers to HW accelerate their CV application.
 FastCV is analogous to OpenGL ES in the rendering domain
 FastCV is a clean modular library.
16

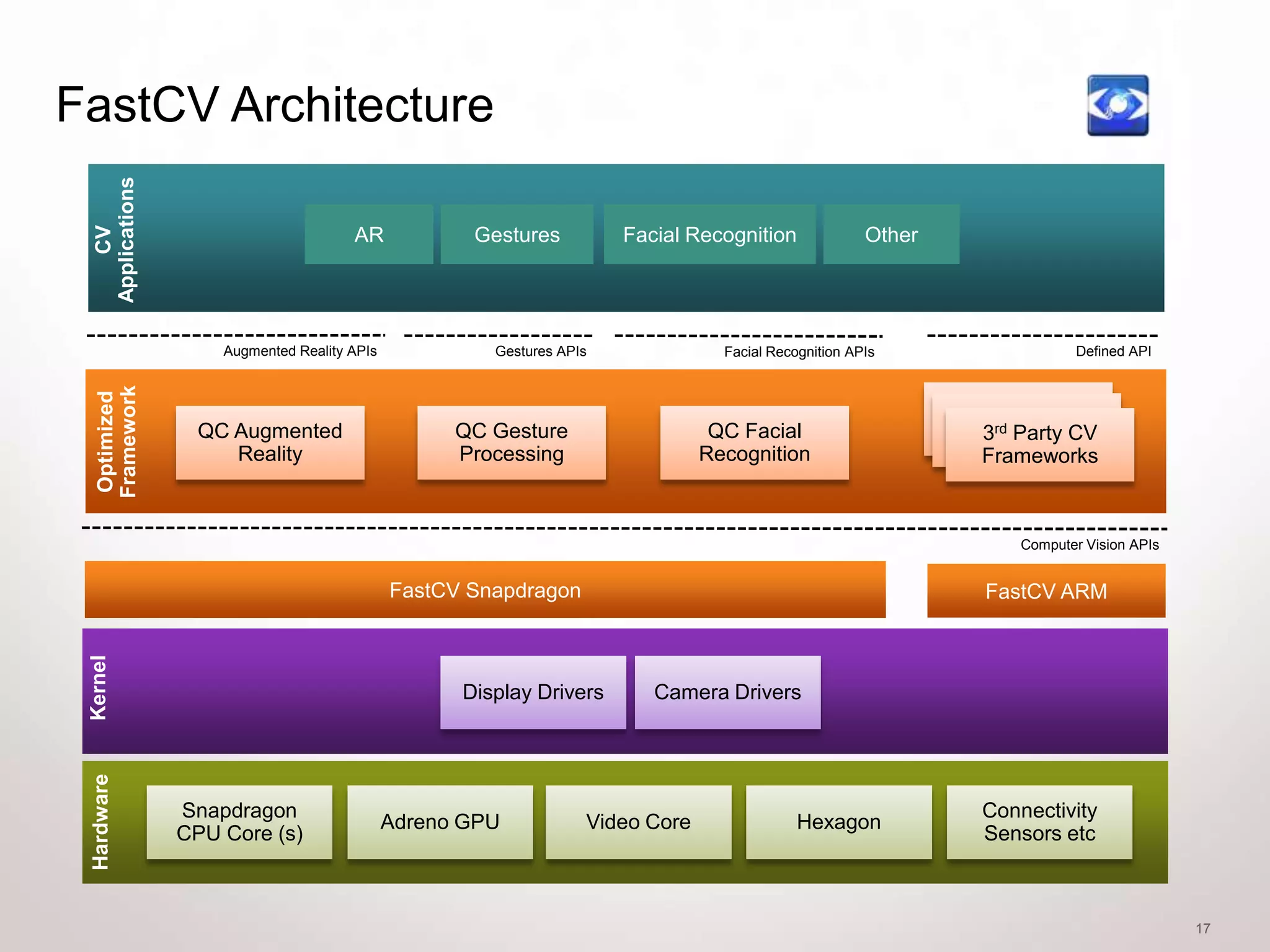

17. FastCV Architecture
Applications
CV
AR Gestures Facial Recognition Other
Augmented Reality APIs Gestures APIs Facial Recognition APIs Defined API
Framework
Optimized
QC Augmented QC Gesture QC Facial 3rd Party CV
Reality Processing Recognition Frameworks
Computer Vision APIs
FastCV Snapdragon FastCV ARM
Kernel
Display Drivers Camera Drivers
Hardware
Snapdragon Connectivity
Adreno GPU Video Core Hexagon
CPU Core (s) Sensors etc
17

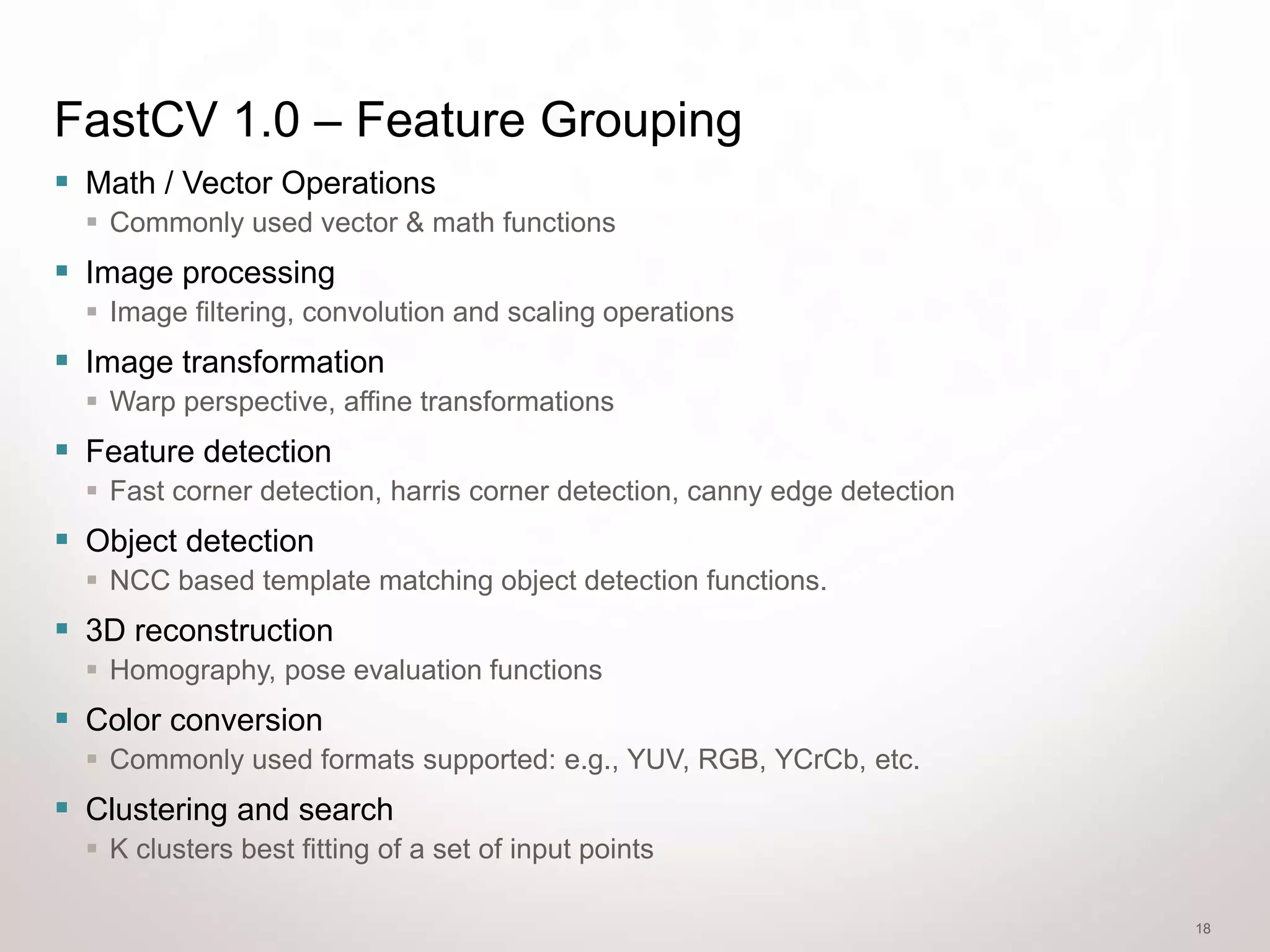

18. FastCV 1.0 – Feature Grouping
 Math / Vector Operations
 Commonly used vector & math functions
 Image processing
 Image filtering, convolution and scaling operations
 Image transformation
 Warp perspective, affine transformations
 Feature detection
 Fast corner detection, harris corner detection, canny edge detection
 Object detection
 NCC based template matching object detection functions.
 3D reconstruction
 Homography, pose evaluation functions
 Color conversion
 Commonly used formats supported: e.g., YUV, RGB, YCrCb, etc.
 Clustering and search
 K clusters best fitting of a set of input points
18

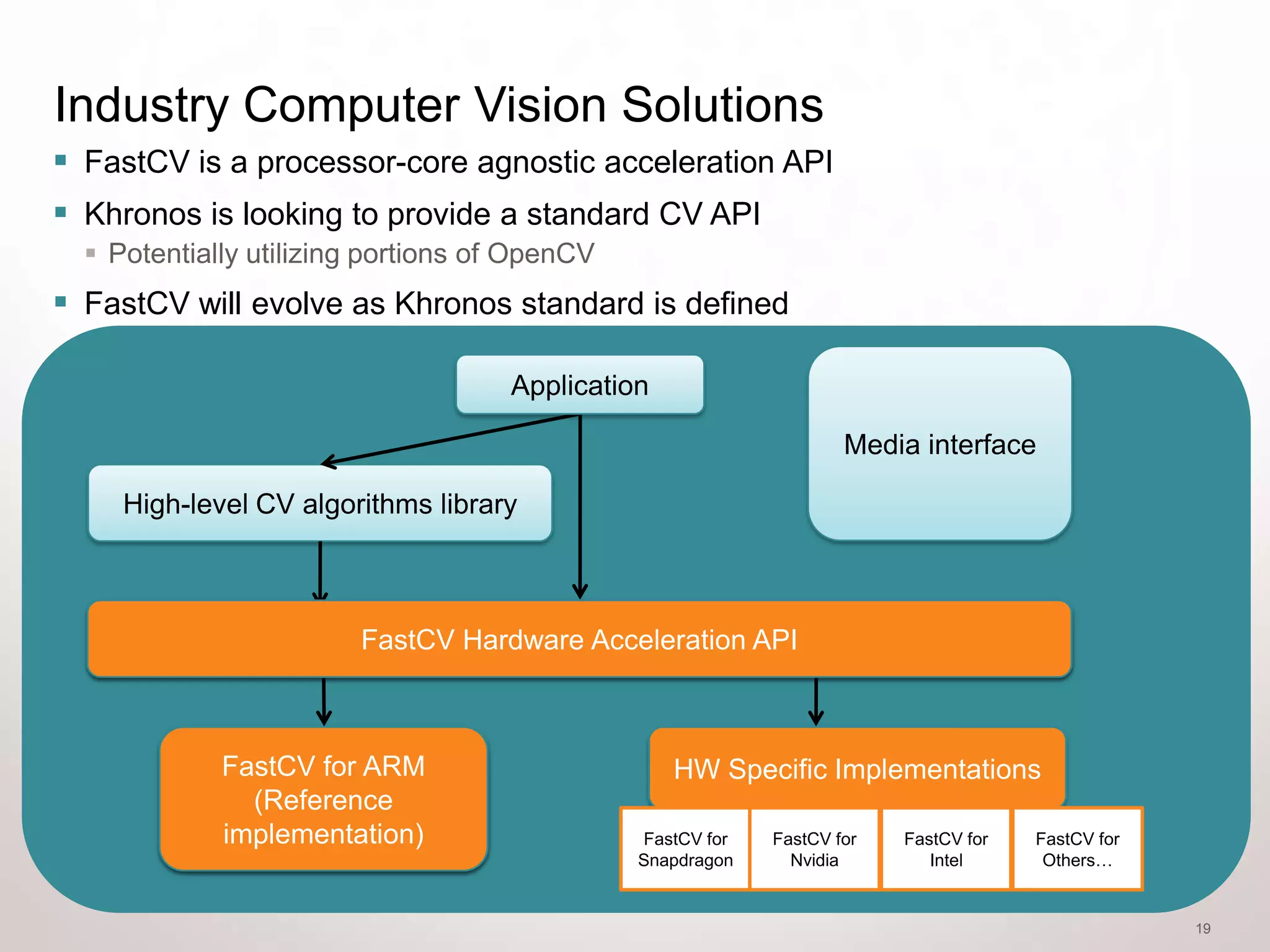

19. Industry Computer Vision Solutions
 FastCV is a processor-core agnostic acceleration API
 Khronos is looking to provide a standard CV API
 Potentially utilizing portions of OpenCV
 FastCV will evolve as Khronos standard is defined
Application
Media interface
High-level CV algorithms library
Hardware Abstraction Layer
FastCV Hardware Acceleration API
FastCV source
Open for ARM HW Specific Implementations
Hardware vendor
reference
(Reference
implementations
implementation
implementation) FastCV for FastCV for FastCV for FastCV for
Snapdragon Nvidia Intel Others…
19

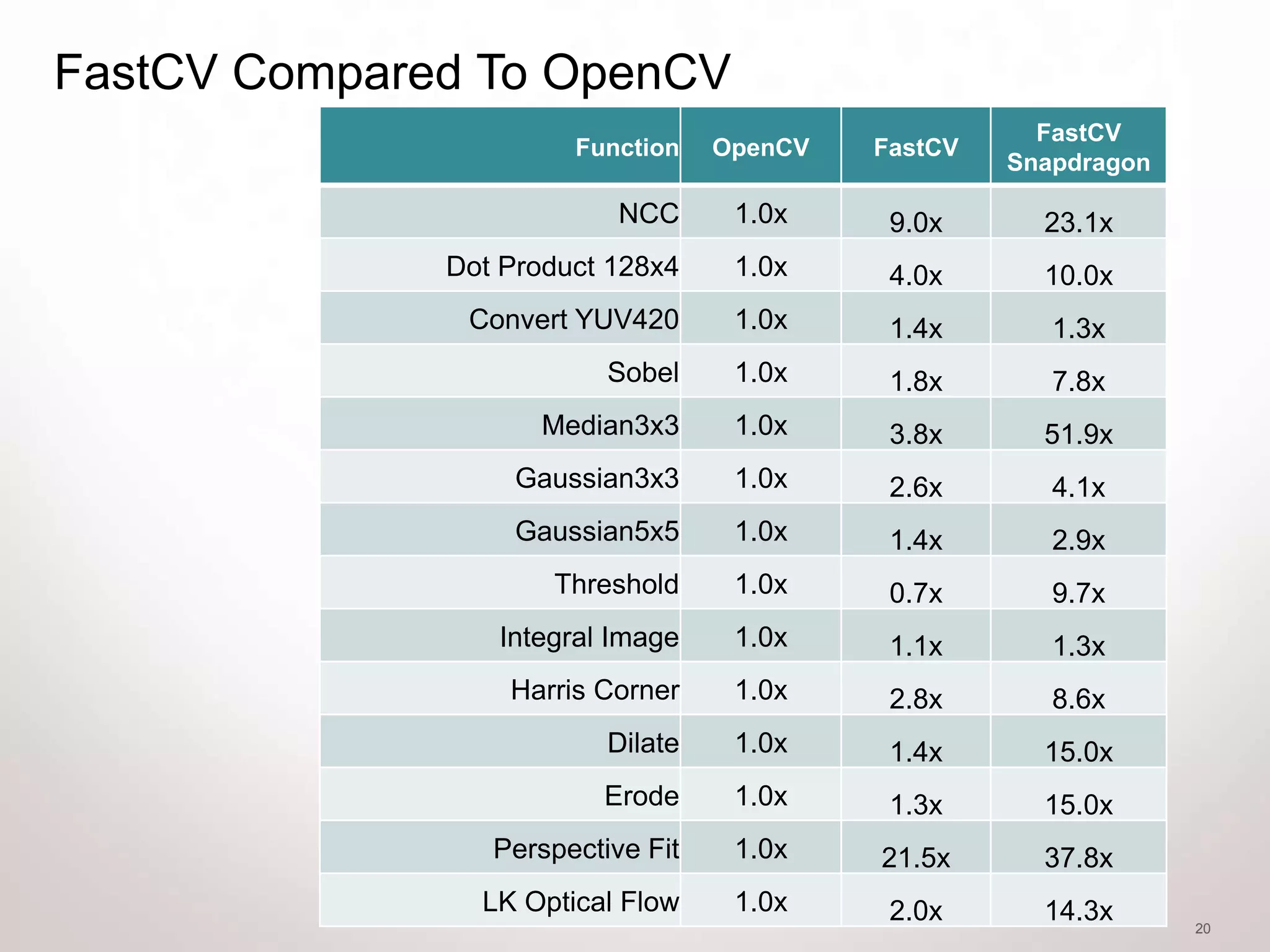

20. FastCV Compared To OpenCV
FastCV
Function OpenCV FastCV
Snapdragon
NCC 1.0x 9.0x 23.1x
Dot Product 128x4 1.0x 4.0x 10.0x
Convert YUV420 1.0x 1.4x 1.3x
Sobel 1.0x 1.8x 7.8x
Median3x3 1.0x 3.8x 51.9x
Gaussian3x3 1.0x 2.6x 4.1x
Gaussian5x5 1.0x 1.4x 2.9x
Threshold 1.0x 0.7x 9.7x
Integral Image 1.0x 1.1x 1.3x
Harris Corner 1.0x 2.8x 8.6x
Dilate 1.0x 1.4x 15.0x
Erode 1.0x 1.3x 15.0x
Perspective Fit 1.0x 21.5x 37.8x
LK Optical Flow 1.0x 2.0x 14.3x 20

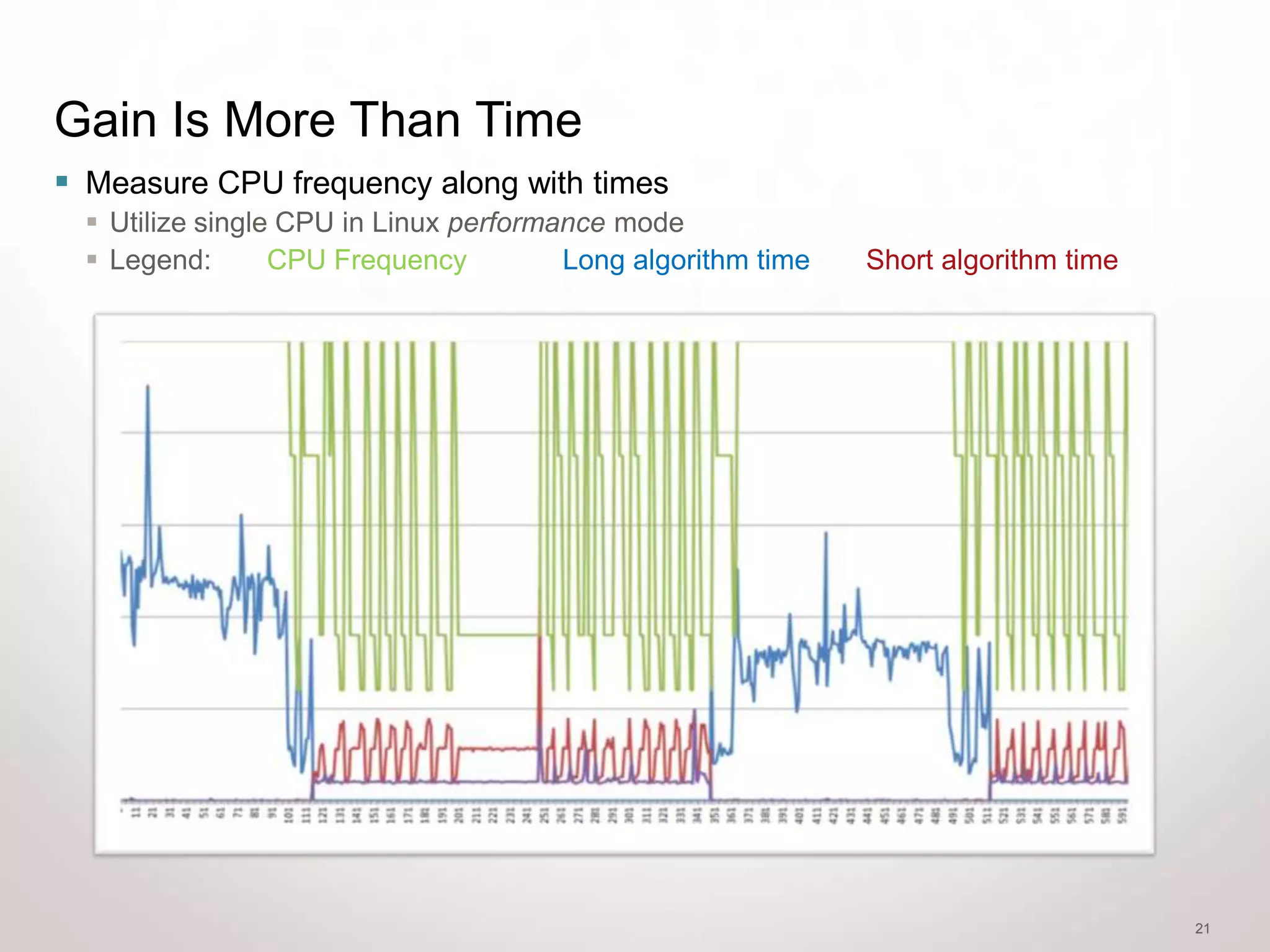

21. Gain Is More Than Time
 Measure CPU frequency along with times
 Utilize single CPU in Linux performance mode
 Legend: CPU Frequency Long algorithm time Short algorithm time
21

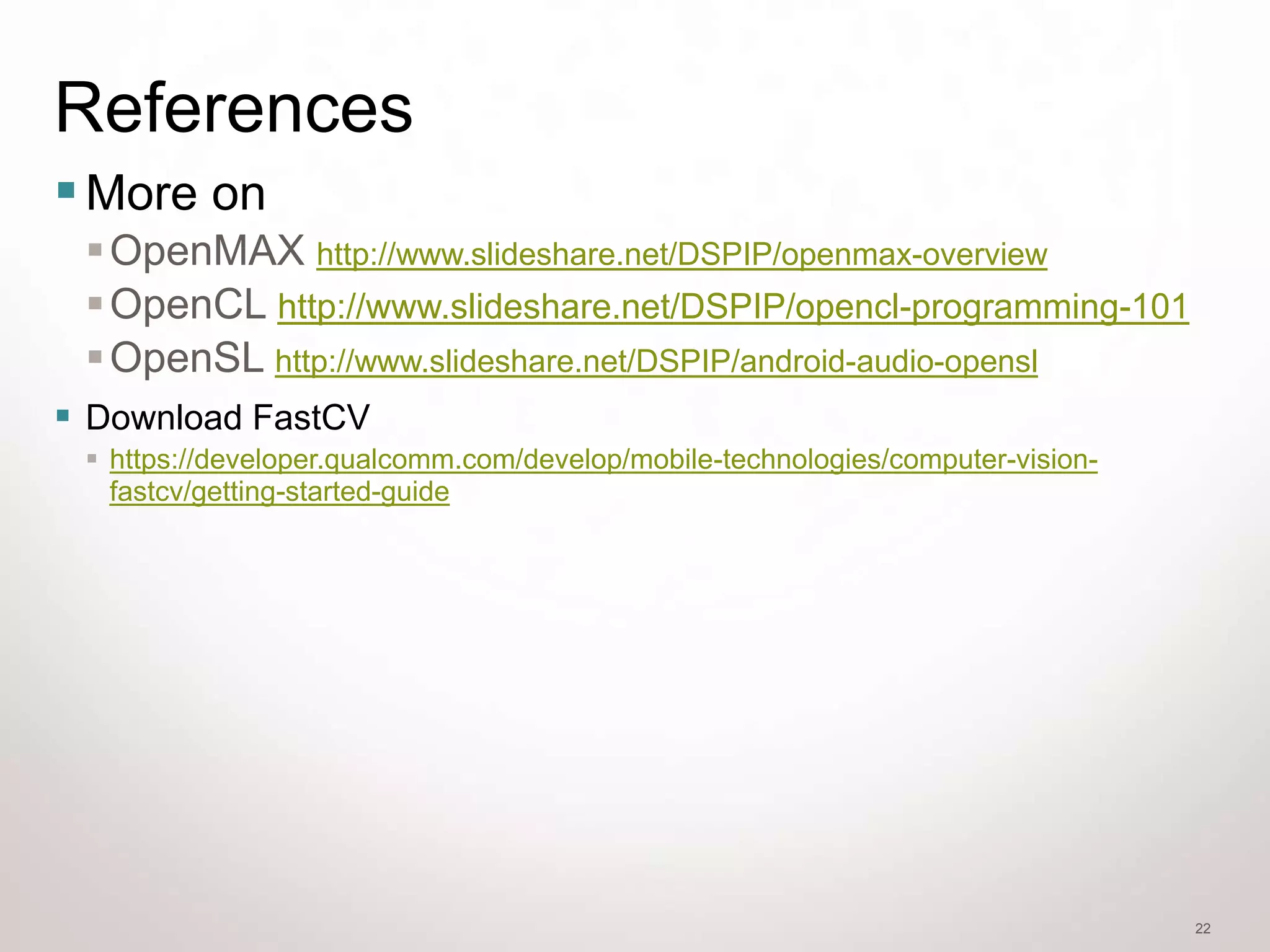

22. References
 More on
 OpenMAX http://www.slideshare.net/DSPIP/openmax-overview
 OpenCL http://www.slideshare.net/DSPIP/opencl-programming-101
 OpenSL http://www.slideshare.net/DSPIP/android-audio-opensl
 Download FastCV
 https://developer.qualcomm.com/develop/mobile-technologies/computer-vision-
fastcv/getting-started-guide
22

23. Thank you!
More About me:
 Video Expert
Yossi Cohen
 Lectures on Video / Android / VoIP
yossicohen19@gmail.com
 Android Native Developer http://www.mobilevideotech.com
+972-545-313092
23
