The control unit (CU) is a key component of the CPU that manages operations and directs data flow between the CPU, memory, and I/O devices. There are two main types of control units: hardwired, which is fast but less flexible, and microprogrammed, which is slower but more adaptable. The CU is essential in the instruction cycle, handling fetching, decoding, and executing instructions.

1. Computer Architecture and
Organization
Unit: Processing Unit - Topic: Control Unit

2. Introduction to Control Unit
• The Control Unit (CU) is a fundamental component of the CPU.
• It manages and coordinates all the operations of the computer.
• It directs the flow of data between the CPU, memory, and I/O devices.

3. Functions of the Control Unit
1. Fetches instructions from memory.
2. Decodes the instructions into control signals.
3. Executes the instructions by directing the data flow.
4. Coordinates the activities of other components in the CPU.

4. Types of Control Units
There are two main types of Control Units:
1. Hardwired Control Unit
2. Microprogrammed Control Unit

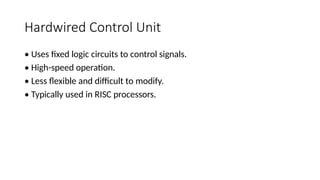

5. Hardwired Control Unit
• Uses fixed logic circuits to control signals.
• High-speed operation.
• Less flexible and difficult to modify.
• Typically used in RISC processors.

6. Microprogrammed Control Unit
• Uses microinstructions stored in control memory.
• Easier to modify and more flexible.
• Slower than hardwired control due to instruction fetching.
• Commonly used in CISC processors.

7. Comparison: Hardwired vs.
Microprogrammed
• Hardwired Control Unit:
• Fast execution but less adaptable.
• Difficult to design and modify.
• Microprogrammed Control Unit:
• Flexible and easy to update.
• Slower due to microinstruction execution.

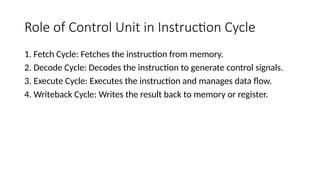

8. Role of Control Unit in Instruction Cycle
1. Fetch Cycle: Fetches the instruction from memory.
2. Decode Cycle: Decodes the instruction to generate control signals.
3. Execute Cycle: Executes the instruction and manages data flow.
4. Writeback Cycle: Writes the result back to memory or register.

9. Summary of Control Unit
• The Control Unit manages and directs all activities of the CPU.
• It fetches, decodes, and executes instructions.
• Types: Hardwired (fast but less flexible) and Microprogrammed
(slower but flexible).
• Integral in the instruction cycle of a processor.
