Contributing to the AtoM documentation
- 1. Contributing tothe AtoM Documentation An introduction to AtoM’s docs, Sphinx, and reStructuredText Dan Gillean Artefactual Systems

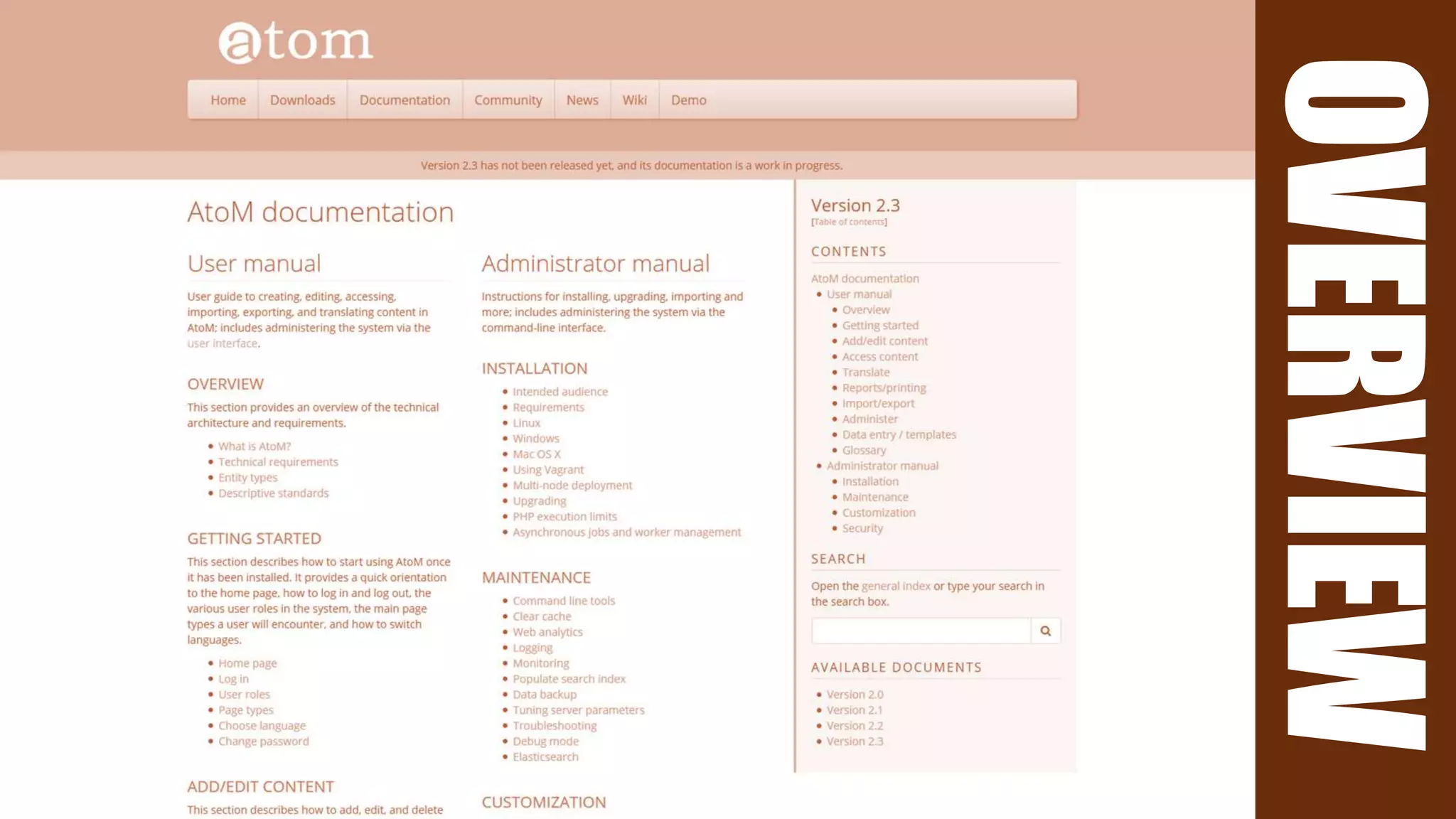

- 2. OVERVIEW
- 3. OVERVIEW Three Manuals: • User manual: Using the application via the user interface • Administrator’s manual: installation, maintenance, upgrades, customization, troubleshooting • Developer’s manual: API, development environments AtoM documentation is versioned for each major release
- 4. AtoMWIKI DOCUMENTATION RESOURCES On the AtoM wiki: • Information about the documentation • How to contribute via GitHub • Contribution guidelines https://wiki.accesstomemory.org/Resources/Documentation/

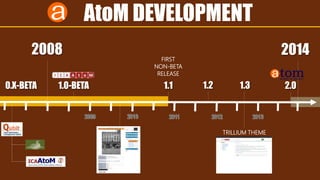

- 6. 20142008 0.X-BETA 1.0-BETA FIRST NON-BETA RELEASE AtoM DEVELOPMENT 1.1 2.01.31.2 TRILLIUM THEME

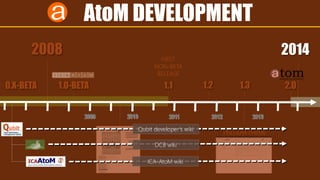

- 7. 20142008 0.X-BETA 1.0-BETA FIRST NON-BETA RELEASE AtoM DEVELOPMENT 1.1 2.01.31.2 TRILLIUM THEME Qubit developer’s wiki DCB wiki ICA-AtoM wiki
- 8. 2013: 1 PROJECT… 3 WIKIS 4 THEMES And AtoM 2.0 on the way… http://imgur.com/32eaxCQ
- 9. WIKICHALLENGES No versioning (e.g. ICA-AtoM 1.2, 1.3; AtoM 2.0) No enforced structure Too easy to create orphaned pages No easy output to other formats https://commons.wikimedia.org/wiki/File:Coober_Pedy_Warning_sign_02427.jpg

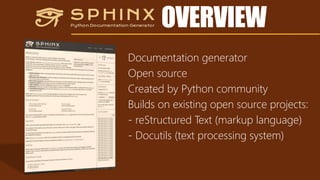

- 11. OVERVIEW Documentation generator Open source Created by Python community Builds on existing open source projects: - reStructured Text (markup language) - Docutils (text processing system)

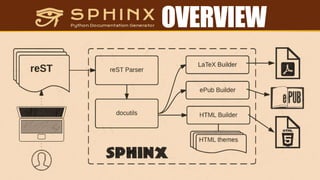

- 12. OVERVIEW
- 13. ADVANTAGES • Structured documentation • Built around a table of contents you define • Versioning • Easily maintained in a repository w many branches • Easy output to other formats • Glossary, footnotes, asides, figures, tables, etc… • Built-in themes or custom themes • Automated indices • Strong support for code documentation http://cheezburger.com/6705529088

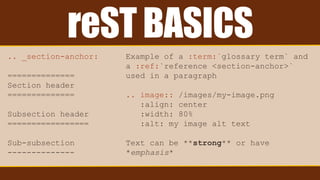

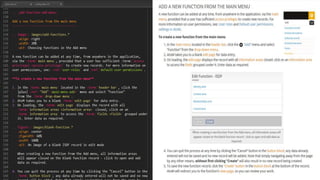

- 15. reST BASICS .. _section-anchor: ============== Section header ============== Subsection header ================= Sub-subsection -------------- Example of a :term:`glossary term` and a :ref:`reference <section-anchor>` used in a paragraph .. image:: /images/my-image.png :align: center :width: 80% :alt: my image alt text Text can be **strong** or have *emphasis*
- 16. reST BASICS .. IMPORTANT:: This is an admonition. Sphinx also supports NOTE, TIP, SEEALSO, WARNING, CAUTION, HINT, etc. This is a `link`_ that can be reused .. _link: http://www.example.com This is an `inline link <http://www.example2.com>`__ .. code-block:: xml <scopecontent>My scope and content</scopecontent> * This is a bulleted list. * It has two items, the second item uses two lines. 1. This is a numbered list. 2. It has two items too. #. This is a numbered list. #. It has two items too.

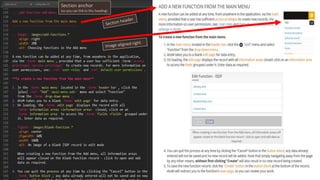

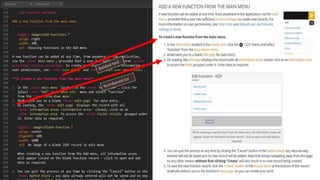

- 18. Section anchor (so you can link to this heading)

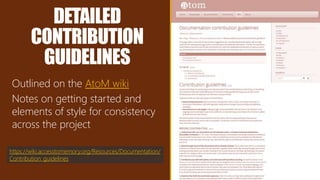

- 21. DETAILED CONTRIBUTION GUIDELINES Outlined on the AtoM wiki Notes on getting started and elements of style for consistency across the project https://wiki.accesstomemory.org/Resources/Documentation/ Contribution_guidelines

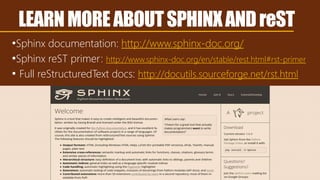

- 22. LEARNMOREABOUTSPHINXANDreST •Sphinx documentation: http://www.sphinx-doc.org/ •Sphinx reST primer: http://www.sphinx-doc.org/en/stable/rest.html#rst-primer • Full reStructuredText docs: http://docutils.sourceforge.net/rst.html
- 23. CONTRIBUTINGDOCUMENTATION CHANGESWITHGITHUB: Using GitHub’s user interface to contribute documentation changes to AtoM’s git repository
- 24. GitHub GitHub is a web-based Git or version control repository and Internet hosting service. It offers all of the distributed version control and source code management (SCM) functionality of Git as well as adding its own features. It provides access control and several collaboration features such as bug tracking, feature requests, task management, and wikis for every project. GitHub offers both plans for private and free repositories on the same account which are commonly used to host open- source software projects (Wikipedia) https://github.com/artefactual/atom-docs/
- 25. WAIT…WHATTHEHECKISGIT?? “Worried look” by Mark Biarnès https://www.flickr.com/photos/104318263@N04/11453255504
- 26. Distributedversioncontrolandgit Version control: A system for managing changes to source data (documents, code, etc) over time. Version control systems help you track who made what change when, and why. They also allow you to roll back changes to your data to a previous state. https://git-scm.com/
- 27. Distributed version control https://git-scm.com/book/en/v2/Getting-Started-About-Version-Control •Full mirroring of source with each user •Broadest potential for collaboration •Complex merging, branching, etc. possible
- 28. Git •Open source •Distributed model •Strong User Community, lots of free documentation •Widely used and supported across platforms https://xkcd.com/1597/

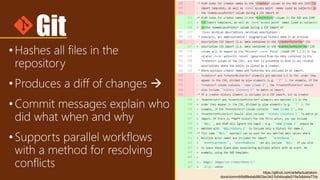

- 29. Git •Hashes all files in the repository •Produces a diff of changes •Commit messages explain who did what when and why •Supports parallel workflows with a method for resolving conflicts https://github.com/artefactual/atom- docs/commit/6d8fe4ab9803ec3421b04bcabe215e3dbb4a77dc

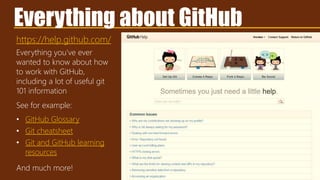

- 30. https://help.github.com/ Everything about GitHub Everything you’ve ever wanted to know about how to work with GitHub, including a lot of useful git 101 information See for example: • GitHub Glossary • Git cheatsheet • Git and GitHub learning resources And much more!
- 31. https://git-scm.com/book/ The entire Pro Git book, written by Scott Chacon and Ben Straub and published by Apress, is available here. All content is licensed under the Creative Commons Attribution Non Commercial Share Alike 3.0 license. Print versions of the book are available on Amazon.com. There are a lot of other free books and tutorials out there as well! Learn all things git (for free)

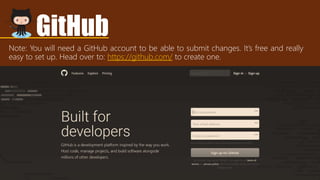

- 33. GitHub Note: You will need a GitHub account to be able to submit changes. It’s free and really easy to set up. Head over to: https://github.com/ to create one.

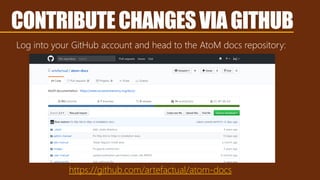

- 34. CONTRIBUTECHANGESVIAGITHUB Log into your GitHub account and head to the AtoM docs repository: https://github.com/artefactual/atom-docs

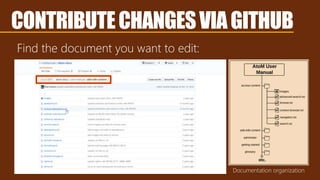

- 35. Find the document you want to edit: Documentation organization CONTRIBUTECHANGESVIAGITHUB
- 36. To add a new file, click the “Create new file” button Make sure you have navigated to the correct folder/directory where you want to add the file first! CONTRIBUTECHANGESVIAGITHUB

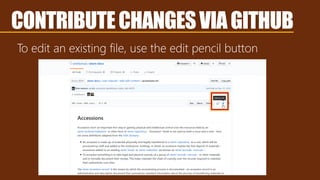

- 37. To edit an existing file, use the edit pencil button CONTRIBUTECHANGESVIAGITHUB
- 38. GitHub will automatically fork the project for you: CONTRIBUTECHANGESVIAGITHUB

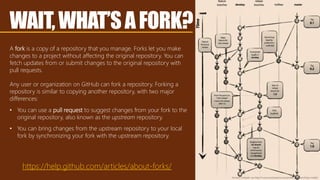

- 39. WAIT,WHAT’SAFORK? A fork is a copy of a repository that you manage. Forks let you make changes to a project without affecting the original repository. You can fetch updates from or submit changes to the original repository with pull requests. Any user or organization on GitHub can fork a repository. Forking a repository is similar to copying another repository, with two major differences: • You can use a pull request to suggest changes from your fork to the original repository, also known as the upstream repository. • You can bring changes from the upstream repository to your local fork by synchronizing your fork with the upstream repository. https://help.github.com/articles/about-forks/ Vincent Driessen via http://nvie.com/posts/a-successful-git-branching-model/

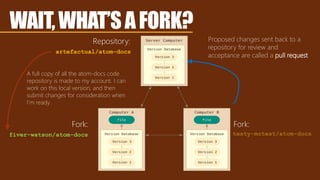

- 40. WAIT,WHAT’SAFORK? artefactual/atom-docs Repository: fiver-watson/atom-docs Fork: A full copy of all the atom-docs code repository is made to my account. I can work on this local version, and then submit changes for consideration when I’m ready Proposed changes sent back to a repository for review and acceptance are called a pull request testy-mctest/atom-docs Fork:

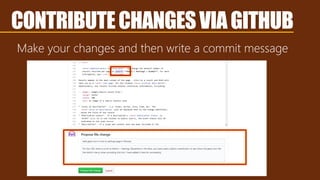

- 41. Make your changes and then write a commit message CONTRIBUTECHANGESVIAGITHUB
- 42. Commit message best practice: CONTRIBUTECHANGESVIAGITHUB Commit Summary This is a required field. GitHub Help describes a "commit" as such: "Think of a commit as a snapshot of your project – code, files, everything — at a particular point in time". Your commit summary is a concise way to summarize the changes to the project that users will find in the commit. Commit summaries should be 50 characters or less: this is more like a brief title so users can determine what has taken place at a glance. Keep it brief and to the point. Check out these guidelines in the Git documentation. Extended description This is an optional field, which we at Artefactual recommend using if you plan on editing our documentation. This is your chance to explain at greater length what the changes you made were, and why you felt you should make them. A concise message here will help us understand your work, and allow us to merge it into our documentation more quickly!

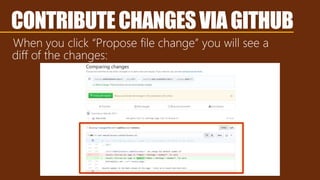

- 43. When you click “Propose file change” you will see a diff of the changes: CONTRIBUTECHANGESVIAGITHUB

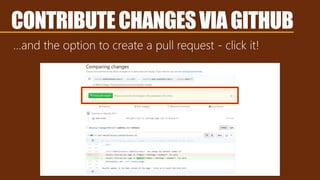

- 44. …and the option to create a pull request - click it! CONTRIBUTECHANGESVIAGITHUB

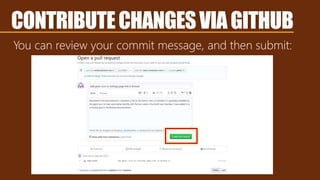

- 45. You can review your commit message, and then submit: CONTRIBUTECHANGESVIAGITHUB

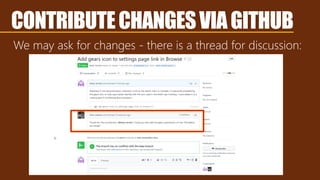

- 46. We may ask for changes - there is a thread for discussion: CONTRIBUTECHANGESVIAGITHUB
- 47. If everything looks good, we’ll accept the change! You did it! CONTRIBUTECHANGESVIAGITHUB Louis Wain, “the Bachelor party.” https://commons.wikimedia.org/wiki/File:Louis_Wain_The_bachelor_party.jpg:p
- 48. WIKISSTILLHAVETHEIRUSES! • Web-based editing • Popular uses (e.g. Wikipedia) have made it familiar and easy to understand for users • Good for rapidly changing content AtoM Sphinx docs: • User manual • Admin manual AtoM Wiki: • Release notes • User list • Community resources • Development documentation

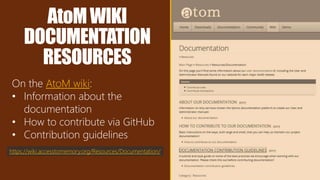

- 49. AtoMWIKI DOCUMENTATION RESOURCES On the AtoM wiki: • Information about the documentation • How to contribute via GitHub • Contribution guidelines https://wiki.accesstomemory.org/Resources/Documentation/

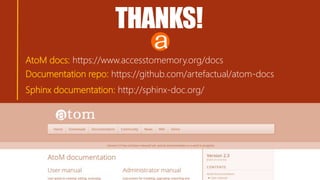

- 50. THANKS! AtoM docs: https://www.accesstomemory.org/docs Documentation repo: https://github.com/artefactual/atom-docs Sphinx documentation: http://sphinx-doc.org/
Editor's Notes
- Many other formats built-in: Windows/Apple/GNOME Help books, man pages, txt files, JSON, etc. Further builders available as third-party open-source extensions
- Essentially, git applies a cryptographic SHA1 hash against all files in a repository, and will produce a diff, shown in a graphical form from GitHub here on the right, of the additions, deletions, and modifications made. Every change submitted by a contributor includes a commit message with a timestamp, which includes a short, human-readable summary of the changes and an option for a longer narrative description or justification. Platforms like GitHub, which add a web-based user interface to git repositories and workflows, also offer the ability to discuss changes on a per-line basis via comments and issues. Artefactual uses git to manage all of its software projects – but we also use it to manage our documentation. In this image, we’re actually looking at an image from a diff on GitHub, made when I submitted changes to the Access to Memory documentation.
- Finally, there are distributed VCS’s like git. In this case, each user maintains a local mirror of the entire repository. If Bob wants to include Carol, Carol ends up with the entire repo as well, and can maintain her changes as an independent fork or reconcile them at any time with the master, or with just Bob or just Alice. If the main repository goes down, every user becomes a potential point of backup.
- Git was created by the Linux community to streamline broad collaboration in distributed open-source development environments. There are many other alternative distributed VCSs out there, but git has become a de facto standard among developers.
- Essentially, git applies a cryptographic SHA1 hash against all files in a repository, and will produce a diff, shown in a graphical form from GitHub here on the right, of the additions, deletions, and modifications made. Every change submitted by a contributor includes a commit message with a timestamp, which includes a short, human-readable summary of the changes and an option for a longer narrative description or justification. Platforms like GitHub, which add a web-based user interface to git repositories and workflows, also offer the ability to discuss changes on a per-line basis via comments and issues. Artefactual uses git to manage all of its software projects – but we also use it to manage our documentation. In this image, we’re actually looking at an image from a diff on GitHub, made when I submitted changes to the Access to Memory documentation.
- Essentially, git applies a cryptographic SHA1 hash against all files in a repository, and will produce a diff, shown in a graphical form from GitHub here on the right, of the additions, deletions, and modifications made. Every change submitted by a contributor includes a commit message with a timestamp, which includes a short, human-readable summary of the changes and an option for a longer narrative description or justification. Platforms like GitHub, which add a web-based user interface to git repositories and workflows, also offer the ability to discuss changes on a per-line basis via comments and issues. Artefactual uses git to manage all of its software projects – but we also use it to manage our documentation. In this image, we’re actually looking at an image from a diff on GitHub, made when I submitted changes to the Access to Memory documentation.
