ContainerDays Boston 2015: "A Brief History of Containers" (Jeff Victor & Kir Kolyshkin)
The document discusses the history and evolution of virtualization, including key concepts, types of virtualization such as containers and zones, and their advantages and disadvantages. It outlines the development timeline from the early days of virtualization in the 1960s to the advancements in container management by 2015. It also details the Oracle Solaris zones, emphasizing their resource control, security features, and networking capabilities.
More Related Content
Similar to ContainerDays Boston 2015: "A Brief History of Containers" (Jeff Victor & Kir Kolyshkin)
ContainerDays Boston 2015: "A Brief History of Containers" (Jeff Victor & Kir Kolyshkin)
- 1. • Jeff Victor •Principal Author, “Oracle Solaris 10 System Virtualization Essentials” • Kir Kolyshkin • OpenVZ Containers Lead History of Containers Copyright 2015 Oracle Corp.

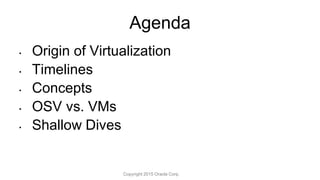

- 2. • Origin ofVirtualization • Timelines • Concepts • OSV vs. VMs • Shallow Dives Agenda Copyright 2015 Oracle Corp.
- 3. The Mists ofAntiquity 1960 19751965 1970 MIT CTSS CP-40 CP-67 VM/370 Batch

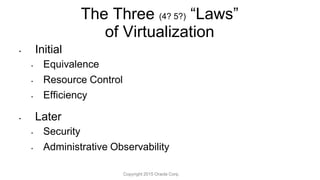

- 4. The Three (4?5?) “Laws” of Virtualization • Initial • Equivalence • Resource Control • Efficiency • Later • Security • Administrative Observability Copyright 2015 Oracle Corp.

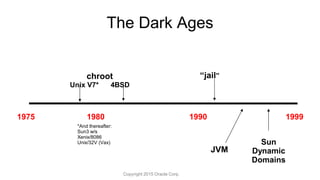

- 5. The Dark Ages 197519991980 chroot Unix V7* 4BSD 1990 “jail” Sun Dynamic Domains *And thereafter: Sun3 w/s Xenix/8086 Unix/32V (Vax) JVM Copyright 2015 Oracle Corp.

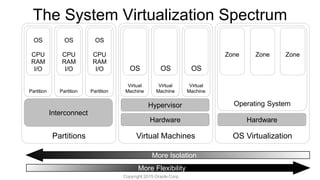

- 6. The System VirtualizationSpectrum More Flexibility OS CPU RAM I/O Partition OS CPU RAM I/O Partition OS CPU RAM I/O Partition Partitions Interconnect OS Virtual Machine OS Virtual Machine OS Virtual Machine Virtual Machines Hypervisor Hardware Zone Operating System Zone Zone OS Virtualization Hardware More Isolation Copyright 2015 Oracle Corp.

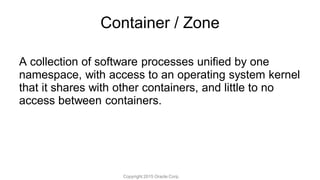

- 7. Container / Zone Acollection of software processes unified by one namespace, with access to an operating system kernel that it shares with other containers, and little to no access between containers. Copyright 2015 Oracle Corp.

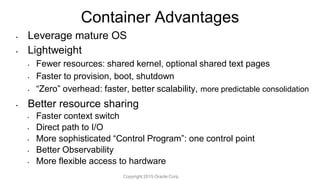

- 8. Container Advantages • Leveragemature OS • Lightweight • Fewer resources: shared kernel, optional shared text pages • Faster to provision, boot, shutdown • “Zero” overhead: faster, better scalability, more predictable consolidation • Better resource sharing • Faster context switch • Direct path to I/O • More sophisticated “Control Program”: one control point • Better Observability • More flexible access to hardware Copyright 2015 Oracle Corp.

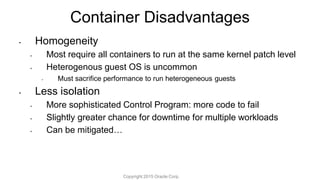

- 9. Container Disadvantages • Homogeneity •Most require all containers to run at the same kernel patch level • Heterogenous guest OS is uncommon • Must sacrifice performance to run heterogeneous guests • Less isolation • More sophisticated Control Program: more code to fail • Slightly greater chance for downtime for multiple workloads • Can be mitigated… Copyright 2015 Oracle Corp.

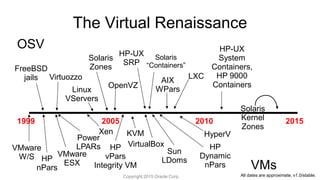

- 10. The Virtual Renaissance 199920152005 2010 VMware W/S HP nPars FreeBSD jails VMware ESX Virtuozzo Power LPARs Linux VServers Solaris Zones OpenVZ HP vPars Integrity VM HP-UX SRP Sun LDoms HP Dynamic nPars AIX WPars LXC HP-UX System Containers, HP 9000 Containers Solaris Kernel Zones VirtualBox Xen HyperV VMs OSV KVM Solaris “Containers” All dates are approximate, v1.0/stable.Copyright 2015 Oracle Corp.

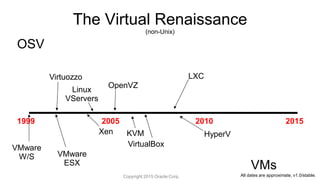

- 11. The Virtual Renaissance (non-Unix) 199920152005 2010 VMware W/S VMware ESX Virtuozzo Linux VServers OpenVZ LXC VirtualBox Xen HyperV VMs OSV KVM All dates are approximate, v1.0/stable.Copyright 2015 Oracle Corp.

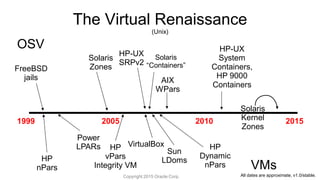

- 12. The Virtual Renaissance (Unix) 199920152005 2010 HP nPars FreeBSD jails Power LPARs Solaris Zones HP vPars Integrity VM HP-UX SRPv2 Sun LDoms HP Dynamic nPars AIX WPars HP-UX System Containers, HP 9000 Containers Solaris Kernel Zones VirtualBox VMs OSV Solaris “Containers” All dates are approximate, v1.0/stable.Copyright 2015 Oracle Corp.

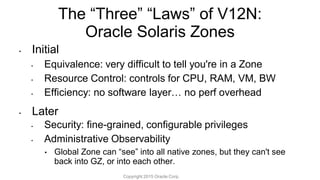

- 13. The “Three” “Laws”of V12N: Oracle Solaris Zones • Initial • Equivalence: very difficult to tell you're in a Zone • Resource Control: controls for CPU, RAM, VM, BW • Efficiency: no software layer… no perf overhead • Later • Security: fine-grained, configurable privileges • Administrative Observability • Global Zone can “see” into all native zones, but they can't see back into GZ, or into each other. Copyright 2015 Oracle Corp.

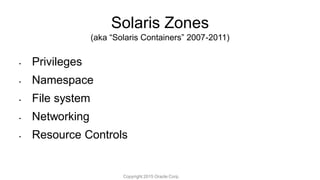

- 14. Solaris Zones • Privileges •Namespace • File system • Networking • Resource Controls (aka “Solaris Containers” 2007-2011) Copyright 2015 Oracle Corp.

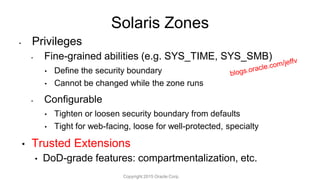

- 15. Solaris Zones • Privileges •Fine-grained abilities (e.g. SYS_TIME, SYS_SMB) • Define the security boundary • Cannot be changed while the zone runs • Configurable • Tighten or loosen security boundary from defaults • Tight for web-facing, loose for well-protected, specialty • Trusted Extensions • DoD-grade features: compartmentalization, etc. Copyright 2015 Oracle Corp.

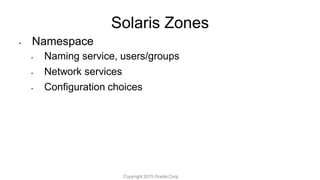

- 16. Solaris Zones • Namespace •Naming service, users/groups • Network services • Configuration choices Copyright 2015 Oracle Corp.

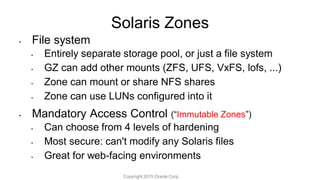

- 17. Solaris Zones • Filesystem • Entirely separate storage pool, or just a file system • GZ can add other mounts (ZFS, UFS, VxFS, lofs, ...) • Zone can mount or share NFS shares • Zone can use LUNs configured into it • Mandatory Access Control (“Immutable Zones”) • Can choose from 4 levels of hardening • Most secure: can't modify any Solaris files • Great for web-facing environments Copyright 2015 Oracle Corp.

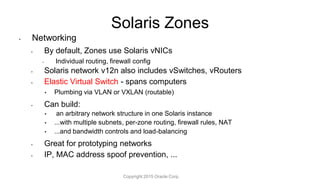

- 18. Solaris Zones • Networking •By default, Zones use Solaris vNICs • Individual routing, firewall config • Solaris network v12n also includes vSwitches, vRouters • Elastic Virtual Switch - spans computers • Plumbing via VLAN or VXLAN (routable) • Can build: • an arbitrary network structure in one Solaris instance • ...with multiple subnets, per-zone routing, firewall rules, NAT • ...and bandwidth controls and load-balancing • Great for prototyping networks • IP, MAC address spoof prevention, ... Copyright 2015 Oracle Corp.

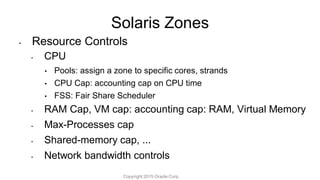

- 19. Solaris Zones • ResourceControls • CPU • Pools: assign a zone to specific cores, strands • CPU Cap: accounting cap on CPU time • FSS: Fair Share Scheduler • RAM Cap, VM cap: accounting cap: RAM, Virtual Memory • Max-Processes cap • Shared-memory cap, ... • Network bandwidth controls Copyright 2015 Oracle Corp.

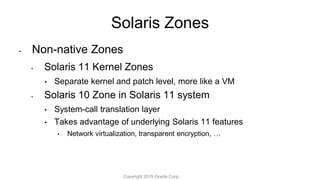

- 20. Solaris Zones • Non-nativeZones • Solaris 11 Kernel Zones • Separate kernel and patch level, more like a VM • Solaris 10 Zone in Solaris 11 system • System-call translation layer • Takes advantage of underlying Solaris 11 features • Network virtualization, transparent encryption, … Copyright 2015 Oracle Corp.

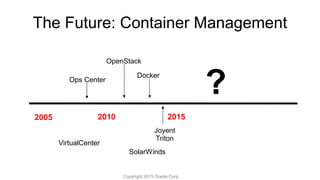

- 21. The Future: ContainerManagement 2010 2015 Docker OpenStack ? 2005 Ops Center SolarWinds VirtualCenter Joyent Triton Copyright 2015 Oracle Corp.

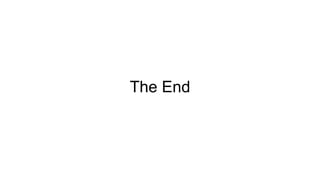

- 22.
