The document discusses the ES200 SCADA RTU, a fourth-generation IoT gateway designed for distribution automation, integrating traditional SCADA with IT for improved security and functionality. It highlights its capabilities in combining various software functions, enhancing cybersecurity, and simplifying management through Cisco Fog Director. Additionally, the document outlines the ongoing implementation and expected deployments, indicating a growing demand for flexible and scalable solutions in the energy distribution sector.

1. Distribution Automation RTU on IR 809
Connect, Secure & Automate the Distribution Grid with
CISCO SCADA RTU - Eximprod ES-200
Sarajevo, May 11th, 2017

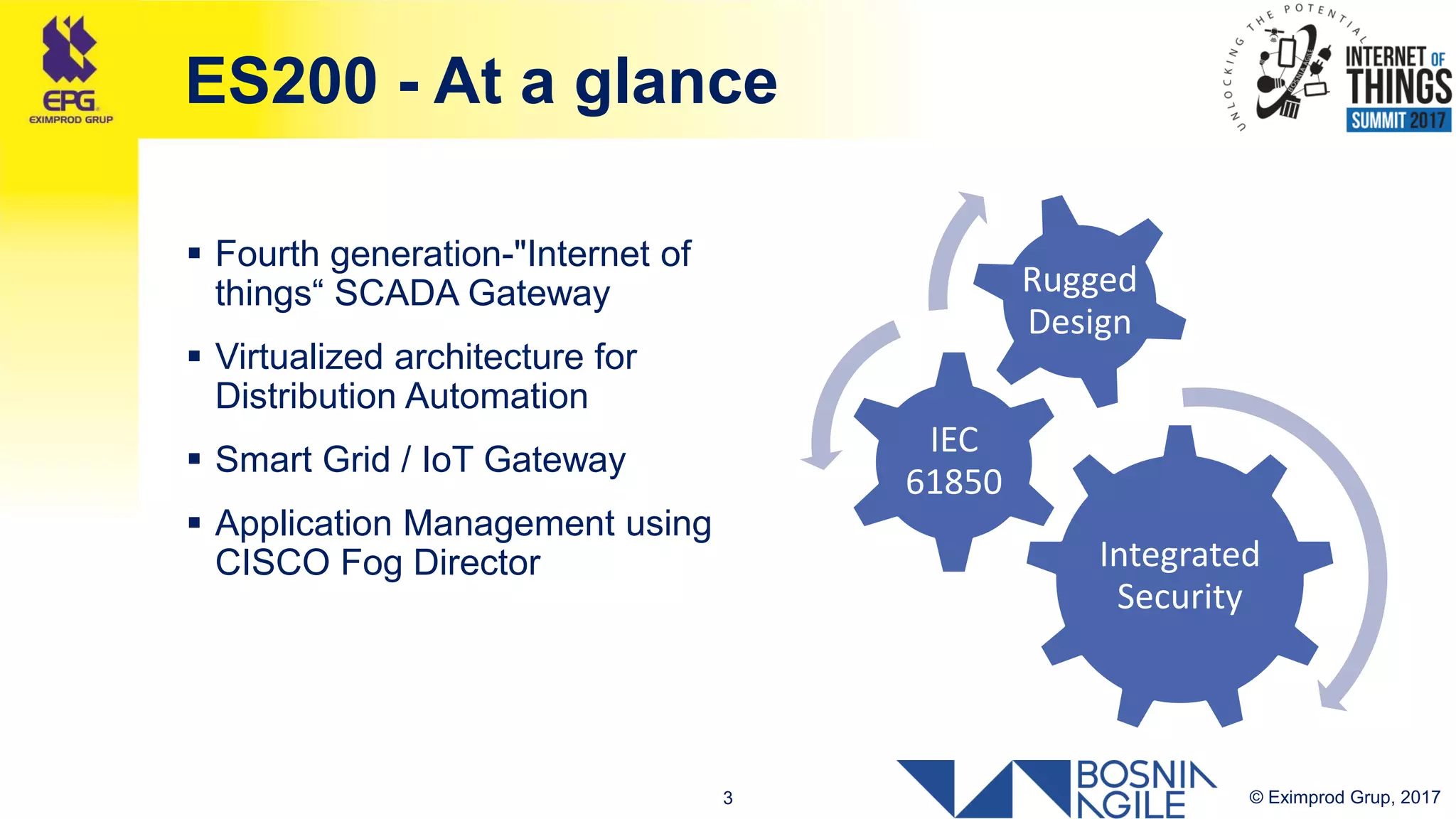

3. © Eximprod Grup, 20173
ES200 - At a glance
 Fourth generation-"Internet of
things“ SCADA Gateway
 Virtualized architecture for
Distribution Automation
 Smart Grid / IoT Gateway
 Application Management using
CISCO Fog Director Integrated
Security
IEC
61850
Rugged
Design

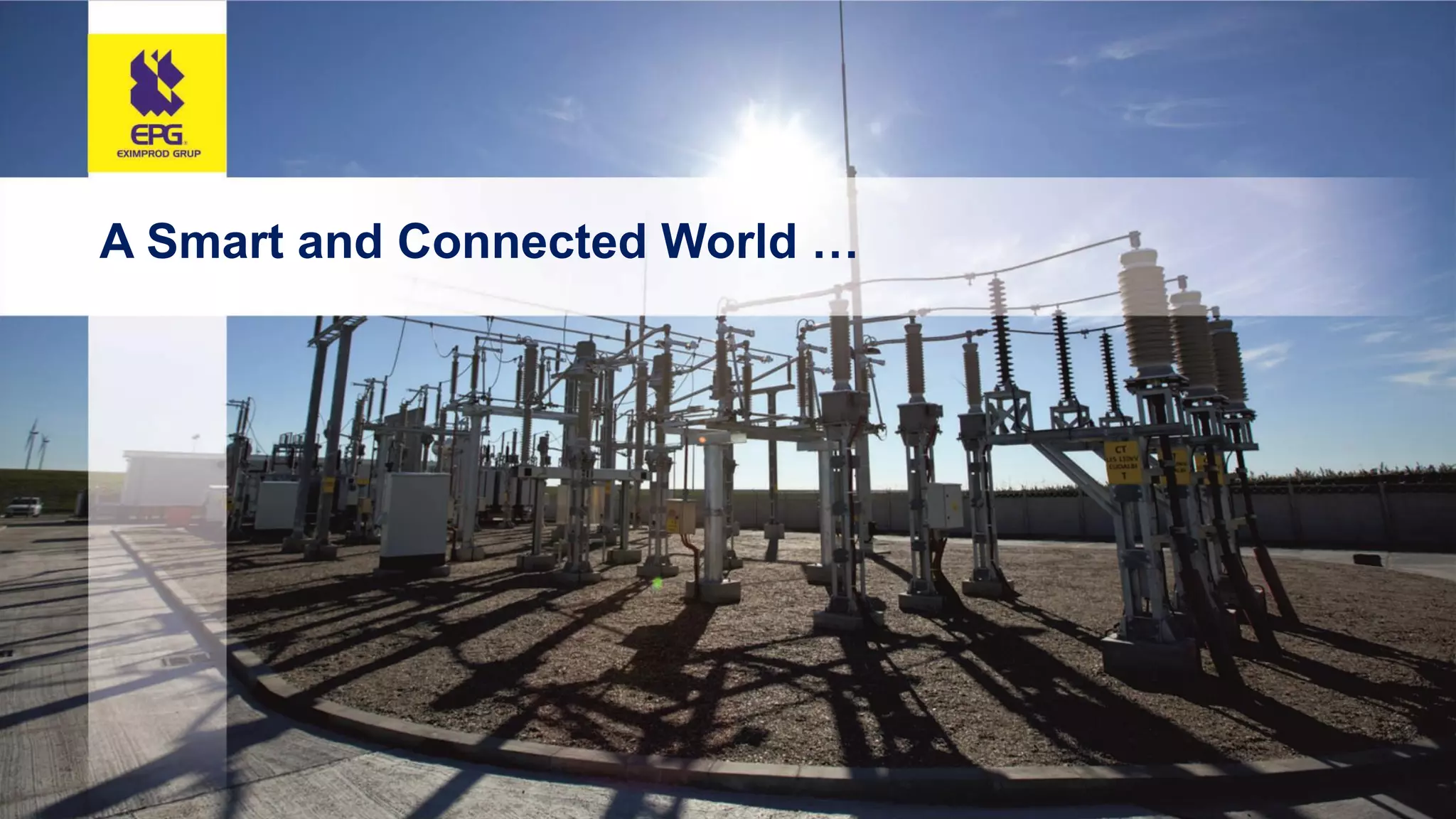

4. © Eximprod Grup, 2017 4
A Smart and Connected World …

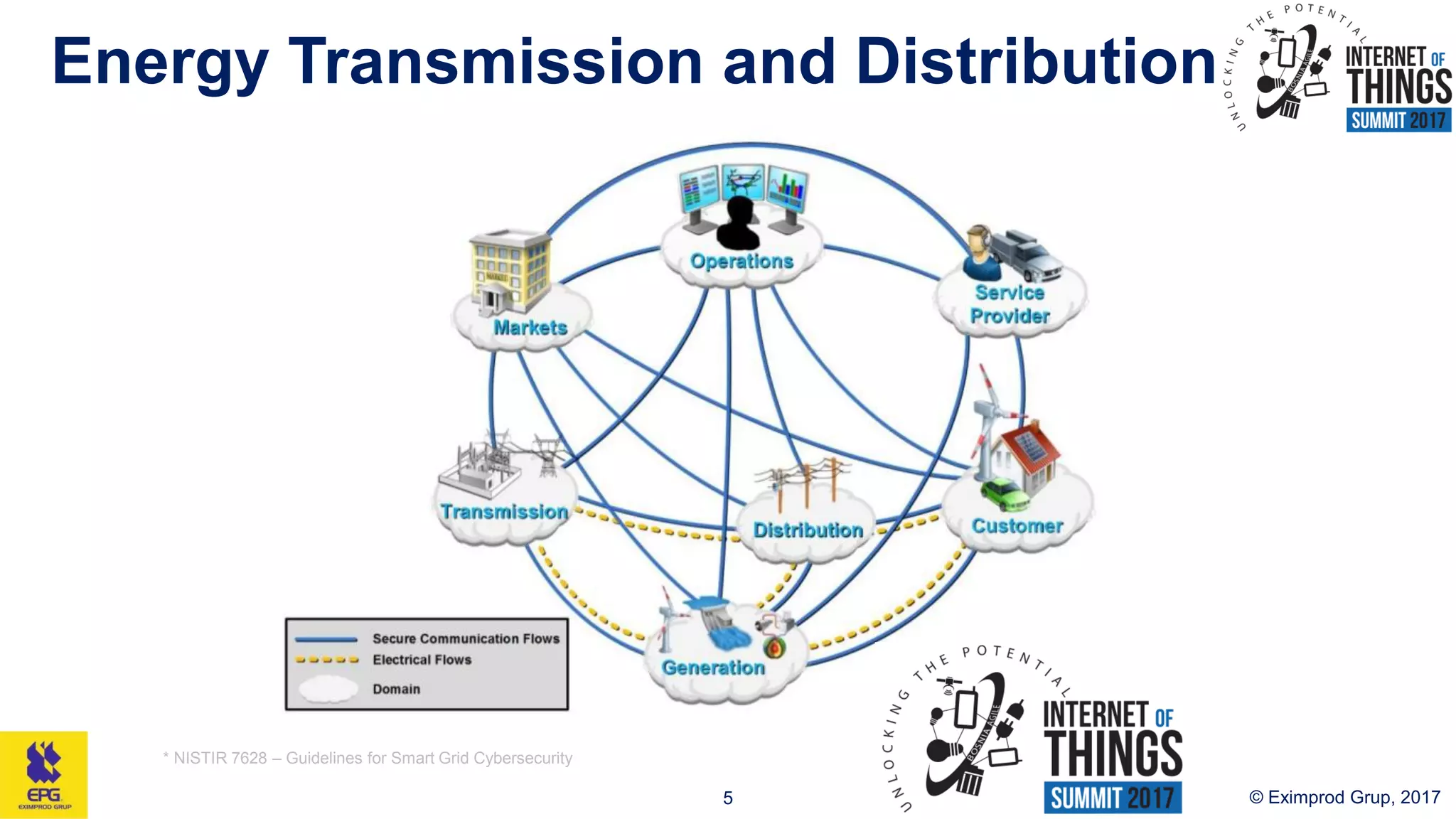

5. Energy Transmission and Distribution
© Eximprod Grup, 20175
* NISTIR 7628 – Guidelines for Smart Grid Cybersecurity

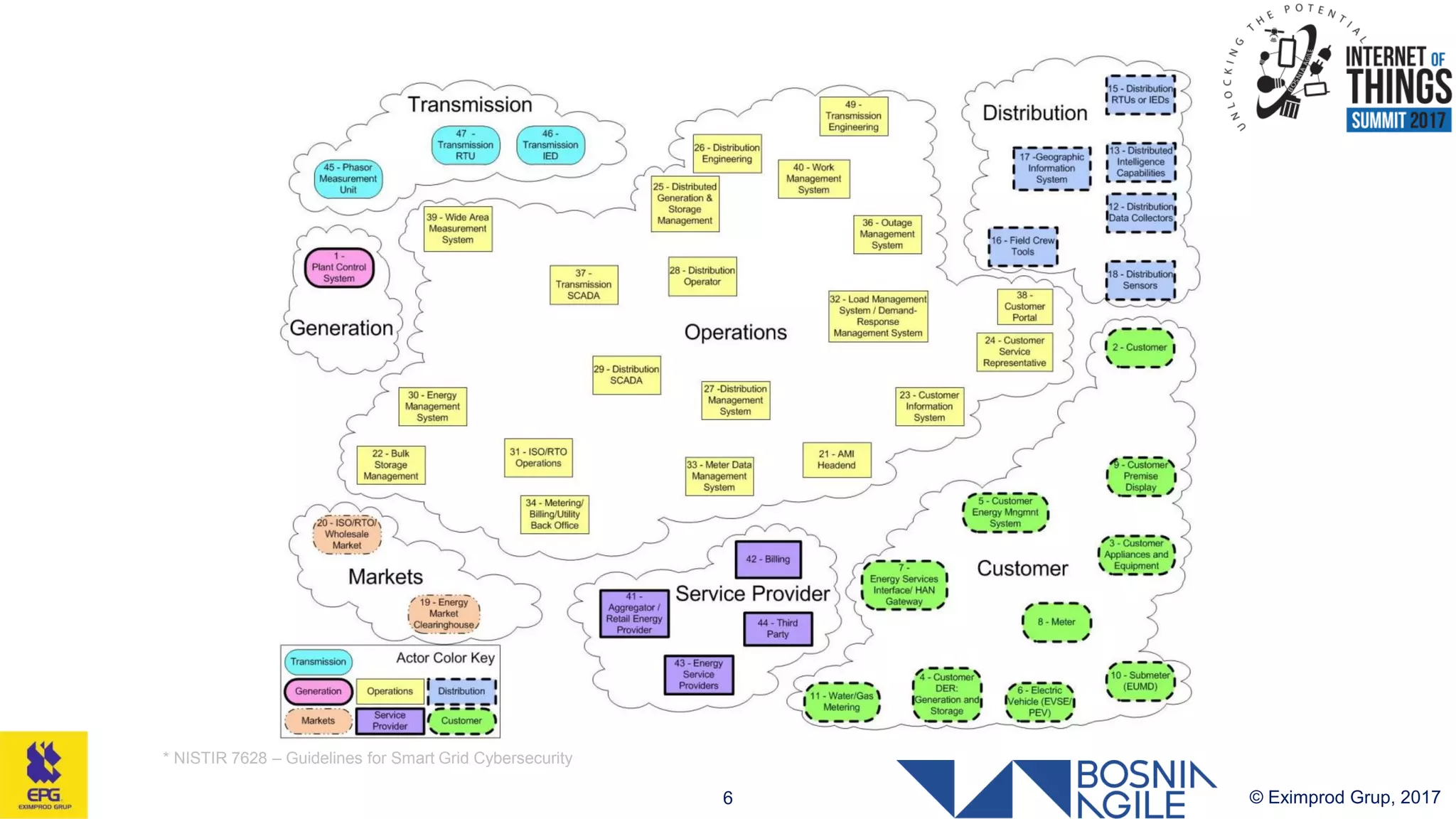

6. © Eximprod Grup, 20176
* NISTIR 7628 – Guidelines for Smart Grid Cybersecurity

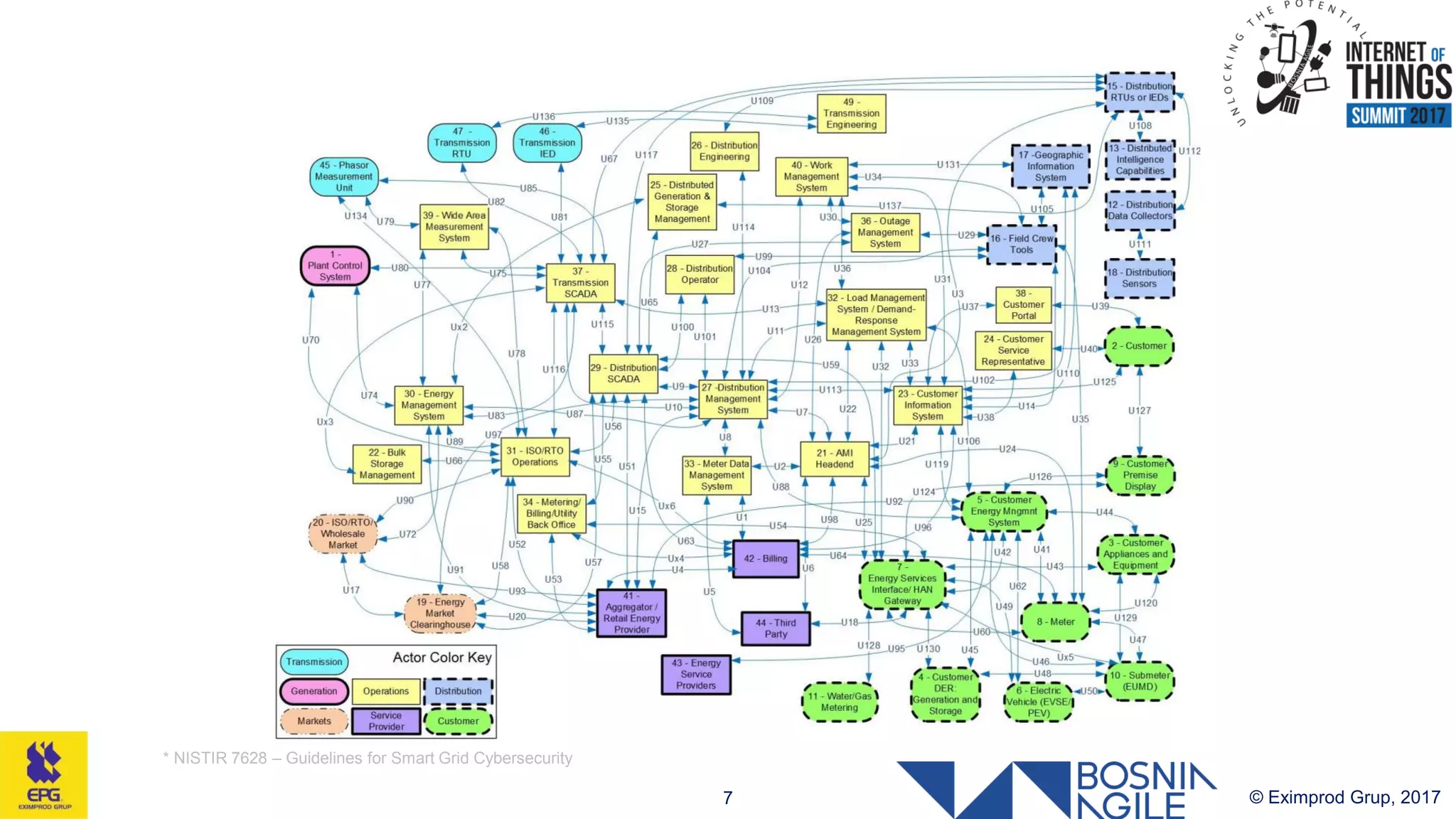

7. © Eximprod Grup, 20177
* NISTIR 7628 – Guidelines for Smart Grid Cybersecurity

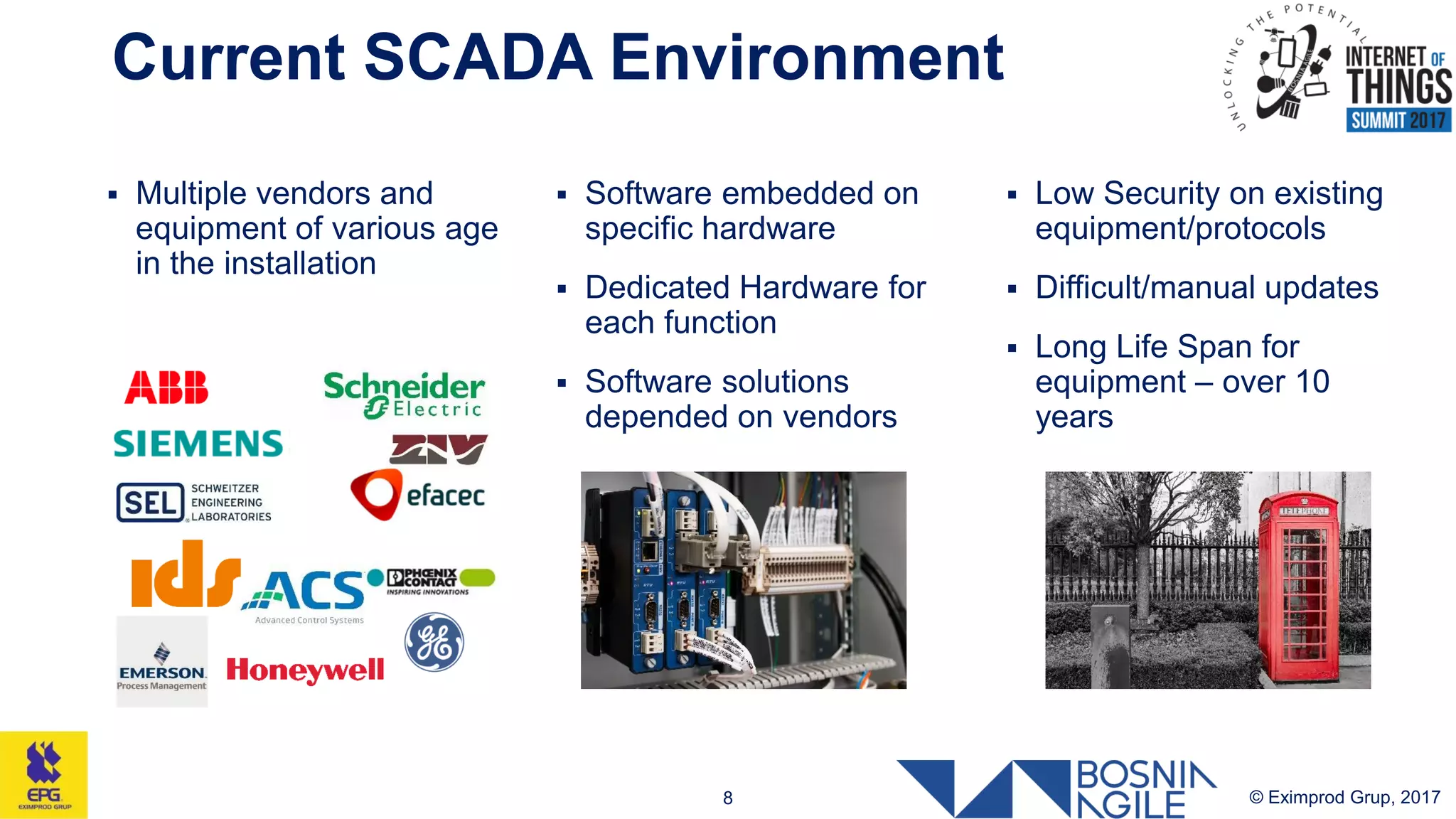

8. Current SCADA Environment
© Eximprod Grup, 20178
 Multiple vendors and
equipment of various age
in the installation
 Software embedded on
specific hardware
 Dedicated Hardware for
each function
 Software solutions
depended on vendors
 Low Security on existing
equipment/protocols
 Difficult/manual updates
 Long Life Span for
equipment – over 10
years

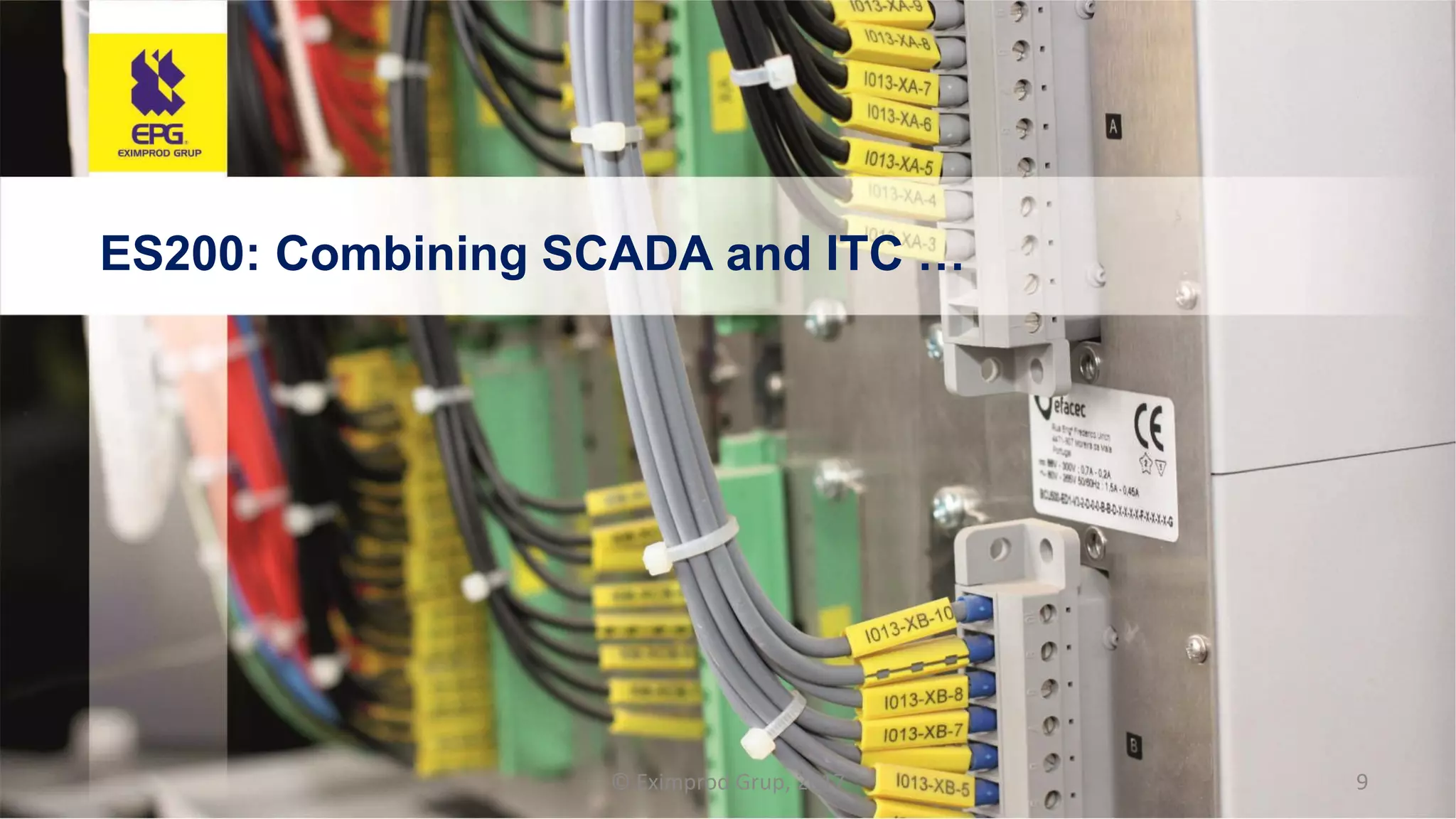

9. © Eximprod Grup, 2017 9
ES200: Combining SCADA and ITC …

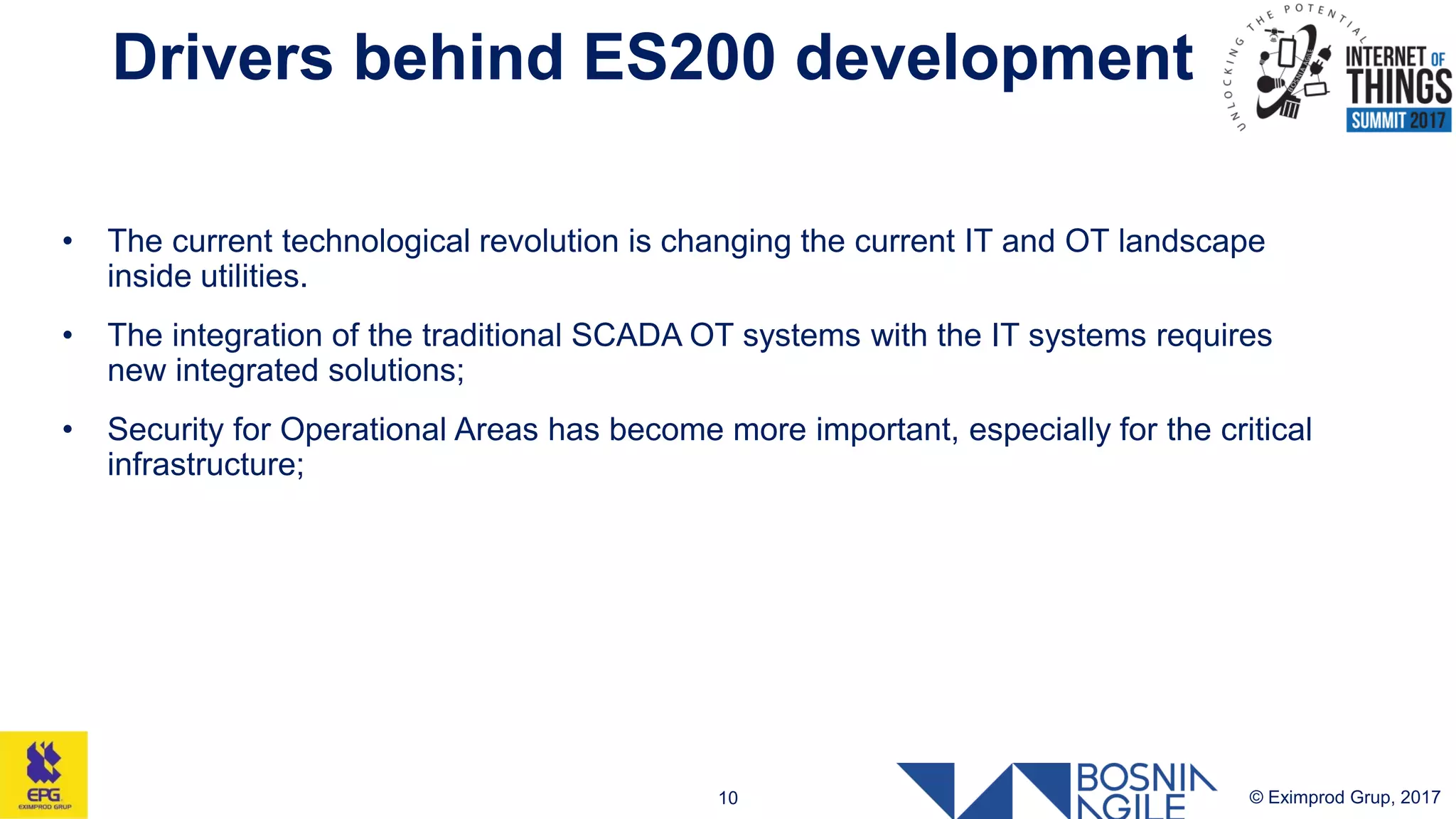

10. Drivers behind ES200 development
© Eximprod Grup, 201710
• The current technological revolution is changing the current IT and OT landscape
inside utilities.
• The integration of the traditional SCADA OT systems with the IT systems requires
new integrated solutions;
• Security for Operational Areas has become more important, especially for the critical
infrastructure;

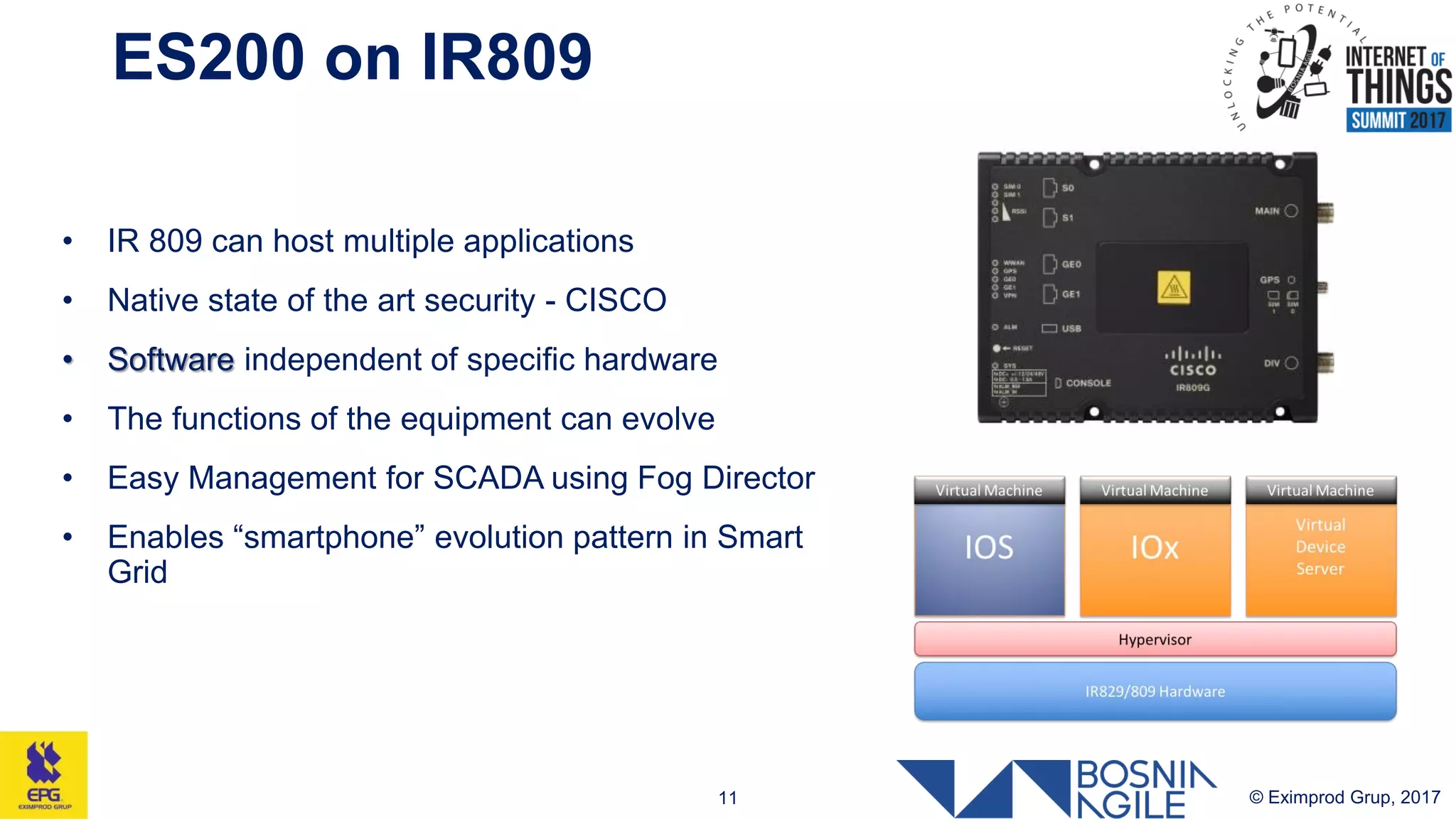

11. ES200 on IR809
© Eximprod Grup, 201711
• IR 809 can host multiple applications
• Native state of the art security - CISCO
• Software independent of specific hardware
• The functions of the equipment can evolve
• Easy Management for SCADA using Fog Director
• Enables “smartphone” evolution pattern in Smart
Grid

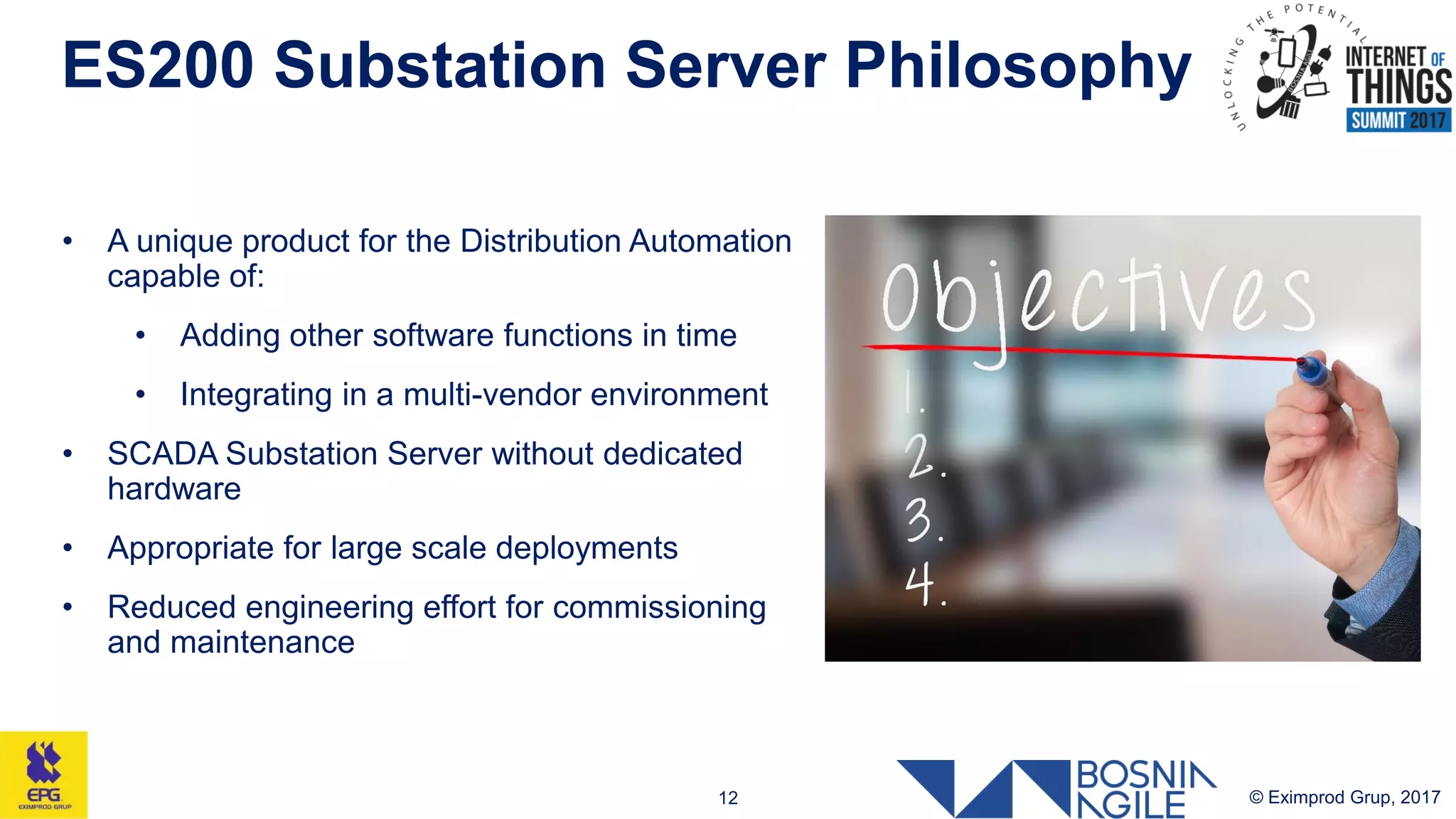

12. ES200 Substation Server Philosophy
© Eximprod Grup, 201712
• A unique product for the Distribution Automation
capable of:
• Adding other software functions in time
• Integrating in a multi-vendor environment
• SCADA Substation Server without dedicated
hardware
• Appropriate for large scale deployments
• Reduced engineering effort for commissioning
and maintenance

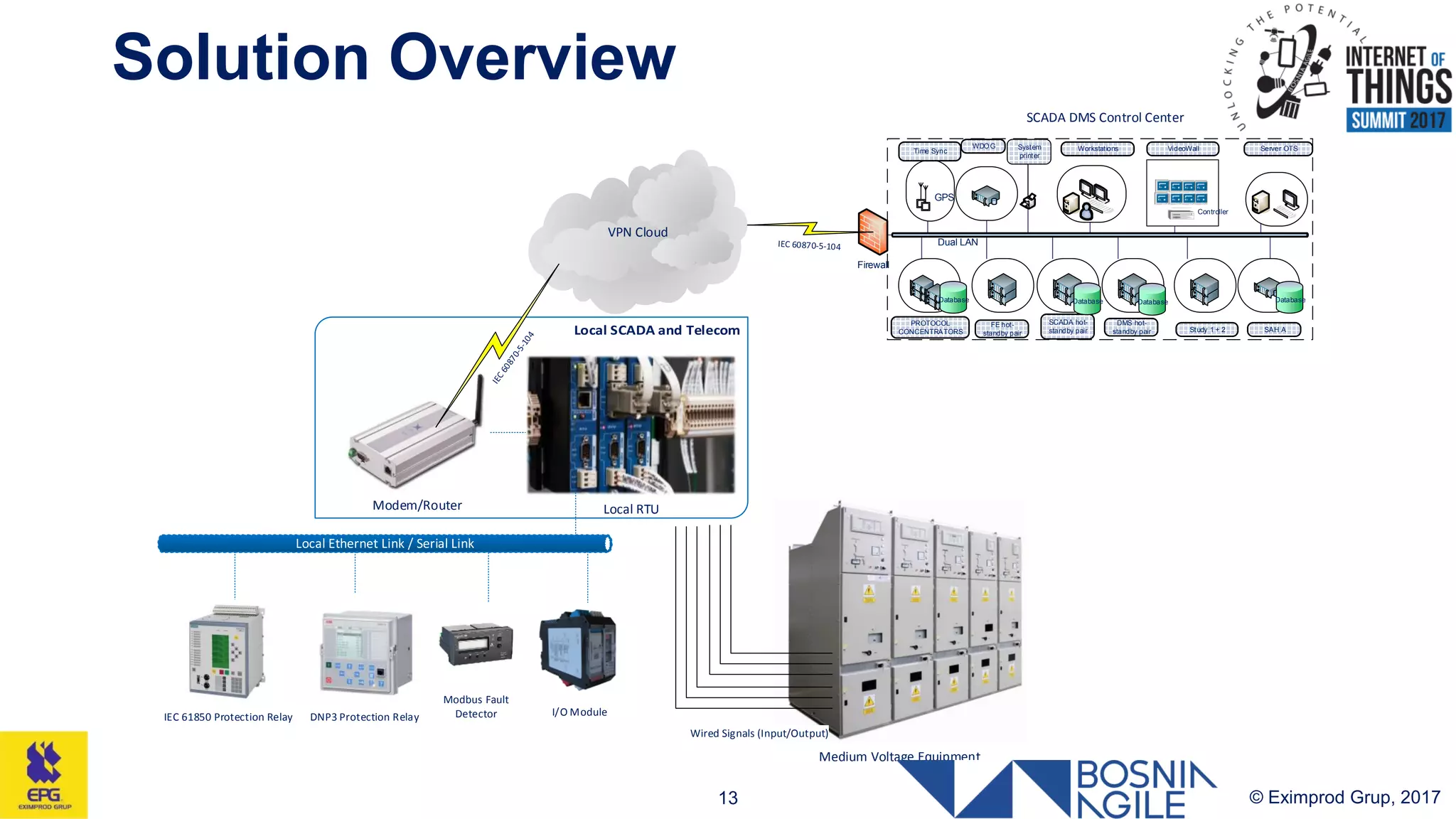

13. Solution Overview
© Eximprod Grup, 201713
Medium Voltage Equipment
Modem/Router
VPN Cloud
Local RTU
I/O ModuleDNP3 Protection RelayIEC 61850 Protection Relay
Modbus Fault
Detector
Wired Signals (Input/Output)
System
printer
Dual LAN
GPS
Time Sync
GPS
Controller
VideoWall Server OTS
SCADA DMS Control Center
Workstations
FE hot-
standby pair
WDOG
SAH A
Database
SCADA hot-
standby pair
Database
DMS hot-
standby pair
Database
PROTOCOL
CONCENTRATORS
Database
Study 1 + 2
Firewall

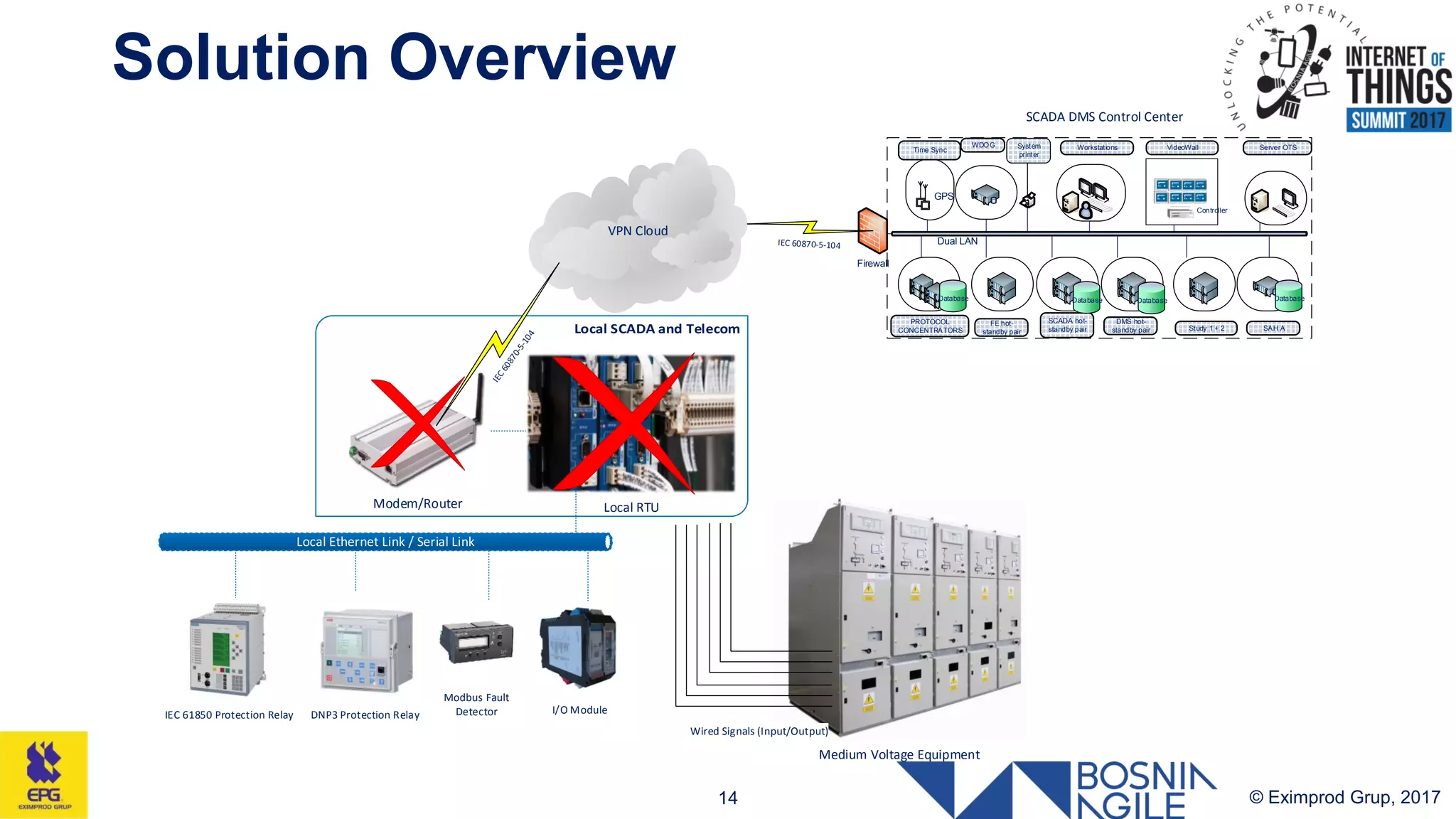

14. Solution Overview
© Eximprod Grup, 201714
Medium Voltage Equipment
Modem/Router
VPN Cloud
Local RTU
I/O ModuleDNP3 Protection RelayIEC 61850 Protection Relay
Modbus Fault
Detector
Wired Signals (Input/Output)
System
printer
Dual LAN
GPS
Time Sync
GPS
Controller
VideoWall Server OTS
SCADA DMS Control Center
Workstations
FE hot-
standby pair
WDOG
SAH A
Database
SCADA hot-
standby pair
Database
DMS hot-
standby pair
Database
PROTOCOL
CONCENTRATORS
Database
Study 1 + 2
Firewall

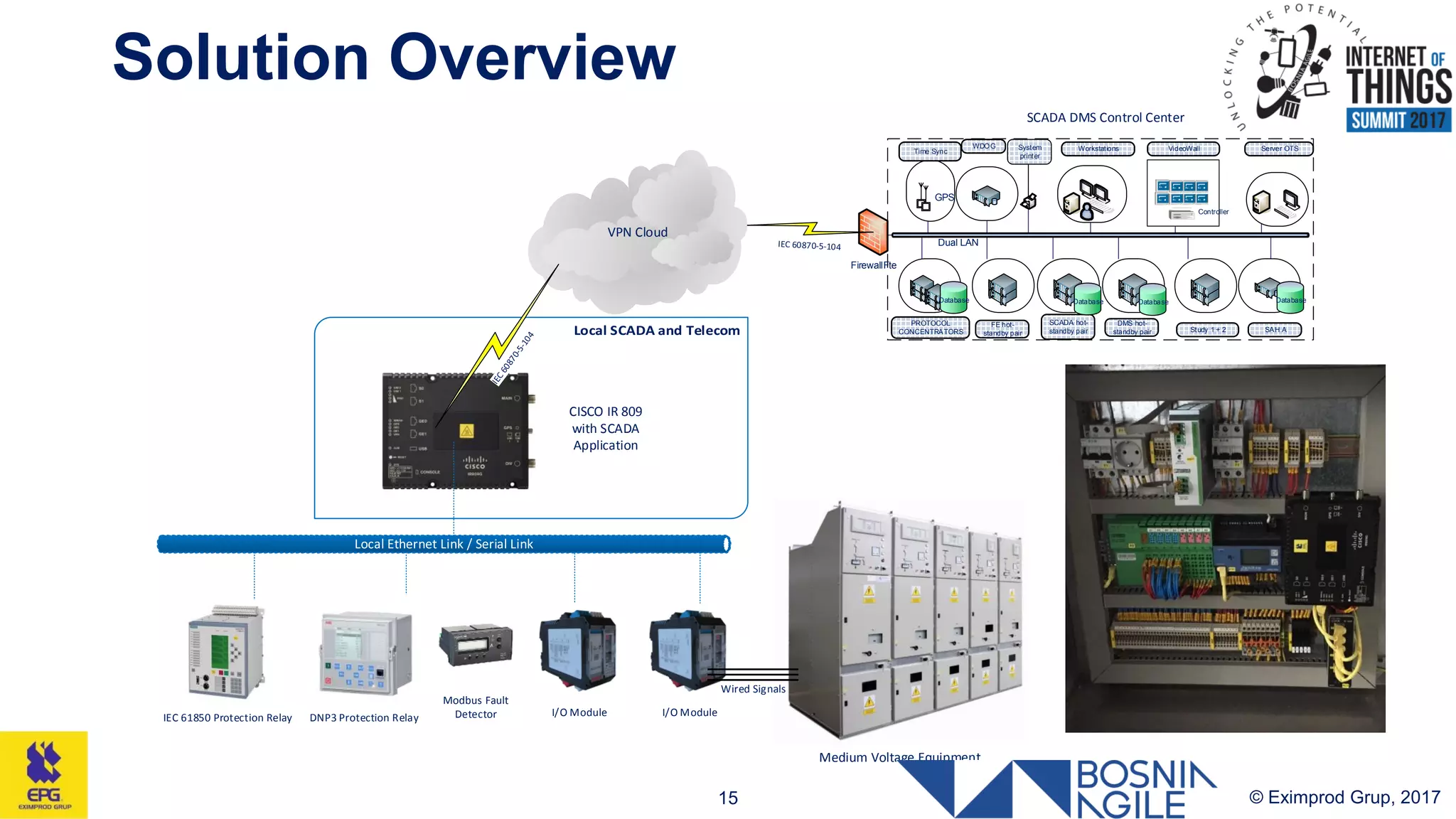

15. Solution Overview
© Eximprod Grup, 201715
Medium Voltage Equipment
VPN Cloud
I/O ModuleDNP3 Protection RelayIEC 61850 Protection Relay
Modbus Fault
Detector
System
printer
Dual LAN
GPS
Time Sync
GPS
Controller
VideoWall Server OTS
SCADA DMS Control Center
Workstations
FE hot-
standby pair
WDOG
SAH A
Database
SCADA hot-
standby pair
Database
DMS hot-
standby pair
Database
PROTOCOL
CONCENTRATORS
Database
Study 1 + 2
FirewallFte
CISCO IR 809
with SCADA
Application
I/O Module
Wired Signals

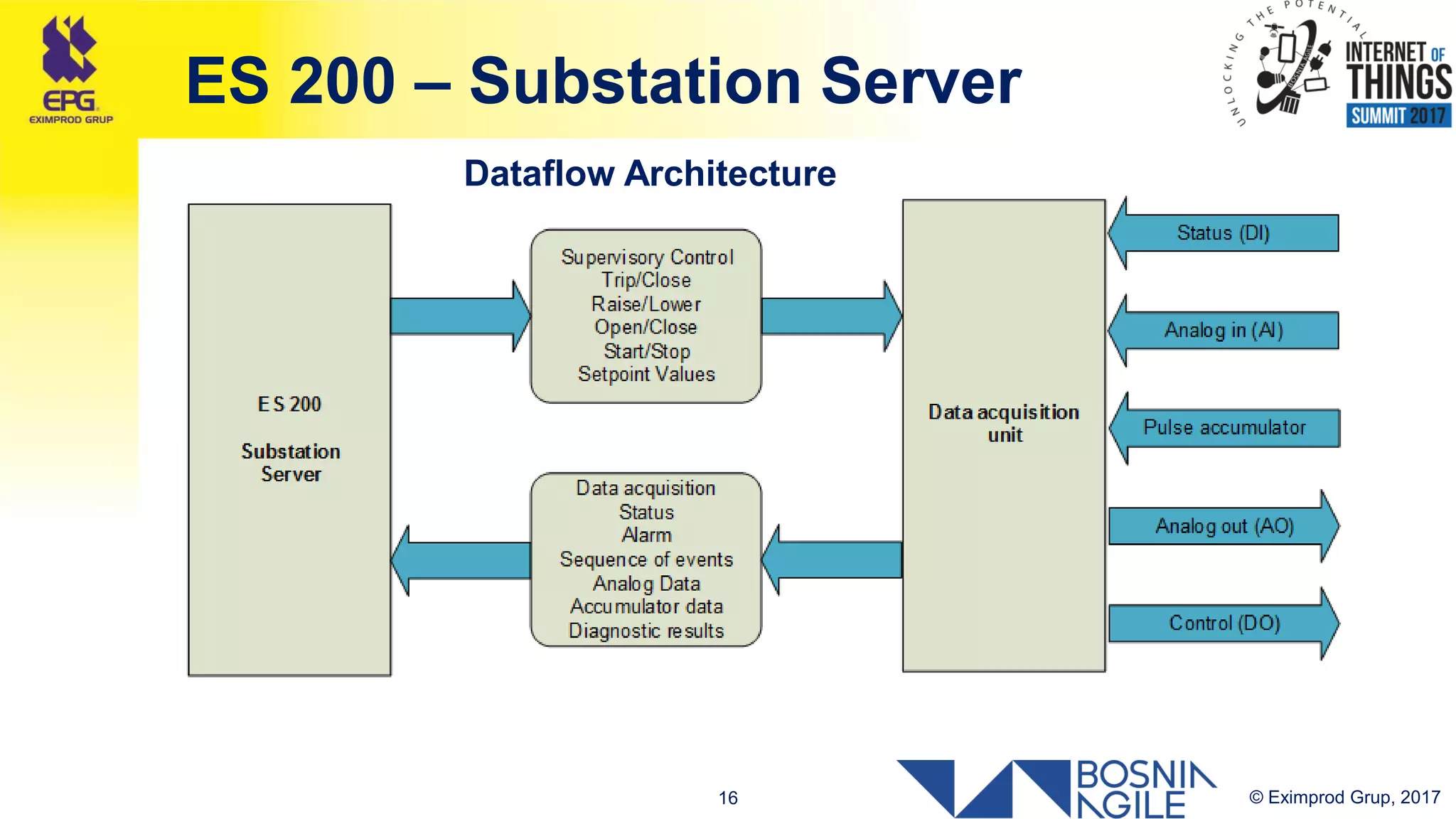

16. © Eximprod Grup, 201716
ES 200 – Substation Server
Dataflow Architecture

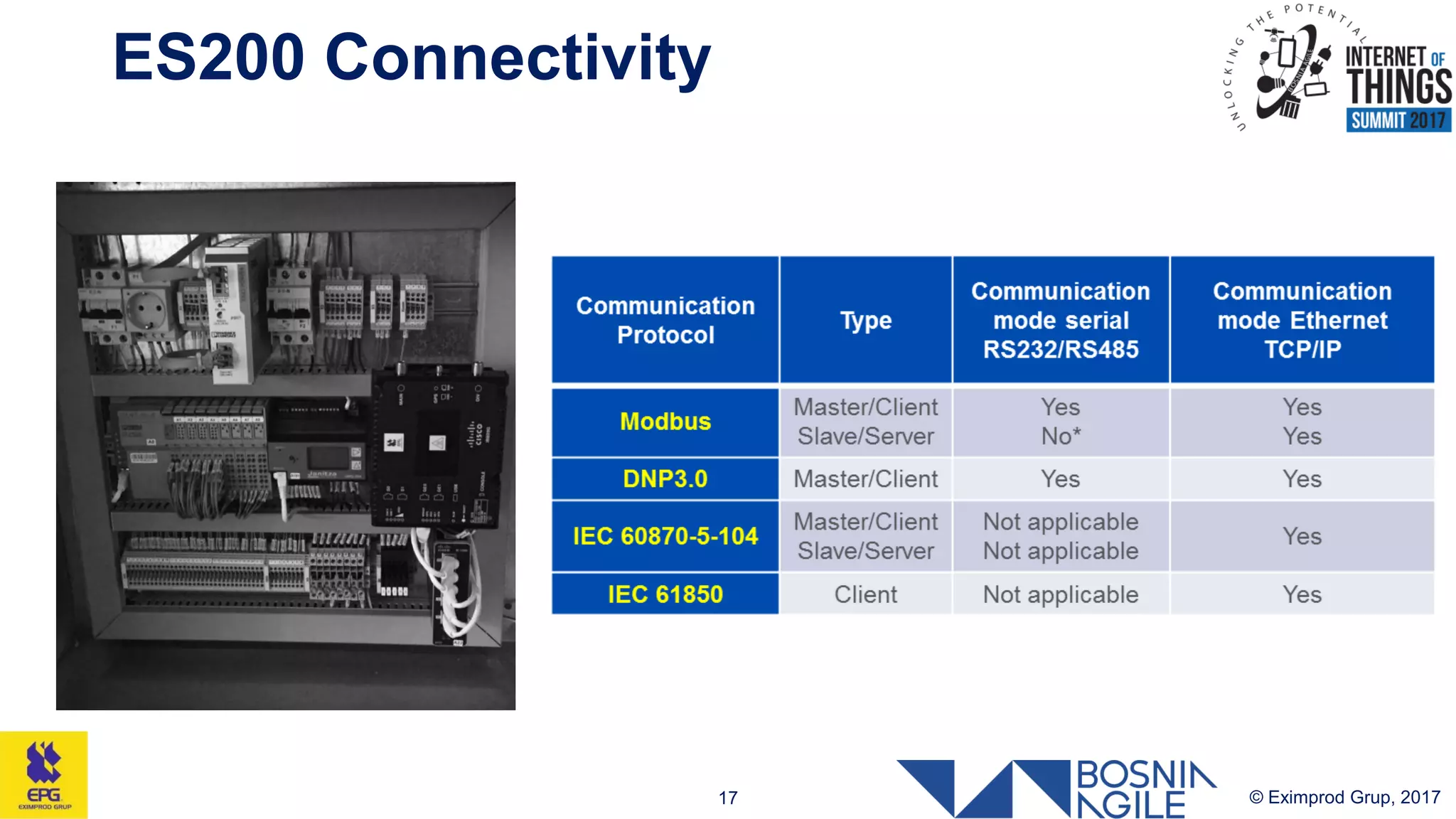

17. ES200 Connectivity
© Eximprod Grup, 201717

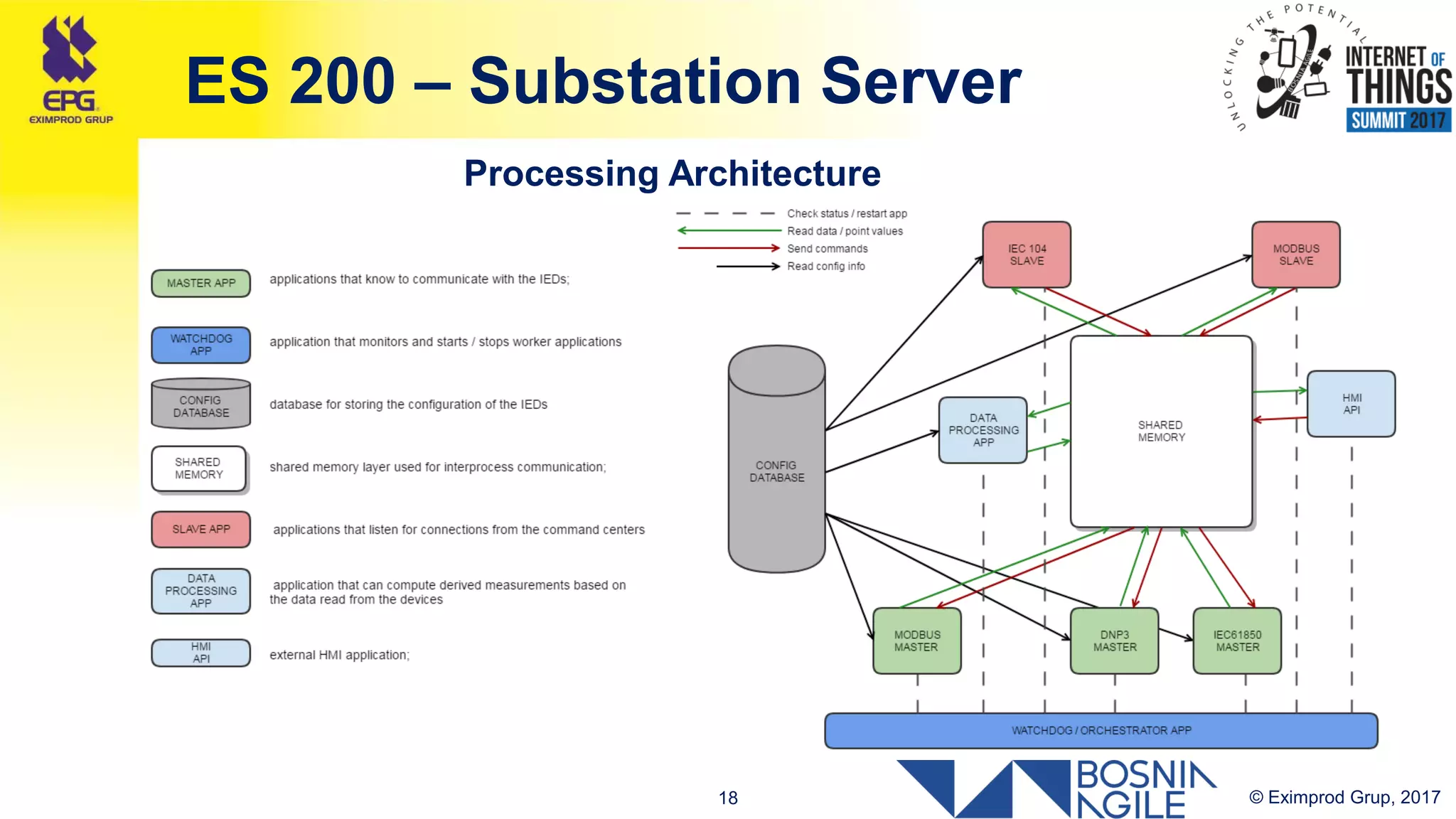

18. © Eximprod Grup, 201718
ES 200 – Substation Server
Processing Architecture

19. © Eximprod Grup, 201719

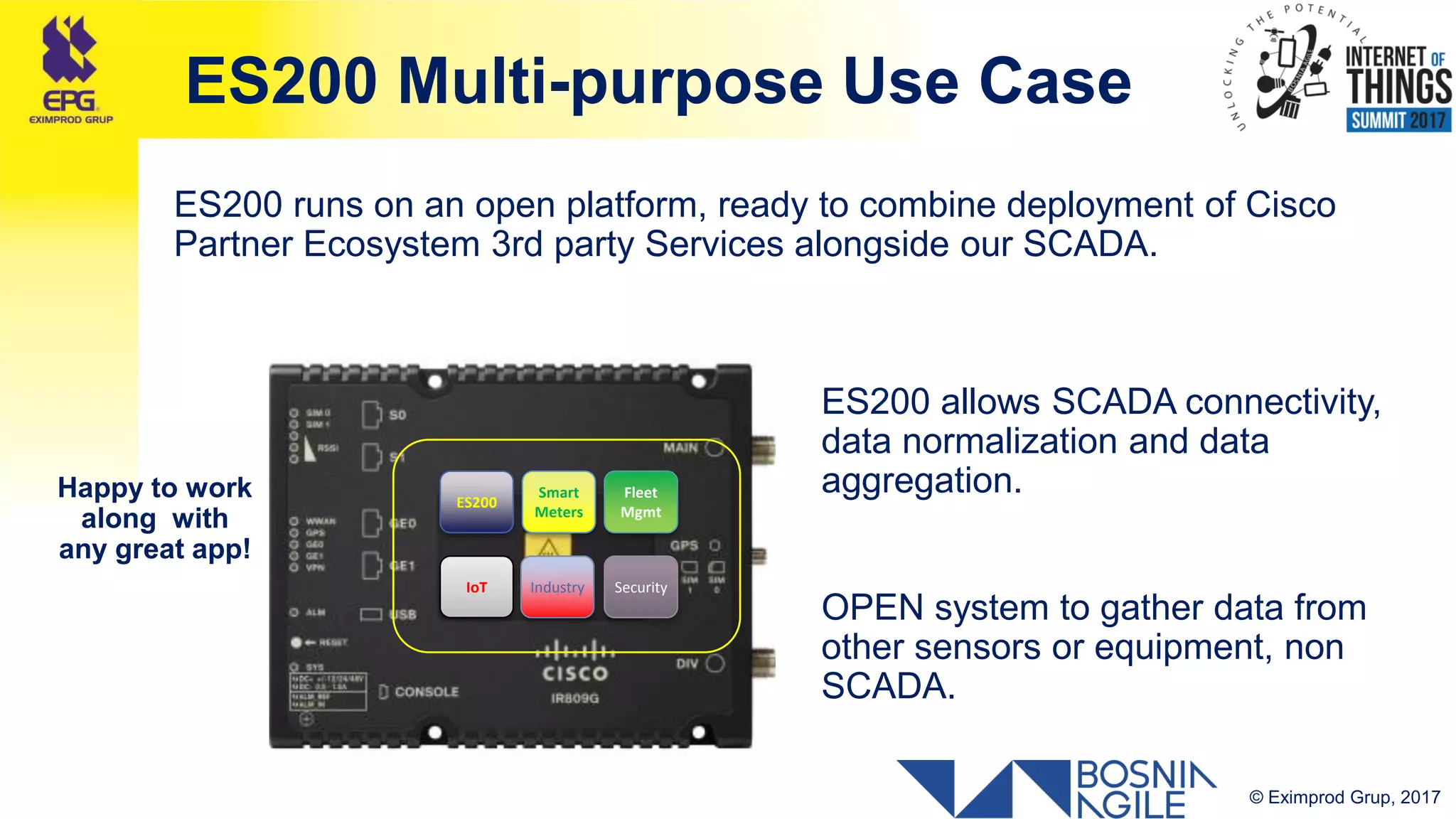

ES200 Multi-purpose Use Case
ES200 runs on an open platform, ready to combine deployment of Cisco
Partner Ecosystem 3rd party Services alongside our SCADA.
ES200 allows SCADA connectivity,
data normalization and data
aggregation.
OPEN system to gather data from
other sensors or equipment, non
SCADA.
Happy to work
along with
any great app!
ES200
Smart
Meters
IoT
Fleet
Mgmt
Industry Security

20. © Eximprod Grup, 201720

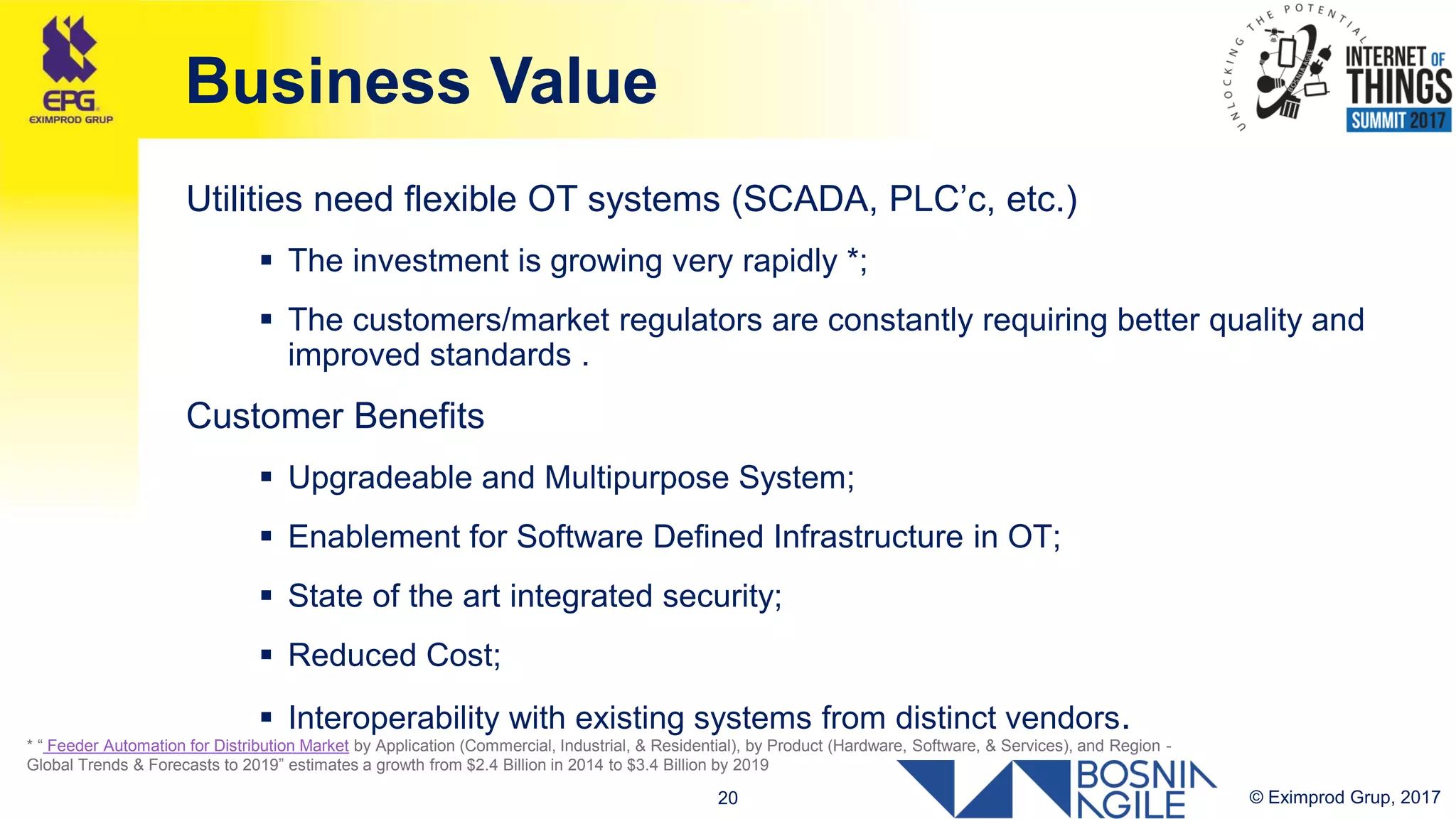

Business Value
Utilities need flexible OT systems (SCADA, PLC’c, etc.)
 The investment is growing very rapidly *;
 The customers/market regulators are constantly requiring better quality and
improved standards .
Customer Benefits
 Upgradeable and Multipurpose System;
 Enablement for Software Defined Infrastructure in OT;
 State of the art integrated security;
 Reduced Cost;
 Interoperability with existing systems from distinct vendors.
* “ Feeder Automation for Distribution Market by Application (Commercial, Industrial, & Residential), by Product (Hardware, Software, & Services), and Region -
Global Trends & Forecasts to 2019” estimates a growth from $2.4 Billion in 2014 to $3.4 Billion by 2019

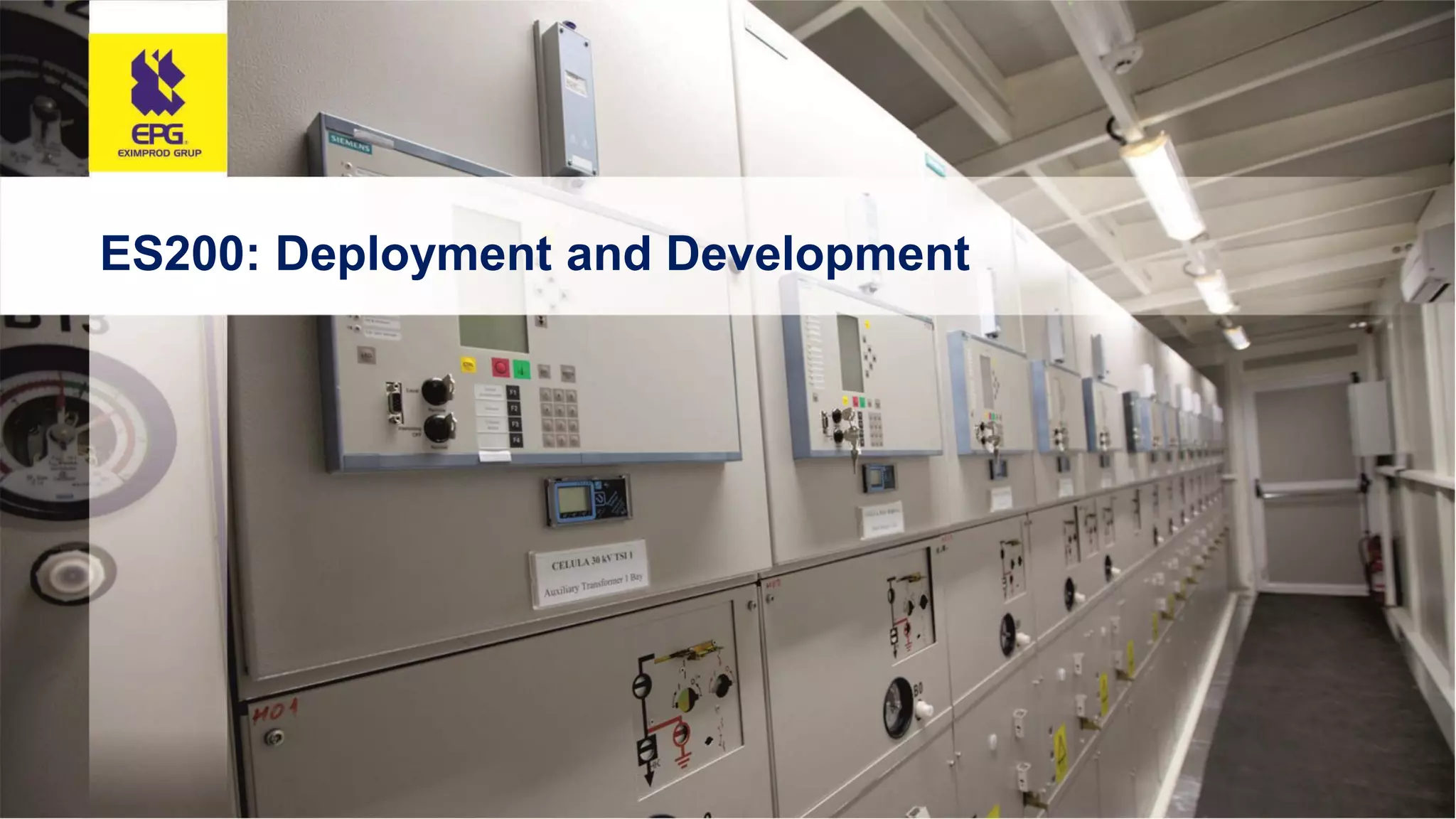

21. © Eximprod Grup, 2017 21
ES200: Deployment and Development

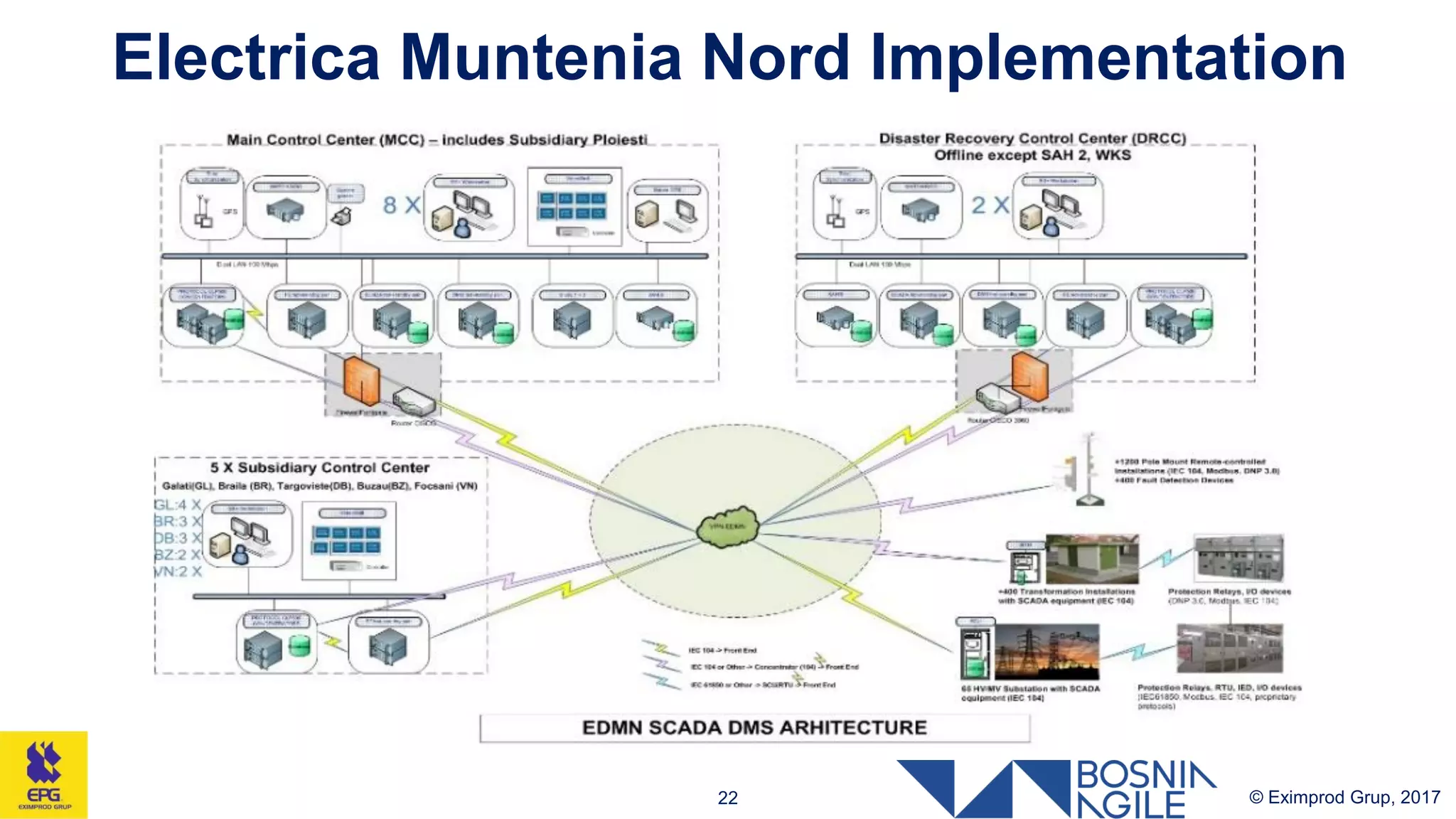

22. Electrica Muntenia Nord Implementation
© Eximprod Grup, 201722

23. © Eximprod Grup, 201723

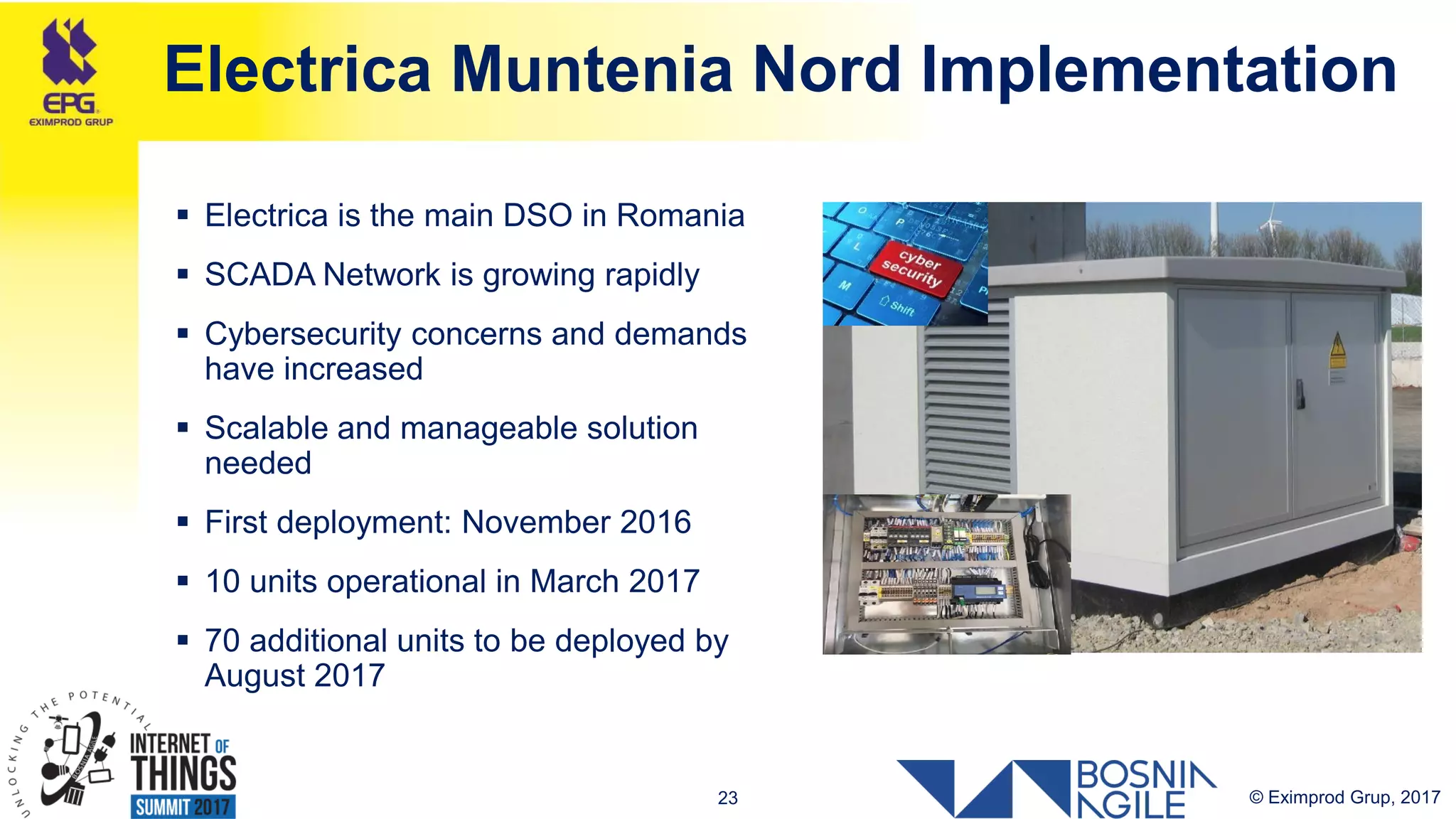

Electrica Muntenia Nord Implementation
 Electrica is the main DSO in Romania
 SCADA Network is growing rapidly
 Cybersecurity concerns and demands
have increased
 Scalable and manageable solution
needed
 First deployment: November 2016
 10 units operational in March 2017
 70 additional units to be deployed by
August 2017

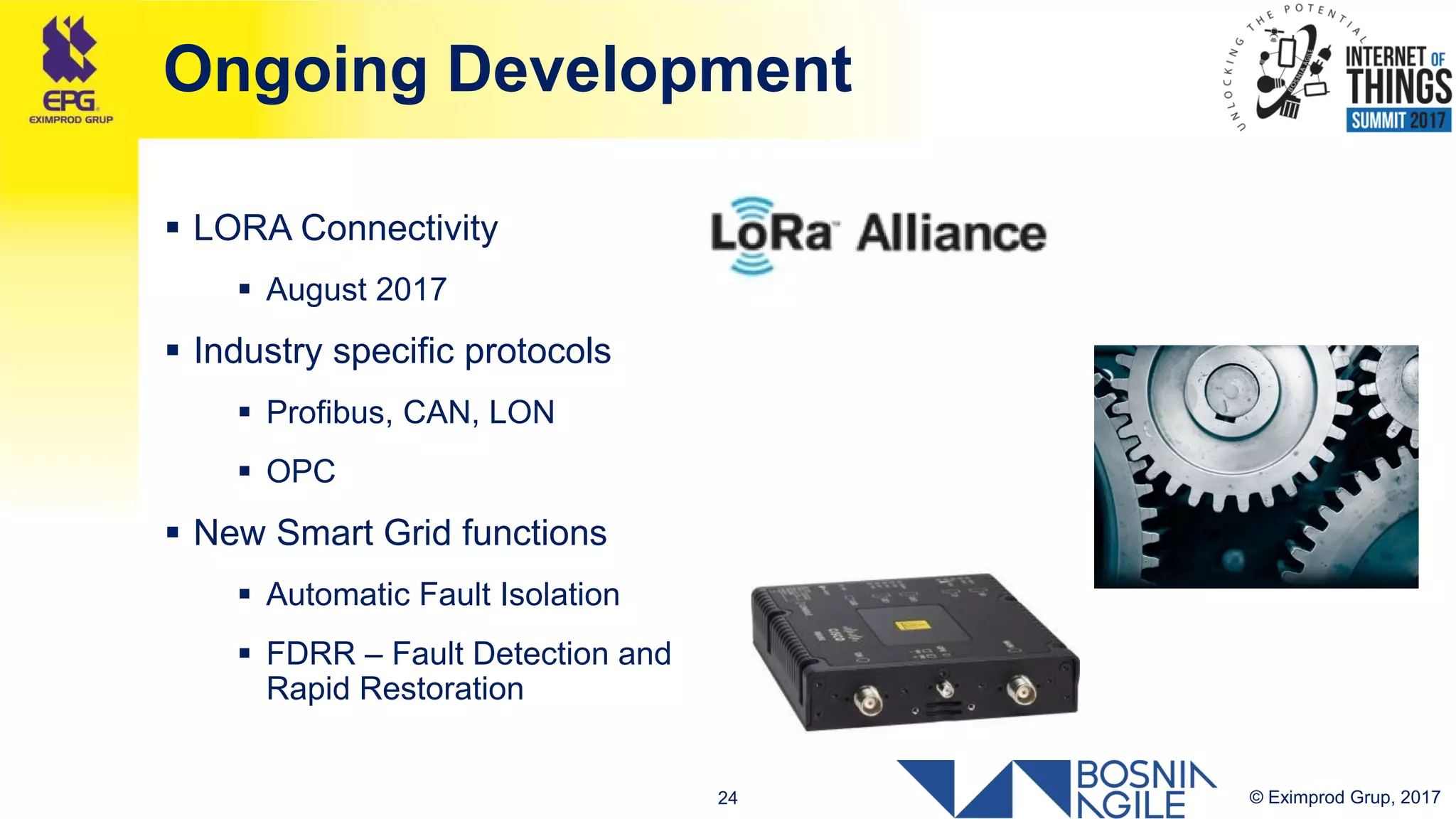

24. © Eximprod Grup, 201724
Ongoing Development
 LORA Connectivity
 August 2017
 Industry specific protocols
 Profibus, CAN, LON
 OPC
 New Smart Grid functions
 Automatic Fault Isolation
 FDRR – Fault Detection and
Rapid Restoration

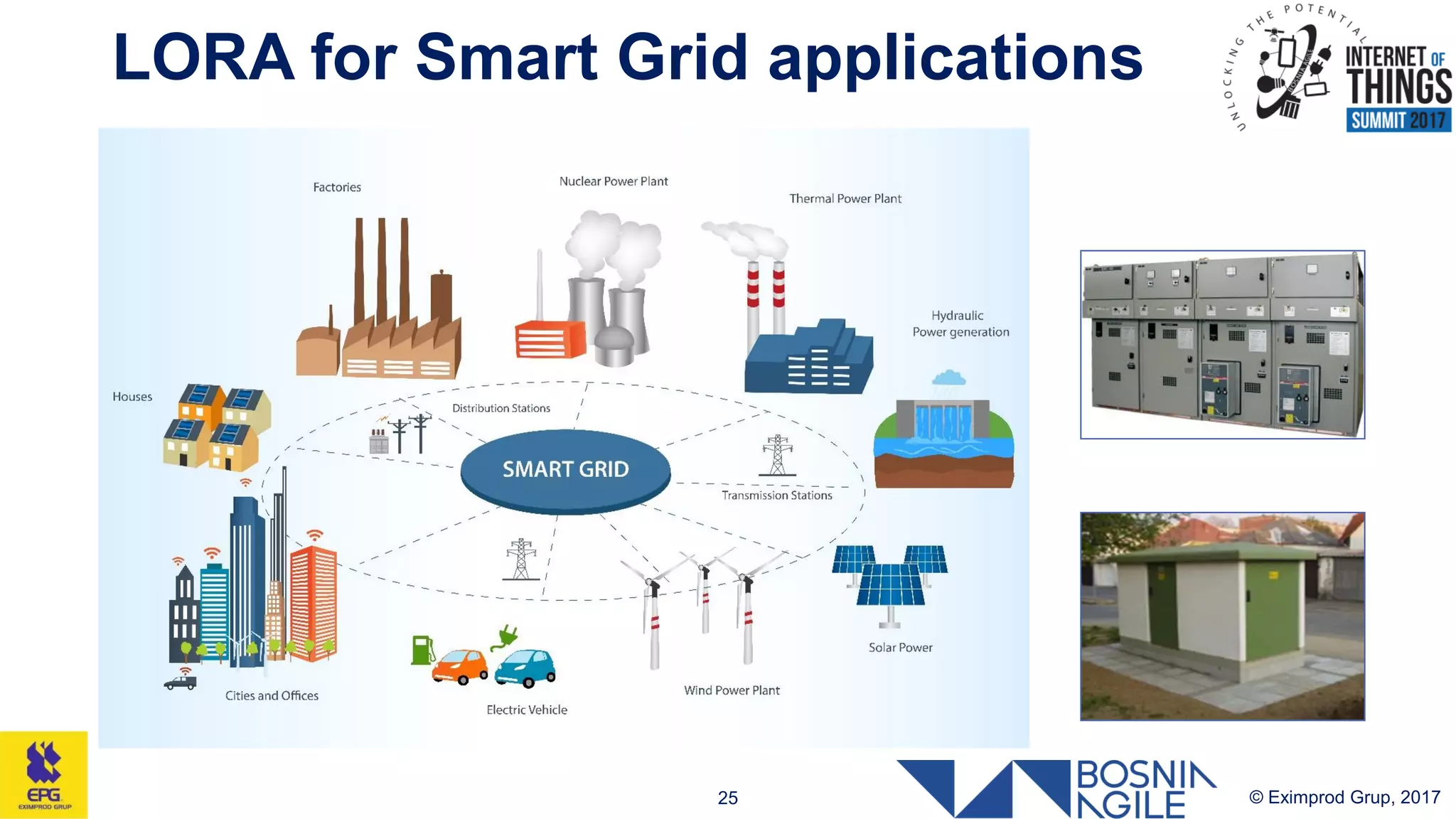

25. LORA for Smart Grid applications
© Eximprod Grup, 201725

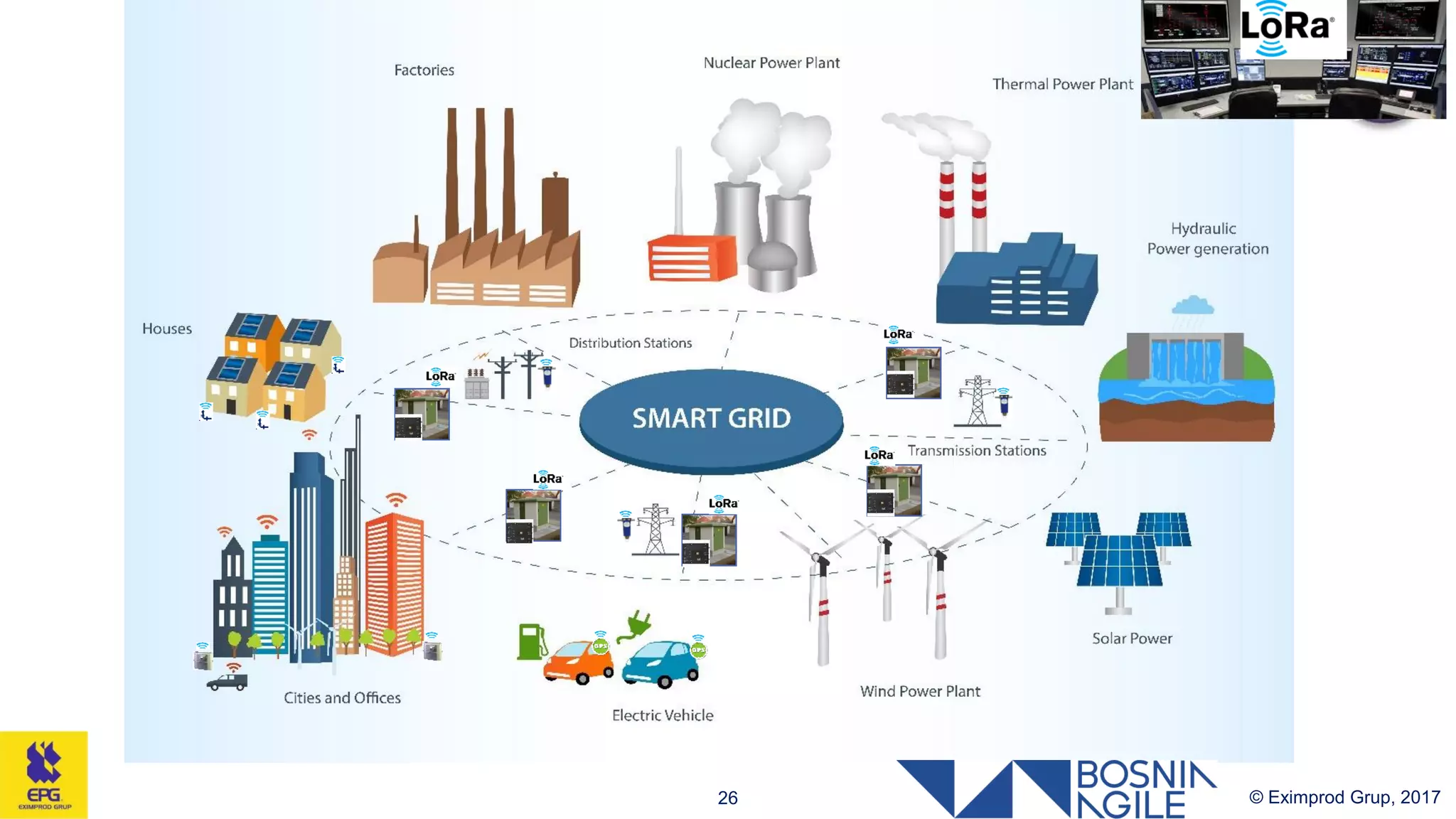

26. © Eximprod Grup, 201726

27. © Eximprod Grup, 201727
