1) This document describes the development of an artificial player for the Connect-(4|n) game using the mini-max algorithm. 2) The mini-max algorithm computes the best possible move for a given player and depth limit by evaluating all possible future game states. 3) An heuristic evaluation function is used to estimate the value of partial game states or future moves since the game is non-perfect. This heuristic considers the dimensions of the board separately and sums the player's pieces raised to a heuristic exponent.

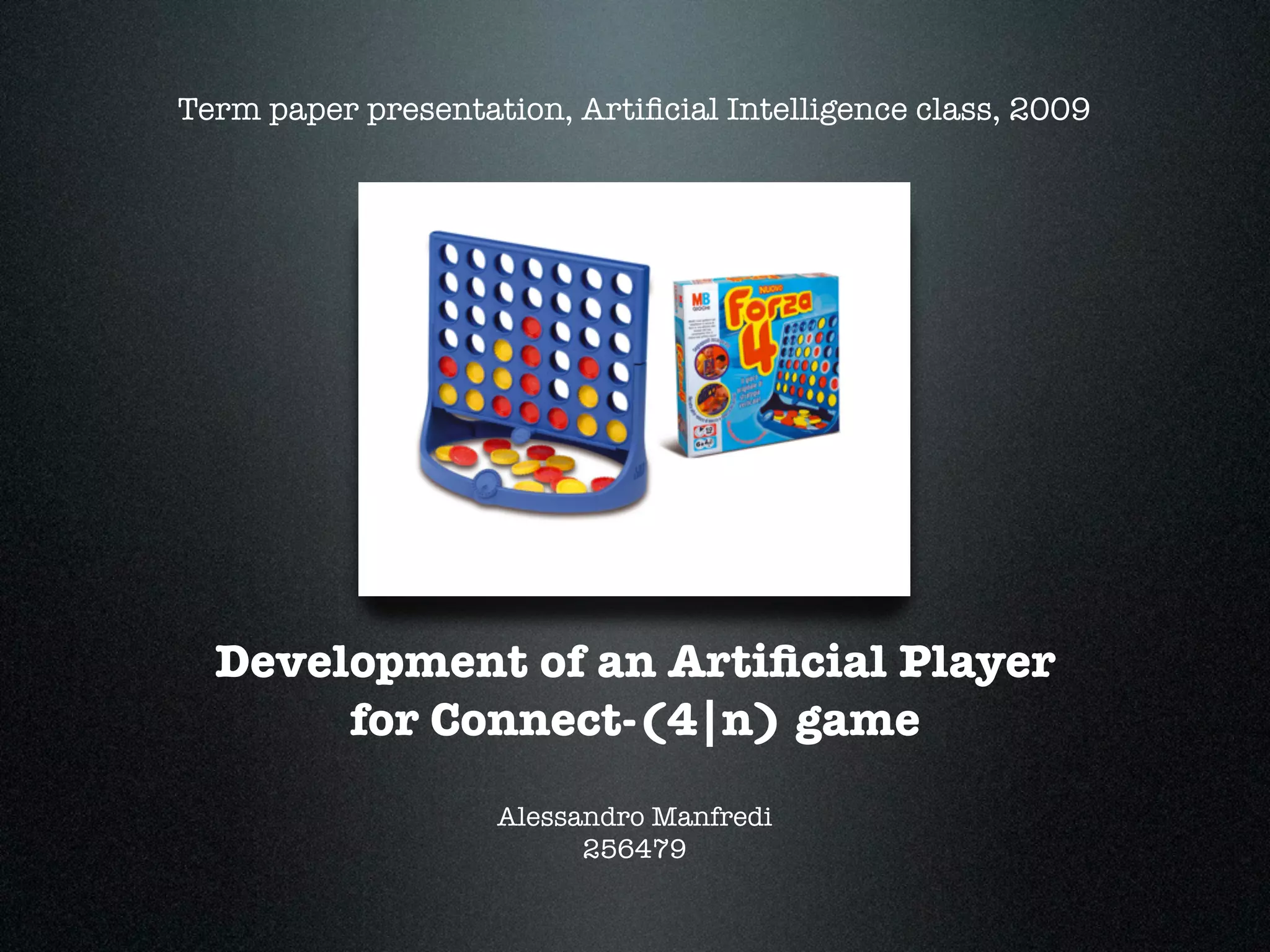

1. Term paper presentation, Artificial Intelligence class, 2009
Development of an Artificial Player
for Connect-(4|n) game
Alessandro Manfredi
256479

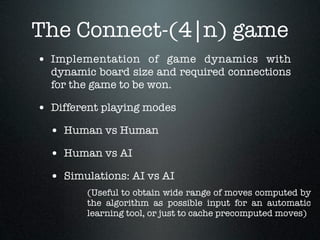

2. The Connect-(4|n) game
• Implementation of game dynamics with
dynamic board size and required connections
for the game to be won.
• Different playing modes
• Human vs Human
• Human vs AI
• Simulations: AI vs AI
(Useful to obtain wide range of moves computed by
the algorithm as possible input for an automatic
learning tool, or just to cache precomputed moves)

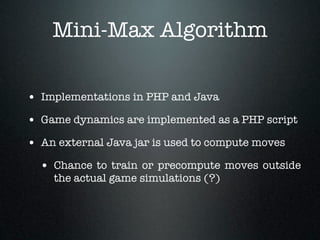

3. Mini-Max Algorithm
• Implementations in PHP and Java
• Game dynamics are implemented as a PHP script
• An external Java jar is used to compute moves
• Chance to train or precompute moves outside
the actual game simulations (?)

4. connectMinimax usage
$ java -jar connectMinimax.jar
<rows> <columns> <connections> <depth-limit>
<heuristic-exp> <board-dump> <player>
<rows> # Board rows
<columns> # Board columns
<connections> # Required connections to win
<depth-limit> tree depth limit
<heuristic-exp> Heuristic exponent
<board-dump> Game state representation
<player> Player for which compute the move

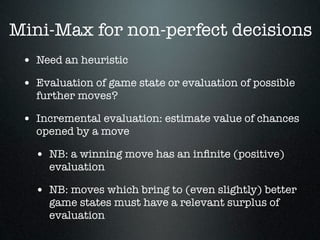

5. Mini-Max for non-perfect decisions
• Need an heuristic
• Evaluation of game state or evaluation of possible
further moves?
• Incremental evaluation: estimate value of chances
opened by a move
• NB: a winning move has an infinite (positive)
evaluation
• NB: moves which bring to (even slightly) better
game states must have a relevant surplus of
evaluation

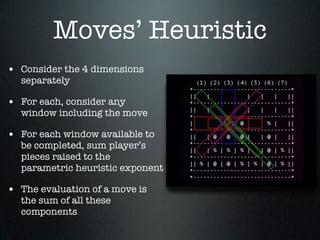

6. Moves’ Heuristic
• Consider the 4 dimensions
separately
• For each, consider any
window including the move
• For each window available to
be completed, sum player’s
pieces raised to the
parametric heuristic exponent
• The evaluation of a move is
the sum of all these
components

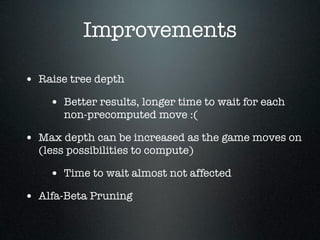

7. Improvements
• Raise tree depth
• Better results, longer time to wait for each
non-precomputed move :(
• Max depth can be increased as the game moves on
(less possibilities to compute)
• Time to wait almost not affected
• Alfa-Beta Pruning

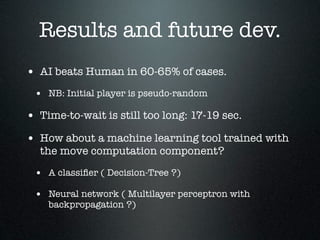

8. Results and future dev.
• AI beats Human in 60-65% of cases.
• NB: Initial player is pseudo-random
• Time-to-wait is still too long: 17-19 sec.
• How about a machine learning tool trained with
the move computation component?
• A classifier ( Decision-Tree ?)
• Neural network ( Multilayer perceptron with
backpropagation ?)
