The document summarizes Televic Confidea's wireless conferencing system. It provides an overview of the system's multi-band technology that allows for reliable transmission across multiple frequencies to avoid interference. It also describes the various unit types for different conferencing roles and applications, including discussion-only, discussion with voting, and discussion with language distribution. Key features of the units such as headphone connections, microphones, displays and control buttons are highlighted.

1. Wireless Conferencing
with
Total Confidence

2. Televic Confidea®
Need a free lane?

3. Televic Confidea®
Robust and Reliable
Wireless connection
Multi-roomcapability
Ease
of use
Contemporary Design

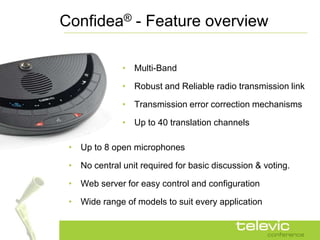

4. Confidea® - Feature overview
• Multi-Band
• Robust and Reliable radio transmission link
• Transmission error correction mechanisms
• Up to 40 translation channels
• Up to 8 open microphones
• No central unit required for basic discussion & voting.
• Web server for easy control and configuration
• Wide range of models to suit every application

5. Multi-Band – Traditional System
Traditional System
• Maximum 3 systems can work independently in the
same environment when no other equipment is active
(Wireless routers, bluetooth, etc...)
• To operate a wireless conference system on a location
WiFi 2.4 GHz
with active wireless LAN, careful frequency planning is
necessary.
1 2 3
• Interferences caused by Wireless LAN, bluetooth etc can
Bandwidth occupied by one system
make the communication link for the conference system
unreliable.
Available radio bandwidth

6. Multi-Band – Televic Confidea®
Televic Confidea® • Up to 25* systems can work independently in the same
environment when no other equipment is active (Wireless
routers, bluetooth, etc...)
• In automatic mode Confidea® constantly scans for frequencies
with ideal conditions for reliable communication
WiFi 2.4 GHz Higher bands 5+ GHz
1 2 3 4 5 6 ... 23 24 25
Bandwidth occupied by one system
Radio bandwidth available to Confidea®
* 11 in North America

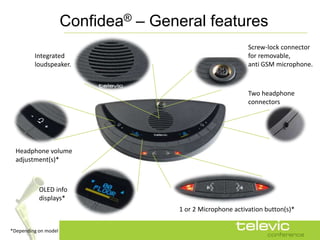

7. Confidea® – General features
Screw-lock connector
Integrated for removable,
loudspeaker. anti GSM microphone.
Two headphone
connectors
Headphone volume
adjustment(s)*
OLED info
displays*
1 or 2 Microphone activation button(s)*
*Depending on model

8. Confidea® Product range overview
1 delegate 2 delegates
per unit per unit Chairman
(Individual use) (Twin use)
Discussion only Confidea DD Confidea 2D2D Confidea CD
Discussion & Voting Confidea DV Confidea CV
Discussion &
Confidea DI Confidea 2D2I Confidea CI
Language Distribution
Disussion, Voting &
Confidea DIV Confidea CIV
Language Distribution

9. Confidea DD - Delegate unit
Discussion only – Individual use
• Wireless delegate unit for basic discussion applications
• One headphone volume adjustment

10. Confidea 2D2D – Delegate Unit
Discussion only – Twin use
• Wireless delegate unit for basic discussion applications
• Two independent headphone
volume adjustments

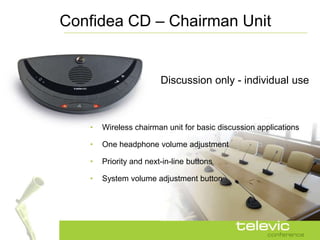

11. Confidea CD – Chairman Unit
Discussion only - individual use
• Wireless chairman unit for basic discussion applications
• One headphone volume adjustment
• Priority and next-in-line buttons
• System volume adjustment button

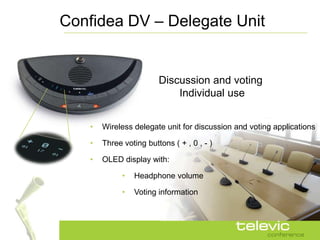

12. Confidea DV – Delegate Unit
Discussion and voting
Individual use
• Wireless delegate unit for discussion and voting applications
• Three voting buttons ( + , 0 , - )
• OLED display with:
• Headphone volume
• Voting information

13. Confidea CV – Chairman Unit
Discussion and voting
Individual use
• Three voting buttons ( + , 0 , - )
• Priority and next-in-line buttons
• Voting Start and Stop buttons
• OLED display with:
• Headphone volume
• Voting information
• OLED display with:
• Start/Stop voting indication

14. Confidea DI – Delegate Unit
Discussion and Interpretation
Individual use
• Wireless delegate unit for discussion and
simultaneous translation applications
• One headphone volume adjustment.
• One channel selector
• OLED display with:
• Headphone volume indication
• Channel information

15. Confidea 2D2I – Delegate Unit
Discussion and Interpretation
Twin use
• Wireless delegate unit for discussion and
simultaneous translation applications
• Two headphone volume adjustments.
• Two channel selectors
• Two OLED displays with:
• Headphone volume indication
• Channel information

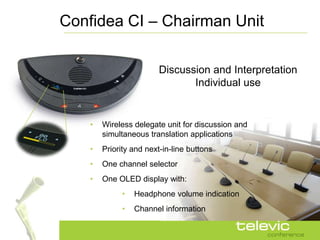

16. Confidea CI – Chairman Unit
Discussion and Interpretation
Individual use
• Wireless delegate unit for discussion and
simultaneous translation applications
• Priority and next-in-line buttons
• One channel selector
• One OLED display with:
• Headphone volume indication
• Channel information

17. Confidea DIV – Delegate Unit
Discussion, Voting and Interpretation
Individual use
• Wireless delegate unit for discussion and
simultaneous translation applications
• Five voting buttons
( ++ , + , 0 , - , -- )
• One channel selector
• One OLED display with:
• Headphone volume indication
• Channel information

18. Confidea CIV – Chairman Unit
Discussion, Voting and Interpretation
Individual use
• Wireless chairman unit
• Five voting buttons ( ++ , + , 0 , - , -- )
• Priority and next-in-line buttons.
• System volume adjustment button
• One channel selector
• One OLED display with:
• Headphone volume indication
• Channel information

19. Confidea Battery Pack
Rechargeable Battery Pack
• High capacity: + 20 Hrs autonomy
• Snaps into place: easy exchange, no tools required
• No discharge before recharge: saves time
• On-board microcontroller: optimal charging conditions
• Charge verification on the battery
• Push button with LED-bar indicator

20. Confidea WCAP+
Wireless Conference Access Point
• On/Off switch
• Power connector
• Digital bus In/Out
• Cable clamp
• Balanced OUT
• Balanced IN
• LAN connector

21. Confidea Battery Charging Tray
• 19” Rack mountable charging tray
• Holds and charges 6 batteries simultaneously
• Batteries snap into place
• Loop-through mains connection for easy daisy-chaining

22. Confidea Charging Case
• Luxurious flight case, with pre-formed foam inlay
• Holds 1 Access Point and 12 units, including
batteries and microphones
• Room to build-in 2 battery charging trays
• Convenient high-quality trolley system
• Heavy-duty rubber wheels
• Loop-through power connection

23. Confidea® Product range overview
Confidea Delegate units DD 2D2D DV DI 2D2I DIV
Stand-alone use (only WCAP, no central unit)    - - -
Central unit required for full functionality - -    
Headphone connections 2 2 2 2 2 2
Headphone volume adjustments 1 2 1 1 2 1
Microphone activation buttons 1 2 1 1 2 1
Voting buttons - - 3 - - 5
Channel Selectors - - - 1 2 1
OLED information displays - - 1 1 2 1
Voting results on OLED display - -  - - -
Channel selection on OLED display - - -   

24. Confidea® Product range overview
Confidea Chairman Units CD CV CI CIV
Stand-alone use (only WCAP, no central unit)   - -
Central unit required for full functionality -   
Headphone connections 2 2 2 2
Headphone volume adjustments 1 1 1 1
Voting buttons - 3 - 5
Start/Stop voting session from chairman unit -  - -
Channel Selectors - - 1 1
OLED information displays - 2 1 1
Voting results on OLED display -  - -
Channel selection on OLED display - -  
Next-in-line and priority button    
Speaker volume adjustment    

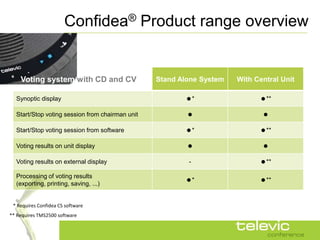

25. Confidea® Product range overview
Voting system with CD and CV Stand Alone System With Central Unit
Synoptic display * **
Start/Stop voting session from chairman unit  
Start/Stop voting session from software * **
Voting results on unit display  
Voting results on external display - **
Processing of voting results
* **
(exporting, printing, saving, ...)
* Requires Confidea CS software
** Requires TMS2500 software

26. Confidea wireless market positioning
Competitive field
Brähler
Digimic
BeyerDynamic Televic
MCW50 Confidea
BeyerDynamic
MCW200
Bosch
DCN-NG

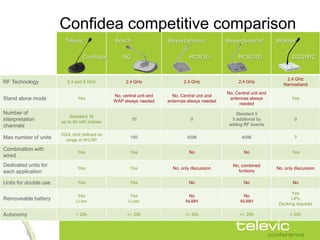

27. Confidea competitive comparison
Televic Bosch Beyerdynamic Beyerdynamic Brähler
Confidea NG MCW50 MCW200 DIGIMIC
2.4 GHz
RF Technology 2.4 and 5 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Narrowband
No, Central unit and
No, central unit and No, Central unit and
Stand alone mode Yes
WAP always needed antennas always needed
antennas always Yes
needed
Number of Standard 5
Standard 16
interpretation up to 40 with license
10 0 3 additional by 0
channels adding RF boards
1024, limit defined on
Max number of units range of WCAP
150 4096 4096 ?
Combination with
Yes Yes No No Yes
wired
Dedicated units for No, combined
Yes Yes No, only discusison No, only discusison
each application funtions
Units for double use Yes Yes No No No
Yes
Yes Yes No No
Removeable battery Li-ion Li-ion Ni-MH Ni-MH
LiPo
Docking required
Autonomy > 20h +/- 20h +/- 20h +/- 20h > 20h
