1. 2Wire +
Advanced features, capabilities and functions

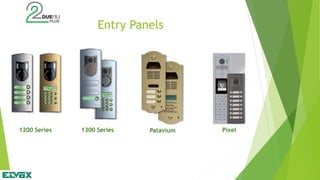

2. Entry Panels
1200 Series 1300 Series Patavium Pixel

3. Video Apartment Stations
7539
7549
6621
6721
5721
7211

4. Audio Apartment Stations
7509 6209 6901 8879

5. More units available.
Longer distance, greater number of units connected: The Due Fili Plus will stand any comparison. Systems with up to a
maximum of 484 entry panels and up to 6400 apartment stations. Enhanced performance is delivered by the new expansion
interface, with which the system can be enlarged by combining several Due Fili Plus systems up to 32 blocks.

7. Automatic Programming
The entry panel can be set into an automatic programming mode to aid
installation. In this mode, the panel will automatically assign the next
available code to any phone that is put into the programming phone.
After completion of programming the panel will make a test call to
confirm operation.

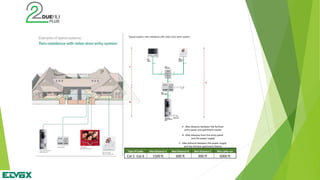

13. Cat 5/6 Wiring

14. A - Max distance between the furthest
entry panel and apartment station
B - Max distance from the entry panel
and the power supply
C - Max distance between the power supply
and the farthest apartment Station
Type Of Cable Max Distance A Max Distance B Max Distance C Max cable run
Cat 5 -Cat 6 1500 ft 600 ft 900 ft 6000 ft

15. A - Max distance between the furthest
entry panel and apartment station
B - Max distance from the entry panel
and the power supply
C - Max distance between the power supply
and the farthest apartment Station
Type Of Cable Max Distance A Max Distance B Max Distance C Max cable run
Cat 5 -Cat 6 780 ft 600 ft 180 ft 6000 ft

16. A - Max distance between the furthest
entry panel and apartment station
B - Max distance from the entry panel
and the power supply
C - Max distance between the power supply
and the farthest apartment Station
Type Of Cable Max Distance A Max Distance B Max Distance C Max cable run
Cat 5 -Cat 6 1450 ft 600 ft 750 ft 6000 ft

17. A - Max distance between the furthest
entry panel and apartment station
B - Max distance from the entry panel
and the power supply
C - Max distance between the power supply
and the farthest apartment Station
Type Of Cable Max Distance A Max Distance B Max Distance C Max cable run
Cat 5 -Cat 6 2130 ft 1320 ft 810 ft 6000 ft

18. Apartment Stations
7539 – 7539/04 Tab Free Open Voice Stations
Ultra Low Profile Design Only 1” Depth
• 3.5" LCD Hi Resolution Screen
• 4 Programmable Soft Buttons
• Full Duplex Open Voice Operation
• Easy Surface Installation
• Capacitive Touchscreen Controls
• Unique mirror gloss finish
• Doorbell input with distinct tone
• Hearing Aid T-Coil transmitter standard feature

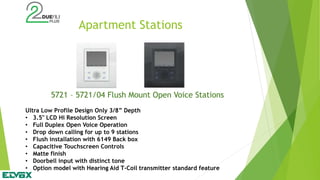

19. Apartment Stations
5721 – 5721/04 Flush Mount Open Voice Stations
Ultra Low Profile Design Only 3/8” Depth
• 3.5" LCD Hi Resolution Screen
• Full Duplex Open Voice Operation
• Drop down calling for up to 9 stations
• Flush installation with 6149 Back box
• Capacitive Touchscreen Controls
• Matte finish
• Doorbell input with distinct tone
• Option model with Hearing Aid T-Coil transmitter standard feature

20. Apartment Stations
7549 – 7549/04 Tab Open Voice Stations
Ultra Low Profile Design Only 1.75” Depth
• 4.3" LCD Hi Resolution Screen
• 4 Programmable Soft Buttons
• Easy Surface Installation
• Capacitive Touchscreen Controls
• Unique mirror gloss finish
• Doorbell input with distinct tone
• Option model with Hearing Aid T-Coil transmitter standard feature

21. Apartment Stations
7211 Flush Mount Open Voice Stations
Ultra Low Profile Design Only 3/4” Depth
• 7" LCD Hi Resolution Screen
• Full Duplex Open Voice Operation
• Flush installation with 7249 Back box
• Interchangeable fashion front plates
• Doorbell input with distinct tone

22. Apartment Stations
Audio Only Stations
7509 Tab Jr. – Capacitive touch screen 4 touch call buttons
6209 Expandable up to 7 button. Buttons can be used for alarm
inputs. Can be mated with a 6029 video monitor.
6900 Open voice 6 call buttons
8879 Basic handset 2 buttons

23. 1200 Series Stainless Steel Entry Panels
The 1200 series panels are
constructed of rugged, patterned
stainless steel providing rugged
construction and fingerprint
resistant beauty.
The 1200 series are available with:
• Individual apartment
pushbuttons
• Keypad with electronic directory
• Stainless and gold finish
• Biometric fingerprint sensor

24. 1200 Series Columns
The 1200 series columns are
constructed of rugged, patterned
stainless steel providing rugged
construction and fingerprint
resistant beauty.
The 1200 series columns are
available with:
• Individual apartment
pushbuttons
• Keypad with electronic directory
• 2 standard heights 58” and 68”
inches

25. 1300 Series Aluminum Entry Panels
The 1300 series panels are constructed
extruded electro polished anodized aluminum.
The unique design allow for pushbuttons to be
added to panels to the exact size needed.
They are available with:
• Individual apartment pushbuttons
• Keypad with electronic directory

26. Patavium Gold Plated Panels
The Patavium series panels are constructed of gold plated brass sealed with a titanium
finish. The classic and elegant design is in a class of its own.
They are available with:
• Individual apartment pushbuttons
• Keypad with electronic directory

27. Pixel Modular Entry Panels
The Pixel series panels are infinitely configurable in pushbutton,
electronic keypad/directory or hybrid versions. No visible mounting
hardware for a clean, modern look.

28. Heavy Pixel Modular Entry Panels
The same great features and modularity of the Pixel series panels are
also available in heavy duty die cast aluminum and Zamak
construction. The Heavy pixel is IK10 and IP54

29. Pixel Modular Entry Panels
The Pixel camera is high resolution and wide angle
cameras allowing for zoom and pan.
LED visual and voice synthesis audio indication of
panel and door status.
Tcoil transmitter interfaces with hearing aids.
Automatic adjustment of camera lighting and audio
gain depending on the ambient conditions.
Echo elimination

30. System Modules
69RS Expansion Interface
Used to connect up to 32 sections of
200 apartment stations each.
Each 692RS allows up to 6000 feet of
cable within it’s own block.
692S Separator
Allows for isolated islands of
communication within a system.
A large apartment can have a
separate private communication
network between multiple stations
within that will have no impact on
the communication from an entry
panel to another apartment.
69DV Riser Distributor
Each 69DV provide 4 outputs suitable
for driving a riser.
Each riser can consist of looped
apartment stations, looped
distributors or both

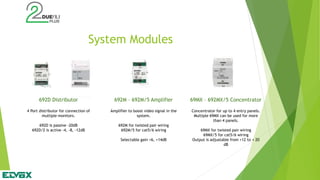

31. System Modules
692D Distributor
4 Port distributor for connection of
multiple monitors.
692D is passive -20dB
692D/2 is active -4, -8, -12dB
692M – 692M/5 Amplifier
Amplifier to boost video signal in the
system.
692M for twisted pair wiring
692M/5 for cat5/6 wiring
Selectable gain +6, +14dB
69MX – 692MX/5 Concentrator
Concentrator for up to 4 entry panels.
Multiple 69MX can be used for more
than 4 panels.
69MX for twisted pair wiring
69MX/5 for cat5/6 wiring
Output is adjustable from +12 to + 20
dB

32. System Modules
69AM/T – 69AM/T4
CCTV Input Module
The 69AM/T has inputs for up to 4
external CCTV cameras to be
inputted into the system allowing
residents to view the cameras from
the apartment station.
Each 69AM/T4 adds 4 additional
cameras up to a total of 16.
69MC – 69MD DVR Module
The 69MC and 69MD provide a analog
video output, audio output and
control signal to allow a DVR to be
connected to the intercom system.
The 69MC records video associated
with all apartment stations.
The 69MD can be programed for 1 or
more apartment codes.

33. System Modules
6120 Dual Input Module
The 6120 has input for 2 contact
closures. Receive of these closures
can be used to activate any function
in the intercom system
69PH Dual Relay Module
The 69PH is a dual relay that can be
programmed to activate by any
intercom system function.
Applications include remote control,
lighting, elevator recall, etc.

34. Programming
• Panel ID
• Programming Password
• Panel Type
• Answer Time
• Conversation Time
• Self Activation Time
• Switchboard Keys
• Internal Volume
• External Volume
• Ringtone in Panel
• Horizontal vs Vertical Operation

35. Programming
Button Remapping
Pushbuttons can be added to the
entry panel to make it simple to
contact certain stations.

36. Programming
Remapping
Each Station can have up to 3 ID’s
1 Numerical up to 8 digits wide
2 Alphanumerical (names, apartment letter)

37. Programming
Self Activation
Each apartment station can have
its own unique sequence of panels
and cameras it can view.

38. Programming
Door and Special Function Control
• Access Control Code per Apartment
Station
• Lock Time
• Common Door Control
• Relay Driver F1 and F2 Control

39. Programming
Device enable/disable
Each apartment’s lock, F1 and F2
can be abled or disables.
Common lock can also be enabled
and disabled on individual
apartment basis

40. Programming
Access control codes for unused
apartment station
Day/Time control
Panel display time /date format

41. Programming
Custom Panel Messaging
Different message can be displayed when:
• Panel is idle, no directory is present
• Panel is idle, directory is present
• Message while dialing
• Message during database search
• Message during phonebook browse

42. Programming
Apartment Station Programing
Including:
• Monitor control
• Button Assignment
• Grouping
• Volume control
• Ringtone Selection
