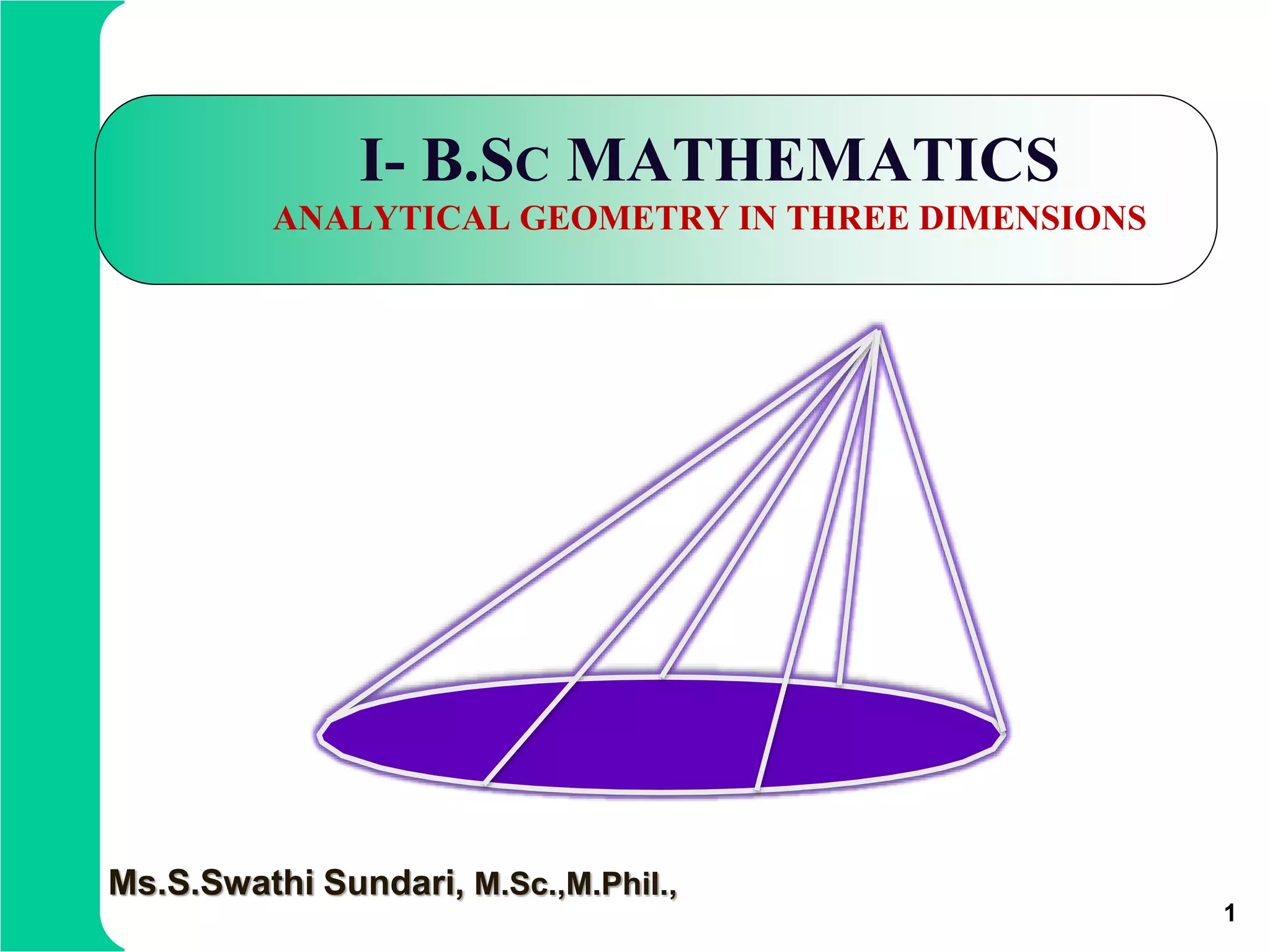

1. I- B.SC MATHEMATICS
ANALYTICAL GEOMETRY IN THREE DIMENSIONS
1
Ms.S.Swathi Sundari, M.Sc.,M.Phil.,

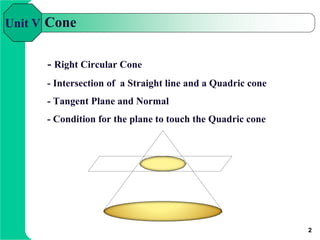

2. 2
ConeUnit V
- Right Circular Cone
- Intersection of a Straight line and a Quadric cone
- Tangent Plane and Normal
- Condition for the plane to touch the Quadric cone

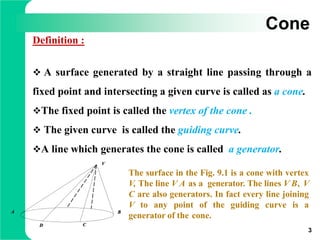

3. Cone
Definition :
 A surface generated by a straight line passing through a
fixed point and intersecting a given curve is called as a cone.
The fixed point is called the vertex of the cone .
 The given curve is called the guiding curve.
A line which generates the cone is called a generator.
3
V
A B
CD
The surface in the Fig. 9.1 is a cone with vertex
V, The line V A as a generator. The lines V B, V
C are also generators. In fact every line joining
V to any point of the guiding curve is a
generator of the cone.

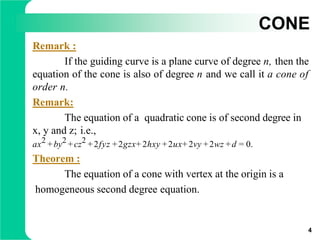

4. CONE
Remark :
If the guiding curve is a plane curve of degree n, then the
equation of the cone is also of degree n and we call it a cone of
order n.
Remark:
The equation of a quadratic cone is of second degree in
x, y and z; i.e.,
ax2 +by2 +cz2 +2fyz +2gzx+ 2hxy +2ux+ 2vy +2wz +d = 0.
Theorem :
The equation of a cone with vertex at the origin is a
homogeneous second degree equation.
4

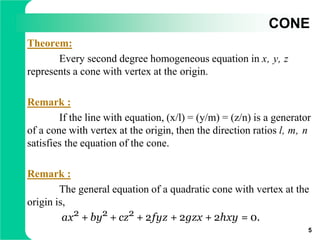

5. CONE
Theorem:
Every second degree homogeneous equation in x, y, z
represents a cone with vertex at the origin.
Remark :
If the line with equation, (x/l) = (y/m) = (z/n) is a generator
of a cone with vertex at the origin, then the direction ratios l, m, n
satisfies the equation of the cone.
Remark :
The general equation of a quadratic cone with vertex at the
origin is,
ax2 + by2 + cz2 + 2fyz + 2gzx + 2hxy = 0.
5

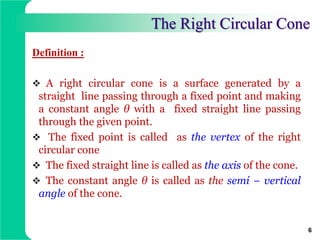

6. The Right Circular Cone
Definition :
 A right circular cone is a surface generated by a
straight line passing through a fixed point and making
a constant angle θ with a fixed straight line passing
through the given point.
 The fixed point is called as the vertex of the right
circular cone
 The fixed straight line is called as the axis of the cone.
 The constant angle θ is called as the semi − vertical
angle of the cone.
6

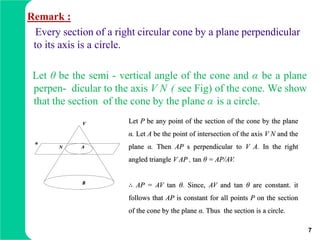

7. Remark :
Every section of a right circular cone by a plane perpendicular
to its axis is a circle.
Let θ be the semi - vertical angle of the cone and α be a plane
perpen- dicular to the axis V N ( see Fig) of the cone. We show
that the section of the cone by the plane α is a circle.
7
α
AN
B
V Let P be any point of the section of the cone by the plane
α. Let A be the point of intersection of the axis V N and the
plane α. Then AP s perpendicular to V A. In the right
angled triangle V AP , tan θ = AP/AV.
∴ AP = AV tan θ. Since, AV and tan θ are constant. it
follows that AP is constant for all points P on the section
of the cone by the plane α. Thus the section is a circle.

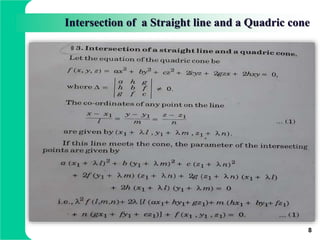

8. Intersection of a Straight line and a Quadric cone
8

9. Tangent Plane and Normal
9
Condition for the plane to touch the Quadric Cone

10. 10
