The Weiber Concrete Thickness Gauge Model No. ACM-CTG is designed for measuring the thickness of non-metallic plates such as concrete slabs, glass, and rock, making it suitable for researchers and scientists. It features accurate digital readouts, data logging, and an RS232 and USB interface for data analysis and storage. The device is portable, convenient, and has a measurement range of 50-350mm with specified accuracy levels.

1. R

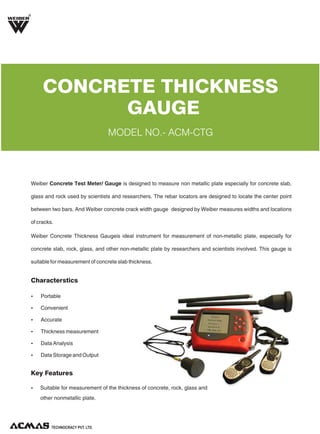

CONCRETE THICKNESS
GAUGE
MODEL NO.- ACM-CTG

2. R
TECHNOCRACY PVT. LTD.
Weiber Concrete Test Meter/ Gauge is designed to measure non metallic plate especially for concrete slab,
glass and rock used by scientists and researchers. The rebar locators are designed to locate the center point
between two bars. And Weiber concrete crack width gauge designed by Weiber measures widths and locations
of cracks.
Weiber Concrete Thickness Gaugeis ideal instrument for measurement of non-metallic plate, especially for
concrete slab, rock, glass, and other non-metallic plate by researchers and scientists involved. This gauge is
suitable for measurement of concrete slab thickness.
Ÿ Portable
Ÿ Convenient
Ÿ Accurate
Ÿ Thickness measurement
Ÿ Data Analysis
Ÿ Data Storage and Output
Characterstics
Key Features
Ÿ Suitable for measurement of the thickness of concrete, rock, glass and
other nonmetallic plate.
CONCRETE THICKNESS
GAUGE
MODEL NO.- ACM-CTG

3. R
TECHNOCRACY PVT. LTD.
Ÿ Sound alarm
Ÿ Signal strength bar
Ÿ Direct digital read out of the thickness value which helps to avoid the
inaccuracy of manual comparison
Ÿ Real time analysis of the tested data
Ÿ RS232 and USB interface to PC
Ÿ Data logging
Ÿ Memory: 32000 test data and 4000 component
CONCRETE THICKNESS
GAUGE
MODEL NO.- ACM-CTG
50~350mm
±1mm [(When~ thickness=(50~260mm)]
±2mm [When thickness=(261~350mm)]
1600
-10ºc 40ºc
<90%
AA batteries(LR6) x6
210mmx153mmx90mm
880g
Ÿ Measuring range
Ÿ Accuracy
Ÿ Memory
Ÿ Operating Temperature
Ÿ Relative Humidity
Ÿ Power Suppply
Ÿ Dimensions
Ÿ Weight
Specifications
