The ACM-DGR-2646 Digital Gem Refractometer is an optical instrument that accurately measures the refractive index of gemstones without damaging contact oil, providing a reproducibility of 0.007 ri index units across a range of 1.30 to 2.99 ri. It allows for the determination of optical properties, such as whether a gemstone is uniaxial or biaxial, and is designed to be portable, cost-effective, and user-friendly with features like an LCD display and low power consumption. The refractometer is suitable for precise identification of gemstones based on their unique refractive indices.

1. R
MODEL NO. - ACM-DGR-2646
DIGITAL GEM REFRACTOMETER

2. R

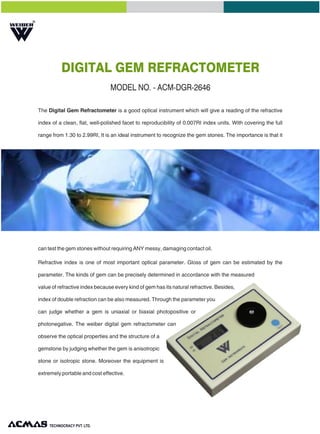

DIGITAL GEM REFRACTOMETER
MODEL NO. - ACM-DGR-2646
The Digital Gem Refractometer is a good optical instrument which will give a reading of the refractive
index of a clean, flat, well-polished facet to reproducibility of 0.007RI index units. With covering the full
range from 1.30 to 2.99RI, It is an ideal instrument to recognize the gem stones. The importance is that it
can test the gem stones without requiring ANY messy, damaging contact oil.
Refractive index is one of most important optical parameter. Gloss of gem can be estimated by the
parameter. The kinds of gem can be precisely determined in accordance with the measured
value of refractive index because every kind of gem has its natural refractive. Besides,
index of double refraction can be also measured. Through the parameter you
can judge whether a gem is uniaxial or biaxial photopositive or
photonegative. The weiber digital gem refractometer can
observe the optical properties and the structure of a
gemstone by judging whether the gem is anisotropic
stone or isotropic stone. Moreover the equipment is
extremely portable and cost effective.
TECHNOLOGIES PVT. LTD.

3. R

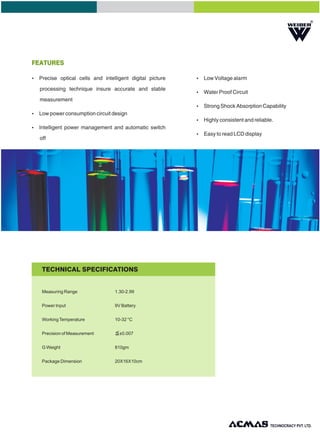

FEATURES
Ÿ Precise optical cells and intelligent digital picture
processing technique insure accurate and stable
Ÿ Low Voltage alarm
Ÿ Water Proof Circuit
measurement
Ÿ Strong Shock Absorption Capability
Ÿ Low power consumption circuit design
Ÿ Highly consistent and reliable.
Ÿ Intelligent power management and automatic switch
Ÿ Easy to read LCD display
off
TECHNICAL SPECIFICATIONS
Measuring Range
1.30-2.99
Power Input
9V Battery
Working Temperature
10-32 °C
Precision of Measurement
≦±0.007
G Weight
810gm
Package Dimension
20X16X10cm
TECHNOLOGIES PVT. LTD.

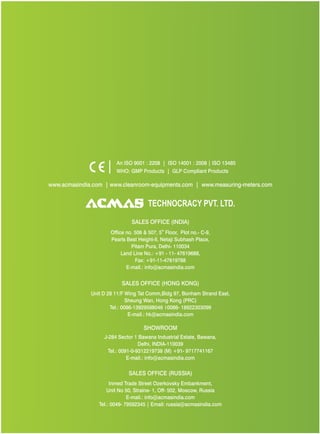

4. An ISO 9001 : 2208 | ISO 14001 : 2008 | ISO 13485
