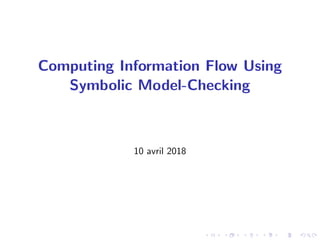

Computing Information Flow Using
Symbolic Model-Checking
10 avril 2018
Introduction
Literature review
Background
Leakage in non-probabilistic programs
Demo
Experimental results
Conclusion and future work
Introduction
Literature review
Background
Leakage in non-probabilistic programs
Demo
Experimental results
Conclusion and future work
Introduction
Information Leakage :
I Information about the secret inputs using publicly observable
outputs
I Outputs independent of inputs =⇒ No leakage
I Unique input corresponding to given output =⇒ Full leakage
The quantitative information flow bounding problem and the
quantitative information flow comparison problem for Boolean
programs are PSPACE-complete .
Introduction
Literature review
Background
Leakage in non-probabilistic programs
Demo
Experimental results
Conclusion and future work
Literature review
I .[M. Backes , al] - S&P 2009 . DisQuant :
Automatic discovery and quantification of information leaks
I .[Heusser , al] - ACSAC 2010 . selfcomp :
Quantifying Information Leaks in Software
I .[Quoc-Sang Phan , al ] - ACM SIGSOFT 2012. jpf-qif :
Symbolic Quantitative Information Flow
I .[Quoc-Sang Phan , al ] - ASIACCS 2014. sqifc :
Abstract model counting : a novel approach for quantification
of information leaks.
I .[Rohit Chadha , al] - FSTTCS 2014. Moped-QLeak :
Computing Information Flow Using Symbolic Model-Checking
Introduction
Literature review
Background
Leakage in non-probabilistic programs
Demo
Experimental results
Conclusion and future work
Symbolic Model-Checking
Model Checking :
I Exhaustive search of the state space of the system .
I Disadvantage : State Explosion Problem
Symbolic Model Checking :
I uses boolean encoding for state machine and sets of states.
I BDDs used to represent boolean functions .
Boolean programs
I Global variables G : Input and output
I Local variables : Internal calculations
I Program statements : transform global and local variables
I For Program P, Fp : 2G 7−→ 2G ∪ {⊥}
I Fp( ¯
g0) = ⊥ : P does not terminate ¯
g0
Binary decision diagrams (BDDs)
I Set of variables V = {x, y, z} with the order x < y < z
I f (x, y, z) = x → (y ↔ z)
I BDDs are data structures for storing elements : 2G −→ {0, 1}
Unreduced decision diagram (left) and corresponding BDD (right)
Algebraic Decision Diagrams (ADDs)
I Set of variables V
I ADD : 2G −→ M (M = R)
I BDDs + real values on the terminal nodes
I BDDs as 0/1-ADDs
ADD (right) and its reduced form (left)
Fixed-point
Consider the complete lattice (2G , ⊆)
Consider a function f : 2S 7−→ 2S
X ∈ 2S is fixed point of f ⇐⇒ f (X) = X
X is least fixed point of f if for every fixed point Y , X ⊆ Y
Theorem (Tarski-knaster)
Consider a function f : 2S 7−→ 2S that is monotonic
X ⊆ Y then f (X) ⊆ f (Y )
Consider the sequence :
X0 = ∅
X1 = f (X0)
X2 = f (X1)... This eventually converge to the least fixed point
Information leakage in programs
1. Min-entropy leakage measures vulnerability of the secret
inputs to being guessed correctly in a single attempt of the
adversary
MEU(P) = log
P
o∈O maxs∈S µ(S = s|O = o)
2. Shannon entropy leakage measures expected number of
guesses required to correctly guess the secret input
SEU(P) = log|S| − 1
|S|
P
o∈O |P−1(o)|log(|P−1(o)|)
Introduction
Literature review
Background
Leakage in non-probabilistic programs
Demo
Experimental results
Conclusion and future work
Definition (Summary of a Program)
Let P be a program with G = {x1, ..., xn} as the set of global
variables. Let G0 = {x0
1, ..., x0
n} and G ∩ G0 = ∅.
The summary of P , denoted TP , is a function
TP : 2(G∪G0) → {0, 1}
such that for every z1, ..., zn, z0
1, ..., z0
n ∈ {true, false}, we have
TP(z1, ..., zn, z0
1, ..., z0
n) = 1 ⇐⇒ P(z1, ..., zn) = (z0
1, ..., z0
n).
Example : Boolean program Pex with global variables : s1, s2, o1
and o2.
o1 = false ; o2 = false ;
while s1 ;
o1 = false ; o2 = s2 ;
s1 = false ; s2 = false ;
Assuming the order s1 < s0
1 < s2 < s0
2 < o1 < o0
1 < o2 < o0
2 :
Pex is shown as a 0/1-ADD :
Leakage measured using min-entropy
Let post(2G ) = { ¯
g0 ∈ 2G |∃ḡ ∈ 2G .P(ḡ) = ¯
g0}.
If P terminates on all inputs then the min-entropy leakage : is
log(|post(2G )|) .
otherwise it is log(|post(2G )| + 1)
Lemma
Let Tout,P = orAbstract(G, TP) ∧ Tterm,P = orAbstract(G0, TP).
1. |post(2G )| = val(abstract(+, G0, Tout,P)).
2. P terminates on every input iff
isConst(Tterm,P) and val(Tterm,P) = 1.
Leakage measured using min-entropy
The ADD representing Tout,P : the set of all possible outputs of P
.
Algorithm : Symbolic computation of min-entropy leakage
Leakage measured using Shannon entropy
Two possible outputs =⇒ We need to compute :
P
¯
g0∈2G0 |P−1( ¯
g0)|log|P−1( ¯
g0)| + |P−1(⊥)|log|P−1(⊥)|
.
The ADD Teq−size,P : The ADD Tnon−term,P :
Algorithm :Symbolic computation of Shannon-entropy
leakage
Introduction
Literature review
Background
Leakage in non-probabilistic programs
Demo
Experimental results
Conclusion and future work
Example : Sum Query
Input language : Remopla
Instructions for running
Introduction
Literature review
Background
Leakage in non-probabilistic programs
Demo
Experimental results
Conclusion and future work
Examples used for evaluation
Introduction
Literature review
Background
Leakage in non-probabilistic programs
Demo
Experimental results
Conclusion and future work
Conclusion and future work
I Symbolic algorithms for measuring information leakage
I Integrable in any BDD based reachability analysis tool
I Summary calculation is the overhead - BDD size (algebraic
operations) and variable orderings
I future work :
I ProPed :Support recursive programs
I Other symbolic verification approaches : CEGAR
(Counterexample Guided Abstraction Refinement )
References
R. Chadha, U. Mathur, S. Schwoon
Computing Information Flow Using Symbolic Model Checking
Foundations of Software Technology and Theoretical
Computer Science (FSTTCS), 2014
.
Moped QLeak : https://sites.google.com/site/mopedqleak
Presented By : LOTFI LARBAOUI
