1. Welcome
Presented by:
Md. Rukunuzzaman
BSc in CSE
Daffodil International University
1

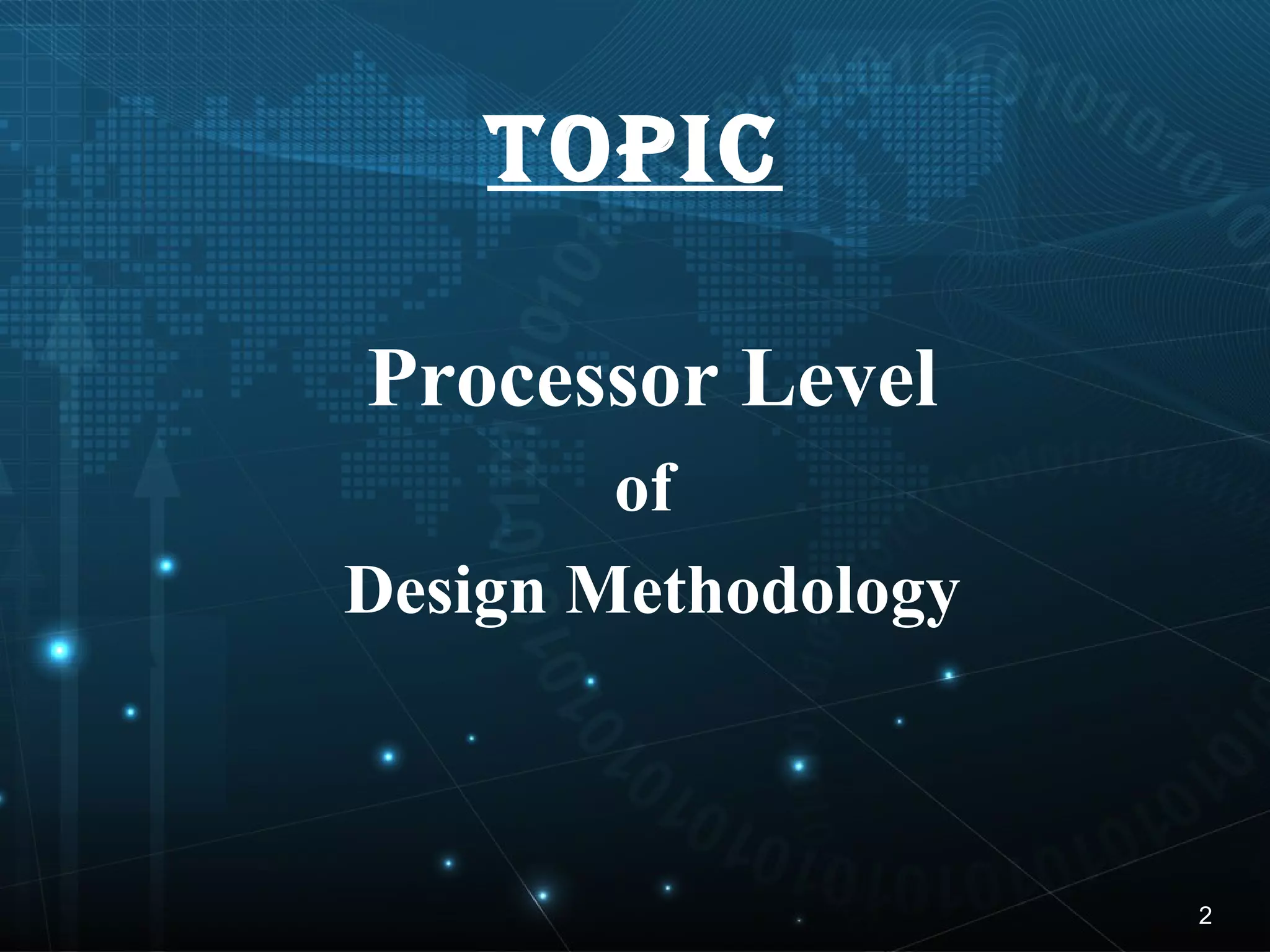

2. Topic
Processor Level
of
Design Methodology
2

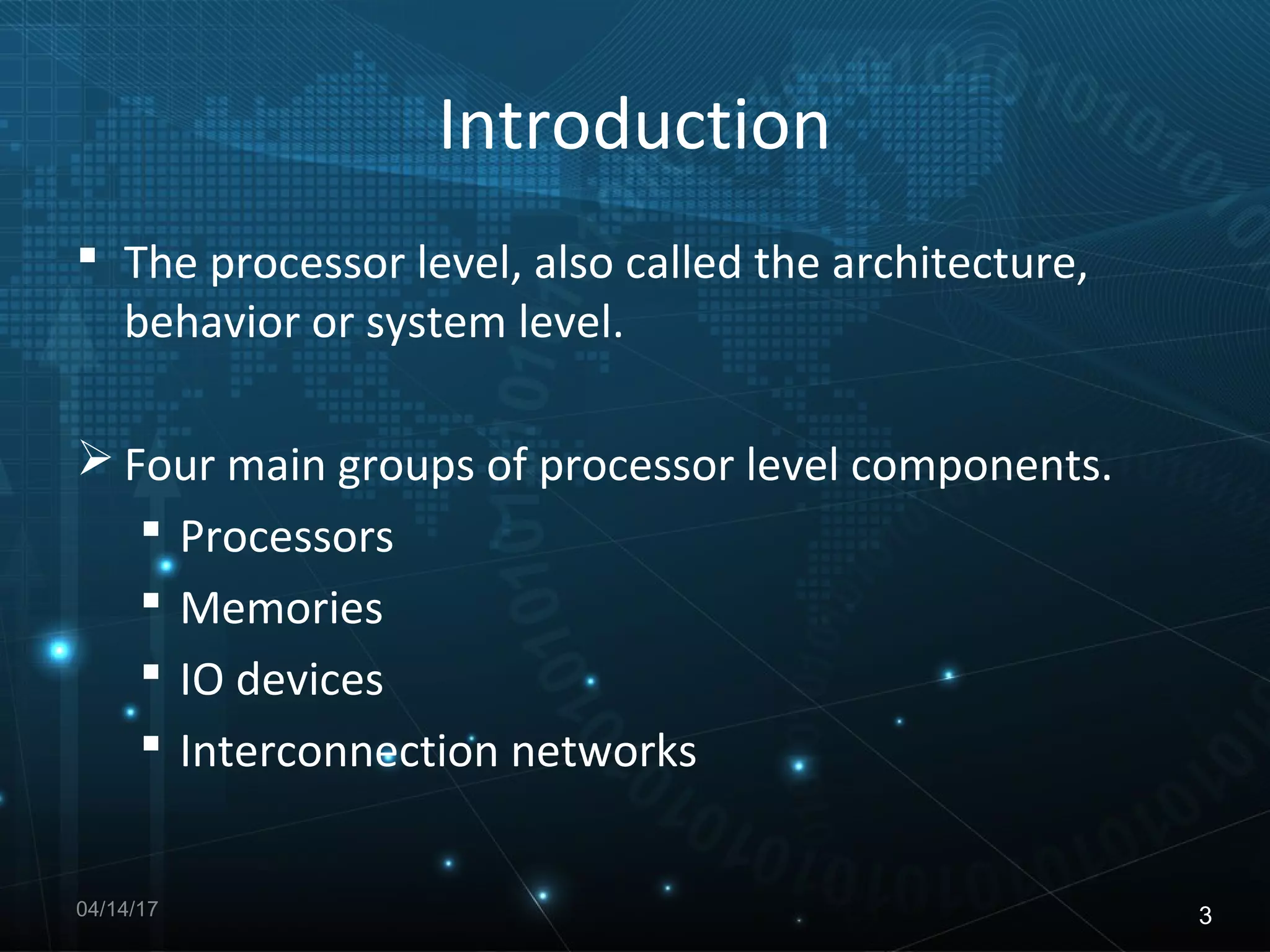

3. Introduction
 The processor level, also called the architecture,
behavior or system level.
 Four main groups of processor level components.
 Processors
 Memories
 IO devices
 Interconnection networks
04/14/17 3

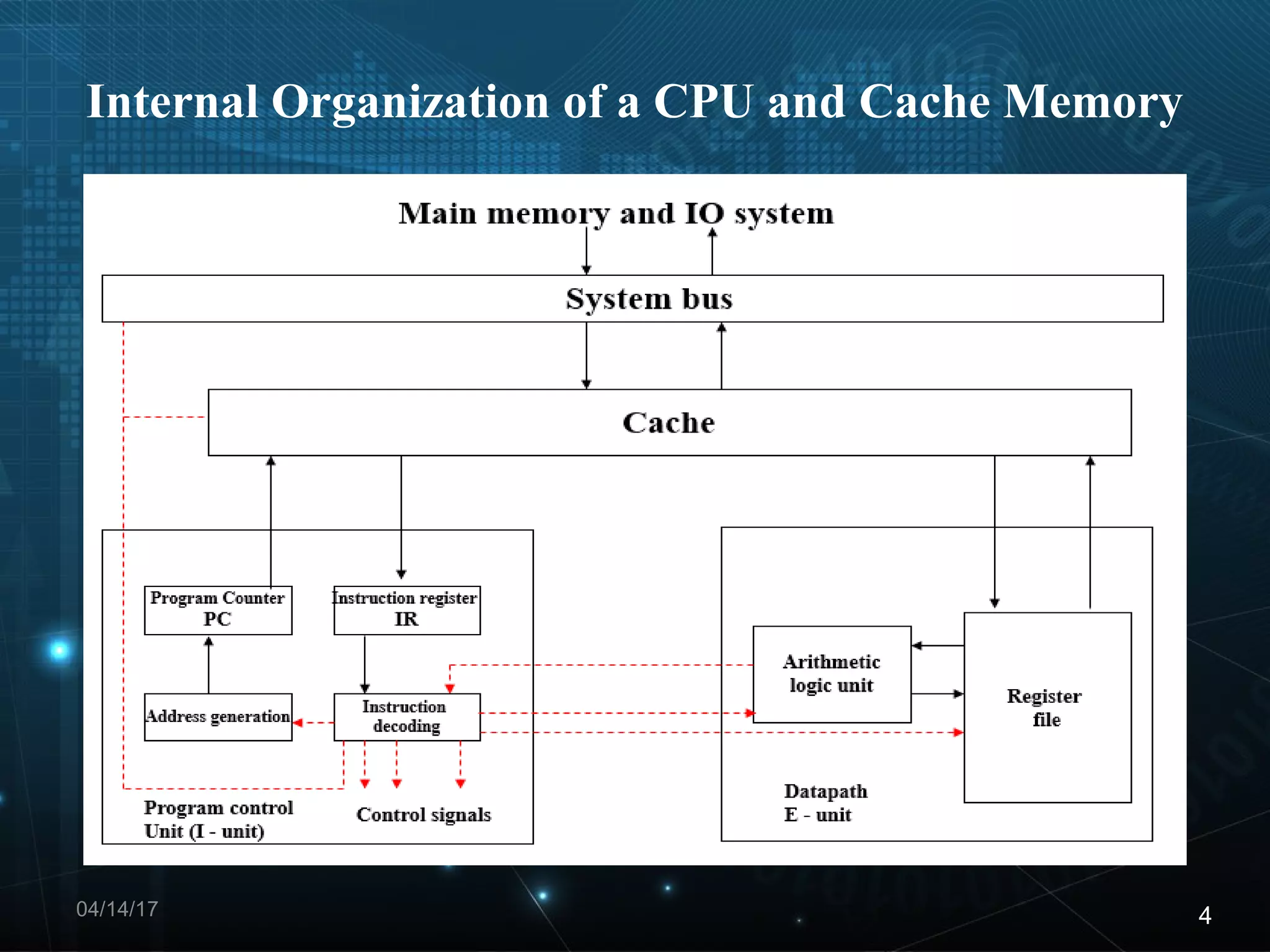

4. Internal Organization of a CPU and Cache Memory
04/14/17 4

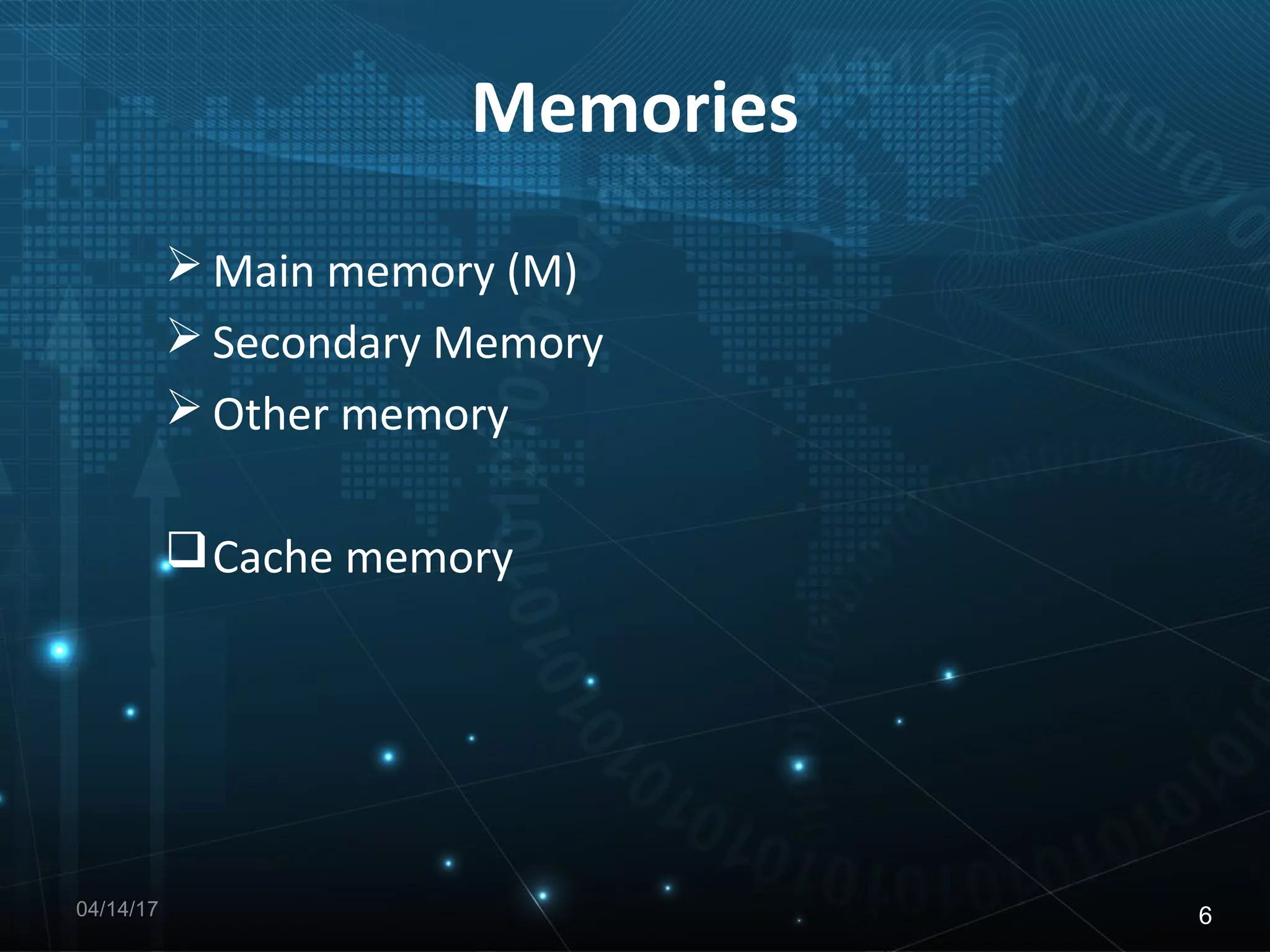

5. Memories
 Main memory (M)
 Secondary Memory
 Other memory
Cache memory
04/14/17 6

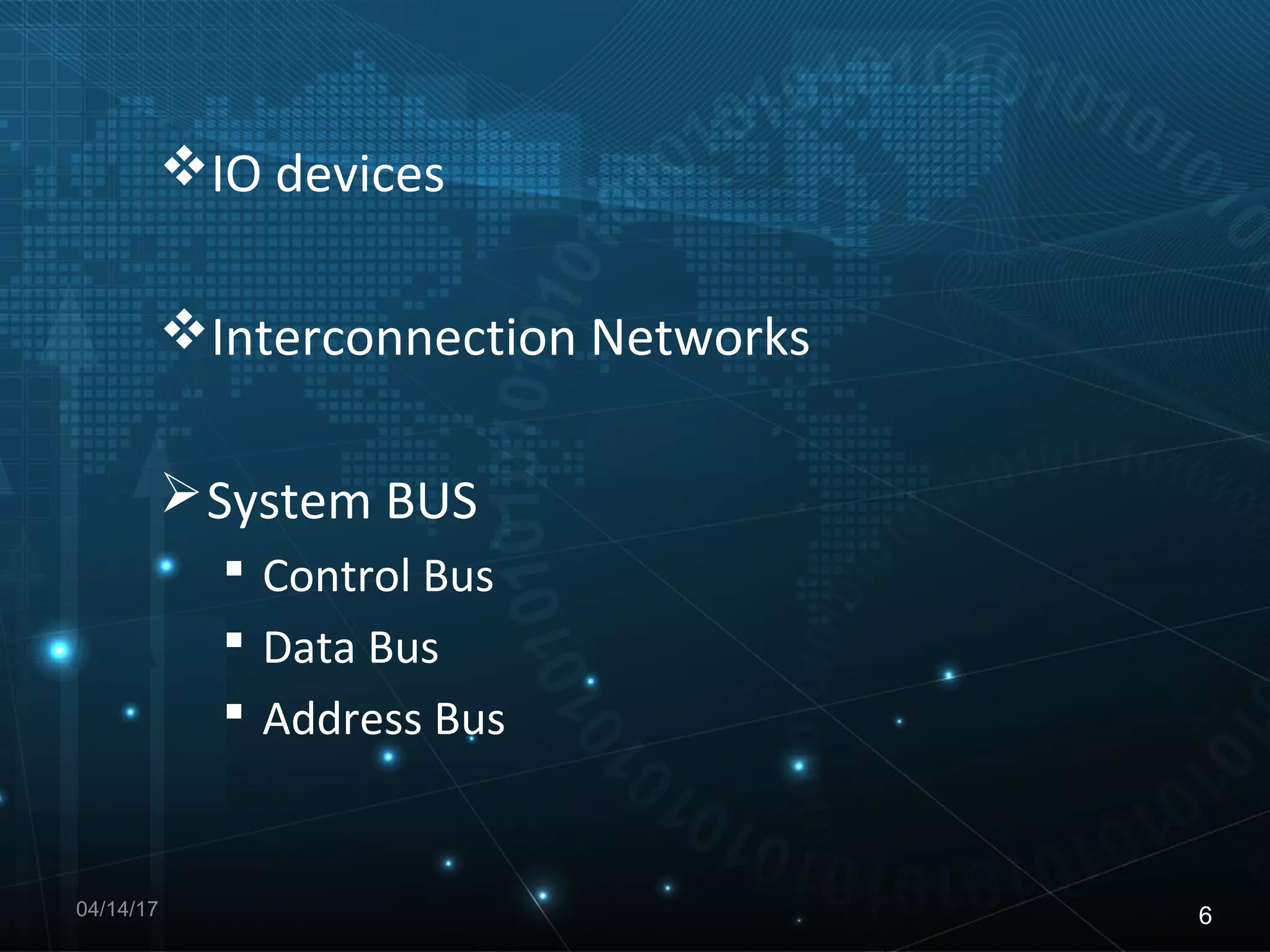

6. IO devices
Interconnection Networks
System BUS
 Control Bus
 Data Bus
 Address Bus
04/14/17 6

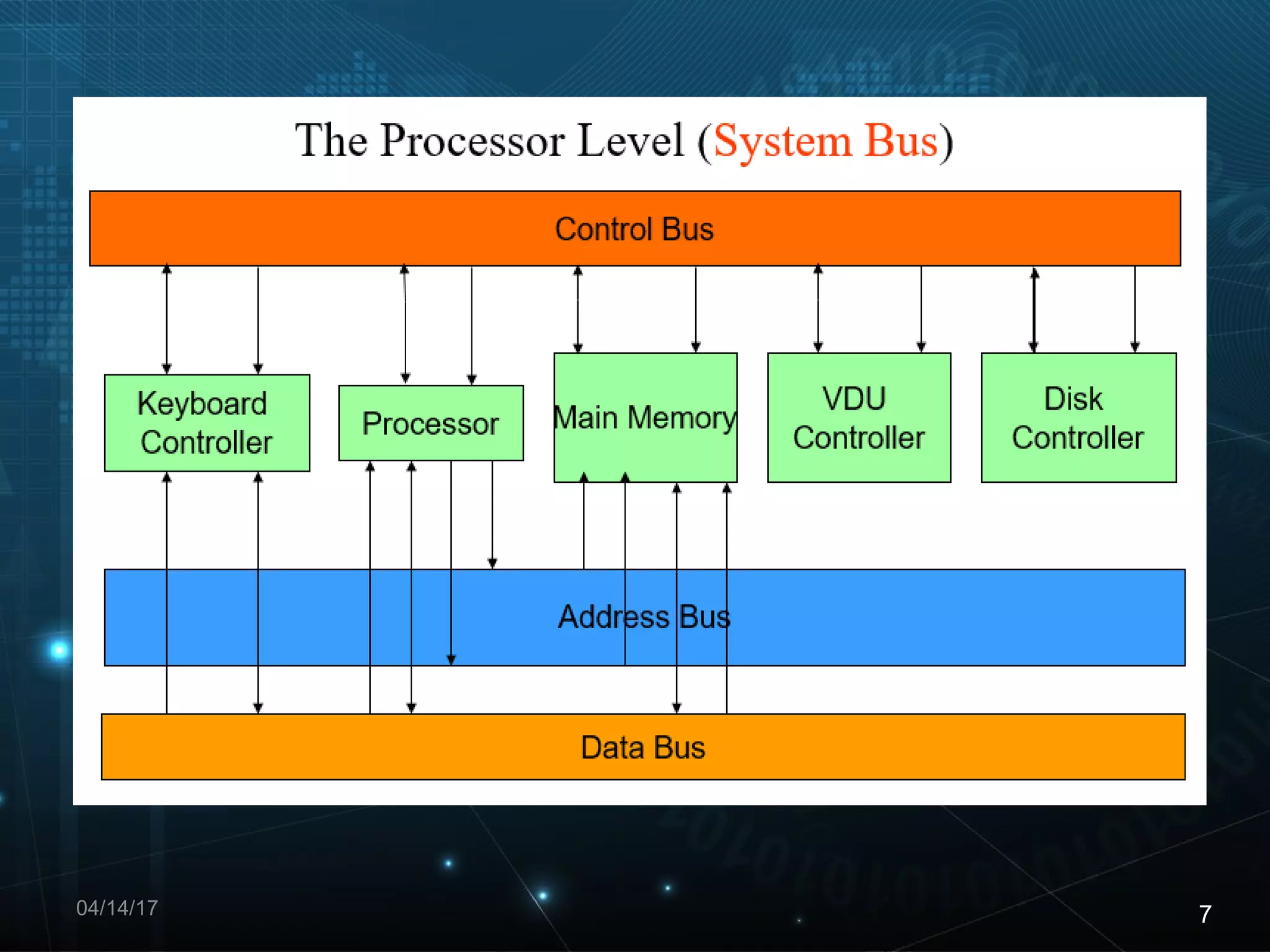

7. 04/14/17 7

8. Interrupts
 An interrupt is a signal from some device or source
seeking the attention of the processor.
Types of Interrupts
 Program
 Timer
 Input / Output
 Hardware failure
04/14/17 8

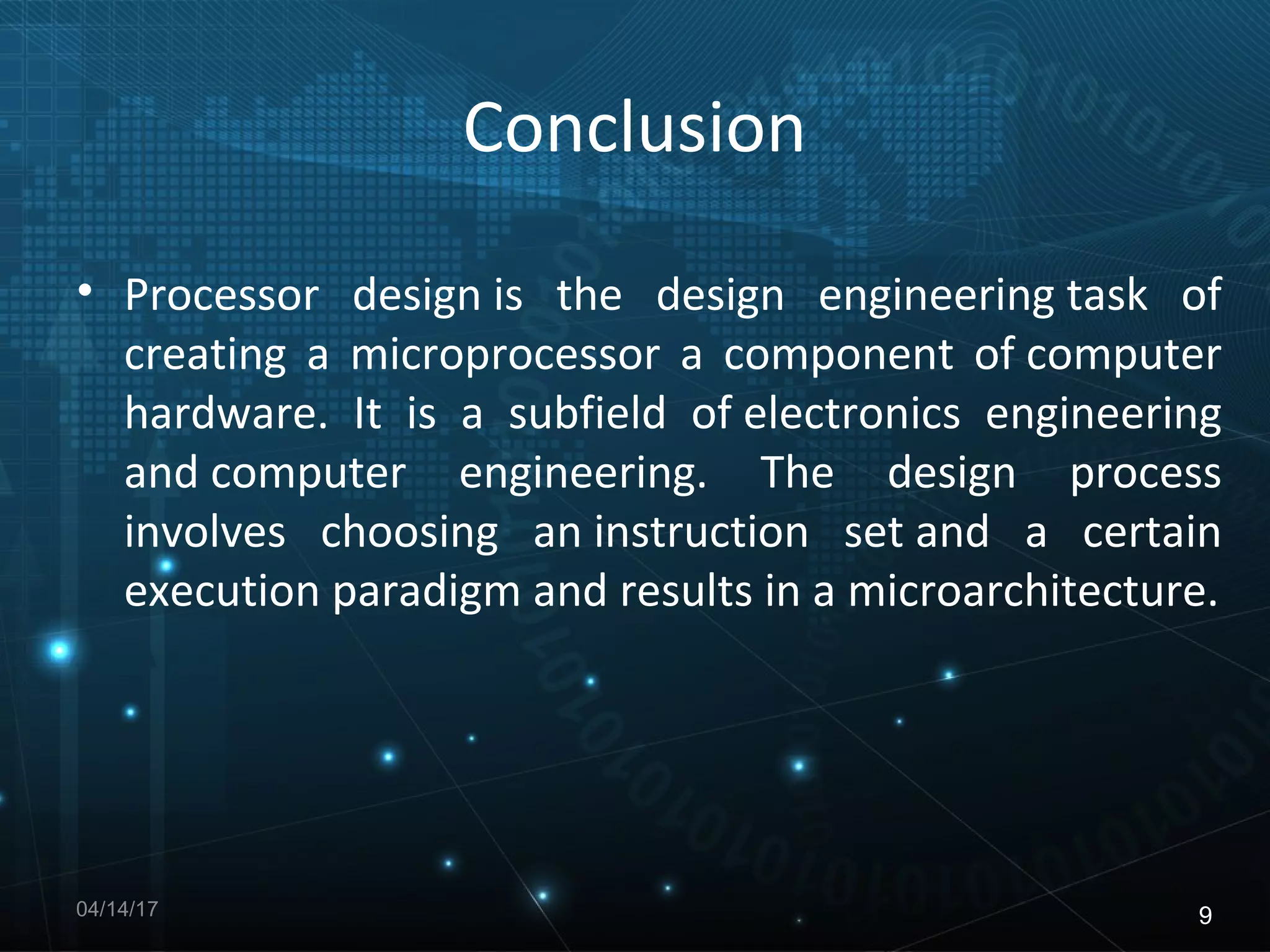

9. Conclusion
• Processor design is the design engineering task of
creating a microprocessor a component of computer
hardware. It is a subfield of electronics engineering
and computer engineering. The design process
involves choosing an instruction set and a certain
execution paradigm and results in a microarchitecture.
04/14/17 9

10. References
1. Computer Architecture and Organization by John P. Hayes, Third
Edition.
2. https://en.wikipedia.org/wiki/Processor_design
3. Computer Organization & Architecture by William Stallings, 6th
Edition.
04/14/17 10
