This document provides an overview of the key topics covered in a computer architecture course (CMP 416). It discusses the basic elements of a computer system including the processor, memory, I/O, and system bus. The processor controls the computer's operations and performs data processing. Main memory is volatile storage for active data and programs. I/O manages data transfer between the computer and external devices. The system bus provides communication between these core components. The document also examines memory hierarchy and cache memory which aim to speed up processor access to data and instructions.

1. COMPUTER ARCHITECTURE CMP 416

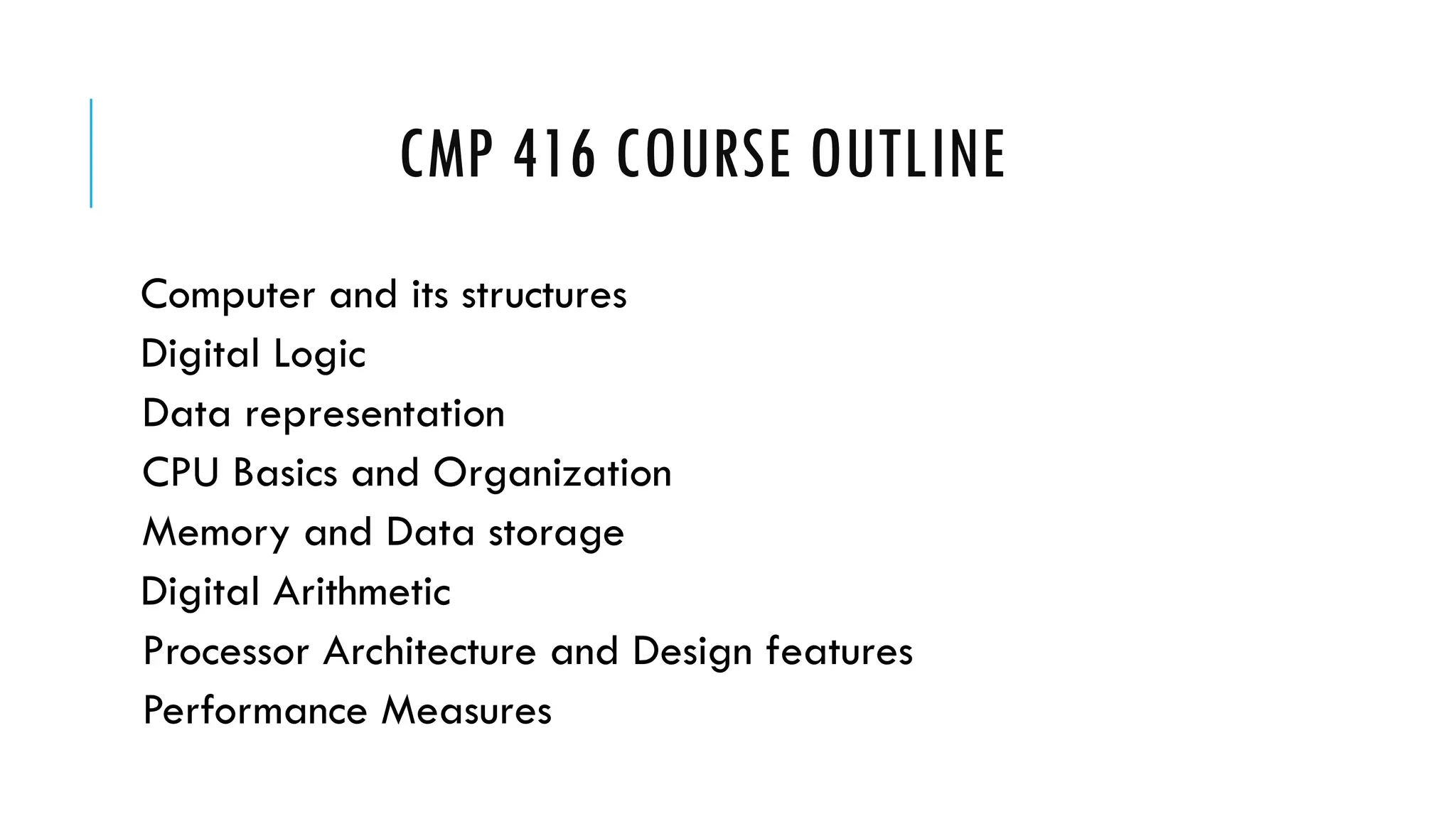

2. CMP 416 COURSE OUTLINE
Computer and its structures
Digital Logic
Data representation
CPU Basics and Organization
Memory and Data storage
Digital Arithmetic
Processor Architecture and Design features
Performance Measures

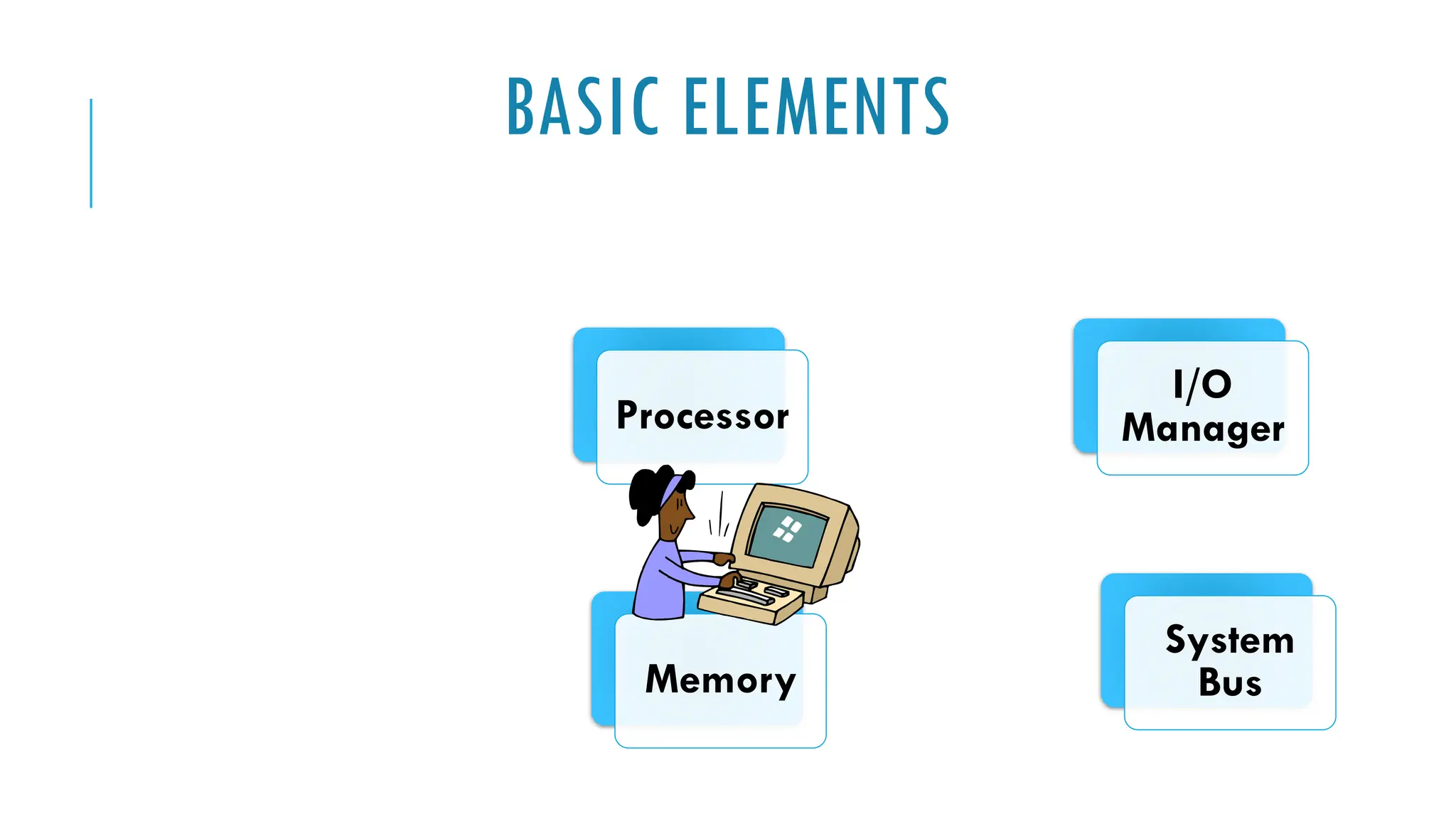

3. BASIC ELEMENTS
Processor
Memory
I/O
Manager
System
Bus

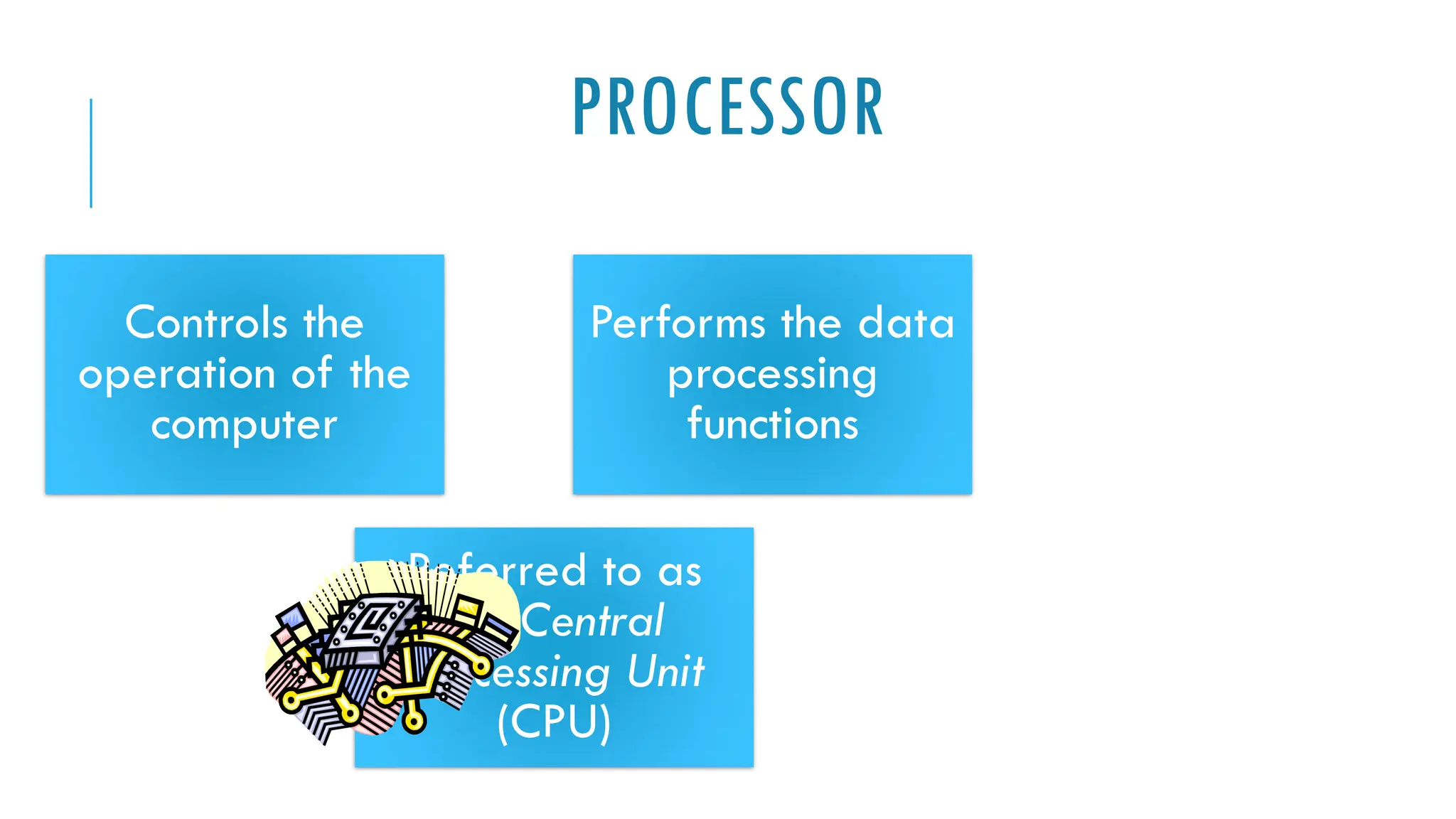

4. PROCESSOR
Controls the
operation of the
computer
Performs the data
processing
functions
Referred to as
the Central
Processing Unit
(CPU)

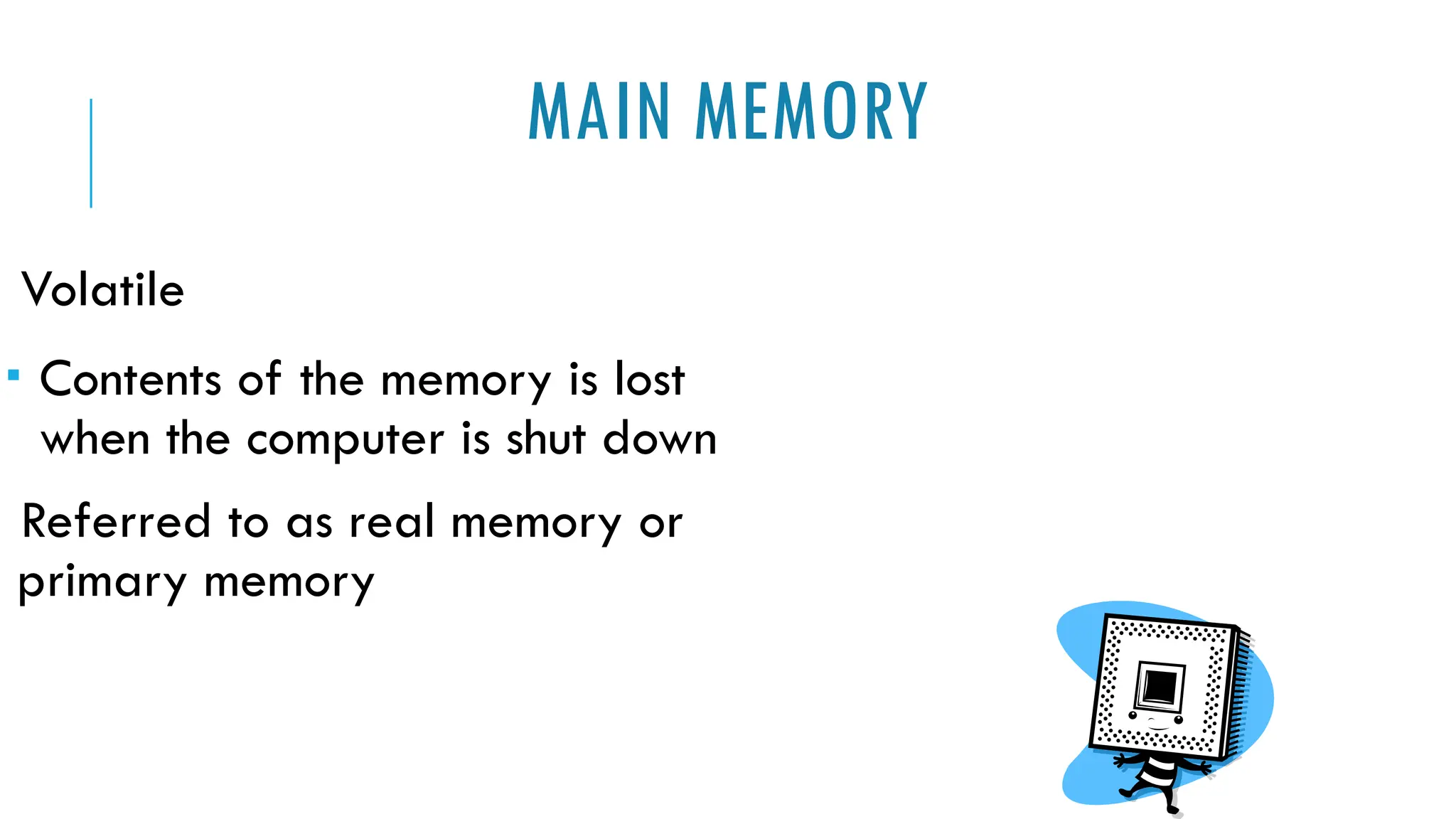

5. MAIN MEMORY
Volatile
 Contents of the memory is lost
when the computer is shut down
Referred to as real memory or
primary memory

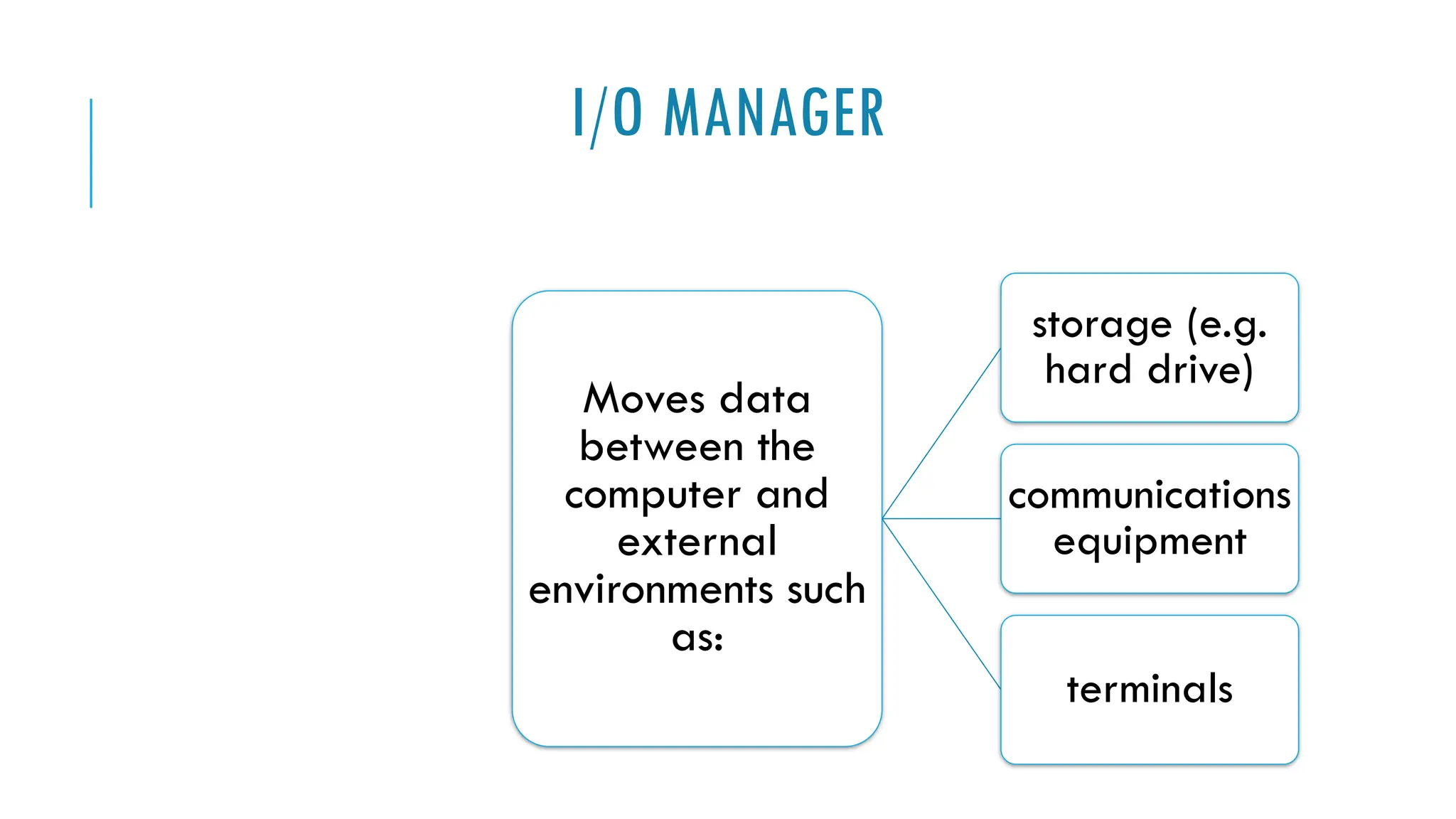

6. I/O MANAGER
Moves data
between the
computer and
external
environments such
as:
storage (e.g.
hard drive)
communications
equipment
terminals

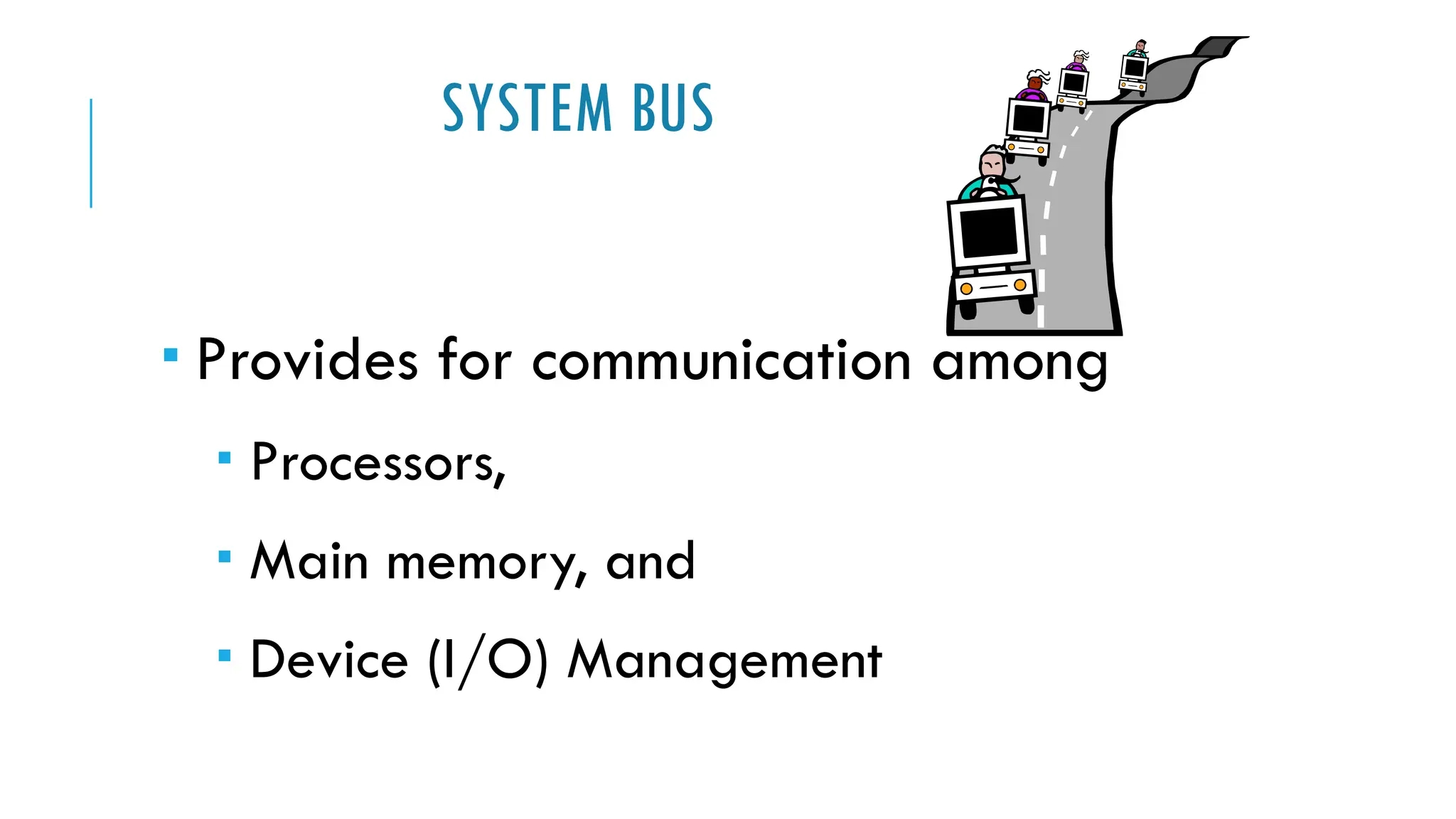

7. SYSTEM BUS
 Provides for communication among
 Processors,
 Main memory, and
 Device (I/O) Management

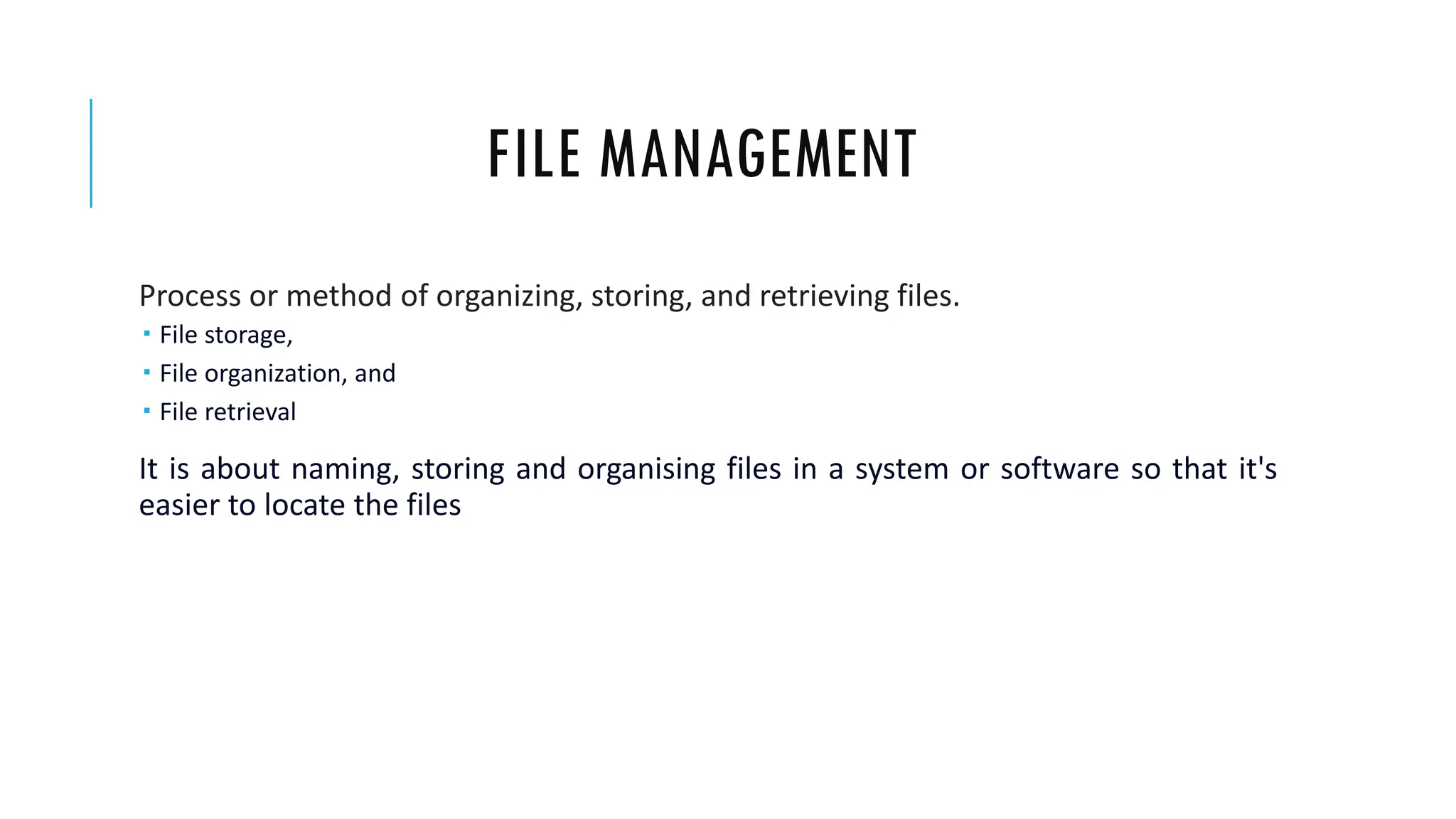

8. FILE MANAGEMENT
Process or method of organizing, storing, and retrieving files.
 File storage,
 File organization, and
 File retrieval
It is about naming, storing and organising files in a system or software so that it's
easier to locate the files

9. COMPUTER ORGANISATION AND ARCHITECTURE
Design better programs including systems software such as
 Compilers, operating systems and device drivers.
 Optimize program behaviour
 Evaluate computer system performance
 Understand time, space and price tradeoffs

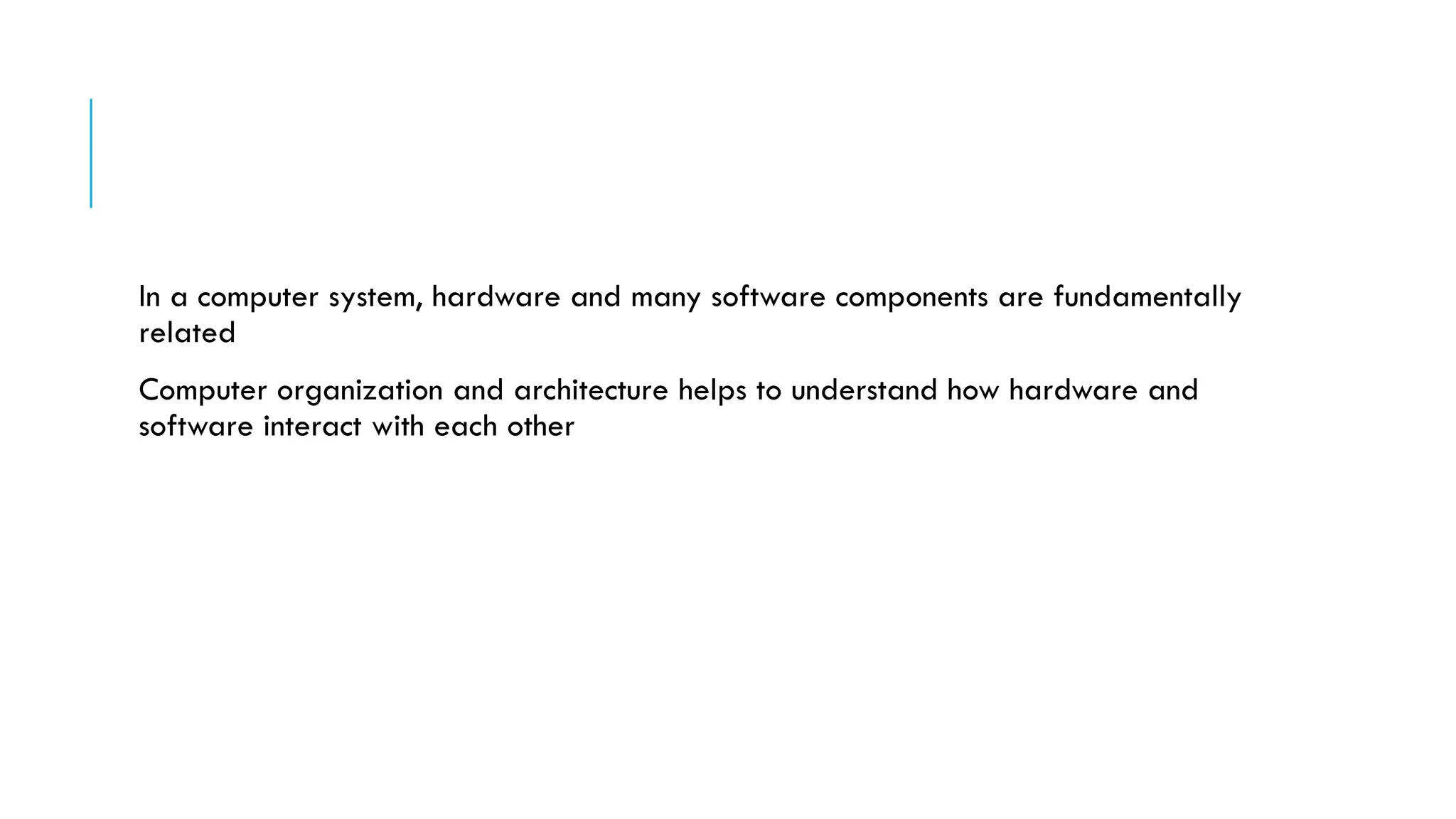

10. In a computer system, hardware and many software components are fundamentally
related
Computer organization and architecture helps to understand how hardware and
software interact with each other

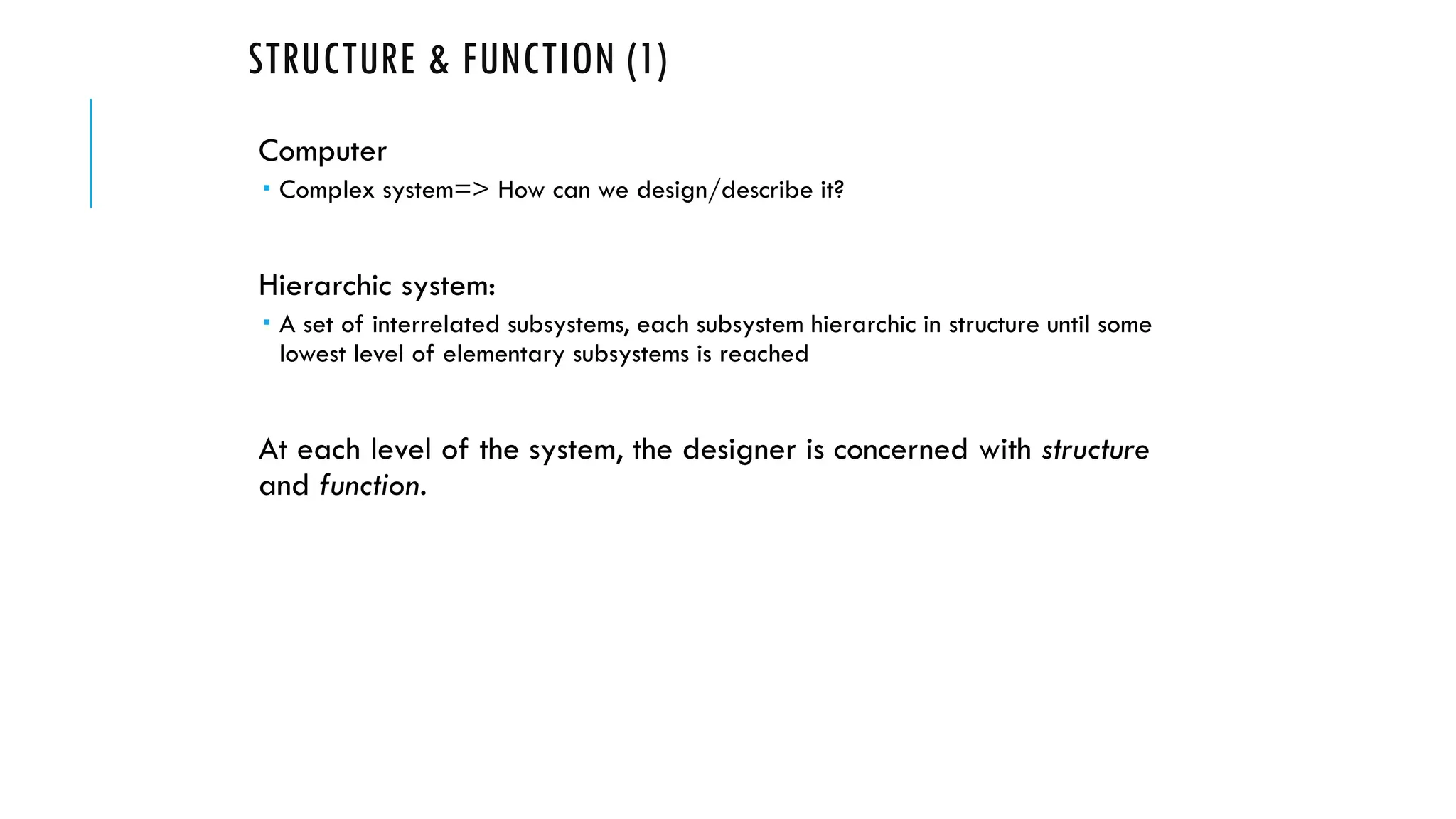

11. STRUCTURE & FUNCTION (1)
Computer
 Complex system=> How can we design/describe it?
Hierarchic system:
 A set of interrelated subsystems, each subsystem hierarchic in structure until some
lowest level of elementary subsystems is reached
At each level of the system, the designer is concerned with structure
and function.

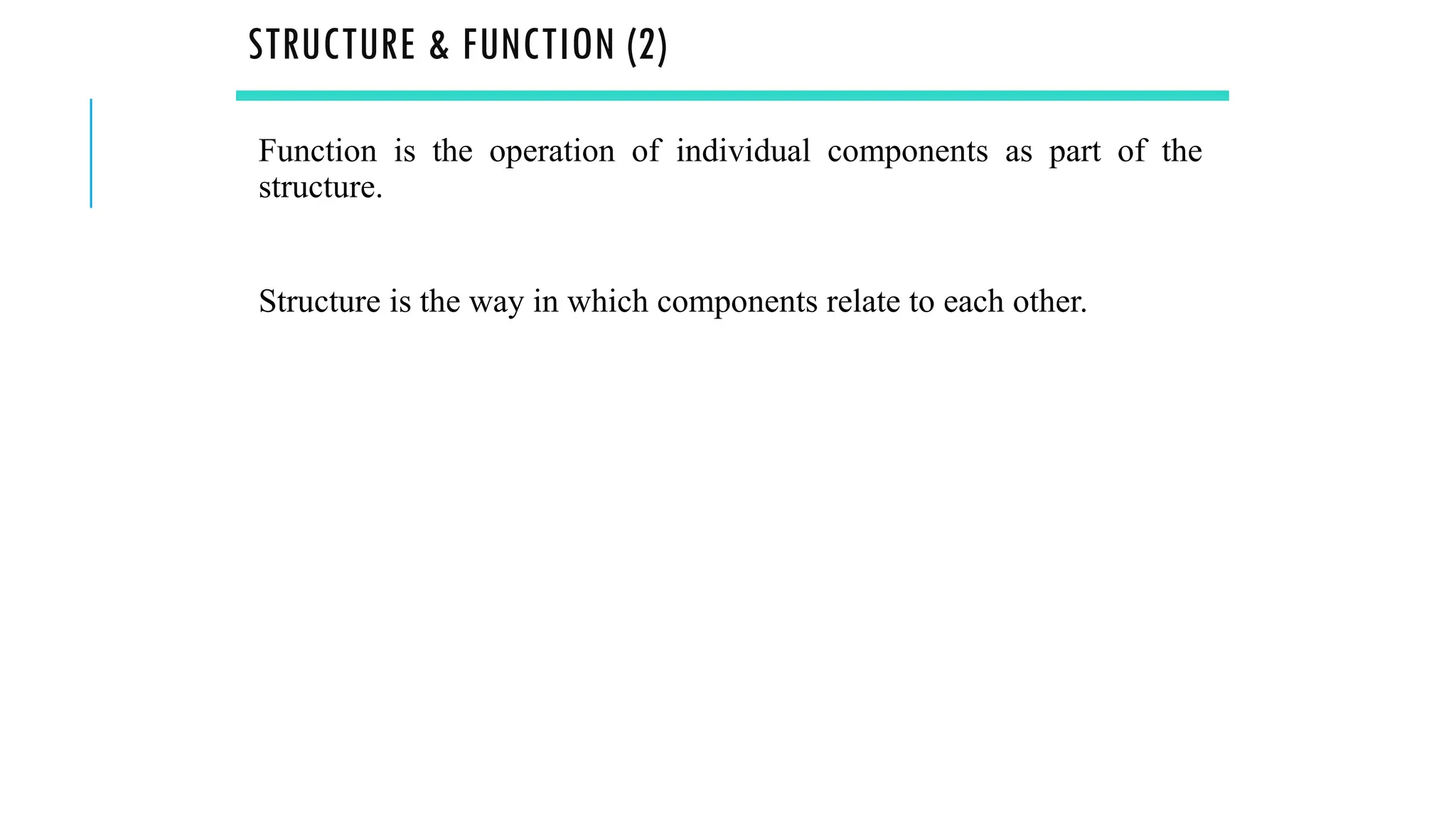

12. STRUCTURE & FUNCTION (2)
Function is the operation of individual components as part of the
structure.
Structure is the way in which components relate to each other.

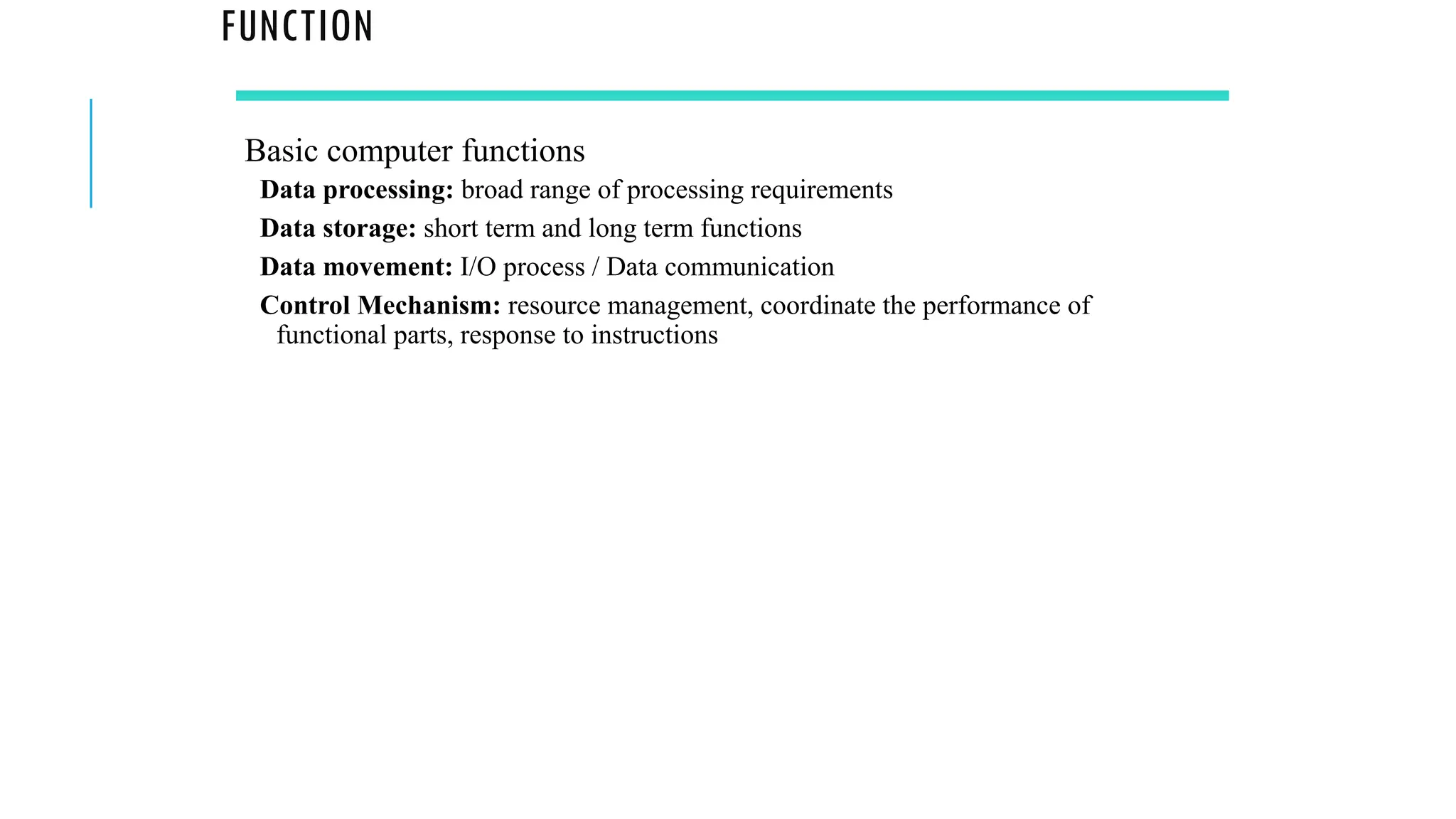

13. FUNCTION
Basic computer functions
Data processing: broad range of processing requirements
Data storage: short term and long term functions
Data movement: I/O process / Data communication
Control Mechanism: resource management, coordinate the performance of
functional parts, response to instructions

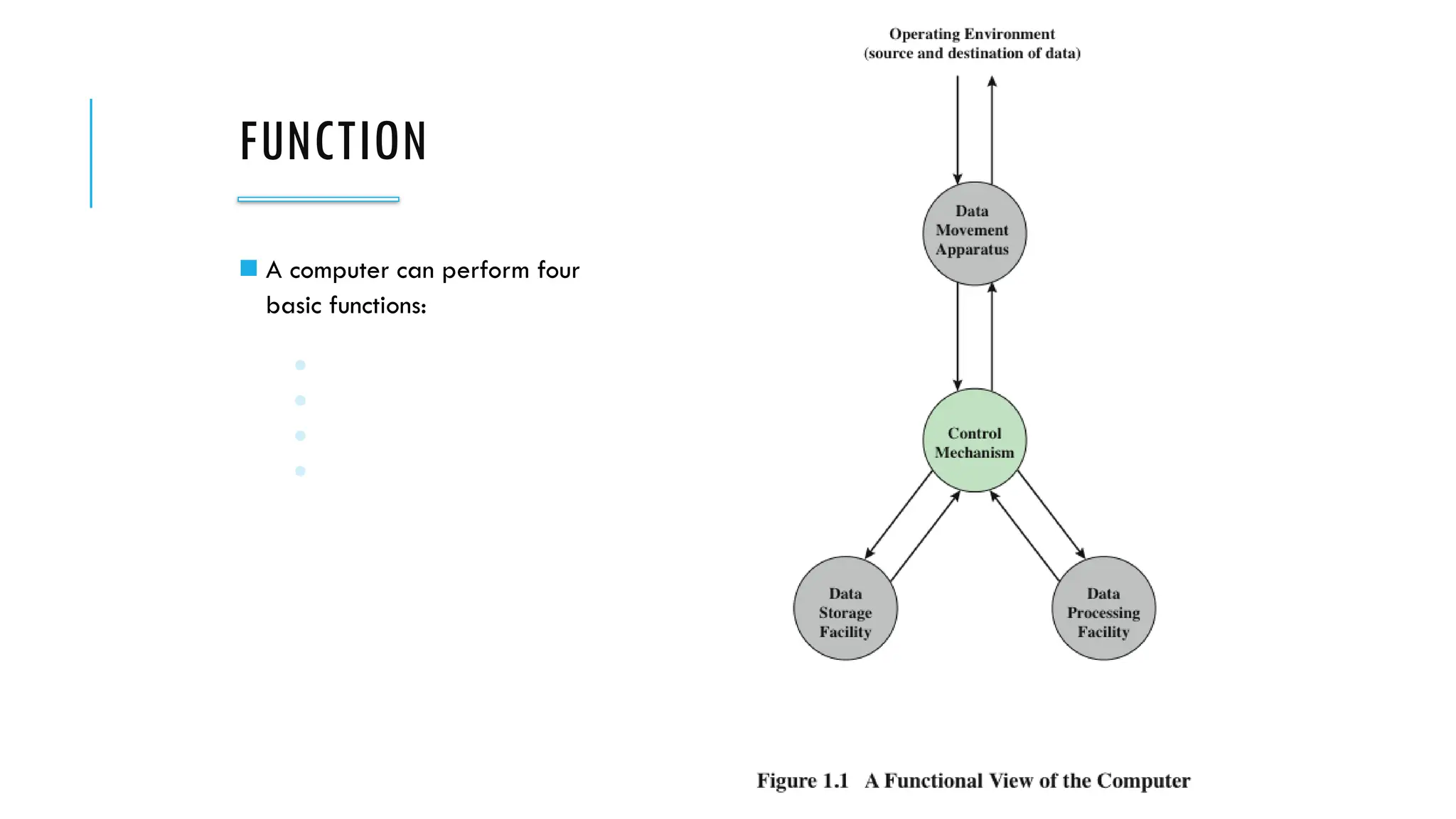

14. FUNCTION
◼ A computer can perform four
basic functions:
● Data processing
● Data storage
● Data movement
● Control

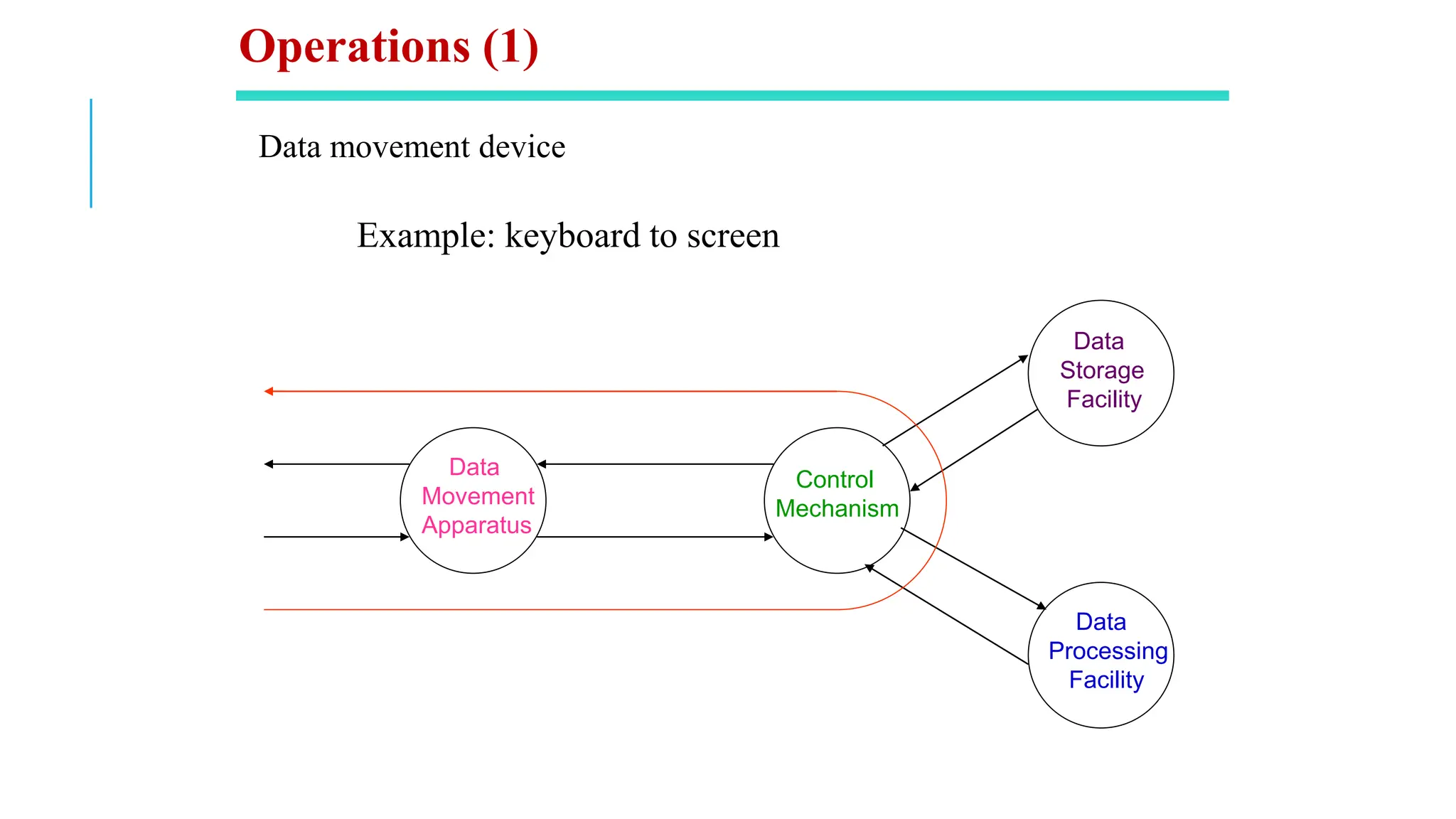

15. Data movement device
Example: keyboard to screen
Data
Movement
Apparatus
Control
Mechanism
Data
Storage
Facility
Data
Processing
Facility
Operations (1)

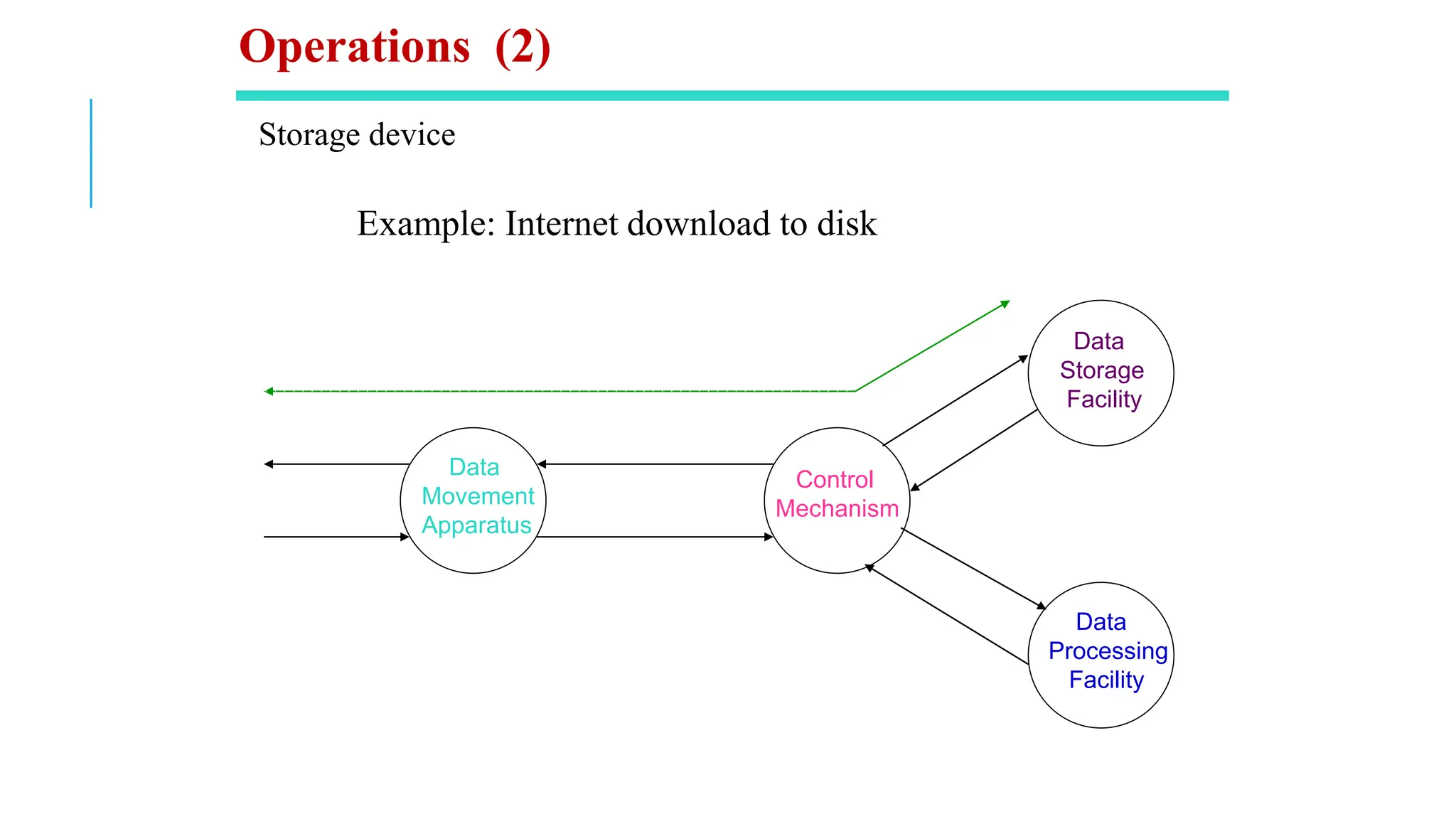

16. Storage device
Example: Internet download to disk
Data
Movement
Apparatus
Control
Mechanism
Data
Storage
Facility
Data
Processing
Facility
Operations (2)

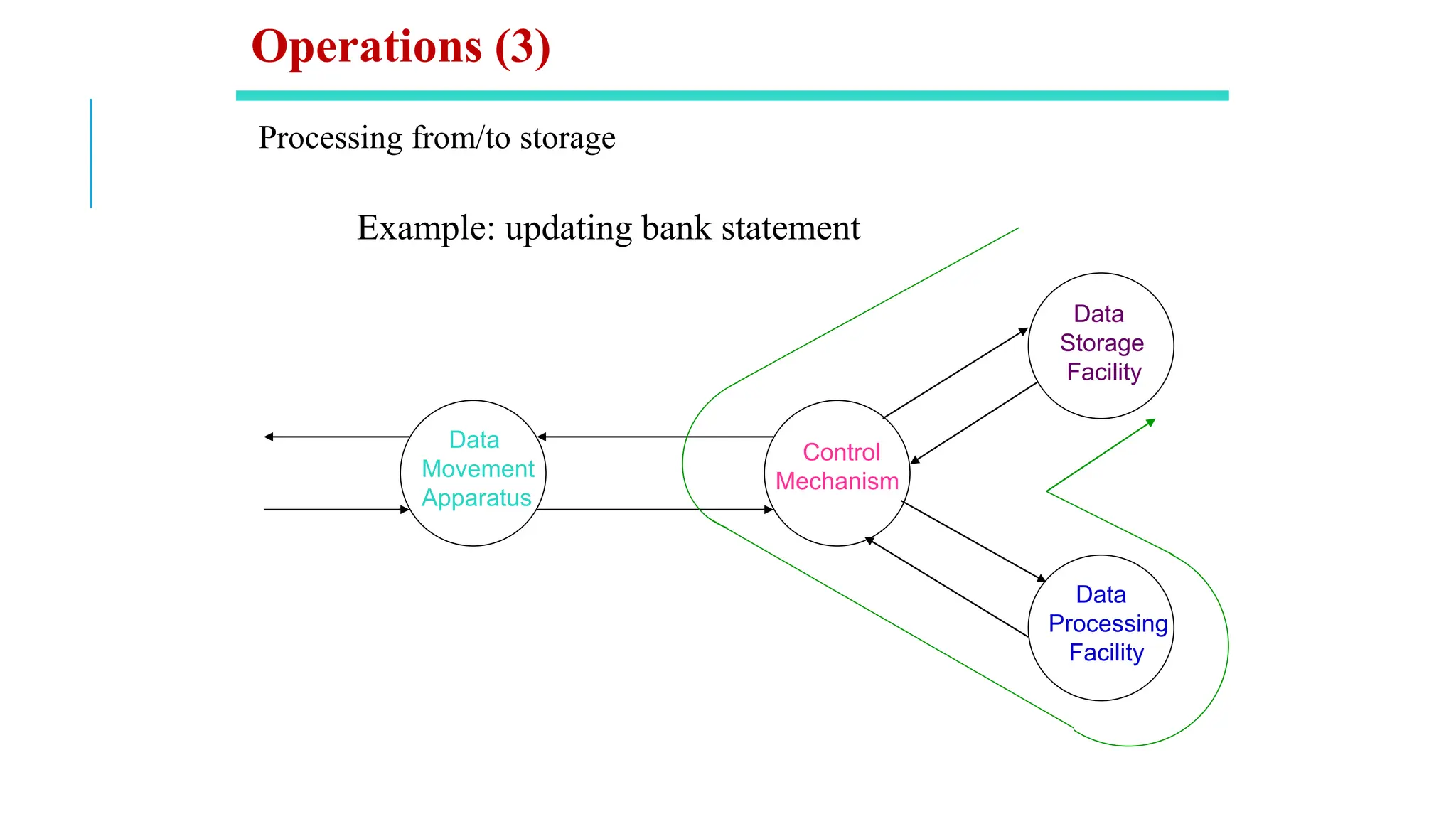

17. Processing from/to storage
Example: updating bank statement
Data
Movement
Apparatus
Control
Mechanism
Data
Storage
Facility
Data
Processing
Facility
Operations (3)

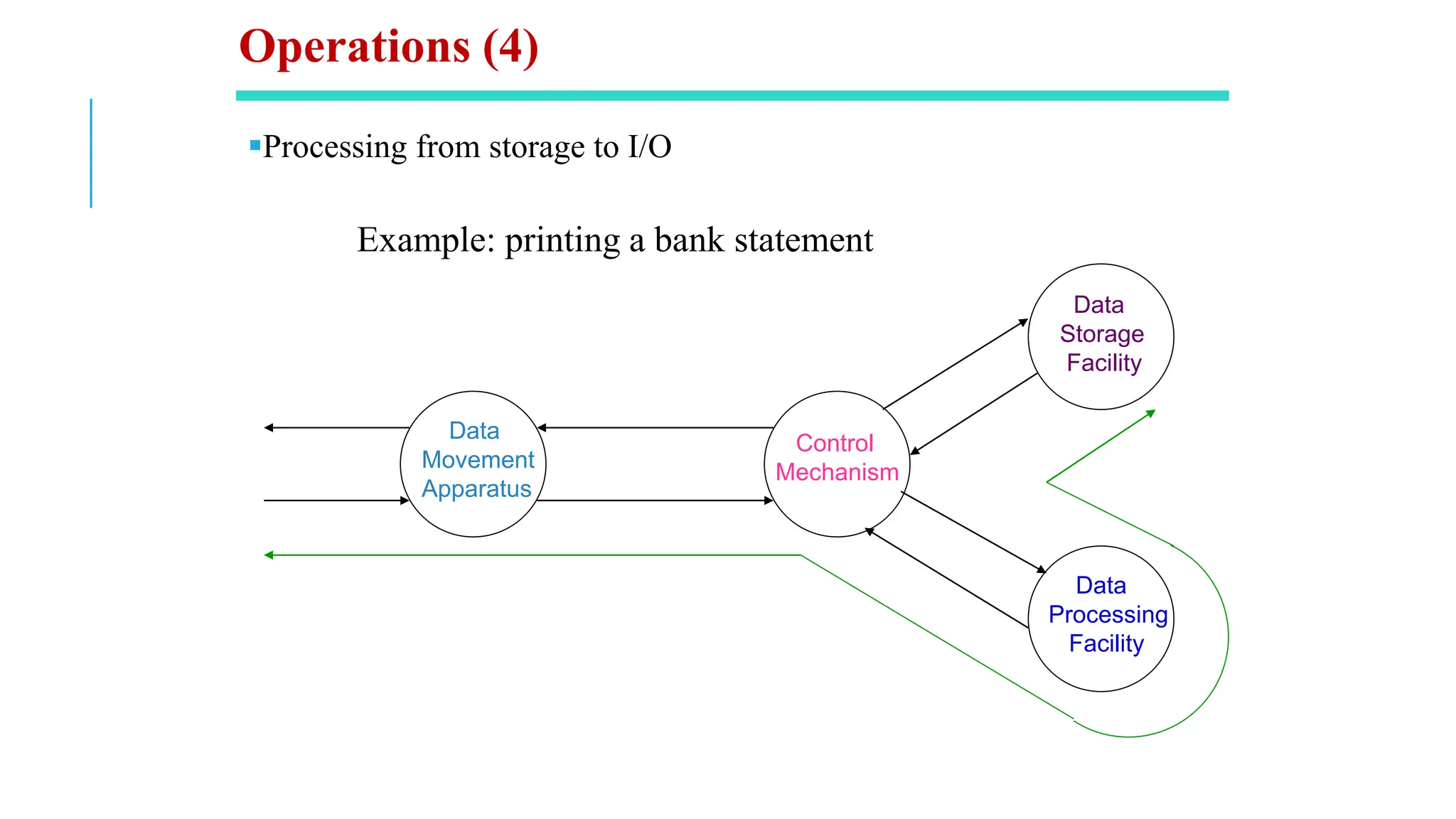

18. ▪Processing from storage to I/O
Example: printing a bank statement
Data
Movement
Apparatus
Control
Mechanism
Data
Storage
Facility
Data
Processing
Facility
Operations (4)

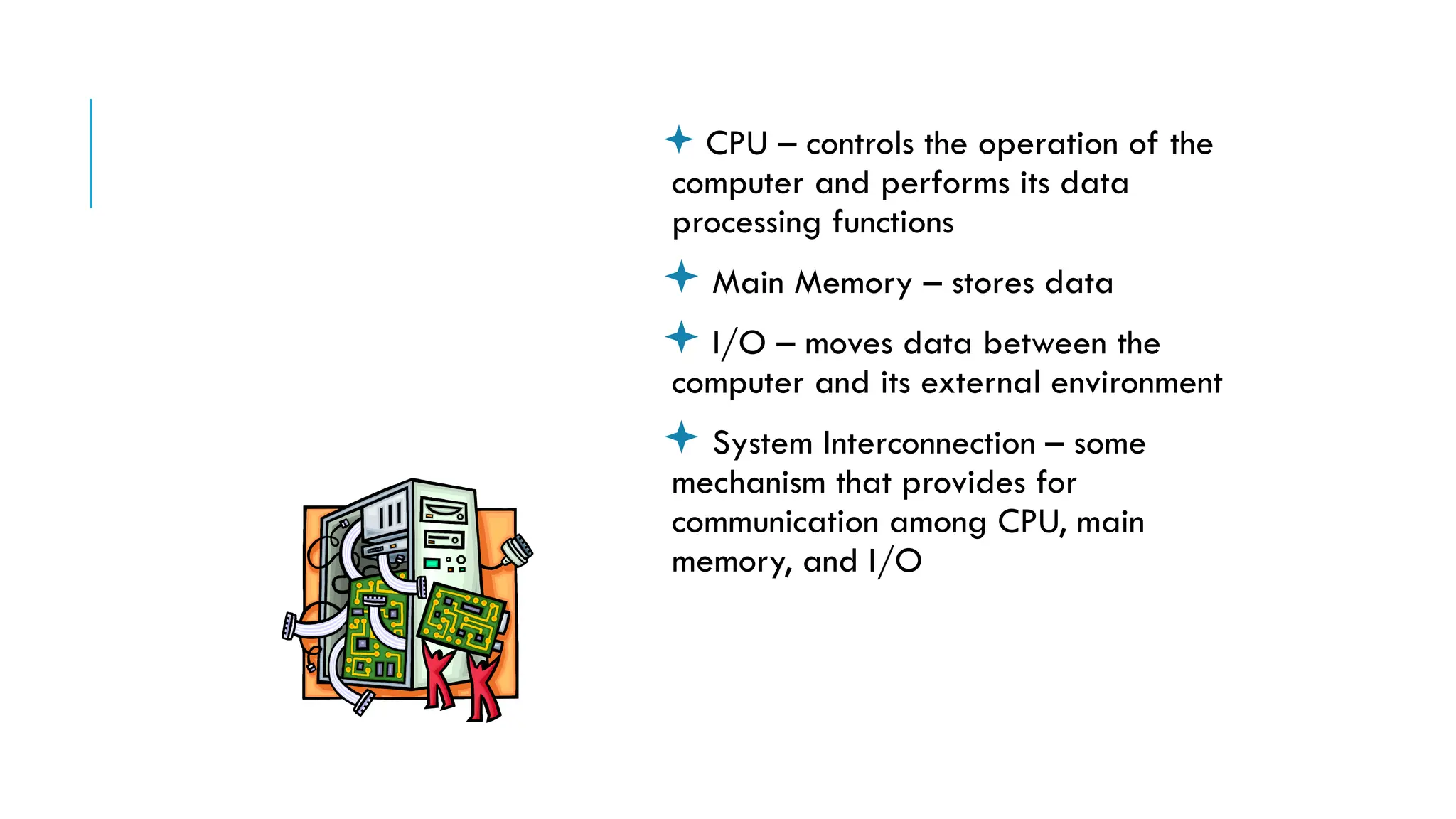

19.  CPU – controls the operation of the
computer and performs its data
processing functions
 Main Memory – stores data
 I/O – moves data between the
computer and its external environment
 System Interconnection – some
mechanism that provides for
communication among CPU, main
memory, and I/O
There are four
main structural
components
of the computer:

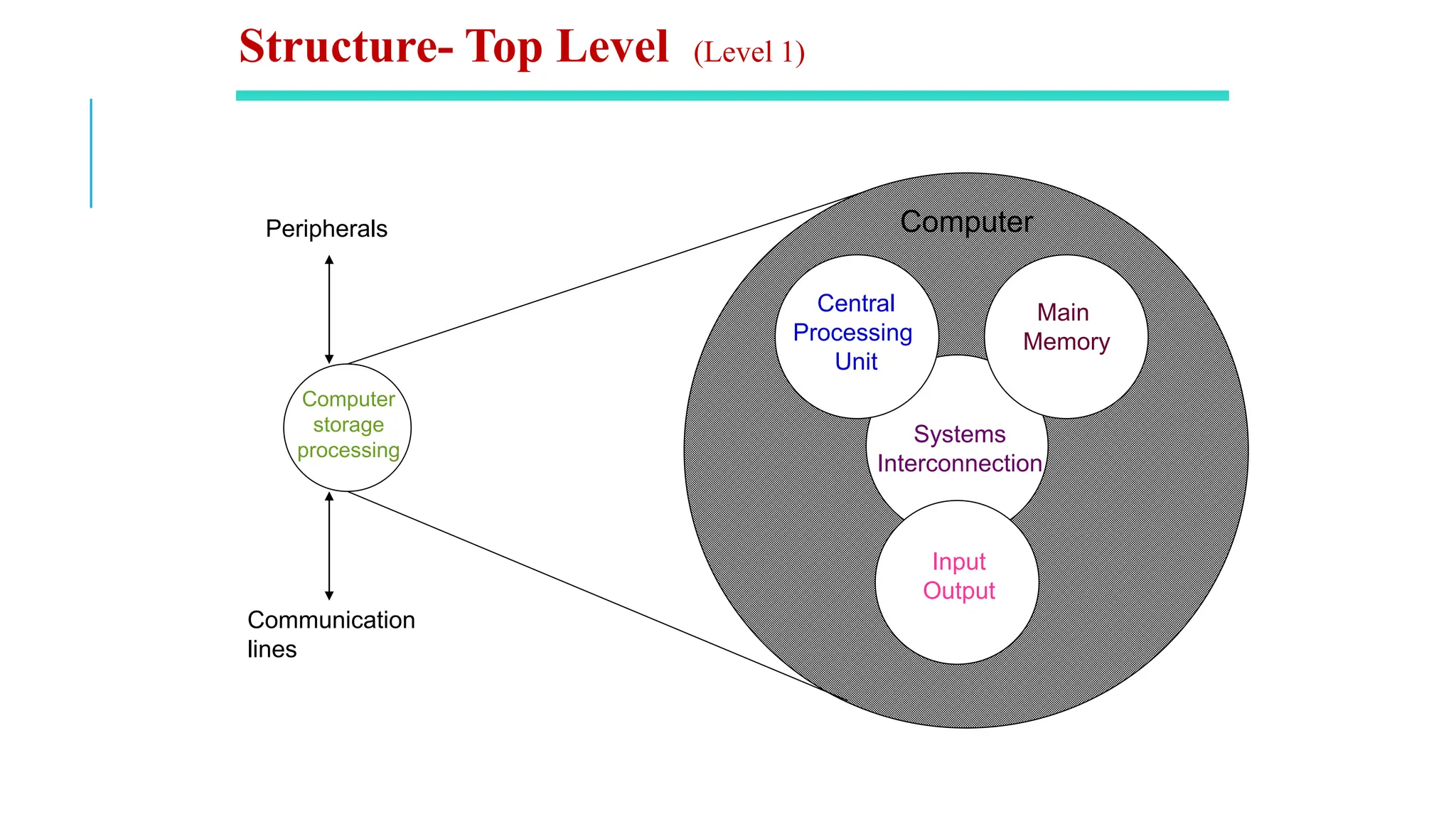

20. Computer
storage
processing
Main
Memory
Input
Output
Systems
Interconnection
Peripherals
Communication
lines
Central
Processing
Unit
Computer
Structure- Top Level (Level 1)

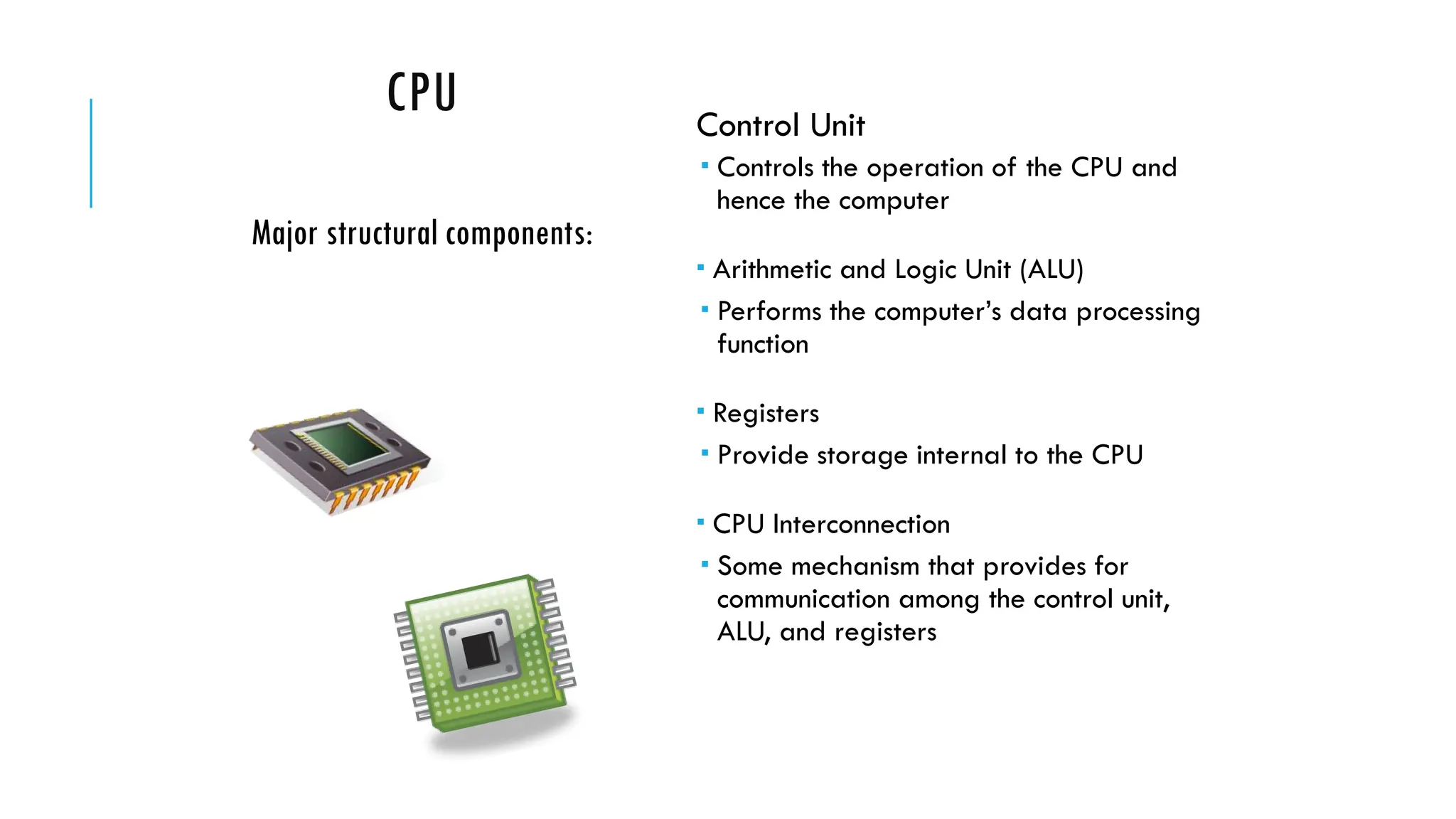

21. CPU Control Unit
 Controls the operation of the CPU and
hence the computer
 Arithmetic and Logic Unit (ALU)
 Performs the computer’s data processing
function
 Registers
 Provide storage internal to the CPU
 CPU Interconnection
 Some mechanism that provides for
communication among the control unit,
ALU, and registers
Major structural components:

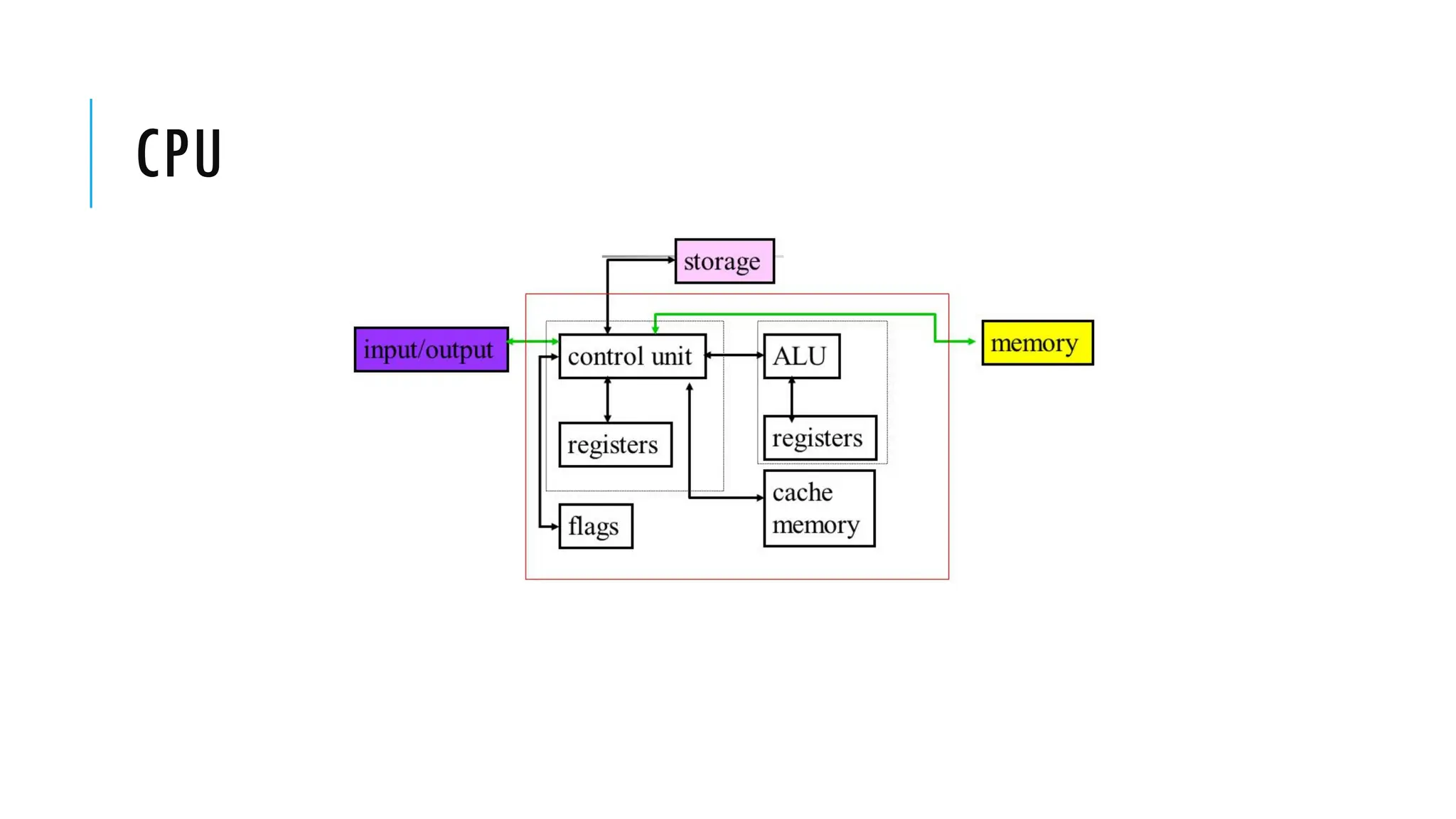

22. CPU

23. Computer Arithmetic
and
Logic Unit
Control
Unit
Internal CPU
Interconnection
Registers
CPU
I/O
Memory
System
Bus
CPU

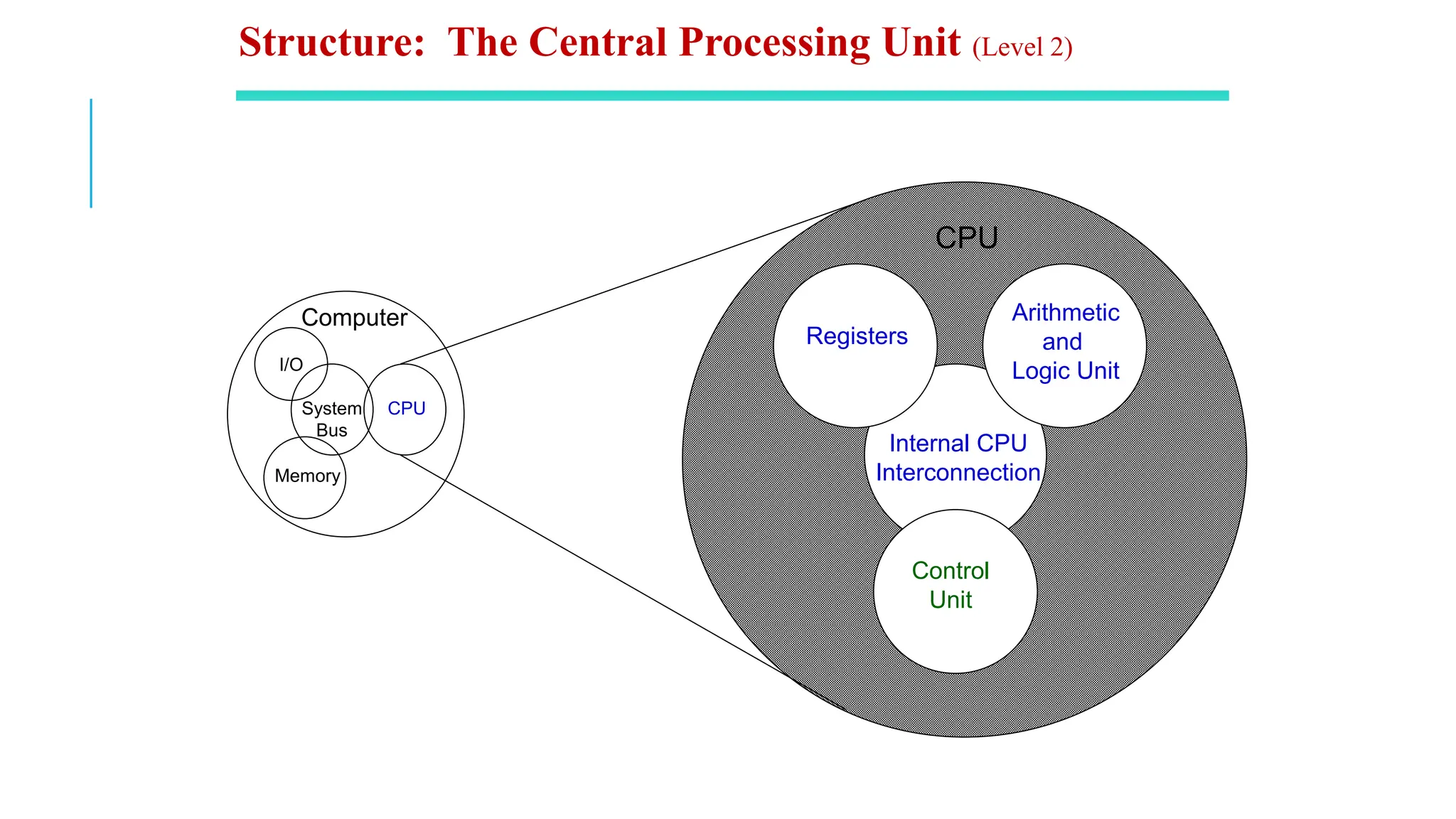

Structure: The Central Processing Unit (Level 2)

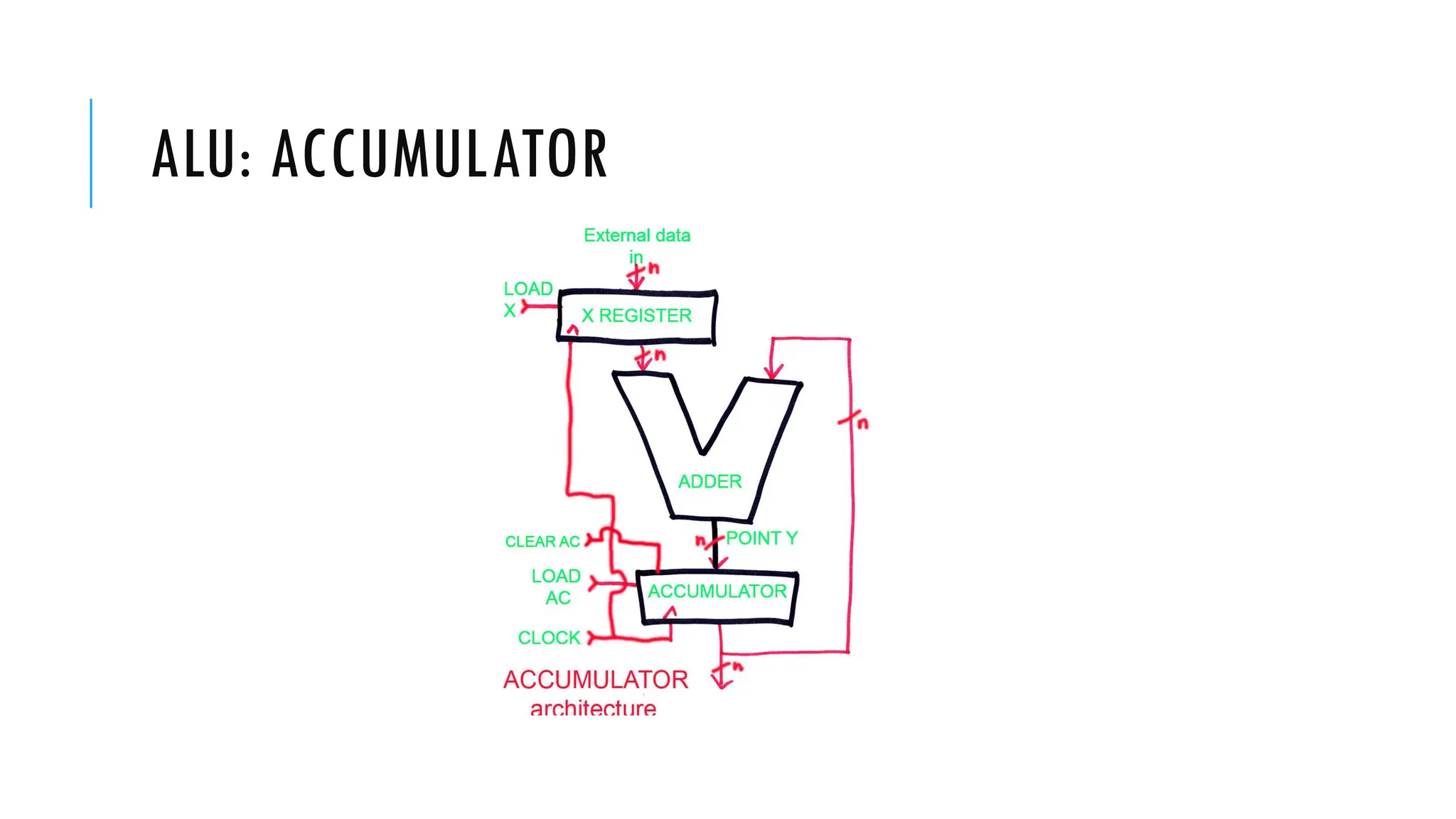

24. ALU: ACCUMULATOR

25. CPU
Control
Memory
Control Unit
Registers and
Decoders
Sequencing
Logic
Control
Unit
ALU
Registers
Internal
Bus
Control Unit
Structure: Control Unit (Level 3)

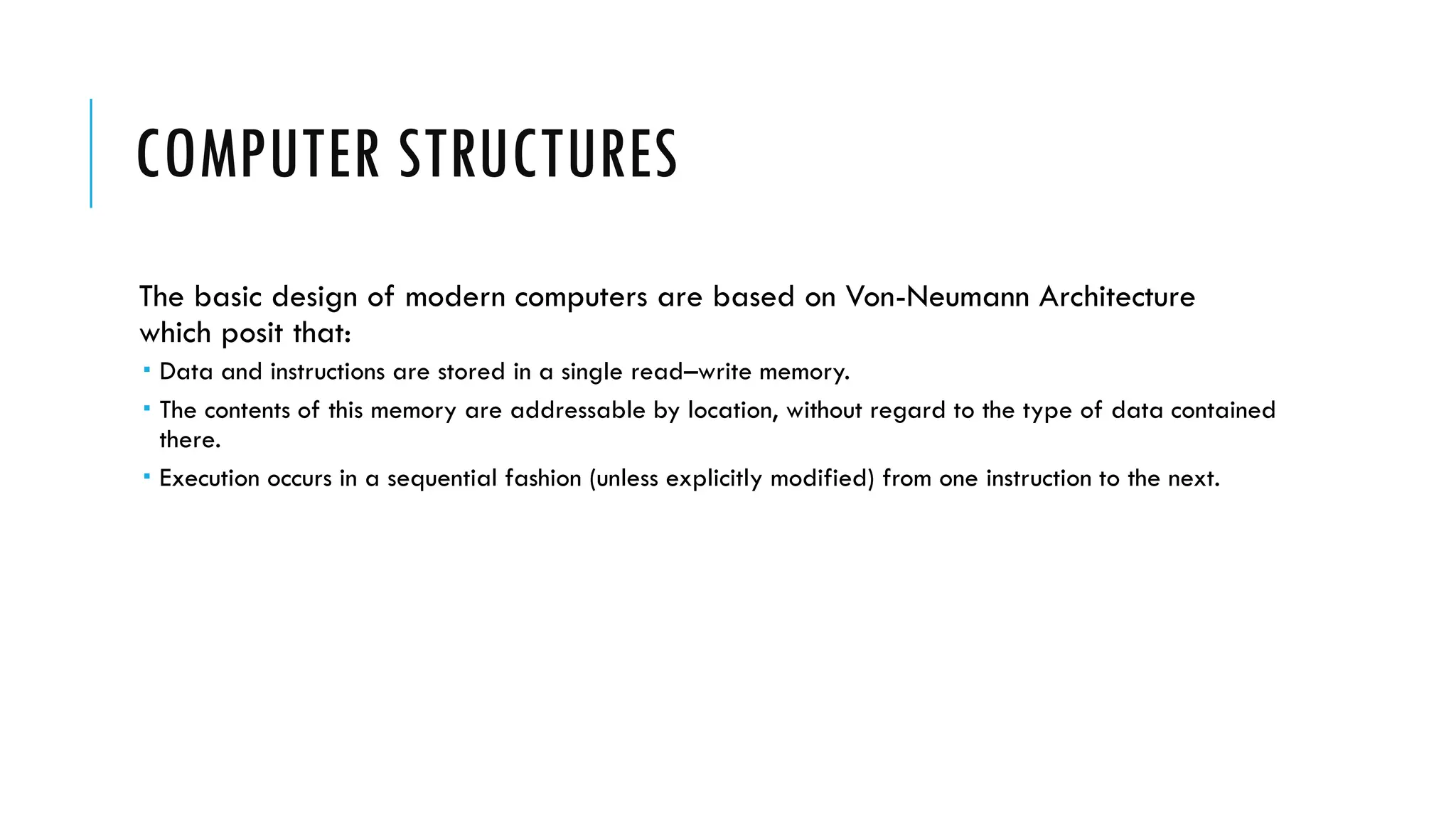

26. COMPUTER STRUCTURES
The basic design of modern computers are based on Von-Neumann Architecture
which posit that:
 Data and instructions are stored in a single read–write memory.
 The contents of this memory are addressable by location, without regard to the type of data contained
there.
 Execution occurs in a sequential fashion (unless explicitly modified) from one instruction to the next.

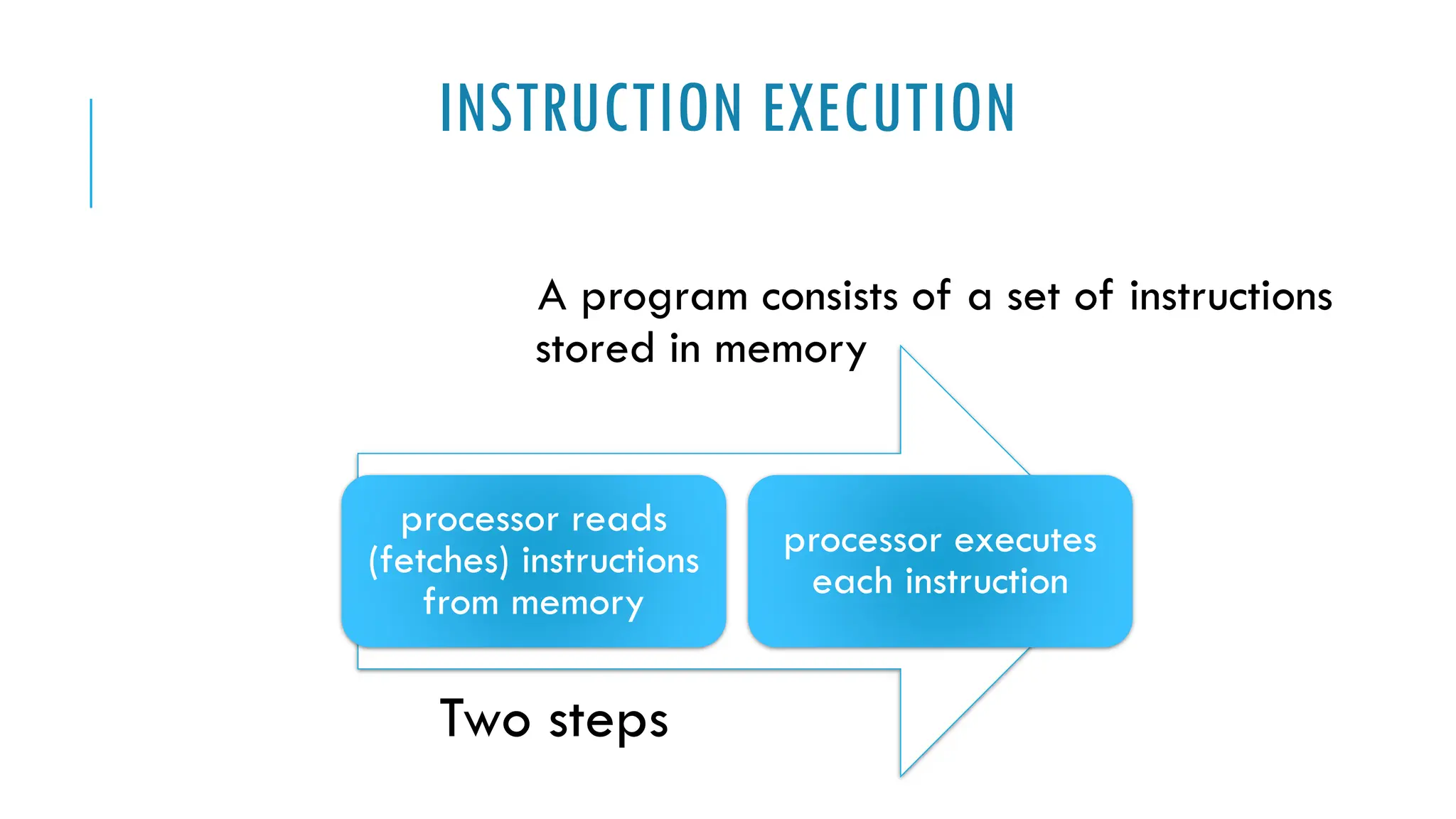

27. INSTRUCTION EXECUTION
A program consists of a set of instructions
stored in memory
processor reads
(fetches) instructions
from memory
processor executes
each instruction
Two steps

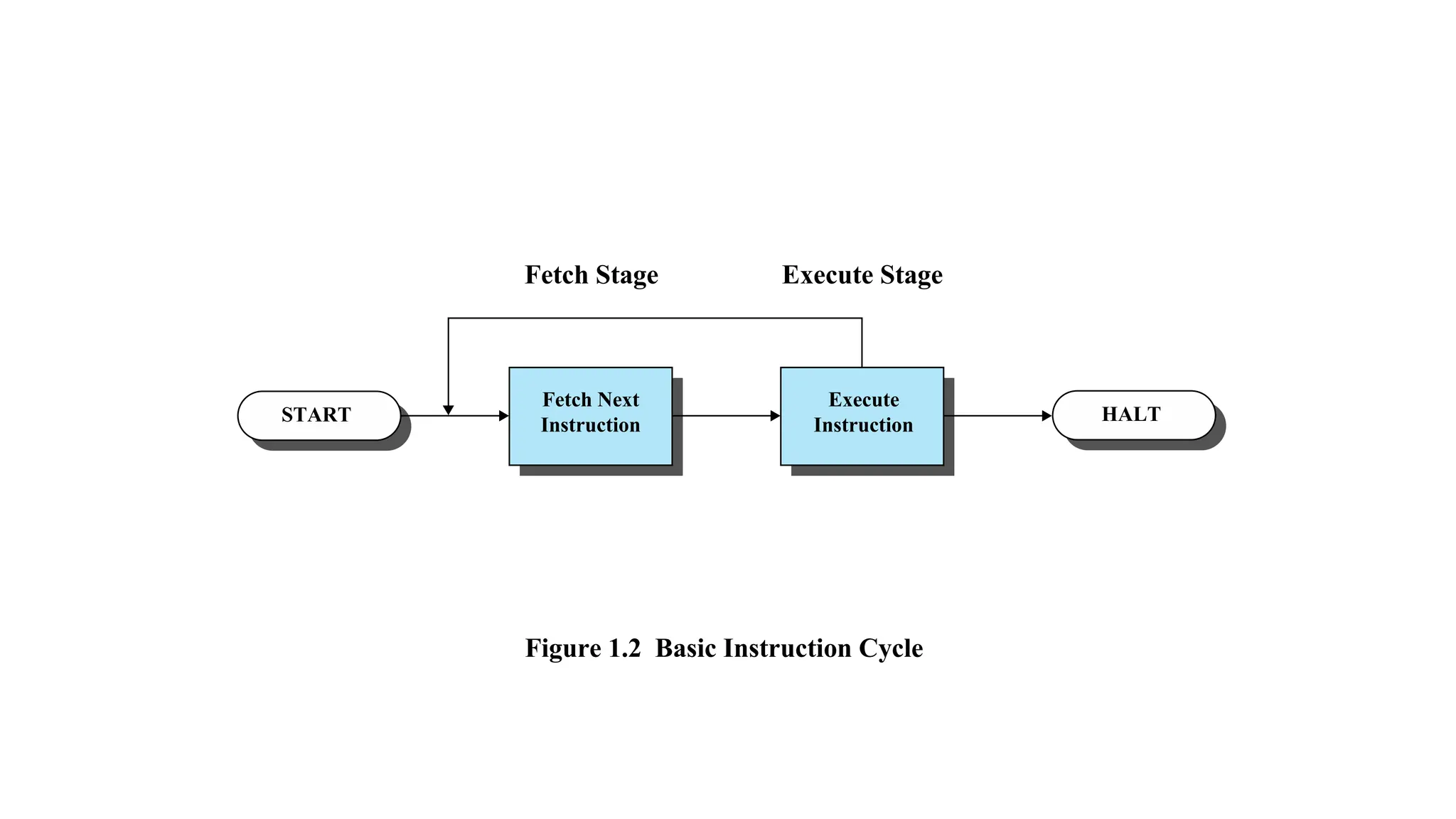

28. START HALT
Fetch Next
Instruction
Fetch Stage Execute Stage
Execute
Instruction
Figure 1.2 Basic Instruction Cycle

29. INSTRUCTION FETCH
AND EXECUTE
The processor fetches the instruction from memory
Program counter (PC) holds address of the
instruction to be fetched next
▪PC is incremented after each fetch

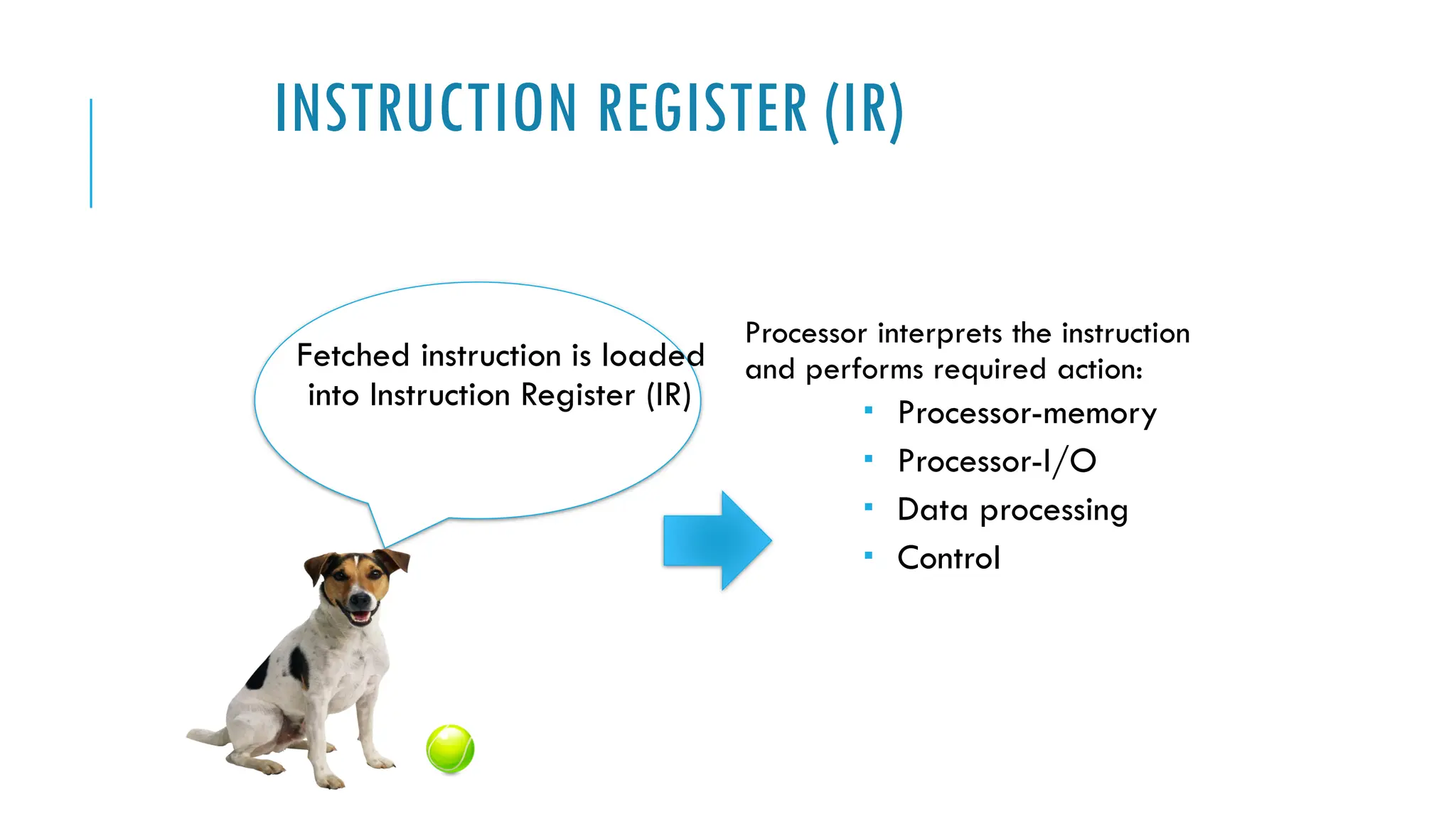

30. INSTRUCTION REGISTER (IR)
Fetched instruction is loaded
into Instruction Register (IR)
Processor interprets the instruction
and performs required action:
 Processor-memory
 Processor-I/O
 Data processing
 Control

31. INTERRUPTS
Interrupt the normal sequencing of the processor
Provided to improve processor utilization
 most I/O devices are slower than the processor
 processor must pause to wait for device
 wasteful use of the processor

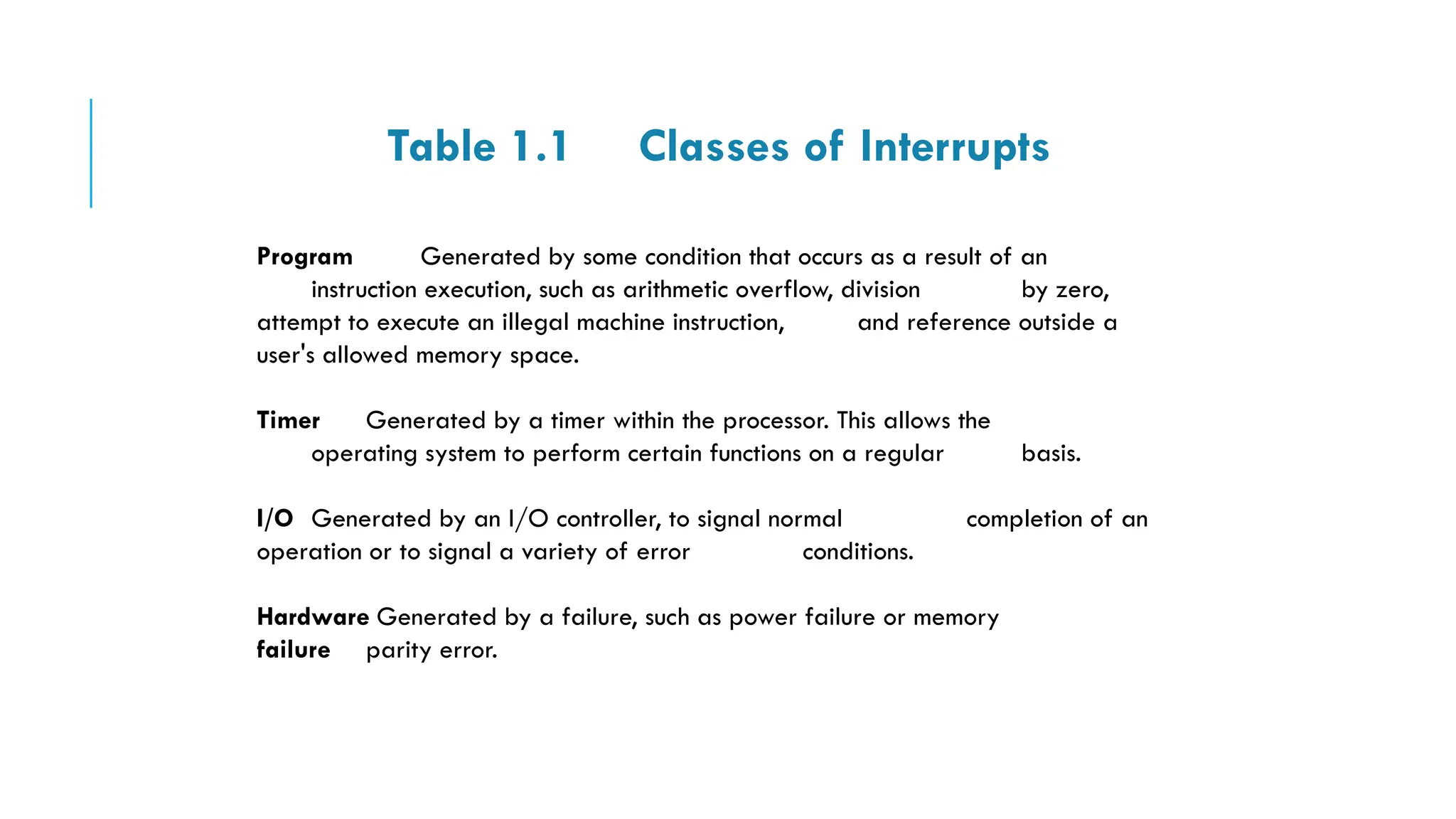

32. Table 1.1 Classes of Interrupts
Program Generated by some condition that occurs as a result of an
instruction execution, such as arithmetic overflow, division by zero,
attempt to execute an illegal machine instruction, and reference outside a
user's allowed memory space.
Timer Generated by a timer within the processor. This allows the
operating system to perform certain functions on a regular basis.
I/O Generated by an I/O controller, to signal normal completion of an
operation or to signal a variety of error conditions.
Hardware Generated by a failure, such as power failure or memory
failure parity error.

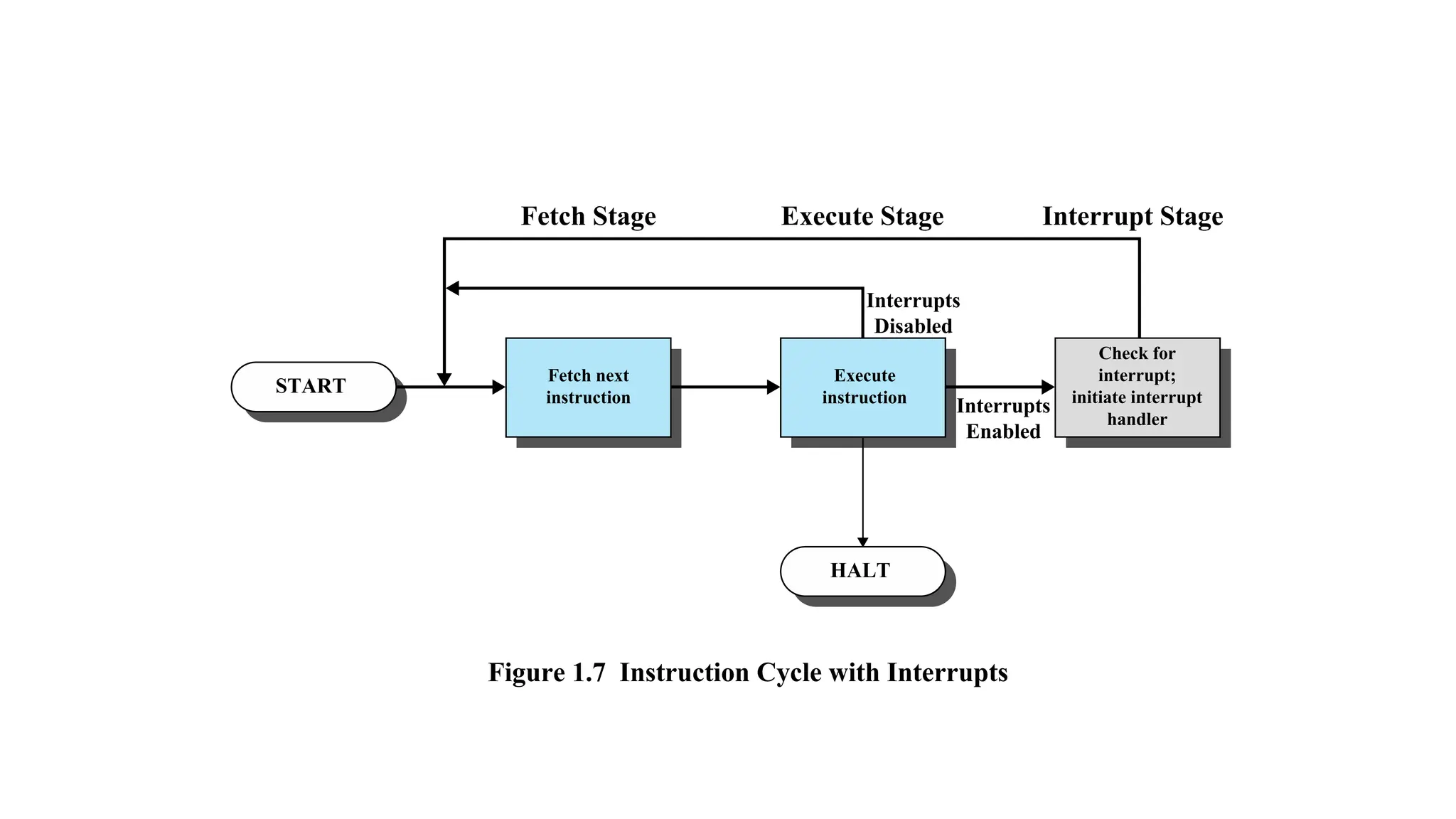

33. START
HALT
Fetch next
instruction
Fetch Stage Execute Stage Interrupt Stage
Interrupts
Disabled
Interrupts
Enabled
Execute
instruction
Check for
interrupt;
initiate interrupt
handler
Figure 1.7 Instruction Cycle with Interrupts

34. MEMORY HIERARCHY
Major constraints in memory
▪amount
▪speed
▪expense
Memory must be able to keep up with the processor
Cost of memory must be reasonable in relationship to the other
components

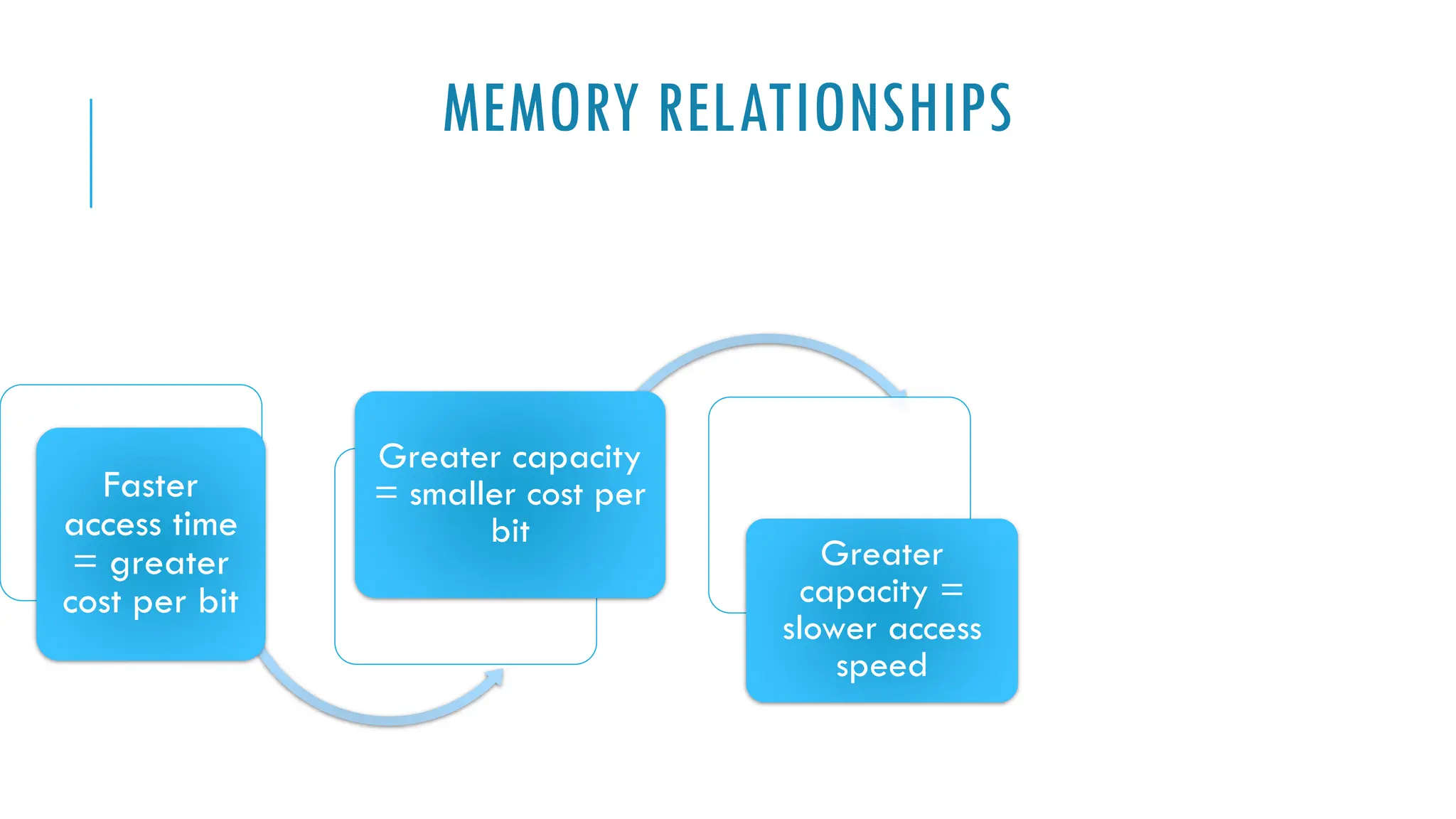

35. MEMORY RELATIONSHIPS
Faster
access time
= greater
cost per bit
Greater capacity
= smaller cost per
bit
Greater
capacity =
slower access
speed

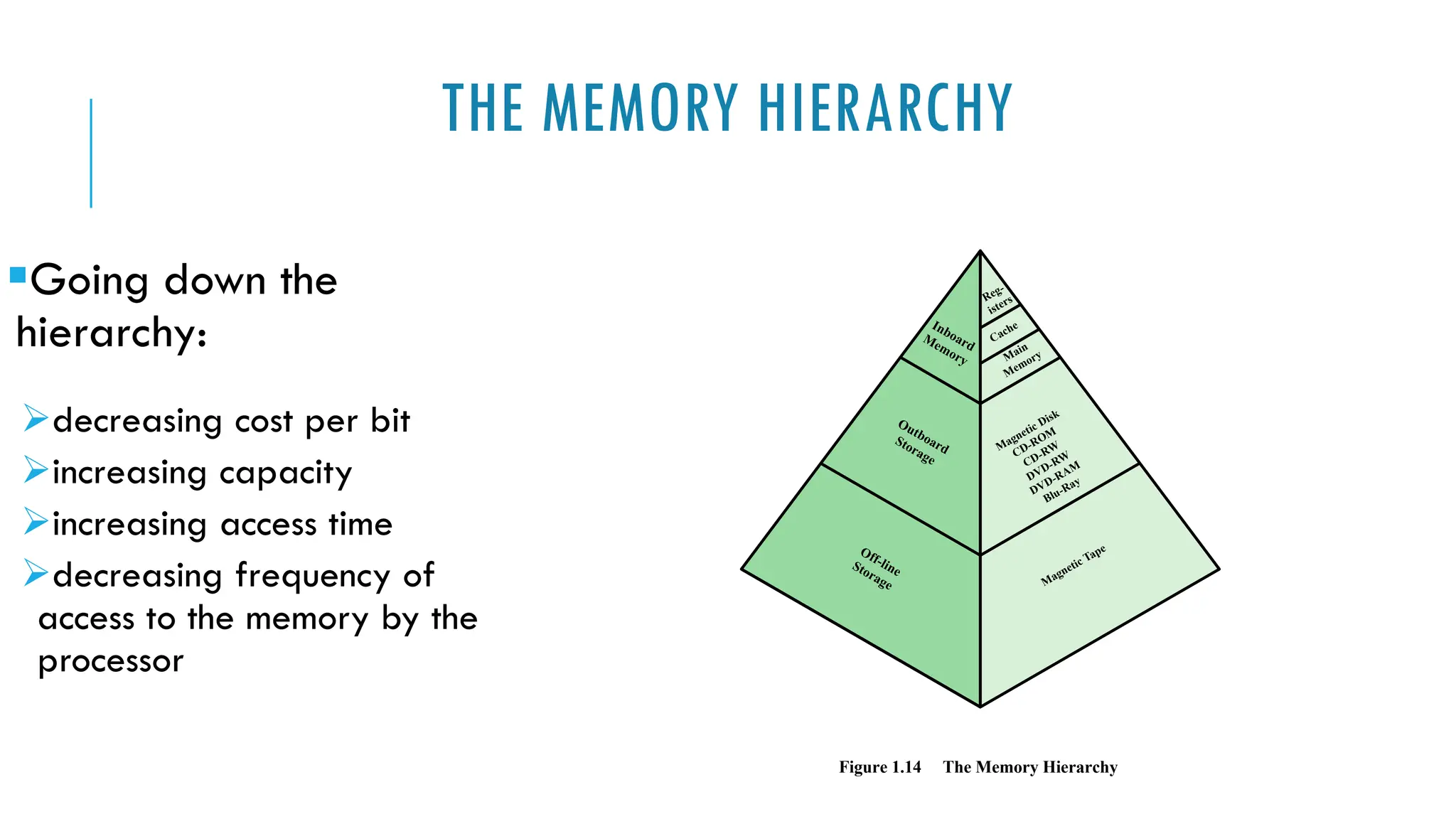

36. THE MEMORY HIERARCHY
▪Going down the
hierarchy:
➢decreasing cost per bit
➢increasing capacity
➢increasing access time
➢decreasing frequency of
access to the memory by the
processor
Figure 1.14 The Memory Hierarchy
Inboard
Memory
Outboard
Storage
Off-line
Storage
Main
Memory
Magnetic Disk
CD-ROM
CD-RW
DVD-RW
DVD-RAM
Blu-Ray
Magnetic Tape
Cache
Reg-
isters

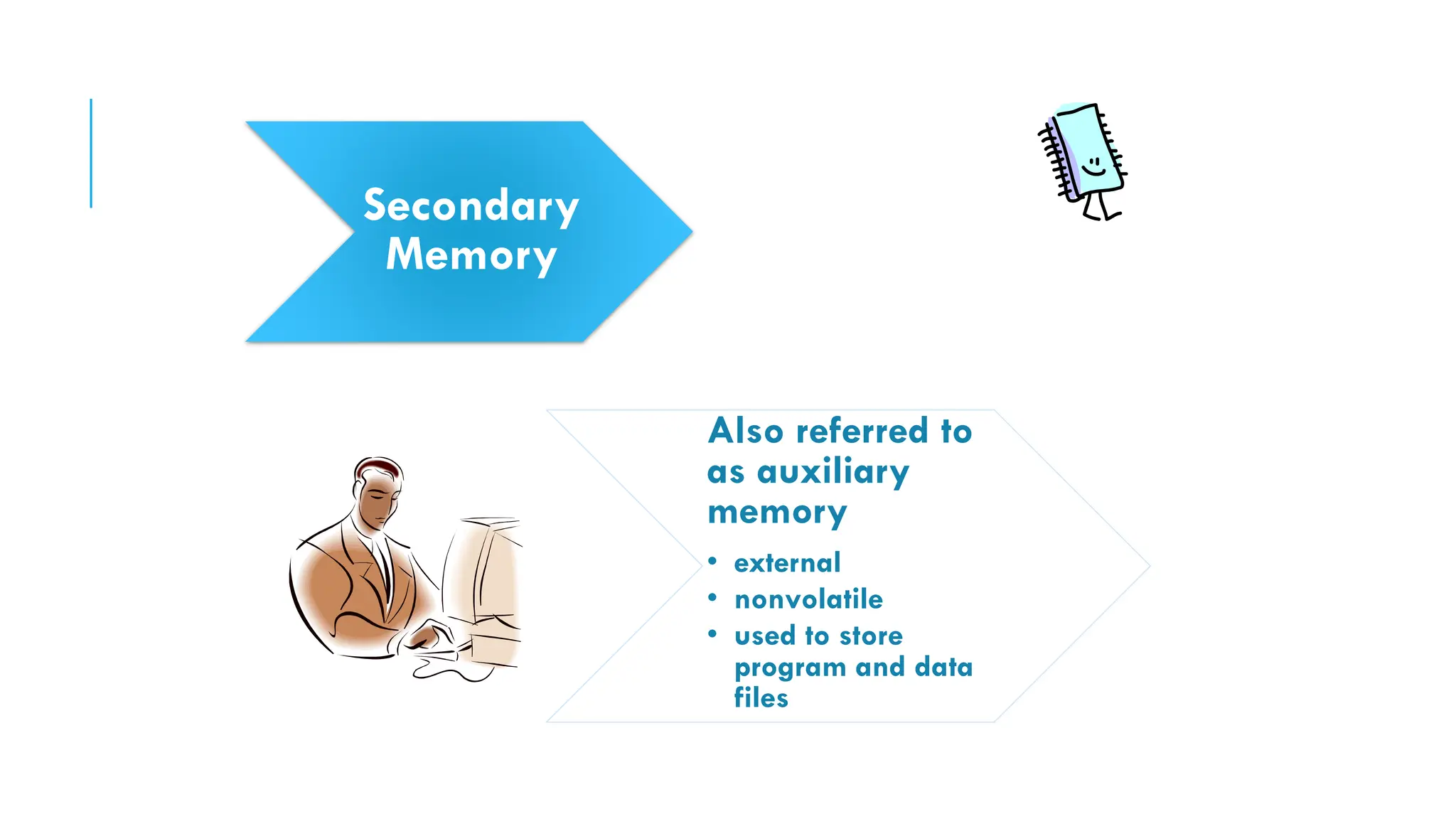

37. Secondary
Memory
Also referred to
as auxiliary
memory
• external
• nonvolatile
• used to store
program and data
files

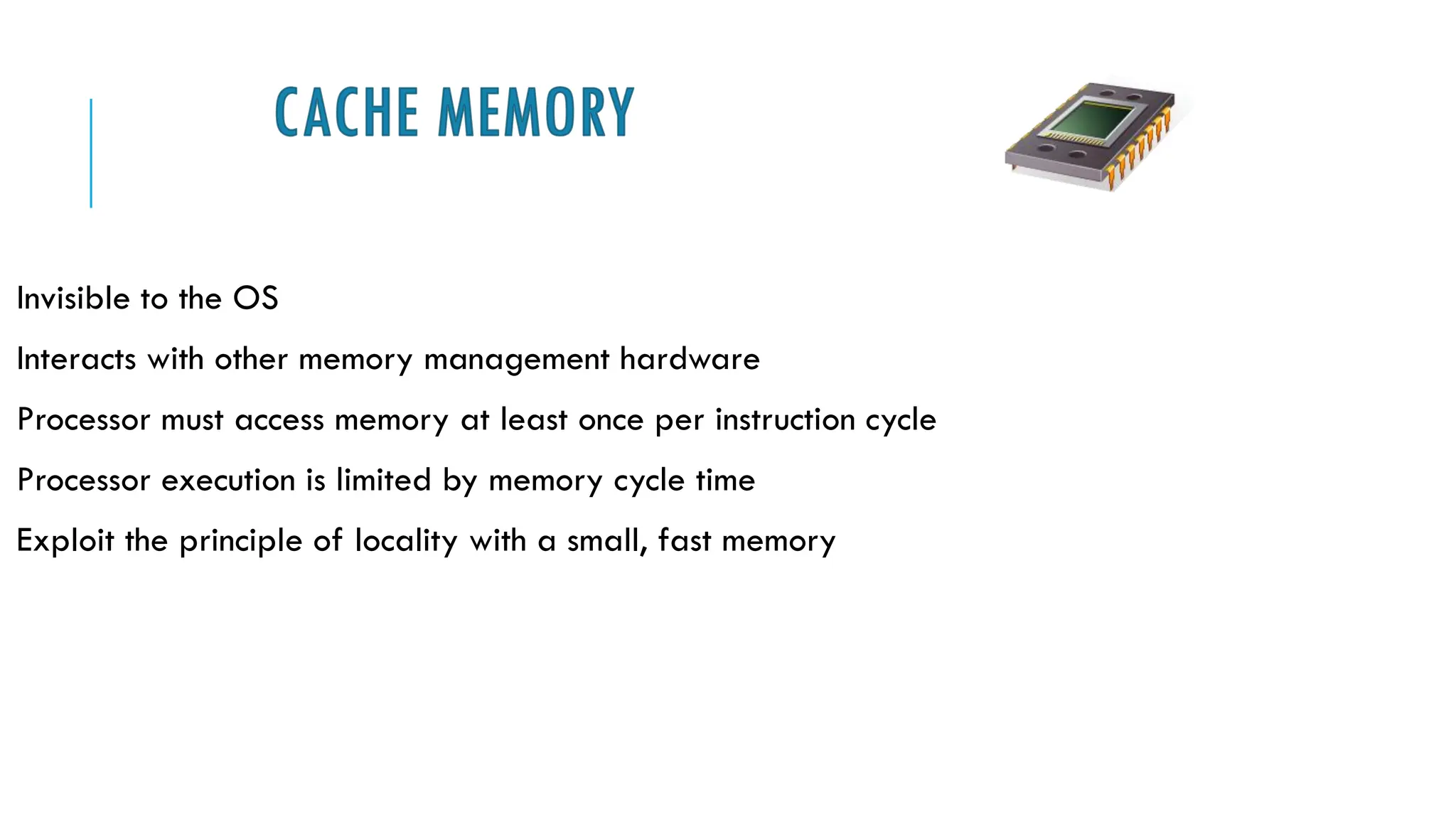

38. CACHE MEMORY
Invisible to the OS
Interacts with other memory management hardware
Processor must access memory at least once per instruction cycle
Processor execution is limited by memory cycle time
Exploit the principle of locality with a small, fast memory

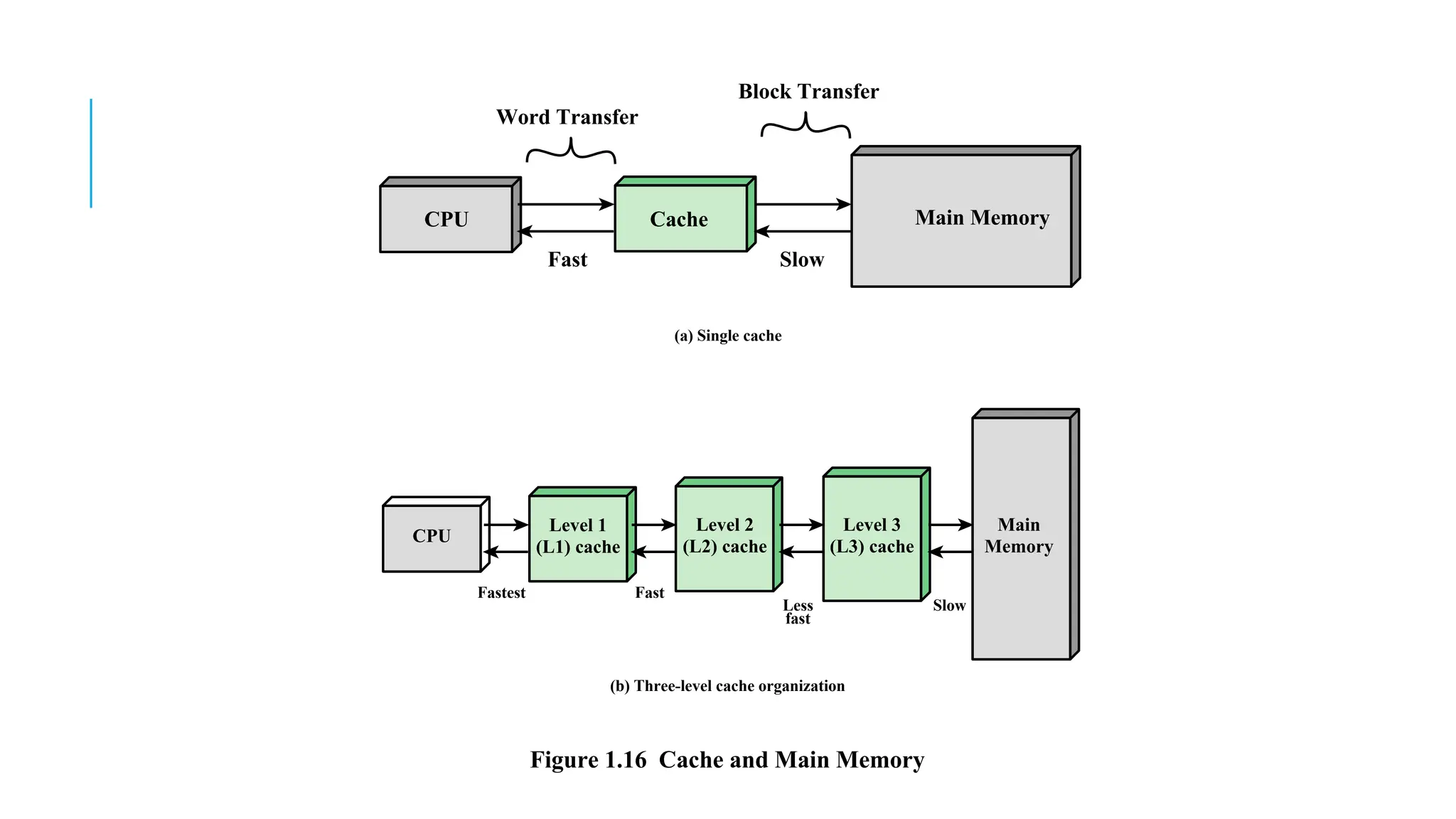

39. CPU
Word Transfer
Fast
Fastest Fast
Less
fast
Slow
Slow
Block Transfer
Cache Main Memory
Figure 1.16 Cache and Main Memory
(a) Single cache
(b) Three-level cache organization
CPU
Level 1
(L1) cache
Level 2
(L2) cache
Level 3
(L3) cache
Main
Memory
