1. DATA SHEET
The technical specifications are subject to variations without warning
LINE CONCENTRATOR FOR SIMPLEBUS VIDEO SYSTEMS
Line concentrator for Simplebus video system. Allows distribution of the signal on 9 risers.
Does not require a power supply. Only to be mounted on the part of the system on input
into the mixers art. 4888CU Simplebus 1 part. Dimensions: 2.6?x3.3?x1.4?. (4 DIN
modules).
COD. 4834/9
General info
Product height (mm): 85
Product width (mm): 66
Product depth (mm): 35
Operating temperature (°C): 0/30
EAN product code: 8023903178784
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Mounting/Installation
Wall-mounted: No
DIN rail mounted: Yes
DIN modules (no.): 4
Audio/video specifications
Audio system: No
Audio/video system: Yes
Packaging
Single pack height (mm): 93
Single pack width (mm): 70
Single pack weight (Kg): 0,09
Single pack depth (mm): 37

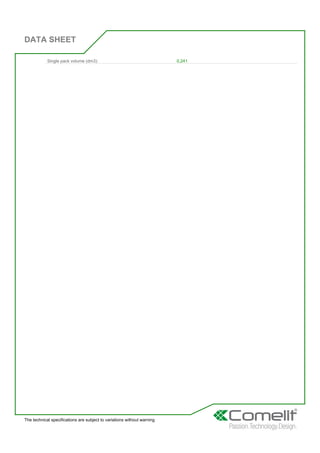

2. DATA SHEET
The technical specifications are subject to variations without warning
Single pack volume (dm3): 0,241
