Cocos2D is an open source 2D game framework for building games and interactive applications. It is built on top of OpenGL and supports multi-platform development for iOS, Android, Mac OS X and more. Cocos2D provides a scene graph structure and classes like CCNode, CCLayer and CCSprite that make it easy to build 2D games. It includes features like actions, effects, tiled maps and a physics engine. Cocos2D games are easy to develop and it has a large community and tools to support game development.

1. Cocos2D

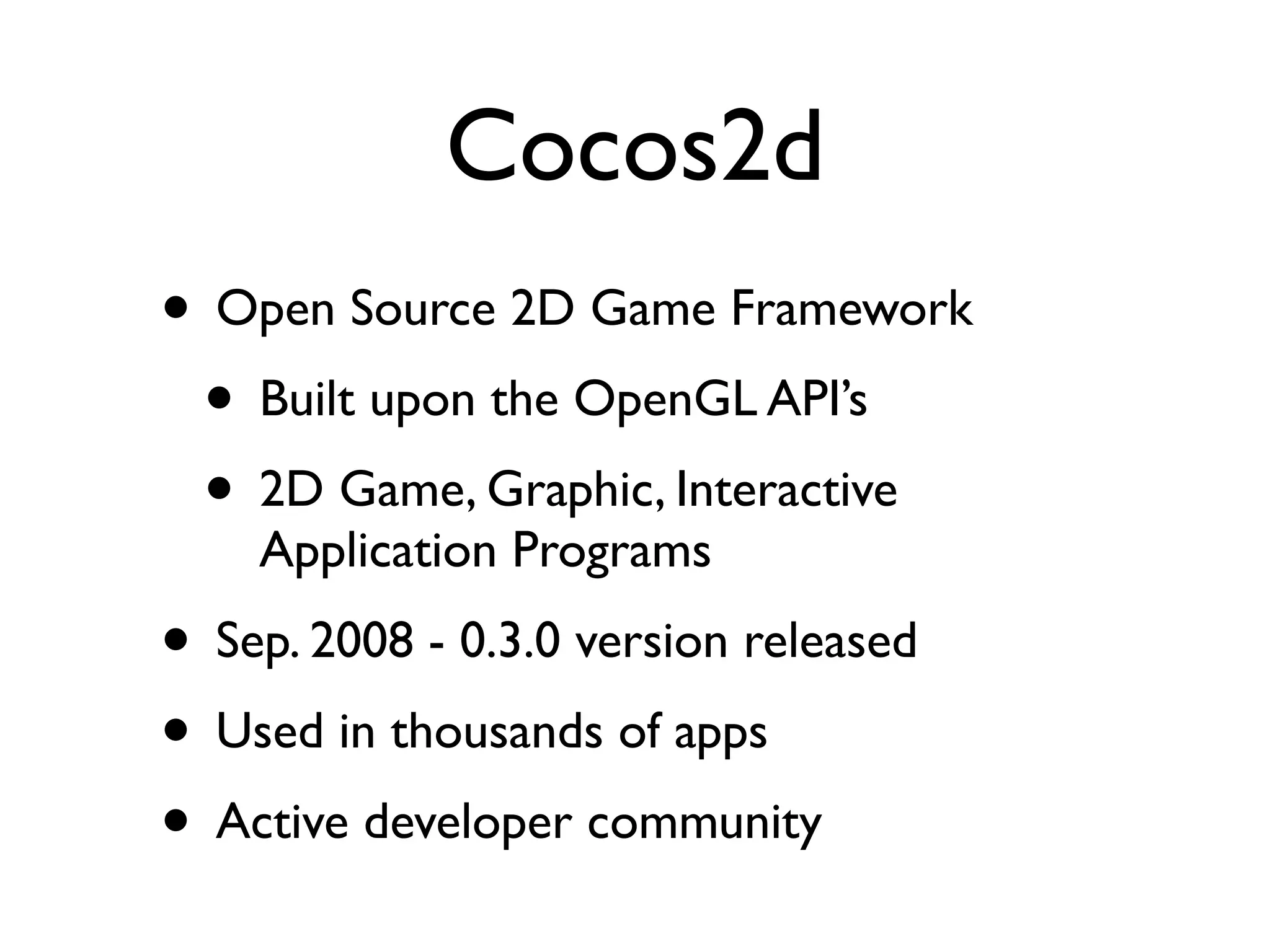

2. Cocos2d
• Open Source 2D Game Framework
• Built upon the OpenGL API’s
• 2D Game, Graphic, Interactive
Application Programs
• Sep. 2008 - 0.3.0 version released
• Used in thousands of apps
• Active developer community

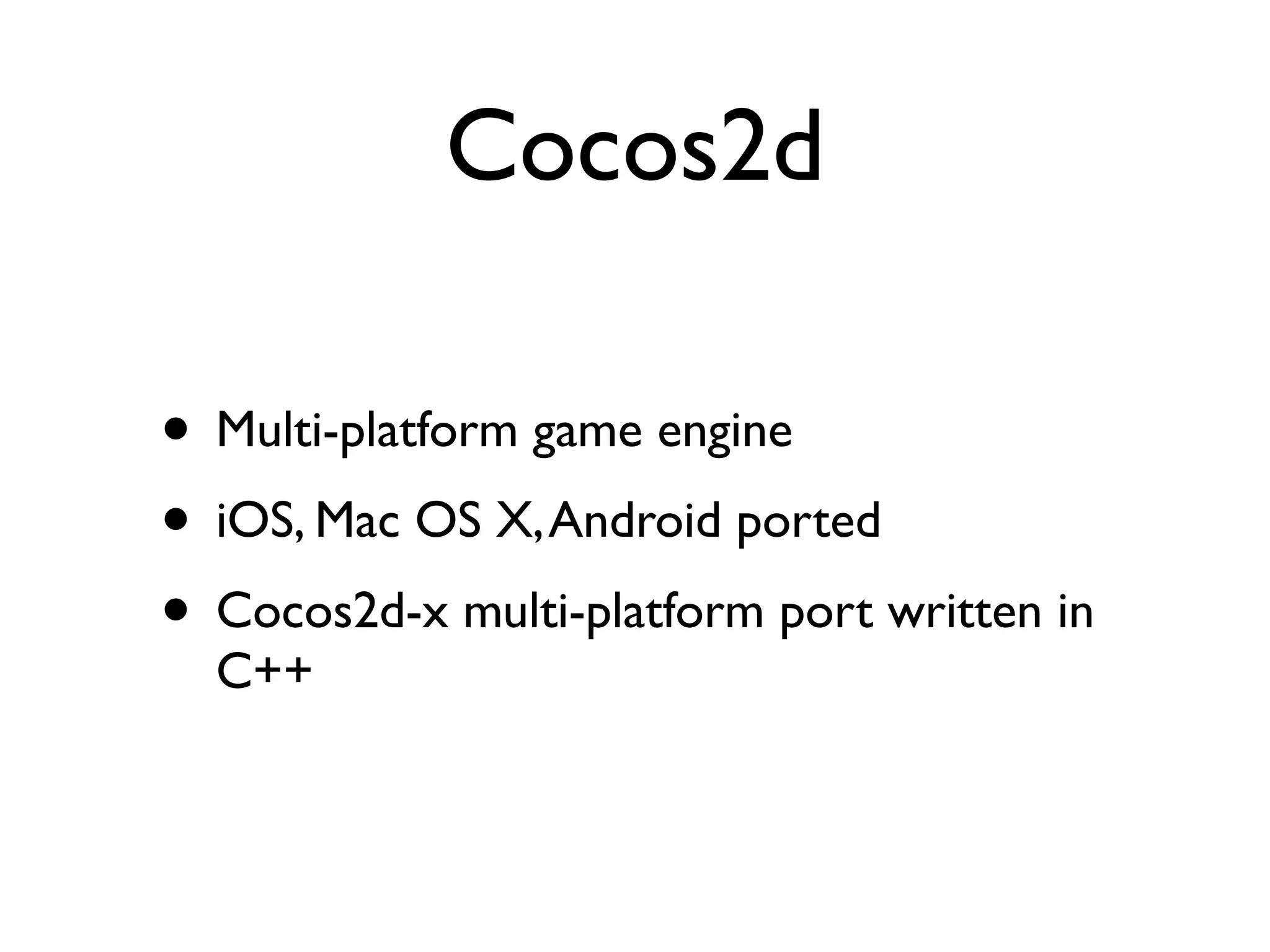

3. Cocos2d
• Multi-platform game engine
• iOS, Mac OS X, Android ported
• Cocos2d-x multi-platform port written in
C++

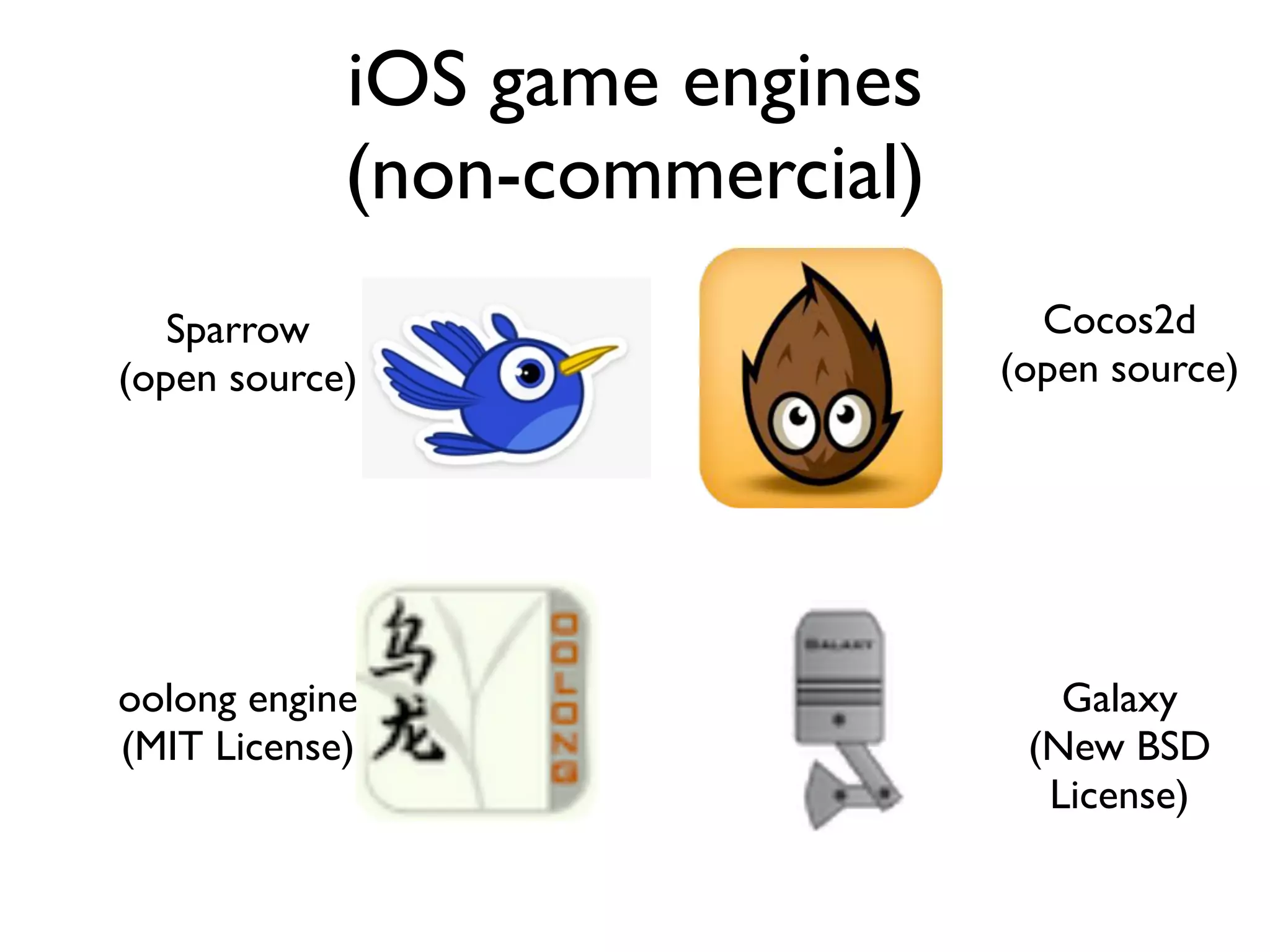

4. iOS game engines
(non-commercial)
Sparrow Cocos2d
(open source) (open source)
oolong engine Galaxy
(MIT License) (New BSD
License)

5. iOS game engines
(commercial)
Unreal Game salad
Dev Kit
Unity
SIO2
And much more...

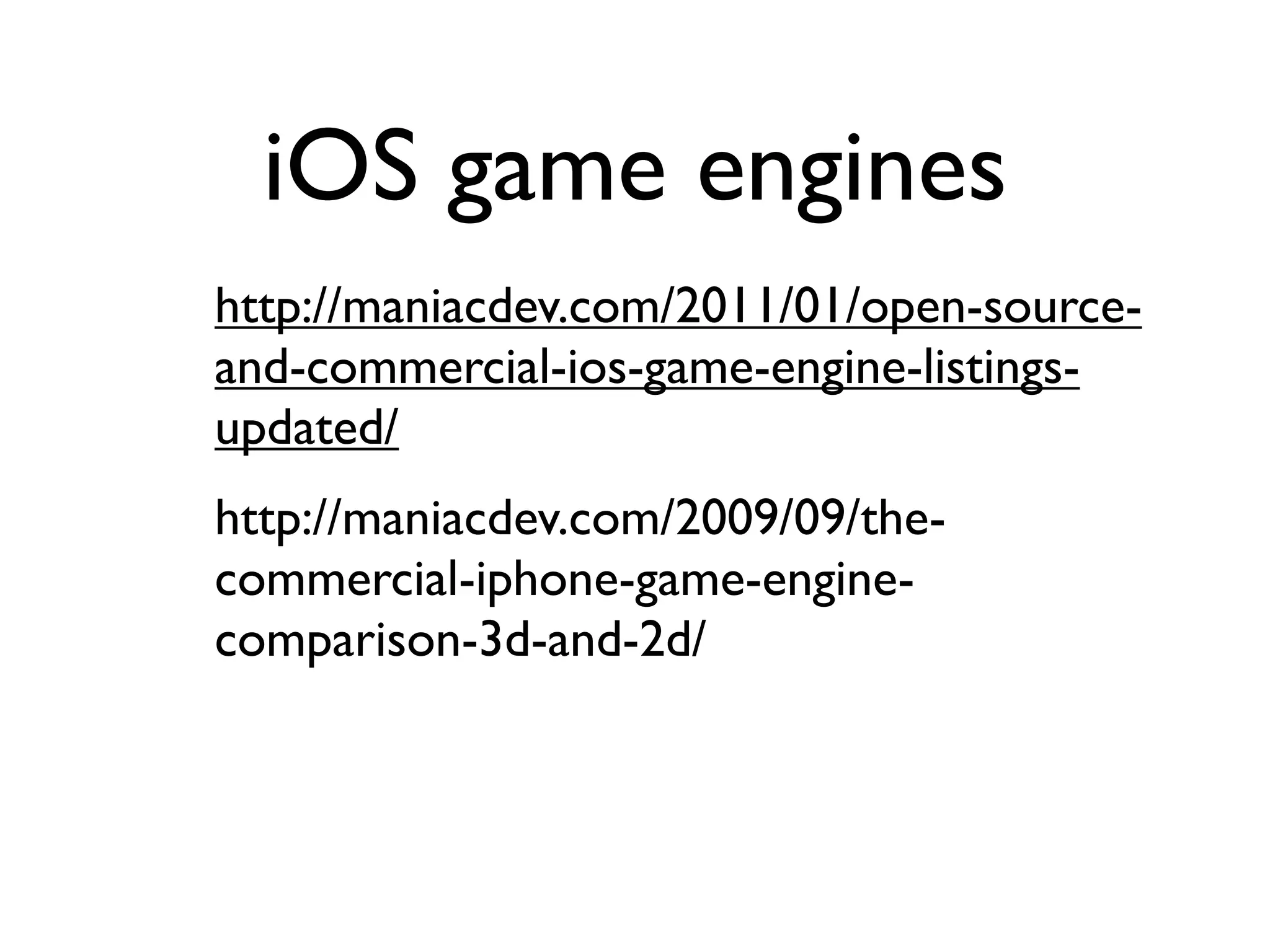

6. iOS game engines
• http://maniacdev.com/2011/01/open-source-
and-commercial-ios-game-engine-listings-
updated/
• http://maniacdev.com/2009/09/the-
commercial-iphone-game-engine-
comparison-3d-and-2d/

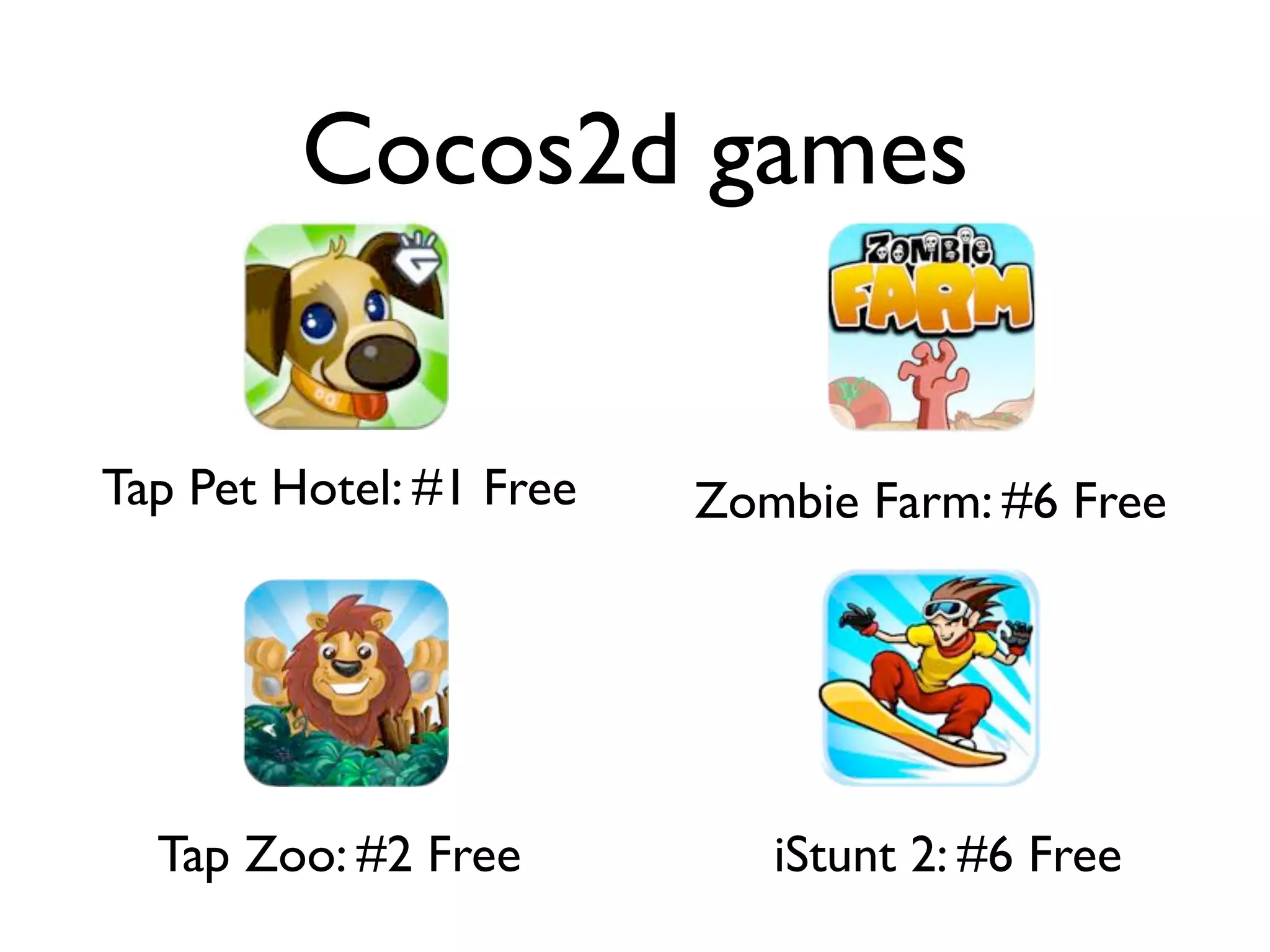

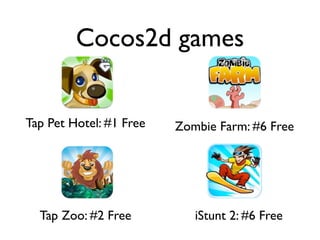

7. Cocos2d games
Tap Pet Hotel: #1 Free Zombie Farm: #6 Free
Tap Zoo: #2 Free iStunt 2: #6 Free

8. Cocos2d games
Air Penguin: #1 Paid ZombieSmash: #1 Paid
Fishing Frenzy: #7 Paid Trainyard: #2 Paid

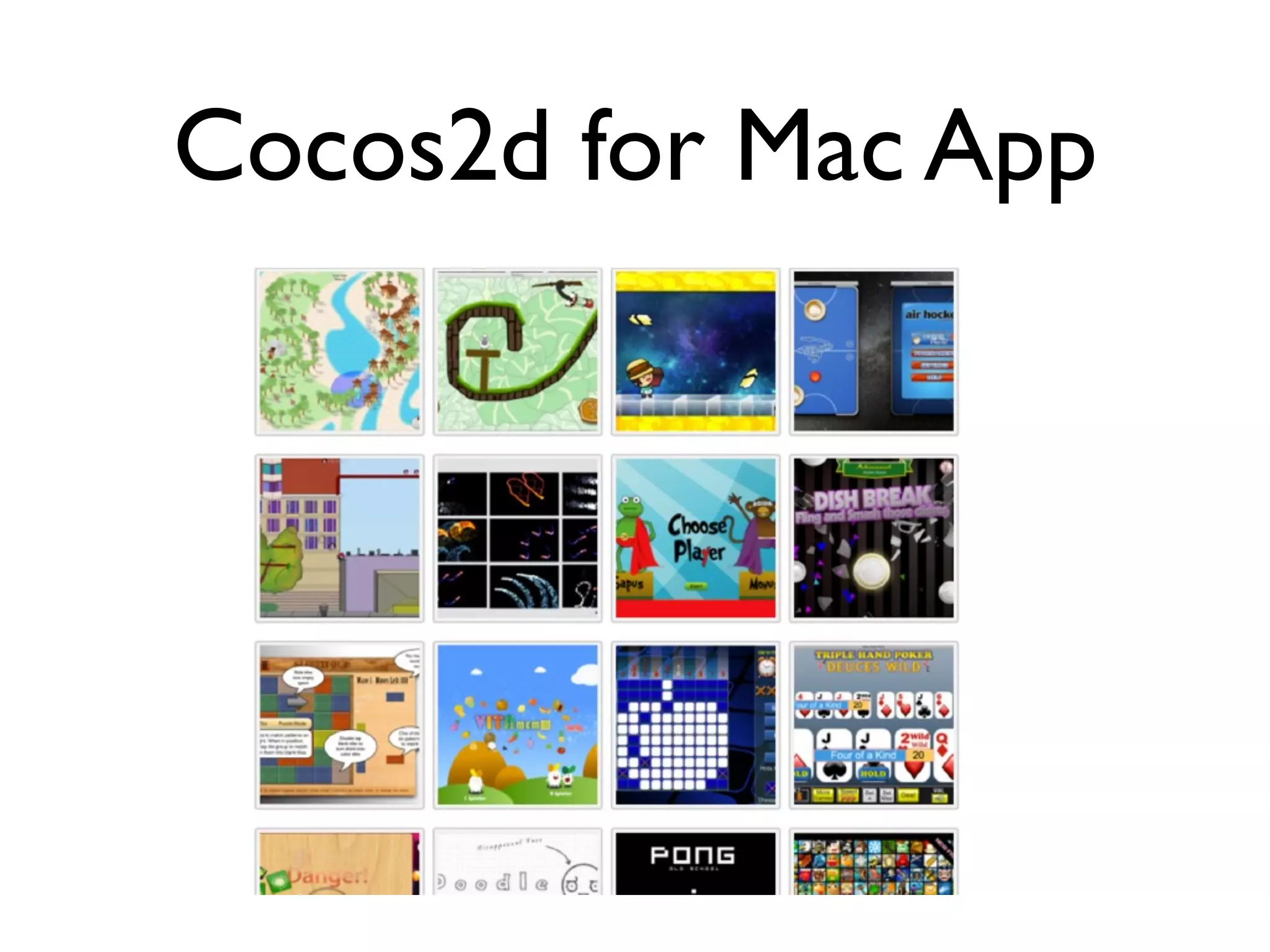

9. Cocos2d for Mac App

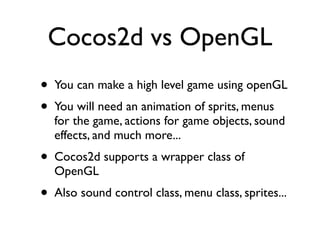

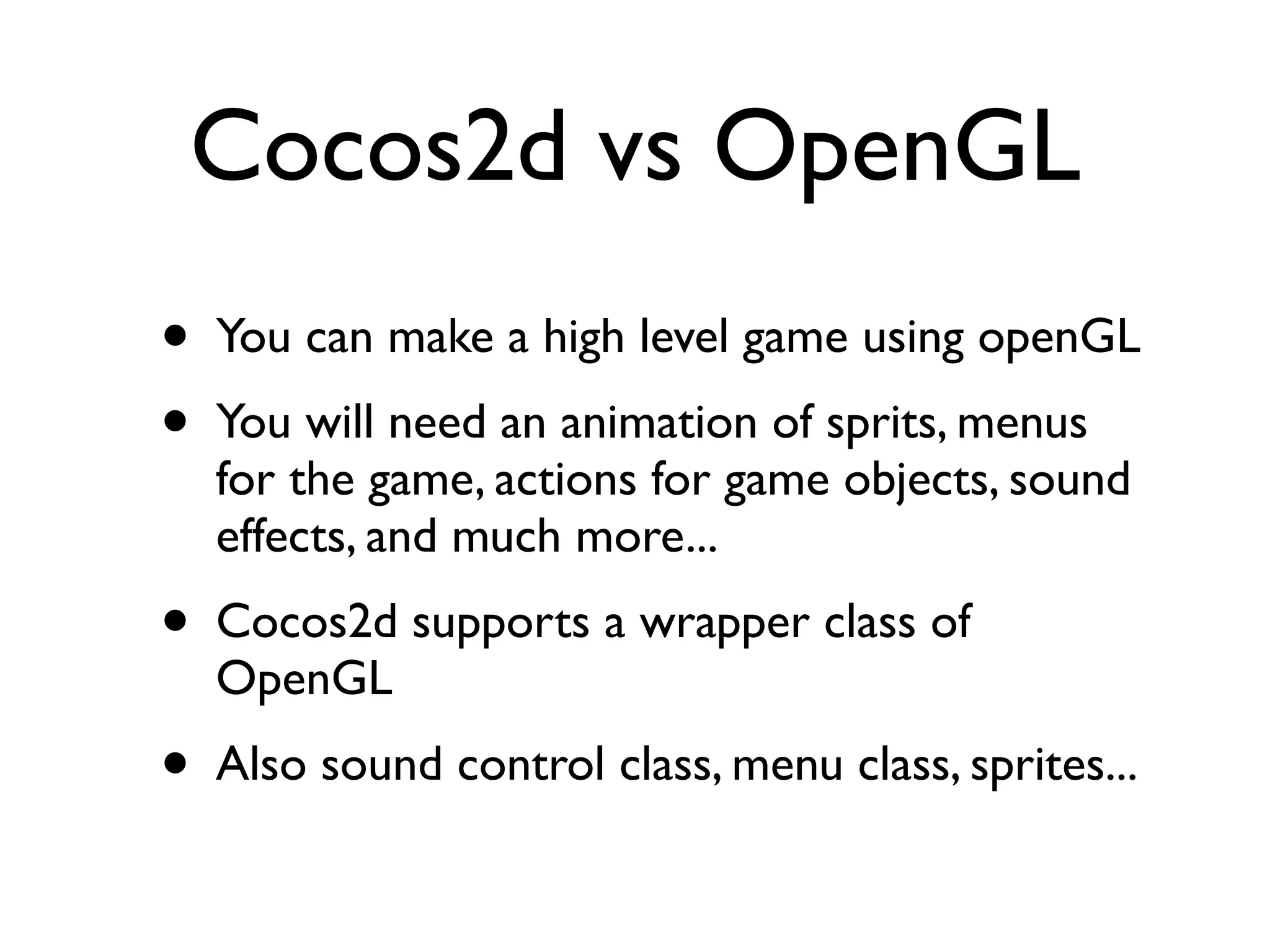

10. Cocos2d vs OpenGL
• You can make a high level game using openGL
• You will need an animation of sprits, menus
for the game, actions for game objects, sound
effects, and much more...
• Cocos2d supports a wrapper class of
OpenGL
• Also sound control class, menu class, sprites...

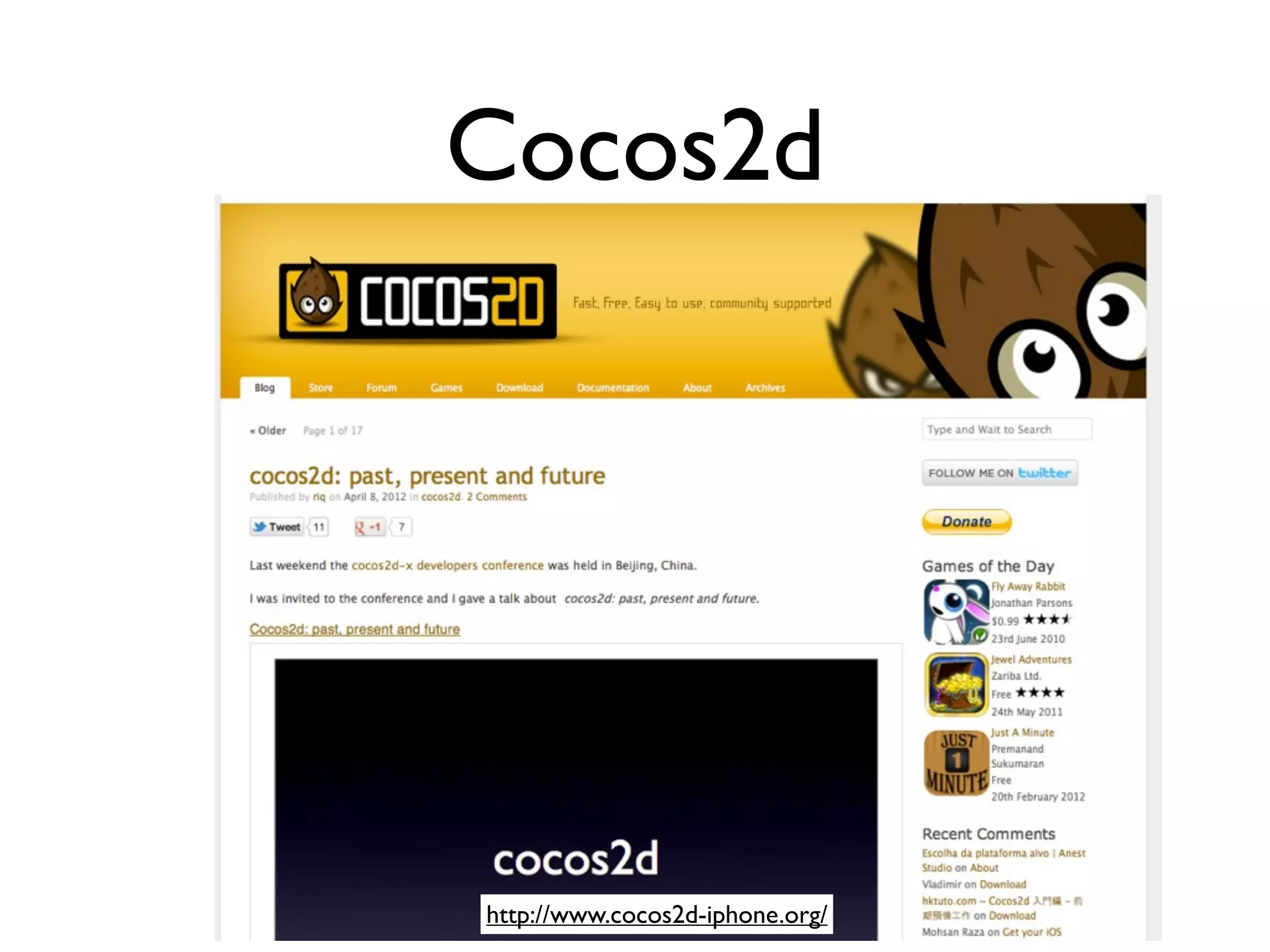

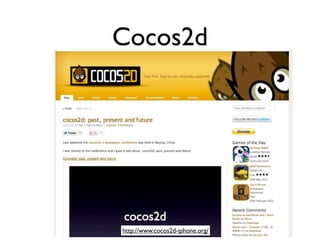

11. Cocos2d
http://www.cocos2d-iphone.org/

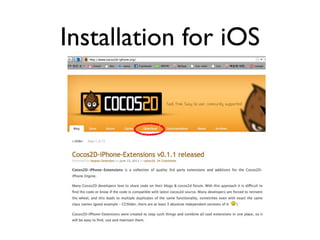

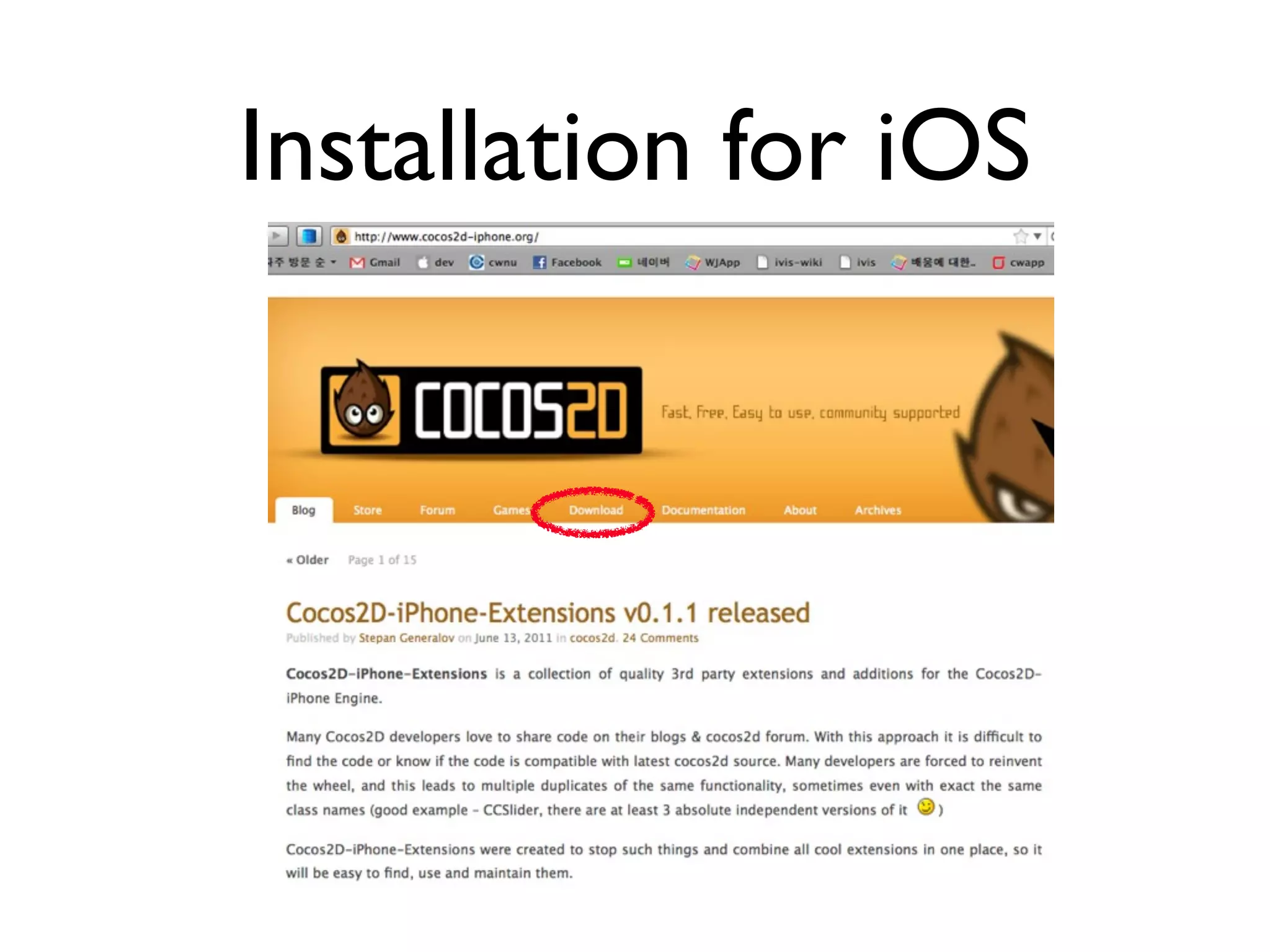

12. Installation for iOS

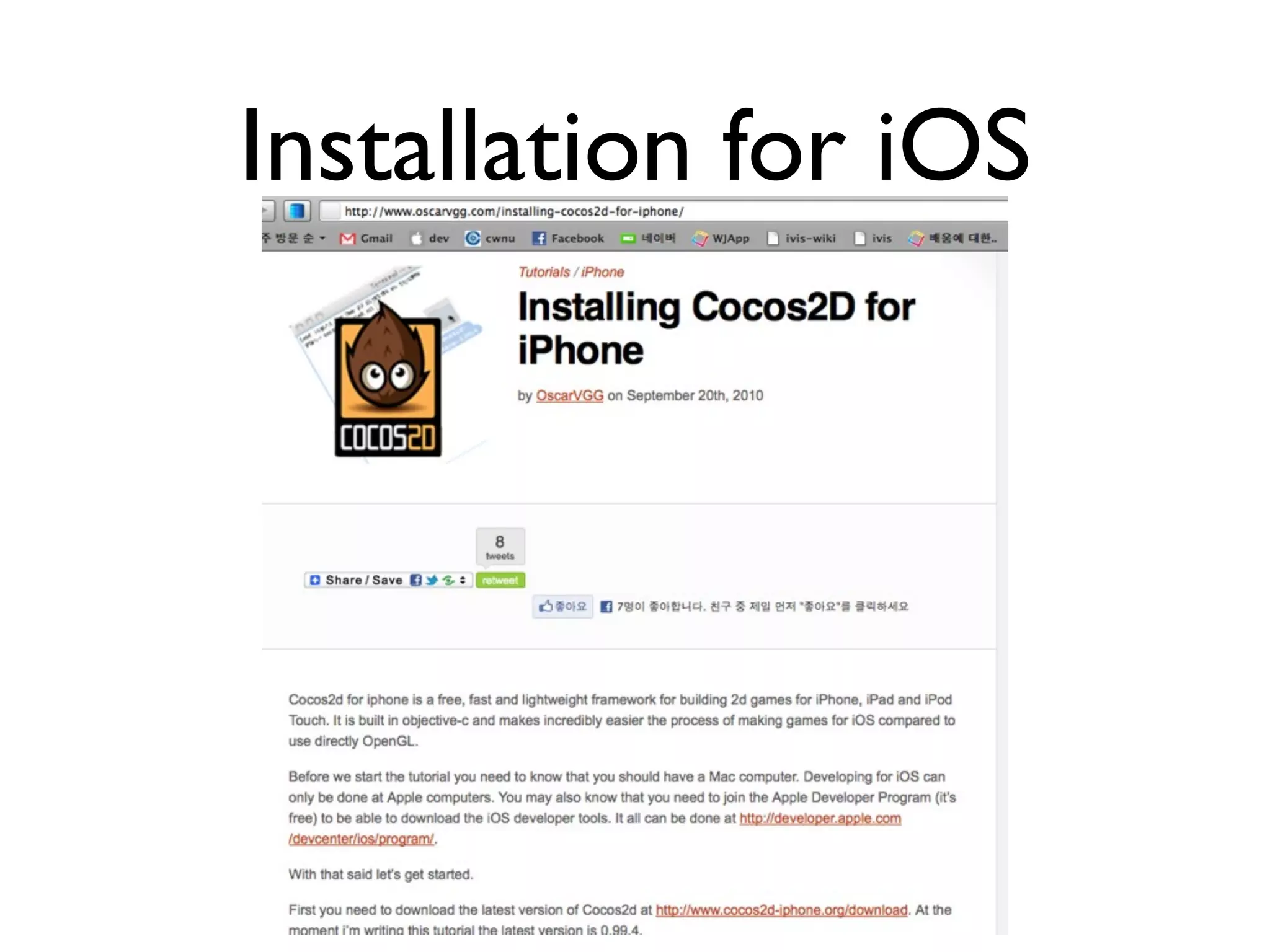

13. Installation for iOS

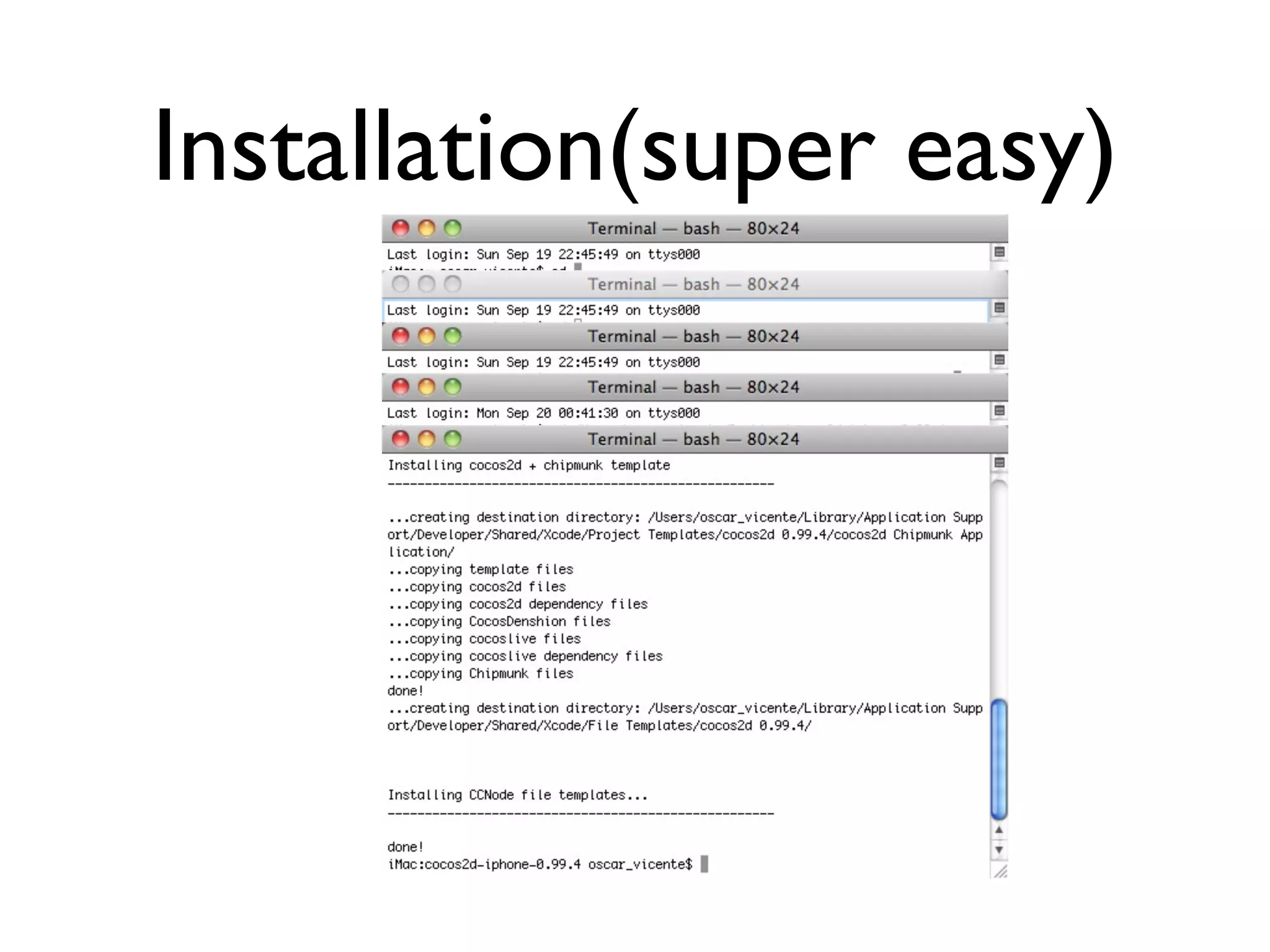

14. Installation(super easy)

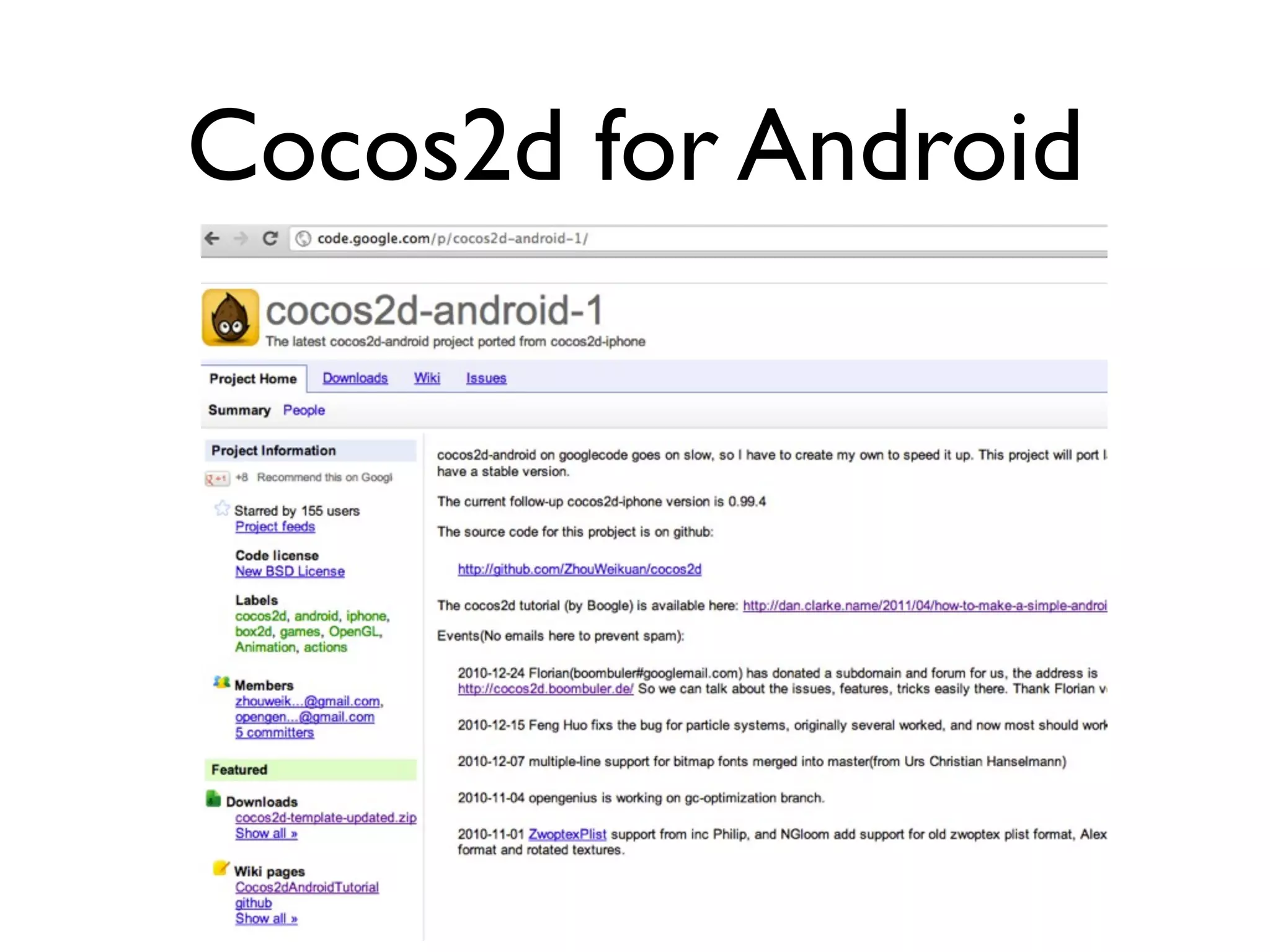

15. Cocos2d for Android

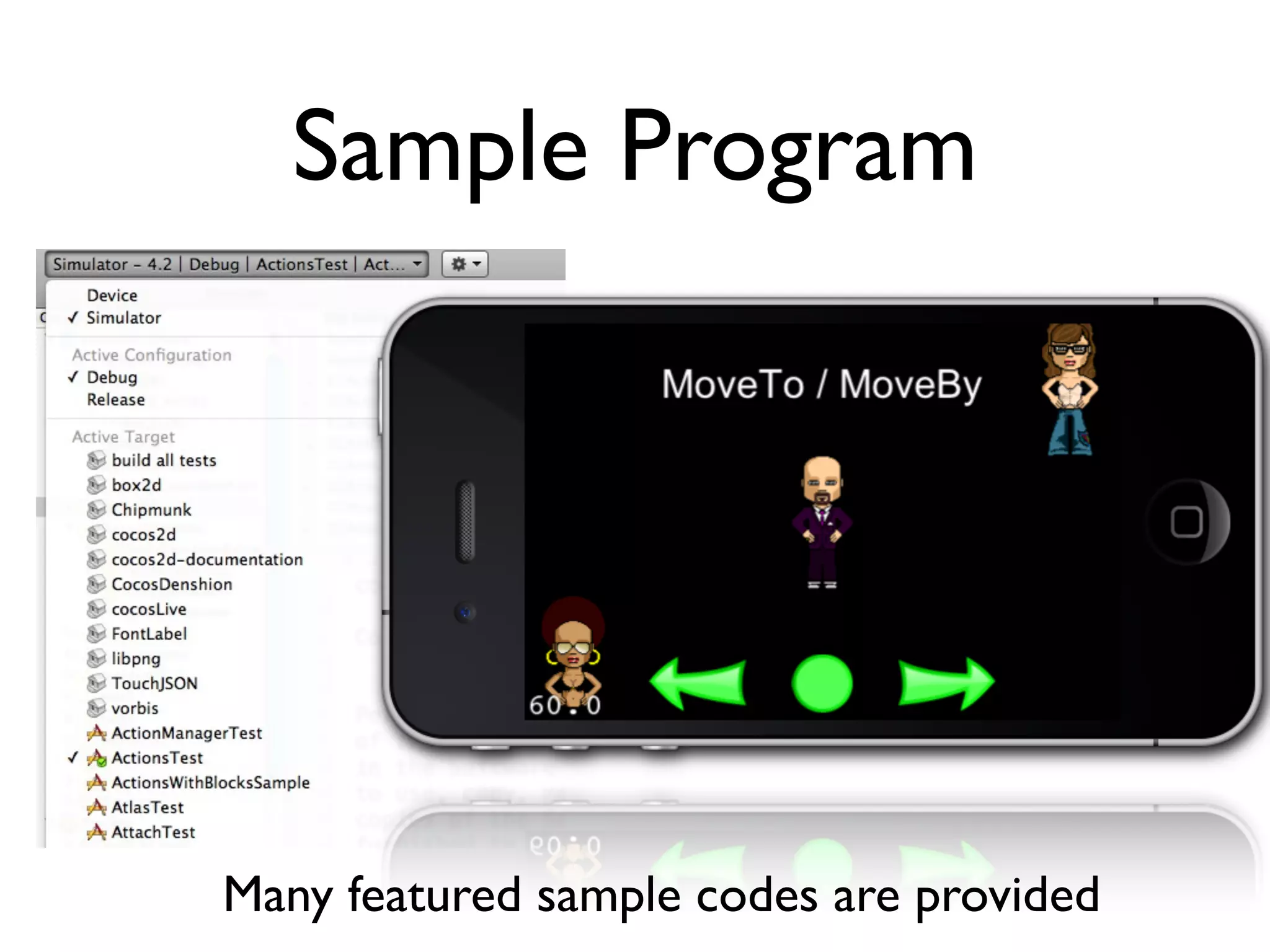

16. Sample Program
Many featured sample codes are provided

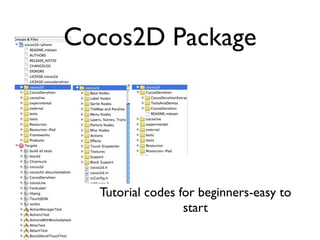

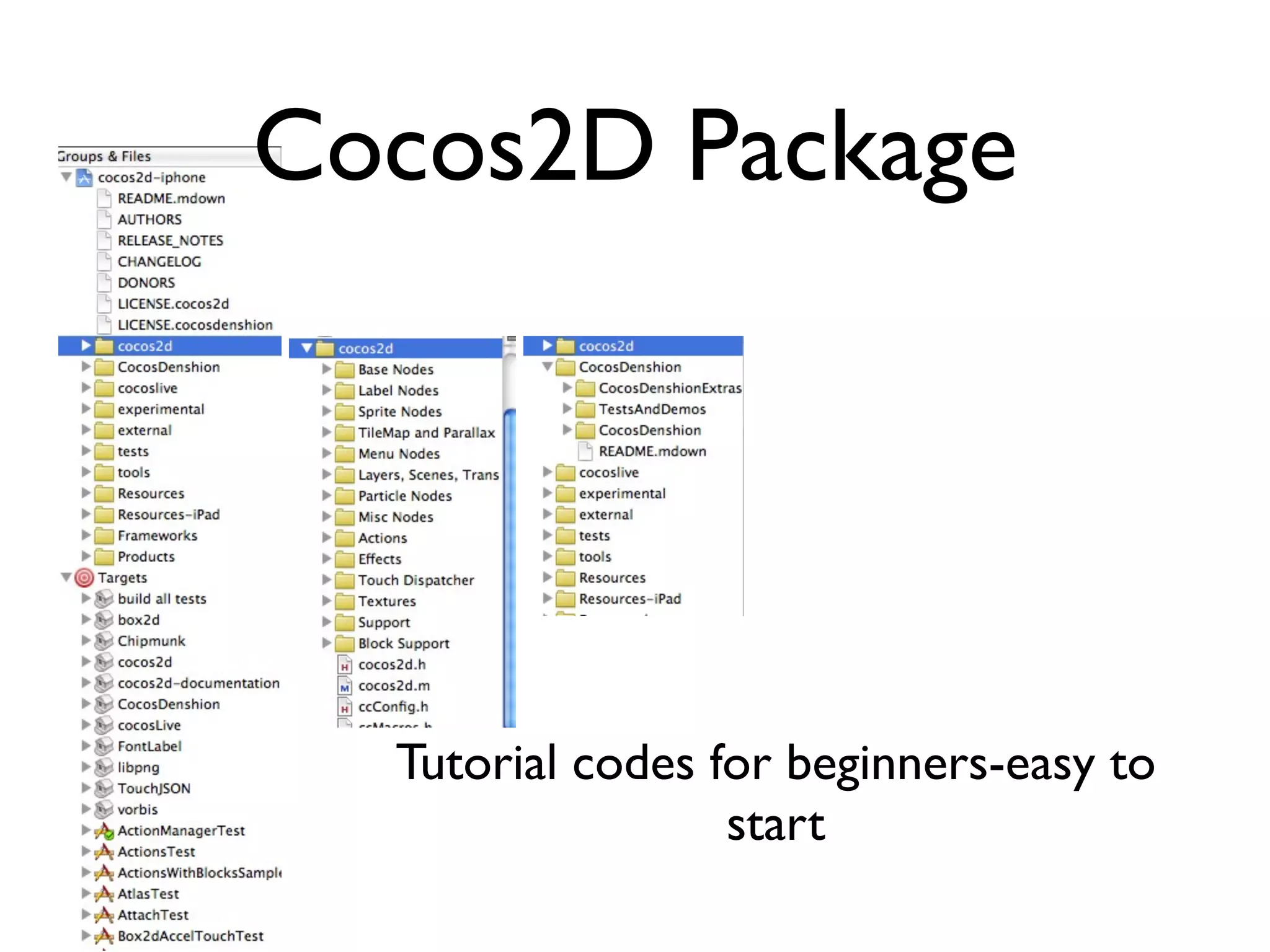

17. Cocos2D Package
Tutorial codes for beginners-easy to
start

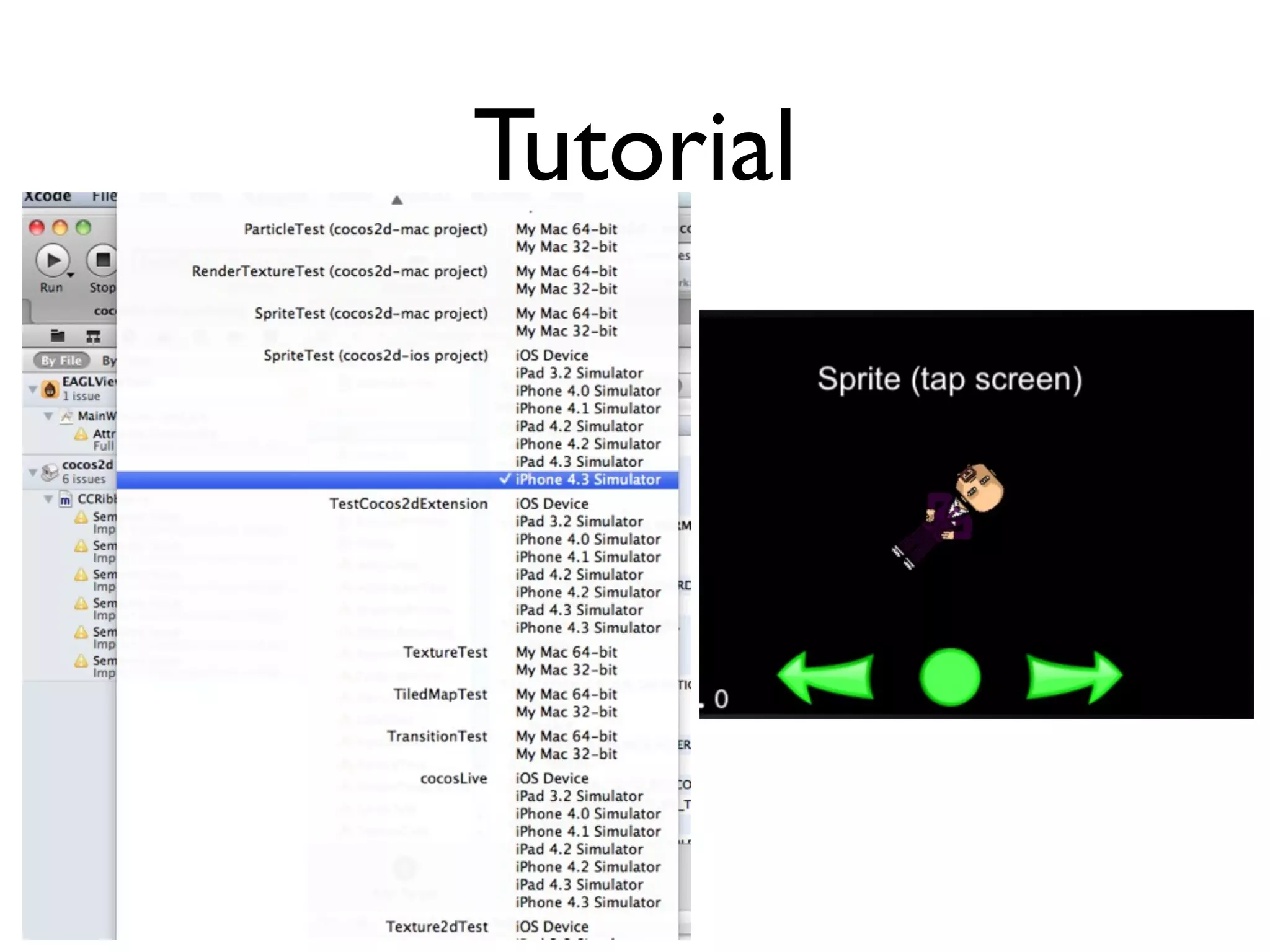

18. Tutorial

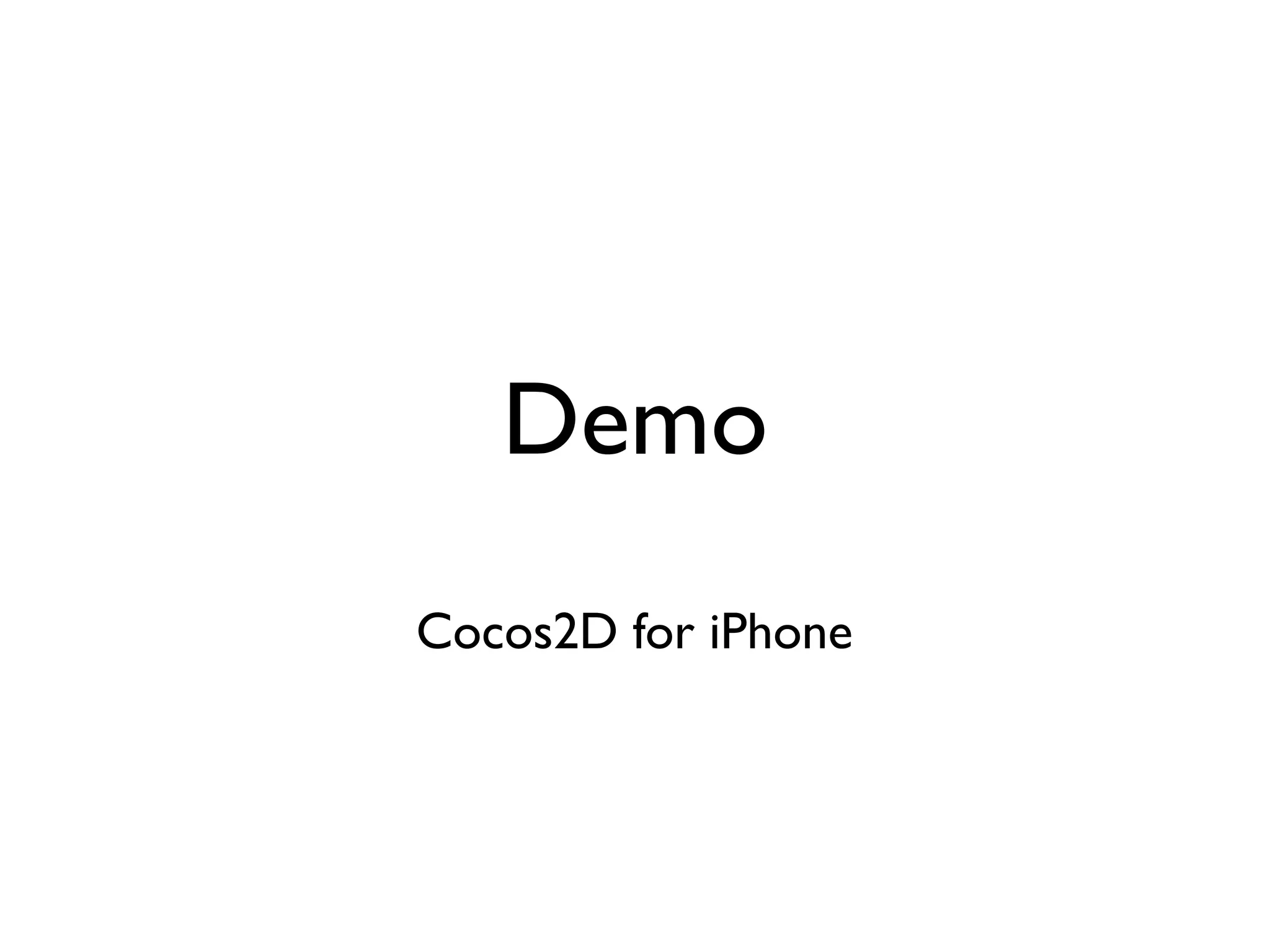

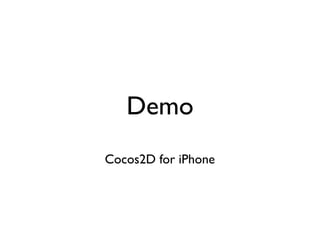

19. Demo
Cocos2D for iPhone

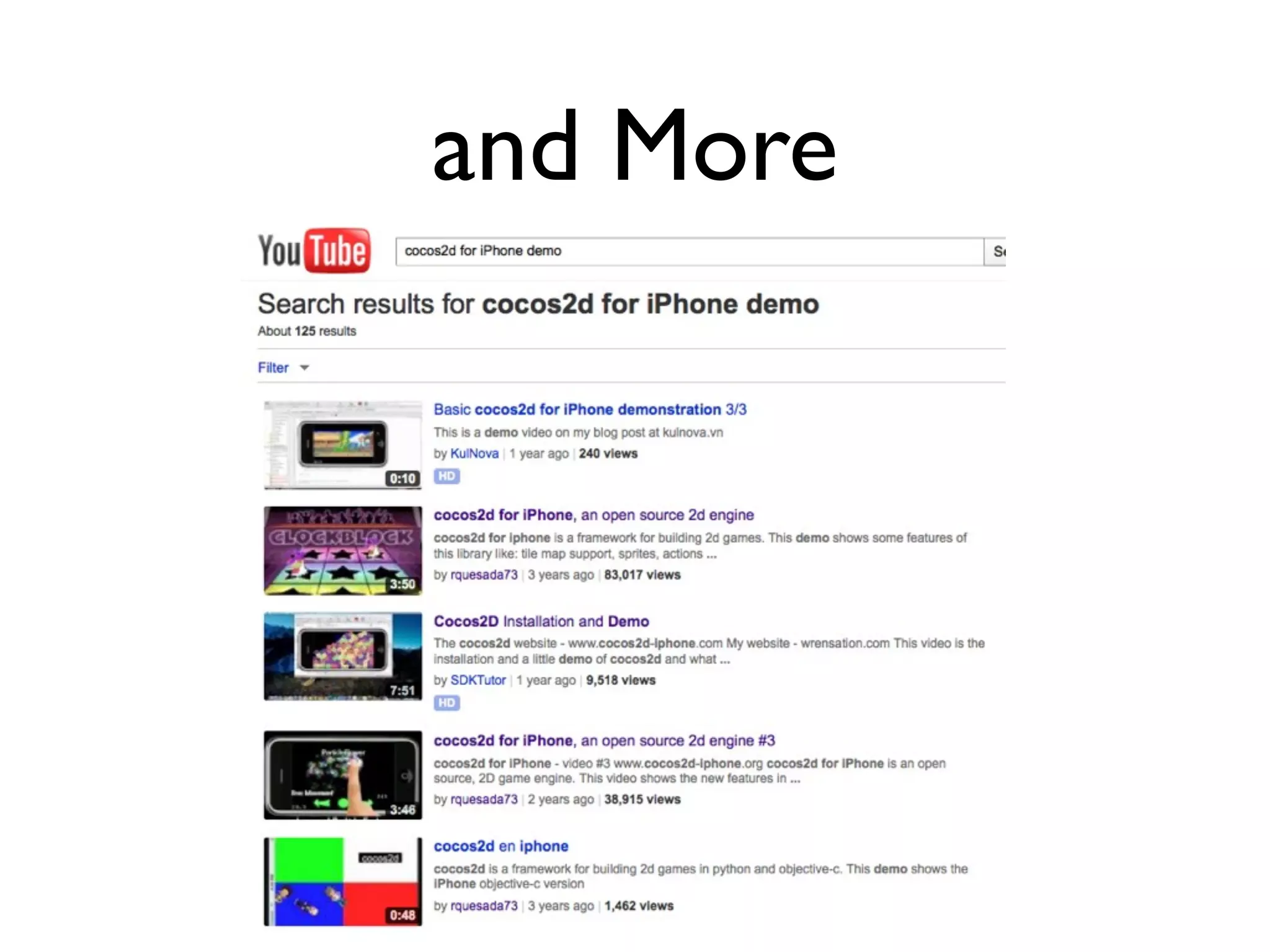

20. and More

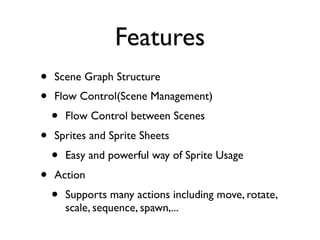

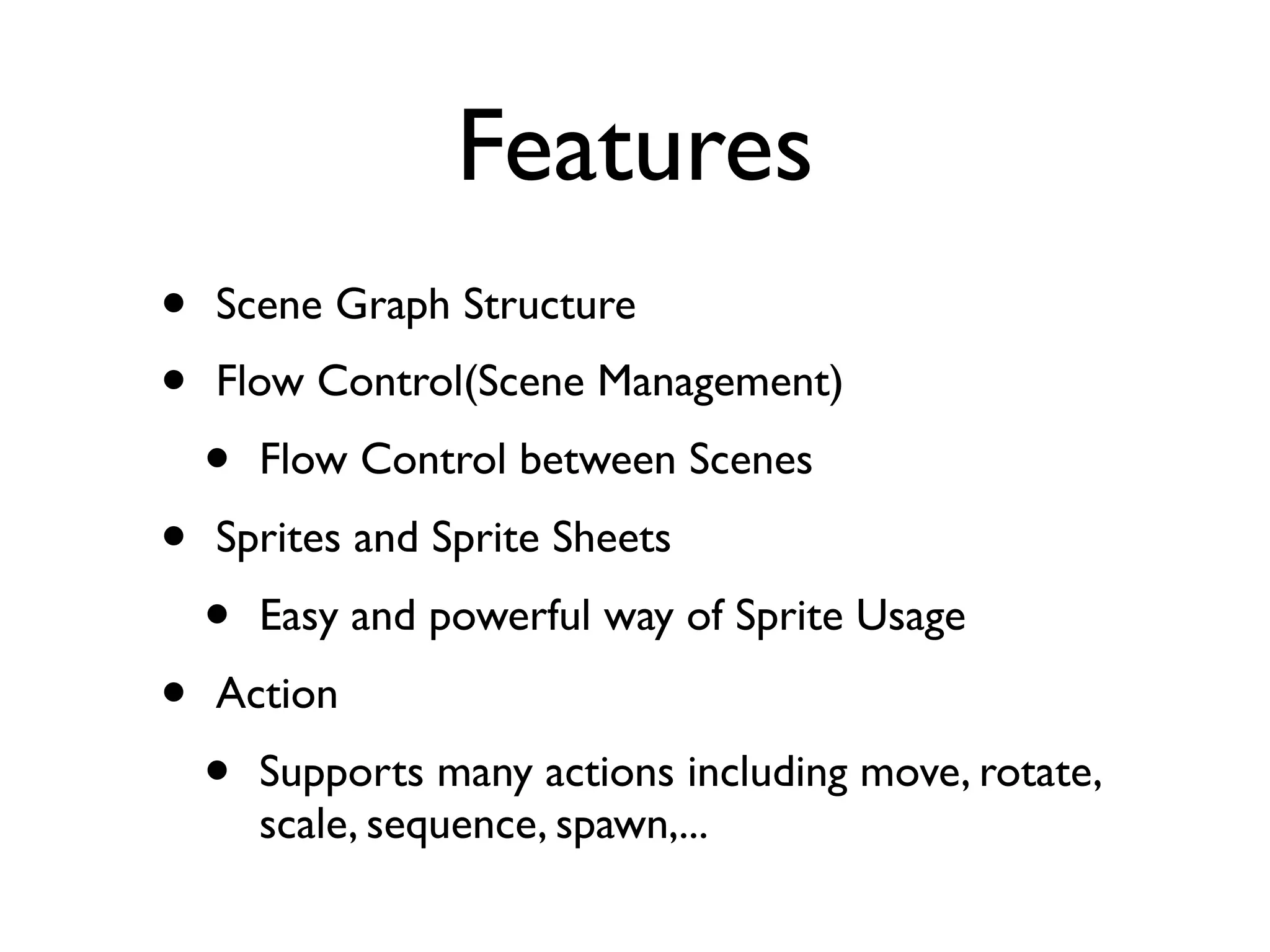

21. Features
• Scene Graph Structure
• Flow Control(Scene Management)
• Flow Control between Scenes
• Sprites and Sprite Sheets
• Easy and powerful way of Sprite Usage
• Action
• Supports many actions including move, rotate,
scale, sequence, spawn,...

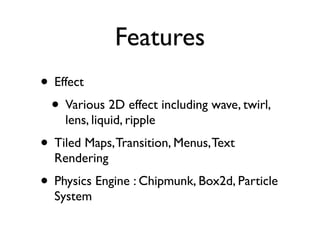

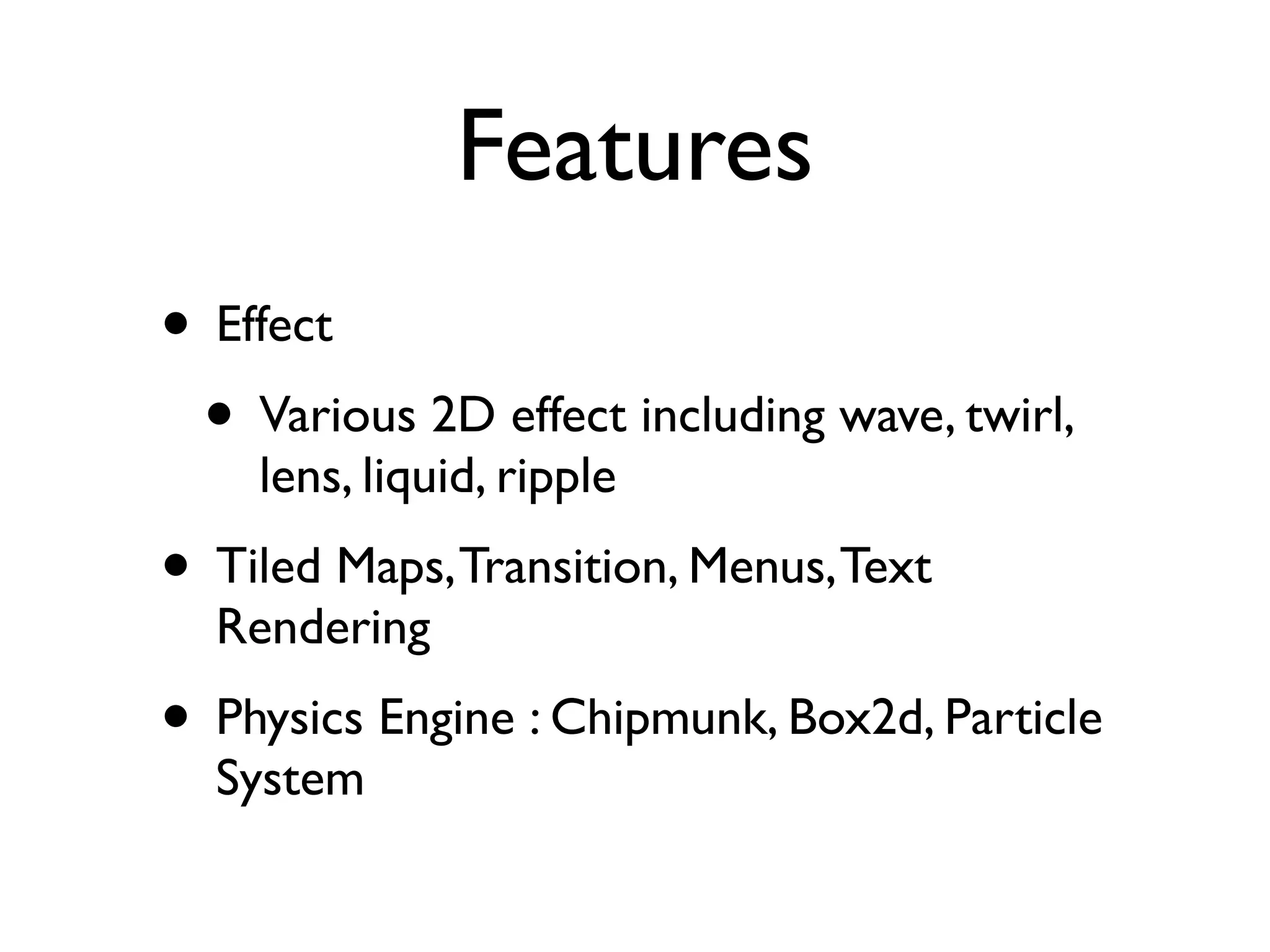

22. Features
• Effect
• Various 2D effect including wave, twirl,
lens, liquid, ripple
• Tiled Maps, Transition, Menus, Text
Rendering
• Physics Engine : Chipmunk, Box2d, Particle
System

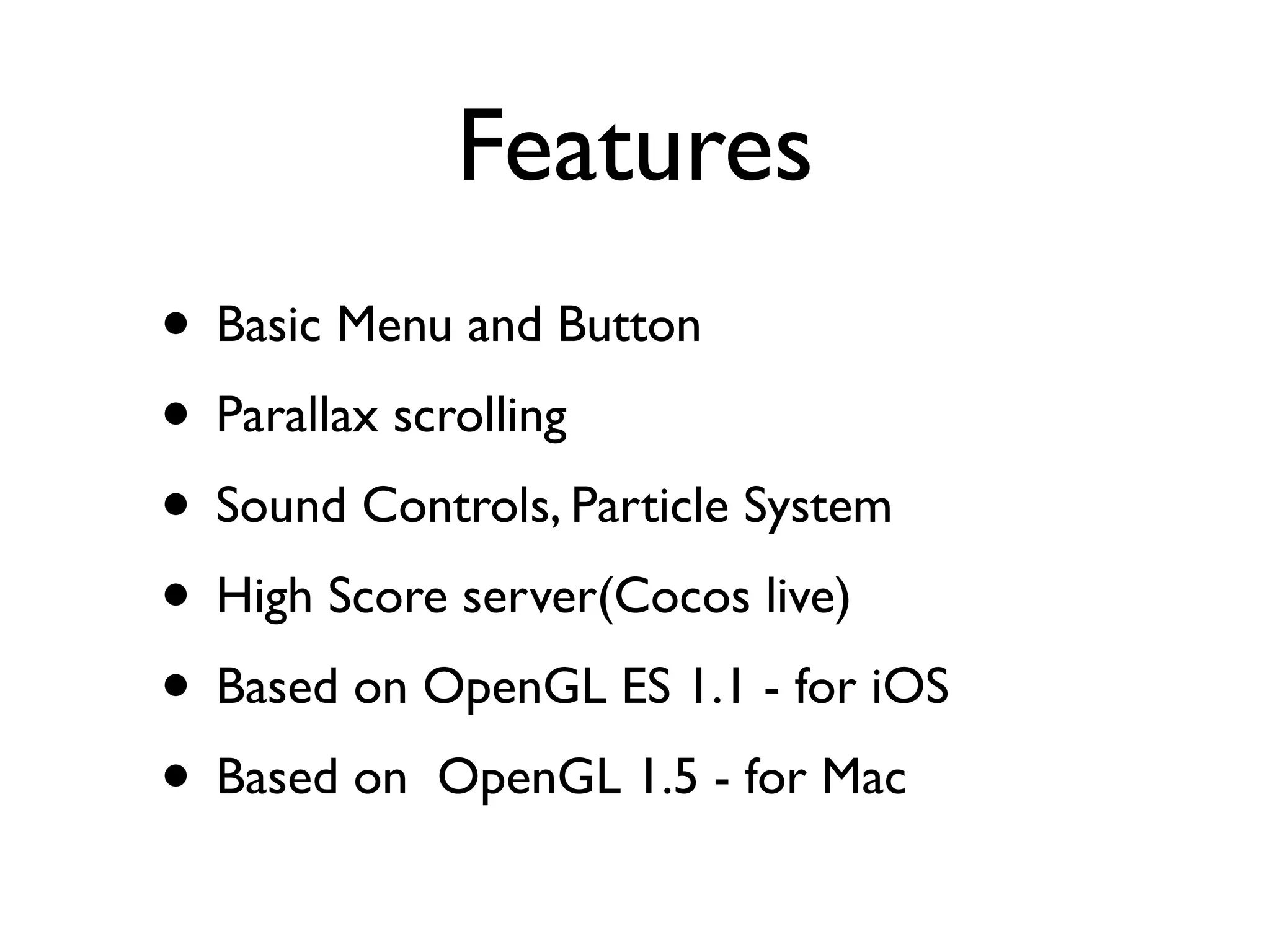

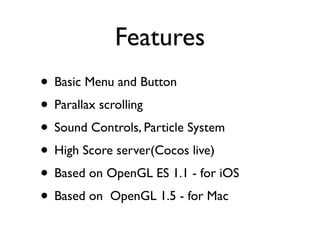

23. Features
• Basic Menu and Button
• Parallax scrolling
• Sound Controls, Particle System
• High Score server(Cocos live)
• Based on OpenGL ES 1.1 - for iOS
• Based on OpenGL 1.5 - for Mac

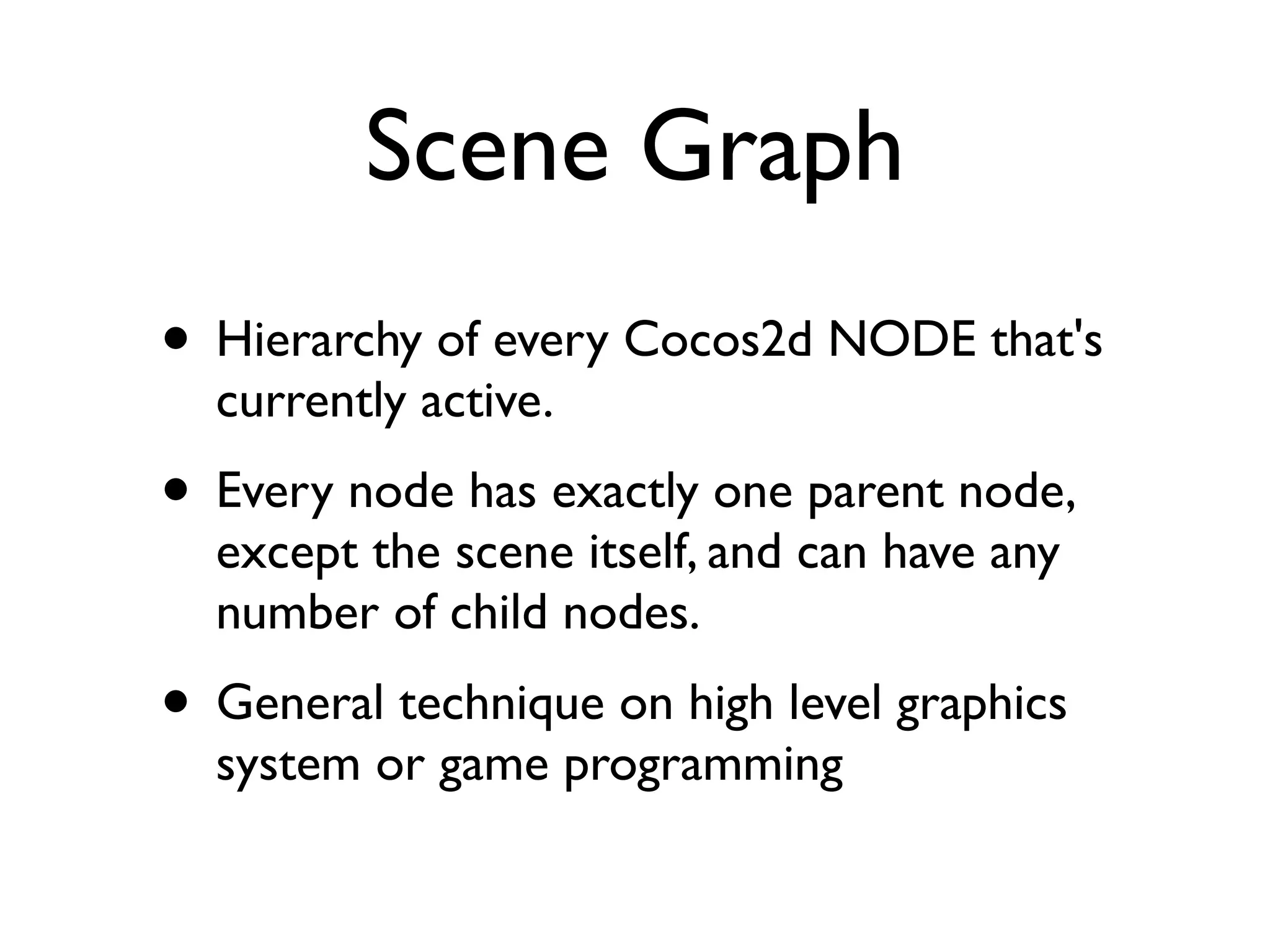

24. Scene Graph
• Hierarchy of every Cocos2d NODE that's
currently active.
• Every node has exactly one parent node,
except the scene itself, and can have any
number of child nodes.
• General technique on high level graphics
system or game programming

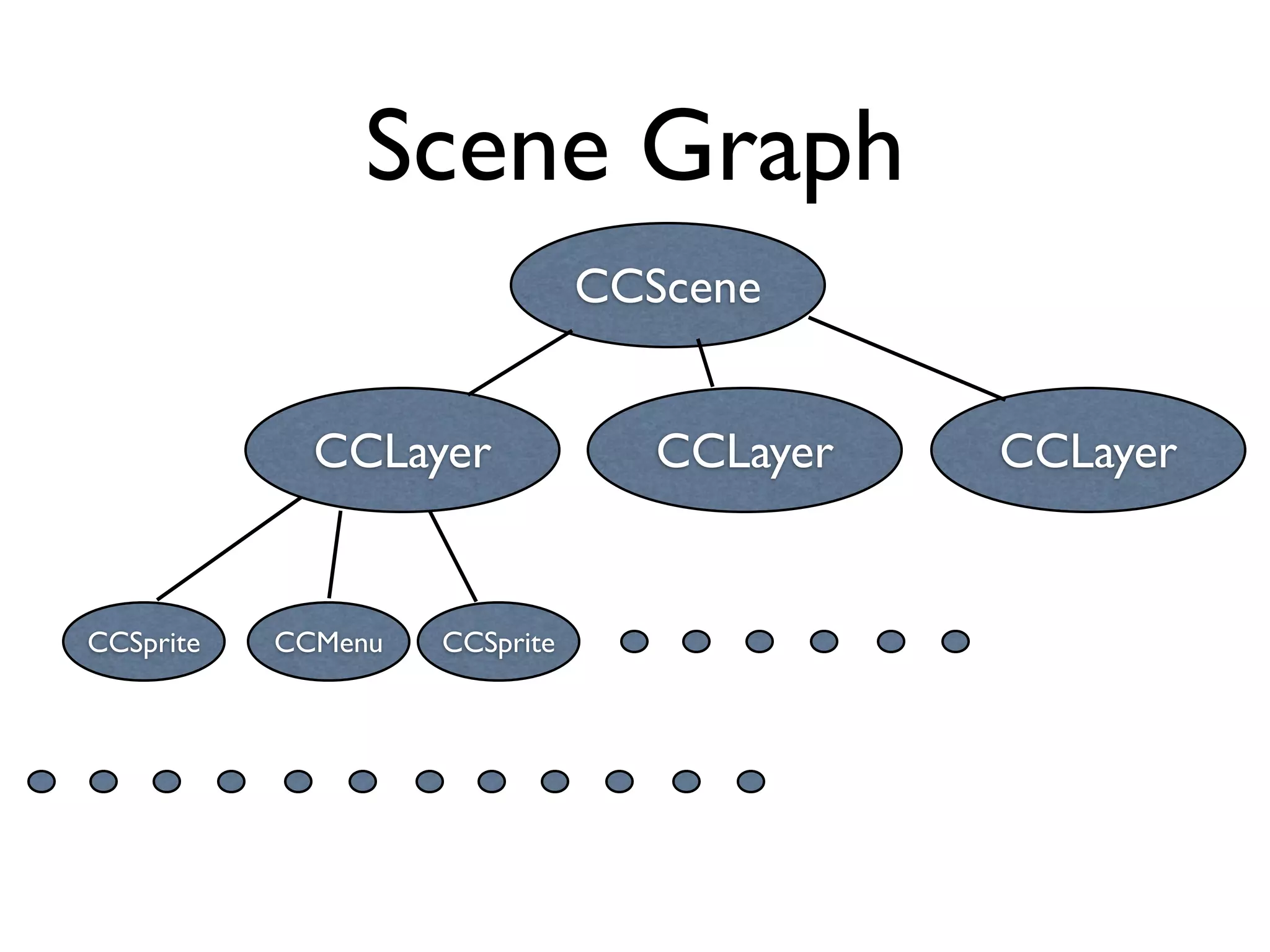

25. Scene Graph
CCScene
CCLayer CCLayer CCLayer
CCSprite CCMenu CCSprite

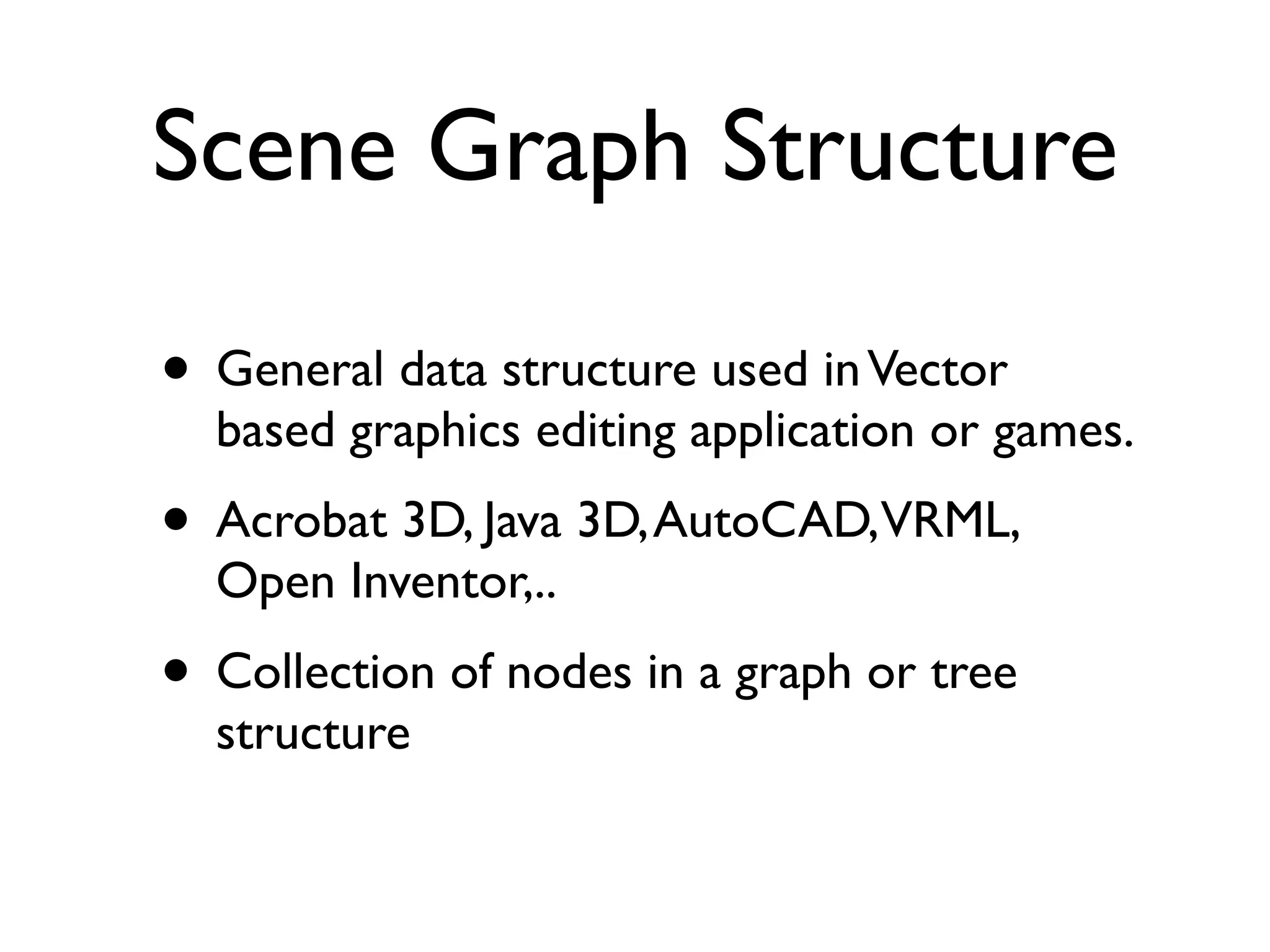

26. Scene Graph Structure
• General data structure used in Vector
based graphics editing application or games.
• Acrobat 3D, Java 3D, AutoCAD,VRML,
Open Inventor,..
• Collection of nodes in a graph or tree
structure

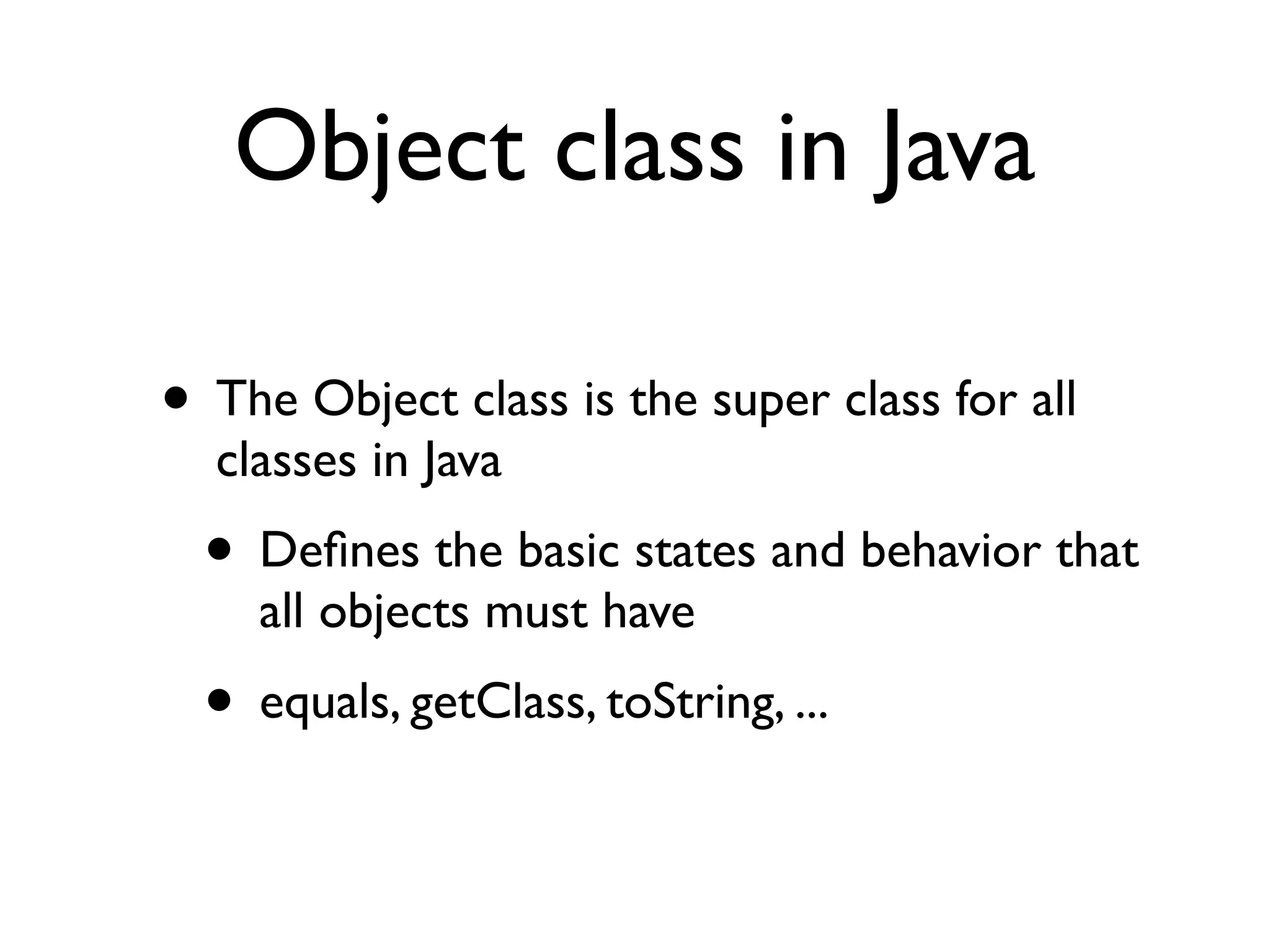

27. Object class in Java
• The Object class is the super class for all
classes in Java
• Defines the basic states and behavior that
all objects must have
• equals, getClass, toString, ...

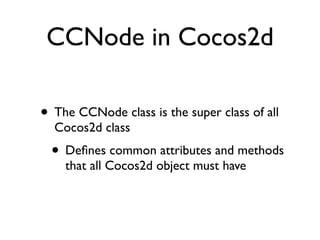

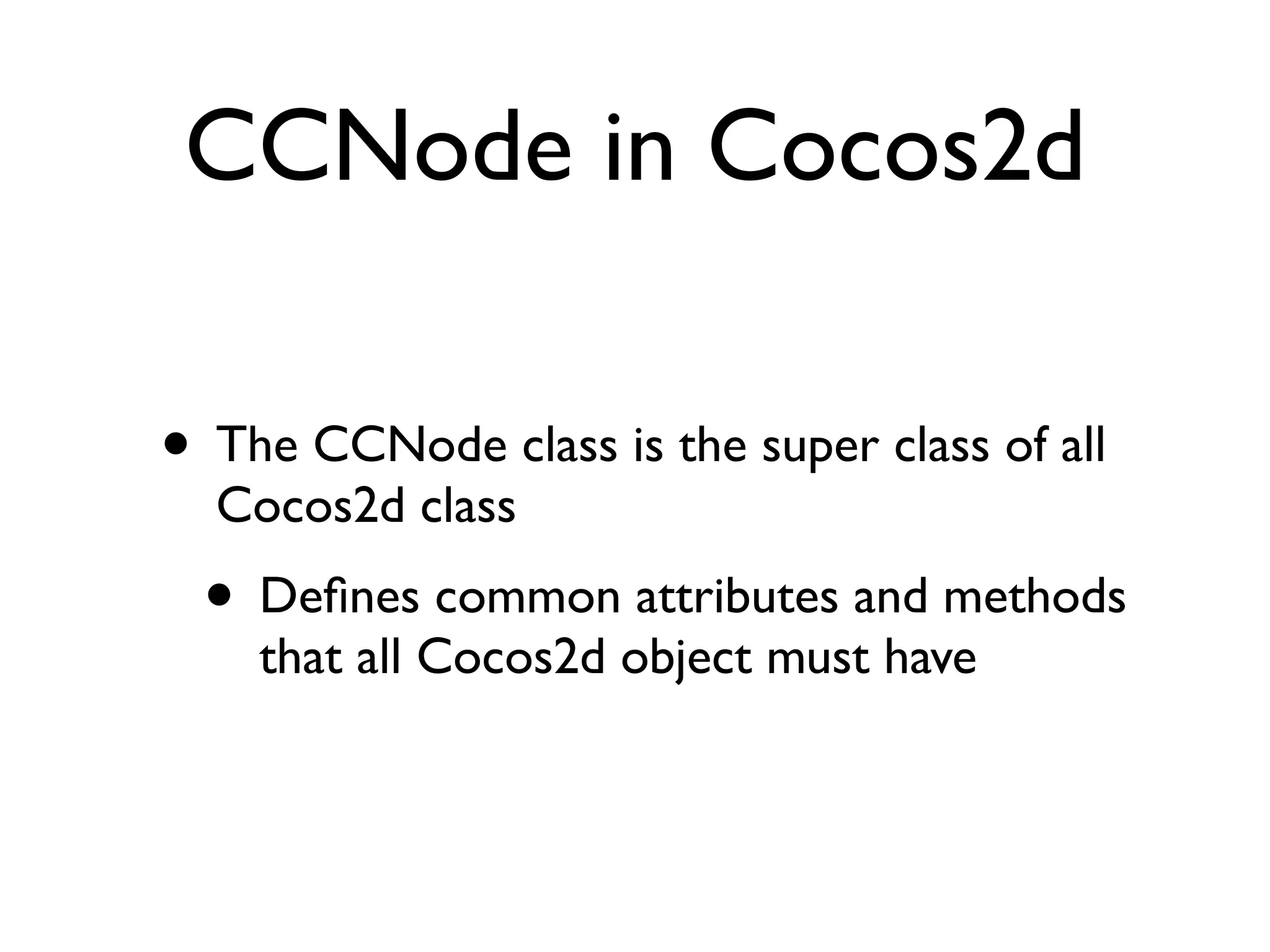

28. CCNode in Cocos2d
• The CCNode class is the super class of all
Cocos2d class
• Defines common attributes and methods
that all Cocos2d object must have

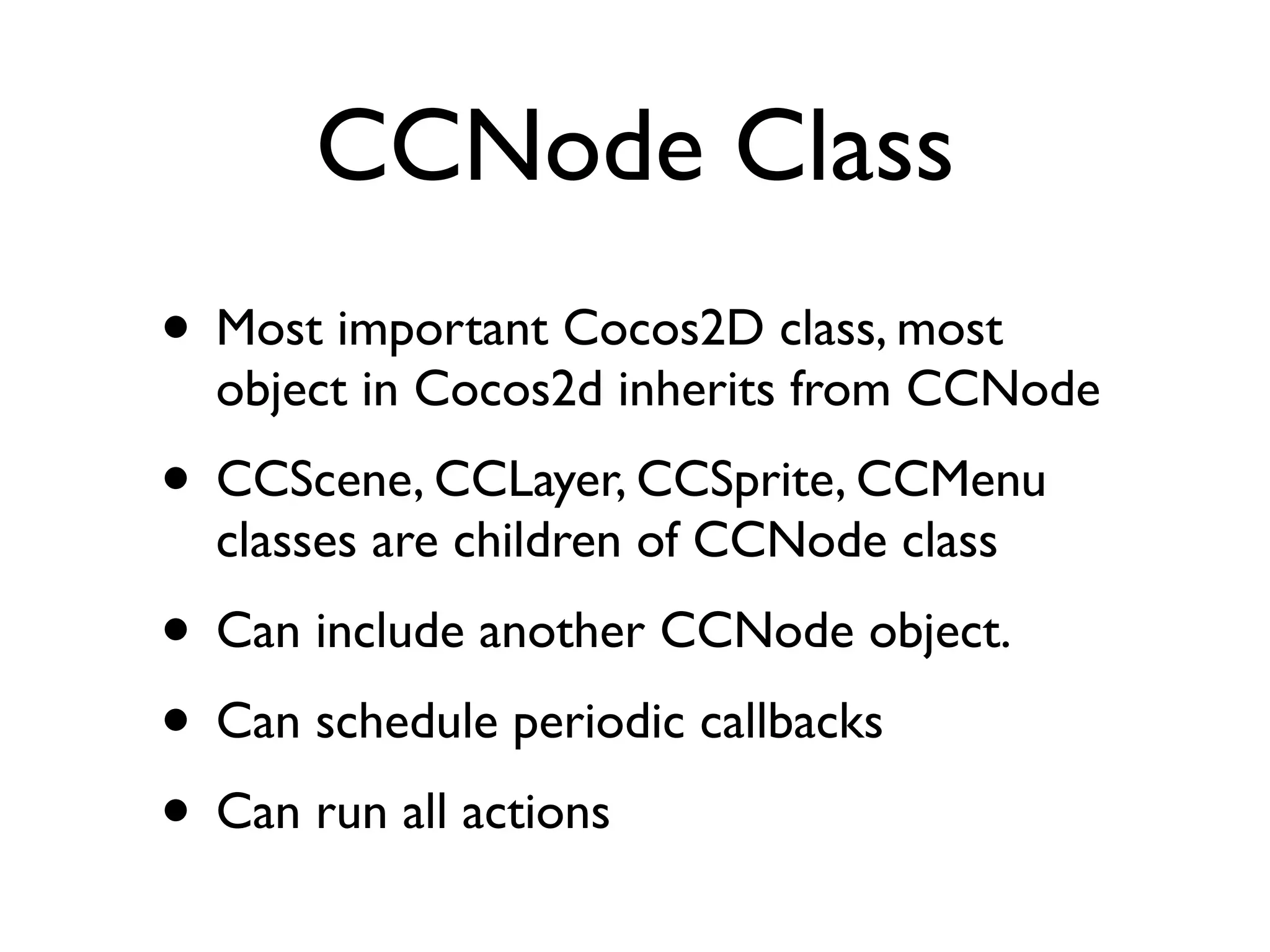

29. CCNode Class
• Most important Cocos2D class, most
object in Cocos2d inherits from CCNode
• CCScene, CCLayer, CCSprite, CCMenu
classes are children of CCNode class
• Can include another CCNode object.
• Can schedule periodic callbacks
• Can run all actions

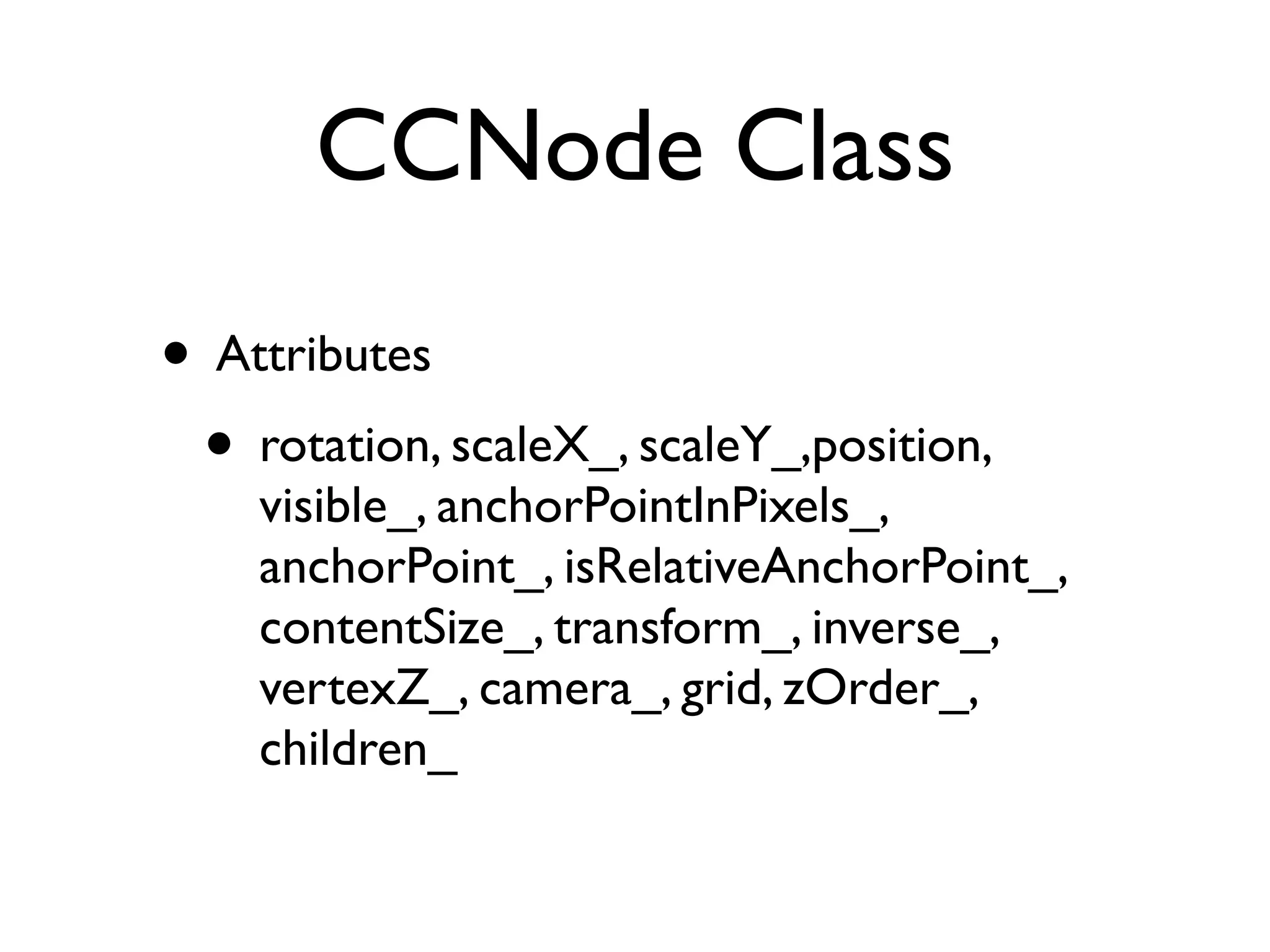

30. CCNode Class
• Attributes
• rotation, scaleX_, scaleY_,position,
visible_, anchorPointInPixels_,
anchorPoint_, isRelativeAnchorPoint_,
contentSize_, transform_, inverse_,
vertexZ_, camera_, grid, zOrder_,
children_

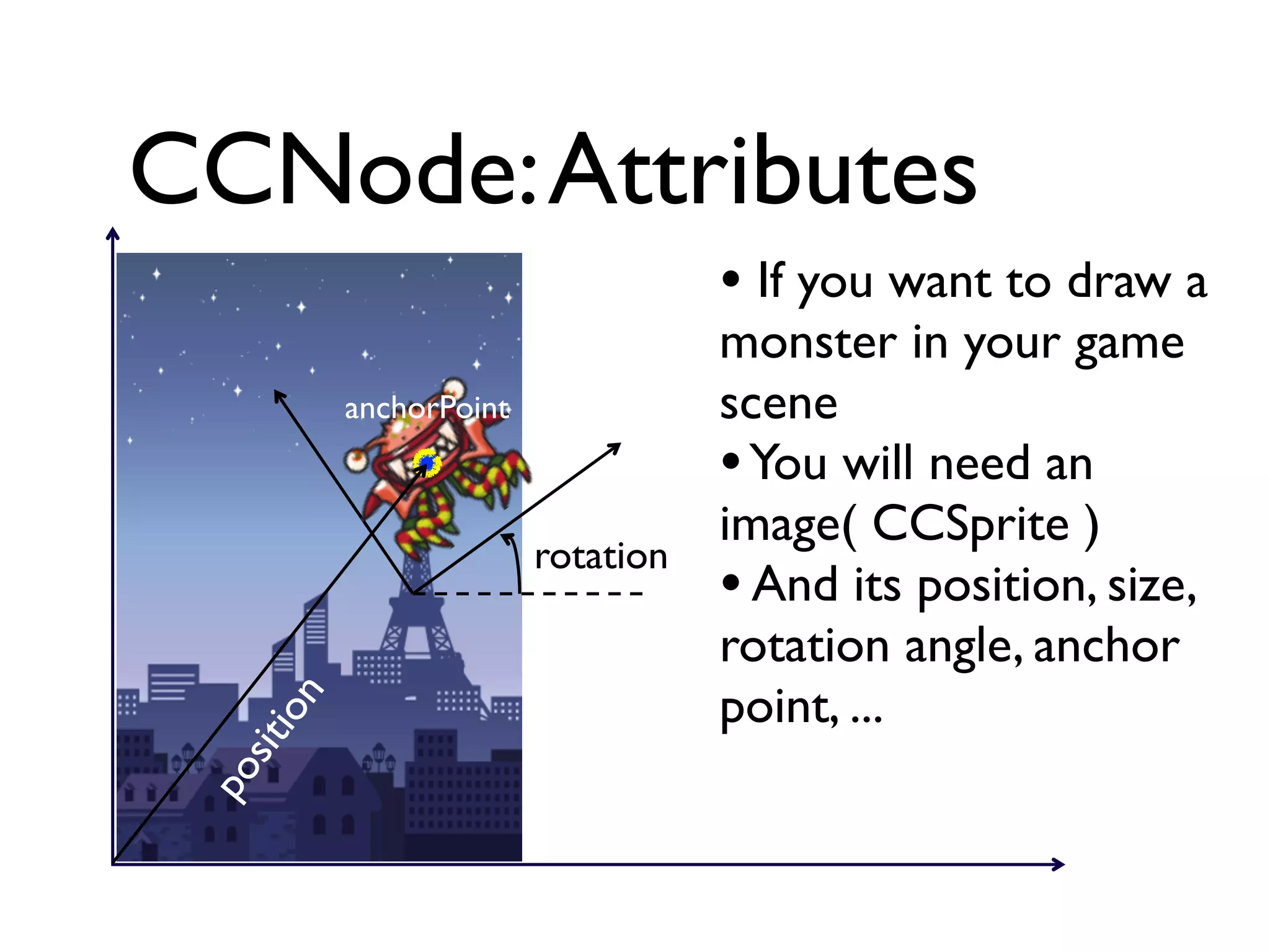

31. CCNode: Attributes
• If you want to draw a
monster in your game
anchorPoint scene
• You will need an
image( CCSprite )
rotation
• And its position, size,
rotation angle, anchor
point, ...
ion
sit
po

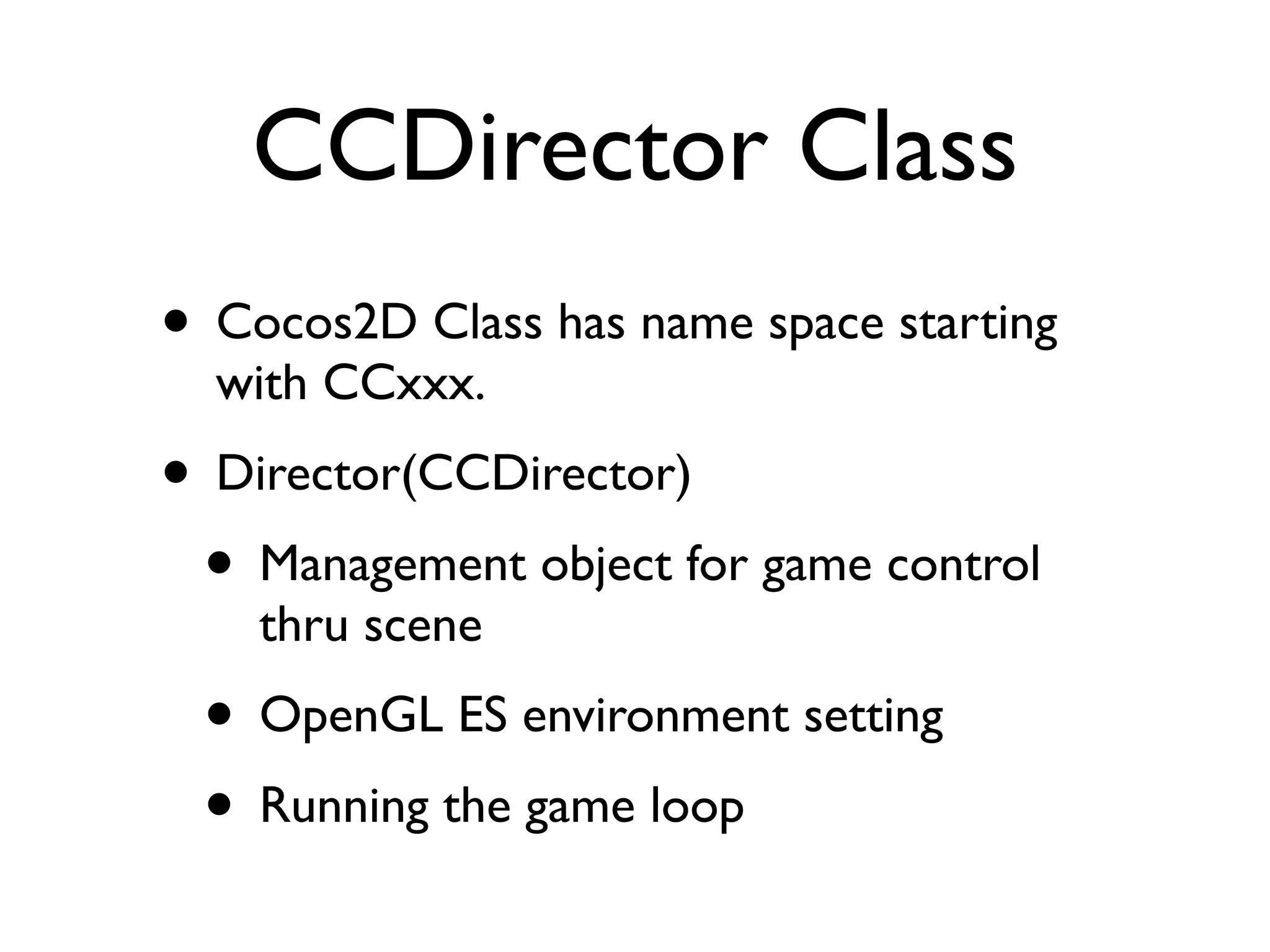

32. CCDirector Class
• Cocos2D Class has name space starting
with CCxxx.
• Director(CCDirector)
• Management object for game control
thru scene
• OpenGL ES environment setting
• Running the game loop

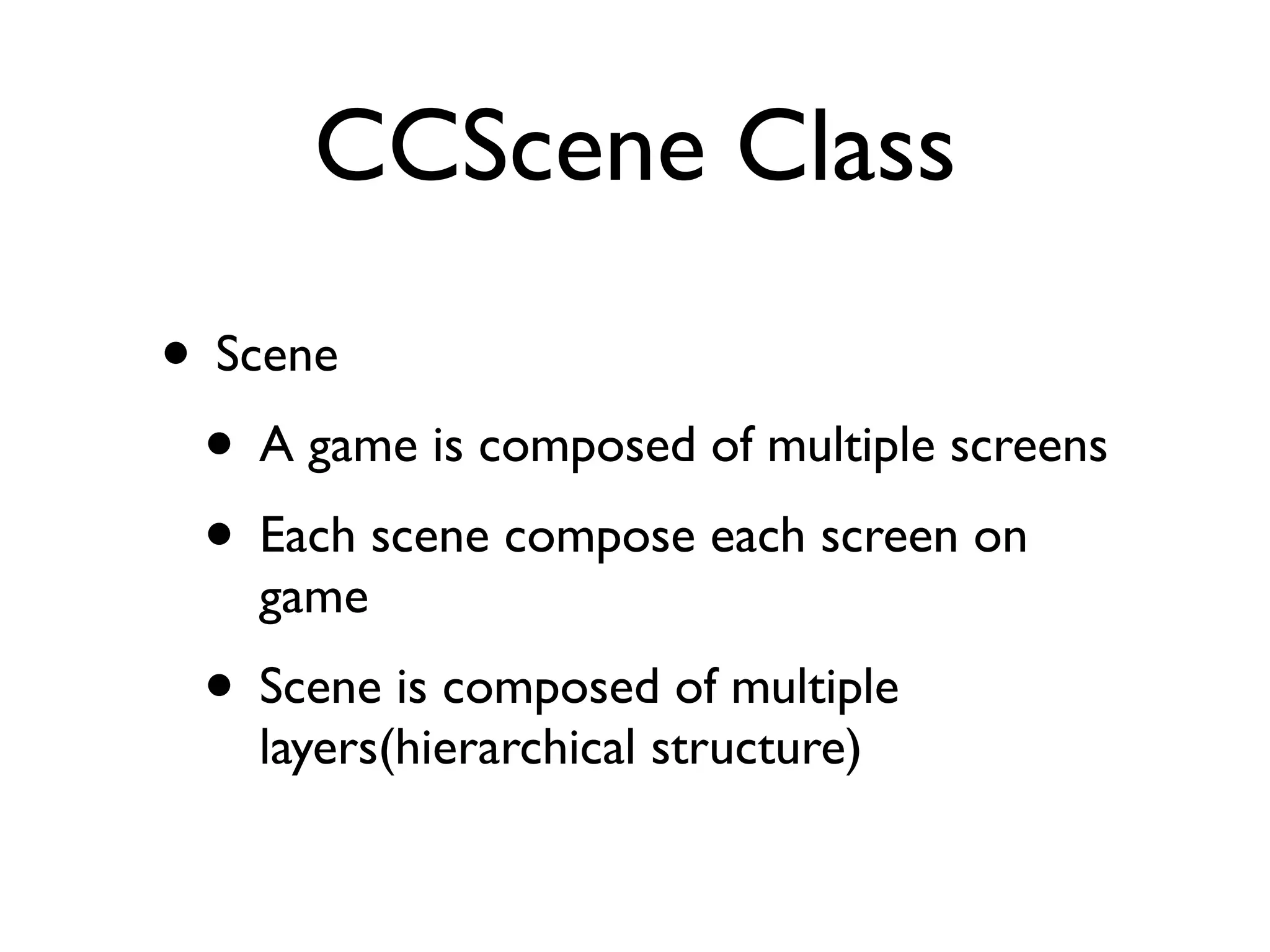

33. CCScene Class
• Scene
• A game is composed of multiple screens
• Each scene compose each screen on
game
• Scene is composed of multiple
layers(hierarchical structure)

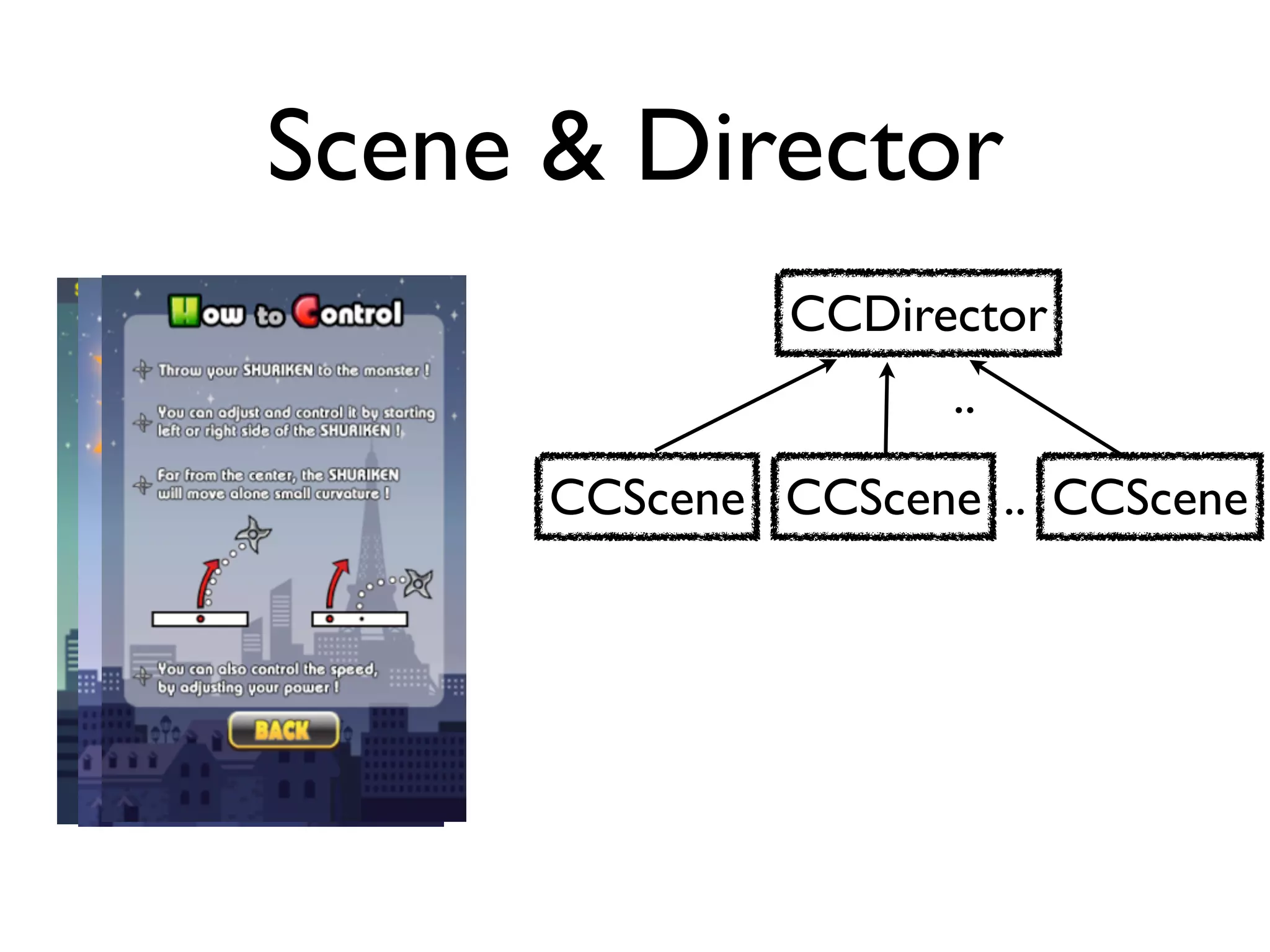

34. Scene & Director
CCDirector
..
CCScene CCScene .. CCScene

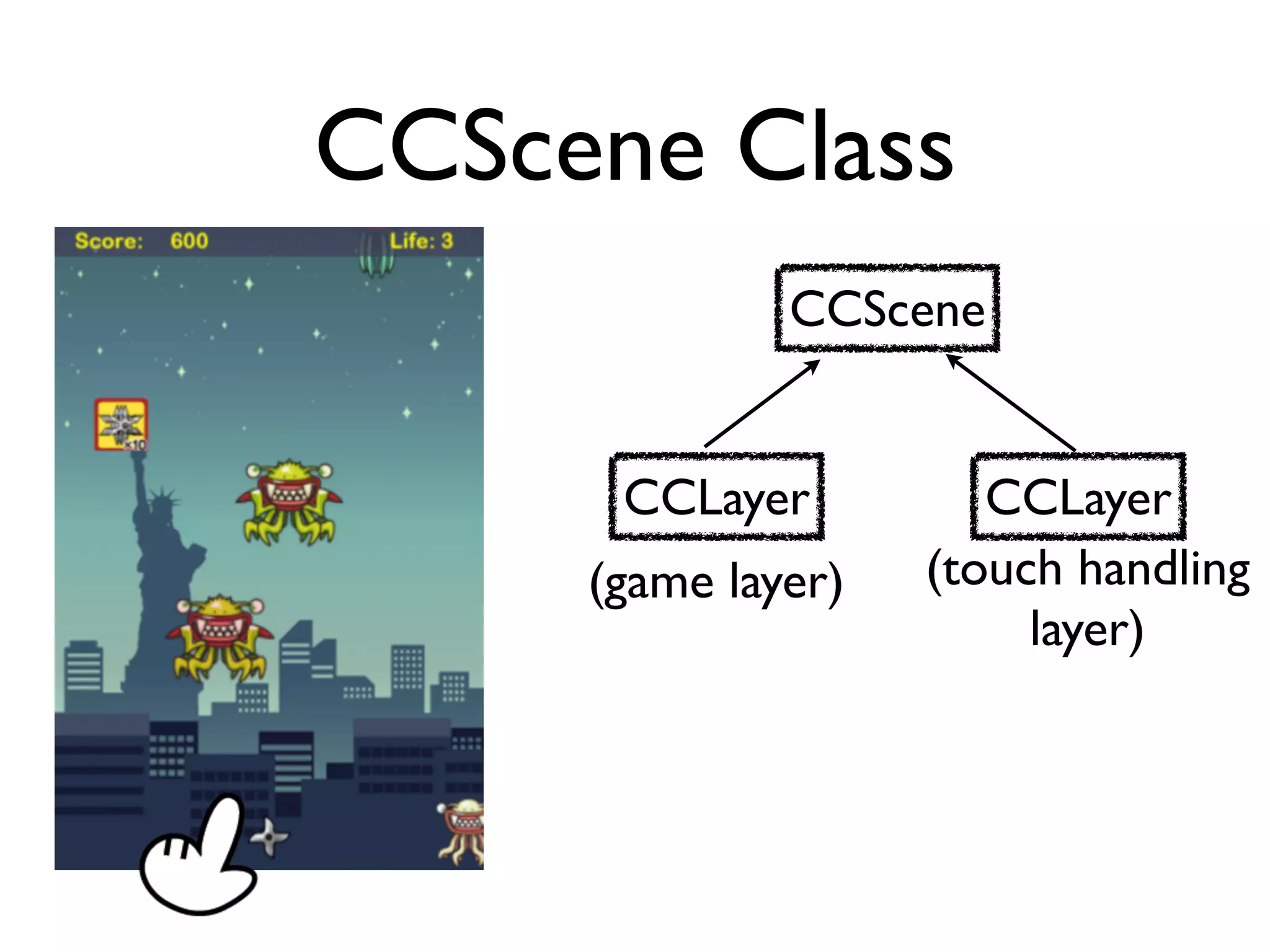

35. CCScene Class
CCScene
CCLayer CCLayer
(game layer) (touch handling
layer)

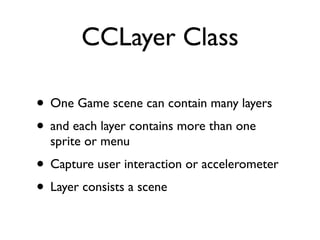

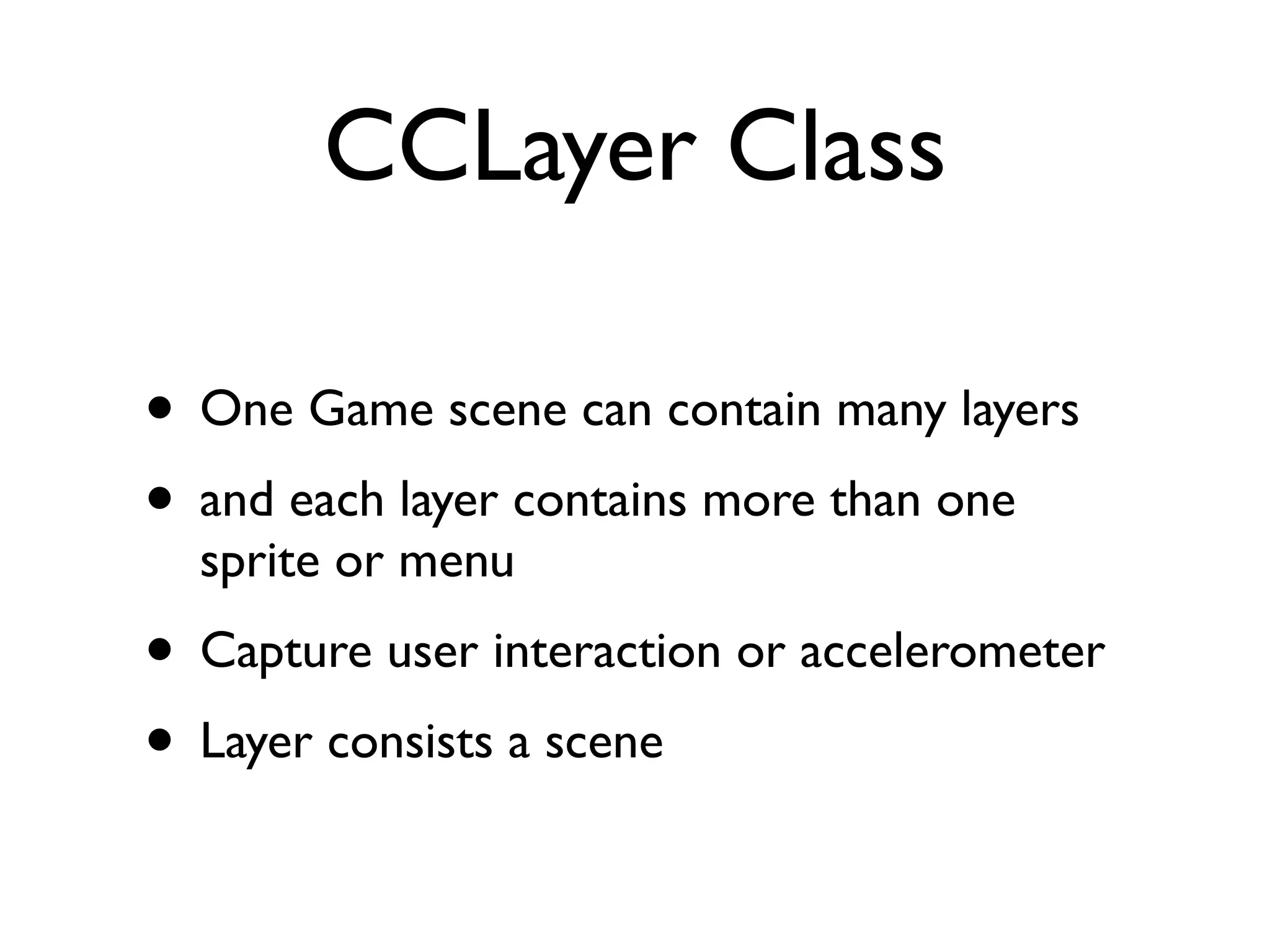

36. CCLayer Class
• One Game scene can contain many layers
• and each layer contains more than one
sprite or menu
• Capture user interaction or accelerometer
• Layer consists a scene

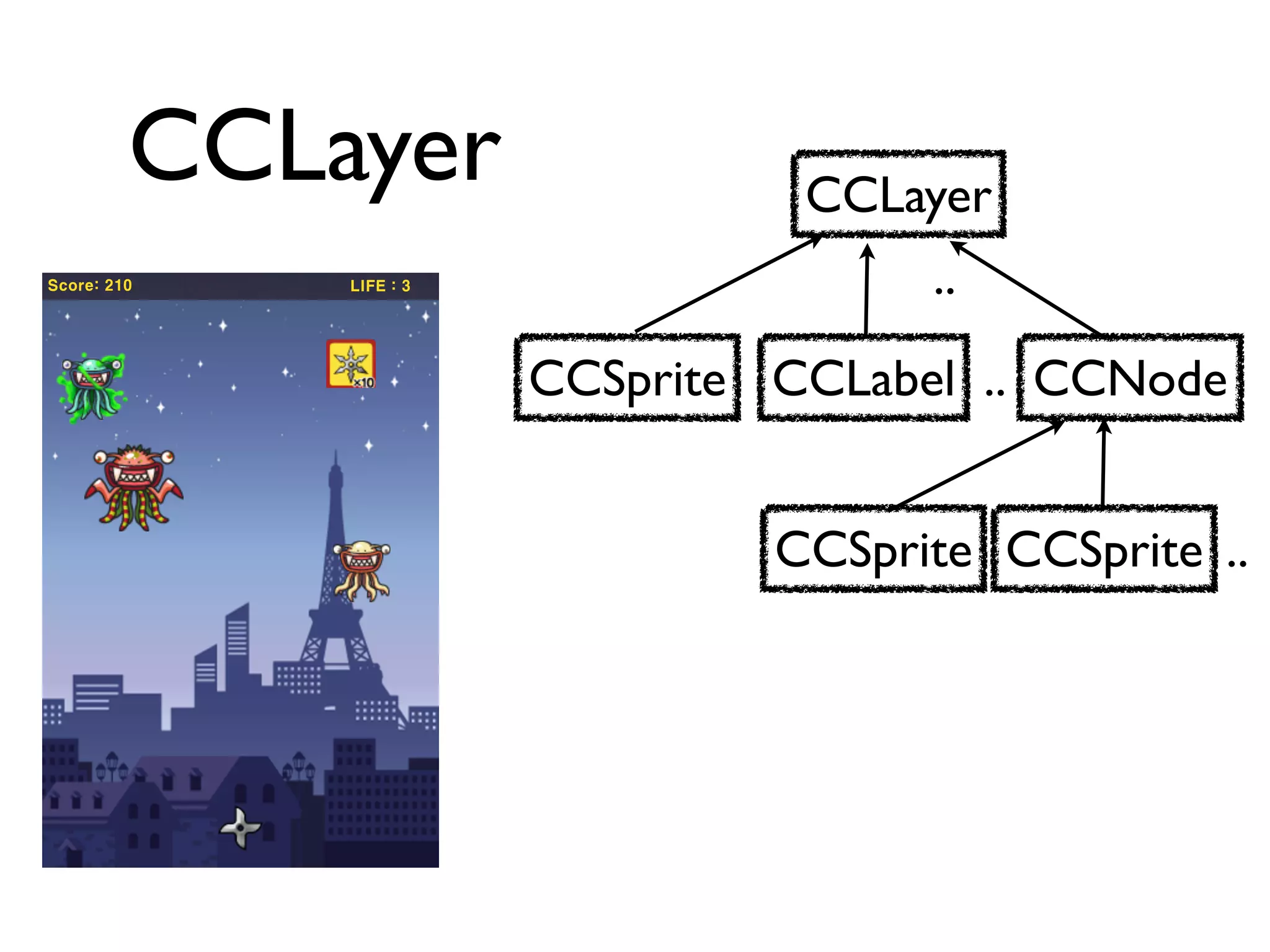

37. CCLayer CCLayer
Score: 210 LIFE : 3 ..
CCSprite CCLabel .. CCNode
CCSprite CCSprite ..

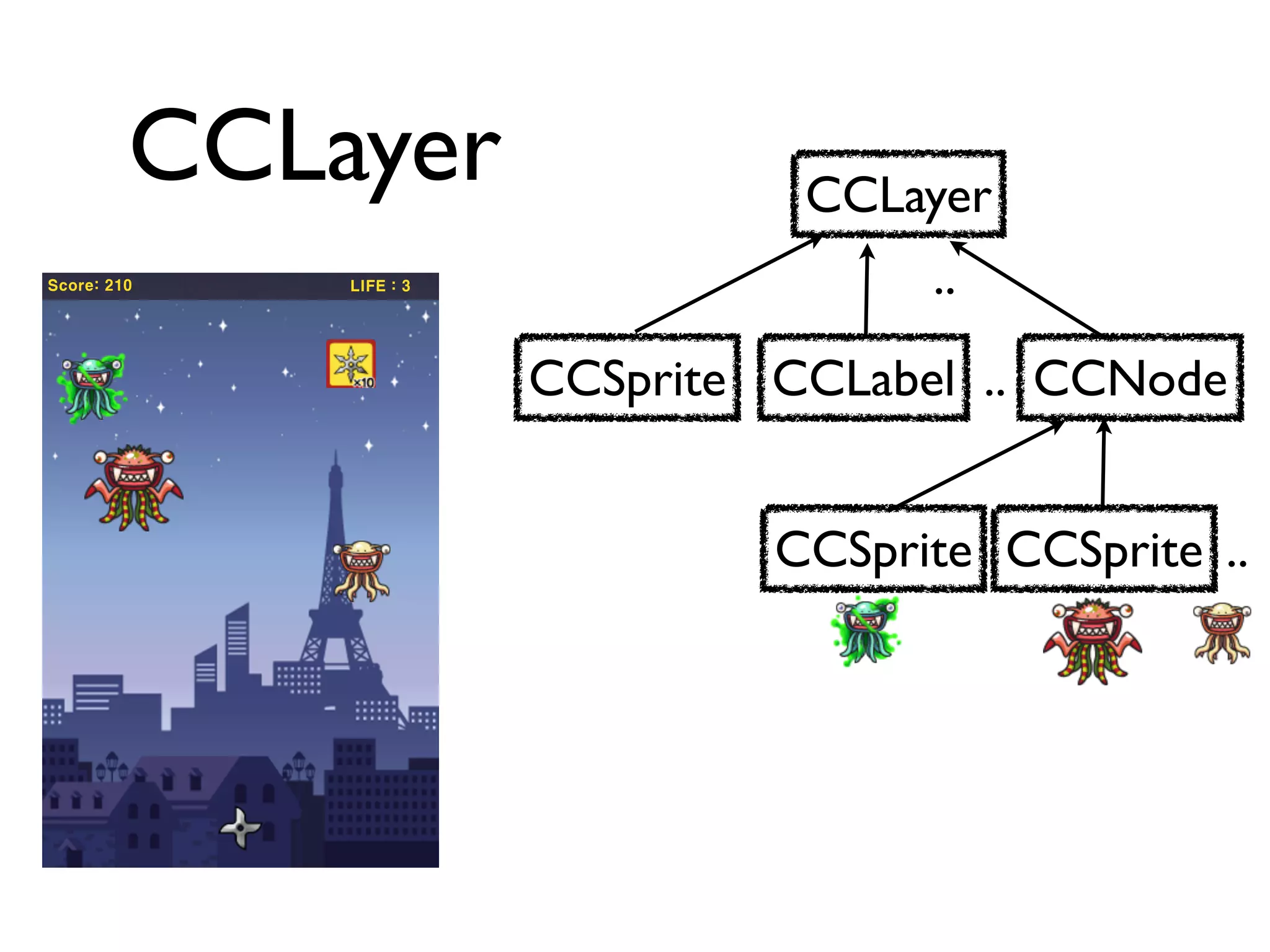

38. CCLayer CCLayer
Score: 210 LIFE : 3 ..
CCSprite CCLabel .. CCNode
CCSprite CCSprite ..

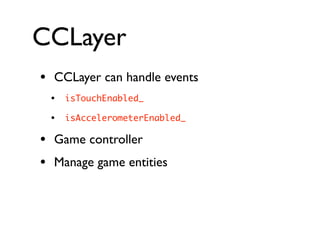

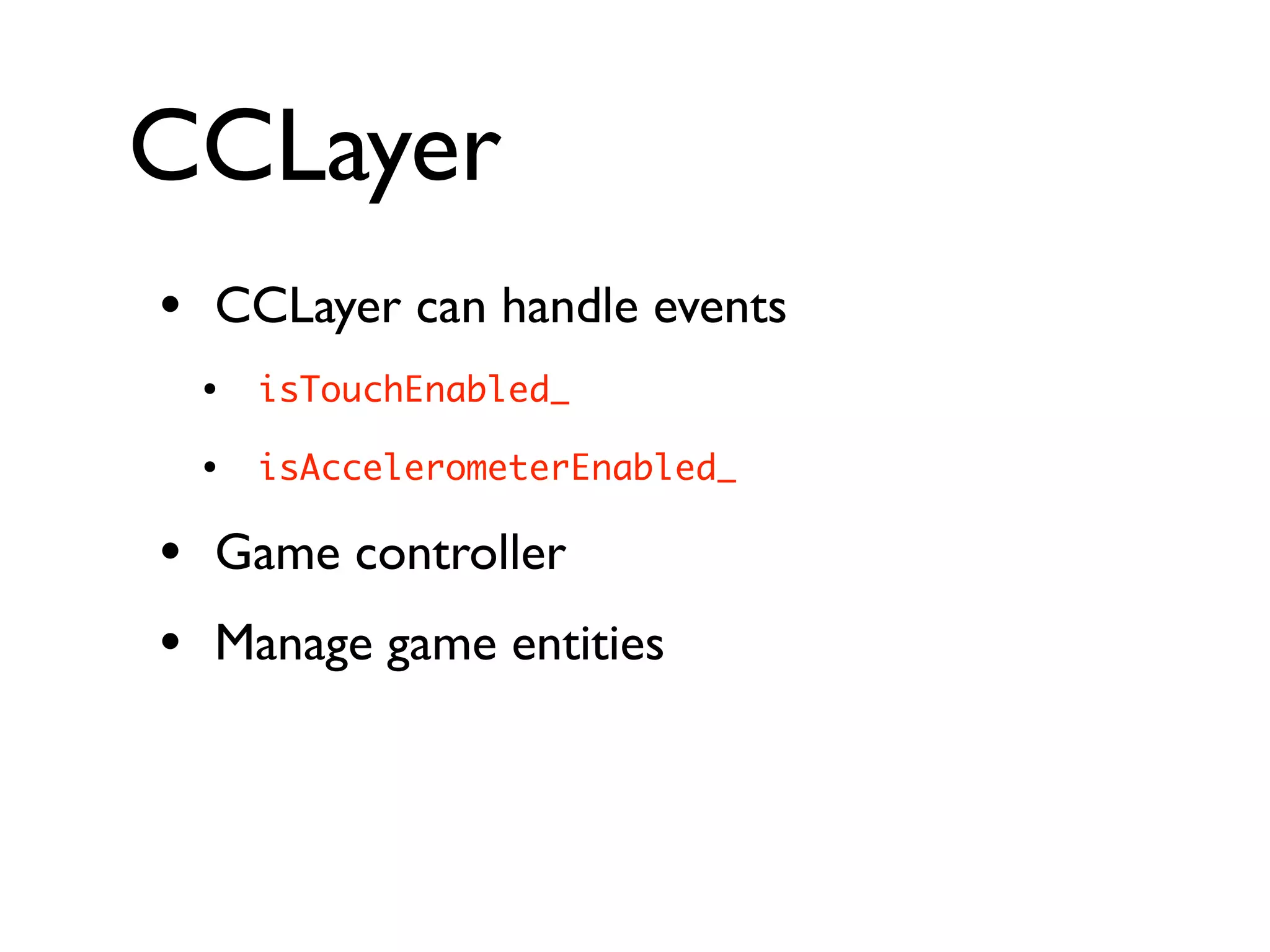

39. CCLayer
• CCLayer can handle events
• isTouchEnabled_
• isAccelerometerEnabled_
• Game controller
• Manage game entities

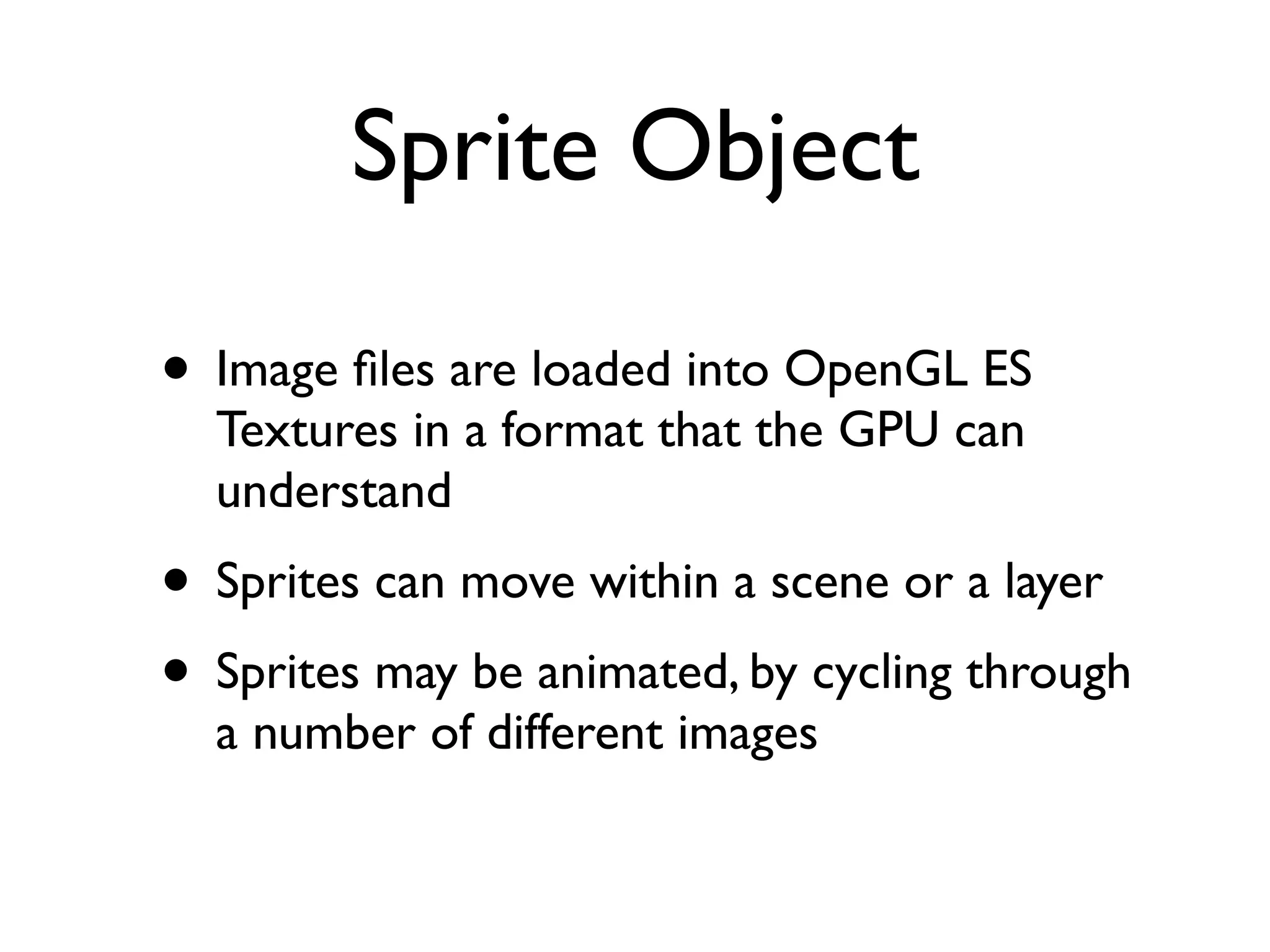

40. Sprite Object
• Image files are loaded into OpenGL ES
Textures in a format that the GPU can
understand
• Sprites can move within a scene or a layer
• Sprites may be animated, by cycling through
a number of different images

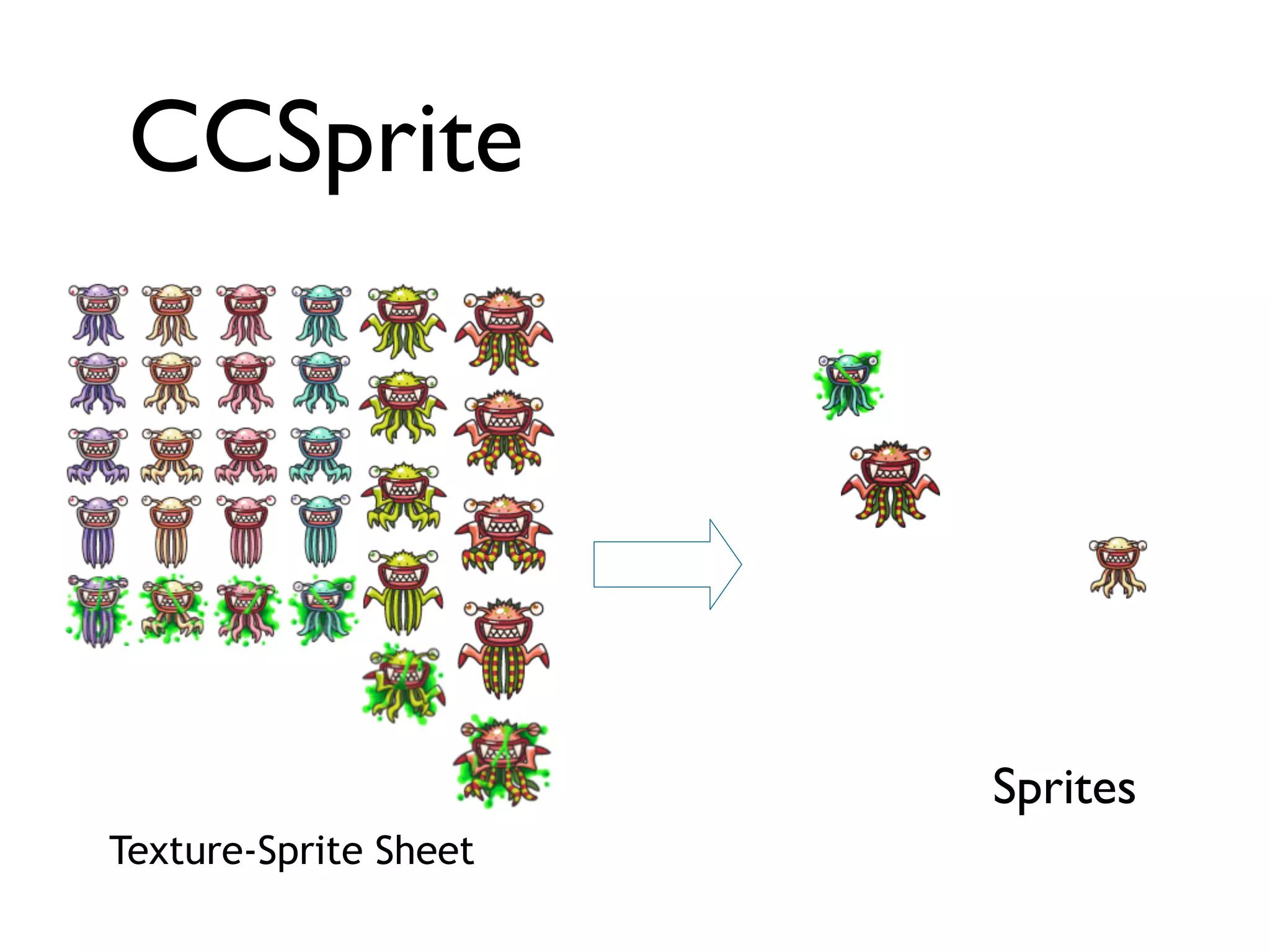

41. CCSprite
Sprites
Texture-Sprite Sheet

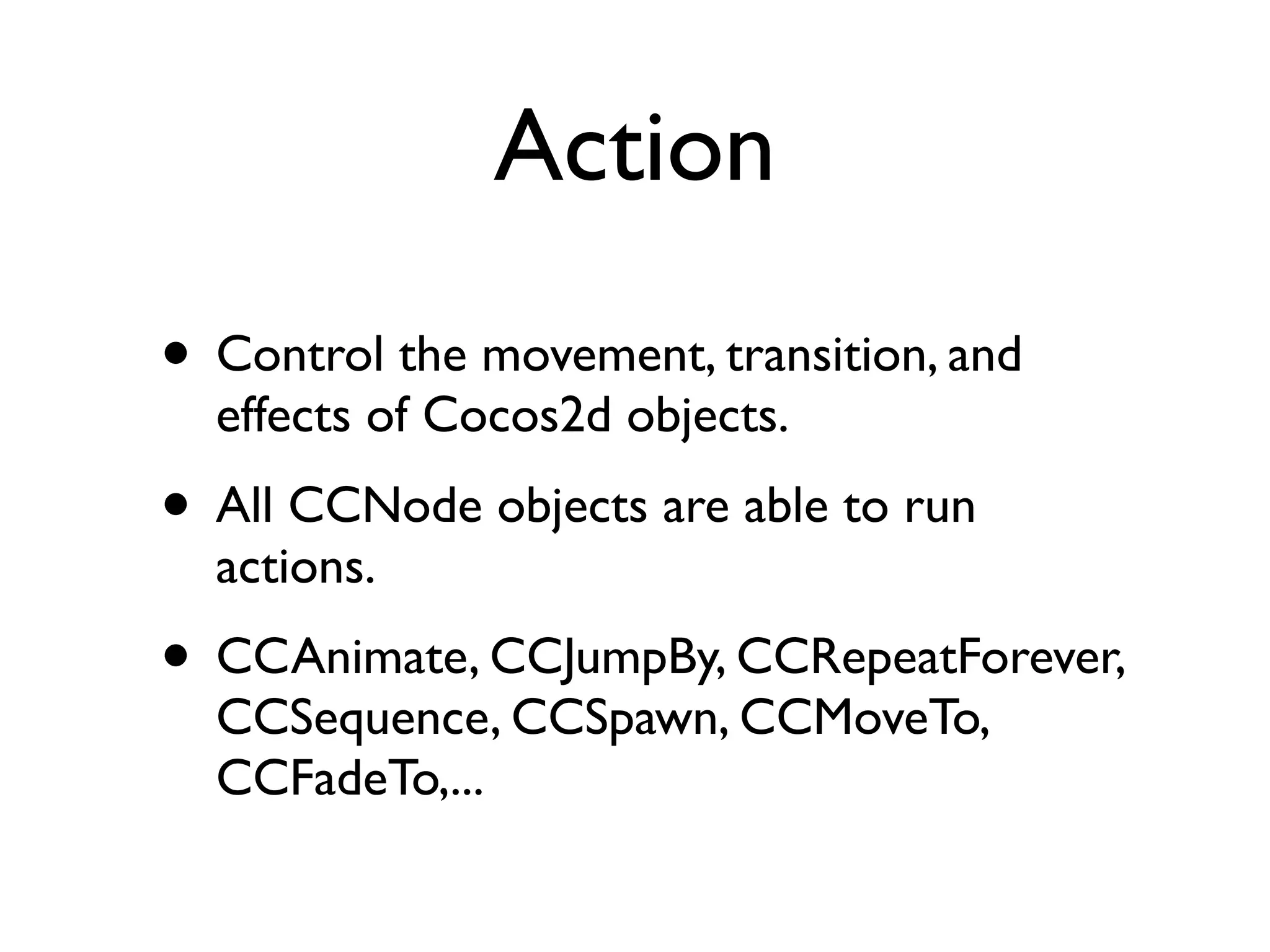

42. Action
• Control the movement, transition, and
effects of Cocos2d objects.
• All CCNode objects are able to run
actions.
• CCAnimate, CCJumpBy, CCRepeatForever,
CCSequence, CCSpawn, CCMoveTo,
CCFadeTo,...

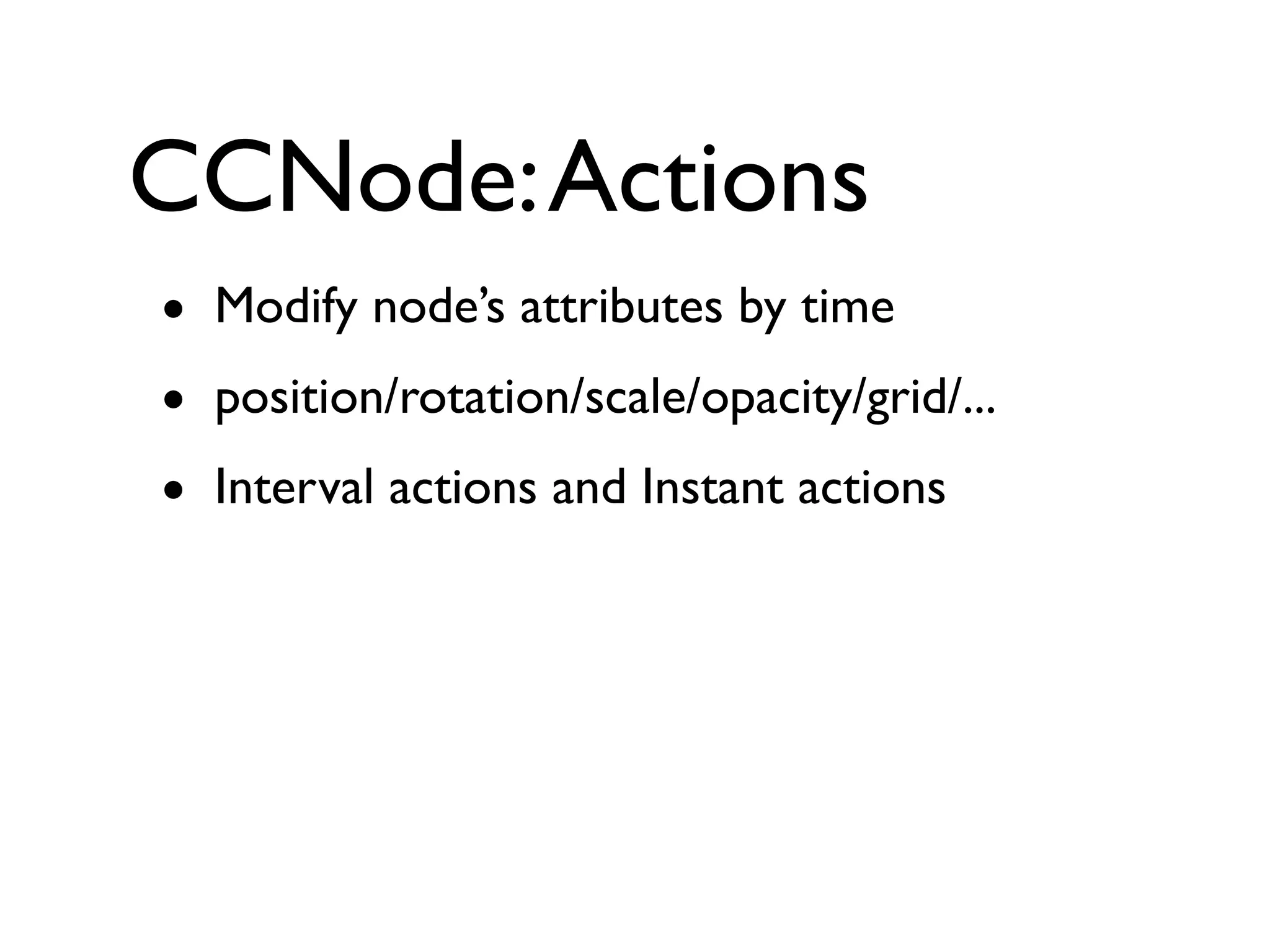

43. CCNode: Actions
• Modify node’s attributes by time
• position/rotation/scale/opacity/grid/...
• Interval actions and Instant actions

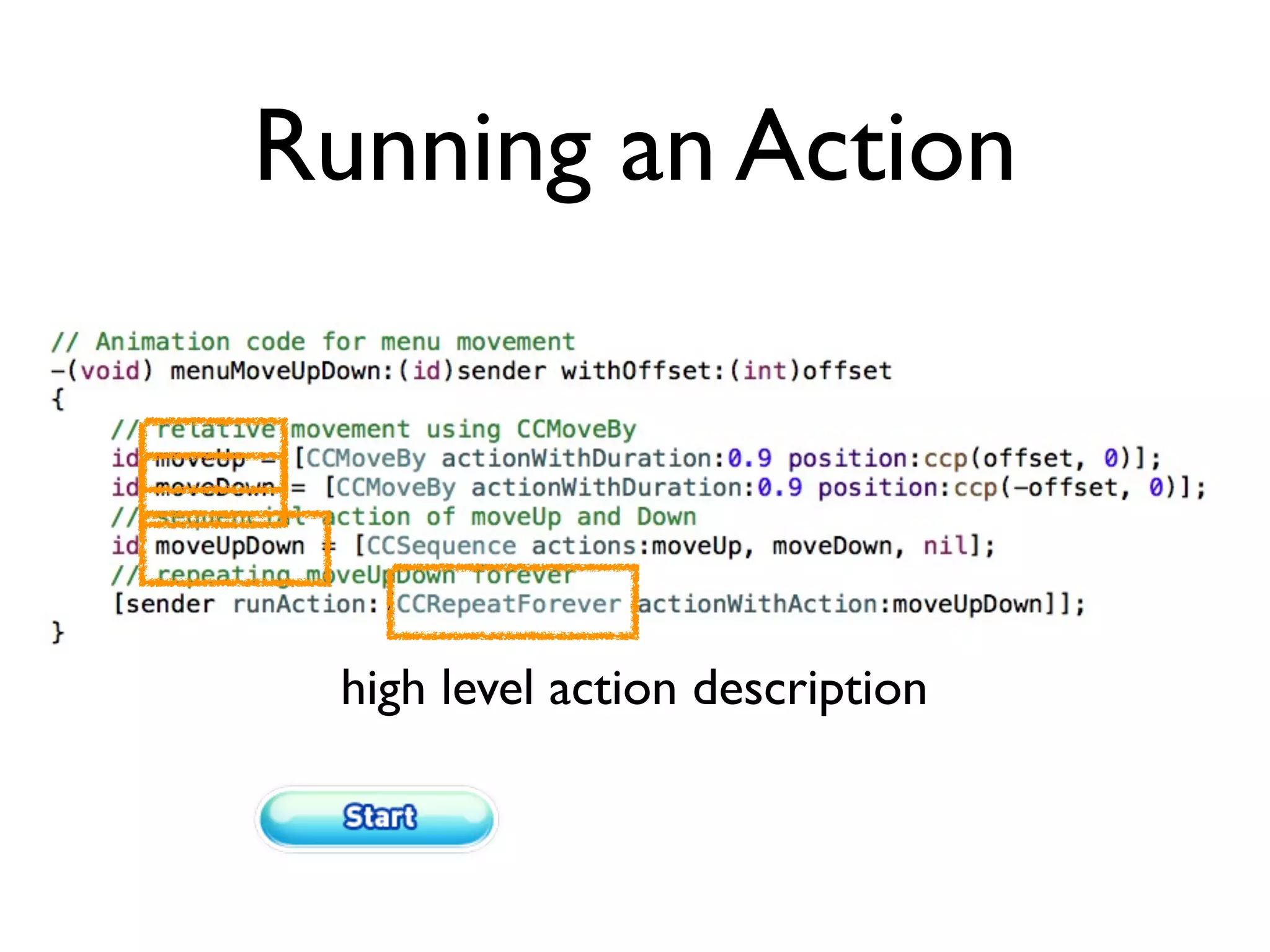

44. Running an Action
high level action description

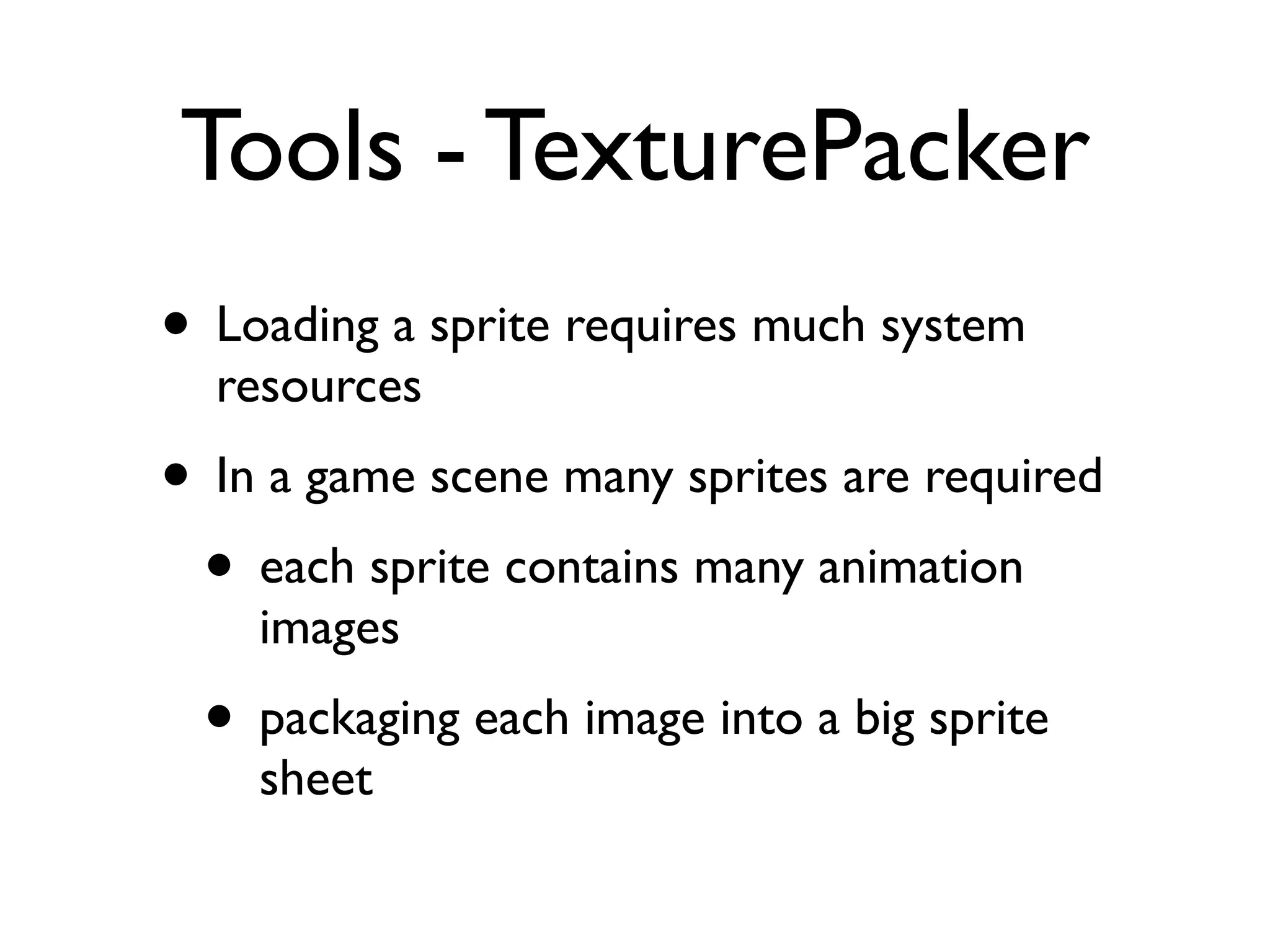

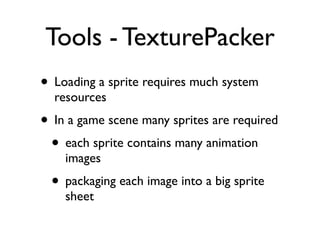

45. Tools - TexturePacker
• Loading a sprite requires much system
resources
• In a game scene many sprites are required
• each sprite contains many animation
images
• packaging each image into a big sprite
sheet

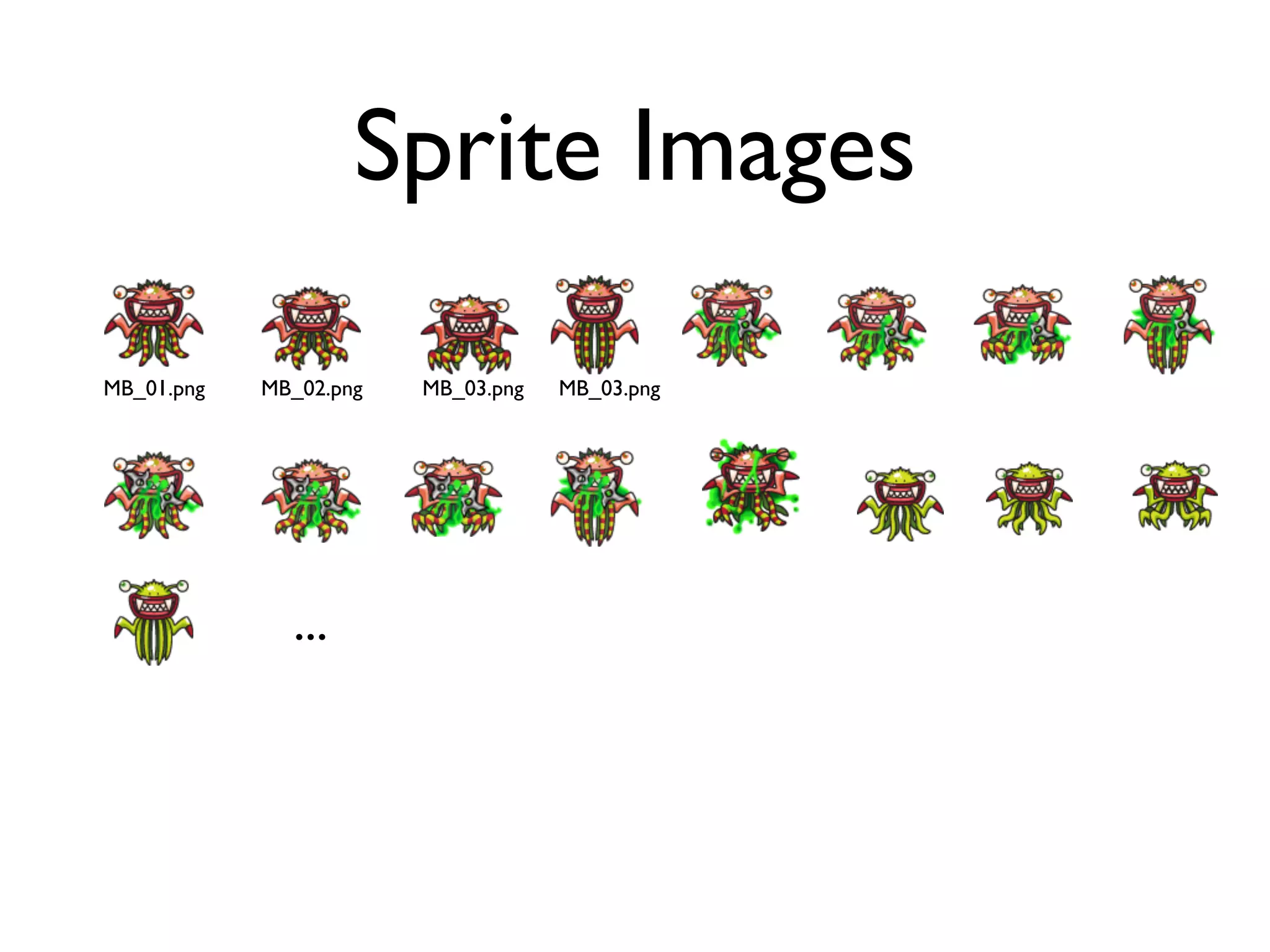

46. Sprite Images
MB_01.png MB_02.png MB_03.png MB_03.png
...

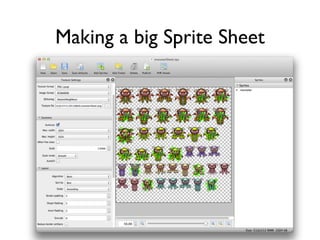

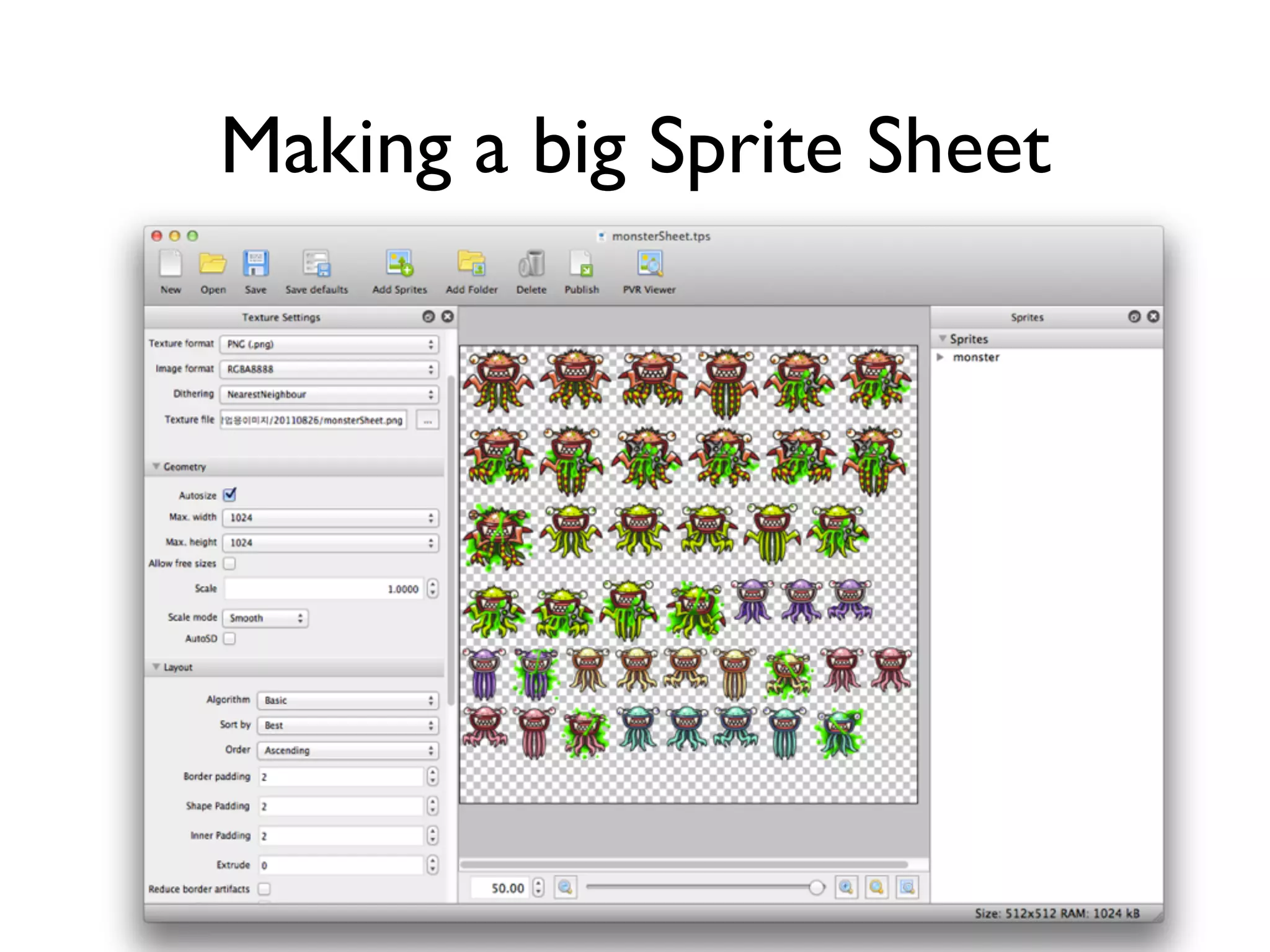

47. Making a big Sprite Sheet

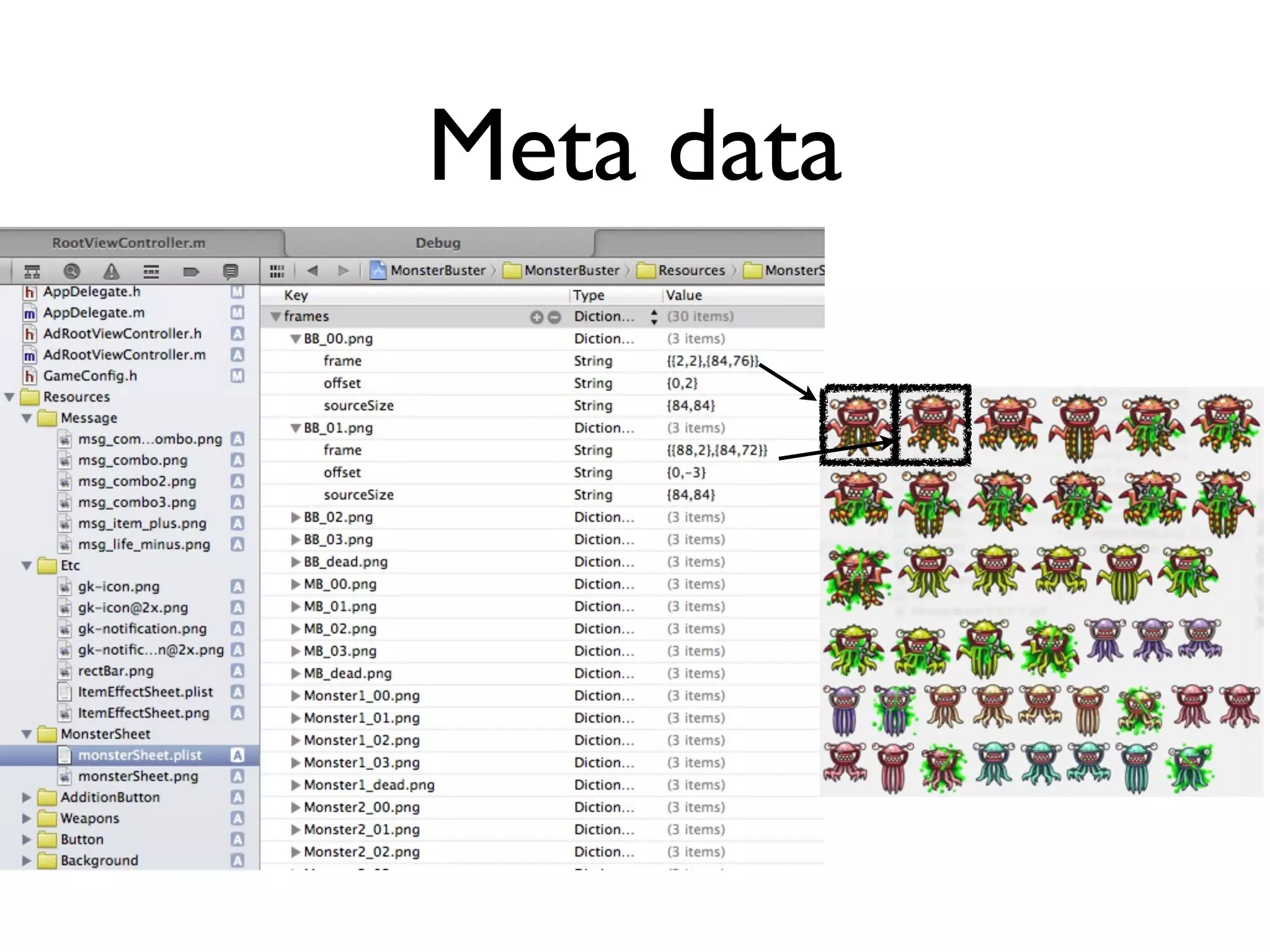

48. Meta data

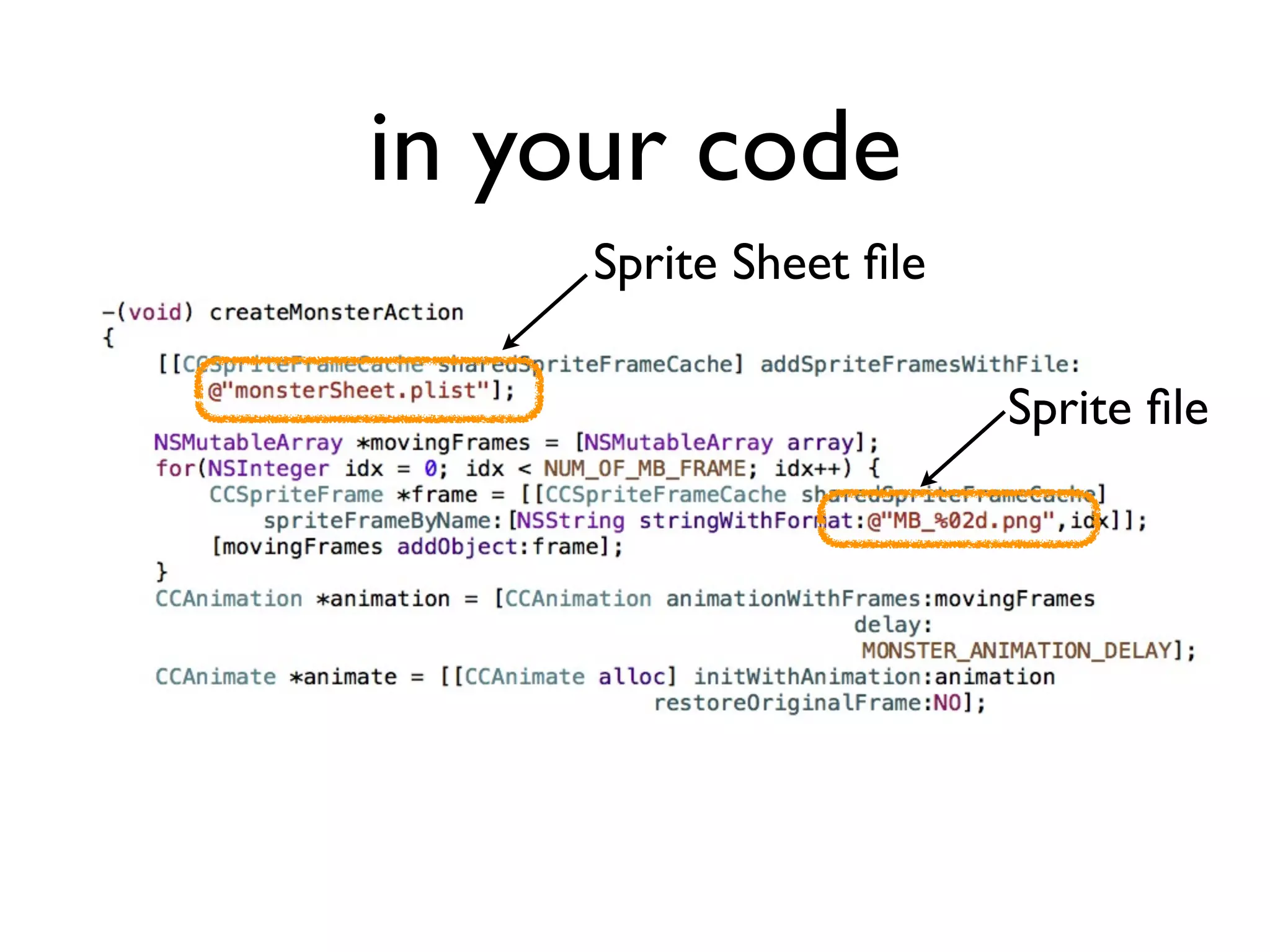

49. in your code
Sprite Sheet file
Sprite file

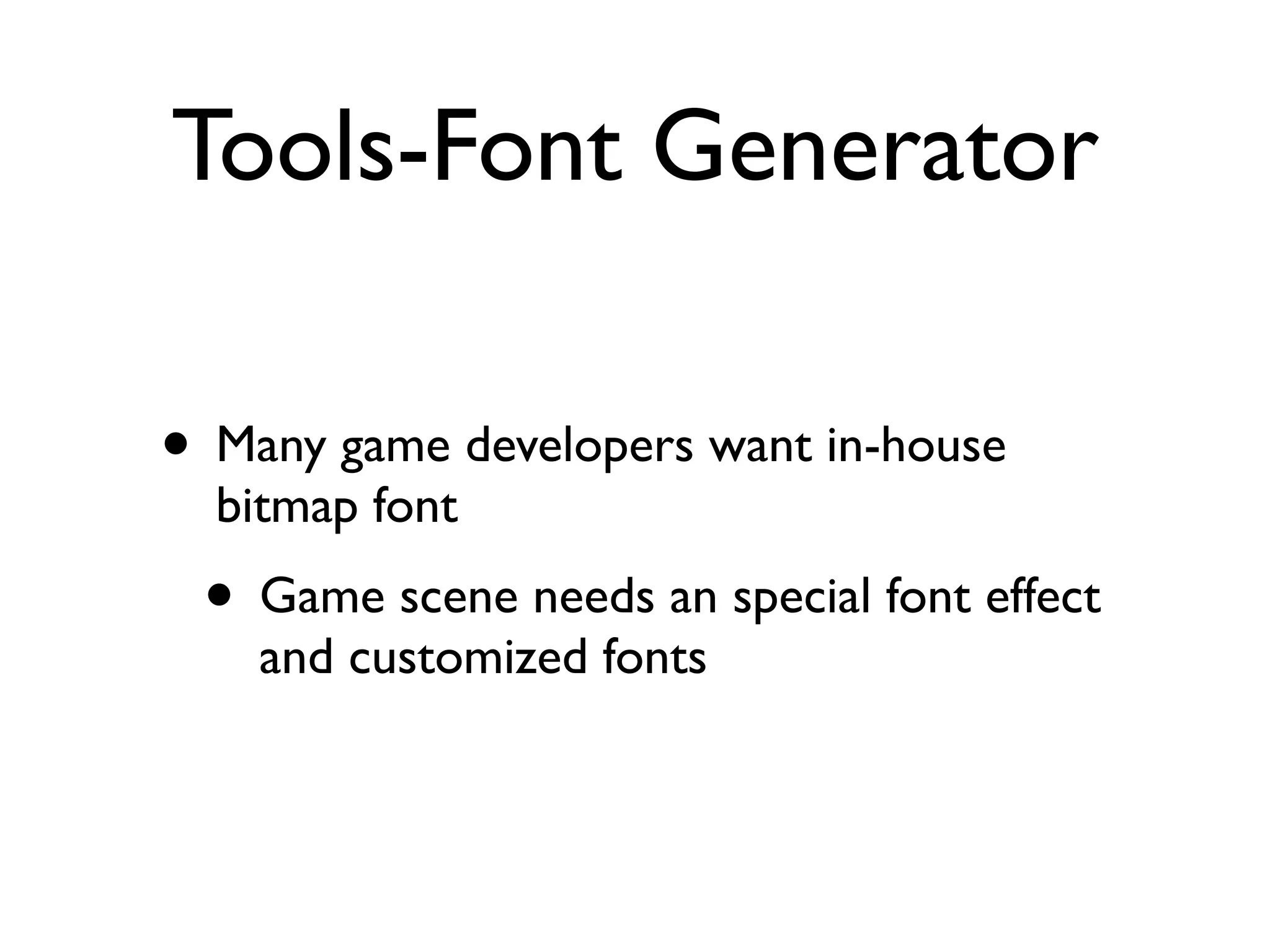

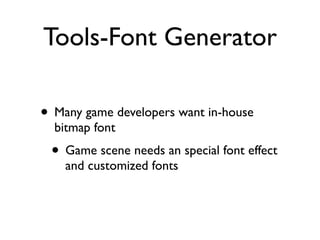

50. Tools-Font Generator
• Many game developers want in-house
bitmap font
• Game scene needs an special font effect
and customized fonts

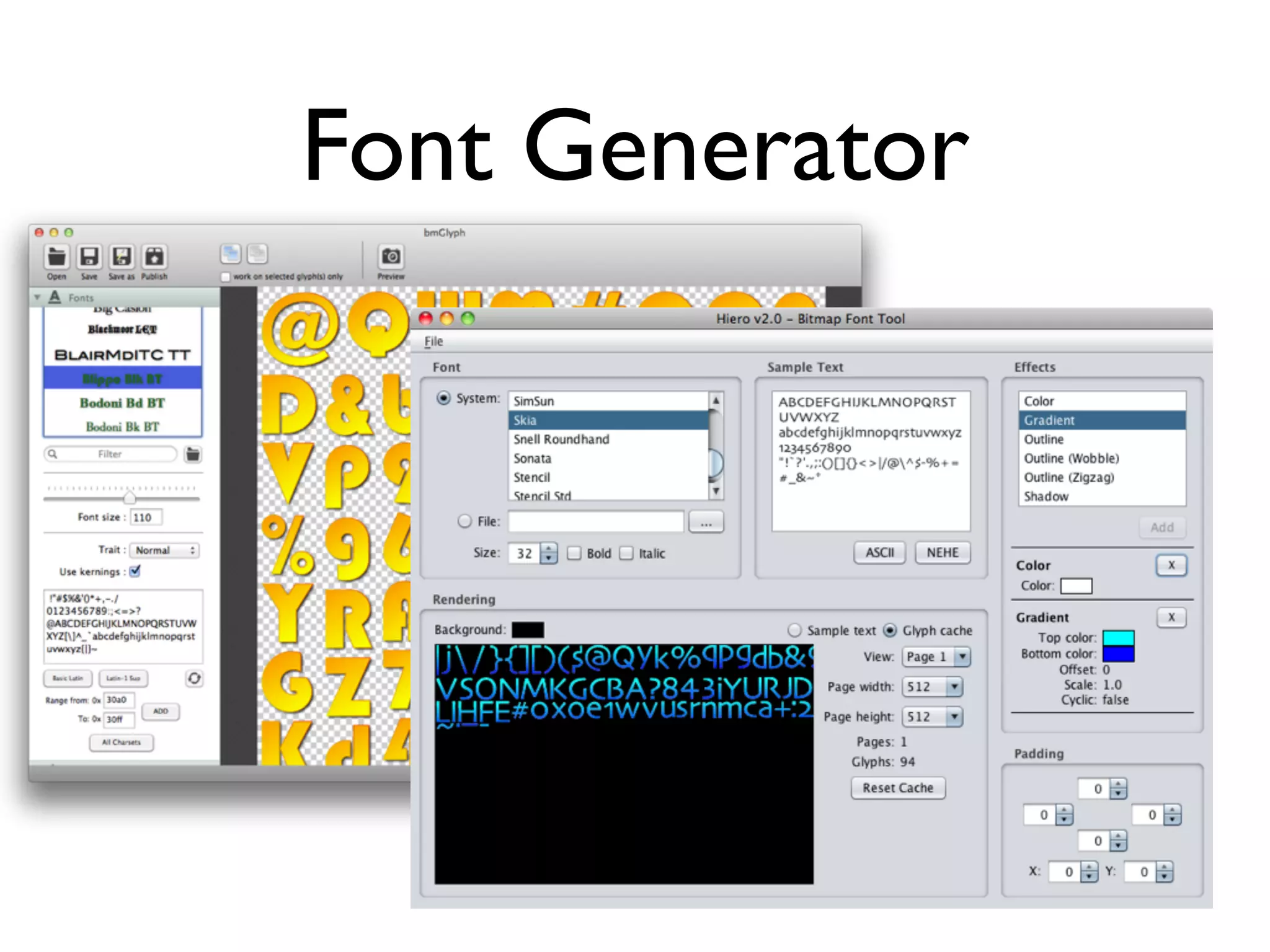

51. Font Generator

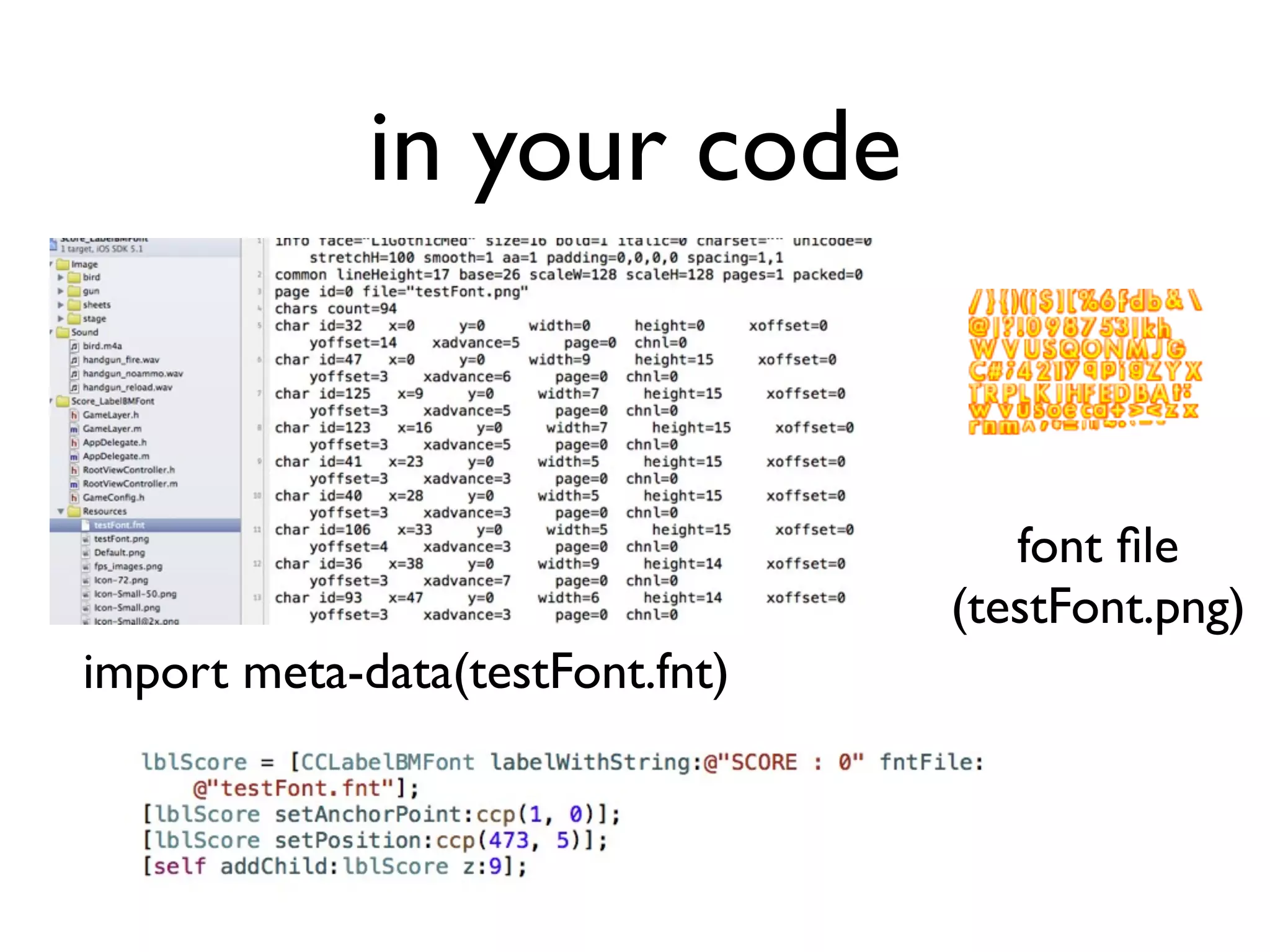

52. in your code
font file
(testFont.png)
import meta-data(testFont.fnt)

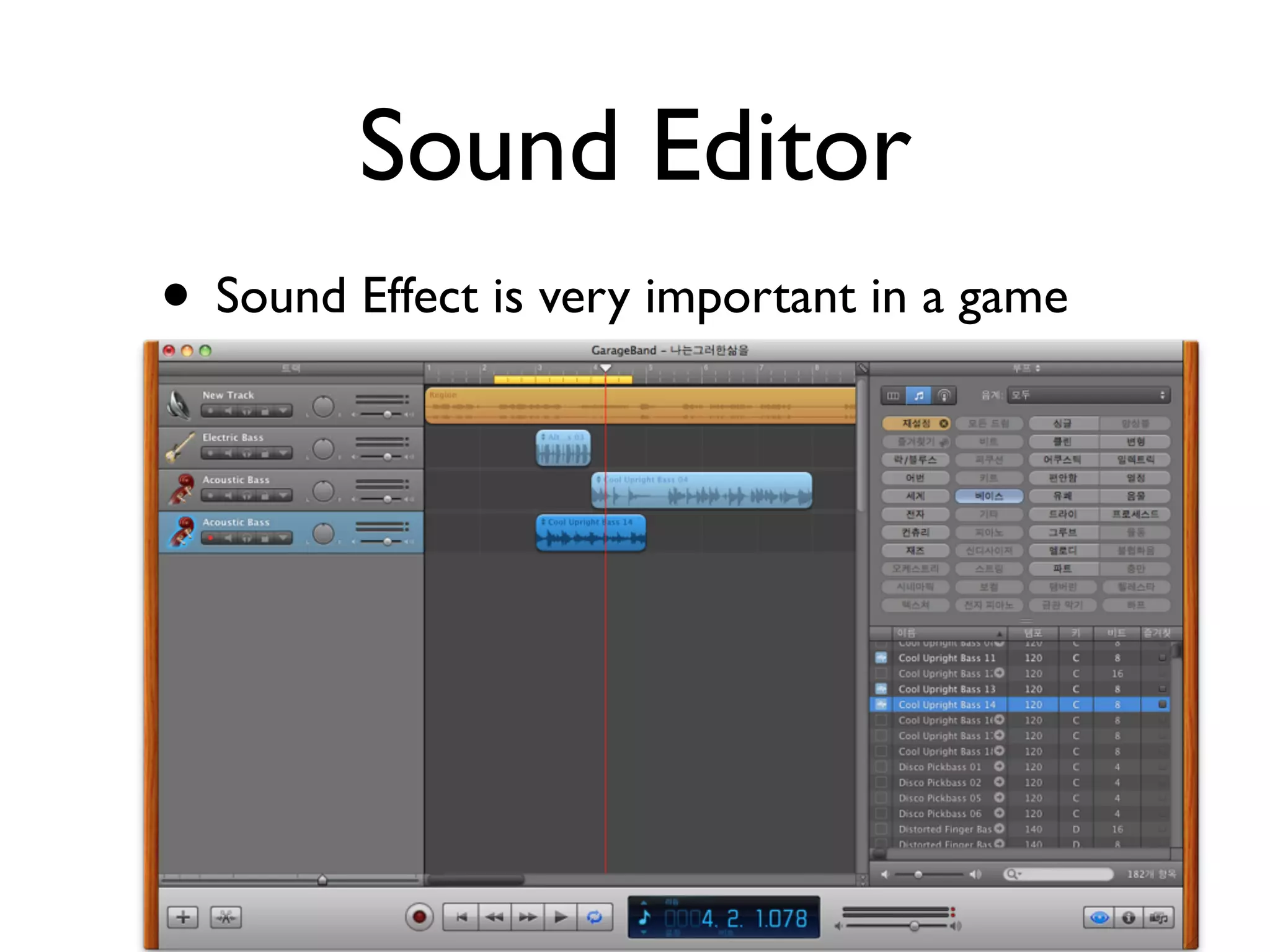

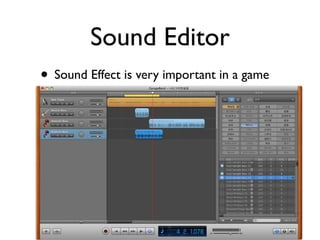

53. Sound Editor
• Sound Effect is very important in a game

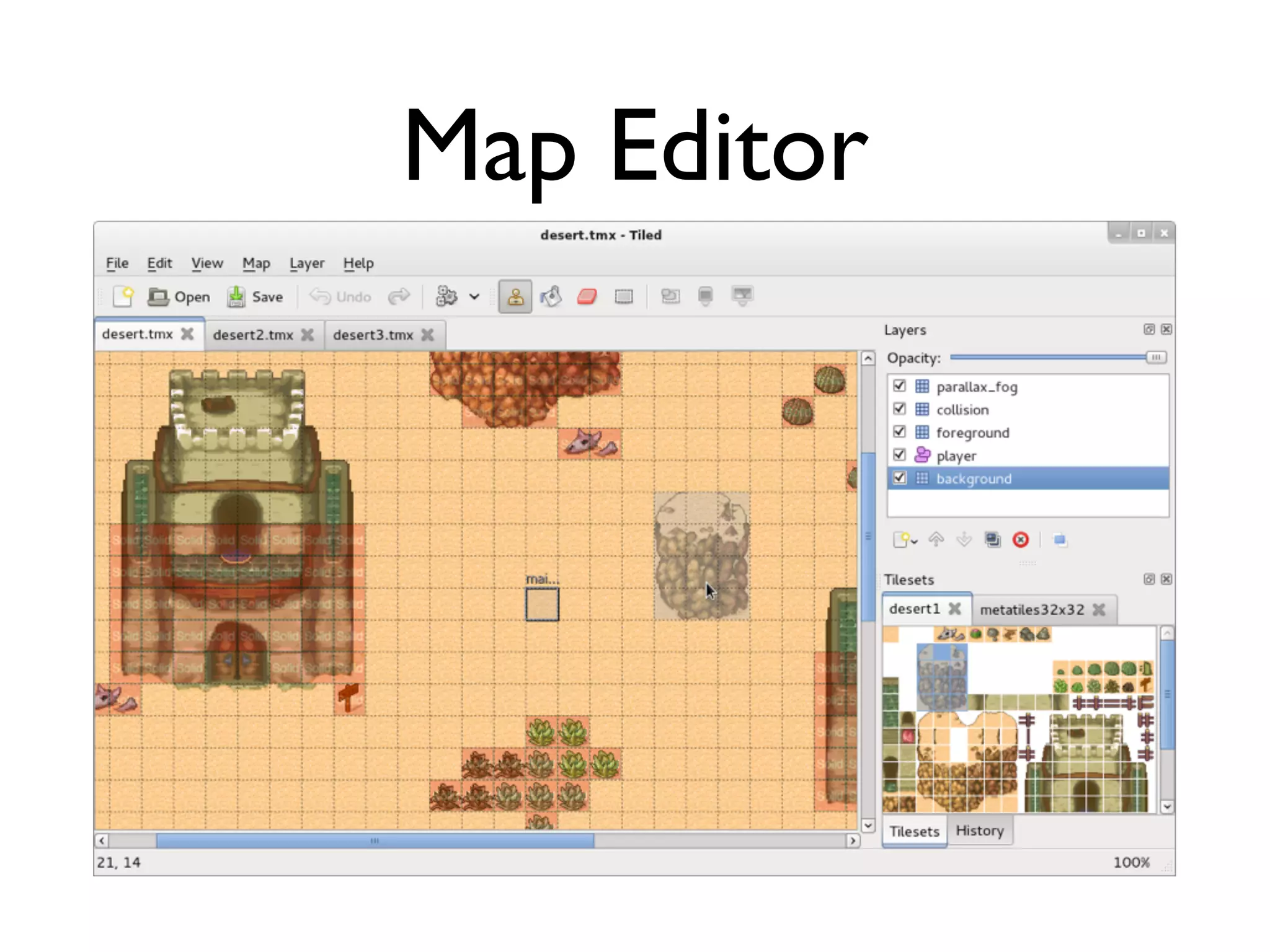

54. Map Editor

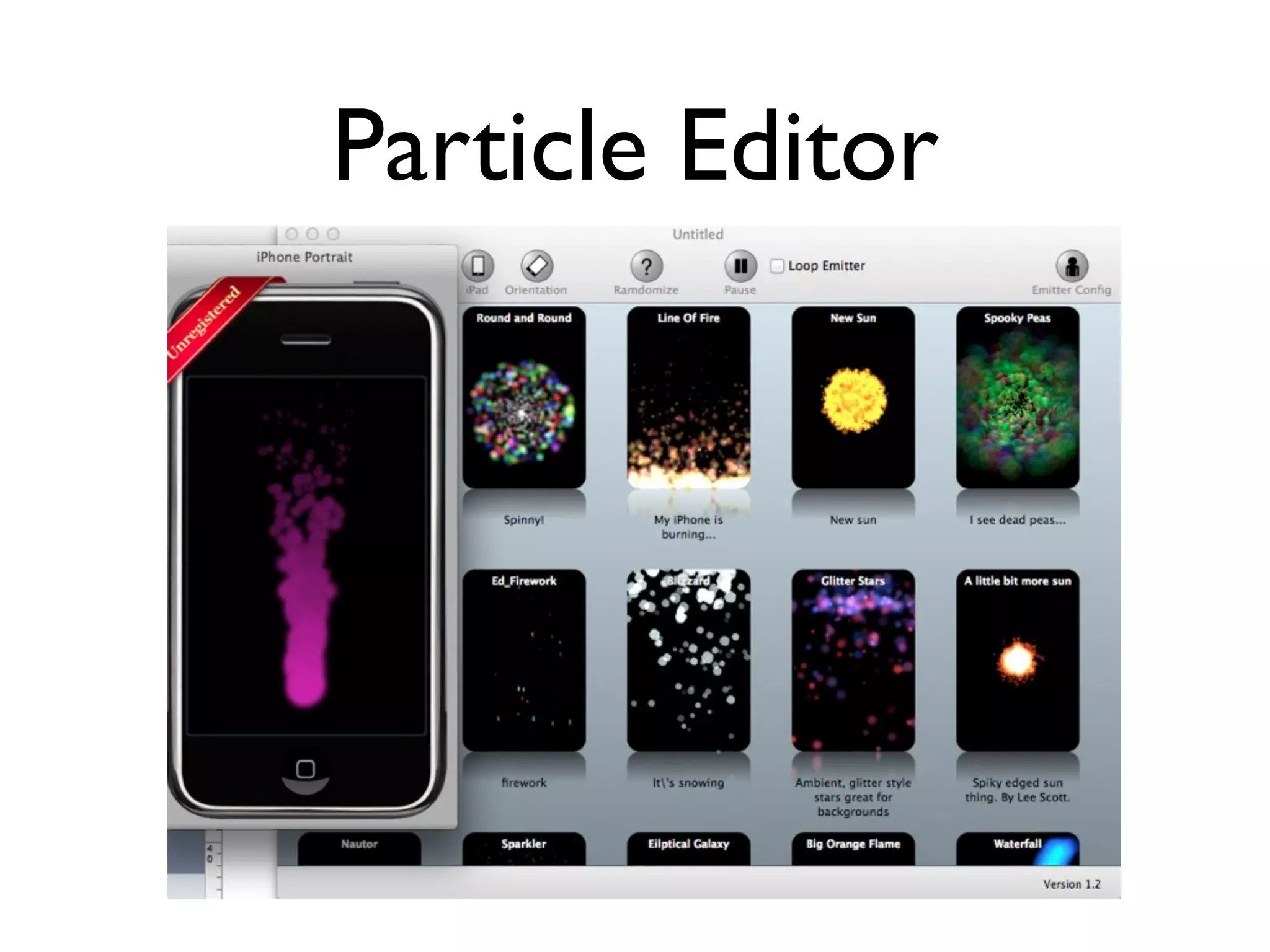

55. Particle Editor

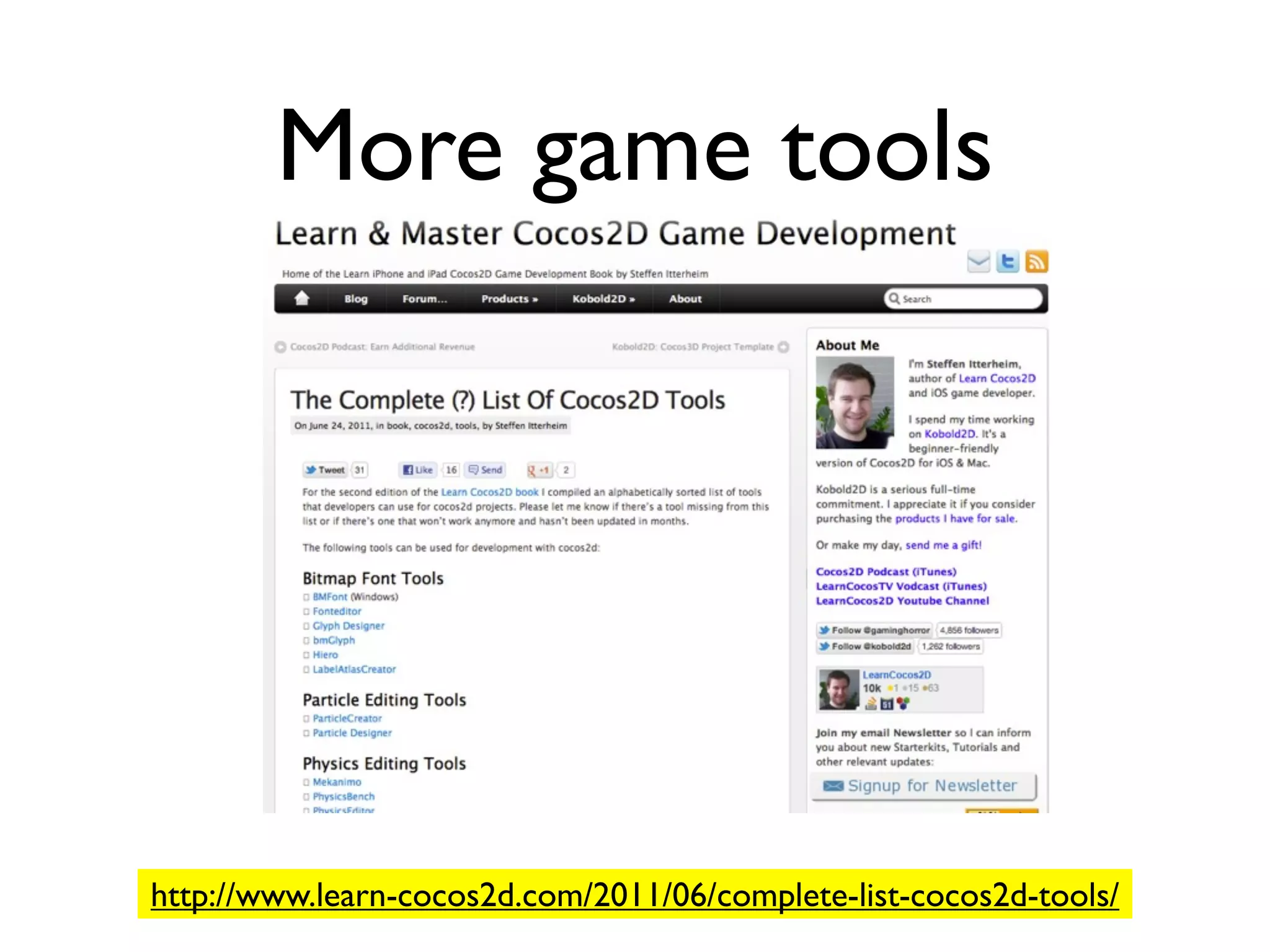

56. More game tools
http://www.learn-cocos2d.com/2011/06/complete-list-cocos2d-tools/

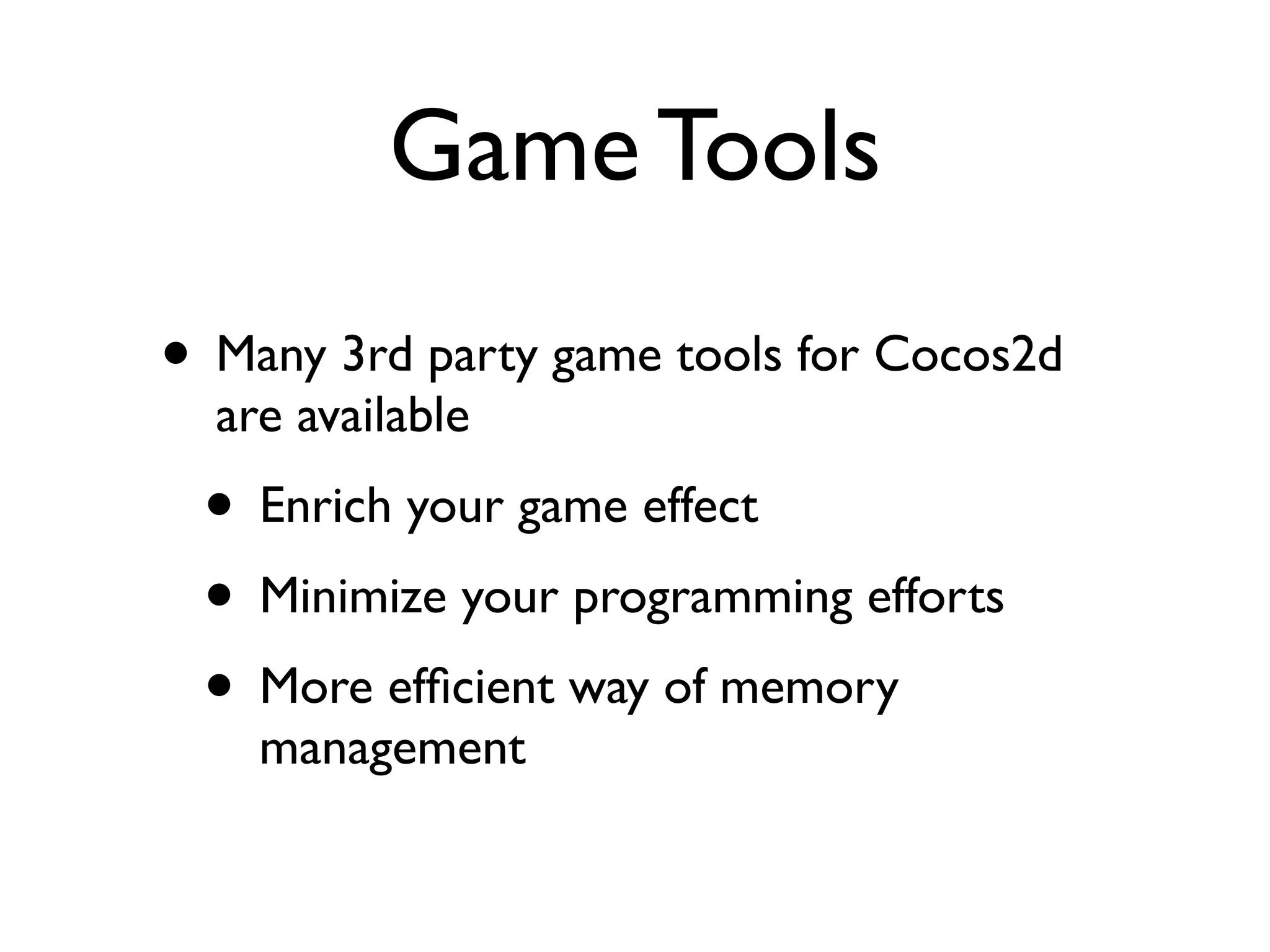

57. Game Tools
• Many 3rd party game tools for Cocos2d
are available
• Enrich your game effect
• Minimize your programming efforts
• More efficient way of memory
management

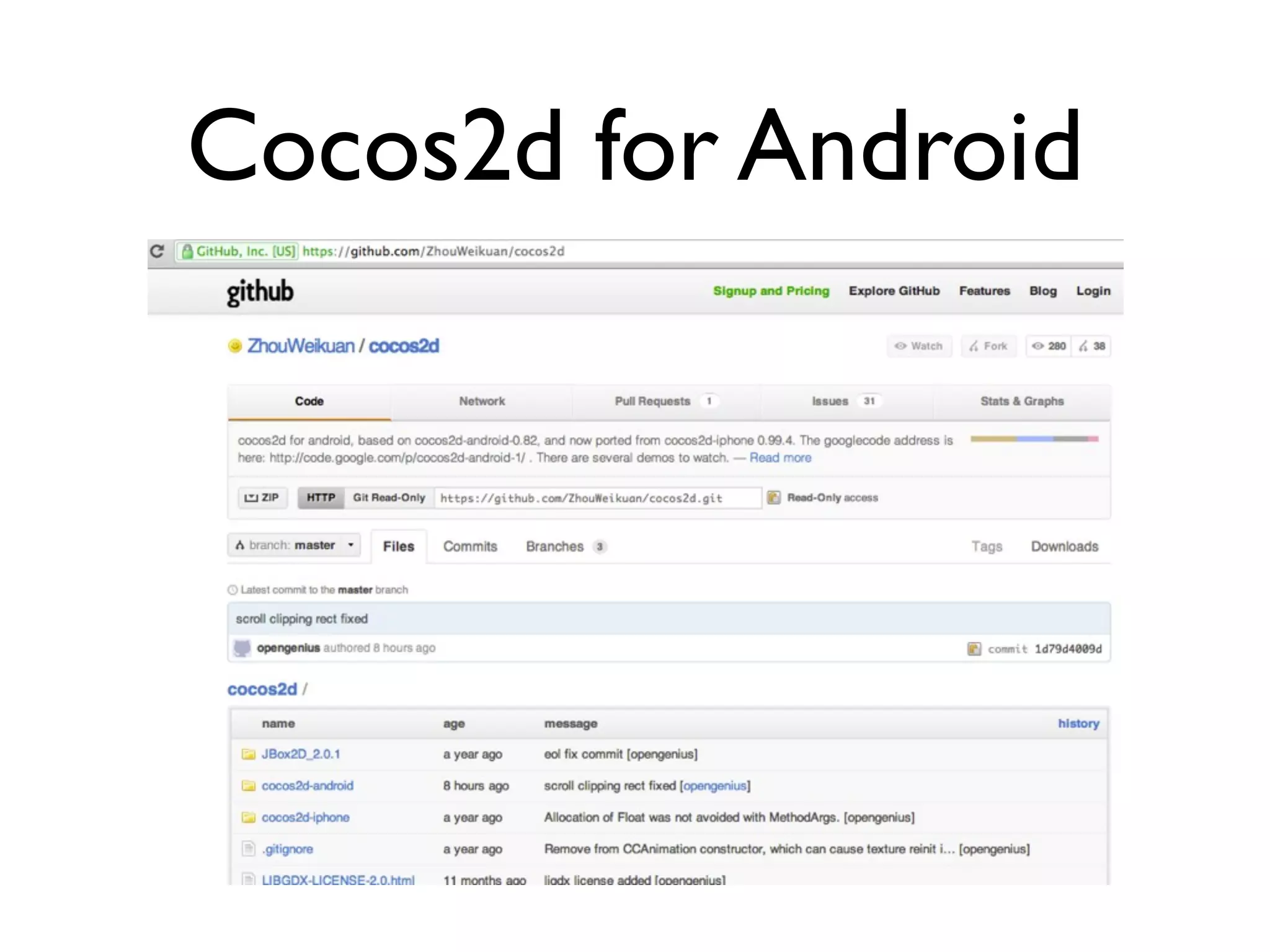

58. Cocos2d for Android

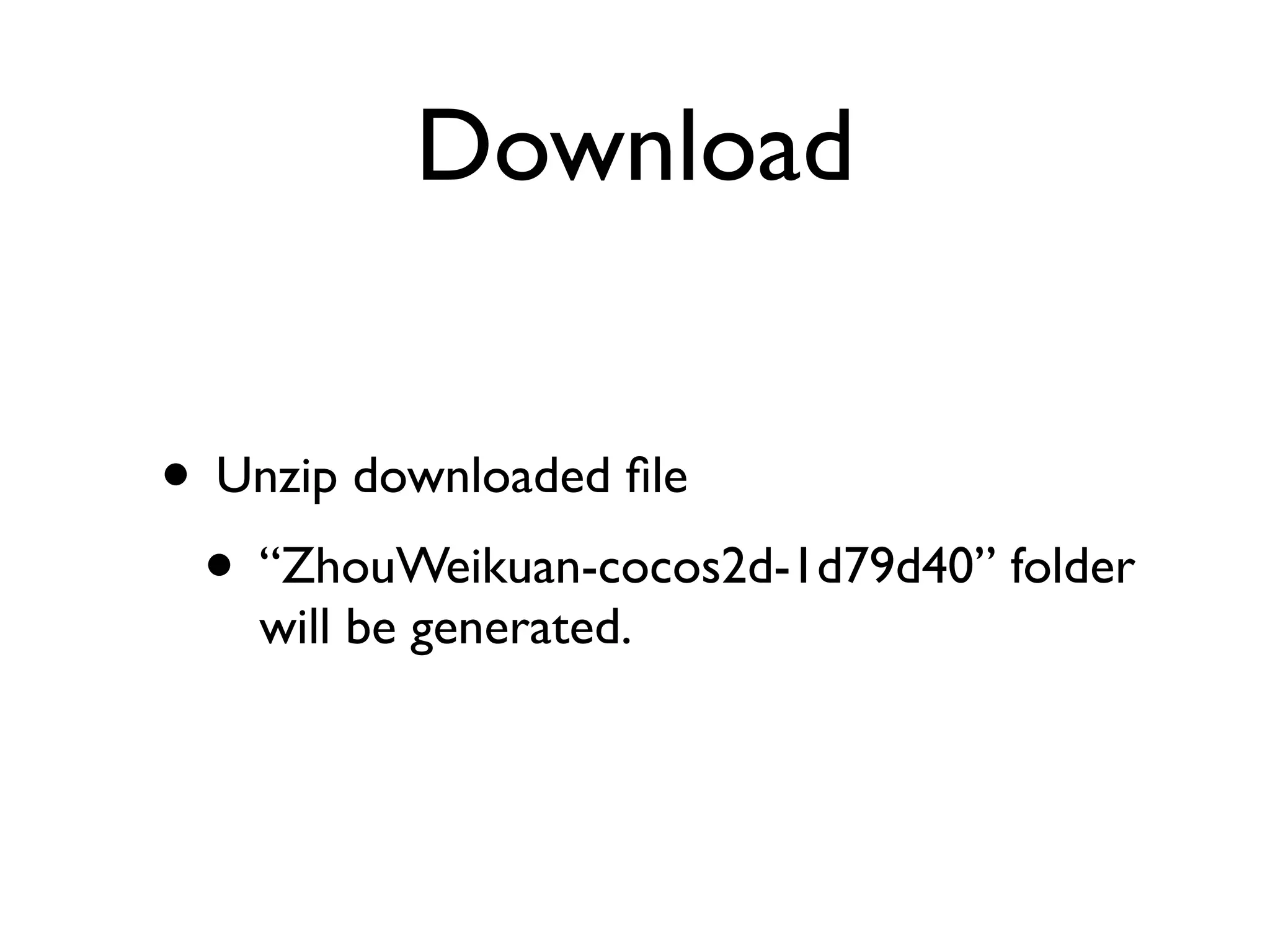

59. Download
• Unzip downloaded file
• “ZhouWeikuan-cocos2d-1d79d40” folder
will be generated.

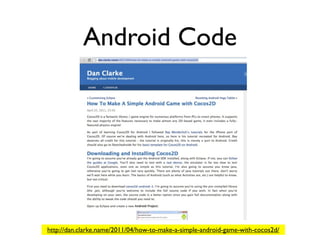

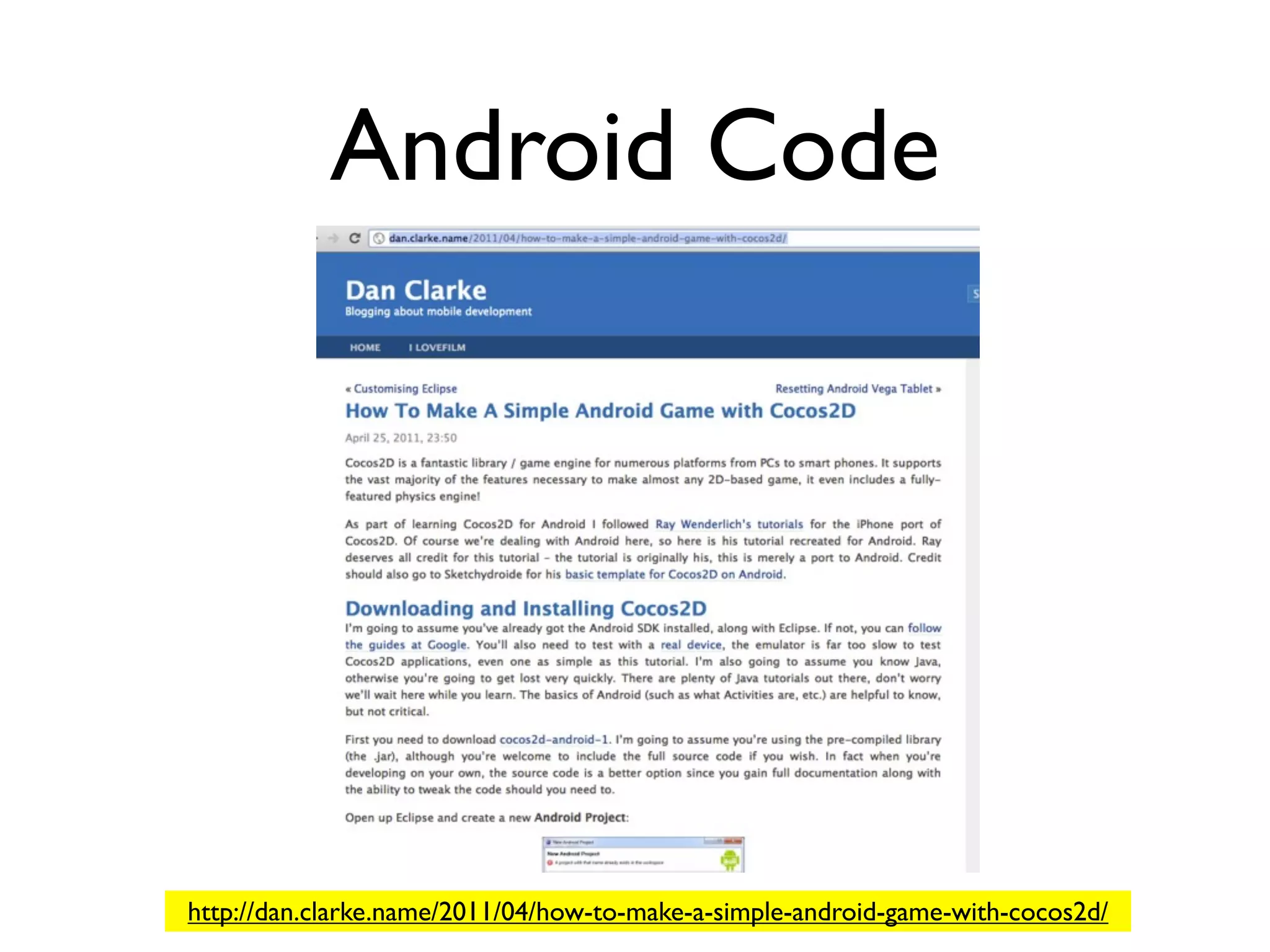

60. Android Code
http://dan.clarke.name/2011/04/how-to-make-a-simple-android-game-with-cocos2d/

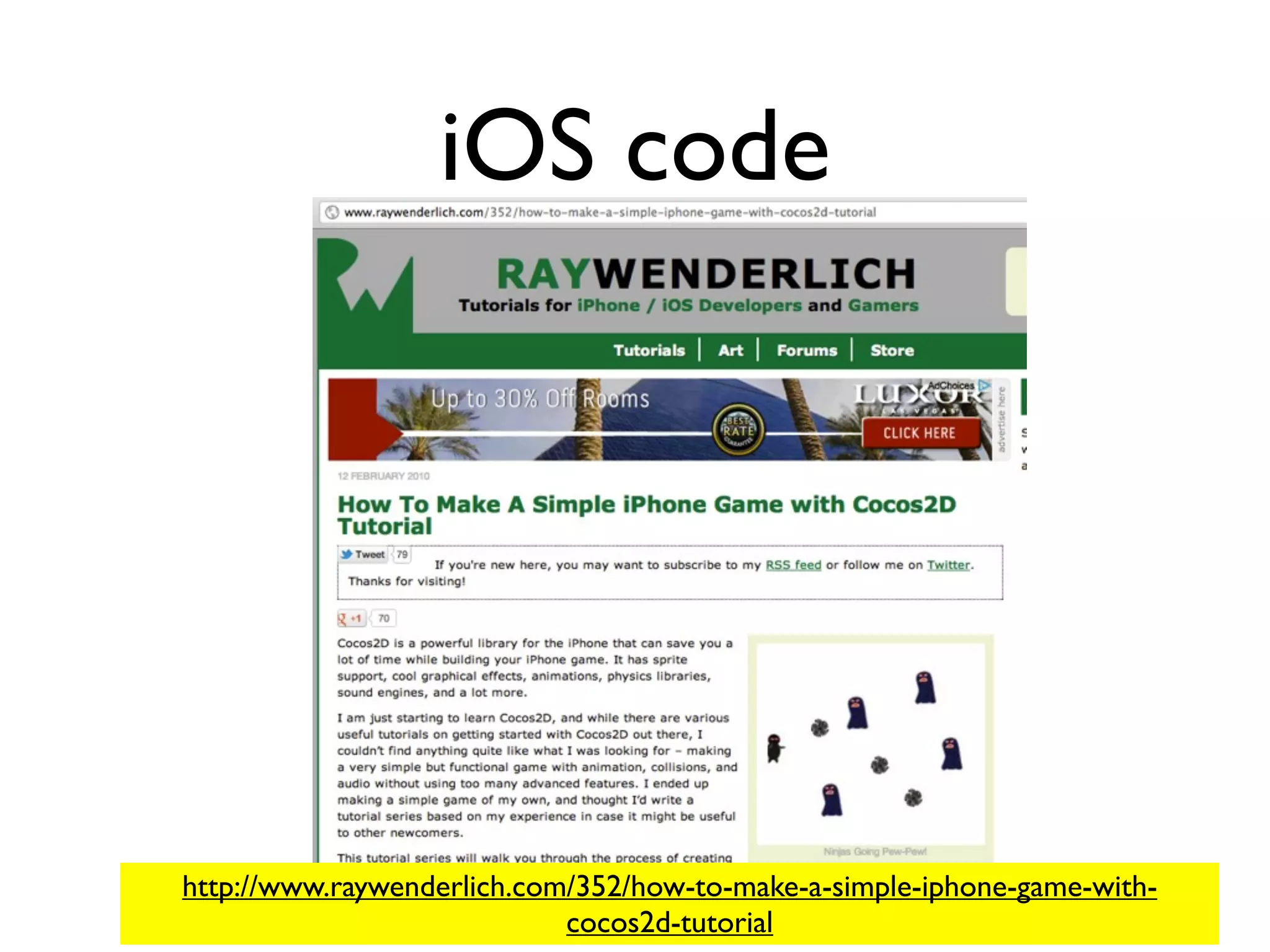

61. iOS code
http://www.raywenderlich.com/352/how-to-make-a-simple-iphone-game-with-
cocos2d-tutorial

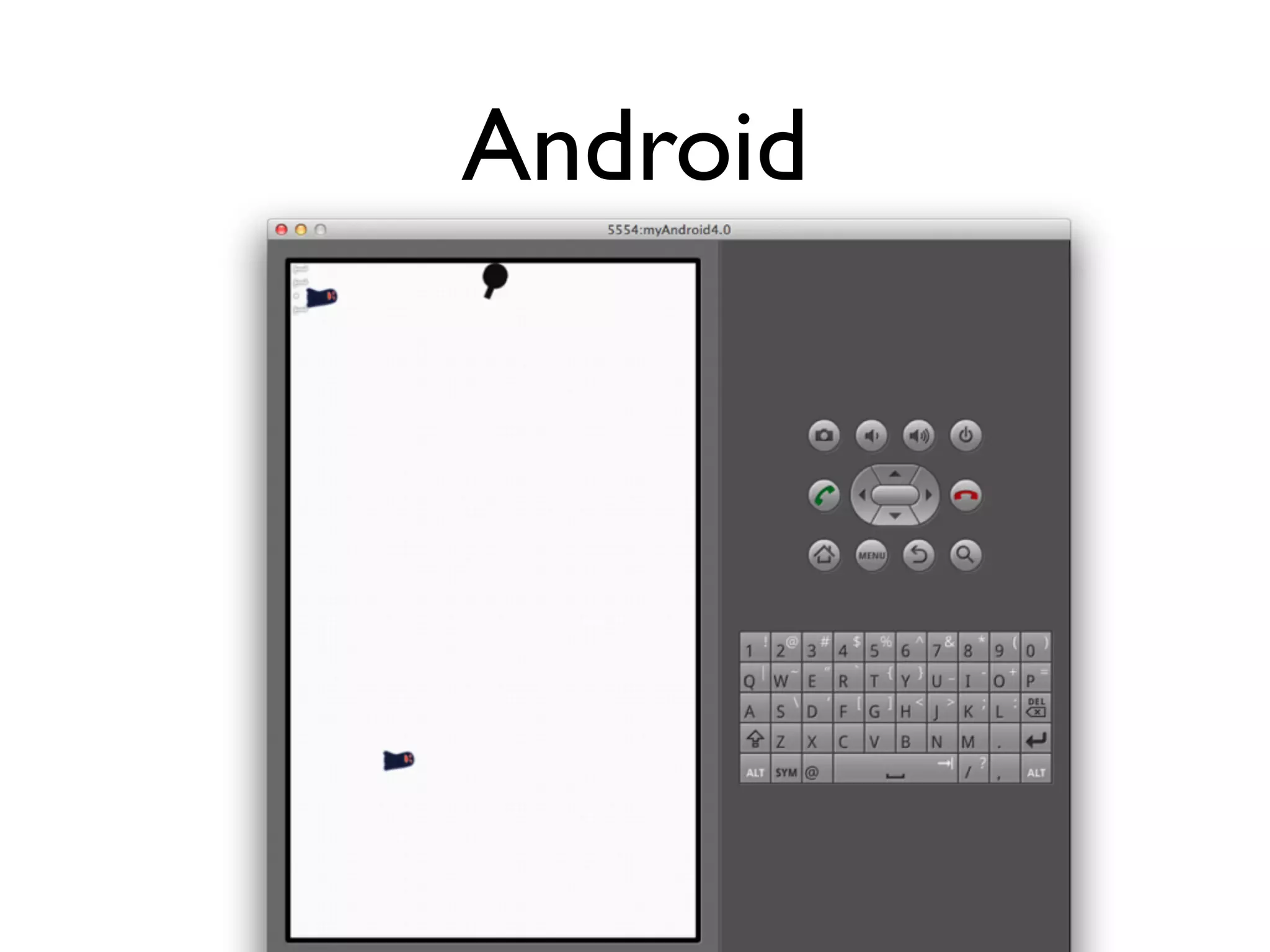

62. Android

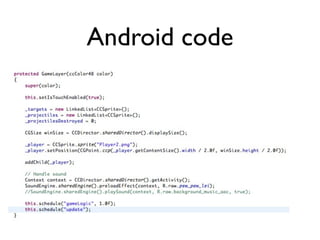

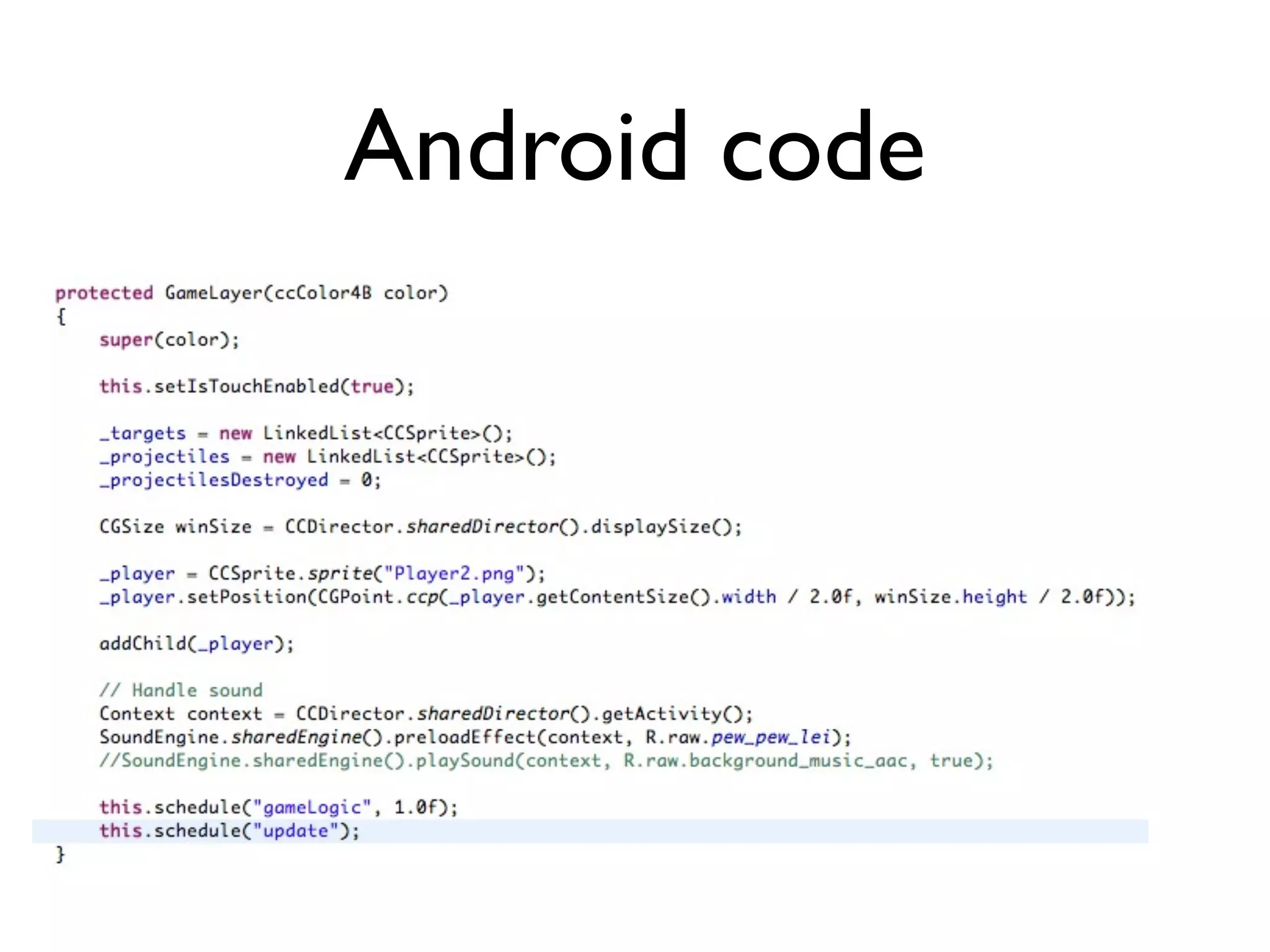

63. Android code

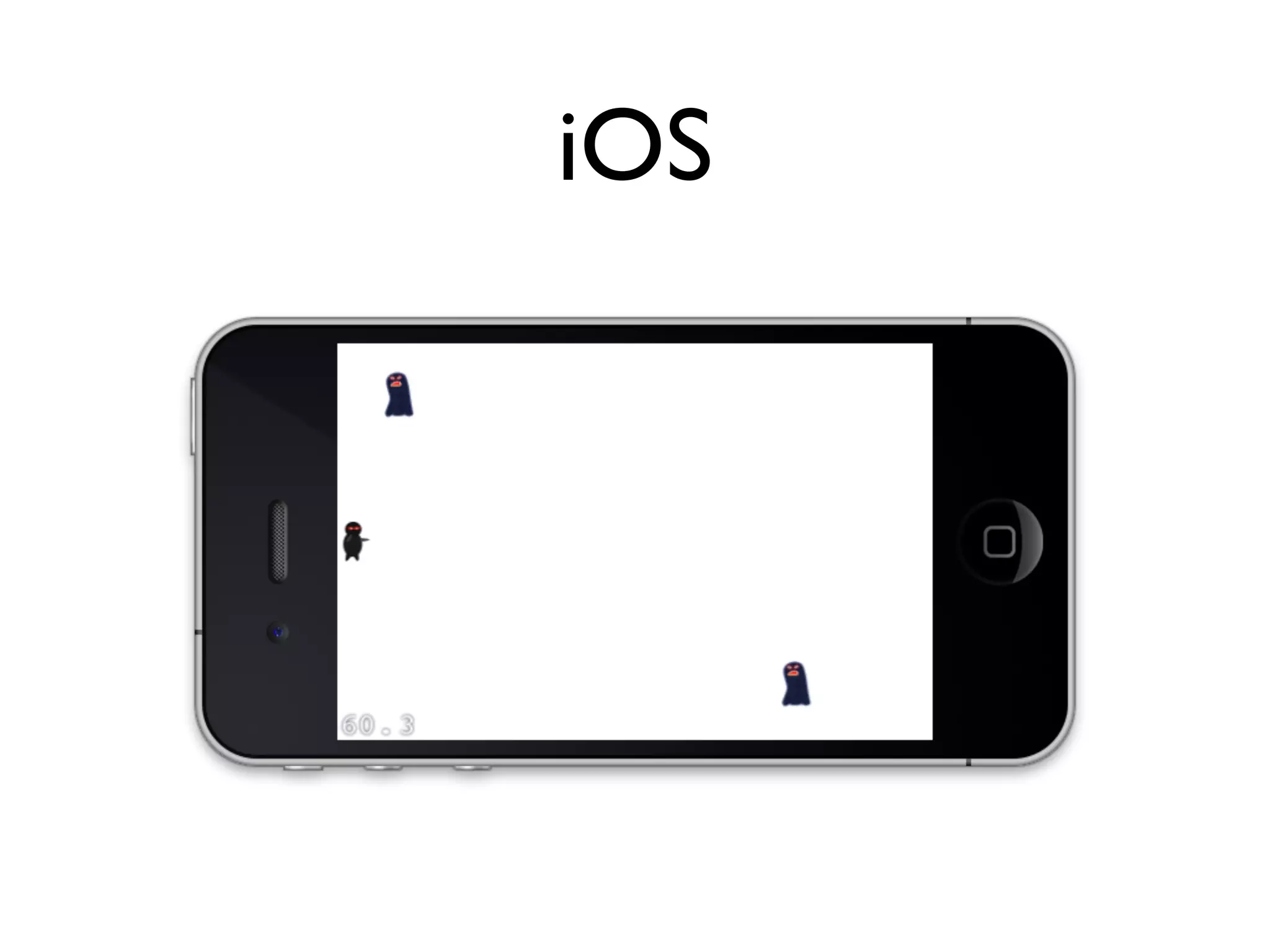

64. iOS

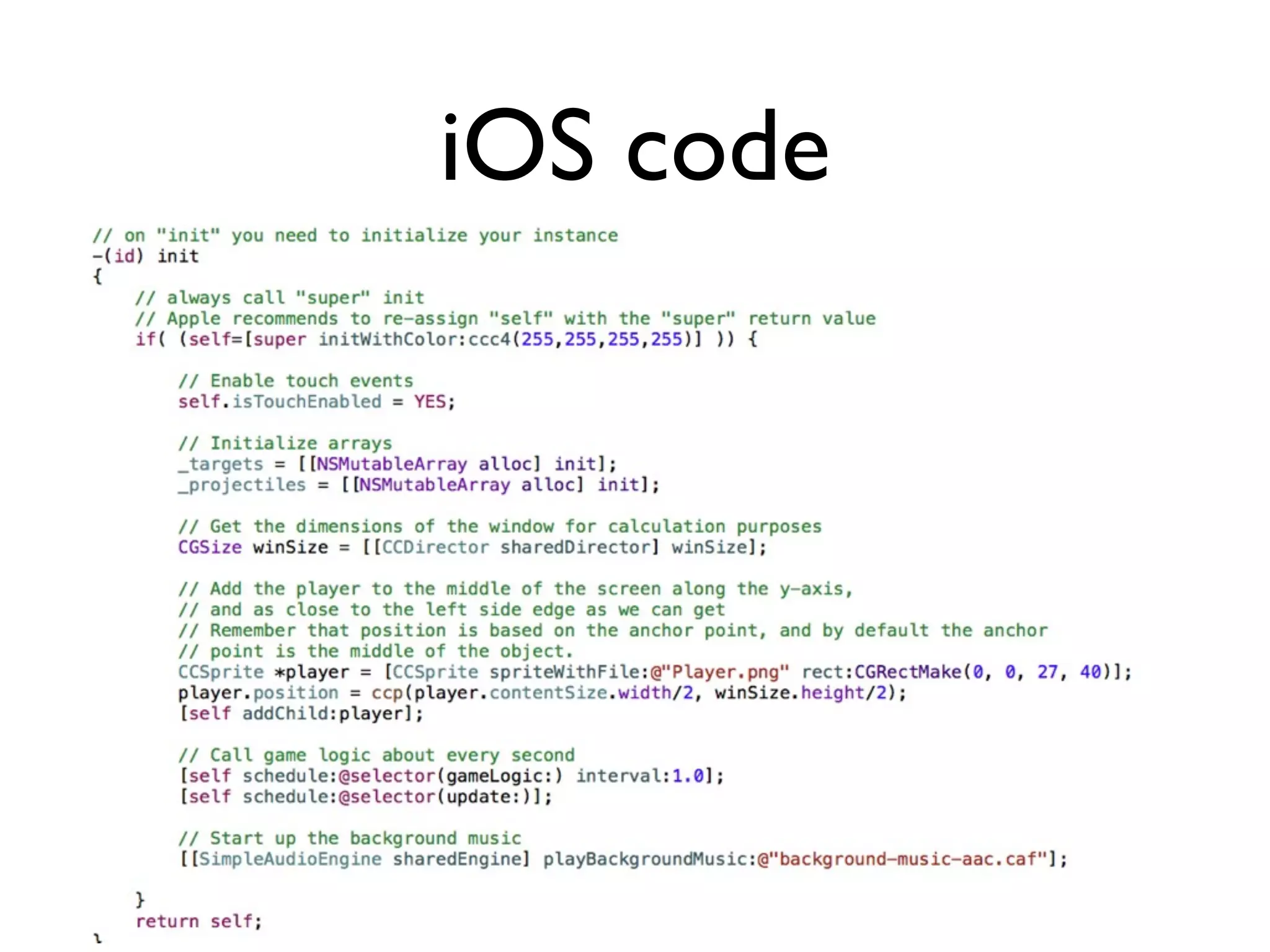

65. iOS code

66. Demo

67. Q &A
