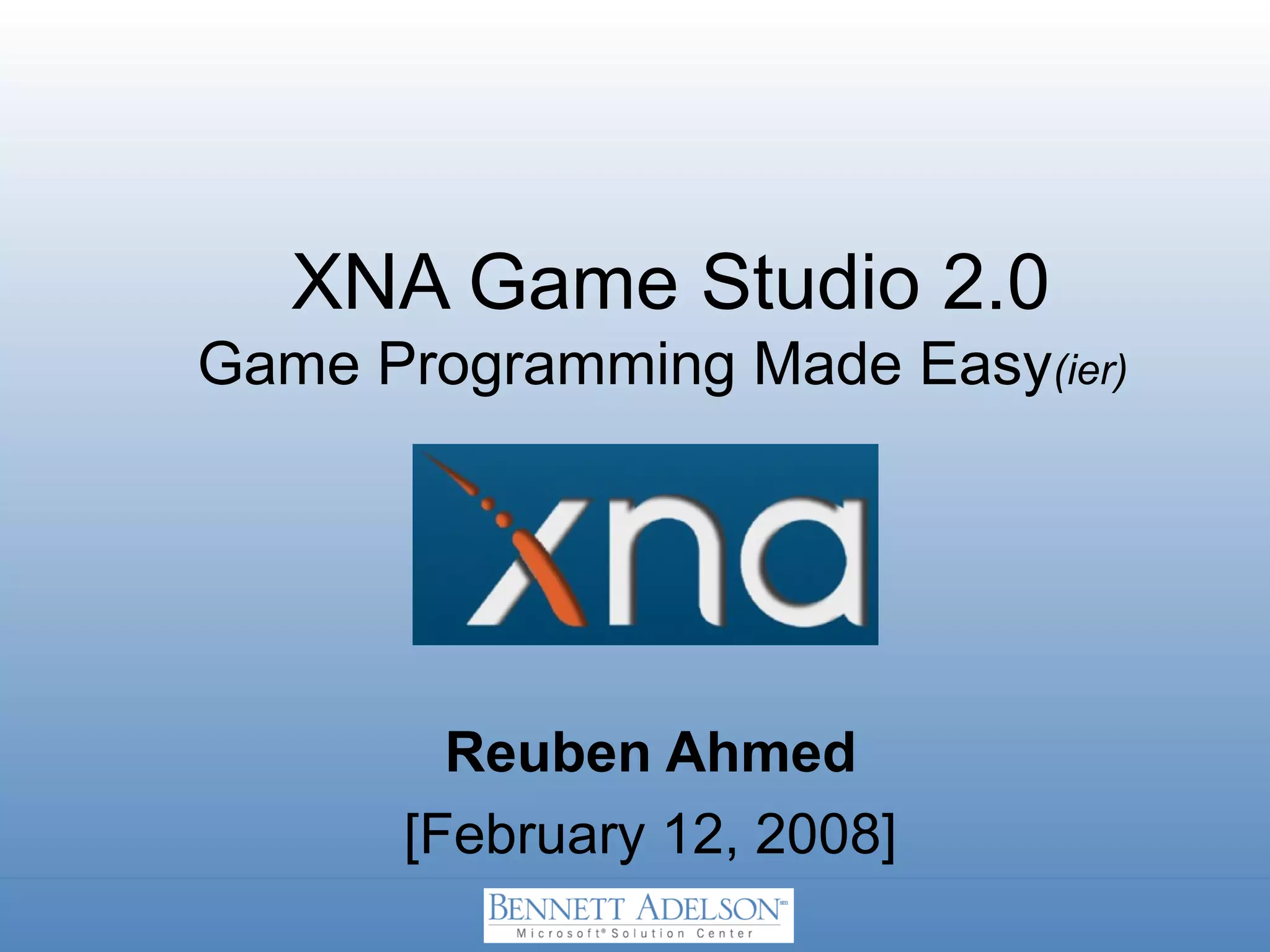

XNA Game Studio 2.0 Game Programming Made Easy(ier) Reuben Ahmed [February 12, 2008]

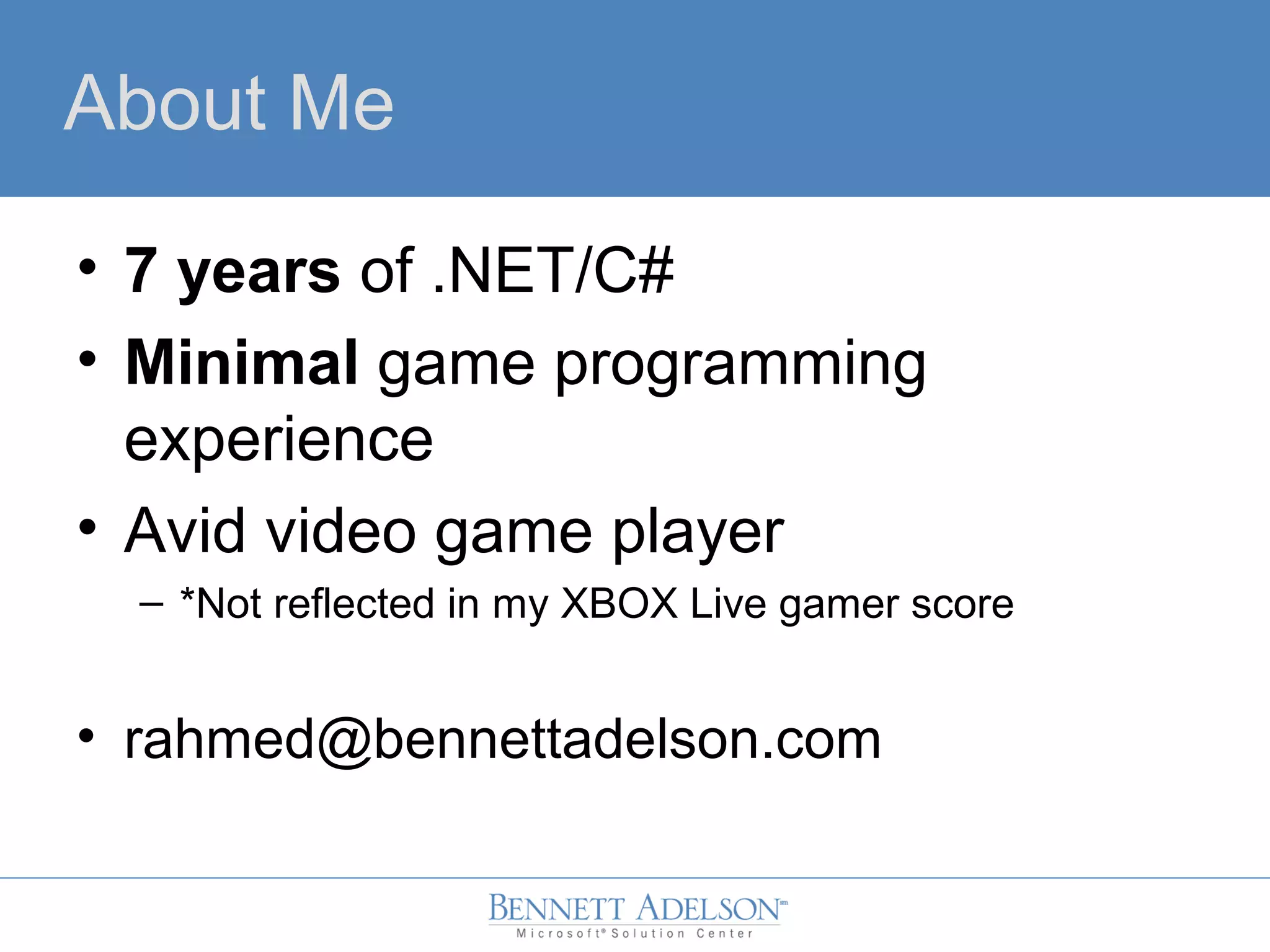

About Me • 7 years of .NET/C# • Minimal game programming experience • Avid video game player – *Not reflected in my XBOX Live gamer score • rahmed@bennettadelson.com

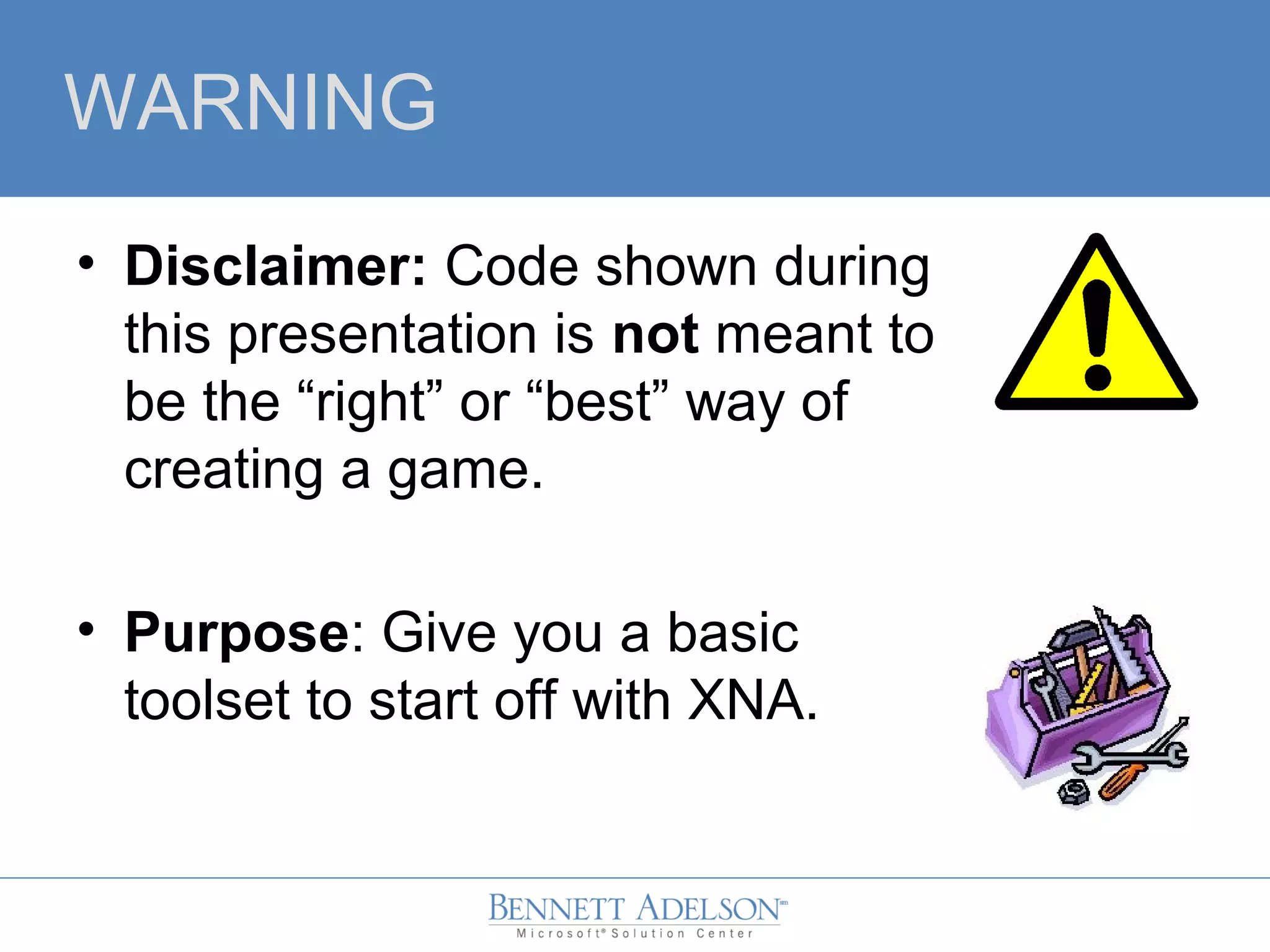

WARNING • Disclaimer: Code shown during this presentation is not meant to be the “right” or “best” way of creating a game. • Purpose: Give you a basic toolset to start off with XNA.

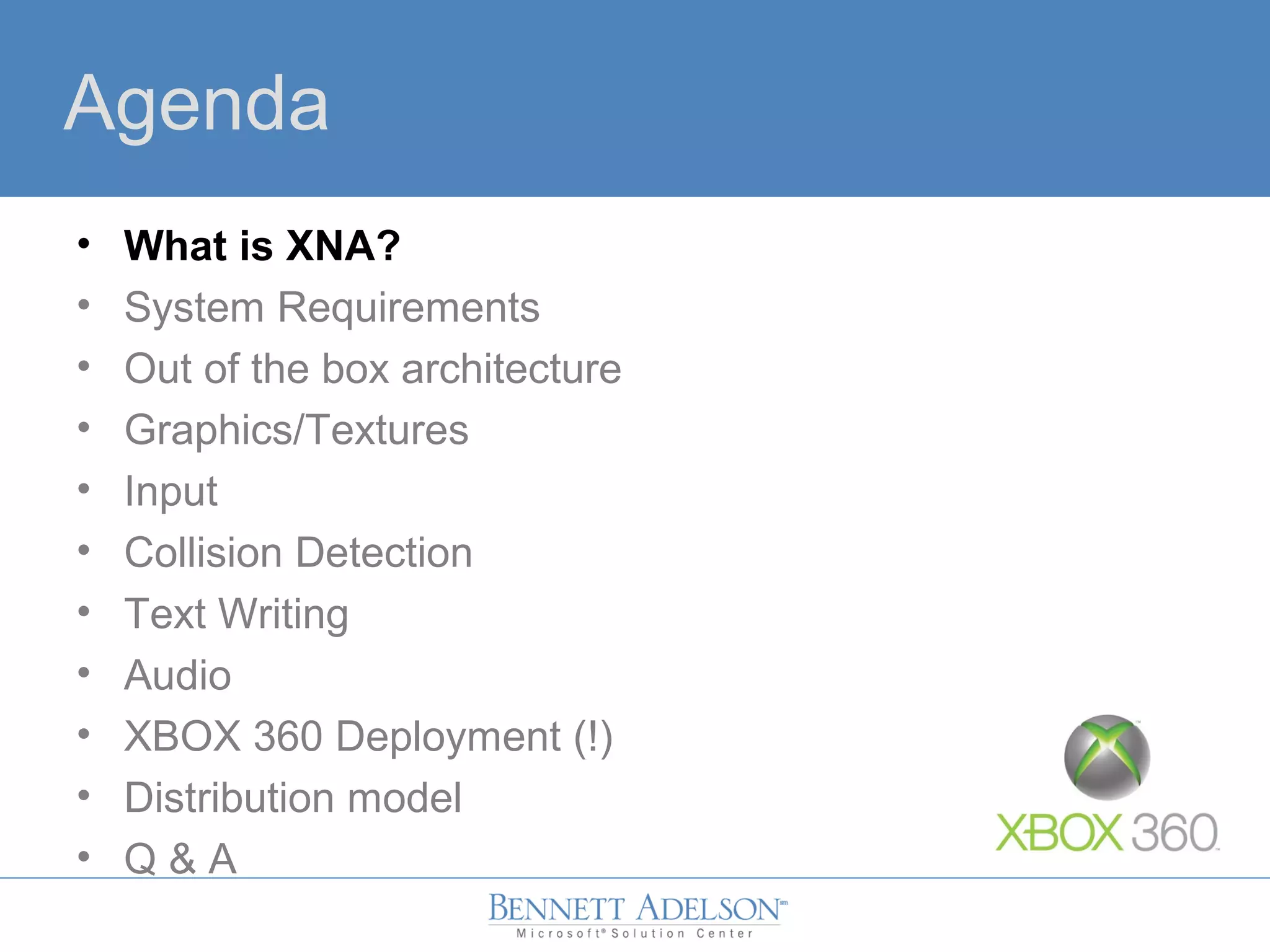

Agenda • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment (!) • Distribution model • Q & A

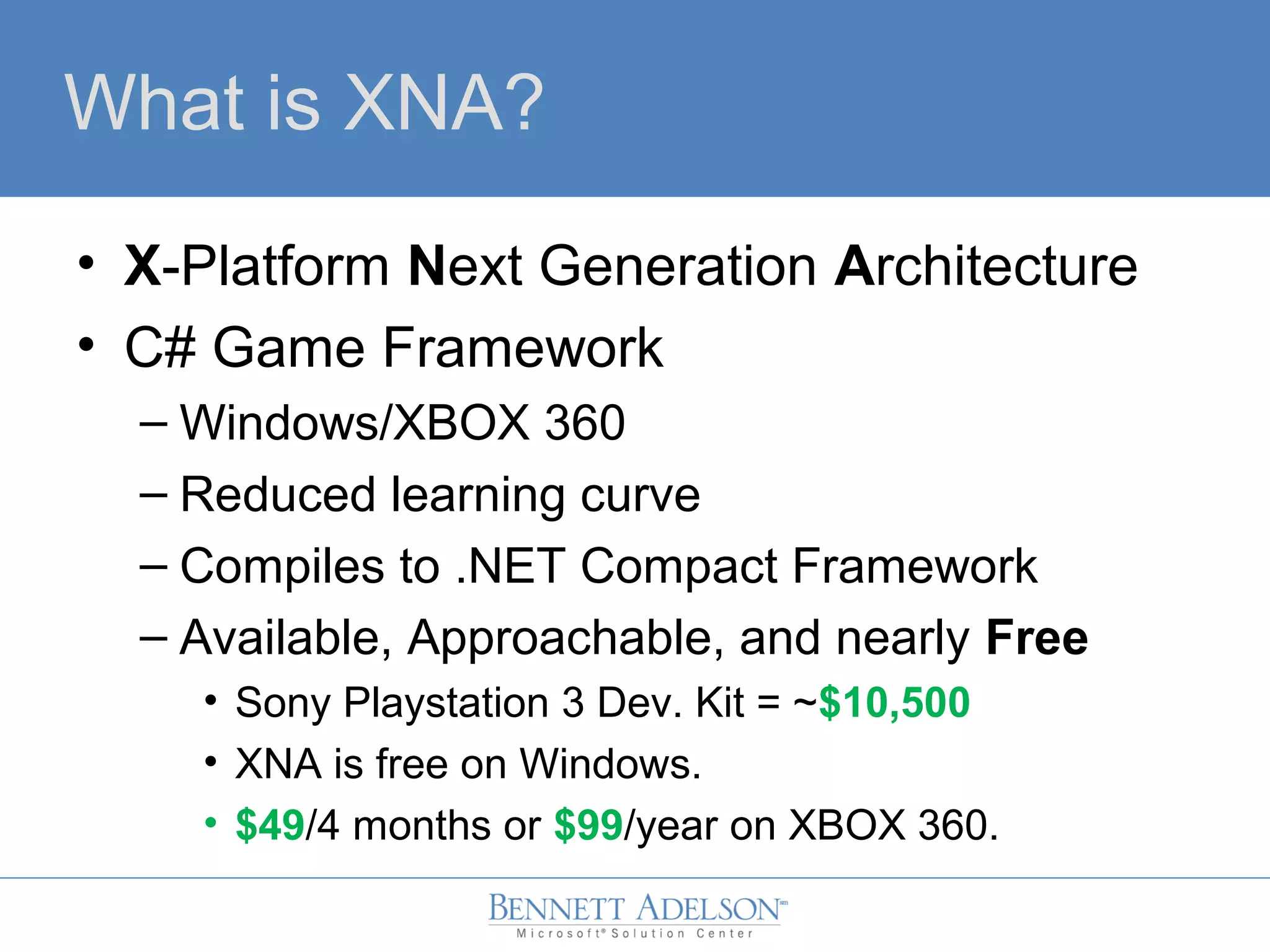

What is XNA? • X-Platform Next Generation Architecture • C# Game Framework – Windows/XBOX 360 – Reduced learning curve – Compiles to .NET Compact Framework – Available, Approachable, and nearly Free • Sony Playstation 3 Dev. Kit = ~$10,500 • XNA is free on Windows. • $49/4 months or $99/year on XBOX 360.
System Requirements • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A

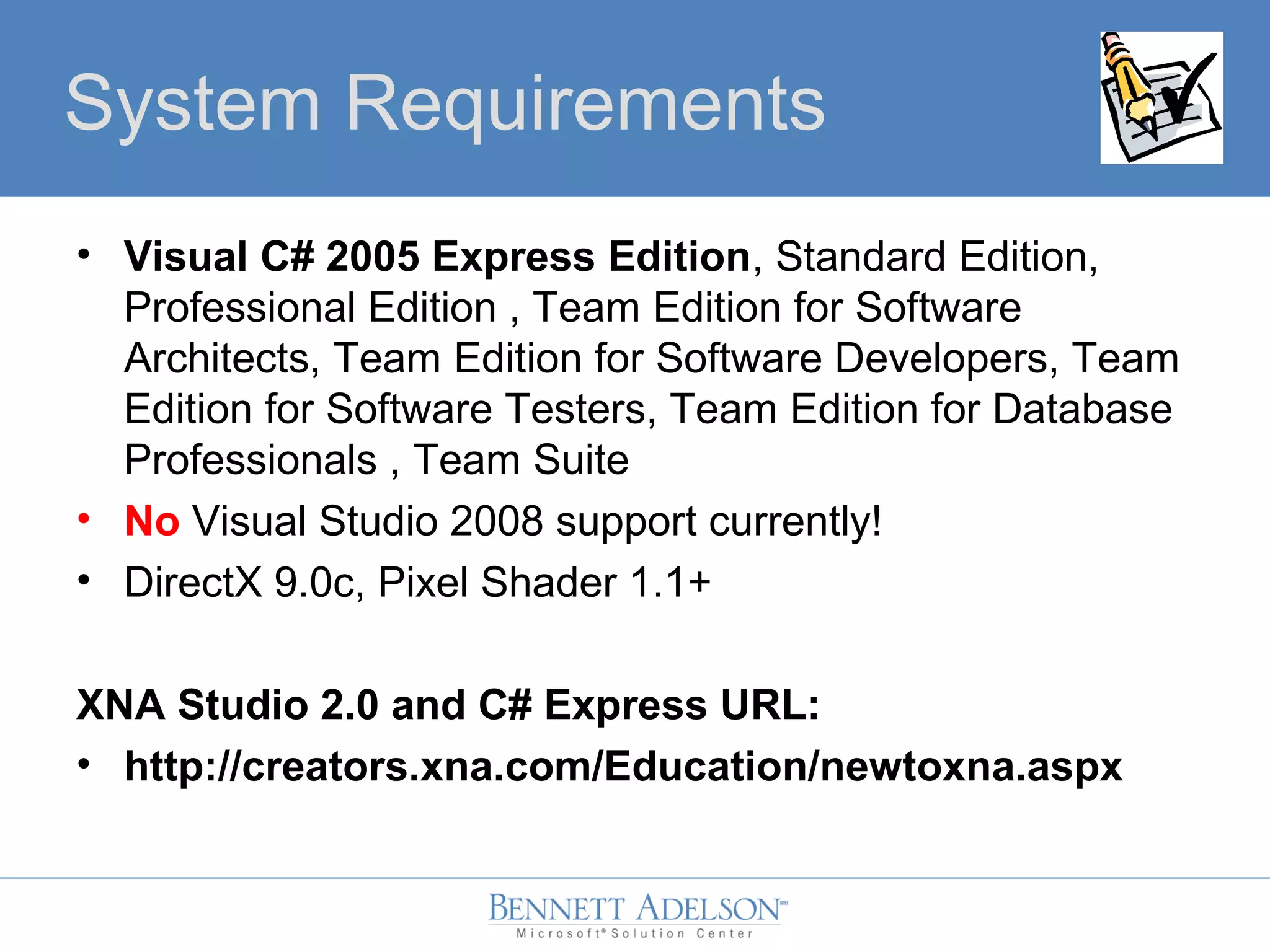

System Requirements • Visual C# 2005 Express Edition, Standard Edition, Professional Edition , Team Edition for Software Architects, Team Edition for Software Developers, Team Edition for Software Testers, Team Edition for Database Professionals , Team Suite • No Visual Studio 2008 support currently! • DirectX 9.0c, Pixel Shader 1.1+ XNA Studio 2.0 and C# Express URL: • http://creators.xna.com/Education/newtoxna.aspx
Out of the box architecture • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Audio • XBOX 360 Deployment • Distribution model • Q & A

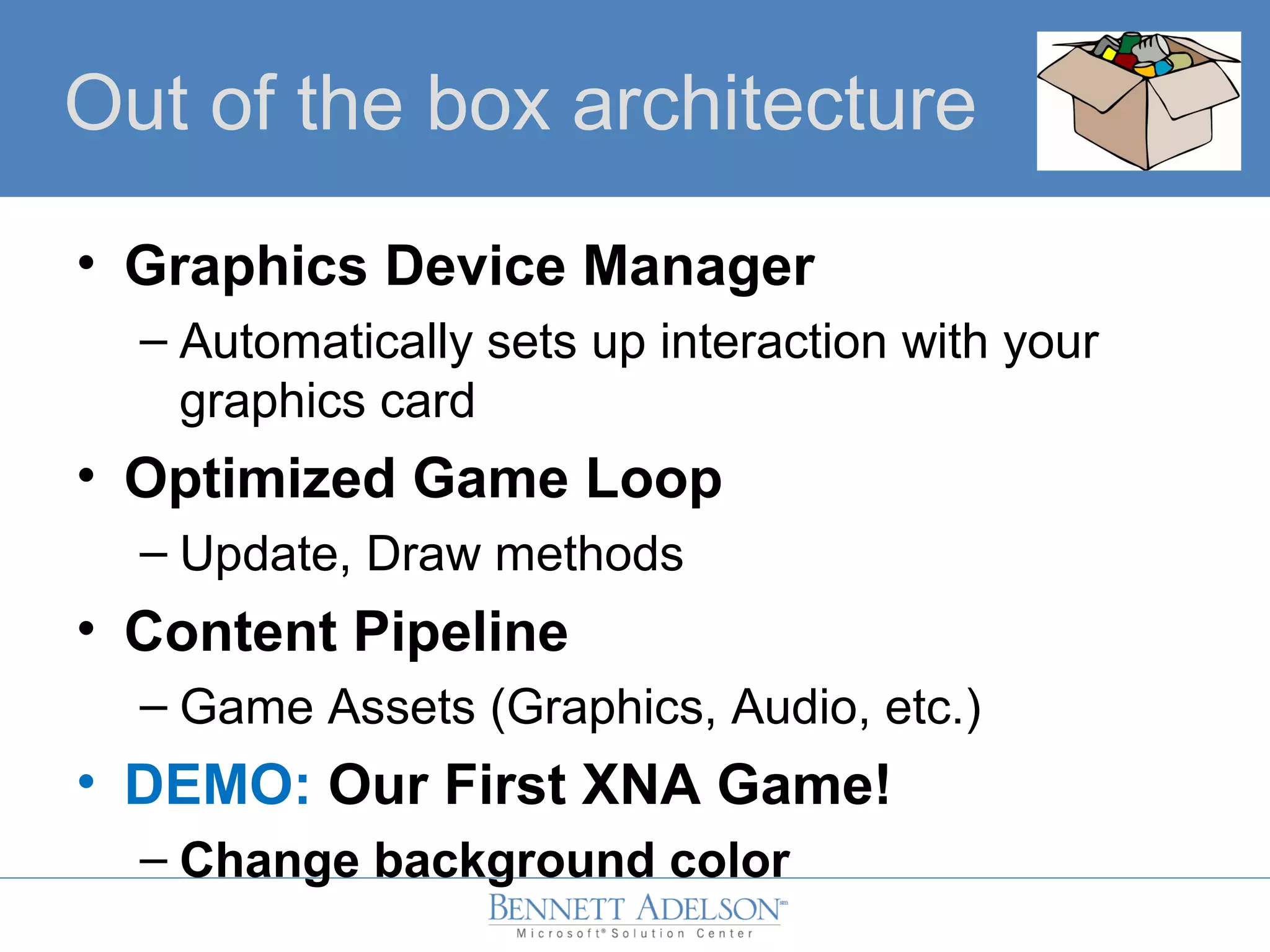

Out of the box architecture • Graphics Device Manager – Automatically sets up interaction with your graphics card • Optimized Game Loop – Update, Draw methods • Content Pipeline – Game Assets (Graphics, Audio, etc.) • DEMO: Our First XNA Game! – Change background color

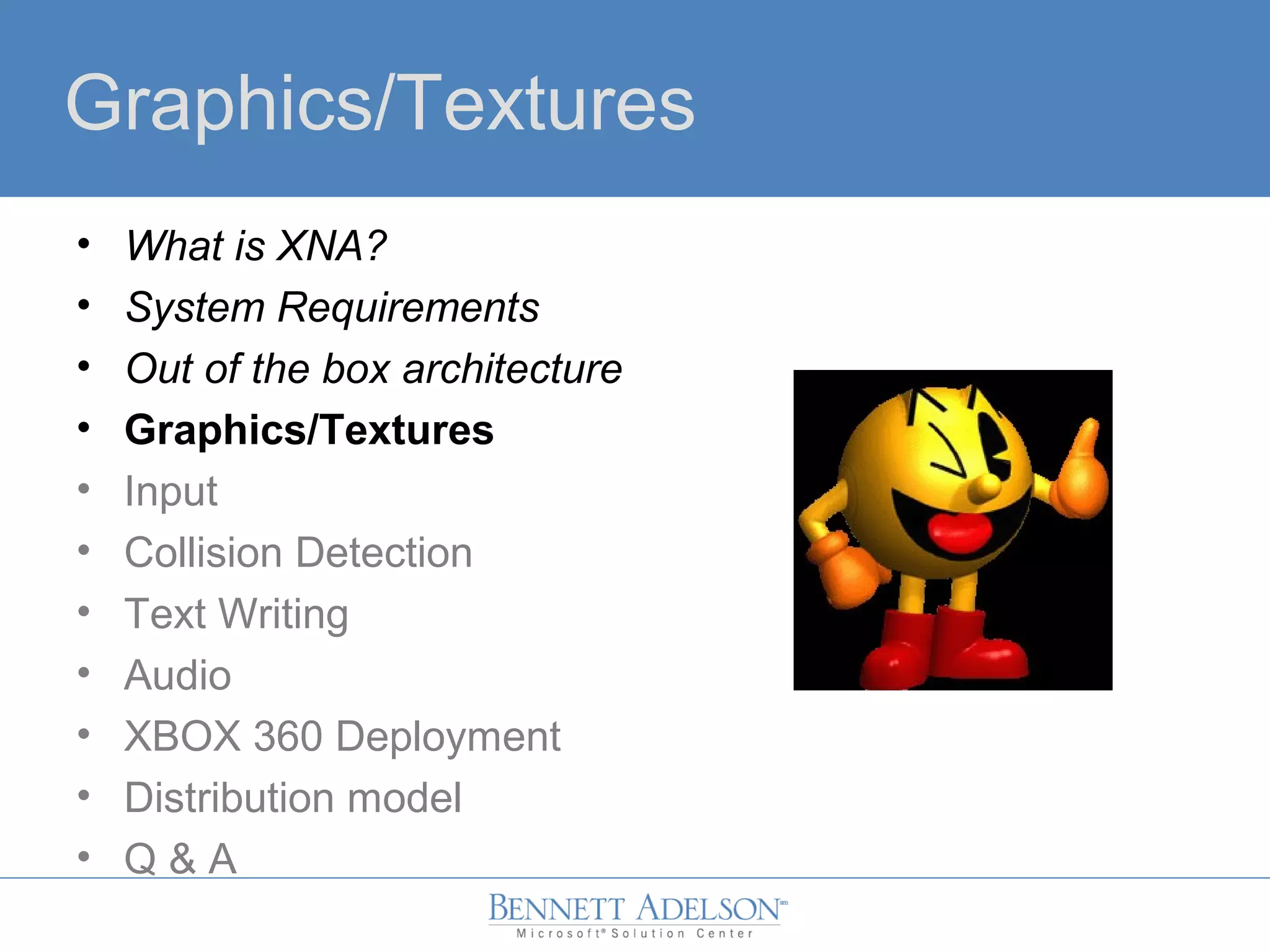

Graphics/Textures • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A

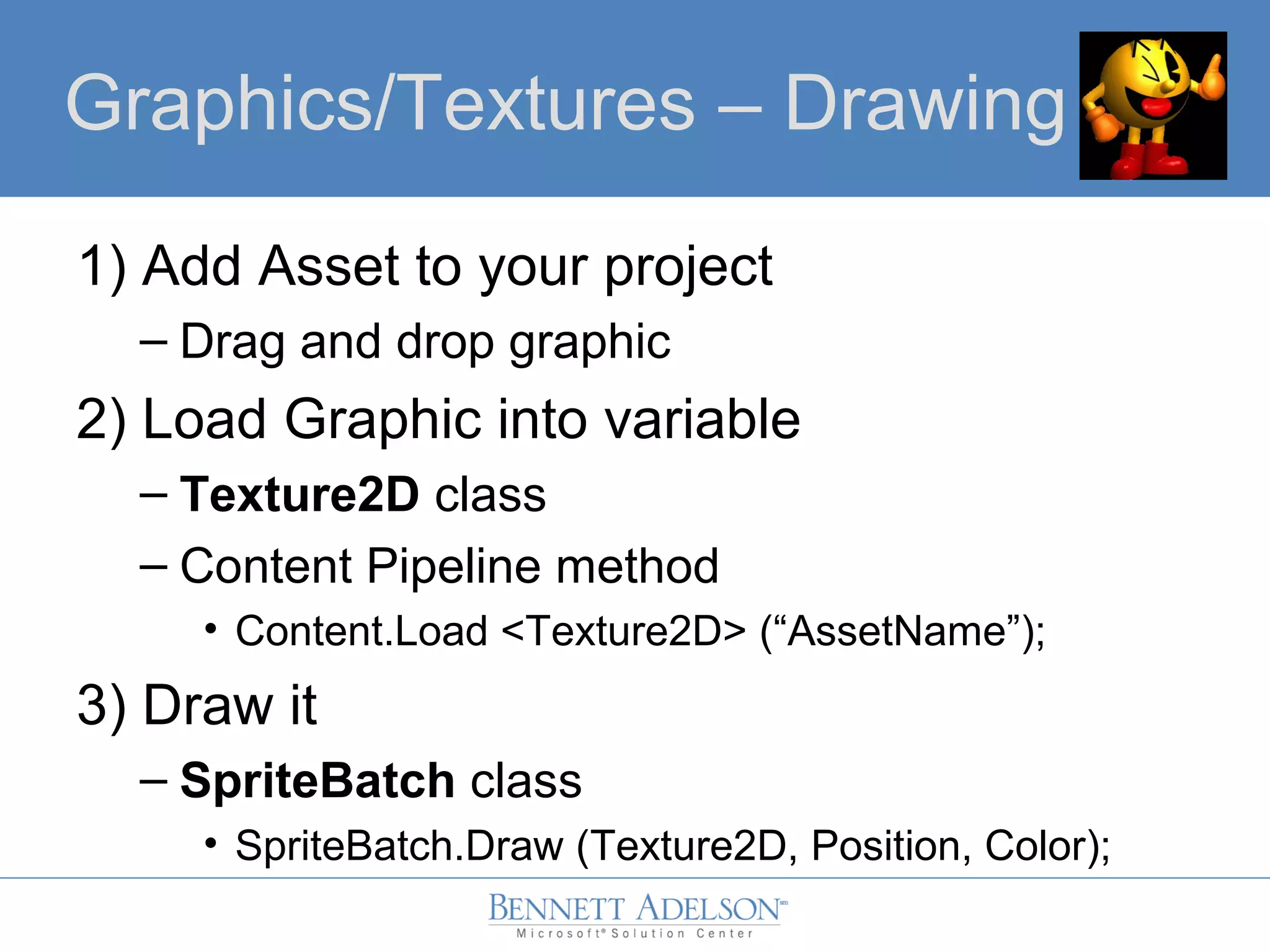

Graphics/Textures – Drawing 1) Add Asset to your project – Drag and drop graphic 2) Load Graphic into variable – Texture2D class – Content Pipeline method • Content.Load <Texture2D> (“AssetName”); 3) Draw it – SpriteBatch class • SpriteBatch.Draw (Texture2D, Position, Color);

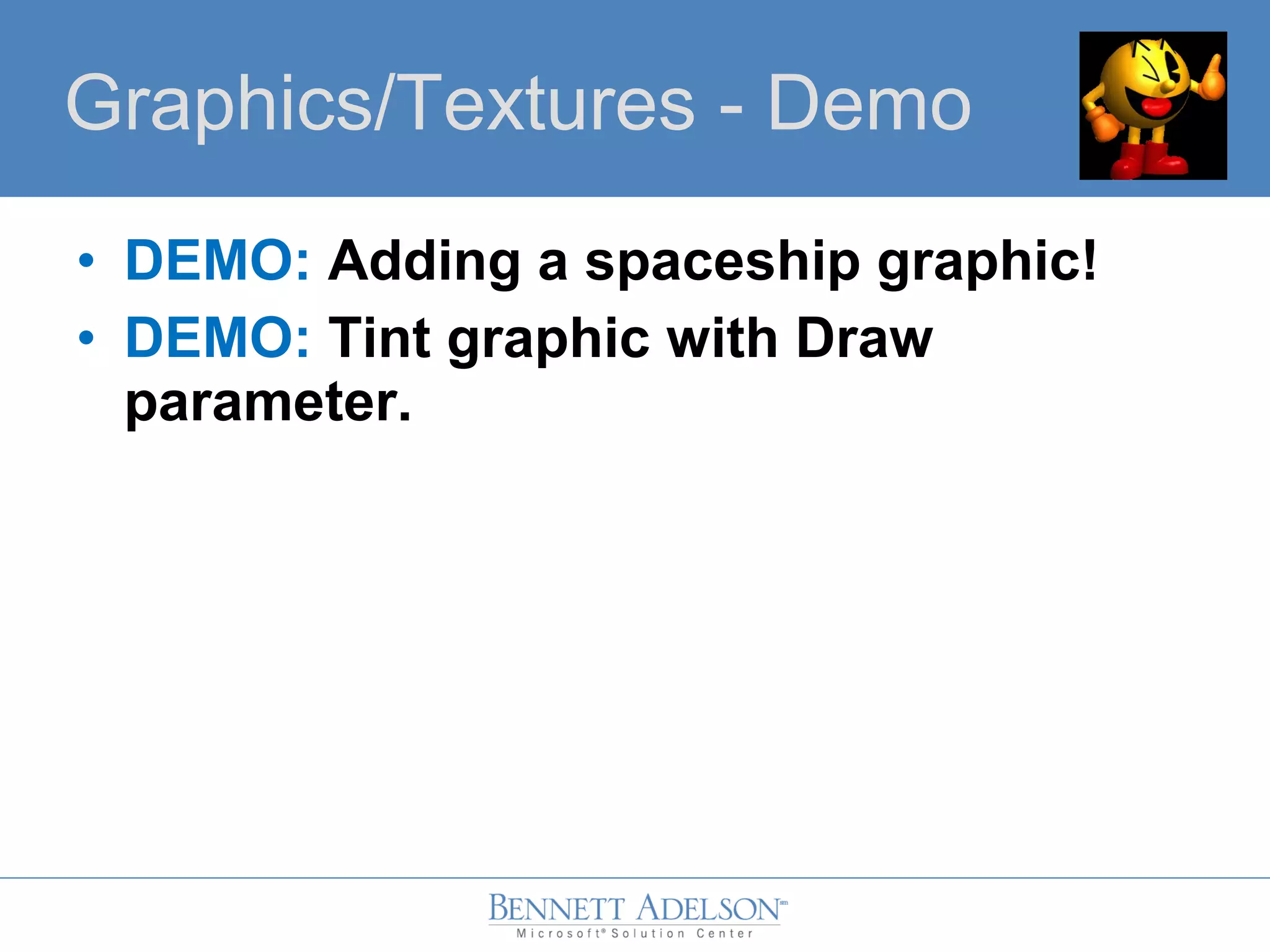

• DEMO: Adding a spaceship graphic! • DEMO: Tint graphic with Draw parameter. Graphics/Textures - Demo

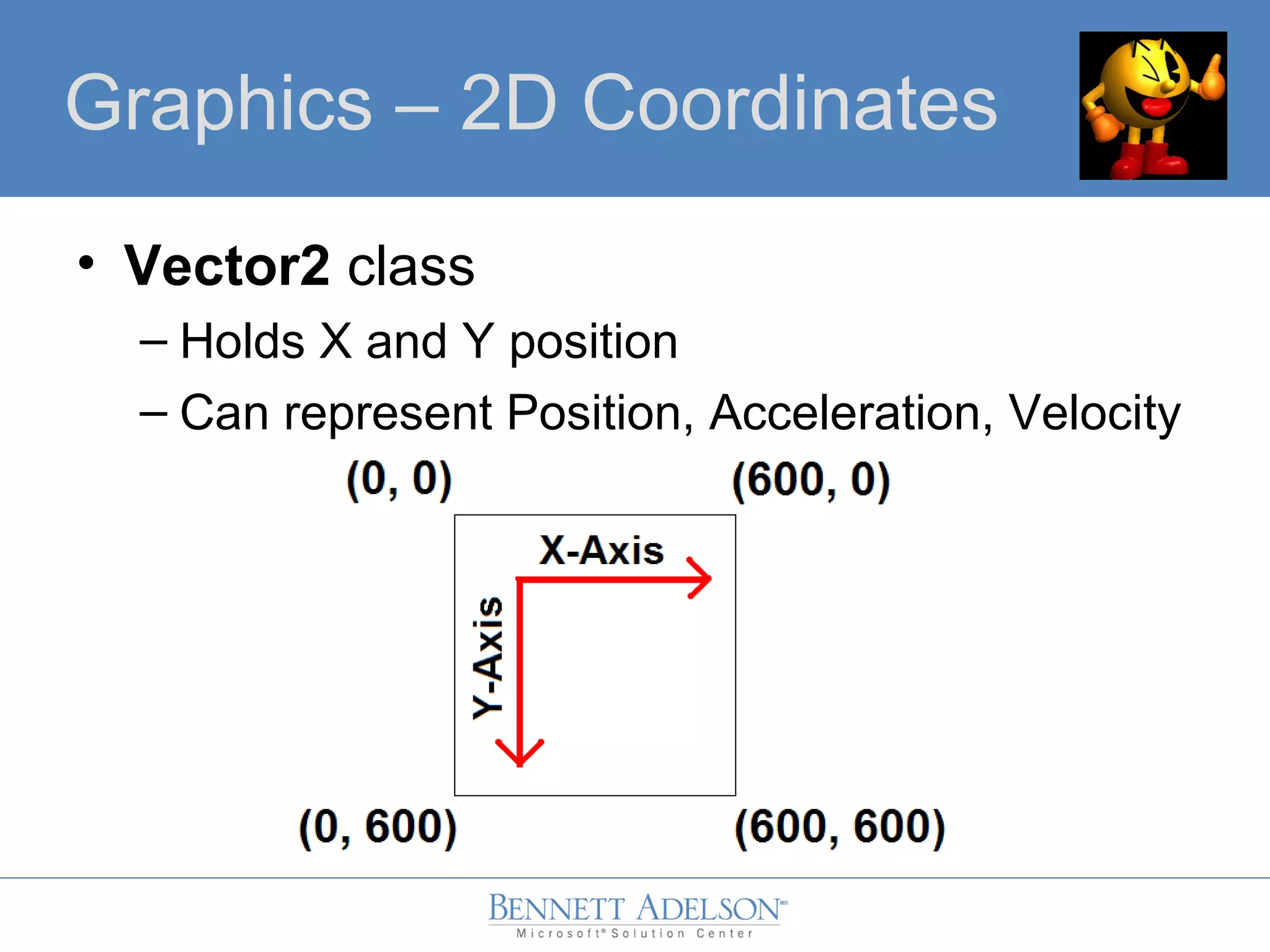

• Vector2 class – Holds X and Y position – Can represent Position, Acceleration, Velocity Graphics – 2D Coordinates

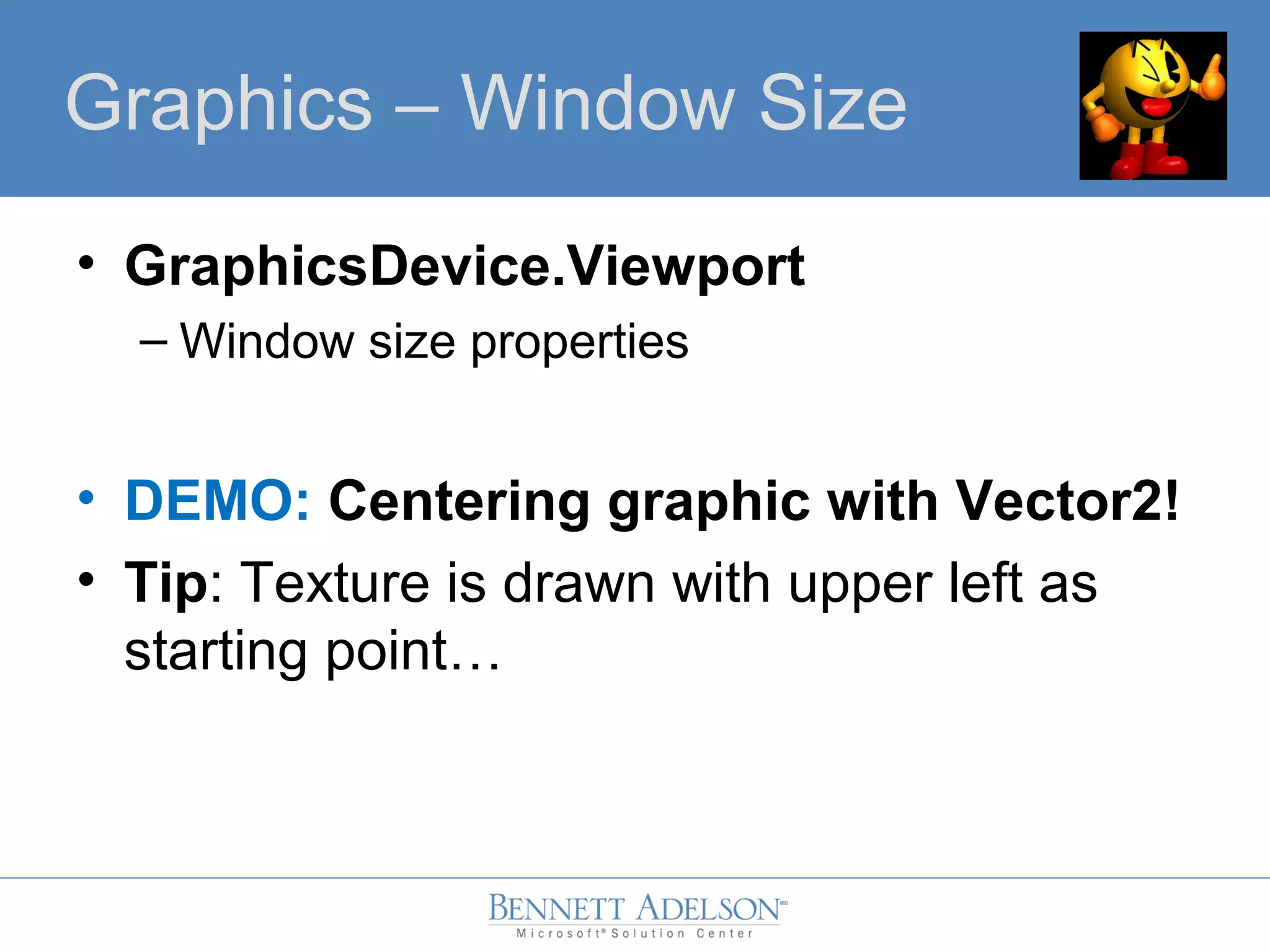

• GraphicsDevice.Viewport – Window size properties • DEMO: Centering graphic with Vector2! • Tip: Texture is drawn with upper left as starting point… GraphicsGraphics – Window Size

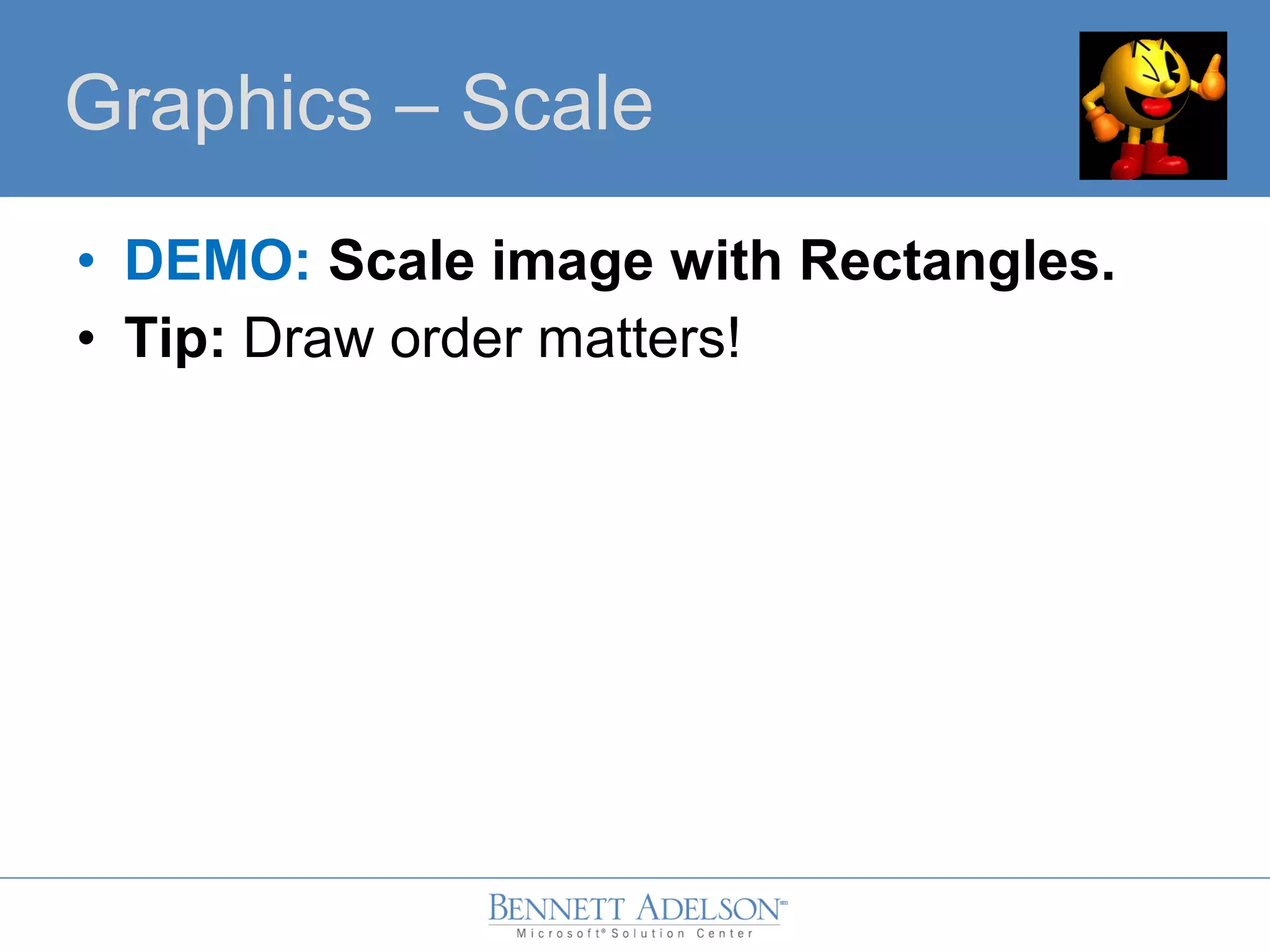

• DEMO: Scale image with Rectangles. • Tip: Draw order matters! GraphicsGraphics – Scale

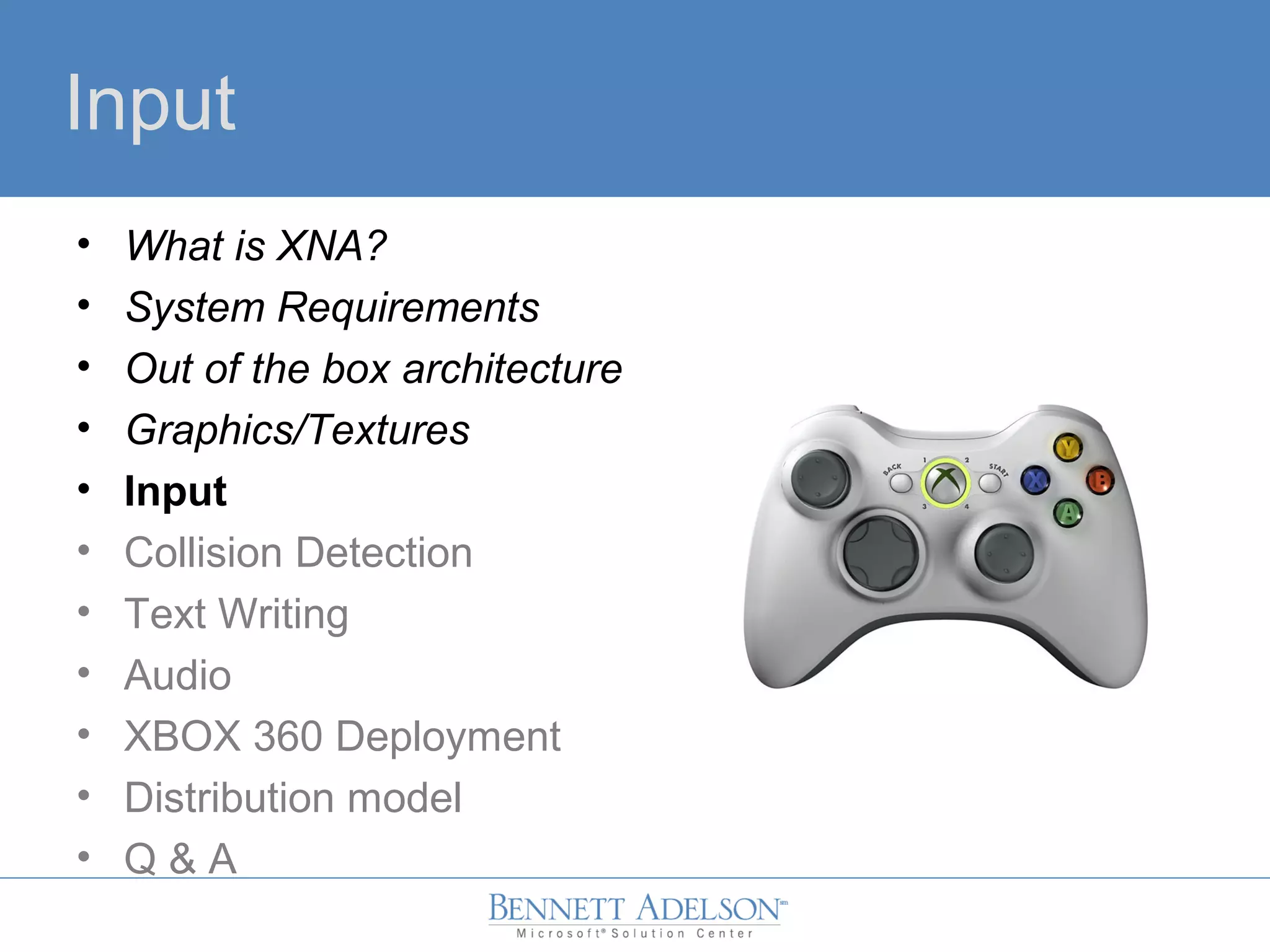

Input • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A

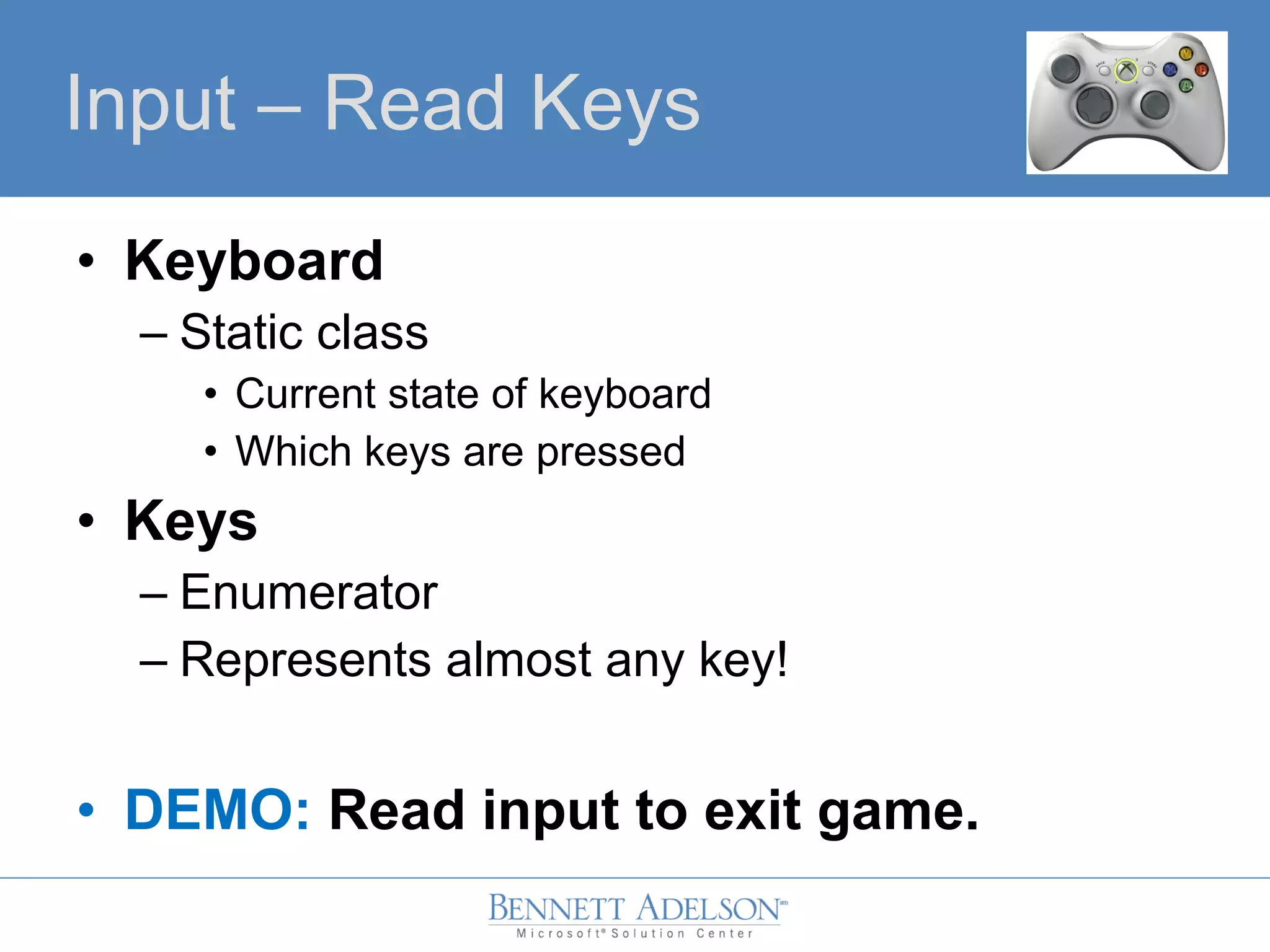

• Keyboard – Static class • Current state of keyboard • Which keys are pressed • Keys – Enumerator – Represents almost any key! • DEMO: Read input to exit game. Input – Read Keys

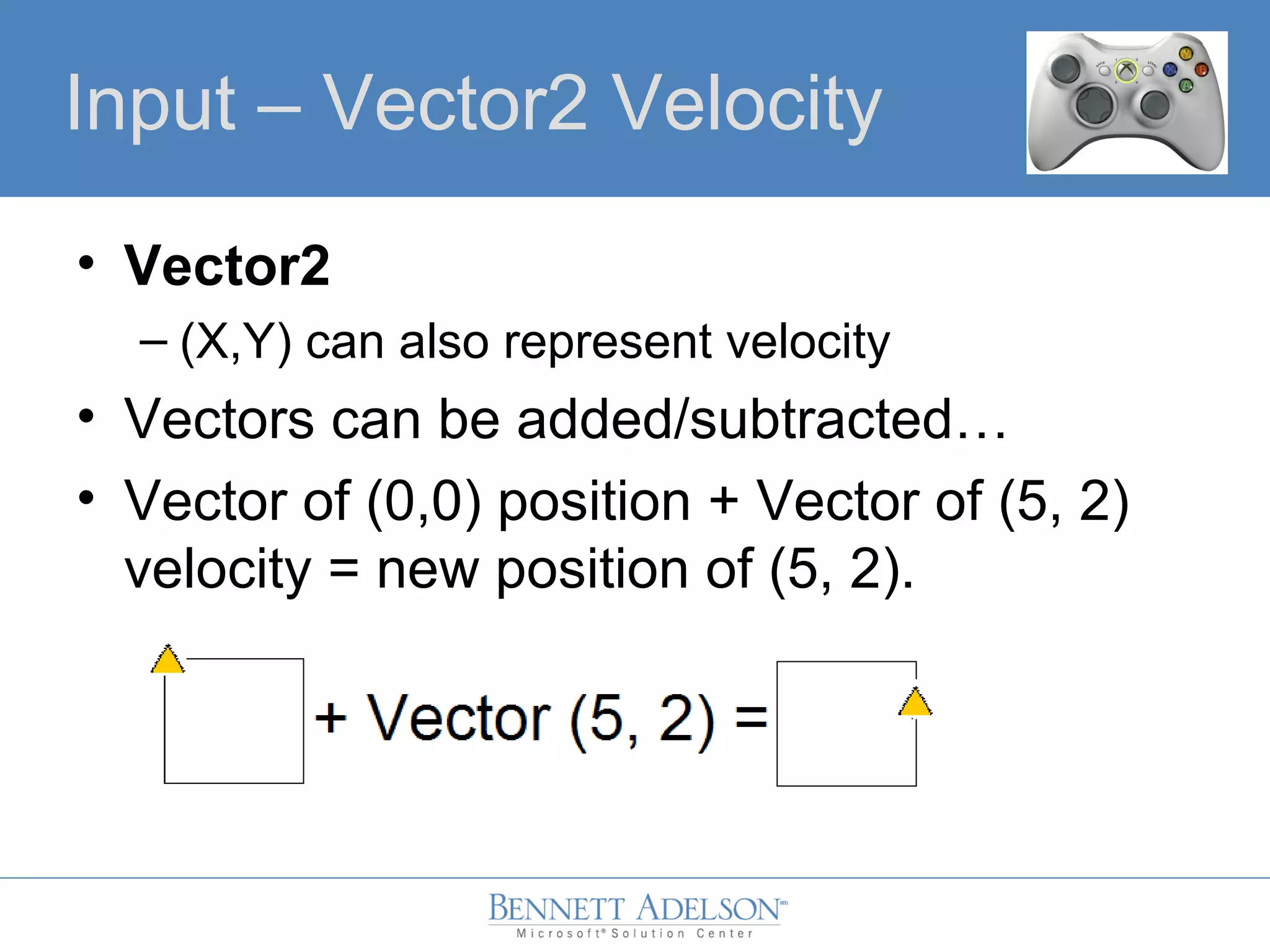

• Vector2 – (X,Y) can also represent velocity • Vectors can be added/subtracted… • Vector of (0,0) position + Vector of (5, 2) velocity = new position of (5, 2). Input – Vector2 Velocity

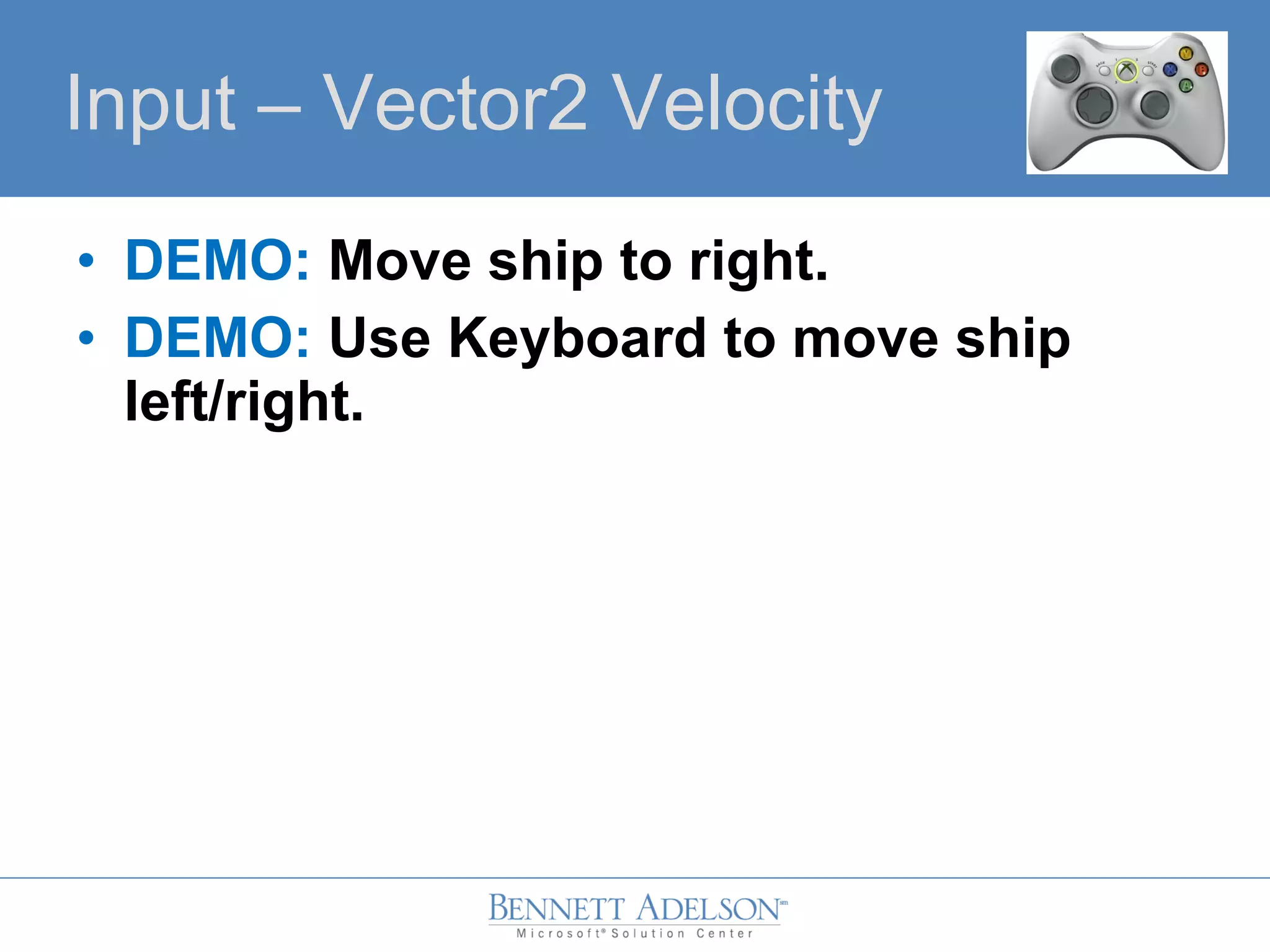

• DEMO: Move ship to right. • DEMO: Use Keyboard to move ship left/right. Input – Vector2 Velocity

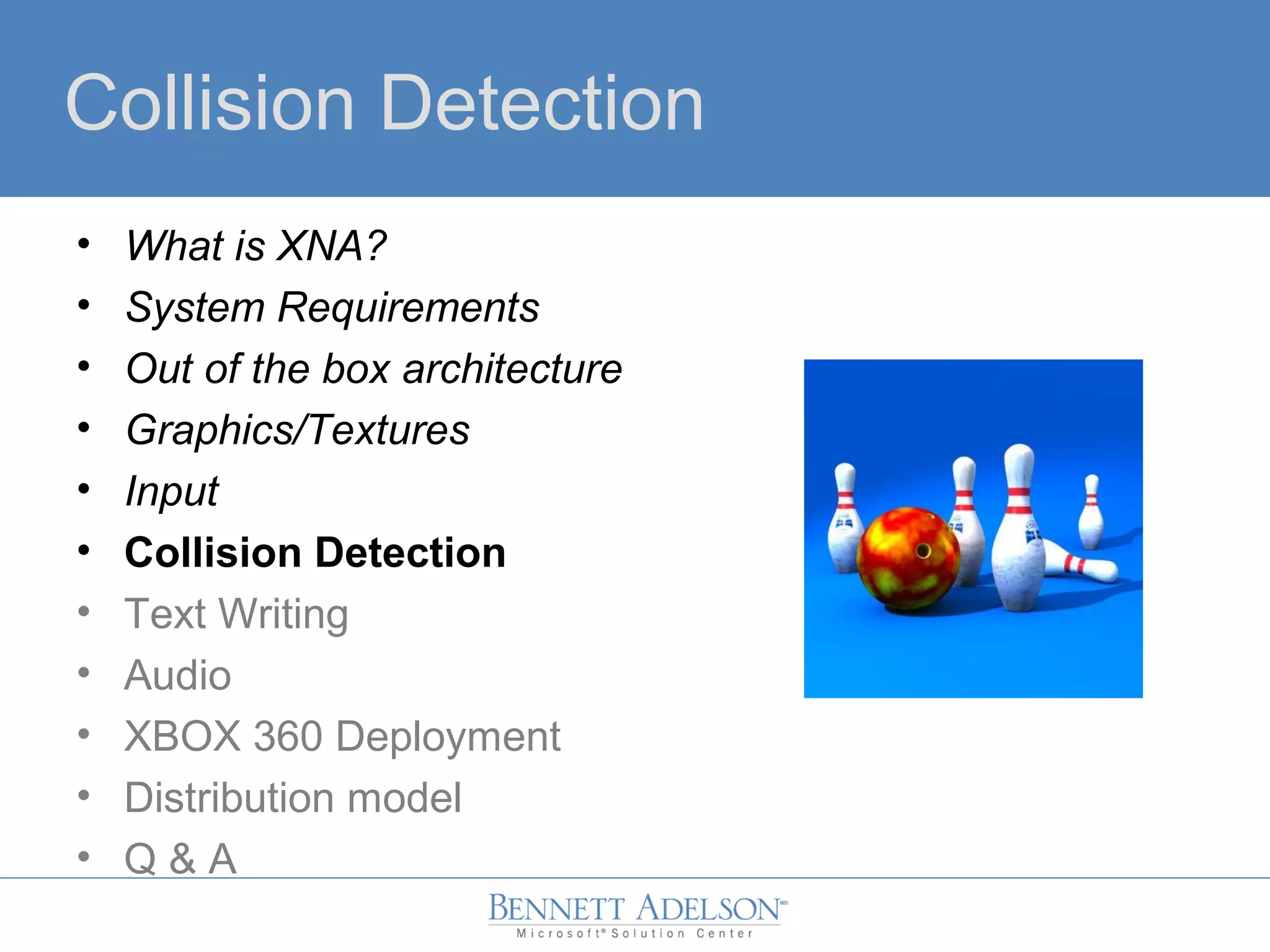

Collision Detection • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A

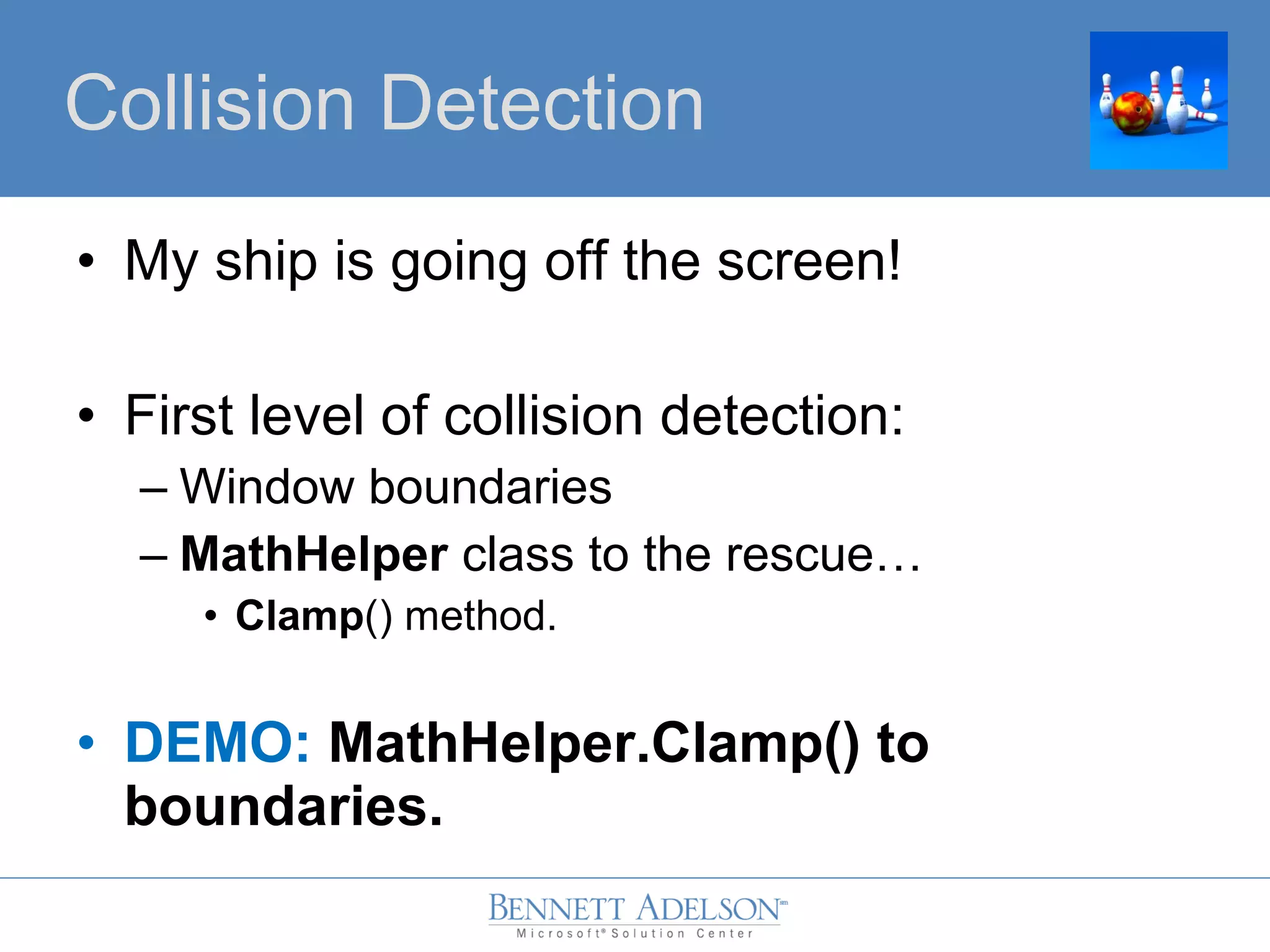

• My ship is going off the screen! • First level of collision detection: – Window boundaries – MathHelper class to the rescue… • Clamp() method. • DEMO: MathHelper.Clamp() to boundaries. Collision Detection

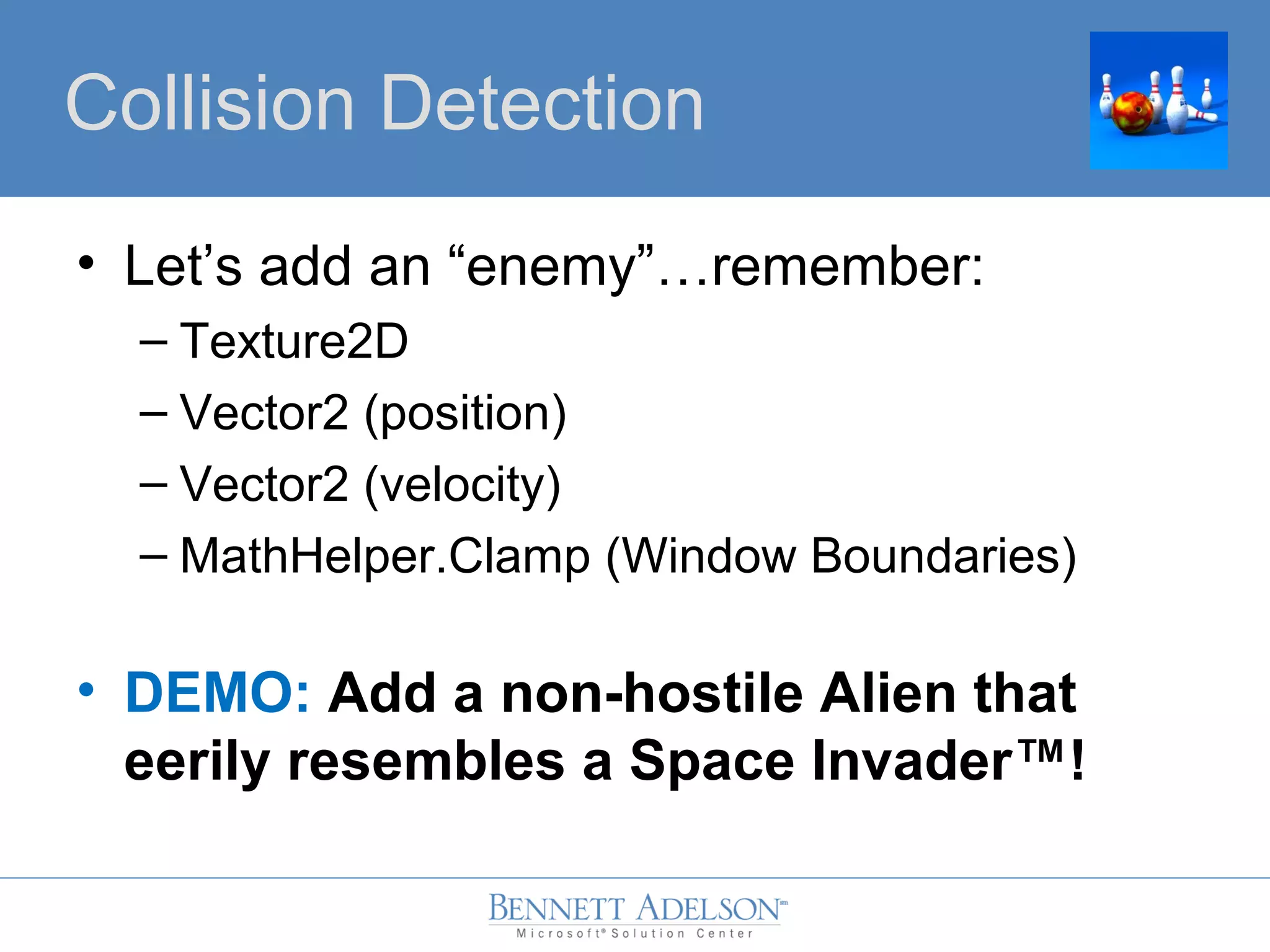

• Let’s add an “enemy”…remember: – Texture2D – Vector2 (position) – Vector2 (velocity) – MathHelper.Clamp (Window Boundaries) • DEMO: Add a non-hostile Alien that eerily resembles a Space Invader™! Collision Detection

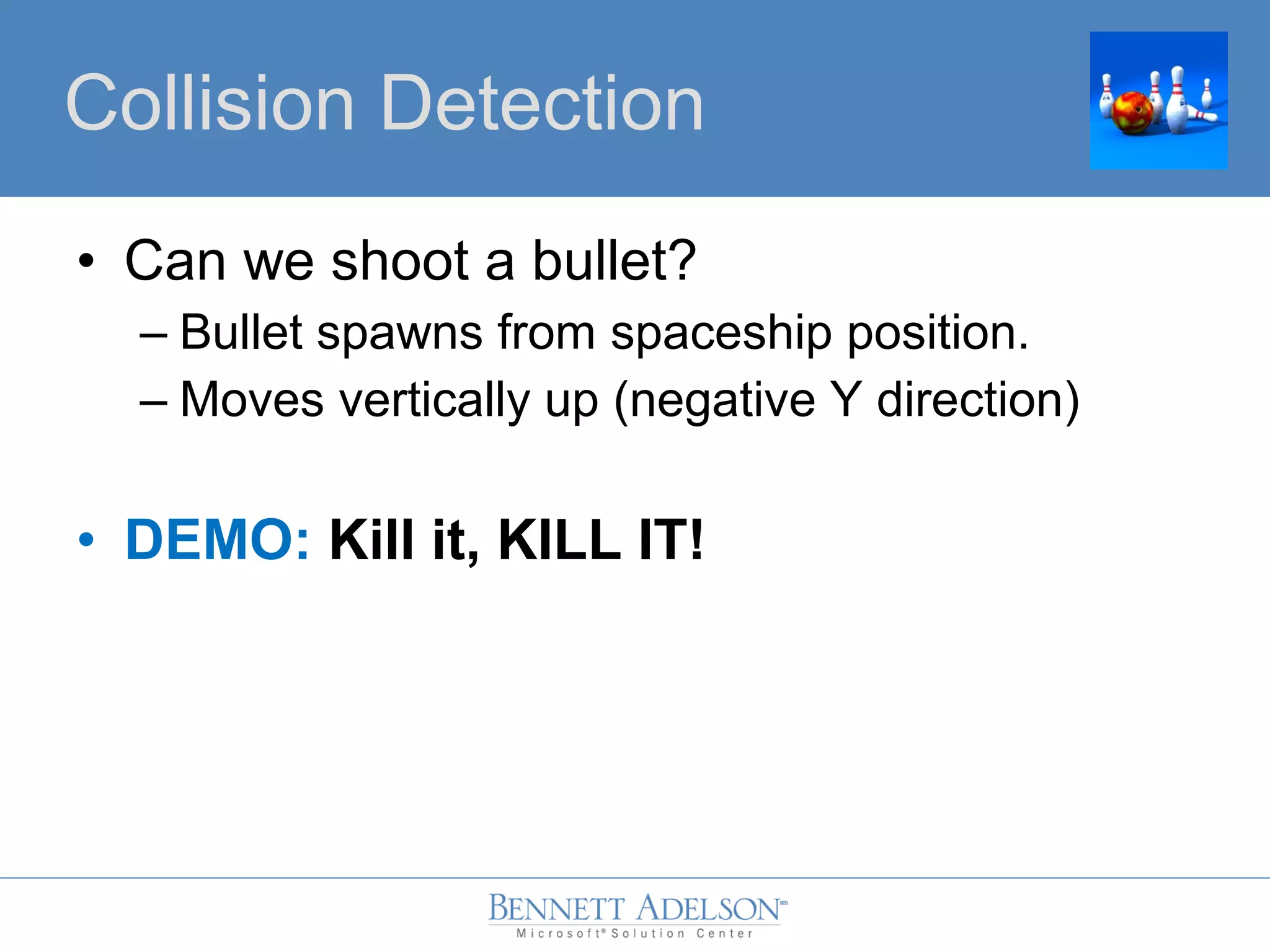

• Can we shoot a bullet? – Bullet spawns from spaceship position. – Moves vertically up (negative Y direction) • DEMO: Kill it, KILL IT! Collision Detection

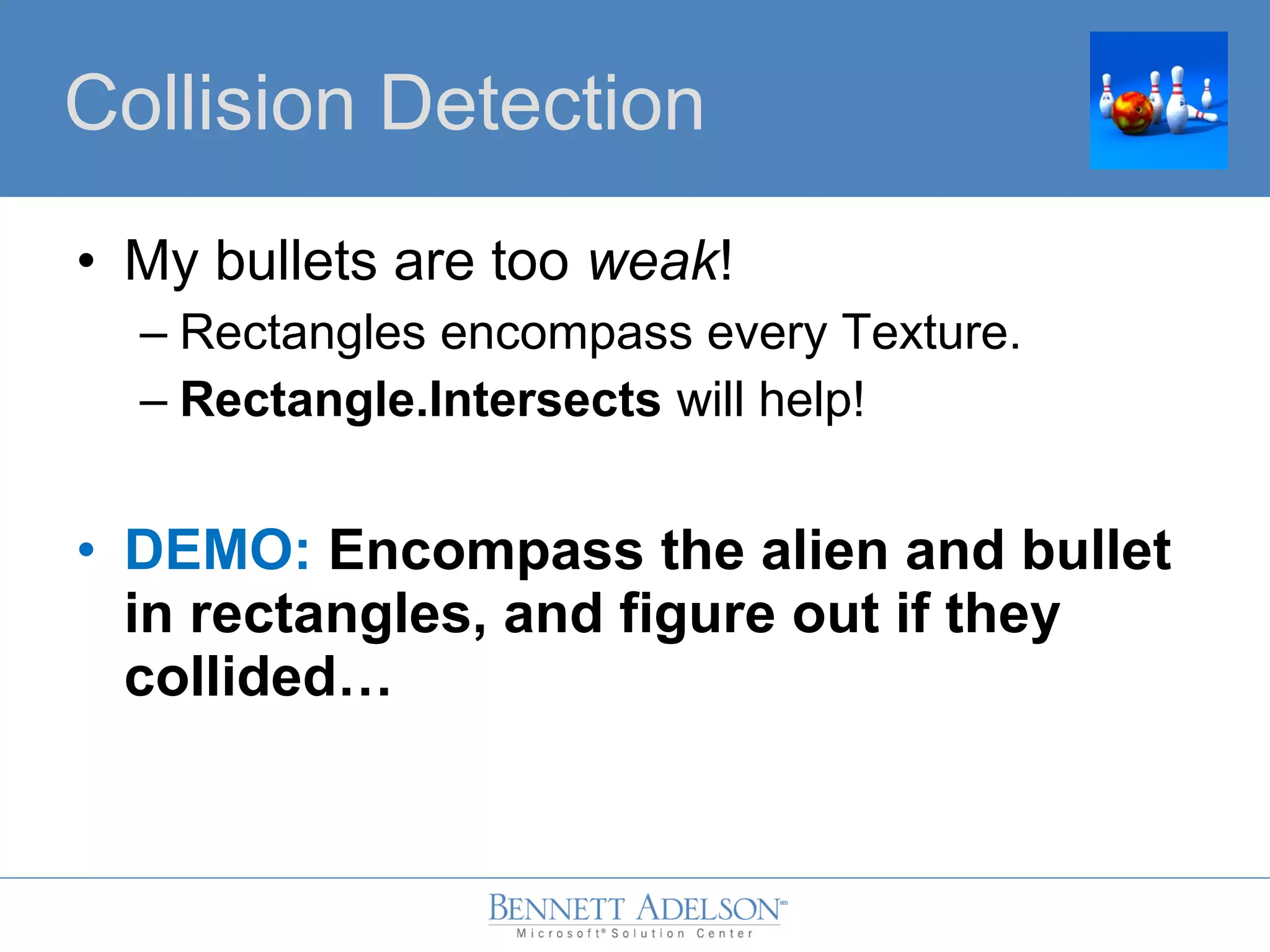

• My bullets are too weak! – Rectangles encompass every Texture. – Rectangle.Intersects will help! • DEMO: Encompass the alien and bullet in rectangles, and figure out if they collided… Collision Detection

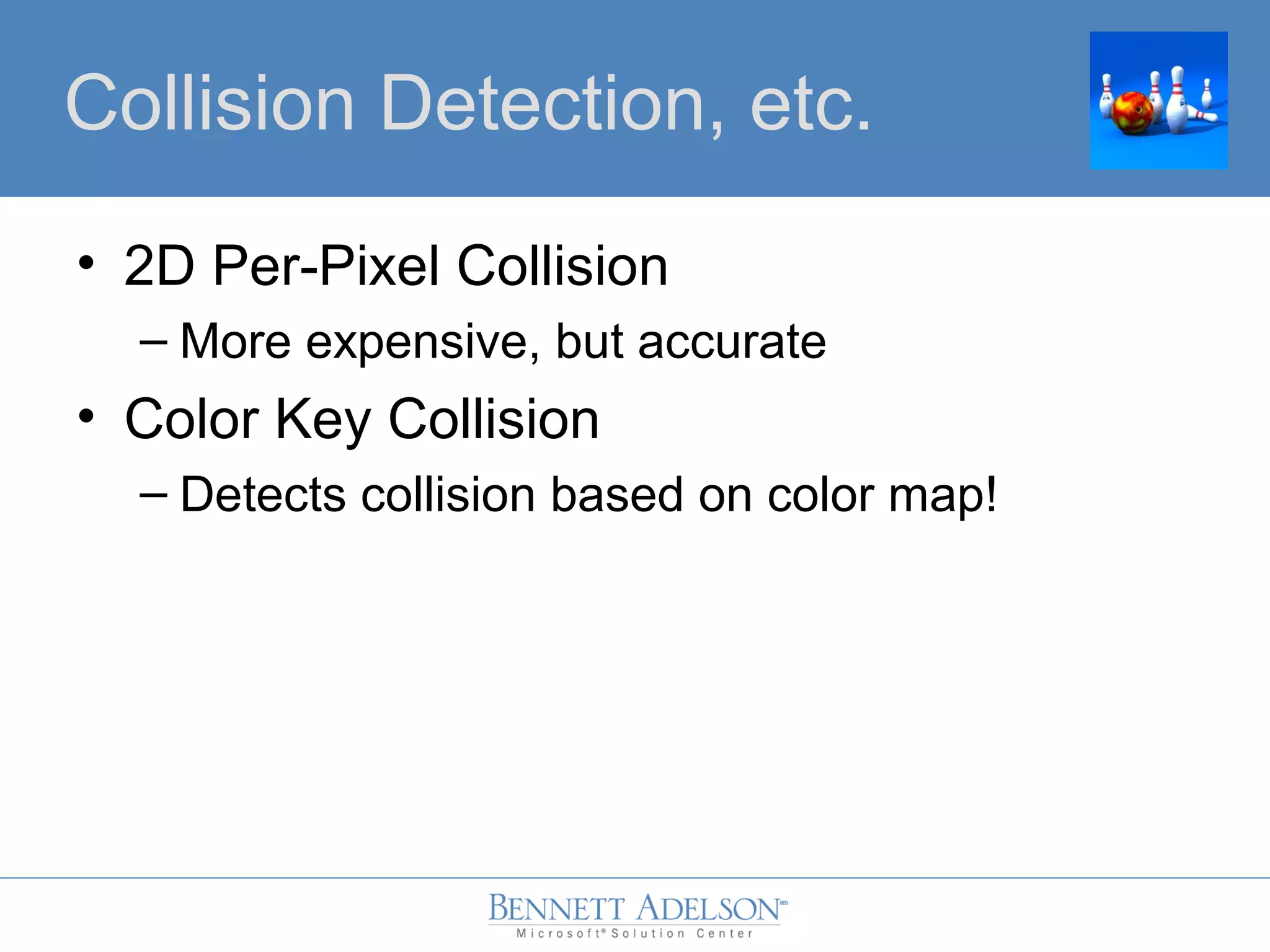

• 2D Per-Pixel Collision – More expensive, but accurate • Color Key Collision – Detects collision based on color map! Collision Detection, etc.

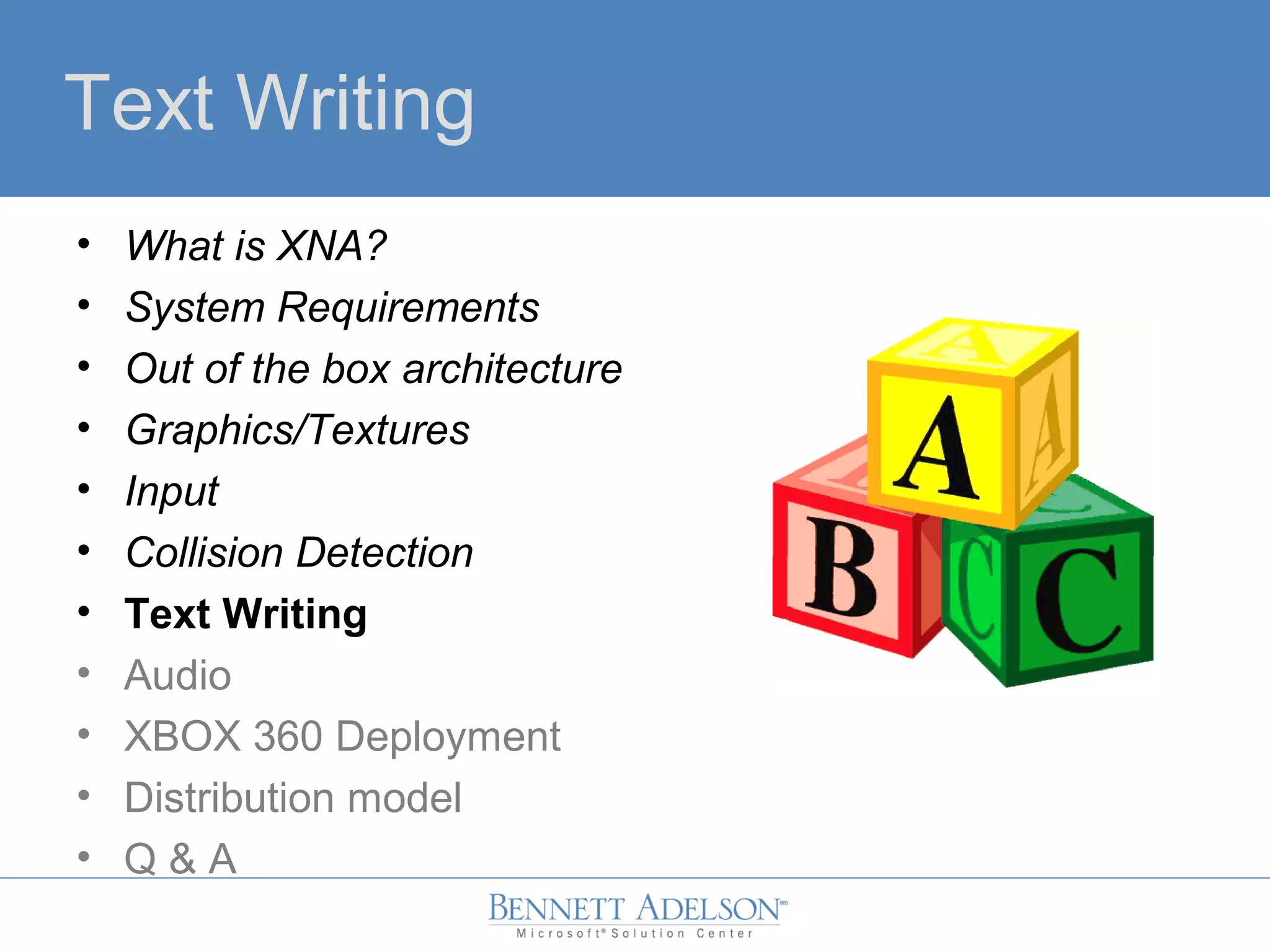

Text Writing • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A

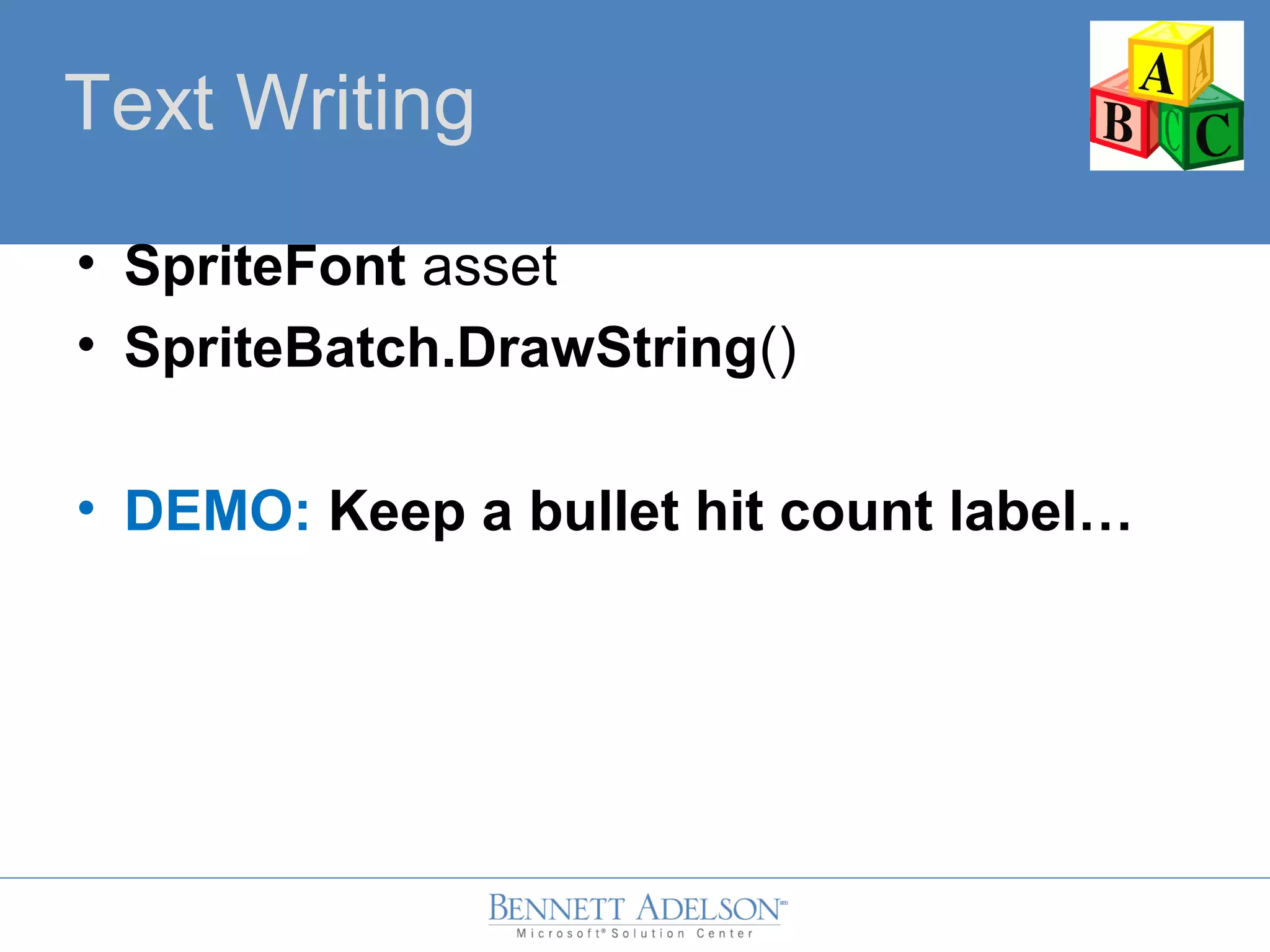

Text Writing • SpriteFont asset • SpriteBatch.DrawString() • DEMO: Keep a bullet hit count label…
Audio • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A

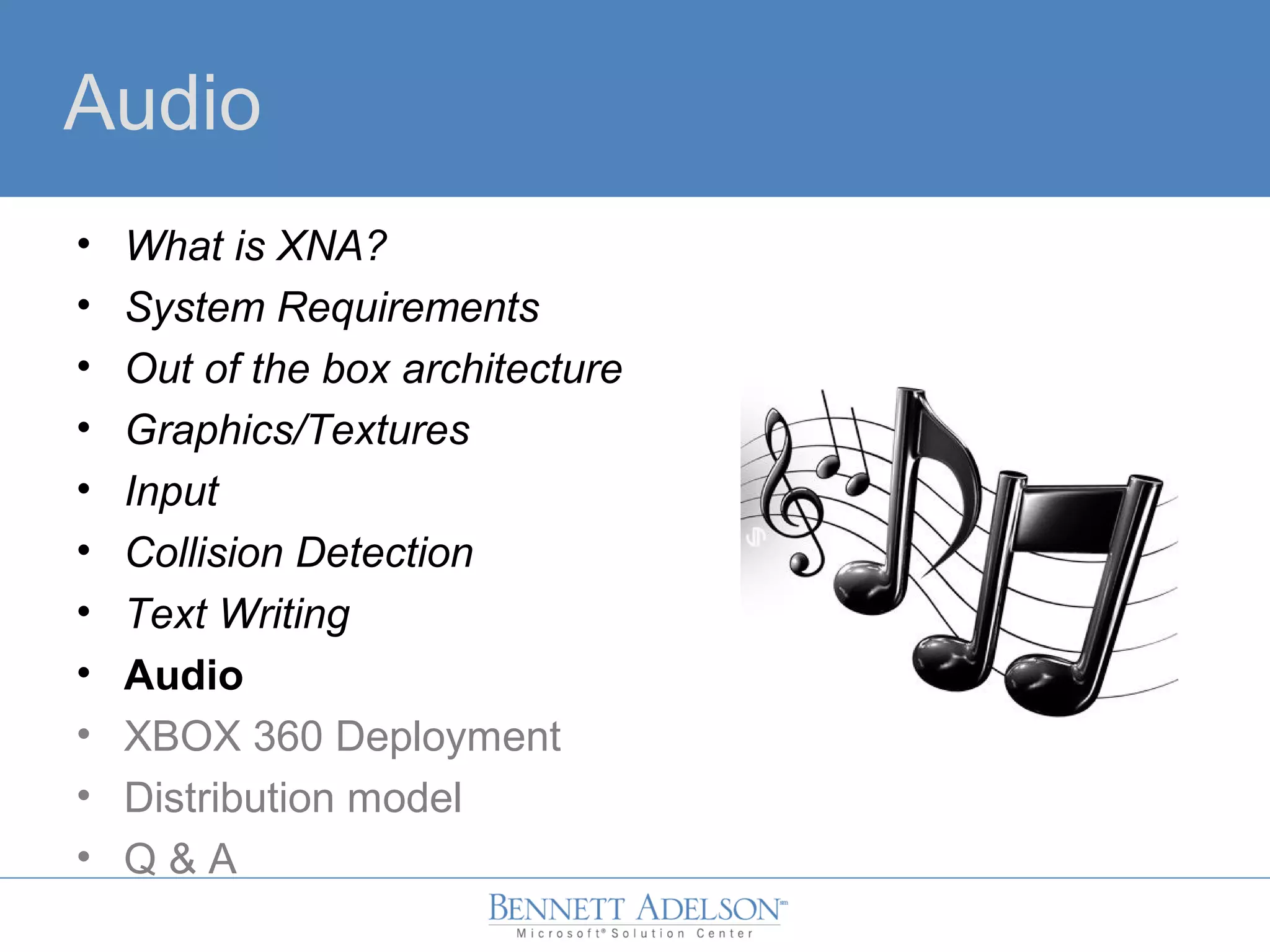

Audio • Microsoft Cross Platform Audio Creation Tool – Creates a .XAP “Game Asset” – .WAV files • Classes – audioEngine = new AudioEngine ("ContentAudioPROJECTNAME.xgs"); – waveBank = new WaveBank (audioEngine, "ContentAudioWave Bank.xwb"); – soundBank = new SoundBank (audioEngine, "ContentAudioSound Bank.xsb"); – soundBank.PlayCue (“CUENAME"); • DEMO: Background music. Loop it.

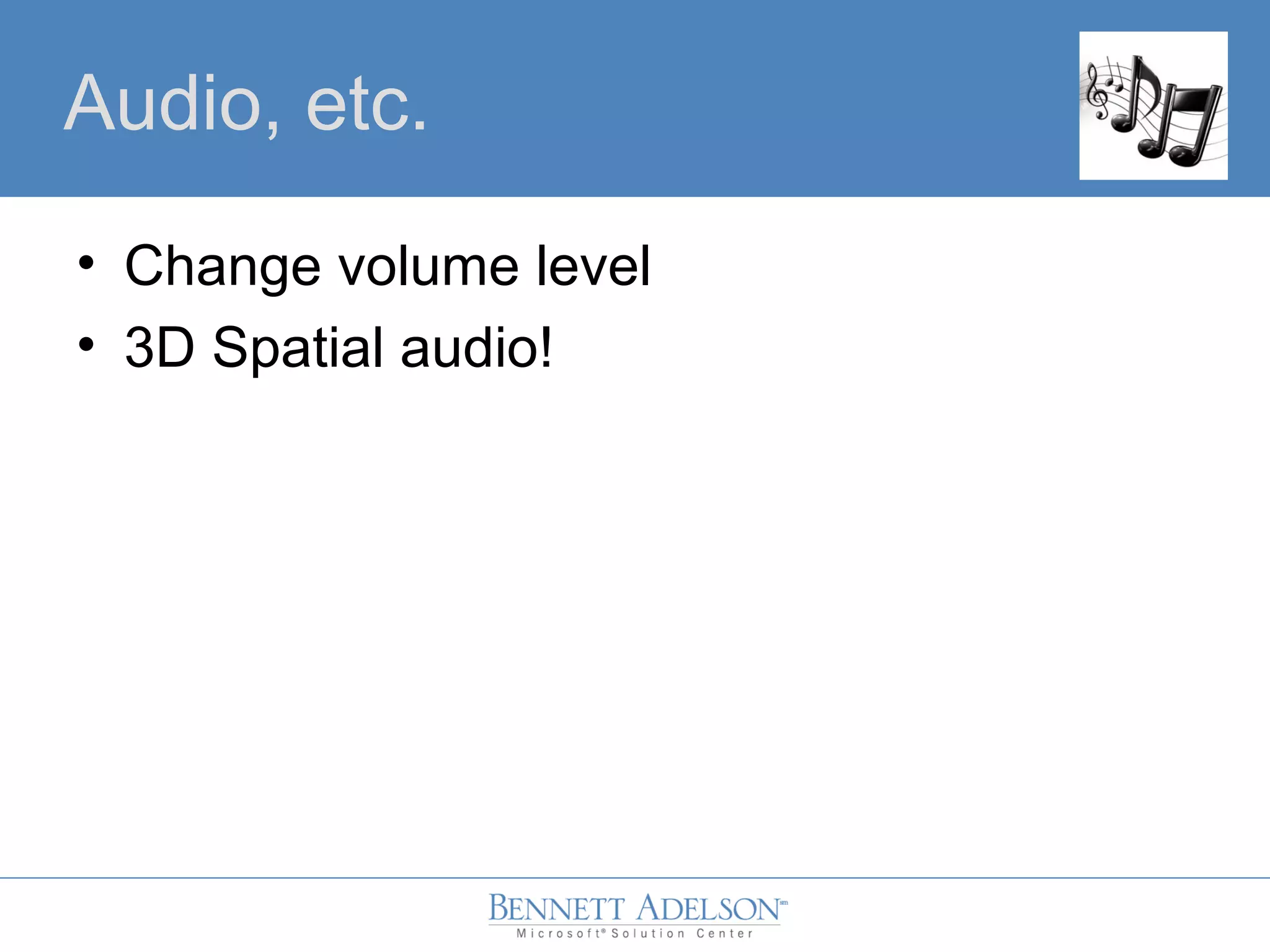

• Change volume level • 3D Spatial audio! Audio, etc.

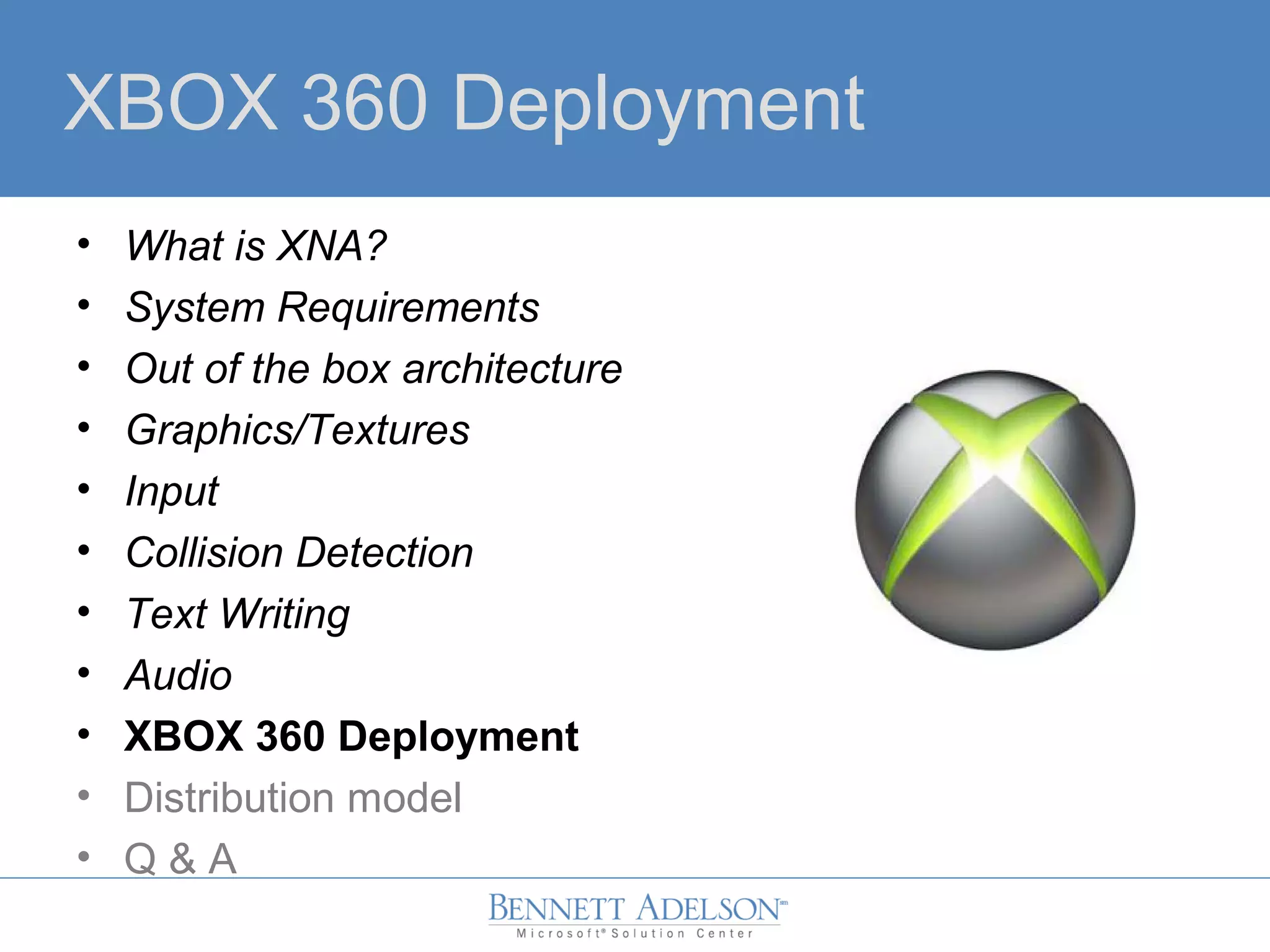

XBOX 360 Deployment • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A

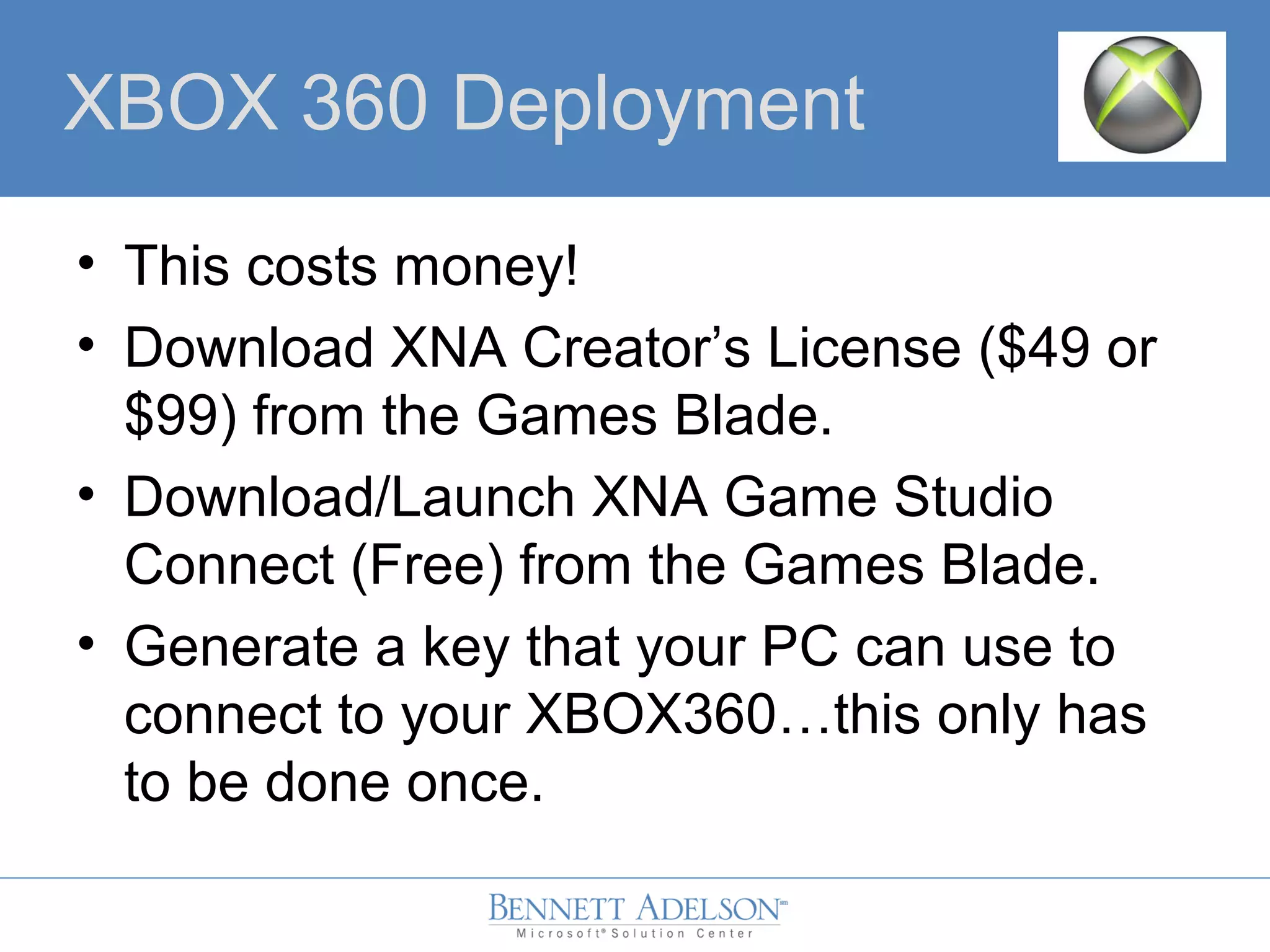

XBOX 360 Deployment • This costs money! • Download XNA Creator’s License ($49 or $99) from the Games Blade. • Download/Launch XNA Game Studio Connect (Free) from the Games Blade. • Generate a key that your PC can use to connect to your XBOX360…this only has to be done once.
XBOX 360 Deployment

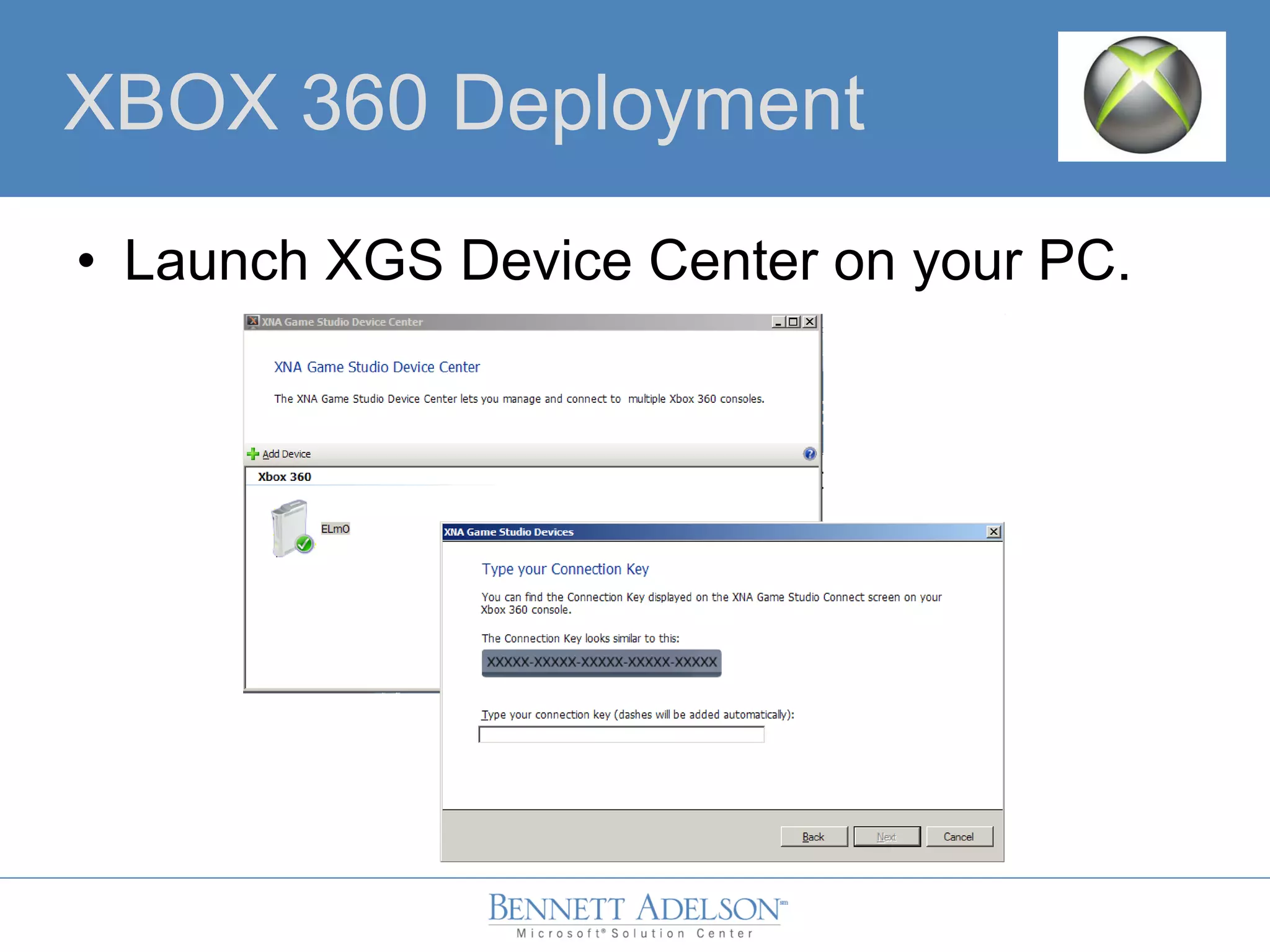

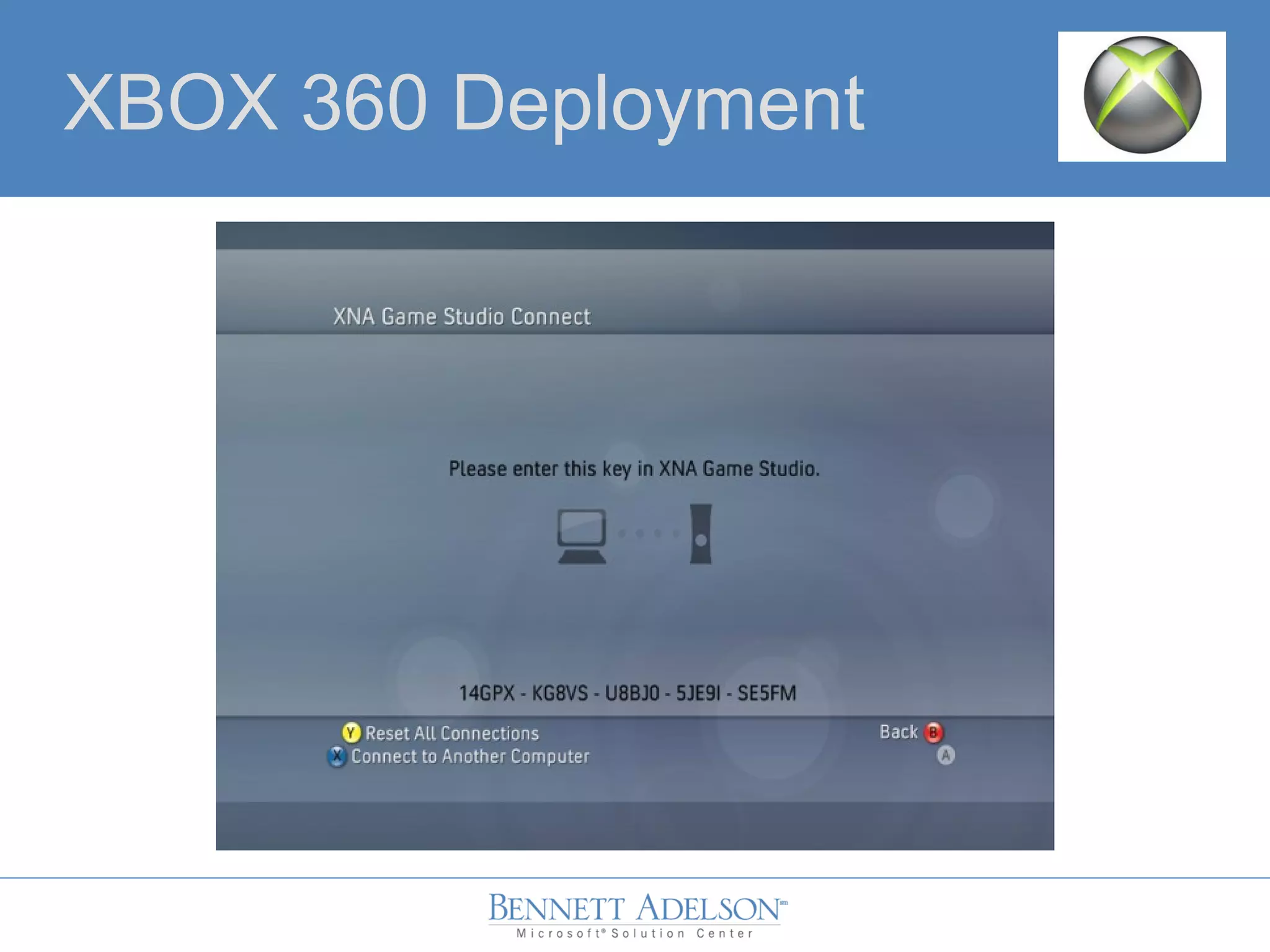

XBOX 360 Deployment • Launch XGS Device Center on your PC.

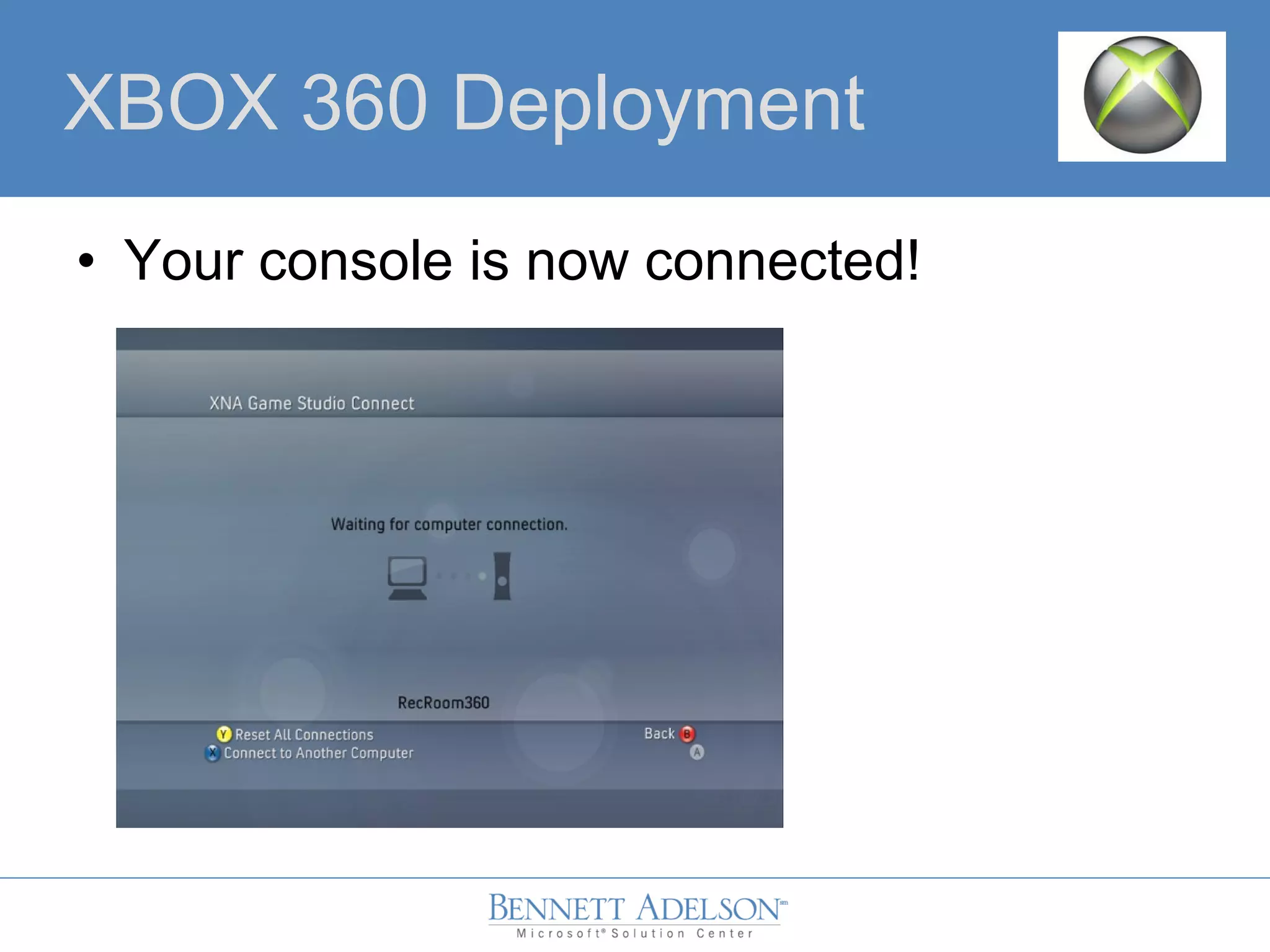

• Your console is now connected! XBOX 360 Deployment

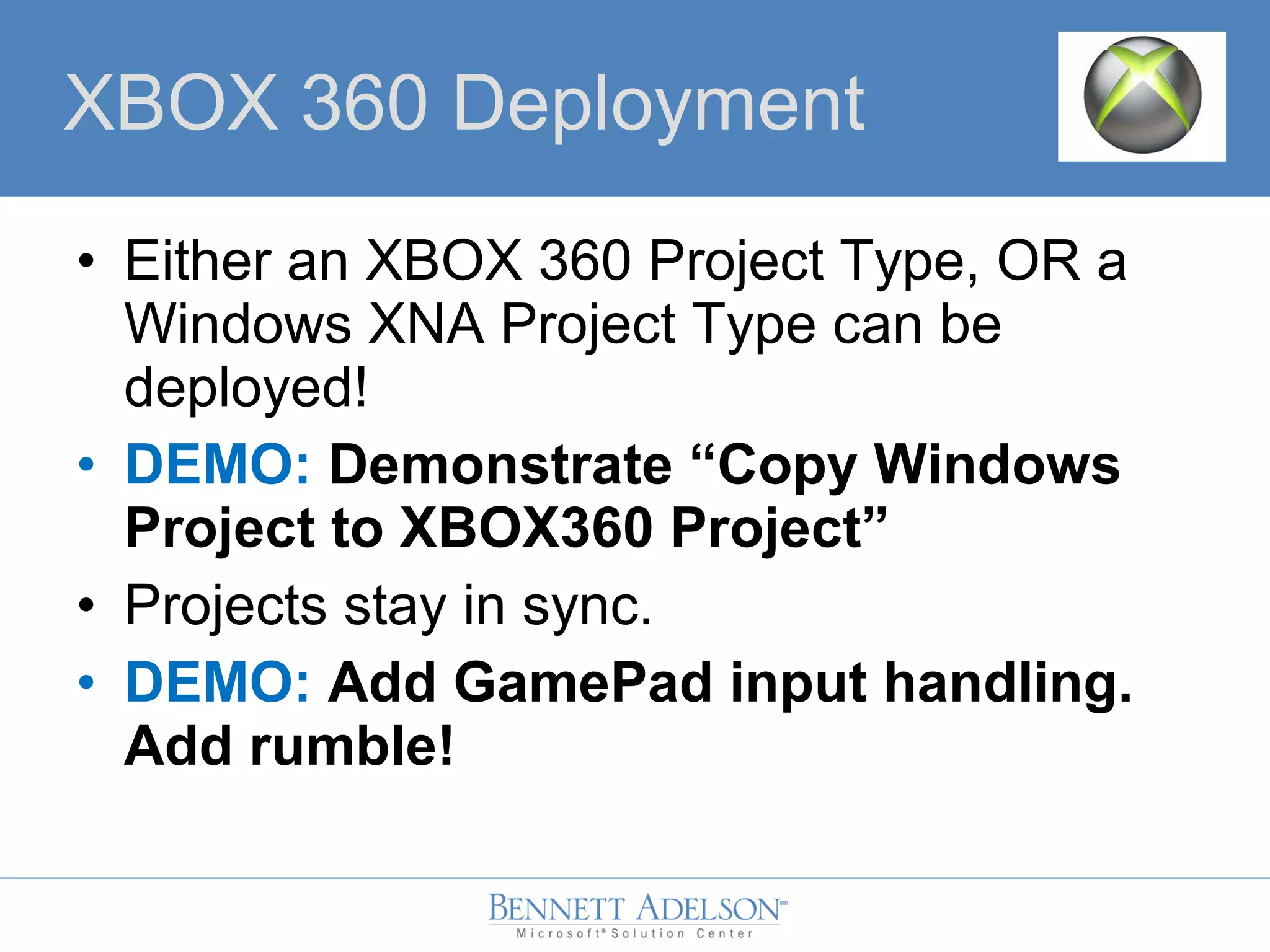

• Either an XBOX 360 Project Type, OR a Windows XNA Project Type can be deployed! • DEMO: Demonstrate “Copy Windows Project to XBOX360 Project” • Projects stay in sync. • DEMO: Add GamePad input handling. Add rumble! XBOX 360 Deployment

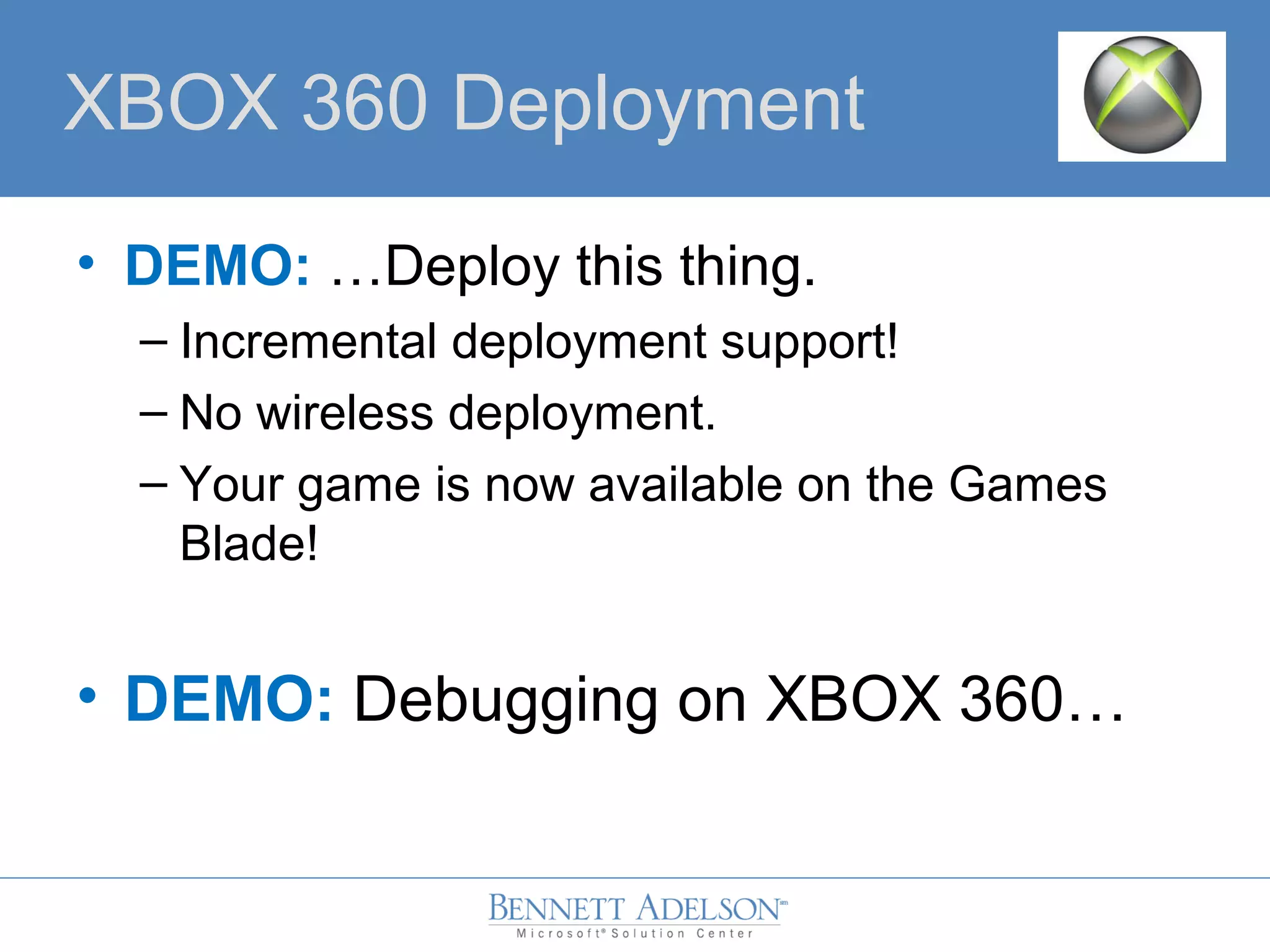

• DEMO: …Deploy this thing. – Incremental deployment support! – No wireless deployment. – Your game is now available on the Games Blade! • DEMO: Debugging on XBOX 360… XBOX 360 Deployment

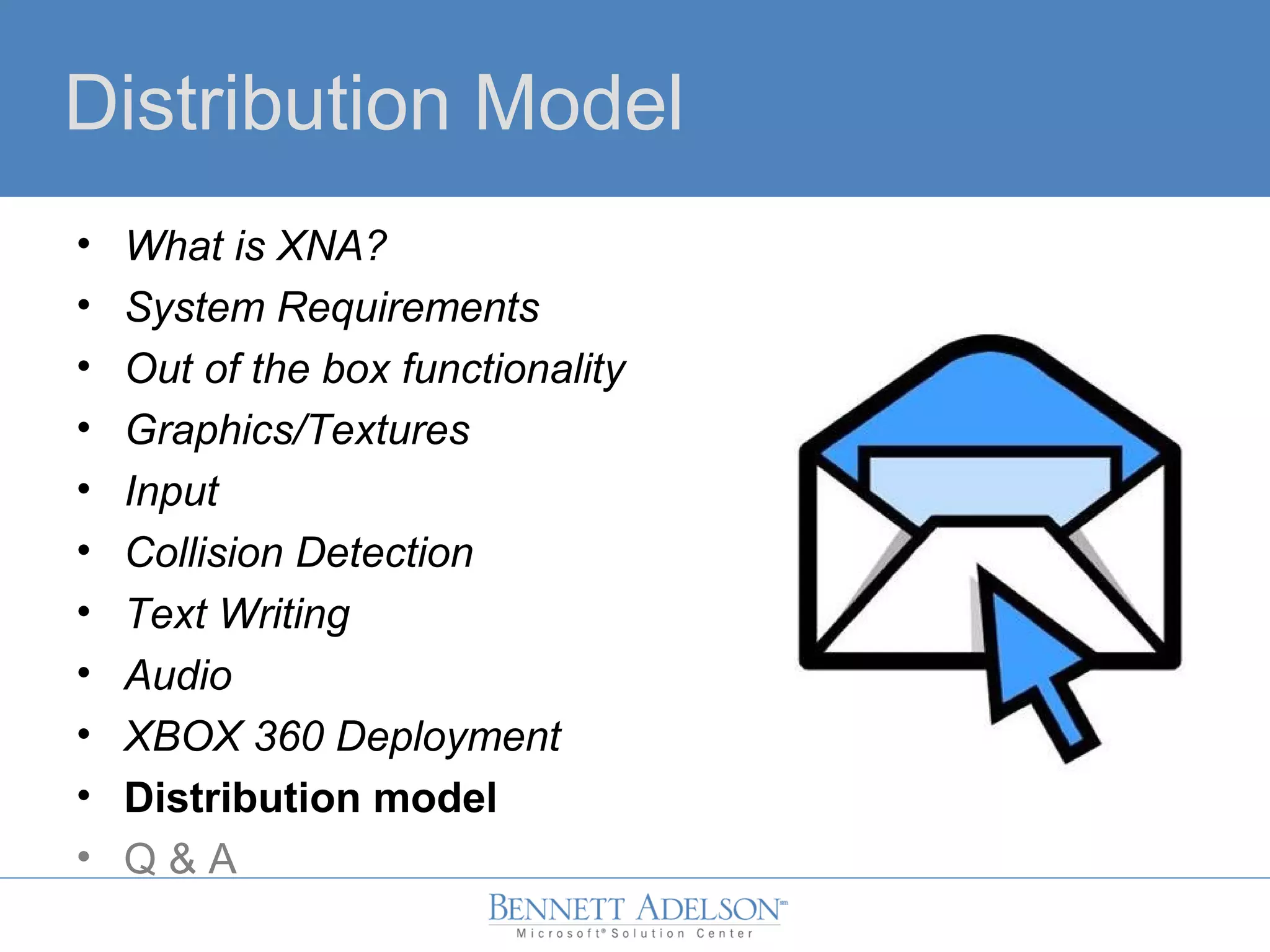

Distribution Model • What is XNA? • System Requirements • Out of the box functionality • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A

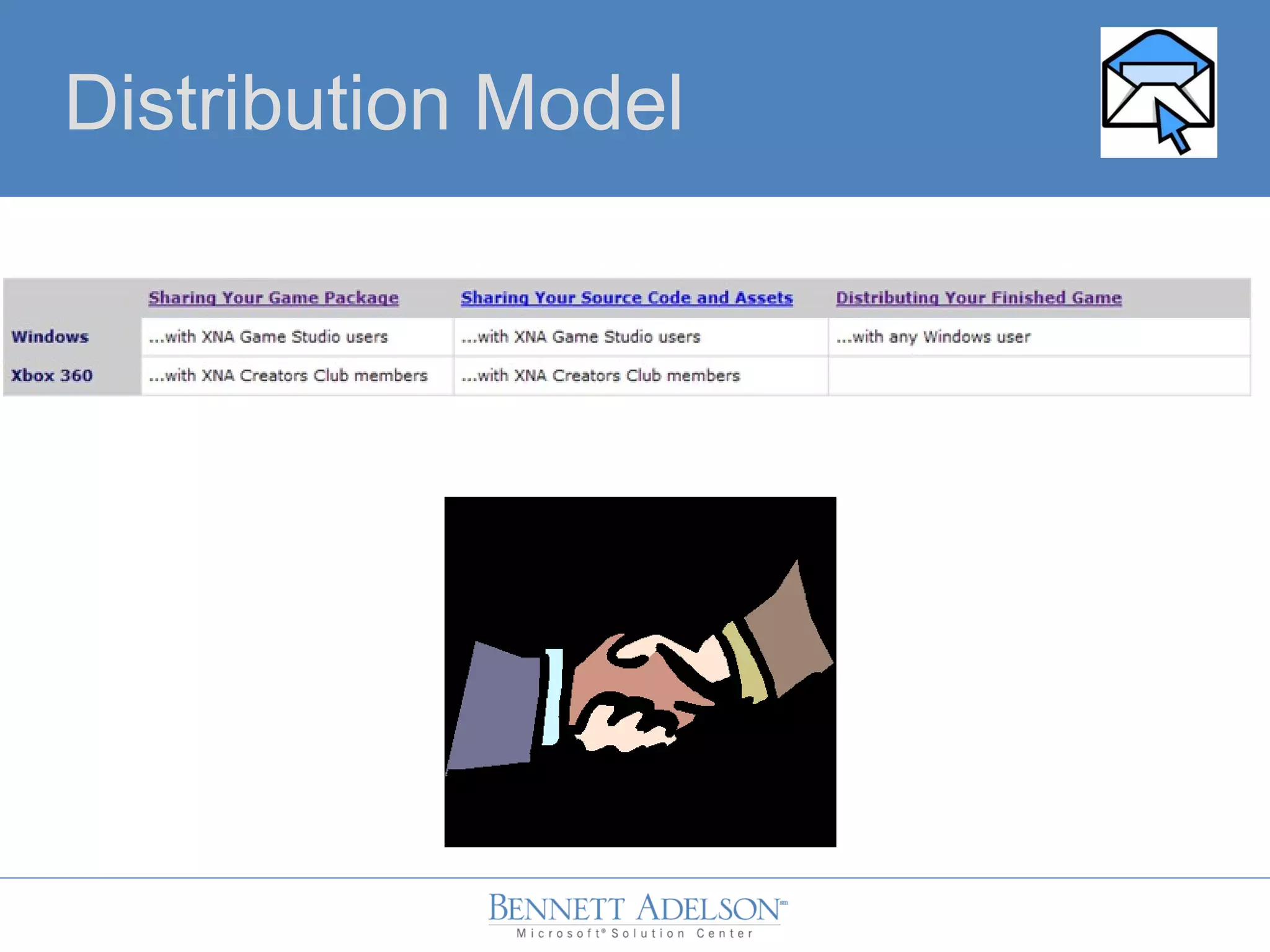

Distribution Model

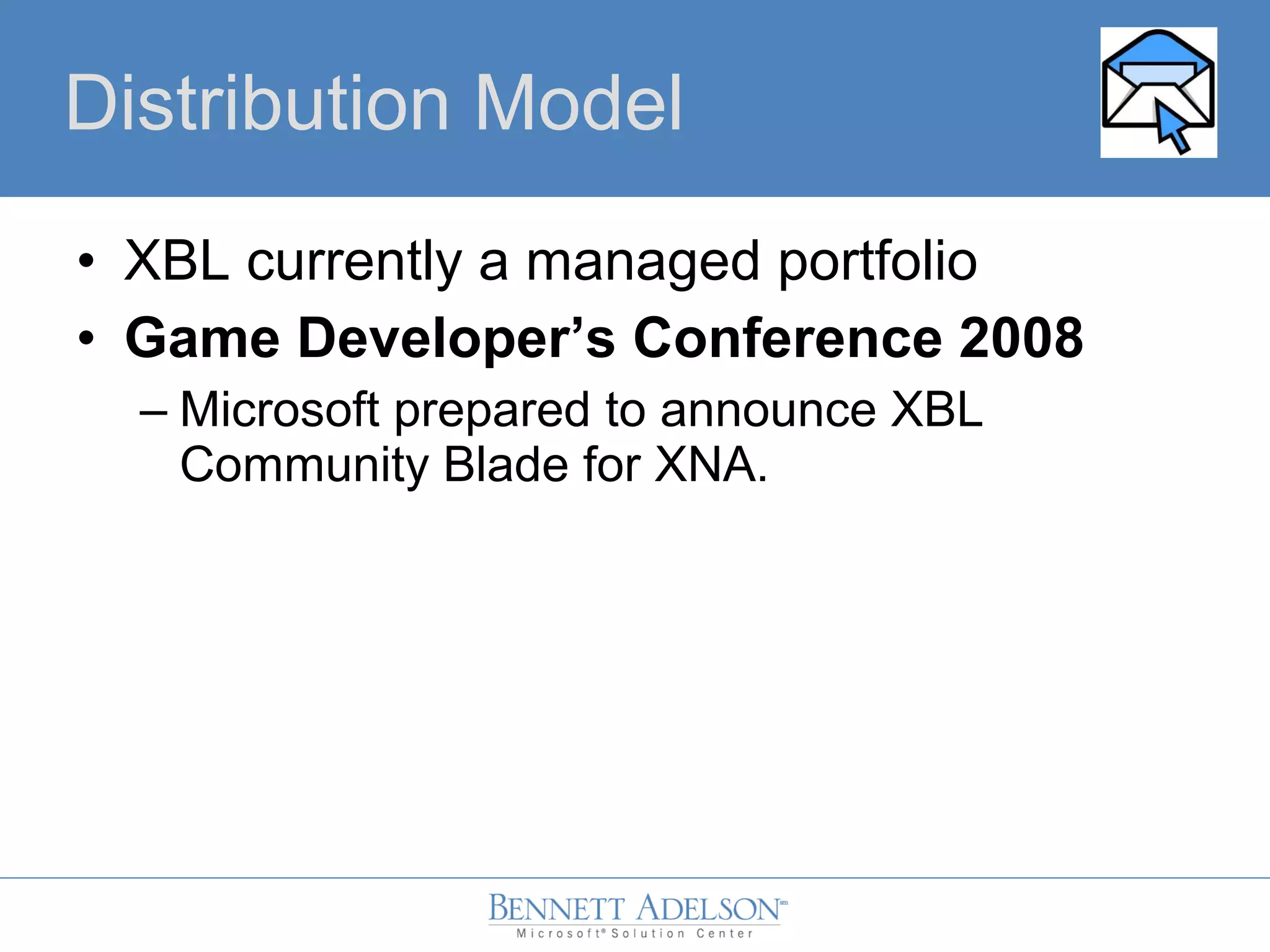

• XBL currently a managed portfolio • Game Developer’s Conference 2008 – Microsoft prepared to announce XBL Community Blade for XNA. Distribution Model

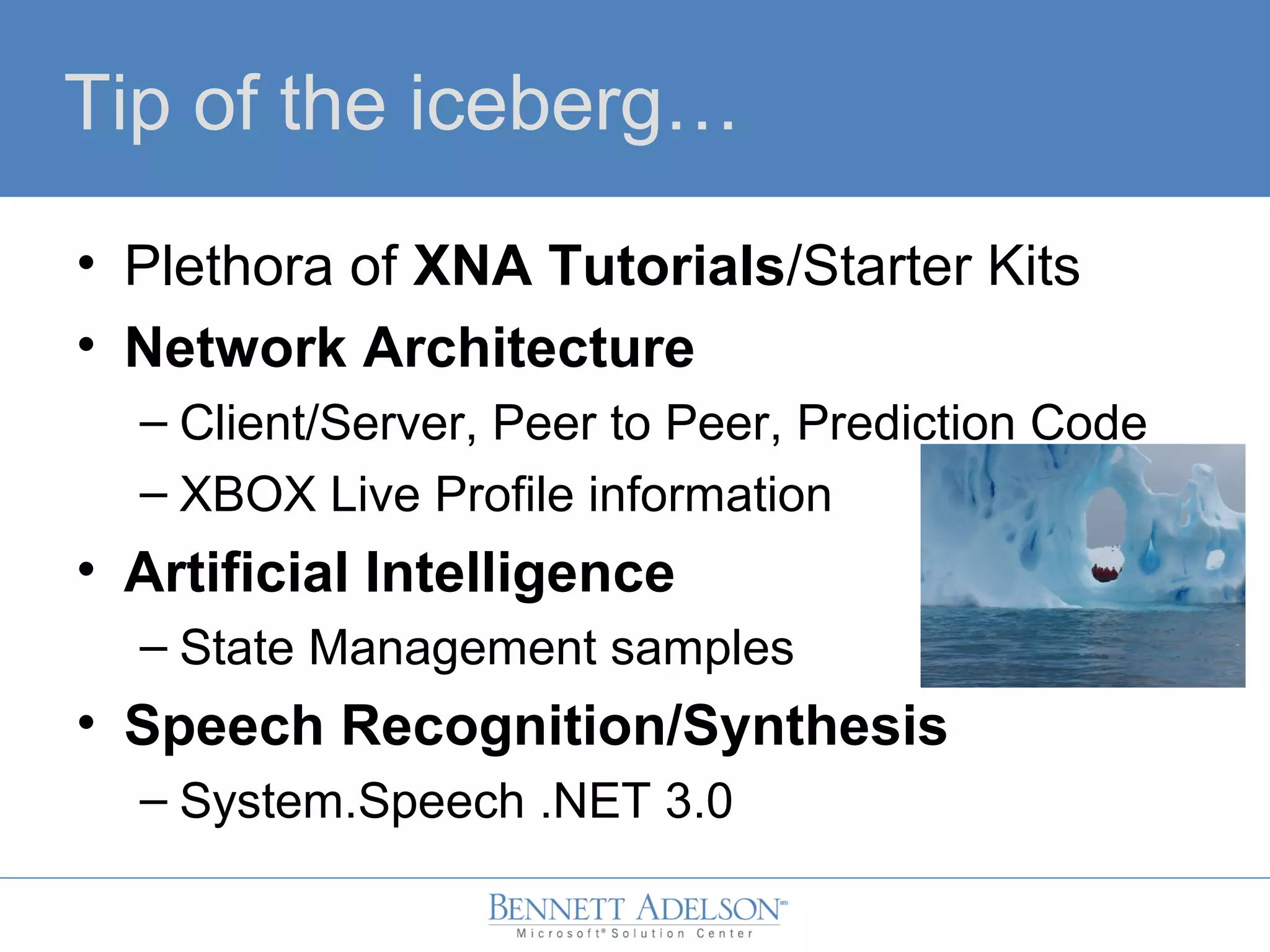

Tip of the iceberg… • Plethora of XNA Tutorials/Starter Kits • Network Architecture – Client/Server, Peer to Peer, Prediction Code – XBOX Live Profile information • Artificial Intelligence – State Management samples • Speech Recognition/Synthesis – System.Speech .NET 3.0

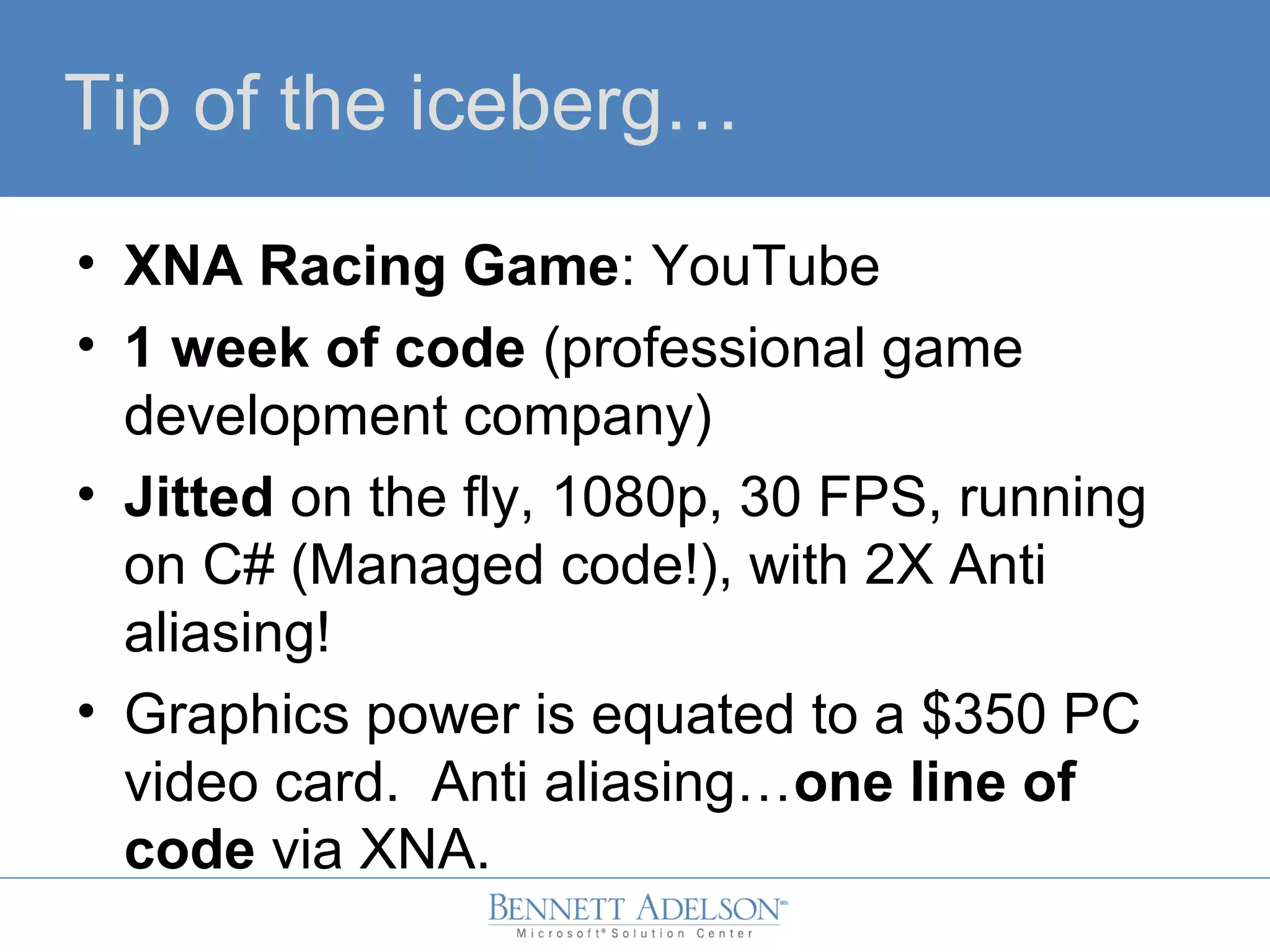

Tip of the iceberg… • XNA Racing Game: YouTube • 1 week of code (professional game development company) • Jitted on the fly, 1080p, 30 FPS, running on C# (Managed code!), with 2X Anti aliasing! • Graphics power is equated to a $350 PC video card. Anti aliasing…one line of code via XNA.

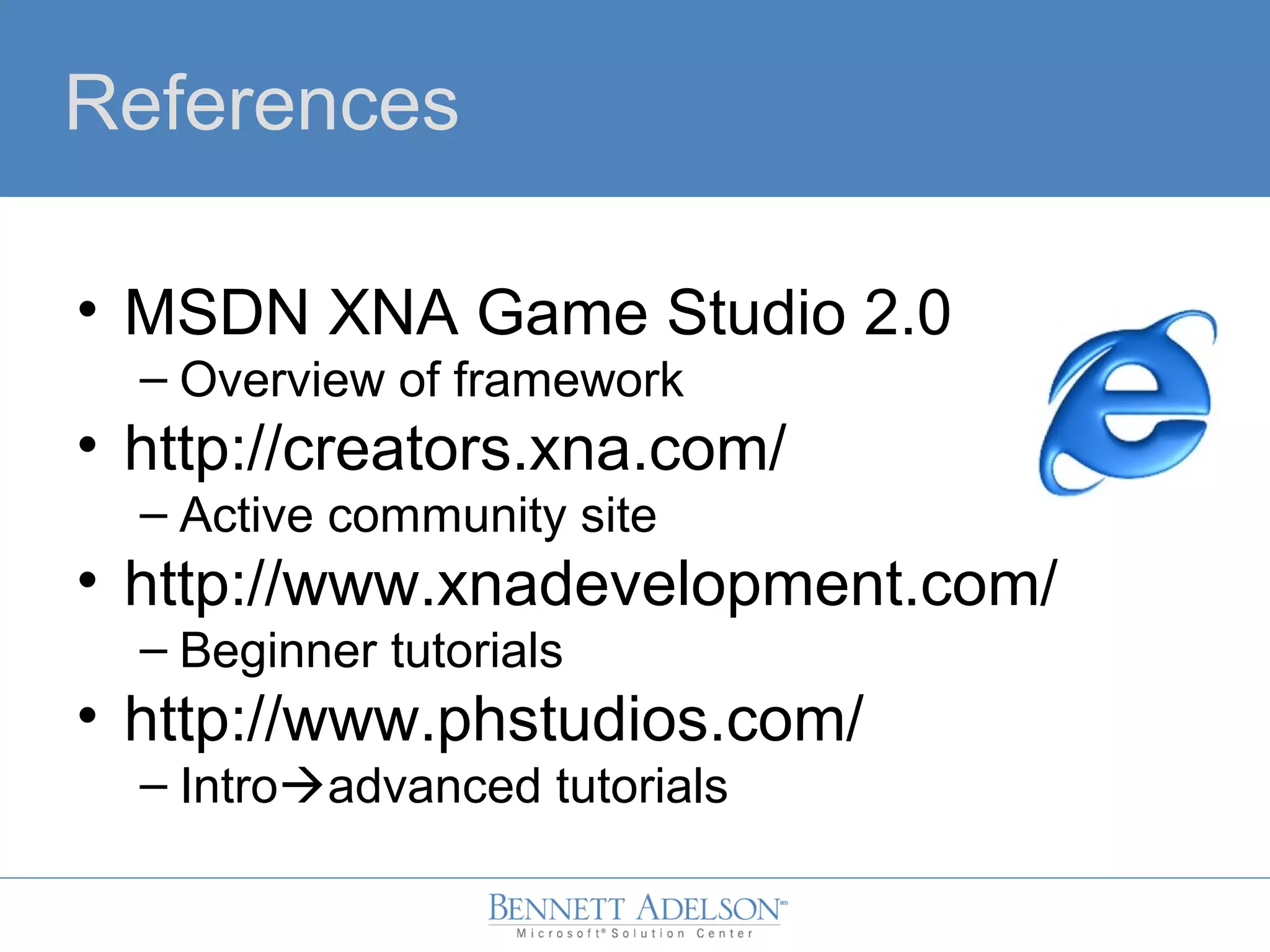

References • MSDN XNA Game Studio 2.0 – Overview of framework • http://creators.xna.com/ – Active community site • http://www.xnadevelopment.com/ – Beginner tutorials • http://www.phstudios.com/ – Introadvanced tutorials

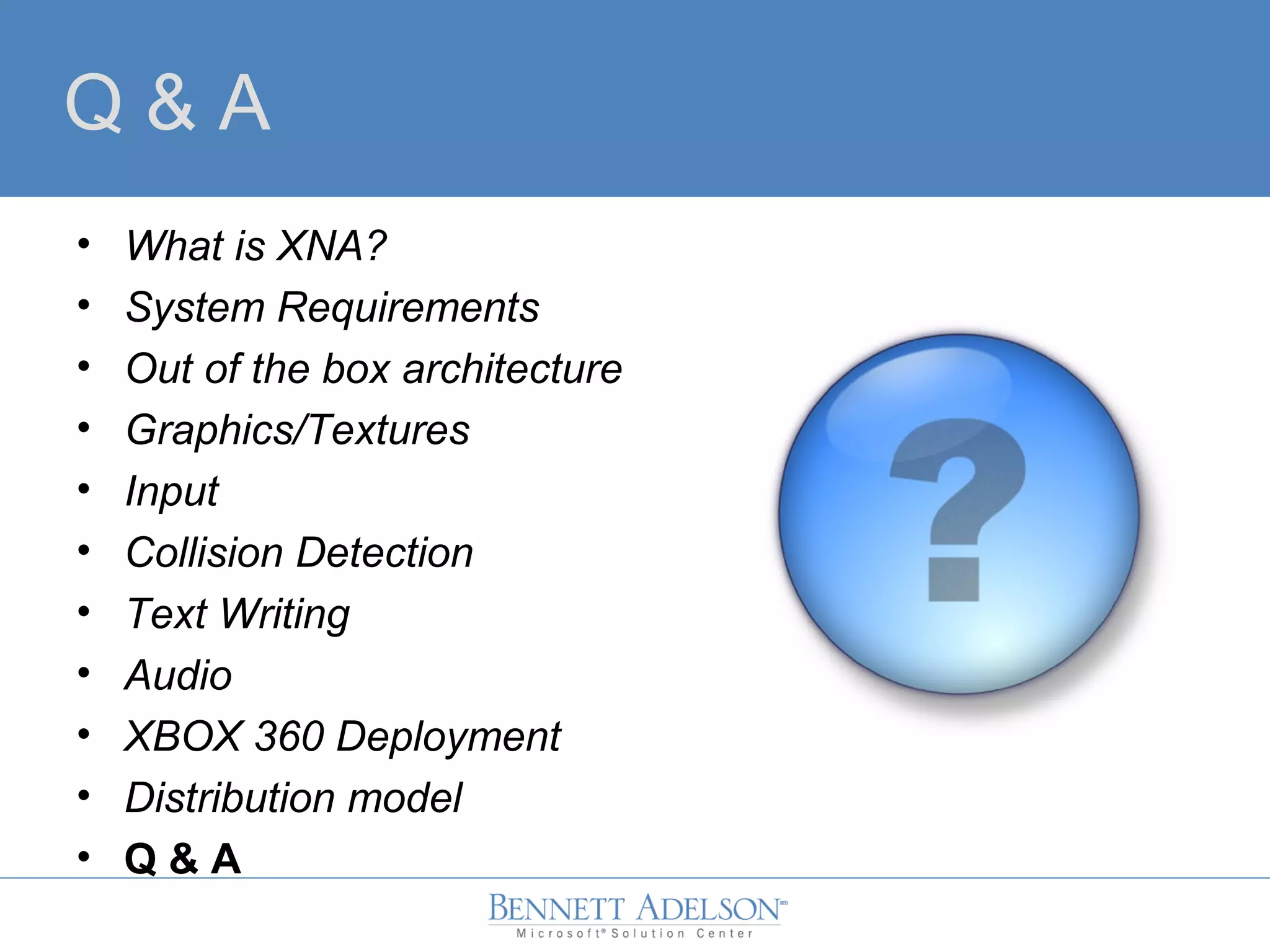

Q & A • What is XNA? • System Requirements • Out of the box architecture • Graphics/Textures • Input • Collision Detection • Text Writing • Audio • XBOX 360 Deployment • Distribution model • Q & A
