Intel-powered clamshell classmate PC
February ’09 Product Update
EMPG Platform Marketing

2. 2For NDA Customers Only

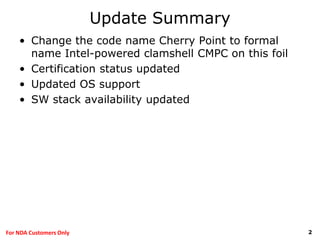

Update Summary
• Change the code name Cherry Point to formal
name Intel-powered clamshell CMPC on this foil
• Certification status updated
• Updated OS support
• SW stack availability updated

3. 3For NDA Customers Only

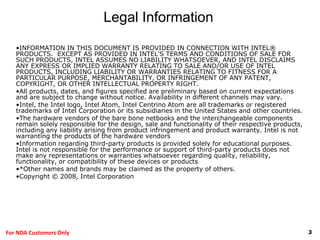

•INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®
PRODUCTS. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR
SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS
ANY EXPRESS OR IMPLIED WARRANTY RELATING TO SALE AND/OR USE OF INTEL
PRODUCTS, INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT,
COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY RIGHT.
•All products, dates, and figures specified are preliminary based on current expectations
and are subject to change without notice. Availability in different channels may vary.
•Intel, the Intel logo, Intel Atom, Intel Centrino Atom are all trademarks or registered
trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
•The hardware vendors of the bare bone netbooks and the interchangeable components
remain solely responsible for the design, sale and functionality of their respective products,
including any liability arising from product infringement and product warranty. Intel is not
warranting the products of the hardware vendors
•Information regarding third-party products is provided solely for educational purposes.
Intel is not responsible for the performance or support of third-party products does not
make any representations or warranties whatsoever regarding quality, reliability,
functionality, or compatibility of these devices or products
•*Other names and brands may be claimed as the property of others.
•Copyright © 2008, Intel Corporation
Legal Information

4. 4For NDA Customers Only

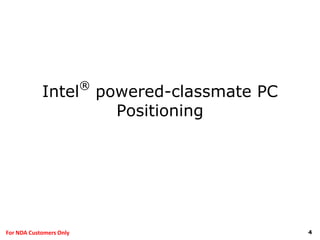

Intel
®
powered-classmate PC
Positioning

5. 5For NDA Customers Only
Intel-powered classmate PC
Netbook Platforms enable a simple and affordable platform
for Internet centric usage models
Classmate PC Category is a sub-set of
the Basic Notebook Platforms that is
focused on Education Usage Model
Kid/Classroom
Friendly ID
Rugged Design
Water
Resistant KB
Custom
Education SW
Intel-powered classmate PC is Netbook
purpose build for Youth Education

6. 6For NDA Customers Only
Netbooks: An Internet-Centric Device
Browse Listen
WatchCommunicate
Email
Instant Message
Voice Over IP (VOIP)
Social Networking
MP3
Streaming Audio
Surf the Web
Read the News
Search for Information
Photo Viewing/Sharing
Video Streaming
Basic Online GamingLearn
Research
Homework & Studying
Writing Papers
“Safe” Internet Browsing
Language Learning
Ideal for Internet Centric Use and Education
Netbook is targeted for content consumption

7. 7For NDA Customers Only

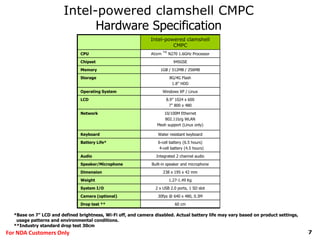

Intel-powered clamshell CMPC
Hardware Specification
Intel-powered clamshell
CMPC
CPU Atom
TM
N270 1.6GHz Processor
Chipset 945GSE
Memory 1GB / 512MB / 256MB
Storage 8G/4G Flash
1.8” HDD
Operating System Windows XP / Linux
LCD 8.9” 1024 x 600
7” 800 x 480
Network 10/100M Ethernet
802.11b/g WLAN
Mesh support (Linux only)
Keyboard Water resistant keyboard
Battery Life* 6-cell battery (6.5 hours)
4-cell battery (4.5 hours)
Audio Integrated 2 channel audio
Speaker/Microphone Built-in speaker and microphone
Dimension 238 x 195 x 42 mm
Weight 1.27-1.49 Kg
System I/O 2 x USB 2.0 ports, 1 SD slot
Camera (optional) 30fps @ 640 x 480, 0.3M
Drop test ** 60 cm
*Base on 7” LCD and defined brightness, Wi-Fi off, and camera disabled. Actual battery life may vary based on product settings,
usage patterns and environmental conditions.
**Industry standard drop test 30cm

8. 8For NDA Customers Only
OEM Branding & Logo Placement
 OEM customer is expected to apply its own branding logo
 Two logo spaces reserved on Cherry Point for OEM logos and stickers
Panel B logo
Panel A logo

9. 9For NDA Customers Only

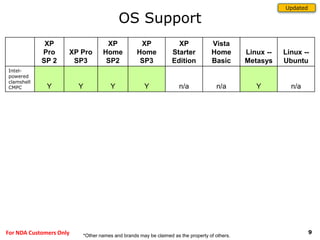

OS Support
Updated
XP
Pro
SP 2
XP Pro
SP3
XP
Home
SP2
XP
Home
SP3
XP
Starter
Edition
Vista
Home
Basic
Linux --
Metasys
Linux --
Ubuntu
Intel-
powered
clamshell
CMPC Y Y Y Y n/a n/a Y n/a
*Other names and brands may be claimed as the property of others.

10. 10For NDA Customers Only

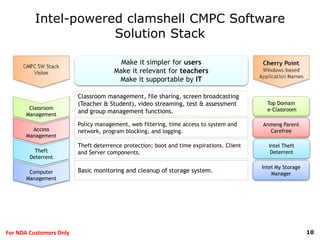

Intel-powered clamshell CMPC Software
Solution Stack
Basic monitoring and cleanup of storage system.
Policy management, web filtering, time access to system and
network, program blocking, and logging.
Theft deterrence protection; boot and time expirations. Client
and Server components.
Classroom management, file sharing, screen broadcasting
(Teacher & Student), video streaming, test & assessment
and group management functions.
Access
Management
Theft
Deterrent
Classroom
Management
Computer
Management
Make it simpler for users
Make it relevant for teachers
Make it supportable by IT
Top Domain
e-Classroom
Anmeng Parent
Carefree
Intel Theft
Deterrent
Intel My Storage
Manager

11. 11For NDA Customers Only
Enhanced Usability Through Special and Unique Software
Access Management
Theft Deterrent
Classroom
Collaboration
School controls assets, prevents theft
and parts reselling.
Teachers and parents guide students on
using applications and viewing internet
content.
Teachers present to students, monitor
their activities, collaborate and help
them learn.
Software Usage Models
BIOS, Operating
System
Network
Applications, Content
Where it acts
Special Graphics
Driver
Students adapt viewing angle for the
content they are using.
Screen
Digital Pen SW
Students use a real pen to take notes and
make sketches, which can be stored and
viewed in digital format.
Paper
Intel
exclusive
Intel
enhanced
Intel
enhanced
Intel
exclusive
Optional

12. 12For NDA Customers Only
Software Application Introduction – Classroom Collaboration
Feature
Description
Value
Proposition
• Classroom management
• File sharing
• Screen broadcasting
• Video streaming
• Test & assessment and group mgmt functions
Snapshot
• Better 1:1 learning experience in school
• More interactive exercise among teacher & students
• Makes relevant to teachers

13. 13For NDA Customers Only

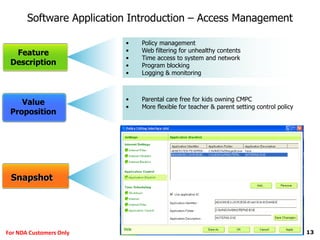

Feature
Description
Value
Proposition
• Policy management
• Web filtering for unhealthy contents
• Time access to system and network
• Program blocking
• Logging & monitoring
Snapshot
• Parental care free for kids owning CMPC
• More flexible for teacher & parent setting control policy
Software Application Introduction – Access Management

14. 14For NDA Customers Only

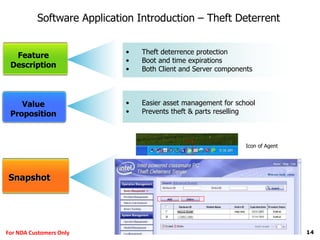

Software Application Introduction – Theft Deterrent
Feature
Description
Value
Proposition
• Theft deterrence protection
• Boot and time expirations
• Both Client and Server components
Snapshot
• Easier asset management for school
• Prevents theft & parts reselling
Icon of Agent

15. 15For NDA Customers Only
Intel-powered clamshell CMPC Certifications
• OEM should verify regulatory requirements of their respective
countries
• Intel works with ODM to prepare regulatory certifications to
enable OEM’s to reduce time to market launch of Intel
classmate based PCs

16. 16For NDA Customers Only

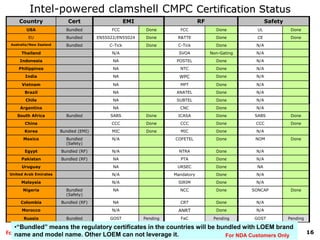

Intel-powered clamshell CMPC Certification Status
Country Cert EMI RF Safety
USA Bundled FCC Done FCC Done UL Done
EU Bundled EN55022/EN55024 Done R&TTE Done CE Done
Australia/New Zealand Bundled C-Tick Done C-Tick Done N/A
Thailand N/A SVOA Non-Gating N/A
Indonesia NA POSTEL Done N/A
Philippines NA NTC Done N/A
India NA WPC Done N/A
Vietnam NA MPT Done N/A
Brazil NA ANATEL Done N/A
Chile NA SUBTEL Done N/A
Argentina NA CNC Done N/A
South Africa Bundled SABS Done ICASA Done SABS Done
China CCC Done CCC Done CCC Done
Korea Bundled (EMI) MIC Done MIC Done N/A
Mexico Bundled
(Safety)
N/A COFETEL Done NOM Done
Egypt Bundled (RF) N/A NTRA Done N/A
Pakistan Bundled (RF) NA PTA Done N/A
Uruguay NA URSEC Done NA
United Arab Emirates N/A Mandatory Done N/A
Malaysia N/A SIRIM Done N/A
Nigeria Bundled
(Safety)
NA NCC Done SONCAP Done
Colombia Bundled (RF) NA CRT Done N/A
Morocco N/A ANRT Done N/A
Russia Bundled GOST Pending FaC Pending GOST Pending
•“Bundled” means the regulatory certificates in the countries will be bundled with LOEM brand
name and model name. Other LOEM can not leverage it. For NDA Customers Only

17. 17For NDA Customers Only
BACK UP

18. 18For NDA Customers Only

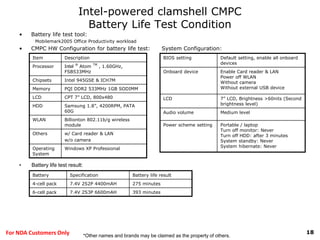

Intel-powered clamshell CMPC
Battery Life Test Condition
• Battery life test tool:
Mobilemark2005 Office Productivity workload
• CMPC HW Configuration for battery life test: System Configuration:
Item Description
Processor Intel
®
Atom
TM
, 1.60GHz,
FSB533MHz
Chipsets Intel 945GSE & ICH7M
Memory PQI DDR2 533MHz 1GB SODIMM
LCD CPT 7” LCD, 800x480
HDD Samsung 1.8”, 4200RPM, PATA
60G
WLAN Billionton 802.11b/g wireless
module
Others w/ Card reader & LAN
w/o camera
Operating
System
Windows XP Professional
BIOS setting Default setting, enable all onboard
devices
Onboard device Enable Card reader & LAN
Power off WLAN
Without camera
Without external USB device
LCD 7” LCD, Brightness >60nits (Second
brightness level)
Audio volume Medium level
Power scheme setting Portable / laptop
Turn off monitor: Never
Turn off HDD: after 3 minutes
System standby: Never
System hibernate: Never
Battery Specification Battery life result
4-cell pack 7.4V 2S2P 4400mAH 275 minutes
6-cell pack 7.4V 2S3P 6600mAH 393 minutes
• Battery life test result:
*Other names and brands may be claimed as the property of others.

19. 19For NDA Customers Only
Intel-powered clamshell CMPC
Drop test
• CMPC is a platform designed for youth with
age 6 – 15 years old.
• Younger student in primary school (age 6-
11) are more likely drop PCs than older
students.
• The average height of the CMPC to the
ground carried by a 11 year old will
normally be less than 50cm*.
• Hawk Peak shall pass concrete dropping
test of at least 50cm**.
• In case of Hawk Peak system drop from a
table, the drop distance can be higher if
performed on carpet or wooden floor.
~64cm
~50cm
CMPC ~18cm
*Data shows that average 11 years old kid standing height from hand to
ground is 64cm. Hawk Peak system height is 18cm. That makes system to be
50cm away from the ground.
** 50cm concrete dropping test is done on 1 corner, 3 edge and 6 face ( 1 time
per direction )
New

20. 20For NDA Customers Only

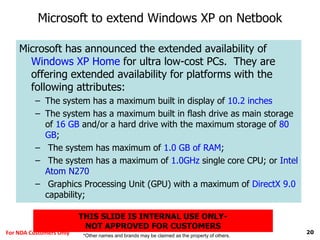

Microsoft to extend Windows XP on Netbook
Microsoft has announced the extended availability of
Windows XP Home for ultra low-cost PCs. They are
offering extended availability for platforms with the
following attributes:
– The system has a maximum built in display of 10.2 inches
– The system has a maximum built in flash drive as main storage
of 16 GB and/or a hard drive with the maximum storage of 80
GB;
– The system has maximum of 1.0 GB of RAM;
– The system has a maximum of 1.0GHz single core CPU; or Intel
Atom N270
– Graphics Processing Unit (GPU) with a maximum of DirectX 9.0
capability;
THIS SLIDE IS INTERNAL USE ONLY-
NOT APPROVED FOR CUSTOMERS
*Other names and brands may be claimed as the property of others.

21. 21For NDA Customers Only
Linux Vendor Contact info -- Metasys
Product Name Metasys Desktop for Classmate PC
Company Name International Syst
Company Address 30. 360-670, Belo Horizonte, MG, Brazil
Customer Contact Paulo Neuenschwander Maciel,
(paulo@syst.com.br)
Carlos Alberto Senna de Lima
(carlito@metasys.com.br)
Contact Tel:55-31-32969040
Fax: 55-31-32969793
*Other names and brands may be claimed as the property of others.

22. 22For NDA Customers Only
Intel-powered clamshell CMPC
ID Options
 Two A/D Face Bag colors available – Blue and Grey
 Additional Bag color requires 10Ku MOQ + 6 wks lead time
 Contact ECS Sales Rep for details
 Two C Face Plastic colors available – Blue and Grey
 Additional Plastic color requires 8+ wks lead time
 Contact ECS Sales Rep for details

23. 23For NDA Customers Only
Packaging options for
Intel-powered clamshell CMPC
Single Packaging – Recommend for Retail
Current method of 4-in-1 individually boxed. Each unit has an individual box. Four individual
boxes packed in one bigger box.
Pros:
• User may carry individual box with better protection.
Cons:
• Wastes boxing material, not environmentally friendly
• More shipping cost, a 20-foot container can hold 1440 units
Bulk Packaging – Recommend for Education
6-in-1 bulk boxing. 6 units placed in one bigger box without individual boxing.
Pros:
• BOM cost savings on boxing material, environmentally friendly.
• Decrease shipping cost up to 30%, a 20-foot container can
hold 2160 units.
Cons:
• No individual box for each unit.

24. 24For NDA Customers Only
Sales and Pre-sales Contact – LAR
Country Intel EMPG Email/Phone
Chile
Michael Harrison
(Marketing)
Ramon Morales
(Ecosystem)
Michael.harrison@intel.com
+1 480 723 8823
Ramon.morales@intel.com
+52 33 3540 6269
Brazil
Mexico
Columbia
Argentina
Guatemala
USA
Michael Harrison
(Marketing)
Jeffrey Galinovsky
(Ecosystem)
Michael.harrison@intel.com
+1 480 723 8823
Jeffrey.r.galinovsky@intel.com
+1 916 356 4942

25. 25For NDA Customers Only
Post Sales Contact Information
Name Location E-mail Phone
Amado Guerena Moran Mexico amado.guerena@intel.com +52 33 3540 6121
Ashok Manchegowda India ashok.manchegowda@intel.com +91 80 2507 5324
Wanda Linguevis Brazil wanda.s.linguevis@intel.com +55 11 3365 5610
Meghan Desai US Meghan.Desai@intel.com +1 503 456 2806
Mahmoud El-Gabry Egypt mahmoud.b.el-gabry@intel.com +202 2 461 5464
Hatem Nawar Egypt hatem.nawar@intel.com +202 2 461 5443
Marco Vettorello Italy Marco.vettorello@intel.com +39 349 355 7021
Rita Xie PRC Rita.xie@intel.com +86 21 5460 4510-2203
Inass Farouk RSA Inass.farouk@intel.com +27 11 806 4530-303

26. 26For NDA Customers Only
Core SW Stack Image/License Flow
Image Creation
3rd party
Aggregator
ODM
ISV ISV
OEM
ISV
License/Royalty
Flow
OEM ODM
Geo TME/
SMG FAE
Platform TME
Intel®
Engineering
Build Image Load imageDownload
Core stack
CDI
New

27. 27For NDA Customers Only
Overall Technical Support Model
Operating
System
Local
Software /
Content
Core Software Stack
(Windows)
Hardware
(BIOS/Driver/Quality)
External
Devices*
ODM EMPG GEO TMEECP/ISVsOSV
Device
Vendor
OEM
* External devices, such as digital pen, USB dongle and so on.
** Technical forum for product training, BKM sharing, critical issue and change request
discussion among TME team.
*** PST (Product sustaining team meeting) for issue escalation and SW PDT for new feature
request.
Platform TME
Engineering
team
Technical
Forum**
PST &
SW PDT***
QuAD
please refer to next page for Linux-related support model
New

28. 28For NDA Customers Only
Linux-related Post-sale Support Model
• OSV (Canonical) offers 3 support models:
 OSV support limited customers with key OEMs directly.
 online support to all of customers
 service hotline support – extra charge is required
• Intel Team provides 2nd level technical support as needed.
osv Platform TME/PME
World
Ahead
Marketing
ODM/
POCs
Customer
Sources
Geo TME
Change Requests
Issues/ Defects
Engineering team to support on issue
Definition/Judgment then go back to OSV/ODM
for the resolution, OSV as the unique
owner/external interface
PST
Issue Identified
Unclear
SW issue
QuAD
New
