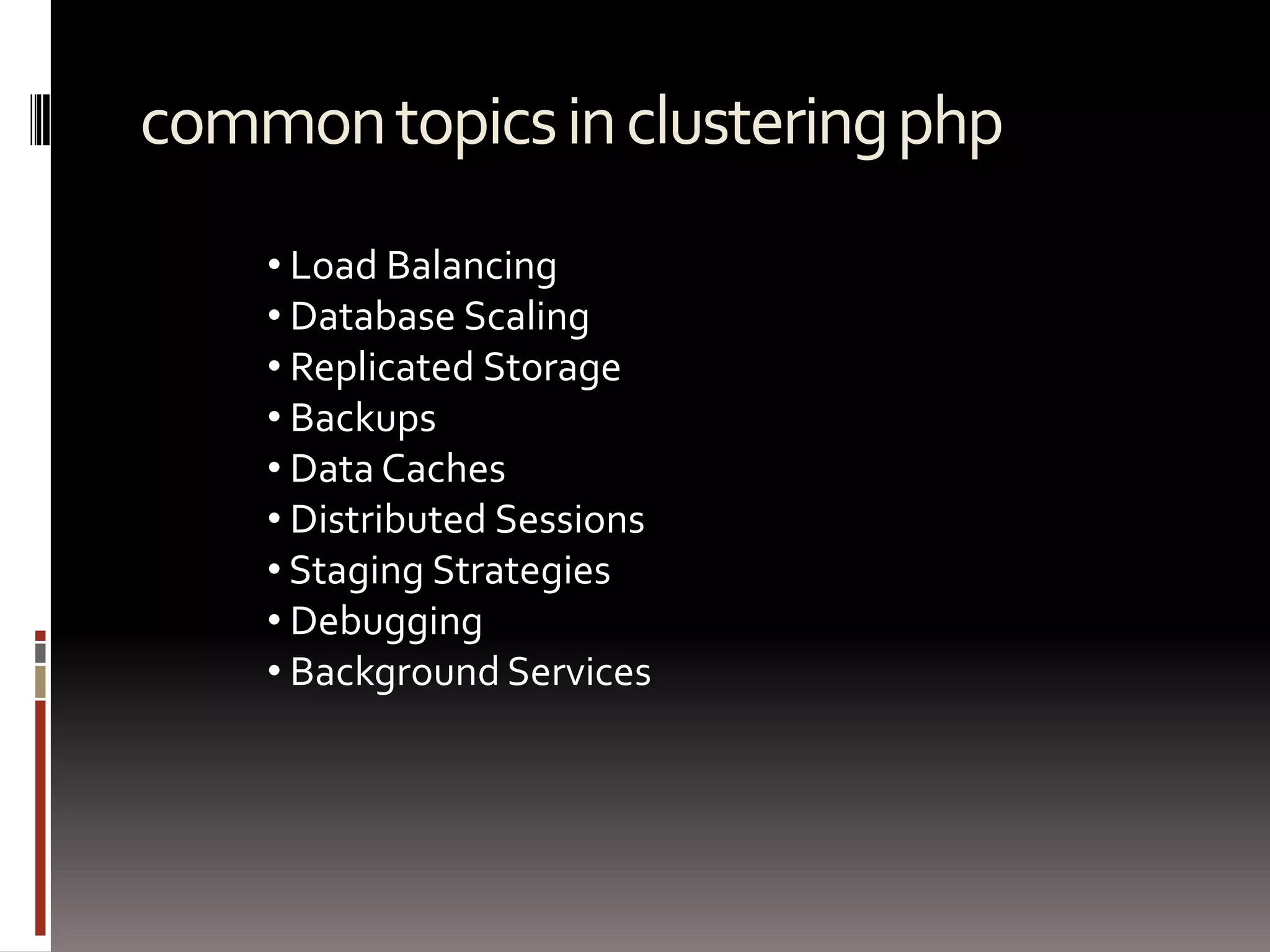

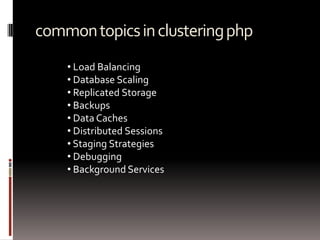

This document discusses clustering PHP applications. It begins by defining computer clustering as linking computers to work together closely and act as a single computer. The document then discusses why clustering is used, including to service more users faster and increase reliability. It outlines objectives like linear capacity and cost increases with clustering as well as exponential reliability gains. The rest of the document summarizes various techniques for clustering PHP applications, such as load balancing, database scaling, replicated storage, backups, caching, sessions, staging strategies, and debugging clustered applications.

1. Clustered PHPDC PHP 2009 by Marcel Esser – marcel.esser@croscon.com Senior Developer & Systems Analyst, CROSCON

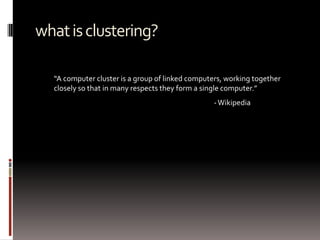

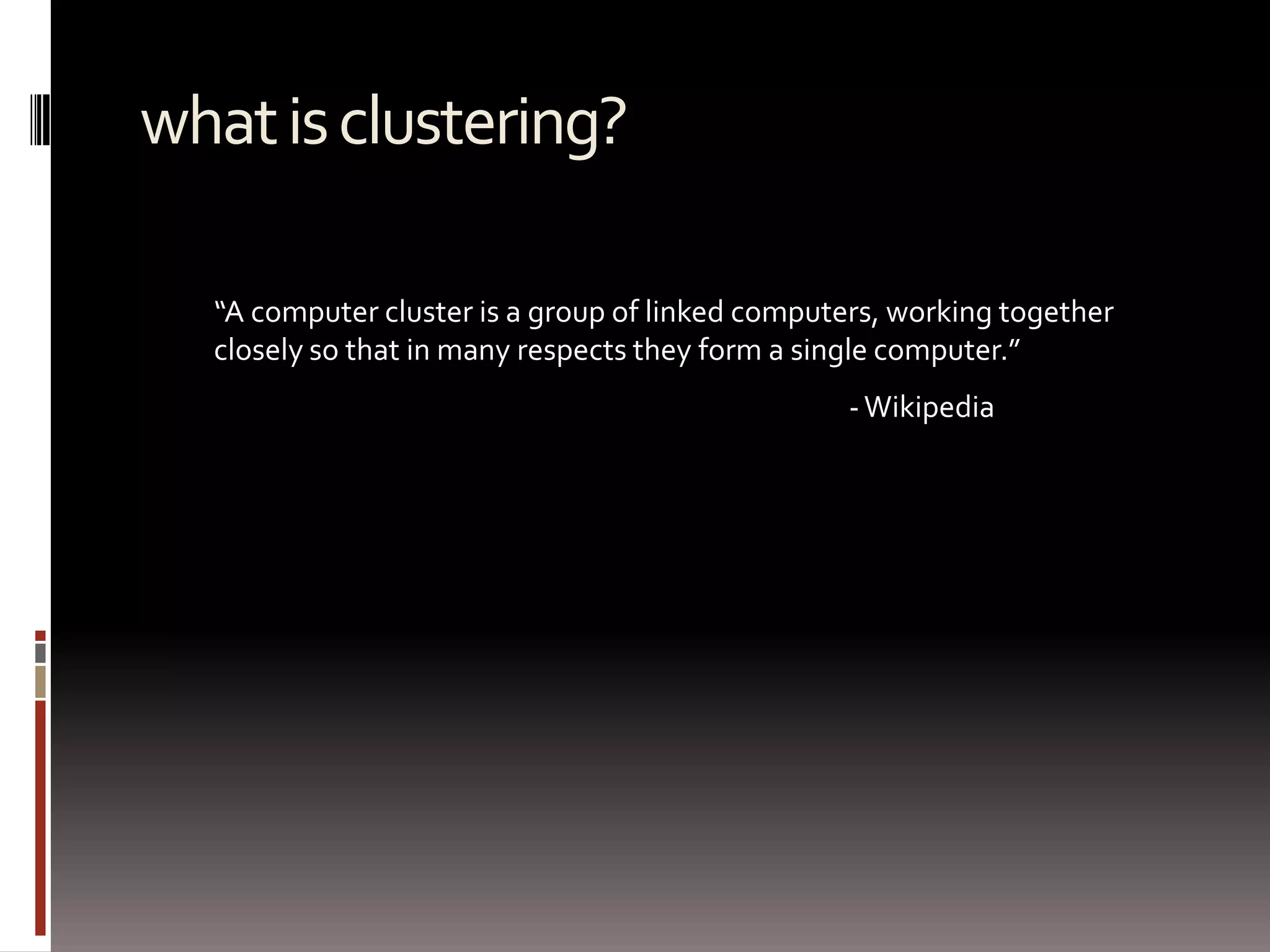

2. what is clustering? “A computer cluster is a group of linked computers, working together closely so that in many respects they form a single computer.” - Wikipedia

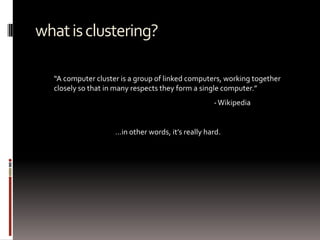

3. what is clustering? “A computer cluster is a group of linked computers, working together closely so that in many respects they form a single computer.” - Wikipedia …in other words, it’s really hard.

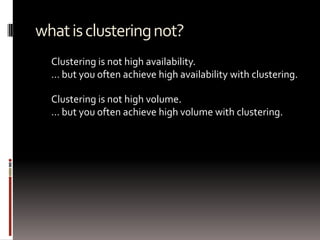

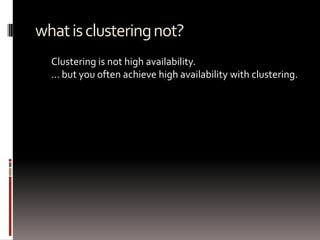

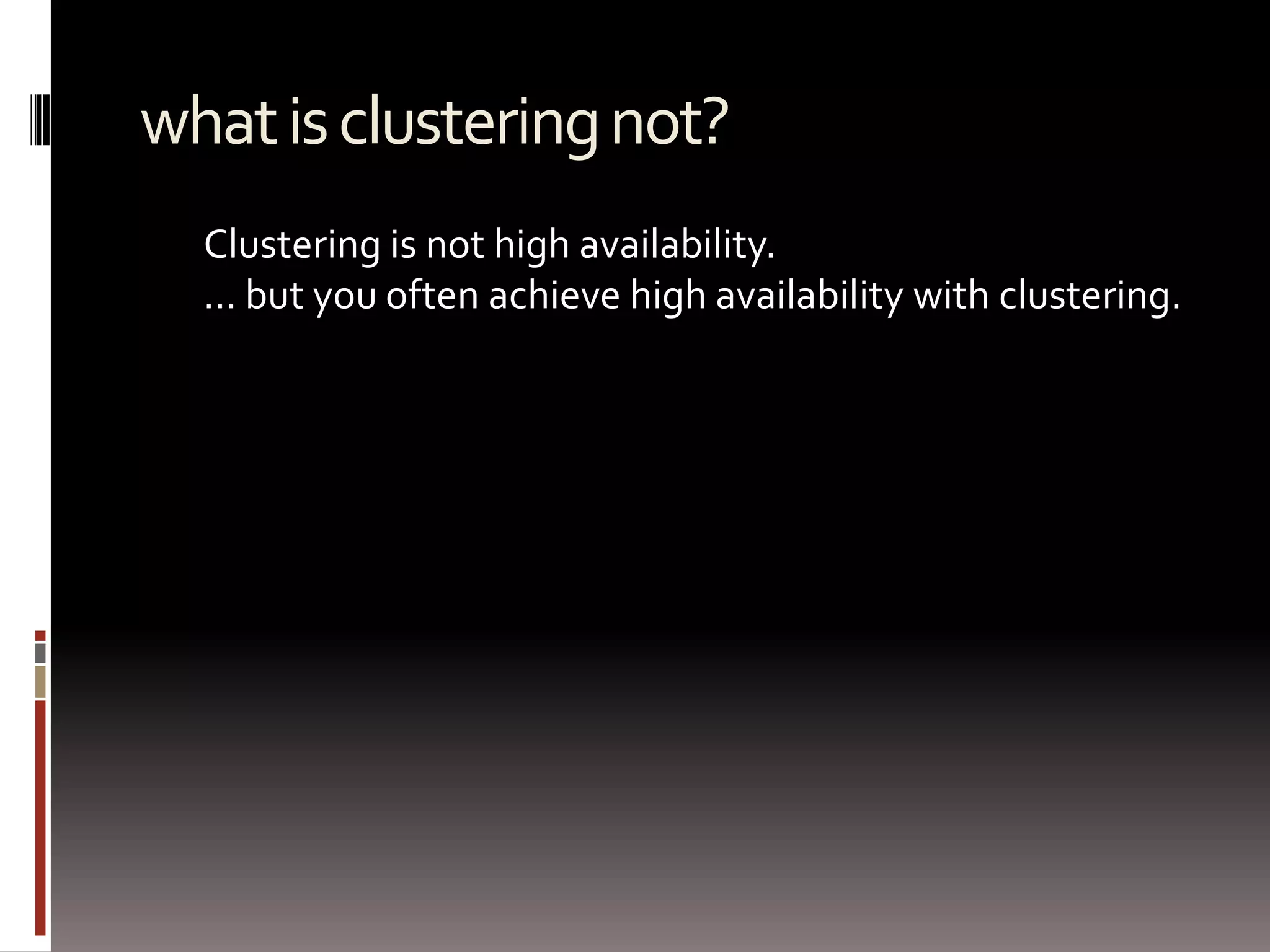

4. what is clustering not? Clustering is not high availability. … but you often achieve high availability with clustering.

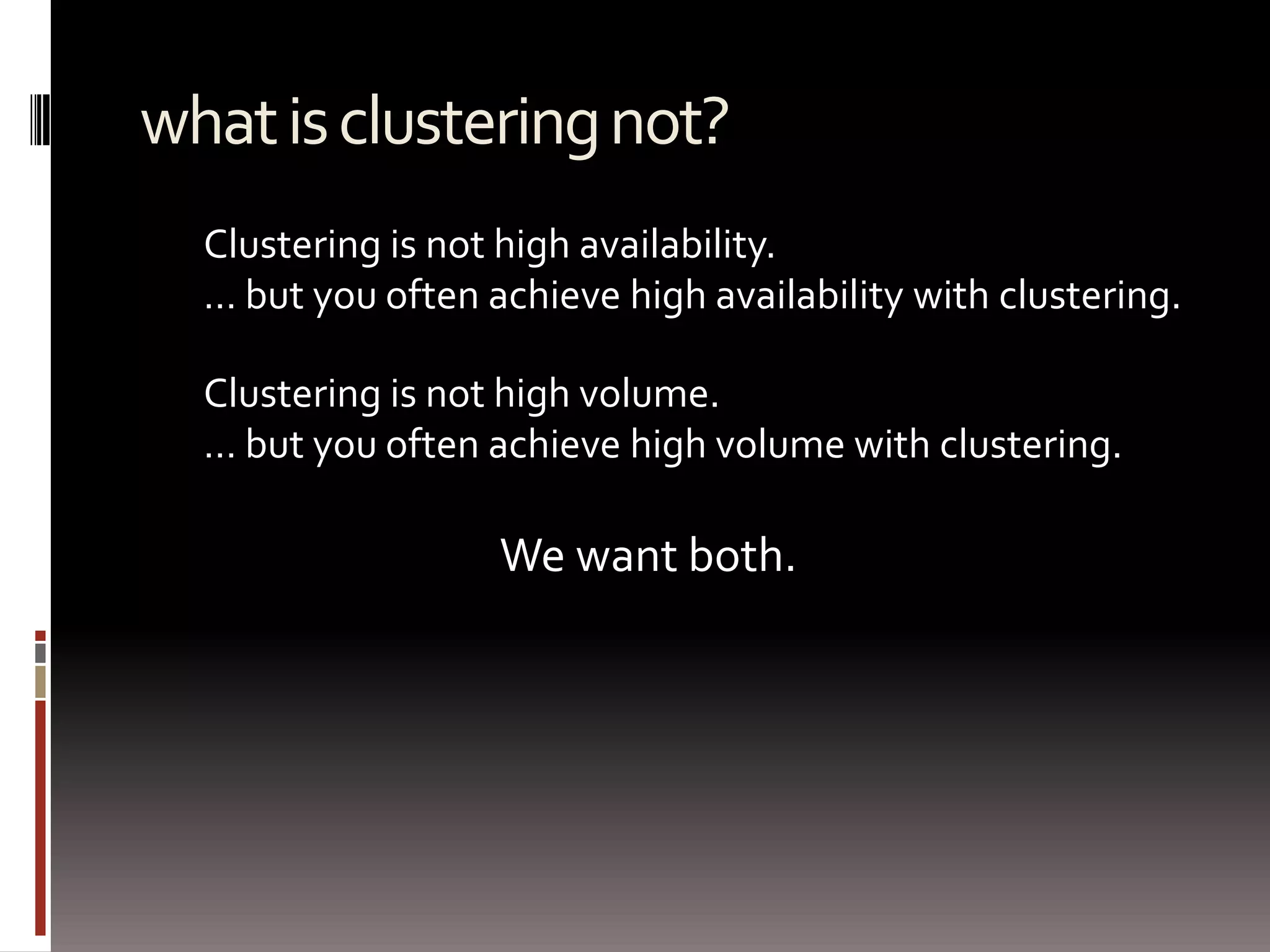

5. what is clustering not? Clustering is not high availability. … but you often achieve high availability with clustering. Clustering is not high volume. … but you often achieve high volume with clustering.

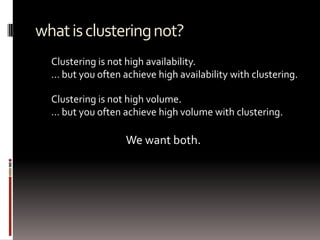

6. what is clustering not? Clustering is not high availability. … but you often achieve high availability with clustering. Clustering is not high volume. … but you often achieve high volume with clustering. We want both.

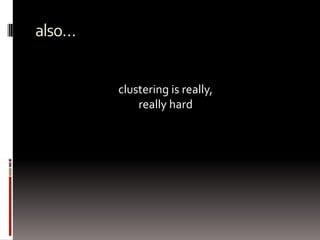

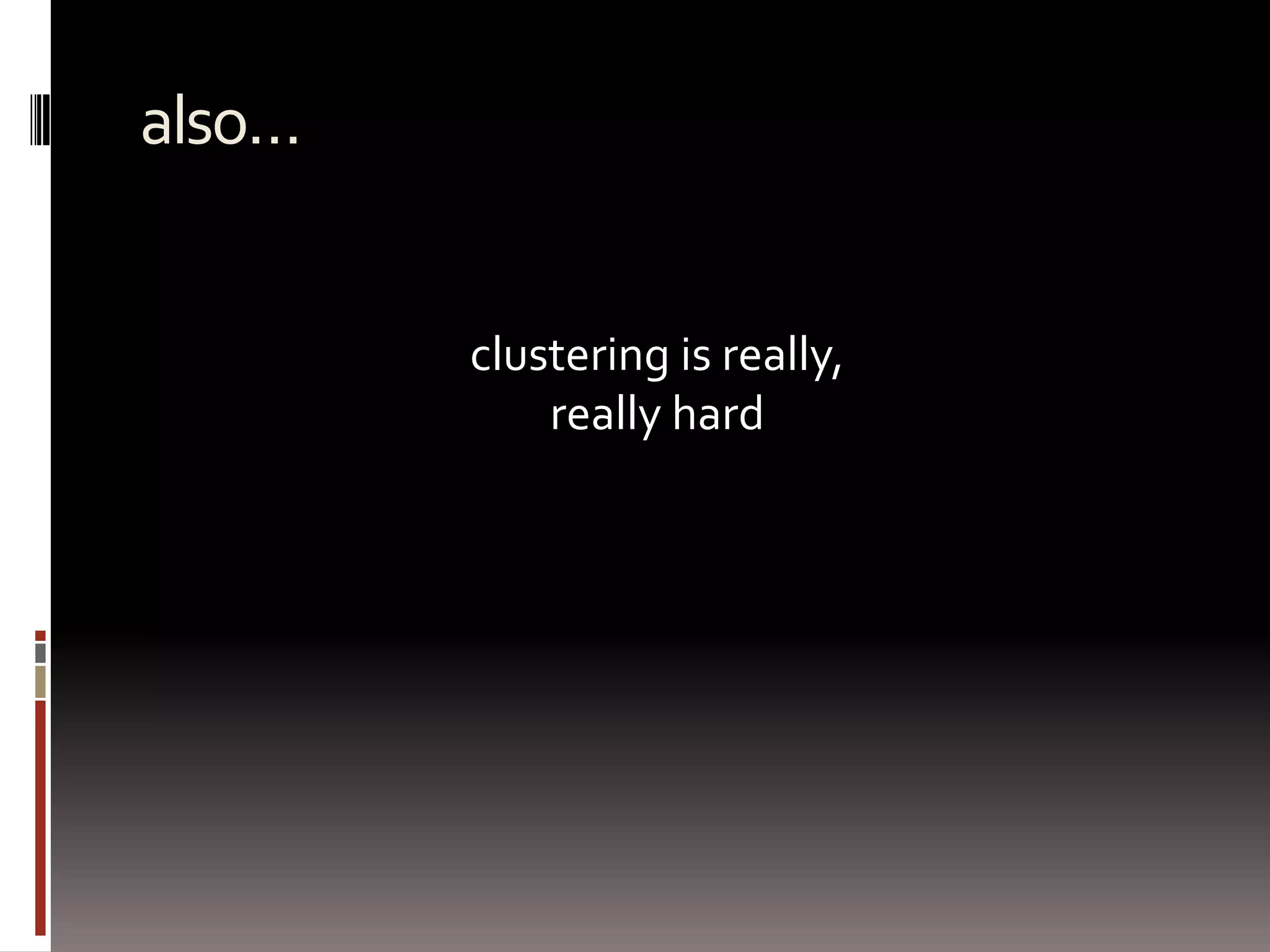

7. also… clustering is really, really hard

8. some do it well

9. some … eh well, nevermind.

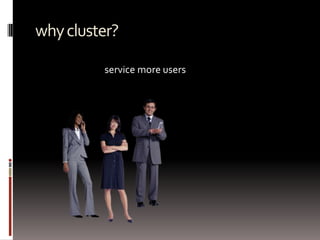

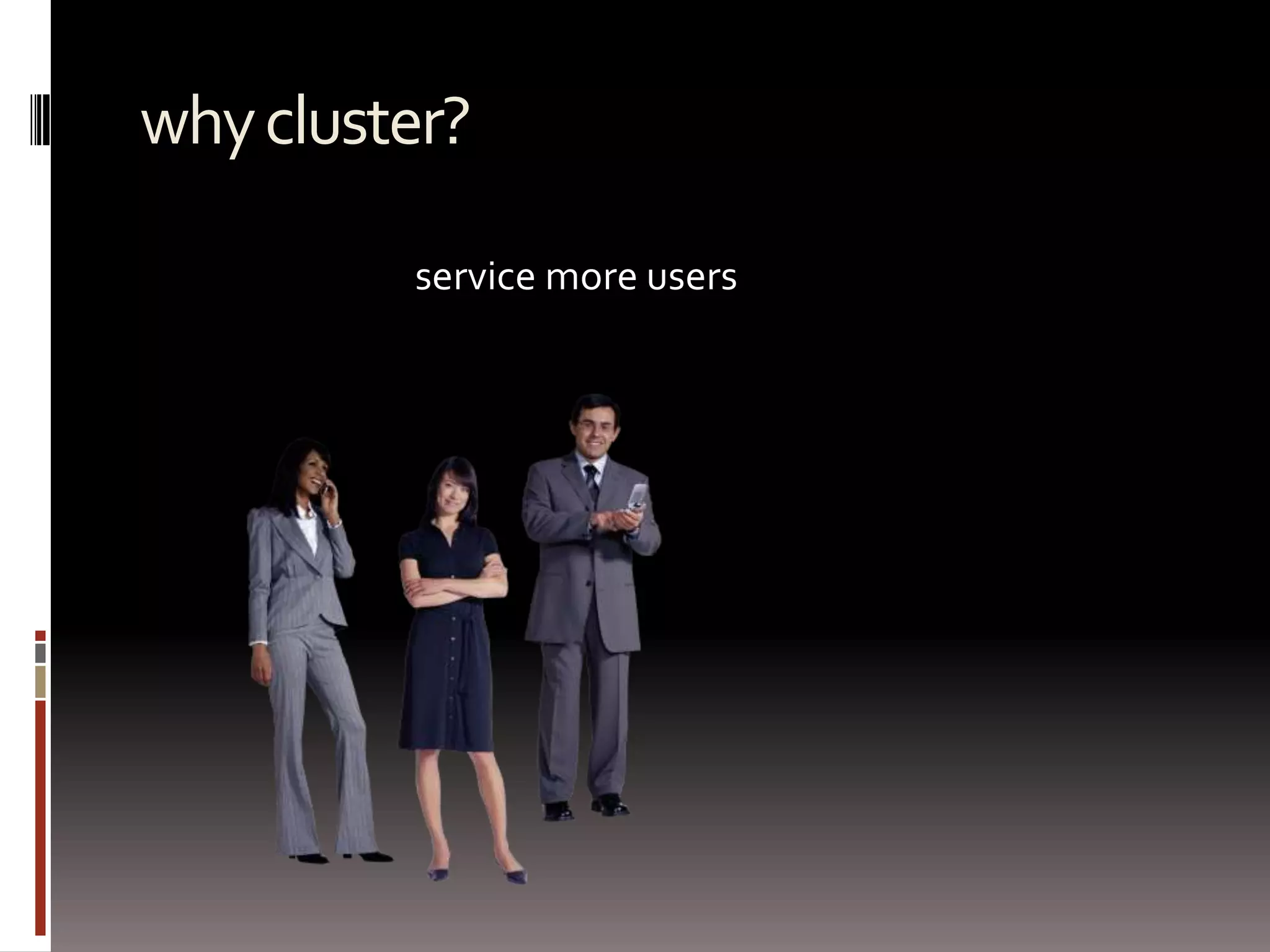

10. why cluster? service more users

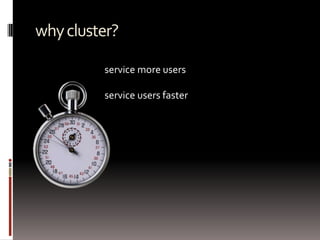

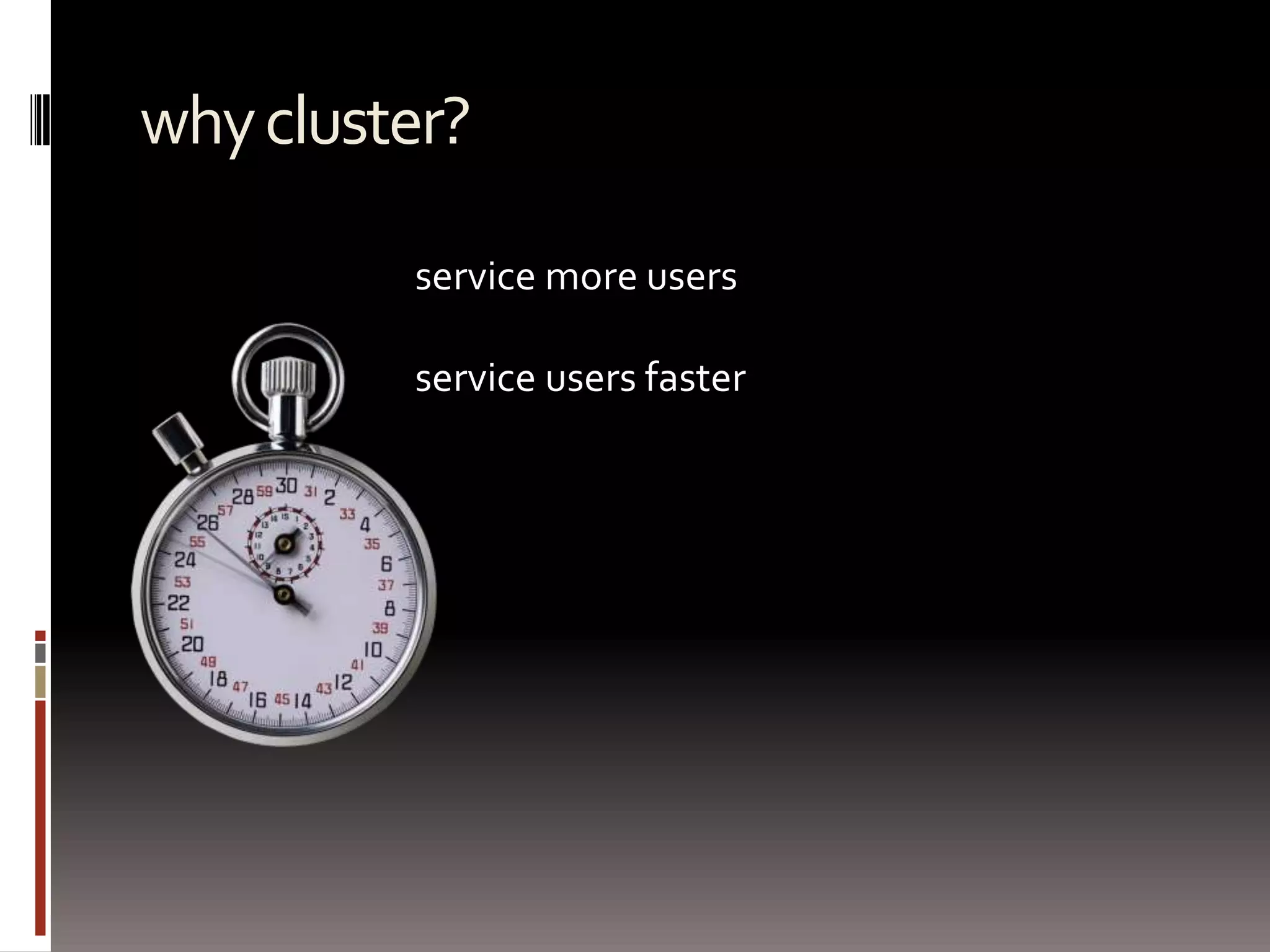

11. why cluster? service more users service users faster

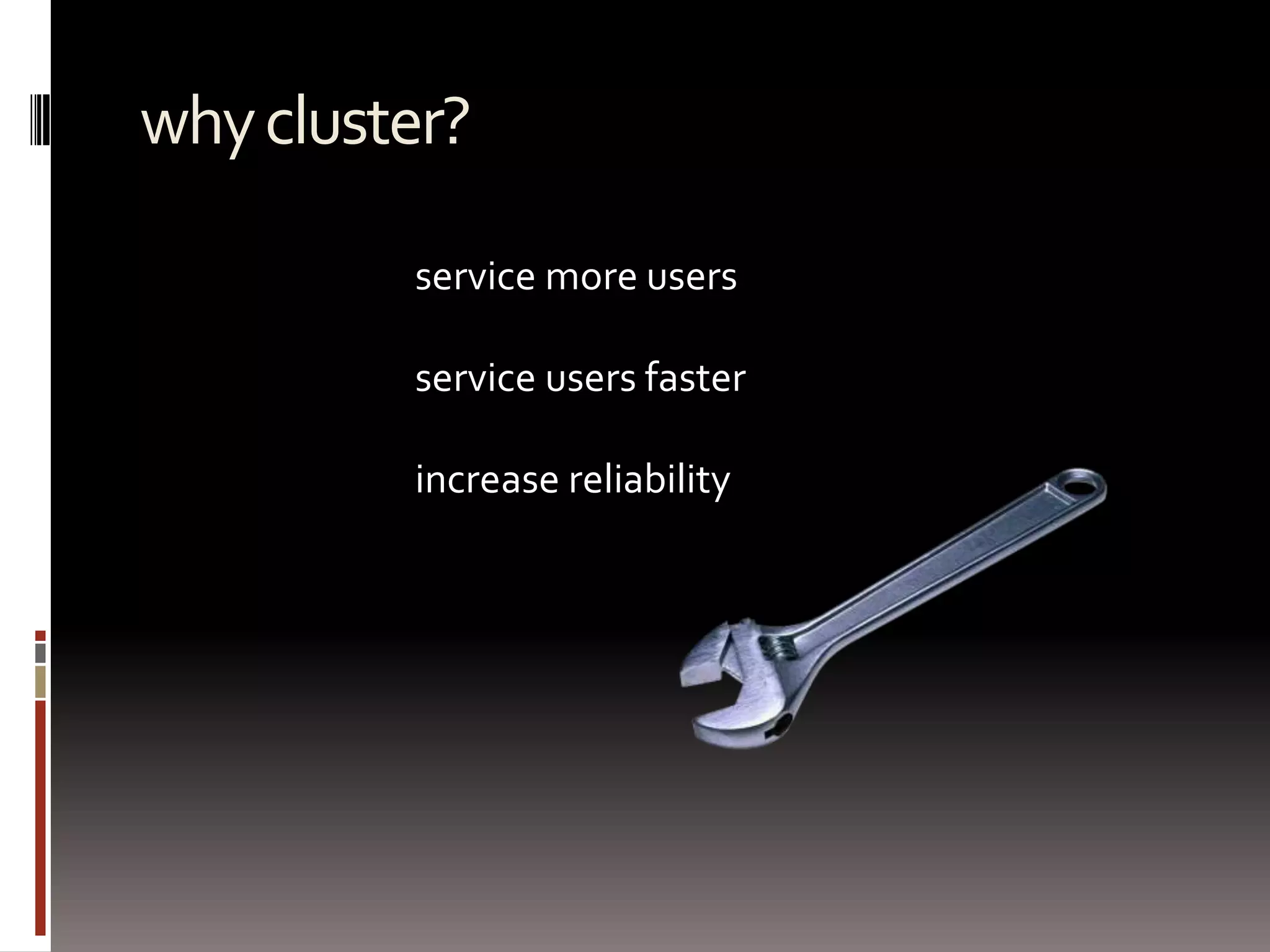

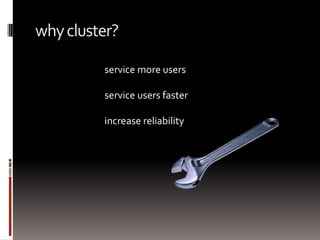

12. why cluster? service more users service users faster increase reliability

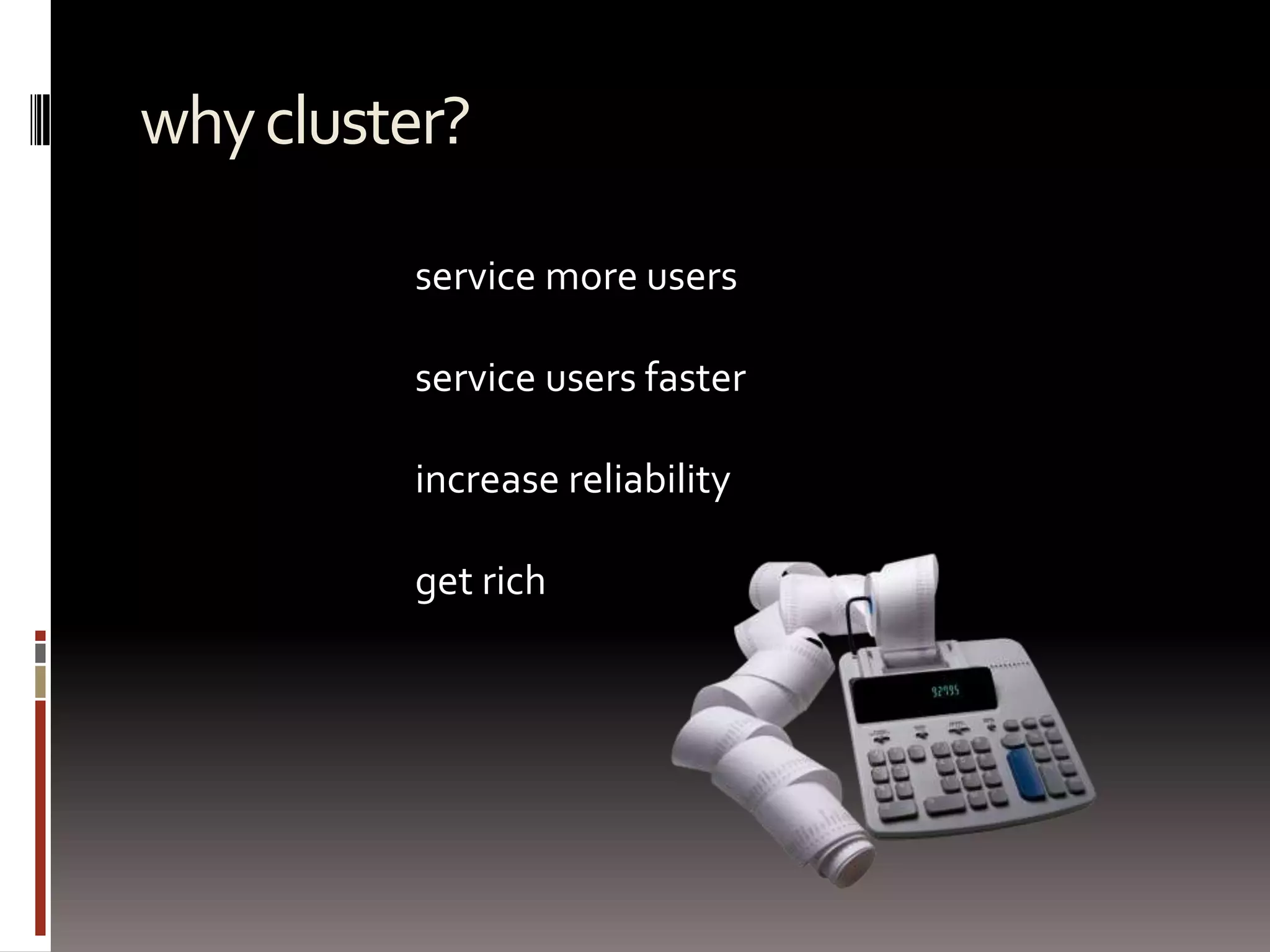

13. why cluster? service more users service users faster increase reliability get rich

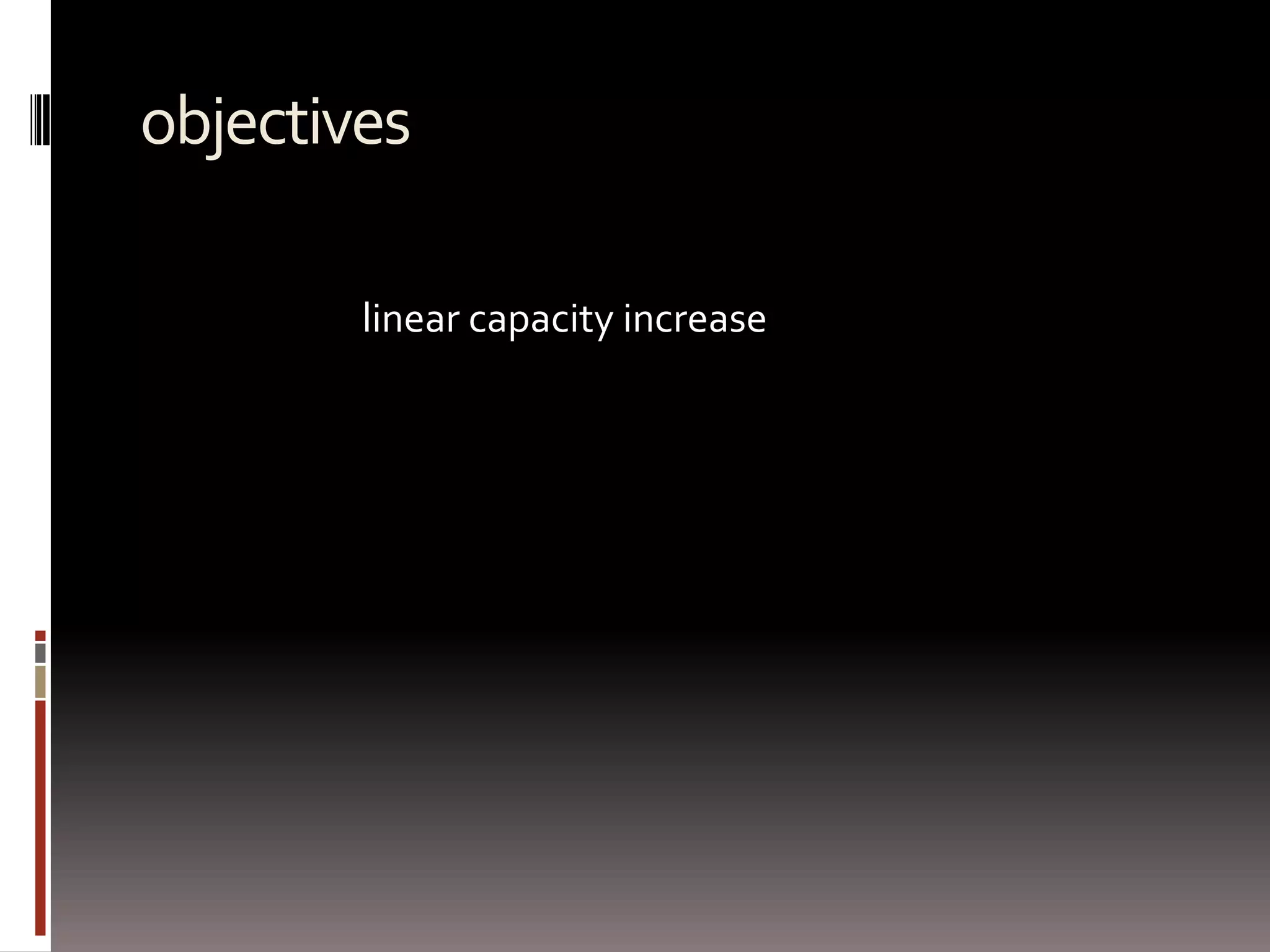

14. objectives linear capacity increase

15. 1 server - 100 lolcats per second

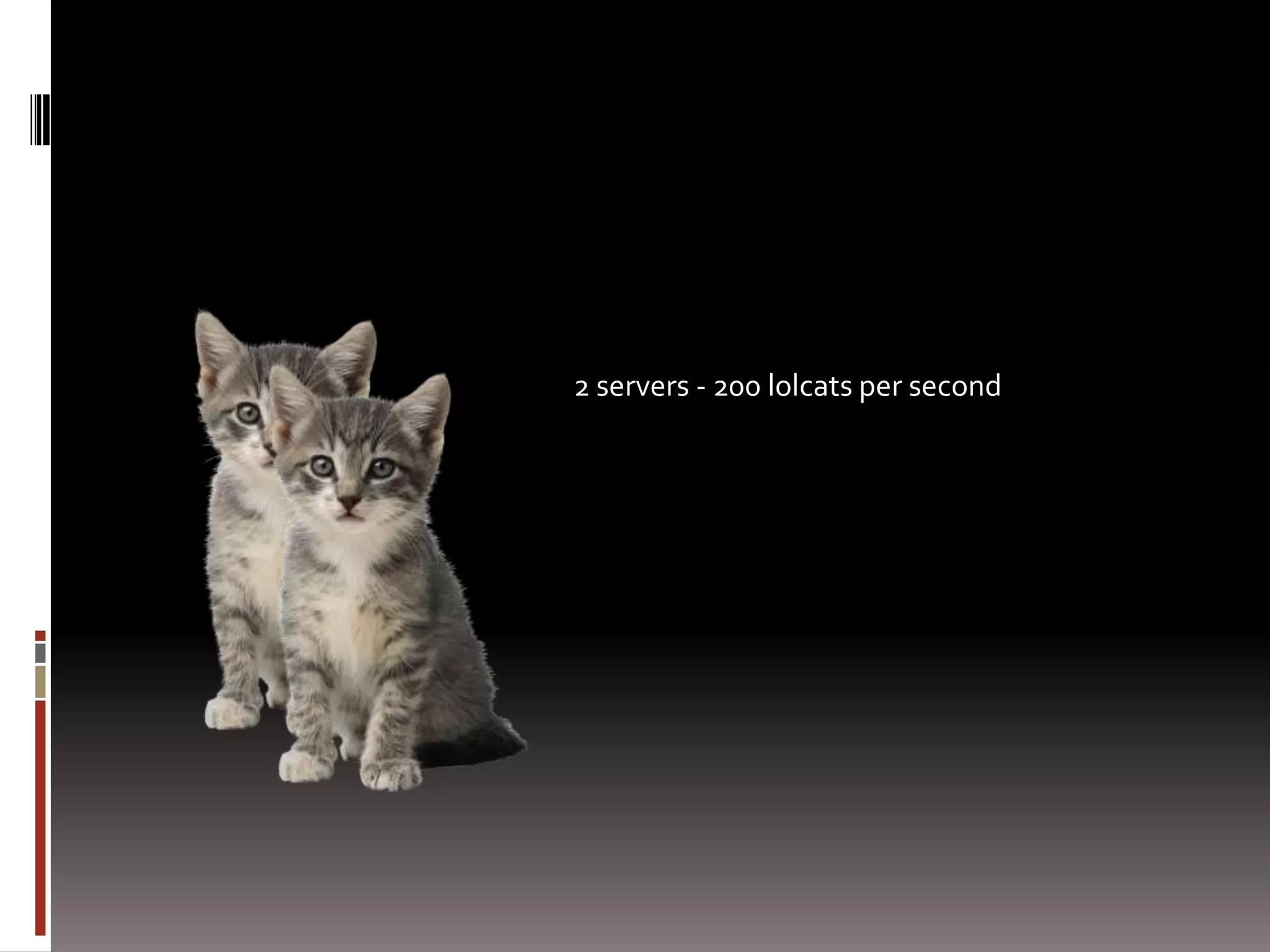

16. 2 servers - 200 lolcats per second

17. 3 servers - 300 lolcats per second

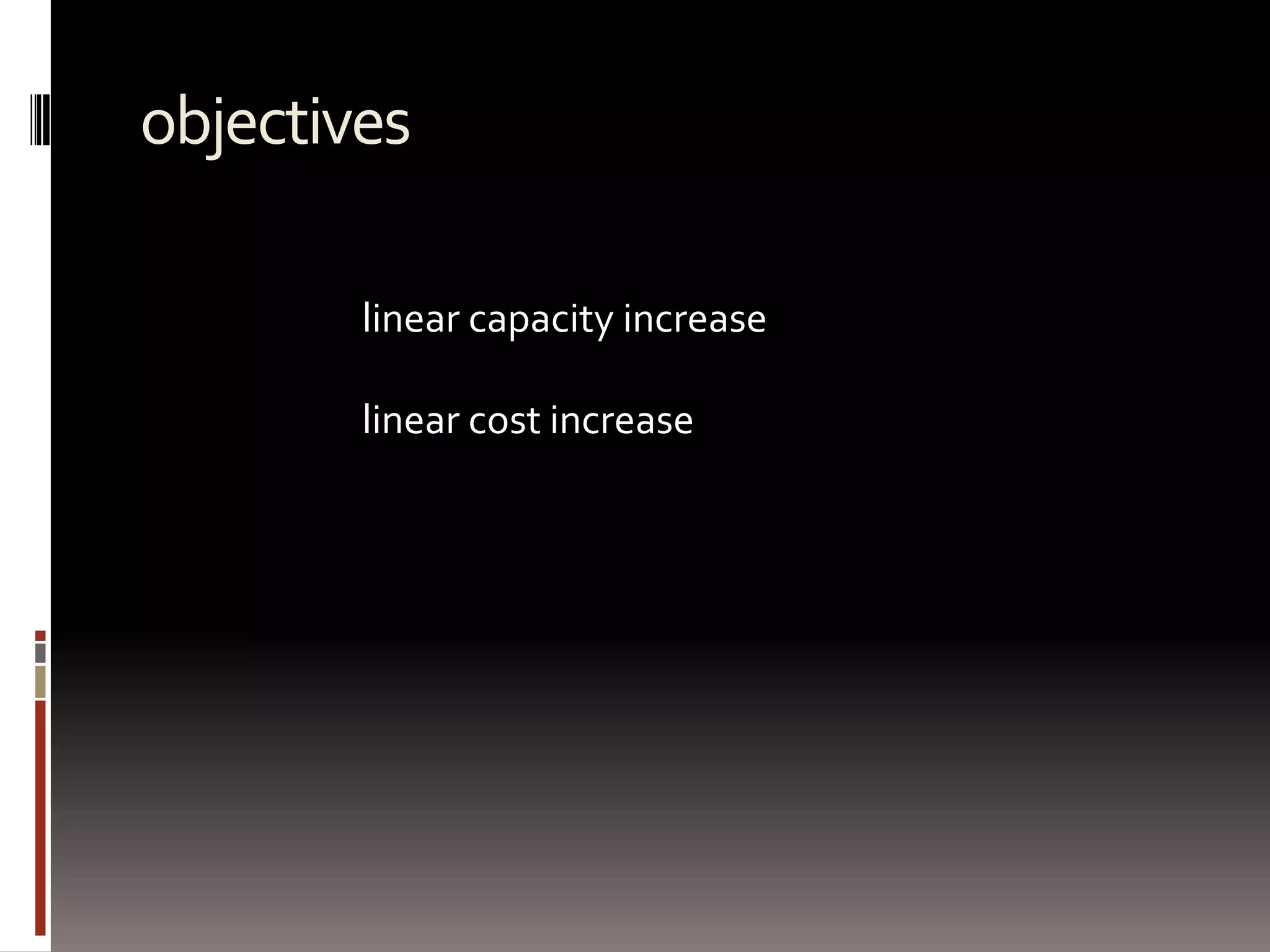

18. objectives linear capacity increase linear cost increase

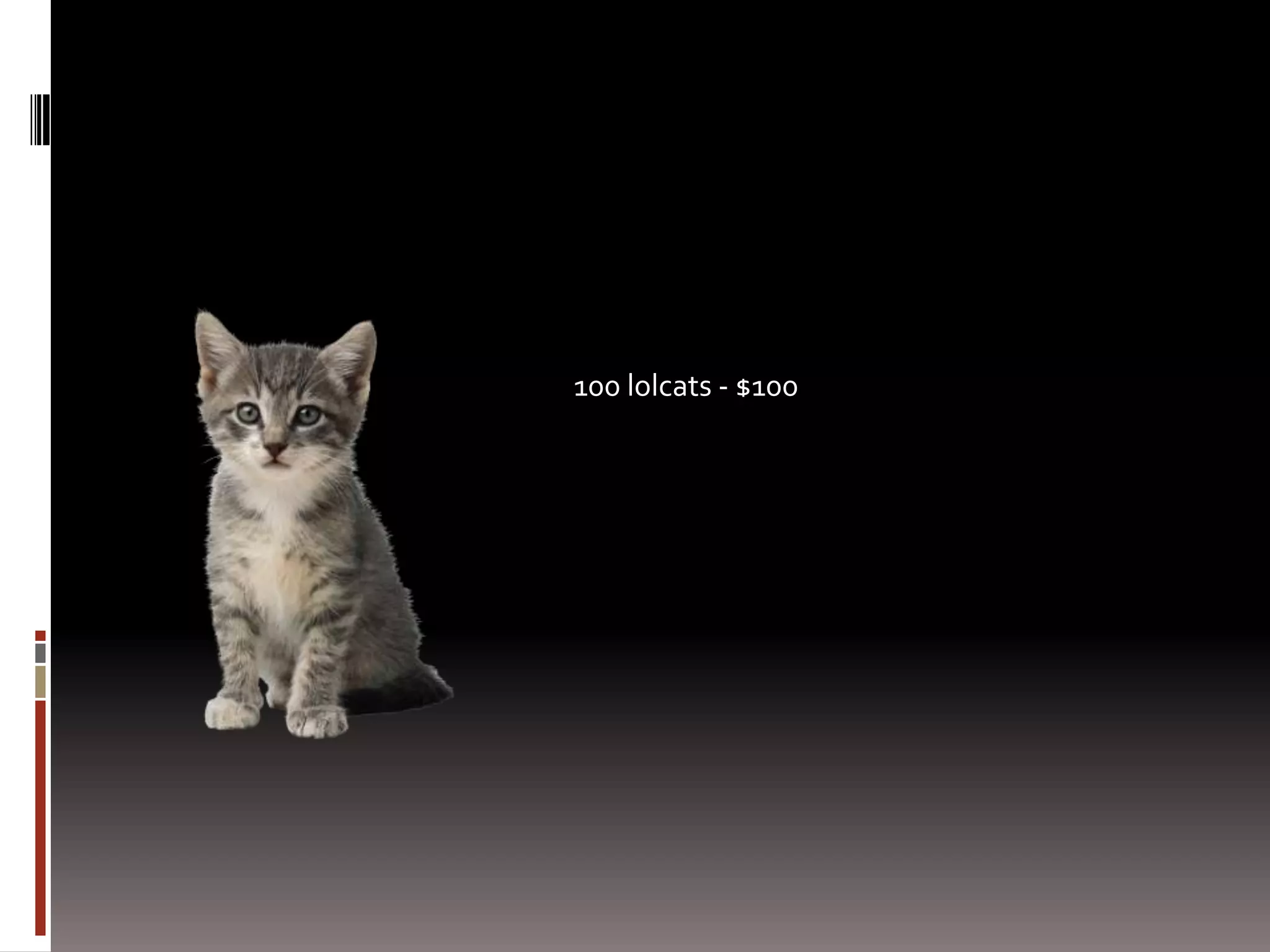

19. 100 lolcats - $100

20. 200 lolcats - $200

21. 300 lolcats - $300

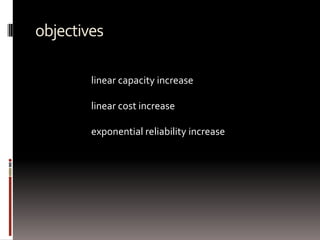

22. objectives linear capacity increase linear cost increase exponential reliability increase

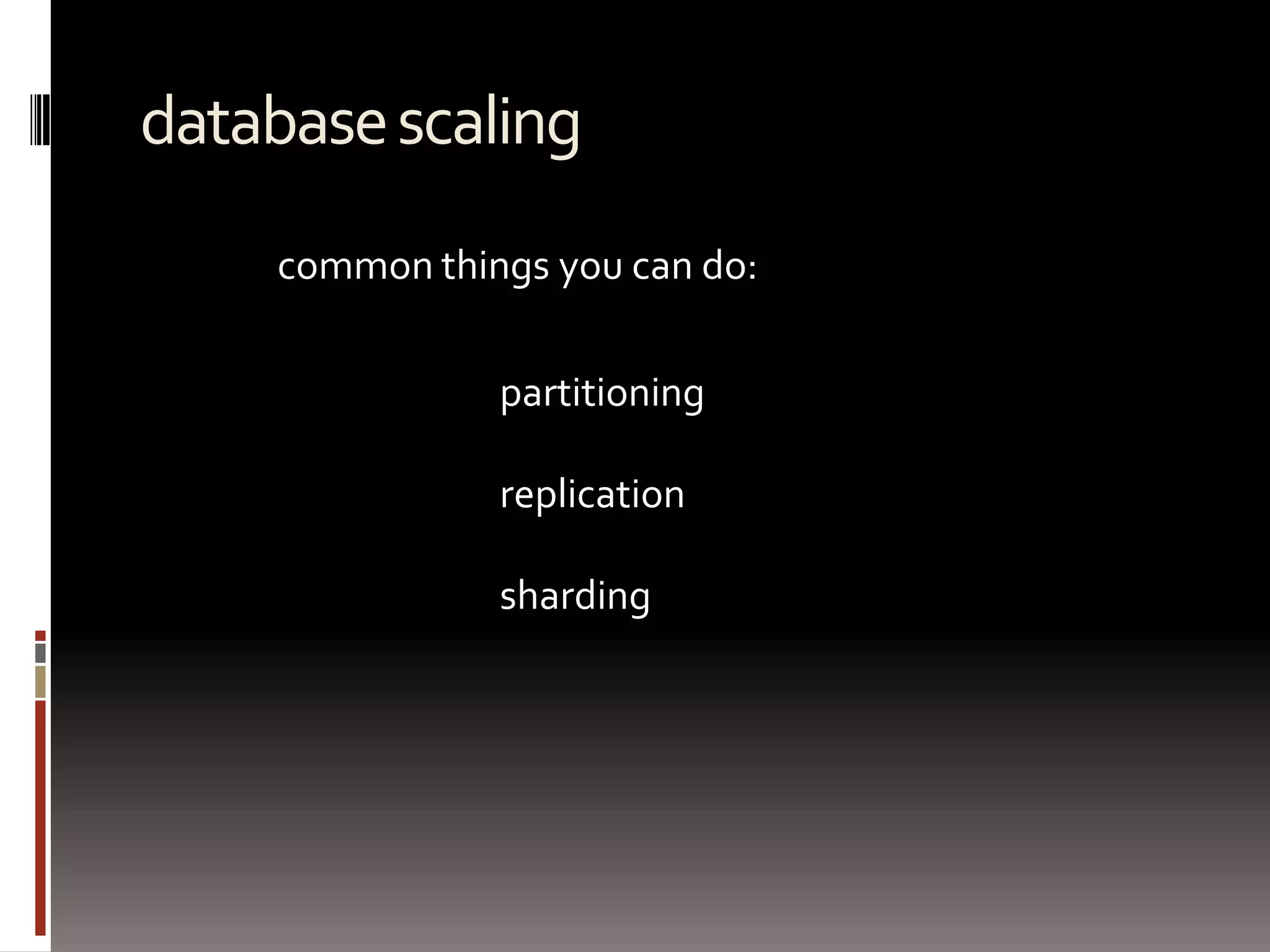

24. Database Scaling

25. Replicated Storage

26. Backups

27. Data Caches

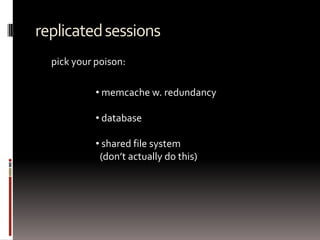

28. Distributed Sessions

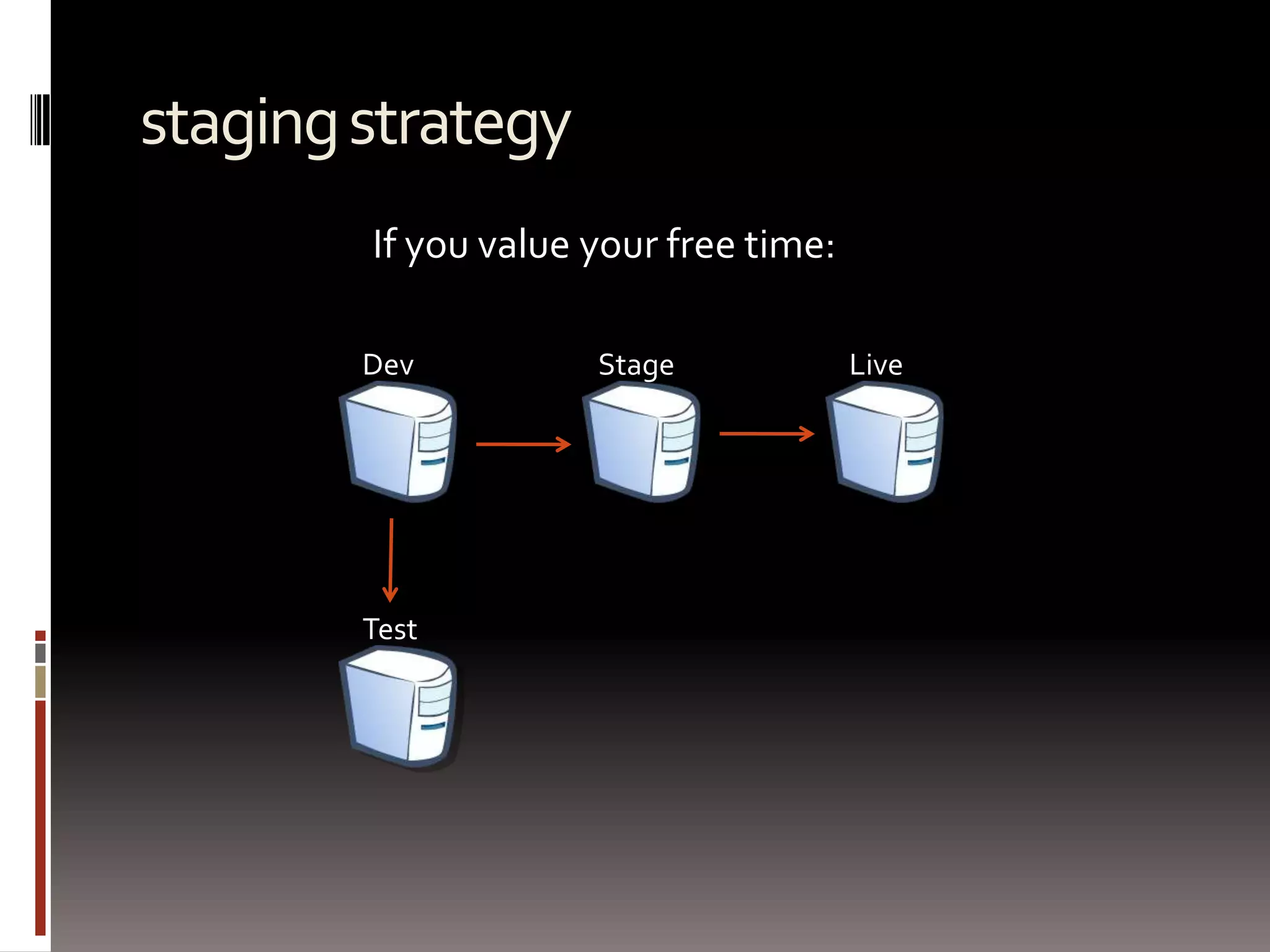

29. Staging Strategies

30. Debugging

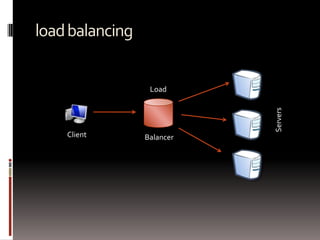

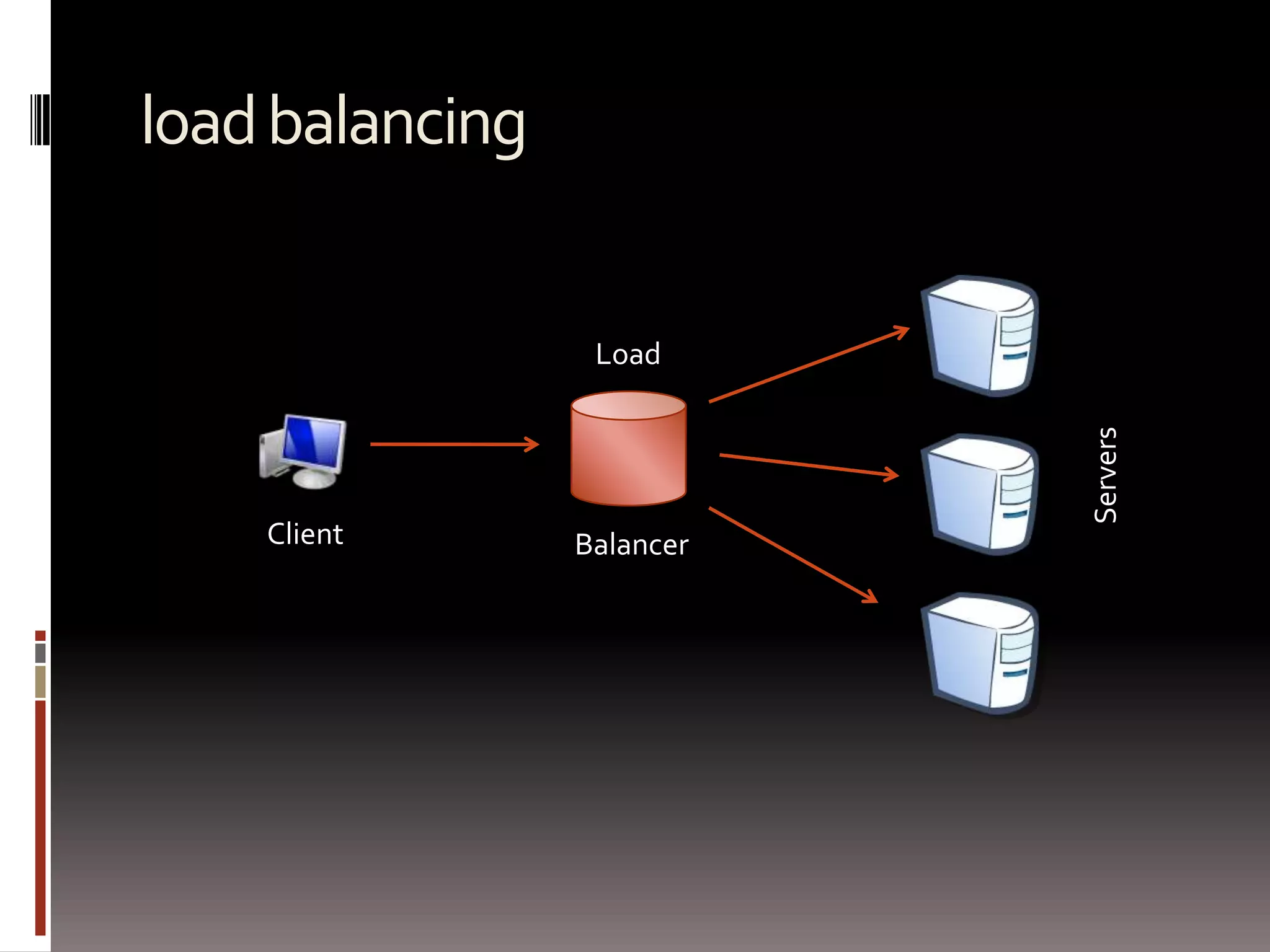

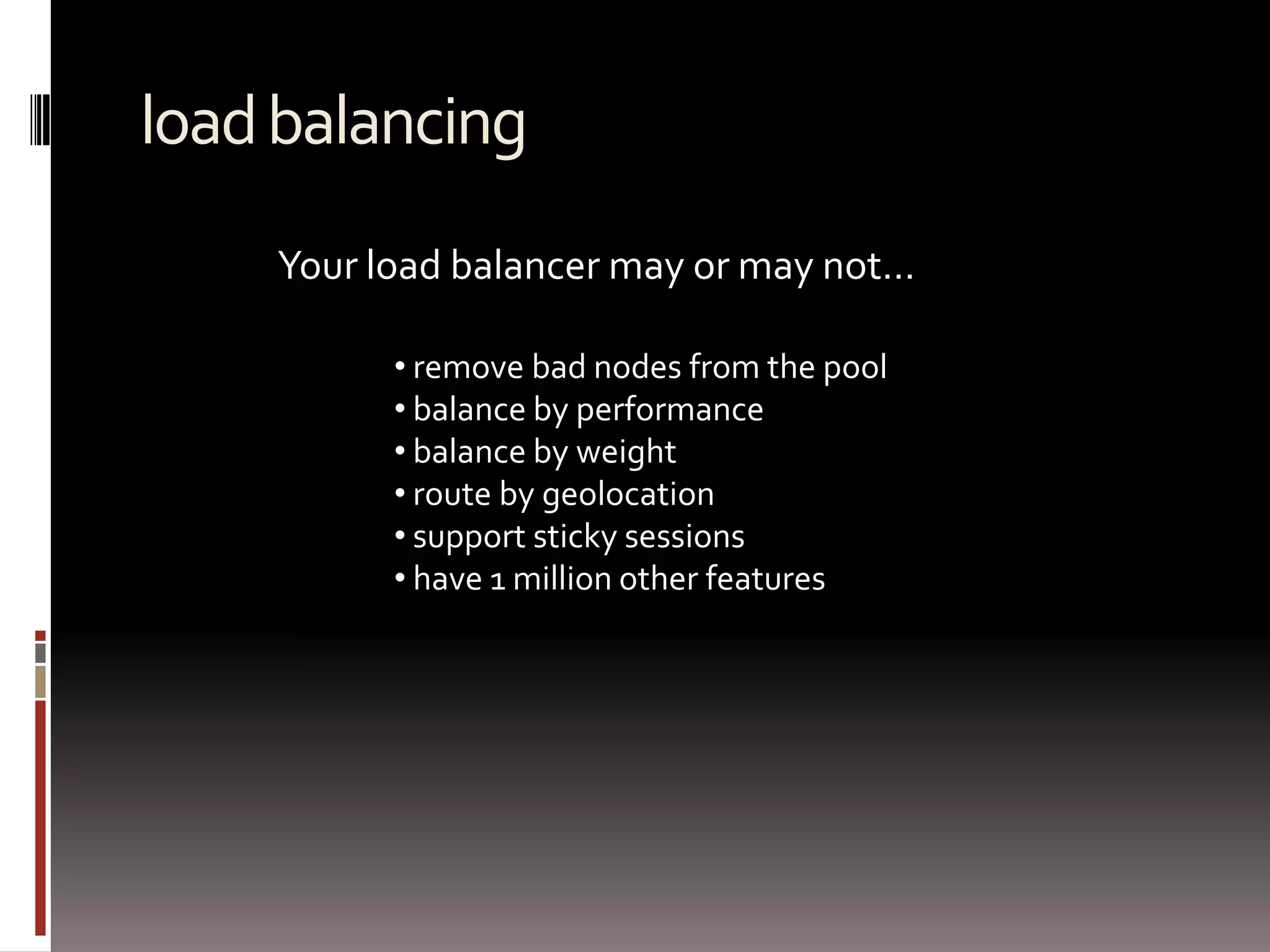

33. balance by performance

34. balance by weight

35. route by geolocation

36. support sticky sessions

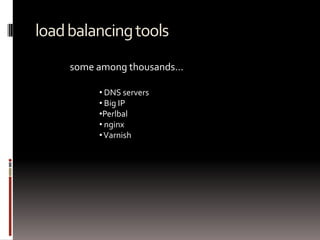

38. Big IP

39. Perlbal

40. nginx

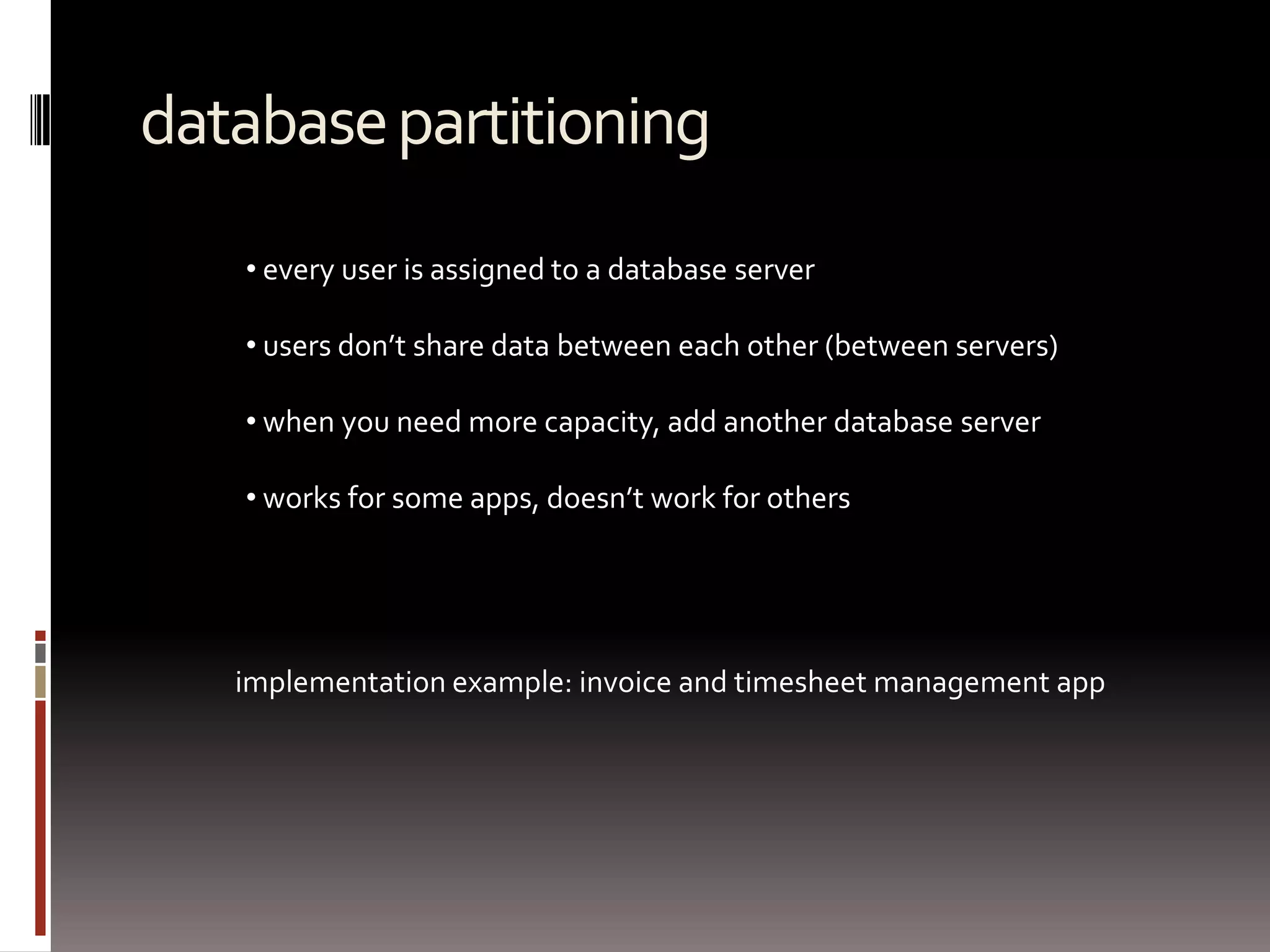

43. users don’t share data between each other (between servers)

44. when you need more capacity, add another database server

45. works for some apps, doesn’t work for othersimplementation example: invoice and timesheet management app

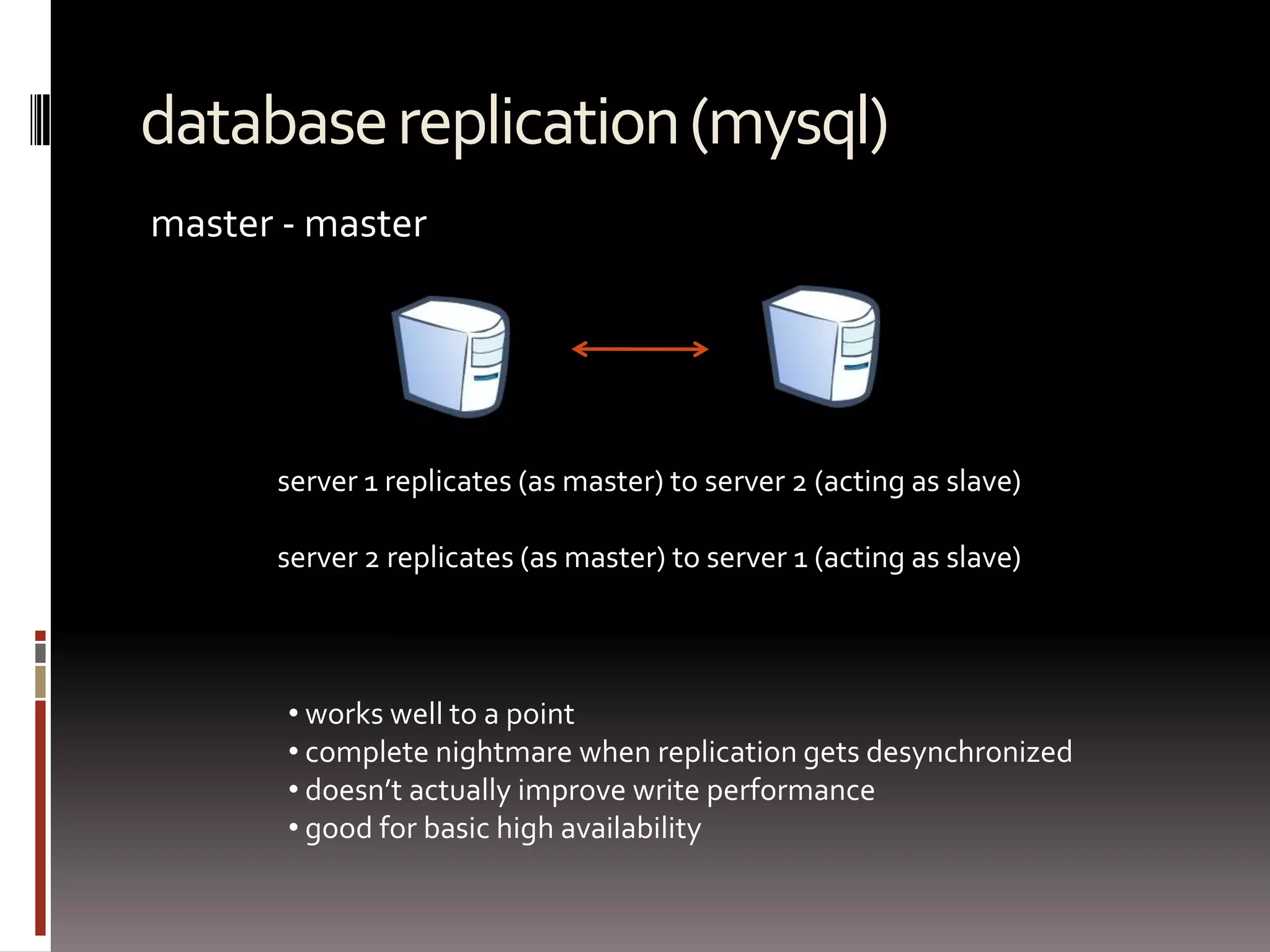

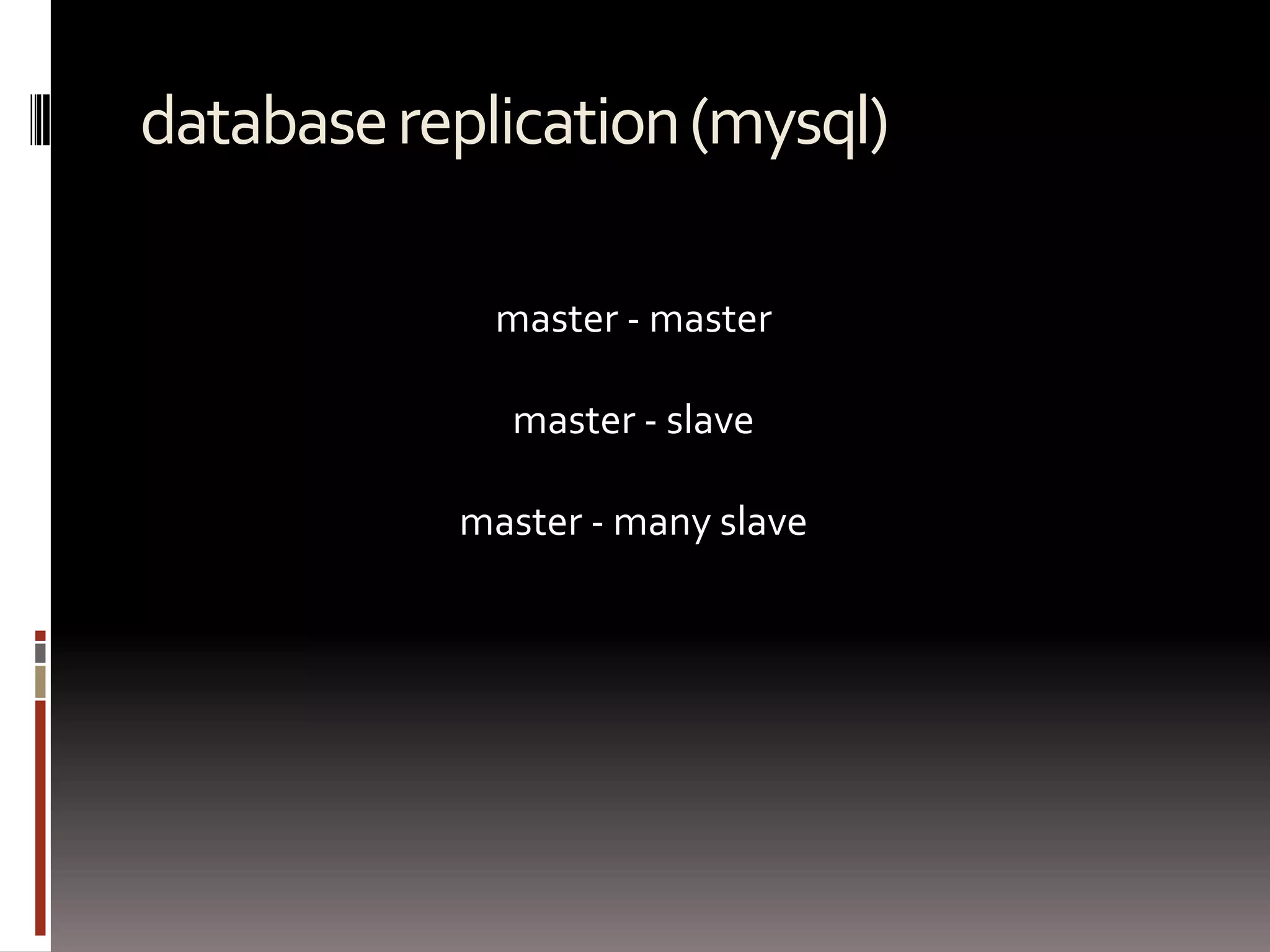

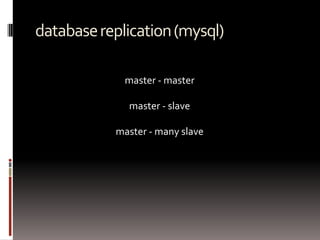

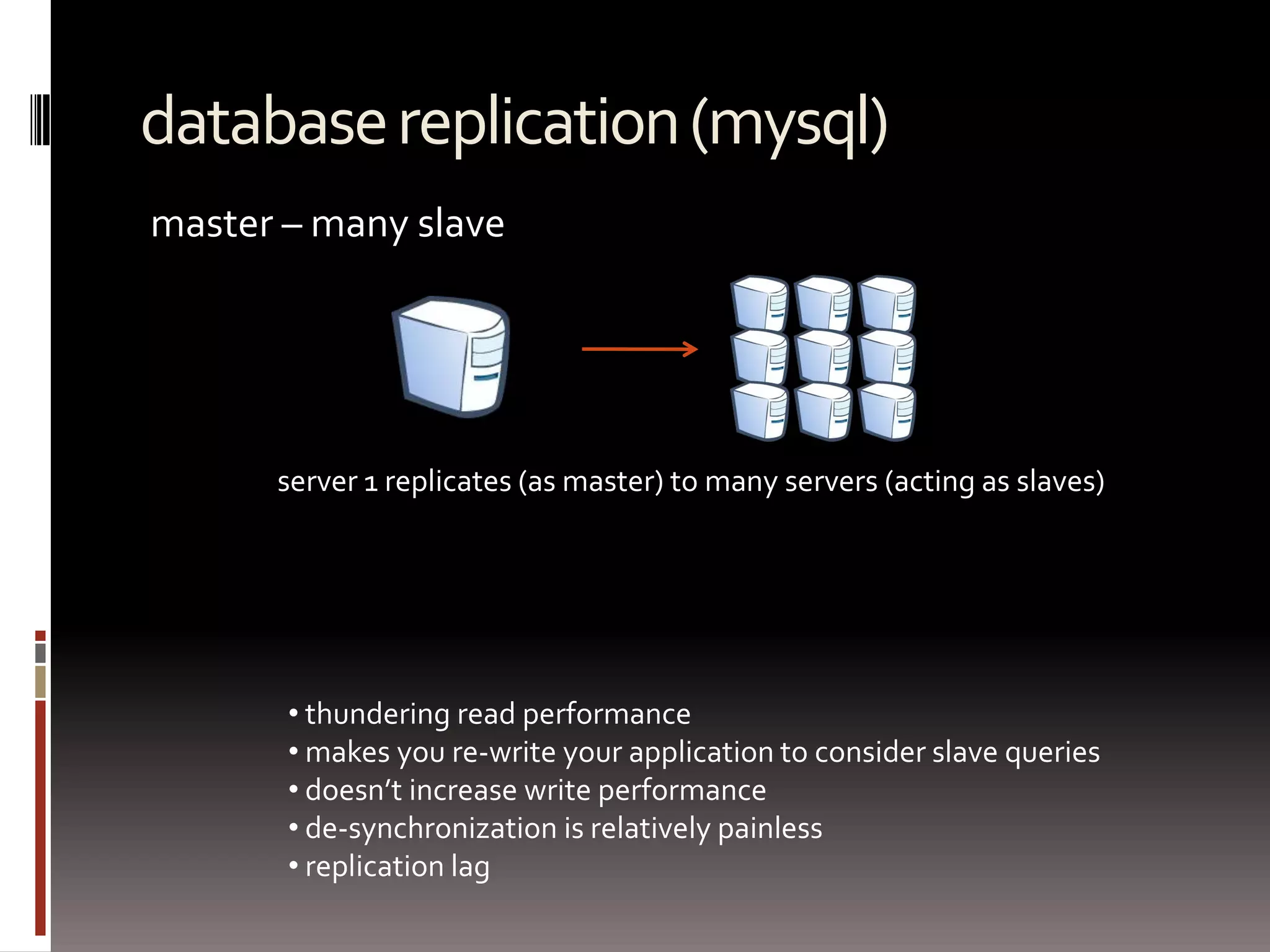

46. database replication (mysql) master - master master - slave master - many slave

48. complete nightmare when replication gets desynchronized

49. doesn’t actually improve write performance

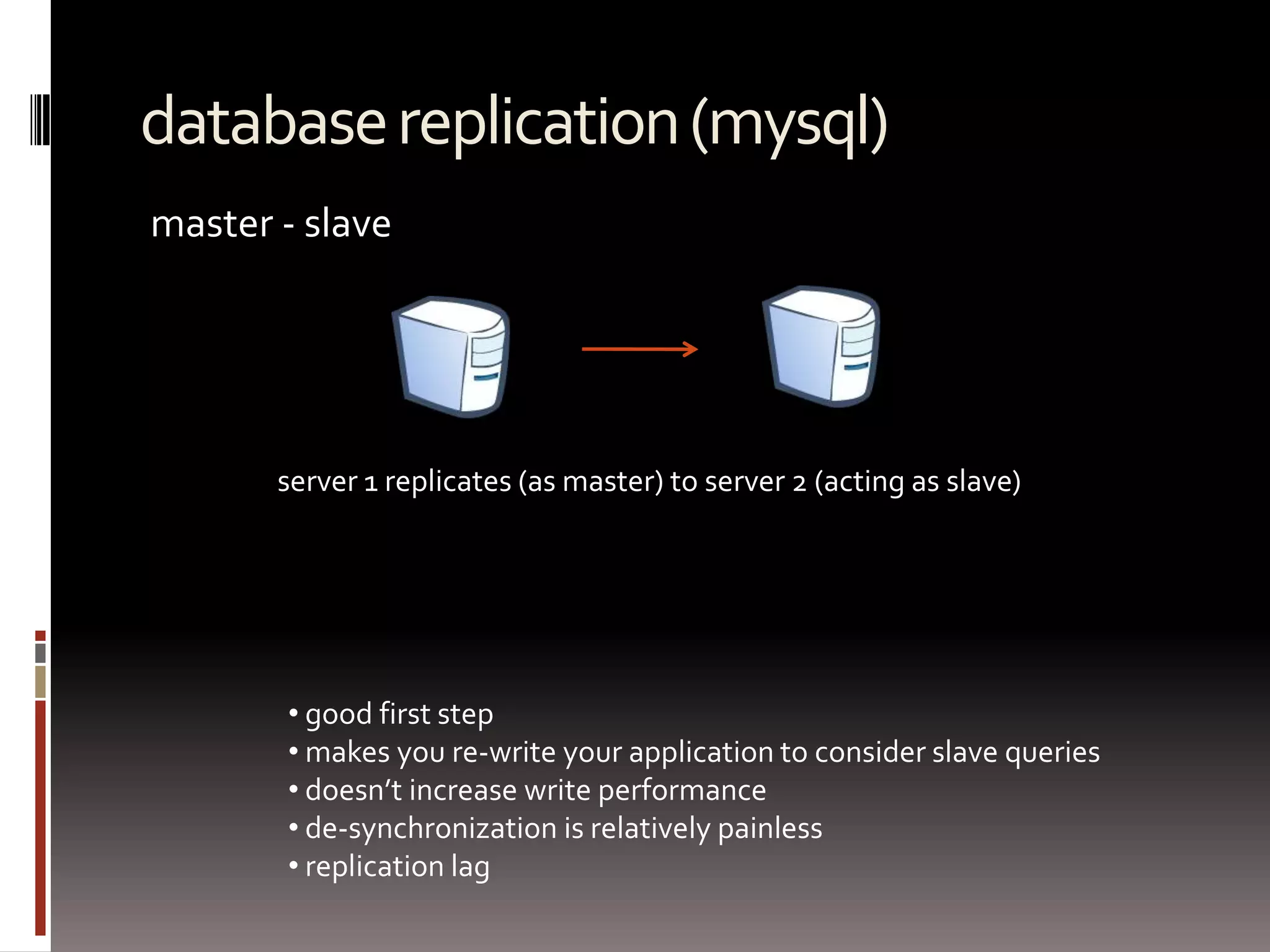

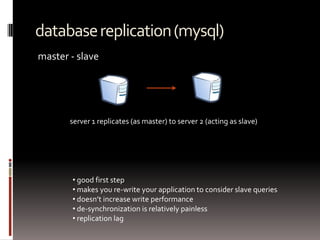

51. makes you re-write your application to consider slave queries

52. doesn’t increase write performance

53. de-synchronization is relatively painless

55. makes you re-write your application to consider slave queries

56. doesn’t increase write performance

57. de-synchronization is relatively painless

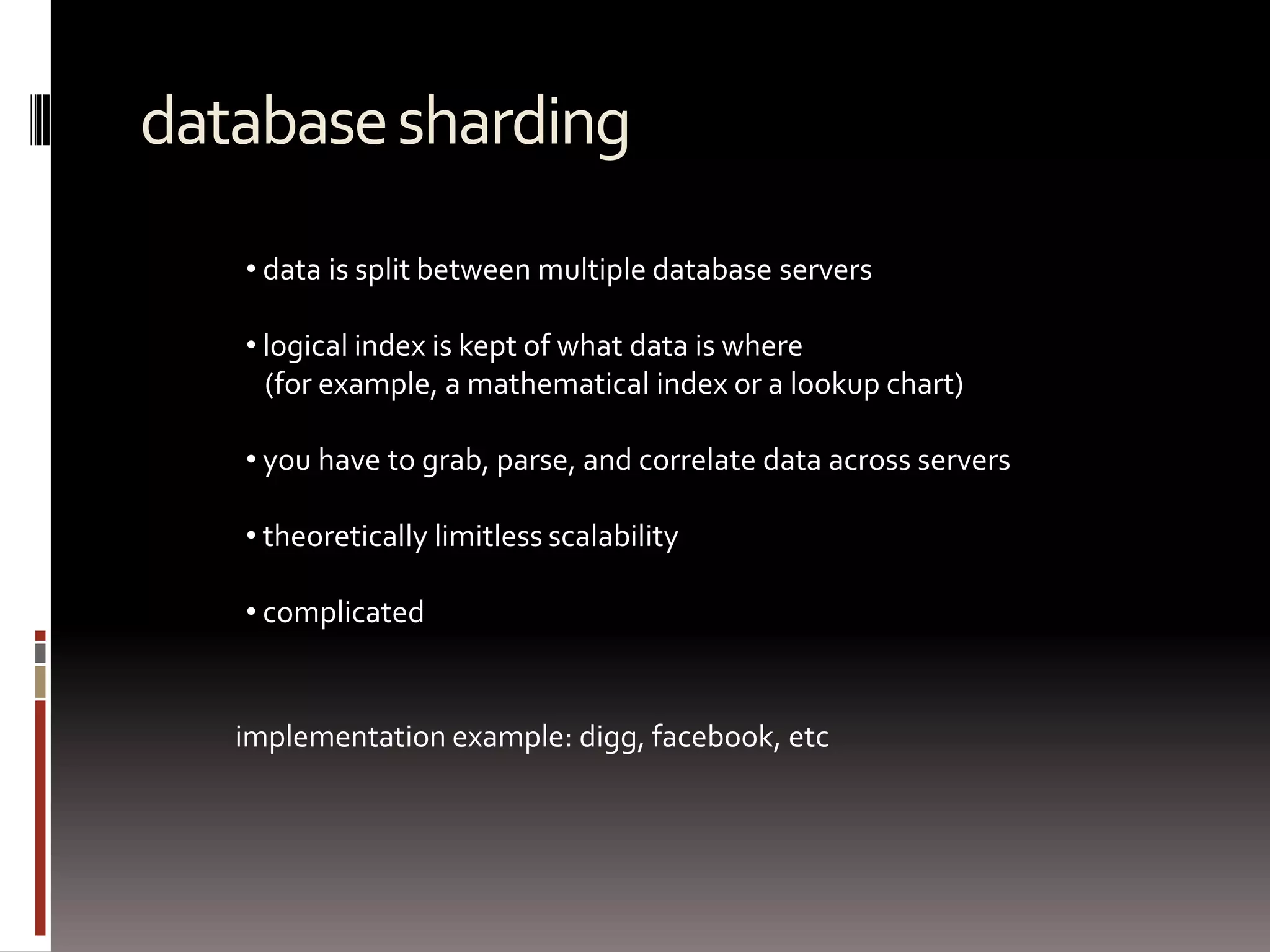

59. logical index is kept of what data is where (for example, a mathematical index or a lookup chart)

60. you have to grab, parse, and correlate data across servers

61. theoretically limitless scalability

62. complicatedimplementation example: digg, facebook, etc

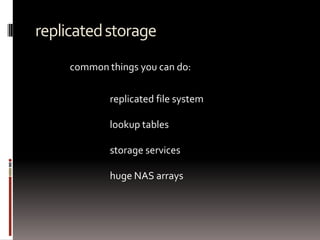

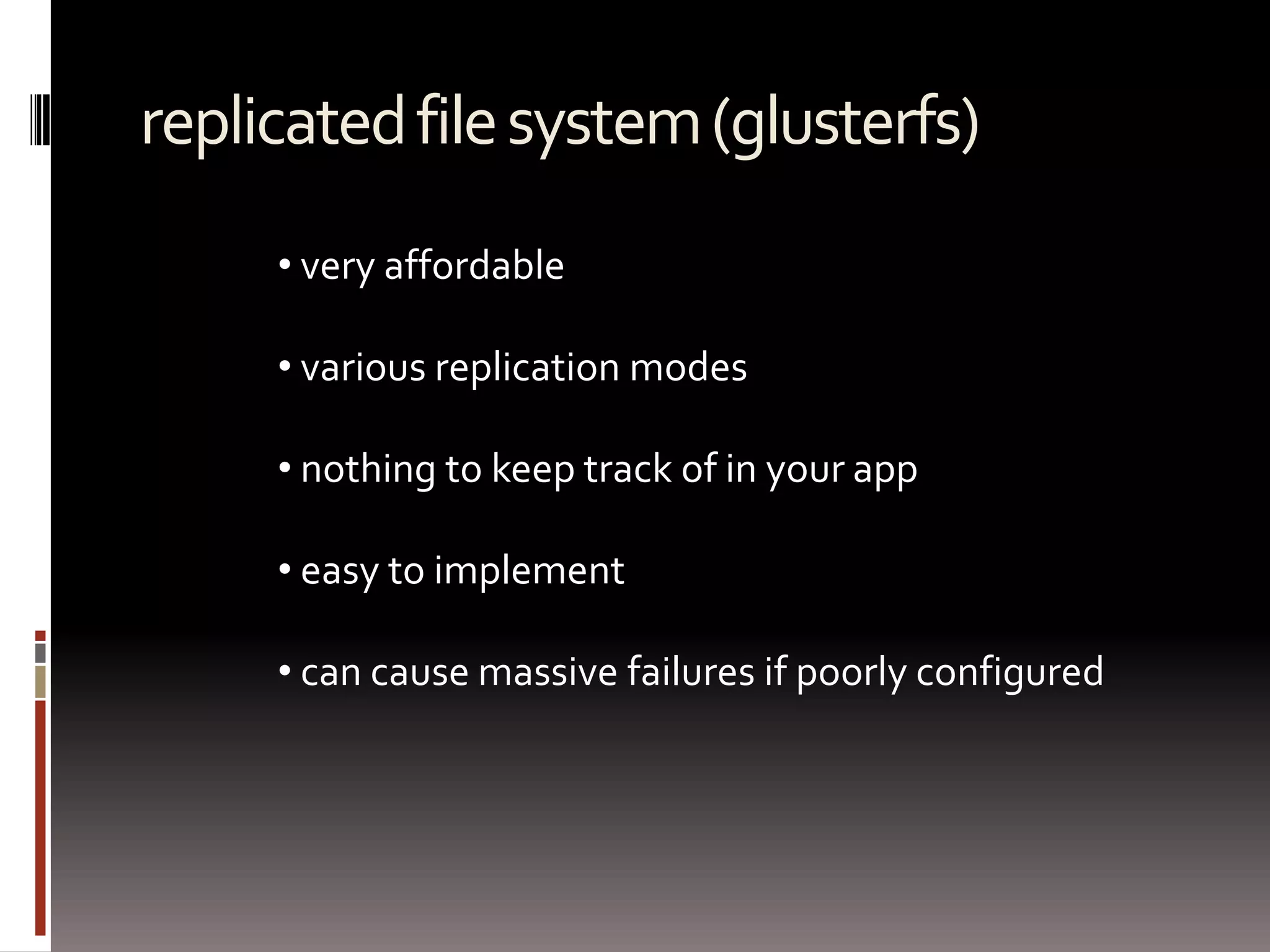

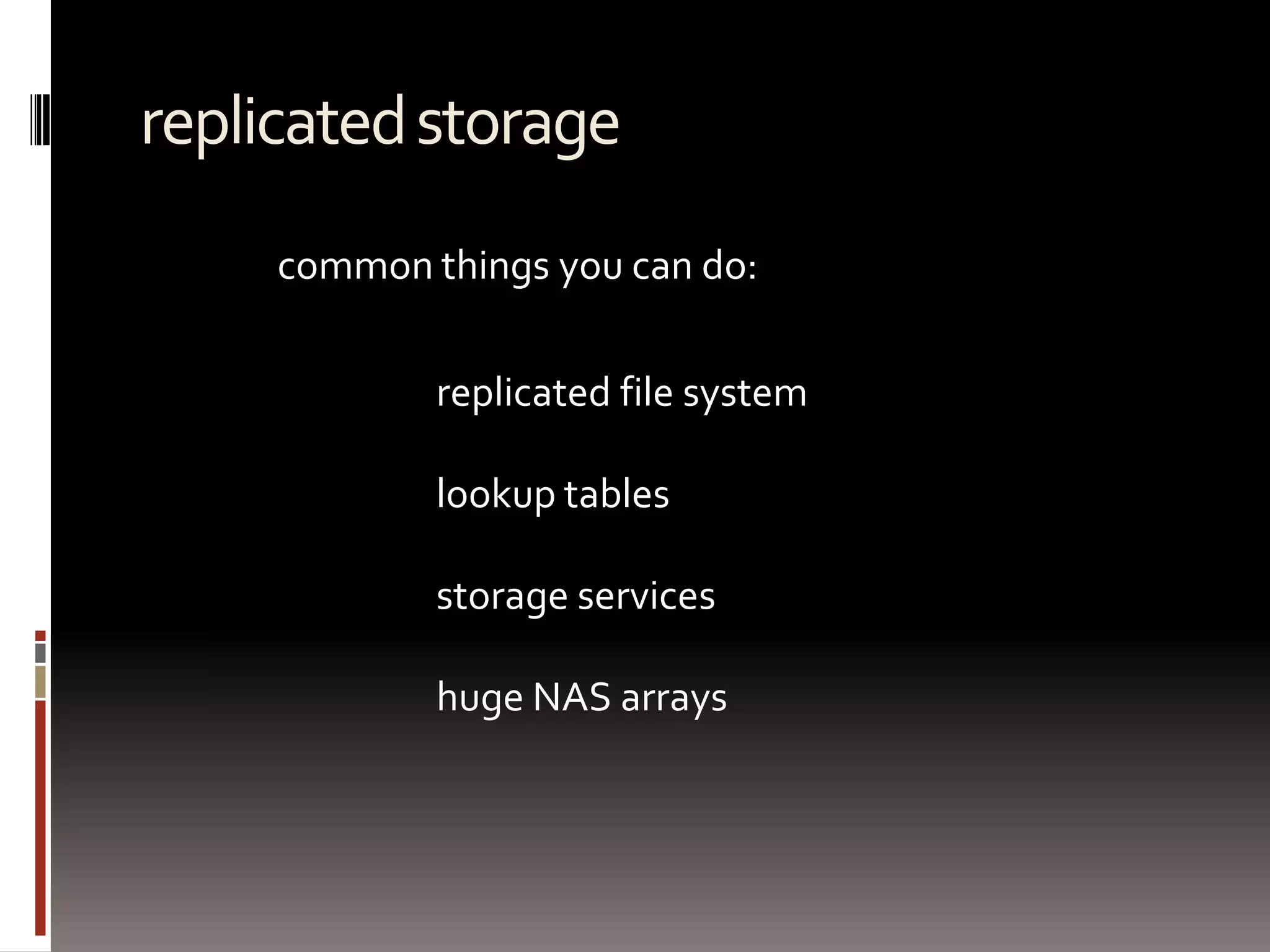

63. replicated storage common things you can do: replicated file system lookup tables storage services huge NAS arrays

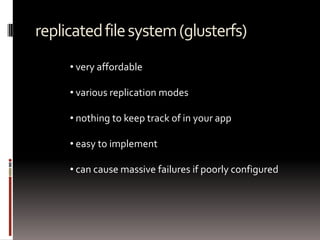

65. various replication modes

66. nothing to keep track of in your app

67. easy to implement

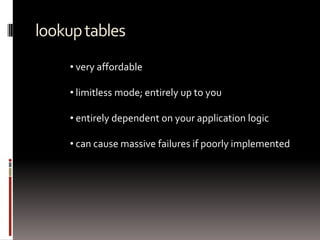

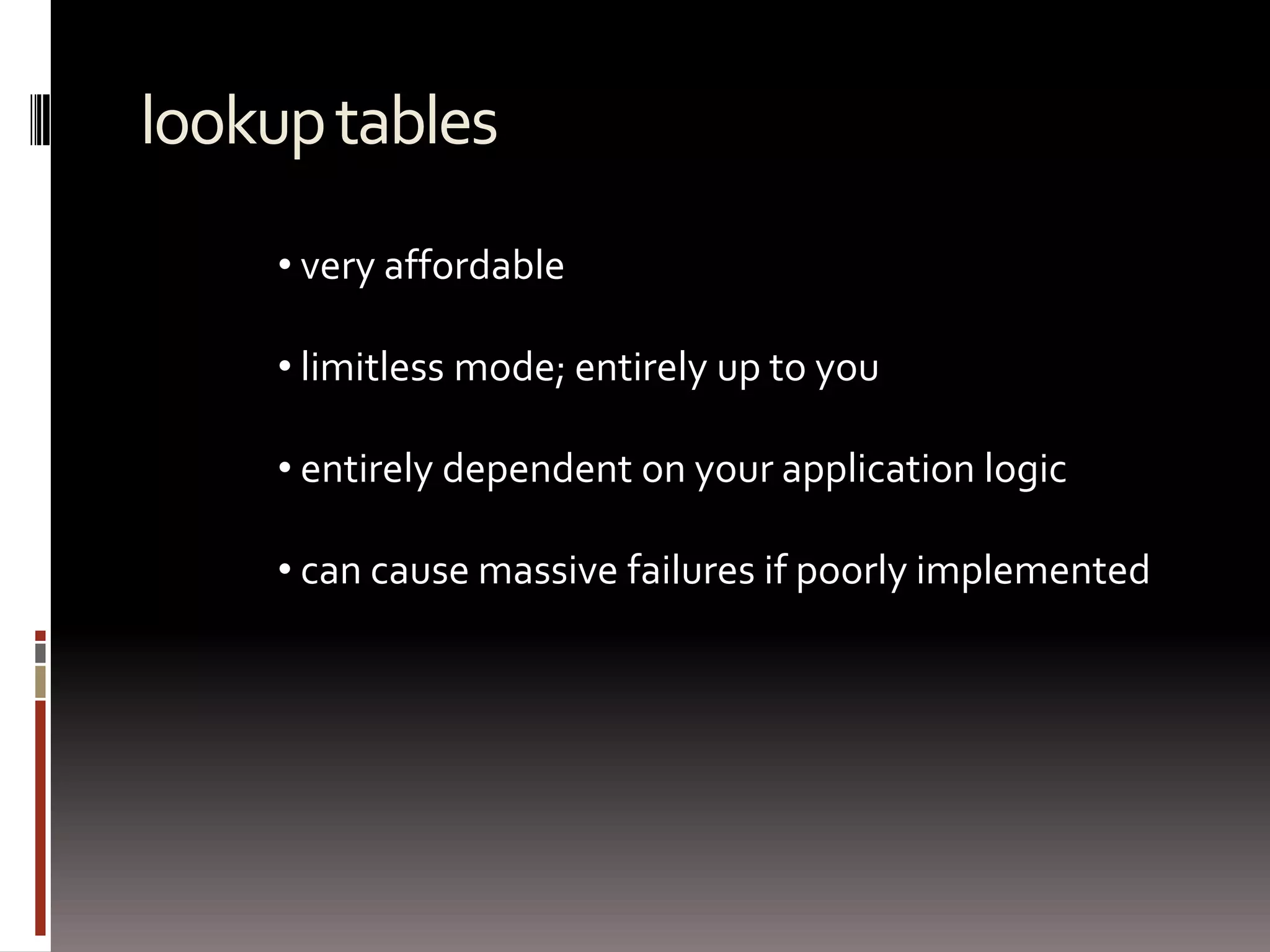

69. limitless mode; entirely up to you

70. entirely dependent on your application logic

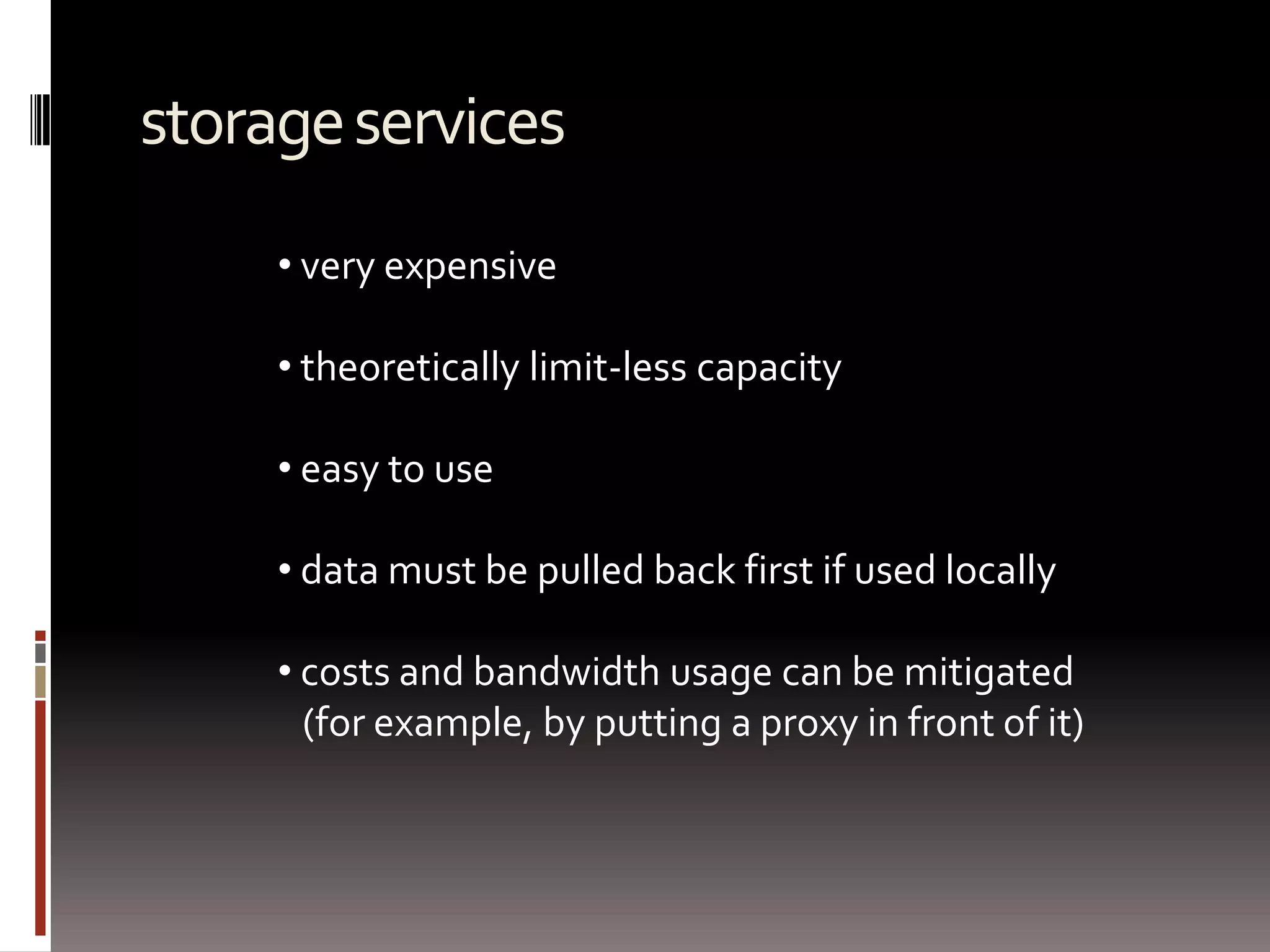

72. theoretically limit-less capacity

73. easy to use

74. data must be pulled back first if used locally

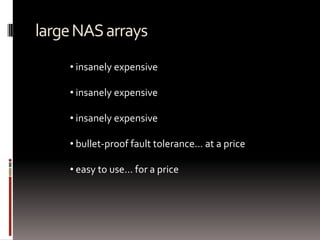

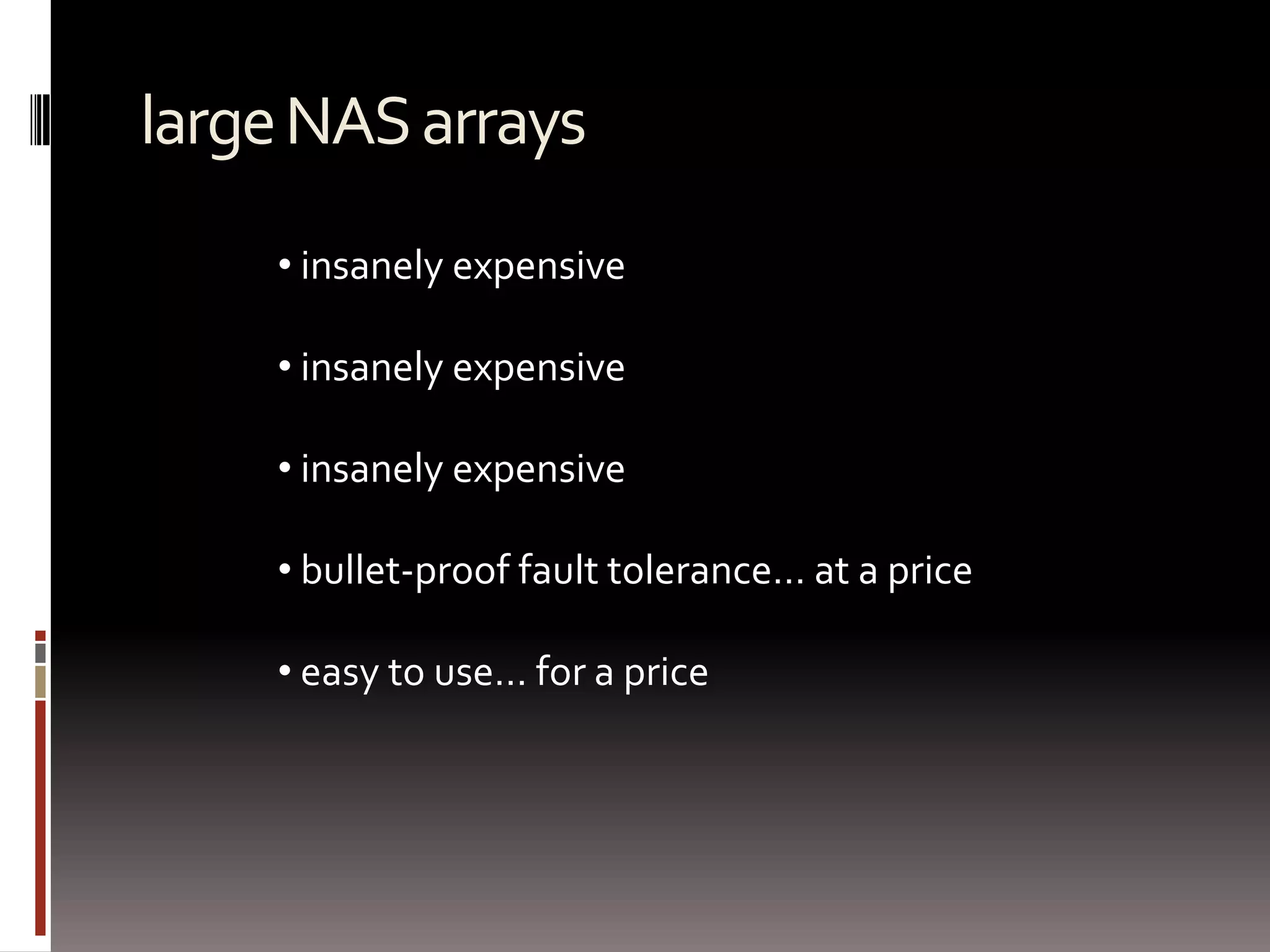

76. insanely expensive

77. insanely expensive

78. bullet-proof fault tolerance… at a price

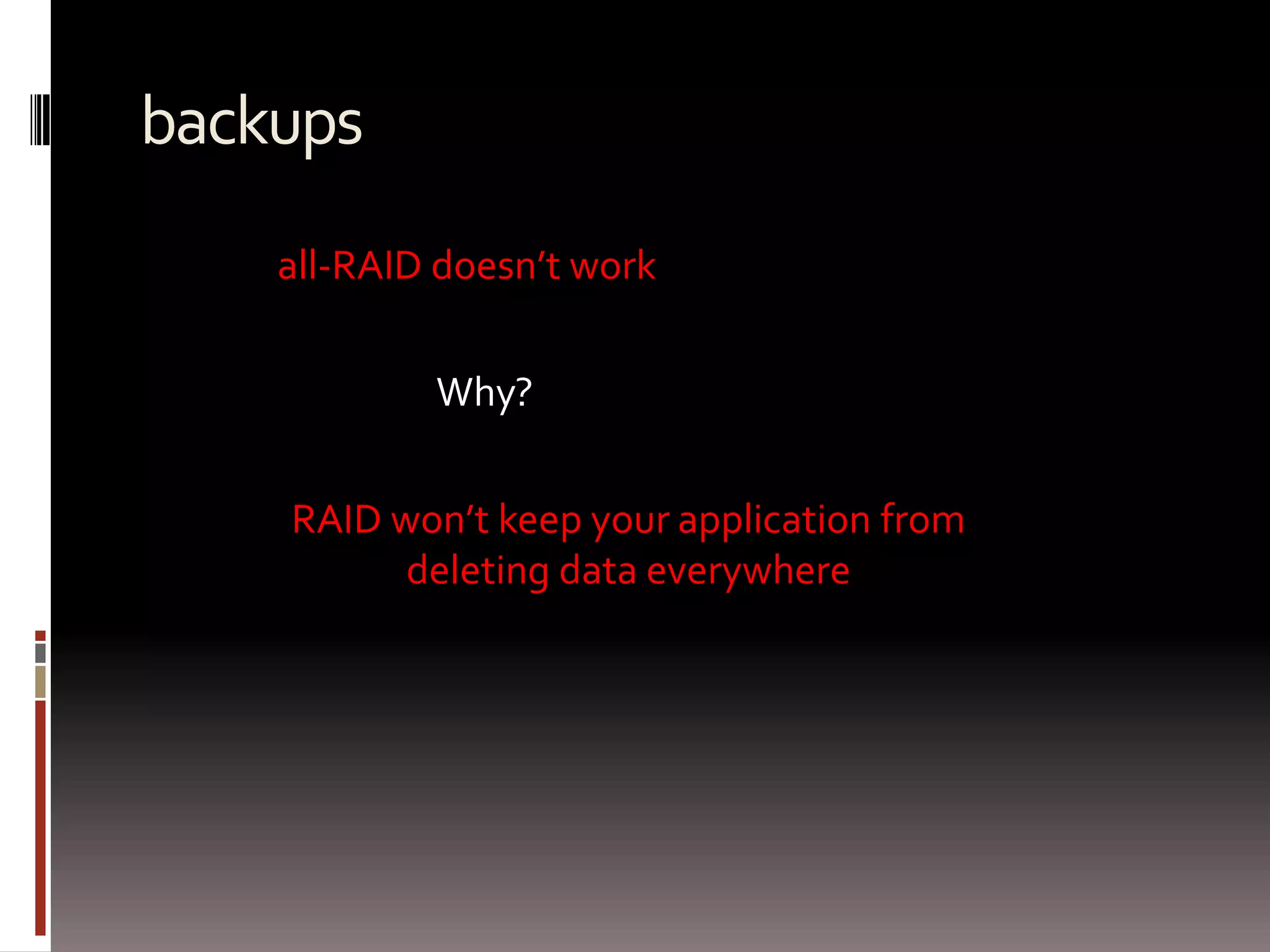

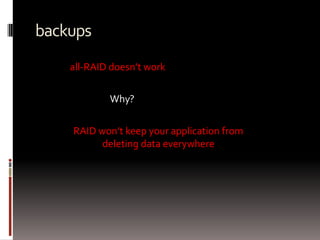

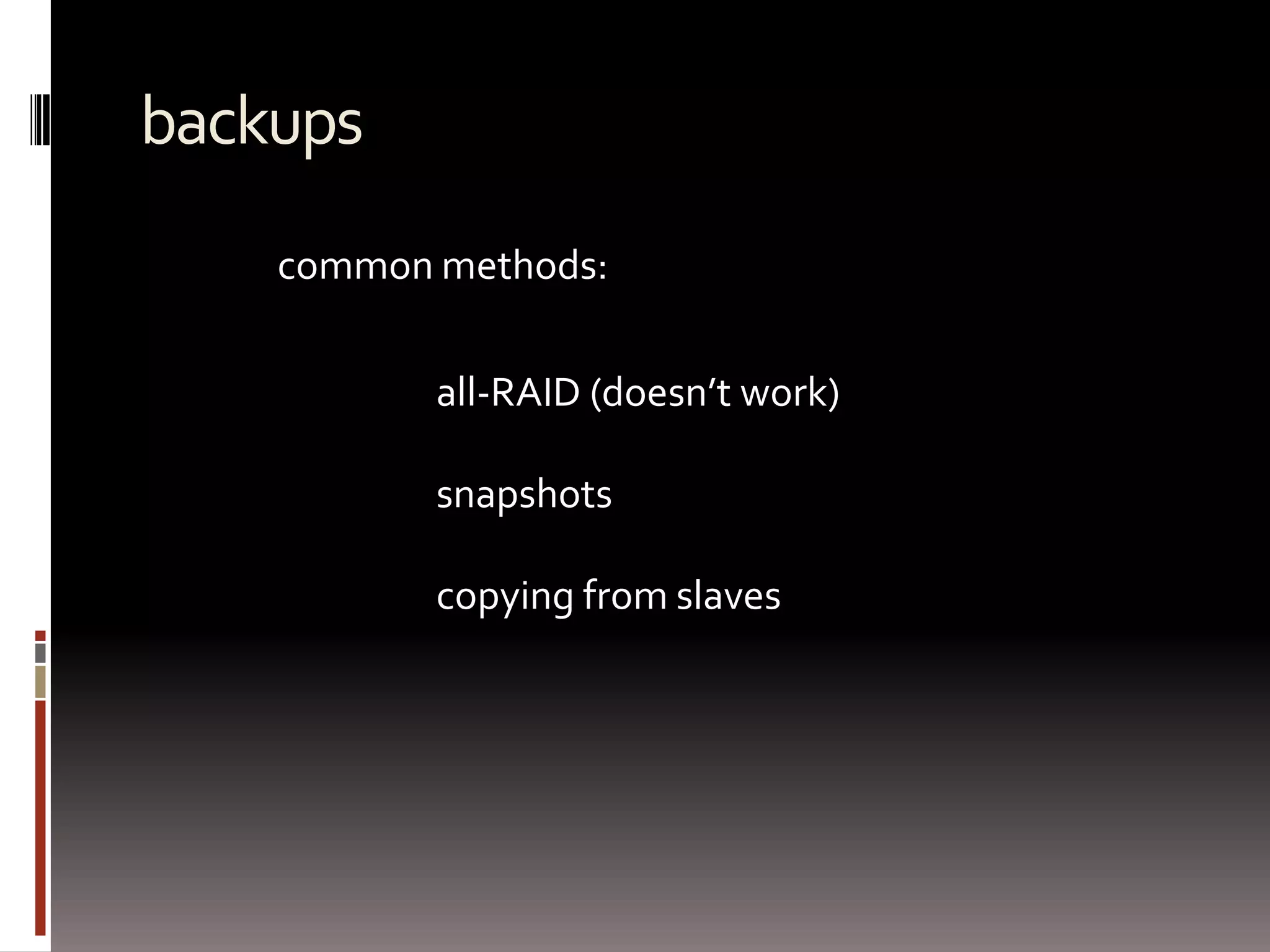

80. backups all-RAID doesn’t work Why? RAID won’t keep your application from deleting data everywhere

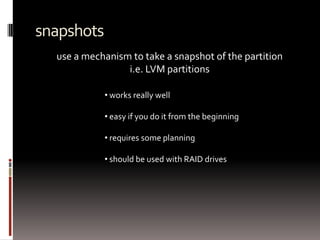

82. easy if you do it from the beginning

83. requires some planning

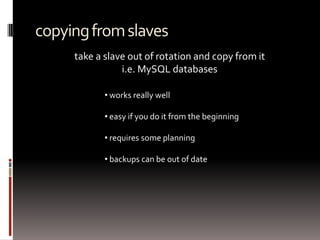

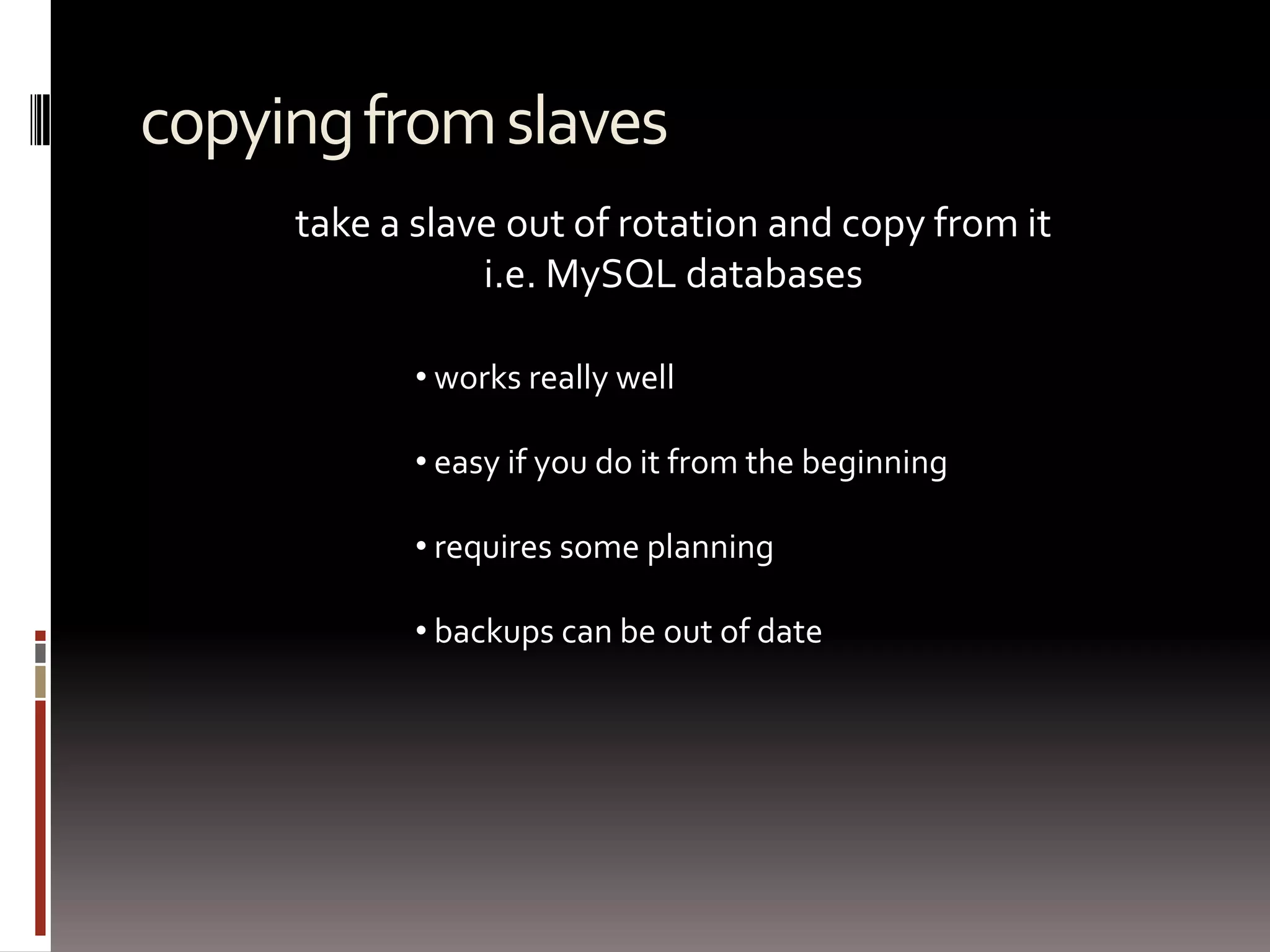

85. easy if you do it from the beginning

86. requires some planning

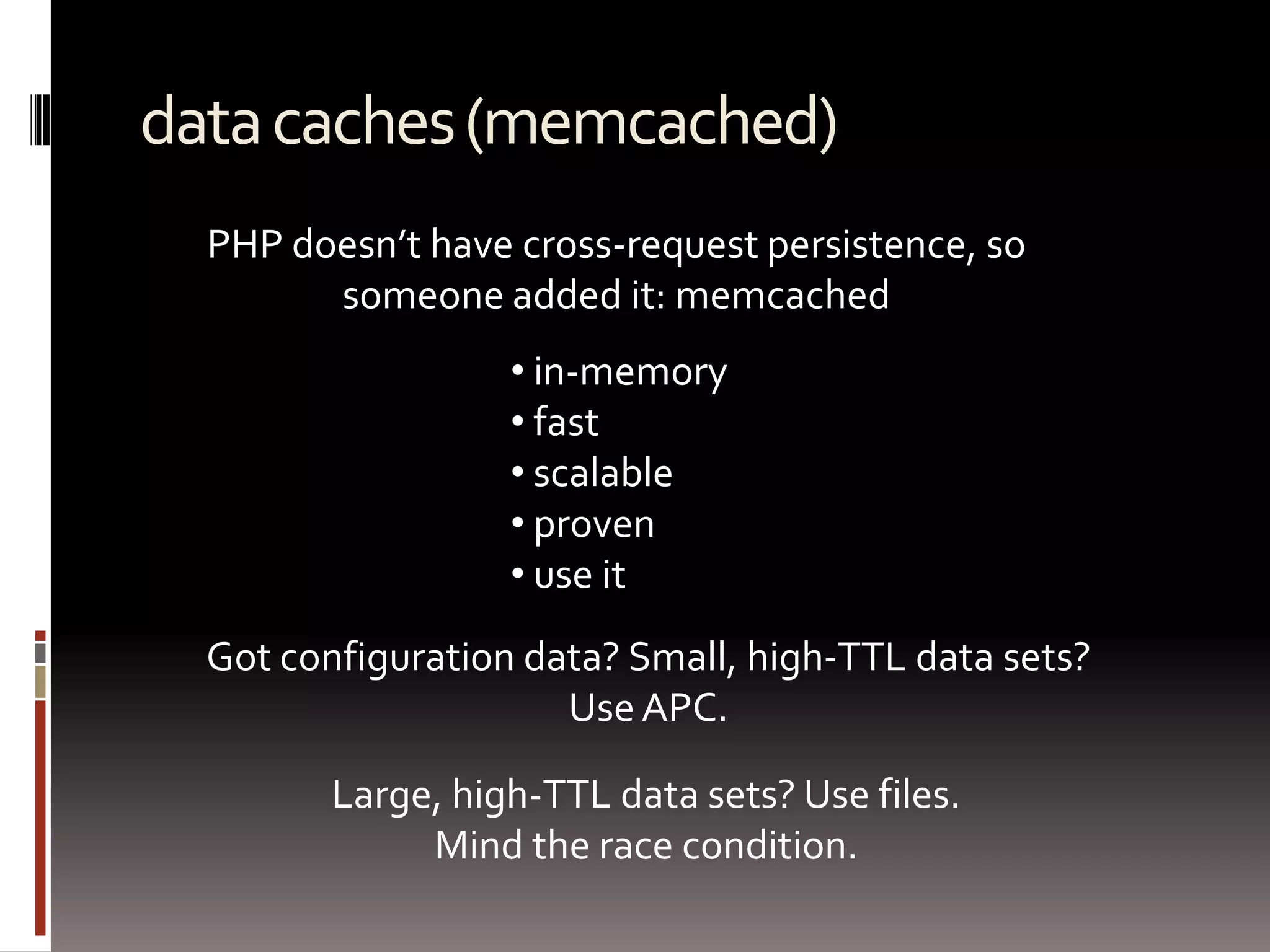

88. fast

89. scalable

90. proven

91. use itGot configuration data? Small, high-TTL data sets? Use APC. Large, high-TTL data sets? Use files. Mind the race condition.

93. database

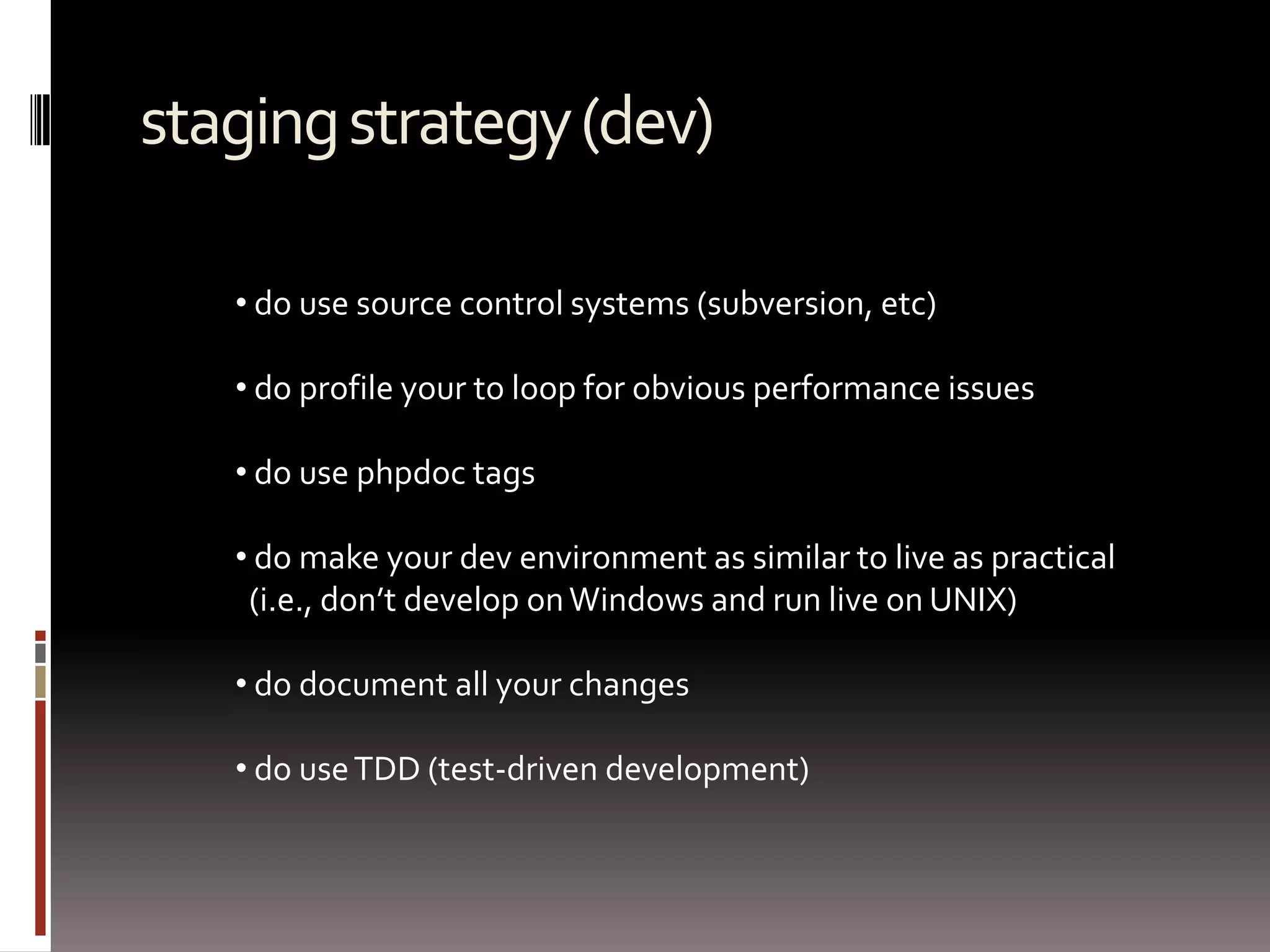

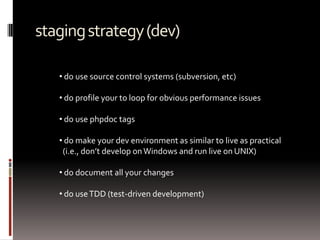

96. do profile your to loop for obvious performance issues

97. do use phpdoc tags

98. do make your dev environment as similar to live as practical (i.e., don’t develop on Windows and run live on UNIX)

99. do document all your changes

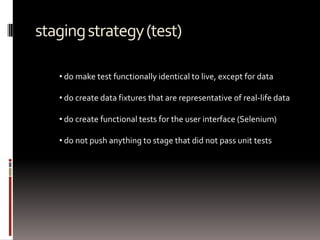

101. do create data fixtures that are representative of real-life data

102. do create functional tests for the user interface (Selenium)

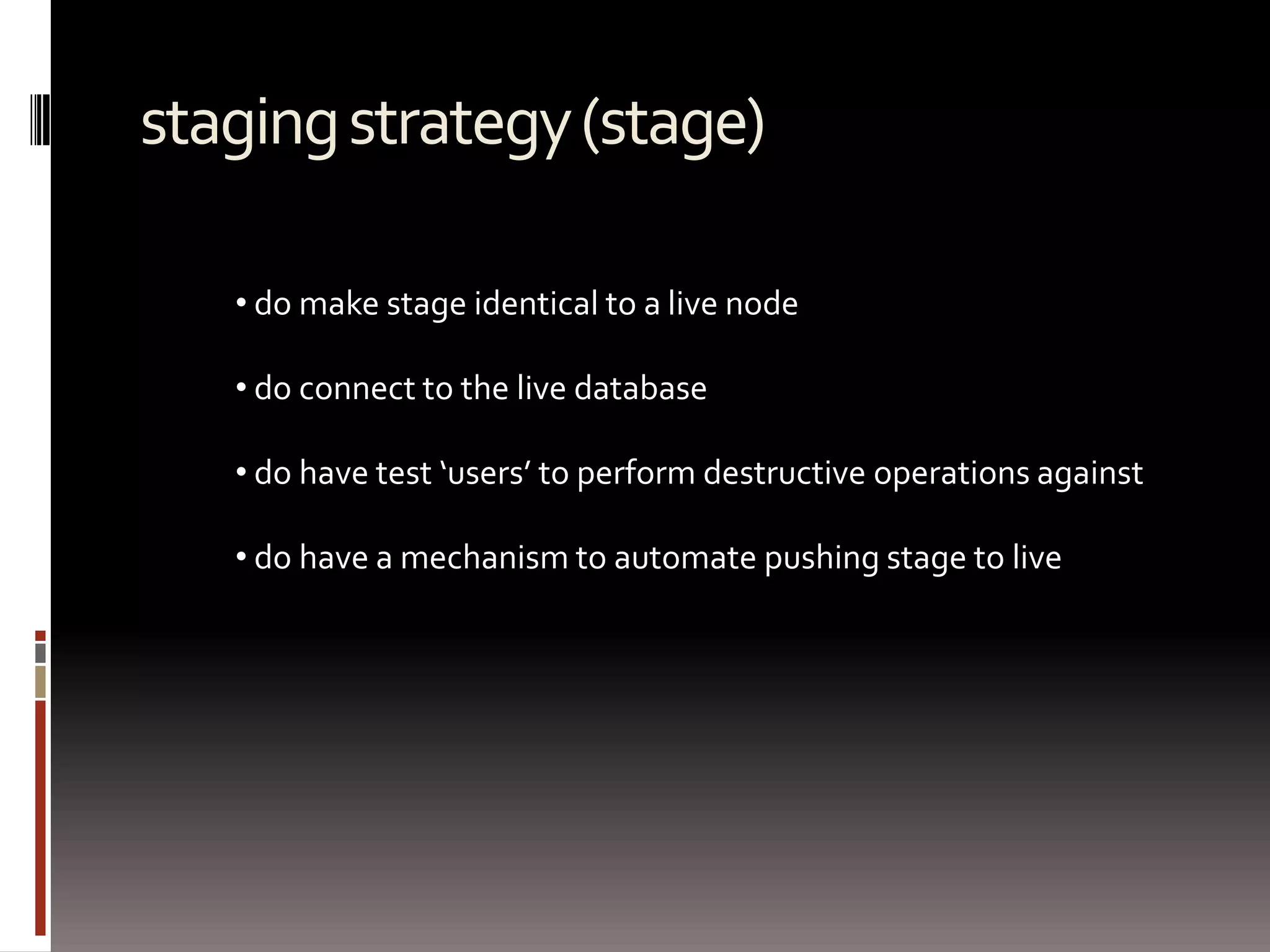

104. do connect to the live database

105. do have test ‘users’ to perform destructive operations against

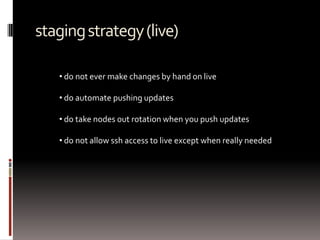

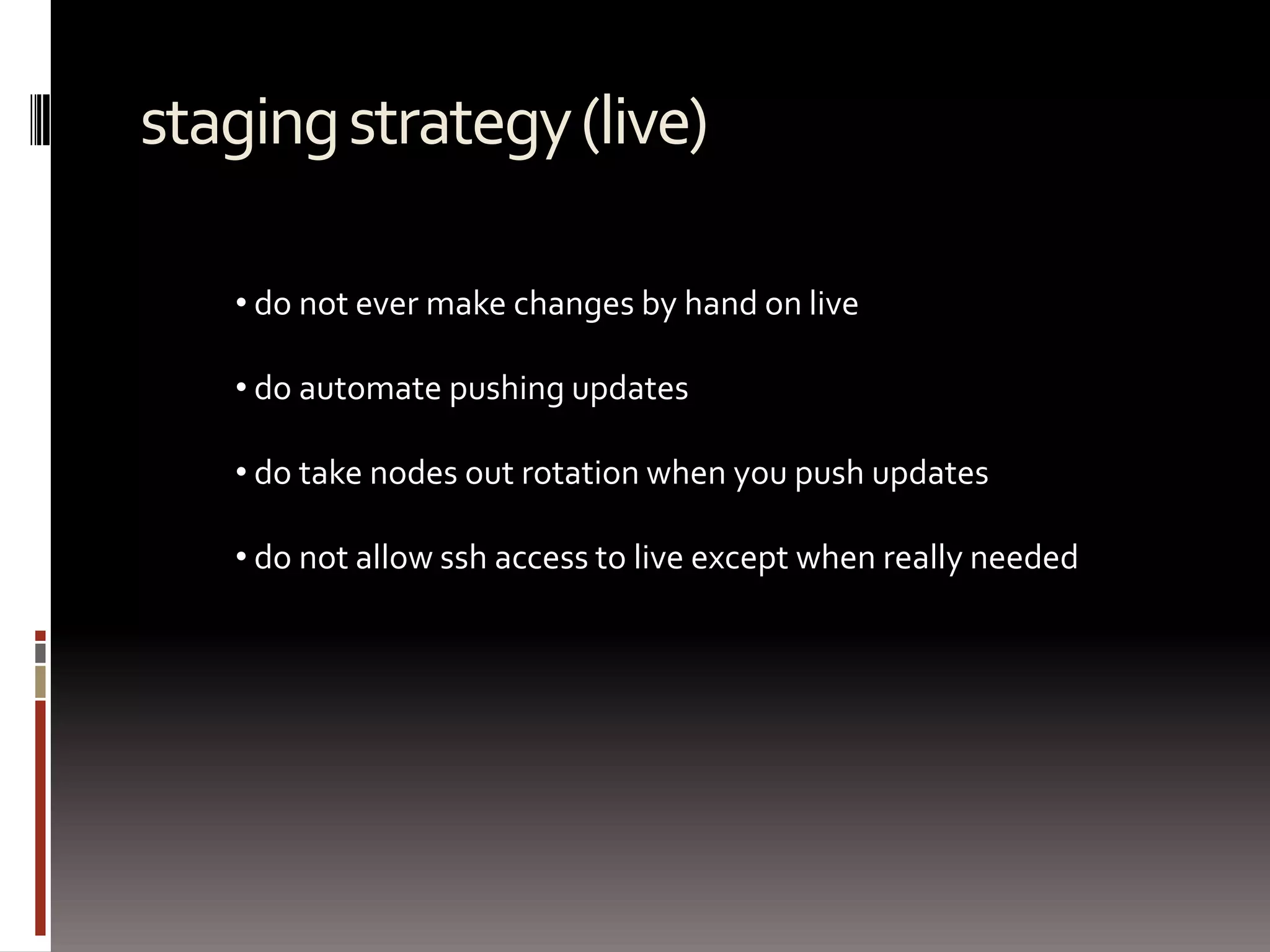

107. do automate pushing updates

108. do take nodes out rotation when you push updates

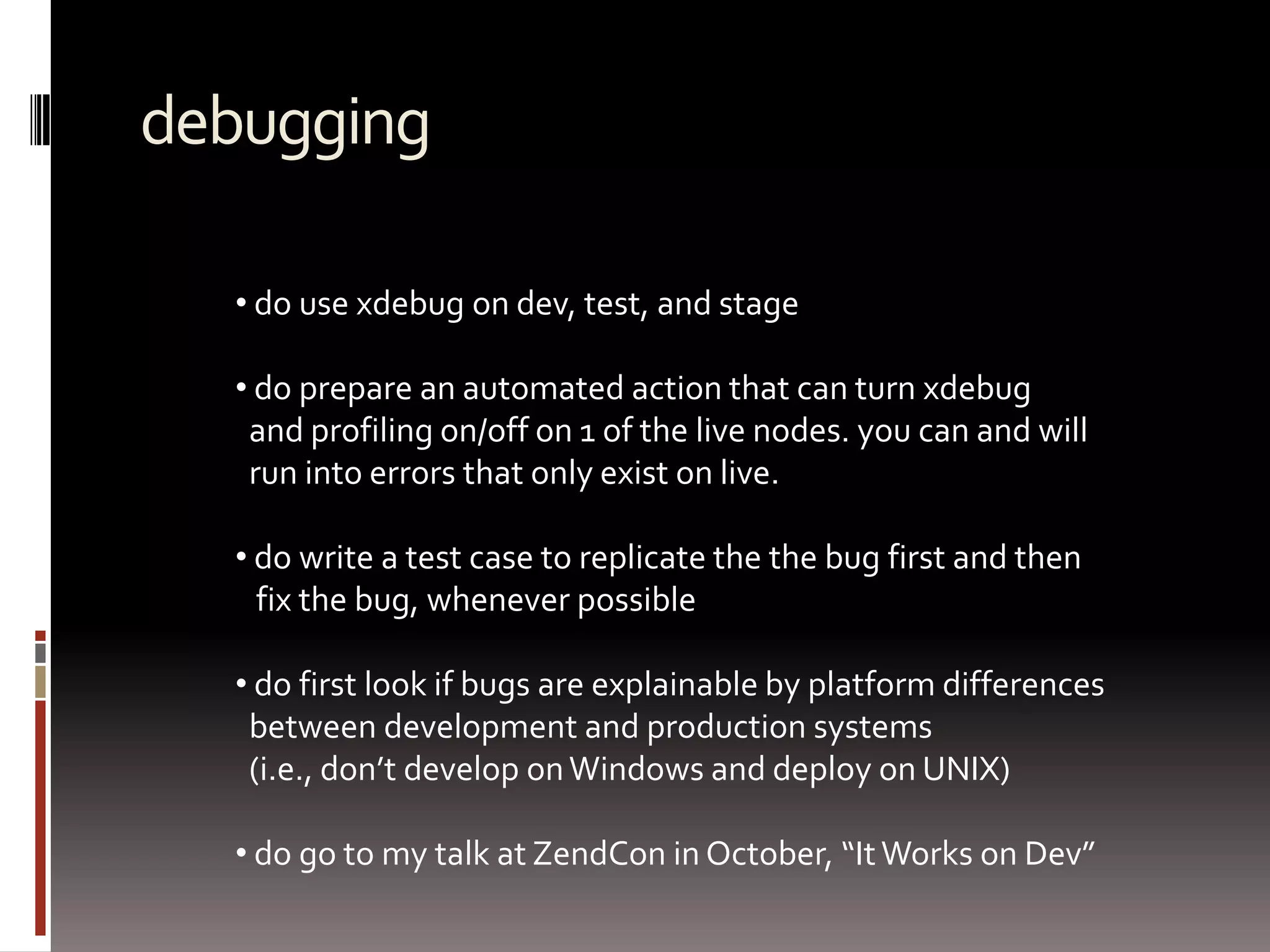

110. do prepare an automated action that can turn xdebug and profiling on/off on 1 of the live nodes. you can and will run into errors that only exist on live.

111. do write a test case to replicate the the bug first and then fix the bug, whenever possible

112. do first look if bugs are explainable by platform differences between development and production systems (i.e., don’t develop on Windows and deploy on UNIX)

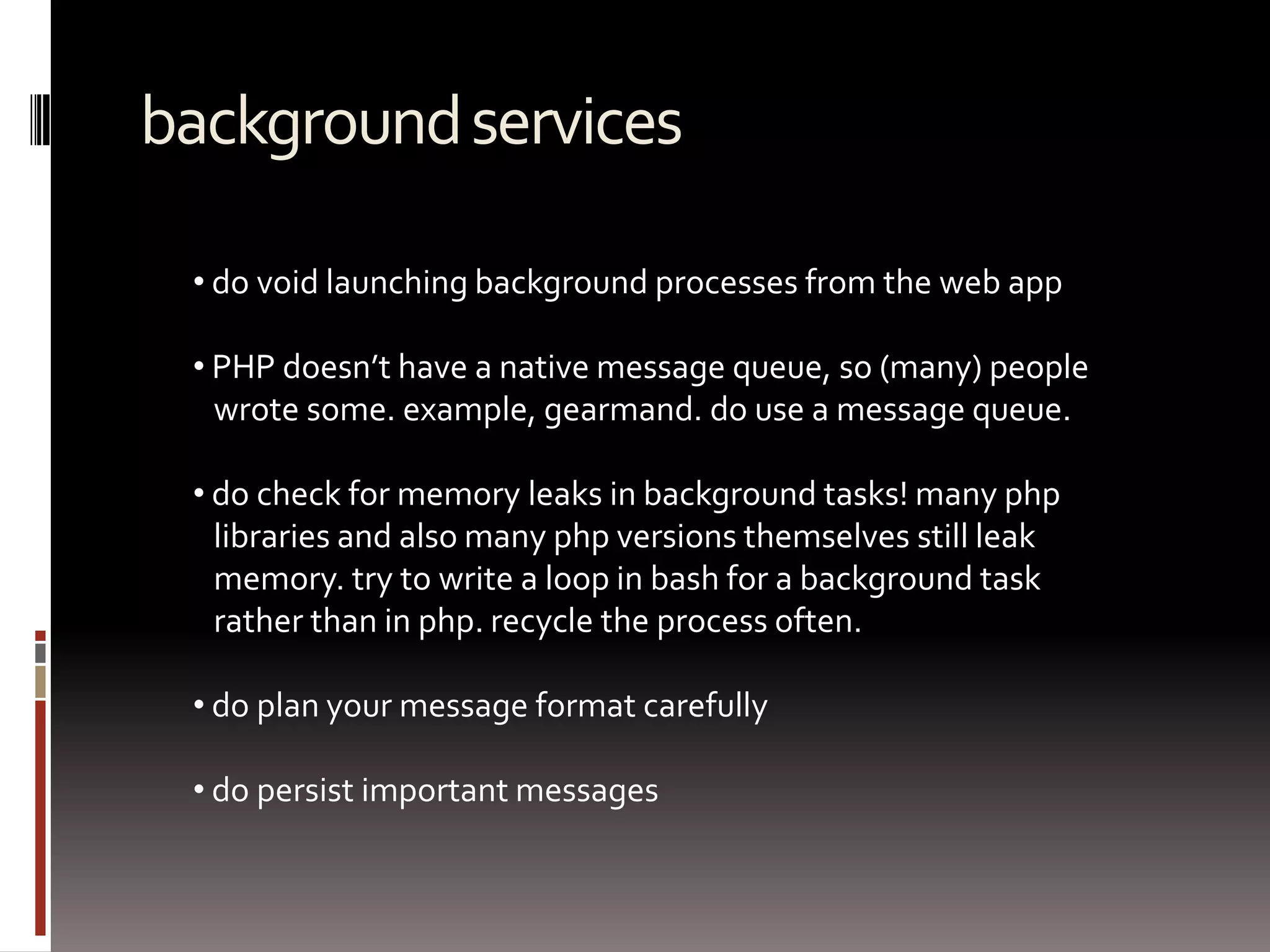

114. PHP doesn’t have a native message queue, so (many) people wrote some. example, gearmand. do use a message queue.

115. do check for memory leaks in background tasks! many php libraries and also many php versions themselves still leak memory. try to write a loop in bash for a background task rather than in php. recycle the process often.

116. do plan your message format carefully

118. shameless plug CROSCON Bespoke Application Development Consulting Security Marcel Esser marcel.esser@croscon.com (202) 730-9728 Personal? marcel.esser@gmail.com
