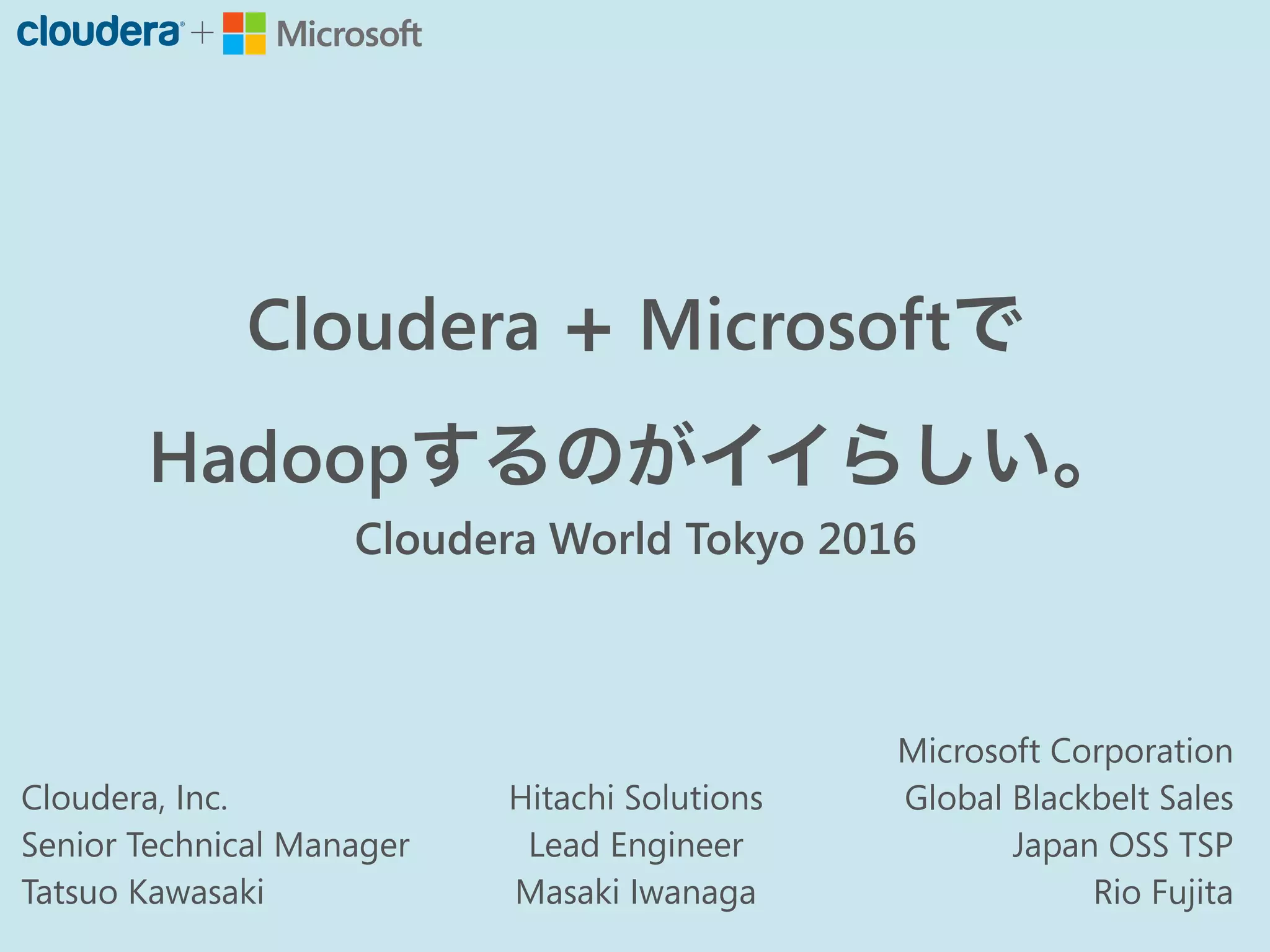

日本マイクロソフト: 藤田　稜氏、日立ソリューションズ：岩永　匡希氏、Cloudera: 川崎 ３名による Cloudera World Tokyo 2016 (http://www.clouderaworldtokyo.com/) の講演内容です #CWT2016

1. Cloudera Microsoft
Hadoop
Cloudera World Tokyo 2016
Microsoft Corporation
Global Blackbelt Sales
Japan OSS TSP
Rio Fujita
Cloudera, Inc.
Senior Technical Manager
Tatsuo Kawasaki
Hitachi Solutions
Lead Engineer
Masaki Iwanaga

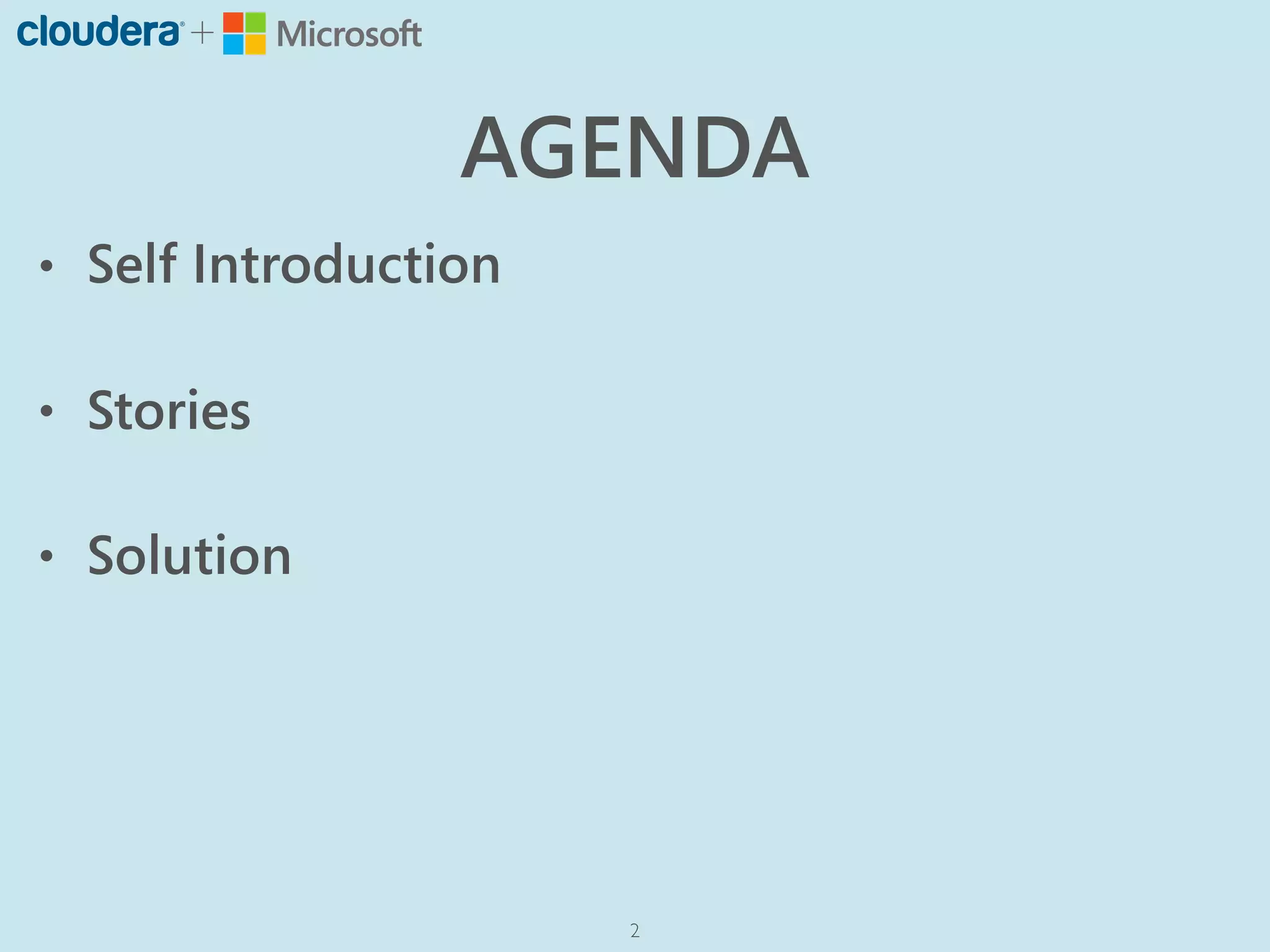

2. AGENDA
• Self Introduction
• Stories
• Solution
2

3. OSS ON CLOUD
3https://azure.microsoft.com/ja-jp/free/

4. Stories

5. Hadoop
•
• ...
• ...
• = Hadoop
•
5

6. 6

7. Hadoop 10
10 “Hadoop”
(HDFS)
(MapReduce)
7

8. “Hadoop”
Core Hadoop
…
8
Hadoop 10

9. Azure
• Windows Azure
• PaaS
• Microsoft Azure
• IaaS
• Linux / FreeBSD
9

10. 10
Platform Services
Infrastructure Services
Web Apps
Mobile
Apps
API
Management
API Apps
Logic Apps
Notification
Hubs
Content
Delivery
Network (CDN)
Media
Services
BizTalk
Services
Hybrid
Connections
Service Bus
Storage
Queues
Hybrid
Operations
Backup
StorSimple
Azure Site
Recovery
Import/Export
SQL
Database
DocumentDB
Redis
Cache
Azure
Search
Storage
Tables
Data
Warehouse Azure AD
Health Monitoring
AD Privileged
Identity
Management
Operational
Analytics
Cloud
Services
Batch
RemoteApp
Service
Fabric
Visual Studio
App
Insights
Azure
SDK
VS Online
Domain Services
HDInsight Machine
Learning
Stream
Analytics
Data
Factory
Event
Hubs
Mobile
Engagement
Data
Lake
IoT Hub
Data
Catalog
Security &
Management
Azure Active
Directory
Multi-Factor
Authentication
Automation
Portal
Key Vault
Store/
Marketplace
VM Image Gallery
& VM Depot
Azure AD
B2C
Scheduler

11. Infrastructure
+Hundreds of community
supported images on
Databases
SQL
App
Clients
Management
Applications
Web App Gallery
Dozens of .NET & PHP
1/3 : Linux
11

12. Hadoop
•
• /
→ Hadoop
12

13. 13

14. 14

15. Azure
•
15

16. Generally Available
Coming Soon
https://azure.microsoft.com/en-us/regions/
28 + 6, 2
16

17. Japan
West
Japan
East
6 duplicates
17

18. Datacenter
Internet Exchange
Terrestrial Network
Subsea Network
Edge Node
CDN Locations
56Earth laps
18

19. Compliant
Source : https://www.microsoft.com/en-us/TrustCenter/Compliance/default.aspx
19

20. Hadoop
•
20

21. Hadoop
Finance Government Telecom Manufacturing Energy Healthcare
-
RFID
Web
CRM /
/
ERP
IT
21

22. DATA-DRIVEN
PRODUCTS
• Azure Cloudera Hadoop
22

23. DATA-DRIVEN
PRODUCTS
•
ERP
23
http://go.cloudera.com/LP=985

24. Azure
•
•
•
•
24

25. 9s / 45s (1GB)
18,550km
25

26. Source : http://www.azurespeed.com
26

27. ExpressRoute
Microsoft
Edge
Customer’s
network
ExpressRoute
Partner
Edge
Traffic to public IP addresses in Azure
Traffic to Virtual Networks
Traffic to Office 365 Services
27

28. Hadoop
• Hadoop
Hadoop
28

29. 29
2006 2008 2009 2010 2011 2012 2013
Core Hadoop
(HDFS,
MapReduce)
HBase
ZooKeeper
Solr
Pig
Core Hadoop
Hive
Mahout
HBase
ZooKeeper
Solr
Pig
Core Hadoop
Sqoop
Avro
Hive
Mahout
HBase
ZooKeeper
Solr
Pig
Core Hadoop
Flume
Bigtop
Oozie
HCatalog
Hue
Sqoop
Avro
Hive
Mahout
HBase
ZooKeeper
Solr
Pig
YARN
Core Hadoop
Spark
Tez
Impala
Kafka
Drill
Flume
Bigtop
Oozie
HCatalog
Hue
Sqoop
Avro
Hive
Mahout
HBase
ZooKeeper
Solr
Pig
YARN
Core Hadoop
Parquet
Sentry
Spark
Tez
Impala
Kafka
Drill
Flume
Bigtop
Oozie
HCatalog
Hue
Sqoop
Avro
Hive
Mahout
HBase
ZooKeeper
Solr
Pig
YARN
Core Hadoop
2007
Solr
Pig
Core Hadoop
Knox
Flink
Parquet
Sentry
Spark
Tez
Impala
Kafka
Drill
Flume
Bigtop
Oozie
HCatalog
Hue
Sqoop
Avro
Hive
Mahout
HBase
ZooKeeper
Solr
Pig
YARN
Core Hadoop
2014 2015
Kudu
RecordService
Ibis
Falcon
Knox
Flink
Parquet
Sentry
Spark
Tez
Impala
Kafka
Drill
Flume
Bigtop
Oozie
HCatalog
Hue
Sqoop
Avro
Hive
Mahout
HBase
ZooKeeper
Solr
Pig
YARN
Core Hadoop

30. SQL
30

31. Azure
• …
31

32. Microsoft Power BI
SORACOM
Red Hat JBoss BRMS
Beam
SORACOM
Air
SORACOM
Beam
HDInsight
SQL
Database
Storage
Machine
Learning
Stream
Analytics
Event Hubs
Microsoft Azure
IoT Microsoft Azure
IoT
RED HAT ENTERPRISE LINUX
App JBoss BRMS/CEP
JBoss EAP
Java VM DataBase
Hadoop
SORACOM
Red Hat
Cloudera
32

33. NoSQL MongoDB
• NoSQL
• Hadoop
• NoSQL RDBMS
• Hadoop NoSQL HBase
Kudu
33

34. 34
with Parquet
Analytics(FastScans)
Online (Fast Random Access)Slow Fast
SlowFast

35. Hadoop SQL
• BI Impara + Pentaho, Tableau,
PowerBI
• SQL Hive on Spark, Spark SQL
• Java, Python, Scala….
35

36. SQL
or
Impala
SQL
36
BI
SQL
/

37. Azure GUI
• JSON Powershell
•
37

38. Azure Quickstart Templates
38

39. Apache Spark Hadoop
• Apache Spark
• Hadoop MapReduce
• Hadoop
39

40. http://www.slideshare.net/Cloudera_jp/spark-cwt2015
40

41. Spark Hadoop
Spark Impala Search MR Others
YARN
HDFS, HBase, Kudu
Spark
Streaming
MLlib /
Spark ML
SparkSQL
DataFrame
41

42. Azure Stack
• Azure
Azure
• Azure
Azure
42

43. 43

44. Hadoop
•
•
•
•
44

45.
45

46. 46
!
Azure
G
A

47. Azure
• Template
• ”HPC Linux Workload”
47

48. HPC Pack cluster for Linux workloads
48

49. Cloudera Hadoop
•
49

50. Fast -
How can you make real-time
analytics a reality?
How can you unblock ad hoc
data access?
How can you optimize the
right workloads for Hadoop?
50

51. Easy -
How many people know how
to manage your system?
How fast can you
troubleshoot and fix issues?
How do you scale?
51

52. Secure -
How can you protect
everything?
How can you control access
for the entire platform?
How can you know what
happened and is happening?
52

53. Hadoop
Cloudera Enterprise
53

54. Hadoop
54

55. Hadoop
55
MapReduce
HDFS
/

56. Hadoop
56

57. Hadoop
57

58.
recommendation accounts for all hardware components such as CPU, memory, and disk options, including ephemeral
SSDs.
The following table describes workload categories and services typically combined for workload types.
Table 1: Workload categories.
Workload Type Typical Services Comments
Low ● MRv2 (YARN)
● Hive
● Pig
● Crunch
Suitable for workloads that are predominantly batch
oriented and involve MapReduce.
Medium ● HBase
● Solr
● Spark
Suitable for higher resource­consuming services and
production workloads but limited to one of these
running at any time.
High / Full EDH ● Impala
● All CDH services
Full­scale production workloads with multiple services
running in parallel on a multi­tenant cluster.
Table 2 identifies service roles for the different node types.
Table 2: Service Roles and Node Types
Master Node 1 Master Node 2 Master Node 3 Worker Nodes
ZooKeeper ZooKeeper ZooKeeper ZooKeeper
HDFS NN, QJN NN, QJN QJN DataNode
YARN RM RM History Server NodeManager
Hive MetaStore, WebHCat,
HiveServer2
Management
(misc)
Cloudera Agent Cloudera Agent Cloudera Agent,
Oozie, Management
Services, Cloudera
Manager (CM will be
on dedicated node for
Director
Deployments)
Cloudera Agent
Hue Hue Server
Cloudera Enterprise Reference Architecture for Azure Deployments​ |9
Azure Hadoop CPU
• Azure
58
http://tiny.cloudera.com/cm-azure-ref-arch
must use the ​Director Command Line Interface​ and configuration files based on the published examples. The log and
data locations must not change, except as needed to reflect the number of data drives.
Azure Marketplace
The ​Cloudera Enterprise Data Hub​ offering in the Azure Marketplace allows you to quickly deploy a properly
configured cluster in Azure.The automation logic assigns the correct number of master and worker nodes. The same
configuration can also be created using the high availability (HA) option from the Azure portal. This offering provides
simple, one­click provisioning of a cluster for proof­of­concept, prototype, development, and production
environments. The provisioned cluster runs on the latest distribution of CDH with services such as HDFS, YARN,
Impala, Oozie, Hive, Hue, and ZooKeeper with Cloudera Manager.
Deployment Scripts
You can use the ​Cloudera on CentOS​ ​Azure Quickstart Template​ as a starting point for a simple or customized
deployment to Azure. The scripts demonstrate proper setup of Nodes, Role Assignment, and Configuration.
Figure 1 shows a deployment scenario using Cloudera Director, Azure Marketplace offer or Deployment Scripts to
launch a Cloudera cluster.
Figure 1: Deployment Scenario
Edge Security
The accessibility of the Cloudera Enterprise cluster is defined by the Azure Network Security Group (NSG)
configurations assigned to VMs and/or Virtual Network subnets and depends on security requirements and workload.
Typically, edge nodes (also known as client nodes or gateway nodes) have direct access to the cluster’s internal
network. Through client applications on these edge nodes, users interact with the cluster and its data. These edge
nodes can run web applications for real­time serving workloads, BI tools, or the Hadoop command­line client used to
interact with HDFS.
Azure Resource Quotas
The default quota for cores within an Azure subscription is 20 cores per region; for more than 20 cores, customers will
need engage Microsoft Support within the Azure portal to request an increased quota. The available quota for the
region you are deploying to has to be greater than the number of cores used by all VMs you are launching.
Workloads & Roles
In this reference architecture, we consider different kinds of workloads that are run on top of an Enterprise Data Hub.
The initial requirements focus on instance types that are suitable for a diverse set of workloads. As service offerings
change, these requirements may change to specify instance types that are unique to specific workloads. The
Cloudera Enterprise Reference Architecture for Azure Deployments​ |8
Cloudera Enterprise
Reference Architecture
for Azure Deployments

59. Cloudera
Hadoop Azure
•
59

60. 60

61. Azure Hadoop
61

62. Solution

63. Case Studies : UNCOVER TRUTH
63https://www.microsoft.com/ja-jp/casestudies/uncovertruth.aspx
