This document discusses common challenges customers face in getting Spark applications to production and provides recommendations to address them. It covers issues like misconfiguration, resource declaration, YARN configuration mismatches, data-dependent tuning like adjusting partitions, and ensuring security in shared clusters through authentication, encryption, and authorization measures. The document also recommends techniques like using dynamic allocation, reducing shuffles, and enabling multi-tenancy with YARN to improve cluster utilization for multiple customers.

1. 1© Cloudera, Inc. All rights reserved.

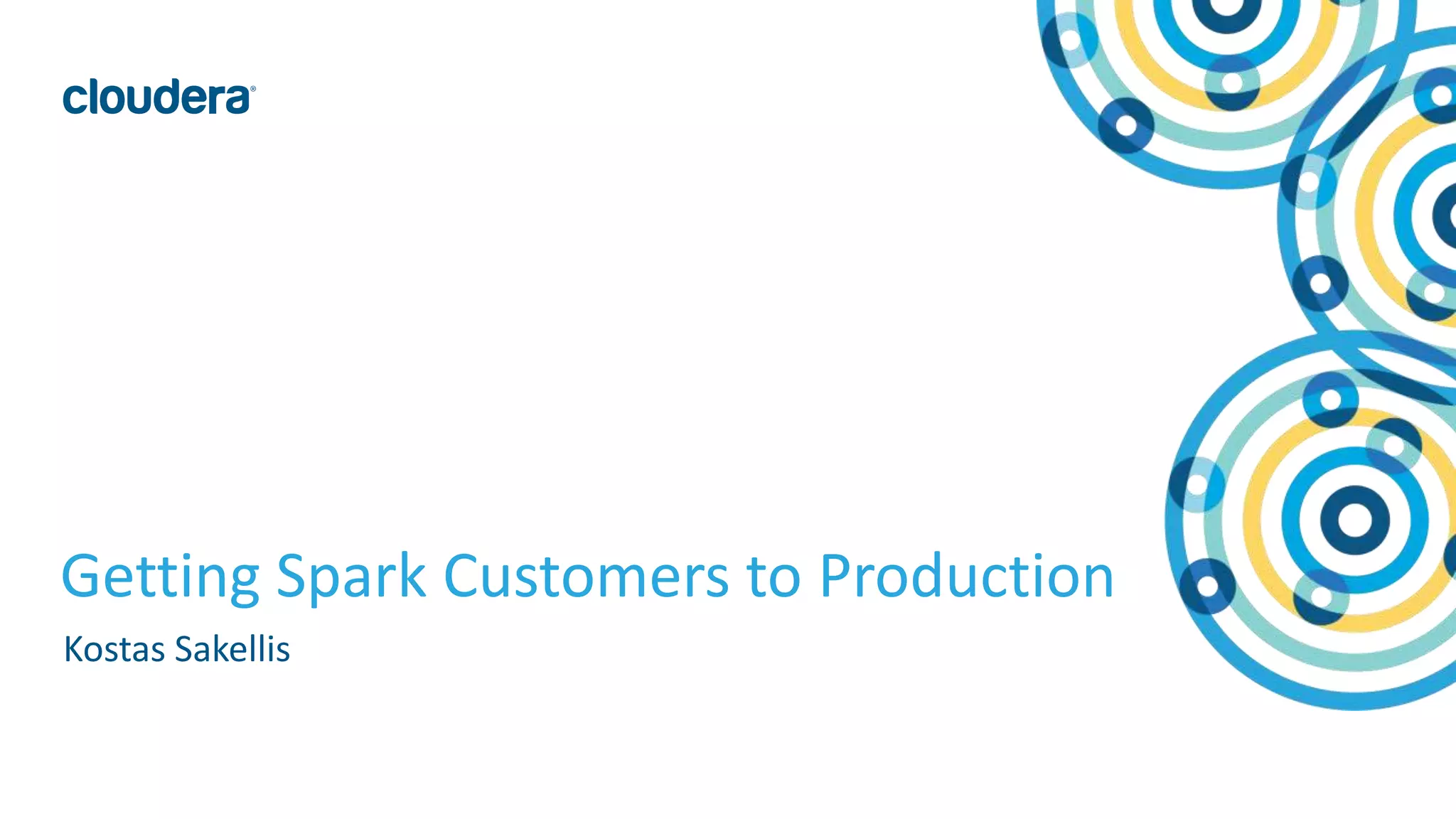

Getting Spark Customers to Production
Kostas Sakellis

2. 2© Cloudera, Inc. All rights reserved.

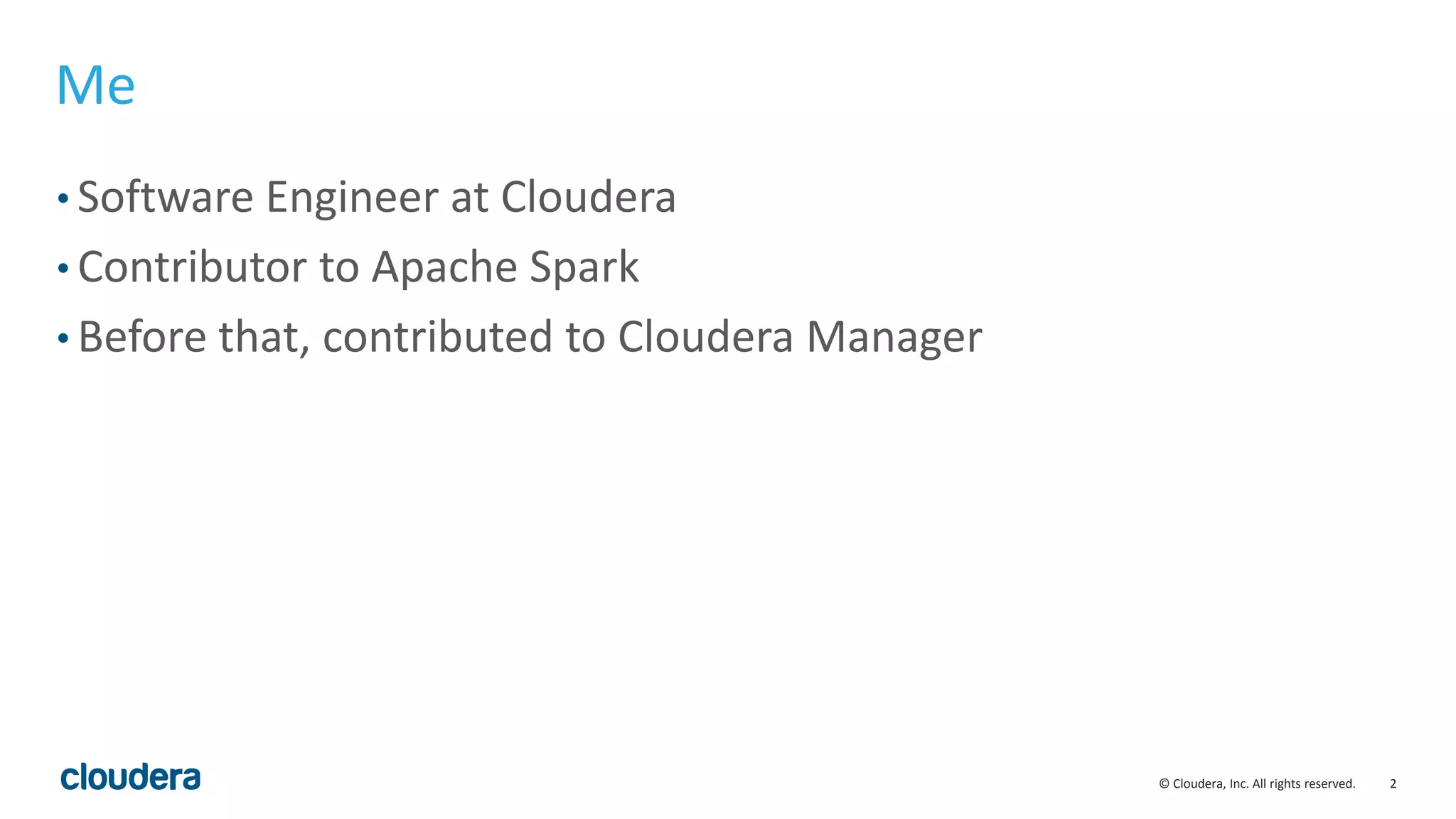

Me
• Software Engineer at Cloudera
• Contributor to Apache Spark
• Before that, contributed to Cloudera Manager

3. 3© Cloudera, Inc. All rights reserved.
Our customers
• Various degrees of sophistication with Spark
• In all stages of development
• From POC to production deployments
• 95% use Spark on YARN*
• Biweekly analysis of tickets

4. 4© Cloudera, Inc. All rights reserved.
WARING: This is biased!

5. 5© Cloudera, Inc. All rights reserved.
Building a proof of
concept!
Courtesy of: http://www.nefloridadesign.com/mbimages/6.jpg

6. 6© Cloudera, Inc. All rights reserved.
“Why is my job failing?”

7. 7© Cloudera, Inc. All rights reserved.
“Why is my job slow?”

8. 8© Cloudera, Inc. All rights reserved.
Misconfiguration
accounts for 20% of
job failures
Courtesy of: http://blog.sdrock.com/pastors/files/2013/06/time-clock.jpg

9. 9© Cloudera, Inc. All rights reserved.
Resource Declaration
• Not easy knowing what you need and how to specify it
• Compute:
• --num-executors vs. --num-cores
• Memory
• --executor-memory
• Includes JVM overhead
• Need to do the math yourself

10. 10© Cloudera, Inc. All rights reserved.
Dynamic Allocation
• Let Spark do the work for you
• Available since Spark 1.2*
• No need to specify compute a priori
• Limitation: Still required to specify cores
• In future:
• Allow specification of “task size”
• Dynamically allocate cores

11. 11© Cloudera, Inc. All rights reserved.
YARN Configuration mismatch
• Compute:
• yarn.nodemanager.resource.cpu-vcores
• yarn.scheduler.maximum-allocation.vcores
• Memory:
• yarn.nodemanager.resource.memory-mb
• yarn.scheduler.maximum-allocation-mb

12. 12© Cloudera, Inc. All rights reserved.
YARN Configuration mismatch
• Common to ask for more resources than allowed
• Future work:
• Exposing relevant YARN configurations in Spark UI
• Requires changes to YARN itself

13. 13© Cloudera, Inc. All rights reserved.
Container
[pid=63375,containerID=container_1388158490598_0001_01_00
0003] is running beyond physical memory limits. Current
usage: 2.1 GB of 2 GB physical memory used; 2.8 GB of 4.2
GB virtual memory used. Killing container.
[...]
Another YARN goodie…

14. 14© Cloudera, Inc. All rights reserved.
yarn.nodemanager.resource.memory-mb
Executor Container
spark.yarn.executor.memoryOverhead (7%) (10% in 1.4)
spark.executor.memory
spark.shuffle.memoryFraction (0.4) spark.storage.memoryFraction (0.6)
Memory allocation

15. 15© Cloudera, Inc. All rights reserved.
YARN Overhead
• Future work:
• Better understanding of off heap allocations
• Improve memory usage visibility

16. 16© Cloudera, Inc. All rights reserved.
Run program
through all our
data
Courtesy of:https://conniehallscott.files.wordpress.com/2013/01/411748_538971446114753_1125606225_o.jpg

17. 17© Cloudera, Inc. All rights reserved.
Data dependent tuning
• As data rates change, re-tuning Spark is usually necessary
• Spark is sensitive to shuffle spills
• The most common knob we modify is…

18. 18© Cloudera, Inc. All rights reserved.
Partitions, Partitions, Partitions!

19. 19© Cloudera, Inc. All rights reserved.
GC Stalls

20. 20© Cloudera, Inc. All rights reserved.
Partitions
• Smaller is often better
• Parameterized partition size
• reduceByKey(…, nPartitions)
• Parameterize application
• Future work:
• Dynamically determine # of partitions (SPARK-4630)

21. 21© Cloudera, Inc. All rights reserved.
But for now?
• Easy answer:
• Keep multiplying by 1.5 and see what works
• Harder answer:

22. 22© Cloudera, Inc. All rights reserved.
Shuffle less!

23. 23© Cloudera, Inc. All rights reserved.
Shuffles
Wide DependencyNarrow Dependencies

24. 24© Cloudera, Inc. All rights reserved.
ReduceByKey when Possible
•ReduceByKey allows a map-side-combine
parsed
.map{line =>(line.level, 1)}
.reduceByKey{(a, b) => a + b}
.collect()
•GroupByKey transfers all the data
parsed
.map{line =>(line.level, 1)}
.groupByKey.map{case(word,counts) =>
(word,counts.sum)}
.collect()

25. 25© Cloudera, Inc. All rights reserved.
ReduceByKey when Possible
•ReduceByKey
•GroupByKey

26. 26© Cloudera, Inc. All rights reserved.
Security, now it’s
getting serious.
Courtesy of: https://www.iti.illinois.edu/sites/default/files/Cybersecurity_image.jpg

27. 27© Cloudera, Inc. All rights reserved.
Authentication
• Kerberos – the necessary evil
• Ubiquitous amongst other services
• YARN, HDFS, Hive, HBase, etc.
• Spark utilizes delegation tokens

28. 28© Cloudera, Inc. All rights reserved.
Encryption
• Control plane
• File distribution
• Block Manager
• User UI / REST API
• Data-at-rest (shuffle files)
SPARK-6028 (Replace with netty)
Replace with netty
Spark 1.4
SPARK-2750 (SSL)
SPARK-5682

29. 29© Cloudera, Inc. All rights reserved.
Authorization
• Enterprises have sensitive data
• Beyond HDFS file permissions
• Partial access to data
• Column level granularity
• Apache Sentry
• HDFS-Sentry synchronization plugin

30. 30© Cloudera, Inc. All rights reserved.
Customers often
have shared
infrastructure
Courtesy of: https://radioglobalistic.files.wordpress.com/2011/02/lagos-traffic.jpg

31. 31© Cloudera, Inc. All rights reserved.
Multi-tenancy
• Cluster utilization is top metric
• Target: 70-80% utilization
• Mixed workloads from mixed customers
• We recommend YARN
• Built in resource manager

32. 32© Cloudera, Inc. All rights reserved.
Underutilized
Clusters
Courtesy of: http://media.nbclosangeles.com/images/1200*675/60-freeway-repair-dec16-2-empty.JPG

33. 33© Cloudera, Inc. All rights reserved.
Dynamic Allocation
• Allows jobs to scale to size according to load
• Knobs to control min, max and initial size
• Future Work:
• Target: Dynamic allocation enabled by default
• Data locality & Caching
• Open question with Streaming

34. 34© Cloudera, Inc. All rights reserved.
Thank you
We’re Hiring!
