1. Your Coffee Shop Uses Cloud Computing
M.A student : Ali Reza Khosh Zaban
In The Name Of Allah

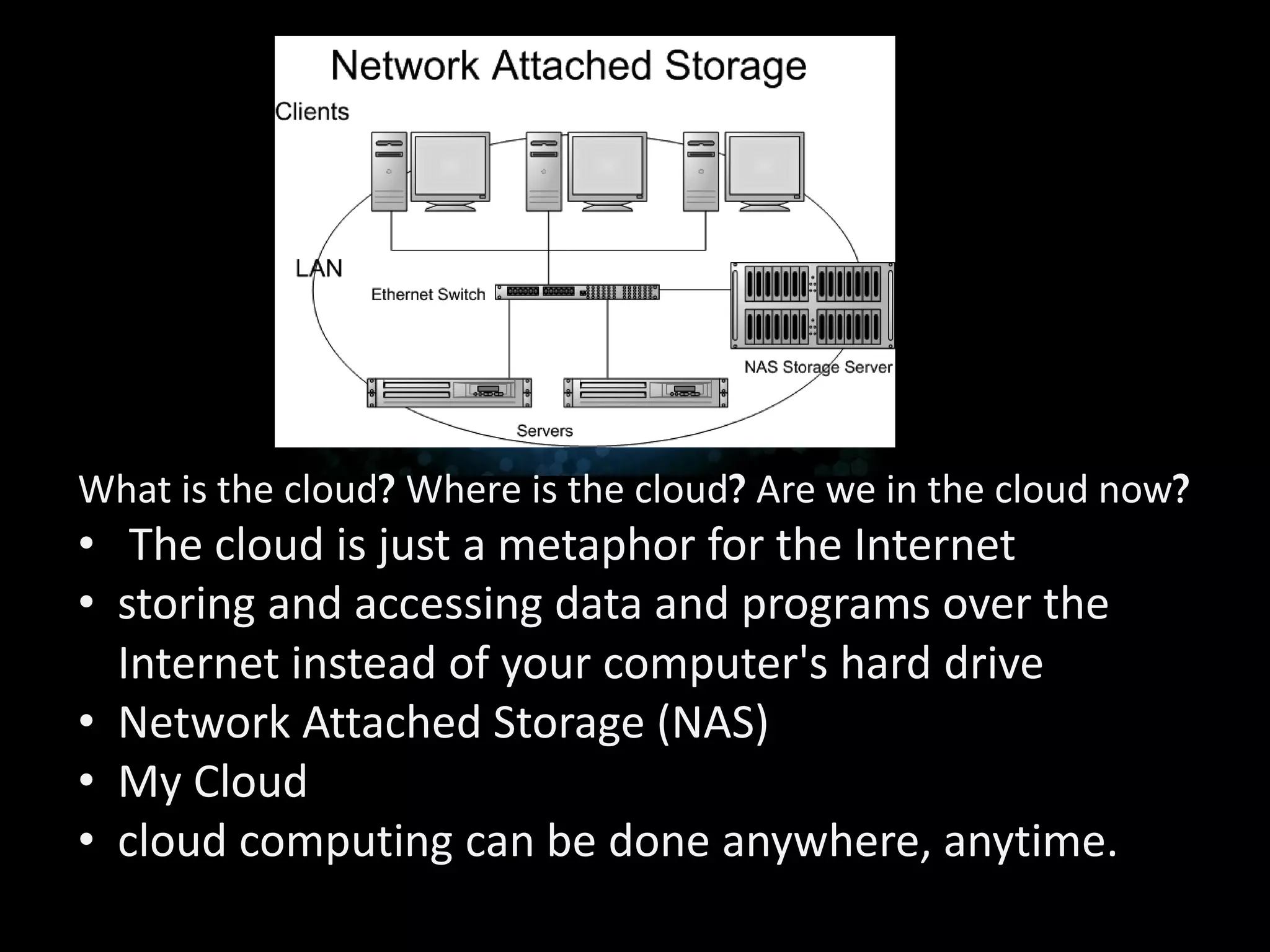

2. What is the cloud? Where is the cloud? Are we in the cloud now?
• The cloud is just a metaphor for the Internet
• storing and accessing data and programs over the
Internet instead of your computer's hard drive
• Network Attached Storage (NAS)
• My Cloud
• cloud computing can be done anywhere, anytime.

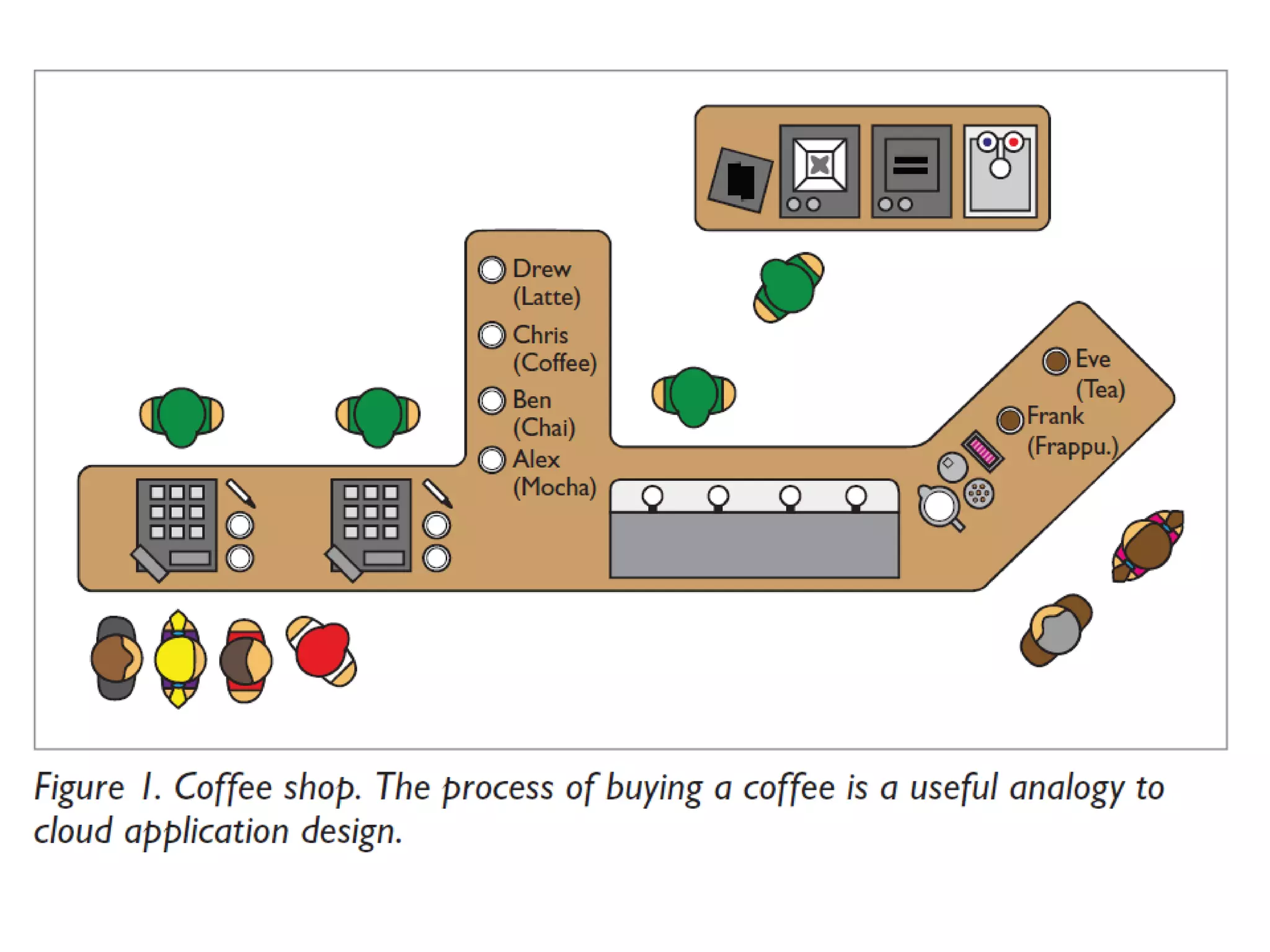

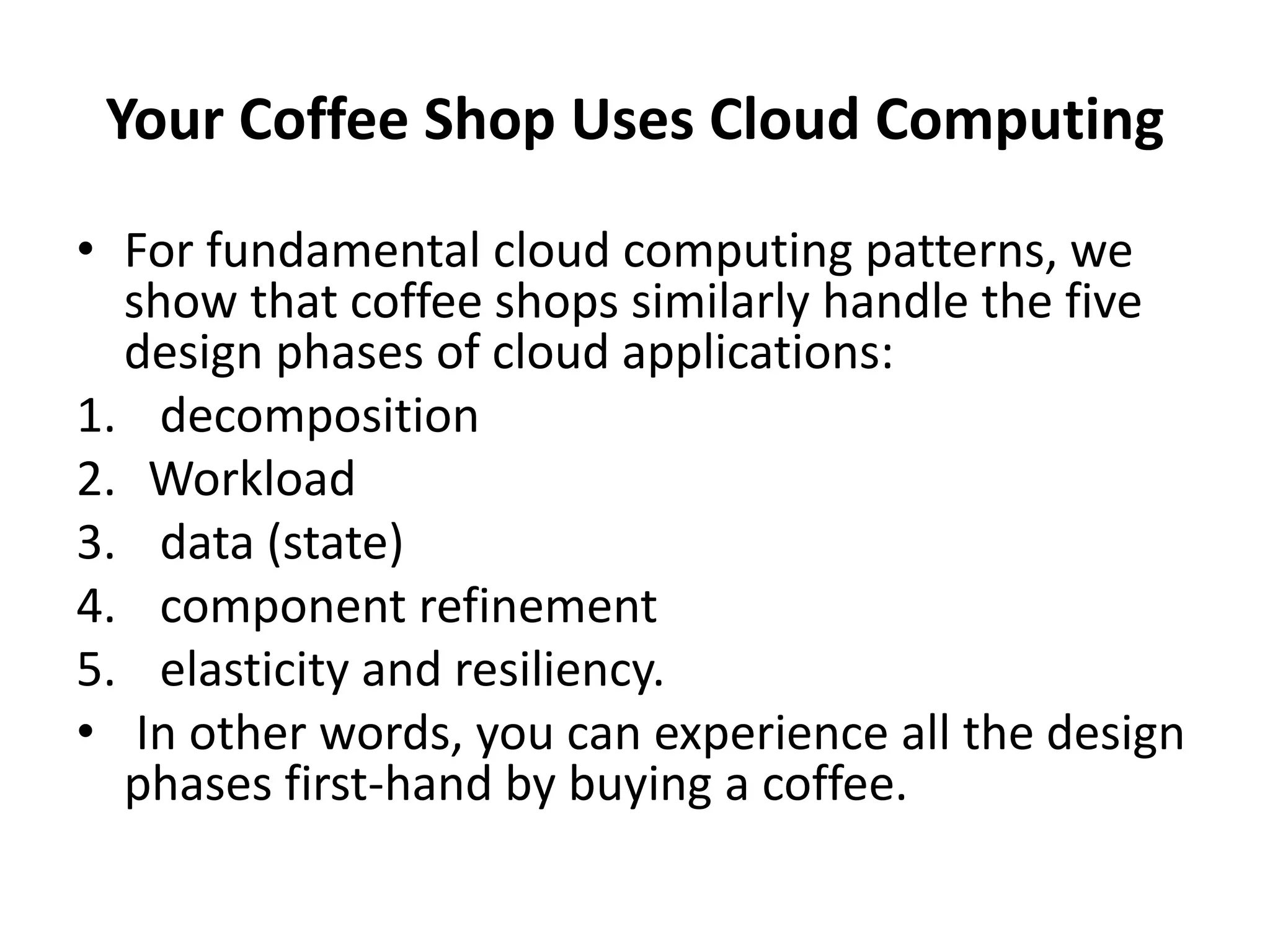

3. Your Coffee Shop Uses Cloud Computing
• For fundamental cloud computing patterns, we
show that coffee shops similarly handle the five
design phases of cloud applications:
1. decomposition
2. Workload
3. data (state)
4. component refinement
5. elasticity and resiliency.
• In other words, you can experience all the design
phases first-hand by buying a coffee.

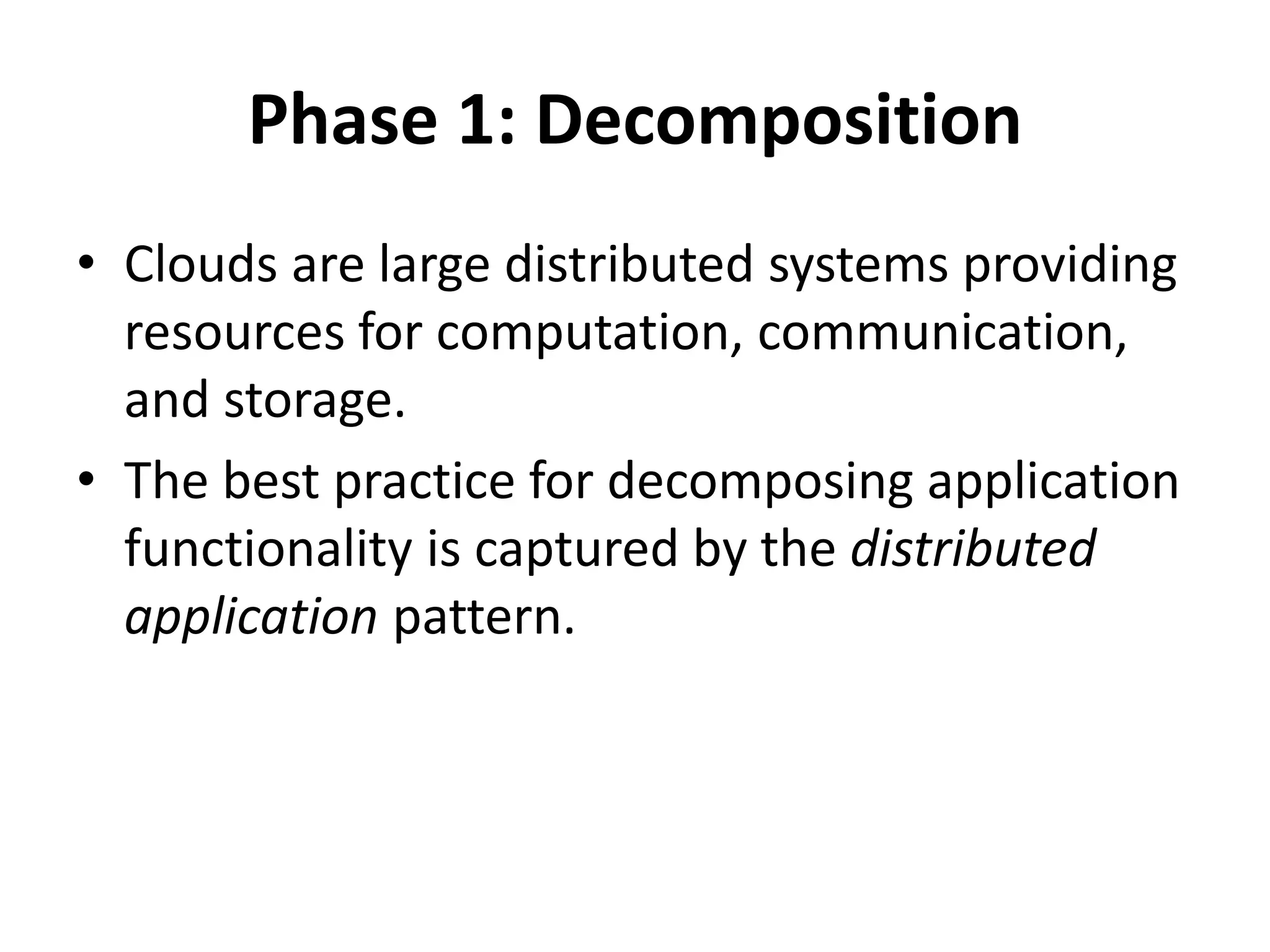

5. Phase 1: Decomposition
• Clouds are large distributed systems providing
resources for computation, communication,
and storage.
• The best practice for decomposing application
functionality is captured by the distributed
application pattern.

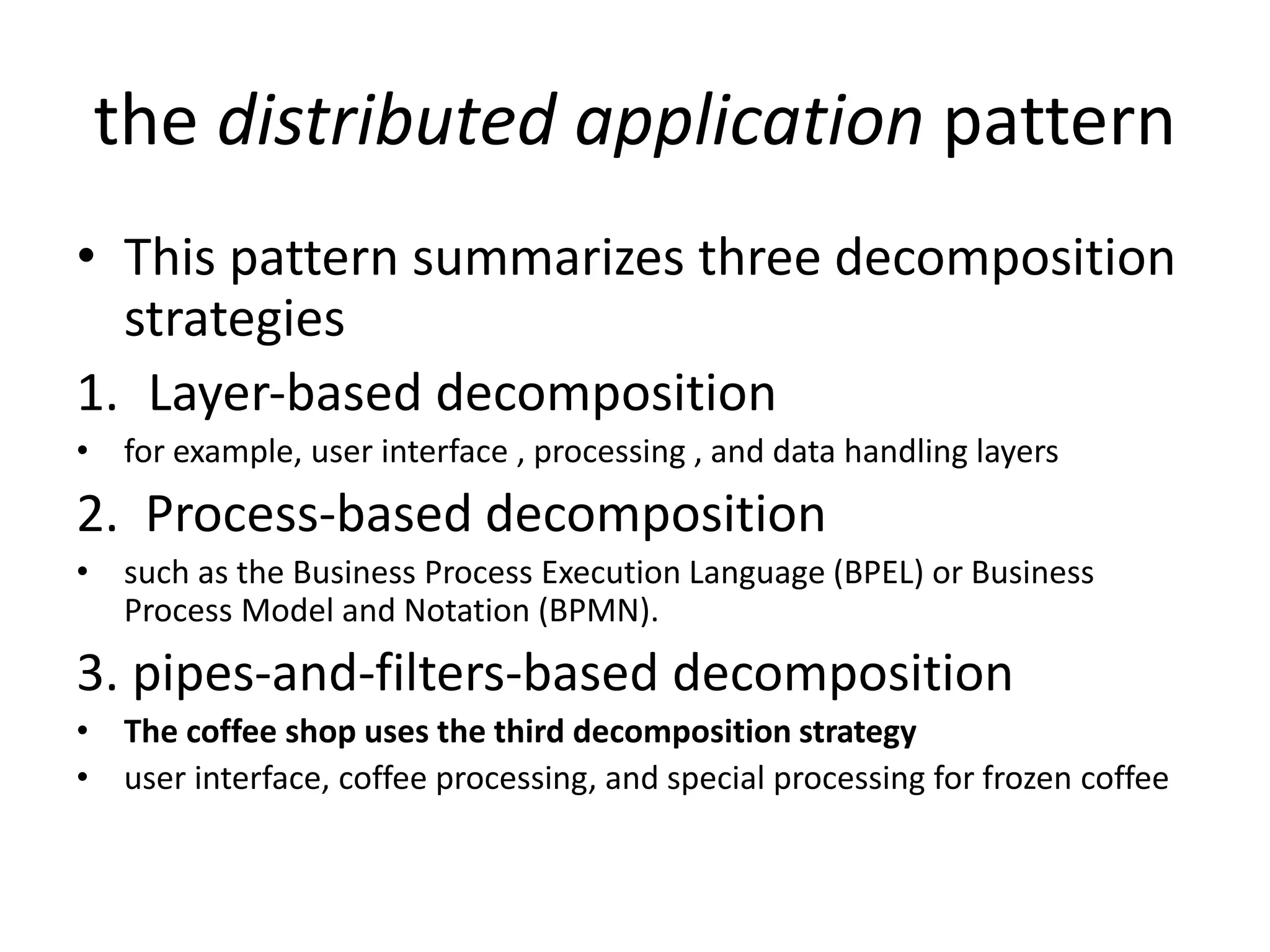

6. the distributed application pattern
• This pattern summarizes three decomposition
strategies
1. Layer‐based decomposition
• for example, user interface , processing , and data handling layers
2. Process‐based decomposition
• such as the Business Process Execution Language (BPEL) or Business
Process Model and Notation (BPMN).
3. pipes‐and‐filters-based decomposition
• The coffee shop uses the third decomposition strategy
• user interface, coffee processing, and special processing for frozen coffee

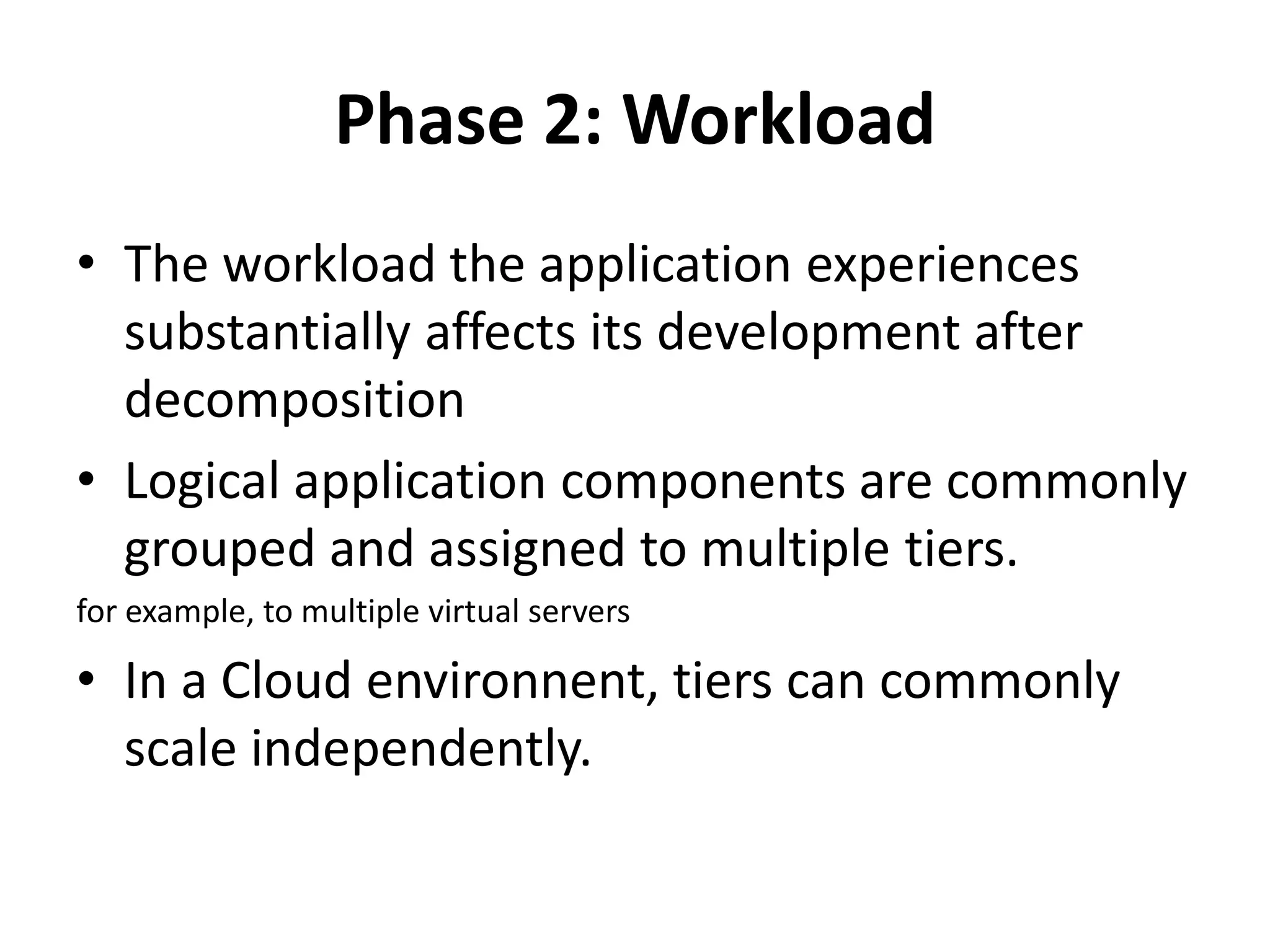

7. Phase 2: Workload
• The workload the application experiences
substantially affects its development after
decomposition
• Logical application components are commonly
grouped and assigned to multiple tiers.
for example, to multiple virtual servers
• In a Cloud environnent, tiers can commonly
scale independently.

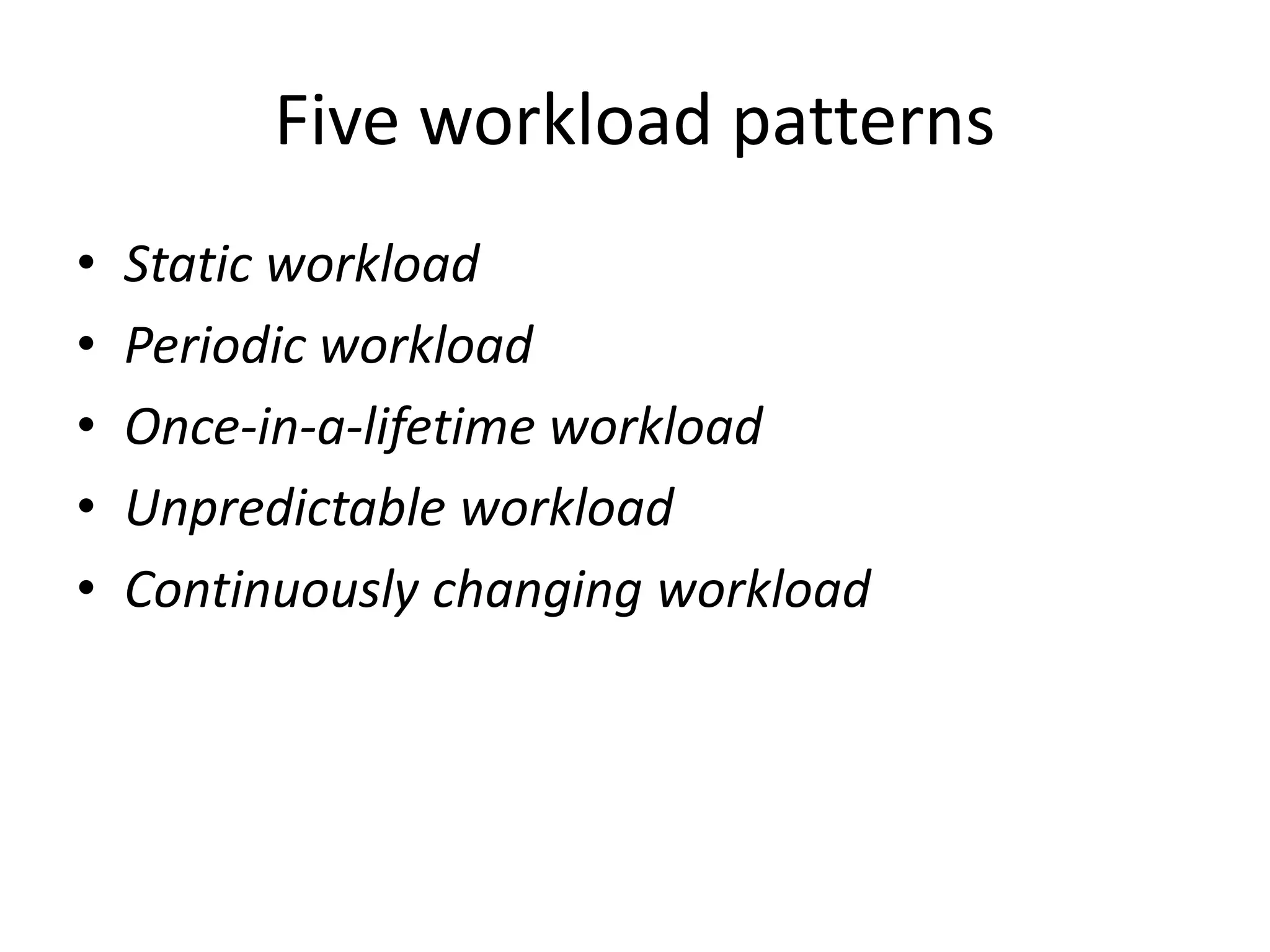

8. Five workload patterns
• Static workload
• Periodic workload
• Once‐in‐a‐lifetime workload
• Unpredictable workload
• Continuously changing workload

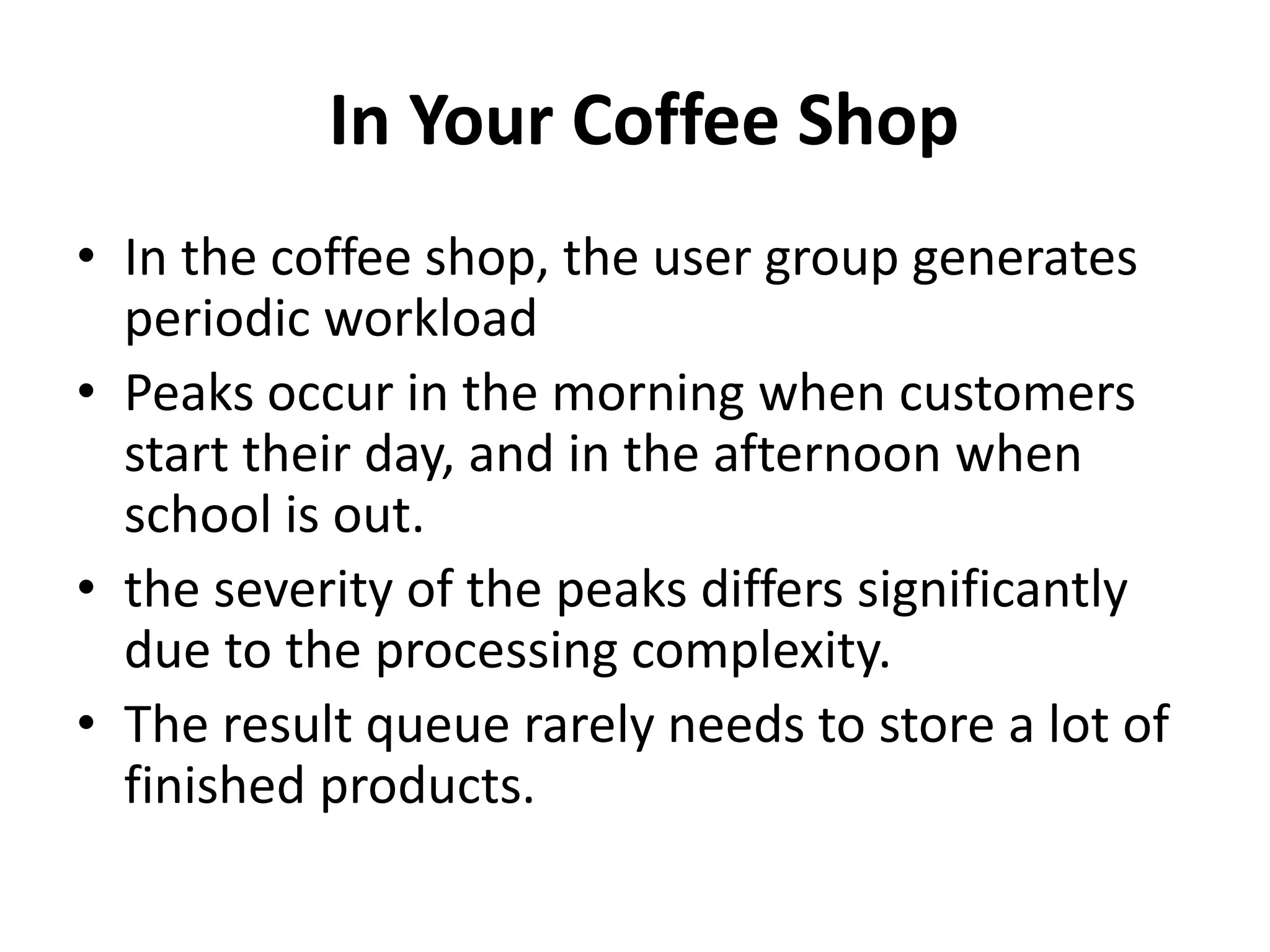

9. In Your Coffee Shop
• In the coffee shop, the user group generates
periodic workload
• Peaks occur in the morning when customers
start their day, and in the afternoon when
school is out.
• the severity of the peaks differs significantly
due to the processing complexity.
• The result queue rarely needs to store a lot of
finished products.

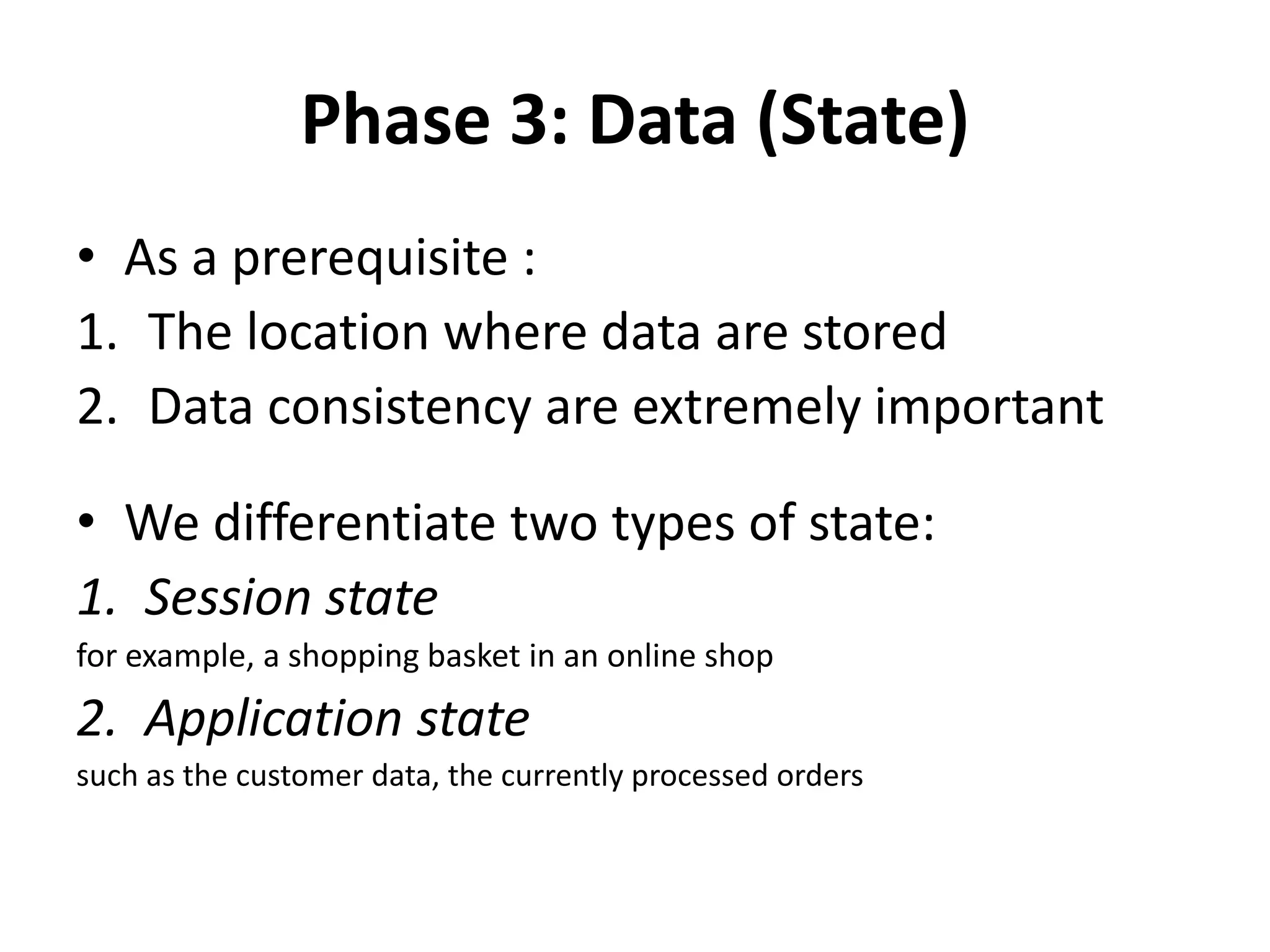

11. Phase 3: Data (State)
• As a prerequisite :
1. The location where data are stored
2. Data consistency are extremely important
• We differentiate two types of state:
1. Session state
for example, a shopping basket in an online shop
2. Application state
such as the customer data, the currently processed orders

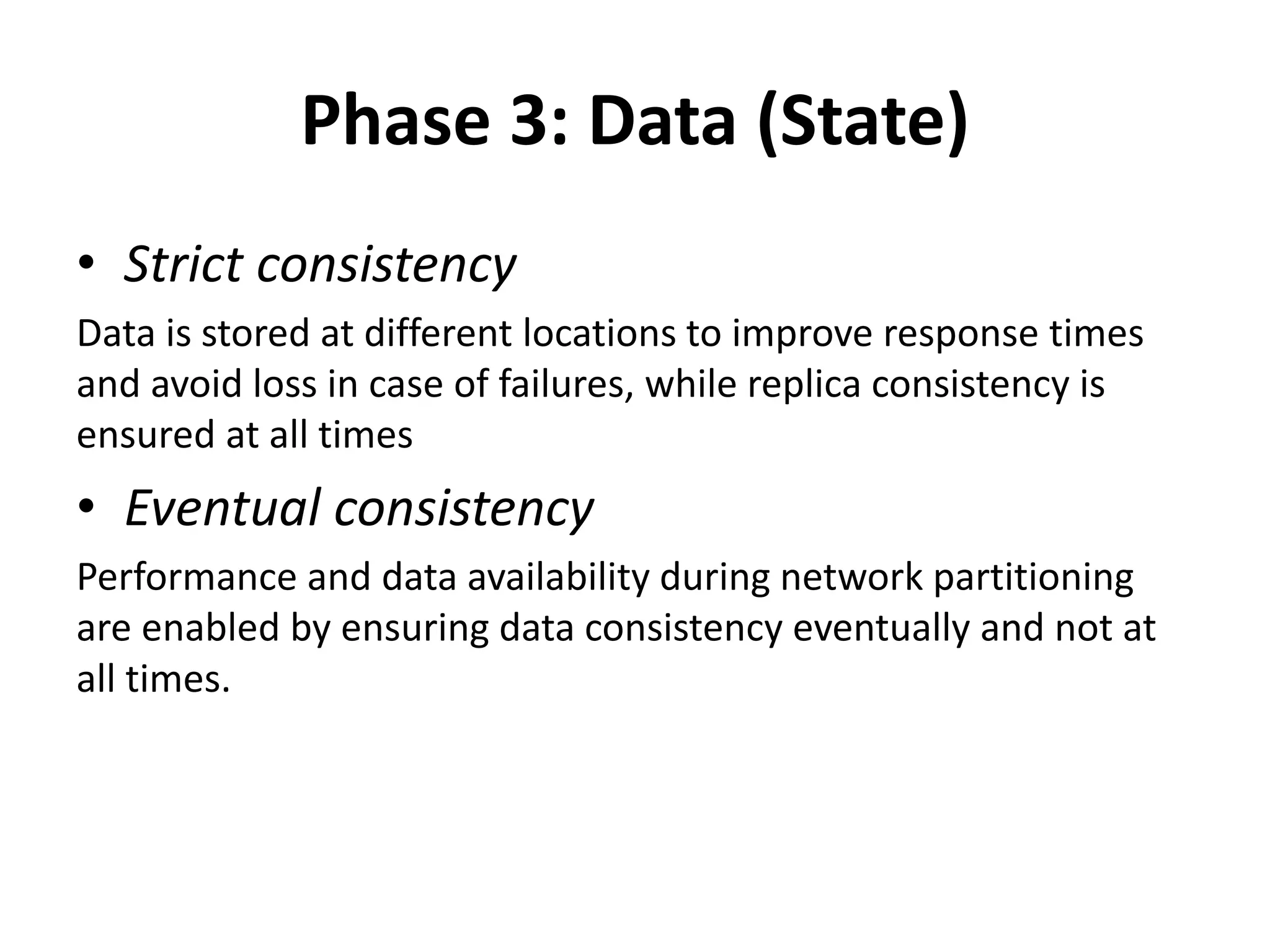

12. Phase 3: Data (State)
• Strict consistency
Data is stored at different locations to improve response times
and avoid loss in case of failures, while replica consistency is
ensured at all times
• Eventual consistency
Performance and data availability during network partitioning
are enabled by ensuring data consistency eventually and not at
all times.

13. In Your Coffee Shop
1. Session state
Where is my coffee?
Where is the coffee for Chris?
2. Application state
Coffee, Chai, Mocha,…
3. Eventual consistency
It will be ready in about five minutes.
lie a little bit as the business case allows.

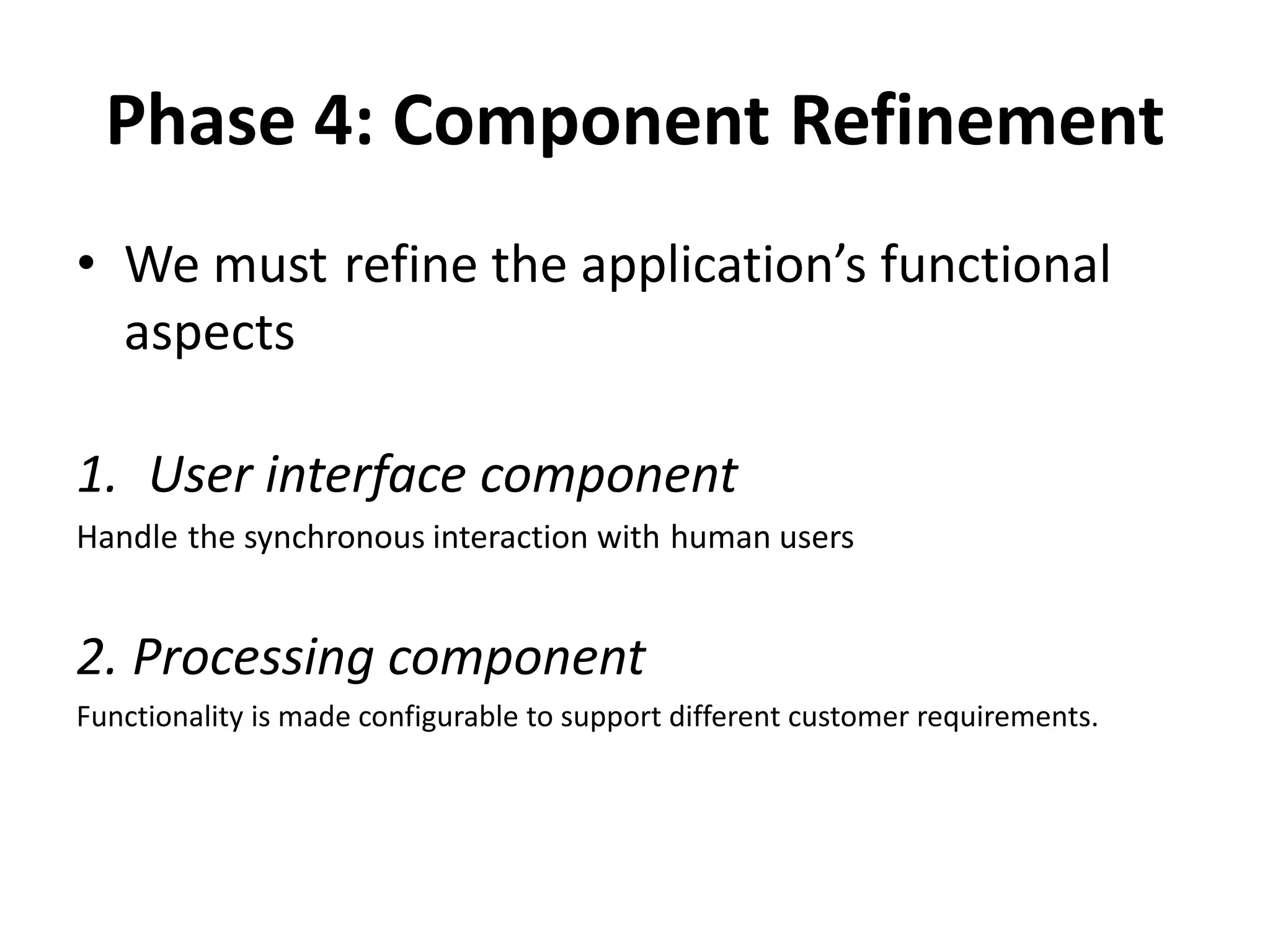

14. Phase 4: Component Refinement
• We must refine the application’s functional
aspects
1. User interface component
Handle the synchronous interaction with human users
2. Processing component
Functionality is made configurable to support different customer requirements.

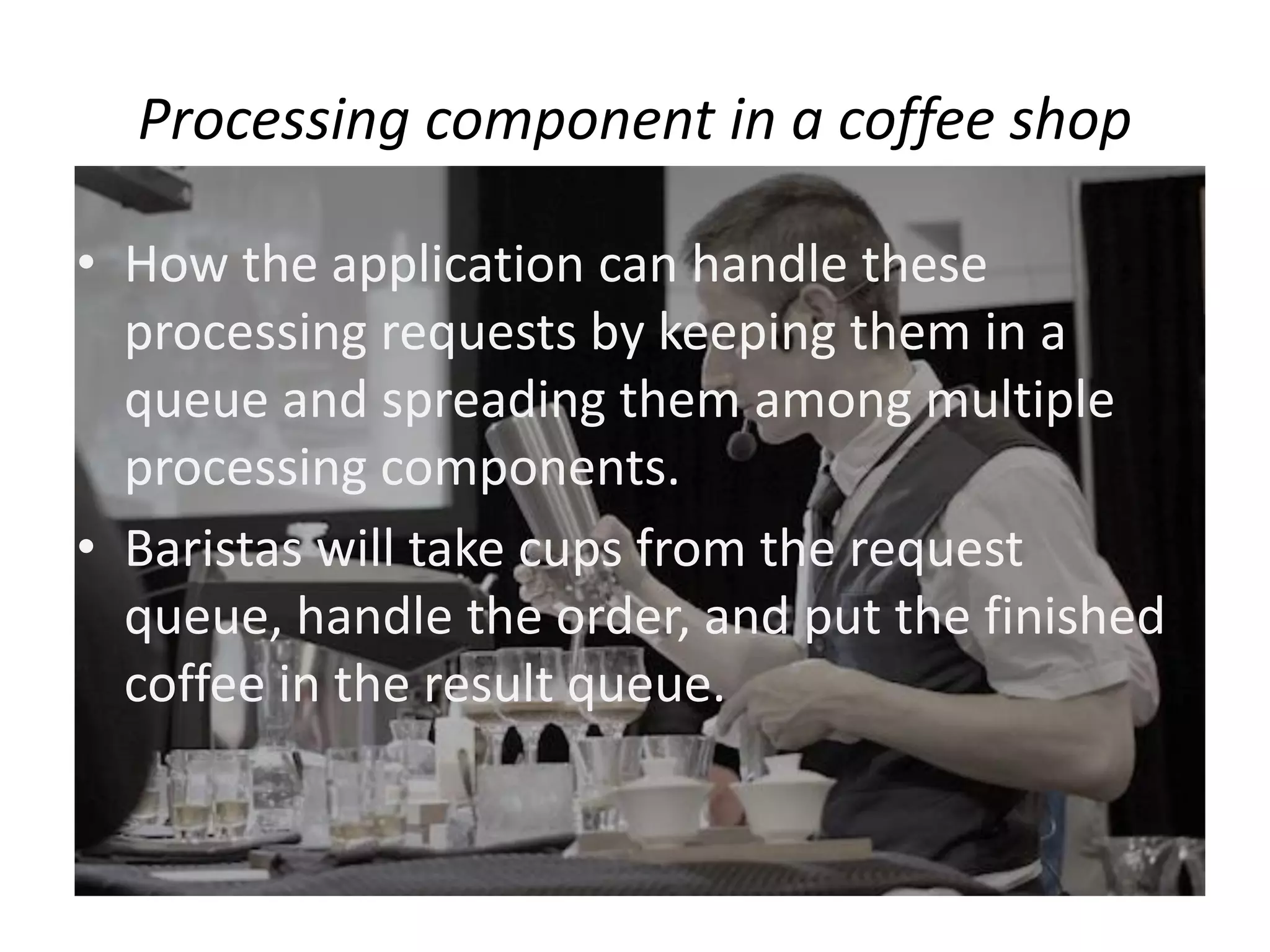

15. Processing component in a coffee shop
• How the application can handle these
processing requests by keeping them in a
queue and spreading them among multiple
processing components.
• Baristas will take cups from the request
queue, handle the order, and put the finished
coffee in the result queue.

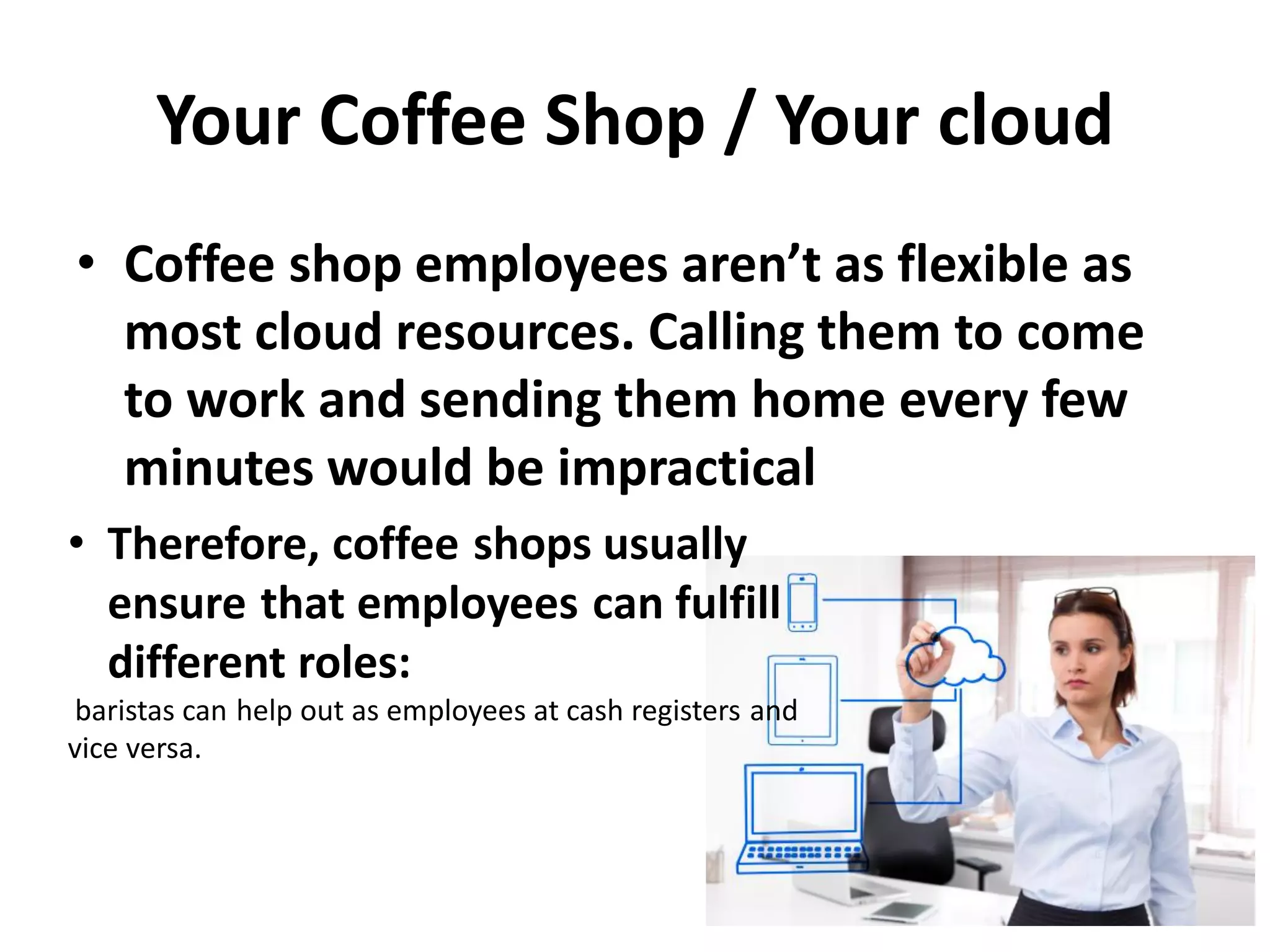

16. Your Coffee Shop / Your cloud
• Coffee shop employees aren’t as flexible as
most cloud resources. Calling them to come
to work and sending them home every few
minutes would be impractical
• Therefore, coffee shops usually
ensure that employees can fulfill
different roles:
baristas can help out as employees at cash registers and
vice versa.

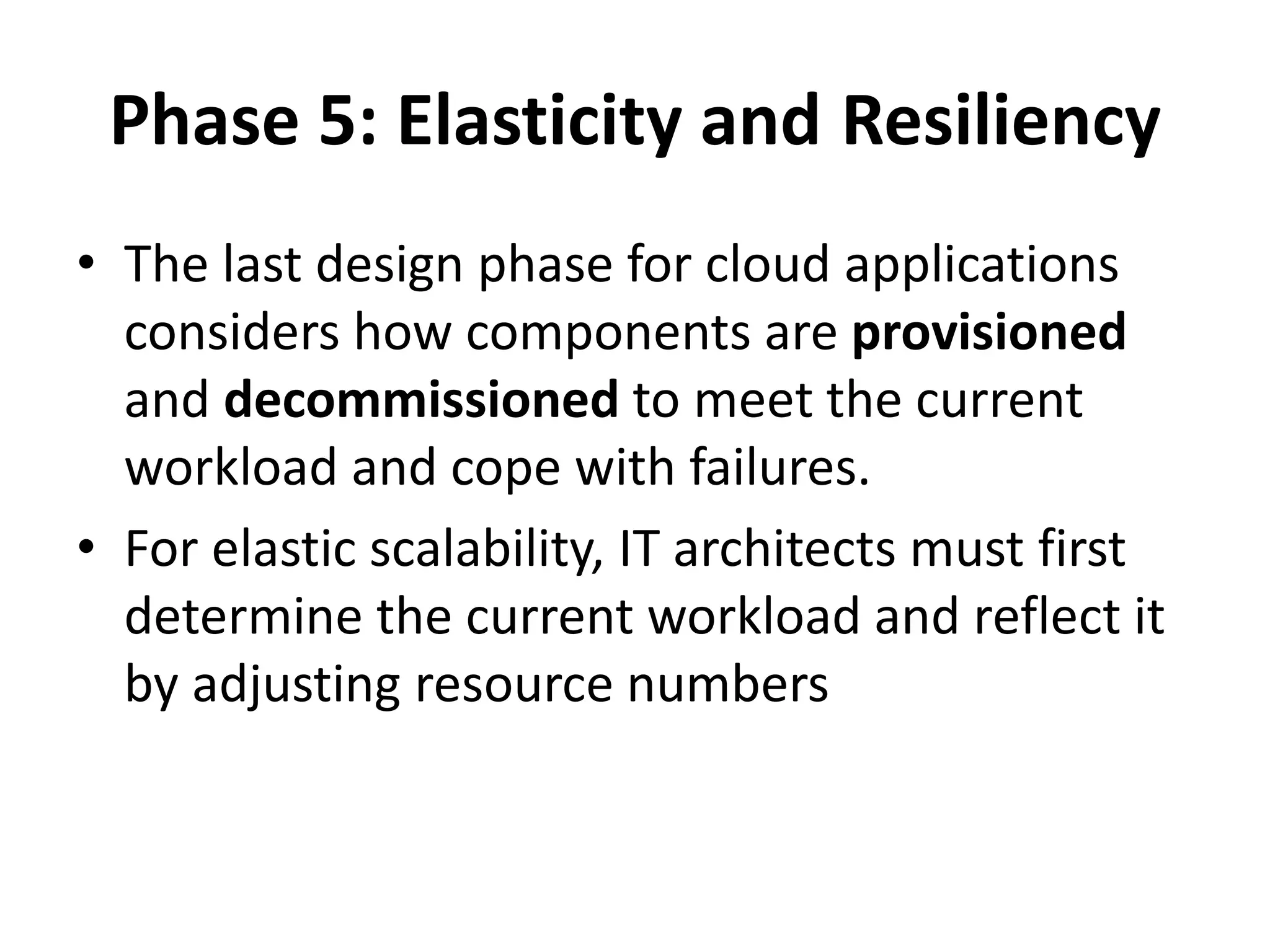

17. Phase 5: Elasticity and Resiliency
• The last design phase for cloud applications
considers how components are provisioned
and decommissioned to meet the current
workload and cope with failures.
• For elastic scalability, IT architects must first
determine the current workload and reflect it
by adjusting resource numbers

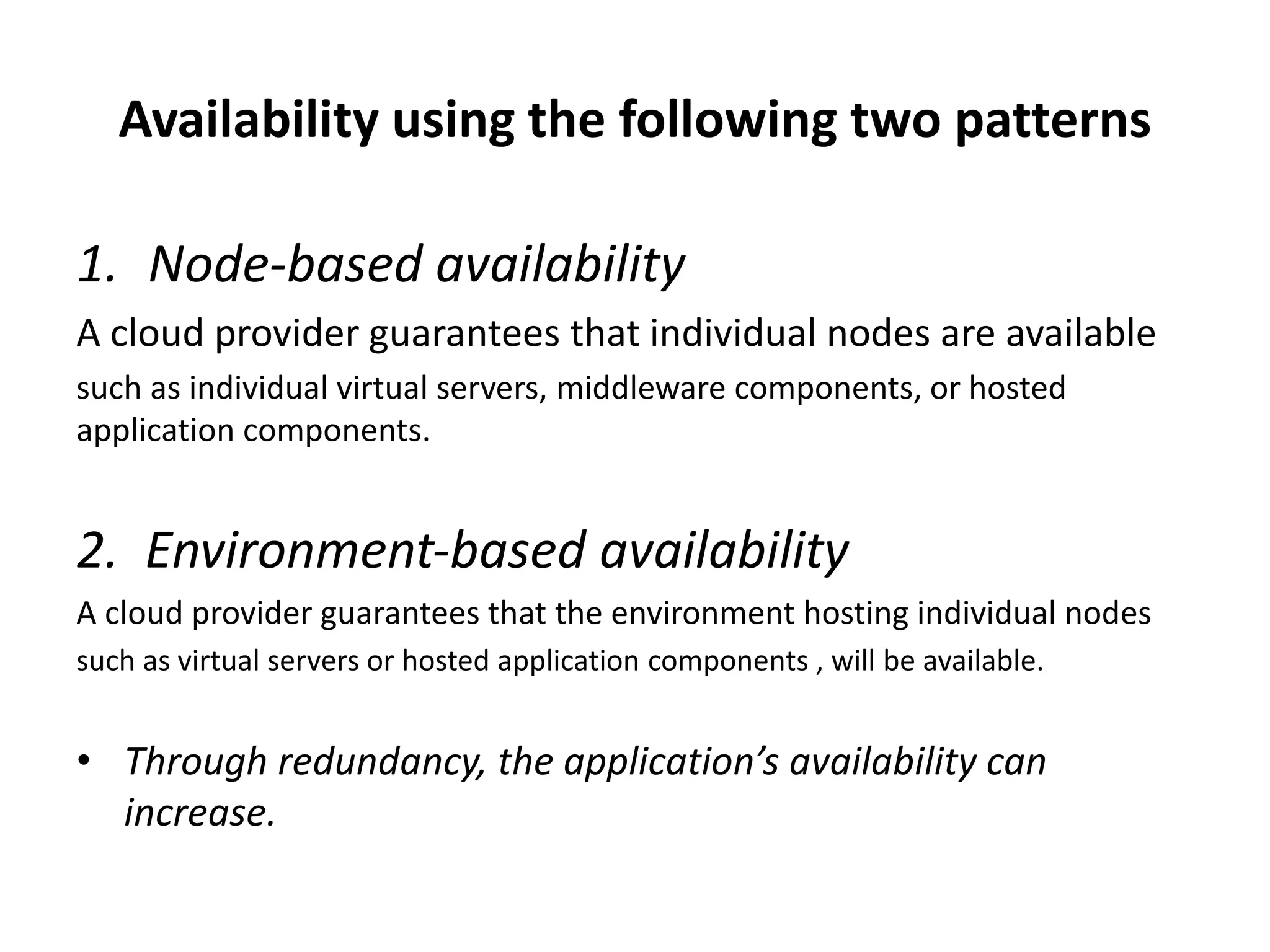

18. Availability using the following two patterns
1. Node‐based availability
A cloud provider guarantees that individual nodes are available
such as individual virtual servers, middleware components, or hosted
application components.
2. Environment‐based availability
A cloud provider guarantees that the environment hosting individual nodes
such as virtual servers or hosted application components , will be available.
• Through redundancy, the application’s availability can
increase.

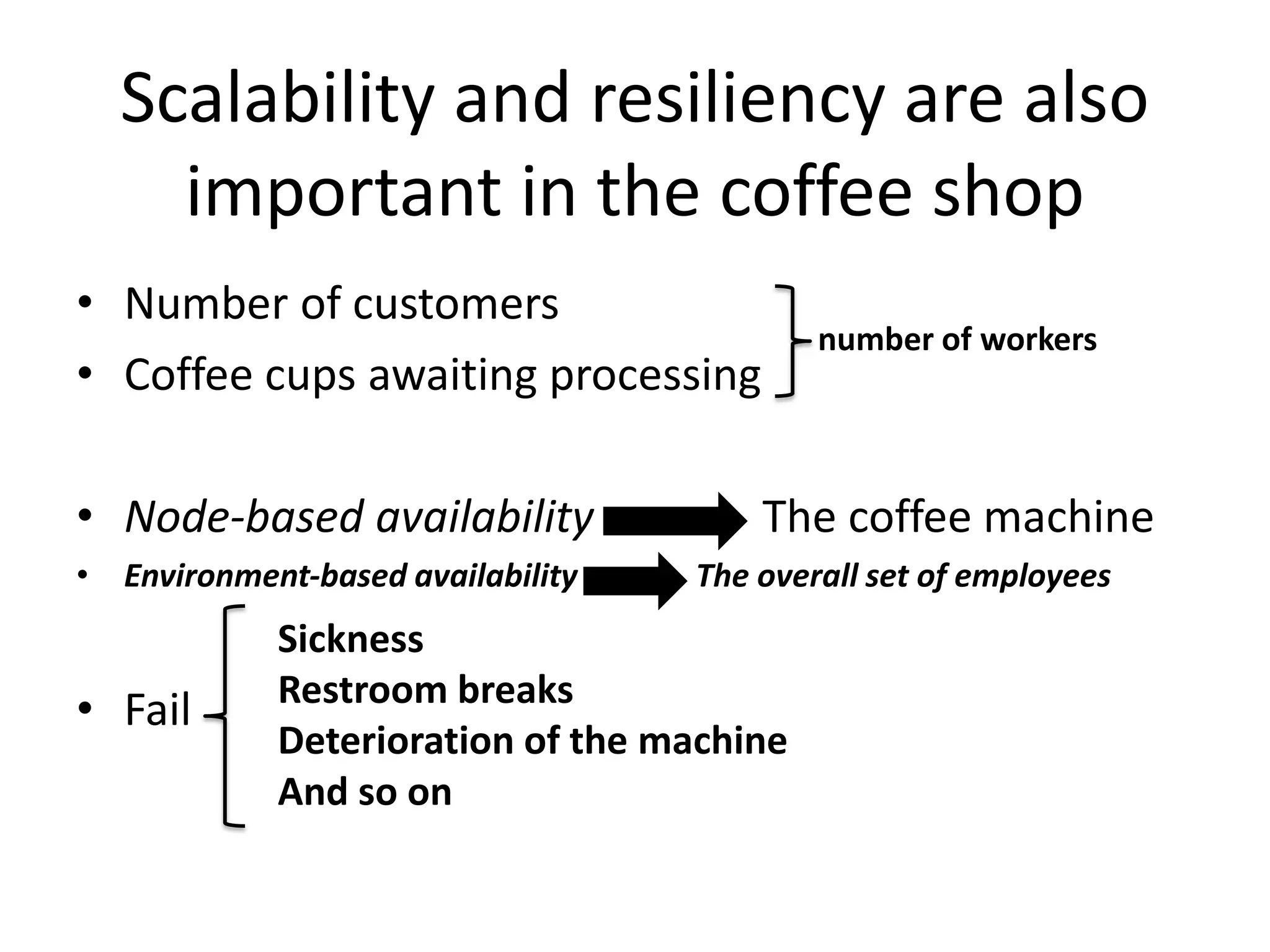

19. Scalability and resiliency are also
important in the coffee shop
• Number of customers
• Coffee cups awaiting processing
• Node‐based availability The coffee machine
• Environment‐based availability The overall set of employees
• Fail
number of workers
Sickness
Restroom breaks
Deterioration of the machine
And so on

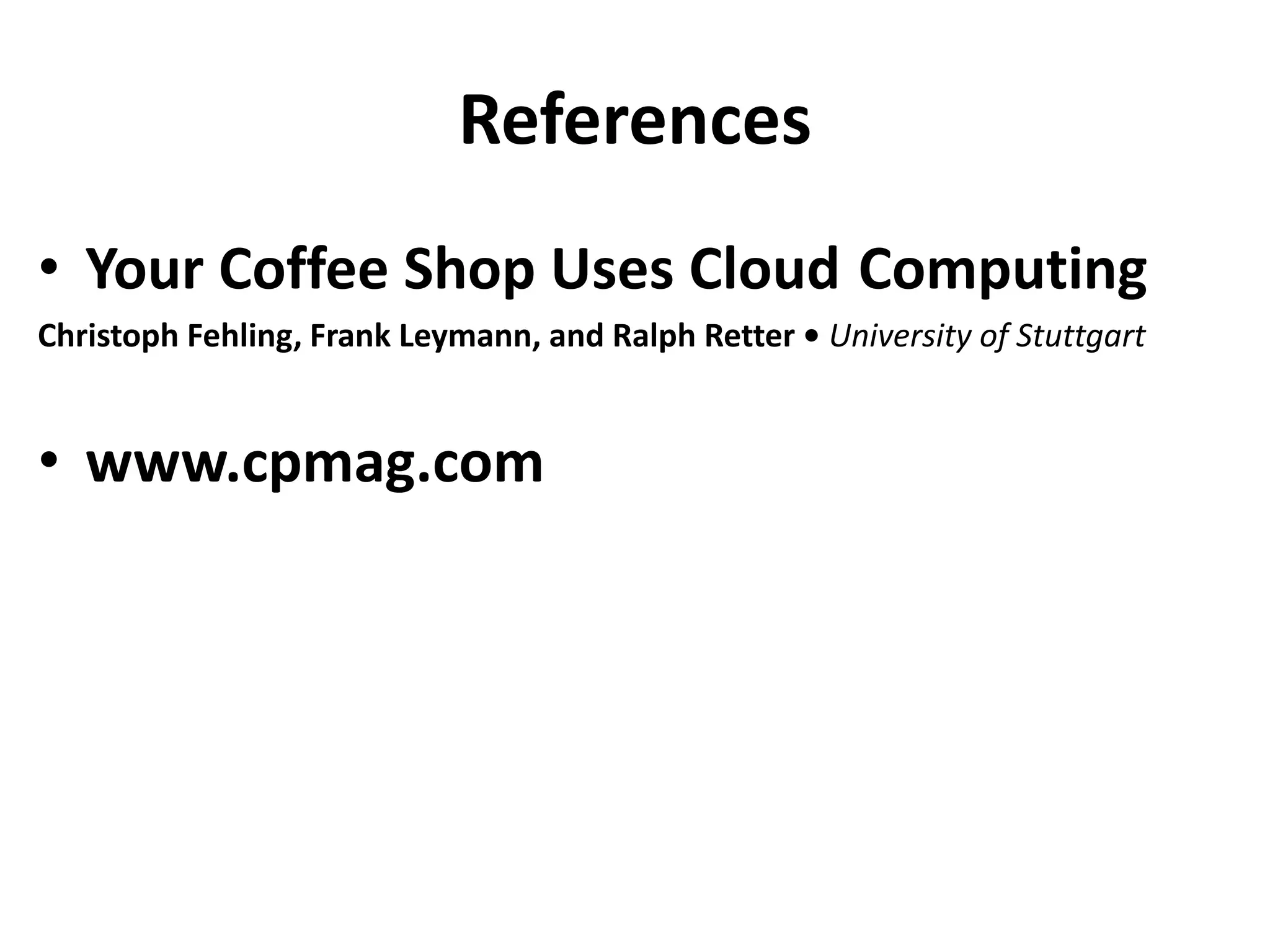

20. References
• Your Coffee Shop Uses Cloud Computing
Christoph Fehling, Frank Leymann, and Ralph Retter • University of Stuttgart
• www.cpmag.com
