The backpropagation is a machine learning algorithm using for training the neural network for various problem-solving.

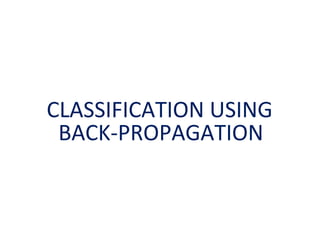

1. CLASSIFICATION USING
BACK-PROPAGATION

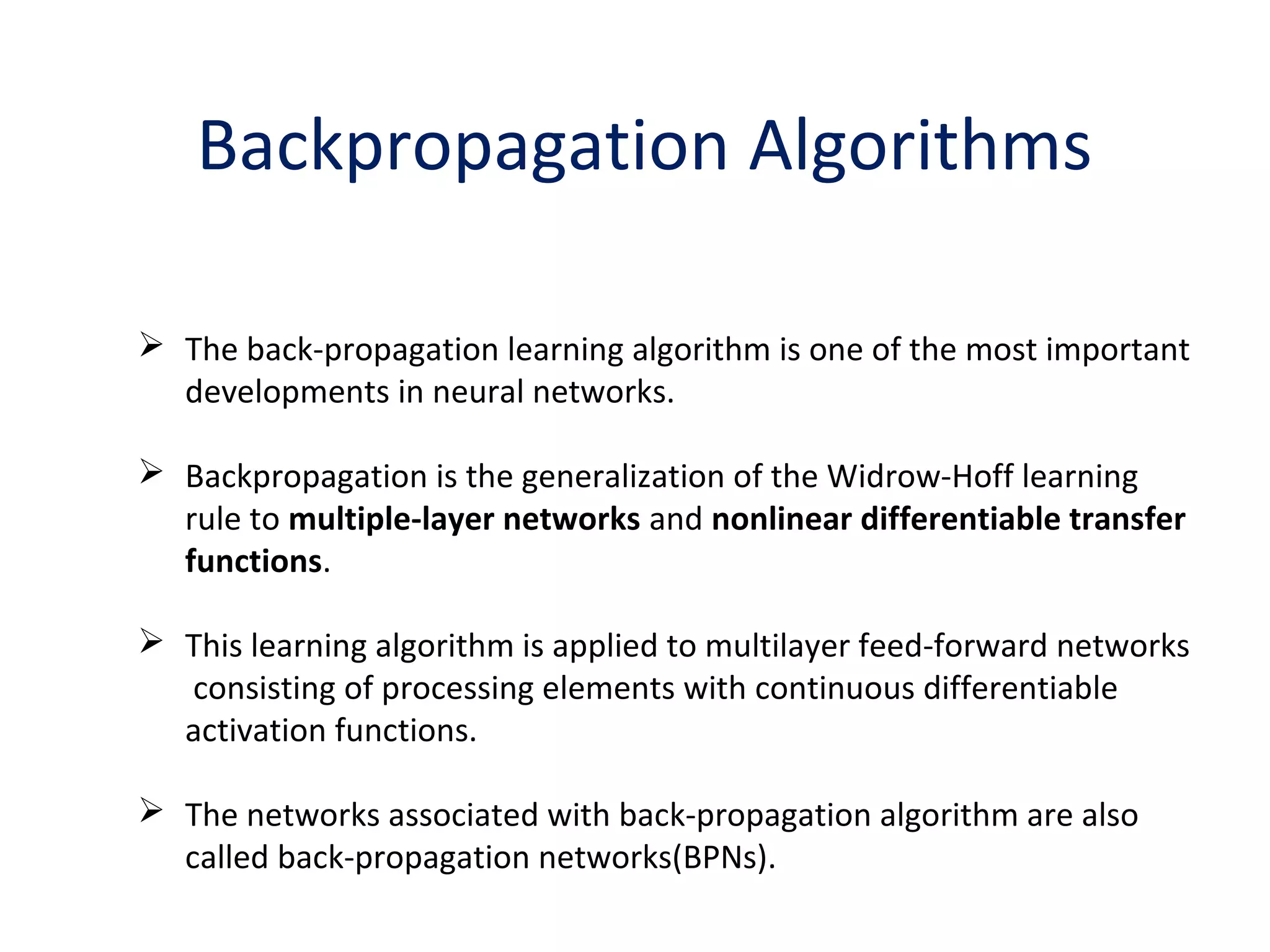

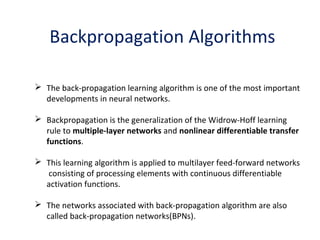

2. Backpropagation Algorithms
 The back-propagation learning algorithm is one of the most important
developments in neural networks.
 Backpropagation is the generalization of the Widrow-Hoff learning
rule to multiple-layer networks and nonlinear differentiable transfer
functions.
 This learning algorithm is applied to multilayer feed-forward networks
consisting of processing elements with continuous differentiable
activation functions.
 The networks associated with back-propagation algorithm are also
called back-propagation networks(BPNs).

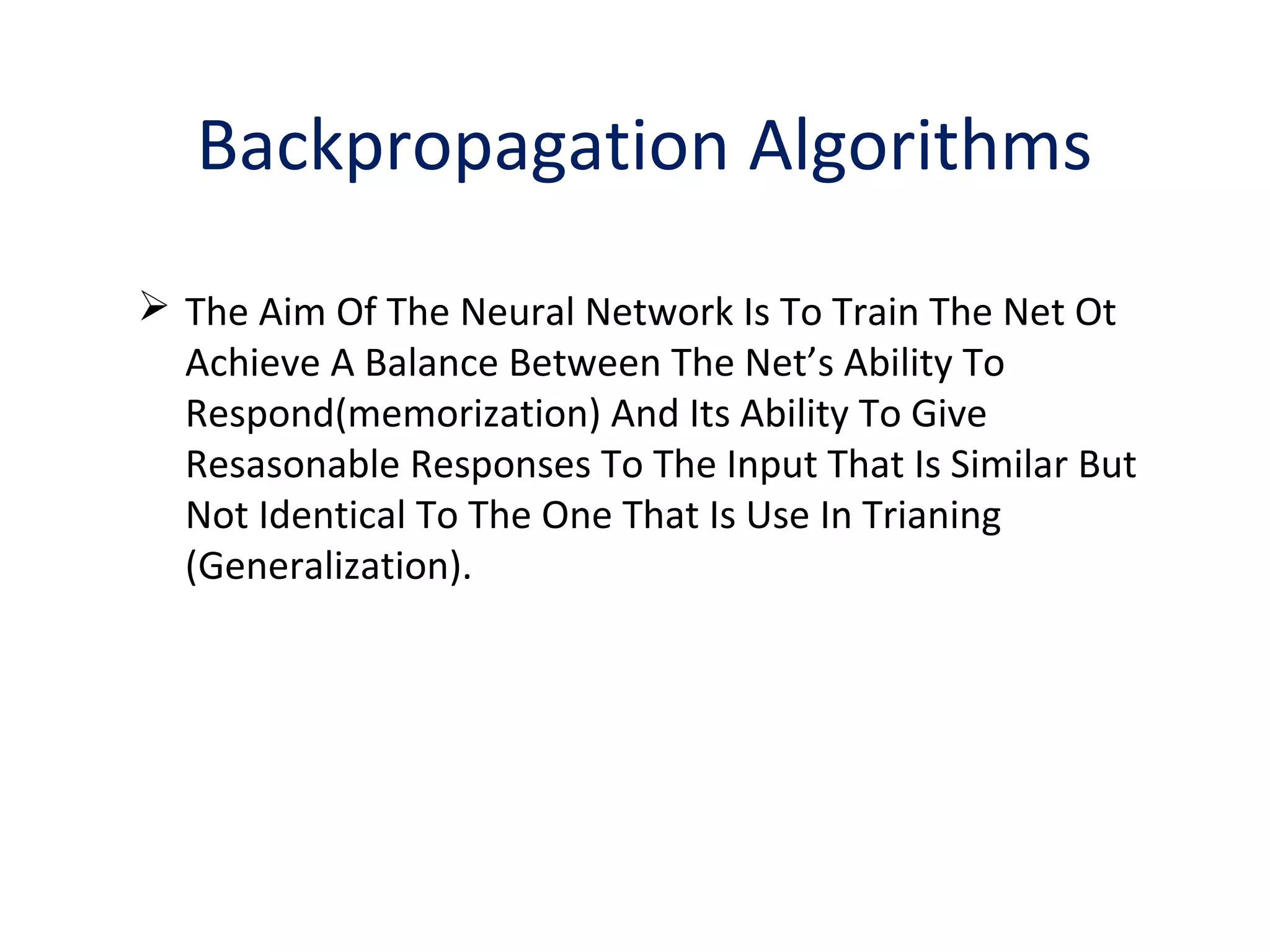

3. Backpropagation Algorithms

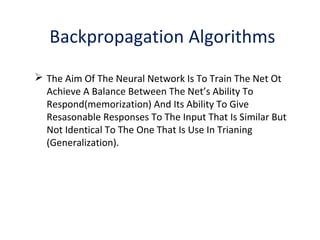

 The Aim Of The Neural Network Is To Train The Net Ot
Achieve A Balance Between The Net’s Ability To
Respond(memorization) And Its Ability To Give
Resasonable Responses To The Input That Is Similar But
Not Identical To The One That Is Use In Trianing
(Generalization).

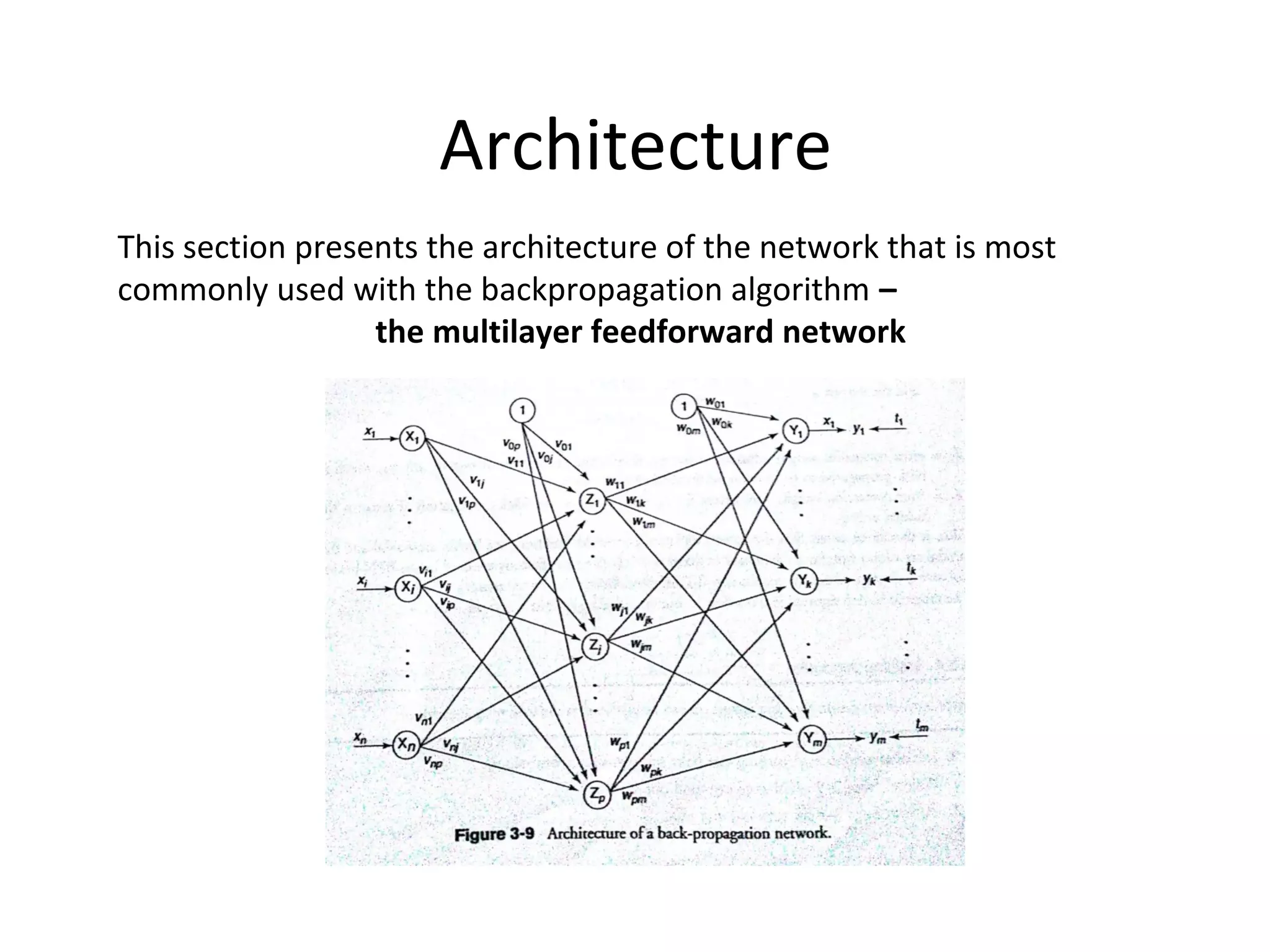

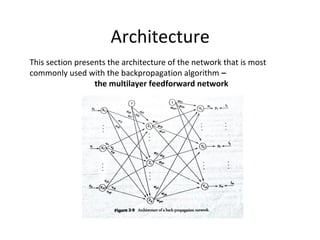

4. Architecture
This section presents the architecture of the network that is most
commonly used with the backpropagation algorithm –
the multilayer feedforward network

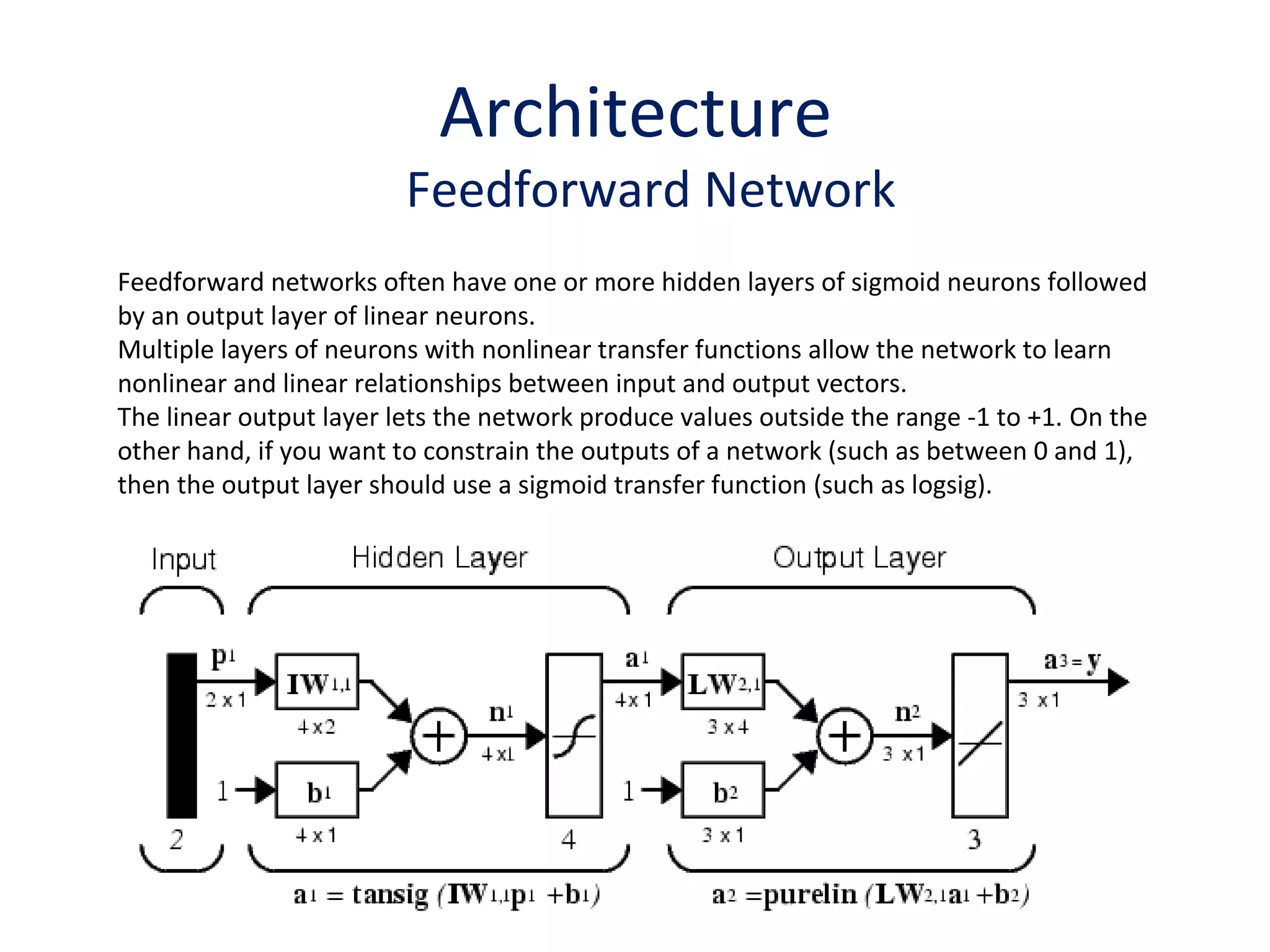

5. Architecture
Feedforward Network
Feedforward networks often have one or more hidden layers of sigmoid neurons followed
by an output layer of linear neurons.
Multiple layers of neurons with nonlinear transfer functions allow the network to learn
nonlinear and linear relationships between input and output vectors.
The linear output layer lets the network produce values outside the range -1 to +1. On the
other hand, if you want to constrain the outputs of a network (such as between 0 and 1),
then the output layer should use a sigmoid transfer function (such as logsig).

6. Learning Algorithm:
Backpropagation

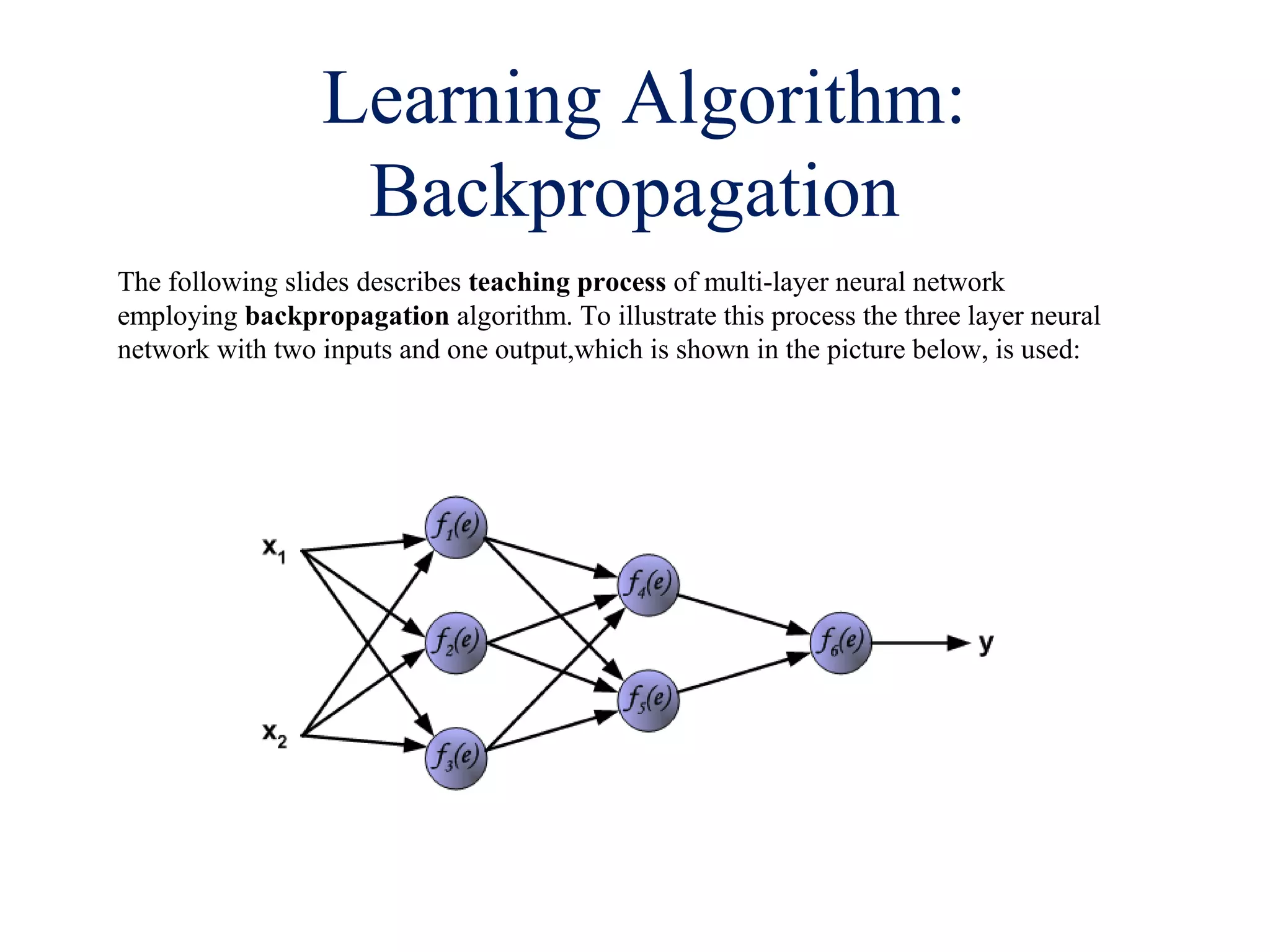

The following slides describes teaching process of multi-layer neural network
employing backpropagation algorithm. To illustrate this process the three layer neural
network with two inputs and one output,which is shown in the picture below, is used:

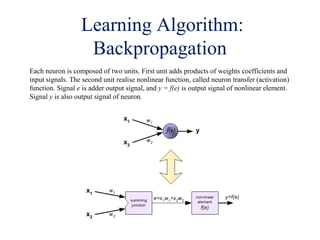

7. Learning Algorithm:
Backpropagation

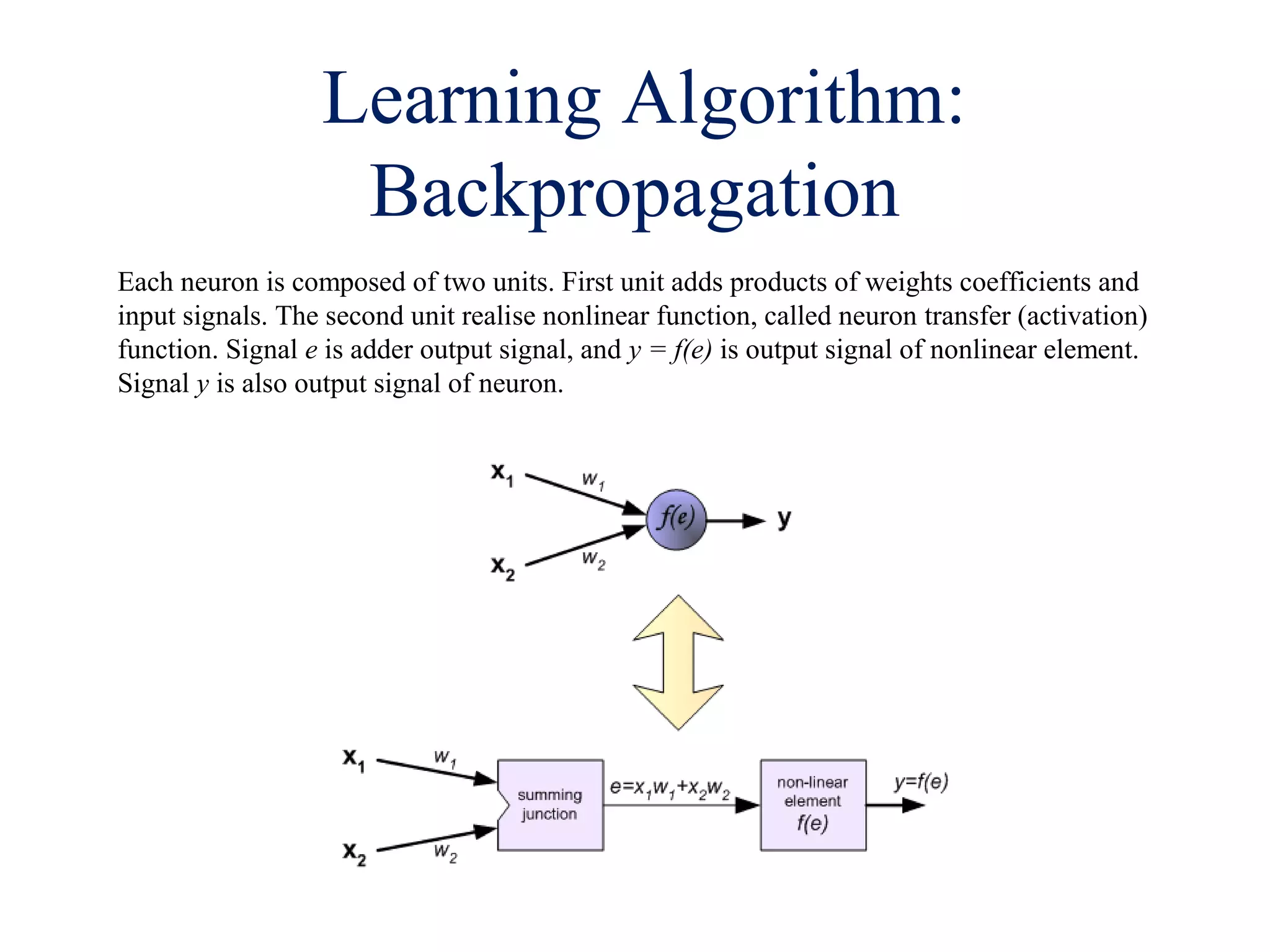

Each neuron is composed of two units. First unit adds products of weights coefficients and
input signals. The second unit realise nonlinear function, called neuron transfer (activation)
function. Signal e is adder output signal, and y = f(e) is output signal of nonlinear element.
Signal y is also output signal of neuron.

8. Learning Algorithm:
Backpropagation

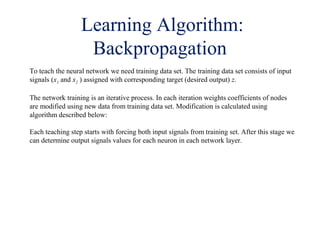

To teach the neural network we need training data set. The training data set consists of input
signals (x1 and x2 ) assigned with corresponding target (desired output) z.
The network training is an iterative process. In each iteration weights coefficients of nodes
are modified using new data from training data set. Modification is calculated using
algorithm described below:
Each teaching step starts with forcing both input signals from training set. After this stage we
can determine output signals values for each neuron in each network layer.

9. Learning Algorithm:
Backpropagation

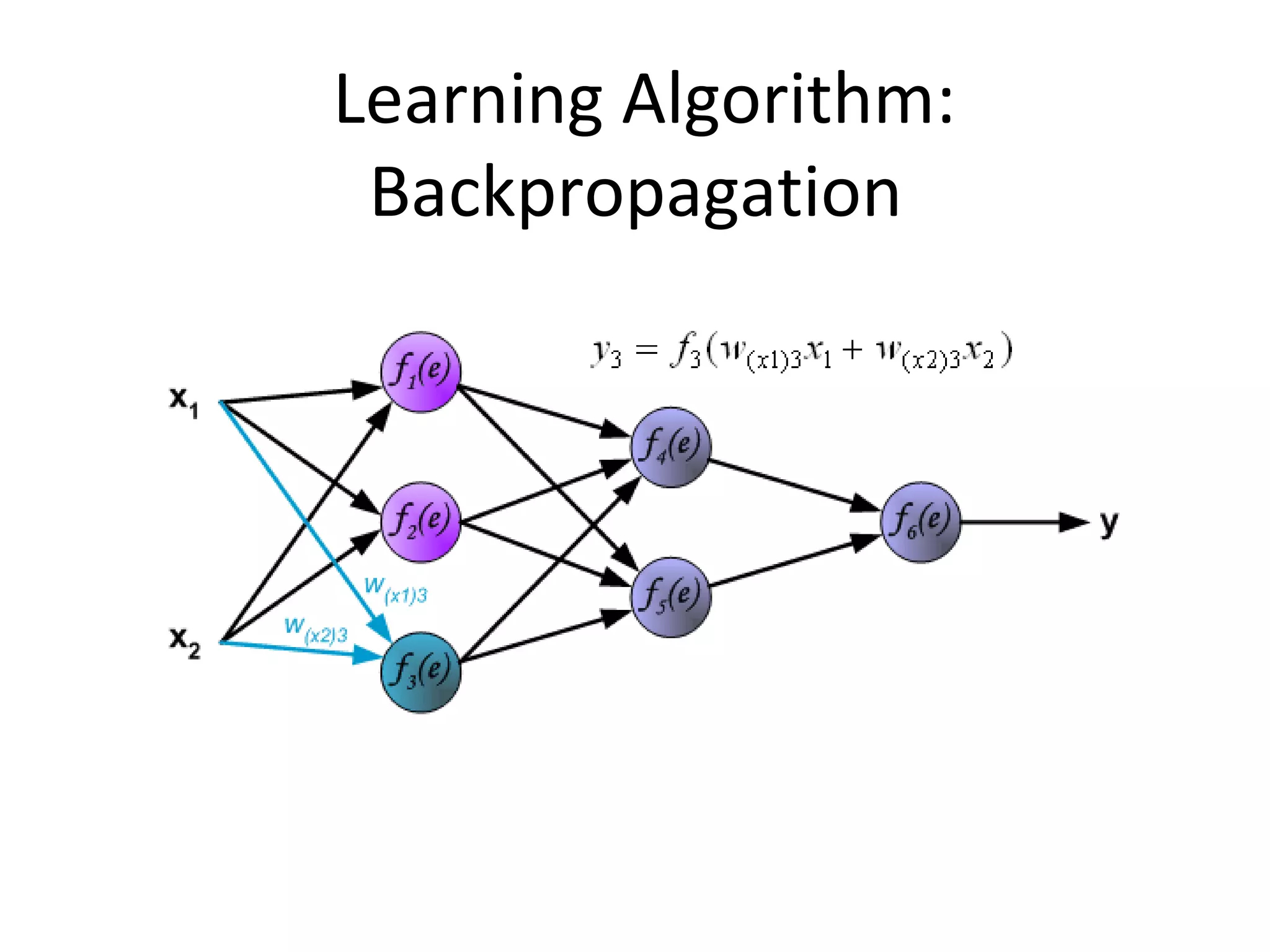

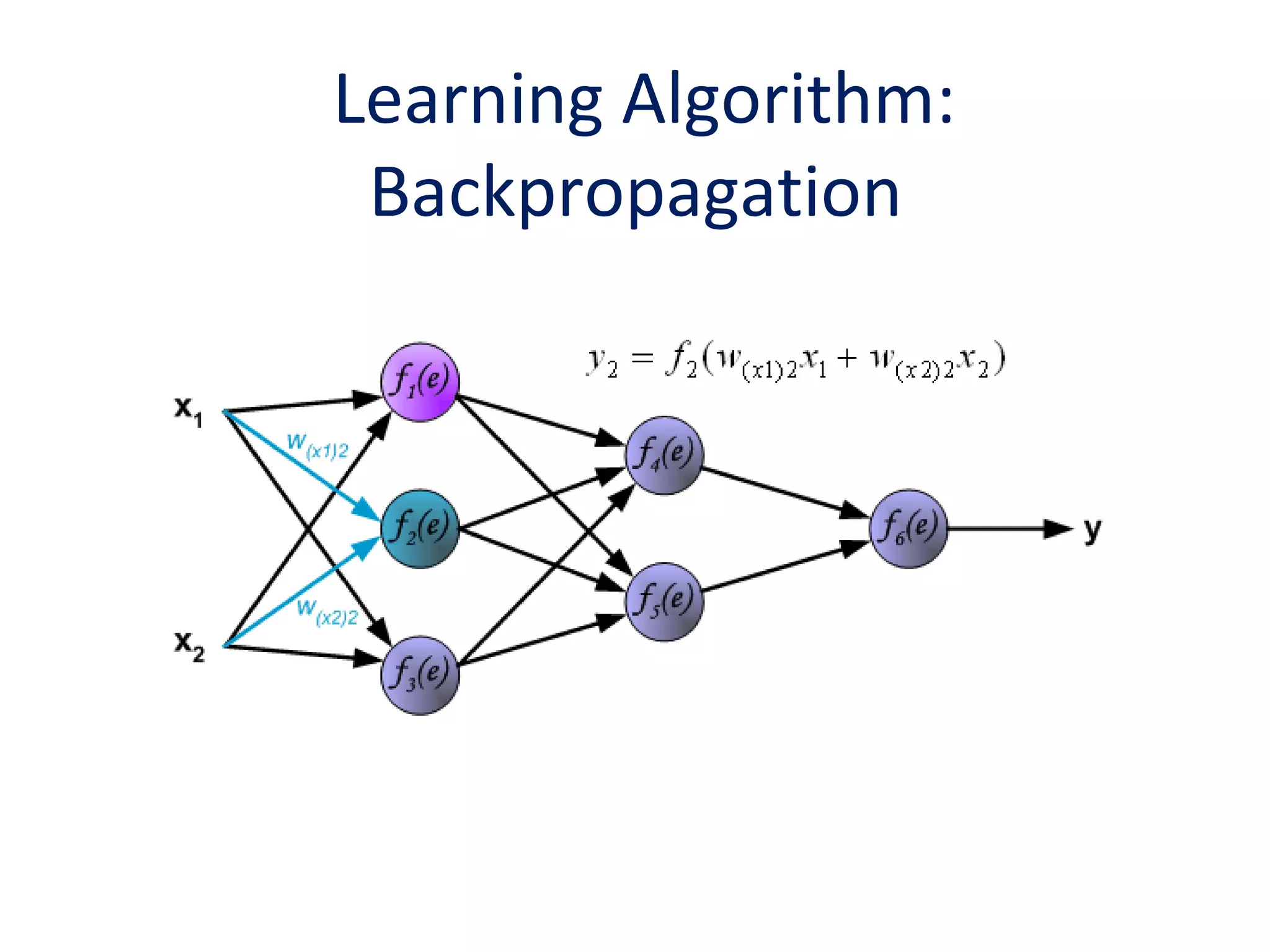

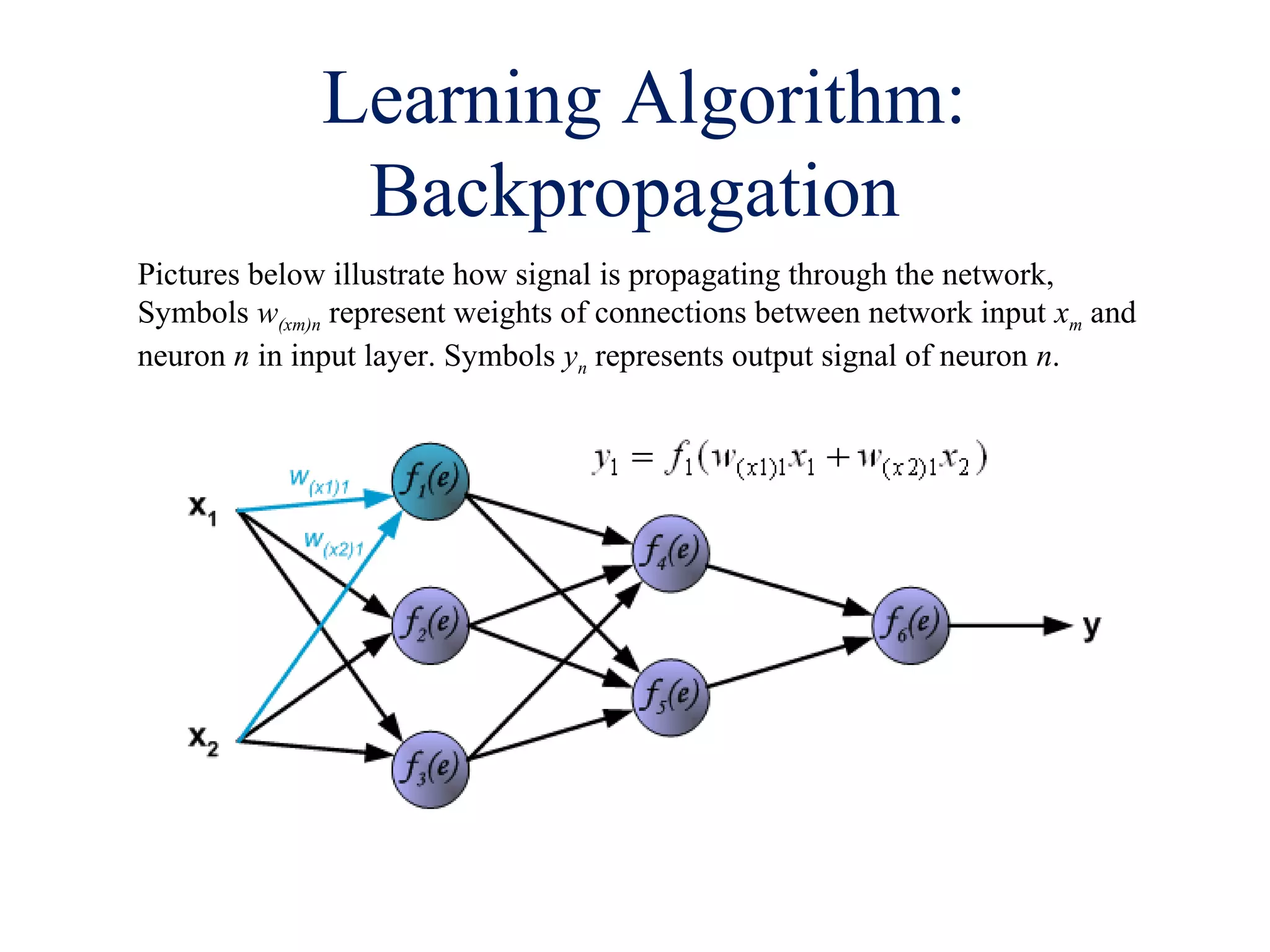

Pictures below illustrate how signal is propagating through the network,
Symbols w(xm)n represent weights of connections between network input xm and
neuron n in input layer. Symbols yn represents output signal of neuron n.

10. Learning Algorithm:
Backpropagation

11. Learning Algorithm:
Backpropagation

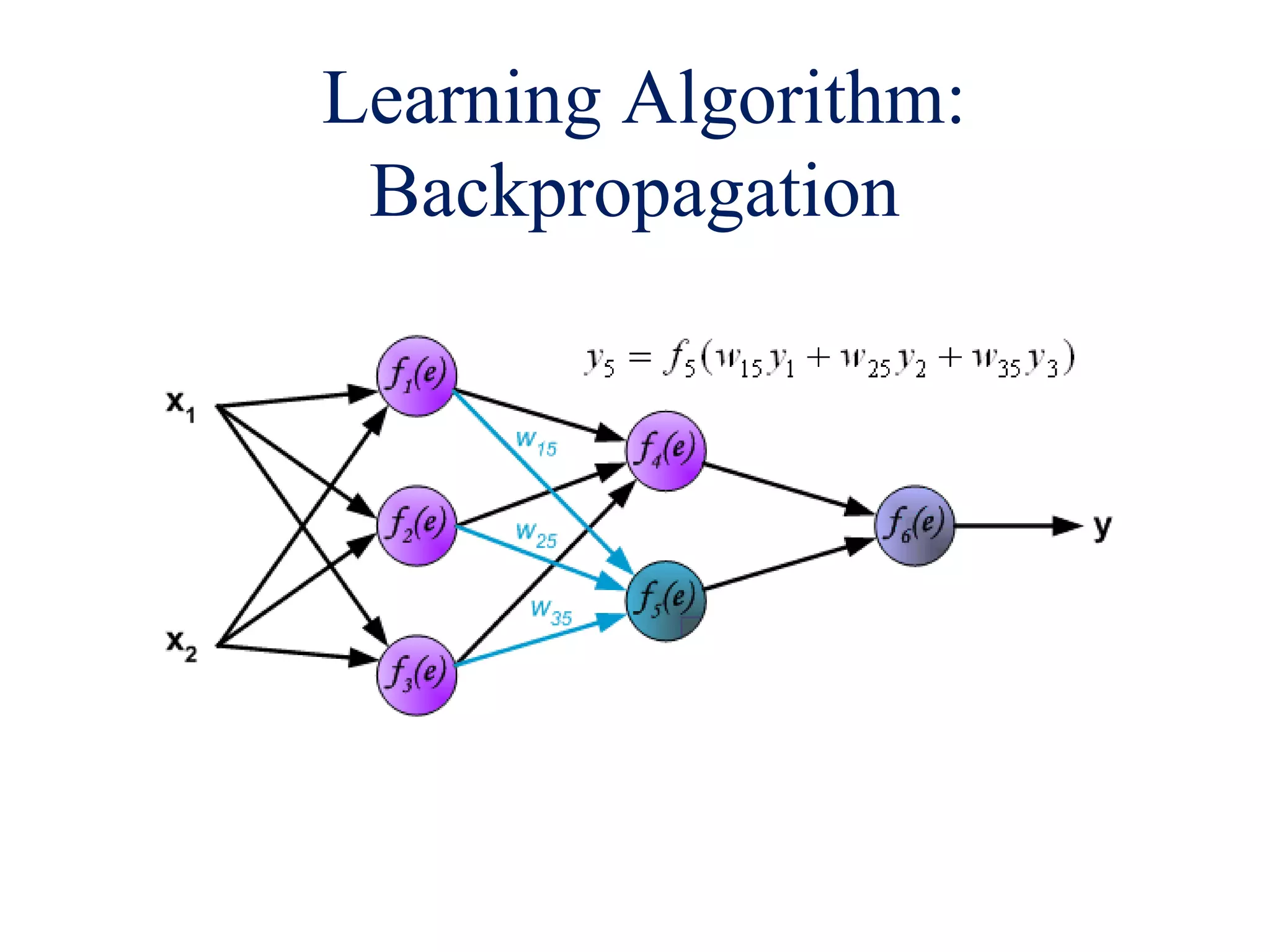

12. Learning Algorithm:
Backpropagation

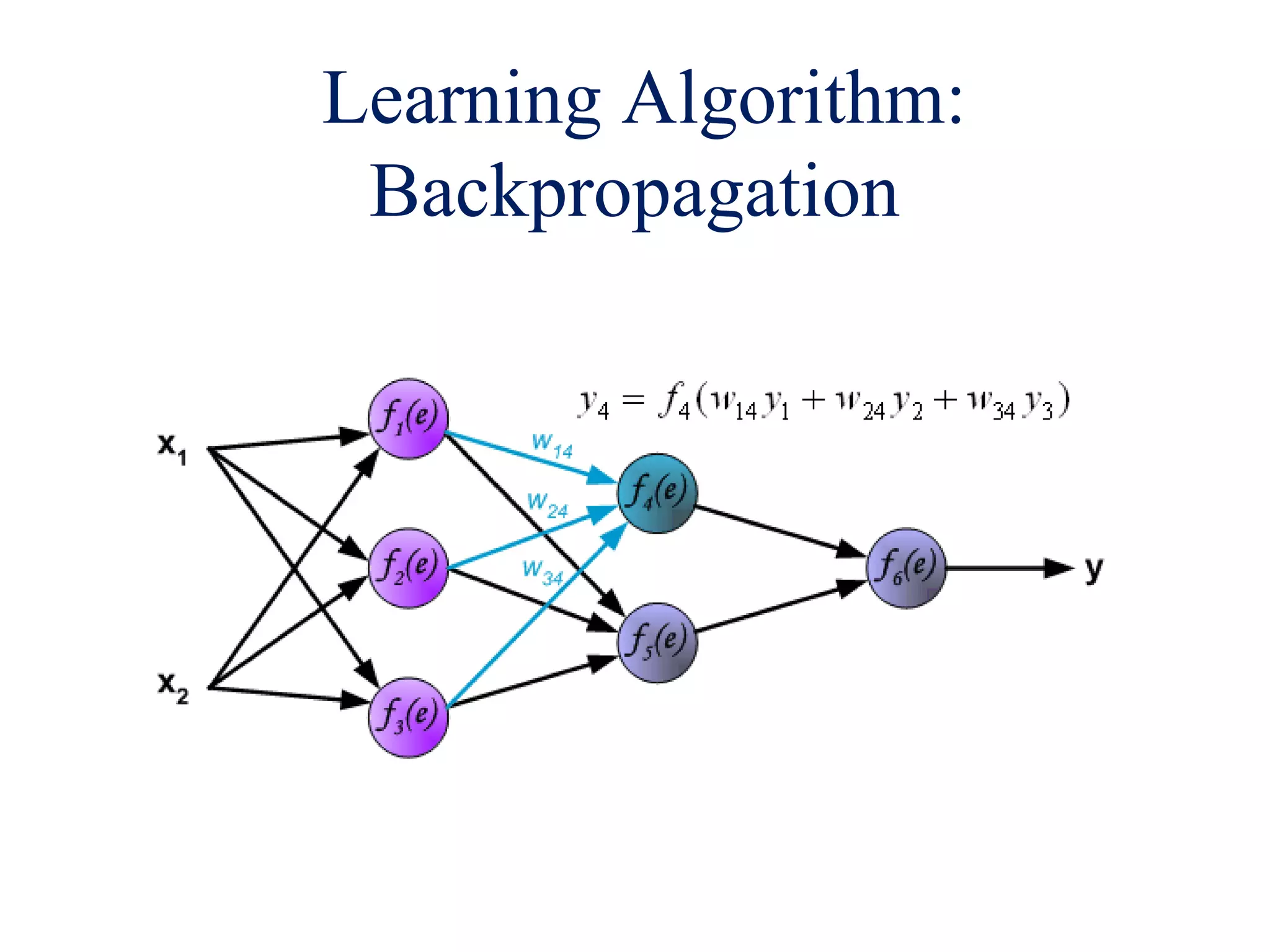

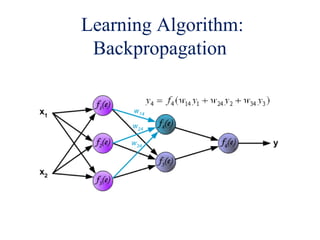

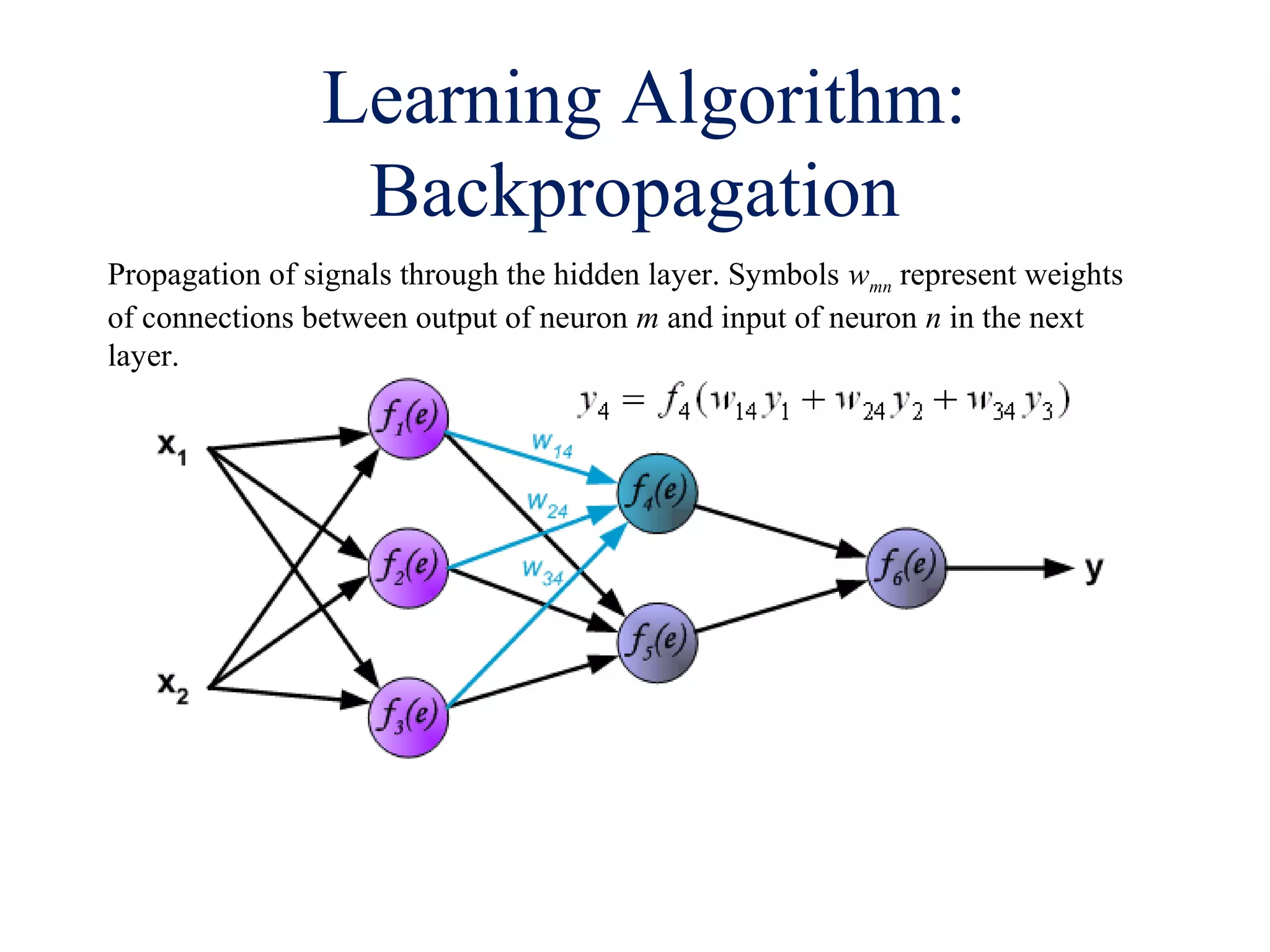

Propagation of signals through the hidden layer. Symbols wmn represent weights
of connections between output of neuron m and input of neuron n in the next
layer.

13. Learning Algorithm:
Backpropagation

14. Learning Algorithm:
Backpropagation

15. Learning Algorithm:
Backpropagation

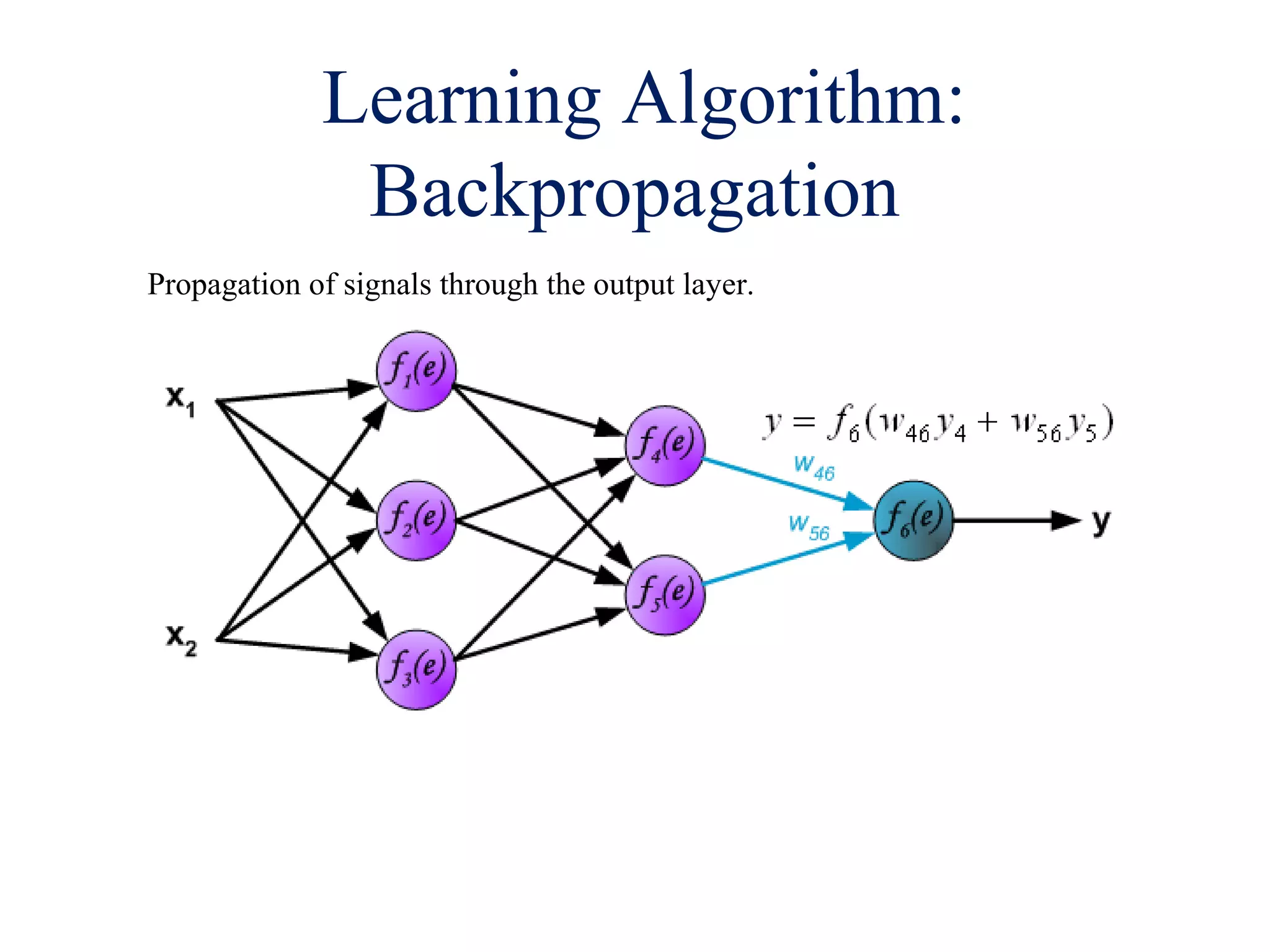

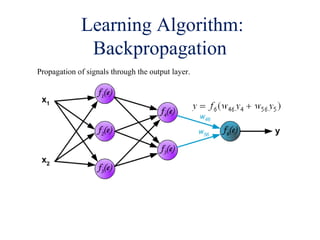

Propagation of signals through the output layer.

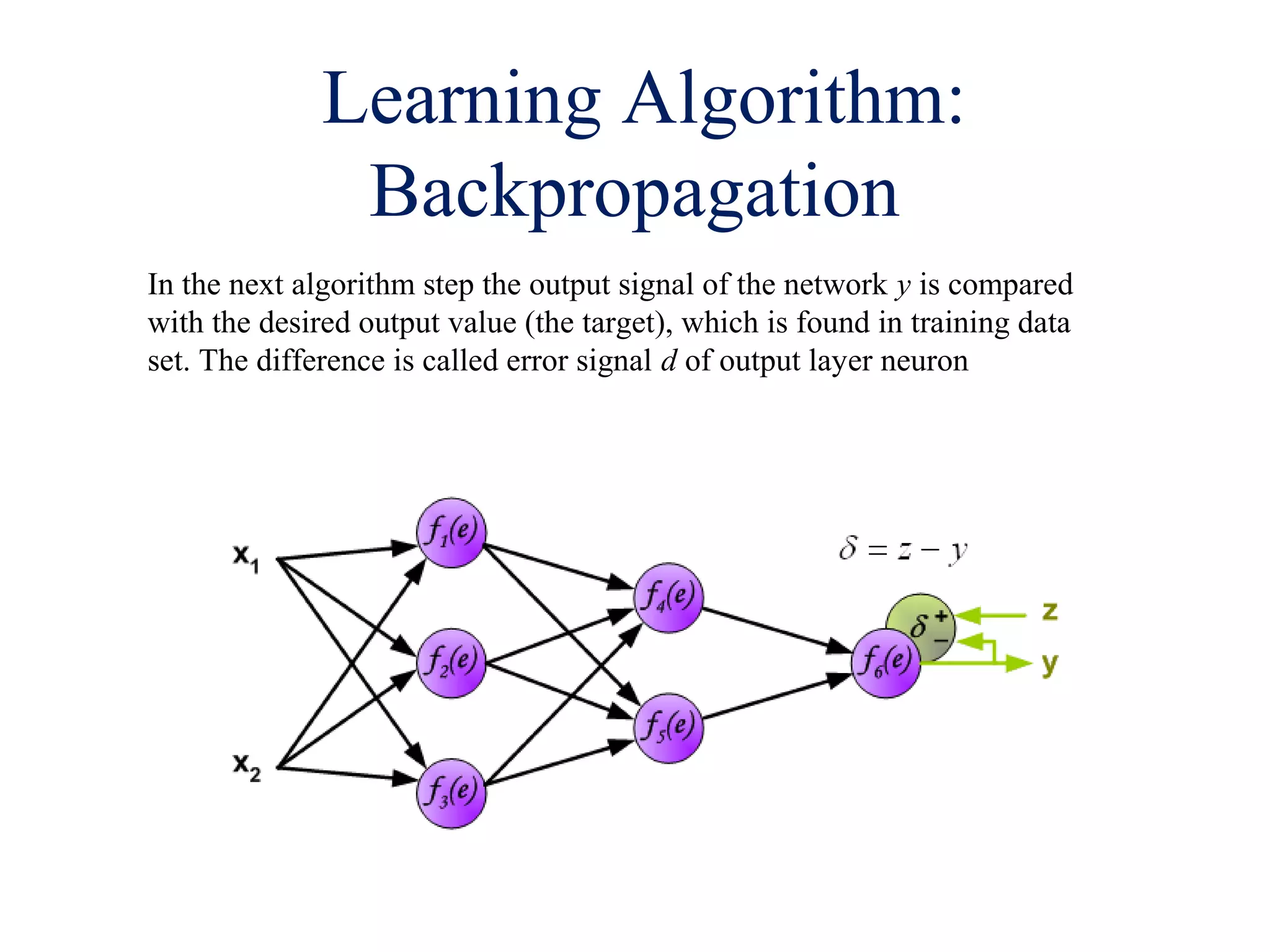

16. Learning Algorithm:
Backpropagation
In the next algorithm step the output signal of the network y is compared
with the desired output value (the target), which is found in training data
set. The difference is called error signal d of output layer neuron

17. Learning Algorithm:
Backpropagation

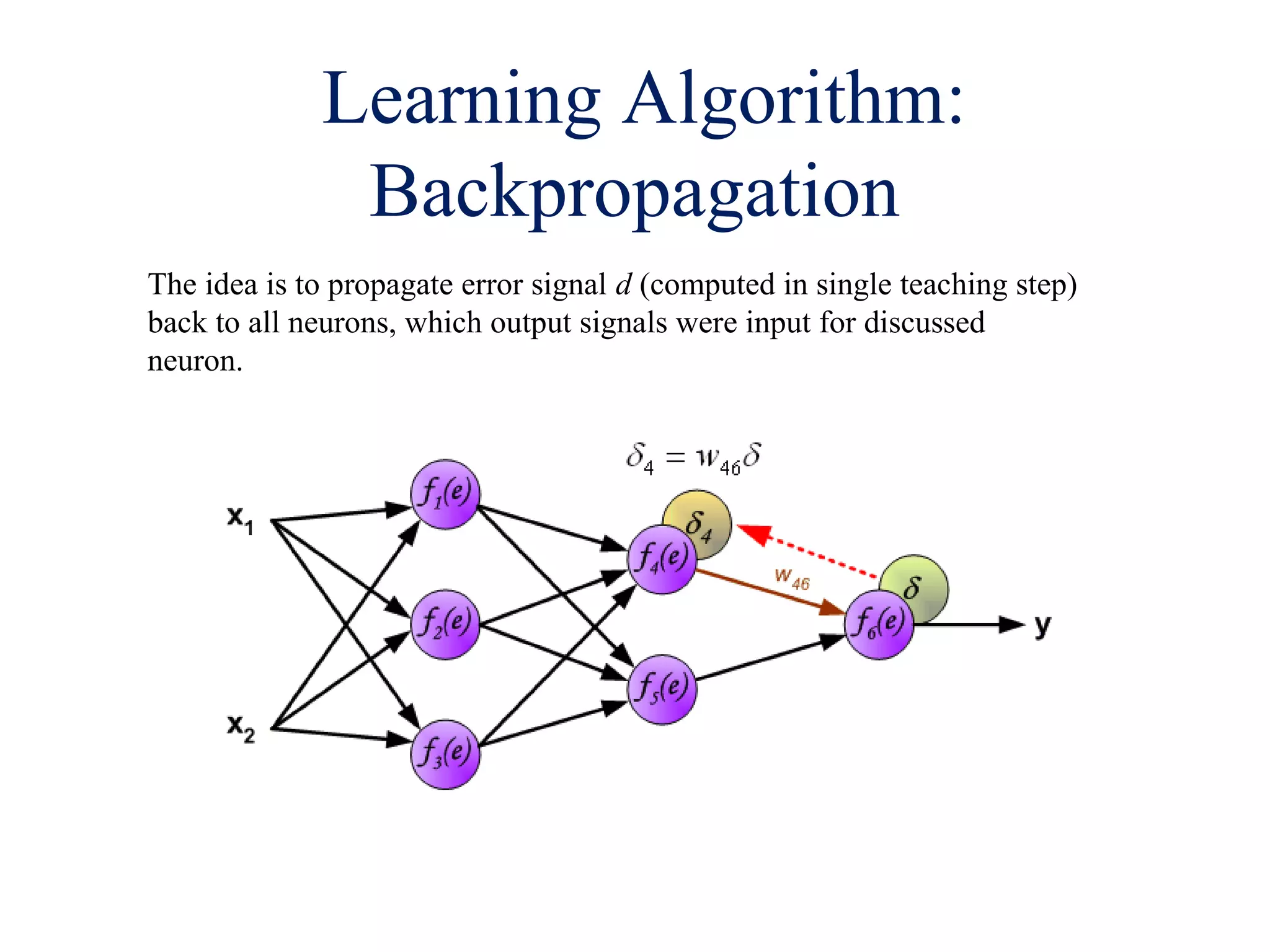

The idea is to propagate error signal d (computed in single teaching step)
back to all neurons, which output signals were input for discussed
neuron.

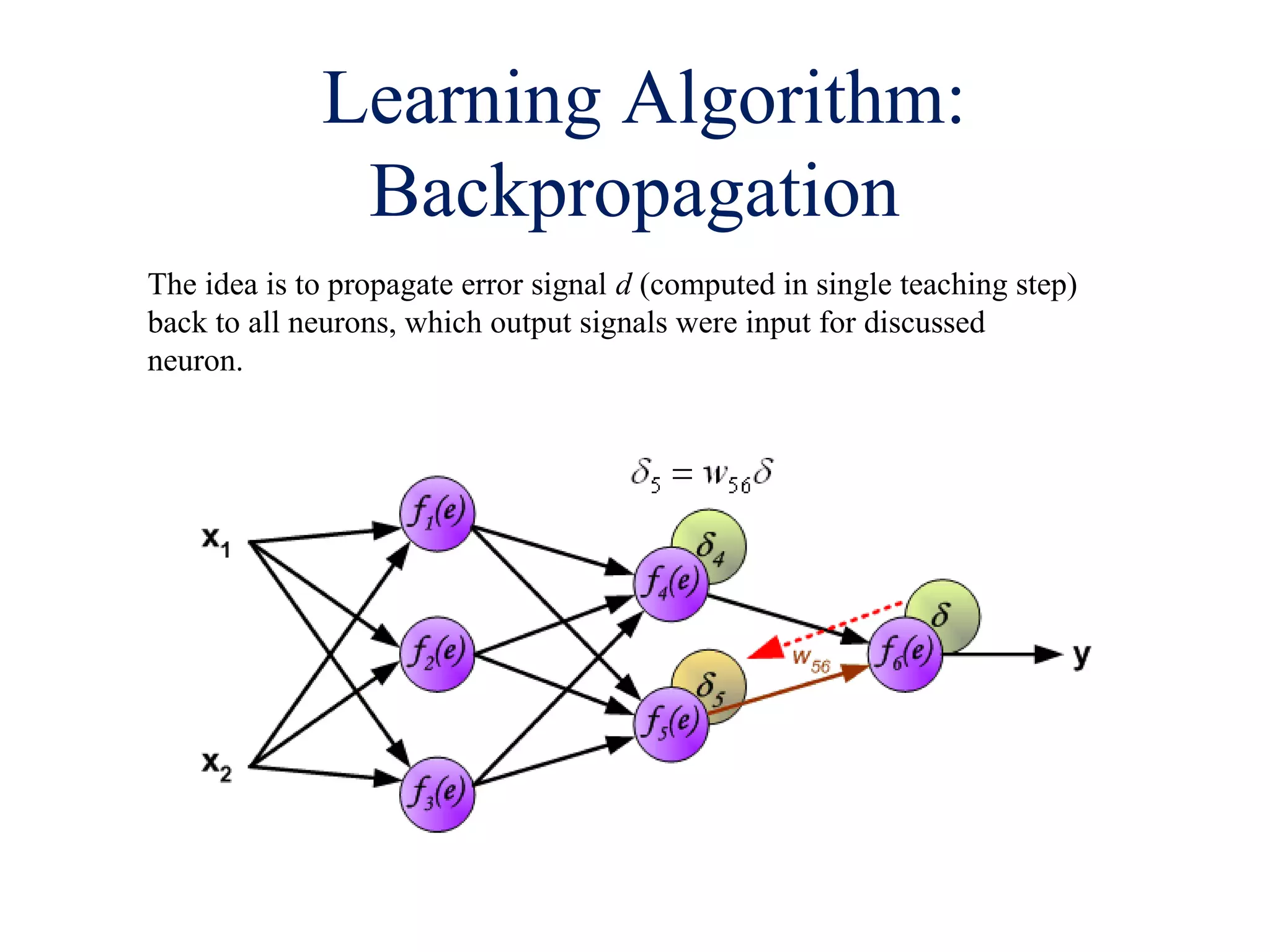

18. Learning Algorithm:
Backpropagation

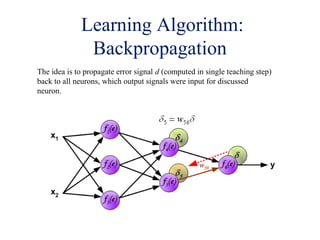

The idea is to propagate error signal d (computed in single teaching step)
back to all neurons, which output signals were input for discussed
neuron.

19. Learning Algorithm:
Backpropagation
The weights' coefficients wmn used to propagate errors back are equal to
this used during computing output value. Only the direction of data flow
is changed (signals are propagated from output to inputs one after the
other). This technique is used for all network layers. If propagated errors
came from few neurons they are added. The illustration is below:

20. Learning Algorithm:
Backpropagation

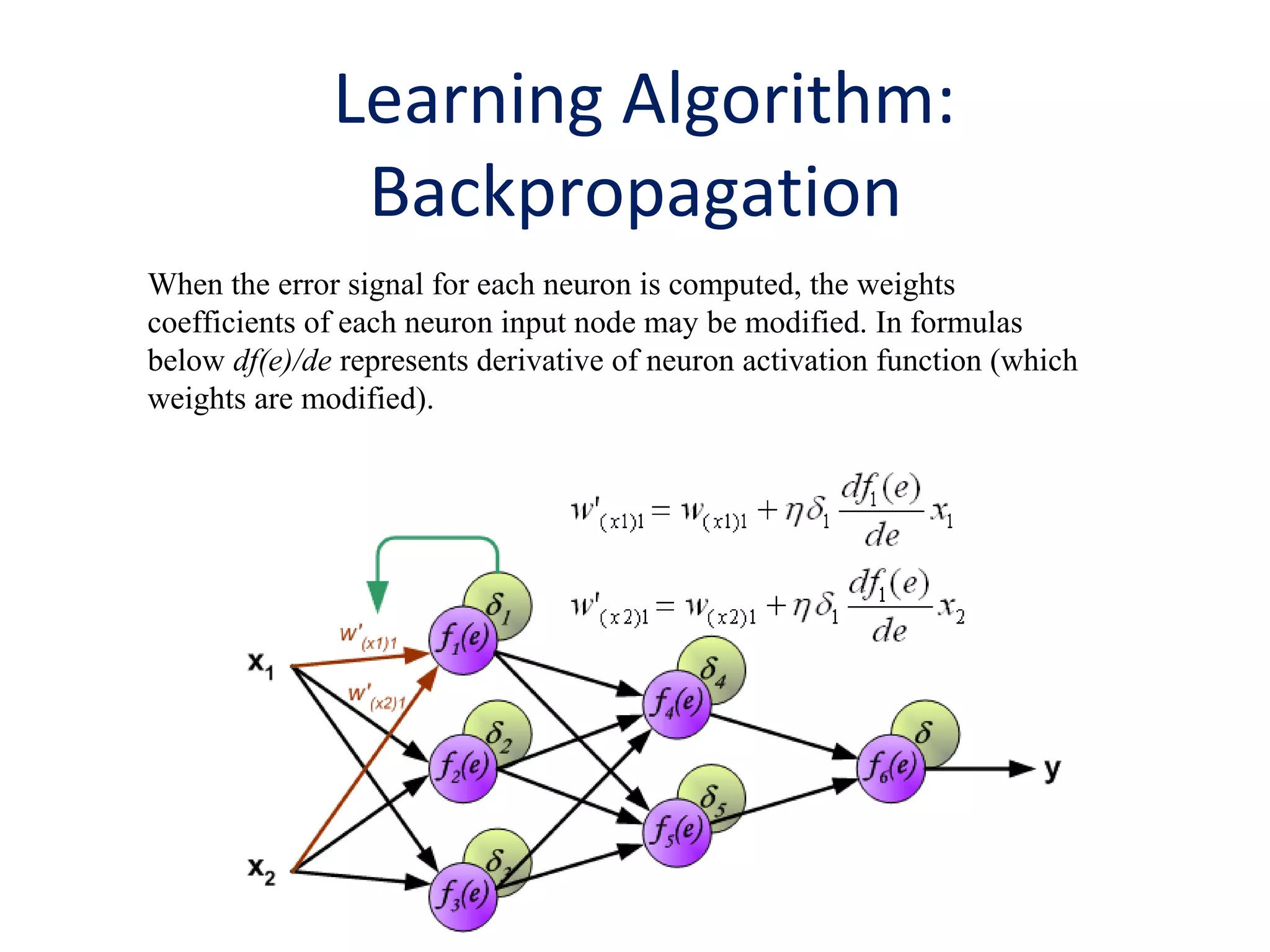

When the error signal for each neuron is computed, the weights
coefficients of each neuron input node may be modified. In formulas
below df(e)/de represents derivative of neuron activation function (which
weights are modified).

21. Learning Algorithm:
Backpropagation

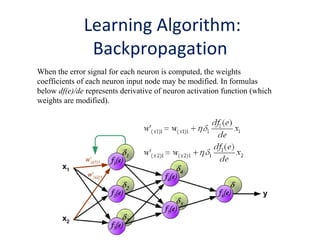

When the error signal for each neuron is computed, the weights
coefficients of each neuron input node may be modified. In formulas
below df(e)/de represents derivative of neuron activation function (which
weights are modified).

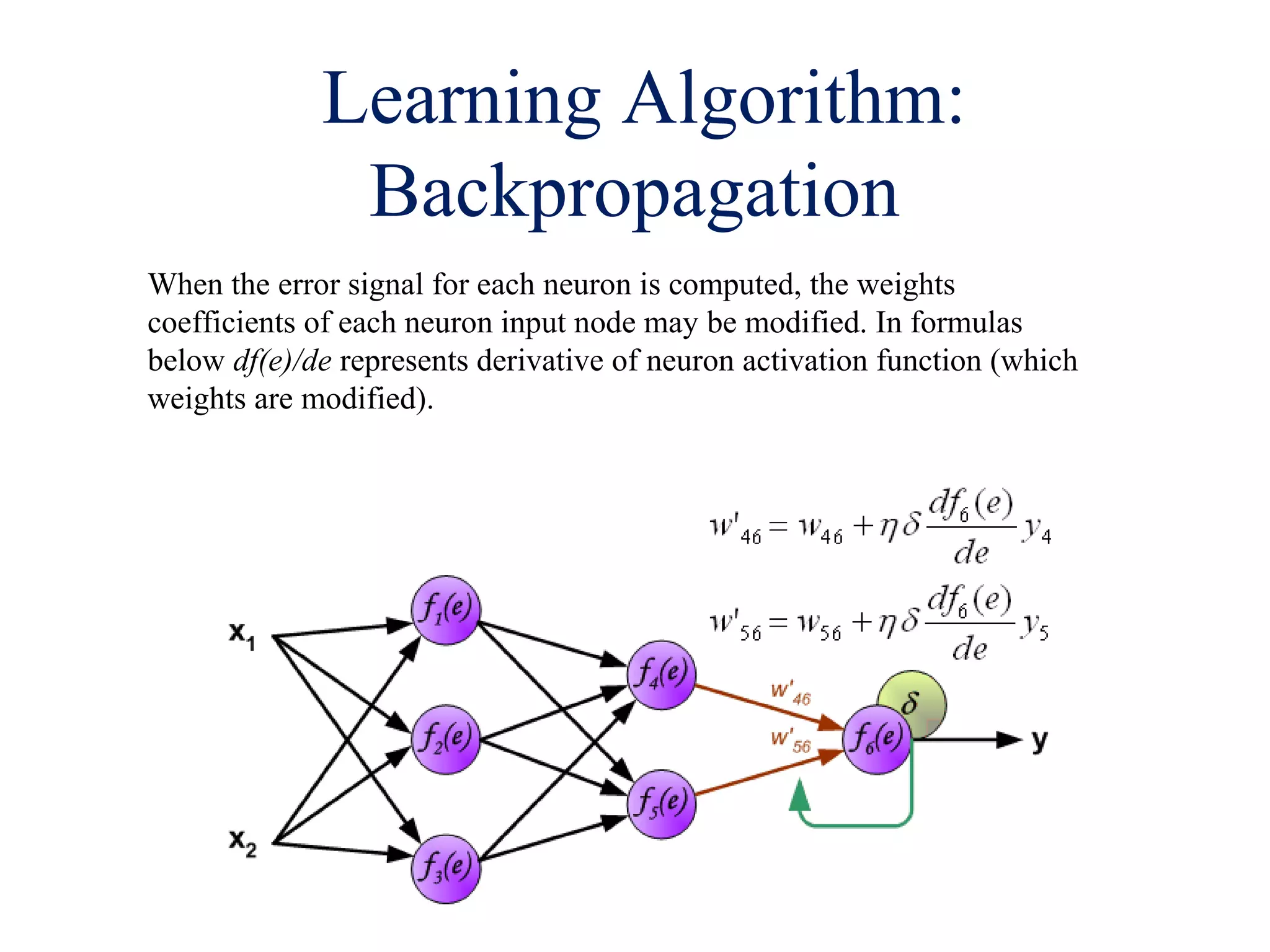

22. Learning Algorithm:
Backpropagation

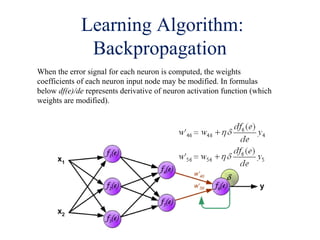

When the error signal for each neuron is computed, the weights
coefficients of each neuron input node may be modified. In formulas
below df(e)/de represents derivative of neuron activation function (which
weights are modified).

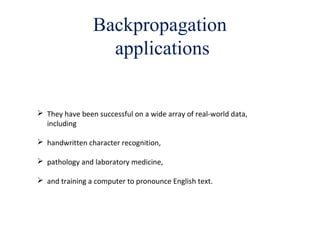

23. Backpropagation
applications
 They have been successful on a wide array of real-world data,
including
 handwritten character recognition,
 pathology and laboratory medicine,
 and training a computer to pronounce English text.

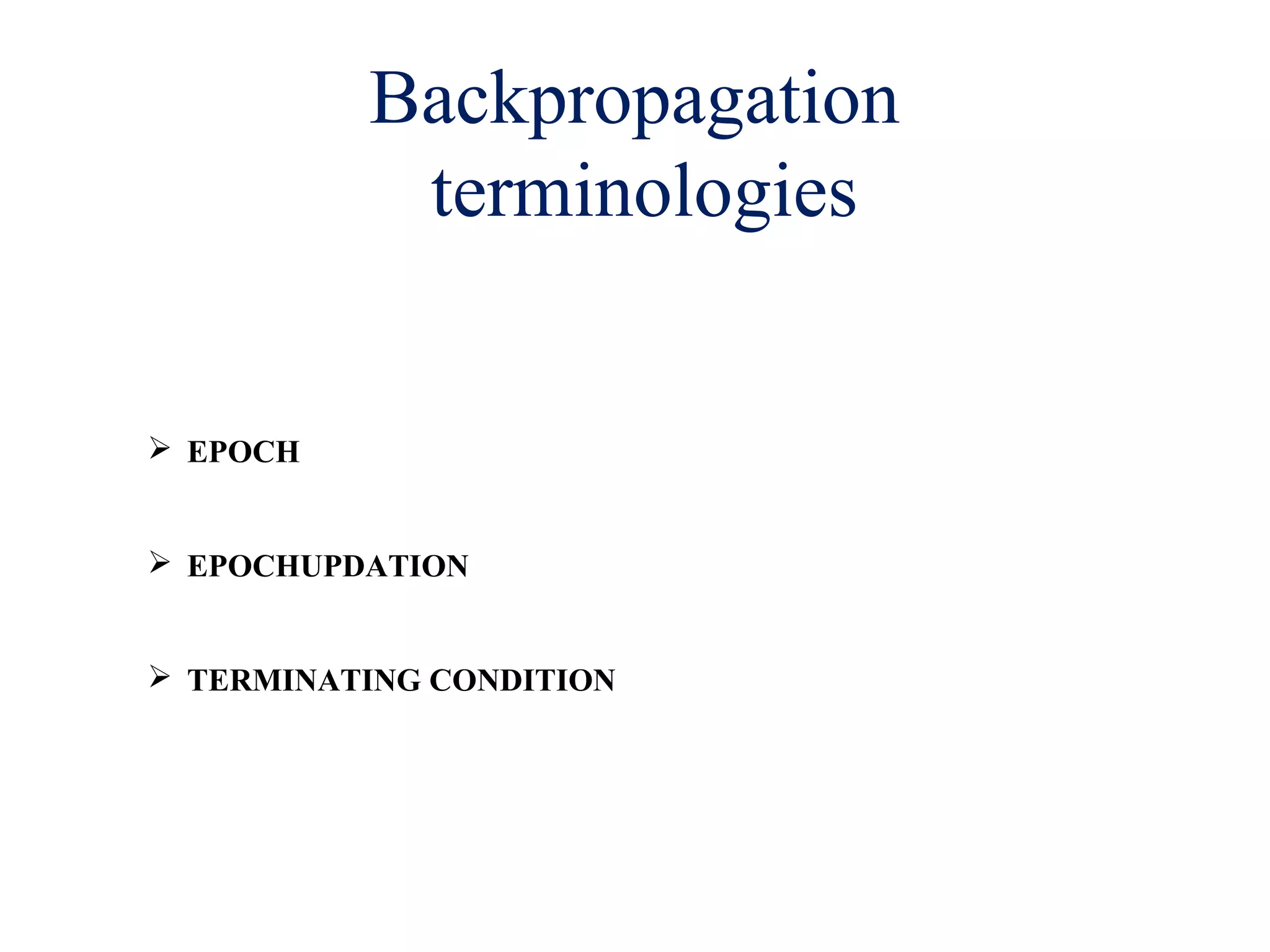

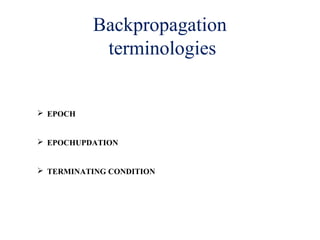

24. Backpropagation
terminologies
 EPOCH
 EPOCHUPDATION
 TERMINATING CONDITION
