2. LV TOOLS & COMPONENTS

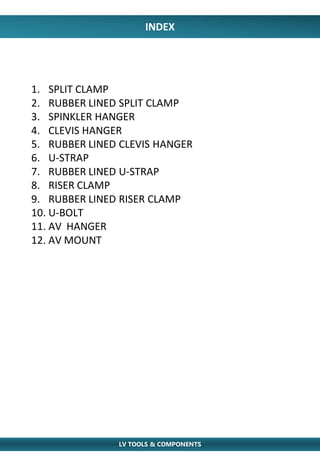

INDEX
1. SPLIT CLAMP
2. RUBBER LINED SPLIT CLAMP
3. SPINKLER HANGER
4. CLEVIS HANGER
5. RUBBER LINED CLEVIS HANGER
6. U-STRAP
7. RUBBER LINED U-STRAP
8. RISER CLAMP
9. RUBBER LINED RISER CLAMP
10. U-BOLT
11. AV HANGER
12. AV MOUNT

3. Part No. Size Size Range
Dimensi
ons
(mm) Mat
Break
Load
Safe
Load
Inches mm mm A C D Kgs Kgs
ED 10015 3/8" 15 15-19 59 23 30 20x2 600 200
ED 10022 1/2" 22 20-25 66 26 37 20x2 600 200
ED 10028 3/4" 28 26-30 72 29 43 20x2 600 200
ED 10035 1" 35 32-36 79 33 50 20x2 600 200
ED 10042 1 1/4" 42 38-43 86 36 57 20x2 600 200
ED 10048 1 1/2" 48 47-51 92 39 63 20x2 600 200
ED 10054 - 54 53-58 98 42 69 20x2 600 200
ED 10060 2" 60 60-64 104 45 75 20x2 600 200
ED 10063 - 63 63-66 108 47 72 20x2 600 200
ED 10070 - 70 68-72 114 50 85 20x2 600 200
ED 10075 2 1/2" 75 74-80 119 53 90 20x2 600 200
ED 10083 - 83 81-86 127 57 98 20x2 600 200
ED 10090 3" 90 87-92 134 60 105 20x2 600 200
ED 10100 3 1/2" 100 99-105 144 65 115 20x2 600 200
ED 10110 - 110 107-112 164 70 125 20x2 600 200
ED 10115 4" 115 113-118 159 73 130 20x2 600 200
ED 10125 - 125 125-130 169 78 140 20x2 600 200
ED 10133 - 133 131-137 177 82 148 20x2 600 200
ED 10140 5" 140 138-142 184 85 156 25x2.5 900 300
ED 10150 - 150 148-153 194 90 165 25x2.5 900 300
ED 10160 - 160 159-166 204 95 175 25x2.5 900 300
ED 10168 6" 168 168-172 212 99 183 25x2.5 900 300
ED 10200 8" 200 200-212 244 115 215 25x2.5 900 300
ED 10000 - 215-220 264 125 235 25x2.5 900 300
ED 10250 10" 250 269-274 294 140 265 25x2.5 900 300
ED 10315 12" 315 313-318 359 173 330 25x2.5 900 300
Size Range: 1/2” to 8”
Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
Hanging through M8 / M10 combination nut
Secure assembly via Philips combo side screws.
Side screws are protected against loss during assemble with the help of plastic washers.
Material CRCA electro zinc plated / Stainless steel
Electro galvanized as per ASTM B 633 Standards
LV TOOLS & COMPONENTS
SPLIT CLAMP

4. PIPE SELECTION TABLE
Part No. Size size U PVC ABS
inch mm PE
ED 10000 16
ED 10022 1/2" 22 20 DN15 (21.4)
ED 10028 3/4" 28 25 DN20 (26.8)
ED 10035 1" 35 32,38 DN25 (21.4)
ED 10042 1-1/4" 42 40,43 DN32 (42.3)
ED 10048 1-1/2" 48 45 DN40 (48.3)
ED 10000 54
ED 10060 2" 60 60 DN50 (60.4)
ED 10000
ED 10000 70
ED 10075 2-1/2" 75 75 DN65 (75.4)
ED 10000 83
ED 10090 3" 90 90
ED 10000 102 DN80 (88.9)
ED 10000 110
ED 10115 4" 115 115 DN100 (114.3)
ED 10000 125
ED 10000 135
ED 10140 5" 140 140 DN125 (140.2)
ED 10000 152
ED 10000 160
ED 10168 6" 168 168 DN150 (168.3)
ED 10000 200
ED 10219 8" 219 220,225 DN200 (140.2)
ED 10000 250 DN225 (250.4)
ED 10000 DN300(315.5)
Model Selection of Lined Clamps for Different
Types of Pipes
LV TOOLS & COMPONENTS

5. RUBBER LINED SPLIT CLAMP
Size Range: 1/2” to 8”
Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
Hanging through M8 / M10 combination nut
Secure assembly via Philips combo side screws.
Side screws are protected against loss during assemble with the help of plastic washers.
Material CRCA electro zinc plated / Stainless steel
Electro galvanized as per ASTM B 633 Standards
Rubber lined with it
Part No. Size Size Range
Dimensi
ons
(mm) Mat
Break
Load
Safe
Load
Inches mm mm A C D Kgs Kgs
RED 10015 3/8" 15 15-19 59 23 30 20x2 600 200
RED 10022 1/2" 22 20-25 66 26 37 20x2 600 200
RED 10028 3/4" 28 26-30 72 29 43 20x2 600 200
RED 10035 1" 35 32-36 79 33 50 20x2 600 200
RED 10042 1 1/4" 42 38-43 86 36 57 20x2 600 200
RED 10048 1 1/2" 48 47-51 92 39 63 20x2 600 200
RED 10054 - 54 53-58 98 42 69 20x2 600 200
RED 10060 2" 60 60-64 104 45 75 20x2 600 200
RED 10063 - 63 63-66 108 47 72 20x2 600 200
RED 10070 - 70 68-72 114 50 85 20x2 600 200
RED 10075 2 1/2" 75 74-80 119 53 90 20x2 600 200
RED 10083 - 83 81-86 127 57 98 20x2 600 200
RED 10090 3" 90 87-92 134 60 105 20x2 600 200
RED 10100 3 1/2" 100 99-105 144 65 115 20x2 600 200
RED 10110 - 110 107-112 164 70 125 20x2 600 200
RED 10115 4" 115 113-118 159 73 130 20x2 600 200
RED 10125 - 125 125-130 169 78 140 20x2 600 200
RED 10133 - 133 131-137 177 82 148 20x2 600 200
RED 10140 5" 140 138-142 184 85 156 25x2.5 900 300
RED 10150 - 150 148-153 194 90 165 25x2.5 900 300
RED 10160 - 160 159-166 204 95 175 25x2.5 900 300
RED 10168 6" 168 168-172 212 99 183 25x2.5 900 300
RED 10200 8" 200 200-212 244 115 215 25x2.5 900 300
RED 10000 - 215-220 264 125 235 25x2.5 900 300
RED 10250 10" 250 269-274 294 140 265 25x2.5 900 300
RED 10315 12" 315 313-318 359 173 330 25x2.5 900 300
LV TOOLS & COMPONENTS

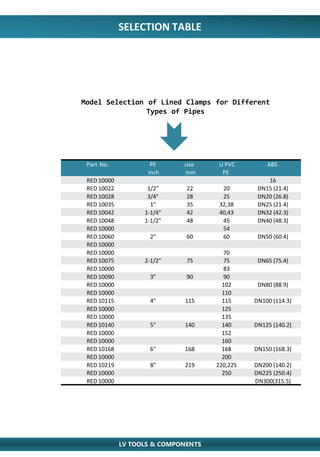

6. SELECTION TABLE
Part No. PE size U PVC ABS
inch mm PE
RED 10000 16
RED 10022 1/2" 22 20 DN15 (21.4)
RED 10028 3/4" 28 25 DN20 (26.8)
RED 10035 1" 35 32,38 DN25 (21.4)
RED 10042 1-1/4" 42 40,43 DN32 (42.3)
RED 10048 1-1/2" 48 45 DN40 (48.3)
RED 10000 54
RED 10060 2" 60 60 DN50 (60.4)
RED 10000
RED 10000 70
RED 10075 2-1/2" 75 75 DN65 (75.4)
RED 10000 83
RED 10090 3" 90 90
RED 10000 102 DN80 (88.9)
RED 10000 110
RED 10115 4" 115 115 DN100 (114.3)
RED 10000 125
RED 10000 135
RED 10140 5" 140 140 DN125 (140.2)
RED 10000 152
RED 10000 160
RED 10168 6" 168 168 DN150 (168.3)
RED 10000 200
RED 10219 8" 219 220,225 DN200 (140.2)
RED 10000 250 DN225 (250.4)
RED 10000 DN300(315.5)
Model Selection of Lined Clamps for Different
Types of Pipes
LV TOOLS & COMPONENTS

7. SPRINKLER HANGER
Part No. Size Dia (D)Size Height (H) Mat Safe Load Rod(R) size
Inches mm mm Kgs mm
EG20028 3/4" 28 61 20x1.6 200 10
EG20035 1" 35 68 20x1.6 200 10
EG20042 1 1/4" 42 75 20x1.6 200 10
EG20048 1 1/2" 48 81 20x1.6 200 10
EG20060 2" 60 100 20x1.6 200 10
EG20075 2 1/2" 75 120 30x2 450 10
EG20090 3" 90 135 30x2 450 10
EG20100 3 1/2" 100 150 30x2 450 10
EG20115 4" 115 165 30x2.5 500 10
EG20140 5" 140 195 40x2.5 550 12
EG20168 6" 168 230 40x3 700 12
EG20200 8" 200 290 50x3 700 12
EG20250 10" 250 315 50x3 700 12
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire extinguishing
systems
Electro galvanized as per ASTM B 633 Standards
LV TOOLS & COMPONENTS

8. CLEVIS HANGER
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire extinguishing
systems
Electro galvanized as per ASTM B 633
Part No. Size Size
Dimensions
(mm) Mat
Break
Load Safe Load
Inches mm A C D Kgs Kgs
CH-1 3/8" 15 60 26 36 25x3 450 150
CH-2 1/2" 22 65 29 43 25x3 450 150
CH-3 3/4" 28 70 32 50 25x3 450 150
CH-4 1" 35 85 36 56 25x3 450 150
CH-5 1 1/4" 42 92 39 63 25x3 450 150
CH-6 1 1/2" 48 98 42 72 25x3 450 150
CH-7 2" 60 110 46 81 25x3 450 150
CH-8 2 1/2" 75 125 56 96 25x4 450 150
CH-9 3" 90 146 63 111 25x4 450 150
CH-10 3 1/2" 100 156 68 121 25x4 450 150
CH-11 4" 115 171 76 136 32x6 600 200
CH-12 5" 140 196 88 161 32x6 600 200
CH-13 6" 168 224 102 189 32x6 600 200
CH-14 8" 200 256 118 221 32x6 600 200
CH-15 10" 250 306 143 271 32x6 900 300
CH-16 12" 315 371 176 336 32x6 900 300
LV TOOLS & COMPONENTS

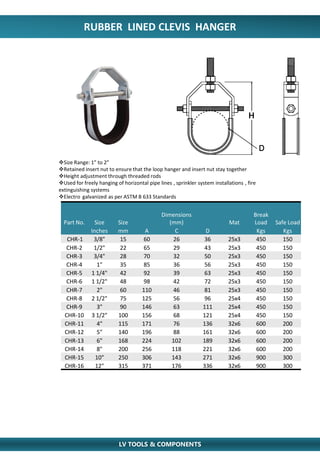

9. RUBBER LINED CLEVIS HANGER
Part No. Size Size
Dimensions
(mm) Mat
Break
Load Safe Load
Inches mm A C D Kgs Kgs
CHR-1 3/8" 15 60 26 36 25x3 450 150
CHR-2 1/2" 22 65 29 43 25x3 450 150
CHR-3 3/4" 28 70 32 50 25x3 450 150
CHR-4 1" 35 85 36 56 25x3 450 150
CHR-5 1 1/4" 42 92 39 63 25x3 450 150
CHR-6 1 1/2" 48 98 42 72 25x3 450 150
CHR-7 2" 60 110 46 81 25x3 450 150
CHR-8 2 1/2" 75 125 56 96 25x4 450 150
CHR-9 3" 90 146 63 111 25x4 450 150
CHR-10 3 1/2" 100 156 68 121 25x4 450 150
CHR-11 4" 115 171 76 136 32x6 600 200
CHR-12 5" 140 196 88 161 32x6 600 200
CHR-13 6" 168 224 102 189 32x6 600 200
CHR-14 8" 200 256 118 221 32x6 600 200
CHR-15 10" 250 306 143 271 32x6 900 300
CHR-16 12" 315 371 176 336 32x6 900 300
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire
extinguishing systems
Electro galvanized as per ASTM B 633 Standards
LV TOOLS & COMPONENTS

10. U-STRAP CLAMP
Part No. Size Dimensions (mm) Mat Screw
Inches H A B Size
US-1 1/2" 22 79 54 25x2 M8
US-2 3/4" 28 85 60 25x2 M8
US-3 1" 35 92 67 25x2 M8
US-4 1 1/4" 42 99 74 25x2 M8
US-5 1 1/2" 48 105 80 25x2 M8
US-6 - 54 111 86 25x2 M8
US-7 2" 60 117 92 25x2 M8
US-8 - 67 124 99 25x2 M8
US-9 2 1/2" 75 148 116 25x3 M8
US10 - 82 155 123 25x3 M8
US-11 3" 90 163 131 25x3 M8
US-12 3 1/2" 100 173 141 25x3 M8
US-13 - 108 181 149 25x3 M8
US-14 4" 115 188 156 25x3 M8
US-15 - 125 199 167 25x3 M10
US-16 5" 140 213 181 25x3 M10
US-17 - 148 221 189 25x3 M10
US-18 - 155 229 196 25x3 M10
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire extinguishing
systems
Electro galvanized as per ASTM B 633 Standards
LV TOOLS & COMPONENTS

11. RUBBER LINED U-STRAP CLAMP
Part No. Size Dimensions (mm) Mat Screw
Inches H A B Size
USR-1 1/2" 22 79 54 25x2 M8
USR-2 3/4" 28 85 60 25x2 M8
USR-3 1" 35 92 67 25x2 M8
USR-4 1 1/4" 42 99 74 25x2 M8
USR-5 1 1/2" 48 105 80 25x2 M8
USR-6 - 54 111 86 25x2 M8
USR-7 2" 60 117 92 25x2 M8
USR-8 - 67 124 99 25x2 M8
USR-9 2 1/2" 75 148 116 25x3 M8
USR-10 - 82 155 123 25x3 M8
USR-11 3" 90 163 131 25x3 M8
USR-12 3 1/2" 100 173 141 25x3 M8
USR-13 - 108 181 149 25x3 M8
USR-14 4" 115 188 156 25x3 M8
USR-15 - 125 199 167 25x3 M10
USR-16 5" 140 213 181 25x3 M10
USR-17 - 148 221 189 25x3 M10
USR-18 - 155 229 196 25x3 M10
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire
extinguishing systems
Electro galvanized as per ASTM B 633 Standards
LV TOOLS & COMPONENTS

12. RISER CLAMP
Part No. Pipe Size Size Dimensions (mm) Mat Screw
Inches mm A Size
NRCR-1 1/2" 22 200 25x5 M10
NRCR-2 3/4" 28 210 25x5 M10
NRCR-3 1" 35 230 25x5 M10
NRCR-4 1 1/4" 42 260 25x5 M10
NRCR-5 1 1/2" 48 260 25x5 M10
NRCR-6 2" 60 260 25x5 M10
NRCR-7 2 1/2" 75 290 25x6 M12
NRCR-8 3" 90 290 25x6 M12
NRCR-9 3 1/2" 100 330 25x6 M12
NRCR-10 4" 115 330 25x6 M12
NRCR-11 5" 140 350 40x6 M12
NRCR-12 6" 167 380 40x6 M12
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire
extinguishing systems
Electro galvanized as per ASTM B 633 Standards
LV TOOLS & COMPONENTS

13. RUBBER LINED RISER CLAMP
Part No. Pipe Size Size
Dimensions
(mm) Mat Screw
Inches mm A Size
RCR-1 1/2" 22 200 25x5 M10
RCR-2 3/4" 28 210 25x5 M10
RCR-3 1" 35 230 25x5 M10
RCR-4 1 1/4" 42 260 25x5 M10
RCR-5 1 1/2" 48 260 25x5 M10
RCR-6 2" 60 260 25x5 M10
RCR-7 2 1/2" 75 290 25x6 M12
RCR-8 3" 90 290 25x6 M12
RCR-9 3 1/2" 100 330 25x6 M12
RCR-10 4" 115 330 25x6 M12
RCR-11 5" 140 350 40x6 M12
RCR-12 6" 167 380 40x6 M12
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire extinguishing
systems
Electro galvanized as per ASTM B 633 Standards
Rubber lined with it.
LV TOOLS & COMPONENTS

14. U-CLAMP
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire extinguishing
systems
Electro galvanized as per ASTM B 633 Standards
Part No. Size Rod size Dimensions (mm) Screw
Inches mm A B Size
USC-1 1/2" M10 21 65 50
USC-2 3/4" M10 27 77 50
USC-3 1" M10 34 85 50
USC-4 1 1/4" M10 43 93 50
USC-5 1 1/2" M10 48 100 50
USC-6 2" M10 60 110 50
USC-7 2 1/2" M12 76 127 50
USC-8 3" M12 89 140 50
USC-9 4" M12 115 165 50
USC-10 5" M12 140 190 50
USC-13 6" M12 168 220 50
USC-13 8” M16 219 295 75
USC-13 10” M20 273 370 75
USC-14 12” M20 324 420 75
USC-15 14” M20 356 455 75
USC-16 16” M20 406 505 75
USC-17 18” M20 457 555 75
USC-18 20” M20 508 605 75
USC-19 24” M20 610 710 75
LV TOOLS & COMPONENTS

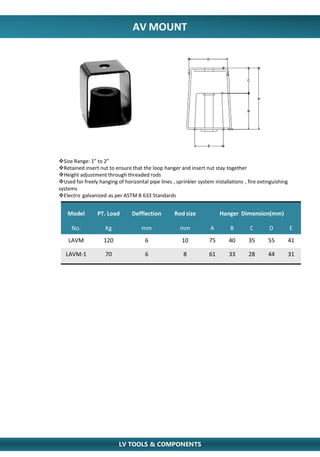

15. AV MOUNT
Model PT. Load Defflection Rod size Hanger Dimension(mm)
No. Kg mm mm A B C D E
LAVM 120 6 10 75 40 35 55 41
LAVM-1 70 6 8 61 33 28 44 31
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire extinguishing
systems
Electro galvanized as per ASTM B 633 Standards
LV TOOLS & COMPONENTS

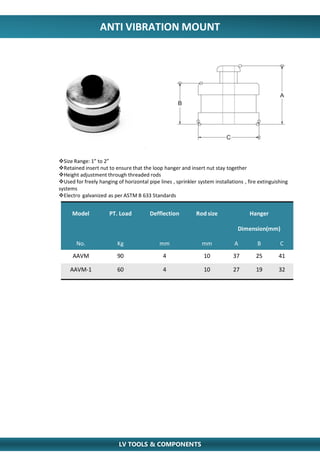

16. ANTI VIBRATION MOUNT
LV TOOLS & COMPONENTS
Model PT. Load Defflection Rod size Hanger
Dimension(mm)
No. Kg mm mm A B C
AAVM 90 4 10 37 25 41
AAVM-1 60 4 10 27 19 32
Size Range: 1” to 2”
Retained insert nut to ensure that the loop hanger and insert nut stay together
Height adjustment through threaded rods
Used for freely hanging of horizontal pipe lines , sprinkler system installations , fire extinguishing
systems
Electro galvanized as per ASTM B 633 Standards
