This document provides important safety instructions for audio equipment. It lists 17 safety precautions regarding power sources, ventilation, cleaning, damage requiring service, and other operational guidelines. It also provides step-by-step instructions for unpacking, setting up, and operating a turntable, radio, cassette player, CD player, and SD/USB ports on an audio system.

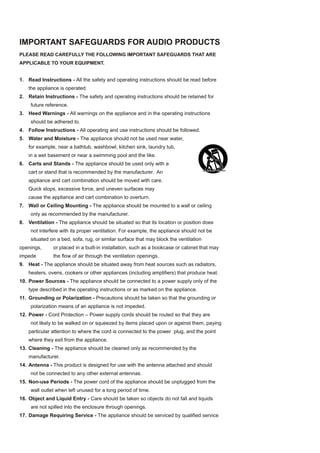

2. IMPORTANT SAFEGUARDS FOR AUDIO PRODUCTS
PLEASE READ CAREFULLY THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE
APPLICABLE TO YOUR EQUIPMENT.
1. Read Instructions - All the safety and operating instructions should be read before
the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for
future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Water and Moisture - The appliance should not be used near water,
for example, near a bathtub, washbowl, kitchen sink, laundry tub,
in a wet basement or near a swimming pool and the like.
6. Carts and Stands - The appliance should be used only with a
cart or stand that is recommended by the manufacturer. An
appliance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling
only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or position does
not interfere with its proper ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may block the ventilation
openings, or placed in a built-in installation, such as a bookcase or cabinet that may
impede the flow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources such as radiators,
heaters, ovens, cookers or other appliances (including amplifiers) that produce heat.
10. Power Sources - The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance.
11. Grounding or Polarization - Precautions should be taken so that the grounding or
polarization means of an appliance is not impeded.
12. Power - Cord Protection – Power supply cords should be routed so that they are
not likely to be walked on or squeezed by items placed upon or against them, paying
particular attention to where the cord is connected to the power plug, and the point
where they exit from the appliance.
13. Cleaning - The appliance should be cleaned only as recommended by the
manufacturer.
14. Antenna - This product is designed for use with the antenna attached and should
not be connected to any other external antennas.
15. Non-use Periods - The power cord of the appliance should be unplugged from the
wall outlet when left unused for a long period of time.
16. Object and Liquid Entry - Care should be taken so objects do not fall and liquids
are not spilled into the enclosure through openings.
17. Damage Requiring Service - The appliance should be serviced by qualified service

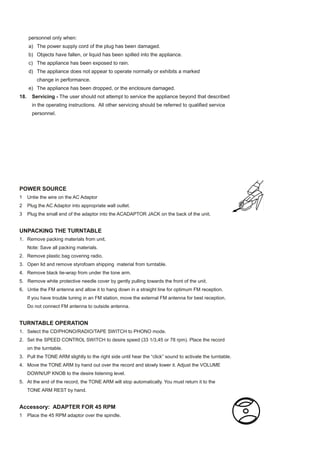

3. personnel only when:
a) The power supply cord of the plug has been damaged.
b) Objects have fallen, or liquid has been spilled into the appliance.
c) The appliance has been exposed to rain.
d) The appliance does not appear to operate normally or exhibits a marked
change in performance.
e) The appliance has been dropped, or the enclosure damaged.
18. Servicing - The user should not attempt to service the appliance beyond that described
in the operating instructions. All other servicing should be referred to qualified service
personnel.
POWER SOURCE
1 Untie the wire on the AC Adaptor
2 Plug the AC Adaptor into appropriate wall outlet.
3 Plug the small end of the adaptor into the ACADAPTOR JACK on the back of the unit.
UNPACKING THE TURNTABLE
1. Remove packing materials from unit.
Note: Save all packing materials.
2. Remove plastic bag covering radio.
3. Open lid and remove styrofoam shipping material from turntable.
4. Remove black tie-wrap from under the tone arm.
5. Remove white protective needle cover by gently pulling towards the front of the unit.
6. Untie the FM antenna and allow it to hang down in a straight line for optimum FM reception.
If you have trouble tuning in an FM station, move the external FM antenna for best reception.
Do not connect FM antenna to outside antenna.
TURNTABLE OPERATION
1. Select the CD/PHONO/RADIO/TAPE SWITCH to PHONO mode.
2. Set the SPEED CONTROL SWITCH to desire speed (33 1/3,45 or 78 rpm). Place the record
on the turntable.
3. Pull the TONE ARM slightly to the right side until hear the “click” sound to activate the turntable.
4. Move the TONE ARM by hand out over the record and slowly lower it. Adjust the VOLUME
DOWN/UP KNOB to the desire listening level.
5. At the end of the record, the TONE ARM will stop automatically. You must return it to the
TONE ARM REST by hand.
Accessory: ADAPTER FOR 45 RPM
1 Place the 45 RPM adaptor over the spindle.

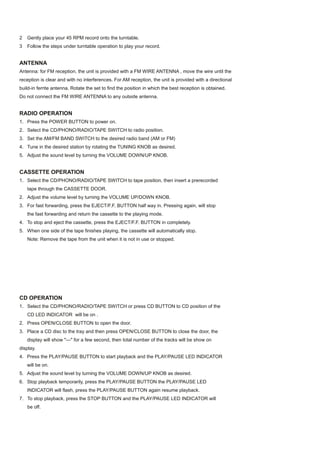

4. 2 Gently place your 45 RPM record onto the turntable.
3 Follow the steps under turntable operation to play your record.
ANTENNA
Antenna: for FM reception, the unit is provided with a FM WIRE ANTENNA , move the wire until the
reception is clear and with no interferences. For AM reception, the unit is provided with a directional
build-in ferrite antenna. Rotate the set to find the position in which the best reception is obtained.
Do not connect the FM WIRE ANTENNA to any outside antenna.
RADIO OPERATION
1. Press the POWER BUTTON to power on.
2. Select the CD/PHONO/RADIO/TAPE SWITCH to radio position.
3. Set the AM/FM BAND SWITCH to the desired radio band (AM or FM)
4. Tune in the desired station by rotating the TUNING KNOB as desired.
5. Adjust the sound level by turning the VOLUME DOWN/UP KNOB.
CASSETTE OPERATION
1. Select the CD/PHONO/RADIO/TAPE SWITCH to tape position, then insert a prerecorded
tape through the CASSETTE DOOR.
2. Adjust the volume level by turning the VOLUME UP/DOWN KNOB.
3. For fast forwarding, press the EJECT/F.F. BUTTON half way in. Pressing again, will stop
the fast forwarding and return the cassette to the playing mode.
4. To stop and eject the cassette, press the EJECT/F.F. BUTTON in completely.
5. When one side of the tape finishes playing, the cassette will automatically stop.
Note: Remove the tape from the unit when it is not in use or stopped.
CD OPERATION
1. Select the CD/PHONO/RADIO/TAPE SWITCH or press CD BUTTON to CD position of the
CD LED INDICATOR will be on .
2. Press OPEN/CLOSE BUTTON to open the door.
3. Place a CD disc to the tray and then press OPEN/CLOSE BUTTON to close the door, the
display will show "---" for a few second, then total number of the tracks will be show on
display.
4. Press the PLAY/PAUSE BUTTON to start playback and the PLAY/PAUSE LED INDICATOR
will be on.
5. Adjust the sound level by turning the VOLUME DOWN/UP KNOB as desired.
6. Stop playback temporarily, press the PLAY/PAUSE BUTTON the PLAY/PAUSE LED
INDICATOR will flash, press the PLAY/PAUSE BUTTON again resume playback.
7. To stop playback, press the STOP BUTTON and the PLAY/PAUSE LED INDICATOR will
be off.

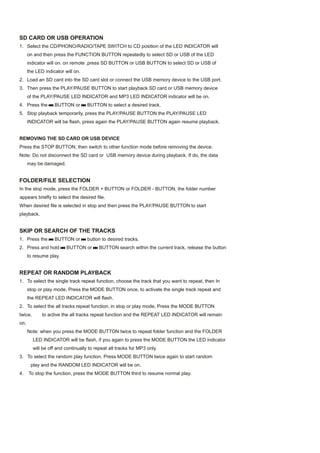

5. SD CARD OR USB OPERATION
1. Select the CD/PHONO/RADIO/TAPE SWITCH to CD position of the LED INDICATOR will
on and then press the FUNCTION BUTTON repeatedly to select SD or USB of the LED
indicator will on. on remote ,press SD BUTTON or USB BUTTON to select SD or USB of
the LED indicator will on.
2. Load an SD card into the SD card slot or connect the USB memory device to the USB port.
3. Then press the PLAY/PAUSE BUTTON to start playback SD card or USB memory device
of the PLAY/PAUSE LED INDICATOR and MP3 LED INDICATOR indicator will be on.
4. Press the BUTTON or BUTTON to select a desired track.
5. Stop playback temporarily, press the PLAY/PAUSE BUTTON the PLAY/PAUSE LED
INDICATOR will be flash, press again the PLAY/PAUSE BUTTON again resume playback.
REMOVING THE SD CARD OR USB DEVICE
Press the STOP BUTTON, then switch to other function mode before removing the device.
Note: Do not disconnect the SD card or USB memory device during playback. If do, the data
may be damaged.
FOLDER/FILE SELECTION
In the stop mode, press the FOLDER + BUTTON or FOLDER - BUTTON, the folder number
appears briefly to select the desired file.
When desired file is selected in stop and then press the PLAY/PAUSE BUTTON to start
playback.
SKIP OR SEARCH OF THE TRACKS
1. Press the BUTTON or button to desired tracks.
2. Press and hold BUTTON or BUTTON search within the current track, release the button
to resume play.
REPEAT OR RANDOM PLAYBACK
1. To select the single track repeat function, choose the track that you want to repeat, then In
stop or play mode, Press the MODE BUTTON once, to activate the single track repeat and
the REPEAT LED INDICATOR will flash.
2. To select the all tracks repeat function, in stop or play mode, Press the MODE BUTTON
twice, to active the all tracks repeat function and the REPEAT LED INDICATOR will remain
on.
Note: when you press the MODE BUTTON twice to repeat folder function and the FOLDER
LED INDICATOR will be flash, if you again to press the MODE BUTTON the LED indicator
will be off and continually to repeat all tracks for MP3 only.
3. To select the random play function, Press MODE BUTTON twice again to start random
play and the RANDOM LED INDICATOR will be on.
4. To stop the function, press the MODE BUTTON third to resume normal play.

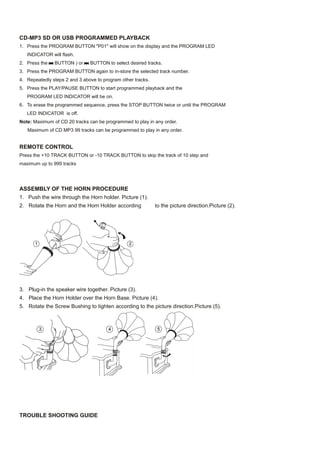

6. CD-MP3 SD OR USB PROGRAMMED PLAYBACK
1. Press the PROGRAM BUTTON "P01" will show on the display and the PROGRAM LED
INDICATOR will flash.
2. Press the BUTTON ) or BUTTON to select desired tracks.
3. Press the PROGRAM BUTTON again to in-store the selected track number.
4. Repeatedly steps 2 and 3 above to program other tracks.
5. Press the PLAY/PAUSE BUTTON to start programmed playback and the
PROGRAM LED INDICATOR will be on.
6. To erase the programmed sequence, press the STOP BUTTON twice or until the PROGRAM
LED INDICATOR is off.
Note: Maximum of CD 20 tracks can be programmed to play in any order.
Maximum of CD MP3 99 tracks can be programmed to play in any order.
REMOTE CONTROL
Press the +10 TRACK BUTTON or -10 TRACK BUTTON to skip the track of 10 step and
maximum up to 999 tracks
ASSEMBLY OF THE HORN PROCEDURE
1. Push the wire through the Horn holder. Picture (1).
2. Rotate the Horn and the Horn Holder according to the picture direction.Picture (2).
3. Plug-in the speaker wire together. Picture (3).
4. Place the Horn Holder over the Horn Base. Picture (4).
5. Rotate the Screw Bushing to tighten according to the picture direction.Picture (5).
TROUBLE SHOOTING GUIDE

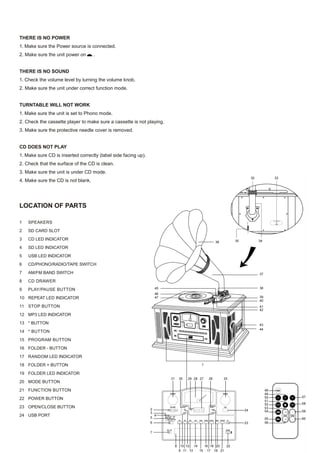

7. THERE IS NO POWER
1. Make sure the Power source is connected.
2. Make sure the unit power on .
THERE IS NO SOUND
1. Check the volume level by turning the volume knob.
2. Make sure the unit under correct function mode.
TURNTABLE WILL NOT WORK
1. Make sure the unit is set to Phono mode.
2. Check the cassette player to make sure a cassette is not playing.
3. Make sure the protective needle cover is removed.
CD DOES NOT PLAY
1. Make sure CD is inserted correctly (label side facing up).
2. Check that the surface of the CD is clean.
3. Make sure the unit is under CD mode.
4. Make sure the CD is not blank.
LOCATION OF PARTS
1 SPEAKERS
2 SD CARD SLOT
3 CD LED INDICATOR
4 SD LED INDICATOR
5 USB LED INDICATOR
6 CD/PHONO/RADIO/TAPE SWITCH
7 AM/FM BAND SWITCH
8 CD DRAWER
9 PLAY/PAUSE BUTTON
10 REPEAT LED INDICATOR
11 STOP BUTTON
12 MP3 LED INDICATOR
13 * BUTTON
14 * BUTTON
15 PROGRAM BUTTON
16 FOLDER - BUTTON
17 RANDOM LED INDICATOR
18 FOLDER + BUTTON
19 FOLDER LED INDICATOR
20 MODE BUTTON
21 FUNCTION BUTTON
22 POWER BUTTON
23 OPEN/CLOSE BUTTON
24 USB PORT

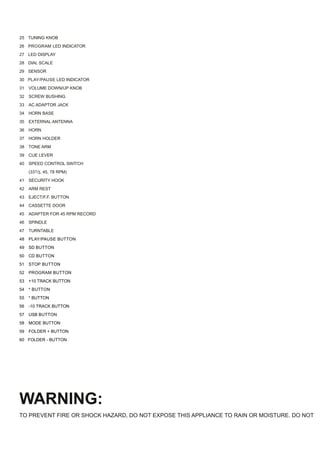

8. 25 TUNING KNOB
26 PROGRAM LED INDICATOR
27 LED DISPLAY
28 DIAL SCALE
29 SENSOR
30 PLAY/PAUSE LED INDICATOR
31 VOLUME DOWN/UP KNOB
32 SCREW BUSHING
33 AC ADAPTOR JACK
34 HORN BASE
35 EXTERNAL ANTENNA
36 HORN
37 HORN HOLDER
38 TONE ARM
39 CUE LEVER
40 SPEED CONTROL SWITCH
(331/3, 45, 78 RPM)
41 SECURITY HOOK
42 ARM REST
43 EJECT/F.F. BUTTON
44 CASSETTE DOOR
45 ADAPTER FOR 45 RPM RECORD
46 SPINDLE
47 TURNTABLE
48 PLAY/PAUSE BUTTON
49 SD BUTTON
50 CD BUTTON
51 STOP BUTTON
52 PROGRAM BUTTON
53 +10 TRACK BUTTON
54 * BUTTON
55 * BUTTON
56 -10 TRACK BUTTON
57 USB BUTTON
58 MODE BUTTON
59 FOLDER + BUTTON
60 FOLDER - BUTTON
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT

9. REMOVE COVER. PILOT LAMPS SOLDERED IN PLACE. NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC
The lighting flash with arrowhead symbol,
within an equilateral triangle, is intended to
SHOCK DO NOT OPEN The exclamation point within an equilateral
triangle is intended to alert user to the
alert user to the presence of uninsulated presence of important operating and
"dangerous voltage" within the product's CAUTION: TO REDUCE THE RISK OF maintenance (servicing) instruction in the
enclosure that may be of sufficient magnitude ELECTRIC SHOCK, DO NOT REMOVE literature accompanying the appliance.
to constitute risk of electric shock to persons. COVER (OR BACK). NO USER –
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
SPECIFICATION
FREQUENCY RANGE : FM 88 - 108 MHz
: AM 530 - 1600 KHz
POWER SOURCE : DC 12V DC 1.2A *
ANTENNAS : External antenna for FM
: Built-in ferrite bar for AM
TURNTABLE SPEED : 33 1/3 /45 /78 RPM
USB 2.0 PORT : Up to 8G byte MAX
SPEAKER : 3” x 4” 8ohm Dynamic type x 2
*DESIGN AND SPECIFICATION SUBJECT TO CHANGE WITHOUT NOTICE.
910-121121-0010-100
