Audiomonster Manual

AUDIOMONSTER
Model No. ANY1000
,
User s Guide

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

CONTENTS

1 CHAPTER 1: CONTENTS

2 CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS

3 CHAPTER 3: PRECAUTIONS

4 CHAPTER 4: PACKAGE CONTENTS

5 CHAPTER 5: PARTS AND CONTROLS

10 CHAPTER 6: BASIC OPERATIONS

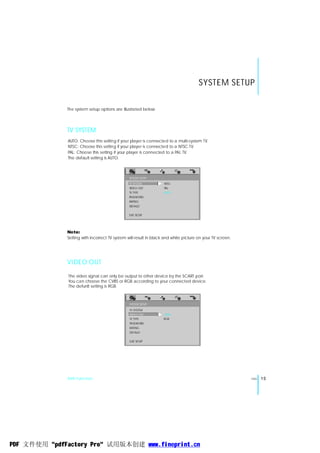

15 CHAPTER 7: SYSTEM SETUP

18 CHAPTER 8: LANGUAGE SETUP

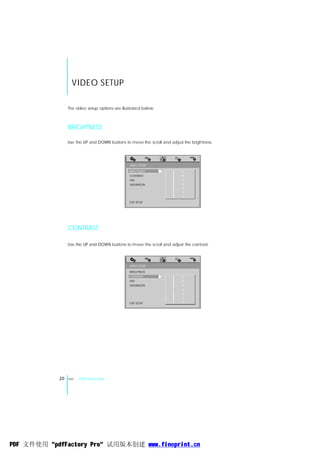

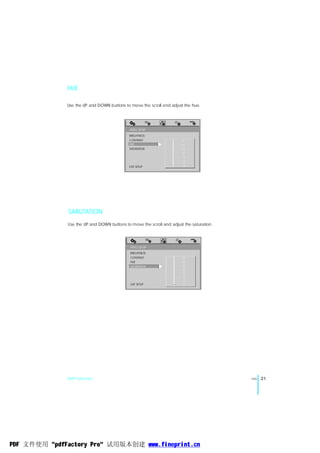

20 CHAPTER 9: VIDEO SETUP

22 CHAPTER 10: OPTICAL SETUP

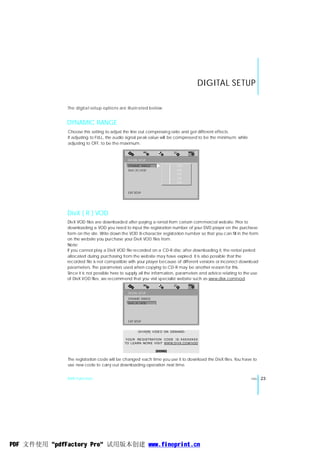

23 CHAPTER 11: DIGITAL SETUP

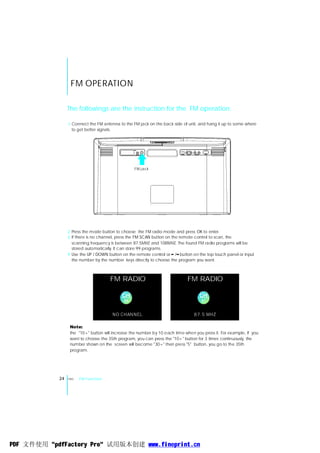

24 CHAPTER 12: FM OPERATION

25 CHAPTER 13: iPod OPERATION

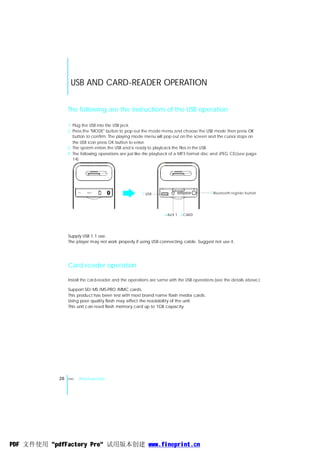

26 CHAPTER 14: USB AND CARD-READER OPERATION

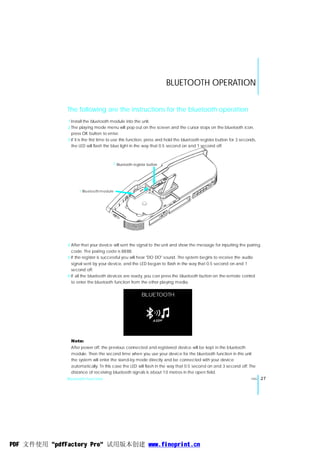

27 CHAPTER 15: BLUETOOTH OPERATION

28 CHAPTER 16: AUDIO IN FUNCTION

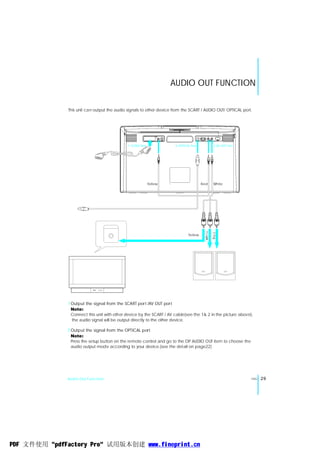

29 CHAPTER 17: AUDIO OUT FUNCTION

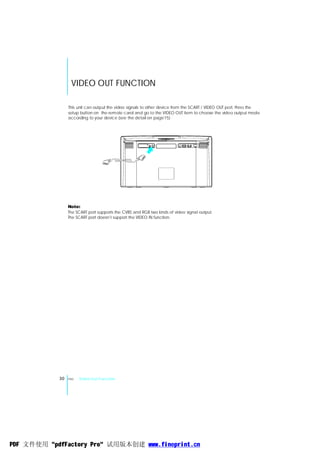

30 CHAPTER 18: VIDEO OUT FUNCTION

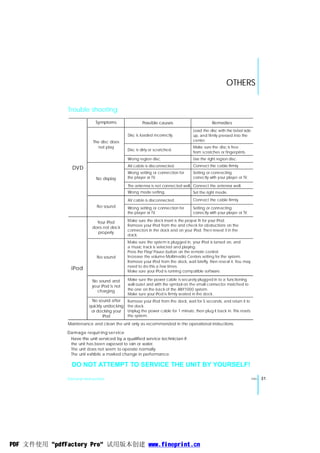

31 CHAPTER 19: OTHERS

General Introduction ENG 1

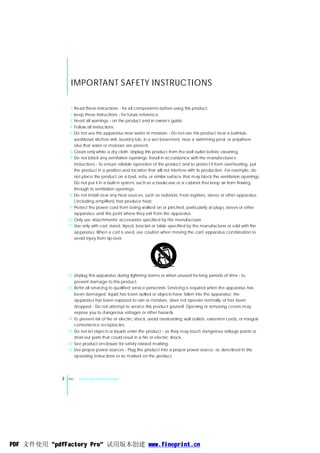

IMPORTANT S AFETY INSTRUCTIONS

1 Read these instructions - for all components before using this product.
2 keep these instructions - for future reference.
3 Heed all warnings - on the product and in owner ,s guide.
4 Follow all instructions.
5 Do not use this apparatus near water or moisture - Do not use this product near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, or anywhere
else that water or moisture are present.
6 Clean only white a dry cloth. Unplug this product from the wall outlet before cleaning.
7 Do not block any ventilation openings. Install in accordance with the manufacturer ,s
instructions - To ensure reliable operation of the product and to protect it from overheating, put
the product in a position and location that will not interfere with its production. For example, do
not place the product on a bed, sofa, or similar surface that may block the ventilation openings.
Do not put it in a built-in system, such as a bookcase or a cabinet that keep air from flowing
through its ventilation openings.
8 Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus
( including amplifiers) that produce heat.
9 Protect the power cord from being walked on or pinched, particularly at plugs, stoves or other
apparatus, and the point where they exit from the apparatus.
10 Only use attachments/ accessories specified by the manufacturer.
11 Use only with cart, stand, tripod, bracket or table specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to
avoid injury from tip-over.

12 Unplug this apparatus during lightning storms or when unused for long periods of time - to
prevent damage to this product.
13 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged; liquid has been spilled or objects have fallen into the apparatus; the
apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped - Do not attempt to service this product yourself. Opening or removing covers may
expose you to dangerous voltages or other hazards.
14 To prevent risk of fire or electric shock, avoid overloading wall outlets, extension cords, or integral
convenience receptacles.
15 Do not let objects or liquids enter the product - as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
16 See product enclosure for safety related marking.
17 Use proper power sources - Plug the product into a proper power source, as described in the
operating instructions or as marked on the product.

2 ENG General Introduction


PRECAUTIONS

Thank you for purchasing this Multimedia Centre. Please read this manual carefully before
operating and reserve it for future reference. It will be helpful to you if you encounter any
operational problem.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. DANGEROUS
HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

ATTENTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.

LASER: This Digital Video Disc player employs a Laser System. To ensure proper use of this
product, please read this owner s manual carefully and retain for future
reference. Should the unit require maintenance, contact an authorized service
location - see service procedure.

Use of controls, adjustments or the performance of procedures other than those
specified may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible and invisible laser radiation when open and interlocks defeated.

DO NOT STARE INTO BEAM!

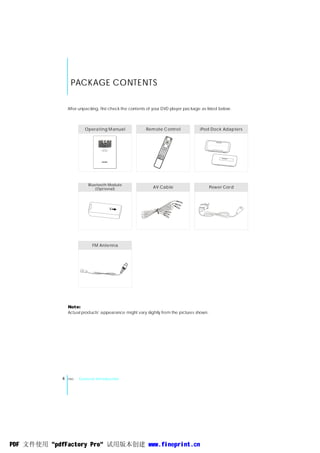

PACKAGE CONTENTS

After unpacking, first check the contents of your DVD player package as listed below:

Opera ting M anua l Rem ote C ontro l iPod Dock Adap ters

AN Y1000
AUD IO M ON STE R
User ,s Guid e

Bluetoot h Module
(Opt ional) AV Cab le Pow er Cor d

FM Ante nna

Note:
,
Actual products appearance might vary slightly from the pictures shown.

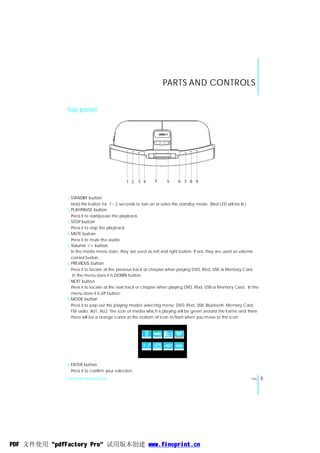

PARTS AND CONTROLS

Top panel

1 2 3 4 5 5 6 7 8 9

1 STANDBY button
Hold this button for 1~2 seconds to turn on or enter the standby mode. (Red LED will be lit.)
2 PLAY/PAUSE button
Press it to start/pause the playback.
3 STOP button
Press it to stop the playback.
4 MUTE button
Press it to mute the audio.
5 Volume -/+ button
In the mode menu state, they are used as left and right button. If not, they are used as volume
control button.
6 PREVIOUS button
Press it to locate at the previous track or chapter when playing DVD, iPod, USB or Memory Card.
In the menu state it is DOWN button.
7 NEXT button
Press it to locate at the next track or chapter when playing DVD, iPod, USB or Memory Card. In the
menu state it is UP button.
8 MODE button
Press it to pop out the playing modes selecting menu: DVD, iPod, USB, Bluetooth, Memory Card,
FM radio, AU1, AU2. The icon of media which is playing will be green around the frame and there
there will be a orange cursor at the bottom of icon to flash when you move to the icon.

AU1 AU2

9 ENTER button
Press it to confirm your selection.

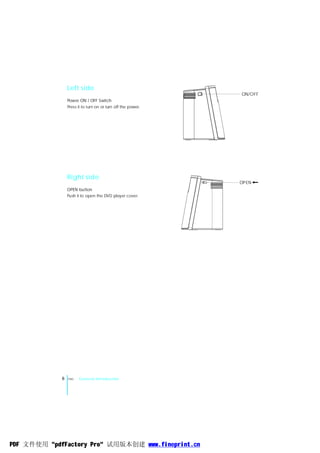

Left side
ON/OFF
Power ON / OFF Switch
Press it to turn on or turn off the power.

Right side
OP EN
OPEN button
Push it to open the DVD player cover.



Remote Control

2 1
MODE MENU

3 4

10 OK
9

SETUP

5 +
+ 7
RETURN VOL

6
_ 8

11 12
13
14 15
16
1 2 3

4 5 6
17
7 8 9

10+ 0 18
SL EEP FM SCAN OSD A-B

19 21
20 SUB-TITLE AUDIO TITLE SEA RCH 22
23 25
24 26
27 30
28 MY MY MY 29
MUSIC VIDEO PHOTO ON

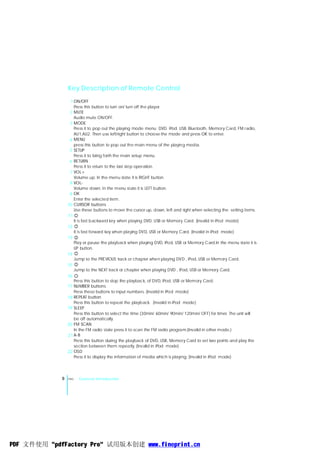

Key Description of Remote Control
1 ON/OFF
Press this button to turn on/ turn off the player.
2 MUTE
Audio mute ON/OFF.
3 MODE
Press it to pop out the playing mode menu: DVD. iPod. USB. Bluetooth, Memory Card, FM radio,
AU1,AU2. Then use left/right button to choose the mode and press OK to enter.
4 MENU
press this button to pop out the main menu of the playing media.
5 SETUP
Press it to bring forth the main setup menu.
6 RETURN
Press it to return to the last step operation.
7 VOL+
Volume up. In the menu state it is RIGHT button.
8 VOL-
Volume down. In the menu state it is LEFT button.
9 OK
Enter the selected item.
10 CURSOR buttons
Use these buttons to move the cursor up, down, left and right when selecting the setting items.
11
It is fast backward key when playing DVD, USB or Memory Card. (Invalid in iPod mode)
12
It is fast forward key when playing DVD, USB or Memory Card. (Invalid in iPod mode)
13
Play or pause the playback when playing DVD, iPod, USB or Memory Card.In the menu state it is
UP button.
14
Jump to the PREVIOUS track or chapter when playing DVD , iPod, USB or Memory Card.
15
Jump to the NEXT track or chapter when playing DVD , iPod, USB or Memory Card.
16
Press this button to stop the playback, of DVD, iPod, USB or Memory Card.
17 NUMBER buttons
Press these buttons to input numbers. (Invalid in iPod mode)
18 REPEAT button
Press this button to repeat the playback. (Invalid in iPod mode)
19 SLEEP
Press this button to select the time (30min/ 60min/ 90min/ 120min/ OFF) for timer. The unit will
be off automatically.
20 FM SCAN
In the FM radio state press it to scan the FM radio program.(Invalid in other mode.)
21 A-B
Press this button during the playback of DVD, USB, Memory Card to set two points and play the
section between them repeatly. (Invalid in iPod mode)
22 OSD
Press it to display the information of media which is playing. (Invalid in iPod mode)

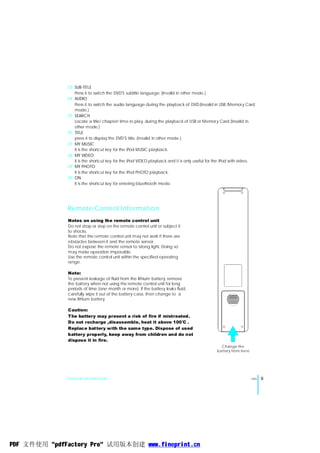

23 SUB-TITLE
,
Press it to switch the DVD S subtitle language. (Invalid in other mode.)
24 AUDIO
Press it to switch the audio language during the playback of DVD.(Invalid in USB /Memor y Card
mode.)
25 SEARCH
Locate a title/ chapter/ time to play, during the playback of USB or Memor y Card.(Invalid in
other mode.)
26 TITLE
,
press it to display the DVD S title. (Invalid in other mode.)
27 MY MUSIC
It is the shortcut key for the iPod MUSIC playback.
28 MY VIDEO
It is the shortcut key for the iPod VIDEO playback and it is only useful for the iPod with video.
29 MY PHOTO
It is the shortcut key for the iPod PHOTO playback.
30 ON
It is the shortcut key for entering bluethooth mode.

Remote Control Information
Notes on using the remote control unit
Do not drop or step on the remote control unit or subject it
to shocks.
Note that the remote control unit may not work if there are
obstacles between it and the remote sensor.
Do not expose the remote sensor to strong light. Doing so
may make operation impossible.
Use the remote control unit within the specified operating
range.

Note:
To prevent leakage of fluid from the lithium battery, remove
the battery when not using the remote control unit for long
periods of time (one month or more). If the battery leaks fluid,
carefully wipe it out of the battery case, then change to a
new lithium battery.

Caution:
The battery may present a risk of fire if mistreated.
Do not recharge ,disassemble, heat it above 100 C .
0

Replace battery with the same type. Dispose of used
battery properly, keep away from children and do not
dispose it in fire.
C hange the
battery from here

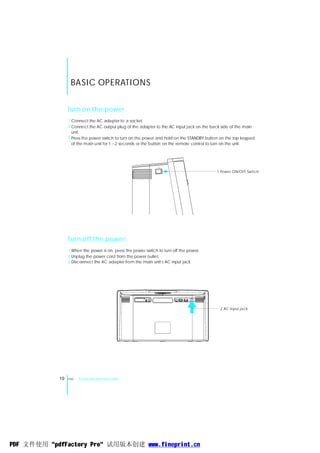

BASIC OPERATIONS

Turn on the power
1 Connect the AC adapter to a socket.
2 Connect the AC output plug of the adapter to the AC input jack on the back side of the main
unit.
3 Press the power switch to turn on the power and hold on the STANDBY button on the top keypad
of the main unit for 1~2 seconds or the button on the remote control to turn on the unit.

1 Powe r ON/OFF Switch

Turn off the power
1 When the power is on, press the power switch to turn off the power.
2 Unplug the power cord from the power outlet.
,
3 Disconnect the AC adapter from the main unit s AC input jack.

2 AC input ja ck

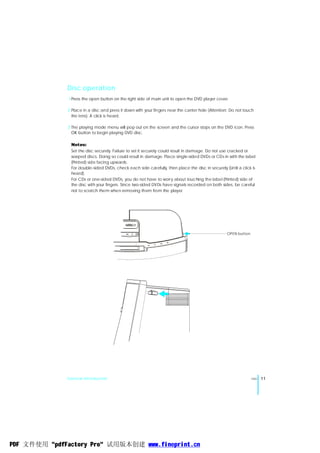

Disc operation
1 Press the open button on the right side of main unit to open the DVD player cover.

2 Place in a disc and press it down with your fingers near the canter hole (Attention: Do not touch
the lens). A click is heard.

3 The playing mode menu will pop out on the screen and the cursor stops on the DVD icon. Press
OK button to begin playing DVD disc.

Notes:
Set the disc securely. Failure to set it securely could result in damage. Do not use cracked or
warped discs. Doing so could result in damage. Place single-sided DVDs or CDs in with the label
(Printed) side facing upwards.
For double-sided DVDs, check each side carefully, then place the disc in securely (Until a click is
heard).
For CDs or one-sided DVDs, you do not have to worry about touching the label (Printed) side of
the disc with your fingers. Since two-sided DVDs have signals recorded on both sides, be careful
not to scratch them when removing them from the player.

OPEN button

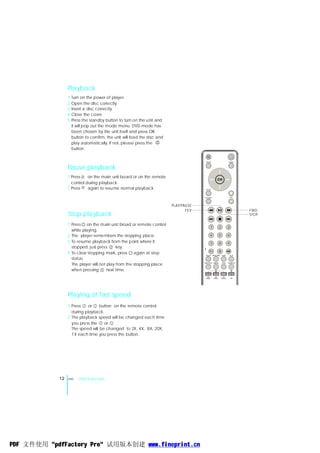

Playback
1 Turn on the power of player.
2 Open the disc correctly.
3 Insert a disc correctly.
4 Close the cover.
5 Press the standby button to turn on the unit and
it will pop out the mode menu. DVD mode has
been chosen by the unit itself and press OK
button to confirm, the unit will load the disc and
play automatically. If not, please press the
button.

MODE MENU

Pause playback
1 Press on the main unit board or on the remote
OK
control during playback.
2 Press again to resume normal playback. SETU P

+
R ETUR N VO L
_
PLAY/PAU SE
FEV FWD
Stop playback STOP

1 Press on the main unit broad or remote control
1 2 3
while playing.
2 The player remembers the stopping place. 4 5 6

3 To resume playback from the point where it 7 8 9
stopped, just press key.
10+
4 To clear stopping mark, press again at stop SLE EP FM SCAN
0
OS D A-B

status.
The player will not play from the stopping place SU B -T ITLE AUDIO T ITLE SE ARCH

when pressing next time.
MY MY MY

Playing at fast speed
1 Press or button on the remote control
during playback.
2 The playback speed will be changed each time
you press the or .
The speed will be changed to 2X, 4X, 8X, 20X,
1X each time you press the button.

12 ENG DVD Function


A-B/REPEAT playback
1 A-B playback
When pressing A-B button on the remote control
during playback, the current point would be
located on the remote control, and“ REPEAT A-”
appears on the screen.
Press A-B button again, B point would be located
and REPEAT A-B shown on the screen the player
would play from A point to B point repeatedly.
Press A-B button again. A-B playback would be
cancelled and A-B CANCEL shown on the screen,
then the player resume normal playback.
Repeat a Title, Chapter or Track.
2 Press REPEAT button on the remote control during
playback.
The chapter or the title(for DVD) and the MO DE MENU

track or entire disc (for CD) will be played
repeatedly.
The REPEAT mode will be changed OK
each time when the repeat button is pressed.
SETU P

+
Search for a specific scene R ET UR N
_
VOL

1 Press the SEARCH button on the remote control.
2 Press the UP DOWN and OK buttons to move to
,
desired section.
3 Input valid number to choose specific time or title, 1 2 3
chapter or track.
4 5 6
4 Press OK button to play the specific scene.
5 Press SEARCH button to resume normal screen. 7 8 9

10+ 0 REPEAT
SLE EP FM SCAN OSD A-B

Change the audio language OSD SU B -TIT LE AUDIO T ITLE SE ARCH
A-B REPEAT

SEARCH
1 Press the AUDIO button on the remote control AUDIO
during the playback. You can select different audio MY MY MY

languages included on the DVD video disc.

Use the OSD
1 This DVD video player allows you to view the
,
operational status and disc s information on screen.
2 Press OSD button on the remote control during
,
playback. The disc s information will be displayed
on the screen.
3 Press OSD button again, the information will
disappear.

DVD Function ENG 13

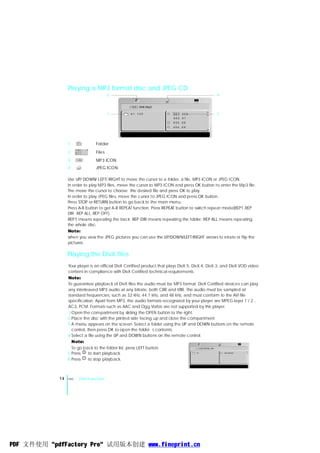

Playing a MP3 format disc and JPEG CD
3 4

［123］008.Mp3

1 01 .123 001 .008 2
002 .01
003 .05
004 .09

1 Folder
2 Files
001 .008
002 .01
00 3 . 0 5
00 4 . 09

3 MP3 ICON
4 JPEG ICON

Use UP/ DOWN/ LEFT/ RIGHT to move the cursor to a folder, a file, MP3 ICON or JPEG ICON.
In order to play MP3 files, move the cursor to MP3 ICON and press OK button to enter the Mp3 file.
The move the cursor to choose the desired file and press OK to play.
In order to play JPEG files, move the cursor to JPEG ICON and press OK button.
Press STOP or RETURN button to go back to the main menu.
Press A-B button to get A-B REPEAT function. Press REPEAT button to switch repeat mode(REP1,REP
DIR REP ALL, REP OFF).
REP1 means repeating the track; REP DIR means repeating the folder; REP ALL means repeating
the whole disc.
Note:
when you view the JPEG pictures you can use the UP/DOWN/LEFT/RIGHT arrows to rotate or flip the
pictures.

Playing the DivX files
Your player is an official DivX Certified product that plays DivX.5, DivX.4, DivX.3, and DivX.VOD video
content in compliance with DivX Certified technical requirements.
Note:
To guarantee playback of DivX files the audio must be MP3 format. DivX Certified devices can play
any interleaved MP3 audio at any bitrate, both CBR and VBR. The audio must be sampled at
standard frequencies, such as 32 kHz, 44.1 kHz, and 48 kHz, and must conform to the AVI file
specification. Apart from MP3, the audio formats recognized by your player are MPEG layer 1 / 2 ,
AC3, PCM. Formats such as AAC and Ogg Vorbis are not supported by this player.
1 Open the compartment by sliding the OPEN button to the right.
2 Place the disc with the printed side facing up and close the compartment.
3 A menu appears on the screen. Select a folder using the UP and DOWN buttons on the remote
control, then press OK to open the folder s contents.
4 Select a file using the UP and DOWN buttons on the remote control.
Note:
To go back to the folder list, press LEFT button. ［-］VOLTEFAC.AVI

5 Press to start playback. 01 . 0 1 . VOLTEFAC

6 Press to stop playback.

14 ENG DVD Function


SYSTEM SETUP

The system setup options are illustrated below:

TV SYSTEM
AUTO: Choose this setting if your player is connected to a multi-system TV.
NTSC: Choose this setting if your player is connected to a NTSC TV.
PAL: Choose this setting if your player is connected to a PAL TV.
The default setting is AUTO.

SYSTEM SETUP
TV SYSTEM NTSC
VIDEO OUT PAL
TV TYPE AUTO
PASSWORD
RATING
DEFAULT

EXIT SETUP

Note:
Setting with incorrect TV system will result in black and white picture on your TV screen.

VIDEO OUT

The video signal can only be output to other device by the SCART port.
You can choose the CVBS or RGB according to your connected device.
The defunlt setting is RGB.

SYSTEM SETUP
TV SYSTEM
VIDEO OUT CVBS
TV TYPE RGB
PASSWORD
RATING
DEFAULT

EXIT SETUP

DVD Function ENG 15

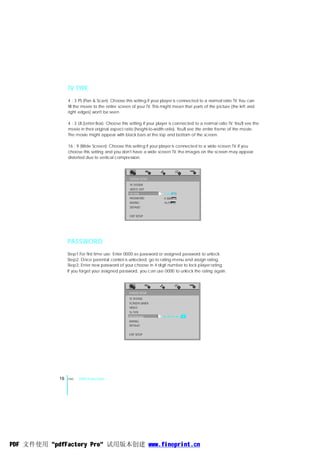

TV TYPE
4 : 3 PS (Pan & Scan): Choose this setting if your player is connected to a normal ratio TV. You can
fill the movie to the entire screen of your TV. This might mean that parts of the picture (the left and
right edges) won't be seen.

4 : 3 LB (Letter Box): Choose this setting if your player is connected to a normal ratio TV. You'll see the
movie in their original aspect ratio (height-to-width ratio). You'll see the entire frame of the movie.
The movie might appear with black bars at the top and bottom of the screen.

16 : 9 (Wide Screen): Choose this setting if your player is connected to a wide screen TV. If you
choose this setting and you don't have a wide screen TV, the images on the screen may appear
distorted due to vertical compression.

SYSTEM SETUP
TV SYSTEM
VIDEO OUT
TV TYPE 4:3PS
PASSWORD 4:3LB
RATING 16:9
DEFAULT

EXIT SETUP

PASSWORD
Step1:For first time use: Enter 0000 as password or assigned password to unlock.
Step2: Once parental control is unlocked, go to rating menu and assign rating.
Step3: Enter new password of your choose in 4 digit number to lock player rating.
If you forget your assigned password, you can use 0000 to unlock the rating again.

SYSTEM SETUP
TV SYSTEM
SCREEN SAVER
VIDEO

----
TV TYPE
PASSWORD
RATING
DEFAULT

EXIT SETUP

16 ENG DVD Function

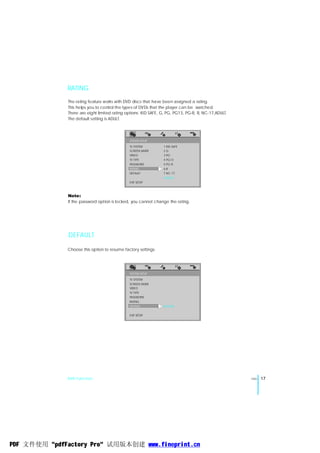

RATING
The rating feature works with DVD discs that have been assigned a rating.
This helps you to control the types of DVDs that the player can be watched.
There are eight limited rating options: KID SAFE, G, PG, PG13, PG-R, R, NC-17,ADULT.
The default setting is ADULT.

SYSTEM SETUP
TV SYSTEM 1 KID SAFE
SCREEN SAVER 2G
VIDEO 3 PG
TV TYPE 4 PG13
PASSWORD 5 PG-R
RATING 6R
DEFAULT 7 NC-17
8 ADULT
EXIT SETUP

Note:
If the password option is locked, you cannot change the rating.

DEFAULT

Choose this option to resume factory settings.

SYSTEM SETUP

TV SYSTEM
SCREEN SAVER
VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT RESTORE

EXIT SETUP

DVD Function ENG 17

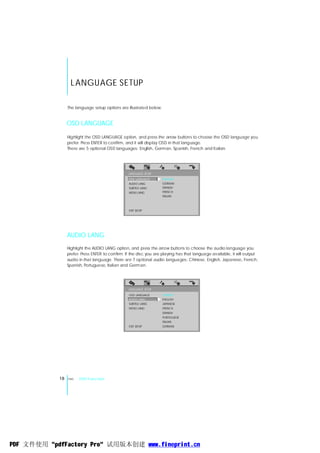

L ANGUAGE SETUP

The language setup options are illustrated below:

OSD LANGUAGE

Highlight the OSD LANGUAGE option, and press the arrow buttons to choose the OSD language you
prefer. Press ENTER to confirm, and it will display OSD in that language.
There are 5 optional OSD languages: English, German, Spanish, French and Italian.

LANGUAGE SETUP
OSD LANGUAGE ENGLISH
AUDIO LANG GERMAN
SUBTITLE LANG SPANISH
MENU LANG FRENCH
ITALIAN

EXIT SETUP

AUDIO LANG
Highlight the AUDIO LANG .option, and press the arrow buttons to choose the audio language you
prefer. Press ENTER to confirm. If the disc you are playing has that language available, it will output
audio in that language. There are 7 optional audio languages: Chinese, English, Japanese, French,
Spanish, Portuguese, Italian and German.

LANGUAGE SETUP
OSD LANGUAGE CHINESE
AUDIO LANG ENGLISH
SUBTITLE LANG JAPANESE
MENU LANG FRENCH
SPANISH
PORTUGUESE
ITALIAN
EXIT SETUP GERMAN

18 ENG DVD Function


SUBTITLE LANG

Highlight the SUBTITLE LANG option, and press the arrow buttons to choose the subtitle language you
prefer. Press ENTER to confirm. If the disc you are playing has that language available, it will display
subtitles in that language. There are 7 optional subtitle languages: Chinese, English, Japanese,
French, Spanish, Portuguese and German.

LANGUAGE SETUP
AUDIO LANG ENGLISH
MENU LANG FRENCH
SPANISH
PORTUGUESE
GERMAN
EXIT SETUP OFF

MENU LANG
Highlight the MENU LANG option, and press the arrow buttons to choose the menu language you
prefer.
Press ENTER to confirm. If the disc you are playing has that language available, it will display menu
in that language. There are 8 optional menu languages: Chinese, English, Japanese, French,
Spanish, Portuguese, German and Italian.
If your preferred language isn't available, the disc's default language will be played.
The default language of your DVD player is English.

LANGUAGE SETUP
AUDIO LANG ENGLISH
MENU LANG FRENCH
SPANISH
PORTUGUESE
GERMAN
EXIT SETUP ITALIAN

DVD Function ENG 19


VIDEO SETUP

The video setup options are illustrated below:

BRIGHTNESS

Use the UP and DOWN buttons to move the scroll and adjust the brightness.

VIDEO SETUP
BRIGHTNESS - - 12
CONTRAST - - 10
HUE - - 8
SATURATION - - 6
- - 4
- - 2
- - 0

EXIT SETUP

CONTRAST

Use the UP and DOWN buttons to move the scroll and adjust the contrast.

VIDEO SETUP

BRIGHTNESS
CONTRAST - - 12
HUE - - 10
SATURATION - - 8
- - 6
- - 4
- - 2
EXIT SETUP - - 0

20 ENG DVD Function


HUE

Use the UP and DOWN buttons to move the scroll and adjust the hue.

VIDEO SETUP
BRIGHTNESS
CONTRAST - - +6
HUE - - +4
SATURATION - - +2
- - 0
- - -2
- - -4
EXIT SETUP - - -6

SARUTATION
Use the UP and DOWN buttons to move the scroll and adjust the saturation.

VIDEO SETUP
BRIGHTNESS
CONTRAST - - 12
HUE - - 10
SATURATION - - 8
- - 0
- - 6
- - 4
- - 2
EXIT SETUP - - 0

DVD Function ENG 21

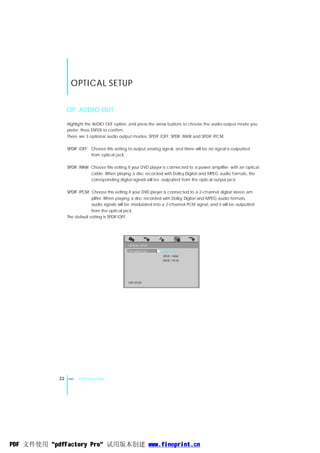

OPTICAL SETUP

OP AUDIO OUT

Highlight the AUDIO OUT option, and press the arrow buttons to choose the audio output mode you
prefer. Press ENTER to confirm.
There are 3 optional audio output modes: SPDIF /OFF, SPDIF /RAW and SPDIF /PCM.

SPDIF /OFF: Choose this setting to output analog signal, and there will be no signal is outputted
from optical jack.

SPDIF /RAW: Choose this setting if your DVD player is connected to a power amplifier with an optical
cable. When playing a disc recorded with Dolby Digital and MPEG audio formats, the
corresponding digital signals will be outputted from the optical output jack.

SPDIF /PCM: Choose this setting if your DVD player is connected to a 2-channel digital stereo am
plifier. When playing a disc recorded with Dolby Digital and MPEG audio formats,
audio signals will be modulated into a 2-channel PCM signal, and it will be outputted
from the optical jack.
The default setting is SPDIF/OFF.

OPTICAL SETUP
OP AUDIO OUT SPDIF / OFF
SPDIF / RAW
SPDIF / PCM

EXIT SETUP

22 ENG DVD Function


DIGITAL SETUP

The digita l setup optio ns are illustr ated below:

DYNAMIC RANGE
Choose this setting to adjust the line out compressing ratio and get different effects.
If adjusting to FULL, the audio signal peak value will be compressed to be the minimum; while
adjusting to OFF, to be the maximum.

DIGITAL SETUP
DYNAMIC RANGE - - FULL
DivX ( R ) VOD - - 6/8
- - 4/8
- - 2/8
- - OFF

EXIT SETUP

DivX ( R ) VOD
DivX VOD files are downloaded after paying a rental from certain commercial website. Prior to
downloading a VOD you need to input the registration number of your DVD player on the purchase
form on the site. Write down the VOD 8-character registration number so that you can fill in the form
on the website you purchase your DivX VOD files from.
Note:
If you cannot play a DivX VOD file recorded on a CD-R disc after downloading it, the rental period
allocated during purchasing from the website may have expired. It is also possible that the
recorded file is not compatible with your player because of different versions or incorrect download
parameters. The parameters used when copying to CD-R may be another reason for this.
Since it is not possible here to supply all the information, parameters and advice relating to the use
of DivX VOD files, we recommend that you visit specialist website such as www.divx.com/vod.

DIGITAL SETUP
DYNAMIC RANGE
DivX ( R ) VOD

EXIT SETUP

-DI VX[R] VIDE O ON DEM AND-

YOU R RE GISTRATION CODE IS: XXX XXXXX
TO LEARN MOR E VIS IT WWW.DI VX.CO M/VOD

[D ONE]

The registration code will be changed each time you use it to download the DivX files. You have to
use new code to carry out downloading operation next time.

DVD Function ENG 23


FM OPERATION

The followings are the instruction for the FM operation.

1 Connect the FM antenna to the FM jack on the back side of unit, and hang it up to some where
to get better signals.

FM j ack

2 Press the mode button to choose the FM radio mode and press OK to enter.
3 If there is no channel, press the FM SCAN button on the remote control to scan, the
scanning frequency is between 87.5MHZ and 108MHZ. The found FM radio programs will be
stored automatically. It can store 99 programs.
4 Use the UP / DOWN button on the remote control or / button on the top touch panel or input
the number by the number keys directly to choose the program you want.

FM RADIO FM RADIO

CH CH
00 01

NO CHANNEL 87.5 MHZ

Note:
the "10+" button will increase the number by 10 each time when you press it. For example, If you
want to choose the 35th program, you can press the "10+" button for 3 times continuously, the
number shown on the screen will become "30+" then press "5" button, you go to the 35th
program.

24 ENG FM Function


iPod OPERATION

The following are the instructions for the iPod operation
1 Choose the dock adapter that fit your iPod . There are 2 dock adapters we offered for your
choice. One is for the 1GB, 2GB and 4GB iPod nano, the another is for 30GB iPod with video.
2 Insert the dock adapter and connect your iPod.

Dock adapter
You can remove the dock ada pter
with y our fingernail by using thi s slot.

Conne ctor well

3 The playing mode menu will pop out on the screen and the cursor stops on the ipod icon, press
OK button to enter.
Note:
The iPod will be recharged automatically once its insertion.

iPod playback
Press MENU button on the remote control to pop out the main menu of the iPod. Use the UP /DOWN
button to choose the items your want and press OK to confirm.
Note:
If you want to go back to the previous menu you are operating, press the MENU button. It will go
back one by one when each time you press the MENU button.
Press iPod ON/OFF to turn on or turn off your iPod.

_
Press the volume + /
M ODE M E NU

buttons to adjust the system volume.
Press and hold for+faster adjustment.
_
OK
Note: the volume + / _ buttons on the panel have the same function.
SE TUP

+
+
R ETUR N VOL

Press / buttons to jump to the previous or next track. _

Press the button once to pause play; again to resume it.
Press the MUTE button to mute the audio.

MY
M USIC The three buttons are the shortcut keys for the playback of
MY
V IDEO
MY
PHO TO

MY MUSIC 、MY VIDEO、 MY PHOTO. Press them, the system will switch
to the iPod file directly from the ongoing operation.
Note:
MY VIDEO button is only useful for the iPod with video. MY
MUSIC
MY
VIDEO
MY
PHOTO ON

Your iPod navigation controls are fully function while it is docked in
the system.
Top keypad of the unit can work as well as the same buttons on the
remote control.
iPod Function ENG 25


USB AND CARD-READER OPERATION

The following are the instructions of the USB operation

1 Plug the USB into the USB jack.
2 Press the "MODE" button to pop out the mode menu and choose the USB mode then press OK
button to confirm. The playing mode menu will pop out on the screen and the cursor stops on
the USB icon press OK button to enter.
3 The system enters the USB and is ready to playback the files in the USB.
4 The following operations are just like the playback of a MP3 format disc and JPEG CD.(see page
14)

AUX 1
1 USB 3 Bluetooth register button

4 AU X 1 2 CARD

Supply USB 1.1 use.
The player may not work properly if using USB connecting cable. Suggest not use it.

Card-reader operation

Install the card-reader and the operations are same with the USB operations (see the details above.)

Support SD/ MS /MS-PRO /MMC cards.
This product has been test with most brand name flash media cards.
Using poor quality flash may affect the readability of the unit.
This unit can read flash memory card up to 1GB capacity.

26 ENG iPod Function


BLUETOOTH OPERATION

The following are the instructions for the bluetooth operation
1 Install the bluetooth module into the unit.
2 The playing mode menu will pop out on the screen and the cursor stops on the bluetooth icon,
press OK button to enter.
3 If it is the first time to use this function, press and hold the bluetooth register button for 3 seconds,
the LED will flash the blue light in the way that 0.5 second on and 1 second off.

2 Bluetooth register button

1 Blu etooth m odule

4 After that your device will sent the signal to the unit and show the message for inputting the pairing
code. The pairing code is 8888.
5 If the register is successful you will hear "DO DO" sound. The system begins to receive the audio
signal sent by your device, and the LED began to flash in the way that 0.5 second on and 1
second off.
6 If all the bluetooth devices are ready, you can press the bluetooth button on the remote control
to enter the bluetooth function from the other playing media.

BLUETOOTH

Note:
After power off, the previous connected and registered device will be kept in the bluetooth
module. Then the second time when you use your device for the bluetooth function in this unit
the system will enter the stand-by mode directly and be connected with your device
automatically. Tn this case the LED will flash in the way that 0.5 second on and 3 second off. The
distance of receiving bluetooth signals is about 10 metres in the open field.
Bluetooth Function ENG 27


AUDIO IN FUNCTION

1 Connect this unit with other device by the AV cable. The audio signals of the device will be input
to it and you can enjoy the surround channel sound.
2 Press the MODE button to choose the AU1or AU2 mode.

S uppor t AU1 M ode
(φ3.5 stereo audio cable)

Yellow Red White

Supp ort AU 2 Mod e

Yellow

Note:
AU1mode is for the audio signals input from the φ3.5 Audio In jack.
AU2 mode is for the audio signals input from the Audio In port.

28 ENG Audio In Function


AUDIO OUT FUNCTION

This unit can output the audio signals to other device from the SCART / AUDIO OUT/ OPTICAL port.

1 SCRAT Port 3 OPTICAL Port 2 AV OUT Port

Yellow Red White

Yellow

1 Output the signal from the SCART port /AV OUT port
Note:
Connect this unit with other device by the SCART / AV cable(see the 1& 2 in the picture above),
the audio signal will be output directly to the other device.

2 Output the signal from the OPTICAL port
Note:
Press the setup button on the remote control and go to the OP AUDIO OUT item to choose the
audio output mode according to your device.(see the detail on page22)

Audio Out Function ENG 29


VIDEO OUT FUNCTION

This unit can output the video signals to other device from the SCART / VIDEO OUT port. Press the
setup button on the remote carol and go to the VIDEO OUT item to choose the video output mode
according to your device (see the detail on page15)

Note:
The SCART port supports the CVBS and RGB two kinds of video signal output.
,
The SCART port doesn t support the VIDEO IN function.

30 ENG Video Out Function


OTHERS

Trouble shooting
Symptoms Possible causes Remedies
Load the disc with the label side
Disc is loaded incorrectly. up, and firmly pressed into the
The disc does center.
not play Make sure the disc is free
Disc is dirty or scratched.
from scratches or fingerprints.
Wrong region disc. Use the right region disc.
AV cable is disconnected. Connect the cable firmly.
DVD
Wrong setting or connection for Setting or connecting
No display the player or TV. correctly with your player or TV.

The antenna is not connected well. Connect the antenna well.
Wrong mode setting. Set the right mode.
AV cable is disconnected. Connect the cable firmly.
No sound Wrong setting or connection for Setting or connecting
the player or TV. correctly with your player or TV.

Your iPod Make sure the dock insert is the proper fit for your iPod.
Remove your iPod from the and check for obstructions on the
does not dock
connectors in the dock and on your iPod. Then reseat it in the
properly
dock.
Make sure the system is plugged in, your iPod is turned on, and
a music track is selected and playing.
Press the Play/ Pause button on the remote control.
No sound Increase the volume Moltimedio Centers setting for the system.
Remove your iPod from the dock, wait briefly, then reseat it. You may
need to do this a few times.
iPod Make sure your iPod is running compatible software.

No sound and Make sure the power cable is securely plugged in to a functioning
your iPod is not wall outet and with the symbol on the small connector matched to
charging the one on the back of the ANY1000 system.
Make sure your iPod is firmly seated in the dock.
No sound after Remove your iPod from the dock, wait for 5 seconds, and return it to
quickly undocking the dock.
or docking your Unplug the power cable for 1 minute, then plug it back in. This resets
iPod the system.

Maintenance and clean the unit only as recommended in the operational instructions.

Damage requir ing se rvice
Have the unit serviced by a qualified service technician if:
the unit has been exposed to rain or water.
The unit does not seem to operate normally.
The unit exhibits a marked change in performance.

DO NOT ATTEMPT TO SERVICE THE UNIT BY YOURSELF!

General Instruction ENG 31


www.nextbase.com
ANY1000-ENG-MANUAL-A1


Audiomonster Manual

More Related Content

What's hot

Similar to Audiomonster Manual

Recently uploaded

Audiomonster Manual
