This document discusses the growing importance and applications of analog circuits and technologies. It notes that while digital circuits currently dominate the integrated circuit market, analog circuits enable interaction with the physical world through sensing and actuation. The document highlights that analog circuits are expected to attract more talent and investment in the coming years. It provides an overview of analog product areas at Texas Instruments and discusses directions for education in analog and mixed-signal circuit design. Programmable analog circuits that can dynamically configure analog functions are also described as enabling more efficient computation for applications like sensor signal processing.

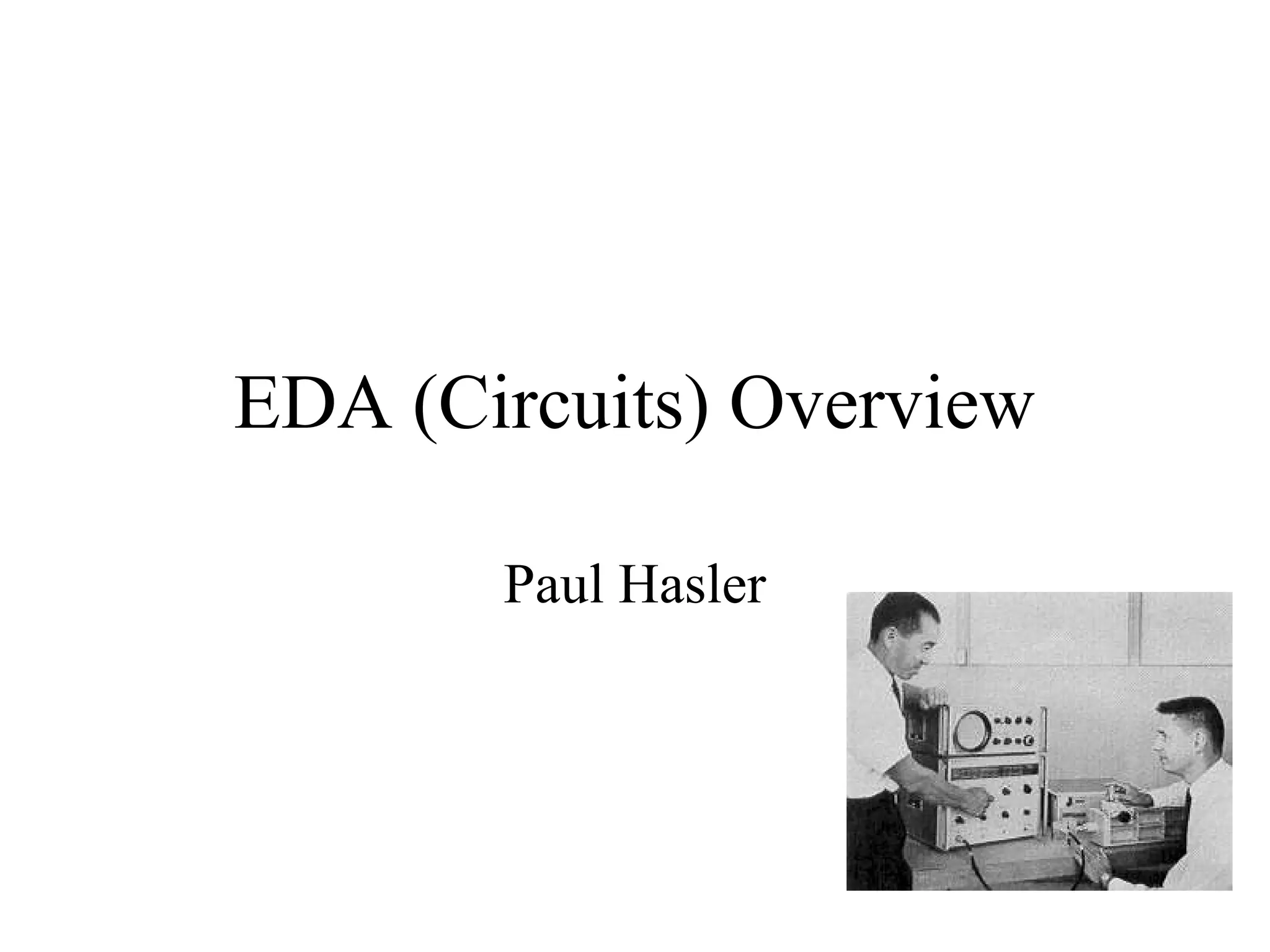

1. EDA (Circuits) Overview
Paul Hasler

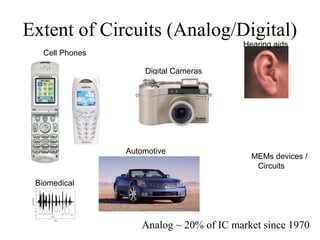

2. Extent of Circuits (Analog/Digital)
Hearing aids
Cell Phones
Digital Cameras
Automotive
MEMs devices /
Circuits
Biomedical
Analog ~ 20% of IC market since 1970

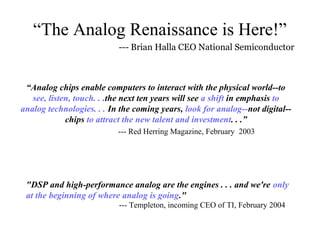

3. “The Analog Renaissance is Here!”
--- Brian Halla CEO National Semiconductor
“Analog chips enable computers to interact with the physical world--to
see, listen, touch. . .the next ten years will see a shift in emphasis to
analog technologies. . . In the coming years, look for analog--not digital--
chips to attract the new talent and investment. . .”
--- Red Herring Magazine, February 2003
"DSP and high-performance analog are the engines . . . and we're only
at the beginning of where analog is going."
--- Templeton, incoming CEO of TI, February 2004

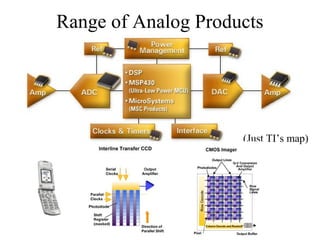

4. Range of Analog Products
(Just TI’s map)

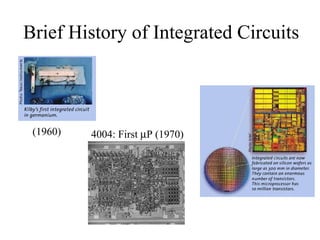

5. Brief History of Integrated Circuits
(1960) 4004: First µP (1970)

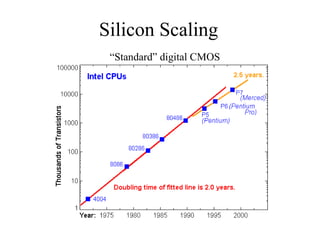

6. Silicon Scaling
“Standard” digital CMOS

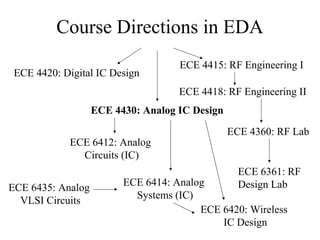

7. Course Directions in EDA
ECE 4415: RF Engineering I
ECE 4420: Digital IC Design
ECE 4418: RF Engineering II
ECE 4430: Analog IC Design
ECE 4360: RF Lab
ECE 6412: Analog
Circuits (IC)
ECE 6361: RF
ECE 6414: Analog Design Lab
ECE 6435: Analog
Systems (IC)
VLSI Circuits
ECE 6420: Wireless
IC Design

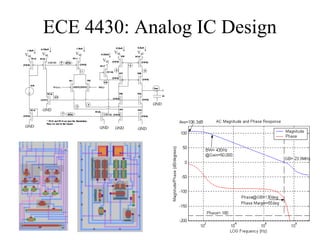

8. ECE 4430: Analog IC Design

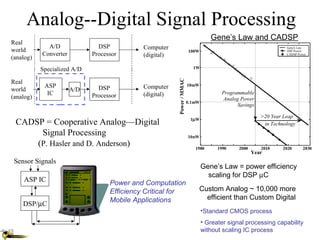

9. Analog--Digital Signal Processing
Gene’s Law and CADSP
Real
A/D DSP Computer Gene's Law
world 100W DSP Power
Converter Processor (digital) CADSP Power
(analog)
Specialized A/D 1W
Power / MMAC
Real
ASP DSP Computer 10mW
world A/D
IC Processor (digital) Programmable
(analog) Analog Power
0.1mW
Savings
>20 Year Leap
CADSP = Cooperative Analog—Digital 1µW
in Technology
Signal Processing 10nW
(P. Hasler and D. Anderson) 1980 1990 2000 2010 2020 2030
Year
Sensor Signals
Gene’s Law = power efficiency
scaling for DSP µC
ASP IC Power and Computation
Efficiency Critical for Custom Analog ~ 10,000 more
Mobile Applications efficient than Custom Digital
DSP/µC
•Standard CMOS process
• Greater signal processing capability
without scaling IC process

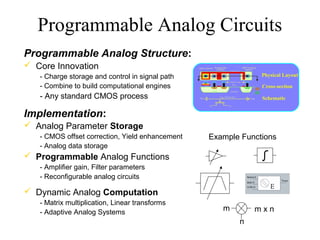

10. Programmable Analog Circuits
Programmable Analog Structure:
 Core Innovation
- Charge storage and control in signal path Physical Layout
- Combine to build computational engines Cross-section
- Any standard CMOS process Schematic
Implementation:
 Analog Parameter Storage
- CMOS offset correction, Yield enhancement Example Functions
- Analog data storage
 Programmable Analog Functions
- Amplifier gain, Filter parameters
- Reconfigurable analog circuits
 Dynamic Analog Computation
- Matrix multiplication, Linear transforms
- Adaptive Analog Systems
m mxn
n

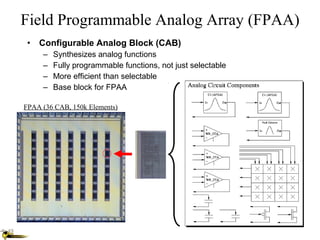

11. Field Programmable Analog Array (FPAA)
• Configurable Analog Block (CAB)
– Synthesizes analog functions
– Fully programmable functions, not just selectable
– More efficient than selectable
– Base block for FPAA
FPAA (36 CAB, 150k Elements)
