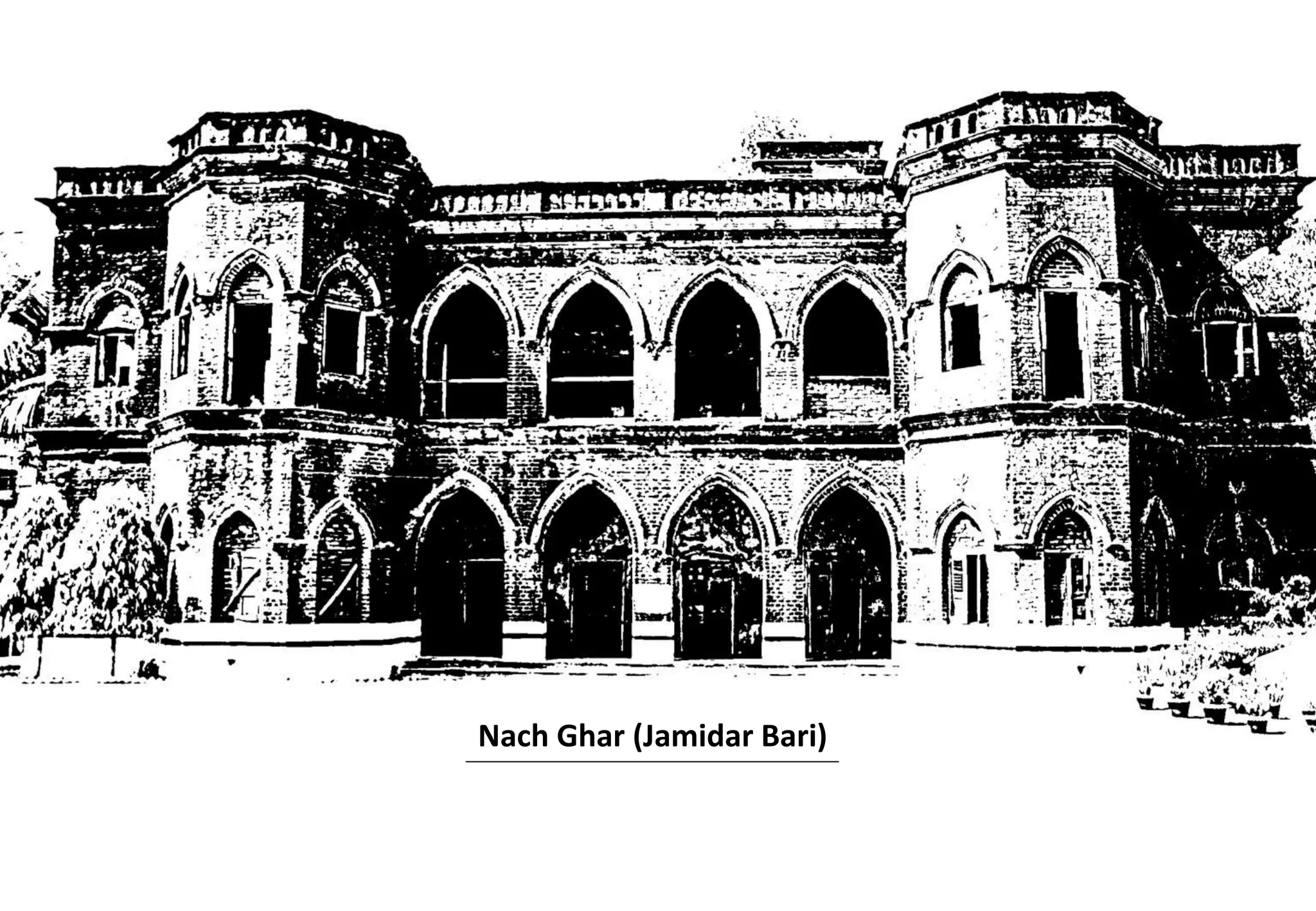

1. Nach Ghar (Jamidar Bari)

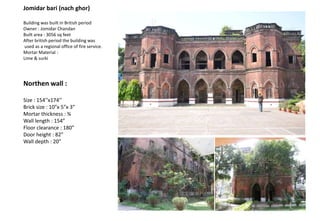

2. Jomidar bari (nach ghor)
Building was built in British period
Owner : Jomidar Chandan
Built area : 3056 sq feet
After british period the building was
used as a regional office of fire service.
Mortar Material :
Lime & surki
Northen wall :
Size : 154’’x174’’
Brick size : 10”x 5”x 3”
Mortar thickness : ¾
Wall length : 154”
Floor clearance : 180”
Door height : 82”
Wall depth : 20”

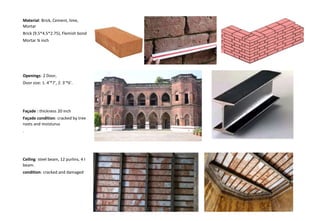

3. Material: Brick, Cement, lime,
Mortar
Brick (9.5*4.5*2.75), Flemish bond
Mortar ¾ inch
Openings: 2 Door,
Door size: 1. 4’*7’, 2. 3’*6’.
Façade : thickness 20 inch
Façade condition: cracked by tree
roots and moisturus
.
Ceiling: steel beam, 12 purlins, 4 I
beam.
condition: cracked and damaged

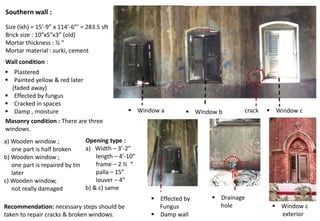

4. Southern wall :
Size (lxh) = 15’-9” x 114’-6”’ = 283.5 sft
Brick size : 10”x5”x3” (old)
Mortar thickness : ½ “
Mortar material : surki, cement
Masonry condition : There are three
windows.
a) Wooden window ;
one part is half broken
b) Wooden window ;
one part is repaired by tin
later
c) Wooden window,
not really damaged
 Plastered
 Painted yellow & red later
(faded away)
 Effected by fungus
 Cracked in spaces
 Damp , moisture
Opening type :
a) Width – 3’-2”
length – 4’-10”
frame – 2 ½ “
palla – 15”
louver – 4”
b) & c) same
Wall condition :
 Drainage
hole
 Window a  Window b  Window ccrack
 Window c
exterior
 Effected by
Fungus
 Damp wall
Recommendation: necessary steps should be
taken to repair cracks & broken windows.

5. All Elevation:

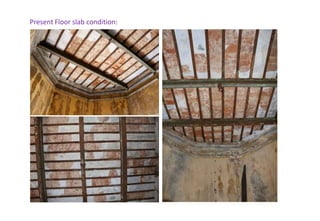

6. Present Floor slab condition:

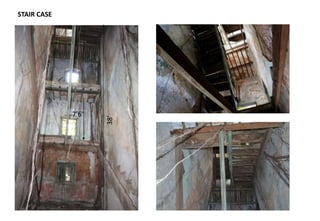

8. STAIR CASE
7’6”
38’

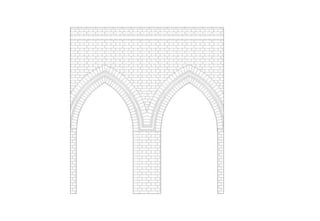

9. a narrow acutely pointed arch
having two centers of equal radii.
Sometimes shortened to: lancet
Also called: acute arch, Gothic
arch, pointed arch or ogive
Lancet Arch
English Bond

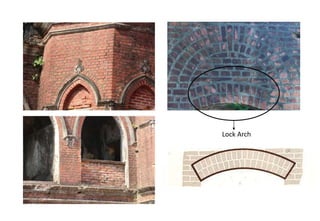

10. Lock Arch

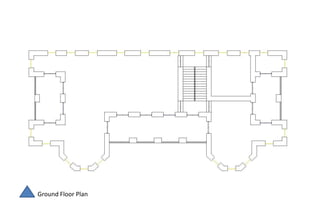

14. Ground Floor Plan

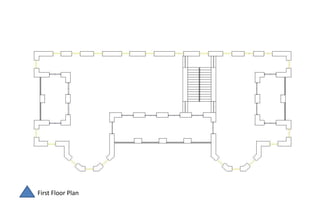

15. First Floor Plan

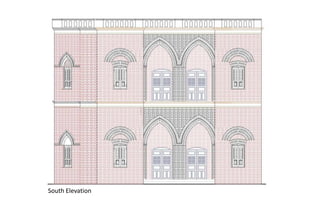

16. South Elevation

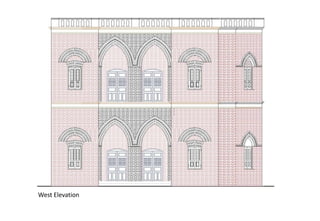

17. West Elevation
