1. Thermochemistry is the study of heat released or absorbed by chemical reactions. Exothermic reactions release heat while endothermic reactions absorb heat. 2. The internal energy of a system can change through the transfer of heat or work. Heat is energy transferred due to temperature differences while work is energy transferred through force exerted against movement. 3. Enthalpy is a measure of the total energy of a system and equals the heat absorbed or released during a chemical process at constant pressure. Exothermic reactions have negative enthalpy changes while endothermic reactions have positive enthalpy changes.

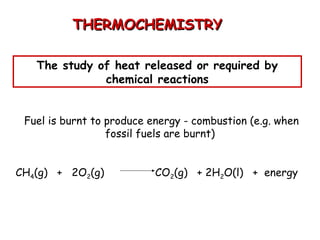

1. THERMOCHEMISTRYTHERMOCHEMISTRY
The study of heat released or required by
chemical reactions
Fuel is burnt to produce energy - combustion (e.g. when
fossil fuels are burnt)
CH4(g) + 2O2(g) CO2(g) + 2H2O(l) + energy

2. What is Energy?
EnergyEnergy
Kinetic
energy
(EK)
Potential
energy
(EP)
Energy due
to motion
Energy due to
position (stored
energy)

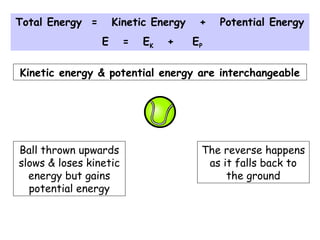

3. Total Energy = Kinetic Energy + Potential Energy
E = EK + EP
Kinetic energy & potential energy are interchangeable
Ball thrown upwards
slows & loses kinetic
energy but gains
potential energy
The reverse happens
as it falls back to
the ground

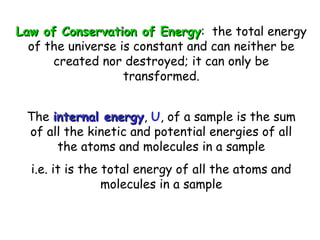

4. Law of Conservation of EnergyLaw of Conservation of Energy: the total energy
of the universe is constant and can neither be
created nor destroyed; it can only be
transformed.
The internal energyinternal energy, U, of a sample is the sum
of all the kinetic and potential energies of all
the atoms and molecules in a sample
i.e. it is the total energy of all the atoms and
molecules in a sample

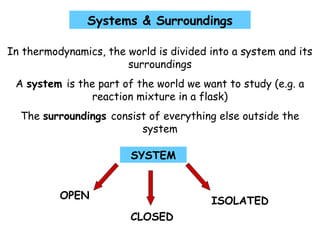

5. Systems & Surroundings
In thermodynamics, the world is divided into a system and its
surroundings
A system is the part of the world we want to study (e.g. a
reaction mixture in a flask)
The surroundings consist of everything else outside the
system
SYSTEM
CLOSED
OPEN
ISOLATED

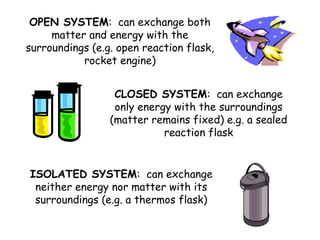

6. OPEN SYSTEM: can exchange both
matter and energy with the
surroundings (e.g. open reaction flask,
rocket engine)
CLOSED SYSTEM: can exchange
only energy with the surroundings
(matter remains fixed) e.g. a sealed
reaction flask
ISOLATED SYSTEM: can exchange
neither energy nor matter with its
surroundings (e.g. a thermos flask)

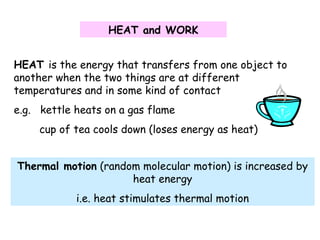

7. HEAT and WORK
HEAT is the energy that transfers from one object to
another when the two things are at different
temperatures and in some kind of contact
e.g. kettle heats on a gas flame
cup of tea cools down (loses energy as heat)
Thermal motion (random molecular motion) is increased by
heat energy
i.e. heat stimulates thermal motion

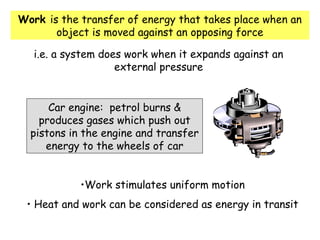

8. Work is the transfer of energy that takes place when an
object is moved against an opposing force
i.e. a system does work when it expands against an
external pressure
Car engine: petrol burns &
produces gases which push out
pistons in the engine and transfer
energy to the wheels of car
•Work stimulates uniform motion
• Heat and work can be considered as energy in transit

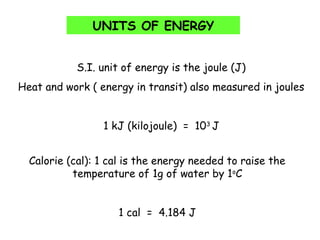

9. UNITS OF ENERGY
S.I. unit of energy is the joule (J)
Heat and work ( energy in transit) also measured in joules
1 kJ (kilojoule) = 103
J
Calorie (cal): 1 cal is the energy needed to raise the
temperature of 1g of water by 1o
C
1 cal = 4.184 J

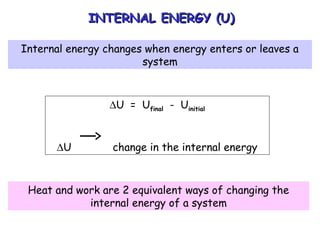

10. INTERNAL ENERGY (U)INTERNAL ENERGY (U)
Internal energy changes when energy enters or leaves a
system
∆U = Ufinal - Uinitial
∆U change in the internal energy
Heat and work are 2 equivalent ways of changing the
internal energy of a system

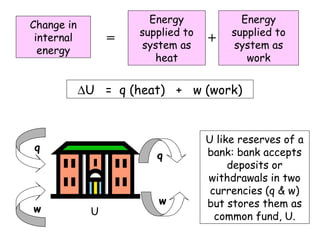

11. +=
Change in
internal
energy
Energy
supplied to
system as
heat
Energy
supplied to
system as
work
∆U = q (heat) + w (work)
q
w
q
w
U
U like reserves of a
bank: bank accepts
deposits or
withdrawals in two
currencies (q & w)
but stores them as
common fund, U.

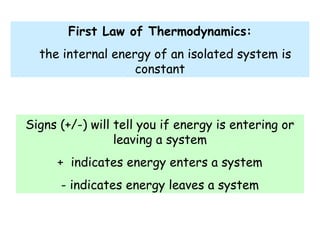

12. First Law of Thermodynamics:
the internal energy of an isolated system is
constant
Signs (+/-) will tell you if energy is entering or
leaving a system
+ indicates energy enters a system
- indicates energy leaves a system

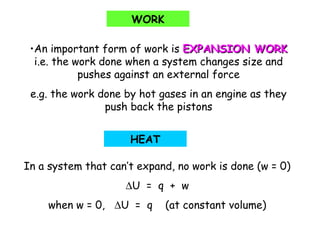

13. •An important form of work is EXPANSION WORKEXPANSION WORK
i.e. the work done when a system changes size and
pushes against an external force
e.g. the work done by hot gases in an engine as they
push back the pistons
WORK
HEAT
In a system that can’t expand, no work is done (w = 0)
∆U = q + w
when w = 0, ∆U = q (at constant volume)

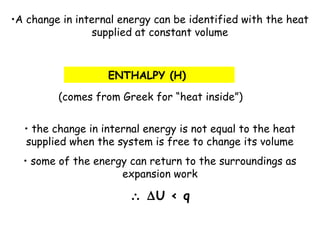

14. •A change in internal energy can be identified with the heat
supplied at constant volume
ENTHALPY (H)
(comes from Greek for “heat inside”)
• the change in internal energy is not equal to the heat
supplied when the system is free to change its volume
• some of the energy can return to the surroundings as
expansion work
∴ ∆U < q

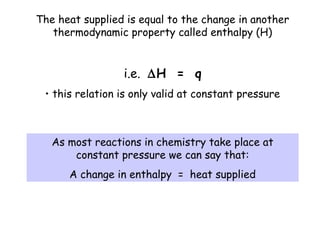

15. The heat supplied is equal to the change in another
thermodynamic property called enthalpy (H)
i.e. ∆H = q
• this relation is only valid at constant pressure
As most reactions in chemistry take place at
constant pressure we can say that:
A change in enthalpy = heat supplied

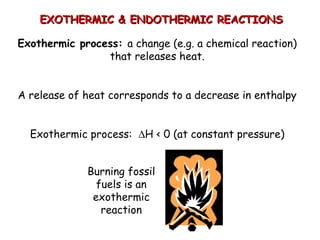

16. EXOTHERMIC & ENDOTHERMIC REACTIONSEXOTHERMIC & ENDOTHERMIC REACTIONS
Exothermic process: a change (e.g. a chemical reaction)
that releases heat.
A release of heat corresponds to a decrease in enthalpy
Exothermic process: ∆H < 0 (at constant pressure)
Burning fossil
fuels is an
exothermic
reaction

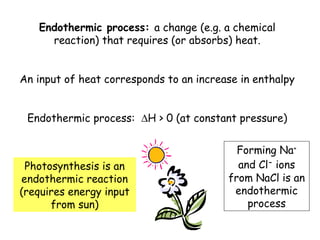

17. Endothermic process: a change (e.g. a chemical
reaction) that requires (or absorbs) heat.
An input of heat corresponds to an increase in enthalpy
Endothermic process: ∆H > 0 (at constant pressure)
Photosynthesis is an
endothermic reaction
(requires energy input
from sun)
Forming Na+
and Cl-
ions
from NaCl is an
endothermic
process

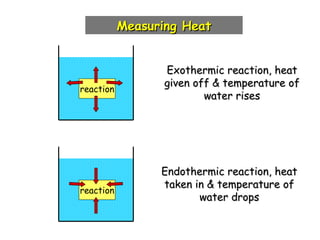

18. Measuring HeatMeasuring Heat
reaction
reaction
Exothermic reaction, heatExothermic reaction, heat
given off & temperature ofgiven off & temperature of
water riseswater rises
Endothermic reaction, heatEndothermic reaction, heat
taken in & temperature oftaken in & temperature of
water dropswater drops

19. How do we relate change in temp. to the energy
transferred?
Heat capacity (J/o
C) = heat supplied (J)
temperature (o
C)
Heat Capacity = heat required to raise temp. of an object
by 1o
C
• more heat is required to raise the temp. of a large
sample of a substance by 1o
C than is needed for a
smaller sample

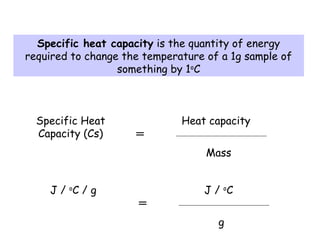

20. Specific heat capacity is the quantity of energy
required to change the temperature of a 1g sample of
something by 1o
C
Specific Heat
Capacity (Cs)
Heat capacity
Mass
=
J / o
C / g J / o
C
g
=

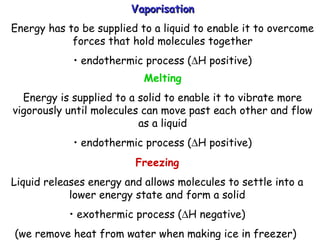

21. VaporisationVaporisation
Energy has to be supplied to a liquid to enable it to overcome
forces that hold molecules together
• endothermic process (∆H positive)
Melting
Energy is supplied to a solid to enable it to vibrate more
vigorously until molecules can move past each other and flow
as a liquid
• endothermic process (∆H positive)
Freezing
Liquid releases energy and allows molecules to settle into a
lower energy state and form a solid
• exothermic process (∆H negative)
(we remove heat from water when making ice in freezer)

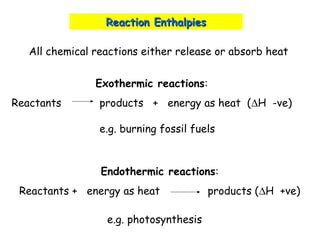

22. Reaction EnthalpiesReaction Enthalpies
All chemical reactions either release or absorb heat
Exothermic reactions:
Reactants products + energy as heat (∆H -ve)
Endothermic reactions:
Reactants + energy as heat products (∆H +ve)
e.g. burning fossil fuels
e.g. photosynthesis

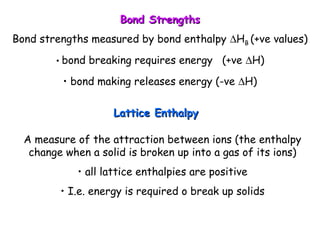

23. Bond StrengthsBond Strengths
Bond strengths measured by bond enthalpy ∆HB (+ve values)
• bond breaking requires energy (+ve ∆H)
• bond making releases energy (-ve ∆H)
Lattice EnthalpyLattice Enthalpy
A measure of the attraction between ions (the enthalpy
change when a solid is broken up into a gas of its ions)
• all lattice enthalpies are positive
• I.e. energy is required o break up solids

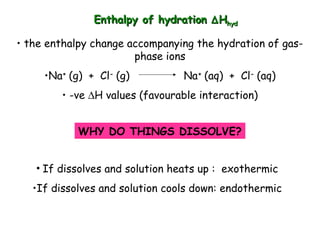

24. Enthalpy of hydrationEnthalpy of hydration ∆∆HHhydhyd
• the enthalpy change accompanying the hydration of gas-
phase ions
•Na+
(g) + Cl-
(g) Na+
(aq) + Cl-
(aq)
• -ve ∆H values (favourable interaction)
WHY DO THINGS DISSOLVE?
• If dissolves and solution heats up : exothermic
•If dissolves and solution cools down: endothermic

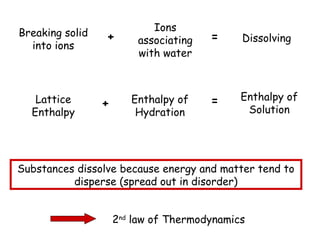

25. Breaking solid
into ions
Ions
associating
with water
Dissolving+ =
Lattice
Enthalpy
+ Enthalpy of
Hydration
= Enthalpy of
Solution
Substances dissolve because energy and matter tend to
disperse (spread out in disorder)
2nd
law of Thermodynamics

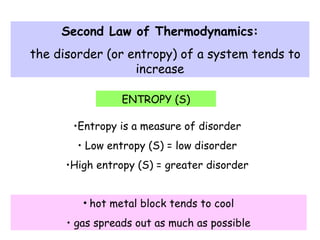

26. Second Law of Thermodynamics:
the disorder (or entropy) of a system tends to
increase
ENTROPY (S)
•Entropy is a measure of disorder
• Low entropy (S) = low disorder
•High entropy (S) = greater disorder
• hot metal block tends to cool
• gas spreads out as much as possible

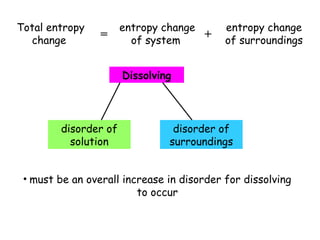

27. Total entropy
change
entropy change
of system
entropy change
of surroundings
+=
Dissolving
disorder of
solution
disorder of
surroundings
• must be an overall increase in disorder for dissolving
to occur

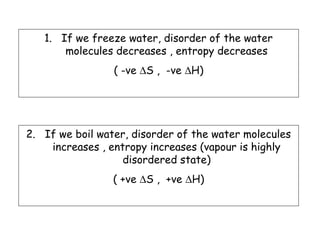

28. 1. If we freeze water, disorder of the water
molecules decreases , entropy decreases
( -ve ∆S , -ve ∆H)
2. If we boil water, disorder of the water molecules
increases , entropy increases (vapour is highly
disordered state)
( +ve ∆S , +ve ∆H)

29. A spontaneous change is a change that has a
tendency to occur without been driven by an
external influence
e.g. the cooling of a hot metal block to the
temperature of its surroundings
A non-spontaneous change is a change that occurs
only when driven
e.g. forcing electric current through a metal block
to heat it

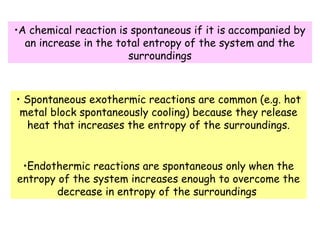

30. •A chemical reaction is spontaneous if it is accompanied by
an increase in the total entropy of the system and the
surroundings
• Spontaneous exothermic reactions are common (e.g. hot
metal block spontaneously cooling) because they release
heat that increases the entropy of the surroundings.
•Endothermic reactions are spontaneous only when the
entropy of the system increases enough to overcome the
decrease in entropy of the surroundings

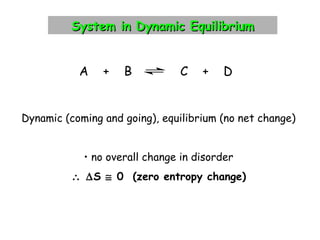

31. System in Dynamic EquilibriumSystem in Dynamic Equilibrium
A + B C + D
Dynamic (coming and going), equilibrium (no net change)
• no overall change in disorder
∴ ∆S ≅ 0 (zero entropy change)
