1. Spiceweasel:
Your Infrastructure as Code
Table of Contents
Matt Ray
matt@opscode.com
Twitter/IRC/GitHub: mattray

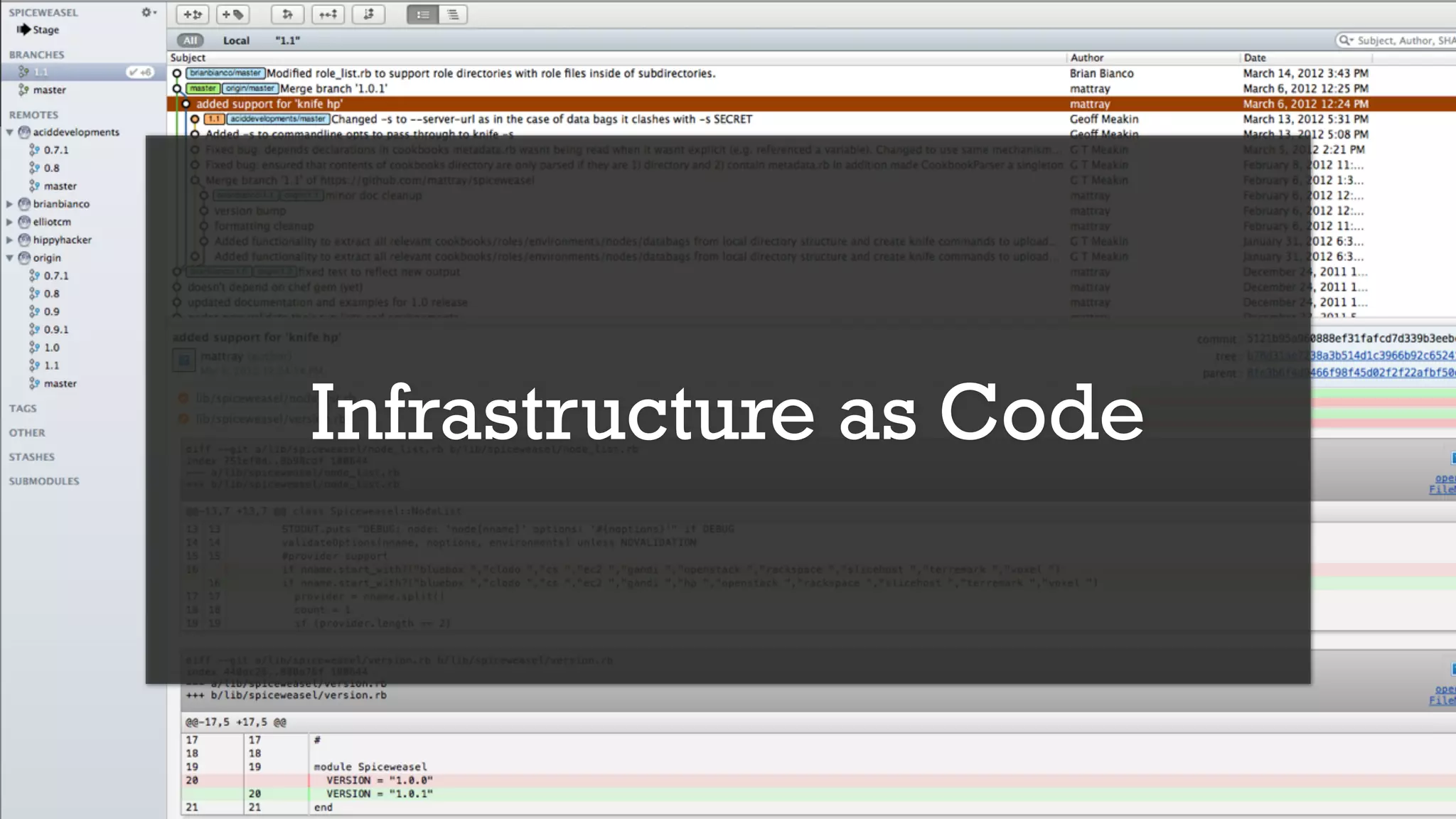

2. Infrastructure as Code

3. Enable the reconstruction of
the business from nothing but
a source code repository,
application data backup and
bare metal resources.

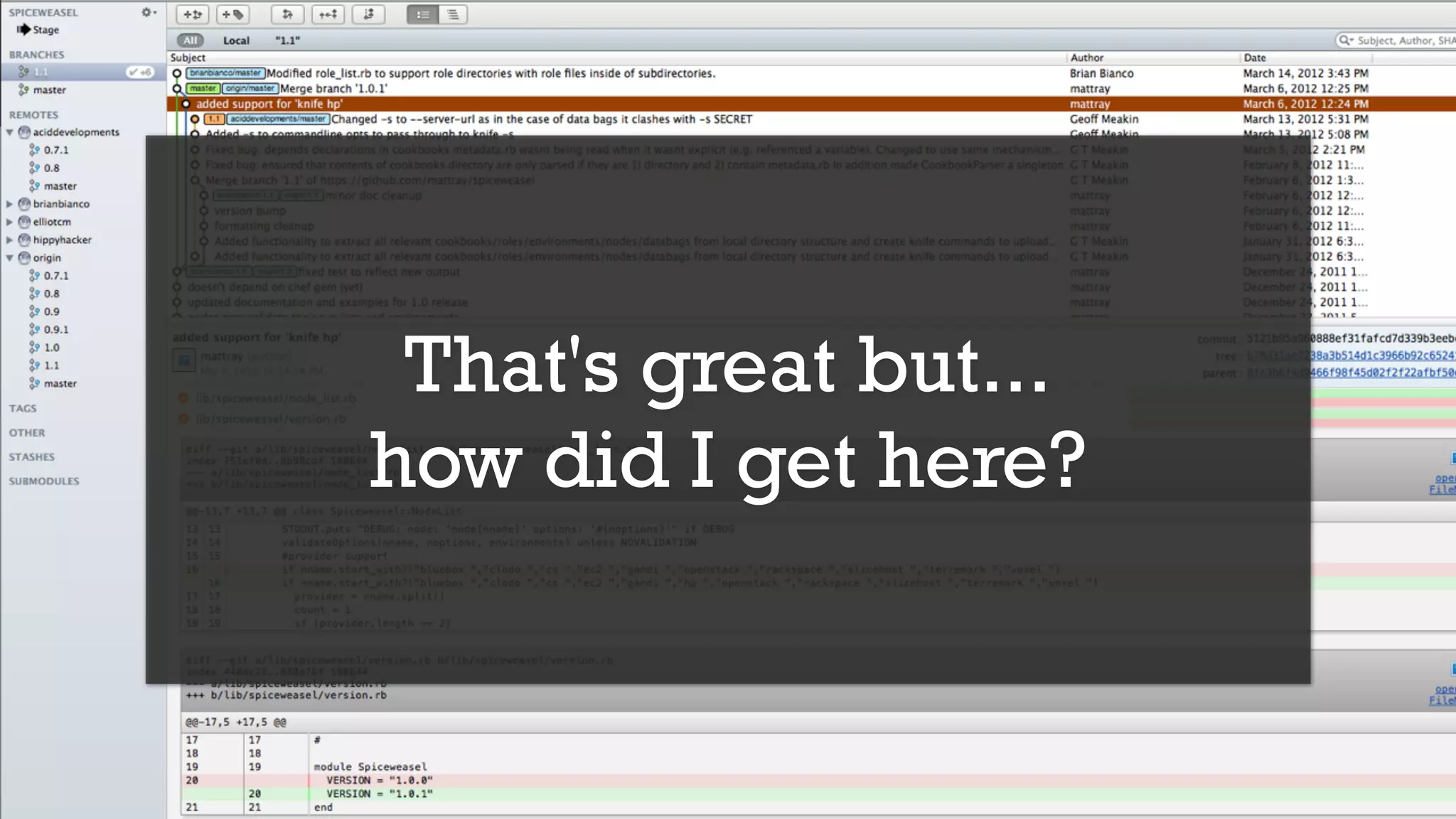

4. That's great but...
how did I get here?

5. Spiceweasel
• Infrastructure deployment manifest
• Converts YAML/JSON to knife
commands
• http://github.com/mattray/
spiceweasel
http://www.flickr.com/photos/mrchippy/443960682/

6. YAML
• Simple
• Easy to read
• Easy to reason
• spiceweasel infrastructure.yml
http://www.flickr.com/photos/mrchippy/443960682/

7. JSON
• Patches welcomed.
• spiceweasel infrastructure.json
http://www.flickr.com/photos/mrchippy/443960682/

8. Cookbooks
knife cookbook upload annoyances
knife cookbook site download apache2
--file cookbooks/apache2.tgz
cookbooks: tar -C cookbooks/ -xf cookbooks/apache2.tgz
- annoyances: rm -f cookbooks/apache2.tgz
- apache2: knife cookbook upload apache2
knife cookbook site download chef-client
- chef-client: 1.1.5 --file cookbooks/chef-client.tgz
- 1.1.5 tar -C cookbooks/ -xf
- java: cookbooks/chef-client.tgz
- mysql: rm -f cookbooks/chef-client.tgz
knife cookbook upload chef-client
- tomcat: knife cookbook upload java
knife cookbook upload mysql
knife cookbook upload tomcat

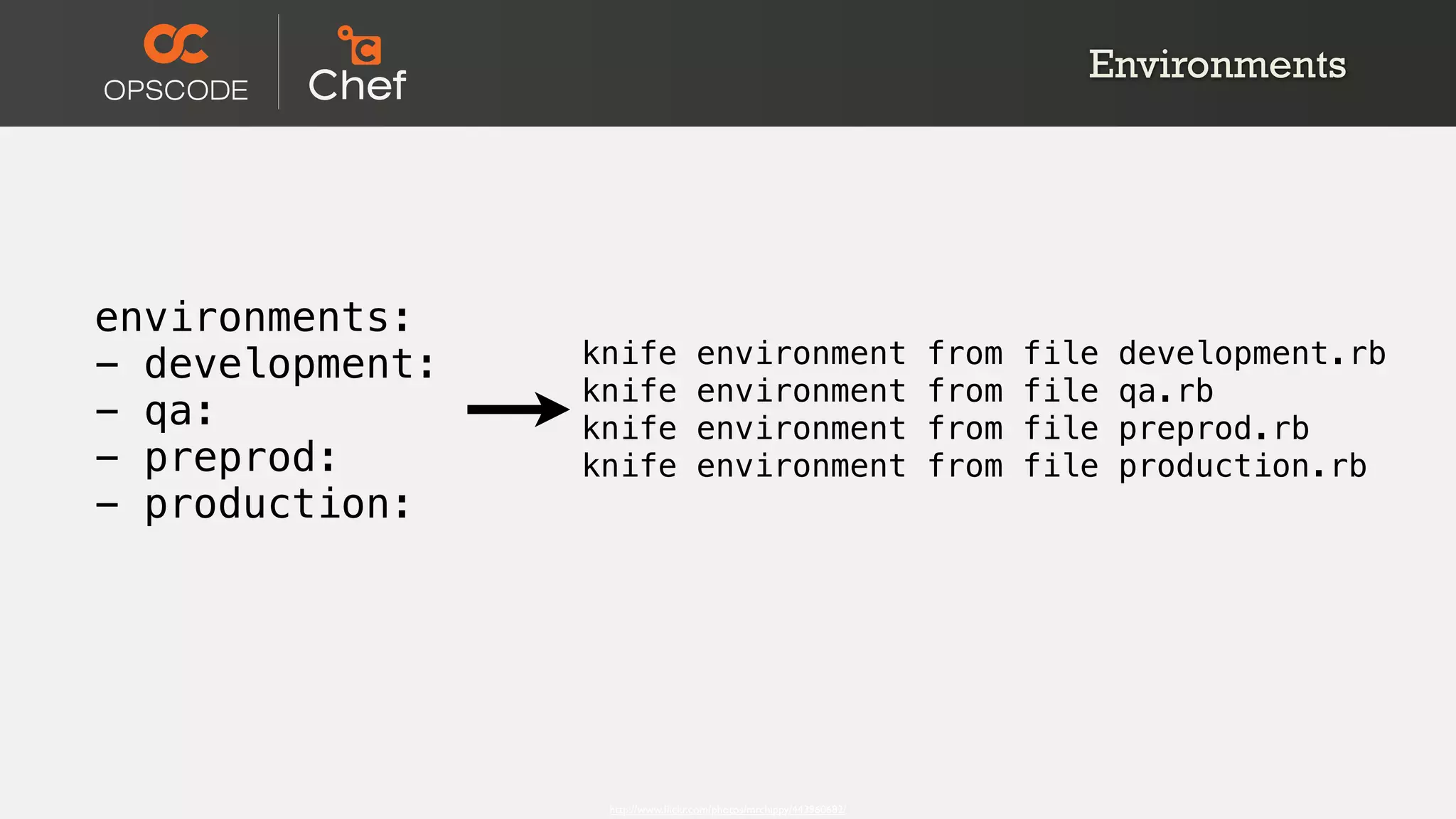

9. Environments
environments:
- development: knife environment from file development.rb
knife environment from file qa.rb
- qa: knife environment from file preprod.rb
- preprod: knife environment from file production.rb
- production:
http://www.flickr.com/photos/mrchippy/443960682/

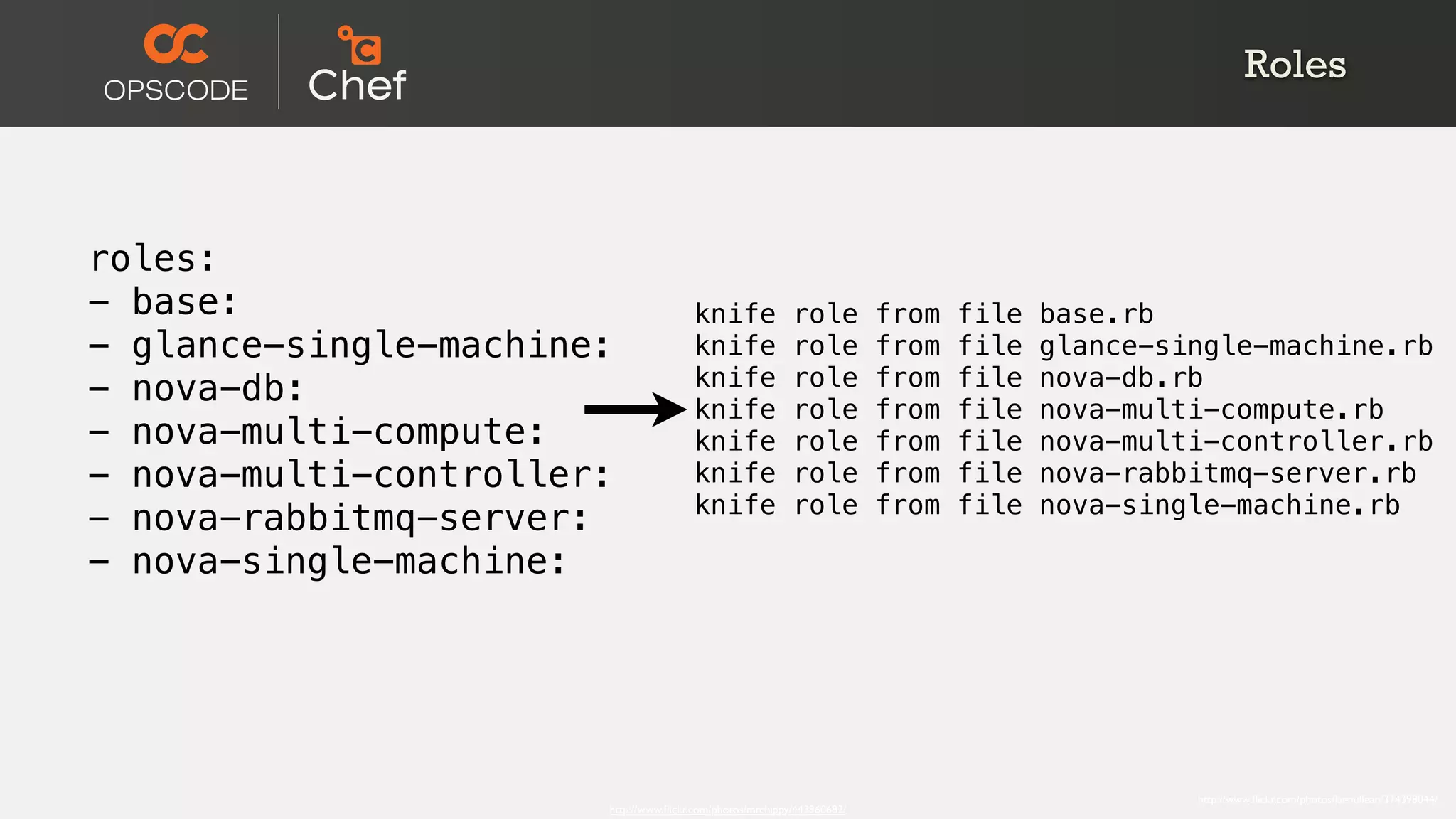

10. Roles
roles:
- base: knife role from file base.rb
- glance-single-machine: knife role from file glance-single-machine.rb
knife role from file nova-db.rb
- nova-db: knife role from file nova-multi-compute.rb
- nova-multi-compute: knife role from file nova-multi-controller.rb
- nova-multi-controller: knife role from file nova-rabbitmq-server.rb
knife role from file nova-single-machine.rb
- nova-rabbitmq-server:
- nova-single-machine:
http://www.flickr.com/photos/laenulfean/374398044/
http://www.flickr.com/photos/mrchippy/443960682/

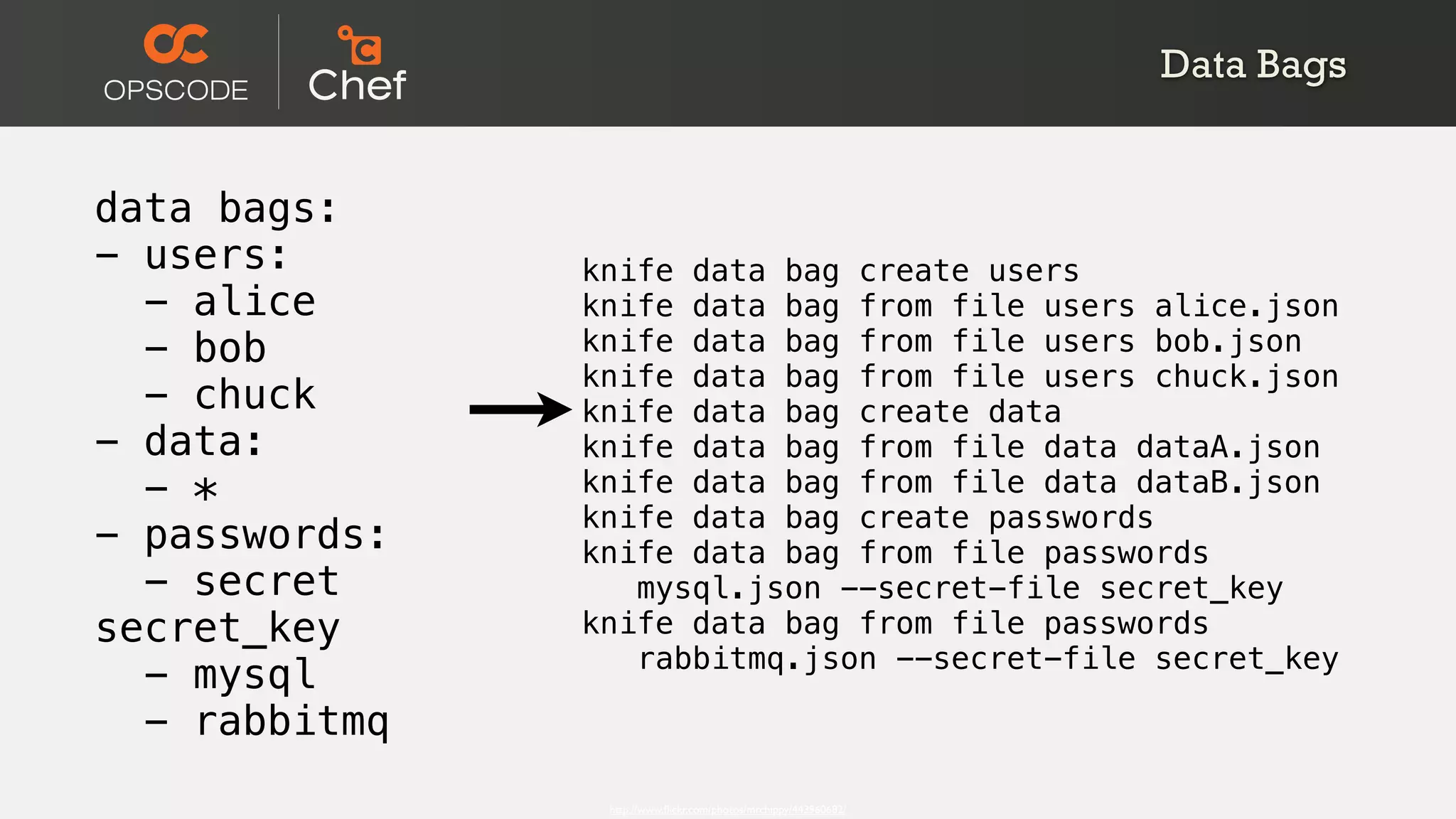

11. Data Bags
data bags:
- users: knife data bag create users
- alice knife data bag from file users alice.json
- bob knife data bag from file users bob.json
knife data bag from file users chuck.json
- chuck knife data bag create data
- data: knife data bag from file data dataA.json
- * knife data bag from file data dataB.json
knife data bag create passwords
- passwords: knife data bag from file passwords
- secret mysql.json --secret-file secret_key
secret_key knife data bag from file passwords
rabbitmq.json --secret-file secret_key
- mysql
- rabbitmq
http://www.flickr.com/photos/mrchippy/443960682/

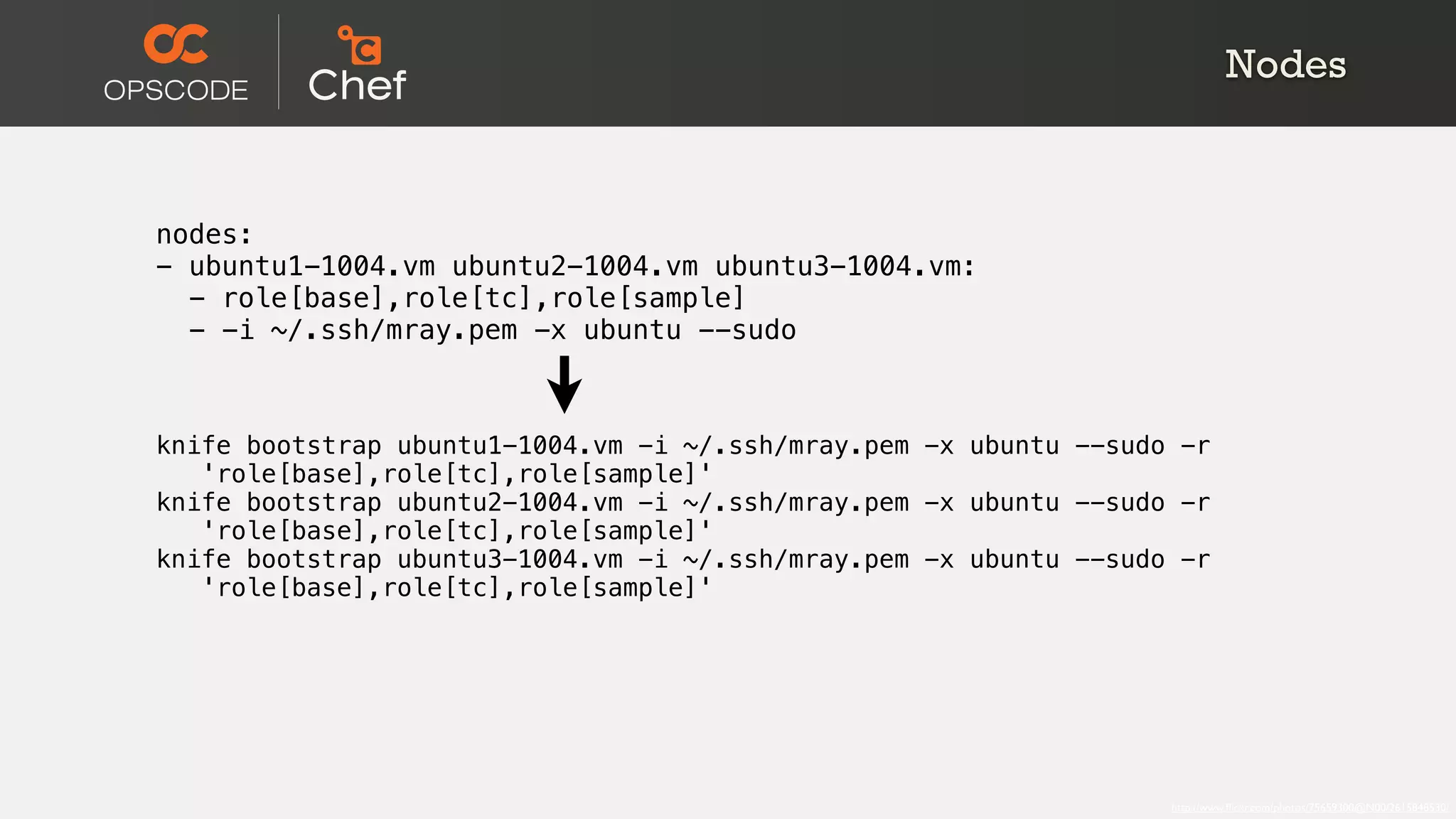

12. Nodes
nodes:
- ubuntu1-1004.vm ubuntu2-1004.vm ubuntu3-1004.vm:
- role[base],role[tc],role[sample]
- -i ~/.ssh/mray.pem -x ubuntu --sudo
knife bootstrap ubuntu1-1004.vm -i ~/.ssh/mray.pem -x ubuntu --sudo -r
'role[base],role[tc],role[sample]'
knife bootstrap ubuntu2-1004.vm -i ~/.ssh/mray.pem -x ubuntu --sudo -r
'role[base],role[tc],role[sample]'
knife bootstrap ubuntu3-1004.vm -i ~/.ssh/mray.pem -x ubuntu --sudo -r
'role[base],role[tc],role[sample]'
http://www.flickr.com/photos/75659300@N00/2615848530/

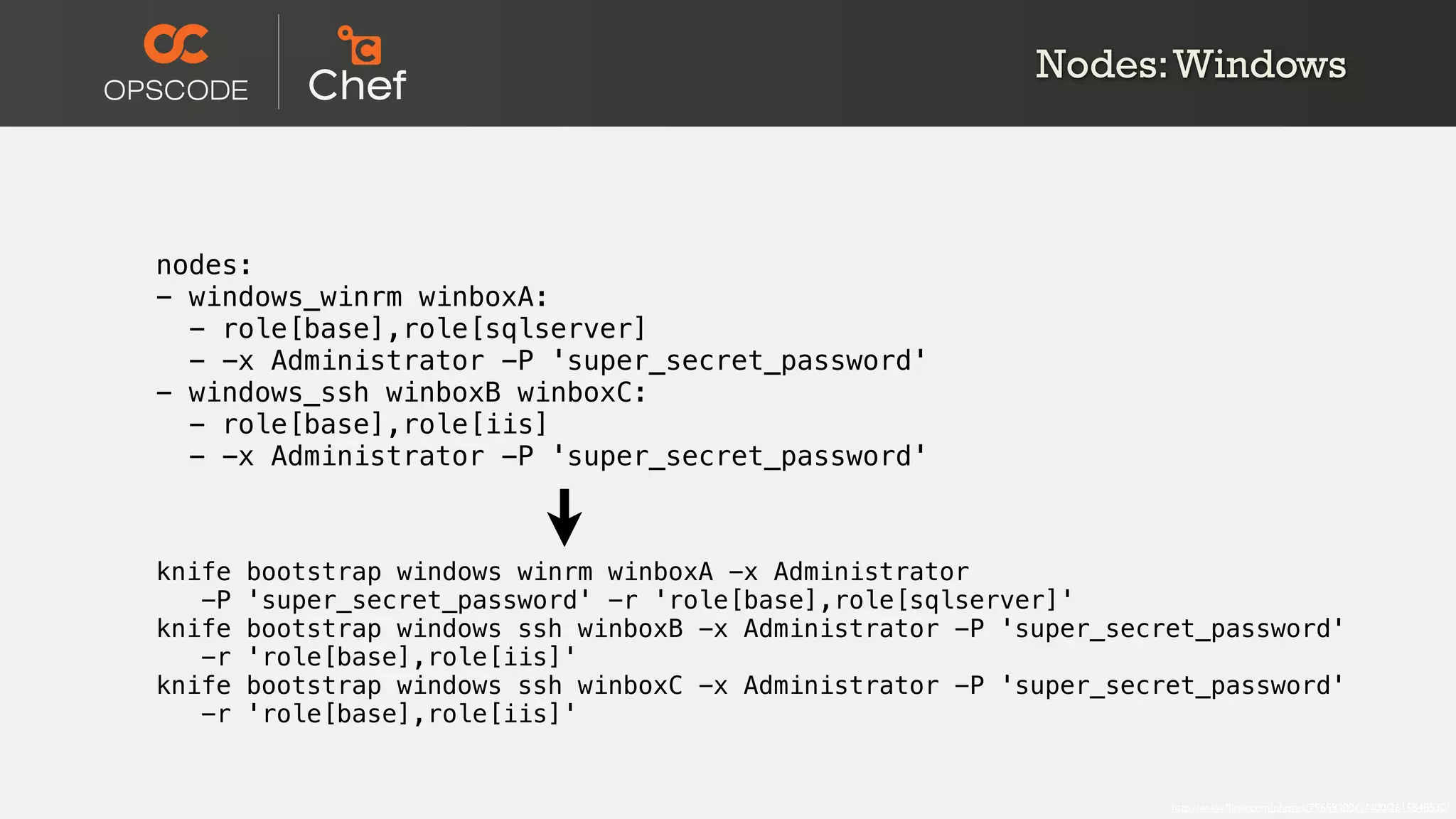

13. Nodes: Windows
nodes:
- windows_winrm winboxA:
- role[base],role[sqlserver]
- -x Administrator -P 'super_secret_password'
- windows_ssh winboxB winboxC:
- role[base],role[iis]
- -x Administrator -P 'super_secret_password'
knife bootstrap windows winrm winboxA -x Administrator
-P 'super_secret_password' -r 'role[base],role[sqlserver]'
knife bootstrap windows ssh winboxB -x Administrator -P 'super_secret_password'
-r 'role[base],role[iis]'
knife bootstrap windows ssh winboxC -x Administrator -P 'super_secret_password'
-r 'role[base],role[iis]'
http://www.flickr.com/photos/75659300@N00/2615848530/

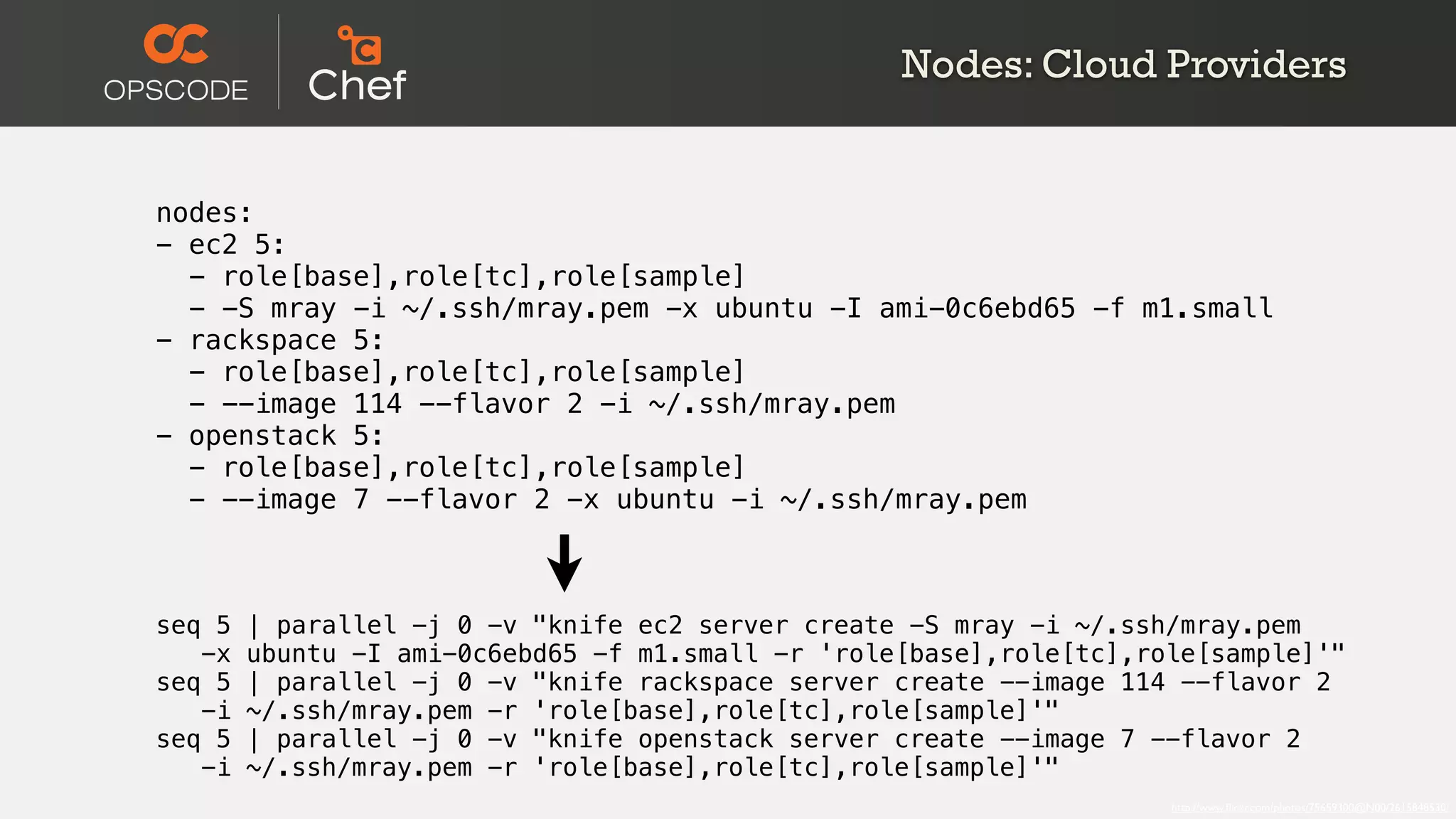

14. Nodes: Cloud Providers
nodes:
- ec2 5:
- role[base],role[tc],role[sample]
- -S mray -i ~/.ssh/mray.pem -x ubuntu -I ami-0c6ebd65 -f m1.small
- rackspace 5:
- role[base],role[tc],role[sample]
- --image 114 --flavor 2 -i ~/.ssh/mray.pem
- openstack 5:
- role[base],role[tc],role[sample]
- --image 7 --flavor 2 -x ubuntu -i ~/.ssh/mray.pem
seq 5 | parallel -j 0 -v "knife ec2 server create -S mray -i ~/.ssh/mray.pem
-x ubuntu -I ami-0c6ebd65 -f m1.small -r 'role[base],role[tc],role[sample]'"
seq 5 | parallel -j 0 -v "knife rackspace server create --image 114 --flavor 2
-i ~/.ssh/mray.pem -r 'role[base],role[tc],role[sample]'"
seq 5 | parallel -j 0 -v "knife openstack server create --image 7 --flavor 2
-i ~/.ssh/mray.pem -r 'role[base],role[tc],role[sample]'"
http://www.flickr.com/photos/75659300@N00/2615848530/

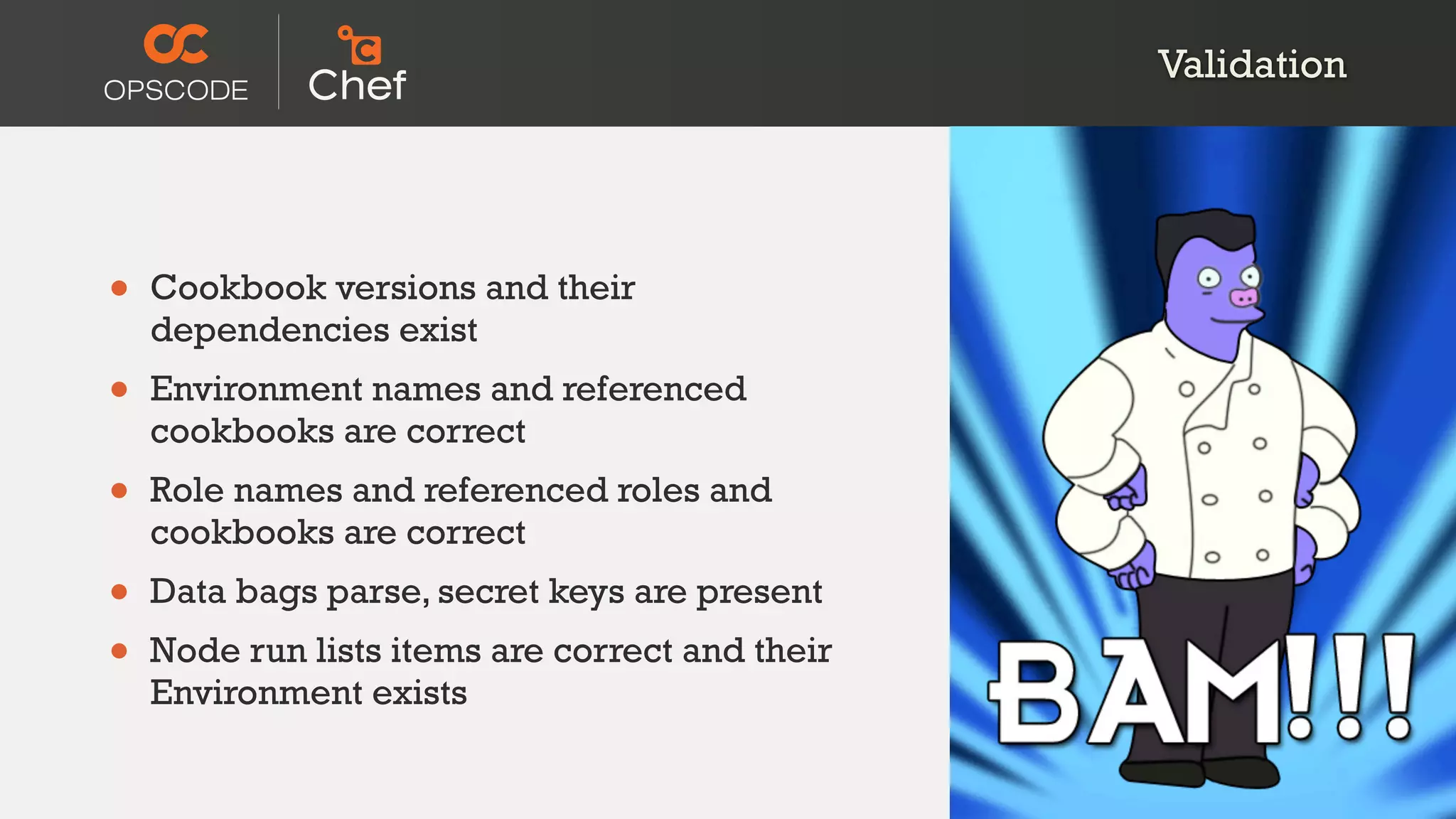

15. Validation
• Cookbook versions and their
dependencies exist
• Environment names and referenced
cookbooks are correct
• Role names and referenced roles and
cookbooks are correct
• Data bags parse, secret keys are present
• Node run lists items are correct and their
Environment exists

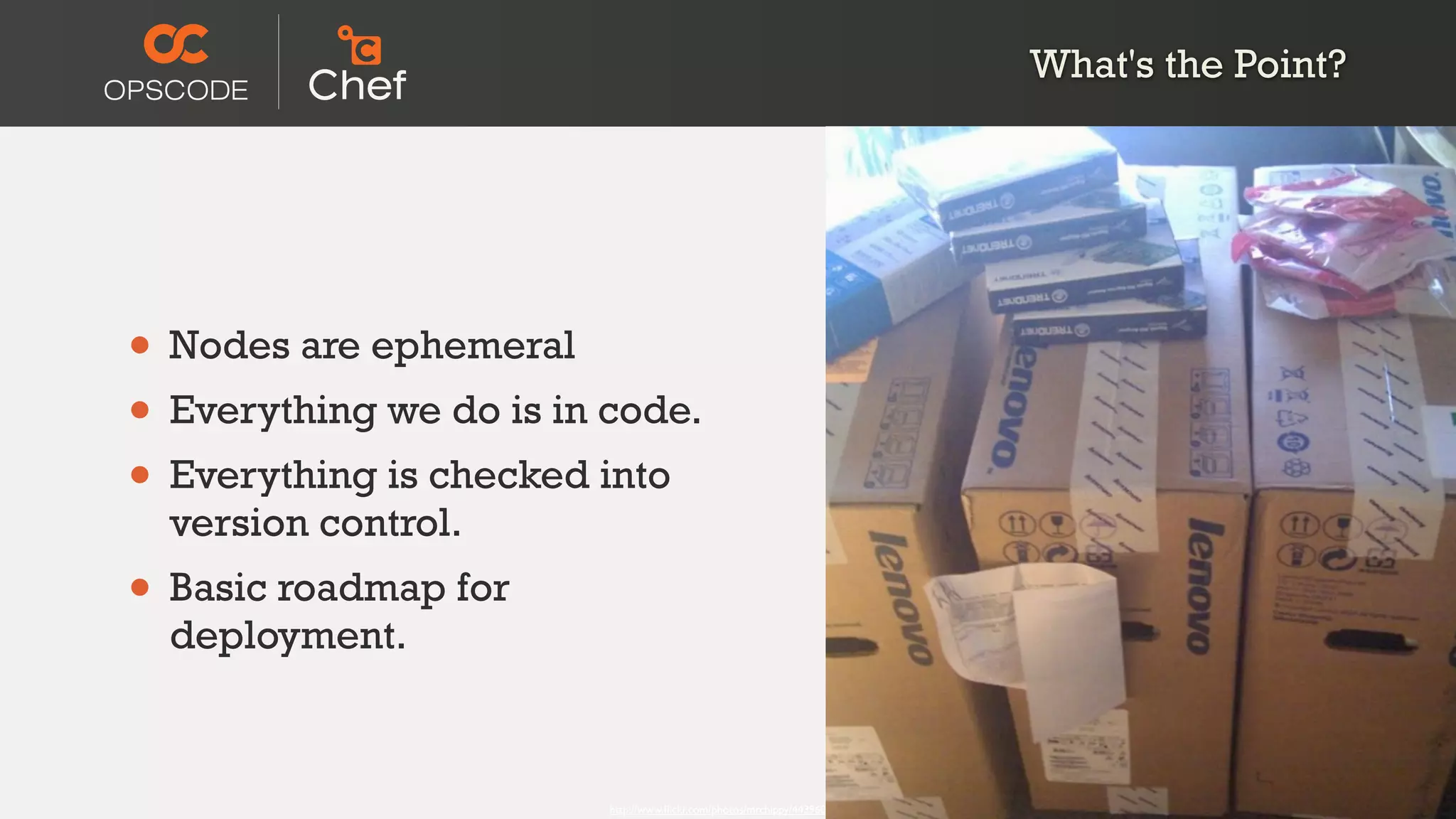

16. What's the Point?
• Nodes are ephemeral
• Everything we do is in code.
• Everything is checked into
version control.
• Basic roadmap for
deployment.
http://www.flickr.com/photos/mrchippy/443960682/

17. Break it Down
How do we recreate our
infrastructure?
http://www.flickr.com/photos/mrchippy/443960682/

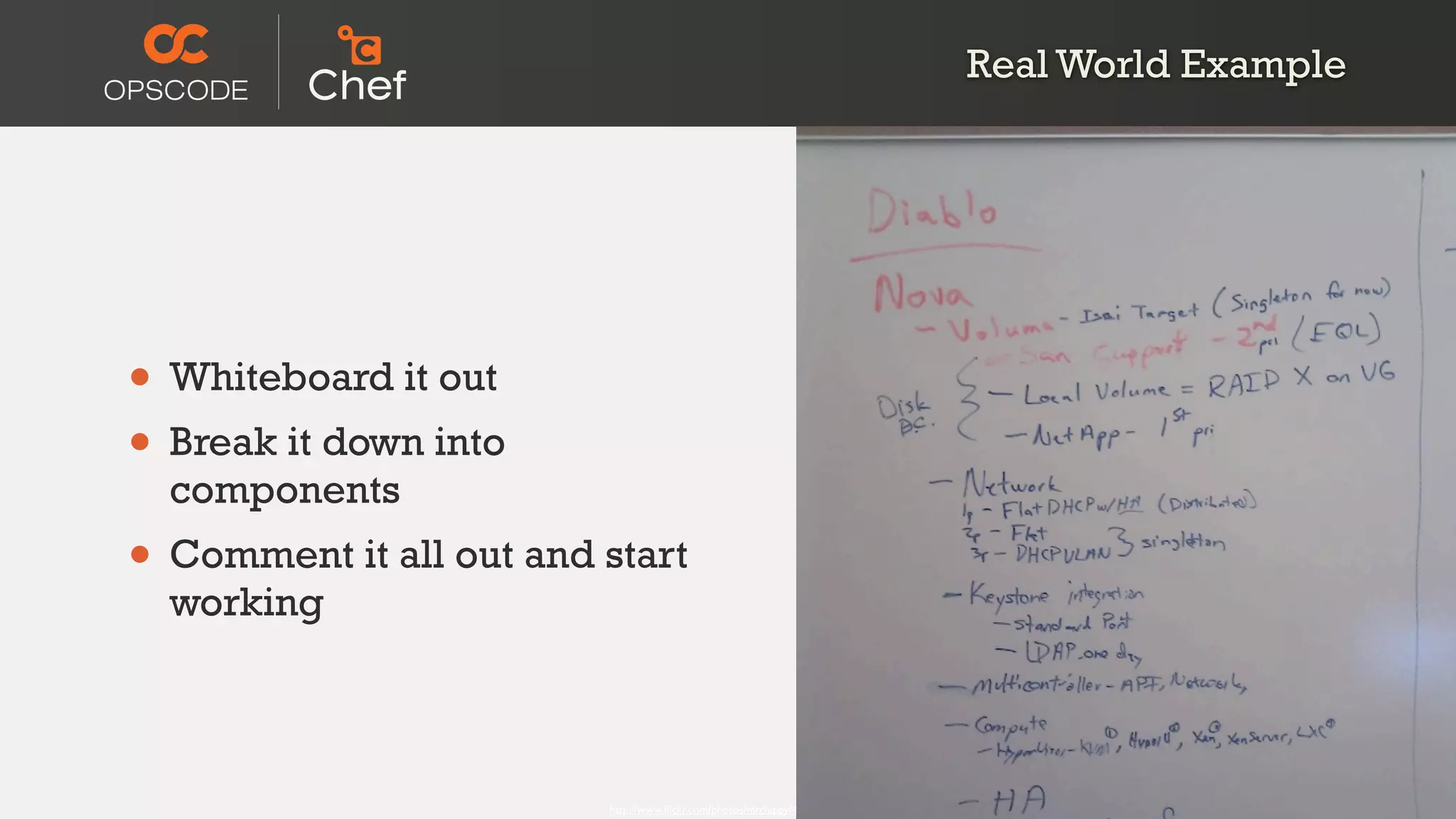

18. Real World Example
• Whiteboard it out
• Break it down into
components
• Comment it all out and start
working
http://www.flickr.com/photos/mrchippy/443960682/

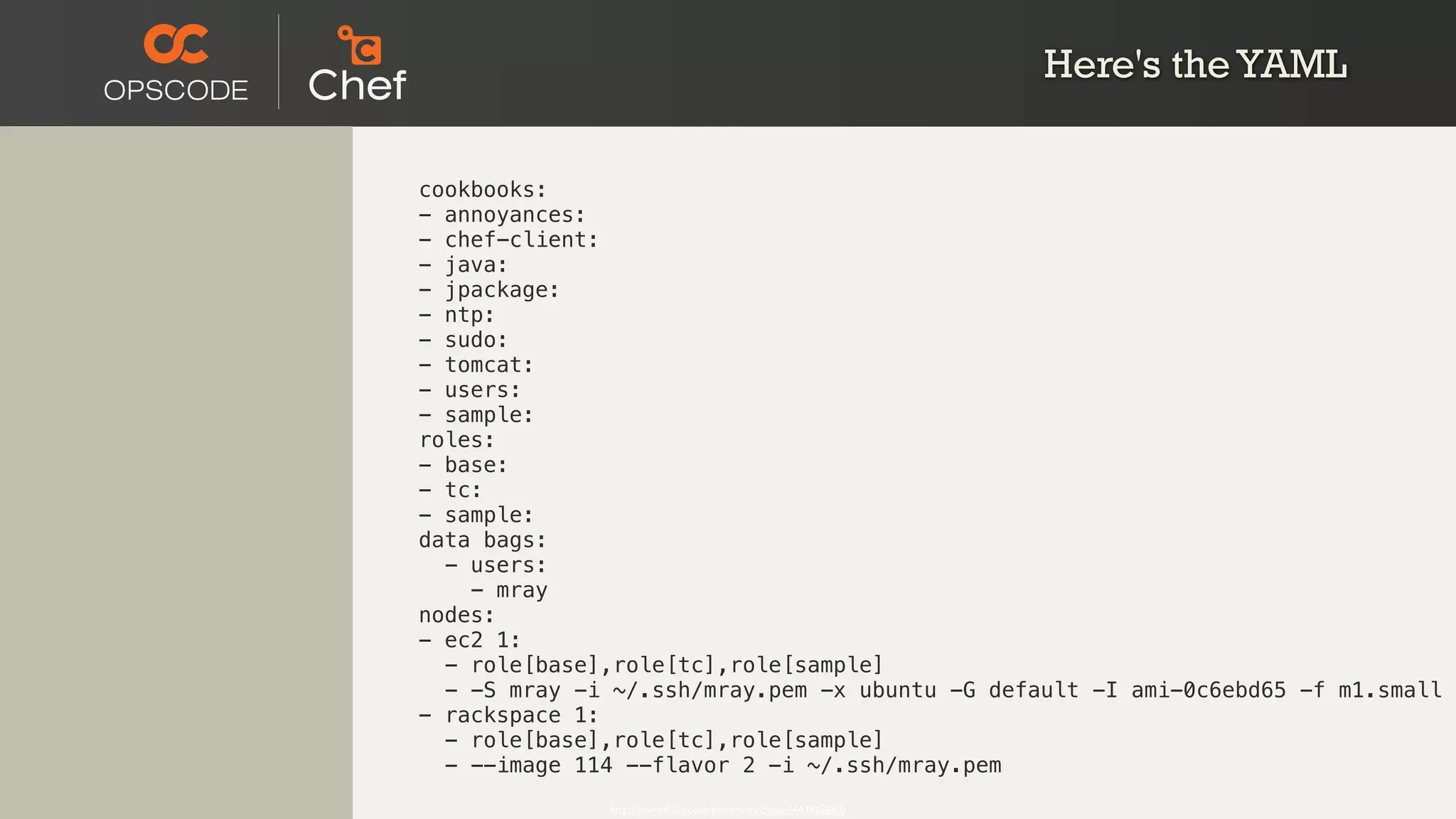

19. Here's the YAML
cookbooks:
- annoyances:
- chef-client:
- java:
- jpackage:
- ntp:
- sudo:
- tomcat:
- users:
- sample:
roles:
- base:
- tc:
- sample:
data bags:
- users:
- mray
nodes:
- ec2 1:
- role[base],role[tc],role[sample]
- -S mray -i ~/.ssh/mray.pem -x ubuntu -G default -I ami-0c6ebd65 -f m1.small
- rackspace 1:
- role[base],role[tc],role[sample]
- --image 114 --flavor 2 -i ~/.ssh/mray.pem
http://www.flickr.com/photos/mrchippy/443960682/

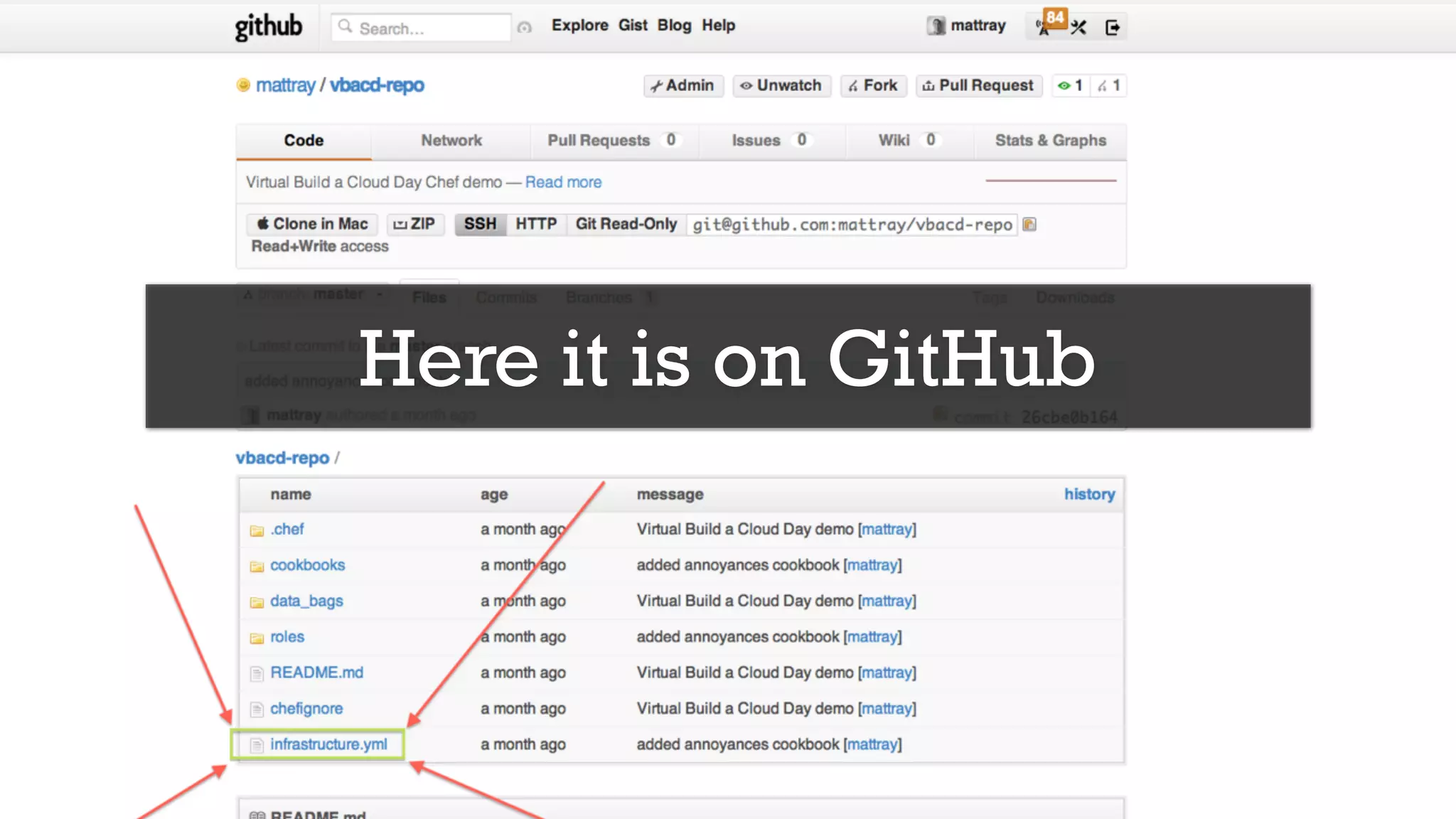

20. Here it is on GitHub
http://www.flickr.com/photos/mrchippy/443960682/

21. Versioned Infrastructure
• Documentation for your
deployment
• Iterate over it
• Stored in version control
• Share with others
http://www.flickr.com/photos/mrchippy/443960682/

22. What's Next?
•Extract from chef-repo
•Extract from Chef Server
•Execute as knife plugin
http://www.flickr.com/photos/mrchippy/443960682/

23. Thanks!
• gem install spiceweasel
• http://github.com/mattray/
spiceweasel
• Twitter/IRC/GitHub: mattray
• matt@opscode.com
http://www.flickr.com/photos/mrchippy/443960682/
