This document summarizes Denis Zhdanov's presentation on optimizing and securing Nginx configurations. Some key points include: - Nginx is more scalable than Apache because it uses an event-driven model instead of preforking separate processes per request. - Locations, variables, and directives like proxy_pass, root, and alias allow complex routing and rewriting of requests. Care must be taken to avoid security issues when passing variables to backends. - Caching can be optimized for large static files and many small files through tuning buffers, caches, and disk settings. - Light DDoS attacks can be mitigated using rate limiting, geo blocking, and aggressive caching

1. Nginx Workshop
Aftermath
Kiev.PM technical meeting, 16th Feb 2012
Denis Zhdanov
denis.zhdanov@gmail.com

2. Disclaimer
May 29, 2010 - Nginx workshop by Igor Sysoev
was organized by SmartMe (http://www.
smartme.com.ua/nginx-workshop/)
Thanks Igor, thanks SmartMe.
Based on workshop, but Nginx was changed,
so caching and many other docs are on
website now (http://wiki.nginx.org), so I add
some things from me.
"Scooter is ... ? "

3. Nginx / Apache - why we need what ?
1. Static files
2. Proxying / Slow client (No dialup but Mobile)
Why Apache is bad / Nginx is good - size of
worker.
Apache is prefork / 1 proc/thread per request -
it's too expensive.
Nginx - Proc/thread also, but event driven.

4. Nginx is fast?
"Nginx is not fast - but scalable", (c) Igor
Sysoev.
Tens and hundreds of 1000's requests per
worker - quite fast, but
Apache can do this also - but with much more
resources.
Nginx also has SCALABLE configuration.
What is it means?

5. How we can configure Apache ?
1. .htaccess / rewrite rules - ugly, but single
way on shared hostings ( I hope they all gone
now :) )
2. Virtual hosts - but global (default) server
configuration could mess all things.
3. Virtual hosts but default server do nothing
(deny all, for example)

6. locations
location /images/
location = /
location ^~ /images/ - plain strings, no order
location ~ .php
location ~* .php - regexp rules, ordered
location @php - named

7. plain vs regexp
location /
location /admin/
VS - no difference !
location /admin/
location /
But regexp is ordered, so ...

8. location ~* .(gif|jpe?g|png)$ {
root /var/www/images/;
}
location ~* .php$ {
fastcgi_pass ...
}
location /images/ {
root /var/www/images/;
}
location /scripts/ {
fastcgi_pass ...
}

9. Real example
location / {
if ($uri ~ ^/login.php$) {
...
}
if ($uri ~ ^/admin/) {
...
}

10. Nested locations
location /images/ {
root /var/www/images;
}
location /admin/ {
location ^/admin*..php$ {
fastcgi_pass....
}
}
...

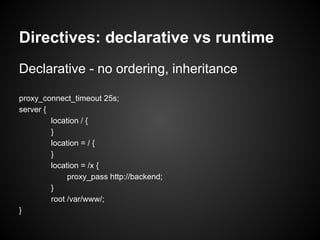

11. Directives: declarative vs runtime
Declarative - no ordering, inheritance
proxy_connect_timeout 25s;
server {
location / {
}
location = / {
}
location = /x {
proxy_pass http://backend;
}
root /var/www/;
}

12. Runtime directives
Runs every time, no inheritance !
if (....) {
set ...
rewrite ...
break
return ....
}

13. Bad examples
location /images/ {
root /var/www/images/;
break; # <---- WHY???
}
if (-e $request_filename) {
expire 1y;
break; # totally wrong !!
}

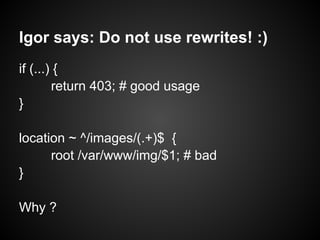

14. Igor says: Do not use rewrites! :)
if (...) {
return 403; # good usage
}
location ~ ^/images/(.+)$ {
root /var/www/img/$1; # bad
}
Why ?

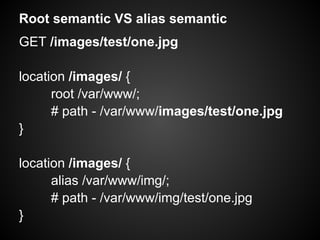

15. Root semantic VS alias semantic
GET /images/test/one.jpg
location /images/ {
root /var/www/;
# path - /var/www/images/test/one.jpg
}
location /images/ {
alias /var/www/img/;
# path - /var/www/img/test/one.jpg
}

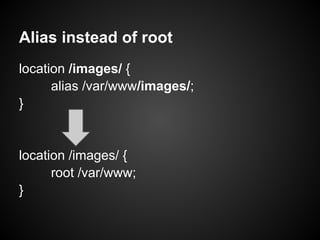

16. Alias instead of root
location /images/ {
alias /var/www/images/;
}
location /images/ {
root /var/www;
}

17. Alias and root with variables
GET /images/one.jpg
location /images/ {
root /var/www/$host;
} # real path - /var/www/SITE/images/one.jpg
location ~ ^/images/(.)(.+)$ {
alias /var/www/img/$1/$1$2;
} # real path - /var/www/img/o/one.jpg
Alias make complete path, no replacement
MUST use $1/$2 if location contains captures

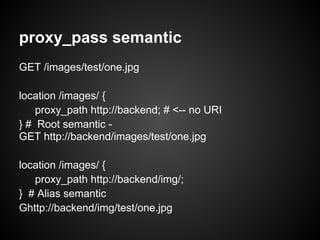

18. proxy_pass semantic
GET /images/test/one.jpg
location /images/ {
proxy_path http://backend; # <-- no URI
} # Root semantic -
GET http://backend/images/test/one.jpg
location /images/ {
proxy_path http://backend/img/;
} # Alias semantic
Ghttp://backend/img/test/one.jpg

19. proxy_pass with variables
GET /images/one.jpg
location ^/images/(.)(.+)$ {
proxy_pass http://backend/$1/$1$2;
} # --> http://backend/o/one.jpg
# Alias semantic, but path is replaced
location ^/images/(.).+$ {
proxy_pass $1; # not part of URI
} # --> http://o/images/one.jpg
# Root semantic

20. location handlers
proxy_pass, fastcgi_pass, memcached_pass,
empty_gif, flv, stub_status, perl
trailing slash -
random index / index / auto index
no trailing slash -
gzip static / static

21. Why "if" is bad - it's "location" too
gzip on;
keepalive on;
if ($no_gzip) {
gzip off; # gzip off
}
if ($no_keepalive) {
keepalive off; # gzip on, keepalive off
}
# gzip on, keepalive on

22. Fix - but it's not recommended
gzip on;
keepalive on;
if ($no_gzip) {
gzip off;
break;
}
if ($no_keepalive) {
keepalive off;
break;
}

23. Caching

24. Couple of caveats
from my Apache to Nginx migration

25. Migration from Apache to Nginx
Apache:
RewriteCond %{HTTP_HOST} ^site.com$ [NC]
RewriteRule ^(.*)$ http://www.site.com/$1 [R=301,L]
# www redirect, common stuff out there
Nginx:
if ($host = 'site.com') {
rewrite ^(.*)$ http://www.site.com/$1 permanent;
# MY EYES!!!
}

26. Right way to do it
Apache:
RewriteCond %{HTTP_HOST} ^site.com$ [NC]
RewriteRule ^(.*)$ http://www.site.com/$1 [R=301,L]
# www redirect, common stuff out there
Nginx:
server {
server_name site.com;
rewrite ^ http://www.site.com/$request_uri? permanent;
# NOT BAD
}

27. Another common thing
RewriteCond %{REQUEST_FILENAME} -d
RewriteCond %{REQUEST_FILENAME} -f
RewriteRule .* index.php
# right way
location / {
try files $uri $uri
index.php$is_args$args;
}

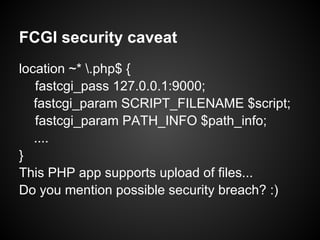

28. FCGI security caveat
location ~* .php$ {
fastcgi_pass 127.0.0.1:9000;
fastcgi_param SCRIPT_FILENAME $script;
fastcgi_param PATH_INFO $path_info;
....
}
This PHP app supports upload of files...
Do you mention possible security breach? :)

29. PATHINFO links
GET /index.php/article/0001 =>
SCRIPT_NAME = 0001
PATH_INFO = /index.php/article/ - WRONG
Fix pathinfo magic -
SCRIPT_NAME = index.php
PATH_INFO = /article/0001

30. GET /upload/evil.jpg/notexist.php
SCRIPT_NAME = notexist.php
PATH_INFO = /upload/evil.jpg/
cgi.fix_pathinfo = 1 (yep, it's default) - if
SCRIPT_NAME not found - let's "FIX" it -
SCRIPT_NAME = evil.jpg
PATH_INFO = /notexist.php
Let's RUN evil.jpg ! :)

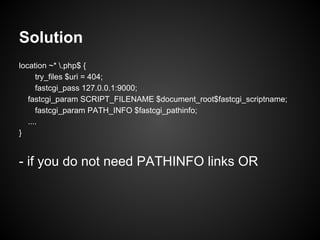

31. Solution
location ~* .php$ {
try_files $uri = 404;
fastcgi_pass 127.0.0.1:9000;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_scriptname;
fastcgi_param PATH_INFO $fastcgi_pathinfo;
....
}
- if you do not need PATHINFO links OR

32. Use fastcgi_split_path_info
location ~* ^(.+.php)(.*)$ {
fastcgi_split_path_info ^(.+.php)(.*)$;
fastcgi_pass 127.0.0.1:9000;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_scriptname;
fastcgi_param PATH_INFO $fastcgi_pathinfo;
}
GET /index.php/article/0001 =>
SCRIPT_FILENAME = index.php,
PATH_INFO = /article/0001

33. Please check
http://wiki.nginx.org/Pitfalls - lot of stuff there

34. Nginx optimization
Just couple of words

35. Case 1. Big static files
What is BIG file? Size is >2Mb (mp3, zip, iso etc)
a)RAID - use big stripe size (>128K)
b) output_buffers 1 1m; # need to tune
c) AIO:
Freebsd:
sendfile on;
aio sendfile;
Linux
aio on;
directio on; # required but drops sendfile()

36. Case 2. Lot of small files
a). There is NO MAGIC
Hot files must reside in RAM cache or else... it
will be slow.
b) Tune open_file_cache
Freebsd: see dirhash, vfs.ufs.dirhash_maxmem

37. Common highload advices
a) tune hardware and OS - disks, NICs, OS
limitations (open files, limits, network stack etc.)
worker_rlmit_nofile + kern.maxfiles/maxfilesperproc (FreeBSD) + fs.filemax
(Linux)
b) tune workers (number / threads). Start from
CPU or disks numbers.
c) sendfile, tcp_nopush, tcp_nodelay - ?
d) timeouts, keepalive,
reset_timedout_connection on - check
http://calomel.org/nginx.html

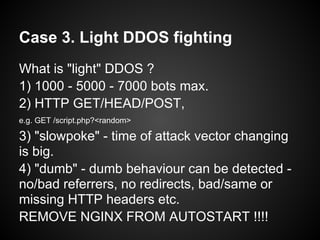

38. Case 3. Light DDOS fighting
What is "light" DDOS ?
1) 1000 - 5000 - 7000 bots max.
2) HTTP GET/HEAD/POST,
e.g. GET /script.php?<random>
3) "slowpoke" - time of attack vector changing
is big.
4) "dumb" - dumb behaviour can be detected -
no/bad referrers, no redirects, bad/same or
missing HTTP headers etc.
REMOVE NGINX FROM AUTOSTART !!!!

39. a) "Heavy" (e.g. search) scripts flood
http {
...
limit_req_zone $binary_remote_addr zone=SLOW:10m
rate=1r/s;
# 64byte per record, 16000 record per MB, 503 error if
overflow!
...
location =/search.php {
limit_req SLOW burst=2;
proxy_pass ....
}

40. b) "flooders" detection
error_log /var/log/nginx/error.log;
limit_conn_zone $binary_remote_addr zone=CONN:10m;
...
location =/attacked_url {
limit_conn CONN 4; #4-8, but beware of proixes!
....
}
grep "limiting connections by zone" | grep "/attacked_url" |
awk .. - get list of them and add it to firewall (ipset)
Beware - you can easily "shoot yourself in the foot"!

41. c) Geo limiting
Compile geoip module with --with-http_geoip_module first.
http {
geo_country /usr/local/nginx/etc/GeoIP.dat;
map $geoip_country_code $bad_country {
default 0;
include /usr/local/nginx/etc/bad_countries; #
}
server {
....
if ($bad_country) { return 403; }
bad_countries:
CN 1;
TZ 1;
...

42. d) Aggresive caching
"Slow is better than dead"
location=/ { rewrite ^ main.html last; }
# main.html - temporary static page with link to real home
location=/main.html {
internal;
root /var/nginx/cache/;
error_page 404 = /cached$uri;
}
location /cached/ {
internal;
alias /var/nginx/cache/;
proxy_pass http://backend;
proxy_store_on; proxy_store_temp_path /var/nginx/tmp/;
}

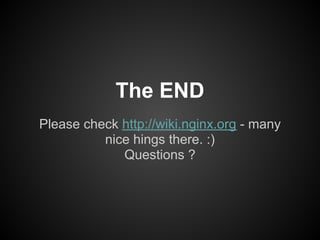

43. The END
Please check http://wiki.nginx.org - many
nice hings there. :)
Questions ?
