Transforming WebSockets
- 1.
- 2.
- 5. the good partsthegood parts WebSocketsWebSockets the good parts WebSockets
- 6. Chrome 20 Firefox 12 Opera12.1 Safari 6 Internet Explorer 10

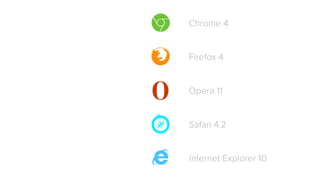

- 7. Chrome 4 Firefox 4 Opera11 Safari 4.2 Internet Explorer 10
- 8. oh, it’s bi-directional & supportsbinary oh, it’s bi-directional & supports binary oh, it’s bi-directional & supports binary
- 9.
- 10. that nobody toldyouthat nobody told youthat nobody told you The partsThe partsThe parts

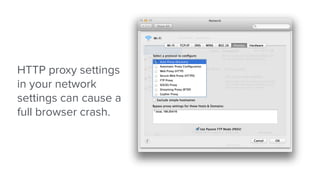

- 11. HTTP proxy settings inyour network settings can cause a full browser crash.

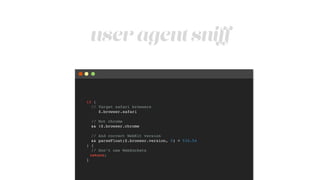

- 12. user agent sniff if(! // Target safari browsers! $.browser.safari! ! // Not chrome! && !$.browser.chrome! ! // And correct WebKit version! && parseFloat($.browser.version, 0) < 534.54! ) {! // Don’t use WebSockets! return;! }
- 13. Writing to aclosed WebSocket can cause a full browser crash

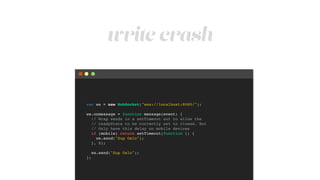

- 14. write crash var ws= new WebSocket("wss://localhost:8080/");! ! ws.onmessage = function message(event) {! // Wrap sends in a setTimeout out to allow the! // readyState to be correctly set to closed. But! // Only have this delay on mobile devices! if (mobile) return setTimeout(function () {! ws.send("Sup Oslo");! }, 0);! ! ws.send("Sup Oslo");! };
- 15. Pressing ESC inFirefox closes the WebSocket connection
- 16. connection end $('body').keydown(function (e){! // make sure that you capture the `esc` key and! // prevent it's default action from happening! if (e.which === 27) e.preventDefault();! });

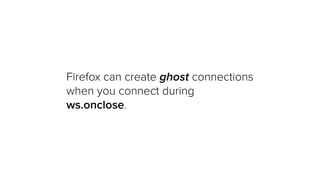

- 17. Firefox can createghost connections when you connect during ws.onclose.
- 18. Don’t use selfsigned SSL certificates, not for development and not in production
- 19. 4G, 3G, LTE,mobile providers WTF ARE YOU DOING?? — Reverse proxy
- 20. Virus scanners suchas AVG block WebSockets.
- 21. User, network andserver firewalls block WebSockets.
- 22. Load balancers don'tunderstand and block WebSockets.

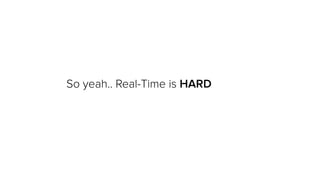

- 23. So yeah.. Real-Timeis HARD
- 24. What if…What if…Whatif… we could change thiswe could change thiswe could change this
- 25.

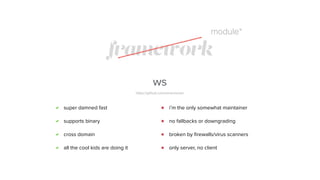

- 26. framework ws https://github.com/einaros/ws/ super damned fast supportsbinary cross domain all the cool kids are doing it i’m the only somewhat maintainer no fallbacks or downgrading broken by firewalls/virus scanners only server, no client module*
- 27. framework socket.io http://github.com/learnboost/socket.io multiple transports cross domain investedwith bugs poorly / not maintained / left for dead no message order guarantee dies behind firewall/virusscanners

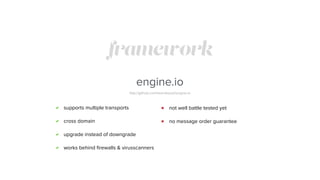

- 28. framework engine.io http://github.com/learnboost/engine.io supports multiple transports crossdomain upgrade instead of downgrade works behind firewalls & virusscanners not well battle tested yet no message order guarantee

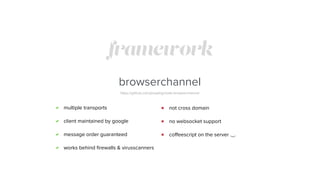

- 29. framework browserchannel https://github.com/josephg/node-browserchannel multiple transports client maintainedby google message order guaranteed works behind firewalls & virusscanners not cross domain no websocket support coffeescript on the server ._.

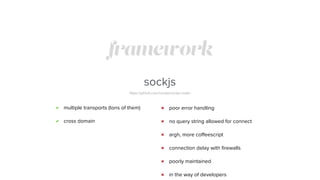

- 30. framework sockjs https://github.com/sockjs/sockjs-node/ multiple transports (tonsof them) cross domain poor error handling no query string allowed for connect argh, more coffeescript connection delay with firewalls poorly maintained in the way of developers

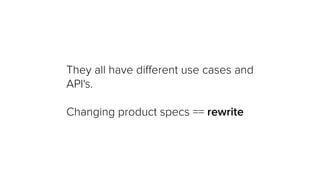

- 31. They all havedifferent use cases and API's. ! Changing product specs == rewrite
- 32. we could changethis toowe could change this toowe could change this too What if…What if…What if…
- 33.

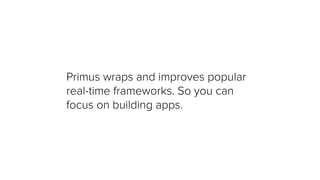

- 34. Primus wraps andimproves popular real-time frameworks. So you can focus on building apps.
- 35.
- 36.
- 37.

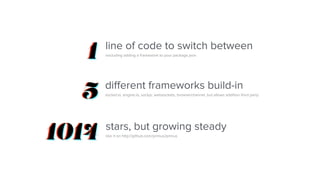

- 38. 1014 1 5 stars, but growingsteady star it on http://github.com/primus/primus 1014 1 line of code to switch between excluding adding a framework to your package.json different frameworks build-in socket.io, engine.io, sockjs, websockets, browserchannel, but allows addition third party 5 1014 1 5
- 39.
- 40.
- 41. 50 31 50 31 50 different plugins substream,emit, primus-emitter, primus-cluster, primus-rooms, primus-multiplex, primus-redis different authors damonoehlman, mmalecki, jcrugzz, daffl, balupton, cayasso & many more 31

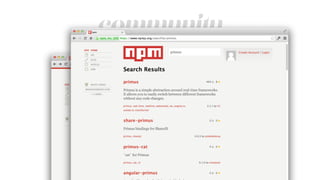

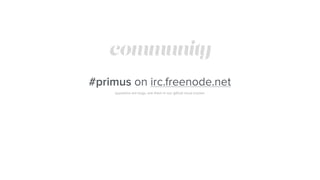

- 42. community #primus on irc.freenode.net questionsare bugs, ask them in our github issue tracker
- 43. why was primusinventedwhy was primus inventedwhy was primus invented HistoryHistoryHistory

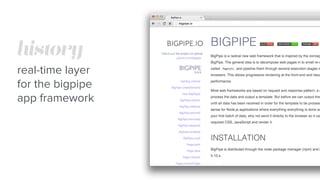

- 44. history real-time layer for thebigpipe app framework
- 45.

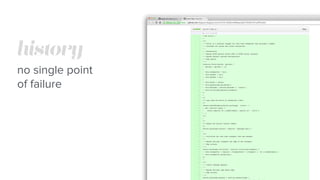

- 46. history no single point offailure
- 47.
- 48.
- 49. use cases module &framework authors
- 50. use cases startups &web developers
- 51.

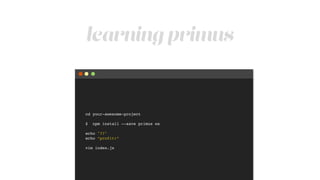

- 52. learning primus cd your-awesome-project! ! $npm install --save primus ws! ! echo "??" ! echo “profit!”! ! vim index.js

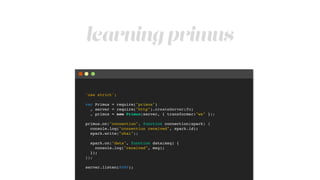

- 53. learning primus 'use strict';! ! varPrimus = require("primus")! , server = require("http").createServer(fn)! , primus = new Primus(server, { transformer:"ws" });! ! primus.on("connection", function connection(spark) {! console.log("connection received", spark.id);! spark.write("ohai");! ! spark.on("data", function data(msg) {! console.log("received", msg);! });! });! ! server.listen(8080);

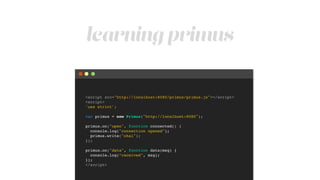

- 54. learning primus <script src="http://localhost:8080/primus/primus.js"></script>! <script>! 'usestrict';! ! var primus = new Primus("http://localhost:8080");! ! primus.on("open", function connected() {! console.log("connection opened");! primus.write("ohai");! });! ! primus.on("data", function data(msg) {! console.log(“received", msg);! });! </script>
- 55.

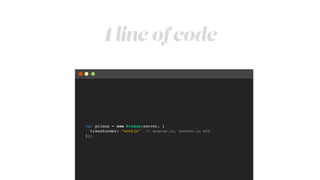

- 56. 1 line ofcode var primus = new Primus(server, { ! transformer: “sockjs" // engine.io, socket.io etc! });
- 57. 1 line ofcode

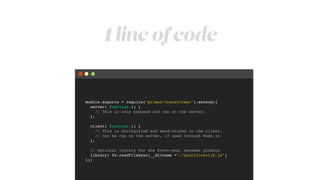

- 58. 1 line ofcode module.exports = require(“primus/transformer").extend({! server: function () {! // This is only exposed and ran on the server.! },! ! client: function () {! // This is stringified end send/stored in the client.! // Can be ran on the server, if used through Node.js! },! ! // Optional library for the front-end, assumes globals! library: fs.readFileSync(__dirname +"./yourclientlib.js")! });
- 59.
- 60.
- 61.
- 62. Stream CompatibleStream CompatibleStreamCompatible
- 63. stream compatible primus.on("end", functiondisconnected() {! console.log("connection ended");! });! ! primus.end();! primus.write();! ! fs.createReadStream(__dirname + '/index.html').pipe(spark, {! end: false! });
- 64.

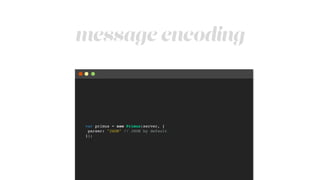

- 65. message encoding var primus= new Primus(server, { ! parser: "JSON" // JSON by default! });
- 66. message encoding var primus= new Primus(server, { ! parser: "EJSON" // or binary-pack or a third party module! });

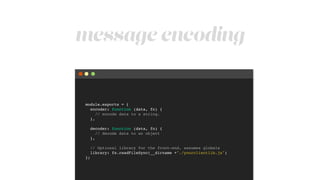

- 67. message encoding module.exports ={! encoder: function (data, fn) {! // encode data to a string.! },! ! decoder: function (data, fn) {! // decode data to an object! },! ! // Optional library for the front-end, assumes globals! library: fs.readFileSync(__dirname +"./yourclientlib.js")! };

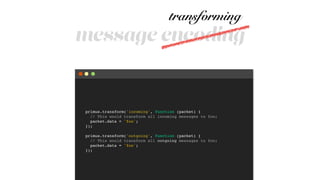

- 68. message encoding primus.transform('incoming', function(packet) {! // This would transform all incoming messages to foo;! packet.data = 'foo';! });! ! primus.transform('outgoing', function (packet) {! // This would transform all outgoing messages to foo;! packet.data = 'foo';! }); transforming
- 69.

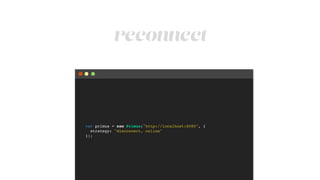

- 70. reconnect var primus =new Primus("http://localhost:8080", {! strategy: "disconnect, online"! });
- 71.
- 72. broadcast primus.write("message"); // sendmessage to all users! ! primus.forEach(function (spark) {! // Or iterate over all connections, select the once you! // want and only write to those! ! spark.write("message");! });
- 73.

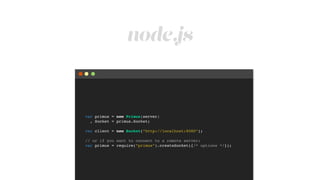

- 74. node.js var primus =new Primus(server)! , Socket = primus.Socket;! ! var client = new Socket(“http://localhost:8080”);! ! // or if you want to connect to a remote server:! var primus = require(“primus”).createSocket({/* options */});
- 75.
- 76. plugins // The longawaited Socket.IO 1.0 release with Primus:! ! var server = require("http").createServer(fn)! , primus = new Primus(server, { transformer:"engine.io" });! ! primus.use(“emitter","primus-emitter")! .use(“multiplex”, require(“primus-multiplex”))! .use(“primus-emitter”, "primus-rooms");

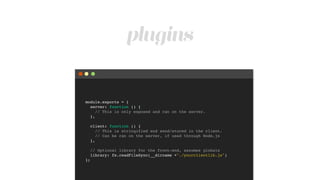

- 77. plugins module.exports = {! server:function () {! // This is only exposed and ran on the server.! },! ! client: function () {! // This is stringified end send/stored in the client.! // Can be ran on the server, if used through Node.js! },! ! // Optional library for the front-end, assumes globals! library: fs.readFileSync(__dirname +"./yourclientlib.js")! };
- 78. and middlewareand middlewareandmiddleware PluginsPluginsPlugins

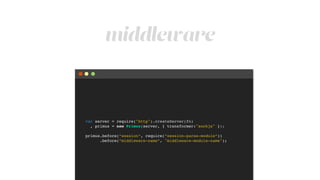

- 79. middleware var server =require("http").createServer(fn)! , primus = new Primus(server, { transformer:"sockjs" });! ! primus.before(“session”, require(“session-parse-module”))! .before(“middleware-name”, "middleware-module-name");
- 80. ! 3rdEden " 3rd-Eden fb arnout.kazemier That's it! Thanks& check it out on http://primus.io
