1. Digital Integrated
Circuits
A Design Perspective
Jan M. Rabaey
Anantha Chandrakasan
Borivoje Nikolic
The Devices
© Digital Integrated Circuits2nd Devices

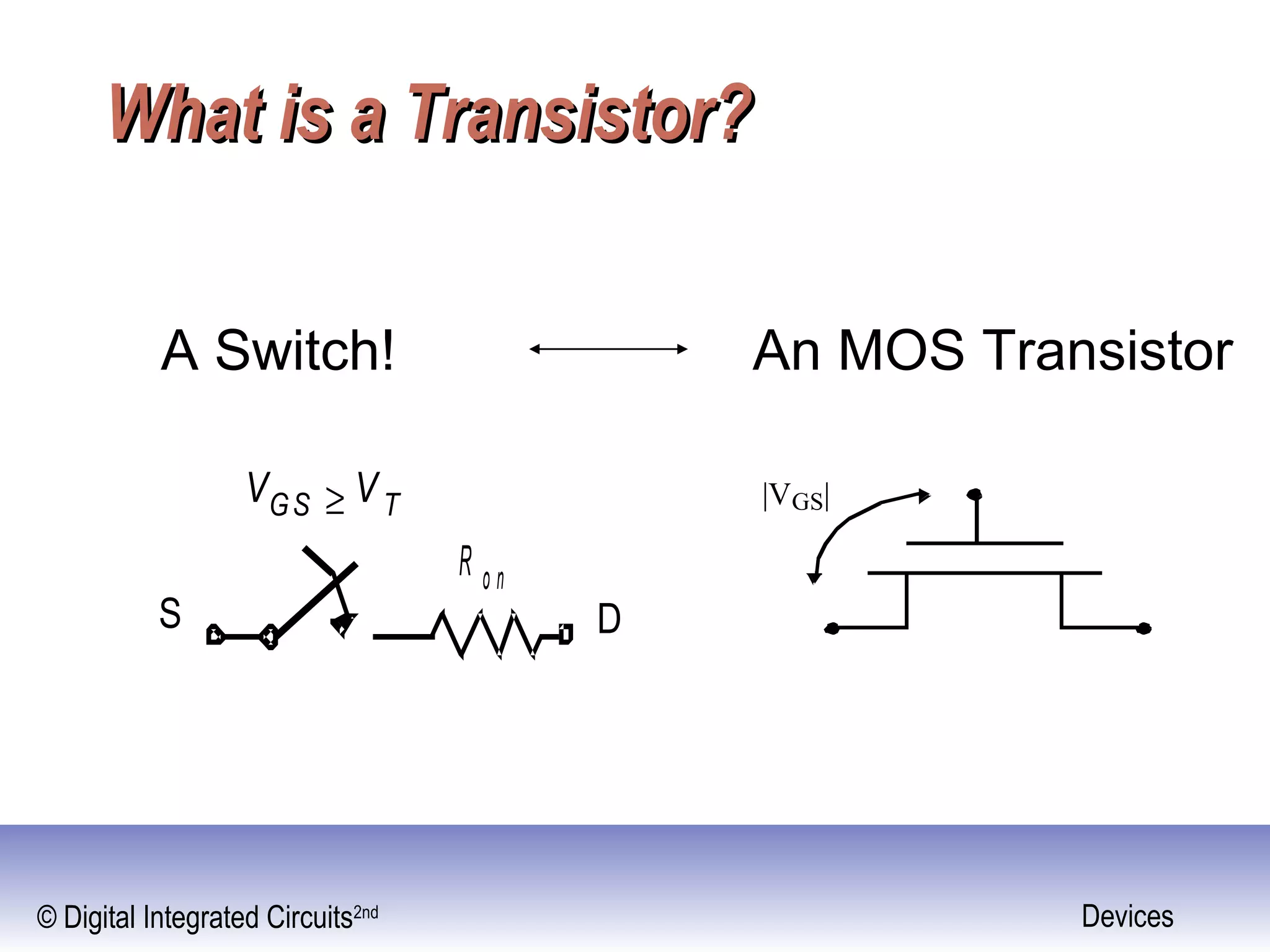

2. What is a Transistor?
A Switch! An MOS Transistor
VG S ≥ V T |VGS|
R on
S D
© Digital Integrated Circuits2nd Devices

3. The MOS Transistor
Polysilicon Aluminum
© Digital Integrated Circuits2nd Devices

4. Threshold Voltage: Concept
+
S VGS D
G
-
n+ n+
n-channel Depletion
Region
p-substrate
B
© Digital Integrated Circuits2nd Devices

5. The Body Effect
0.9
0.85
0.8
0.75
0.7
V (V)
0.65
T
0.6
0.55
0.5
0.45
0.4
-2.5 -2 -1.5 -1 -0.5 0
V (V)
BS
© Digital Integrated Circuits2nd Devices

6. Current-Voltage Relations
A good ol’ transistor
-4
x 10
6
VGS= 2.5 V
5
Resistive Saturation
4
VGS= 2.0 V
ID (A)
3 Quadratic
VDS = VGS - VT Relationship
2
VGS= 1.5 V
1
VGS= 1.0 V
0
0 0.5 1 1.5 2 2.5
VDS (V)
© Digital Integrated Circuits2nd Devices

7. Transistor in Linear
VGS VDS
S
G ID
D
n+ –
V(x)
+ n+
L x
p-substrate
B
MOS transistor and its bias conditions
© Digital Integrated Circuits2nd Devices

8. Transistor in Saturation
VGS
VDS > VGS - VT
G
D
S
- +
n+ VGS - VT n+
Pinch-off
© Digital Integrated Circuits2nd Devices

9. Current-Voltage Relations
Long-Channel Device
© Digital Integrated Circuits2nd Devices

10. Current-Voltage Relations
The Deep-Submicron Era
-4
x 10
2.5
VGS= 2.5 V
Early Saturation
2
VGS= 2.0 V
1.5
ID (A)
Linear
1
VGS= 1.5 V Relationship
0.5 VGS= 1.0 V
0
0 0.5 1 1.5 2 2.5
VDS (V)
© Digital Integrated Circuits2nd Devices

11. Velocity Saturation
υ n (m/s)
υsat = 105
Constant velocity
Constant mobility (slope = µ)
ξc = 1.5 ξ (V/µm)
© Digital Integrated Circuits2nd Devices

12. Perspective
ID
Long-channel device
VGS = VDD
Short-channel device
V DSAT VGS - V T VDS
© Digital Integrated Circuits2nd Devices

13. ID versus VGS
-4
x 10 x 10
-4
6 2.5
5
2
4 linear
quadratic 1.5
ID (A)
ID (A)
3
1
2
0.5
1
quadratic
0 0
0 0.5 1 1.5 2 2.5 0 0.5 1 1.5 2 2.5
VGS(V) VGS(V)
Long Channel Short Channel
© Digital Integrated Circuits2nd Devices

14. ID versus VDS
-4 -4
x 10 x 10
6 2.5
VGS= 2.5 V
VGS= 2.5 V
5
2
Resistive Saturation
4 VGS= 2.0 V
VGS= 2.0 V 1.5
ID (A)
ID (A)
3
VDS = VGS - VT 1 VGS= 1.5 V
2
VGS= 1.5 V
0.5 VGS= 1.0 V
1
VGS= 1.0 V
0 0
0 0.5 1 1.5 2 2.5 0 0.5 1 1.5 2 2.5
VDS(V) VDS(V)
Long Channel Short Channel
© Digital Integrated Circuits2nd Devices

15. A PMOS Transistor
-4
x 10
0
VGS = -1.0V
-0.2
VGS = -1.5V
-0.4
ID (A)
VGS = -2.0V
-0.6 Assume all variables
negative!
-0.8
VGS = -2.5V
-1
-2.5 -2 -1.5 -1 -0.5 0
VDS (V)
© Digital Integrated Circuits2nd Devices
