This document provides an overview of database management systems (DBMS). It discusses key concepts such as the components of a database system including hardware, software, people and procedures. It also describes different database models like hierarchical, network and relational models. The document explains database languages for data definition (DDL) and data manipulation (DML). It discusses database users and administrators and their roles. Some common applications of DBMS and advantages like improved data sharing and integrity are highlighted. Disadvantages like increased costs are also mentioned.

1. UNIVERSITY SCHOOL OF
MANAGEMENT
KURKSHETRA UNIVERSITY
1
Presented To :-
Ms. Manisha Gahlawat
(Assistance Professor)
Presented By :-
Neeraj (115)

2. DATA BASE
MANAGEMENT
SYSTEM (DBMS)
2

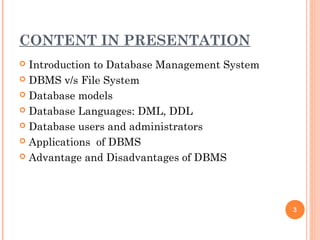

3. CONTENT IN PRESENTATION
 Introduction to Database Management System
 DBMS v/s File System
 Database models
 Database Languages: DML, DDL
 Database users and administrators
 Applications of DBMS
 Advantage and Disadvantages of DBMS
3

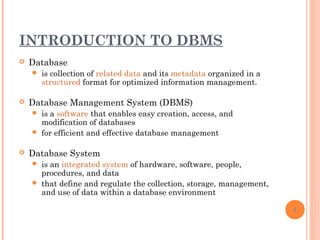

4. INTRODUCTION TO DBMS
 Database
 is collection of related data and its metadata organized in a
structured format for optimized information management.
 Database Management System (DBMS)
 is a software that enables easy creation, access, and
modification of databases
 for efficient and effective database management
 Database System
 is an integrated system of hardware, software, people,
procedures, and data
 that define and regulate the collection, storage, management,
and use of data within a database environment
4

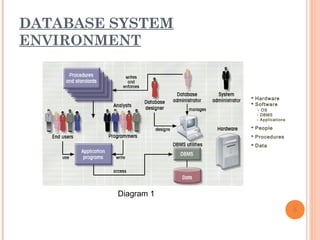

5. DATABASE SYSTEM
ENVIRONMENT
5
 Hardware
 Software
- OS
- DBMS
- Applications
 People
 Procedures
 Data
Diagram 1

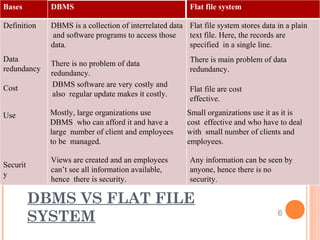

6. Bases DBMS Flat file system
Definition
Data
redundancy
Cost
Use
Securit
y
DBMS is a collection of interrelated data
and software programs to access those
data.
There is no problem of data
redundancy.
DBMS software are very costly and
also regular update makes it costly.
Mostly, large organizations use
DBMS who can afford it and have a
large number of client and employees
to be managed.
Views are created and an employees
can’t see all information available,
hence there is security.
Flat file system stores data in a plain
text file. Here, the records are
specified in a single line.
There is main problem of data
redundancy.
Flat file are cost
effective.
Small organizations use it as it is
cost effective and who have to deal
with small number of clients and
employees.
Any information can be seen by
anyone, hence there is no
security.
DBMS VS FLAT FILE
SYSTEM 6

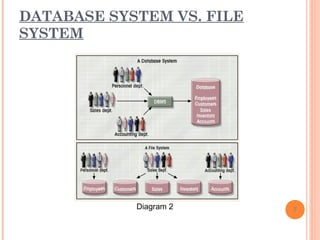

7. DATABASE SYSTEM VS. FILE
SYSTEM
7Diagram 2

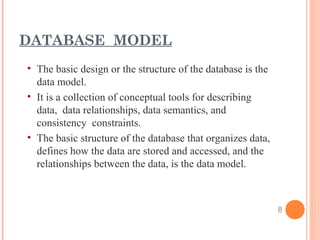

8. • The basic design or the structure of the database is the
data model.
• It is a collection of conceptual tools for describing
data, data relationships, data semantics, and
consistency constraints.
• The basic structure of the database that organizes data,
defines how the data are stored and accessed, and the
relationships between the data, is the data model.
DATABASE MODEL
8

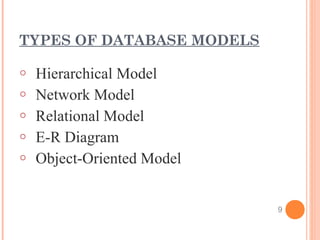

9. TYPES OF DATABASE MODELS
o Hierarchical Model
o Network Model
o Relational Model
o E-R Diagram
o Object-Oriented Model
9

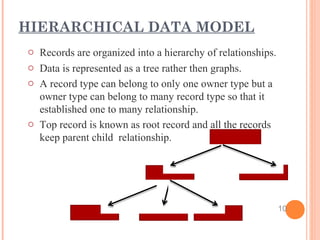

10. o Records are organized into a hierarchy of relationships.
o Data is represented as a tree rather then graphs.
o A record type can belong to only one owner type but a
owner type can belong to many record type so that it
established one to many relationship.
o Top record is known as root record and all the records
keep parent child relationship.
HIERARCHICAL DATA MODEL
10

11. • It is modified version of Hierarchical Data Model where it
replace the hierarchical tree with a graph thus allowing more
general connections among the nodes.
• They are difficult to use but are more flexible than
hierarchical databases.
• Ability to handle many-to-many relationships.
NETWORK DATA MODEL
11

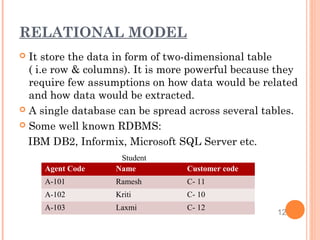

12. Agent Code Name Customer code
A-101 Ramesh C- 11
A-102 Kriti C- 10
A-103 Laxmi C- 12
Student
RELATIONAL MODEL
 It store the data in form of two-dimensional table
( i.e row & columns). It is more powerful because they
require few assumptions on how data would be related
and how data would be extracted.
 A single database can be spread across several tables.
 Some well known RDBMS:
IBM DB2, Informix, Microsoft SQL Server etc.
12

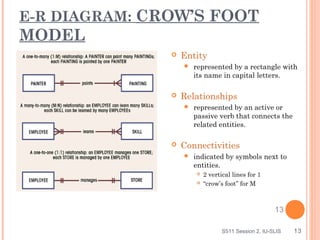

13. E-R DIAGRAM: CROW’S FOOT
MODEL
 Entity
 represented by a rectangle with
its name in capital letters.
 Relationships
 represented by an active or
passive verb that connects the
related entities.
 Connectivities
 indicated by symbols next to
entities.
 2 vertical lines for 1
 “crow’s foot” for M
S511 Session 2, IU-SLIS 13
13

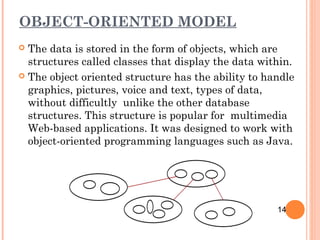

14. OBJECT-ORIENTED MODEL
 The data is stored in the form of objects, which are
structures called classes that display the data within.
 The object oriented structure has the ability to handle
graphics, pictures, voice and text, types of data,
without difficultly unlike the other database
structures. This structure is popular for multimedia
Web-based applications. It was designed to work with
object-oriented programming languages such as Java.
14

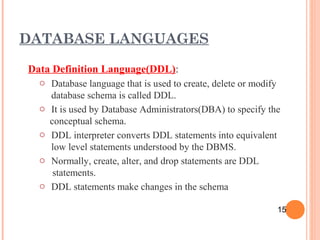

15. Data Definition Language(DDL):
o Database language that is used to create, delete or modify
database schema is called DDL.
o It is used by Database Administrators(DBA) to specify the
conceptual schema.
o DDL interpreter converts DDL statements into equivalent
low level statements understood by the DBMS.
o Normally, create, alter, and drop statements are DDL
statements.
o DDL statements make changes in the schema
DATABASE LANGUAGES
15

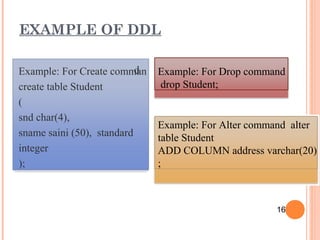

16. dExample: For Create comman
create table Student
(
snd char(4),
sname saini (50), standard
integer
);
Example: For Drop command
drop Student;
Example: For Alter command alter
table Student
ADD COLUMN address varchar(20)
;
EXAMPLE OF DDL
16

17. • Database language that enables insert, update, delete,
and retrieval of data from the database is called Data
Manipulation Language.
• DML complier converts DML statements into equivalent
low level statements that the database understands.
• Normally, select, insert, update, delete are DML
commands.
• DML reflects change in the instance, not the schema.
DML( DATA MANIPULATION
LANGUAGE)
17

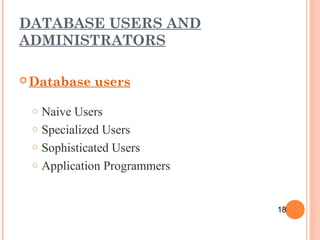

18. DATABASE USERS AND
ADMINISTRATORS
 Database users
o Naive Users
o Specialized Users
o Sophisticated Users
o Application Programmers
18

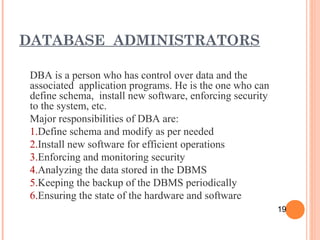

19. DBA is a person who has control over data and the
associated application programs. He is the one who can
define schema, install new software, enforcing security
to the system, etc.
Major responsibilities of DBA are:
1.Define schema and modify as per needed
2.Install new software for efficient operations
3.Enforcing and monitoring security
4.Analyzing the data stored in the DBMS
5.Keeping the backup of the DBMS periodically
6.Ensuring the state of the hardware and software
DATABASE ADMINISTRATORS
19

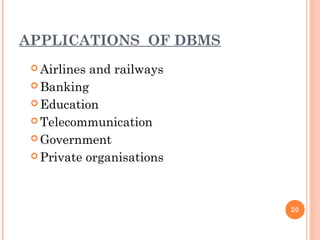

20. APPLICATIONS OF DBMS
 Airlines and railways
 Banking
 Education
 Telecommunication
 Government
 Private organisations
20

21. ADVANTAGE OF DBMS
 Improved data sharing
 Improved data security
 Improved data integrity
 Minimized data inconsistency
 Reduced Redundancy
 Better administration and control
 Better transaction management
 Data independence
21

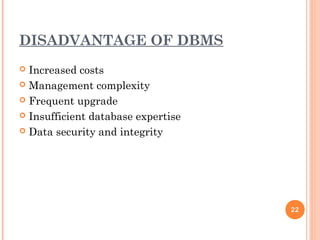

22. DISADVANTAGE OF DBMS
 Increased costs
 Management complexity
 Frequent upgrade
 Insufficient database expertise
 Data security and integrity
22

23. THANK
YOU
23
