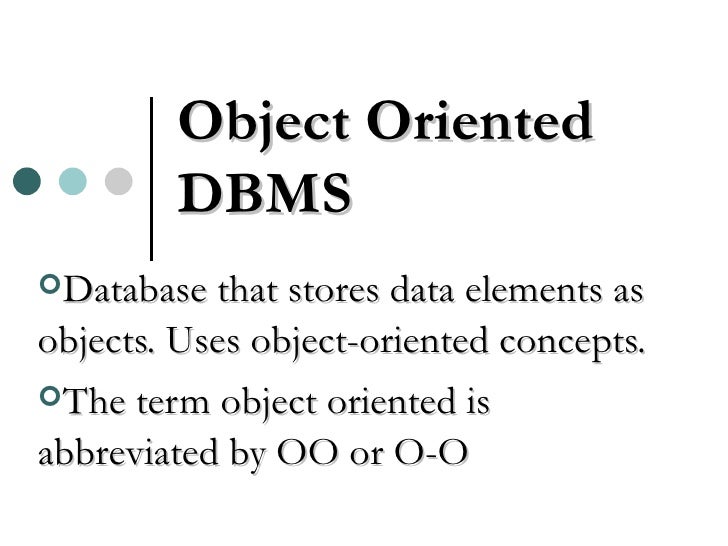

Object Oriented DBMS <ul><li>Database that stores data elements as objects. Uses object-oriented concepts. </li></ul><ul><...
Object <ul><li>The entity that contains both attributes as well as the actions associated with it </li></ul><ul><li>The ob...
<ul><li>A simple attribute can be an integer, string, real and so on. Which takes on specific values. </li></ul><ul><li>A ...
Example <ul><li>Object attributes for branch instance </li></ul><ul><li>Attribute   Values </li></ul><ul><li>BranchNo  B00...
<ul><li>BranchNo is example of simple attribute with value B003 </li></ul><ul><li>The attribute Salesstaff is collection o...
Features of OO 1. Object Identity <ul><li>An OO database provides a unique identity to each independent object stored in t...
<ul><li>The main property required of an OID is that it be immutable that is the OID value of a particular object should n...
2.Abstraction <ul><li>Abstraction is the process of identifying the essential aspects of an entity and ignoring the unimpo...
Encapsulation <ul><li>The concept of encapsulation means that an object contains both data structure and the set of operat...
Information hiding <ul><li>The concept of information hiding is that we separate the external aspects of an object from it...
3.Methods and Messages <ul><li>In object technology functions are usually called methods. </li></ul><ul><li>Methods define...
Example <ul><li>method void updatesalary(float increment) </li></ul><ul><li>{ </li></ul><ul><li>Salary=salary+increment </...
<ul><li>communicate. A message is simply a request from one object to another asking the object to execute one of its meth...
Example <ul><li>class </li></ul>Branchno=b003 City=london Postcode=78jj Branchno=b005 City=london Postcode=09jik methods p...
Subclasses, Superclasses and inheritance Some objects may have similar but not identical attributes and methods. If there ...
<ul><li>There are several forms of inheritance </li></ul><ul><li>Single inheritance </li></ul><ul><li>Multiple inheritance...
Example person staff manager SalesStaff Superclasses subclasses Staff is also a subclass Of a superclass person
Multiple inheritance <ul><li>Multiple inheritance refer that the subclass inherit from more than one superclasses. </li></...
<ul><li>The multiple inheritance is very problematic . The conflict arises when the superclasses contain the same attribut...
<ul><li>Use single inheritance to avoid conflict </li></ul><ul><li>For example  </li></ul><ul><li>Salesmanager  manager  s...
<ul><li>The multiple inheritance is very problematic . The conflict arises when the superclasses contain the same attribut...
Example staff manager salesstaff salesmanager
Selective inheritance <ul><li>It allows a subclass to inherit a limited number of properties from the superclass. </li></u...
<ul><li>For example we might define a method in the staff class to increment salary  </li></ul><ul><li>Method  void giveco...
Overloading <ul><li>Overloading allows the name of a method to be reused within a class definition. </li></ul><ul><li>This...
Method void print() { Printf(“branchno%s”,branchno); Printf(“city %s”,city); Printf(“postcode%s”,postcode); } method void ...
Storing objects in a relational database <ul><li>Mapping classes to relations </li></ul><ul><li>There are number of strate...
Staff Staffno Name Position Dob salary Manager Bonus mgrstartdate Salesperson Salesarea carallowance Secretary typingspeed
<ul><li>Staff( staffno ,name,position,dob,salary) </li></ul><ul><li>Manager( staffno ,bonus,mgrstartdate) </li></ul><ul><l...
<ul><li>Manager(staffno,name,dob,position,salary,bonus,mgrstartdate) </li></ul><ul><li>Salesperson(staffno,name,dob,positi...
<ul><li>Staff(staffno,name,dob,position,salary,bonus,mgrstartdate,salesarea,carallowence,typingspeed) </li></ul><ul><li>Fo...
<ul><li>o.cardinality() operation returns   the   number of elements in   the collection. </li></ul><ul><li>o.empty() retu...
<ul><li>Class  employee </li></ul><ul><li>{ </li></ul><ul><li>attribute  string  name; </li></ul><ul><li>attribute  date  ...
Object definition language (ODL) <ul><li>The ODL is designed to create an object database schema. </li></ul><ul><li>Class ...
person faculty student gradstudent department courses section Has faculty Works in advises advisor students Has section of...
Architecture <ul><li>Client—Server </li></ul><ul><li>Many commercial OODBMS based on the client—server architecture. </li>...
<ul><li>The server is responsible for providing pages at the client’s request. </li></ul><ul><li>Database server </li></ul...
