1. Key payment processing system
running on MariaDB Galera Cluster

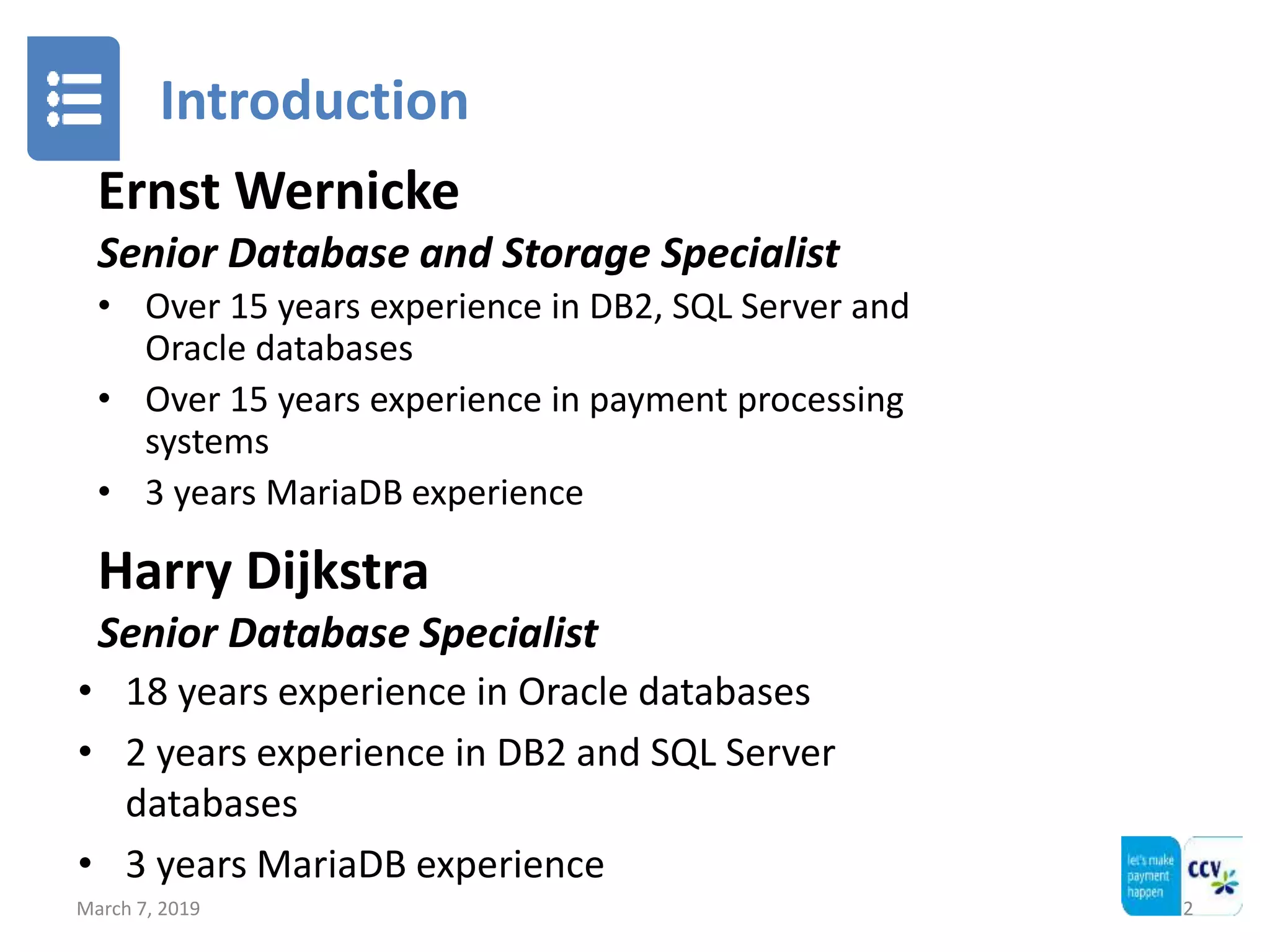

2. Introduction
March 7, 2019 2
Harry Dijkstra
Senior Database Specialist
• 18 years experience in Oracle databases
• 2 years experience in DB2 and SQL Server
databases
• 3 years MariaDB experience
Ernst Wernicke
Senior Database and Storage Specialist
• Over 15 years experience in DB2, SQL Server and
Oracle databases
• Over 15 years experience in payment processing
systems
• 3 years MariaDB experience

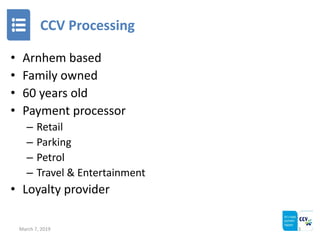

3. CCV Processing
• Arnhem based
• Family owned
• 60 years old
• Payment processor
– Retail
– Parking
– Petrol
– Travel & Entertainment
• Loyalty provider
March 7, 2019 3

4. CCV @home in Europe
March 7, 2019 4

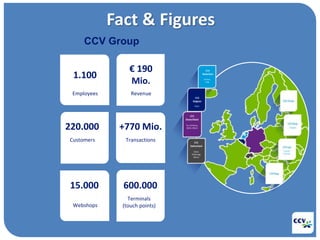

5. Fact & Figures
1.100
Employees
€ 190
Mio.
Revenue
220.000
Customers
+770 Mio.
Transactions
15.000
Webshops
600.000
Terminals
(touch points)
CCV Group

6. Presence CCV Easy solutions
6
Including local scheme (if applicable)
Only for international brands
No presence yet, but on target
list
March 7, 2019

7. Databases@CCV
March 7, 2019 7
• MariaDB
– private cloud
– future processing platform
– strategic future choice
• SQL server
– current processing platform
• DB2
– current back-office
• Oracle
– limited installed base

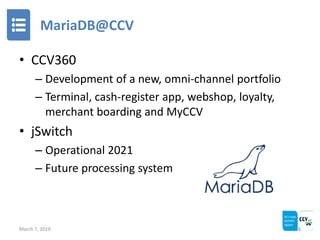

8. MariaDB@CCV
March 7, 2019 8
• CCV360
– Development of a new, omni-channel portfolio
– Terminal, cash-register app, webshop, loyalty,
merchant boarding and MyCCV
• jSwitch
– Operational 2021
– Future processing system

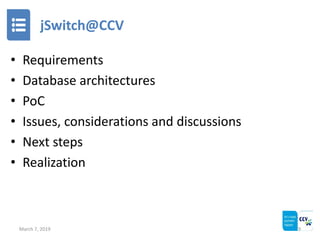

9. jSwitch@CCV
• Requirements
• Database architectures
• PoC
• Issues, considerations and discussions
• Next steps
• Realization
March 7, 2019 9

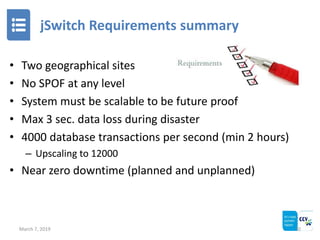

10. jSwitch Requirements summary
March 7, 2019 10
• Two geographical sites
• No SPOF at any level
• System must be scalable to be future proof
• Max 3 sec. data loss during disaster
• 4000 database transactions per second (min 2 hours)
– Upscaling to 12000
• Near zero downtime (planned and unplanned)

11. Considered architectures scenario A
March 7, 2019 11
• Asynchronous connection between datacenters.

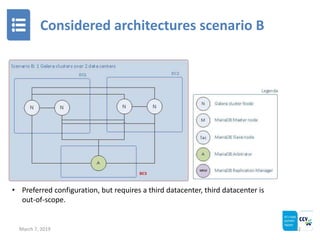

12. Considered architectures scenario B
March 7, 2019 12
• Preferred configuration, but requires a third datacenter, third datacenter is
out-of-scope.

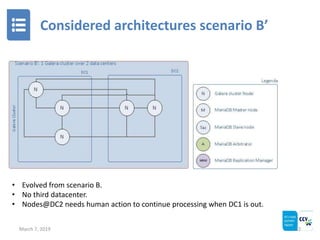

13. Considered architectures scenario B’
March 7, 2019 13
• Evolved from scenario B.
• No third datacenter.
• Nodes@DC2 needs human action to continue processing when DC1 is out.

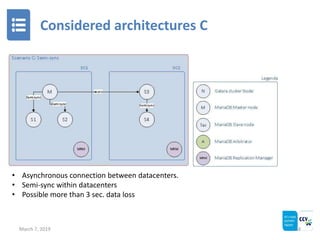

14. Considered architectures C
March 7, 2019 14
• Asynchronous connection between datacenters.
• Semi-sync within datacenters
• Possible more than 3 sec. data loss

15. Considered architectures scenario D
March 7, 2019 15
• Cross datacenter latency
• Possible more than 3 sec. data loss

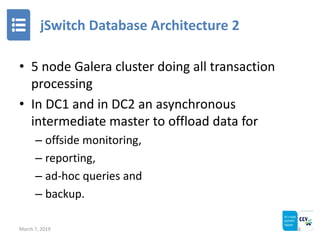

16. jSwitch Database Architecture 2
March 7, 2019 16
• 5 node Galera cluster doing all transaction
processing
• In DC1 and in DC2 an asynchronous
intermediate master to offload data for
– offside monitoring,
– reporting,
– ad-hoc queries and
– backup.

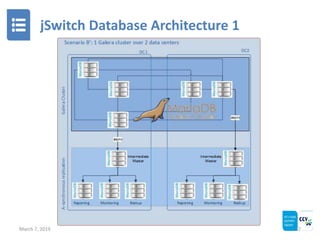

17. jSwitch Database Architecture 1
March 7, 2019 17

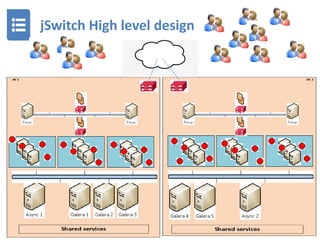

18. jSwitch High level design
March 7, 2019
18

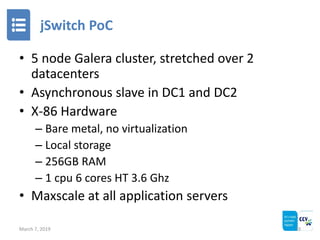

19. jSwitch PoC
March 7, 2019 19
• 5 node Galera cluster, stretched over 2
datacenters
• Asynchronous slave in DC1 and DC2
• X-86 Hardware
– Bare metal, no virtualization
– Local storage
– 256GB RAM
– 1 cpu 6 cores HT 3.6 Ghz
• Maxscale at all application servers

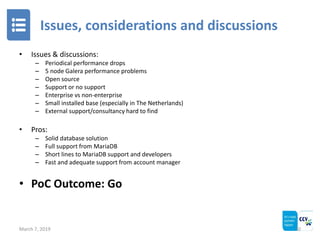

20. Issues, considerations and discussions
March 7, 2019 20
• Issues & discussions:
– Periodical performance drops
– 5 node Galera performance problems
– Open source
– Support or no support
– Enterprise vs non-enterprise
– Small installed base (especially in The Netherlands)
– External support/consultancy hard to find
• Pros:
– Solid database solution
– Full support from MariaDB
– Short lines to MariaDB support and developers
– Fast and adequate support from account manager
• PoC Outcome: Go

21. Next steps
March 7, 2019 21
• Building test environment
• Building acceptance and production environment
• Automation
• Fault tolerant
• Monitoring using Monyog
• Sharding
– Logical
– Spyder

22. Realization Test
March 7, 2019 22
• 3 Teams
• 9 environments
• Automation – Ansible
• Discussion technical concepts
• Discussion responsibilities
• First real world transaction

23. Realization Acceptance and Production
March 7, 2019 23
• Migration path
• Building Accp environment
• Connection to other CCV systems
– Fraud detection
– Front - Back office
– MQ Services
– Ewacs alerting
– Other shared services
