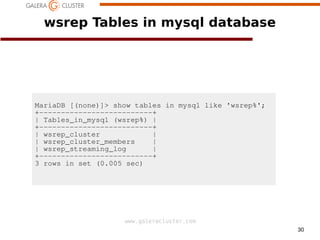

![30
www.galeracluster.com
wsrep Tables in mysql database
MariaDB [(none)]> show tables in mysql like 'wsrep%';
+--------------------------+
| Tables_in_mysql (wsrep%) |
+--------------------------+
| wsrep_cluster |
| wsrep_cluster_members |
| wsrep_streaming_log |
+--------------------------+
3 rows in set (0.005 sec)](https://image.slidesharecdn.com/openworks19galera4-190313164653/85/What-s-new-in-Galera-4-30-320.jpg)

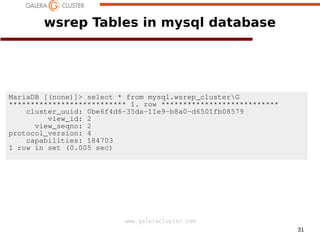

![31
www.galeracluster.com
wsrep Tables in mysql database
MariaDB [(none)]> select * from mysql.wsrep_clusterG
*************************** 1. row ***************************
cluster_uuid: 0be6f4d6-35da-11e9-b8a0-d6501fb08579
view_id: 2
view_seqno: 2
protocol_version: 4
capabilities: 184703
1 row in set (0.005 sec)](https://image.slidesharecdn.com/openworks19galera4-190313164653/85/What-s-new-in-Galera-4-31-320.jpg)

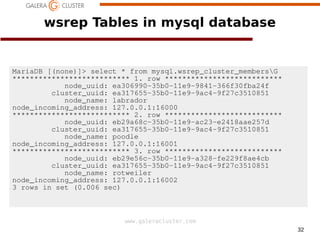

![32
www.galeracluster.com
wsrep Tables in mysql database
MariaDB [(none)]> select * from mysql.wsrep_cluster_membersG
*************************** 1. row ***************************
node_uuid: ea306990-35b0-11e9-9841-366f30fba24f
cluster_uuid: ea317655-35b0-11e9-9ac4-9f27c3510851
node_name: labrador
node_incoming_address: 127.0.0.1:16000
*************************** 2. row ***************************
node_uuid: eb29a68c-35b0-11e9-ac23-e2418aae257d
cluster_uuid: ea317655-35b0-11e9-9ac4-9f27c3510851
node_name: poodle
node_incoming_address: 127.0.0.1:16001
*************************** 3. row ***************************
node_uuid: eb29e56c-35b0-11e9-a328-fe229f8ae4cb
cluster_uuid: ea317655-35b0-11e9-9ac4-9f27c3510851
node_name: rotweiler
node_incoming_address: 127.0.0.1:16002
3 rows in set (0.006 sec)](https://image.slidesharecdn.com/openworks19galera4-190313164653/85/What-s-new-in-Galera-4-32-320.jpg)

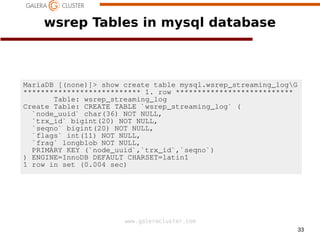

![33
www.galeracluster.com
wsrep Tables in mysql database
MariaDB [(none)]> show create table mysql.wsrep_streaming_logG
*************************** 1. row ***************************
Table: wsrep_streaming_log
Create Table: CREATE TABLE `wsrep_streaming_log` (
`node_uuid` char(36) NOT NULL,
`trx_id` bigint(20) NOT NULL,
`seqno` bigint(20) NOT NULL,
`flags` int(11) NOT NULL,
`frag` longblob NOT NULL,
PRIMARY KEY (`node_uuid`,`trx_id`,`seqno`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1
1 row in set (0.004 sec)](https://image.slidesharecdn.com/openworks19galera4-190313164653/85/What-s-new-in-Galera-4-33-320.jpg)
Uploaded byMariaDB plc
What’s new in Galera 4
The document provides an overview of Galera 4 integration in MariaDB 10.4, highlighting features such as streaming replication, support for large transactions, and new API changes. It outlines the benefits of Galera's synchronous multi-master replication, including no data loss and no slave lag. The document also mentions the roadmap for future features and the process for upgrading from previous Galera versions.
More Related Content
![[@NaukriEngineering] Introduction to Galera cluster](https://cdn.slidesharecdn.com/ss_thumbnails/galeracluster-170509063459-thumbnail.jpg?width=640&height=640&fit=bounds)
What’s new in Galera 4
- 1. Galera 4 inMariaDB 10.4 Seppo Jaakola Codership
- 2. 2 www.galeracluster.com ➢ Seppo Jaakola ➢ One ofthe Founders of Codership ➢ Codership – Galera Replication developers ➢ Partner of MariaDB for developing and supporting MariaDB Galera Cluster ➢ Galera releases since 2009

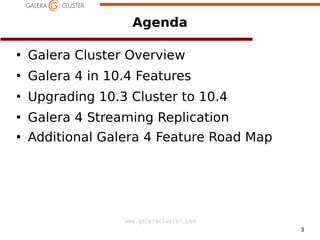

- 3. 3 www.galeracluster.com Agenda ● Galera Cluster Overview ● Galera4 in 10.4 Features ● Upgrading 10.3 Cluster to 10.4 ● Galera 4 Streaming Replication ● Additional Galera 4 Feature Road Map

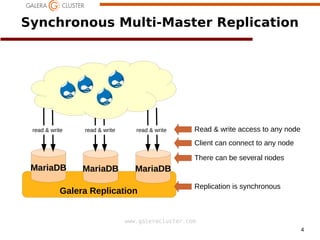

- 4. 4 www.galeracluster.com MariaDB MariaDB MariaDB SynchronousMulti-Master Replication Galera Replication Replication is synchronous read & write read & write read & write Client can connect to any node There can be several nodes Read & write access to any node

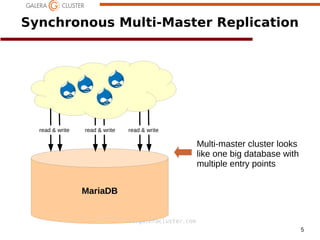

- 5. 5 www.galeracluster.com MariaDB Synchronous Multi-Master Replication a Multi-mastercluster looks like one big database with multiple entry points read & write read & write read & write

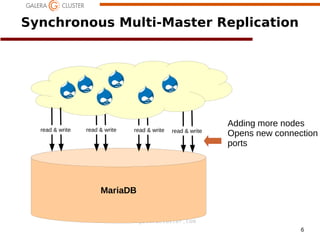

- 6. 6 www.galeracluster.com MariaDB Synchronous Multi-Master Replication a Addingmore nodes Opens new connection ports read & write read & writeread & write read & write

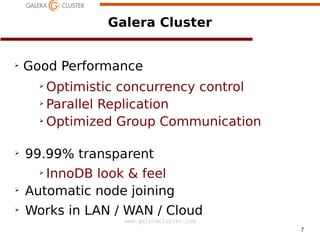

- 7. 7 www.galeracluster.com Galera Cluster ➢ Good Performance ➢ Optimisticconcurrency control ➢ Parallel Replication ➢ Optimized Group Communication ➢ 99.99% transparent ➢ InnoDB look & feel ➢ Automatic node joining ➢ Works in LAN / WAN / Cloud

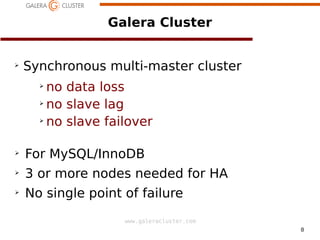

- 8. 8 www.galeracluster.com Galera Cluster ➢ Synchronous multi-mastercluster ➢ no data loss ➢ no slave lag ➢ no slave failover ➢ For MySQL/InnoDB ➢ 3 or more nodes needed for HA ➢ No single point of failure

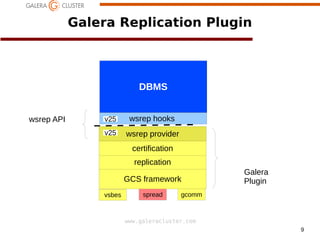

- 9. 9 www.galeracluster.com Galera Replication Plugin DBMS wsrepprovider GCS framework replication wsrep hookswsrep API certification vsbes gcommspread Galera Plugin v25 v25
- 10. Galera Version 4in MariaDB 10.4
- 11. 11 www.galeracluster.com Galera 4 inMariaDB 10.4 ● MariaDB 10.4 RC has Galera 4 Replication ● 10.4 other features shown in other presentations ● wsrep API #26 ● Impacts upgrading ● wsrep patch integration in 10.4 codebase ● Impacts code stability ● bug fi & new features turnover

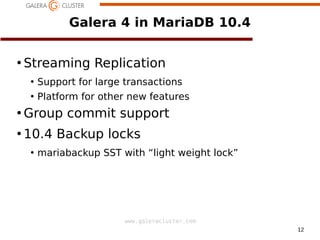

- 12. 12 www.galeracluster.com Galera 4 inMariaDB 10.4 ● Streaming Replication ● Support for large transactions ● Platform for other new features ● Group commit support ● 10.4 Backup locks ● mariabackup SST with “light weight lock”
- 13.

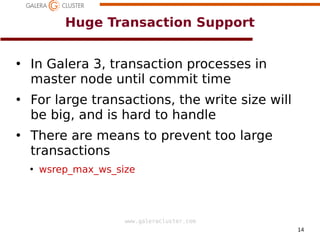

- 14. 14 www.galeracluster.com Huge Transaction Support ● InGalera 3, transaction processes in master node until commit time ● For large transactions, the write size will be big, and is hard to handle ● There are means to prevent too large transactions ● wsrep_mai_ws_size
- 15. 15 www.galeracluster.com Streaming Replication ● Streaming replicationis new technology developed for Galera Replication 4 to enable running transaction of unlimited size in cluster ● Transaction size limits will remain, and cluster can still reject too large transactions

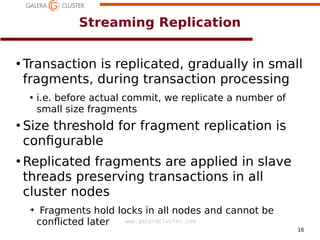

- 16. 16 www.galeracluster.com Streaming Replication ● Transaction isreplicated, gradually in small fragments, during transaction processing ● i.e. before actual commit, we replicate a number of small size fragments ● Size threshold for fragment replication is confgurable ● Replicated fragments are applied in slave threads preserving transactions in all cluster nodes ➔ Fragments hold locks in all nodes and cannot be conficted later
- 17. 17 www.galeracluster.com Streaming Replication Huge transaction GaleraReplication Node A Node B Huge trx Update, update, update.... Begin

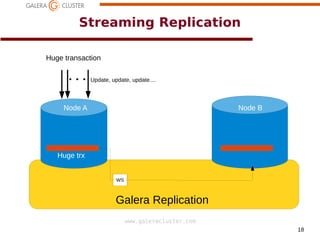

- 18. 18 www.galeracluster.com Streaming Replication Huge transaction GaleraReplication Node A Node B Huge trx WS Update, update, update....
- 19. 19 www.galeracluster.com Streaming Replication Huge transaction GaleraReplication Node A Node B Huge trx WS Update, update, update....

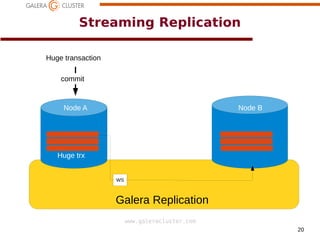

- 20. 20 www.galeracluster.com Streaming Replication Huge transaction GaleraReplication Node A Node B Huge trx WS commit

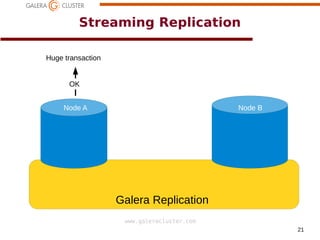

- 21. 21 www.galeracluster.com Streaming Replication Huge transaction GaleraReplication Node A Node B OK

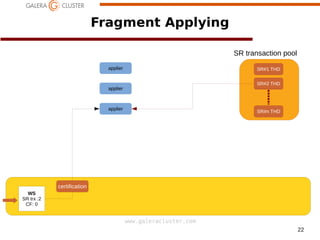

- 22. 22 www.galeracluster.com Fragment Applying SR transactionpool SR#1 THD SR#2 THD SR#n THD WS SR trx :2 CF: 0 applier applier applier certification

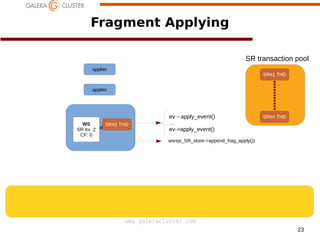

- 23. 23 www.galeracluster.com applier Fragment Applying SR transactionpool SR#1 THD SR#2 THD SR#n THD WS SR trx :2 CF: 0 applier applier ev→apply_event() … ev->apply_event() wsrep_SR_store->append_frag_apply())

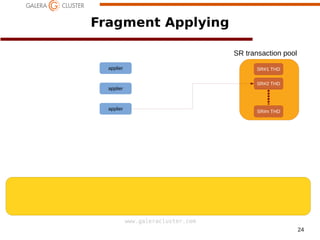

- 24. 24 www.galeracluster.com Fragment Applying SR transactionpool SR#1 THD SR#2 THD SR#n THD applier applier applier

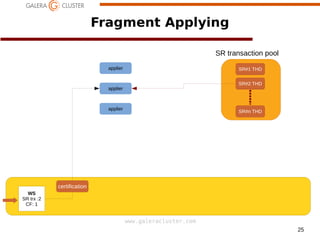

- 25. 25 www.galeracluster.com Fragment Applying SR transactionpool SR#1 THD SR#2 THD SR#n THD WS SR trx :2 CF: 1 applier applier applier certification

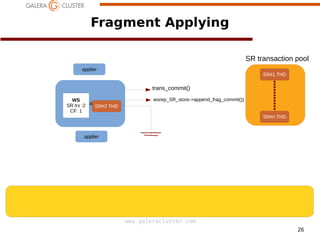

- 26. 26 www.galeracluster.com applier Fragment Applying SR transactionpool SR#1 THD SR#2 THD SR#n THD WS SR trx :2 CF: 1 applier applier trans_commit() wsrep_SR_store->append_frag_commit())

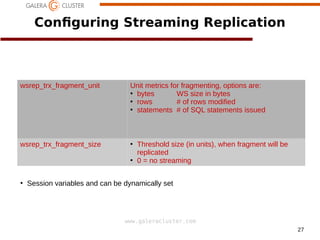

- 27. 27 www.galeracluster.com Configuring Streaming Replication wsrep_trx_fragment_unitUnit metrics for fragmenting, options are: ● bytes WS size in bytes ● rows # of rows modified ● statements # of SQL statements issued wsrep_trx_fragment_size ● Threshold size (in units), when fragment will be replicated ● 0 = no streaming ● Session variables and can be dynamically set

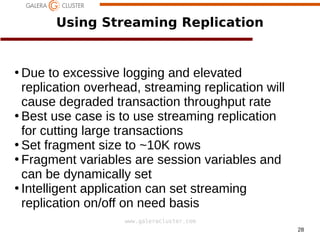

- 28. 28 www.galeracluster.com Using Streaming Replication ● Dueto excessive logging and elevated replication overhead, streaming replication will cause degraded transaction throughput rate ● Best use case is to use streaming replication for cutting large transactions ● Set fragment size to ~10K rows ● Fragment variables are session variables and can be dynamically set ● Intelligent application can set streaming replication on/off on need basis
- 29.
- 30. 30 www.galeracluster.com wsrep Tables inmysql database MariaDB [(none)]> show tables in mysql like 'wsrep%'; +--------------------------+ | Tables_in_mysql (wsrep%) | +--------------------------+ | wsrep_cluster | | wsrep_cluster_members | | wsrep_streaming_log | +--------------------------+ 3 rows in set (0.005 sec)
- 31. 31 www.galeracluster.com wsrep Tables inmysql database MariaDB [(none)]> select * from mysql.wsrep_clusterG *************************** 1. row *************************** cluster_uuid: 0be6f4d6-35da-11e9-b8a0-d6501fb08579 view_id: 2 view_seqno: 2 protocol_version: 4 capabilities: 184703 1 row in set (0.005 sec)
- 32. 32 www.galeracluster.com wsrep Tables inmysql database MariaDB [(none)]> select * from mysql.wsrep_cluster_membersG *************************** 1. row *************************** node_uuid: ea306990-35b0-11e9-9841-366f30fba24f cluster_uuid: ea317655-35b0-11e9-9ac4-9f27c3510851 node_name: labrador node_incoming_address: 127.0.0.1:16000 *************************** 2. row *************************** node_uuid: eb29a68c-35b0-11e9-ac23-e2418aae257d cluster_uuid: ea317655-35b0-11e9-9ac4-9f27c3510851 node_name: poodle node_incoming_address: 127.0.0.1:16001 *************************** 3. row *************************** node_uuid: eb29e56c-35b0-11e9-a328-fe229f8ae4cb cluster_uuid: ea317655-35b0-11e9-9ac4-9f27c3510851 node_name: rotweiler node_incoming_address: 127.0.0.1:16002 3 rows in set (0.006 sec)
- 33. 33 www.galeracluster.com wsrep Tables inmysql database MariaDB [(none)]> show create table mysql.wsrep_streaming_logG *************************** 1. row *************************** Table: wsrep_streaming_log Create Table: CREATE TABLE `wsrep_streaming_log` ( `node_uuid` char(36) NOT NULL, `trx_id` bigint(20) NOT NULL, `seqno` bigint(20) NOT NULL, `flags` int(11) NOT NULL, `frag` longblob NOT NULL, PRIMARY KEY (`node_uuid`,`trx_id`,`seqno`) ) ENGINE=InnoDB DEFAULT CHARSET=latin1 1 row in set (0.004 sec)
- 34.

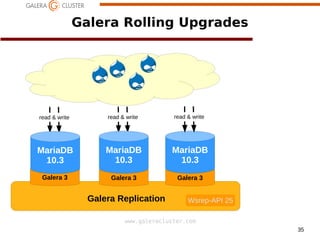

- 35. 35 www.galeracluster.com Galera 3 Galera RollingUpgrades Galera Replication read & write MariaDB 10.3 Galera 3 read & write MariaDB 10.3 Galera 3 MariaDB 10.3 Wsrep-API 25 read & write
- 36. 36 www.galeracluster.com Galera 3 Galera RollingUpgrades Galera Replication read & write MariaDB 10.3 Galera 3 read & write MariaDB 10.3 Galera 3 MariaDB 10.3 Wsrep-API 25 Upgrade for 10.4 Shutdown server Install 10.4 Start with wsrep_provider mysql_upgrade Shutdown server Start without wsrep_provider Isolate node Galera 4 Galera 4 MariaDB 10.4 Allow read only access read only

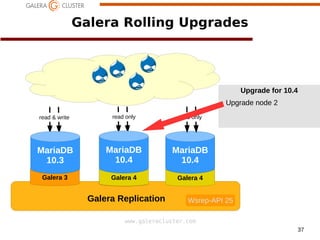

- 37. 37 www.galeracluster.com Galera 3 Galera RollingUpgrades Galera Replication read & write MariaDB 10.3 Galera 3 MariaDB 10.3 Wsrep-API 25 Galera 4 MariaDB 10.4 read only Galera 4 MariaDB 10.4 read only Upgrade for 10.4 Upgrade node 2

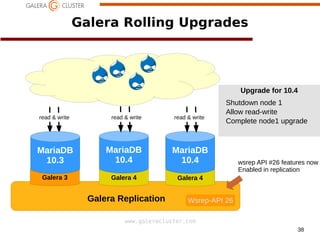

- 38. 38 www.galeracluster.com Galera 3 Galera RollingUpgrades Galera Replication read & write MariaDB 10.3 Wsrep-API 25 Galera 4 MariaDB 10.4 read only Galera 4 MariaDB 10.4 read only Wsrep-API 26 read & write read & write Upgrade for 10.4 Shutdown node 1 Allow read-write Complete node1 upgrade wsrep API #26 features now Enabled in replication

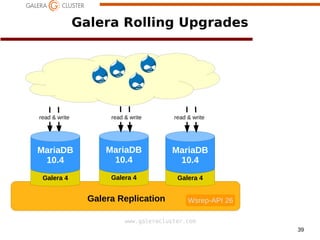

- 39. 39 www.galeracluster.com Galera Rolling Upgrades GaleraReplication read & write Wsrep-API 25 Galera 4 MariaDB 10.4 read only Galera 4 MariaDB 10.4 read only Wsrep-API 26 read & write read & write Galera 4 MariaDB 10.4

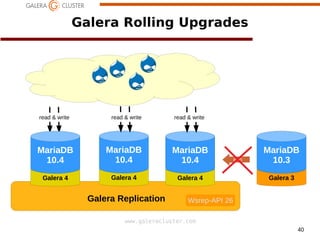

- 40. 40 www.galeracluster.com Galera Rolling Upgrades GaleraReplication read & write Wsrep-API 25 Galera 4 MariaDB 10.4 read only Galera 4 MariaDB 10.4 read only Wsrep-API 26 read & write read & write Galera 4 MariaDB 10.4 join Galera 3 MariaDB 10.3
- 41.

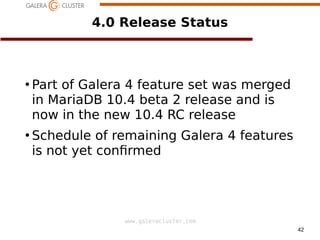

- 42. 42 www.galeracluster.com 4.0 Release Status ● Partof Galera 4 feature set was merged in MariaDB 10.4 beta 2 release and is now in the new 10.4 RC release ● Schedule of remaining Galera 4 features is not yet confrmed

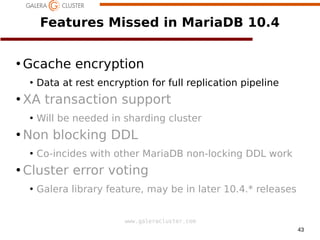

- 43. 43 www.galeracluster.com Features Missed inMariaDB 10.4 ● Gcache encryption ● Data at rest encryption for full replication pipeline ● XA transaction support ● Will be needed in sharding cluster ● Non blocking DDL ● Co-incides with other MariaDB non-locking DDL work ● Cluster error voting ● Galera library feature, may be in later 10.4.* releases

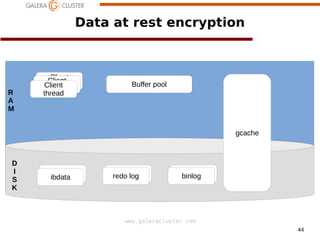

- 44. 44 www.galeracluster.com R A M Data at restencryption Client thread Client threadClient thread Buffer pool gcache ibdataibdata redo logredo log redo logbinlog D I S K

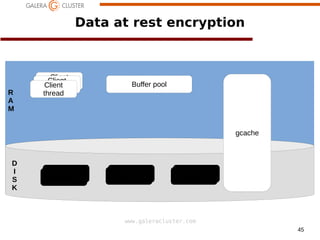

- 45. 45 www.galeracluster.com R A M Data at restencryption Client thread Client threadClient thread Buffer pool gcache D I S K ibdataibdata redo logredo log redo logbinlog

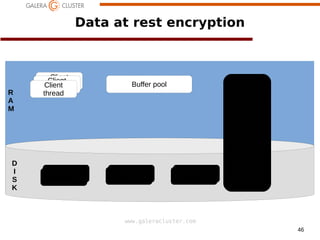

- 46. 46 www.galeracluster.com R A M Data at restencryption Client thread Client threadClient thread Buffer pool gcache D I S K ibdataibdata redo logredo log redo logbinlog

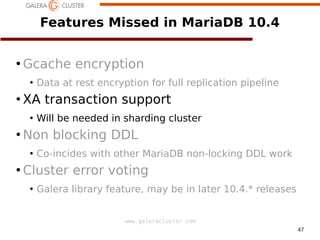

- 47. 47 www.galeracluster.com Features Missed inMariaDB 10.4 ● Gcache encryption ● Data at rest encryption for full replication pipeline ● XA transaction support ● Will be needed in sharding cluster ● Non blocking DDL ● Co-incides with other MariaDB non-locking DDL work ● Cluster error voting ● Galera library feature, may be in later 10.4.* releases
- 48. XA Transaction Support InGalera 3

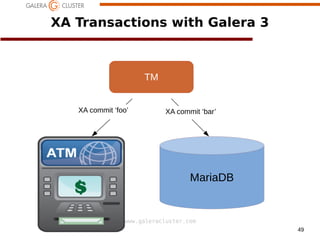

- 49. 49 www.galeracluster.com XA Transactions withGalera 3 TM RM RM XA start ‘foo’ XA start ‘bar’ foo bar Work on ‘foo’ Work on ‘bar’XA prepare ‘foo’ XA prepare ‘bar’XA commit ‘foo’ XA commit ‘bar’ foo bar MariaDB
- 50. 50 www.galeracluster.com XA Transactions withGalera 3 ● Galera replication is eager to replicate in MariaDB 2PC prepare stage ● Prepared XA transaction cannot be rolled back anymore
- 51. 51 www.galeracluster.com XA Transactions withGalera 3 XA Start Node A Node B smith smith XA trans
- 52. 52 www.galeracluster.com XA Transactions withGalera 3 XA Insert into persons ‘’jones’ Node A Node B smith smith jones XA trans

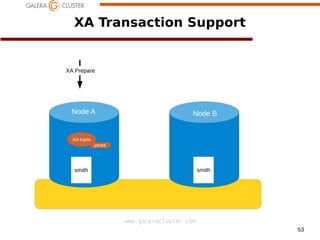

- 53. 53 www.galeracluster.com XA Transaction Support XAPrepare Node A Node B smith smith jones XA trans

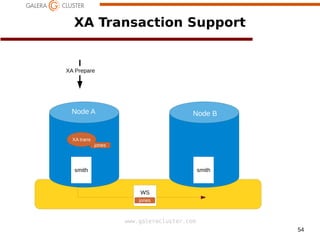

- 54. 54 www.galeracluster.com XA Transaction Support XAPrepare Node A Node B smith smith jones XA trans WS jones

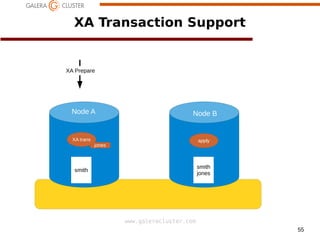

- 55. 55 www.galeracluster.com XA Transaction Support XAPrepare Node A Node B smith smith jones jones XA trans apply
- 56. 56 www.galeracluster.com XA Transaction Support OK NodeA Node B smith smith jones jones XA trans
- 57. 57 www.galeracluster.com XA Transaction Support XARollback Node A Node B smith Smith jones jones XA trans

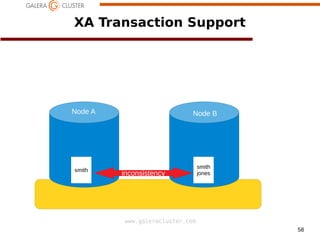

- 58. 58 www.galeracluster.com XA Transaction Support NodeA Node B smith smith jonesinconsistency

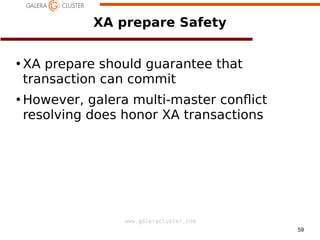

- 59. 59 www.galeracluster.com XA prepare Safety ● XAprepare should guarantee that transaction can commit ● However, galera multi-master confict resolving does honor XA transactions

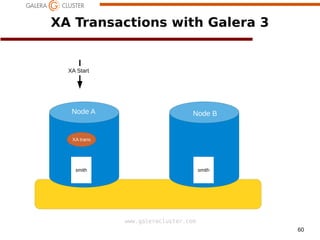

- 60. 60 www.galeracluster.com XA Transactions withGalera 3 XA Start Node A Node B smith smith XA trans
- 61. 61 www.galeracluster.com XA Transactions withGalera 3 UPDATE smith=kit Node A Node B smith smith XA trans

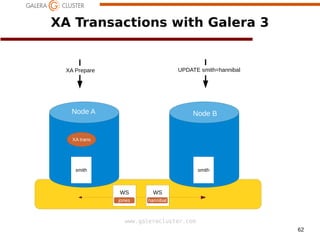

- 62. 62 www.galeracluster.com XA Transactions withGalera 3 Node A Node B smith smith XA trans WS jones UPDATE smith=hannibal WS hannibal XA Prepare
- 63. 63 www.galeracluster.com XA Transactions withGalera 3 Node A Node B hannibal hannibal XA trans OK
- 64. XA Transaction Supportby Streaming Replication

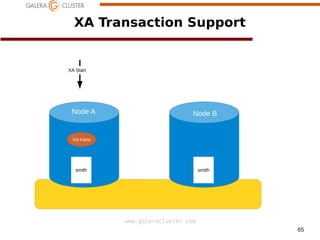

- 65. 65 www.galeracluster.com XA Transaction Support XAStart Node A Node B smith smith XA trans

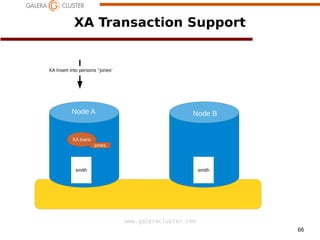

- 66. 66 www.galeracluster.com XA Transaction Support XAInsert into persons ‘’jones’ Node A Node B smith smith XA transXA transXA transXA trans jones
- 67. 67 www.galeracluster.com XA Transaction Support XAPrepare Node A Node B smith smith XA trans SR trans WS jonesjones

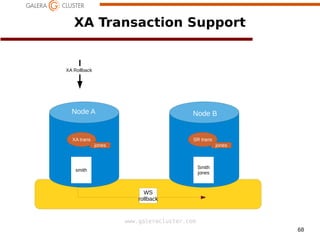

- 68. 68 www.galeracluster.com XA Transaction Support XARollback Node A Node B smith Smith jones XA trans SR trans WS rollback jonesjones

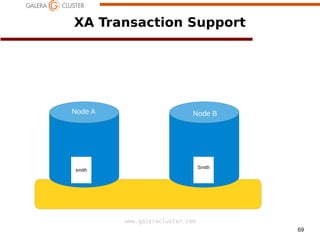

- 69. 69 www.galeracluster.com XA Transaction Support NodeA Node B smith Smith

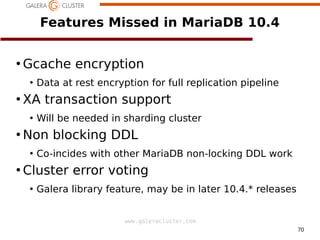

- 70. 70 www.galeracluster.com Features Missed inMariaDB 10.4 ● Gcache encryption ● Data at rest encryption for full replication pipeline ● XA transaction support ● Will be needed in sharding cluster ● Non blocking DDL ● Co-incides with other MariaDB non-locking DDL work ● Cluster error voting ● Galera library feature, may be in later 10.4.* releases

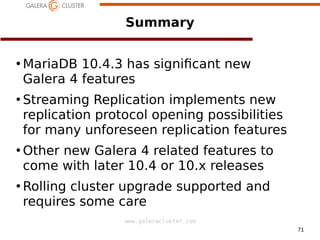

- 71. 71 www.galeracluster.com Summary ● MariaDB 10.4.3 hassignifcant new Galera 4 features ● Streaming Replication implements new replication protocol opening possibilities for many unforeseen replication features ● Other new Galera 4 related features to come with later 10.4 or 10.i releases ● Rolling cluster upgrade supported and requires some care
- 72. 72 www.galeracluster.com 4 Happy Clustering :-) Thankyou for listening!
