MariaDB
ColumnStore

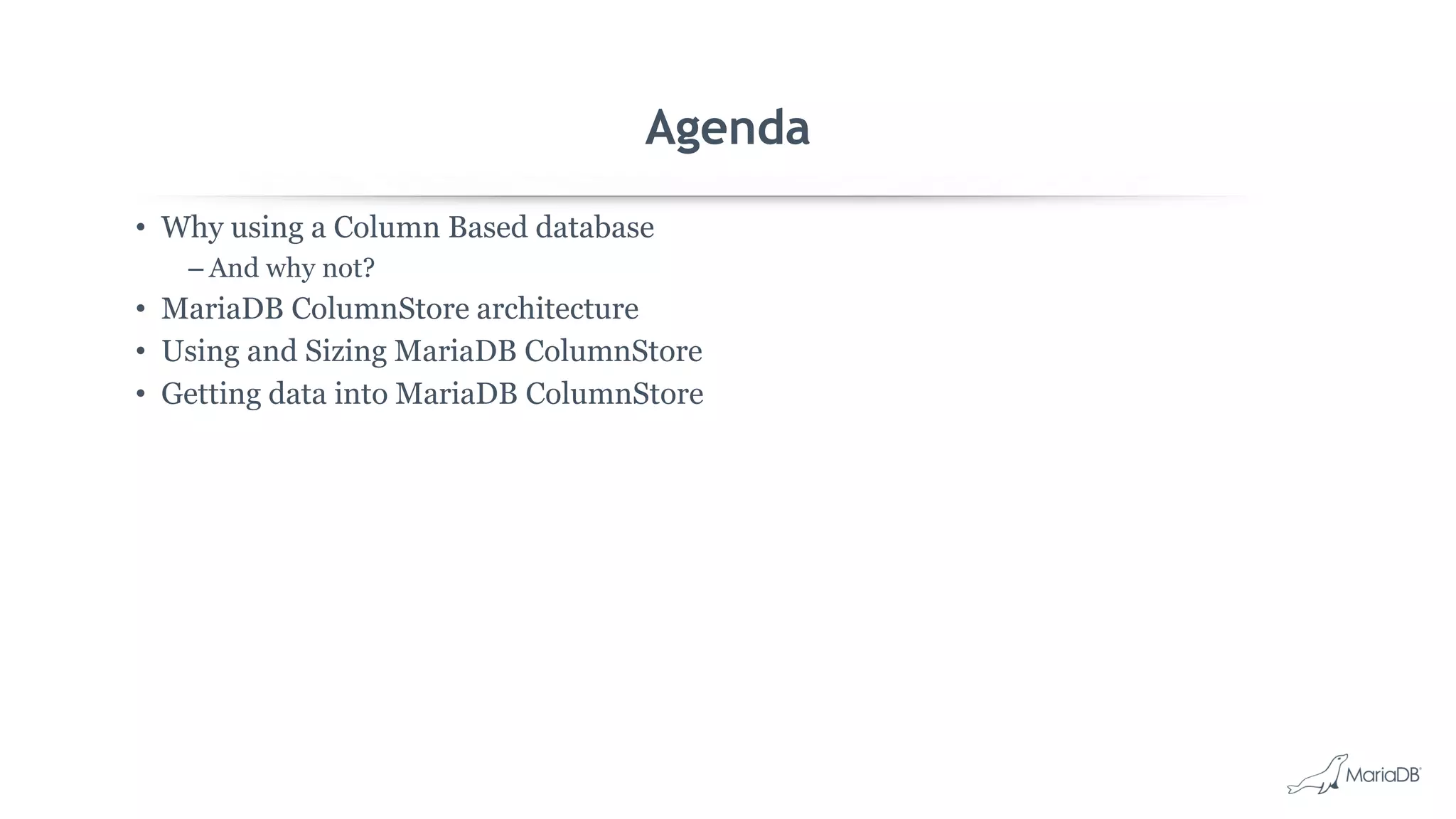

Agenda
• Why using a Column Based database
– And why not?
• MariaDB ColumnStore architecture
• Using and Sizing MariaDB ColumnStore
• Getting data into MariaDB ColumnStore
Why a Columnar Database
Data organization
• Row-by-row
– Good for row based processing
– Use indexing for lookups
• Typically B-Tree indexing
– Indexing is difficult for data that is not well distributed
– Indexing slows down DML
• Column based
– Good for dataset based processing
– Needs no indexes
– Data is typically organized in chunks
– Lends itself to high level of compression
– Metadata used for filtering and processing
– Large amount of data is much, much less of an issue
– Loading data is consistently fast, independent on data size
OLTP/NoSQL
Workloads
Suited for reporting or analysis of millions-billions of rows from data sets containing millions-trillions of rows.
OLAP/Analytic/
Reporting Workloads
Workload – Query Vision/Scope
1 100 10,000
10-100GB
10,000,000,000
1-10TB
1,000,000 100,000,000
100-1,000GB
Columnar General Best Practices
Not suited for OLTP
Micro-batch load allows for near real-time behavior
Infrequently used columns do not impact other queries
Columnar suitable for sparse columns (nulls compress nicely)
Data Modeling Best Practices
Star-schema optimizations are generally a good idea
Conservative data typing is very important
Especially around fixed-length vs. dictionary boundary (8 bytes)
IP Address vs. IP Number
Break down compound fields into individual fields:
Trivializes searching for sub-fields
Can avoid dictionary overhead
Cost to re-assemble is generally small
MariaDB ColumnStore
The basics
MariaDB ColumnStore
High performance columnar storage engine that support wide variety of
analytical use cases with SQL in a highly scalable distributed environments
Parallel query
processing for
distributed
environments
Faster, More
Efficient Queries
Single SQL
Interface for both
OLTP and
analytics
Easier Enterprise
Analytics
Power of SQL and
Freedom of Open
Source to Big Data
Analytics
Better Price
Performance
MariaDB ColumnStore
• GPLv2 Open Source
• Columnar, Massively Parallel
MariaDB Storage Engine
• Scalable, high-performance
analytics platform
• Built in redundancy and
high availability
• Runs on premise and on AWS cloud
• Full SQL syntax and capabilities
regardless of platform
Big Data Sources Analytics Insight
MariaDB ColumnStore
. . .
Node 1 Node 2 Node 3 Node N
Local / AWS® / GlusterFS®
ELT
Tools
BI
Tools
SQL Features
Source : InfiniDB SQL Syntax Guide
Cross Engine
Joins
UDF
DML
Aggregation
DDL
Disk Based
Joins
Windowing
Functions
SELECT
QUERY
MariaDB ColumnStore Architecture
Data Storage
User Connections
User Module nUser Module 1
Performance
Module n
Performance
Module 2
Performance
Module 1
MariaDB
Front End
Query Engine
User Module
Processes SQL Requests
Performance Module
Distributed Processing Engine
Process Functionality Value
MariaDB
• Hosts MariaDB
• Connection management
• SQL parsing & optimization
Familiar DBMS interface
Leverages existing partner integrations
Delivers rich SQL syntax support
Extent Map
• Abstracts physical
and logical storage
• Metadata store
Enables partition elimination
ExeMgr
• Work distribution
• Final results management
and aggregation
Multi-threaded to take advantage
of multi-core HW platforms
User Module at a Glance
Process Functionality Value
PrimProc
• Scale-out cache management
• Distributed scan, filter, join
and aggregation operations
• Resource management
Independent scalability and
tunable performance
Multi-threaded to take advantage
of multi-core HW platforms
Data
• High Speed Bulk Load
• Transactional DML and DDL
• Online schema extensions
Non-blocking read enabled
Multi-threaded to take advantage
of multi-core HW platforms
Performance Module at a Glance
MariaDB ColumnStore
MariaDB Functions
• MariaDB Client
• MariaDB Connectivity (JDBC, ODBC)
• MariaDB Security
• Initial SQL Statement Parsing
• Initial SQL Optimization < Custom Handler Class >
• Execute final sort and final limit
• Display final results
ExeMgr Functions
• SQL Optimization
• Distribute work for scan, filter, join, functions,
expressions, group by, aggregation, etc. to all available
Performance Modules to be run in parallel
• Collect the results returned by the Performance Modules
• Return the final results to MariaDB for display
MariaDB
ColumnStore
ExeMgr
Data Storage
User Connections
User Module nUser Module 1
Performance
Module n
Performance
Module 2
Performance
Module 1
User Module
Processes SQL Requests
MariaDB Front End
Performance Module
Executes the Queries
Distributed Processing Engine
Compression with Data Storage Layer
Blocks (8KB)
Extent1
(8MB~64MB
8 million rows)
Logical
Layer
Segment File1
(maps to an Extent)
Physical
Layer
Compression
Chunks
• 8-byte fixed length token (pointer).
• A variable length value stored at the
location identified by the pointer.
Data Types
1-byte Field
with 8192 values per
8k block
2-byte Field
with 4096 values
per 8k block
4-byte Field
with 2048 values
per 8k block
8-byte Field
with 1024 values per
8k block
Dictionary structure
made up of 2
files/extents with:
At the physical layer, all columns are stored as:
• Varchar(8) or larger
• Char(9) or larger
Data Types
1-byte Field
Examples
TinyInt, Char(1)
2-byte Field
Examples
SmallInt, Char(2)
4-byte Field
Examples
Int, Char(3),
Char(4), date, float
8-byte Field
Examples
BigInt, Char(5-
8),datetime, real/double
Dictionary Examples
At the physical layer, all columns are stored as:
Using MariaDB ColumnStore
Just like MariaDB Server
MariaDB ColumnStore
MariaDB ColumnStore
uses standard
“Engine=columnstore”
syntax
mysql> use tpcds_djoshi
Database changed
mysql> select count(*) from store_sales;
+----------+
| count(*) |
+----------+
| 2880404 |
+----------+
1 row in set (1.68 sec)
mysql> describe warehouse;
+-------------------+--------------+------+-----+---------+-------+
| Field | Type | Null | Key | Default | Extra |
+-------------------+--------------+------+-----+---------+-------+
| w_warehouse_sk | int(11) | NO | | NULL | |
| w_warehouse_id | char(16) | NO | | NULL | |
| w_warehouse_name | varchar(20) | YES | | NULL | |
| w_warehouse_sq_ft | int(11) | YES | | NULL | |
| w_street_number | char(10) | YES | | NULL | |
| w_street_name | varchar(60) | YES | | NULL | |
| w_street_type | char(15) | YES | | NULL | |
| w_suite_number | char(10) | YES | | NULL | |
| w_city | varchar(60) | YES | | NULL | |
| w_county | varchar(30) | YES | | NULL | |
| w_state | char(2) | YES | | NULL | |
| w_zip | char(10) | YES | | NULL | |
| w_country | varchar(20) | YES | | NULL | |
| w_gmt_offset | decimal(5,2) | YES | | NULL | |
+-------------------+--------------+------+-----+---------+-------+
14 rows in set (0.05 sec)
CREATE TABLE `game_warehouse`.`dim_title` (
`id` INT,
`name` VARCHAR(45),
`publisher` VARCHAR(45),
`release_date` DATE,
`language` INT,
`platform_name` VARCHAR(45),
`version` VARCHAR(45)
) ENGINE=columnstore;
Uses custom scalable
columnar architecture
MariaDB ColumnStore
mysql> use tpcds_djoshi
Database changed
mysql> select count(*) from store_sales;
+----------+
| count(*) |
+----------+
| 2880404 |
+----------+
1 row in set (1.68 sec)
mysql> describe warehouse;
+-------------------+--------------+------+-----+---------+-------+
| Field | Type | Null | Key | Default | Extra |
+-------------------+--------------+------+-----+---------+-------+
| w_warehouse_sk | int(11) | NO | | NULL | |
| w_warehouse_id | char(16) | NO | | NULL | |
| w_warehouse_name | varchar(20) | YES | | NULL | |
| w_warehouse_sq_ft | int(11) | YES | | NULL | |
| w_street_number | char(10) | YES | | NULL | |
| w_street_name | varchar(60) | YES | | NULL | |
| w_street_type | char(15) | YES | | NULL | |
| w_suite_number | char(10) | YES | | NULL | |
| w_city | varchar(60) | YES | | NULL | |
| w_county | varchar(30) | YES | | NULL | |
| w_state | char(2) | YES | | NULL | |
| w_zip | char(10) | YES | | NULL | |
| w_country | varchar(20) | YES | | NULL | |
| w_gmt_offset | decimal(5,2) | YES | | NULL | |
+-------------------+--------------+------+-----+---------+-------+
14 rows in set (0.05 sec)
MariaDB Front End
Standard ANSI SQL
Sizing
Minimum Spec
UM
4 core,
32 G RAM PM
4 core,
16 G RAM
Typical Server spec
PM
8 core 64G RAM
UM
8 core, 264G RAM
Data Storage
External Data Volumes
• Maximum 2 data volume per IO
channel per PM node server
• up to 2TB on the disk per data
volume ≈ Max 4 TB per PM node
Local disk
Up to 2TB on the disk per
PM node server
DETAILED SIZING GUIDE
based on data size
and workload
Sizing - Example
• MariaDB ColumnStore 60TB uncompressed data =
6TB compressed data at 10x compression
• 2UM - 8 core 512G(based on work load)
• 6 TB compressed = 3 data volume (at 2TB per volume)
- with 1 data volume per PM node - 3PMs
• Data growth - 2TB per month, Data retention - 2 years
- Plan for 2TB X24 = 48 TB additional
- 48 TB = 4.8TB compressed ≈ 3 data volume(at 2TB per volume)
with 1 data volume per PM node - 3 additional PMs
• Total 6 PMs, 2 UMs
Loading data
24
Data Load and Extents (local load)
8 million rows
1st Data Load
CSV File
Data Range
1 ~ 200
Rows 16 million
2nd Data Load
New CSV File
Data Range
150 ~ 210
Rows 16 million +8
Data Load
Data Load
Extent 1
Min 1, Max 200
Extent 2
Min 1, Max 200
8 million rows
8 million rows
Extent 3
Min 150, Max 210
Extent 4
Min 150, Max 210
8 million rows
Extent 5
Min 150, Max 210
8 million rows
Bulk Data Load: cpimport
• Fastest way to load data into MariaDB ColumnStore
• Load data from CSV file
cpimport dbName tblName [loadFile]
• Load data from Standard Input
mysql -e 'select * from source_table;' -N db2 | cpimport destination_db
destination_tbl -s 't‘
• Load data from Binary Source file
cpimport -I1 mydb mytable sourcefile.bin
• Multiple tables in can be loaded in parallel by launching multiple jobs
• Read queries continue without being blocked
• Successful cpimport is auto-committed
• In case of errors, entire load is rolled back
Bulk Data Load: cpimport mode 1
Single file Central Input :
Data source at UM
cpimport -m1 mytest mytable
mytable.tbl
cpimport
Name Node
UM Node
Source
Data Node
PM Node
Data Node
PM Node
Data Node
PM Node
Bulk Data Load: cpimport mode 2
Distributed Input:
Data Source at PMs
Partitioned load
file on each PM
cpimport -m2 testdb mytable
/home/mydata/mytable.tbl
cpimport
Name Node
UM Node
Source
Data Node
PM Node
Data Node
PM Node
Data Node
PM Node
Source Source
Distributed Input:
Data Source at PMs
Partitioned load
file on each PM
cpimport -m2 testdb mytable
/home/mydata/mytable.tbl
Bulk load command
at one or more PM
cpimport –m3 testdb mytable
/home/mydata/mytable.tbl
Bulk Data Load: cpimport mode 3
Name Node
UM Node
Source
Data Node
PM Node
Data Node
PM Node
Data Node
PM Node
Source Source
cpimport cpimport cpimport
Traditional way of
importing data into
any MariaDB storage
engine table
Bulk Data Load:
LOAD DATA INFILE
Up to 2 times slower
than cpimport for
large size imports
mysql> load data infile '/tmp/
outfile1.txt' into table destinationTable;
Query OK, 9765625 rows affected
(2 min 20.01 sec)
Records: 9765625 Deleted:
0 Skipped: 0 Warnings: 0
Either success or
error operation can
be rolled back
Thank you

More Related Content

What's hot

New optimizer features in MariaDB releases before 10.12
New optimizer features in MariaDB releases before 10.12New optimizer features in MariaDB releases before 10.12
New optimizer features in MariaDB releases before 10.12Sergey Petrunya

Optimizing MariaDB for maximum performance
Optimizing MariaDB for maximum performanceOptimizing MariaDB for maximum performance
Optimizing MariaDB for maximum performanceMariaDB plc

MySQL Timeout Variables Explained
MySQL Timeout Variables Explained MySQL Timeout Variables Explained
MySQL Timeout Variables Explained Mydbops

MariaDB: in-depth (hands on training in Seoul)
MariaDB: in-depth (hands on training in Seoul)MariaDB: in-depth (hands on training in Seoul)
MariaDB: in-depth (hands on training in Seoul)Colin Charles

Presto At Treasure Data
Presto At Treasure DataPresto At Treasure Data
Presto At Treasure DataTaro L. Saito

Optimising Geospatial Queries with Dynamic File Pruning
Optimising Geospatial Queries with Dynamic File PruningOptimising Geospatial Queries with Dynamic File Pruning
Optimising Geospatial Queries with Dynamic File PruningDatabricks

Spark + Parquet In Depth: Spark Summit East Talk by Emily Curtin and Robbie S...
Spark + Parquet In Depth: Spark Summit East Talk by Emily Curtin and Robbie S...Spark + Parquet In Depth: Spark Summit East Talk by Emily Curtin and Robbie S...
Spark + Parquet In Depth: Spark Summit East Talk by Emily Curtin and Robbie S...Spark Summit

M|18 Deep Dive: InnoDB Transactions and Write Paths
M|18 Deep Dive: InnoDB Transactions and Write PathsM|18 Deep Dive: InnoDB Transactions and Write Paths
M|18 Deep Dive: InnoDB Transactions and Write PathsMariaDB plc

MariaDB 10.11 key features overview for DBAs
MariaDB 10.11 key features overview for DBAsMariaDB 10.11 key features overview for DBAs
MariaDB 10.11 key features overview for DBAsFederico Razzoli

How to use histograms to get better performance
How to use histograms to get better performanceHow to use histograms to get better performance
How to use histograms to get better performanceMariaDB plc

Why MySQL Replication Fails, and How to Get it Back
Why MySQL Replication Fails, and How to Get it BackWhy MySQL Replication Fails, and How to Get it Back
Why MySQL Replication Fails, and How to Get it BackSveta Smirnova

PostgreSQL Administration for System Administrators
PostgreSQL Administration for System AdministratorsPostgreSQL Administration for System Administrators
PostgreSQL Administration for System AdministratorsCommand Prompt., Inc

Big Data Analytics with MariaDB ColumnStore
Big Data Analytics with MariaDB ColumnStoreBig Data Analytics with MariaDB ColumnStore
Big Data Analytics with MariaDB ColumnStoreMariaDB plc

HBase Advanced - Lars George
HBase Advanced - Lars GeorgeHBase Advanced - Lars George
HBase Advanced - Lars GeorgeJAX London

HBaseCon 2012 | Lessons learned from OpenTSDB - Benoit Sigoure, StumbleUpon
HBaseCon 2012 | Lessons learned from OpenTSDB - Benoit Sigoure, StumbleUponHBaseCon 2012 | Lessons learned from OpenTSDB - Benoit Sigoure, StumbleUpon
HBaseCon 2012 | Lessons learned from OpenTSDB - Benoit Sigoure, StumbleUponCloudera, Inc.

The Full MySQL and MariaDB Parallel Replication Tutorial
The Full MySQL and MariaDB Parallel Replication TutorialThe Full MySQL and MariaDB Parallel Replication Tutorial
The Full MySQL and MariaDB Parallel Replication TutorialJean-François Gagné

MySQL_MariaDB-성능개선-202201.pptx
MySQL_MariaDB-성능개선-202201.pptxMySQL_MariaDB-성능개선-202201.pptx
MySQL_MariaDB-성능개선-202201.pptxNeoClova

Presto query optimizer: pursuit of performance
Presto query optimizer: pursuit of performancePresto query optimizer: pursuit of performance
Presto query optimizer: pursuit of performanceDataWorks Summit

Apache HBase Performance Tuning
Apache HBase Performance TuningApache HBase Performance Tuning
Apache HBase Performance TuningLars Hofhansl


What's hot (20)

New optimizer features in MariaDB releases before 10.12
New optimizer features in MariaDB releases before 10.12New optimizer features in MariaDB releases before 10.12
New optimizer features in MariaDB releases before 10.12

Optimizing MariaDB for maximum performance
Optimizing MariaDB for maximum performanceOptimizing MariaDB for maximum performance
Optimizing MariaDB for maximum performance

MySQL Timeout Variables Explained
MySQL Timeout Variables Explained MySQL Timeout Variables Explained
MySQL Timeout Variables Explained

MariaDB: in-depth (hands on training in Seoul)
MariaDB: in-depth (hands on training in Seoul)MariaDB: in-depth (hands on training in Seoul)
MariaDB: in-depth (hands on training in Seoul)

Presto At Treasure Data
Presto At Treasure DataPresto At Treasure Data
Presto At Treasure Data

Optimising Geospatial Queries with Dynamic File Pruning
Optimising Geospatial Queries with Dynamic File PruningOptimising Geospatial Queries with Dynamic File Pruning
Optimising Geospatial Queries with Dynamic File Pruning

Spark + Parquet In Depth: Spark Summit East Talk by Emily Curtin and Robbie S...
Spark + Parquet In Depth: Spark Summit East Talk by Emily Curtin and Robbie S...Spark + Parquet In Depth: Spark Summit East Talk by Emily Curtin and Robbie S...
Spark + Parquet In Depth: Spark Summit East Talk by Emily Curtin and Robbie S...

M|18 Deep Dive: InnoDB Transactions and Write Paths
M|18 Deep Dive: InnoDB Transactions and Write PathsM|18 Deep Dive: InnoDB Transactions and Write Paths
M|18 Deep Dive: InnoDB Transactions and Write Paths

MariaDB 10.11 key features overview for DBAs
MariaDB 10.11 key features overview for DBAsMariaDB 10.11 key features overview for DBAs
MariaDB 10.11 key features overview for DBAs

How to use histograms to get better performance
How to use histograms to get better performanceHow to use histograms to get better performance
How to use histograms to get better performance

Why MySQL Replication Fails, and How to Get it Back
Why MySQL Replication Fails, and How to Get it BackWhy MySQL Replication Fails, and How to Get it Back
Why MySQL Replication Fails, and How to Get it Back

PostgreSQL Administration for System Administrators
PostgreSQL Administration for System AdministratorsPostgreSQL Administration for System Administrators
PostgreSQL Administration for System Administrators

Log Structured Merge Tree
Log Structured Merge TreeLog Structured Merge Tree
Log Structured Merge Tree

Big Data Analytics with MariaDB ColumnStore
Big Data Analytics with MariaDB ColumnStoreBig Data Analytics with MariaDB ColumnStore
Big Data Analytics with MariaDB ColumnStore

HBase Advanced - Lars George
HBase Advanced - Lars GeorgeHBase Advanced - Lars George
HBase Advanced - Lars George

HBaseCon 2012 | Lessons learned from OpenTSDB - Benoit Sigoure, StumbleUpon
HBaseCon 2012 | Lessons learned from OpenTSDB - Benoit Sigoure, StumbleUponHBaseCon 2012 | Lessons learned from OpenTSDB - Benoit Sigoure, StumbleUpon
HBaseCon 2012 | Lessons learned from OpenTSDB - Benoit Sigoure, StumbleUpon

The Full MySQL and MariaDB Parallel Replication Tutorial
The Full MySQL and MariaDB Parallel Replication TutorialThe Full MySQL and MariaDB Parallel Replication Tutorial
The Full MySQL and MariaDB Parallel Replication Tutorial

MySQL_MariaDB-성능개선-202201.pptx
MySQL_MariaDB-성능개선-202201.pptxMySQL_MariaDB-성능개선-202201.pptx
MySQL_MariaDB-성능개선-202201.pptx

Presto query optimizer: pursuit of performance
Presto query optimizer: pursuit of performancePresto query optimizer: pursuit of performance
Presto query optimizer: pursuit of performance

Apache HBase Performance Tuning
Apache HBase Performance TuningApache HBase Performance Tuning
Apache HBase Performance Tuning


Similar to MariaDB ColumnStore

04 2017 emea_roadshowmilan_mariadb columnstore
04 2017 emea_roadshowmilan_mariadb columnstore04 2017 emea_roadshowmilan_mariadb columnstore
04 2017 emea_roadshowmilan_mariadb columnstoremlraviol

Introduction of MariaDB AX / TX
Introduction of MariaDB AX / TXIntroduction of MariaDB AX / TX
Introduction of MariaDB AX / TXGOTO Satoru

Big Data LDN 2017: Big Data Analytics with MariaDB ColumnStore
Big Data LDN 2017: Big Data Analytics with MariaDB ColumnStoreBig Data LDN 2017: Big Data Analytics with MariaDB ColumnStore
Big Data LDN 2017: Big Data Analytics with MariaDB ColumnStoreMatt Stubbs

JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]
JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]
JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]Speedment, Inc.

JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]
JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]
JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]Malin Weiss

In memory databases presentation
In memory databases presentationIn memory databases presentation
In memory databases presentationMichael Keane

Building Your Data Warehouse with Amazon Redshift
Building Your Data Warehouse with Amazon RedshiftBuilding Your Data Warehouse with Amazon Redshift
Building Your Data Warehouse with Amazon RedshiftAmazon Web Services

[db tech showcase OSS 2017] A23: Analytics with MariaDB ColumnStore by MariaD...
[db tech showcase OSS 2017] A23: Analytics with MariaDB ColumnStore by MariaD...[db tech showcase OSS 2017] A23: Analytics with MariaDB ColumnStore by MariaD...
[db tech showcase OSS 2017] A23: Analytics with MariaDB ColumnStore by MariaD...Insight Technology, Inc.

[db tech showcase OSS 2017] A25: Replacing Oracle Database at DBS Bank by Mar...
[db tech showcase OSS 2017] A25: Replacing Oracle Database at DBS Bank by Mar...[db tech showcase OSS 2017] A25: Replacing Oracle Database at DBS Bank by Mar...
[db tech showcase OSS 2017] A25: Replacing Oracle Database at DBS Bank by Mar...Insight Technology, Inc.

hbaseconasia2019 Phoenix Improvements and Practices on Cloud HBase at Alibaba
hbaseconasia2019 Phoenix Improvements and Practices on Cloud HBase at Alibabahbaseconasia2019 Phoenix Improvements and Practices on Cloud HBase at Alibaba
hbaseconasia2019 Phoenix Improvements and Practices on Cloud HBase at AlibabaMichael Stack

Deep Dive into DynamoDB
Deep Dive into DynamoDBDeep Dive into DynamoDB
Deep Dive into DynamoDBAWS Germany

Migration to ClickHouse. Practical guide, by Alexander Zaitsev
Migration to ClickHouse. Practical guide, by Alexander ZaitsevMigration to ClickHouse. Practical guide, by Alexander Zaitsev
Migration to ClickHouse. Practical guide, by Alexander ZaitsevAltinity Ltd

Best Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon RedshiftBest Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon RedshiftAmazon Web Services

Suburface 2021 IBM Cloud Data Lake
Suburface 2021 IBM Cloud Data LakeSuburface 2021 IBM Cloud Data Lake
Suburface 2021 IBM Cloud Data LakeTorsten Steinbach

Best Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon RedshiftBest Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon RedshiftAmazon Web Services

MySQL NDB Cluster 8.0 SQL faster than NoSQL
MySQL NDB Cluster 8.0 SQL faster than NoSQL MySQL NDB Cluster 8.0 SQL faster than NoSQL
MySQL NDB Cluster 8.0 SQL faster than NoSQL Bernd Ocklin

What is MariaDB Server 10.3?
What is MariaDB Server 10.3?What is MariaDB Server 10.3?
What is MariaDB Server 10.3?Colin Charles

SQL Server 2014 Memory Optimised Tables - Advanced
SQL Server 2014 Memory Optimised Tables - AdvancedSQL Server 2014 Memory Optimised Tables - Advanced
SQL Server 2014 Memory Optimised Tables - AdvancedTony Rogerson


Similar to MariaDB ColumnStore (20)

04 2017 emea_roadshowmilan_mariadb columnstore
04 2017 emea_roadshowmilan_mariadb columnstore04 2017 emea_roadshowmilan_mariadb columnstore
04 2017 emea_roadshowmilan_mariadb columnstore

Introduction of MariaDB AX / TX
Introduction of MariaDB AX / TXIntroduction of MariaDB AX / TX
Introduction of MariaDB AX / TX

Big Data LDN 2017: Big Data Analytics with MariaDB ColumnStore
Big Data LDN 2017: Big Data Analytics with MariaDB ColumnStoreBig Data LDN 2017: Big Data Analytics with MariaDB ColumnStore
Big Data LDN 2017: Big Data Analytics with MariaDB ColumnStore

JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]
JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]
JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]

JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]
JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]
JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]

In memory databases presentation
In memory databases presentationIn memory databases presentation
In memory databases presentation

Building Your Data Warehouse with Amazon Redshift
Building Your Data Warehouse with Amazon RedshiftBuilding Your Data Warehouse with Amazon Redshift
Building Your Data Warehouse with Amazon Redshift

[db tech showcase OSS 2017] A23: Analytics with MariaDB ColumnStore by MariaD...
[db tech showcase OSS 2017] A23: Analytics with MariaDB ColumnStore by MariaD...[db tech showcase OSS 2017] A23: Analytics with MariaDB ColumnStore by MariaD...
[db tech showcase OSS 2017] A23: Analytics with MariaDB ColumnStore by MariaD...

[db tech showcase OSS 2017] A25: Replacing Oracle Database at DBS Bank by Mar...
[db tech showcase OSS 2017] A25: Replacing Oracle Database at DBS Bank by Mar...[db tech showcase OSS 2017] A25: Replacing Oracle Database at DBS Bank by Mar...
[db tech showcase OSS 2017] A25: Replacing Oracle Database at DBS Bank by Mar...

hbaseconasia2019 Phoenix Improvements and Practices on Cloud HBase at Alibaba
hbaseconasia2019 Phoenix Improvements and Practices on Cloud HBase at Alibabahbaseconasia2019 Phoenix Improvements and Practices on Cloud HBase at Alibaba
hbaseconasia2019 Phoenix Improvements and Practices on Cloud HBase at Alibaba

Deep Dive into DynamoDB
Deep Dive into DynamoDBDeep Dive into DynamoDB
Deep Dive into DynamoDB

Migration to ClickHouse. Practical guide, by Alexander Zaitsev
Migration to ClickHouse. Practical guide, by Alexander ZaitsevMigration to ClickHouse. Practical guide, by Alexander Zaitsev
Migration to ClickHouse. Practical guide, by Alexander Zaitsev

Best Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon RedshiftBest Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon Redshift

Processing and Analytics
Processing and AnalyticsProcessing and Analytics
Processing and Analytics

Suburface 2021 IBM Cloud Data Lake
Suburface 2021 IBM Cloud Data LakeSuburface 2021 IBM Cloud Data Lake
Suburface 2021 IBM Cloud Data Lake

Best Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon RedshiftBest Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon Redshift

MySQL NDB Cluster 8.0 SQL faster than NoSQL
MySQL NDB Cluster 8.0 SQL faster than NoSQL MySQL NDB Cluster 8.0 SQL faster than NoSQL
MySQL NDB Cluster 8.0 SQL faster than NoSQL

Fudcon talk.ppt
Fudcon talk.pptFudcon talk.ppt
Fudcon talk.ppt

What is MariaDB Server 10.3?
What is MariaDB Server 10.3?What is MariaDB Server 10.3?
What is MariaDB Server 10.3?

SQL Server 2014 Memory Optimised Tables - Advanced
SQL Server 2014 Memory Optimised Tables - AdvancedSQL Server 2014 Memory Optimised Tables - Advanced
SQL Server 2014 Memory Optimised Tables - Advanced


More from MariaDB plc

MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB plc

MariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB plc

MariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB plc

MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB plc

MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB plc

MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB plc

MariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB plc

MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB plc

MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB plc

MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB plc

Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023MariaDB plc

Hochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBHochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBMariaDB plc

Die Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerDie Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerMariaDB plc

Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®MariaDB plc

Introducing workload analysis
Introducing workload analysisIntroducing workload analysis
Introducing workload analysisMariaDB plc

Under the hood: SkySQL monitoring
Under the hood: SkySQL monitoringUnder the hood: SkySQL monitoring
Under the hood: SkySQL monitoringMariaDB plc

Introducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorIntroducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorMariaDB plc

MariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB plc

The architecture of SkySQL
The architecture of SkySQLThe architecture of SkySQL
The architecture of SkySQLMariaDB plc

What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1MariaDB plc


More from MariaDB plc (20)

MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.x

MariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - Newpharma

MariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - Cloud

MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB Enterprise

MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance Optimization

MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale

MariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentation

MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentation

MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server

MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup

Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023

Hochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBHochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDB

Die Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerDie Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise Server

Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®

Introducing workload analysis
Introducing workload analysisIntroducing workload analysis
Introducing workload analysis

Under the hood: SkySQL monitoring
Under the hood: SkySQL monitoringUnder the hood: SkySQL monitoring
Under the hood: SkySQL monitoring

Introducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorIntroducing the R2DBC async Java connector
Introducing the R2DBC async Java connector

MariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introduction

The architecture of SkySQL
The architecture of SkySQLThe architecture of SkySQL
The architecture of SkySQL

What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1


Recently uploaded

Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud
Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-CloudAlluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud
Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-CloudAlluxio, Inc.

A Deep Dive into Secure Product Development Frameworks.pdf
A Deep Dive into Secure Product Development Frameworks.pdfA Deep Dive into Secure Product Development Frameworks.pdf
A Deep Dive into Secure Product Development Frameworks.pdfICS

Your Ultimate Web Studio for Streaming Anywhere | Evmux
Your Ultimate Web Studio for Streaming Anywhere | EvmuxYour Ultimate Web Studio for Streaming Anywhere | Evmux
Your Ultimate Web Studio for Streaming Anywhere | Evmuxevmux96

Transformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with LinksTransformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with LinksJinanKordab

OpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAOpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAShane Coughlan

From Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST APIFrom Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST APIInflectra

Wired_2.0_CREATE YOUR ULTIMATE LEARNING ENVIRONMENT_JCON_16052024
Wired_2.0_CREATE YOUR ULTIMATE LEARNING ENVIRONMENT_JCON_16052024Wired_2.0_CREATE YOUR ULTIMATE LEARNING ENVIRONMENT_JCON_16052024
Wired_2.0_CREATE YOUR ULTIMATE LEARNING ENVIRONMENT_JCON_16052024SimonedeGijt

GraphSummit Milan - Neo4j: The Art of the Possible with Graph
GraphSummit Milan - Neo4j: The Art of the Possible with GraphGraphSummit Milan - Neo4j: The Art of the Possible with Graph
GraphSummit Milan - Neo4j: The Art of the Possible with GraphNeo4j

Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan
Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit MilanWorkshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan
Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit MilanNeo4j

Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...Lisi Hocke

BusinessGPT - Security and Governance for Generative AI
BusinessGPT  - Security and Governance for Generative AIBusinessGPT  - Security and Governance for Generative AI
BusinessGPT - Security and Governance for Generative AIAGATSoftware

Novo Nordisk: When Knowledge Graphs meet LLMs
Novo Nordisk: When Knowledge Graphs meet LLMsNovo Nordisk: When Knowledge Graphs meet LLMs
Novo Nordisk: When Knowledge Graphs meet LLMsNeo4j

Anypoint Code Builder - Munich MuleSoft Meetup - 16th May 2024
Anypoint Code Builder - Munich MuleSoft Meetup - 16th May 2024Anypoint Code Builder - Munich MuleSoft Meetup - 16th May 2024
Anypoint Code Builder - Munich MuleSoft Meetup - 16th May 2024MulesoftMunichMeetup

CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...Neo4j

[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse
[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse
[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypseTomasz Kowalczewski

The mythical technical debt. (Brooke, please, forgive me)
The mythical technical debt. (Brooke, please, forgive me)The mythical technical debt. (Brooke, please, forgive me)
The mythical technical debt. (Brooke, please, forgive me)Roberto Bettazzoni


Recently uploaded (20)

Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud
Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-CloudAlluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud
Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud

A Deep Dive into Secure Product Development Frameworks.pdf
A Deep Dive into Secure Product Development Frameworks.pdfA Deep Dive into Secure Product Development Frameworks.pdf
A Deep Dive into Secure Product Development Frameworks.pdf

Your Ultimate Web Studio for Streaming Anywhere | Evmux
Your Ultimate Web Studio for Streaming Anywhere | EvmuxYour Ultimate Web Studio for Streaming Anywhere | Evmux
Your Ultimate Web Studio for Streaming Anywhere | Evmux

Transformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with LinksTransformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with Links

OpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAOpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCA

From Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST APIFrom Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST API

Wired_2.0_CREATE YOUR ULTIMATE LEARNING ENVIRONMENT_JCON_16052024
Wired_2.0_CREATE YOUR ULTIMATE LEARNING ENVIRONMENT_JCON_16052024Wired_2.0_CREATE YOUR ULTIMATE LEARNING ENVIRONMENT_JCON_16052024
Wired_2.0_CREATE YOUR ULTIMATE LEARNING ENVIRONMENT_JCON_16052024

Abortion Pill Prices Jane Furse ](+27832195400*)[🏥Women's Abortion Clinic in ...
Abortion Pill Prices Jane Furse ](+27832195400*)[🏥Women's Abortion Clinic in ...Abortion Pill Prices Jane Furse ](+27832195400*)[🏥Women's Abortion Clinic in ...
Abortion Pill Prices Jane Furse ](+27832195400*)[🏥Women's Abortion Clinic in ...

GraphSummit Milan - Neo4j: The Art of the Possible with Graph
GraphSummit Milan - Neo4j: The Art of the Possible with GraphGraphSummit Milan - Neo4j: The Art of the Possible with Graph
GraphSummit Milan - Neo4j: The Art of the Possible with Graph

Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan
Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit MilanWorkshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan
Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan

Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...

BusinessGPT - Security and Governance for Generative AI
BusinessGPT  - Security and Governance for Generative AIBusinessGPT  - Security and Governance for Generative AI
BusinessGPT - Security and Governance for Generative AI

Novo Nordisk: When Knowledge Graphs meet LLMs
Novo Nordisk: When Knowledge Graphs meet LLMsNovo Nordisk: When Knowledge Graphs meet LLMs
Novo Nordisk: When Knowledge Graphs meet LLMs

Anypoint Code Builder - Munich MuleSoft Meetup - 16th May 2024
Anypoint Code Builder - Munich MuleSoft Meetup - 16th May 2024Anypoint Code Builder - Munich MuleSoft Meetup - 16th May 2024
Anypoint Code Builder - Munich MuleSoft Meetup - 16th May 2024

Abortion Pill Prices Aliwal North ](+27832195400*)[ 🏥 Women's Abortion Clinic...
Abortion Pill Prices Aliwal North ](+27832195400*)[ 🏥 Women's Abortion Clinic...Abortion Pill Prices Aliwal North ](+27832195400*)[ 🏥 Women's Abortion Clinic...
Abortion Pill Prices Aliwal North ](+27832195400*)[ 🏥 Women's Abortion Clinic...

CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...

Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...

[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse
[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse
[GeeCON2024] How I learned to stop worrying and love the dark silicon apocalypse

The mythical technical debt. (Brooke, please, forgive me)
The mythical technical debt. (Brooke, please, forgive me)The mythical technical debt. (Brooke, please, forgive me)
The mythical technical debt. (Brooke, please, forgive me)

Abortion Pill Prices Polokwane ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Polokwane ](+27832195400*)[ 🏥 Women's Abortion Clinic in...Abortion Pill Prices Polokwane ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Polokwane ](+27832195400*)[ 🏥 Women's Abortion Clinic in...


MariaDB ColumnStore

  • 2. Agenda • Why using a Column Based database – And why not? • MariaDB ColumnStore architecture • Using and Sizing MariaDB ColumnStore • Getting data into MariaDB ColumnStore
  • 3. Why a Columnar Database
  • 4. Data organization • Row-by-row – Good for row based processing – Use indexing for lookups • Typically B-Tree indexing – Indexing is difficult for data that is not well distributed – Indexing slows down DML • Column based – Good for dataset based processing – Needs no indexes – Data is typically organized in chunks – Lends itself to high level of compression – Metadata used for filtering and processing – Large amount of data is much, much less of an issue – Loading data is consistently fast, independent on data size
  • 5. OLTP/NoSQL Workloads Suited for reporting or analysis of millions-billions of rows from data sets containing millions-trillions of rows. OLAP/Analytic/ Reporting Workloads Workload – Query Vision/Scope 1 100 10,000 10-100GB 10,000,000,000 1-10TB 1,000,000 100,000,000 100-1,000GB
  • 6. Columnar General Best Practices Not suited for OLTP Micro-batch load allows for near real-time behavior Infrequently used columns do not impact other queries Columnar suitable for sparse columns (nulls compress nicely)
  • 7. Data Modeling Best Practices Star-schema optimizations are generally a good idea Conservative data typing is very important Especially around fixed-length vs. dictionary boundary (8 bytes) IP Address vs. IP Number Break down compound fields into individual fields: Trivializes searching for sub-fields Can avoid dictionary overhead Cost to re-assemble is generally small
  • 9. MariaDB ColumnStore High performance columnar storage engine that support wide variety of analytical use cases with SQL in a highly scalable distributed environments Parallel query processing for distributed environments Faster, More Efficient Queries Single SQL Interface for both OLTP and analytics Easier Enterprise Analytics Power of SQL and Freedom of Open Source to Big Data Analytics Better Price Performance
  • 10. MariaDB ColumnStore • GPLv2 Open Source • Columnar, Massively Parallel MariaDB Storage Engine • Scalable, high-performance analytics platform • Built in redundancy and high availability • Runs on premise and on AWS cloud • Full SQL syntax and capabilities regardless of platform Big Data Sources Analytics Insight MariaDB ColumnStore . . . Node 1 Node 2 Node 3 Node N Local / AWS® / GlusterFS® ELT Tools BI Tools
  • 11. SQL Features Source : InfiniDB SQL Syntax Guide Cross Engine Joins UDF DML Aggregation DDL Disk Based Joins Windowing Functions SELECT QUERY
  • 12. MariaDB ColumnStore Architecture Data Storage User Connections User Module nUser Module 1 Performance Module n Performance Module 2 Performance Module 1 MariaDB Front End Query Engine User Module Processes SQL Requests Performance Module Distributed Processing Engine
  • 13. Process Functionality Value MariaDB • Hosts MariaDB • Connection management • SQL parsing & optimization Familiar DBMS interface Leverages existing partner integrations Delivers rich SQL syntax support Extent Map • Abstracts physical and logical storage • Metadata store Enables partition elimination ExeMgr • Work distribution • Final results management and aggregation Multi-threaded to take advantage of multi-core HW platforms User Module at a Glance
  • 14. Process Functionality Value PrimProc • Scale-out cache management • Distributed scan, filter, join and aggregation operations • Resource management Independent scalability and tunable performance Multi-threaded to take advantage of multi-core HW platforms Data • High Speed Bulk Load • Transactional DML and DDL • Online schema extensions Non-blocking read enabled Multi-threaded to take advantage of multi-core HW platforms Performance Module at a Glance
  • 15. MariaDB ColumnStore MariaDB Functions • MariaDB Client • MariaDB Connectivity (JDBC, ODBC) • MariaDB Security • Initial SQL Statement Parsing • Initial SQL Optimization < Custom Handler Class > • Execute final sort and final limit • Display final results ExeMgr Functions • SQL Optimization • Distribute work for scan, filter, join, functions, expressions, group by, aggregation, etc. to all available Performance Modules to be run in parallel • Collect the results returned by the Performance Modules • Return the final results to MariaDB for display MariaDB ColumnStore ExeMgr Data Storage User Connections User Module nUser Module 1 Performance Module n Performance Module 2 Performance Module 1 User Module Processes SQL Requests MariaDB Front End Performance Module Executes the Queries Distributed Processing Engine
  • 16. Compression with Data Storage Layer Blocks (8KB) Extent1 (8MB~64MB 8 million rows) Logical Layer Segment File1 (maps to an Extent) Physical Layer Compression Chunks
  • 17. • 8-byte fixed length token (pointer). • A variable length value stored at the location identified by the pointer. Data Types 1-byte Field with 8192 values per 8k block 2-byte Field with 4096 values per 8k block 4-byte Field with 2048 values per 8k block 8-byte Field with 1024 values per 8k block Dictionary structure made up of 2 files/extents with: At the physical layer, all columns are stored as:
  • 18. • Varchar(8) or larger • Char(9) or larger Data Types 1-byte Field Examples TinyInt, Char(1) 2-byte Field Examples SmallInt, Char(2) 4-byte Field Examples Int, Char(3), Char(4), date, float 8-byte Field Examples BigInt, Char(5- 8),datetime, real/double Dictionary Examples At the physical layer, all columns are stored as:
  • 19. Using MariaDB ColumnStore Just like MariaDB Server
  • 20. MariaDB ColumnStore MariaDB ColumnStore uses standard “Engine=columnstore” syntax mysql> use tpcds_djoshi Database changed mysql> select count(*) from store_sales; +----------+ | count(*) | +----------+ | 2880404 | +----------+ 1 row in set (1.68 sec) mysql> describe warehouse; +-------------------+--------------+------+-----+---------+-------+ | Field | Type | Null | Key | Default | Extra | +-------------------+--------------+------+-----+---------+-------+ | w_warehouse_sk | int(11) | NO | | NULL | | | w_warehouse_id | char(16) | NO | | NULL | | | w_warehouse_name | varchar(20) | YES | | NULL | | | w_warehouse_sq_ft | int(11) | YES | | NULL | | | w_street_number | char(10) | YES | | NULL | | | w_street_name | varchar(60) | YES | | NULL | | | w_street_type | char(15) | YES | | NULL | | | w_suite_number | char(10) | YES | | NULL | | | w_city | varchar(60) | YES | | NULL | | | w_county | varchar(30) | YES | | NULL | | | w_state | char(2) | YES | | NULL | | | w_zip | char(10) | YES | | NULL | | | w_country | varchar(20) | YES | | NULL | | | w_gmt_offset | decimal(5,2) | YES | | NULL | | +-------------------+--------------+------+-----+---------+-------+ 14 rows in set (0.05 sec) CREATE TABLE `game_warehouse`.`dim_title` ( `id` INT, `name` VARCHAR(45), `publisher` VARCHAR(45), `release_date` DATE, `language` INT, `platform_name` VARCHAR(45), `version` VARCHAR(45) ) ENGINE=columnstore; Uses custom scalable columnar architecture
  • 21. MariaDB ColumnStore mysql> use tpcds_djoshi Database changed mysql> select count(*) from store_sales; +----------+ | count(*) | +----------+ | 2880404 | +----------+ 1 row in set (1.68 sec) mysql> describe warehouse; +-------------------+--------------+------+-----+---------+-------+ | Field | Type | Null | Key | Default | Extra | +-------------------+--------------+------+-----+---------+-------+ | w_warehouse_sk | int(11) | NO | | NULL | | | w_warehouse_id | char(16) | NO | | NULL | | | w_warehouse_name | varchar(20) | YES | | NULL | | | w_warehouse_sq_ft | int(11) | YES | | NULL | | | w_street_number | char(10) | YES | | NULL | | | w_street_name | varchar(60) | YES | | NULL | | | w_street_type | char(15) | YES | | NULL | | | w_suite_number | char(10) | YES | | NULL | | | w_city | varchar(60) | YES | | NULL | | | w_county | varchar(30) | YES | | NULL | | | w_state | char(2) | YES | | NULL | | | w_zip | char(10) | YES | | NULL | | | w_country | varchar(20) | YES | | NULL | | | w_gmt_offset | decimal(5,2) | YES | | NULL | | +-------------------+--------------+------+-----+---------+-------+ 14 rows in set (0.05 sec) MariaDB Front End Standard ANSI SQL
  • 22. Sizing Minimum Spec UM 4 core, 32 G RAM PM 4 core, 16 G RAM Typical Server spec PM 8 core 64G RAM UM 8 core, 264G RAM Data Storage External Data Volumes • Maximum 2 data volume per IO channel per PM node server • up to 2TB on the disk per data volume ≈ Max 4 TB per PM node Local disk Up to 2TB on the disk per PM node server DETAILED SIZING GUIDE based on data size and workload
  • 23. Sizing - Example • MariaDB ColumnStore 60TB uncompressed data = 6TB compressed data at 10x compression • 2UM - 8 core 512G(based on work load) • 6 TB compressed = 3 data volume (at 2TB per volume) - with 1 data volume per PM node - 3PMs • Data growth - 2TB per month, Data retention - 2 years - Plan for 2TB X24 = 48 TB additional - 48 TB = 4.8TB compressed ≈ 3 data volume(at 2TB per volume) with 1 data volume per PM node - 3 additional PMs • Total 6 PMs, 2 UMs
  • 25. Data Load and Extents (local load) 8 million rows 1st Data Load CSV File Data Range 1 ~ 200 Rows 16 million 2nd Data Load New CSV File Data Range 150 ~ 210 Rows 16 million +8 Data Load Data Load Extent 1 Min 1, Max 200 Extent 2 Min 1, Max 200 8 million rows 8 million rows Extent 3 Min 150, Max 210 Extent 4 Min 150, Max 210 8 million rows Extent 5 Min 150, Max 210 8 million rows
  • 26. Bulk Data Load: cpimport • Fastest way to load data into MariaDB ColumnStore • Load data from CSV file cpimport dbName tblName [loadFile] • Load data from Standard Input mysql -e 'select * from source_table;' -N db2 | cpimport destination_db destination_tbl -s 't‘ • Load data from Binary Source file cpimport -I1 mydb mytable sourcefile.bin • Multiple tables in can be loaded in parallel by launching multiple jobs • Read queries continue without being blocked • Successful cpimport is auto-committed • In case of errors, entire load is rolled back
  • 27. Bulk Data Load: cpimport mode 1 Single file Central Input : Data source at UM cpimport -m1 mytest mytable mytable.tbl cpimport Name Node UM Node Source Data Node PM Node Data Node PM Node Data Node PM Node
  • 28. Bulk Data Load: cpimport mode 2 Distributed Input: Data Source at PMs Partitioned load file on each PM cpimport -m2 testdb mytable /home/mydata/mytable.tbl cpimport Name Node UM Node Source Data Node PM Node Data Node PM Node Data Node PM Node Source Source
  • 29. Distributed Input: Data Source at PMs Partitioned load file on each PM cpimport -m2 testdb mytable /home/mydata/mytable.tbl Bulk load command at one or more PM cpimport –m3 testdb mytable /home/mydata/mytable.tbl Bulk Data Load: cpimport mode 3 Name Node UM Node Source Data Node PM Node Data Node PM Node Data Node PM Node Source Source cpimport cpimport cpimport
  • 30. Traditional way of importing data into any MariaDB storage engine table Bulk Data Load: LOAD DATA INFILE Up to 2 times slower than cpimport for large size imports mysql> load data infile '/tmp/ outfile1.txt' into table destinationTable; Query OK, 9765625 rows affected (2 min 20.01 sec) Records: 9765625 Deleted: 0 Skipped: 0 Warnings: 0 Either success or error operation can be rolled back
