1. MariaDB
SkySQL Cloud Data Suite
Enhanced, drop-in
replacement for MySQL
A Highly Available Cloud
Database with Monitoring
and Management Tools

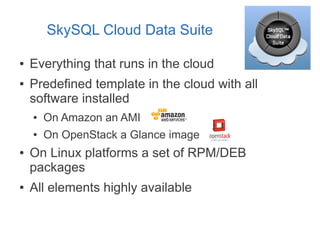

2. SkySQL Cloud Data Suite
● Everything that runs in the cloud
● Predefined template in the cloud with all
software installed
● On Amazon an AMI
● On OpenStack a Glance image
● On Linux platforms a set of RPM/DEB
packages
● All elements highly available

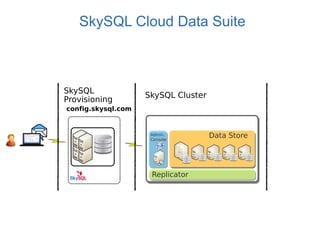

3. config.skysql.com
SkySQL
Provisioning
SkySQL Cluster
Replicator
Data StoreAdmin.
Console
SkySQL Cloud Data Suite

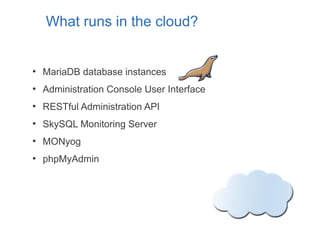

4. ●
MariaDB database instances
●
Administration Console User Interface
●
RESTful Administration API
●
SkySQL Monitoring Server
●
MONyog
●
phpMyAdmin
What runs in the cloud?

5. MariaDB High Availability
● Pacemaker resource agents
● MHA resource agent
● Replicated data
● Hot standby server
● Read load balancing
● MariaDB Galera Cluster
● Replicated data
● Hot standby server
● Read/write load balancing
● Shared Storage
● Replication via storage device
● Cold standby server
● Transparent access via virtual IP addresses

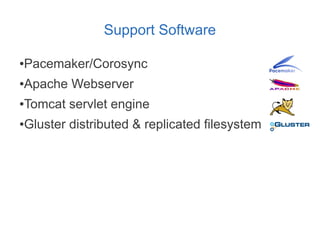

6. Support Software
●Pacemaker/Corosync
●Apache Webserver
●Tomcat servlet engine
●Gluster distributed & replicated filesystem

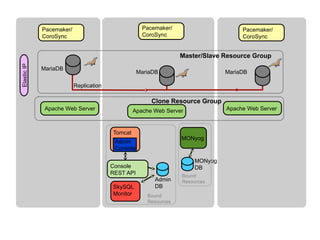

7. Pacemaker/
CoroSync
Pacemaker/
CoroSync
Pacemaker/
CoroSync
Apache Web Server
ElasticIP
SkySQL
Monitor
MONyog
Admin
DB
MONyog
DB
Tomcat
Admin
Console
Replication
Master/Slave Resource Group
Clone Resource Group
Bound
Resources
Bound
Resources
Console
REST API
Apache Web ServerApache Web Server
MariaDB
MariaDB
MariaDB

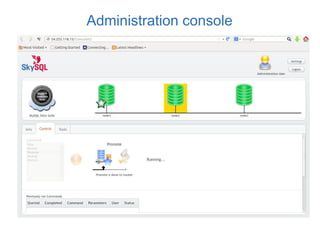

8. Administration console

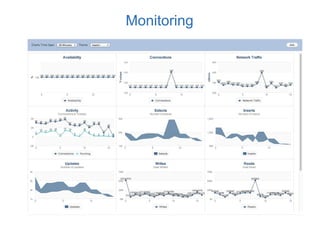

9. Monitoring

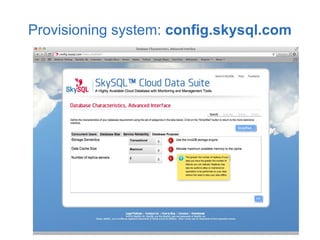

10. Provisioning system: config.skysql.com

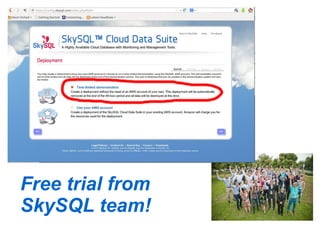

14. Free trial from
SkySQL team!

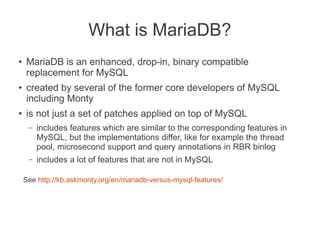

16. What is MariaDB?
● MariaDB is an enhanced, drop-in, binary compatible
replacement for MySQL
● created by several of the former core developers of MySQL
including Monty
● is not just a set of patches applied on top of MySQL
– includes features which are similar to the corresponding features in
MySQL, but the implementations differ, like for example the thread
pool, microsecond support and query annotations in RBR binlog
– includes a lot of features that are not in MySQL
See http://kb.askmonty.org/en/mariadb-versus-mysql-features/

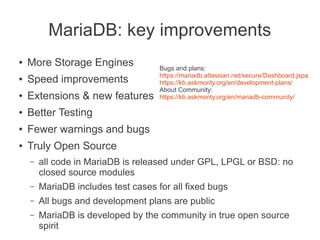

17. MariaDB: key improvements
● More Storage Engines
● Speed improvements
● Extensions & new features
● Better Testing
● Fewer warnings and bugs
● Truly Open Source
– all code in MariaDB is released under GPL, LPGL or BSD: no
closed source modules
– MariaDB includes test cases for all fixed bugs
– All bugs and development plans are public
– MariaDB is developed by the community in true open source
spirit
Bugs and plans:
https://mariadb.atlassian.net/secure/Dashboard.jspa
https://kb.askmonty.org/en/development-plans/
About Community:
https://kb.askmonty.org/en/mariadb-community/

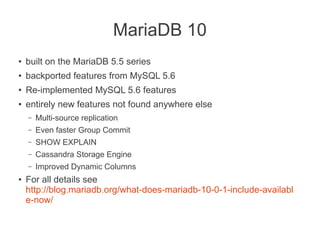

18. MariaDB 10
● built on the MariaDB 5.5 series
●
backported features from MySQL 5.6
●
Re-implemented MySQL 5.6 features
● entirely new features not found anywhere else
– Multi-source replication
– Even faster Group Commit
– SHOW EXPLAIN
– Cassandra Storage Engine
– Improved Dynamic Columns
●
For all details see
http://blog.mariadb.org/what-does-mariadb-10-0-1-include-availabl
e-now/

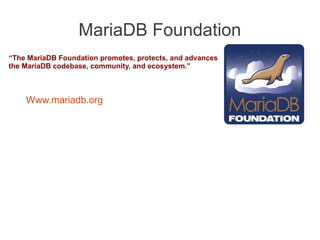

19. MariaDB Foundation
“The MariaDB Foundation promotes, protects, and advances
the MariaDB codebase, community, and ecosystem.”
Www.mariadb.org

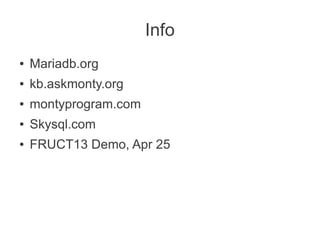

20. Info
● Mariadb.org
● kb.askmonty.org
● montyprogram.com
● Skysql.com
● FRUCT13 Demo, Apr 25
