How to power microservices with MariaDB
The document discusses the advantages and disadvantages of microservices compared to traditional monolithic architectures, highlighting benefits like faster development and independent scalability, while noting challenges such as system complexity and coordination issues. It emphasizes the importance of choosing the right architecture, persistent storage solutions, and database topology for effective microservices implementation, specifically detailing how MariaDB can function as both a microservice and a persistent storage solution. Additionally, it provides a demonstration setup using various tools and technologies to illustrate these concepts in practice.
More Related Content
Similar to How to power microservices with MariaDB
How to power microservices with MariaDB
- 1. How to Power Microserviceswith MariaDB Todd Stoffel Senior Consultant, MariaDB Corporation
- 2. Overview 1. Microservices prosand cons 2. Choosing an architecture 3. Persistent storage 4. Database topology 5. Consolidated view of data 6. Orchestration of microservices 7. Demonstration
- 3.
- 4. Microservices The New SoftwareEngineering “Buzzword” In contrast to monolith architectures, microservices are a loose coupling of smaller autonomous services.
- 5. Leveraging cloud-enabled technology, coupledwith increased usage of microservices and open source applications, has enabled us to reduce structural infrastructure costs, and at the same time improve resiliency and nimbleness. — Piyush Gupta, Chief Executive Officer, DBS Bank
- 6. Microservices: Pros Popular alternativeto Monolithic Architectures Faster Development (focused teams) Easy Deployment (CDE) Isolated Resilience (Separated Resources) Independent Scalability (Vertically and Horizontally)

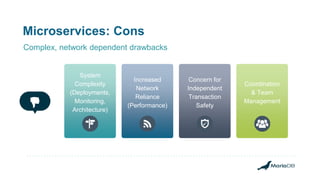

- 7. Microservices: Cons Coordination & Team Management Concernfor Independent Transaction Safety Increased Network Reliance (Performance) System Complexity (Deployments, Monitoring, Architecture) Complex, network dependent drawbacks
- 8.
- 9.

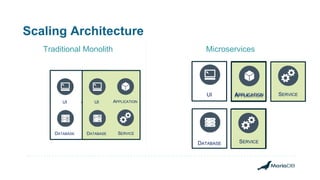

- 10. APPLICATION Scaling Architecture Traditional MonolithMicroservices APPLICATIONUI SERVICEDATABASE SERVICE SERVICE SERVICE UI DATABASE APPLICATION SERVICE UI DATABASE APPLICATION
- 11. Not only canMicroservices comprise the application architecture, but MariaDB Database can be it’s own Microservice

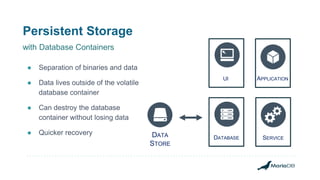

- 12. Persistent Storage ● Separationof binaries and data ● Data lives outside of the volatile database container ● Can destroy the database container without losing data ● Quicker recovery DATA STORE APPLICATIONUI SERVICEDATABASE with Database Containers

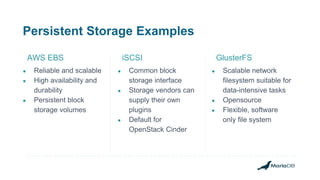

- 13. Persistent Storage Examples ●Reliable and scalable ● High availability and durability ● Persistent block storage volumes AWS EBS ● Common block storage interface ● Storage vendors can supply their own plugins ● Default for OpenStack Cinder iSCSI ● Scalable network filesystem suitable for data-intensive tasks ● Opensource ● Flexible, software only file system GlusterFS

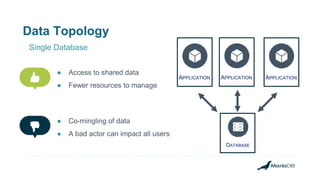

- 14. Data Topology ● Accessto shared data ● Fewer resources to manage Single Database APPLICATIONAPPLICATIONAPPLICATION DATABASE ● Co-mingling of data ● A bad actor can impact all users

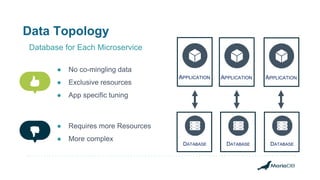

- 15. Data Topology Database forEach Microservice DATABASE APPLICATIONAPPLICATIONAPPLICATION DATABASE DATABASE ● No co-mingling data ● Exclusive resources ● App specific tuning ● Requires more Resources ● More complex

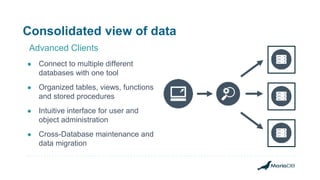

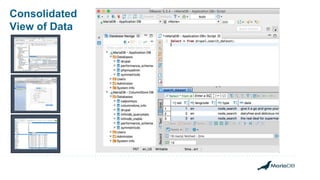

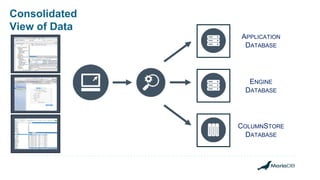

- 16. Consolidated view ofdata ● Connect to multiple different databases with one tool ● Organized tables, views, functions and stored procedures ● Intuitive interface for user and object administration ● Cross-Database maintenance and data migration Advanced Clients
- 17.
- 18.
- 19.
- 20.
- 21. Using Orchestration withMicroservices ● Simplify ● Automate ● Groups ● Self Healing ● Management DATABASE APPLICATION DATABASE APPLICATION APPLICATION DATABASE SERVICE SERVICE
- 22.
- 23.
- 24.

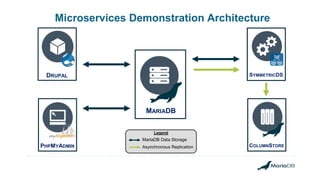

- 25. Legend Microservices Demonstration Architecture DRUPAL PHPMYADMIN SYMMETRICDS MariaDBData Storage Asynchronous Replication MARIADB COLUMNSTORE
- 26. How can Irun this?

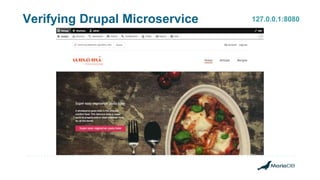

- 27. Verifying Drupal Microservice127.0.0.1:8080
- 28. Verifying phpMyAdmin Microservice127.0.0.1:8090
- 29.
- 30.
- 31. MARIADB COLUMNSTORE Legend Demo Wrap Up DRUPAL PHPMYADMIN SYMMETRICDS MariaDBData Storage Asynchronous Replication
- 32. Where can Iget this? https://github.com/toddstoffel/openworks_demo
- 33.
- 34.
- 35.
Editor's Notes
- #2 Adoption of microservices is continuing at a rapid pace, but many deployments struggle when it comes to the database topology and data modeling. This session will cover the pros and cons of different approaches (e.g., giving every microservice its own database or its own schema on a shared database) and various strategies for providing a consolidated view of data when different data is managed by different microservices.
- #3 Read bullet points
- #4 DO WE STILL NEED THIS SLIDE?
- #6 Read Slide.
- #7 Many of our current MariaDB customers are leveraging microservices architecture with MariaDB backends. For instance, here is a quote from the CEO of DBS Bank of Singapore. Platt, Gordon. “In Control: Q&A With DBS CEO Piyush Gupta”. Global Finanace Magazine. 2018 Oct 1. https://www.gfmag.com/magazine/october-2018/q-dbs-ceo-piyush-gupta
- #8 Targeted, Focused Development Teams, Fast Testability, Parallel Team Development Easier Implementation of Continuous Delivery - The deployment unit is smaller. This simplifies and speeds up the build and release workflow. In turn, you can deploy more frequently. Due to the increased build speed you get feedback faster from the continuous integration server after a commit of code changes. Moreover, the release of one service is not blocked by unfinished work in another service. Besides, the risk of a deployment becomes less. Robust: Isolation (regarding to resources). The services don’t need to share CPU, memory and the filesystem. They are separated processes and the operation system manages their resources. In case of an application server, the components share the same resources. – Plus Defective services don’t crash the whole application Independently Fine-grained scaling. We can scale the services that are bottlenecks while leaving the uncritical services untouched. Can spin up multiple containers of a single microservice that needs more processing power limited to the specific resource needing that scale. Only use the resources you need.
- #9 Increased effort for operations, deployment and monitoring. Each service is a separate deployment units, which has to be released, tested and monitored. This means a) that the delivery workflow has be automated (in order to stay efficient) and b) that there is additional infrastructure necessary. Increased configuration management. For each microservice we need to create a dedicated build and delivery pipeline. This includes a Maven build configuration, a Git project, a Jenkins job, a setup for tests, a release mechanism and a deployment approach. Communication between microservices can mean poorer performance, as sending messages back and forth comes with a certain overhead. What we gain on the simplicity of single-responsibility microservices, lose on the complexity of the network. Or, at least a part of it. The resiliency of the microservice is less reliant on the service containers/systems and much much more reliant on the the network they use to communicate between microservices. More load balancing is required. (network latency, message processing,) Transaction safety. It’s difficult to maintain transaction safety when dealing with independent processes. Besides it’s already tricky to implement transactions correctly within a single microservice, when another microservice should be called after a certain action. What happens if the transaction rolls back, but we already notified a downstream microservice? We have to be more careful with transactions and their scopes. The need for increased team management and communication to ensure everyone, not just certain engineers, understand each service and the system as a whole. Not recommended for smaller businesses that don’t have the resources to support distributed systems’ development, deployment, and operational management which the overheads of can be expensive requiring a high initial investment to run
- #10 In this section, we'll talk about database architecture including both monolithic and microservices.

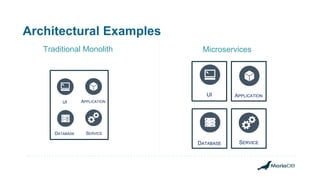

- #11 On this slide, we display two different types of architecture all using the same components. A User Interface, an application layer, a service layer (for instance, RabbitMQ or Kafka), and of course, our MariaDB layer. On the left, we have our typical LAMP stack architecture. All the components are contained in one monolithic topology. On the right, we have an example of microservices topology where the different components are compartmentalized.
- #12 ## MULTICLICK ##
- #13 Read speech bubble
- #14 ## MULTICLICK ## MariaDB inside of a Docker container is not persistent. Changes made would be lost when the container is restarted. For this reason, it is not practical to store data inside the container. But this problem can be solved with a "data store" that is outside of the docker system can be detached and reattached to new containers. (Go through bullet points)
- #15 AWS Elastic Block Store are detachable virtual volumes that are portable and portable volumes that can be easily mounted to different infrastructure, either manually or through automation. iSCSI is a hardware solution that can be implemented in your own datacenter to provide a persistent data store that can be attached to containerized microservices. GlusterFS using these file systems as mount points in our container for the datadir There is some talk in our roadmap about including S3 as a datastore for MariaDB Columnstore instances
- #16 ## MULTICLICK ## (Read Slide)
- #17 ## MULTICLICK ## (Read Slide)
- #18 ## MULTICLICK ## (Read Slide)
- #19 Examples Sequel

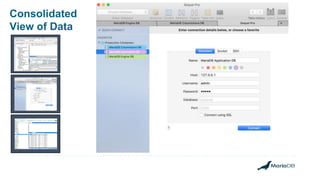

- #20 DBeaver This app is OS agnostic and works on Linux, Mac, and Windows. They offer both free and enterprise versions.

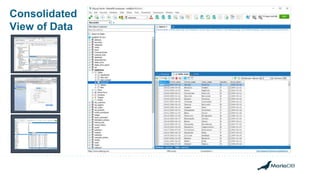

- #21 Sequel Pro Mac specific application Free utility
- #22 SQLyog This is a windows based application. A license for this application is usually included in a MariaDB support subscription
- #23 Helps simplify the Complexity of Microsystems with Automation Automate deployments, management, and scaling Group containers into logical units for easy management Self Healing Containers Configuration Management

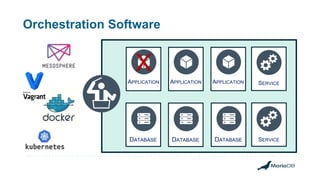

- #24 ### MULTICLICK ### Mesos Vagrant Docker Kubernetes MariaDB doesn’t support any of these 3rd party utilities directly but your own organizations can use the orchestration utility of your choice to support MariaDB deployment That we will provide a short demo at the end using Docker along with a link to the project that they can demo at home For example, if a container application crashes. (red X) Your Orchestration software can automatically “Heal” your system. By destroying the broken container, and creating a replacement container in it’s place.
- #25 Now that we've talked about MariaDB as a microservice, let's see it in action.
- #27 This is a diagram of the demo project that we are going to be discussing. - There are 2 applications, a service, and a ColumnStore replica all with standard MariaDB as the primary component in this topology.
- #28 We git clone the project to our local machine. cd into that folder run docker-compose After a few minutes (depending on your internet speed), you'll have an output that looks like this. This is a composite of the logging from all the different instances The different colors represent the different system's logs. This means our project is up and running.
- #29 Now we load up a web browser and point it at 127.0.0.1 port 8080 as shown here in the top right corner in red. One of our microservices was a sample drupal website. When we go to this address, this is the page we should see.
- #30 Now we are going to point our browser at port 8090. Same address, different port. This is our phpMyAdmin application. This microservice can also be used to view data on MariaDB.

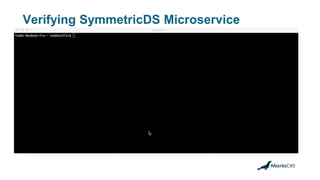

- #31 Now we will verify that our service called SymmetricDS in this case is running. We do this by entering the docker container using the commands shown and tailing the SymmetricDS log.
- #32 Now we are going to verify that our ColumnStore replica microservice is in fact receiving data from our standard MariaDB master. We do this by entering the docker container. Logging into the mysql client and selecting data that was scheduled to be replicated.
- #33 We verified that all the applications were running and that our microservices project was a success.
- #34 Now as a voluntary homework assignment, go to my github repo and download this project on your own machines and play with it at your own pace. I'll attach this slide show to the github repo so you can go through it again.
- #35 You'll need Docker Desktop and Git which are free utilities which you can get online. In fact, Git may already be included in your operating system.
- #36 Any Questions?
- #37 Bye.
