1. Dockerizing Cassandra on Modern Linux

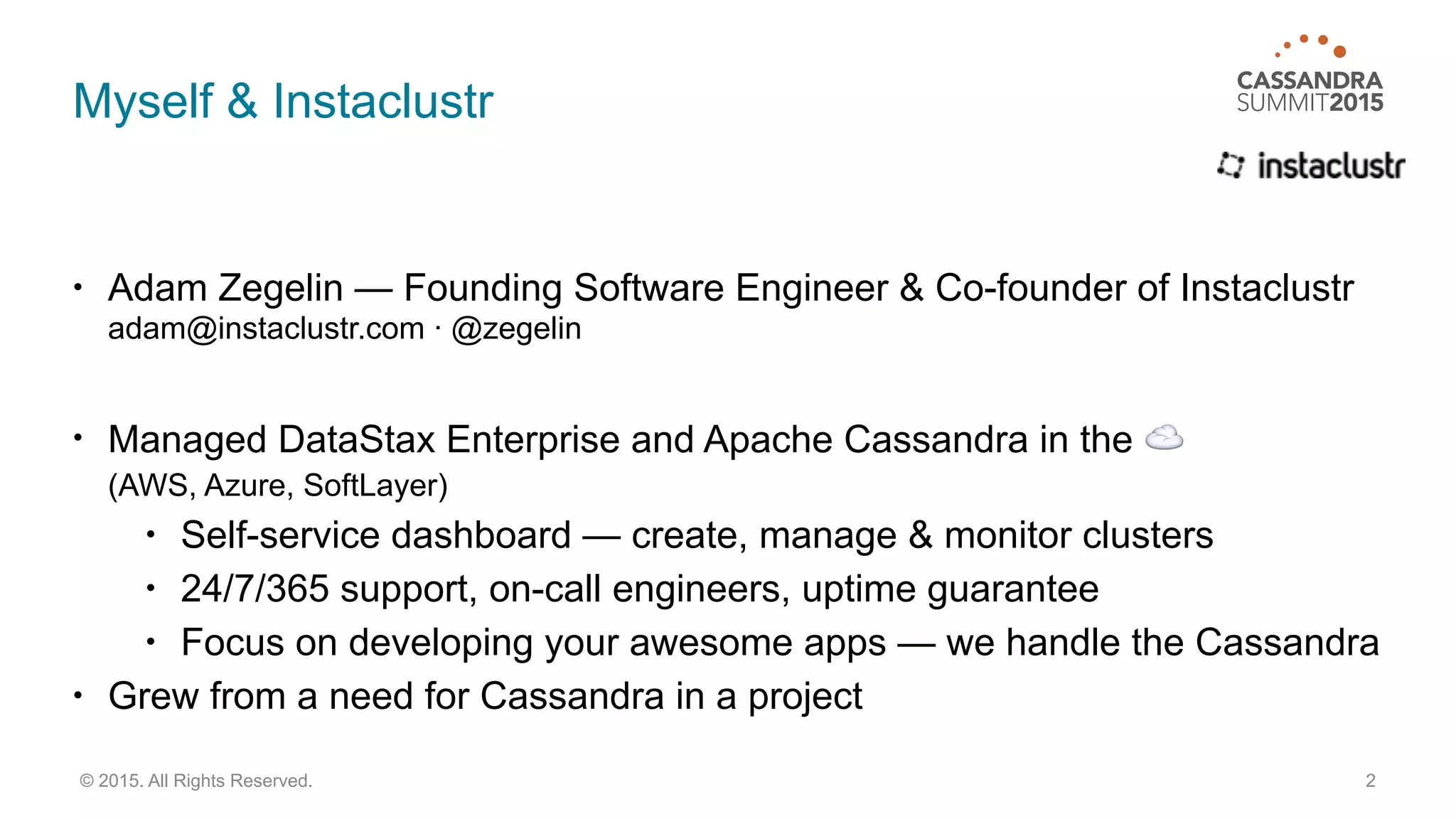

2. Myself & Instaclustr
• Adam Zegelin — Founding Software Engineer & Co-founder of Instaclustr
adam@instaclustr.com · @zegelin
• Managed DataStax Enterprise and Apache Cassandra in the ☁
(AWS, Azure, SoftLayer)
• Self-service dashboard — create, manage & monitor clusters
• 24/7/365 support, on-call engineers, uptime guarantee
• Focus on developing your awesome apps — we handle the Cassandra
• Grew from a need for Cassandra in a project
2© 2015. All Rights Reserved.

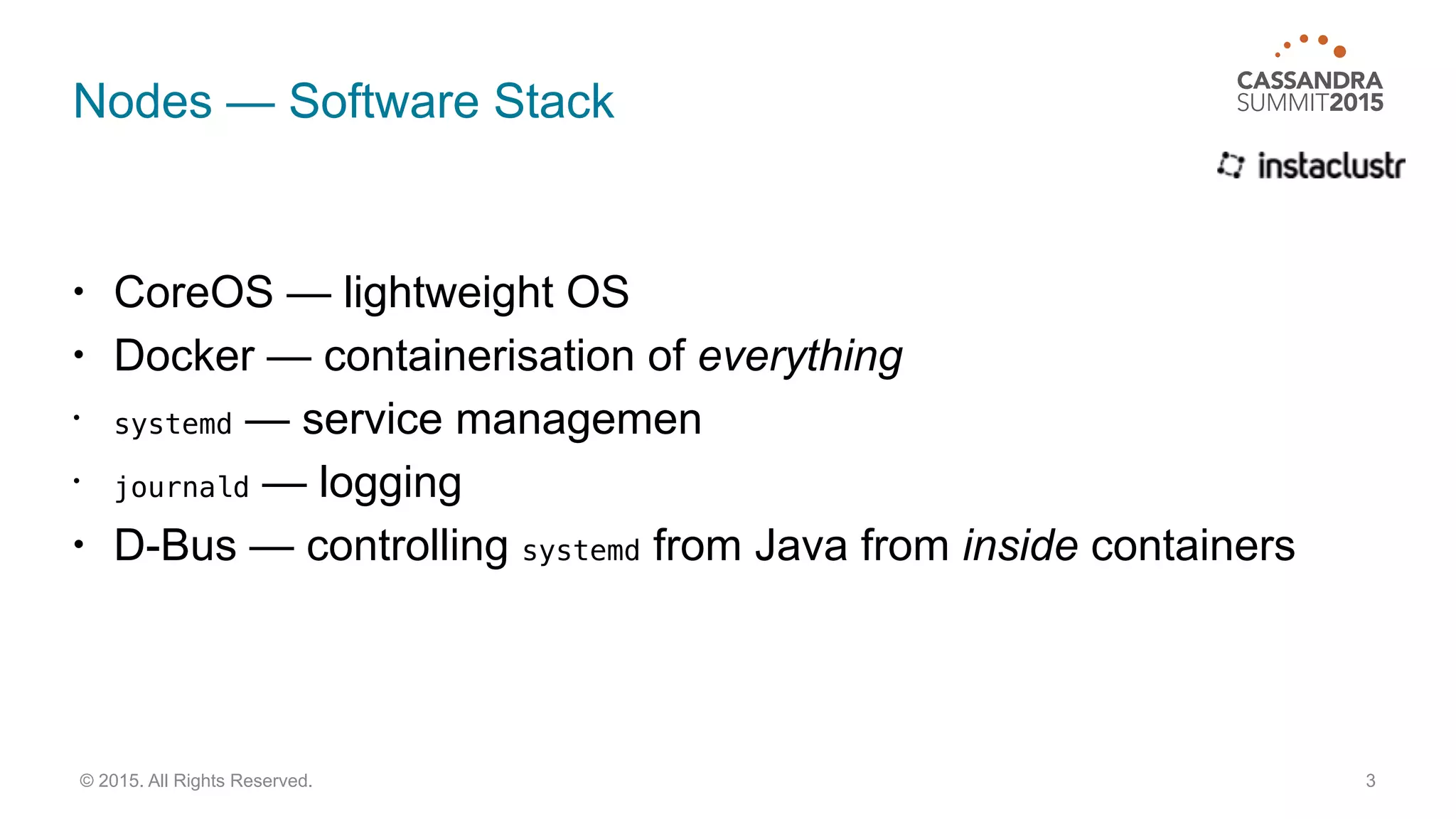

3. Nodes — Software Stack
• CoreOS — lightweight OS
• Docker — containerisation of everything
• systemd — service managemen
• journald — logging
• D-Bus — controlling systemd from Java from inside containers
3© 2015. All Rights Reserved.

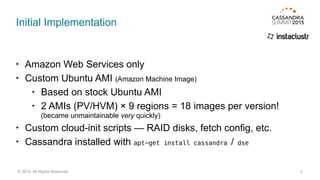

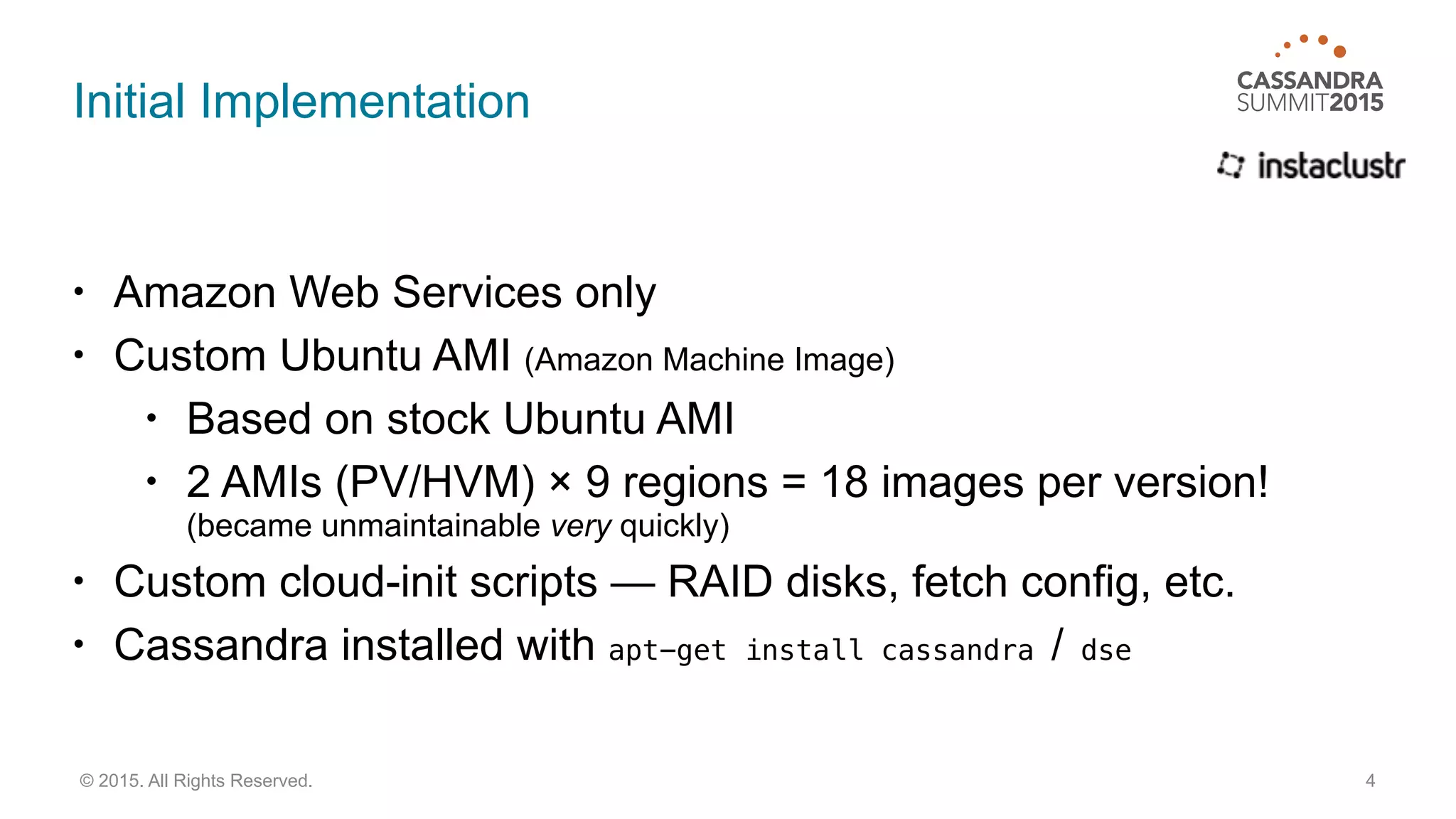

4. Initial Implementation
• Amazon Web Services only
• Custom Ubuntu AMI (Amazon Machine Image)
• Based on stock Ubuntu AMI
• 2 AMIs (PV/HVM) × 9 regions = 18 images per version!
(became unmaintainable very quickly)
• Custom cloud-init scripts — RAID disks, fetch config, etc.
• Cassandra installed with apt-get install cassandra / dse
4© 2015. All Rights Reserved.

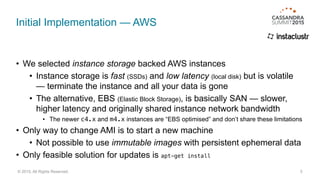

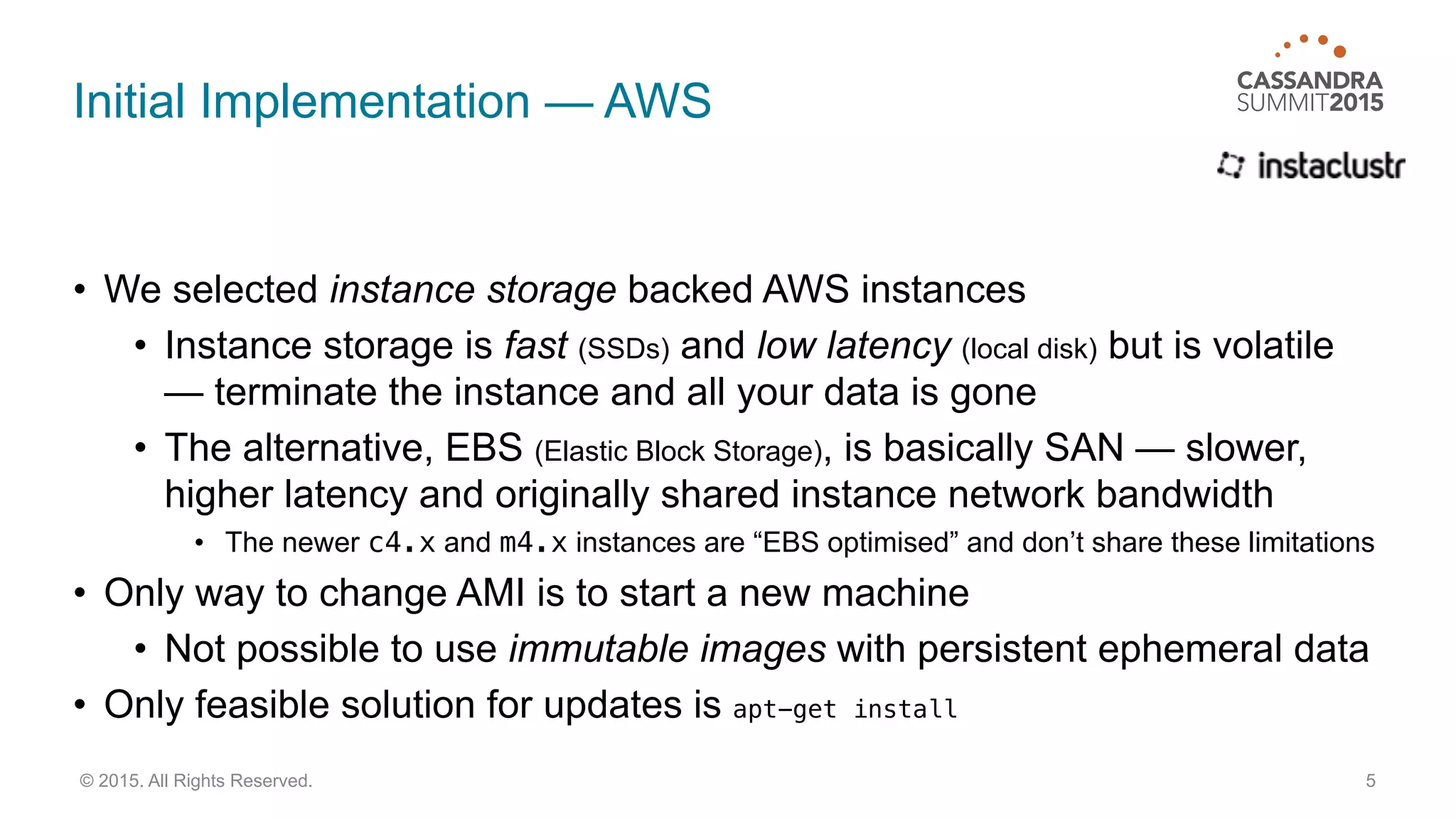

5. Initial Implementation — AWS
• We selected instance storage backed AWS instances
• Instance storage is fast (SSDs) and low latency (local disk) but is volatile
— terminate the instance and all your data is gone
• The alternative, EBS (Elastic Block Storage), is basically SAN — slower,
higher latency and originally shared instance network bandwidth
• The newer c4.x and m4.x instances are “EBS optimised” and don’t share these limitations
• Only way to change AMI is to start a new machine
• Not possible to use immutable images with persistent ephemeral data
• Only feasible solution for updates is apt-get install
5© 2015. All Rights Reserved.

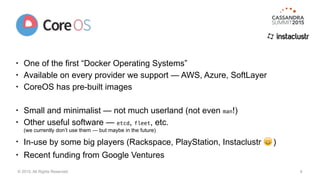

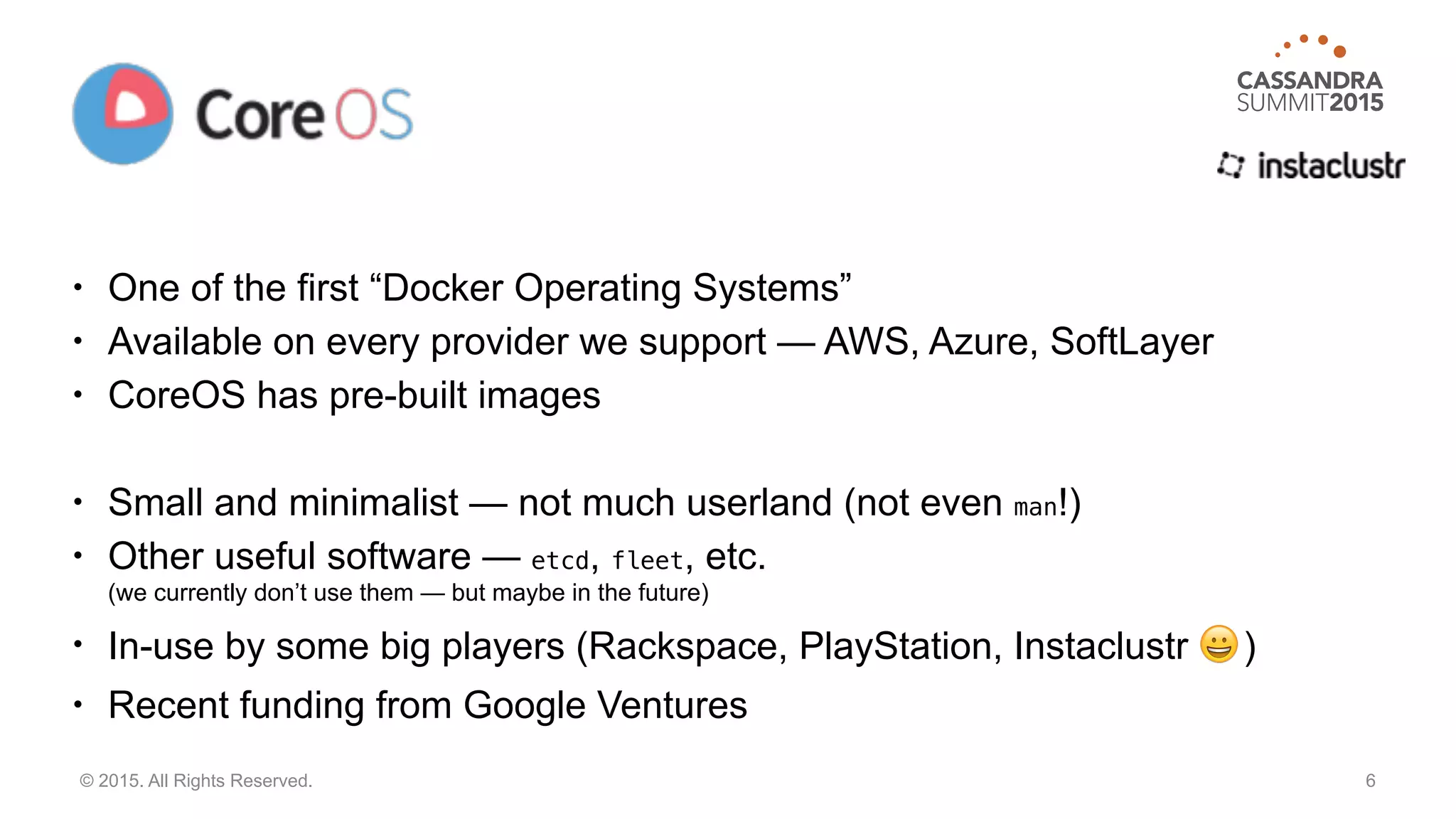

6. • One of the first “Docker Operating Systems”
• Available on every provider we support — AWS, Azure, SoftLayer
• CoreOS has pre-built images
• Small and minimalist — not much userland (not even man!)
• Other useful software — etcd, fleet, etc.
(we currently don’t use them — but maybe in the future)
• In-use by some big players (Rackspace, PlayStation, Instaclustr 😀 )
• Recent funding from Google Ventures
6© 2015. All Rights Reserved.

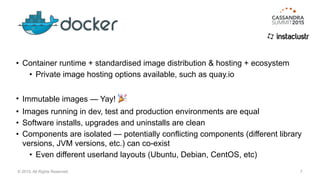

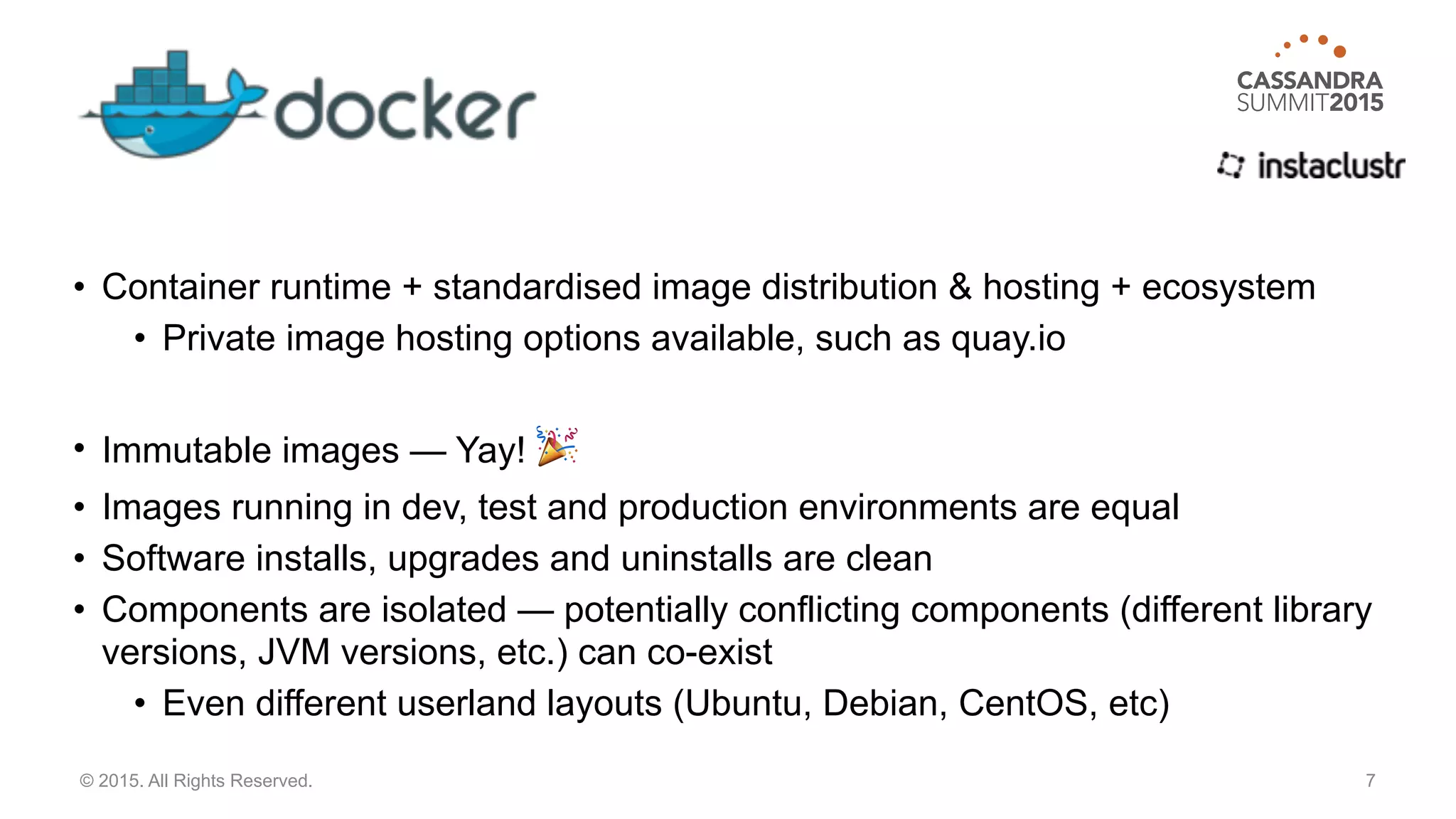

7. • Container runtime + standardised image distribution & hosting + ecosystem
• Private image hosting options available, such as quay.io
• Immutable images — Yay! 🎉
• Images running in dev, test and production environments are equal
• Software installs, upgrades and uninstalls are clean
• Components are isolated — potentially conflicting components (different library
versions, JVM versions, etc.) can co-exist
• Even different userland layouts (Ubuntu, Debian, CentOS, etc)
7© 2015. All Rights Reserved.

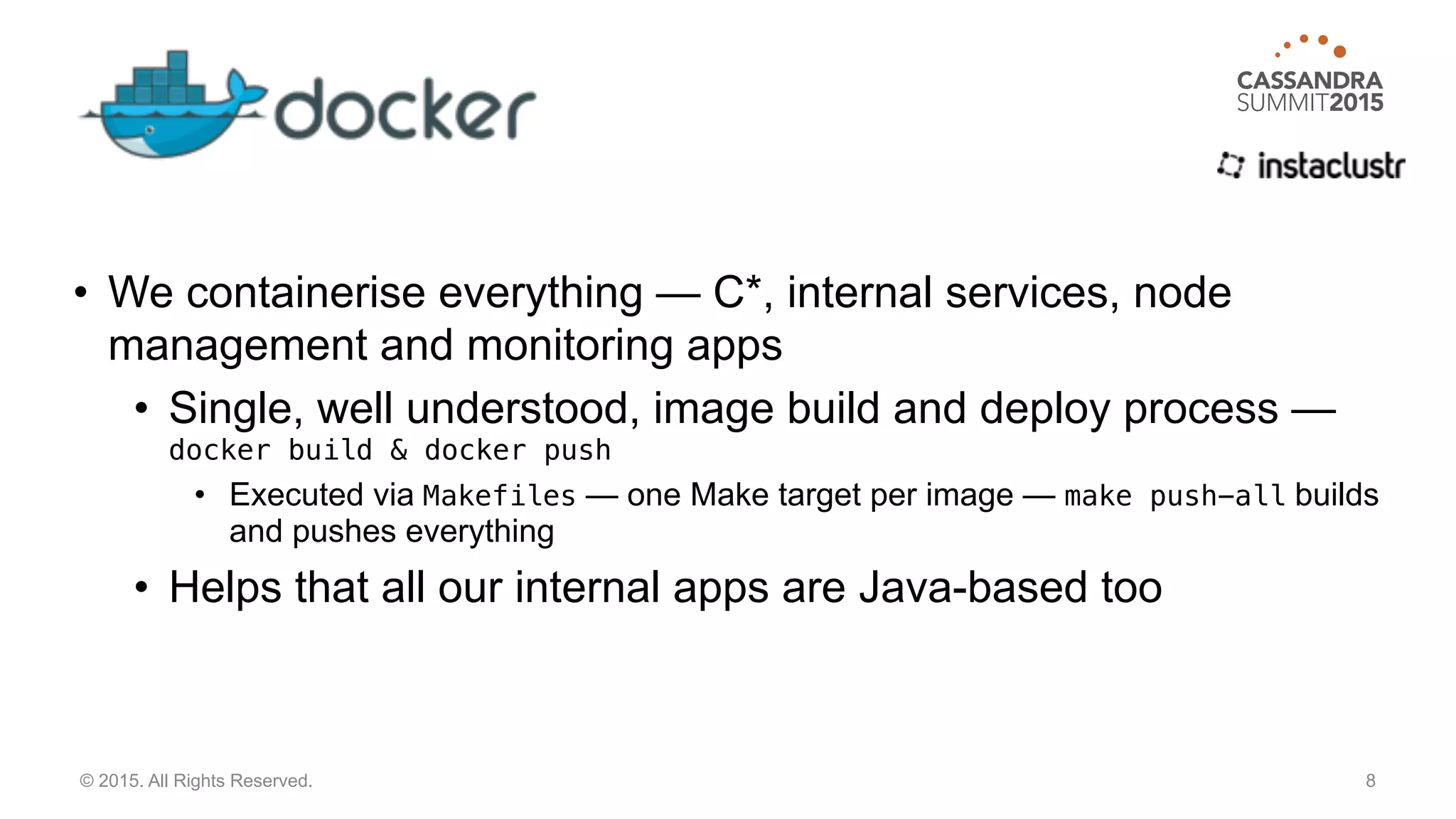

8. • We containerise everything — C*, internal services, node
management and monitoring apps
• Single, well understood, image build and deploy process —
docker build & docker push
• Executed via Makefiles — one Make target per image — make push-all builds
and pushes everything
• Helps that all our internal apps are Java-based too
8© 2015. All Rights Reserved.

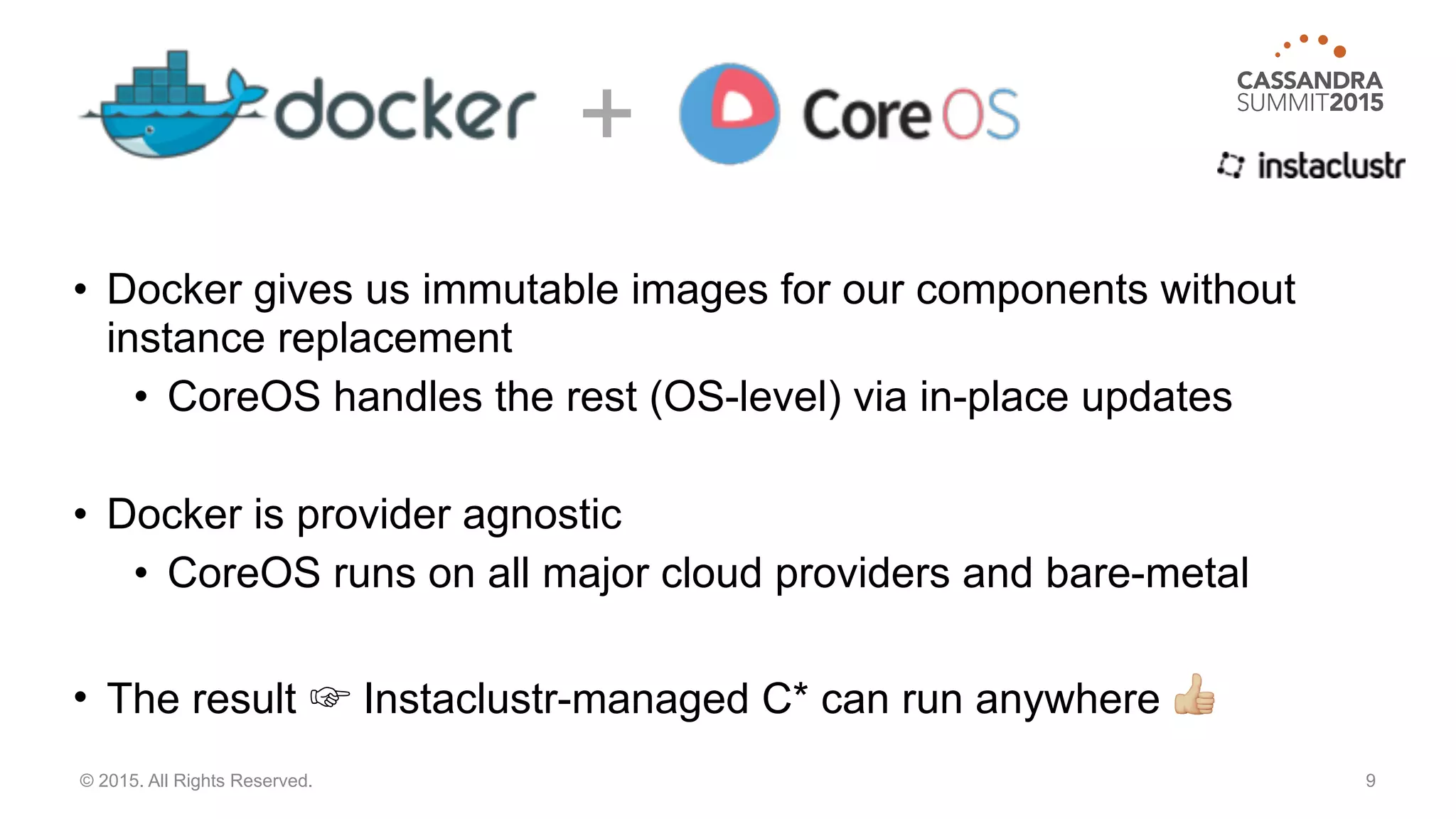

9. • Docker gives us immutable images for our components without
instance replacement
• CoreOS handles the rest (OS-level) via in-place updates
• Docker is provider agnostic
• CoreOS runs on all major cloud providers and bare-metal
• The result ☞ Instaclustr-managed C* can run anywhere #
9© 2015. All Rights Reserved.
+

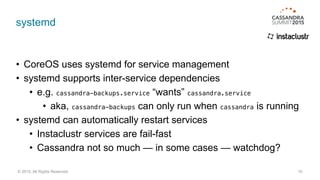

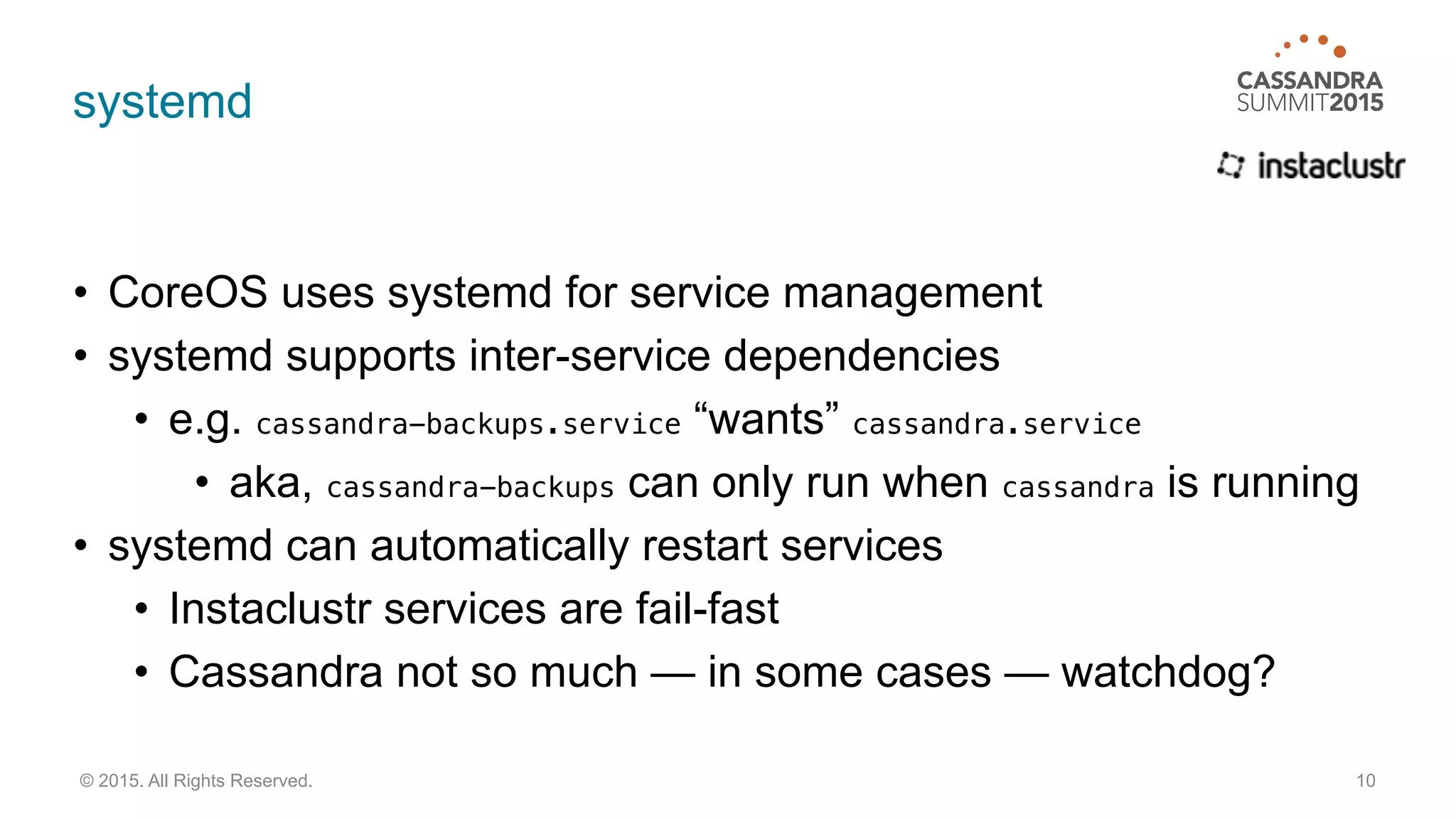

10. systemd
• CoreOS uses systemd for service management
• systemd supports inter-service dependencies
• e.g. cassandra-backups.service “wants” cassandra.service
• aka, cassandra-backups can only run when cassandra is running
• systemd can automatically restart services
• Instaclustr services are fail-fast
• Cassandra not so much — in some cases — watchdog?
10© 2015. All Rights Reserved.

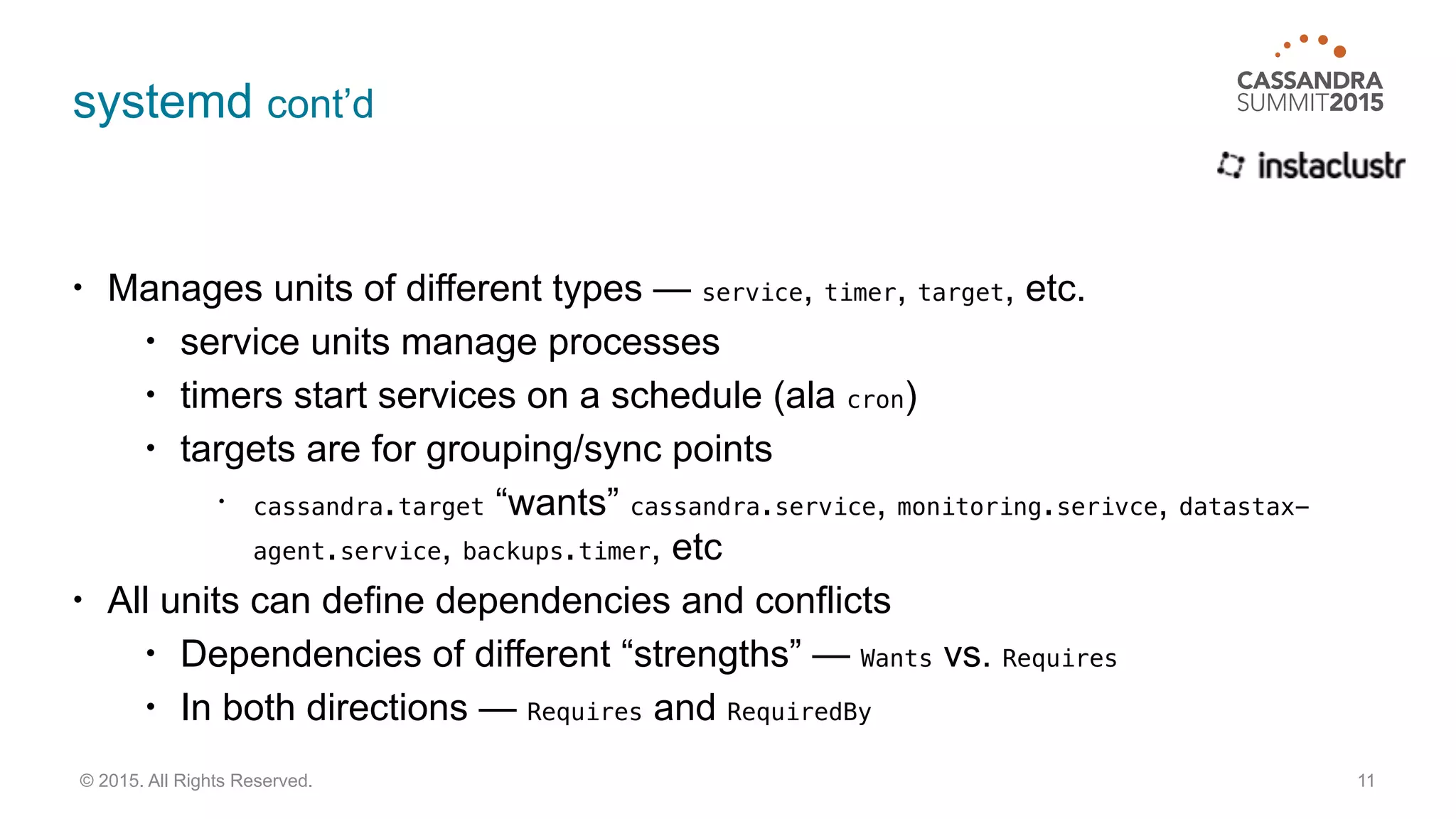

11. systemd cont’d
• Manages units of different types — service, timer, target, etc.
• service units manage processes
• timers start services on a schedule (ala cron)
• targets are for grouping/sync points
• cassandra.target “wants” cassandra.service, monitoring.serivce, datastax-
agent.service, backups.timer, etc
• All units can define dependencies and conflicts
• Dependencies of different “strengths” — Wants vs. Requires
• In both directions — Requires and RequiredBy
11© 2015. All Rights Reserved.

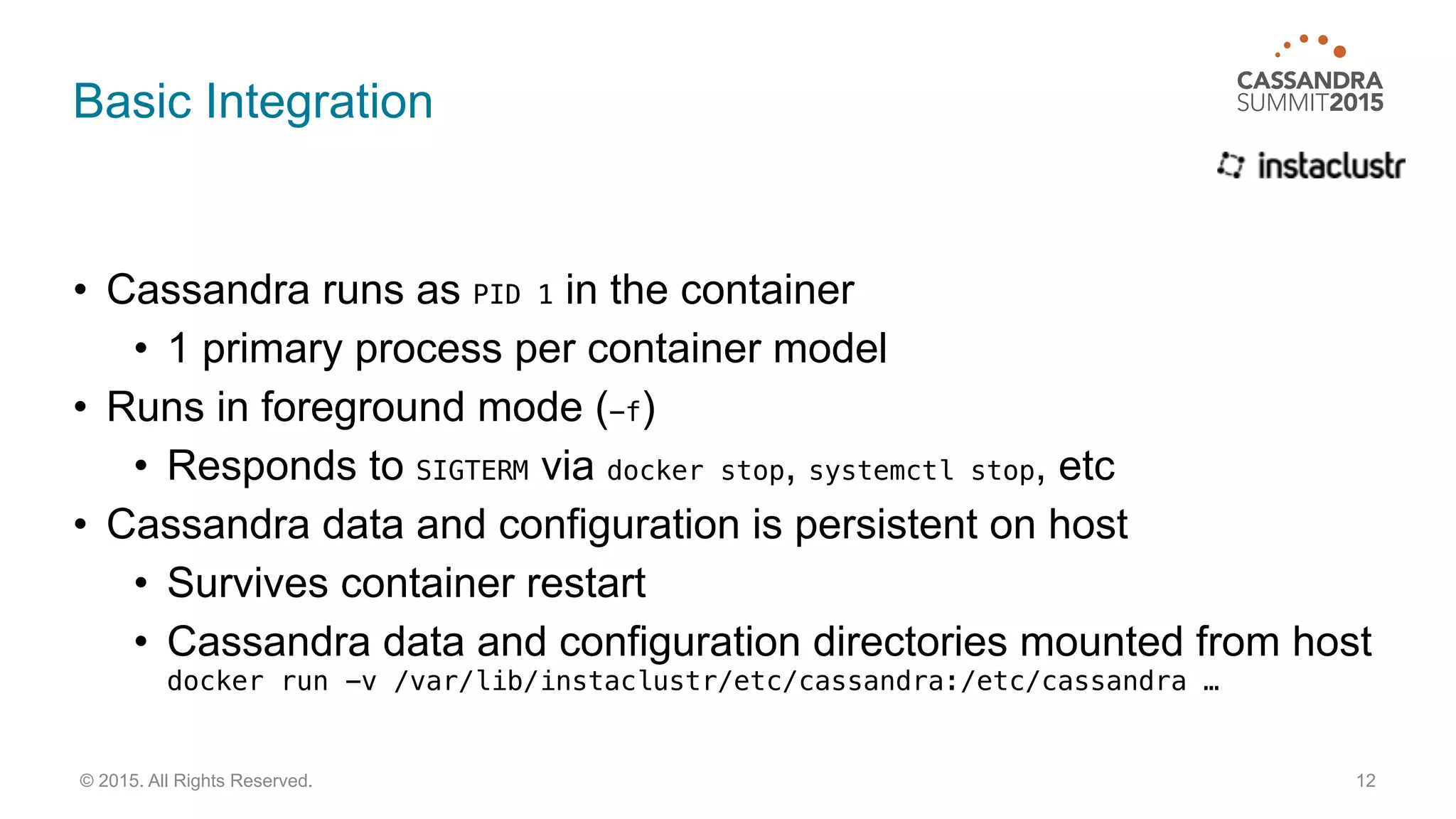

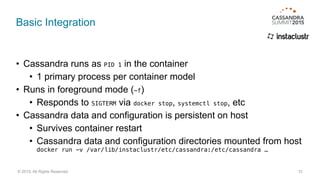

12. Basic Integration
• Cassandra runs as PID 1 in the container
• 1 primary process per container model
• Runs in foreground mode (-f)
• Responds to SIGTERM via docker stop, systemctl stop, etc
• Cassandra data and configuration is persistent on host
• Survives container restart
• Cassandra data and configuration directories mounted from host
docker run -v /var/lib/instaclustr/etc/cassandra:/etc/cassandra …
12© 2015. All Rights Reserved.

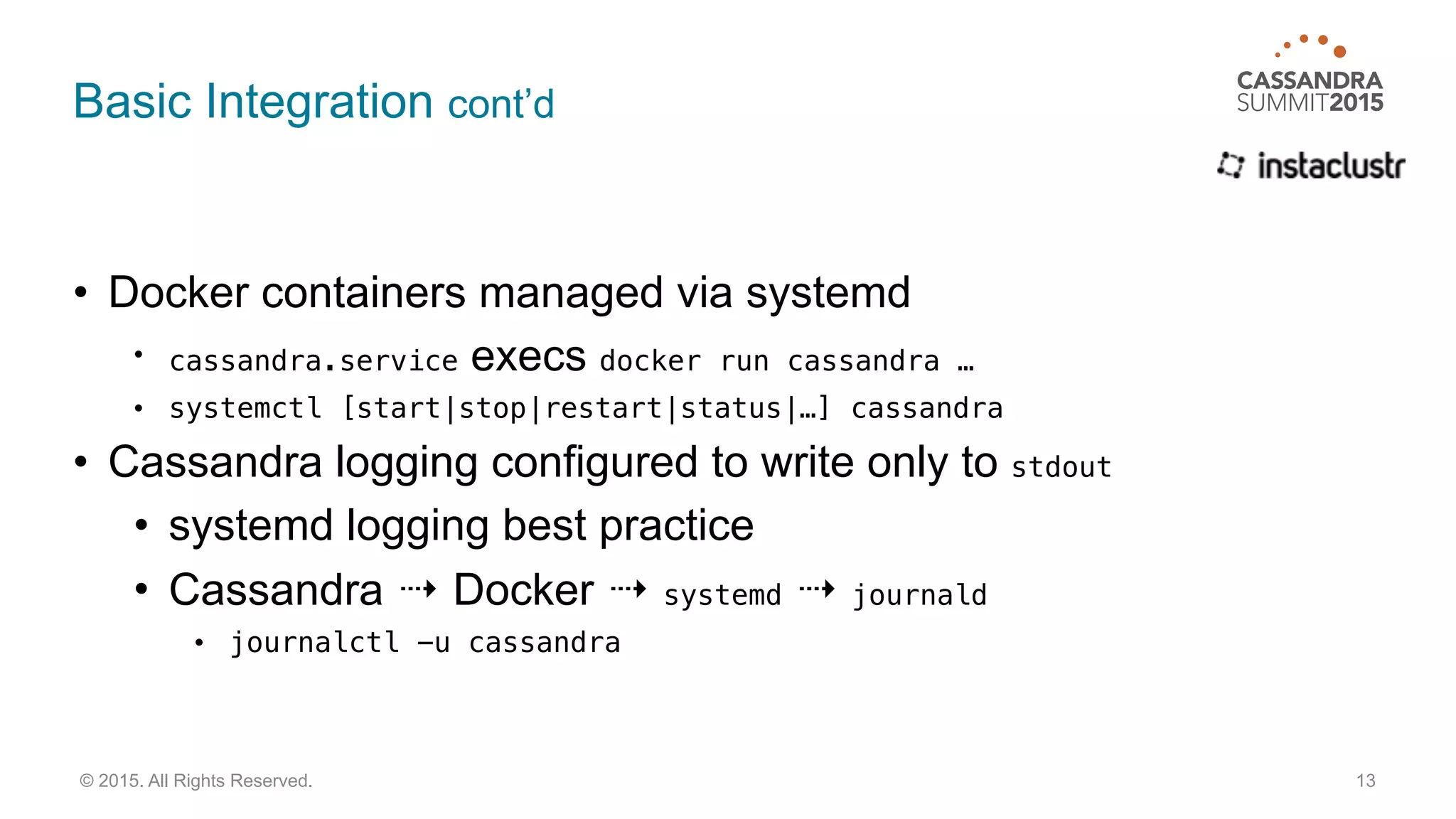

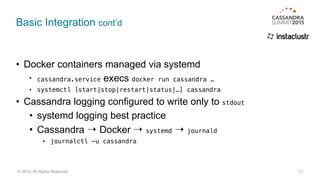

13. Basic Integration cont’d
• Docker containers managed via systemd
• cassandra.service execs docker run cassandra …
• systemctl [start|stop|restart|status|…] cassandra
• Cassandra logging configured to write only to stdout
• systemd logging best practice
• Cassandra ⇢ Docker ⇢ systemd ⇢ journald
• journalctl -u cassandra
13© 2015. All Rights Reserved.

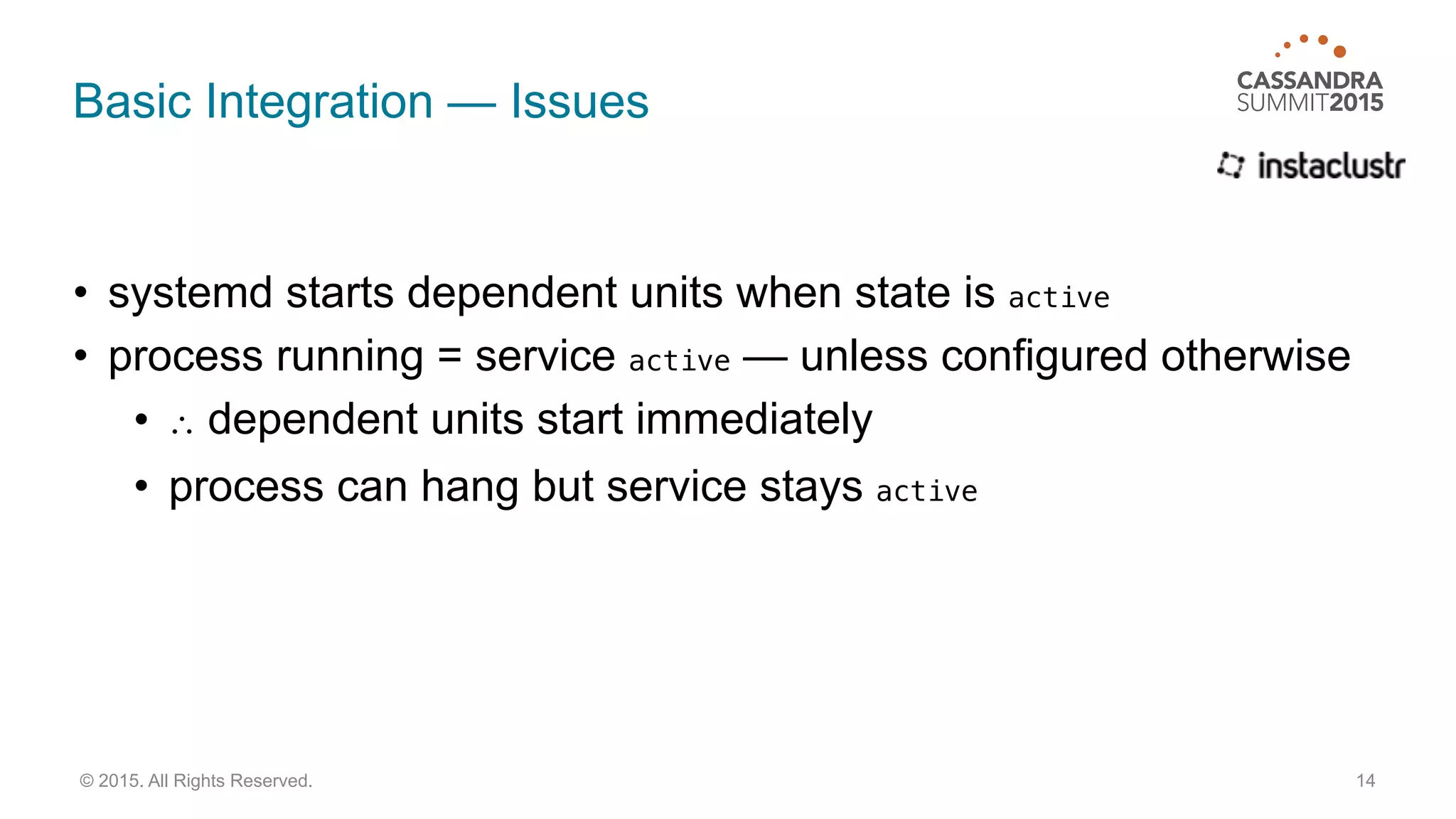

14. Basic Integration — Issues
• systemd starts dependent units when state is active
• process running = service active — unless configured otherwise
• ∴ dependent units start immediately
• process can hang but service stays active
14© 2015. All Rights Reserved.

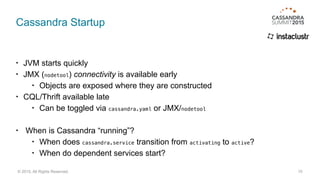

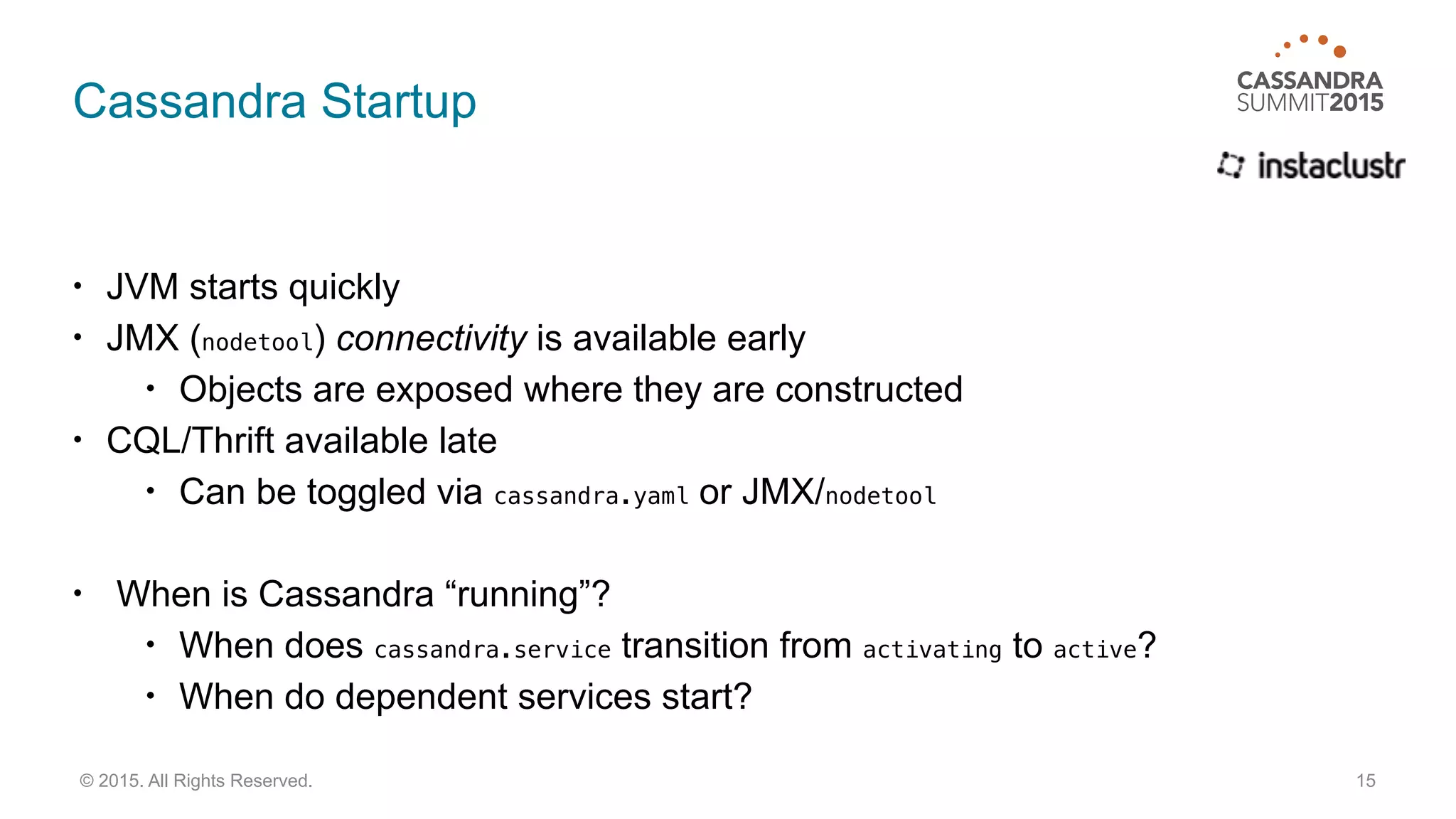

15. Cassandra Startup
• JVM starts quickly
• JMX (nodetool) connectivity is available early
• Objects are exposed where they are constructed
• CQL/Thrift available late
• Can be toggled via cassandra.yaml or JMX/nodetool
• When is Cassandra “running”?
• When does cassandra.service transition from activating to active?
• When do dependent services start?
15© 2015. All Rights Reserved.

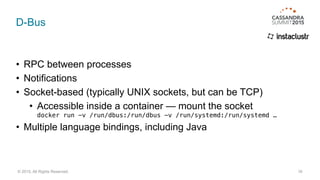

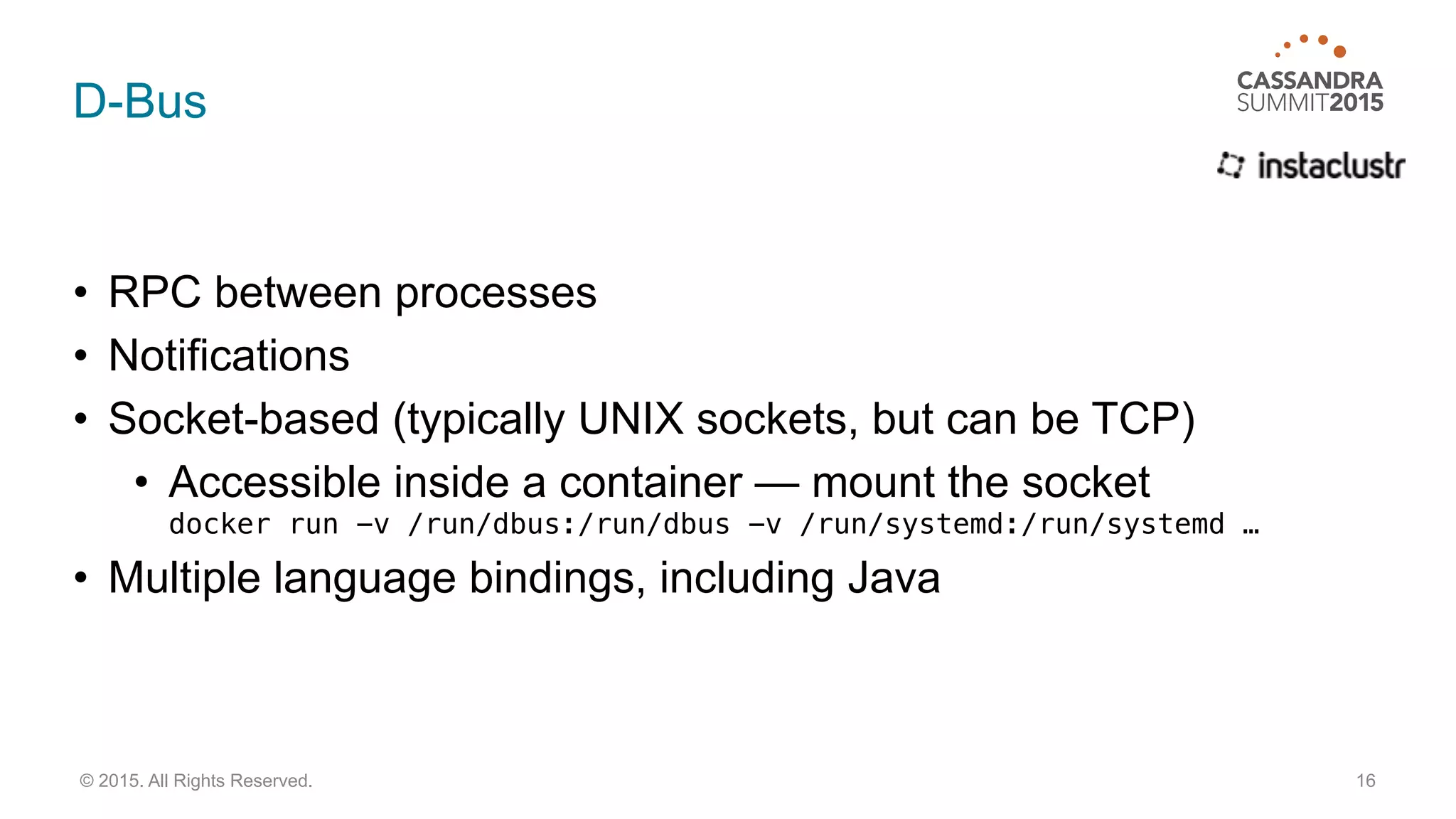

16. D-Bus
• RPC between processes
• Notifications
• Socket-based (typically UNIX sockets, but can be TCP)
• Accessible inside a container — mount the socket
docker run -v /run/dbus:/run/dbus -v /run/systemd:/run/systemd …
• Multiple language bindings, including Java
16© 2015. All Rights Reserved.

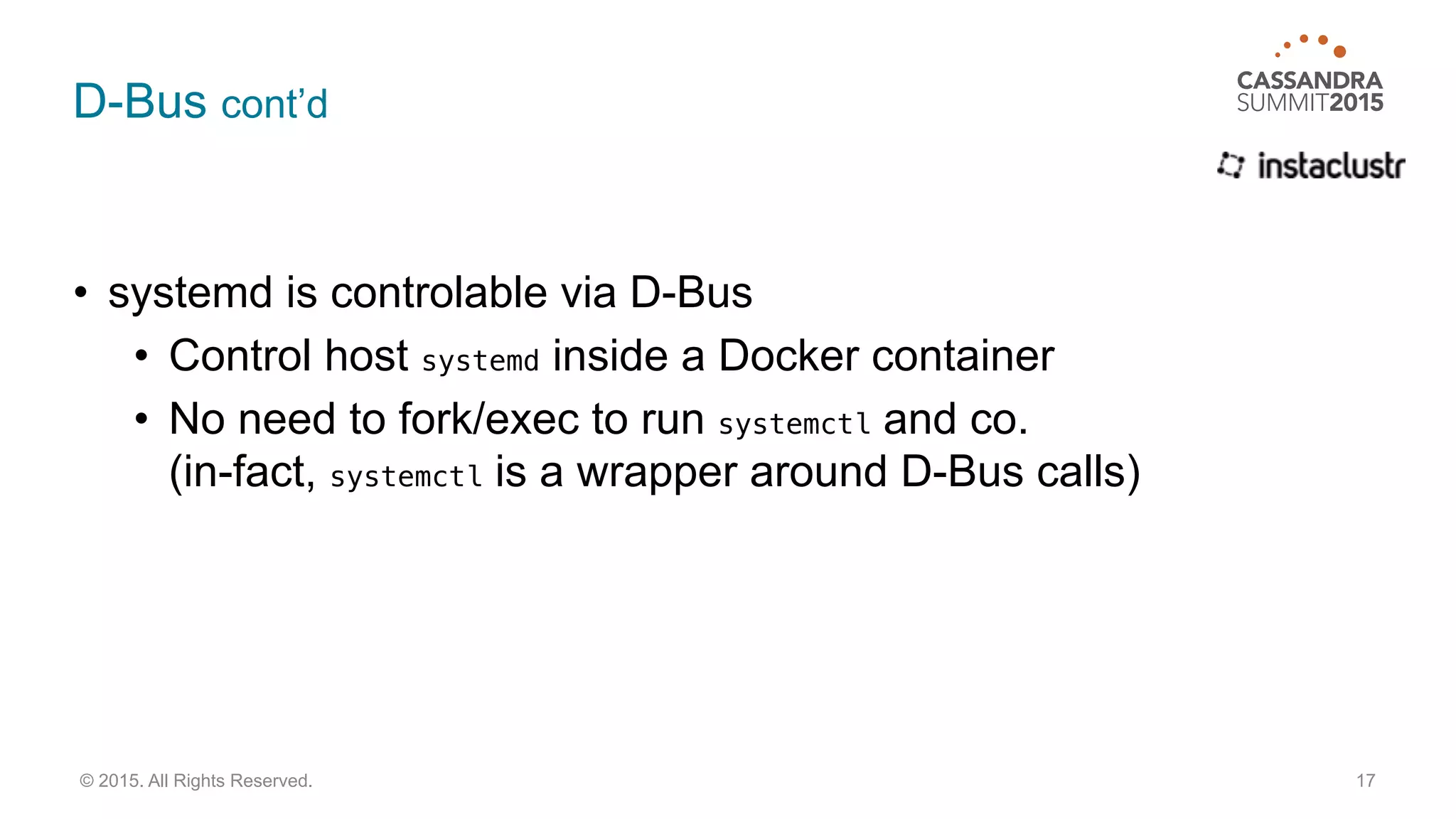

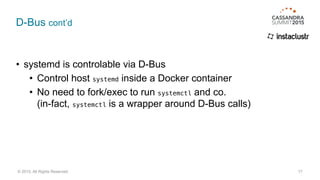

17. D-Bus cont’d
• systemd is controlable via D-Bus
• Control host systemd inside a Docker container
• No need to fork/exec to run systemctl and co.
(in-fact, systemctl is a wrapper around D-Bus calls)
17© 2015. All Rights Reserved.

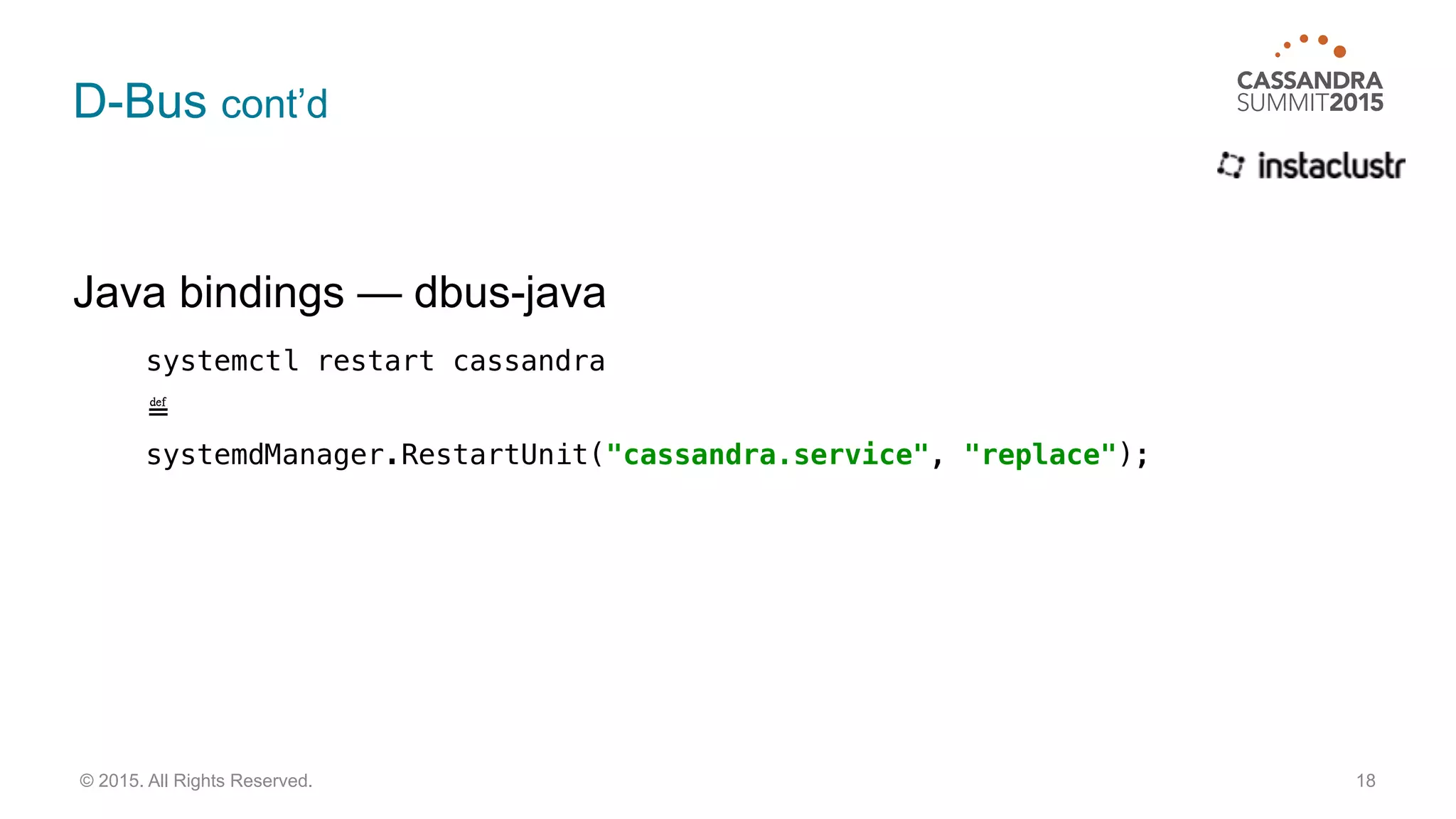

18. D-Bus cont’d
Java bindings — dbus-java
systemctl restart cassandra
≝
systemdManager.RestartUnit("cassandra.service", "replace");
18© 2015. All Rights Reserved.

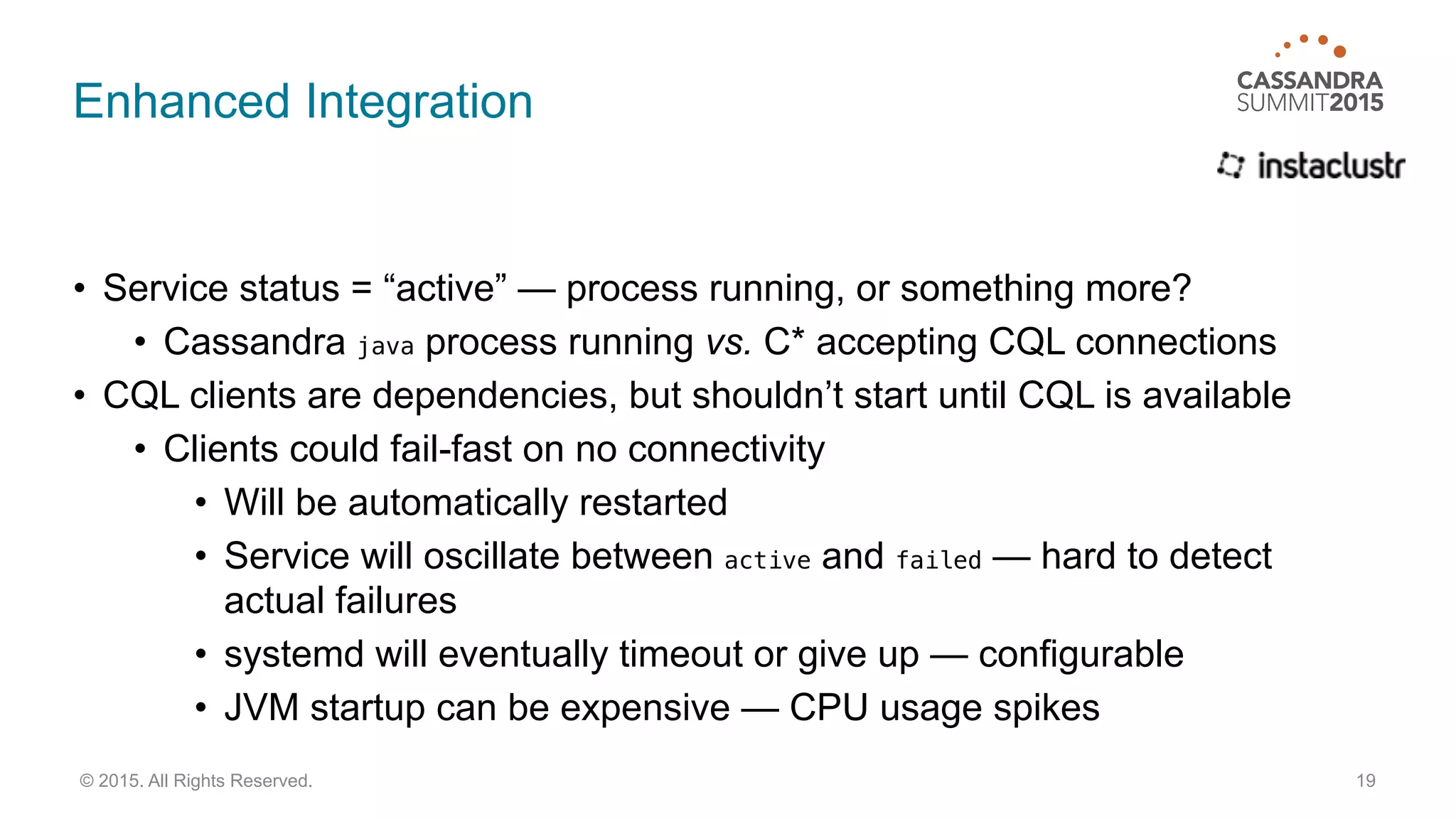

19. Enhanced Integration
• Service status = “active” — process running, or something more?
• Cassandra java process running vs. C* accepting CQL connections
• CQL clients are dependencies, but shouldn’t start until CQL is available
• Clients could fail-fast on no connectivity
• Will be automatically restarted
• Service will oscillate between active and failed — hard to detect
actual failures
• systemd will eventually timeout or give up — configurable
• JVM startup can be expensive — CPU usage spikes
19© 2015. All Rights Reserved.

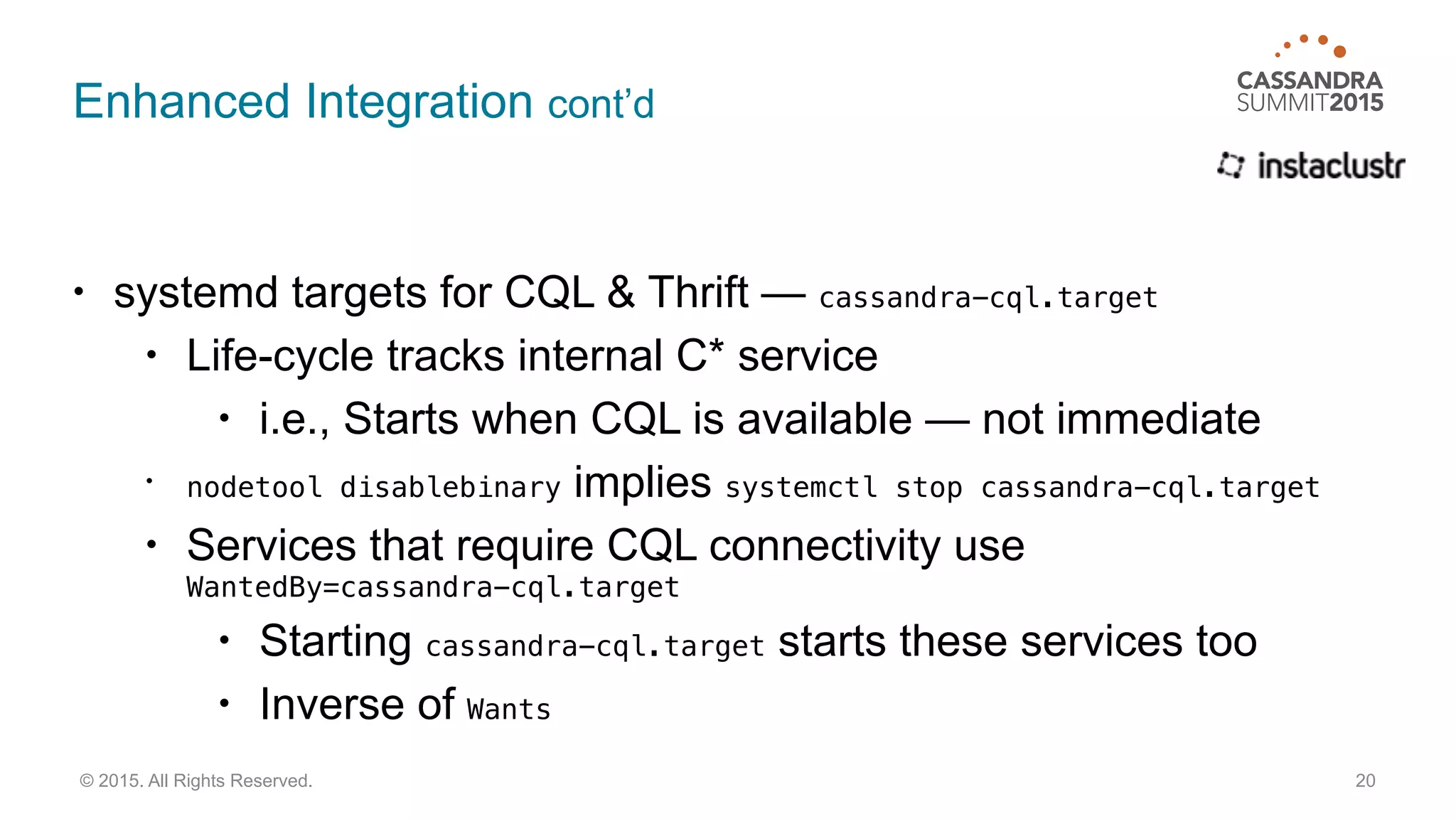

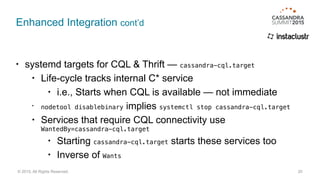

20. Enhanced Integration cont’d
• systemd targets for CQL & Thrift — cassandra-cql.target
• Life-cycle tracks internal C* service
• i.e., Starts when CQL is available — not immediate
• nodetool disablebinary implies systemctl stop cassandra-cql.target
• Services that require CQL connectivity use
WantedBy=cassandra-cql.target
• Starting cassandra-cql.target starts these services too
• Inverse of Wants
20© 2015. All Rights Reserved.

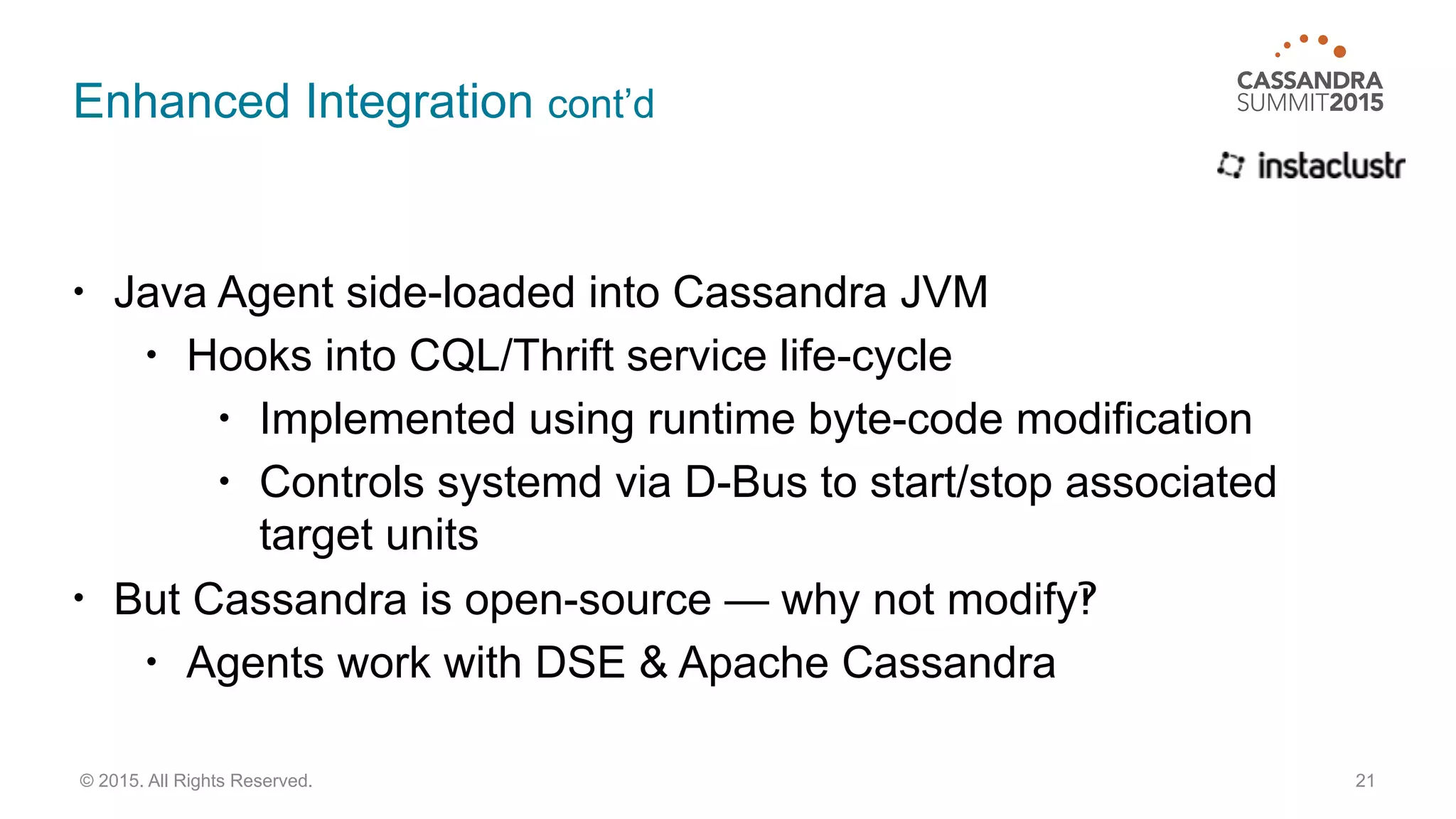

21. Enhanced Integration cont’d
• Java Agent side-loaded into Cassandra JVM
• Hooks into CQL/Thrift service life-cycle
• Implemented using runtime byte-code modification
• Controls systemd via D-Bus to start/stop associated
target units
• But Cassandra is open-source — why not modify‽
• Agents work with DSE & Apache Cassandra
21© 2015. All Rights Reserved.

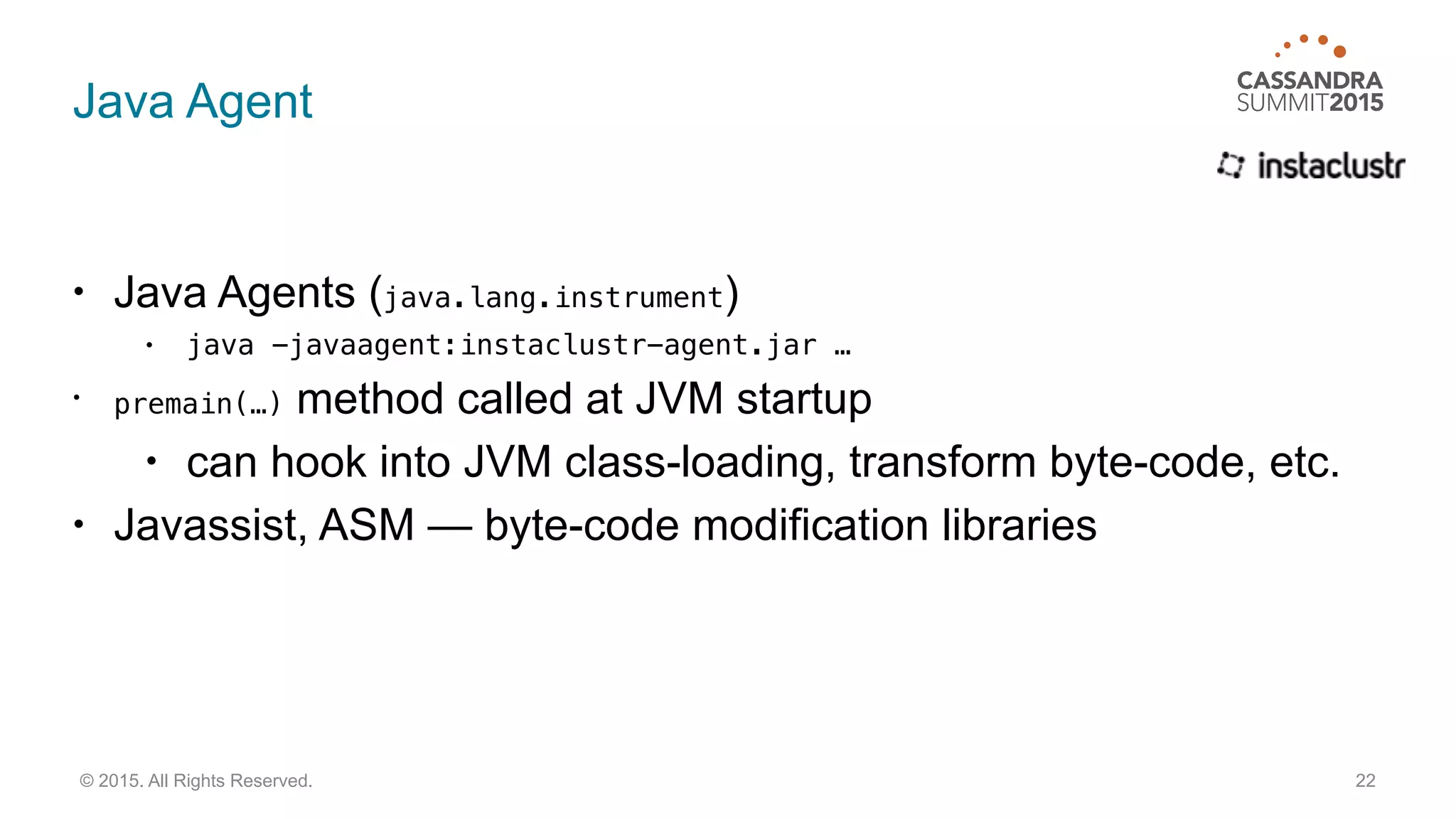

22. Java Agent
• Java Agents (java.lang.instrument)
• java -javaagent:instaclustr-agent.jar …
• premain(…) method called at JVM startup
• can hook into JVM class-loading, transform byte-code, etc.
• Javassist, ASM — byte-code modification libraries
22© 2015. All Rights Reserved.

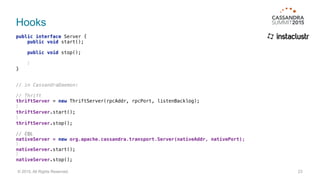

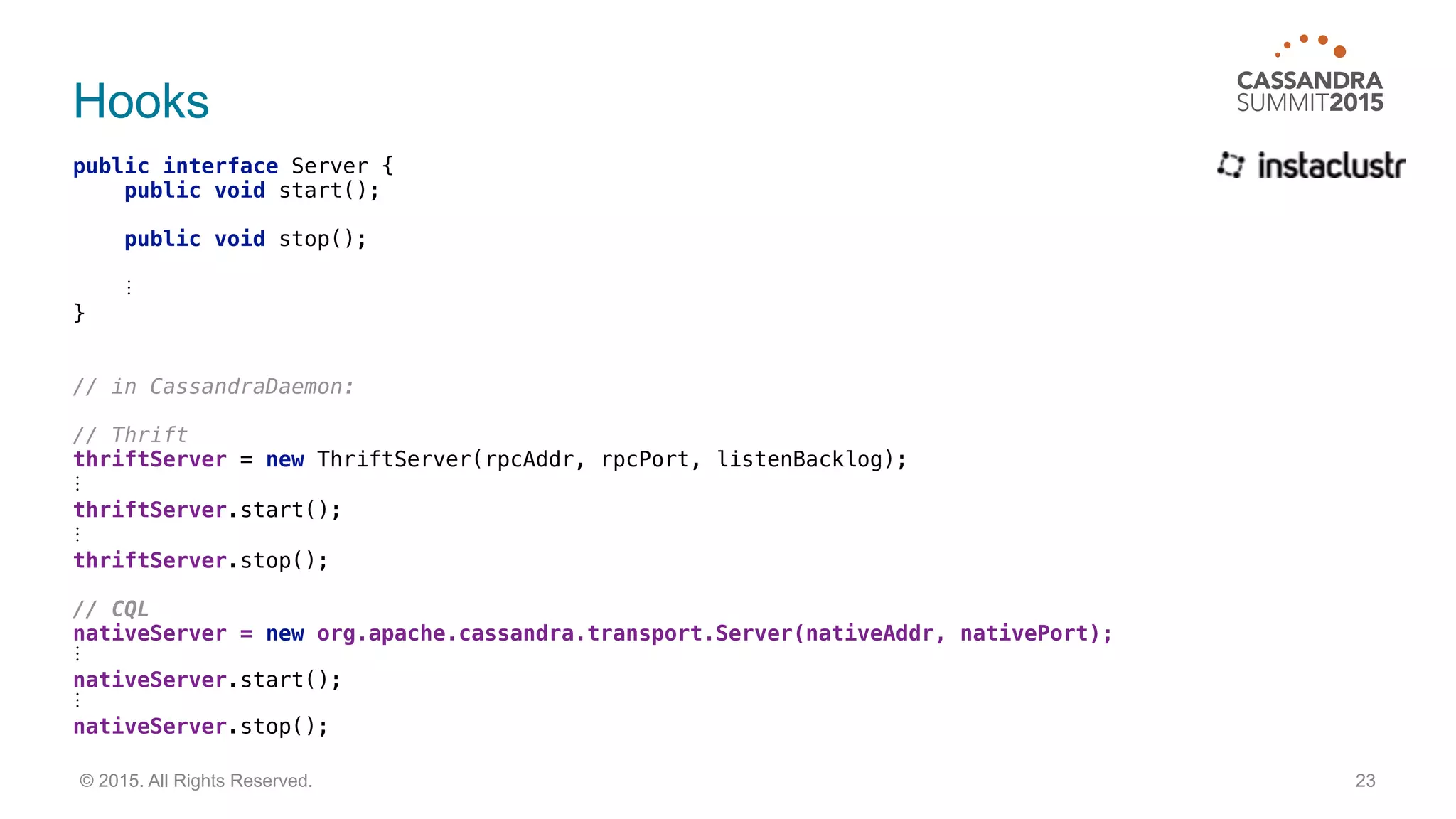

23. Hooks
public interface Server {
public void start();
public void stop();
⋮
}
// in CassandraDaemon:
// Thrift
thriftServer = new ThriftServer(rpcAddr, rpcPort, listenBacklog);
⋮
thriftServer.start();
⋮
thriftServer.stop();
// CQL
nativeServer = new org.apache.cassandra.transport.Server(nativeAddr, nativePort);
⋮
nativeServer.start();
⋮
nativeServer.stop();
23© 2015. All Rights Reserved.

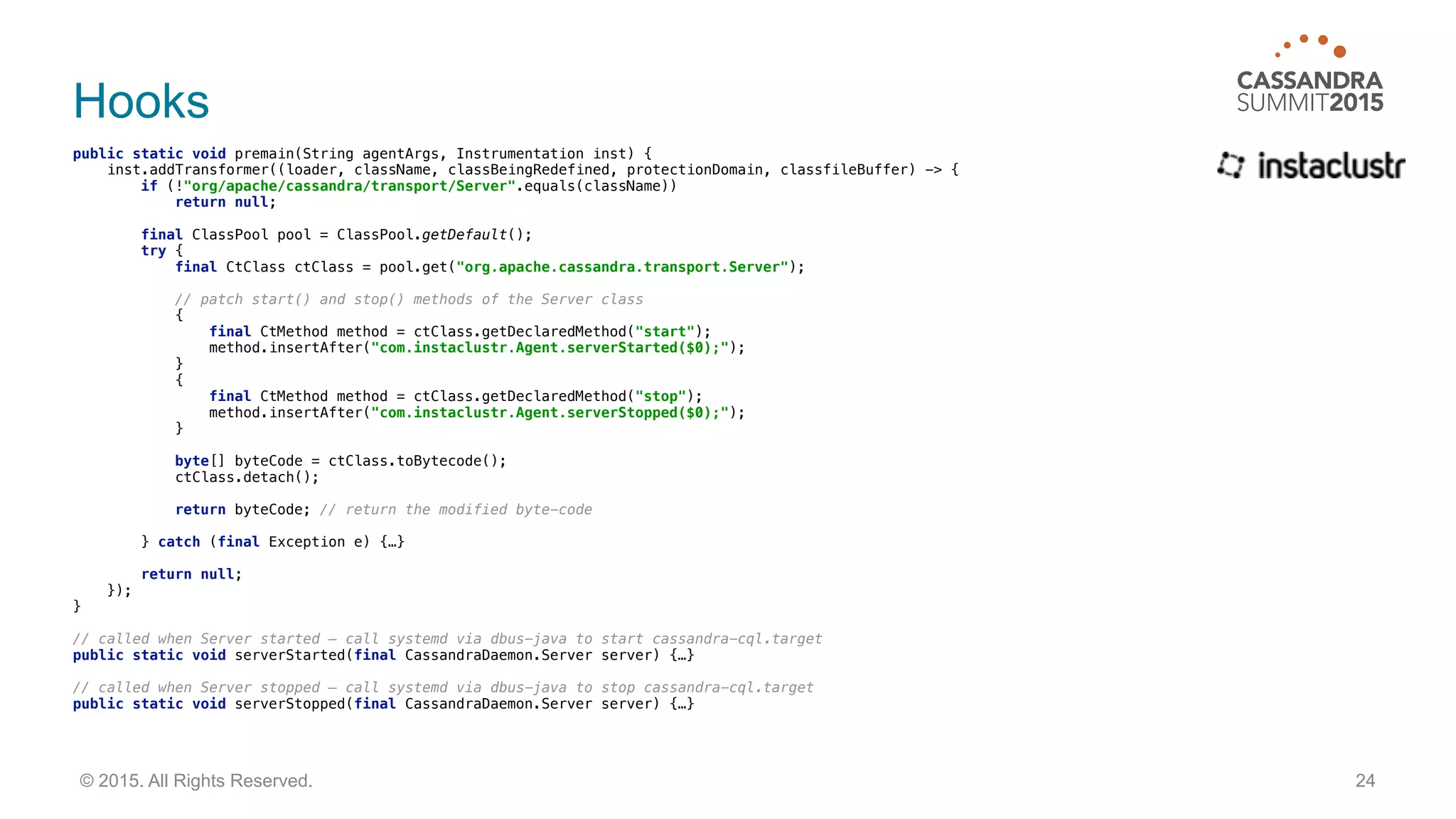

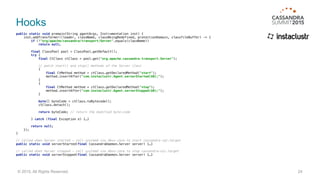

24. Hooks
public static void premain(String agentArgs, Instrumentation inst) {
inst.addTransformer((loader, className, classBeingRedefined, protectionDomain, classfileBuffer) -> {
if (!"org/apache/cassandra/transport/Server".equals(className))
return null;
final ClassPool pool = ClassPool.getDefault();
try {
final CtClass ctClass = pool.get("org.apache.cassandra.transport.Server");
// patch start() and stop() methods of the Server class
{
final CtMethod method = ctClass.getDeclaredMethod("start");
method.insertAfter("com.instaclustr.Agent.serverStarted($0);");
}
{
final CtMethod method = ctClass.getDeclaredMethod("stop");
method.insertAfter("com.instaclustr.Agent.serverStopped($0);");
}
byte[] byteCode = ctClass.toBytecode();
ctClass.detach();
return byteCode; // return the modified byte-code
} catch (final Exception e) {…}
return null;
});
}
// called when Server started — call systemd via dbus-java to start cassandra-cql.target
public static void serverStarted(final CassandraDaemon.Server server) {…}
// called when Server stopped — call systemd via dbus-java to stop cassandra-cql.target
public static void serverStopped(final CassandraDaemon.Server server) {…}
24© 2015. All Rights Reserved.

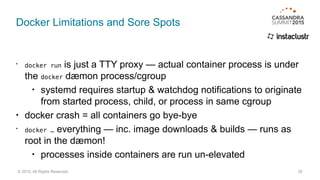

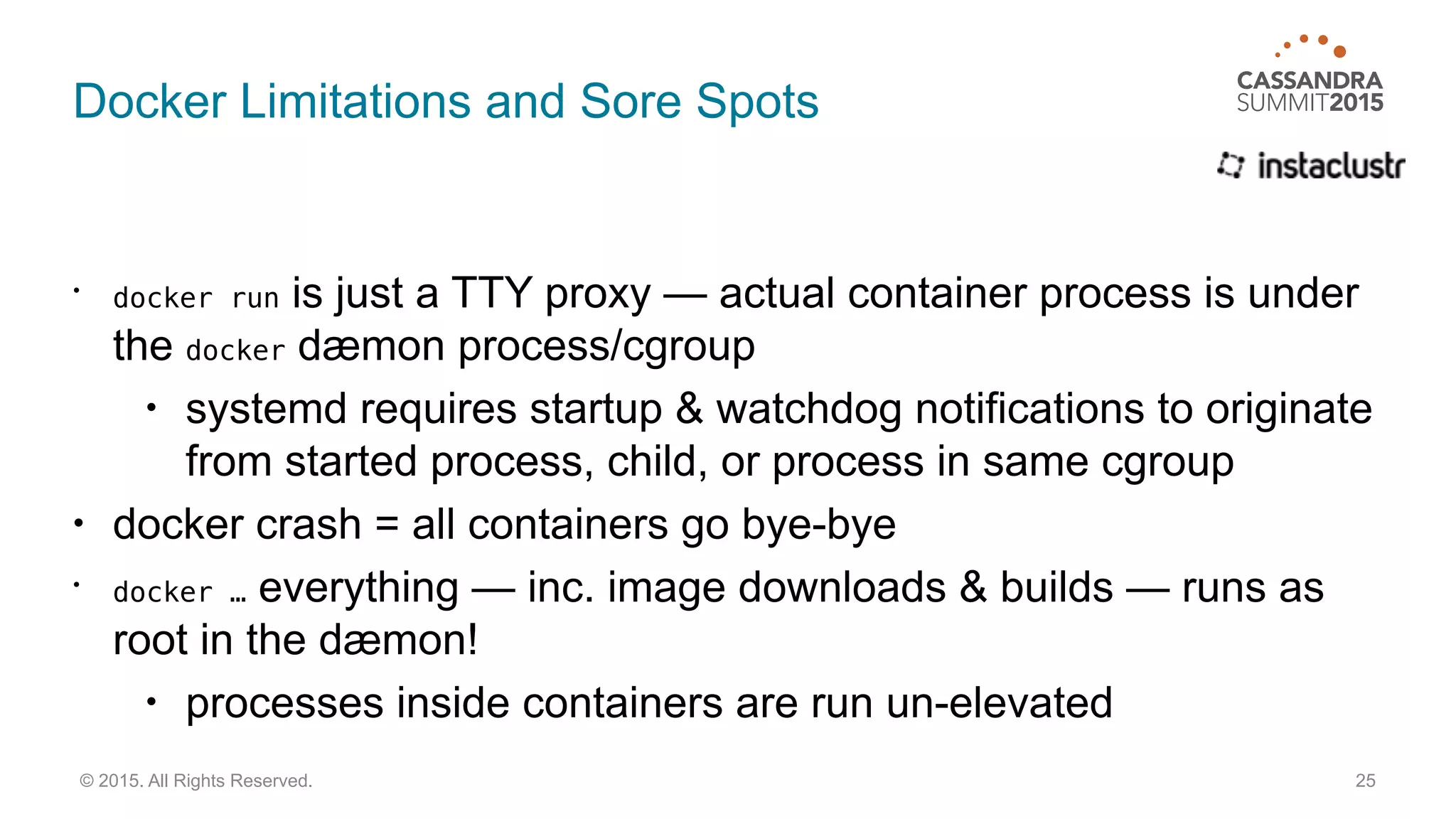

25. Docker Limitations and Sore Spots
• docker run is just a TTY proxy — actual container process is under
the docker dæmon process/cgroup
• systemd requires startup & watchdog notifications to originate
from started process, child, or process in same cgroup
• docker crash = all containers go bye-bye
• docker … everything — inc. image downloads & builds — runs as
root in the dæmon!
• processes inside containers are run un-elevated
25© 2015. All Rights Reserved.

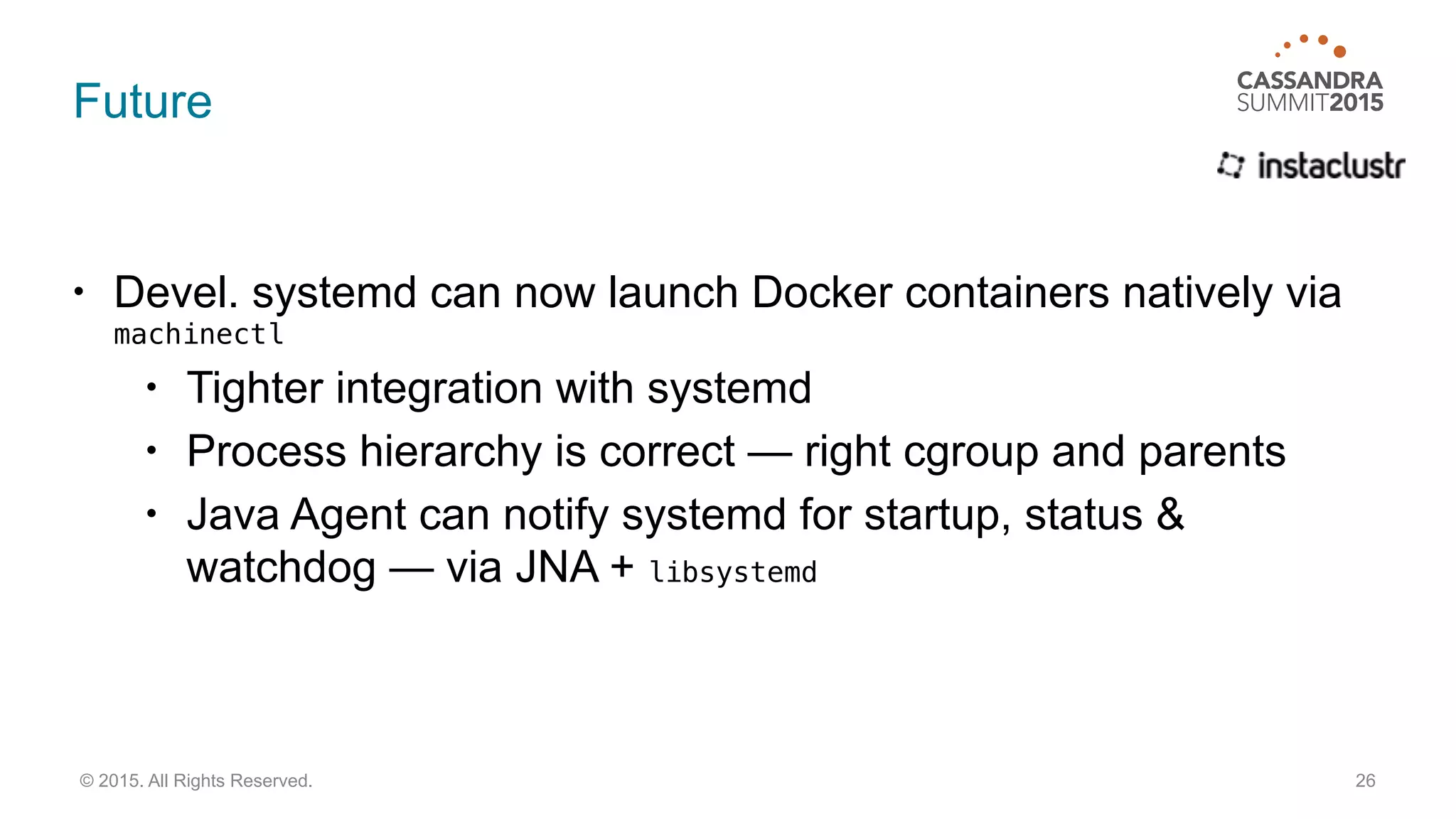

26. Future
• Devel. systemd can now launch Docker containers natively via
machinectl
• Tighter integration with systemd
• Process hierarchy is correct — right cgroup and parents
• Java Agent can notify systemd for startup, status &
watchdog — via JNA + libsystemd
26© 2015. All Rights Reserved.
