The slides contain the basics of triple constraints applied on a case study of polyhouse development as a part of project management practicals.

1. 1
TRIPLE CONSTRAINTS
ON
POLYHOUSE DEVELOPMENT
PROJECT
Group Members:
Darshana Patil 101149
Sayalee Pote 101150
Minal Ugale 101161

2. 2

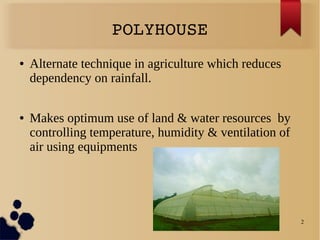

POLYHOUSE
● Alternate technique in agriculture which reduces
dependency on rainfall.
● Makes optimum use of land & water resources by
controlling temperature, humidity & ventilation of
air using equipments

3. 3

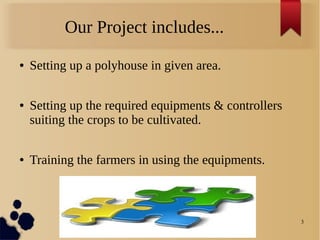

Our Project includes...
● Setting up a polyhouse in given area.
● Setting up the required equipments & controllers
suiting the crops to be cultivated.
● Training the farmers in using the equipments.

4. 4

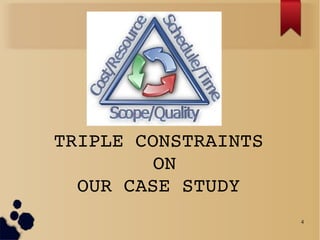

TRIPLE CONSTRAINTS
ON
OUR CASE STUDY

5. 5
TRIPLE CONSTRAINT
Every project is constrained in different ways
by-
● SCOPE
● TIME
● COST
These limitations in project management are known as
triple constraint.

6. 6

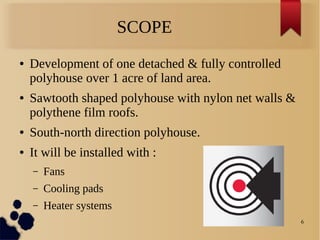

SCOPE
● Development of one detached & fully controlled
polyhouse over 1 acre of land area.
● Sawtooth shaped polyhouse with nylon net walls &
polythene film roofs.
● South-north direction polyhouse.
● It will be installed with :
– Fans
– Cooling pads
– Heater systems

7. 7

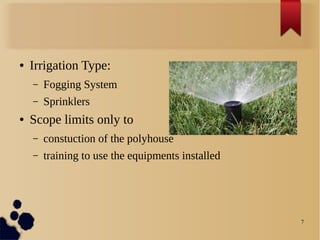

● Irrigation Type:
– Fogging System
– Sprinklers
● Scope limits only to
– constuction of the polyhouse
– training to use the equipments installed

8. 8

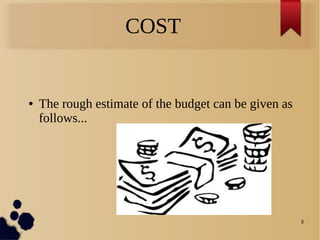

COST
● The rough estimate of the budget can be given as
follows...

9. 9
Cost of Human Resources
Working Staff Amount
Technicians 10,000
Labourers 25,000
Botanist 5,000
Architect 10,000
Agricultural Scientist 5,000

10. 10

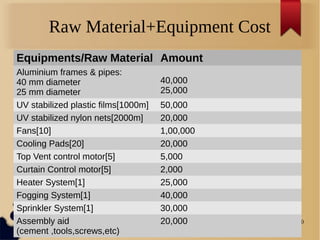

Raw Material+Equipment Cost
Equipments/Raw Material Amount
Aluminium frames & pipes:
40 mm diameter
25 mm diameter
40,000
25,000
UV stabilized plastic films[1000m] 50,000
UV stabilized nylon nets[2000m] 20,000
Fans[10] 1,00,000
Cooling Pads[20] 20,000
Top Vent control motor[5] 5,000
Curtain Control motor[5] 2,000
Heater System[1] 25,000
Fogging System[1] 40,000
Sprinkler System[1] 30,000
Assembly aid
(cement ,tools,screws,etc)
20,000

11. 11

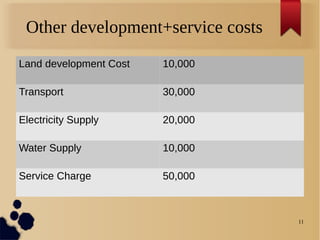

Other development+service costs
Land development Cost 10,000
Transport 30,000
Electricity Supply 20,000
Water Supply 10,000
Service Charge 50,000

12. 12

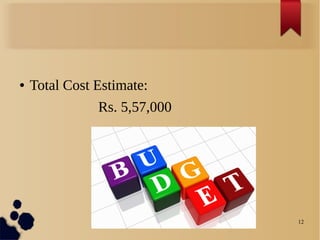

● Total Cost Estimate:
Rs. 5,57,000

13. 13
TIME
● Total Estimate time includes-
– Development 52 days
– Maintenance 30 days
● This time period is roughly divided as follows:

14. 14

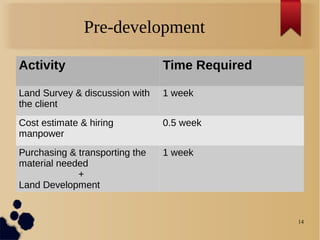

Pre-development
Activity Time Required
Land Survey & discussion with
the client
1 week
Cost estimate & hiring
manpower
0.5 week
Purchasing & transporting the
material needed
+
Land Development
1 week

15. 15

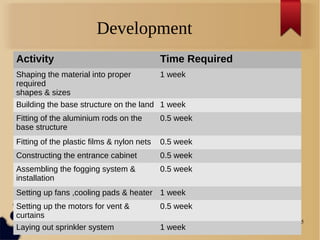

Development
Activity Time Required
Shaping the material into proper
required
shapes & sizes
1 week
Building the base structure on the land 1 week
Fitting of the aluminium rods on the
base structure
0.5 week
Fitting of the plastic films & nylon nets 0.5 week
Constructing the entrance cabinet 0.5 week
Assembling the fogging system &
installation
0.5 week
Setting up fans ,cooling pads & heater 1 week
Setting up the motors for vent &
curtains
0.5 week
Laying out sprinkler system 1 week

16. 16

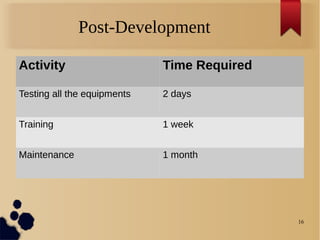

Post-Development
Activity Time Required
Testing all the equipments 2 days
Training 1 week
Maintenance 1 month
